Exploration of COX-Like Activity in Wild-Type gp63 Recombinant Protein from Leishmania mexicana; Identification of Orthologous Proteins in Clinically Significant Parasites, and Investigation of Arachidonic Acid Binding Sites

1. Introduction

Arachidonic acid (AA) is the primary precursor of prostaglandins (PGs) [1]. The release of AA from cellular lipid stores mainly depends on phospholipase A2 [2]. This enzyme hydrolyzes membrane phospholipids, releasing arachidonic acid (AA). Prostaglandin-endoperoxide synthase (PTGS), also known as cyclooxygenases (COX), catalyzes the biosynthesis of prostaglandins and thromboxanes by reducing AA. COX-1 and COX-2, two isoforms of this enzyme, have similar protein structures that catalyze the same reaction [3]. The difference between the two enzymes is that COX-1 is constitutive; it is part of the homeostatic maintenance of various processes in the human body in most tissues. In comparison, COX-2 is inducible and expressed during inflammatory processes [4].

The COX/PG metabolic axis is one of the most characterized factors in the pathophysiology of host-parasite relationships since it influences the modulation of the immune response. However, the role of the COX/PG axis of parasitic origin during the disease has yet to be thoroughly studied. E. histolytica was the first pathogen in which COX-like activity was reported [5]. α-actinin is the protein identified as responsible for COX-like activity in this parasite. Recent reports have documented the role of this amoebic enzyme and PGE2 in the disorganization of the tight junctions of the intestinal epithelium, contributing to the loss of intestinal barrier function and, thus, the occurrence of diarrhea [6]. Recently, our group reported that gp63 from L. mexicana (Lmxgp63) is responsible for COX activity [7]. Various molecular factors contribute to the virulence and pathogenicity of Leishmania spp. Among these factors, the major surface glycoprotein is highly relevant. Several names have been used interchangeably to describe this glycoprotein. The most used name, gp63, is derived from the 63 kDa glycoprotein, although isoforms with different masses have been found [8]. Leishmanolysin (EC3.4.24.36) was chosen from the IUBMB enzyme nomenclature, reflecting its protease activity. Leishmanolysin belongs to the M8 family of metalloendopeptidases. All M8 metalloproteases contain a zinc-binding HEXXH catalytic site motif [9]. Orthologous surface metallopeptidases exist in both T. brucei and T. cruzi, although their function differs from that of leishmanolysin [10,11,12]. Two leishmanolysin homologs are encoded in the E. histolytica genome (EhMSP-1 and EhMSP-2), but only one copy of the gene is present in the commensal organism E. dispar [13]. Current evidence shows that EhMSP-1 regulates adhesion, motility, destruction of the tissue culture monolayer, and phagocytosis [14].

In recent work a monoclonal antibody (D12) was produced by immunizing mice with fractions enriched with the COX-like activity of L. mexicana. Characterization of the antibody showed that D12 recognizes Lmxgp63. Furthermore, immunoprecipitation assays confirmed that Lmxgp63 exhibits COX-like activity in the presence of AA. Cross-antigenicity of this antibody to orthologous gp63 molecules was demonstrated in other parasites using the D12 mAb in confocal microscopy [15]. In this work, we produced recombinant wild type and mutant gp63 proteins from L. mexicana and demonstrated that wild type rLmxgp63 protein possesses COX-like activity. Moreover, the presence of RNA transcripts further supports the existence of orthologous proteins in other parasite species. Structural analyses of the COX-2-like antigen revealed continuous and discontinuous epitopes for B cells that could be relevant to explain the cross-reaction of the D12 mAb with different parasites. In addition to the cross-reaction of the D12 mAb, the presence of COX-type activity was confirmed in soluble fractions of E. histolytica, the free-living amoebae N. fowleri and A. castellanii as well as the trypanosomatid T. cruzi. For this reason, in the present work, we set out to investigate the possible binding site of arachidonic acid to proteins with possible COX-like activity of the parasite species.

2. Materials and Methods

Production of a Mutant without COX Activity: Mutation by Frameshift of the gp63 Gene of L. mexicana

The reading frame of gp63 was shifted in the pPROEX-gp63 vector to obtain a Lmxgp63 protein without COX activity [7]. The histidine tag is linked to the open reading frame (ORF) of the gp63 gene; the NdeI site lies between the histidine tag and the ORF of gp63. The construct, therefore, has a reading frame that is transcribed and translated. Modifications were made in the NdeI restriction site. The plasmid pPROEX-gp63 was cut by the enzyme NdeI and, after that, was purified with phenol-chloroform and precipitated with 1/10 volume 5 M NaCl and 2.5 volumes absolute ethanol. The plasmid was resuspended in 10 mL buffer 2X from the pJET cloning kit (ThermoScientific), plus 7 mL H₂O and 1 mL DNA blunting enzyme and incubated at 70 °C for 5 min, cooled on ice and mixed with 1 µL T4 ligase (5 Weiss units) and 1 µL H₂O. Incubation took place for 30 min at room temperature. Ligations were transformed into E. coli DH5, and the plasmid lacking a NdeI site (pPROEX-gp63fs+2 NdeI) was selected by restriction with each enzyme and verified by automated sequencing.

Induction and Purification of Recombinant Proteins from Leishmania mexicana gp63

E. coli DH5/pPROEX-gp63 (wt) and DH5/pPROEX-gp63fs+2NdeI (mutant) strains were sampled to obtain 5 mL cultures in LB with ampicillin (100 mg/mL). The cultures were incubated overnight at 37 °C. The next day, a 1:100 dilution was prepared in fresh medium (LB/ampicillin 100 mg/mL) and incubated at 37 °C with constant shaking. IPTG at a final concentration of 1 mM was added until the cultures reached an optical density of 0.5 (OD 600 nm). Cultures were stimulated to produce recombinant proteins for 2 h at 37 °C. At the end, cultures were centrifuged at 3,500 xg for 10 min at 4 °C, and supernatants were removed. The pellets resuspended in 300 μL of lysis buffer (10 mM Tris-HCl, pH 7.5, 2 mM EDTA, 0.5 mg/mL Leupeptine, 3 mM N-ethylmaleimide (NEM), 0.5 mg/mL Aprotinin and 1 mM Benzamidine). The pellets were sonicated (10 cycles, 30 seconds of sonication, and 30 seconds of rest at 4 °C). The lysates were centrifuged at 12,000xg for 10 min at 4 °C, containing a soluble fraction (SN) and pellet fraction (P). An aliquot of each sample was resuspended in 4X sample buffer for analysis on SDS-PAGE 10 %. A replicate of this material was processed for Western blot analysis. The membrane was blocked and incubated with a commercially available His-Tag Antibody (dilution 1:1000) (HIS.H8, Santa Cruz Biotechnology Cat # sc-57598). The membrane was incubated overnight at 4 °C. Finally, the membrane was washed extensively with TBST and after 1 h incubation at room temperature with the primary antibody, recombinant proteins (rLmxgp63 wild type or rLmxgp63fs+2NdeI mutant) were detected with a secondary anti-mouse IgG HRP antibody (1:1000, Thermo Fisher Cat # 31430). Development was performed by chemiluminescence using the Perkin-Elmer kit using a Newton 7.0 equipment. Because the recombinant proteins were not detected in the supernatants, the pellets were treated with 0.5 % Triton-X100 in lysis buffer. Then, the samples were centrifuged at high speed, and the supernatants were collected, after that, the supernatants were incubated in Eppendorf tubes with Ni-coupled resin (500 mL/100 µL). The tubes were gently shaken overnight at 4 °C. The next day, they were centrifuged for 20 s at 4 °C and 1,000 xg, and the supernatants were removed. The pellets were washed with 500 mL of wash buffer 1 (50 mM Tris-HCl, pH 7.0, 10 mM NaCl and 10 mM imidazole) and then with 500 mL of wash buffer 2 (50 mM Tris-HCl pH 7.0, 10 mM NaCl and 20 mM of imidazole). The pellets were resuspended in elution buffer (50 mM Tris-HCl pH 7, 10 mM NaCl, and 300 mM imidazole). Finally, a pool of eluates was made according to their origin, and they were dialyzed with 50 mM Tris-HCl pH 7.0, 10 mM NaCl, and 30% glycerol for one day at 4 °C, with three changes to a final volume of 2 L dialysis buffer. Samples were then stored at −70°C until use in COX activity assays. In the case of the Western blot, an aliquot of the two eluates obtained from the affinity columns corresponding to the wild recombinant protein or the mutated recombinant protein was used.

Parasites

Leishmania mexicana (MHO-M/MX/92/UAY68) promastigote cultures were grown according to works previous [7]. The trophozoites of Acanthamoeba castellanii, Entamoeba dispar, Entamoeba invadens, and Naegleria fowleri were donated by Dr. Bibiana Chávez-Munguía. Promastigotes of Trypanosoma cruzi were donated by Biol. Lidia Baylon. Entamoeba histolytica was cultured according to methods previously documented [16].

Obtaining Soluble Fractions from Membrane Components of Various Parasites

Trophozoites were collected at the end of the logarithmic growth phase by centrifugation for 10 min at 1,500 xg and 4 °C. In the case of cysts, cells were centrifugated at 3,500 xg / 7 min. After that, the collected cells were then processed for 8-10 cycles for 1 min each, at full power in a 100-watt ultrasonic processor sonicator in lysis buffer (10 mM Tris-HCl pH 7.5, 2 mM EDTA, 0.5 mg / mL Leupeptin, 3 mM NEM, 0.5 mg / mL Aprotinin and 1 mM Benzamidine). Complete lysis of the parasites was demonstrated under the microscope. The total extracts were centrifuged at 10,000 xg, the supernatants separated, and the pellets resuspended in 1% Nonidet P-40 in the same lysis buffer. The lysates were centrifuged for 30 min at 10,000 xg and 4 °C. The resulting supernatant was separated, aliquoted, and stored at -70 °C until use. Protein concentration was determined using a BCA protein assay (Bio-Rad, Laboraories Inc. DC™ Protein Assay Kit II #5000112).

COX Activity

The samples were analyzed according to the method described previously ​[7]​. Briefly, from supernatants obtained from E. coli DH5/pPROEX-gp63 (wt) and DH5/pPROEX-gp63fs+2NdeI (mutant) with lysis buffer/ 0.5% Triton X-100; as well as soluble fractions obtained from trophozoites of the genus Entamoeba and cysts of E. invadens, the cyclooxygenase (COX) activity was determined using the COX activity kit (Cat. No. 907-003), Enzo Life Sciences, Inc. Farmingdale, New York, USA). The kit uses a specific chemiluminescent substrate to detect the peroxidative activity of the COX enzyme. COX activity is measured by adding AA. The reaction was read on a Fluoroskan Ascent FL Thermo Labsystem.

In Vitro Encystation and Fluorescence Microscopy

E. invadens trophozoites of strain IP-1 were cultured according to previous reports [16]. Trophozoites were collected in the logarithmic growth phase (5 × 10⁵/ml) and transferred to the encystation medium to trigger encystation. Trophozoites, round precysts (20-40 μm), and cysts (10-20 μm) were counted at 24, 48, and 72 h post-induction. Encystation kinetics samples were fixed with 4 % paraformaldehyde for 1 h at room temperature (RT). After three washes with PBS, cells were treated with 10 % bovine serum in PBS for 1 h at 37 °C. Cysts were incubated with 0.01% Calcofluor White M2R (Sigma Chemical, St. Louis, MO) for 60 min at room temperature. This fluorescent dye has a specific affinity for polysaccharides such as chitin. Samples were washed three times with PBS, mounted with Vecta Shield (Vector Laboratories), and observed in a Carl Zeiss LSM 700 confocal microscope. Other samples were treated for immunodetection of gp63. Briefly, cysts were washed three times with PBS and resuspended in 100 µL of PBS; 48 and 72 h samples were subjected to 3 freeze/thaw cycles with N₂ to disrupt the cyst wall. The sample was then treated with 0.5% Triton for 20 min and blocked with 10% fetal bovine serum in PBS for 1 h. Samples were incubated overnight with α-gp63 antibody (CEDARLANE Laboratories Limited, Cat. No. CLP005A, Burlington, Ontario, California) at a 1:50 dilution at 4 °C. The cysts were washed five times with PBS and then incubated for 1 h with the secondary antibody (1:100 dilution of anti-mouse IgG, Alexa Fluor™ 488, Invitrogen), and 1:500 dilution of Hoescht (Chemcruz, Cat. # 33258). After five washes with PBS, the samples were mounted with Vecta Shield (Vector Laboratories) and observed in a Carl Zeiss LSM 700 confocal microscope.

Bioinformatics’ Analysis

Bioinformatic Analyses of Local Alignment Search

The search for proteins homologous to the Lmxgp63 in different parasite species and the analyses of the percentage of identity between these sequences were performed using the BLAST program (https://blast.ncbi.nlm.nih.gov/Blast.cgi) [17].

Data Analysis from RNA-Seq Repositories

Using the Genbank ID or Uniprot ID of gp63 sequences of Entamoeba, Trypanosoma, Leishmania, Naegleria, and Acanthamoeba, we search the sequence in AmoebaDB (amoebadb.org) and TriTrypDB (https://tritrypdb.org).

Search in the Gene Ontology Database

The Gene Ontology Term (GOTerm) information was used to identify predicted functions of each sequence of putative gp63 proteins in each species. We also searched for transcript information for each sequence that could indicate a possible role in the life cycle or pathogenesis if available in the database.

Multiple Alignments

Multiple alignments of the studied sequences were performed using the bioinformatic tool Clustal Omega (https://www.ebi.ac.uk/Tools/msa/clustalo/)​[18]​.

Conserved Domains

The research of conserved domains in the group of proteins similar to L. mexicana gp63 and human and mouse COX2 was carried out using the Pfam database (http://pfam.xfam.org/) ​[19]​.

Phylogenetic Tree

The phylogenetic tree was constructed using the Neighbor-Joining (NJ) method with a bootstrap of 1000 in MEGAX (https://www.megasoftware.net/) ​[20]​.

Comparative Analysis of the Three-Dimensional Structures of L. mexicana gp63 and Proteins with COX-like Activity from Different Protozoan Parasites

To obtain these structures, all our analyzes were based on the 3D structure of Leishmanolysin from L. major (PDB ID: 1LML) since it is the only crystallized structure of Leishmanolysin (gp63) available in databases. Therefore, the three-dimensional structure of Lmxgp63 and the six orthologous proteins were constructed by homology modeling using L. major leishmanolysin (PDB ID: 1LML) as a template with Swiss-Model (https://swissmodel.expasy.org/) [21]. Then, the alignment and superimposition of the three-dimensional structures obtained were performed using the TopMatch web service (https://topmatch.services.came.sbg.ac.at/) [22].

Comparative Analysis of the Amino Acid Sequences of the Proteins with COX-like Activity Bound to the AA Structure

Once again, the new structures were created by homology through the Swiss Model Server. Leishmanolysin (gp63) from L. major (PDB ID: 1LML) was used as a template to obtain the structures of L. mexicana, T. cruzi, E. histolytica, E. dispar, E. invadens, A. castellaniii and N. fowleri. The sequences were obtained from Uniprot with entry numbers Q4DTV2, C4M655, B0ERK0, A0A0A1TW87, L8GQS8, and A0A6A5C651, respectively. Since gp63 is a zinc-dependent metalloprotease, zinc was added to the catalytic site, which was identified by the three histidine residues conserved in all our studied proteins. A similar study with L. major was carried out by Mercado-Camarrgo et al.​[23]​. Energy minimization of each structure was performed using the Yasara server (http://www.yasara.org/minimizationserver.htm), and the structures were used for molecular docking. Both the targets and the ligand (AA) in pdb format were uploaded to the SwissDock server (http://www.swissdock.ch/docking) for molecular docking. The algorithm involves generating multiple binding modes, evaluating binding energies between the target and ligand using a CHARMM-based scoring function, and selecting and clustering the lowest energy. All obtained predictions were selected for the lowest energy (i.e., the most negative value, the Gibbs free energy, ΔG) and then visualized and analyzed using the UCSF chimera package v.1.15 ​[24]​.

Statistical Analysis

All tests were performed in three independent replicates. A one-way ANOVA with the Tukey Post hoc test determined statistical differences between groups. All analyses were made in Graph Pad Prism V 8.0.2.

3. Results

3.1. The gp63 of L. mexicana Is Responsible for CIcloxygenase (COX) like Activity

3.1.1. Obtaining the gp63 Mutant

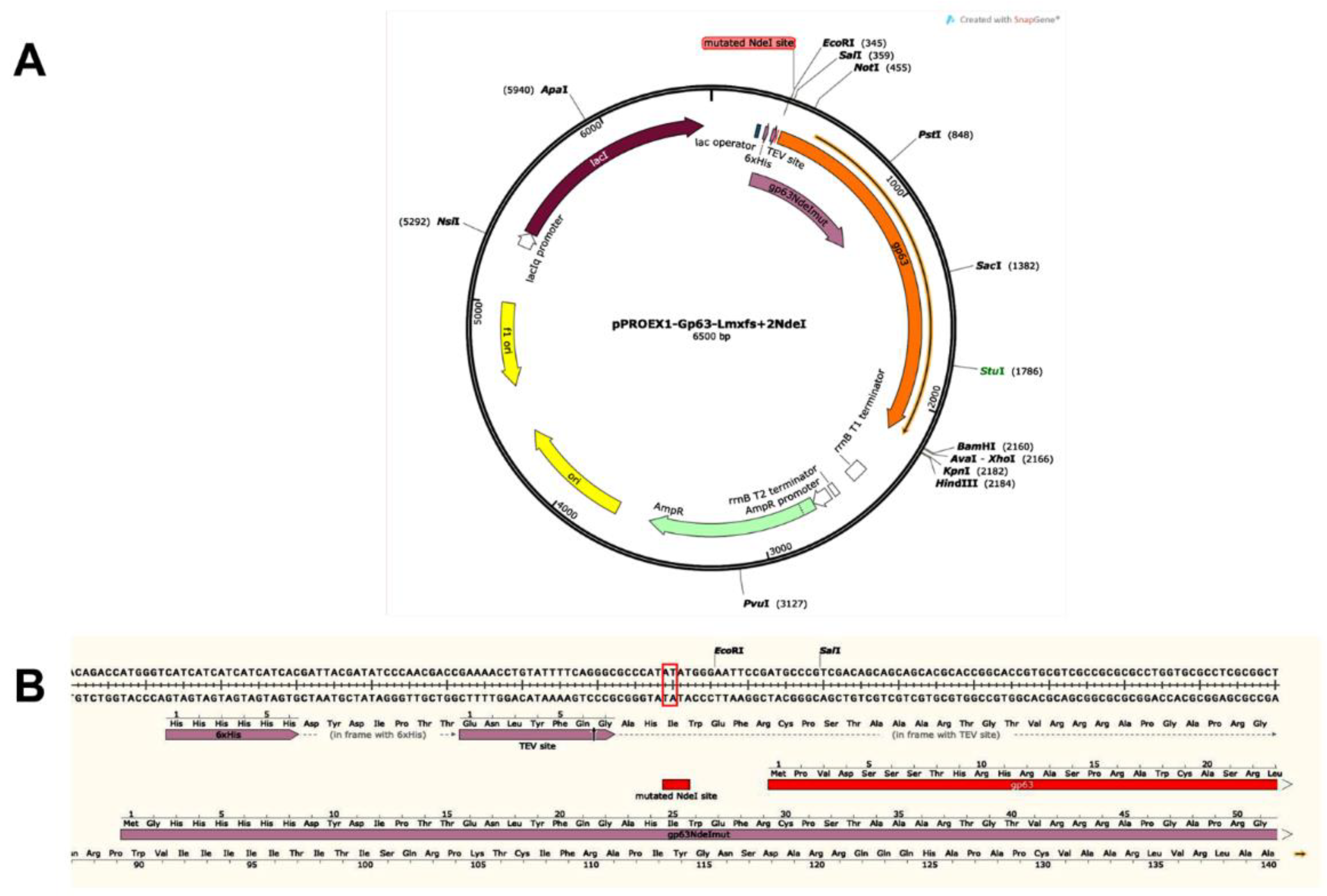

This work reports the production of wild type and frameshift mutation and purification of the recombinant gp63 proteins (rLmxgp63 and rLmxgp63fs+2NdeI) from L. mexicana. To obtain a mutant that does not contain COX activity, the reading frame was shifted to another open reading frame (ORF) of pPROEX-gp63 ​[7]​ (Figure 1A). The NdeI digested plasmid pPROEX-gp63 was subsequently repaired. This NdeI site is unique in the vector and localizes the histidine tag and the start codon of the gp63 gene (Figure 1A). Two insertions in the NdeI site (pPROEX-gp63fs+2NdeI) shifted the reading frame to a position of +2 fs, which was verified by sequencing (Figure 1B red box). DH5 E. coli transformed with the plasmid pPROEX-gp63, or pPROEX-gp63fs+2NdeI, were analyzed. Figure 1C shows the analysis by immunoblotting using the anti-histidine antibody; the arrows indicate the molecular weight of the recombinant proteins, which corresponds to the 66 kDa protein in the case of the wild type (rLmxgp63) and to 29 kDa for the mutant protein (rLmxgp63fs+2NdeI). Since both recombinant proteins were concentrated in inclusion bodies, a solubilization process using Triton X-100 was necessary. The solubilized material was processed on a Ni-coupled resin, and the eluates were analyzed using 15 % SDS-PAGE. Figure 1D shows the protein profile of the recombinant proteins and the detection of the proteins using the anti-histidine antibody.

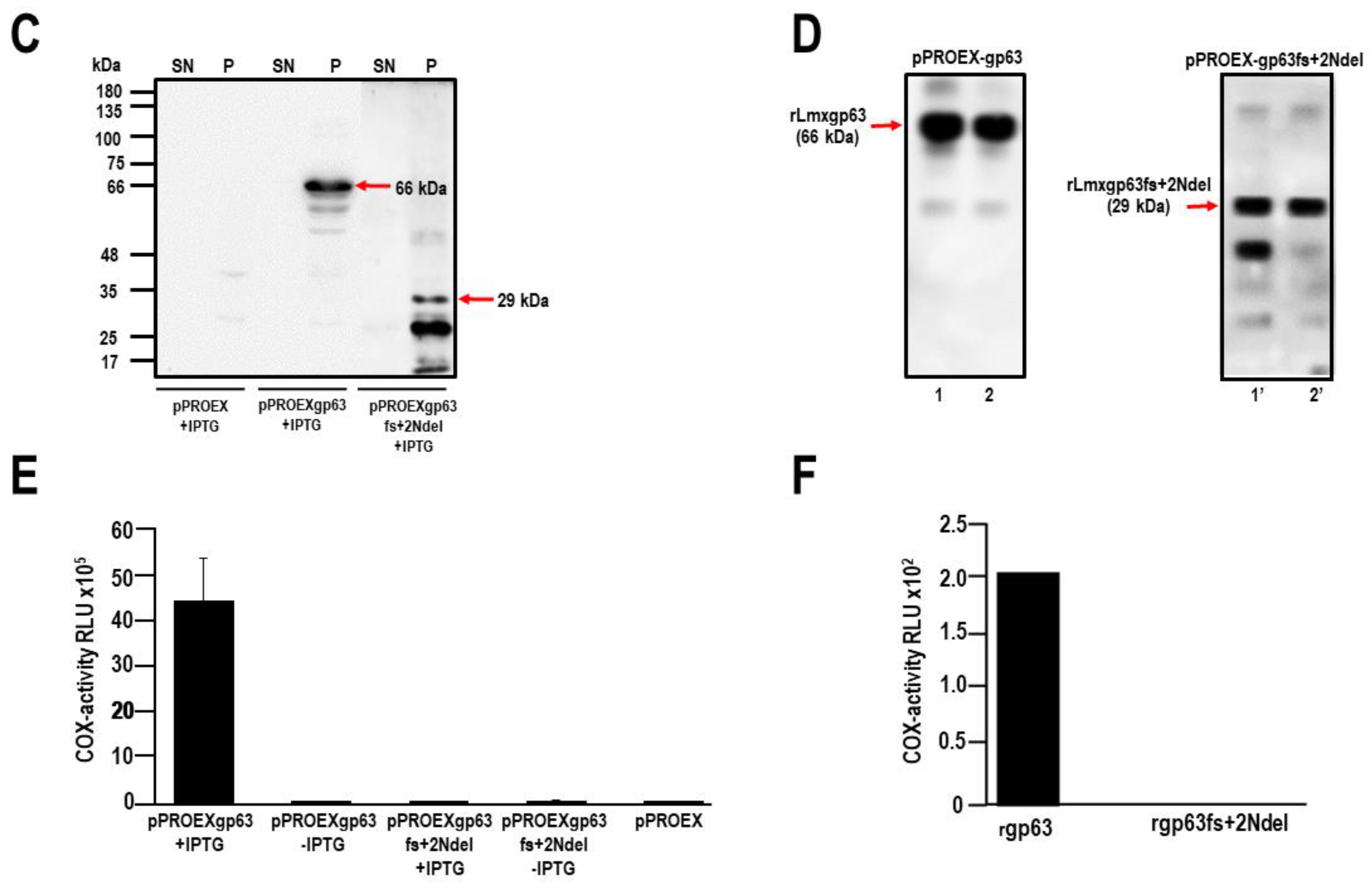

Finally, the COX-like activity in the mutant and wild-type proteins was analyzed. Figure 1E shows the activity detected in the Triton X-100 solubilized fraction of bacteria transformed with the mutant plasmid DH5/pPROEX-gp63fs+2NdeI and with the wild-type plasmid pROEX-gp63, induced or not with IPTG. The soluble fraction of the empty vector was included as a negative control (pPROEX-1). The results obtained under these conditions showed that COX activity is present only in the soluble fraction of the wild-type protein induced with IPTG (Figure 1E). In comparison, the Triton X-100 solubilized fractions obtained from the mutant, non-IPTG controls, and the empty vector showed no enzyme activity. Recombinant proteins, mutant and wild type, were then purified to analyze COX activity further. Figure 1F shows that only rLmxgp63 and not rLmxgp63pPROEXfs+2NdeI, presents COX-like activity. Therefore, thanks to the production and purification of wild-type and mutated recombinant proteins, it was possible to confirm that indeed the gp63 protein is responsible for the cyclooxygenase enzymatic activity.

3.2. Trypanosoma cruzi, Entamoeba histolytica, Entamoeba dispar, Entamoeba invadens, Acanthamoeba castellanii and Naegleria fowleri Contain Proteins Orthologous to gp63 of L. mexicana

3.2.1. Bioformatic Analysis for the Identification of Orthologous Proteins

We have already mentioned in previous work that several parasites exhibit COX activity [15]. As the monoclonal antibody D12 is directed against Lmxgp63 and cross-reacts with other proteins from different species, the presence of conserved discontinuous epitopes presents in each of the gp63 analyzed in this study (T. cruzi, E. histolytica, A. castellanii, and N. fowleri) was established [15]. Lmxgp63 is a zinc-dependent metalloprotease and is considered a molecular factor contributing to the virulence and pathogenesis of Leishmania parasites. This protease is also called MSP, PSP, or leishmanolysin [25]. Therefore, the next approach was to perform a bioinformatic analysis to look for the presence of orthologues proteins to Lmxgp63 in the different parasites included in this study. To carry out a preliminary search for similarity between proteins from various parasites with Lmxgp63, a local alignment bioinformatic analysis (BLAST) was performed. Table 1 shows the identified orthologous proteins to gp63 in the different parasites. Two other species of the genus Entamoeba, E. dispar, which has reduced virulence properties, as well as E. invadens, since it is the only species that can form cysts in vitro, were also included. The identity percentage of the L. mexicana gp63 and the different sequences varies between 37.86% and 25.81%. The highest percentage of identity was found for T. cruzi (XP_817808.1) and the lowest percentage for E. dispar (XP001740726.1). In the case of E. invadens, E. dispar, and N. fowleri, the proteins are considered hypothetical proteins; those of T. cruzi and E. histolytica are gp63 cell surface proteases; and A. castellanii gp63 is a putative leishmanolysin.

Hypothetical proteins are proteins predicted from nucleic acid sequences and whose existence has not been proven. In the case of identified putative proteins in the genome, there is no evidence of the function of these proteins. In both cases it was decided to perform a BLAST transcript analysis of these proteins in RNA-seq groups of the different parasites analyzed. Figure 2 shows that except for A. castellanii, it was not possible to detect the existence of mRNA for the putative leishmanolysin proteins identified by BLAST. Previously, we reported that the D12 mAb recognizes epitopes on A. castellanii and N. fowlleri trophozoites, and this antibody has been shown to recognize discontinuous epitopes from L. mexicana gp63 [15]. These results indicate the existence of orthologous proteins of the various parasites analyzed, to gp63 of L. mexicana.

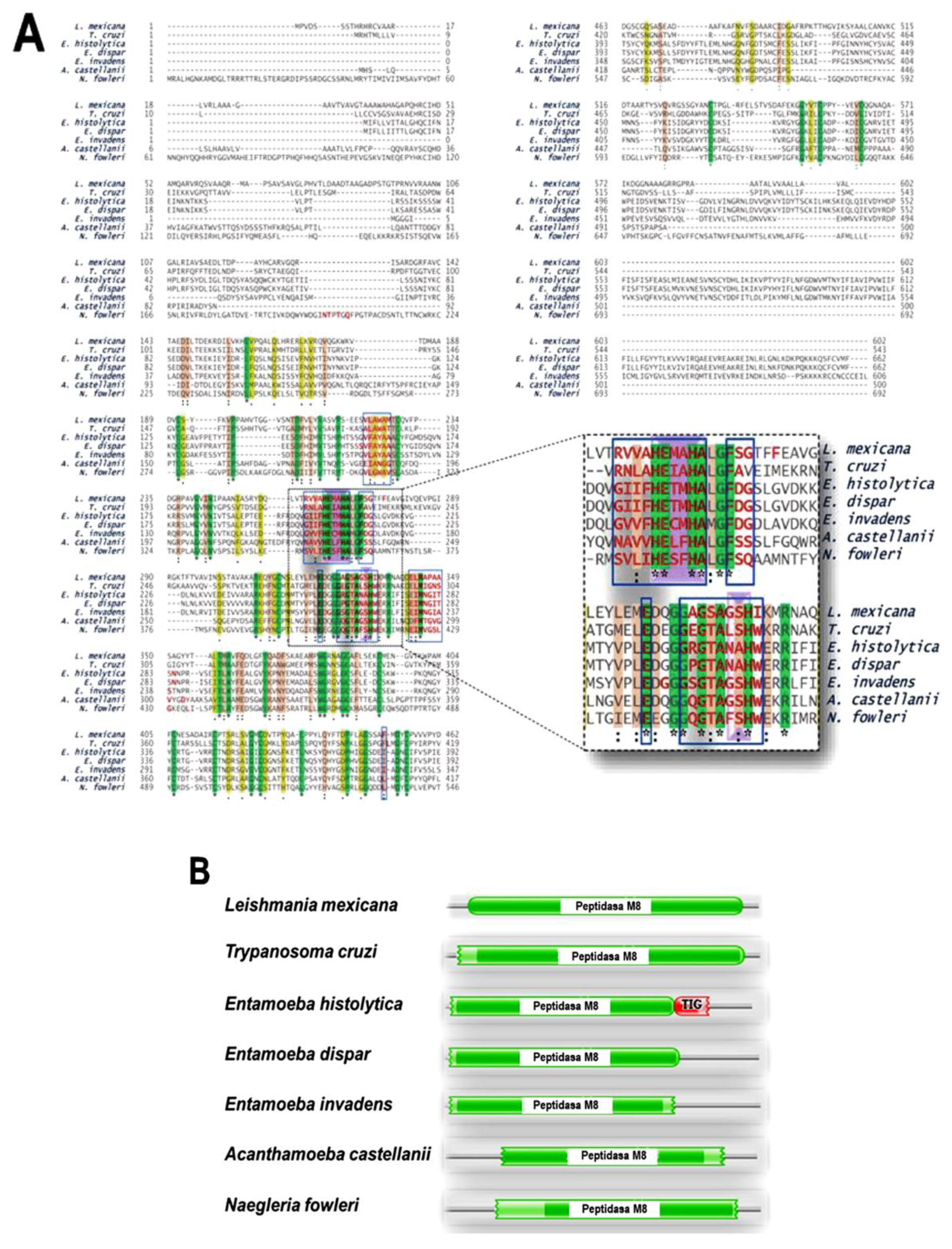

Therefore, to establish a possible functional relationship between orthologous proteins with gp63, a multiple alignment was performed. Figure 3A shows the alignment of the protein sequences of each parasite. The catalytic site region is indicated on a purple background, and the HExxHAxGF motif, which is conserved across the 7 proteins analyzed, can be seen. The sequences of the candidate proteins were examined using the Pfam database to determine the presence of functional domains like the L. mexicana gp63 (Figure 3B). The results confirmed that all analyzed sequences share the same domain of the M8 peptidase family. This domain was reported to be present in L. mexicana gp63 [25]. This enzyme is found in eukaryotes, including Leishmania and other protozoan parasites. A domain of the Transcription Factor Immunoglobin (TIG) family, called IPT/TIG, was identified in the E. histolytica protein. This domain is characterized by a fold like that of immunoglobulin and is found in tyrosine kinase receptors such as Met and Ron receptors. In addition, this domain is also present in transcription factors involved in DNA binding [26] (Figure 3B).

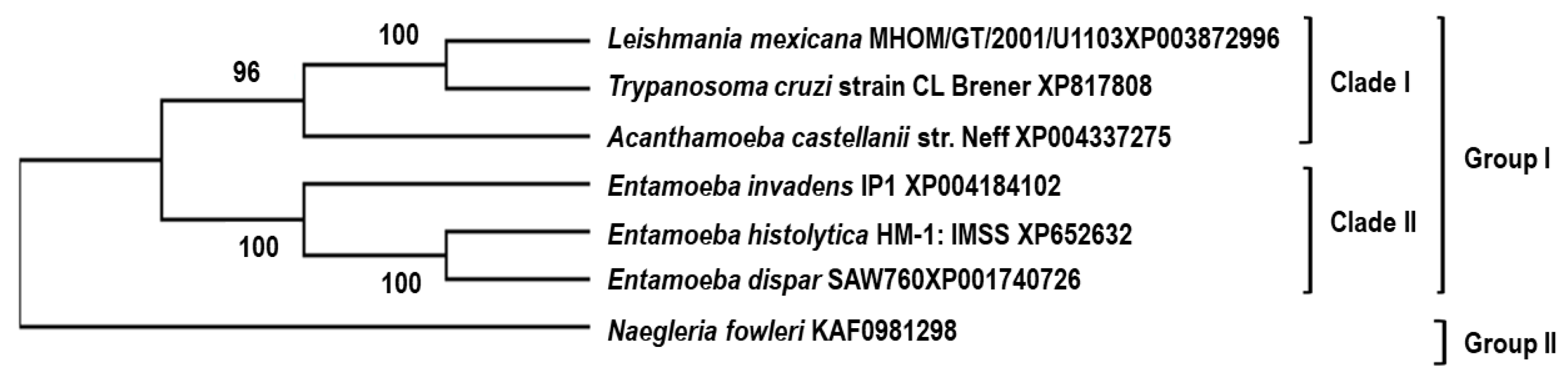

A phylogenetic tree was constructed to infer the evolutionary history of the studied proteins, using the gp63 protein from L. mexicana and the orthologous proteins of the six protozoa species. Figure 4 shows an ancestral relationship between the sequences of L. mexicana and the proteins orthologous to gp63 of T. cruzi; thus, these two taxa are the most closely related. The next closest related taxon is A. castellanii, which shares an internal node with the mentioned taxa. Concerning the genus Entamoeba, the COX-like activity sequence of E. histolytica is preferentially linked to a node within A. castellanii. Finally, the N. fowleri sequence is phylogenetically related to an internal node of A. castellanii.

3.3. Orthologous Proteins Have Characteristics of Metalloproteinases

3.3.1. Ontology of Genes Orthologous to gp63 of L. mexicana

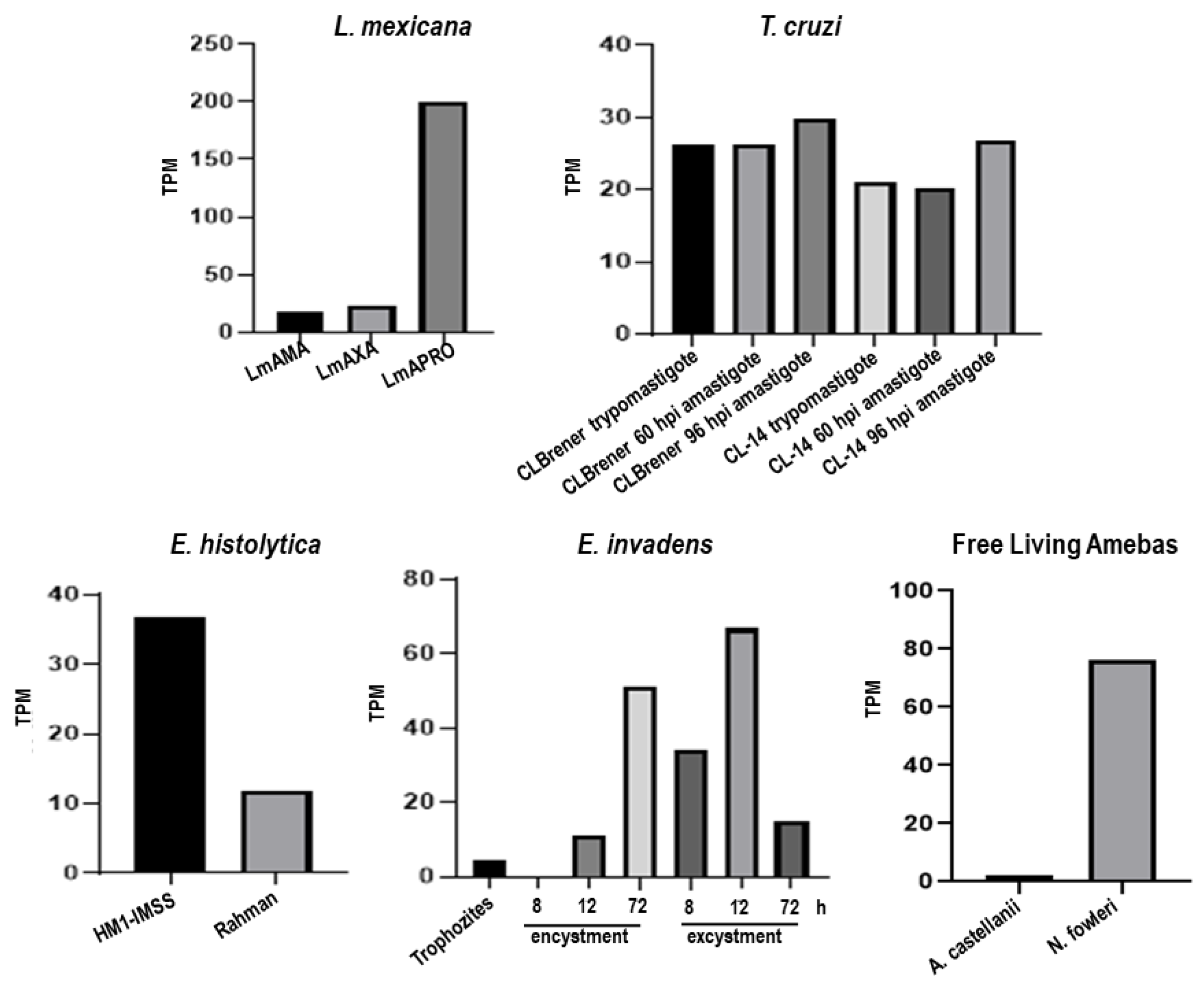

In addition, the sequences and predicted functions of proteins orthologous to Leishmania gp63 were analyzed using AmoebaDB for Amoeba species or TriTrypDB for trypanosomatids. Each sequence used in this work was identified in the database. The primary molecular function identified for each sequence of E. histolytica, T. cruzi, L. mexicana, E. dispar, E invadens, A. castellanii, and N. fowleri was the metalloendopeptidase activity (GOTerm: GO: 0004222). The GOTERM for proteolysis (GO: 0006508) and cell adhesion (GO: 0007155) were also proposed for each sequence. A characteristic feature of metalloproteinase proteins is the need to bind zinc for their enzymatic activity. This function is presented as metal ion binding (GOTERM: GO: 0046872) in both L. mexicana and T. cruzi; only E. histolytica of the amoeba species has the GOTERM for zinc ion binding (GO: 0008270). The GOTERMs assigned for each sequence are listed in Table 2.

These results suggest that each sequence is a gp63-like protein, although only three of them have gp63 in their name entry: E. histolytica, T. cruzi, and L. mexicana. The others include hypothetical proteins with this name (E. dispar and E. invadens), a putative leishmanolysin (A. castellanii), and a metalloendopeptidase zinc ion binding protein (N. fowleri).

3.4. The gp63 of L. mexicana, and the Orthologous Proteins Present in T. cruzi, Entamoeba histolytica, Entamoeba dispar, E. invadens, A. castellanii, and N. fowleri, Have a Probable Binding Site for Arachidonic Acid

3.4.1. Conformational Analysis of gp63

The 3D analysis performed with TopMach-web is a computational tool used to analyze protein structure alignments [22]. Since the crystallized structure of gp63 from L. mexicana has yet to be reported, the 3D structure was modeled using the leishmanolysin of L. major (PDB ID: 1LML) as a template using SWISS-MODEL. To proceed with the identity analyses between leishmanolysin from L. major and L. mexicana, the structural similarity between these two molecules was determined. Supplementary Figure S1Aa shows the overlay corresponding to the 3D molecules; structurally equivalent parts of the proteins appear in red. The BLAST analysis showed 81.06% of identity between the sequences of L. major and L. mexicana gp63 proteins, with a coverage of 97% (SF1Ab). Supplementary Figure S1B shows a detailed comparison, both structural (1, 2, and 3 upper panels) and sequences (1‘, 2‘, and 3’ lower panels), between these two proteins. Similar structures that consist of highly conserved amino acid sequences are shown in white that correspond to the region between residues 109-209 (SF1B 1,1´); the region between residues 419-489 (SF1B 2,2´), and the region between residues 509-569 (SF1B 3,3´). In the three figures, red regions correspond to structures that are similar with low identity, and in green the structures that are not shared.

This result is consistent with data obtained from the analysis of the crystallized structure of PDB ID: 1LML from L. major with the leishmanolysin sequence (UniProt ID A0A088RJX7) from L. panamensis [23]. Therefore, leishmanolysin of L. mexicana is orthologous to gp63 from L. major. Then, the proteins of all parasites modeled in SWISS-MODEL were included in this analysis.

Having established the identity between Leishmanolysin of L. major and gp63 of L. mexicana, it was decided to analyze the 3D structure of the orthologous proteins using Leishmanolysin of L. major (PDB ID: 1LML) as a template.

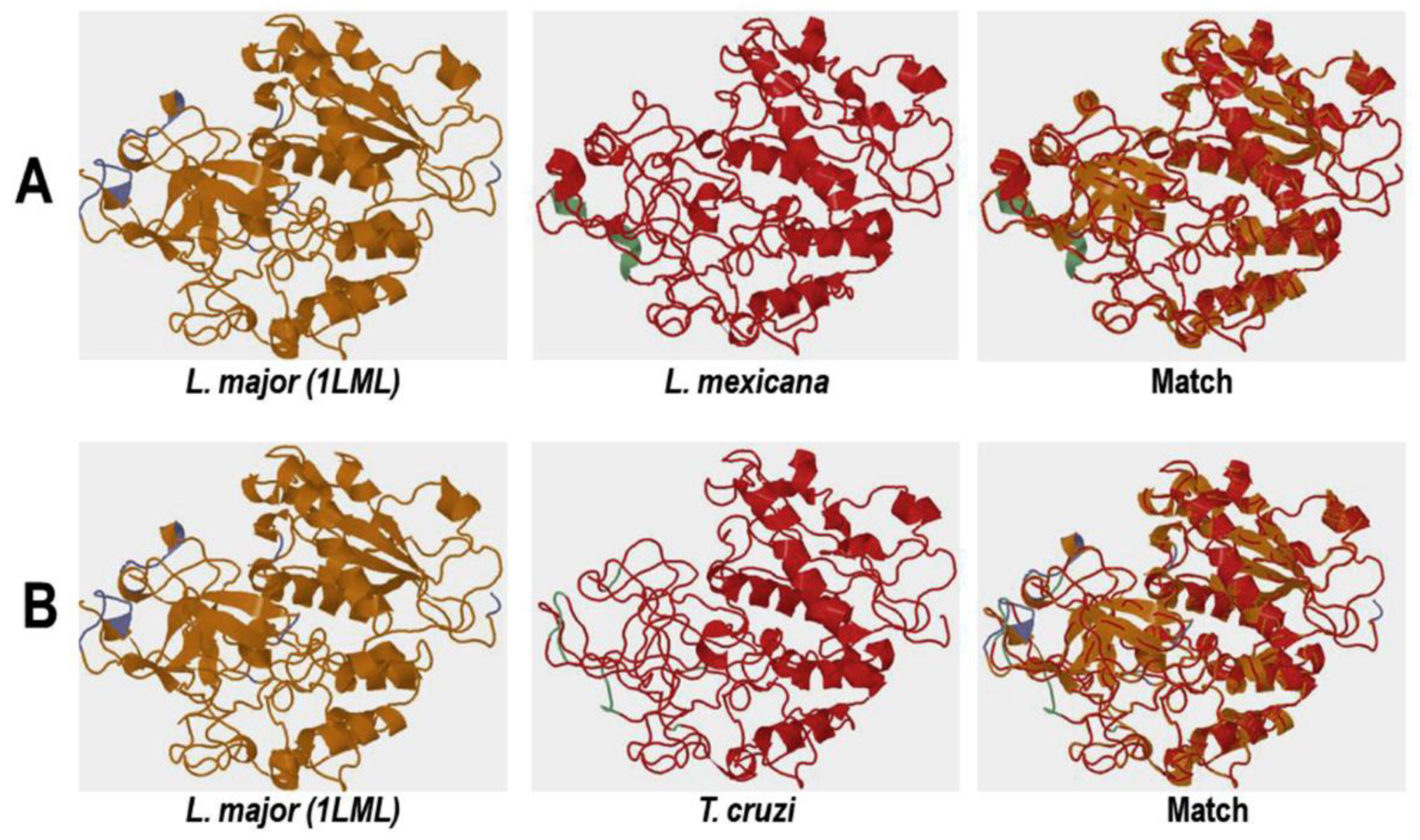

Figure 5A shows the 3D structural models of L. major Leishmanolysin (left panel) and L. mexicana gp63 (middle panel) and their overlay (Match). As shown in the matchboxes, the structures observed in orange and red correspond to the structurally aligned residues, with the structure shown in orange representing the query protein and those in red representing the target protein. Structures in green or blue correspond to unaligned residues of the query and target proteins, respectively. A high similarity was also observed when the same analysis was performed, now between L. major leishmanolysin and orthologous protein of T. cruzi (Figure 5B) of Entamoeba sp. (Figure 5C), and free-living amoebae (Figure 5D).

The values obtained by the analysis with TopMatch-web show that the analyzed structural models are very similar regarding the structure of L. major gp63 since the value of aligned residues (Length) and the measurement of aligned residues (Score) were very similar (Table 3). The root mean square deviation (RMS), which determines the distance of the overlapping residues of aligned structures, was between 0.44 and 0.79. Therefore, these results suggest that the query and target sequences are similar. For the L. mexicana gp63 protein, superimposing the three-dimensional structure with the structure of the 1LML protein gives an RMS value of 0.07, as shown in Table 3, since they belong to the same genus. Furthermore, their amino acid sequence alignment showed 81% identity (SI % value, Table 3).

3.4.2. Molecular Docking Analysis

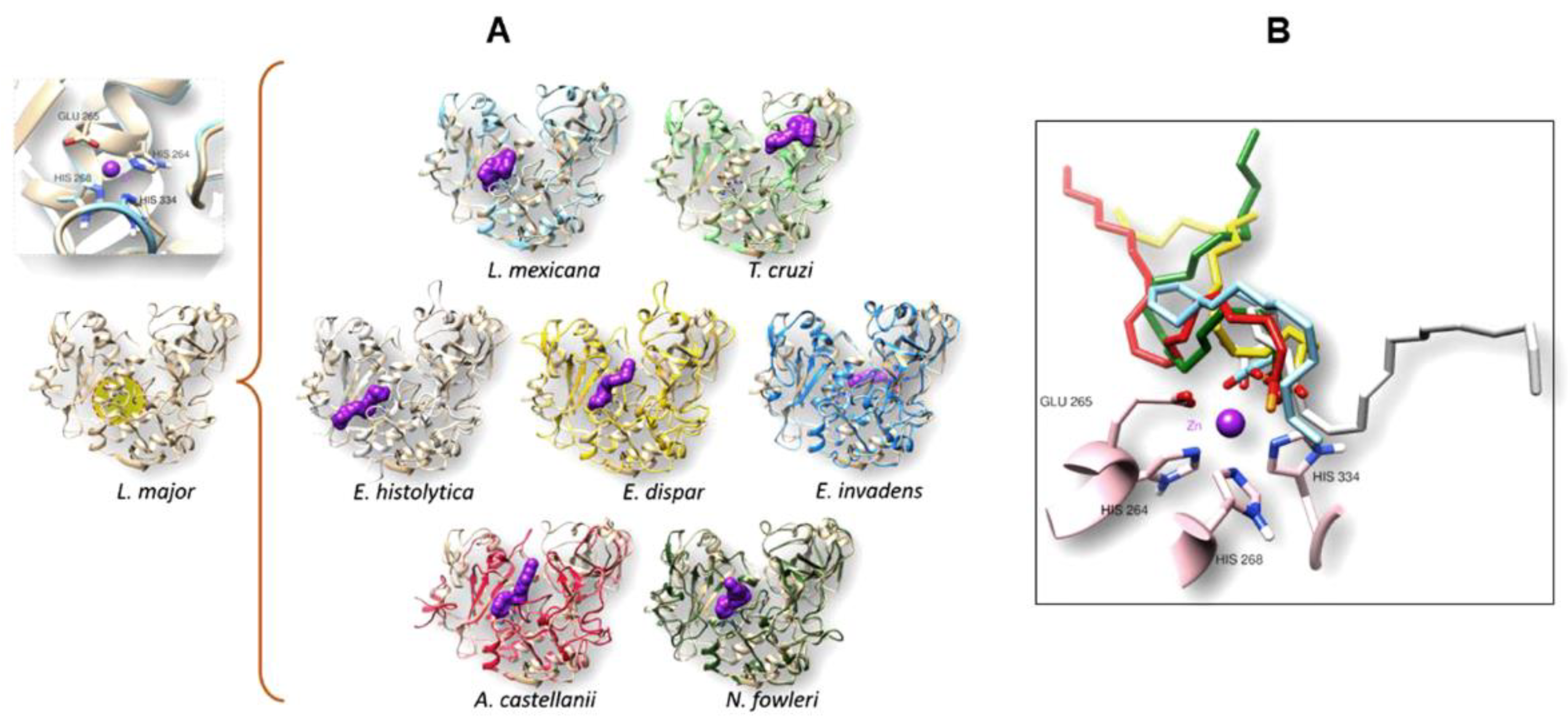

After confirming the similarity among all the analyzed orthologues proteins with L. major leishmanolysin, a molecular docking analysis was performed to analyze the likely binding site for the AA in these structures. Figure 6A shows in the left panel, the 3D structure of leishmanolysin from L. major at the bottom and its catalytic site (Figure 6B). The middle panel shows the result of the molecular docking of AA to the different structures of the orthologues to gp63 of L. mexicana of the different parasites analyzed. Applying the algorithm used by SwissDock, AA (shown in purple) was found to have a preferential affinity toward the catalytic site in most molecular targets, except for T. cruzi and E. invadens, where the affinity occurred at a non-catalytic site. Although the amino acids of the histidine triad along with the glutamic acid are present in the motif (HExxHAxGF) (Figure 3A), most likely, the presence of the other amino acid residues in the area surrounding the motif creates a conformation that changes the nature and affinity of the histidine triad catalytic site for AA. The rightmost panel (Figure 6B) shows a close-up of the interaction between the catalytic site and the position occupied by the AA in each protein that maintains their affinity. The three histidine and glutamic acid are observed together with the zinc atom.

We can also observe that each AA (shown in color depending on the protein under study) took a different arrangement due to the high degree of freedom of the polyunsaturated hydrocarbon chain. However, the orientation of the carboxylic acid of the AA molecules is toward the zinc atom, forming hydrogen bonds to histidine. The types of interactions found in the molecular docking of AA to each of the analyzed proteins are described in detail below. Figure 7 shows the interaction of AA with the catalytic site and the interaction of the zinc atom with the carboxylic acid of AA for L. mexicana, E. histolytica, E. dispar, A. castellanii, and N. fowleri (highlighted images with thick border). It also depicts hydrogen bonding interactions with HIS264, HIS206, and HIS267 for L. mexicana, E. histolytica, and E. dispar, respectively. In the case of T. cruzi and E. invadens, the AA was in a pocket distant from the catalytic site, and only T. cruzi showed hydrogen bonds with ARG416 and TYR379. In both A. castellanii and N. fowleri, AA also interacted with the catalytic site. However, no hydrogen bonds with histidine residues of the catalytic site were detected with the algorithm used in this study, and the interactions they did show were predominantly hydrophobic.

Likewise, it is important to mention that the binding energy found in both organisms was one of the most favorable (Table 4). Finally, Table 4 summarizes the main observed interactions between AA and the modeled proteins, and the hydrogen positions found. In addition to the triad of histidine residues forming the catalytic site, the presence of glutamic acid was also preserved. Interestingly, the two modeled proteins from T. cruzi and E. invadens have less preferred binding energies than those interacting with the catalytic site.

3.5. The Entamoeba genus Contains a COX-like Activity Which Is Present during the Encystment Process of E. invadens

3.5.1. Determination of COX Activity from Soluble Fractions of E. histolytica, E. dispar and E. invadens, Using Exogenous AA and the Commercial COX Activity Kit

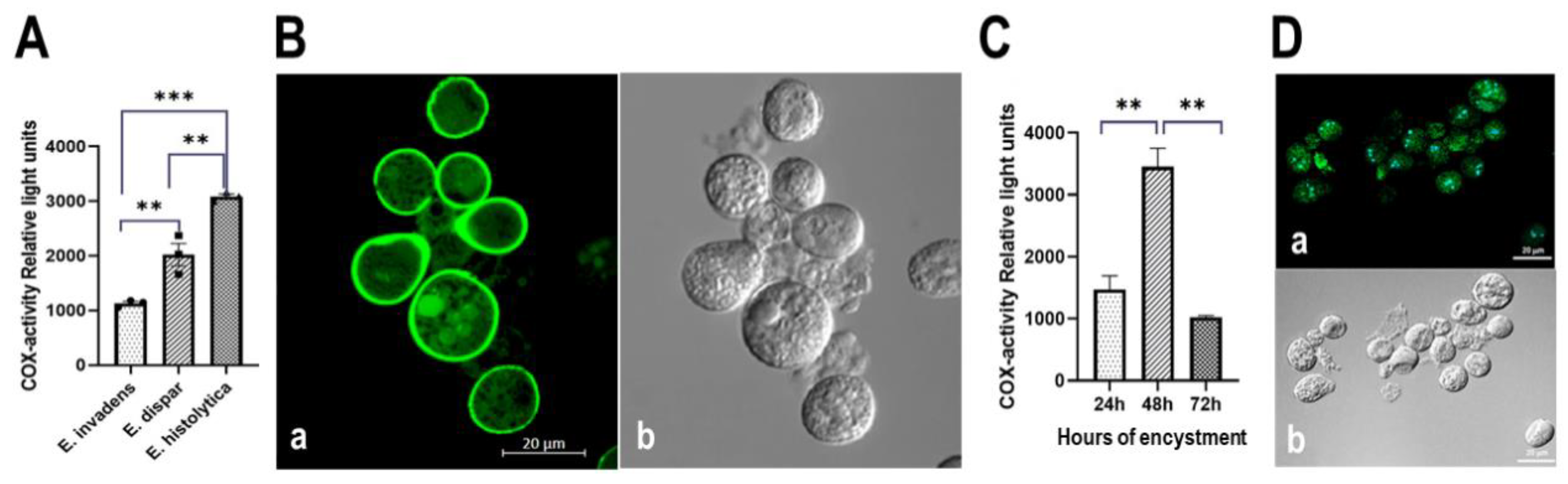

The presence of COX-like activity has been reported in the promastigote and amastigote forms of L. mexicana [7]. Therefore, the possibility of a COX-like involvement in the life cycle of parasites could be conceivable. In this context, E. invadens was included in this study because, under culture conditions, it is possible to maintain the two phases of the cell cycle: the cyst and the trophozoites. Therefore, COX activity was first determined with the commercial kit, using exogenous AA in the supernatants extracted from the different extracts of trophozoites of the genus Entamoeba. Figure 8A shows COX-like activity in E. histolytica, E. dispar, and E. invadens. The results obtained show that all species have COX activity. Assays were performed with normalized protein concentration, using a final 50 mg/25 mL concentration when analyzing COX activity. Therefore, we propose that E. histolytica exhibits the highest COX activity compared to E. dispar and E. invadens under these conditions.

3.5.2. Detection of COX Activity during the Encystment of E. invadens Trophozoites

After confirming that E. invadens has COX activity, we induced encysting trophozoites to purify cysts at various points of the process. Figure 8Ba shows an aliquot of cysts analyzed with calcofluor using confocal microscopy. This compound binds to chitin, a carbohydrate located in the cyst wall (48 h after cyst induction). Figure 4Bb shows the purity of the sample by DIC using confocal microscopy. A replicate of this material was analyzed, and figure 8C shows the presence of COX activity during encystation kinetics, demonstrating a maximum activity at 48 h post-induction. In addition, immunofluorescence analysis was performed during the encystment process of E. invadens, using the commercial monoclonal antibody anti-gp63 from L. major. Although cross reaction with this antibody occurs early after induction of encystation (24 h), figure 8D shows the cross-reaction after 48 h after of encystment (Figure 8Da), when the highest amount of the antigen was detected. At 24 h, only a few cells were recognized by the antibody. The recognition pattern remained until 72 h (data not shown), strongly suggesting the presence of gp63 in cysts. DIC was used to confirm the purification process of the cysts (Figure 8Db).

4. Discussion

Eicosanoids are active lipid products often derived from arachidonic acid (AA). They are produced primarily via several enzymatic pathways, including cyclooxygenases (COX), lipoxygenases (LOX), and cytochrome P-450 epoxygenase (CYP450). Alternatively, a small proportion of eicosanoids are formed by autoxidation of AA ​​[27]​. In recent years, research has focused on the role played by the COX/PG axis in parasites during the pathogenic processes and life cycles of these organisms. Parasites have the necessary machinery to synthesize eicosanoids; however, few reports document cyclooxygenase activity in protozoa. In this context, the only description of both a COX-like activity and the role of prostaglandins in the pathogenicity process was reported in the protozoan parasite E. histolytica ​[5,6]​. In the case of Leishmania, it was documented that it can metabolize AA to prostaglandins using cyclooxygenase (COX) activity ​[7]​. In this context, it has just been published that other parasites could also have this activity ​​[15]​. In​ this work, it is now demonstrated that a gp63 mutant protein from L. mexicana lacking the catalytic active site of the protease is unable to process arachidonic acid, the substrate of COX activity. In addition, by bioinformatics analysis, we report that medically important parasites possess hypothetical proteins orthologous to L. mexicana gp63. This is the case for E. dispar, E. invadens and N. fowleri, whereas a putative orthologous protein was identified in A. castellanii. In contrast, in T. cruzi and E. histolytica, Tcgp63-I and EhMSP-2 respectively, were identified as orthologous proteins with identity to L. mexicana gp63. T. cruzi was shown to possess ten or more gp63 or gp63-like genes, as in most Leishmania spp. Two of these groups, Tcgp63-I and -II, are present as high-copy number genes. Tcgp63-I encodes surface proteins attached to the membrane through a GPI anchor, with a molecular weight of ~78 kDa, which are differentially expressed during the life cycle of the parasite. In contrast, the Tcgp63-II group is barely expressed. Both Tcgp63 and gp63 from Leishmania spp have the consensus sequence for the zinc-binding site, a region associated with metalloprotease activity (Figure 3 A). Likewise, the most critical residues for the catalytic activity, both His and Glu in the HEXXH motif, are completely conserved in the Tcgp63-I and Tcgp63 II groups [11,28,29]. To identify which of the proteins (Tcgp63-I and Tcgp63 II) was the orthologous protein, blast analysis was performed using Tcgp63-I and Tcgp63-II as target sequences and the L. mexicana gp63 as the query sequence. The result showed that the identified protein (XP_817808.1, Table 1) had 76.94% to 78.4% identity with proteins belonging to the "a" and "b" members, respectively, of the Tcgp63-I group (data not shown). A possible involvement of the orthologous enzyme gp63 in the life cycle of this trypanosomatid should be investigated in future work, with particular emphasis on the AA binding site, which was theoretically established in T. cruzi by hydrogen bonding with TYR379 and ARG416 (Table 4). This analysis may be essential to correlate COX activity with the life cycle of this parasite. In the case of E. histolytica, the genome has been documented to contain two homologs of the leishmanolysin metalloprotease gene, E. histolytica MSP-1 and MSP-2. The nomenclature of this leishmanolysin corresponds to EhMSP-1 and EhMSP-2 ​ ​[14]​ ​ (NCBI GeneID: numbers 3409717 and 3406949, respectively); while the commensal amoeba E. dispar lost EhMSP-1. By searching for the products of these genes and comparing them with the orthologous sequence identified in the study (XP_652632.1, Table 1), we confirm that the orthologous protein corresponds to EhMSP-2. Recent studies have shown that EhMSP-1 is involved in the regulation of amoeba adhesion, with additional effects on cell motility, disruption of cell monolayer, and phagocytosis [14]. More recently, the underlying mechanisms of adhesion and altered motility in EhMSP-1 deficient trophozoites have been shown to be the basis for identifying critical kinases and phosphatases for the control of amoebic invasiveness [30]. However, in the case of EhMSP-2, studies have not addressed a role of EhMSP-2 during these processes. Previous work by our group showed the presence in soluble fractions of E. histolytica trophozoites of proteins antigenically related to mouse COX, identified in Western blot and in immunofluorescence assays, using a commercial anti-mouse COX antibody. Although the existence of alpha-actinin-associated cyclooxygenase activity in E. histolytica has been previously reported [5], it is very likely that this parasite possesses more than one protein with this activity, since in this work we are demonstrating that EhMSP2 can bind arachidonic acid. Therefore, E. histolytica could potentially possess various COX-like activities. Regarding the hypothetical orthologous proteins identified in the E. dispar, E. invadens, and N. fowleri parasites, the analyses in predictive functional platforms, as well as the analyses in mRNA repositories, revealed that the identified proteins correspond to surface proteins with metalloendopeptidase activity, where mRNA levels were detected in the case of E. invadens and N. fowleri. Furthermore, in the case of the encystation process of E. invadens, in the immunofluorescence analyses, the presence of crossed antigenicity was determined using the commercial anti-gp63 antibody of L. major. Furthermore, biochemical analyses with exogenous AA (20 mM) revealed the presence of COX activity in E. invadens and E. dispar (Figure 8A). When encystation kinetics were performed, a maximum peak of activity was observed 48 h after the onset of encystation. In the case of E. histolytica, the presence of this activity was confirmed, as previously documented (Hernández-Ramírez et al., 2023). Recently the genome sequence of N. fowleri was purified using Oxford Nanopore Technology (ONT). This method assembled and polished the long reads, enabling the conservation of a high-quality genome [31]. In this context, the sequence of the protein, identified in this study as an orthologous protein of L. mexicana gp63 and whose accession number corresponded to KAF0981298.1, became hypothetical in the sequence genome improvement process of this parasite. In the case of this gp63-type protease, it would be necessary to define whether it participates during the invasion process, in the encystation process, or both functions. We are currently cloning the gene corresponding to the hypothetical protein (KAF0981298.1, Table 1) to deepen the knowledge of this orthologous protein in the biology of this free-living amoeba. Therefore, we can speculate that the parasitic protozoan species E. dispar, E. invadens, and N. fowleri have a gp63-like, apparently differing from those identified in T. cruzi and A. castelanii. Concerning A. castellanii, the putative orthologue protein leishmanolysin was identified with accession number XP_004337275 (Table 1) [32]. In this context, Gene Ontology Term (GOTerm) analysis suggests that this protein has the function of a zinc-binding metalloendopeptidase. However, analysis of RNA repositories has not yet revealed the presence of mRNA for this putative leishmanolysin protein. In this context, we recently reported both the presence of COX activity in soluble fractions of A. castellanii trophozoites, and a cross-reaction with the D12 monoclonal antibody that recognizes L. mexicana gp63 [15]. In addition to this evidence, it is important to highlight that when reviewing both the prediction function data and the multiple alignment analyses, it was confirmed that the analyzed proteins have zinc-binding sites, as is the case with Tcgp63 protein II (XP_817808.1, Table 1) and EhMSP-2 (XP_652632.1, Table 1), as well as in the case of the putative leishmanolysin protein from A. castellanii. The potential binding site for this ion was also identified in the hypothetical orthologous proteins present in E. invadens, E. dispar, and N. fowleri. On the other hand, the domain analysis and the predictive functional analysis revealed that all examined proteins are classified into the M8 peptidase family. This implication needs to be validated experimentally, focusing primarily on the hypothetical orthologous proteins, because no information is available. In the case of the AA binding site, the species infecting humans were found to have similar binding sites (HIS206 and HIS267 and GLU207 for E. histolytica and E. dispar). In the case of E. invadens, the binding site was established through hydrophobic interactions, suggesting the relevance of the environment in which these amoebae parasitize. In the genus Entamoeba’s case, the results could suggest an involvement of the orthologue proteins in the life cycle of these parasites, especially in the encystation process (Figure 8D and 8E). In this regard, a previous report published by ​Siddiqui et al., [33]  he non-steroidal anti-inflammatory drug (NSAID), sodium diclofenac, which targets the activity of COX, was shown to affect the growth but not the viability of A. castellanii. It is relevant to notice that NSAIDs (sodium diclofenac and indomethacin) abolished encystization in A. castellanii. Therefore, the authors propose that cyclooxygenases and prostaglandins of parasitic origin play an essential role in the biology of Acanthamoeba. However, COX activity has been reported for α-actinin of E. histolytica, whose sequence lacks domains and residues necessary for COX activity. Among these residues, we can mention the presence, in the COX-like activity of L. mexicana, of the proton-accepting histidine at position 193, the metal-binding histidine at position 374, and tyrosine at position 371 within the active site [7]. In the case of the gp63 sequence, the multiple alignment allowed us to identify the presence of a glutamic acid and three metal-binding histidine (zinc) residues that could interact with tyrosine residues at positions 353 or 354 that are close to the active site (Figure 3A L. mexicana). The gp63 is a zinc-dependent metallopeptidase anchored to the plasma membrane by a glycosylphosphatidylinositol (GPI) tail, although hydrophilic and secreted isoforms have also been described. It belongs to the enzyme class EC 3.4.24.36 (MA clan, M8 endopeptidase family) and shares several similarities with mammalian matrix metallopeptidases [34]. In Leishmania spp, the functions described for this protein include various cellular processes ([35]. Recent findings ([7,15]) have shown that gp63 from L mexicana can metabolize AA, indicating the role of gp63 as a multifunctional protein. In E. dispar, E. invadens, and N. fowleri, the description of proteins orthologous to gp63 of L. mexicana is new, but not in E. histolytica and T. cruzi since these proteins have already been identified as leishmanolysins; however, the role of these proteins in the metabolism of AA has not yet been described. A putative leishmanolysin protein has already been described in A. castellanii [36] and there is also a report indicating the possible presence of COX activity [33]. Considering that the genes encoding gp63 are organized in tandem, it will be necessary for future research to show whether COX-like activity would arise from all these encoded proteins. Recently published work compared active sites residues and protein sequences from gp63 with COX activity and prostaglandin F2α synthase (PGFS) in Leishmania species and showed an alignment and phylogenetic analysis of GP63 and PGFS indicated notable similarity and homology between the Old and New World Leishmania spp [37]. Additional results revealed that PGFS enzymes increased during parasitic differentiation in various Leishmania species; and that the gp63 enzyme with COX-like activity reduces during L. braziliensis and L. infantum promastigotes differentiation, but no differences were observed in L. amazonensis [37]. Finally, the results obtained with the molecular docking analyses suggest that proteins orthologous to gp63 could be targets for studies to develop drugs whose central purpose would be to control and/or interrupt the transmission cycle in the infection of the various parasites analyzed that are of clinical importance in this study.

5. Conclusions

COX activity was determined in the presence of exogenous AA in extracts of E. dispar trophozoites and in both E. invadens trophozoites and cysts. Likewise, after in silico analyses performed on gp63-like protein sequences in various parasites of clinical importance, such as T. cruzi, E. histolytica, E. dispar, E. invadens, A. castellanii and N. fowleri found these proteins to be orthologous to gp63 of L. mexicana. Therefore, we suspect these are likely the proteins responsible for COX-like activity in these parasites due to the presence of a theoretical sequence pointing to a probable AA union site. Performing site-directed mutations in these theoretical sequences will be vital to validating our hypothesis.
