Abstract
Cryopreservation, storing biological material in liquid nitrogen (LN, −196 °C), offers a valuable option for the long-term conservation of non-orthodox seeds and vegetatively propagated species in the sector of agrobiodiversity and wild flora. Although large-scale cryobanking of germplasm collections has been increasing worldwide, the wide application of cryopreservation protocol in wild flora is hampered by difficulties in vitro propagation and a lack of universal cryopreservation protocols, among others. This study established a systematic approach to developing an in vitro culture and droplet-vitrification cryopreservation procedure for shoot tips of Scrophularia kakudensis. The standard procedure includes two-step preculture with 10% sucrose for 31 h and with 17.5% sucrose for 16 h, osmoprotection with loading solution C4-35% (17.5% glycerol + 17.5% sucrose, w/v) for 30 min, cryoprotection with A3-80% (33.3% glycerol + 13.3% dimethyl sulfoxide + 13.3% ethylene glycol + 20.1% sucrose, w/v) at 0 °C for 60 min, and cooling and rewarming using aluminum foil strips. After unloading, a three-step regrowth procedure starting with an ammonium-free medium with growth regulators was essential for developing normal plantlets from cryopreserved shoot tips. Liquid overlay on the gelled medium two weeks after inoculation resulted in vigorous growth during subcultures. Moreover, liquid overlay increased LN regeneration by up to 80%, i.e., 23% higher than no liquid overlay.
Keywords:
alternative vitrification solutions
;
droplet-vitrification
;
endangered species
;
gelling agent
;
regrowth medium
;
subculture medium
;
two-step preculture
Subject:
Biology and Life Sciences  -   Biology and Biotechnology

1. Introduction

Scrophularia kakudensis, Scrophulariaceae Family, is an endangered species in Korea, and this genus is pharmaceutically important against inflammation and gastrointestinal problems [1,2]. In vitro adventitious shoots were induced from the nodal explants containing acacetin (a flavonoid), phenol, and flavonoid with free radical scavenging ability [3].
Combined with in vitro technologies, cryopreservation, storing biological material in liquid nitrogen (LN, −196 °C) offers a unique option for the long-term conservation and restoration of non-orthodox or limitedly available seeds and vegetatively propagated species [4,5,6]. However, cryopreservation of endangered species often encounters challenges due to the lack of in vitro propagation systems and standard cryopreservation protocols and the scarcity of plant material [6,7]. Challenges faced in establishing an in vitro propagation system include microbial contamination, poor growth, etc. Hence, in vitro propagation and cryopreservation success is often case by case [4]. A guideline for successful cryopreservation of clonally propagated plants has frequently been considered at least 20−40% regeneration due to the lower levels of initial regeneration percentage of plant cryopreservation [8], which limits the large-scale cryobanking of phyto diversity in the era of climate change.
As a solution-based vitrification technique, droplet-vitrification (DV) is a multi-stage procedure with several factors from the stage (1) material preparation to (2) protocol {pre-LN (preculture, osmoprotection, cryoprotection with vitrification solution), LN (cooling, rewarming, unloading)}, and (3) regrowth. However, most literature has focused on the protocol, the main body of cryobiotechnology, and spontaneously tested the choices of explant [9] and regrowth medium [10]. Plant materials are prepared by in vitro propagation of donor plants under an established procedure, depending on the species and type of organ. Its growth may be affected by diverse options, such as media, growth regulators, gelling agents, environmental conditions, and critical manipulation skills.
Like seed vigor [11], donor plant vigor (DPV) for cryopreservation may refer to the donor plant properties that determine the ability to regrow quickly and uniformly and regenerate into normal plantlets under a wide range of cryopreservation conditions and procedures [12]. Rapid growth and eventually enormous dry weight with no or little growth hormones can indicate DPV since the explants from the higher DPV can tolerate the cytotoxicity of plant vitrification solutions (PVS), resulting in higher LN regeneration [13].
In this study, we established an in vitro propagation system of S. kakudensis and developed a DV procedure for cryopreservation. This study highlights the critical role of liquid overlay-induced donor plant vigor in the material preparation stage and initial ammonium-free regrowth medium in the regrowth stage.
Table 1. Effect of liquid overlay (timing & composition) in the last subculture cycle on the hyperhydricity of leaves, sprouting of node section-induced shoots, and subsequent LNC and LN regrowth in Scrophularia kukudensis.
Table 1. Effect of liquid overlay (timing & composition) in the last subculture cycle on the hyperhydricity of leaves, sprouting of node section-induced shoots, and subsequent LNC and LN regrowth in Scrophularia kukudensis.
No. Normal/hyperhydricity in subcultured plantlets (%) Nodal segment-induced shoots LNC (%) LN (%)
Primary/secondary (cm) ** Hyperhydricity (%) *** Surv Rege Surv Rege
1. LO(W0) * Normal (68.7%) Primary (4.5) 41.7 76.7 66.7 74.2 64.2
Secondary (2.0) 91.7 60.0 50.0 38.3 31.7
Hyperhydric (31.3%) Primary (4.5) 100 80.0 50.0 60.0 50.0
Secondary (1.5) 100 60.0 30.0 30.0 20.0
4. LO(W2) Normal (95.8%) Primary (6.5) 0 100.0 83.3 93.8 80.0
Secondary (2.5) 25 70.0 60.0 55.0 50.0
Hyperhydric (4.2%) Primary (6.5) 100 90.0 60.0 75.0 60.0
Secondary (1.5) 100 70.0 40.0 45.0 35.0
7. LX Normal (100%) Primary (4.0) 0 60.0 55.0 62.1 56.8
Secondary (2.0) 0 50.0 30.0 40.0 25.0
Hyperhydric (0%) - - - - - -
* Liquid overlay (LO) at the time of inoculation (W0), two weeks after inoculation (W2), or no liquid overlay (LX). After 6 weeks of subculture, the plantlets were separated into normal and hyperhydricity and subjected to final node sectioning for a sampling of cryopreservation. ** The length (cm) of primary and secondary node-induced shoots at week 4 of node-segment culture. *** Percentage of hyperhydricity symptoms in node segment-induced shoots after 4 weeks.

2. Results

2.1. In Vitro Propagation of Scrophularia kakudensis

2.1.1. Effect of Subculture Medium and Conditions

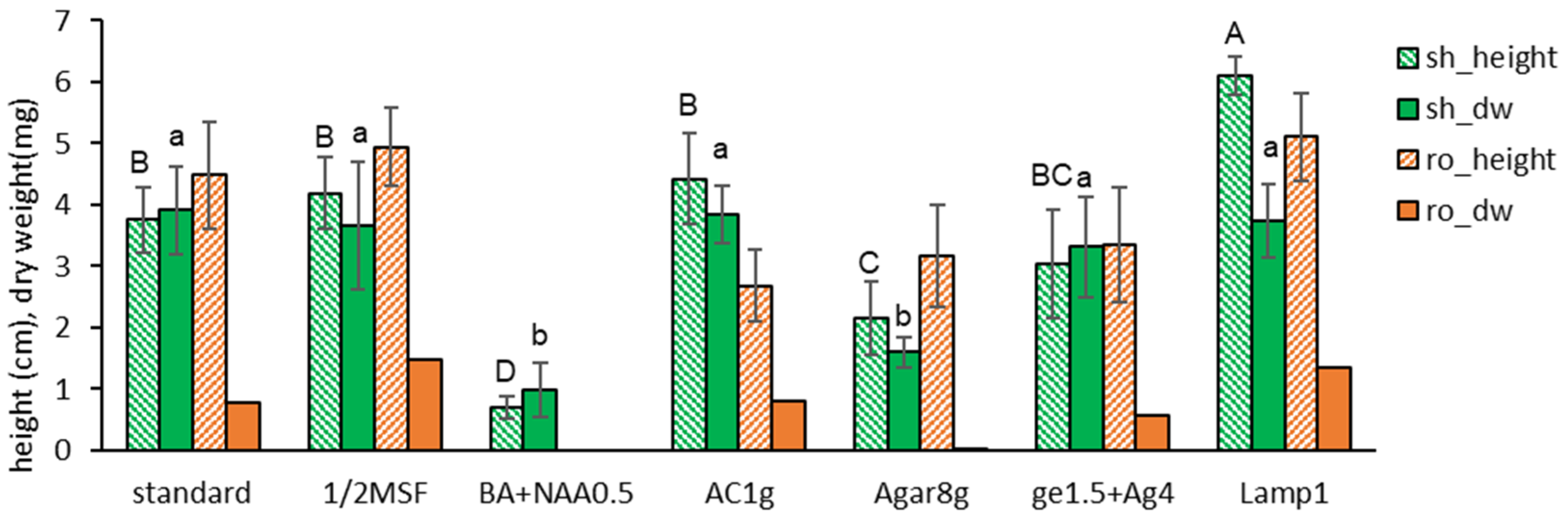

Nodal segments were cultured in seven condition variants (standard + 6 alternative conditions; Table 2) for six weeks. One lamp (Lamp1, 40 µE m−2 s−1), instead of two lamps (standard, 60 µE m−2 s−1), significantly increased the shoot length but not the dry weight (Figure 1). It slightly increased the length and dry weight of the roots, too. The growing pattern of half-strength hormone-free MS medium (1/2MSF) was similar to the standard condition of full-strength hormone-free MS (MSF).
Table 2. Set of treatments to test the impact of subculture medium and conditions for 6 weeks on the growth of donor plantlets and regrowth of cryopreserved Scrophularia kakudensis shoot tips.
Table 2. Set of treatments to test the impact of subculture medium and conditions for 6 weeks on the growth of donor plantlets and regrowth of cryopreserved Scrophularia kakudensis shoot tips.
Set No. Medium strength Growth regulators (mg L−1) Gelling agents
(g L−1) **		 AC
(g L−1) ** 		Liquid overlay*** Light (Lamp) **** Code
Subculture medium and conditions 1 MS − Gellan gum 3 − LX 2 MSF*, standard
2 1/2MS − Gellan gum 3 − LX 2 1/2MSF
3 MS BA0.5+NAA0.5 Gellan gum 3 − LX 2 B0.5N0.5
4 MS − Gellan gum 3 1 LX 2 AC1
5 MS − Agar 8 − LX 2 Agar8
6 MS − Gell 1.5+Agar 4 − LX 2 Gel1.5+Agar4
7 MS − Gellan gum 3 − LX 1 L1
Timing of liquid overlay 1 MS − Gellan gum 3 − LX 2 LX
2 MS − Gellan gum 3 − LO(W0) 2 LO(W0)
3 MS − Gellan gum 3 − LO(W1) 2 LO(W1)
4 MS − Gellan gum 3 − LO(W2) 2 LO(W2)
* MSF, standard hormone-free MS (MSF) medium with 30 g L−1 sucrose and 3.0 g L−1 Gellan gum without liquid overlay; 1/2MS, half-strength MSF medium; −, omission; Growth regulators - B0.5+N0.5, {0.5 mg L−1 benzyl adenine (BA) + 0.5 mg L−1 α-naphthaleneacetic acid (NAA)}; Gelling agent - {3 g L−1 Gellan gum (standard), 8 g L−1 agar (Agar8), 1.5 g L−1 Gellan gum and 4 g L−1 agar (Gel1.5+Agar4)}; AC1 - activated charcoal 1.0 g L−1; Liquid overlay – overlay (LO) at week 0(W0), week 1(W1), week 2(W2), no overlay (LX); Light - 1 or 2 lamps providing 40 and 60 µE m−2 s−1, respectively).
Other conditions, such as growth hormones of 0.5 mg L−1 each benzyl adenine (BA) and α-naphthaleneacetic acid (NAA) (BA+NAA0.5), activated charcoal (AC1g), agar (Agar8g), or Gellan gum + agar (ge1.5+Ag4), resulted in an inferior length and dry weight than the standard condition (full strength hormone-free MS + Gellan gum 3.0 g L−1, two lamps).
Based on the results, the standard subculture condition for S. kakudensis node cuttings was set as full-strength hormone-free MS medium (MSF) supplemented by Gellan gum 3.0 g L−1, provided by one fluorescent lamp (40 µE m−2 s−1) for six weeks.

2.1.2. Effect of Liquid Overlay on Top of the Gelled Medium

We examined the effect of the liquid overlay on the in vitro growth during subcultures (Table 2). Liquid MSF medium was overlayed (LO) on top of the Gellan gum-gelled medium at the time of node section inoculation (W0), after one week (W1), two weeks (W2), or no overlay (LX). After six weeks, the height and dry weight of subcultured plantlets overlayed (W0, W1, W2) was significantly higher than non-overlayed (Liq-X); shoot length 3.8 cm→9.4-9.8 cm, shoot dry weight 3.9 mg→13.4-16.2 mg (Figure 2 and Figure 3). The shoot dry weight for LO(W2) (16.2 mg) was heavier than LO(W0) (13.4 mg) or LO(W1) (3.9 mg), with no significant difference in plant height.
However, overlaying at the time of inoculation (W0) or after one week (W1) induced symptoms of hyperhydricity: the leaves looked wet (Figure 11-A). The hyperhydricity symptoms were more frequent in the odder of LO((W0) > LO(W1) > LO(W2). In contrast, no liquid overlay (LX) did not show the symptoms.

2.1.3. Effect of Liquid Overlay Composition (Nutrients and Sucrose)

We further investigated the inclusion or exclusion of MS nutrients and sucrose in the Gellan gum-gelled medium and liquid overlay (Table 3) on the plant height and dry weight of subcultured plantlets to elucidate the mechanism of the liquid overlay.
Table 3. Set of treatments to test the impact of subculture medium nutrients (N) and sucrose (S) on the growth of donor plantlets and regrowth of subsequently cryopreserved Scrophularia kakudensis shoot tips.
Table 3. Set of treatments to test the impact of subculture medium nutrients (N) and sucrose (S) on the growth of donor plantlets and regrowth of subsequently cryopreserved Scrophularia kakudensis shoot tips.
No. Gellan gum-gelled medium Liquid-overlay medium Code
A1 G(+N, +S) +L(+N, +S) G(+N+S)+L(+N+S)
A2 G(+N, +S) +L(+N, −S) G(+N+S)+L(+N−S)
A3 G(+N, +S) +L(−N, +S) G(+N+S)+L(−N+S)
A4 G(+N, +S) +L(−N, −S), ddw G(+N+S)+L(−N−S)
B1 G(+N, −S) +L(+N, +S) G(+N−S)+L(+N+S)
B2 G(+N, −S) +L(+N, −S) G(+N−S)+L(+N−S)
B3 G(+N, −S) +L(−N, +S) G(+N−S)+L(−N+S)
B4 G(+N, −S) +L(−N, −S) G(+N−S)+L(−N−S)
* G, Gellan gum gelled; L, liquid overlay; adding (+) or excluding (−) of full-strength MS nutrients (macro, micro, amino acids, vitamins, N) and sucrose (30 g L-1, S). A1 corresponds to LO(W2) in Table 1.
When the Gellan gum-gelled medium was filled with the MS nutrients (macro, micro, amino acids, and vitamins) and 3% sucrose {G(+N+S)}, the height and dry weight of shoots and roots in liquid-overlayed plantlets were higher regardless of the components of liquid {+L(+/−N, +/−S)} if only the liquid were overlayed: shoot 9.2-9.8 cm, 9.9-11.9 mg; roots 4.8-6.2 cm, 2.8-3.2 mg (Figure 3). Even the overlay of distilled water {G(+N+S)+L(−N−S)} supported vigorous growth of donor plantlets.
While sucrose omitted-Gellan gum-gelled MS medium resulted in marginal growth even with normal MS liquid overlay {G(+N−S)+L(+N+S)}: shoot 2.5 cm, 1.6 mg; roots 1.2 cm, 0 mg. When sucrose was omitted in both gelled and liquid medium {G(+N−S)+L(+N−S), G(+N−S)+L(−N−S)}, plant height and dry weight was nil (shoots 0.7-0.9 cm, 0.2-0.3 mg; roots 0 cm, 0 mg), implying photo-autotrophic performance of the plantlets was marginal.
This result indicates that in vitro plantlets primarily uptake nutrients and sucrose from the gelled medium. The liquid overlay significantly facilitated the uptake regardless of the liquid composition; distilled water was equally effective. Hence, an overlay of distilled water per se enables the intake of nutrients and sucrose from the gelled medium, possibly by modifying the osmotic potential of the gelled medium and plantlets. And all four sucrose-omitting gelled medium {G(+N−S)} produced marginal dry weights.

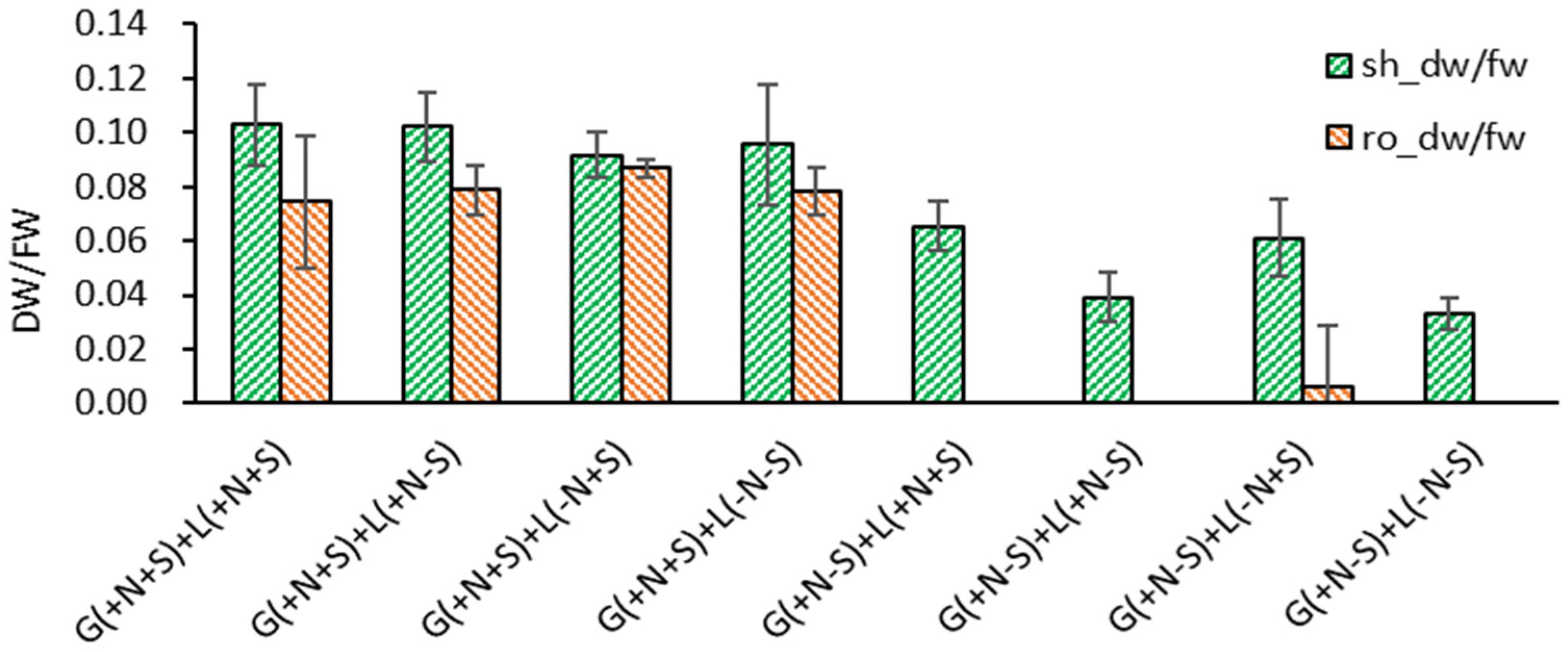

A similar pattern was noticed in the dry weight to fresh weight ratio (DW/FW). When the Gellan gum-gelled medium was filled with nutrients and sucrose {G(+N+S)}, DW/FW of shoots and roots in liquid overlayed plantlets was higher than the gelled medium without sucrose {G(+N−S)}; shoots 0.098, roots 0.080 vs. shoots 0.050, roots 0.002 in average (Figure 4). Considering the DW/FW of LX in Figure 2 was shoots 0.099 and roots 0.077, respectively, liquid overlayed plantlets were subjected to normal metabolism. However, when sucrose was omitted in both gelled and liquid medium {G(+N−S)+L(+N−S), G(+N−S)+L(−N−S)}, the lowest shoot DW/FW (0.033-0.039) was noticeable, reflecting the marginal photo-autotrophic property.

2.2. Cryopreservation of Scrophularia kakudensis Shoot Tips

2.2.1. Pre-LN Stages in Droplet-Vitrification Procedure

Using the temporary standard procedure, we tested diverse options, such as sucrose preculture, no-osmoprotectant, cooling/rewarming containers, and regrowth medium. A step-wise preculture with 10% sucrose (S-10%) for 31 h and 17.5% sucrose (S-17.5%) for 17 h produced higher post-cryopreservation (LN) regeneration (83.3%), which was higher than the one step preculture with S-10% for two days (S-10%, 76.3%) (Figure 5 and Figure 6). In contrast, higher sucrose concentrations of S-10%→S-25% (S-25%) resulted in the lowest LN regeneration of 66.4% due to the osmotic stress.
No osmoprotection (no-OP) was stressful to the shoot tips and eventually resulted in lower LN survival and regeneration (42% and 30% lower) compared to the standard condition of OP-treated shoot tips. When the cryovial (vial) was used as a cooling container instead of aluminum foil strips, possibly insufficient cryoprotection with A3-80% resulted in lower LN survival and regeneration (28% and 30% lower) due to the lower cooling/warming velocity than the aluminum foil strips. A conventional one-step ammonium-containing regrowth medium and growth regulators (RM2~) produced lower LN regeneration (45% lower) compared to the standard three-step regrowth with an initially ammonium-free medium (RM1-2-F). A three-step regrowth procedure starting with an ammonium-containing medium followed by the same medium and finally without growth regulators (RM2-2-F) produced 39% lower LN than the standard condition. This result suggests that ammonium ion during the initial five days is toxic to the cryopreserved shoot tips, and transferring to a new ammonium-containing medium twice has a marginal effect.
Among the conditions tested, the composition of the initial regrowth medium (with or without ammonium ion) and steps are a more critical factor than any conditions tested in pre-LN stages. This result implies that DV procedure, especially cryoprotection with A3-80% and cooling and rewarming, was stressful to the shoot tips, resulting in ammonium-induced ROS-mediated oxidative stress during regrowth stages. However, the combinational effect of ammonium-free medium and growth regulators during three-step regrowth stages needs further investigation.

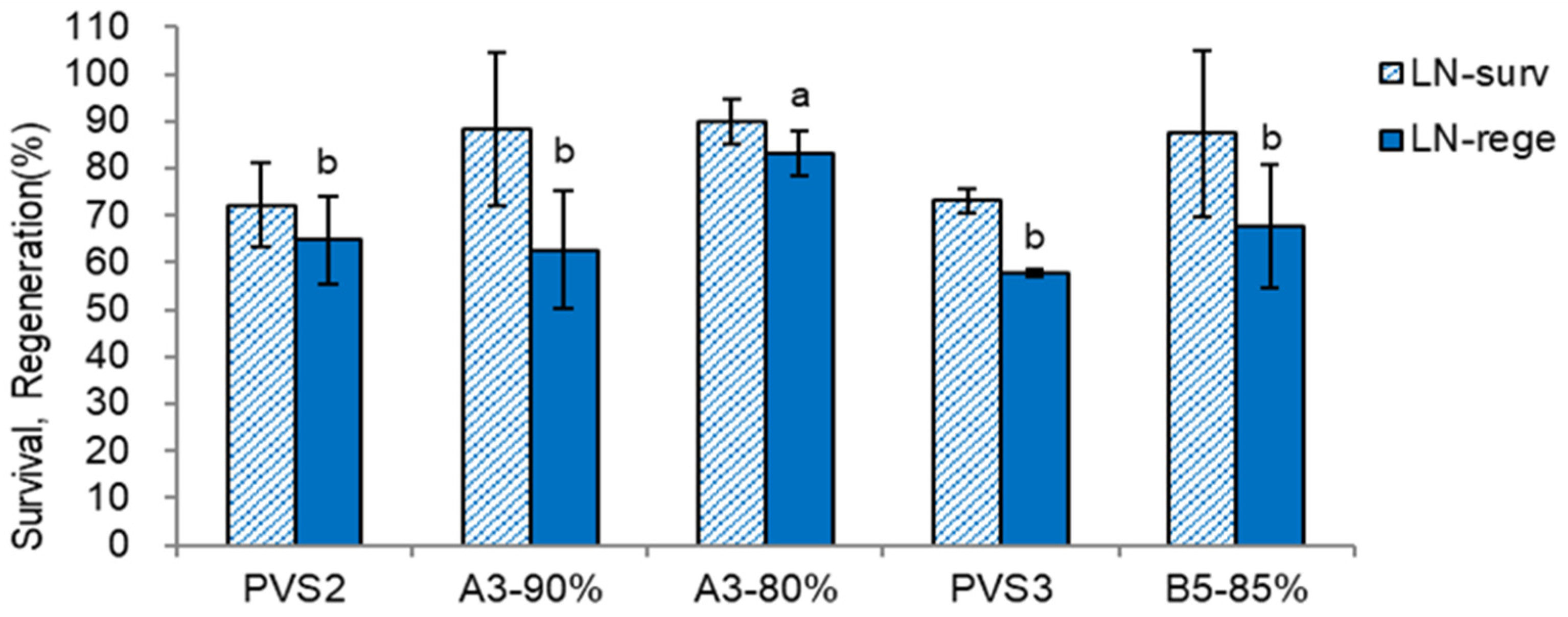

The PVSs significantly affected LN recovery of the shoot tips (Figure 7 and Figure 8). Among the PVSs tested, A3-80% produced the highest LN regeneration (83.3%, 18% higher than PVS2). The S. kukudensis shoot tips were sensitive to cytotoxicity, especially chemical toxicity, of A3-90% and osmotic stress of PVS3 (B1-100%). Hence, a diluent of A3-90%, A3-80% (21% higher), and a diluent of PVS3, B5-85% (10% higher) produced higher LN regeneration than the original PVSs.

2.2.2. Three-Step Regrowth in Droplet-Vitrification Procedure

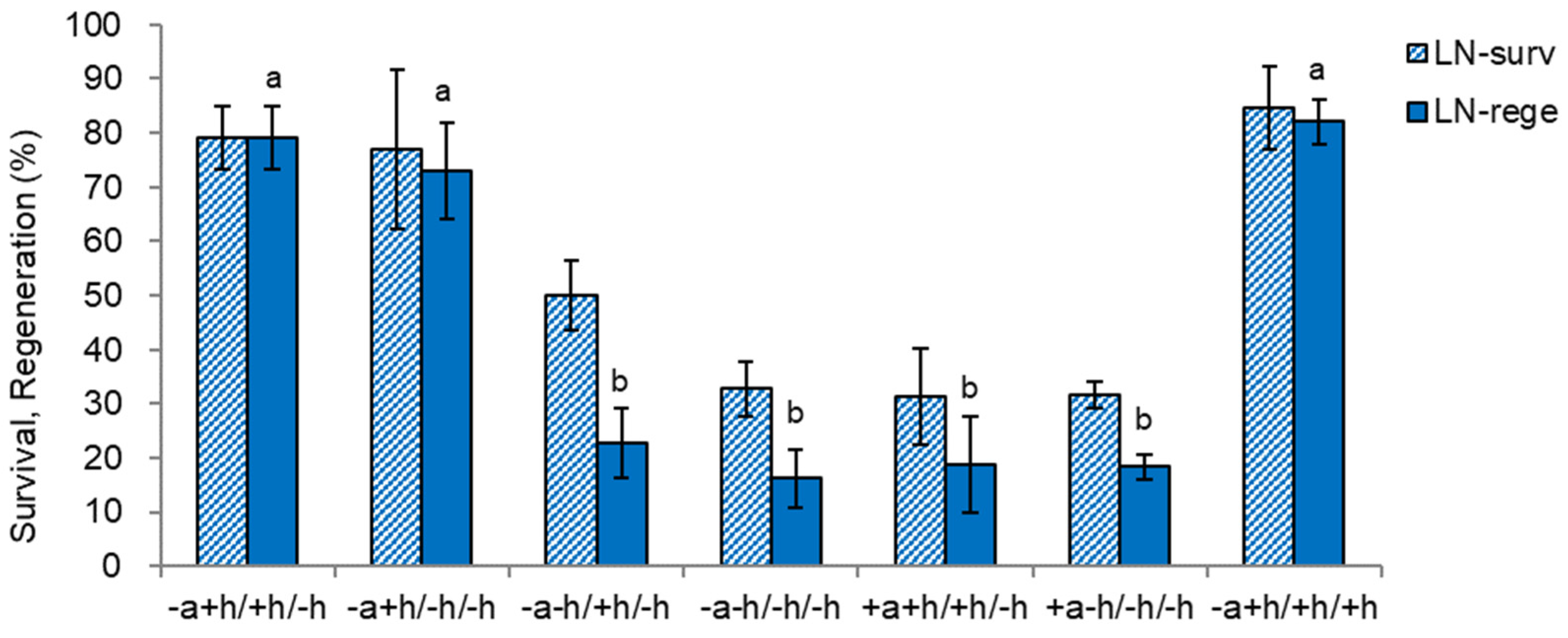

We investigated the combined effects of ammonium-ion presence or absence (+ or −) and plant growth hormones (GA3 + BA) in the regrowth medium at steps 1, 2, and 3 for 5, 23, and 14 days, respectively. The specific combinations of factors were represented as step 1/step 2/step 3, as illustrated in Figure 9.
The most critical conditions for LN survival and regeneration are omitting ammonium and adding growth hormones in step 1. The condition for higher LN survival (77.1-84.6%) and regeneration (72.9-82.1%) was ammonium-free medium with growth hormones {1 mg L−1 gibberellic acid (GA3) and 0.5 mg L−1 benzyl adenine (BA)} in step 1 (−a+h/). While the presence or absence of growth hormones in steps 2 and 3 was less important. Other treatments, i.e., either ammonium-containing or absence of growth hormones (+a or −h/) in step 1, resulted in lower LN survival (31.3-50.0%) and regeneration (16.3-22.7%), regardless of steps 2 and 3 conditions.
This result reflects ammonium ion’s toxicity and growth hormones’ beneficial effect in step 1. We found that combining an initial ammonium-free medium and growth hormones during the regrowth stage (step 1) had a more pronounced impact on the outcomes than any pre-liquid nitrogen (pre-LN) stages or conditions examined in Figure 5, Figure 6, Figure 7 and Figure 8. This result suggests that the specific composition of the regrowth medium at the initial stage plays a crucial role in determining the success of post-cryopreservation survival and regeneration.

2.2.3. Effect of Liquid Overlay (Timing & Composition) in Droplet-Vitrification Procedure

Since the liquid overlay on top of the Gellan gum-gelled MSF medium significantly increased plant height and dry weight during the subculture, we investigated the effect of liquid overlay on subsequent LN regeneration.
Liquid overlay at the time of node section inoculation {LO(W0), G(+N+S)+L(N+S)}, hyperhydricity symptoms (wet leaves) were observed in about 1/3 of the in vitro plants (calculated in Table 1 as 31.3%). Hence, only normal plantlets were subjected to cryopreservation via DV procedure, resulting in slightly increased LN regeneration than the no liquid overlay {LX, G(+N+S) −L(−N−S)} (56.8%→64.2%) (Figure 10). Liquid overlay after two weeks of inoculation {LO(W2), G(+N+S)+L(+N+S)} significantly increased the regeneration of cryoprotected (LNC) and cryopreserved (LN) shoot tips compared to the no liquid overlay (LNC 62.1%→93.8%, LN 56.8%→80.0%).
Interestingly, the liquid overlay of distilled water {LO(W2), G(+N+S)+L(−N−S)} also slightly increased the LN regeneration (56.8%→63.3%), but significantly lower than the liquid overlay of standard liquid medium at week 2 {LO(W2), G(+N+S)+L(+N+S)}. While omitting sucrose in Gellan gum-gelled medium {LO(W2), G(+N−S)+L(+N+S)} resulted in similarly marginal LNC and LN regeneration (20%). Hence, the lower LN regeneration is attributed to PVS-induced cytotoxicity during cryoprotection rather than ice crystallization during cooling and warming.
Liquid overlay timing and its composition impacted the growth of S. kukudensis plantlets during subculture and subsequent LN regeneration (Figure 2, Figure 3 and Figure 10). Liquid overlay increased shoots’ and roots’ length and dry weight, eventually determining the LN regeneration. The LN regeneration correlated with shoot height (r = 0.943), shoot dry weight (r = 0.973), and root dry weight (r = 0.885) among the treatments, which supports that donor plant vigor is a prerequisite for cryopreservation.
The percentage of wet leaves (hyperhydricity) caused by the liquid overlay was detrimental to cryoprotection with PVS and, eventually, cryo-exposure. Hence, LN regeneration negatively correlated with the hyperhydricity percentage (r = −0.796) of the leaves during the subculture.

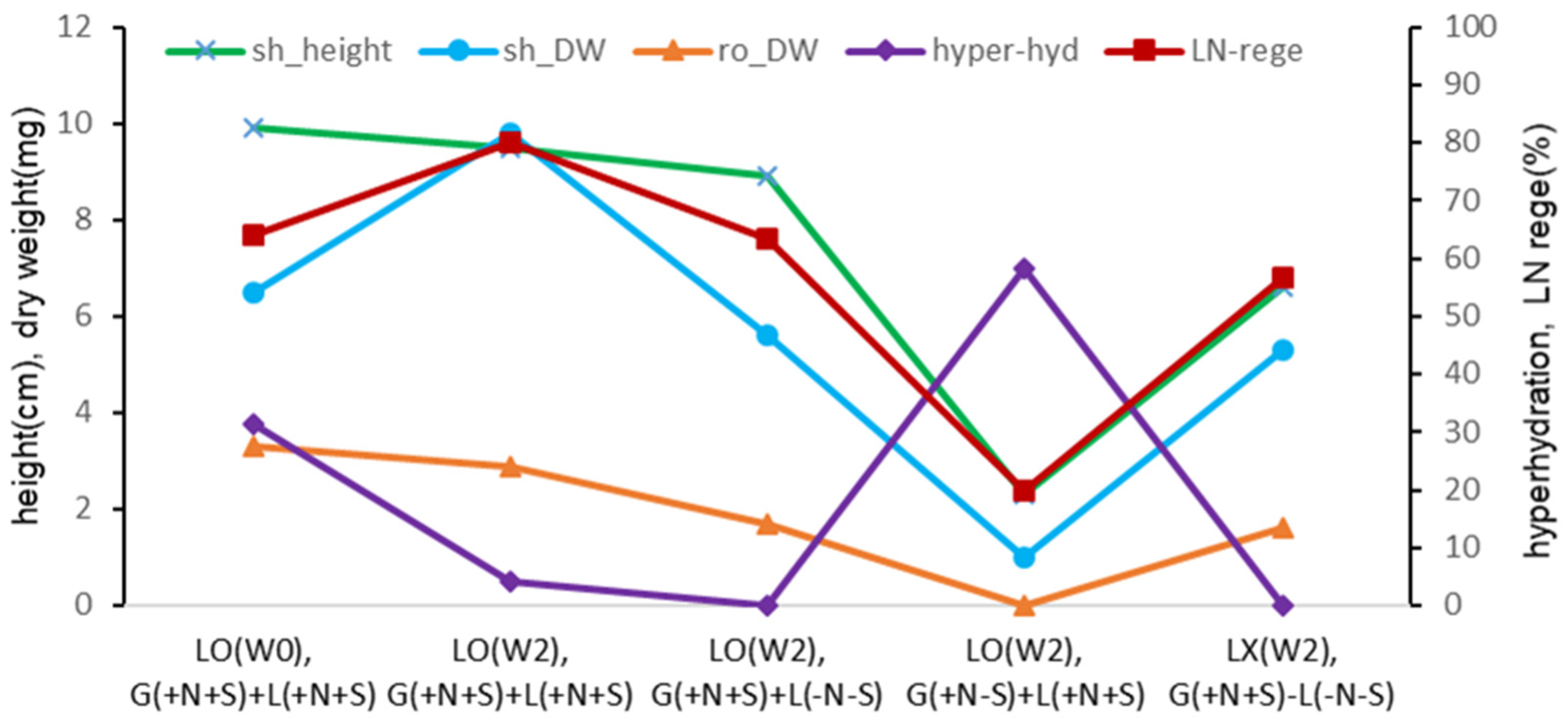

We dug into the three liquid overlay treatments (WO, W2, LX) during the subculture and observed hyperhydricity at 31.3%, 4.2%, and 0%, respectively (Table 1). These normal and hyperhydric plantlets were subjected to node cutting for shoot-tip sampling of cryopreservation.

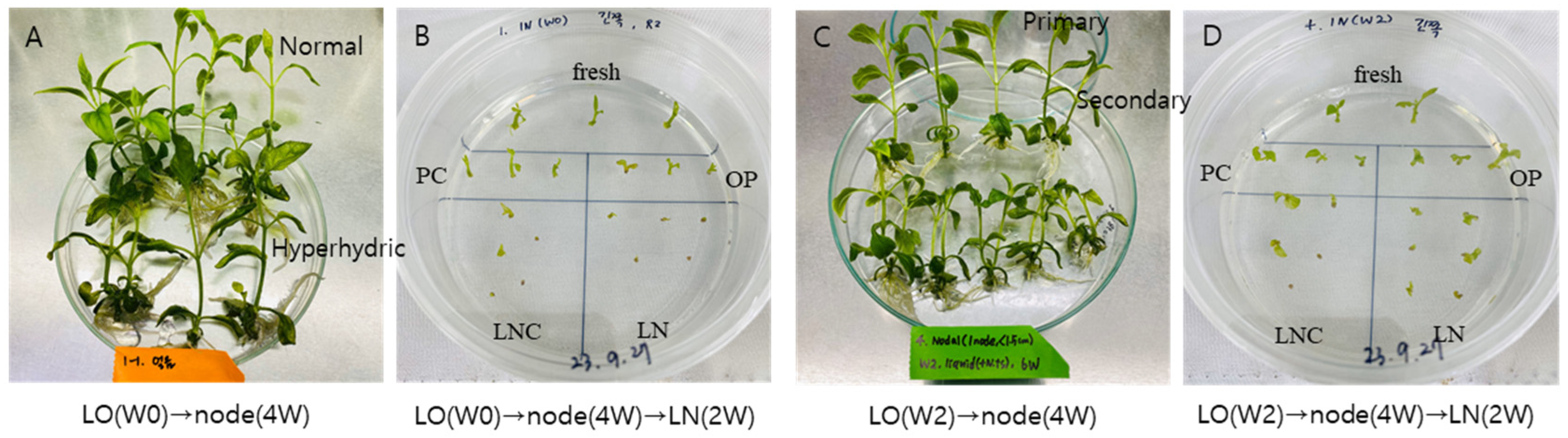

At week two, nodal sections sprouted two axillary shoots; one grew faster (primary) than the other (secondary) at week three. At week four, the primary shoots reached 4.0-6.5 cm long, and the secondary shoots reached 1.5-2.5 cm (Table 1, Figure 11-A,C). These node-induced shoots also show symptoms of hyperhydricity from 0 to 100% (Table 1, Figure 11-A), depending on the liquid overlay in the last subculture and the primary or secondary sprouting of axillary buds. For instance, in the liquid overlay at week two {LO(W2)}, 95.8% of normal subcultured plantlets sprouted primary and secondary shoots: primary shoots (6.5 cm long) have no hyperhydricity, and secondary shoots have 25% hyperhydricity on sprouted shoots. While 4.2% of hyperhydrated plantlets at week 2 sprouted 100% hyperhydric shoots in node culture.
After following the cryopreservation using these node-section-induced primary and secondary shoots, we determined LN regeneration of 80% (normal-primary, Figure 11-D), 50% (normal-secondary), 60% (hyperhydric-primary, Figure 11-B), and 35% (hyperhydric-secondary). The hyperhydric-secondary shoots at weeks 0 (W0) and 2 (W2) produced 20% and 35% LN regeneration.
Looking at all LO(W0) and LO(W2) combinations, the critical condition for higher LN regeneration was primary shoots from the node cutting (primary, 63.5%), followed by normal leaves during subculture (normal, 56.5%) and liquid overlay at week 2 {LO(W2), 56.3%} > at week 0 {LO(W0), 41.5%} and hyperhydric leaves (41.3) > secondary shoots (34.2%).

3. Discussion

3.1. In Vitro Propagation System of Endangered Wild Species

In vitro propagation of plant material is essential, especially for endangered species with limited source materials, to prepare explants for cryopreservation experiments and restoration in situ [5]. Nodal sections are valuable for in vitro preparation since they are genetically stable and easy to manipulate. Subculturing of donor plantlets is affected by diverse factors, i.e., source material, growth medium, culture conditions, etc. We established standard subculture conditions for S. kakudensis. The nodal segments were inoculated onto a hormone-free MS medium gelled with Gellan gum under one fluorescent lamp (40 µE m−2 s−1), followed by a liquid medium overlay on top of the Gellan gum-gelled medium.
As a gelling agent, Gellan gum increased plant height (1.7-fold) and dry weight (2.4-fold) compared to agar, like other wild species [14,15,16,17]. Though the mechanism is not clearly understood, it has fewer organic substance impurities and better water availability, associated with a lower concentration (3 g L−1) than the agar (8 g L−1), thus promoting the absorption of substances and facilitating the diffusion of inhibitive molecules over agar [18,19,20,21]. The concentration of gelling agents may affect water availability and tissue water potential [22]. However, the responses of gelling agents are species-specific [23,24].
Liquid overlay on top of the Gellan gum-gelled medium significantly increased plant height (2.47-2.58-fold) and dry weight (3.41-4.15-fold) compared to the conventional gelled medium. In liquid overlay application, the composition of gelled and liquid medium (nutrients, sucrose) determines the growth; adding nutrients and sucrose in the gelled medium was critical for the length and dry weight of the subcultured plantlets. Omitting the nutrients and sucrose in a liquid medium did not significantly affect plant height and dry weight. Therefore, even a liquid overlay of distilled water on top of the gelled medium {G(+N+S)+L(−N−S)} affected height and dry weight equally to the nutrient and sucrose-supplemented liquid medium {G(+N+S)+L(+N+S)}.
These results support the hypothesis raised by Lee et al. [16]; the liquid overlay may facilitate the metabolism by modulating the osmotic potential of gelled medium and plantlets. In the previous study, liquid overlay increased the height (2.06-fold) and dry weight (3.69-fold) of Pogostemon yatabeanus, which limitedly occurs in wetlands [16]. The recommended optimum stage for liquid overlay for S. kakudensis plantlets was two weeks after inoculation (W2). The causes may include symptoms of hyperhydric leaves noticed in W0 and W1 plantlets (Table 1, Figure 2), resulting in lower dry weight during subculture and subsequent lower LN regeneration compared to the LO(W2). The preliminary screening of other species shows that the adverse effect of W0 (liquid overlay at inoculation) can be variable and seems erratic depending on the species and their vigor, explants (number/length of nodes, with or without leaves), etc.
Hyperhydricity often happens in plant tissue culture, but no consensus exists on its causes and measures [25]. Its causes and symptoms include waterlogging of the apoplast (intercellular space), hypoxia-associated oxidative stress, stress-induced reactive oxygen species (ROS) and ethylene accumulation, and structural abnormality of stomata, leading to an imbalance between absorption and loss of water in the tissue, and less lignin content (hypolignification) [25,26,27]. In the current study, the liquid overlay at the initial stage of inoculation (W0) increased the dry weight than the no-liquid overlay. Still, it was ineffective in the subsequent LN regeneration. It causes hyperhydric leaves, which are possibly caused by osmotic shock due to the penetration of the liquid medium into the intercellular space [25]. Therefore, liquid overlay days after inoculation (DAI) 14 was superior to DAI 7 or no-liquid overlay on somatic embryogenesis initiation in Pinus taeda [28]. Further investigations are needed to standardize liquid overlay application based on the underlying mechanism.

3.2. Droplet-Vitrification Procedure—Protocol Development

The node-section-induced shoots propagated by standard subculture conditions were subjected to DV cryopreservation. Recovery of cryoprotected control (LNC) and cryopreserved (LN) explants was affected by all the factors investigated, i.e., sucrose concentration in preculture, osmoprotection, cryoprotection (PVSs), cooling container (foil/vial), regrowth medium (ammonium-ion, growth regulators).
A two-step preculture, 10% sucrose for 31 h, followed by 17.5% for 17 h, produced a higher LN regeneration than the one-step 10% sucrose preculture. Though one-step preculture with 10% (0.3 M) sucrose for a few days has been dominantly applied [12], two-step preculture produced 10–23% higher LN regeneration: Dendrathema grandiflourum (76.3%→86.7%) [29], Castilleja levisecta (59.5%→82.5%) [30], Aster altaicus (47%→69.2%) [15], Chrysanthemum morifolium (18.7%→38.8%) [31]. However, 25% sucrose as a 2nd-step preculture was detrimental. Hence, S. kakudensis can be grouped in a median osmotic stress.
Among the PVSs tested, A3-80% produced 18% higher LN regeneration than PVS2 in standard procedure. A3-80%-cryoprotected shoot tips may have lower water content than the PVS2-cryoprotected since relatively higher concentrations of sucrose and glycerol in A3-80% may facilitate the dehydration (efflux of water) and cryoprotection (influx of CPAs) [32] and thus increase the cell viscosity to the critical point at which ice-crystallization is suppressed intracellularly and extracellularly [33]. A3-80%, a dilution of A3-90%, has produced 8.5~67.3% higher LN regeneration over PVS2 [12], often combined with the two-step preculture of a higher concentration of sucrose (S-17.5%).

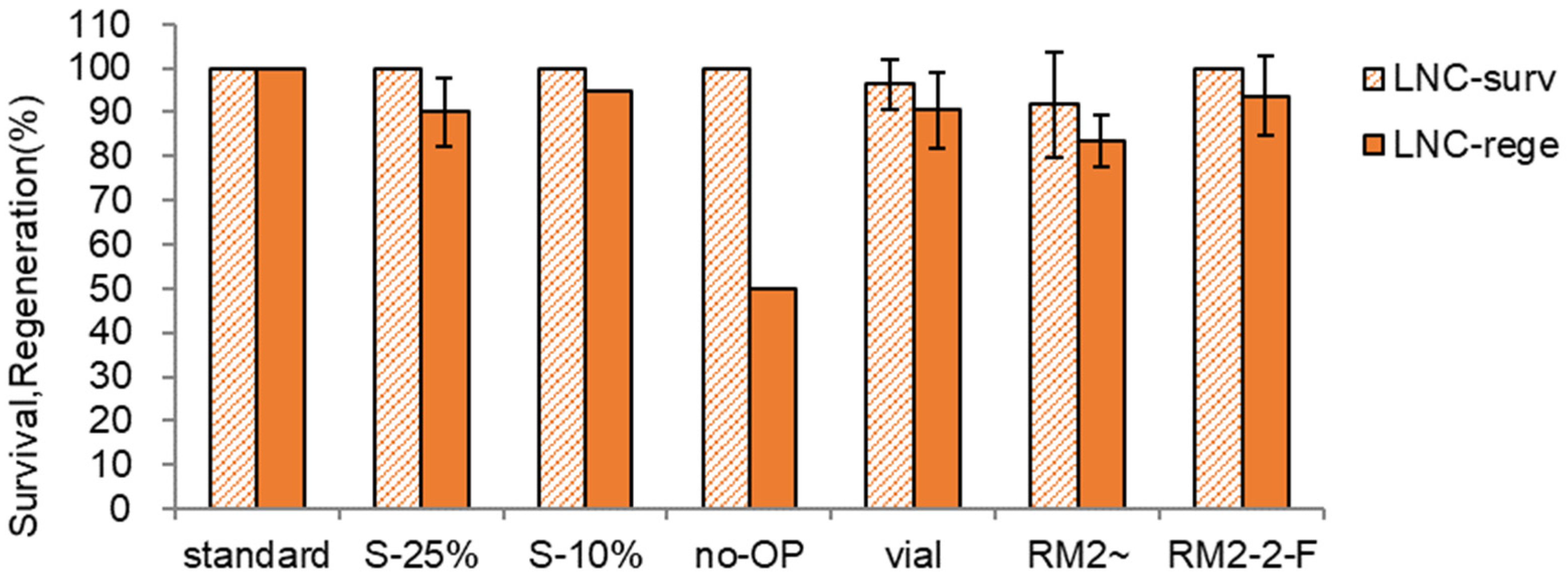

Considering the regeneration of before (LNC, Figure 7) and after (LN, Figure 8) and the composition of PVSs tested, causal factors for the relatively lower LN regeneration of other PVSs seem variable; PVS2 - insufficient cryoprotection, A3-90% - chemical cytotoxicity, PVS3 - osmotic stress, and B5-85% - osmotic stress and partly insufficient cryoprotection. Most vitrification-based studies have tested the incubation time of PVS2 [34]. However, it is worth investigating the concentration of PVS rather than the cryoprotection duration for the normal-size shoot tips since tolerance to cytotoxicity can determine the concentration of PVS, and explant size can reflect the incubation time [12]. Based on the classification, S. kukudensis shoot tips are sensitive to osmotic stress and median sensitive to the biochemical toxicity of PVS [12].
As a cooling container, cryovial (vitrification method) produced 30% lower LN regeneration than aluminum foil strips (DV method), implying insufficient cryoprotection with A3-80% resulted in freezing injury when cooling velocity was not sufficiently high [12]. Since the vitrified state is metastable and vulnerable to devitrification, rapid warming is even critical. In this regard, thawing the cryopreserved samples into a pre-heated (40 °C) unloading solution is superior to a room-temperature solution [35].
In this study, the most critical conditions for LN regeneration are the regrowth medium: initially omitting ammonium-ion and adding growth hormones (GA3 + BA) for 5 days in step 1. However, including or excluding growth hormones in steps 2 and 3 was not critical. Plant growth hormones play a vital role in the regeneration of cryopreserved plant materials [36,37] and GA3 combined with cytokinins usually promotes direct plant formation from cryopreserved shoot tips [38]. The optimum regrowth medium and exogenous additives may vary depending on the material’s needs and injuries during the cryopreservation procedure [39].
During the multi-stage vitrification procedure, shoot tips are susceptible to cumulative injuries, such as osmotic stress, biochemical cytotoxicity, freezing injuries, and oxidative stress [12]. The injuries peak at the cooling, rewarming, and unloading stage, where metabolic rates are the lowest [40], while total organic acid contents jump [41]. In this case, ammonium ions (NH4+) in the regrowth medium might cause reactive oxygen species (ROS)-induced oxidative stress [42,43,44]. Hence, the initial ammonium-free medium increased LN regeneration over the ammonium-containing medium; Ipomoea batatas (by 61% [45], Holostemma annulare (by 26-36% [46]), by 46% [47]), orchid protocorms (by 34% [48]), C. morifolium (by 36-38% [49], by 69% [31]), Citrus limon (by 17% [50]), A. altaicus (by 33% [15]), P. yatabeanus (by 73% [13]), and Penthorum chinense (by 32% [17]). A three-step regrowth medium, i.e., initially ammonium-free and with growth hormones → ammonium-containing → hormone-free, has been recommended for the sensitive species [39].

3.3. Droplet-Vitrification Procedure—Liquid Overlay-Induced Donor Plant Vigor

Since the liquid overlay on top of the Gellan gum-gelled medium significantly increased donor plantlets’ height and dry weight, and the liquid overlay timing and composition determined the growth, we investigated the effect of the liquid overlay on LN regeneration using the five variant conditions selected (Figure 10).
Liquid overlay of MS liquid medium at week two {LO(W2), G(+N+S)+L(+N+S)} produced the highest LN regeneration (80.0%), followed by in the order of liquid overlay of MS liquid medium at the time of node inoculation {LO(W0), G(+N+S)+L(N+S), 64.2%} > liquid overlay of distilled water {LO(W2), G(+N+S)+L(−N−S), 63.3%} > no liquid overlay {LX, G(+N+S) −L(−N−S), 56.8%}. In LO(W0), symptoms of hyperhydricity were noticeable in the leaves, eventually lower LN regeneration, even though only the normal plantlets were node-sectioned for cryopreservation. In this study, LN regeneration correlated with shoot height (r = 0.943) and shoot dry weight (r = 0.973) of in vitro subcultured plantlets, implying that donor plant vigor is a determining factor for cryopreservation.
In further investigation using the three conditions (WO, W2, LX) during the subculture, we observed hyperhydricity in the leaves at 31.3%, 4.2%, and 0%, respectively (Table 1). These normal and hyperhydric plantlets were separately subjected to node sectioning for shoot-tip sampling for cryopreservation. Node sections usually produced two axillary shoots, and one (primary) grew faster than the other (secondary). The positive (higher dry weight) and adverse (hyperhydric leaves) effects are reflected in the regeneration of LNC and LN shoot tips. We hypothesize that the critical factors for cryopreservation are tolerance to osmotic stress and cytotoxicity before cryo-exposure. With all the combinations tested, the normal plantlets during the subculture (56.5%) and primary shoots from the node section (63.5%) produced higher LN regeneration. In contrast, hyperhydricity (41.3%) and secondary shoots (34.2%) resulted in lower LN regeneration. This result suggests that donor plant vigor was determined by liquid overlay during the subculture and by selecting primary shoots from the node section during explant extraction.
This study highlights the importance of liquid over-induced donor plant vigor and selection of dominant shoots. Like primary dominance in this result, apical dominance over axillary shoots has been broadly recognized in plant cryopreservation [51]. Preconditioning of donor plants (cold acclimation) [52] and selecting smaller explants (0.5-1.0 mm) from young shoots or plantlets [53,54] affected LN regeneration. Subculture conditions (aerating culture vessels, sparse planting density, and higher light intensity) helped produce healthy donor plants, resulting in higher recovery of cryoprotected control (LNC) and LN potatoes shoot-tips [9]. Diverse and integrated approaches are needed to improve the donor plant vigor of plant material, especially scarce and endangered species.

4. Materials and Methods

4.1. Plant Material, In Vitro Establish and Preparation of Donor Plants

In vitro plants of S. kakudensis were germinated from a small number of seeds following a sterilization procedure using a 1.25% (v/v) NaOCl solution for 10 min, followed by thorough rinsing with sterile distilled water. Developed plants were propagated using single nodal segments (1.0~1.5 cm long) via repeated (sequential) subcultures with hormone-free MS medium (MSF, [55]) with 30 g L−1 sucrose, 3.0 g L−1 Gellan gum (MB Cell, Seoul, Korea) in 300 ml GaoozeTM culture vessels (Korea Scientific Technology Industry, Suwon, Korea). The medium pH was adjusted to 5.8 before autoclaving at 121 °C for 25 min. Six single nodal segments were placed per vessel and kept at 25±1 °C under a 16/8 h light/dark photoperiod and a 40 W fluorescent lamp (40 µE m-2 s-1) for 6 weeks.
Liquid MSF medium (15 mL per vessel) was added on top of Gellan gum-gelled medium at around day 14 of each subculture cycle, referred to as LO(W2) in Table 1, Table 2 and Table 4, as the standard condition to promote robust growth and development of the plants. After the liquid overlay, the lids of the culture vessel were sealed with cling tape to protect the liquid from evaporation.
Table 4. Set of treatments to test the impact of pre-LN, LN, and post-LN procedures on the growth of cryopreserved Scrophularia kukudensis shoot tips.
Table 4. Set of treatments to test the impact of pre-LN, LN, and post-LN procedures on the growth of cryopreserved Scrophularia kukudensis shoot tips.
Procedure Treatment Conditions Code
Pre-LN, LN Preculture, 10% sucrose, 31 h → 17.5% sucrose, 16 h S-17.5%, st ***
10% sucrose, 31 h → 25% sucrose, 16 h S-25%
10% sucrose, 48 h S-10%
Osmoprotection C4-35%, 30 min OP, st
No osmoprotectant no-OP
Cooling/warming container Aluminum foil-strips Foil, st
Cryovial (2 mL) Vial
Regrowth medium RM1-RM2-MSF RM1-2-F, st
RM2~ RM2~
RM2-RM2-MSF RM2-2-F
Cryoprotection A1-73.7% (PVS2) * ice, 60 min PVS2
A3-90% ice, 60 min A3-90%
A3-80% ice, 60 min A3-80%, st
B1-100 (PVS3) 25 °C, 60 min PVS3
B5-85% 25 °C, 60 min B5-85%
Post-LN Ammonium ion and growth hormones in regrowth medium Regrowth Step 1          Step 2    Step 3
1. NH4NO3-free + GA1+BA1    → GA1+BA1 → MSF ** −a+h/+h/−h, st
2. NH4NO3-free + GA1+BA1    → MSF   → MSF −a+h/−h/−h
3. NH4NO3-free + MSF      → GA1+BA1 → MSF −a−h/+h/−h
4. NH4NO3-free + MSF      → MSF → MSF −a−h/−h/−h
5. NH4NO3-containing + GA1+BA1 → GA1+BA1 → MSF +a+h/+h/−h
6. NH4NO3-containing + MSF   → MSF   → MSF +a-h/−h/−h
7. H4NO3-free + GA1+BA1     → GA1+BA1 → GA1+BA1 −a+h/+h/+h
Donor plant vigor Liquid overlay 1. Liquid overlay at week 0, G(+N+S)+L(+N+S) LO(W0), G(+N+S)+L(+N+S)
2. Liquid overlay at week 2, G(+N+S)+L(+N+S) LO(W2), G(+N+S)+L(+N+S), st
3. Liquid overlay at week 2, G(+N+S)+L(−N−S) (ddw) LO(W2), G(+N+S)+L(−N−S)
4. Liquid overlay at week 2, G(+N−S)+L(+N+S) LO(W2), G(+N−S)+L(+N+S)
5. no Liquid overlay, G(+N+S)−L(−N−S) LX, G(+N+S)−L(−N−S)
*A1-73.7% (PVS2), 30% glycerol + 15% DMSO + 15% EG + 13.7% sucrose, w/v; A3-90%, 37.5% glycerol + 15% DMSO + 15% EG + 22.5% sucrose, w/v; A3-80%, 33.3% glycerol + 13.3% DMSO + 13.3% EG + 20.1% sucrose, w/v; B1-100% (PVS3), 50% glycerol + 50% sucrose, w/v; B5-85%, 42.5% glycerol + 42.5% sucrose, w/v; C4-35%, 17.5% glycerol + 17.5% sucrose, w/v; DMSO, dimethyl sulfoxide; EG, ethylene glycol. ** RM1 (MS + NH4NO3-free + GA1+BA0.5), 5d, dark → RM2 (MS + NH4NO3-containing + GA1+BA0.5), 3w2d, 1 L → MSF (MS + growth hormones-free), 2w, 2 L; GA1+BA0.5, 1 mg L−1 gibberellic acid (GA3) + 0.5 mg L−1 benzyl adenine (BA); 1 L and 2 L, light provided by 1 and 2 fluorescent lamps (40 and 60 µE m−2 s−1, respectively). ***st, standard indicates treatments composing the standard procedure where other stages are the same as in the standard protocol.

4.2. Effect of Subculture Conditions in In Vitro Propagation of Scrophularia kakudensis

Ten combinations of in vitro subculture medium and conditions were investigated to establish the in vitro propagation system. As outlined in Table 2, the combinations involved variations in MS medium strength, growth regulators, gelling agents, activated charcoal, liquid overlay medium application timing, and light intensity. The growth medium and conditions were the same as in Section 4.1. The experiment included two replicates for each treatment, and the entire set of experiments was repeated twice to ensure reliability.
After six weeks, measure the dry weight (mg) and height (cm) of shoots and roots separately. The dry weight was determined by subjecting the plant samples to an oven at a temperature of 75 °C for 7 h until a consistent weight was attained.
To investigate the effect of the composition of Gellan gum-gelled medium and liquid overlay medium, nodal sections were subcultured using eight culture media, each adding (+) or excluding (−) of full-strength MSF nutrients and sucrose (Table 3). The other conditions were the same as in Section 4.1.

4.3. Experimental Design of Treatments in the Droplet-Vitrification (DV) Procedure

4.3.1. Standard Droplet-Vitrification Procedure

After repeated standard subcultures, shoot tips (1.5 mm long with 1–2 lateral leaves) were excised from 4-week-old node sections cultured on standard subculture media. A DV procedure was adopted by Lee et al. [31]. Briefly, shoot tips were precultured in 10% sucrose (S-10%) for 31 h and 17.5% sucrose (S-17.5%) for 16 h at room temperature (RT), osmoprotected with C4-35% (17.5% glycerol + 17.5% sucrose, w/v) for 30 min at RT, and then cryoprotected with PVS A3-80% (29.2% glycerol + 11.7% dimethyl sulfoxide + 11.7% ethylene glycol + 17.4% sucrose, w/v) for 60 min at 0 °C. Cryoprotected shoot tips were positioned onto aluminum foil strips (7 × 20 mm × 50 µm) containing 5 µL droplets of ice-cold A3-80% and subsequently plunged into liquid nitrogen (LN) for a minimum of 1 h. For rewarming and unloading, foil strips with shoot tips were transferred to 20 mL pre-heated (40 °C) unloading solution of 35% sucrose (S-35%) and kept for 40 min at RT, with the sucrose solution being replaced after the first 15 min. The same procedure was followed for cryoprotected control (LNC) shoot tips, excluding the cooling and rewarming in LN.
The shoot tips retrieved from S-35% were carefully blotted demoisturizing on sterilized filter paper and transferred to the regrowth medium 1{RM1, NH4NO3–free MS medium + 1 mg L−1 gibberellic acid (GA3) + 1 mg L−1 benzyl adenine (BA), 30 g L−1 sucrose, 3.0 g L−1 Gellan gum, pH 5.8} and cultured in the dark at 25 °C. After five days, explants were transferred to the RM2 medium (the same as RM1 except for NH4NO3) and cultured under 40 µE m−2s−1 for 23 days. The developed shoots were transferred to the MSF medium for 14 days for normal regeneration.

4.3.2. Sets of Experimental Conditions—Pre-LN Stages, Three-Step Regrowth, and Liquid Overlay

Diverse variants, such as pre-LN stages, three-step regrowth, and liquid overlay conditions, were tested in the DV procedure (Table 4). During the experiment of each factor, other conditions and steps in the procedure remained constant with the standard condition (indicated as “st” in Table 4).
We devised sets of treatments to optimize the droplet-vitrification protocol. Pre-LN stages include two-step or one-step preculture, with or without osmoprotection, cooling/warming container (aluminum foil strips vs. cryovial), and regrowth medium (ammonium-free/containing, transfer/non-transfer). When we used the cryovial (so-called vitrification method), cryoprotected shoot tips were transferred to 2 mL cryovials (Nalgene Co., Rochester, NY) containing 0.5 mL of ice-cold A3-80% solution. These cryovials were immersed in LN for 1 h and rewarmed in a water bath pre-heated at 40 °C, followed by unloading and regrowth under the standard procedure. The original PVSs PVS2 and PVS3 and their variants A3-90%, A3-80%, and B5-85% were compared.
In the post-LN stage, seven combinational treatments of steps 1 (ammonium-free/containing, with/without growth regulators) and 2 and 3 (with/without growth regulators) were investigated.
Five combinational treatments were designed based on the results of Table 2 and Table 3 to elucidate the effect of liquid overlay-induced donor plant vigor. It includes with/without, the timing of liquid overlay, and the composition of gelled and liquid medium (nutrients and sucrose). The more intensive investigation of three liquid overlay treatments (W0, W2, LX) was designed for sampling in the last node section cultures.

4.4. Recovery Assessment and Statistical Analysis

Survival was evaluated two weeks following cryopreservation by counting the number of shoot tips showing regrowth of greenish tissues. Regeneration was determined after six weeks when the shoots had developed into normal plantlets (≥10 mm) with fully expanded leaves and roots, without either the lag phase or callus formation. Ten to 12 shoot tips were used per experimental condition, and the experiments were replicated no less than twice.
Data from all experiments were analyzed by analysis of variance (ANOVA) and Least Significant Difference (LSD) test or Duncan’s multiple range test (DMRT, p < 0.05) using SAS (SAS Institute Inc., Cary, NC, USA). Results are presented as percentages with their standard deviations.

5. Conclusions

We developed an in vitro propagation system for Scrophularia kakudensis with the aid of an overlay of a liquid medium onto the Gellan gum-gelled medium. Liquid overlay at week two significantly increased the plant height (2.5-fold) and dry weight (4-fold) of the subcultured plantlets compared to the conventional no-liquid overlay. This increased donor plant vigor affected the regeneration of cryopreserved (LN) shoot tips by 23.2%.
Variation of diverse plant species to cryo-exposure has been considered one of the main barriers to the cryobanking of wild flora. But, this study coincides with the previous studies on endangered wild species on the protocol development using a systematic approach proposed by the authors: liquid overlay on Gellan gum gelled medium during subculture, two-step preculture using 17.5% sucrose, cryoprotection with alternative PVS A3-80%, and three-step regrowth initially with ammonium-free and with growth regulators the optimum condition in droplet-vitrification procedure resulting in 80% LN regeneration. This systematic approach has proven repeatable and reliable for wild species.
We further investigated the timing and composition of the liquid overlay on the growing of the donor plants during the last subculture, as well as sprouted shoots from the nodal sections during the sampling stage. The main findings imply that the donor plant vigor is the most critical factor for higher LN regeneration; overlay the liquid medium on top of the gelled medium at week two to prevent the hyperhydricity of leaves during the subculture and select primary shoots from the node section for explant extraction. This study highlights the usefulness of liquid overlay onto the Gellan gum-gelled medium on the vigorous growing of in vitro plantlets during the subculture and subsequent high regeneration of cryopreserved shoot tips.

Author Contributions

Conceptualization, H.K.; investigation, H.L and H.P.; data analysis and writing—H.K.; review and editing—S.P.; funding acquisition, H.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Research Promotion Program of Sunchon National University (SCNU).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Han, G.; So, S.; Lee, J.H.; Kim, M. Taxonomy of the genus Scrophularia (Scrophulariaceae) in Korea. Korean J. Plant Taxon. 2009, 39, 237–246. [Google Scholar] [CrossRef]
  2. Jang, H.D.; Kim, T.H.; Oh, B.U. A taxonomic review of Scrophularia kakudensis Franch. and its relatives. Korean J. Plant Taxon. 2011, 41, 345–352. [Google Scholar] [CrossRef]
  3. Manivannan, A.; Soundararajan, P.; Park, Y.G.; Jeong, B.R. In vitro propagation, phytochemical analysis, and evaluation of free radical scavenging property of Scrophularia kakudensis Franch tissue extracts. Biomed. Res. Int. 2015, 480564. [Google Scholar] [CrossRef]
  4. Bunn, E., Turner, SR. & Dixon, K.W. Biotechnology for saving rare and threatened flora in a biodiversity hotspot. In Vitro Cell. Dev.Biol.-Plant 2011, 47, 188–200. [CrossRef]
  5. Pence, V.C.; Ballesteros, D.; Walters, C.; Reed, B.M.; Philpott, M.; Dixon, K.W.; Pritchard, H.W.; Culley, T.M.; Vanhove, A.C. Cryobiotechnologies: Tools for expanding long-term ex situ conservation to all plant species. Biol. Conserv. 2020, 250, 108736. [Google Scholar] [CrossRef]
  6. Coelho, N.; Gonçalves, S.; Romano, A. Endemic plant species conservation: Biotechnological approaches. Plants 2020, 9, 345. [Google Scholar] [CrossRef]
  7. Breman, E.; Ballesteros, D.; Castillo-Lorenzo, E.; Cockel, C.; Dickie, J.; Faruk, A.; O’Donnell, K.; Offord, C.A.; Pironon, S.; Sharrock, S.; et al. Plant Diversity Conservation Challenges and Prospects—The Perspective of Botanic Gardens and the Millennium Seed Bank. Plants 2021, 10, 2371. [Google Scholar] [CrossRef]
  8. Reed, B.M. Implementing cryogenic storage of clonally propagated plants. CryoLetters 2001, 22, 97–104. [Google Scholar]
  9. Yoon, J.W.; Kim, H.H.; Ko, H.C.; Hwang, H.S.; Cho, E.G.; Sohn, J.K.; Engelmann, F. Cryopreservation of cultivated and wild potato varieties by droplet vitrification: Effect of subculture of mother-plants and of preculture of shoot tips. CryoLetters 2006, 27, 211–222. [Google Scholar]
  10. Lee, H.; Park, H.; Popova, E.; Lee, Y.Y.; Park, S.U.; Kim, H.H. Ammonium-free medium is critical for regeneration of shoot tips of the endangered species Pogostemon yatabeanus cryopreserved using droplet-vitrification. CryoLetters 2021, 45, 290–299. [Google Scholar]
  11. Association of Official Seed Analysts (AOSA). Seed Vigor Testing Handbook; Baalbaki, R.Z.B., Ed.; Ithaca, NY, USA; 2009; Volume 32. Available online: https://books.google.co.kr/books?id=UO1UswEACAAJ (accessed on 3 February 2023).
  12. Kim, H. Optimizing the Droplet-Vitrification Procedure by Balancing the Cryoprotection and Cytotoxicity of Alternative Plant Vitrification Solutions Based on the Nature of Donor Plant Vigor. Plants 2023, 12, 4040. [Google Scholar] [CrossRef]
  13. Lee, H.-E.; Popova, E.; Park, H.-N.; Park, S.-U.; Kim, H.-H. Optimization of a cryopreservation method for the endangered Korean species Pogostemon yatabeanus using a systematic approach: The key role of ammonium and growth regulators. Plants 2021, 10, 2018. [Google Scholar] [CrossRef]
  14. Hussien, F.A.; Osman, M.A.; Idris, T.I.M. The influence of liquid media support, gelling agents and liquid overlays on performance of in vitro cultures of ginger (Zingiber officinale). Intl. J. Sci. Res. Pub. 2014, 4, 2250–3153. [Google Scholar]
  15. Choi, C.H.; Popova, E.; Lee, H.; Park, S.U.; Ku, J.; Kang, J.H.; Kim, H.H. Cryopreservation of endangered wild species, Aster altaicus var. uchiyamae Kitam, using droplet-vitrification procedure. CryoLetters 2019, 40, 113–122. [Google Scholar]
  16. Lee, H.; Kim, H. Vigorous growing of donor plantlets by liquid overlay in subcultures is the key to cryopreservation of endangered species Pogostemon yatabeanus. Plants (Basel) 2022, 11, 3127. [Google Scholar] [CrossRef]
  17. Zilani, R.A.K.M.; Lee, H.; Popova, E.; Kim, H. In vitro multiplication and cryopreservation of Penthorum chinense shoot tips. Life 2022, 12, 1759. [Google Scholar] [CrossRef]
  18. Kang, K.S.; Veeder, G.T.; Mirrasoul, P.J.; Kaneko, T.; Cottrell, I.W. Agar-like polysaccharide produced by a Pseudomonas species: Production and basic properties. Appl. Environ. Microbiol. 1982, 43, 1086–1091. [Google Scholar] [CrossRef]
  19. Franck, T.; Kevers, C.; Gaspar, T.; Dommes, J.; Deby, C.; Greimers, R.; Serteyn, D.; Deby-Dupont, G. Hyperhydricity of Prunus avium shoots cultured on gelrite: A controlled stress response. Plant Physiol. Biochem. 2004, 42, 519–527. [Google Scholar] [CrossRef]
  20. Fira, A.; Clapa, D. The influence of the gelling agent upon multiplication rate in Sequoia sempervirens. Bull. UASVM 2008, 65, 463. [Google Scholar]
  21. Benjelloun, J.; Taoufyq, A.; El Abidine Triqui, Z.; Alami, Q.L.; Layachi, R.; Smouni, A.; Bouzroud, S.; Guedira, A. Improvement of in vitro germination of Cycas revoluta zygotic embryos using gelrite as gelling agent. Adv. Hort. Sci. 2020, 34, 349–354. [Google Scholar] [CrossRef]
  22. Klimaszewska, K., bernier-Cardou, M., Cyr, D.R. et al. Influence of gelling agents on culture medium gel strength, water availability, tissue water potential, and maturation response in embryogenic cultures of Pinus strobus L.. In Vitro Cell.Dev.Biol.-Plant 36, 279–286 (2000). [CrossRef]
  23. Sah, S.K.; Kaur, A.; Jagdeep, S.S. High frequency embryogenic callus induction and whole plant regeneration in Japonica rice Cv. kitaake. J. Rice Res. 2014, 2, 125. [Google Scholar] [CrossRef]
  24. Toaima, N.; Bosila, H.; El-Ateeq, A.E. In vitro growth regulators, gelling agents and sucrose levels affect micropropagation of Gypsophila paniculate L. Mid. E. J. Agri. 2016, 5, 313. [Google Scholar]
  25. Polivanova, O.B.; Bedarev, V.A. Hyperhydricity in Plant Tissue Culture. Plants 2022, 11, 3313. [Google Scholar] [CrossRef] [PubMed]
  26. Rojas-Martinez, L.I.; Visser, R.G.F.; de Klerk, G.J.M. The hyperhydricity syndrome: waterlogging of plant tissues as a major cause. Propagation of ornamental plants 2010, 10, 169–175. [Google Scholar]
  27. Kemat, N.; Visser, R.G.F.; Krens, F.A. Hypolignification: A Decisive Factor in the Development of Hyperhydricity. Plants 2021, 10, 2625. [Google Scholar] [CrossRef]
  28. Pullman, G.S.; Skryabina, A. Liquid medium and liquid overlays improve embryogenic tissue initiation in conifers. Plant Cell Rep. 2007, 26, 873–887. [Google Scholar] [CrossRef] [PubMed]
  29. Yi, J.Y.; Lee, S.Y.; Lee, G.A.; Jeong, J.W.; Cho, J.H.; Kim, H.H. Improvement of the droplet-vitrification method for the cryopreservation of cultivated potato shoot tips. Kor. J. Breed. Sci. 2012, 44, 94–99. [Google Scholar]
  30. Vujović, T.; Ružić, Đ.; Cerović, R. Effect of the duration of liquid nitrogen storage on the regrowth of blackberry cryopreserved by droplet vitrification. Contemp. Agric. 2017, 66, 44–50. [Google Scholar] [CrossRef]
  31. Lee, H.; Park, J.; Park, S.-U.; Kim, H. Alternative plant vitrification solution A3-80% and initial ammonium-free regrowth medium enable cryobanking of chrysanthemum germplasm. Plants 2023, 12, 1059. [Google Scholar] [CrossRef] [PubMed]
  32. Kim, H.H.; Lee, Y.G.; Shin, D.J.; Ko, H.C.; Gwag, J.G.; Cho, E.G.; Engelmann, F. Development of alternative plant vitrification solutions in droplet-vitrification procedures. CryoLetters 2009, 30, 320–334. [Google Scholar] [CrossRef] [PubMed]
  33. Martinez-Montero, M.E.; Harding, K. Cryobionomics: Evaluating the Concept in Plant Cryopreservation. In PlantOmics: The Omics of Plant Science; Barh, D., Khan, M., Davies, E., Eds.; Springer: New Delhi, India, 2015. [Google Scholar] [CrossRef]
  34. Sakai, A.; Engelmann, F. Vitrification, encapsulation-vitrification and droplet-vitrification. CryoLetters 2007, 28, 151–172. [Google Scholar] [PubMed]
  35. Kim, H.H.; Yoon, J.W.; Park, Y.E.; Cho, E.G.; Sohn, J.K.; Kim, T.S.; Engelmann, F. Cryopreservation of potato cultivated and wild species: Critical factors in droplet vitrification. CryoLetters 2006, 27, 223–234. [Google Scholar] [PubMed]
  36. Touchell, D.; Turner, S.R.; Senaratna, T.; Bunn, E.; Dixon, K.W. Cryopreservation of Australian species — the role of plant growth regulators. In Cryopreservation of Plant Germplasm II. Biotechnology in Agriculture and Forestry, vol. 50; Towill, L.E., Bajaj, Y.P.S., Eds.; Springer: Berlin/Heidelberg, Germany, 2002; pp. 373–390. [Google Scholar] [CrossRef]
  37. Mukherjee, P.; Mandal, B.B.; Bhat, K.V.; Biswas, A.K. Cryopreservation of Asian Dioscorea bulbifera L. and D. alata L. by vitrification: importance of plant growth regulators. CryoLetters 2009, 30, 100–111. [Google Scholar]
  38. Turner, S.R.; Touchell, D.H.; Senaratna, T.; Bunn, E.; Tan, E.; Dixon, K.W. Effects of plant growth regulators on survival and recovery growth following cryopreservation. CryoLetters 2001, 22, 163–174. [Google Scholar] [PubMed]
  39. Popova, E.; Kulichenko, I.; Kim, H.-H. Critical role of regrowth conditions in post-cryopreservation of in vitro plant germplasm. Biology 2023, 12, 542. [Google Scholar] [CrossRef] [PubMed]
  40. Whelehan, L.M.; Dalziell, E.L.; Bunn, E.; Mancera, R.L.; Funnekotter, B. How does metabolic rate in plant shoot tips change after cryopreservation? Cryobiology 2022, 109, 1–9. [Google Scholar] [CrossRef] [PubMed]
  41. Lee, H.; Choi, B.; Oh, S.; Park, H.; Popova, E.; Paik, M.-J.; Kim, H. Dynamics of Organic Acids during the Droplet-Vitrification Cryopreservation Procedure Can Be a Signature of Oxidative Stress in Pogostemon yatabeanus. Plants 2023, 12, 3489. [Google Scholar] [CrossRef] [PubMed]
  42. Thomson, L.K.; Fleming, S.D.; Aiken, R.J.; De Iuliis, G.N.; Zieschang, J.A.; Clark, A.M. Cryopreservation-induced human sperm DNA damage is predominantly mediated by oxidative stress rather than apoptosis. Hum. Reprod. 2009, 24, 2061–2070. [Google Scholar] [CrossRef] [PubMed]
  43. Esteban, R.; Ariz, I.; Cruz, C.; Moran, J.F. Review: Mechanisms of ammonium toxicity and the quest for tolerance. Plant Sci 2016, 248, 92–101. [Google Scholar] [CrossRef] [PubMed]
  44. Funnekotter, B.; Colville, L.; Kaczmarczyk, A.; Turner, S.R.; Bunn, E.; Mancera, R.L. Monitoring of oxidative status in three native Australian species during cold acclimation and cryopreservation. Plant Cell Rep. 2017, 36, 1903–1916. [Google Scholar] [CrossRef] [PubMed]
  45. Pennycooke, J.C.; Towill, L.E. Medium alterations improve regrowth of sweet potato (Ipomea batatas L. Lam.) shoot cryopreserved by vitrification and encapsulation-dehydration. CryoLetters 2001, 22, 381–389. [Google Scholar] [PubMed]
  46. Decruse, S.W.; Seeni, S. Ammonium nitrate in the culture medium influences regeneration potential of cryopreserved shoot tips of Holostemma annulare. CryoLetters 2002, 23, 55–60. [Google Scholar] [PubMed]
  47. Park, S.U.; Kong, H.J.; Shin, D.J.; Bae, C.H.; Lee, S.C.; Bae, C.H.; Rha, E.S.; Kim, H.H. Development of vitrification protocol in Rubia akane (Nakai) hairy roots using a systematic approach. CryoLetters 2014, 35, 377–384. [Google Scholar]
  48. Jitsopakul, N.; Thammasiri, K.; Ishikawa, K. Cryopreservation of Bletilla striata mature seeds, 3-day germinating seeds and protocorms by droplet-vitrification. CryoLetters 2008, 29, 517–526. [Google Scholar] [PubMed]
  49. Yi, J.Y.; Balaraju, K.; Baek, H.J.; Yoon, M.S.; Kim, H.H.; Lee, Y.Y. A successful regeneration from shoot tips of Chrysanthemum morifolium (Ramat.) following cryopreservation by droplet-vitrification. Kor. J. Plant Res. 2018, 31, 675–683. [Google Scholar] [CrossRef]
  50. Yi, J.Y.; Balaraju, K.; Baek, H.J.; Yoon, M.S.; Kim, H.H.; Lee, Y.Y. Cryopreservation of Citrus limon (L.) Burm. F shoot tips using a droplet-vitrification method. Kor. J. Plant Res. 2018, 31, 684–694. [Google Scholar]
  51. Engelmann, F. Cryopreservation of clonal crops: A review of key parameters. Acta Hortic. 2014, 1039, 31–39. [Google Scholar] [CrossRef]
  52. Wu, Y.; Engelmann, F.; Zhao, Y.; Zhou, M.; Chen, S. Cryopreservation of apple shoot tips: Importance of cryopreservation technique and of conditioning of donor plants. CryoLetters 1999, 20, 121–130. [Google Scholar]
  53. Pathirana, R.; Mathew, L.; McLachlan, A. A simplified method for high recovery of kiwifruit (Actinidia spp.) shoot tips after droplet vitrification cryopreservation suitable for long-term conservation. Plant Cell Tiss. Organ Cult. 2021, 144, 97–102. [Google Scholar] [CrossRef]
  54. Guerra, P.A.; Souza, E.H.; Max, D.A.S.; Rossi, M.L.; Villalobos-Olivera, A.; Ledo, C.A.S.; Martinez-Montero, M.E.; Souza, F.V.D. Morphoanatomical aspects of the starting material for the improvement of pineapple cryopreservation by the droplet-vitrification technique. An. Acad. Bras. Cienc. 2021, 93, e20190555. [Google Scholar] [CrossRef] [PubMed]
  55. Murashige, T.; Skoog, F. A revised medium for rapid growth and bioassays with tobacco cell cultures. Physiol. Plant 1962, 15, 473–497. [Google Scholar] [CrossRef]
Preprints 113616 g001
Figure 1. Plant height (cm) and dry weight (mg) of in vitro grown Scrophularia kakudensis plantlets with seven treatments of subculture medium and conditions. * standard — growth hormone-free MSF medium with 30 g L−1 sucrose and 3.0 g L−1 Gellan gum, 2 lamps (60 µE m−2 s−1); 1/2MSF—same medium with half-strength macro mineral salts; BA+NAA0.5—MS medium + 0.5 mg L−1 benzyl adenine (BA) and 0.5 mg L−1 α-naphthaleneacetic acid (NAA); AC1g—activated charcoal 1.0 g L−1; Agar8g—agar 8 g L−1; Lamp1—illumination of 40 µE m−2 s−1 provided by one fluorescent lamp; Means with the same letters (A-D and a,b) in each column are not significantly different by Least Significant Difference Test (LSDT, p<0.05).
Figure 1. Plant height (cm) and dry weight (mg) of in vitro grown Scrophularia kakudensis plantlets with seven treatments of subculture medium and conditions. * standard — growth hormone-free MSF medium with 30 g L−1 sucrose and 3.0 g L−1 Gellan gum, 2 lamps (60 µE m−2 s−1); 1/2MSF—same medium with half-strength macro mineral salts; BA+NAA0.5—MS medium + 0.5 mg L−1 benzyl adenine (BA) and 0.5 mg L−1 α-naphthaleneacetic acid (NAA); AC1g—activated charcoal 1.0 g L−1; Agar8g—agar 8 g L−1; Lamp1—illumination of 40 µE m−2 s−1 provided by one fluorescent lamp; Means with the same letters (A-D and a,b) in each column are not significantly different by Least Significant Difference Test (LSDT, p<0.05).
Preprints 113616 g001
Preprints 113616 g002
Figure 2. Plant height (cm) and dry weight (mg) of in vitro grown Scrophularia kakudensis plantlets with the timing of liquid overlay. *LO— an overlay of the liquid medium on top of the gelled solid medium at the time of inoculation (W0), one week (W1) or two weeks (W2) after. Liq-X— no liquid overlay. Means with the same letters (A,B and a-c) in each graph are not significantly different by Least Significant Difference Test (p<0.05).
Figure 2. Plant height (cm) and dry weight (mg) of in vitro grown Scrophularia kakudensis plantlets with the timing of liquid overlay. *LO— an overlay of the liquid medium on top of the gelled solid medium at the time of inoculation (W0), one week (W1) or two weeks (W2) after. Liq-X— no liquid overlay. Means with the same letters (A,B and a-c) in each graph are not significantly different by Least Significant Difference Test (p<0.05).
Preprints 113616 g002
Preprints 113616 g003
Figure 3. Effect of gelled medium and liquid overlay components on plant height (cm) and dry weight (mg) of subcultured Scrophularia kakudensis plantlets. G, gellan gum gelled; L, liquid overlay; inclusion (+) or exclusion (−) of nutrients (N) and sucrose (S). Means with the same letters (A-C and a-c) in each column are not significantly different by Least Significant Difference Test (LSDT, p<0.05).
Figure 3. Effect of gelled medium and liquid overlay components on plant height (cm) and dry weight (mg) of subcultured Scrophularia kakudensis plantlets. G, gellan gum gelled; L, liquid overlay; inclusion (+) or exclusion (−) of nutrients (N) and sucrose (S). Means with the same letters (A-C and a-c) in each column are not significantly different by Least Significant Difference Test (LSDT, p<0.05).
Preprints 113616 g003
Preprints 113616 g004
Figure 4. Effect of gelled medium and liquid overlay components on dry weight to fresh weight ratio (DW/FW) of subcultured Scrophularia kakudensis plantlets. G, Gellan gum gelled; L, liquid overlay; inclusion (+) or exclusion (−) of nutrients (N) and sucrose (S).
Figure 4. Effect of gelled medium and liquid overlay components on dry weight to fresh weight ratio (DW/FW) of subcultured Scrophularia kakudensis plantlets. G, Gellan gum gelled; L, liquid overlay; inclusion (+) or exclusion (−) of nutrients (N) and sucrose (S).
Preprints 113616 g004
Preprints 113616 g005
Figure 5. Effect of preculture, osmoprotection, cooling and rewarming container, and regrowth medium on LNC-survival (surv) and regeneration (rege) of Scrophularia kukudensis shoot tips in regrowth steps of RM1(ammonium-free)-RM2-MSF. * standard— S-10% 31 h → S-17.5% 17h, C4-35% 40 min, A3-80% ice 60 min, cooling and rewarming using aluminum foil strips, three-step regrowth RM1-2-F {RM1 (MS + NH4NO3-free + GA1+BA0.5), 5d, dark → RM2 (MS + NH4NO3-containing + GA1+BA0.5), 3w2d, 1 lamp → MSF (MS + growth hormones-free)}; S-25%, S-10%→S-25% 17 h; no-OP, no osmoprotection; vial, 2-mL cryovial with 0.5 mL A3-80%; RM2~, RM2 (MS + NH4NO3-containing + GA1+BA0.5) without transfer to a new medium for six weeks.; RM2-2-F, RM2-RM2-MSF; GA1+BA0.5, 1 mg L−1 gibberellic acid (GA3) + 1 mg L−1 benzyl adenine (BA).
Figure 5. Effect of preculture, osmoprotection, cooling and rewarming container, and regrowth medium on LNC-survival (surv) and regeneration (rege) of Scrophularia kukudensis shoot tips in regrowth steps of RM1(ammonium-free)-RM2-MSF. * standard— S-10% 31 h → S-17.5% 17h, C4-35% 40 min, A3-80% ice 60 min, cooling and rewarming using aluminum foil strips, three-step regrowth RM1-2-F {RM1 (MS + NH4NO3-free + GA1+BA0.5), 5d, dark → RM2 (MS + NH4NO3-containing + GA1+BA0.5), 3w2d, 1 lamp → MSF (MS + growth hormones-free)}; S-25%, S-10%→S-25% 17 h; no-OP, no osmoprotection; vial, 2-mL cryovial with 0.5 mL A3-80%; RM2~, RM2 (MS + NH4NO3-containing + GA1+BA0.5) without transfer to a new medium for six weeks.; RM2-2-F, RM2-RM2-MSF; GA1+BA0.5, 1 mg L−1 gibberellic acid (GA3) + 1 mg L−1 benzyl adenine (BA).
Preprints 113616 g005
Preprints 113616 g006
Figure 6. Effect of preculture, osmoprotection, cooling and rewarming container, and regrowth medium on LN-survival (surv) and regeneration (rege) of Scrophularia kukudensis shoot tips in regrowth steps of RM1(ammonium-free)-RM2-MSF. * standard— S-10% 31 h → S-17.5% 17h, C4-35% 40 min, A3-80% ice 60 min, cooling and rewarming using aluminum foil strips, three-step regrowth RM1-2-F {RM1 (MS + NH4NO3-free + GA1+BA0.5), 5d, dark → RM2 (MS + NH4NO3-containing + GA1+BA0.5), 3w2d, 1 lamp → MSF (MS + growth hormones-free)}; S-25%, S-10% → S-25% 17 h; no-OP, no osmoprotection; vial, 2-mL cryovial with 0.5 mL A3-80%; RM2~, RM2 (MS + NH4NO3-containing + GA1+BA0.5) without transfer to a new medium for six weeks.; RM2-2-F, RM2-RM2-MSF; GA1+BA0.5, 1 mg L−1 gibberellic acid (GA3) + 1 mg L−1 benzyl adenine (BA).
Figure 6. Effect of preculture, osmoprotection, cooling and rewarming container, and regrowth medium on LN-survival (surv) and regeneration (rege) of Scrophularia kukudensis shoot tips in regrowth steps of RM1(ammonium-free)-RM2-MSF. * standard— S-10% 31 h → S-17.5% 17h, C4-35% 40 min, A3-80% ice 60 min, cooling and rewarming using aluminum foil strips, three-step regrowth RM1-2-F {RM1 (MS + NH4NO3-free + GA1+BA0.5), 5d, dark → RM2 (MS + NH4NO3-containing + GA1+BA0.5), 3w2d, 1 lamp → MSF (MS + growth hormones-free)}; S-25%, S-10% → S-25% 17 h; no-OP, no osmoprotection; vial, 2-mL cryovial with 0.5 mL A3-80%; RM2~, RM2 (MS + NH4NO3-containing + GA1+BA0.5) without transfer to a new medium for six weeks.; RM2-2-F, RM2-RM2-MSF; GA1+BA0.5, 1 mg L−1 gibberellic acid (GA3) + 1 mg L−1 benzyl adenine (BA).
Preprints 113616 g006
Preprints 113616 g007
Figure 7. Effect of plant vitrification solutions on LNC-survival (surv) and regeneration (rege) of Scrophularia kukudensis shoot tips in regrowth steps of RM1(ammonium-free)-RM2-MSF. * Cryoprotection: four component PVS PVS2, A3-90%, and A3-80% for 60 min at 0°C; while two component PVS PVS3 and B5-85% for 60min at 25°C.
Figure 7. Effect of plant vitrification solutions on LNC-survival (surv) and regeneration (rege) of Scrophularia kukudensis shoot tips in regrowth steps of RM1(ammonium-free)-RM2-MSF. * Cryoprotection: four component PVS PVS2, A3-90%, and A3-80% for 60 min at 0°C; while two component PVS PVS3 and B5-85% for 60min at 25°C.
Preprints 113616 g007
Preprints 113616 g008
Figure 8. Effect of plant vitrification solutions on LN-survival (surv) and regeneration (rege) of Scrophularia kukudensis shoot tips in regrowth steps of RM1(ammonium-free)-RM2-MSF. * Cryoprotection: four component PVS PVS2, A3-90%, and A3-80% for 60 min at 0°C; while two component PVS PVS3 and B5-85% for 60min at 25°C.
Figure 8. Effect of plant vitrification solutions on LN-survival (surv) and regeneration (rege) of Scrophularia kukudensis shoot tips in regrowth steps of RM1(ammonium-free)-RM2-MSF. * Cryoprotection: four component PVS PVS2, A3-90%, and A3-80% for 60 min at 0°C; while two component PVS PVS3 and B5-85% for 60min at 25°C.
Preprints 113616 g008
Preprints 113616 g009
Figure 9. Effect of with or without ammonium nitrate and growth regulators at three regrowth steps on survival and regeneration of cryopreserved (LN) Scrophularia kukudensis shoot tips. * step 1/step 2/step 3; Step 1 was performed on MS medium with (+) or without (−) ammonium nitrate and growth regulators (1 mg L−1 GA3 + 0.5 mg L−1 BA) in dark for five days. Steps 2 and 3 were performed on MS medium containing ammonium nitrate with (+) or without (-) 1 mg L−1 GA3 + 0.5 mg L−1 BA under light, 40 µE m-2 s-1 for 23 and 14 days, respectively. Means with the same letters (a,b) in each graph are not significantly different by Least Significant Difference Test (p<0.01).
Figure 9. Effect of with or without ammonium nitrate and growth regulators at three regrowth steps on survival and regeneration of cryopreserved (LN) Scrophularia kukudensis shoot tips. * step 1/step 2/step 3; Step 1 was performed on MS medium with (+) or without (−) ammonium nitrate and growth regulators (1 mg L−1 GA3 + 0.5 mg L−1 BA) in dark for five days. Steps 2 and 3 were performed on MS medium containing ammonium nitrate with (+) or without (-) 1 mg L−1 GA3 + 0.5 mg L−1 BA under light, 40 µE m-2 s-1 for 23 and 14 days, respectively. Means with the same letters (a,b) in each graph are not significantly different by Least Significant Difference Test (p<0.01).
Preprints 113616 g009
Preprints 113616 g010
Figure 10. Effect of liquid overlay and timing {LO(W0), LO(W2), LX} and composition of Gellan gum-gelled medium and liquid medium on survival (surv) and regeneration (rege) of cryoprotected (LNC) and cryopreserved (LN) Scrophularia kukudensis shoot tips. *Liquid overlay (LO) at the time of inoculation (W0), two weeks (W2) after inoculation, or no liquid overlay (LX). The composition of gelled and liquid medium includes (+) or excludes (−) nutrients (N) and sucrose (S). Means with the same letters (A-C and a-c) in each graph are not significantly different by Least Significant Difference Test (p<0.05).
Figure 10. Effect of liquid overlay and timing {LO(W0), LO(W2), LX} and composition of Gellan gum-gelled medium and liquid medium on survival (surv) and regeneration (rege) of cryoprotected (LNC) and cryopreserved (LN) Scrophularia kukudensis shoot tips. *Liquid overlay (LO) at the time of inoculation (W0), two weeks (W2) after inoculation, or no liquid overlay (LX). The composition of gelled and liquid medium includes (+) or excludes (−) nutrients (N) and sucrose (S). Means with the same letters (A-C and a-c) in each graph are not significantly different by Least Significant Difference Test (p<0.05).
Preprints 113616 g010
Preprints 113616 g011
Figure 11. Effect of liquid overlay and timing and composition of Gellan gum-gelled medium and liquid medium on plant height and dry weight, hyperhydricity and cryopreserved (LN) regeneration in Scrophularia kukudensis shoot tips.
Figure 11. Effect of liquid overlay and timing and composition of Gellan gum-gelled medium and liquid medium on plant height and dry weight, hyperhydricity and cryopreserved (LN) regeneration in Scrophularia kukudensis shoot tips.
Preprints 113616 g011
Preprints 113616 g012
Figure 11. Preparation of node section-induced primary and secondary shoots from liquid overlay at the time of node inoculation {LO(W0), A-B} and week 2 {LO(W2), C-D}. Liquid overlay subcultured plantlets were node section cultures for 4 weeks (-A,-C) followed by droplet-vitrification cryopreservation using LO(W0) → normal-primary shoots (-B) and LO(W2) → normal-primary shoots (-D) and regrowth for 2 weeks using an ammonium-free regrowth medium 1 (RM1)-RM2 in Scrophularia kakudensis. Cryopreserved (LN) shoot tips in LO(W2) (-D) regrow faster than that of LO(W0) (-B).
Figure 11. Preparation of node section-induced primary and secondary shoots from liquid overlay at the time of node inoculation {LO(W0), A-B} and week 2 {LO(W2), C-D}. Liquid overlay subcultured plantlets were node section cultures for 4 weeks (-A,-C) followed by droplet-vitrification cryopreservation using LO(W0) → normal-primary shoots (-B) and LO(W2) → normal-primary shoots (-D) and regrowth for 2 weeks using an ammonium-free regrowth medium 1 (RM1)-RM2 in Scrophularia kakudensis. Cryopreserved (LN) shoot tips in LO(W2) (-D) regrow faster than that of LO(W0) (-B).
Preprints 113616 g012
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
bsky
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

Privacy Settings

© 2025 MDPI (Basel, Switzerland) unless otherwise stated
