Terahertz Dielectric Metasurface for Reconfigurable Multifunctional Holographic Imaging with Dual-Mode Controlled by Graphene

1. Introduction

Holography is an advanced imaging technology where image information can be reconstructed without a lens. It is an important tool for controlling wave fields and producing highly complex and customized field distributions. Since its invention, holography has been widely used to record and reconstruct all the information of an object, and has found applications in medical observation, virtual reality displays, sensing, data storage, security, secure printing [1,2], and secret sharing [3]. Recently, multiplexing techniques have been widely adopted to realize multiple holographic images or functionalities to increase the information capacity and make the optimum use of the space-bandwidth product. Particularly, with the advancement of computer-generated holograms, hologram generation can be done in an easier way through programming.

Metasurfaces offer flexible capabilities in manipulating the phase, amplitude, wavelength, and polarization of the incident wave. In addition, metasurfaces are capable of manipulating electromagnetic fields at the subwavelength scale, and enable holographic displays with higher resolution, wider field of view, and smaller geometry size [4]. Since a plasmonic metasurface for holography generation in 2013, metasurface-based holography has emerged as a vibrant research field [5]. Holographic multiplexing metasurfaces can record multiple images within the same spatial area, which increase information capacity while maintaining an ultrasmall footprint, subwavelength resolution, and larger field of view. So holographic multiplexing metasurfaces have received widely attention. Numerous studies have been conducted in the light frequency band: a single-layer LP metasurface for independently projecting different hologram images in transmission and reflection modes at the same frequency [6], a single-layer transmission metasurface generating multi-channel gray images by separately and independently controlling the amplitude and phase [7], a tri-channel single-layer transmission metasurface simultaneously recording a continuous grayscale nanoprinting image in the near field and projecting two independent holographic images in the far-field [8], an all-dielectric transmission single-layer metasurface generating polarization-multiplexed holographic images [9]. Significant advancements have also been achieved in the microwave frequency band: a single-layer reflective metasurface generating four-channel holographic images by simultaneous frequency and polarization multiplexing at 7.5 GHz and 13 GHz [10], a frequency-multiplexed single layered transmission metasurface for four-channel holography images at 7.2 GHz, 9.1 GHz, 10.9 GHz, and 15.2 GHz [11], a full-space single-layer encoding metasurface independently manipulating the images ‘F’ and ‘H’ in transmission or reflection mode based on polarization multiplexing at 10GHz [12], reconfigurable holographic images achieved by switching the transmission metasurface shape from planar (for the letter ‘Z’ image, 14.8-15.0 GHz) to zigzag (for the letter ‘L’ image, 14.8-15.2 GHz) [13].

Terahertz (0.1-10 THz) wireless communication is a cornerstone of the next 6G wireless. THz frequencies have the potential to dramatically increase wireless capacity performance and enable high-resolution environment sensing. THz waves can penetrate substances that are opaque to visible and infrared light and possess higher spatial resolution, penetration depth, and non-ionization safety. However, the research on THz metasurface holography images is still in its nascent stages. Reference [14] reported single-pixel THz near-field imaging, achieving λ₀/45 resolution at 0.75 THz and λ₀/133 resolution at 0.5 THz. In reference [15], single-pixel computational ghost imaging with reflective multilayer metasurface holography was introduced in an optical encryption scheme. A reconfigurable and multifunctional 3-bit coding reflection single layer metasurface at 0.95 THz is proposed by integrating photosensitive Ge material into the metasurface unit, and switching between vortex beams and holographic imaging was achieved under the RCP incidence by optically controlling [16]. A multilayer metasurface achieved reconfigurable multichannel holographic imaging in the THz band by integrating vanadium dioxide (VO₂) into the metasurface unit [17]. Holographic letters ‘R’ and ‘L’ were achieved when temperature is above 68 °C, and holographic numbers ‘2’ and ‘6’ were generated in other two channels when temperature is below 68 °C.

Graphene has garnered extensive research attention due to its mechanical robustness, outstanding thermal stability, and chemical and biological stability. Reconfigurable multi-channel reflected light beams were obtained by integrating graphene into the metasurface unit cell [18]. A multifocal graphene orbital angular momentum (OAM) metalen was designed by using spatially multiplexed single-focus with different focal lengths and topological charges [19].

As mentioned above, multi-channel holographic multiplexing images have been realized using transmission, reflection, or transmission-reflection mode metasurface. Full-space meta-holograms offer the advantages of miniaturization and high integration. However, to the knowledge of the authors, the above full space metasurface is realized by controlling orthogonal linearly polarized waves, and there is no dynamic modulation of dual modes (transmission and reflection) based on phase change material. In THz frequency band, there is no reflection-transmission dual mode metasurface for holographic imaging, and there is no dynamic modulation holographic imaging based on graphene. Here, reflection-transmission dynamic modulation THz single-layer propagation-geometric phase dielectric metasurface is proposed based on graphene. The reflection and transmission modes can be switched by controlling the Fermi energy level of graphene integrated into the metasurface unit. In the meantime, the metasurface is also reconfigurable in reflection or transmission mode by switching the feed polarization among RCP, LCP and LP. As example, a reflection and transmission propagation-geometric phase metasurface is designed, and reconfigurability between reflection and transmission modes is achieved by switching the graphene Fermi energy level between 0.1 eV and 0.9 eV. The operation bandwidth for reflection mode is from 1.15 THz to 1.35 THz (16%), and from 1.32 THz to 1.6 THz (19%) for transmission mode. High holographic efficiencies (42.5% to 49%), and six-channel holographic imaging are obtained.

2. Materials and Methods

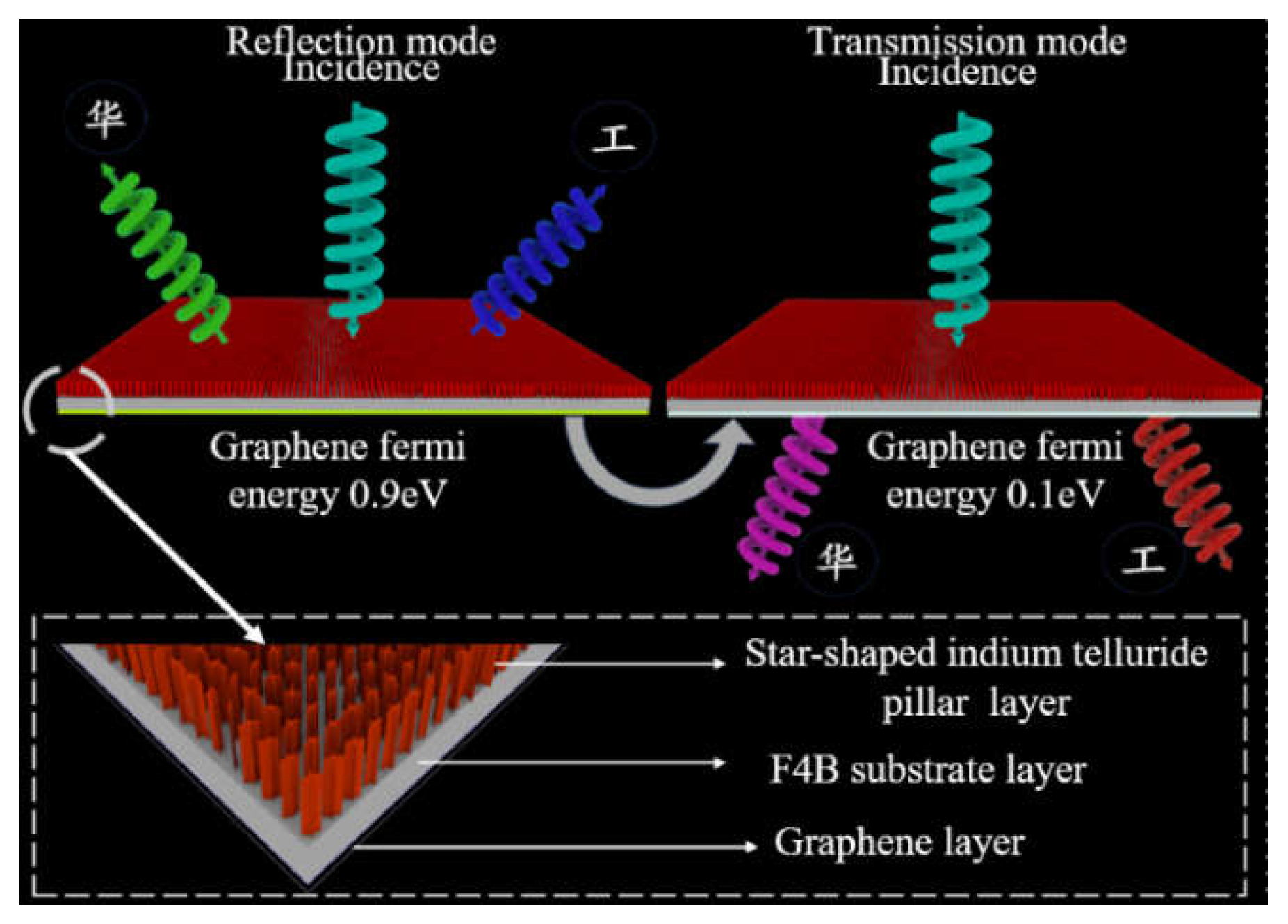

Figure 1 shows the schematic diagram for the dual mode reconfigurable multifunctional metasurface, which consists of three layers: indium telluride pillar unit layer (top), F4B substrate (middle), and graphene layer (bottom). Figure 1 shows the reconfigurable holographic imaging obtained by switching the incidence polarization in reflection and transmission modes, respectively. Figure 1c is the phase switching sketch map: metal when E_f = 0.9eV, insulator when E_f = 0.1eV. The proposed metasurface works in reflection and transmission modes when E_f =0.9eV and 0.1eV, respectively. The reconfiguration among the Chinese characters ‘’, ‘’ and ‘’are achieved by switching LCP, RCP and LP incidence, respectively. The operation frequency range is 1.15THz – 1.35THz (16%) for reflection mode, and 1.32 THz - 1.6 THz (19%) for transmission mode. The holographic imaging is co- and cross- polarization for reflection and transmission modes, respectively.

2.1. Phase Change Principle of Graphene

The electric conductivity of graphene is the sum of inter-band and intra-band conductivity according to the Kubo equation. The inter-band conductivity can be neglected at room temperature in the lower THz frequency band, and the surface electric conductivity σ_g(ω) of graphene is described as follows [20].

$${\sigma }_g\left(\omega \right)\approx {\sigma }_{\mathrm{intra}}\left(\omega \right)=j{\displaystyle \frac{e^{2}KBT}{\pi {\hslash }^2\left(\omega +j{\tau }^{-1}\right)}}\left({\displaystyle \frac{Ef}{KBT}}+2In\left(exp\left(-{\displaystyle \frac{Ef}{KBT}}\right)+1\right)\right)$$

(1)

where ω, e, K_B, T, ℏ, τ and E_f are the angular frequency, electron charge, Boltzmann constant, environmental temperature, Planck's constant, the relaxation time and the Fermi energy level, respectively. The conductivity of graphene can be continuously tuned by manipulating its Fermi energy via extra voltage. Graphene functions as the dielectric when E_f = 0.1 eV, and is in metallic state when E_f = 0.9 eV [21]. Here, set τ = 1 ps and T = 300 K. The conductivity of graphene is a function of ω and E_f according to Equation (1). In this paper, the proposed reconfigurable metasurface works in transmission mode at frequency f₁ when E_f = 0.1 eV, and in reflection mode at frequency f₂ when E_f = 0.9 eV. The metallic 2D graphene layer acts as ground plane in reflection mode.

2.2. The Phases (ϕ_x, ϕ_y, β) Calculation Principle for Geometry-Propagation Phase Unit

After the phase distribution map for the metasurface is calculated according to GS algorithm, a unit with phase (ϕ_x, ϕ_y, β) are designed to implement the calculated phase distribution map. The physical model of the unit phase (ϕ_x, ϕ_y, β) vs the outgoing wave phase is as follows.

When a unit with x-axis or y-axis symmetry is rotated an angle β in the xoy plane, and a propagation-geometric phase metasurface unit is formed.

For transmission metasurface, assume the transmission amplitude t_x(y) for x- or y- polarization approaches 1. When the transmission metasurface is excited by the normal CP incidence plane wave, the co-polarized (J_co) and cross-polarized (J_cross) components are given by [19]:

$$\left\{\begin{array}{c}{J}_{co}={\displaystyle \frac{1}{2}}\left(e^{i{\varphi }_x}+e^{i{\varphi }_y}\right)=\cos {\displaystyle \frac{{\varphi }_x-{\varphi }_y}{2}}\times e^{i{\displaystyle \frac{\left({\varphi }_x+{\varphi }_y\right)}{2}}}\\ J_{cross}={\displaystyle \frac{1}{2}}\left(e^{i{\varphi }_x}-e^{i{\varphi }_y}\right)\times \left(e^{i2\beta }·{\widehat{\sigma }}_R+e^{-i2\beta }·{\widehat{\sigma }}_L\right)\\ =\sin {\displaystyle \frac{{\varphi }_x-{\varphi }_y}{2}}\times e^{i{\displaystyle \frac{\left({\varphi }_x+{\varphi }_y+\pi \right)}{2}}}\times \left(e^{i2\beta }·{\widehat{\sigma }}_R+e^{-i2\beta }·{\widehat{\sigma }}_L\right)\end{array}\right.$$

(2)

where ${\widehat{\sigma }}_R={\displaystyle \frac{1}{2}}\left[\begin{array}{cc}1& -i\\ -i& -1\end{array}\right]$ and ${\widehat{\sigma }}_L={\displaystyle \frac{1}{2}}\left[\begin{array}{cc}1& i\\ i& -1\end{array}\right]$ are defined as polarization operators and the subscripts L and R represent LCP and RCP, respectively. ϕ_x and ϕ_y are the propagation phases for x and y polarization, respectively. β is the rotated angle in the xoy plane. From Equation (2), the amplitude (t) and phase (ϕ) for J_co and J_cross are as follows:

$$\left\{\begin{array}{l}{t}_{co}=\cos ({\varphi }_x-{\varphi }_y)/2\hfill \\ t_{cross}=\sin ({\varphi }_x-{\varphi }_y)/2\hfill \end{array}\right.$$

(3)

$$\left\{\begin{array}{l}{\varphi }_{co}=({\varphi }_x+{\varphi }_y)/2\hfill \\ {\varphi }_{cross}=({\varphi }_x+{\varphi }_y+\pi )/2\pm 2\beta \hfill \end{array}\right.$$

(4)

From Equation (4), the phase for the cross-dual CP can be independently controlled as follows: ${\varphi }_{crossRCP}=({\varphi }_x+{\varphi }_y+\pi )/2+2\beta$ for RCP, ${\varphi }_{crossLCP}=({\varphi }_x+{\varphi }_y+\pi )/2-2\beta$ for LCP. If ${\varphi }_x={\varphi }_y+\pi$, the co-polarized component is suppressed according to Equation (2), and the metasurface convert RCP (LCP) incident wave to outgoing LCP (RCP) wave. Then the propagation phase and rotation angle of the unit can be derived as by Equation (4):

$$\left\{\begin{array}{l}{\varphi }_x={\varphi }_y+\pi \\ {\varphi }_y=({\varphi }_{crossRCP}+{\varphi }_{crossLCP}-2\pi )/4\\ \beta =({\varphi }_{crossRCP}-{\varphi }_{crossLCP})/4\end{array}\right.$$

(5)

For reflection metasurface. Assume the reflection amplitudes for x- or y- polarization keeps as unity (r_x = r_y =1), and (ϕ_x − ϕ_y = π). When the reflection metasurface is excited by a normal CP incidence plane wave, the Jones matrix of the outgoing wave is as follows: [23,24]:

$$\left[\begin{array}{c}{E}_{LL}^r\\ E_{RR}^r\end{array}\right]=C^{\prime }MJ{M}^{-1}{C}^{-1}=\left(\begin{array}{cc}{e}^{({\varphi }_x-i2\beta )}& 0\\ 0& e^{({\varphi }_x+i2\beta )}\end{array}\right)\left[\begin{array}{c}{E}_L^i\\ E_R^i\end{array}\right]$$

(6)

where E_Lⁱ, E_LL^r, E_LL^r and E_RR^r are represent the incident LCP wave, incident RCP wave, LCP outgoing wave, and RCP outgoing wave, respectively. $\mathrm{M}=\left[\begin{array}{cc}\cos \beta & -\sin \beta \\ \sin \beta & \cos \beta \end{array}\right]$, $J=\left[\begin{array}{cc}{e}^{j{\varphi }_x}& 0\\ 0& e^{j{\varphi }_y}\end{array}\right]$, $C={\displaystyle \frac{1}{2}}\left[\begin{array}{cc}1& i\\ 1& -i\end{array}\right]$ and $C^{\prime }={\displaystyle \frac{1}{2}}\left[\begin{array}{cc}1& -i\\ 1& i\end{array}\right]$. The cross-polarized component is suppressed, and the outgoing wave is co-polarized. The co-polarization phases for LCP and RCP waves are as follows:

$$\left\{\begin{array}{l}{\varphi }_{co-LCP}={\varphi }_x-2\beta \\ {\varphi }_{co-RCP}={\varphi }_x+2\beta \end{array}\right.$$

(7)

2.3. Gerchberg-Saxton (GS) Algorithm

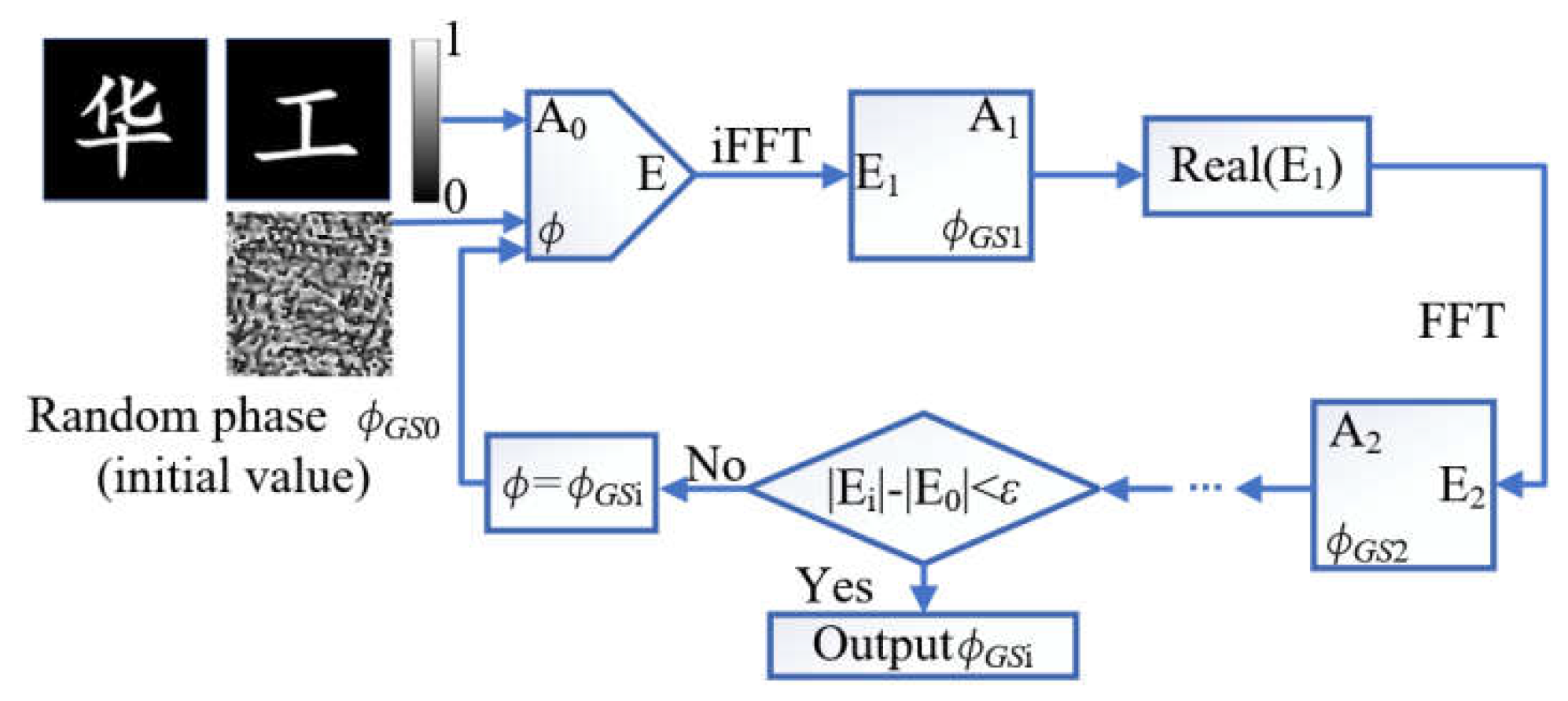

The Gerchberg-Saxton (GS) algorithm, which was originally proposed by D. Gerchberg and W. Saxton in 1972 [22], is an iterative algorithm commonly used in phase retrieval for holographic imaging based on Fourier transform and inverse Fourier transform. The iteration starts from the measured amplitude information of the input image, and ends until the error threshold $(\left|E_i\right|-\left|E_0\right|)<\epsilon$is met. Here GS algorithm is used to obtain the phase distribution map of the phase gradient metasurface, and the basic steps and method are shown in Figure 2.

The required images ‘’, ‘’ in z axis direction are established by Computer holography technology based on MATLAB. First, painting software is used to draw the required images (including the black background and the white images). Second, the amplitude matrix A₀ (m×n) in the image area is obtained by MATLAB function ‘imread’ and ‘binary’. In A₀ (m×n), the intensities are “1” and “0” for points (x, y, 0) in white and black, respectively. Third, the MATLAB function ‘random’ generates a random phase matrix Φ_GS0 (m×n). Apply Fourier transform to the matrices A₀ and Φ_GS0, and obtain amplitude and phase matrices in frequency domain A₁ and Φ_GS1. Then, update all the amplitude matrix values in A₁ (m×n) into 1, that is, A^′₁(x, y) = 1. Perform inverse Fourier transform to A^′₁ and Φ_GS1, and obtain amplitude and phase matrices in time domain A₂ and Φ_GS2. Repeat iterative operations of step 2 and step 3, and update the i-th iteration amplitude A_i (x, y) to A^′_I (x, y) = 1 until the error threshold $(\left|E_i\right|-\left|E_0\right|)<\epsilon$, where $E=A\exp (i{\varphi }_{GS})$. Then the phase distribution map for the Metasurface is obtained.

2.4. The Total Compensated Phase Calculation Based on Transmission Mode

The metasurface is designed in transmission mode at f₁ when E_f = 0.1 eV. Under LCP incidence, a holographic imaging RCP ‘’ is generated in direction (θ₁, 0°). Under RCP incidence, a holographic imaging LCP ‘’ is generated in direction (θ₂, 0°). The phase compensation for the metasurface obtained by GS algorithm is Φ_GS, which is for the images in normal direction. An additional compensated phase is added for the desired imaging direction (θ, 0°), and the compensated phase for RCP ‘’ or LCP ‘’ for the metasurface unit located at (x, y, 0) is as follows:

$$\left\{\begin{array}{c}{\varphi }_{cross-RCP华}={\varphi }_{华}+{\displaystyle \frac{2\pi f_1}{c}}\times (\sin {\theta }_1)\times x\\ {\varphi }_{cross-LCP工}={\varphi }_{工}+{\displaystyle \frac{2\pi f_1}{c}}\times (\sin {\theta }_2)\times x\end{array}\right.$$

(8)

Then the compensated phase parameters (ϕ_x, ϕ_y, β) of the metasurface unit for reconfigurable multifunctional holographic imaging for ‘’, ‘’ and ‘’ is calculated by Equation (5) and Equation (8).

2.5. The Imaging Direction Deduction for Reflection Mode

By switching the bottom graphene layer from insulator to metal states, the metasurface designed in transmission mode can be made to work in reflection mode with the bottom graphene layer acting as a ground plane. According to Equation (6), the holographic imaging of (RCP, ‘’, θ₁, 0°) and (LCP, ‘’, θ₂, 0°) designed in transmission mode has changed into co-polarized imaging of (LCP, ‘’, θ₃, 0°) and (RCP, ‘’, θ₄, 0°) in reflection mode as shown in Figure 3. Though the phase distribution map of the metasurface is calculated based on transmission mode, (LCP, ‘’, θ₃, 0°) and (RCP, ‘’, θ₄, 0°) are generated under LCP and RCP incidences in reflection mode, respectively. Because the graphene permittivity is a function of its state, the operation frequency f₂ and direction θ₃₍₄₎ for reflection mode are different from f₁ and θ₁₍₂₎ in transmission mode. The direction θ₃₍₄₎ is calculated as follows:

$$\left\{\begin{array}{c}{\varphi }_{cross-RCP华}={\varphi }_{co-RCP华}={\varphi }_{华}+{\displaystyle \frac{2\pi f_2}{c}}\times (\sin {\theta }_4)\times x\begin{array}{c}\begin{array}{c}\end{array}(under\begin{array}{c}LCP\begin{array}{c}incidence)\end{array}\end{array}\end{array}\\ {\varphi }_{cross-LCP工}={\varphi }_{co-LCP工}={\varphi }_{工}+{\displaystyle \frac{2\pi f_2}{c}}\times (\sin {\theta }_3)\times x\begin{array}{c}\begin{array}{c}\end{array}(under\begin{array}{c}RCP\begin{array}{c}incidence)\end{array}\end{array}\end{array}\end{array}\right.$$

(9)

From Equations (8) and (9), θ₃ and θ₄ are deduced as follows.

$$\left\{\begin{array}{c}{\theta }_3=\arcsin \left({\displaystyle \frac{f_1}{f_2}}\sin \left({\theta }_2\right)\right)\\ {\theta }_4=\arcsin \left({\displaystyle \frac{f_1}{f_2}}\sin \left({\theta }_1\right)\right)\end{array}\right.$$

(10)

In summary, based on the above analysis, the proposed metasurface can be switched between transmission and reflection modes, and the holographic imaging can be reconfigured by switching the incident polarization when operating in transmission or reflection mode. Six holographic imaging channels are achieved, as shown in Table 1.

2.6. Unit Cell Design

The proposed dual-mode metasurface is excited by normal plane wave as in Figure 1 and Figure 3. Open boundaries were set as boundary conditions. As example, dual-mode reconfigurable multifunctional holographic imaging are designed in order to validate the above design method: (1) Reconfigurable Chinese characters with cross-polarized in transmission mode are achieved when E_f = 0.1 eV: (a) (RCP, ‘’, -14°, 0°), (b) (LCP, ‘’, 17.5°, 0°), and (c) both (RCP, ‘’, -14°, 0°) and (LCP, ‘’, 17.5°, 0°) by switching LCP, RCP and LP incidence, respectively. (2) Reconfigurable multifunctional holographic imaging (Chinese characters) with co-polarized are achieved in reflection mode when E_f = 0.9 eV: (a) (RCP, ‘’, -16°, 0°), (b) (LCP, ‘’, 20°, 0°), (c) both (RCP, ‘’, -16°, 0°) and (LCP, ‘’, 20°, 0°) by switching the RCP, LCP and LP incidence, respectively. All the curves and field patterns are simulated by CST Microwave Studio software.

To realize the designed dual-mode reconfigurable multifunctional holographic imaging, a unit cell is proposed to implement the phase (ϕ_x, ϕ_y, β) at (x, y, 0) calculated by Equation (5), which is shown in Figure 4. Figure 4a–c show the simulation Floquet model, top and side views for the unit, respectively, which consists of a star-shaped indium telluride pillar (ε_r =19, tan δ = 0.001) in the top and a 2D bottom graphene layer separated by an F4B substrate with a dielectric constant 2.2, tan δ = 0.003. All geometry parameters are marked in Figure 4, and the optimized parameters are as follows: p = 123 μm, w = 11 μm, h₁ = 150 μm, h₂ = 0.5 μm and h₃ = 0.05 μm. The propagation phases ϕ_x and ϕ_y are controlled by l_x and l_y, respectively, and the geometry phase is controlled by rotating the unit cell counter clockwise β degree.

Under normal x- (y-) polarized incident excitation: (1) For reflection mode at 1.31THz, 1.325THz and 1.336THz, Figure 5a shows the simulated S₁₁ and phase ϕ_x(y) as a function of l_x(y), and Figure 5b shows the simulated S₁₁ and phase ϕ_y(x) as a function of l_x(_y). (2) For transmission mode at 1.455THz, 1.465THz, and 1.473 THz: Figure 5c shows the simulated amplitude (S₂₁) and phase ϕ_x(y) curves as function of l_x(y), and Figure 5d is the simulated amplitude (S₂₁) and phase ϕ_y(x) curves as function of l_x(y). For both transmission and reflection modes when l_x(y) varies from 15 μm to 113 μm: (1) The phase of the co-polarization ϕ_x(y) increases from -450° to -90°, covering a 360^o phase range. (2) The phase shift of the cross-polarization ϕ_y(x) remains basically unchanged, indicating that ϕ_x and ϕ_y can be independently adjusted by l_x and l_y, respectively. S₁₁ > 0.99 for reflection mode, and S₂₁ > 0.85 for transmission mode. The phase ϕ_x(y) curves versus l_x(_y) for different frequency points (at 1.31THz, 1.325THz for reflection mode or at 1.455 THz, 1.465 THz, and 1.473 THz for transmission mode) are parallel, indicating that the metasurface can operate within a certain bandwidth. According to Figure 5a,c, a polynomial formula for the relationship between ϕ_x(_y) and l_x(_y) can be fitted as follows:

$$\begin{array}{c}{\varphi }_{x(y)}=392.7\times \sin (0.027\times l_{x(y)}+0.2954)+264.3\times \sin (0.075\times l_{x(y)}+0.1413)\\ +209.3\times \sin (0.08\times l_{x(y)}+2.699)\end{array}$$

(11)

When l_x =15 μm, Figure 6 shows the curves of the geometric phase as a function of the rotation angle β for reflection mode when l_x=15um (at 1.31THz, 1.325THz, and 1.336 THz) and transmission mode (at 1.455THz, 1.465THz, and 1.473THz). When β ranges from 0° to 180°, the geometric phase shift covers 360°, and the geometric phase vs β curves at different frequency points (1.31THz, 1.325THz and 1.336THz for reflection mode or 1.455THz, 1.465THz, and 1.473 THz for transmission mode) are parallel.

2.7. Metasurface Design

The transmission-reflection reconfigurable metasurface shown in Figure 3 is formed by the proposed 91×91 unit cells with size 11.193mm×11.193mm×0.15mm (50.4λ₀×50.4λ₀×0.68λ₀) for dual-mode reconfigurable multifunctional holographic imaging: (1) Reconfigurable cross-polarized holographic imaging in transmission mode when E_f = 0.1eV: (a) (RCP, ‘’, -14°, 0°), (b) (LCP, ‘’, 17.5°, 0°), and (c) both (RCP, ‘’, -14°, 0°) and (LCP, ‘’, 17.5°, 0°) by switching LCP, RCP and LP incidence, respectively. (2) Reconfigurable multifunctional co-polarized holographic imaging in reflection mode when E_f = 0.9eV: (a) (RCP, ‘’, -16°, 0°), (b) (LCP, ‘’, 20°, 0°), (c) both (RCP, ‘’, -16°, 0°) and (LCP, ‘’, 20°, 0°) by switching the RCP, LCP and LP incidence, respectively.

The compensated phase distributions for ϕ_x, ϕ_y and 2β according to Equation (5) are shown in Figure 7, and then the corresponding geometry length distributions for l_x, l_y in the metasurface are obtained according to Equation (11).

3. Results

3.1. 2D and 3D Far-Field Properties

The far-field radiation patterns at 1.325 THz or 1.465 THz under LCP, RCP and LP incidence are shown in Figure 8. Figure 8a,b show the three dimension (3D) and 2D far-field radiation patterns for reflection and transmission modes, respectively. Reconfigurable cross-polarized holographic imaging is achieved at 1.465 THz in transmission mode among (‘’, RCP, θ = -14°, φ = 0°), (‘’, LCP, θ = 17.5°, φ = 0°) and both (‘’, RCP, θ = -14°, φ = 0°) and (‘’, LCP, θ = 17.5°, φ = 0°) by switching LCP, RCP and LP incidence, respectively. Reconfigurable multifunctional co-polarized holographic imaging is achieved at 1.325 THz in reflection mode among (‘’, RCP, θ = -16°, φ = 0°), ‘’, LCP, θ = 20°, φ = 0°), and both (‘’, RCP, θ = -16°, φ = 0°) and (‘’, LCP, θ = 20°, φ = 0°) by switching the RCP, LCP and LP incidence, respectively. The simulated and calculated holographic imaging are in good agreement. Because LP wave can be decomposed into two equal LCP and RCP waves, both the LCP and RCP excitation are done simultaneously, and the holographic imaging for LP incidence are the holographic imaging sum of LCP and RCP incidences.

3.2. Analysis of the Bandwidth Characteristics

The simulated 3D and 2D far-field holographic imaging with co-polarization under RCP and LCP incidences in reflection mode at 1.15THz, 1.25THz and 1.35THz are shown in Figure 9a. The profile remains unchanged across different frequencies, indicating an operation bandwidth from 1.15THz to 1.35THz (16%). Figure 9b illustrates the simulated 3D and 2D far-field holographic imaging with cross-polarization under RCP and LCP incidences in transmission mode at 1.32THz, 1.465THz and 1.6THz. The profile remains nearly unchanged across different frequencies, indicating an operation bandwidth from 1.32THz to 1.6THz (19%).

3.3. Holographic Efficiencies

To evaluate the imaging quality of the designed metasurface, we calculated the holographic efficiency for both transmission and reflection modes as shown in Figure 8. The calculation formula for holographic efficiency is referenced in reference [17,25].

$$\eta ={\displaystyle \frac{{\displaystyle {\int }_0^{2\pi }{\displaystyle {\int }_0^{\pi }{\left|E_r(\theta ,\phi )\right|}^2\sin \theta d\theta d\phi }}}{{\displaystyle {\int }_0^{2\pi }{\displaystyle {\int }_0^{\pi }{\left|E_m(\theta ,\phi )\right|}^2\sin \theta d\theta d\phi }}}}$$

(12)

where η represents the holographic efficiency, E_r (θ, φ) and E_m (θ, φ) are the far-field scattering patterns from the metasurface and the corresponding metal mirror with the same size, respectively. Figure 10a,b are the holographic efficiencies under LCP, RCP, and LP excitation for reflection and transmission modes, respectively. The holographic efficiencies for the reflection mode at 1.25 THz under LCP, RCP, and LP incidences are 42.5%, 42.8%, and 49%, respectively. The holographic efficiency for the transmission mode at 1.465THz are 44.8%, 45.1%, and 47% for LCP, RCP, and LP incidences, respectively.

4. Discussion

A comparison in operation frequency, holographic imaging channel number, operation mode number, operation bandwidth and holographic efficiency has been made between the proposed design and published holographic metasurfaces as in Table 2. References [9,10,11,17] only work in only reflection or transmission mode. Ours works in both reflection and transmission modes, and is reconfigurable for reflection or transmission mode by switching among the RCP, LCP and LP incidence. In addition, ours has more holographic imaging channel numbers and higher holographic efficiency.

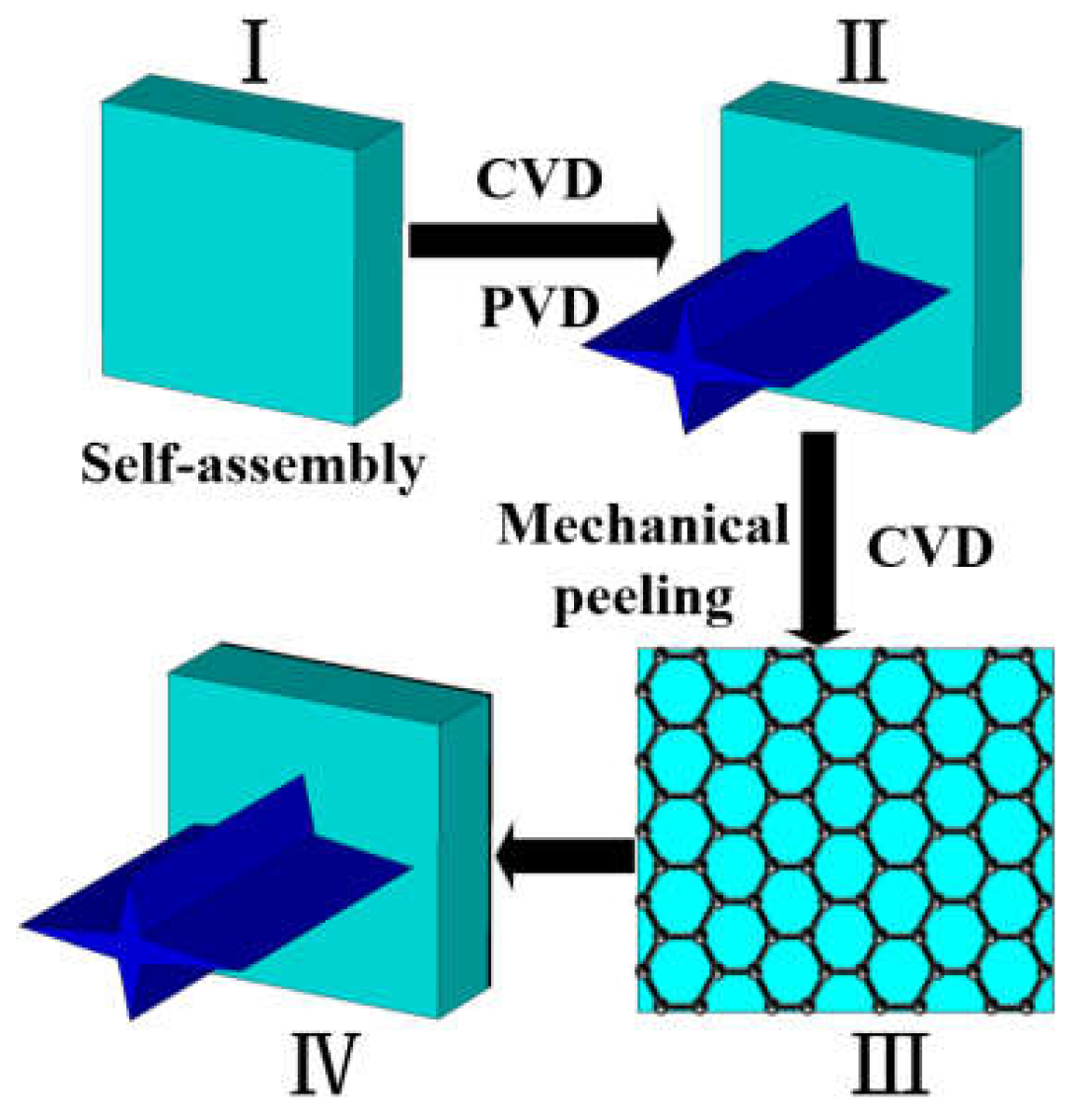

In addition, we also discuss the fabrication of the proposed metasurface. While our design theory has been validated from a simulation perspective, we still face two key challenges. The first challenge pertains to the fabrication of metasurface. Figure 11 illustrates potential fabrication methods. Firstly, the F4B material layer can be obtained through self-assembly to form the required dielectric substrate. Secondly, there are two methods to obtain the top layer of indium telluride. One approach involves chemical vapor deposition (CVD), whereby indium telluride thin films are deposited on the F4B substrate, with control over temperature, humidity, and deposition rate to achieve the desired material thickness and quality. Another method entails utilizing physical vapor deposition (PVD), employing techniques such as sputtering or evaporation to deposit indium telluride material on the substrate, with deposition parameters controlled to achieve the desired dielectric dimensions. Finally, the bottom graphene layer can be prepared through mechanical exfoliation, as referenced in reference [26], for transferring graphene onto the substrate. Alternatively, graphene can be grown directly on the F4B material bottom using CVD, with precise management of reaction conditions to achieve the required graphene thickness.

The second challenge pertains to the method of controlling graphene’s chemical potential. As documented in reference [18,20,21,27], the application of an electric field between the graphene layer and the upper dielectric can effectively manipulate the carrier concentration of graphene, subsequently allowing for the adjustment of the Fermi level. Moreover, techniques such as chemical doping, direct laser writing, the imposition of mechanical strain, and the utilization of piezoelectric effects can be employed to modulate the lattice structure of graphene. This, in turn, alters its electronic properties and facilitates the subsequent adjustment of the Fermi level positioning.

5. Conclusions

This paper develops a multifunctional and reconfigurable reflection-transmission dual-mode THz dielectric holographic metasurface formed by propagation - geometry composite units. The dual-mode is achieved by controlling the Fermi energy level of graphene integrated into the metasurface unit, and the proposed metasurface works in reflection and transmission modes when E_f = 0.9 eV, 0.1eV, respectively. The reconfigurability is realized by switching incidence polarization. The metasurface is designed based on transmission mode, and the physical model switching to the reflection mode is established. For the first time, dynamic modulation reflection-transmission holographic imaging metasurface based on graphene is developed. As example, a multifunctional and reconfigurable metasurface has been developed: (1) Reconfigurable cross-polarized three-channel holographic imaging in transmission mode from 1.32THz to 1.6THz: (‘’, RCP, θ = -14°, φ = 0°), (‘’, LCP, θ = 17.5°, φ = 0°) and (‘’, RCP, θ = -14°, φ = 0° and ‘’, LCP, θ = 17.5°, φ = 0°) by switching LCP, RCP and LP incidence, respectively. (2) Reconfigurable co-polarized three-channel holographic imaging in reflection mode from 1.15THz to 1.35THz: (‘’, RCP, θ = -16°, φ=0°), (‘’, LCP, θ = 20°, φ = 0°), and (‘’, RCP, θ = -16°, φ = 0° and ‘’, LCP, θ = 20°, φ = 0°) by switching the RCP, LCP and LP incidences, respectively. Compare with published holographic imaging, ours has more channel numbers (six holographic imaging channels) and higher holographic efficiency (42.5% to 49%). These characteristics make the proposed metasurface has potential applications in information encryption transmission, multi-channel imaging, and other related fields.
