Connecting the Riparian Phyllosphere to Water Microbial Communities in a Freshwater Stream System

1. Introduction

The phyllosphere, or the above-ground external surfaces of plants, is thought to be the largest microbial habitat on earth [1]. Phyllosphere microbial communities (PMCs) heavily influence plant fitness and ecosystem function, and themselves serve as a major source of bioaerosols globally [2]. Understanding the assembly and structure of the PMC is therefore vital for effective management of food safety and security, understanding local and ecosystem-level function, and predicting impacts of climate change both locally and globally[3]. Despite these realities, key questions remain unanswered regarding environmental impacts on the sources for and function of PMCs [4].

Bioaerosols are a dominant source for phyllosphere colonization [5], representing all major earth biomes, including marine, soil, plant, and animal sources [6]. Dispersal and delivery of bioaerosols to leaf surfaces are controlled by geographical proximity to bioaerosol sources [7,8], meteorological conditions like wind speed, wind direction, and precipitation [1], and leaf topography [9]. PMCs are a diverse mixture of fungi, bacteria, archaea, algae, and viral particles, with bacterial communities often dominating [10,11].

The microbial content of ambient aerosols varies based on seasonal and geospatial influences [12,13]. Once aerosolized microbes deposit on the leaves of plants and trees, they become either short-term or long-term epiphytic residents [13,14], according to host and established PMC responses to these new microbes [15,16]. Recent studies have demonstrated that, despite geospatial variability in microbial content of aerosols, trees appear to have species-specific core microbial communities [10]. The influence and source for microbes not included in that core microbiome, and their interactions with that core microbiome, are not well understood.

Land-based aerosol sources are better studied, but water surfaces are also a major source of aerosols [17], through the action of bubbles bursting at marine and freshwater surfaces and launching microscopic droplets into the air [18,19,20,21,22,23,24,25]. Bubbles are introduced in both marine and freshwater environments through wind-wave interactions [26,27,28] wave-shore interactions [29]; human recreation (e.g., boating, swimming); and water features creating whitewater, including art installations, fountains, downed trees, waterfalls, and gas evolution, among others. Bioaerosols created from water surfaces can be important mechanisms for transfer/transport of viable microbes and nutrients to land-based surfaces and ecosystems [17,26,27,28]. It follows, then, that water systems would be an important influence on the microbial colonization of adjacent phyllospheres, particularly in riparian zones.

While there has been some study of the contribution of the phyllosphere to soil microbes, and discussion of the eventual impact on water microbes as water travels from land to waterways, the contribution of aquatic microbiomes to land-based microbiomes, including the phyllosphere, is still poorly understood. Studies of the movement of soil microbes from riparian zones into waterways have been conducted, e.g. [30], but do not include the phyllosphere. Dodds et al. [31] studied the potential transfer of PMC’s to waterways through run-off, but did not consider the role that waterways themselves have in influencing PMC’s to begin with.

The connection between water and air quality through microbial aerosols has been demonstrated mostly in marine environments, including coastal oceans [27,32,33,34], estuarine coastlines [28,35], and polluted shipping canals [36,37]. As these studies continue, it’s clear that what is in the water (including chemical and biological pollution) is also transferred to the air, where it travels inland to deposit on terrestrial surfaces. Studies of this phenomenon and its implications for freshwater systems, however, have not been conducted, particularly as it relates to the environmental distribution of water-bourne sewage-associated microbes and micropollution (genetic material, antibiotic resistance gene cassettes). The connection between riparian PMCs and water quality, until our study, is largely unknown.

The influence of air pollution on PMC structure and function has been studied demonstrating a relationship between proximity to traffic and other forms of air pollution and the degradation of PMC function [38,39,40]. Anthropogenic impacts on PMCs in urban arenas have included a reduction in alphaproteobacteria in urban environments [41], but a higher diversity of microbes than non-urban PMC’s overall. Leaves and trees are known to be effective filters of air pollution, and are sometimes even used to clean air [42]. Interestingly, there are many studies outlining how riparian zones and the phyllosphere in particular protect waterways from pesticide applications [43], but no studies to date examining the role the riparian zone may play in protecting inland ecosystems from the pollution present in the water itself.

Here, we explore the potential for riparian phyllospheres to intercept microbial aerosols contributed by rural/suburban freshwater systems known to contain treated and untreated sewage inputs. We compared Acer rubrum (red maple) PMC’s in a freshwater stream riparian zone adjacent to aerosol-creating water features (a historical dam spillway and a waterfall) to A. rubrum PMC’s in the same forest system, but located well above the freshwater stream. Due to proximity to the waterway and the aerosols created by the distinct water features, we expected to find a clear difference in PMC diversity and structure between riparian and further inland forest A. rubrum PMCs. Furthermore, we hypothesized that riparian zone phyllospheres would include detectable influence from the adjacent water surface, including shared aquatic microbial species, sewage indicators, and micropollution.

2. Materials and Methods

2.1. Study Sites

As previously described in De Santana et al. [44], this study was conducted on the Saw Kill, a 23.0 km tributary of the Hudson River, located in the upper Hudson Valley, during the summer of 2015. The Saw Kill Watershed drains 57 km², including forest, wetland, agricultural, and suburban developed land (Wikipedia Saw Kill 2022). There are 2 permitted sewage outfalls (NYSPDES permit #’s NY0271420, NY0031925) on the Saw Kill, and one permitted drinking water facility (130,000 gallons per day) between the two sewage outfalls.

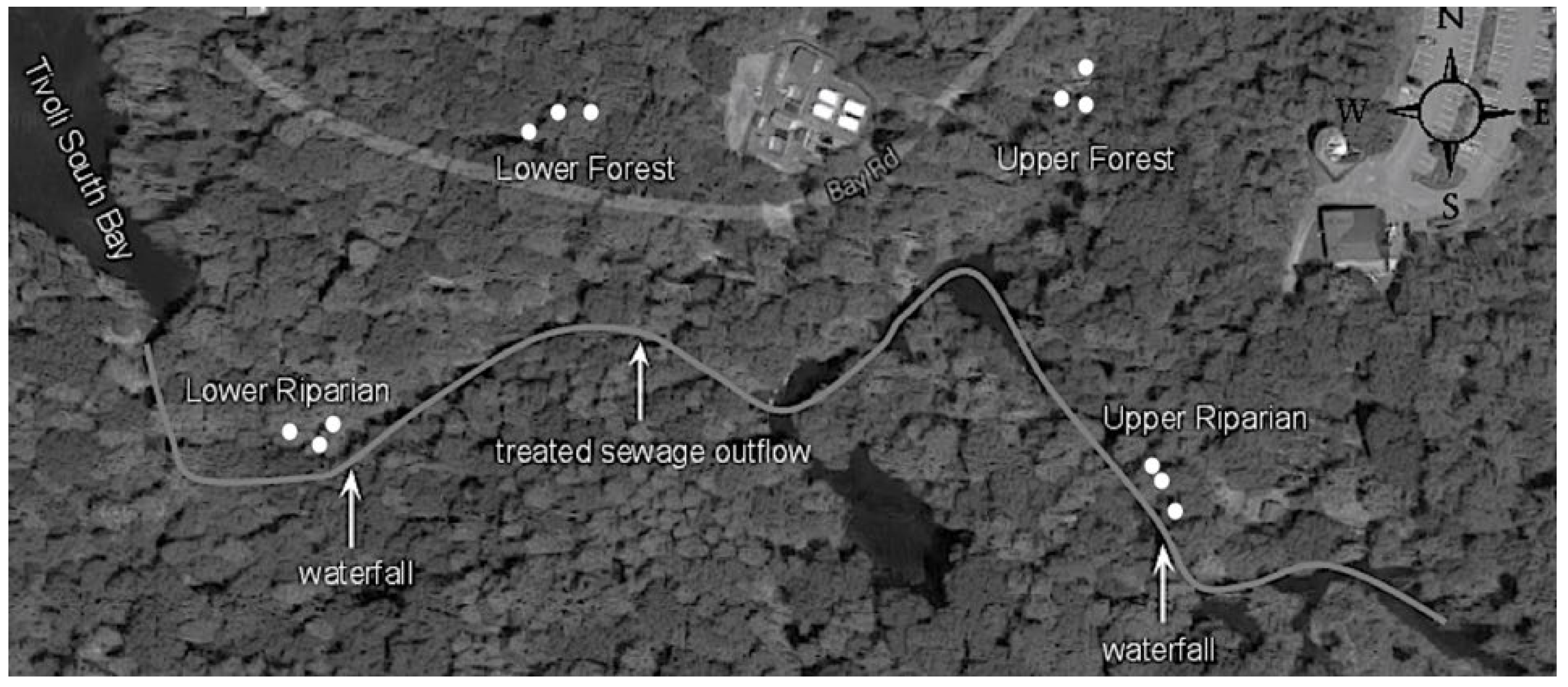

Four phyllosphere sampling sites (two riparian sites (adjacent to de Santana et al. stream sampling sites), and two forest sites > 65 m upslope of the water sampling sites) were chosen to represent “riparian” and inland “forest” sites (Figure 1). Three A. rubrum at each site were marked prior to the sampling campaign to ensure consistent collection from the same trees throughout (Figure 1). The riparian trees were exposed to constant production of aquatic aerosol through a dam spillway (upper riparian) and a waterfall (lower riparian). Previous preliminary aerosol monitoring conducted during a clear, windless day demonstrated a significant difference in aerosol particle number and size distribution between forest and riparian tree sites (Supplemental Figure S1), with the riparian zone containing significantly higher aerosol particles in the range known to harbor bacterial aerosols [45]. All sampling was conducted on ten sampling days between 6/22/15 and 7/22/15.

2.2. Surface water and phyllosphere sampling

Surface water samples were collected as per de Santana et al. [44] in sterile and acid-washed 2 L Nalgene bottles from mid-channel within 0.5 m of the stream surface at each site. All samples were placed on ice and transported to the laboratory for analysis within 2 hours of sampling. A list of all water samples along with their physical characterization (i.e., GPS coordinates, date, temperature, salinity, conductance, particulate) is available in de Santana et al. [44].

We used methods similar to Laforest-Lapointe et al. [24] and Tang et al. [46] to sample A. rubrum leaf PMC. Tree leaves collected during the sampling campaign (mid-summer) were fully mature, but not senescing, minimizing leaf age influence on PMC’s. For each sampling event, three leaves were randomly collected from each tree at 250 – 300 cm above ground-level. The leaves were gathered with sterilized forceps at the base of the stem and broken from the tree. Two leaves from each tree were immediately placed in a sterile 50 ml falcon tube to be later washed for use in culturable bacteria counts and bacterial DNA extraction, and one leaf was placed in a sterile, clear Nasco Whirl-Pak® bag for processing in the lab.

The leaf “wash,” representing both adaxial and abaxial leaf PMC, was obtained as follows: 15 ml of endotoxin-free Hyclone Hypure™ Cell Culture Grade water was pipetted into each of the falcon tubes containing two leaves from each tree. The tubes were then vortexed at maximum speed for 5 minutes, and then centrifuged at 1,300 rpm for 3 minutes. Supernatant from each was then transferred into a new sterile tube, with wash from all three trees per site pooled for downstream assays.

2.3. Bacterial analyses

2.3.1. Culture-based methods

Leaf surface area (LSA) was estimated by outlining sterile bagged leaves on grid paper using a light table to minimize disturbance of attached microbial communities. These leaves (one per tree) were then “printed” onto LB agar media with 0.004 g Amphotericin B (LB/AmB), in order to deter fungal growth [47]. Specifically, the adaxial side of each leaf was pressed gently onto the agar surface using a sterilized stirring rod, and then removed and discarded. Bacterial colonies were counted after 96 hours of growth in the dark and at room temperature (22-25 ºC). Concentrations of culturable bacteria on leaf surfaces and in water samples were also determined by spreading 100 μl of pooled leaf “wash” onto agar plates with the same media described above. These plates were incubated along with the leaf-print plates.

2.3.2. Culture-independent methods

For each water sample, we filtered 750 ml of surface water through a 0.22 μm Sterivex filter. We then filtered the remaining pooled leaf wash (~14.9 ml) from each site through a 0.22 μm Sterivex filter. A filter of only sterile, endotoxin-free water was also made to serve as a control for extraction methodology and sequencing methodology. We then extracted total DNA from these filters using the PowerWater DNA Isolation kit (MoBio Laboratories Carlsbad, CA, USA), now available as the DNeasy PowerWater DNA Isolation Kit (QIAGEN, Hilden, Germany). DNA concentrations in the extractions were measured using a Thermo Fisher Nanodrop 2000 (Thermo Scientific, Willmington, DE). All extractions of water and leaf filters contained more DNA than the control filter.

We quantified the presence of the 16s rRNA genes in water and leaf extractions using quantitative PCR (i.e., qPCR) following the procedure described in de Santana et al. [44]. In summary, we processed each sample in triplicate using the primers described in Gaze et al. [48] and the PowerUp SYBR Green Master Mix (Applied Biosystems, Foster City, CA, USA). Samples were then ran using the Bio-Rad CFX96 Real-Time PCR Detection System (Bio-Rad Laboratories, Hercules, CA, USA) with an internal standard curve constructed from a serial dilution of the Escherichia coli strain SK4903. Data files are available in de Santana et al. [44].

To characterize the overall bacteria community structure in each sample, we amplified the V4 region of our 16S rRNA gene amplicon sequencing library using primers 515F and 806R, as outlined in the Earth Microbiome Project [49]. Samples were sequenced on the Illumina Miseq platform using 250-bp paired ends by Wright Labs (Huntingdon, PA, USA) and are described in de Santana et al. [44]. Taxonomy was established using different curated databases and taxonomic assignment algorithms (Figure S1). Raw reads are/will be publicly available on the Sequence Reads Archives of the NCBI (accession number: TBD).

2.4. Bioinformatic and Statistical analyses

As described in de Santana et al. [44], raw Illumina sequences were filtered and trimmed with Trimmomatic, ver. 0.39,21 using the following parameters: ILLUMINACLIP:TruSeq3-PE.fa:2:30:10 LEADING:3 TRAILING:3 SLIDINGWINDOW:4:15 M INLEN:100. Subsequent steps were performed using QIIME2, ver 2021.222. DADA2 [50] was used to denoise paired reads (using the following parameters: --p-trunc-len-f 250, --p-trunc-len-r 233) with the median non-chimeric read count per sample estimated as 21,741 (Supplemental Table: Qiime2_Denoising_stats.tsv [x]). Alpha and beta-diversity analyses were performed on rarefied and non-rarefied amplicon sequence variant (ASV) lists using phyloseq [51]. Because they did not show differences in trends, we are providing the non-rarefied results in this paper, according to McMurdie et al. [52]. Finally, culture-based bacterial measurements and qPCR results were pooled by sample site type (riparian vs. forest) and differences were determined using a t-test. All statistical analyses were performed using R version 4.3.3 [53].

3. Results

3.1. Culture-based and culture-independent quantification of leaf PMCs

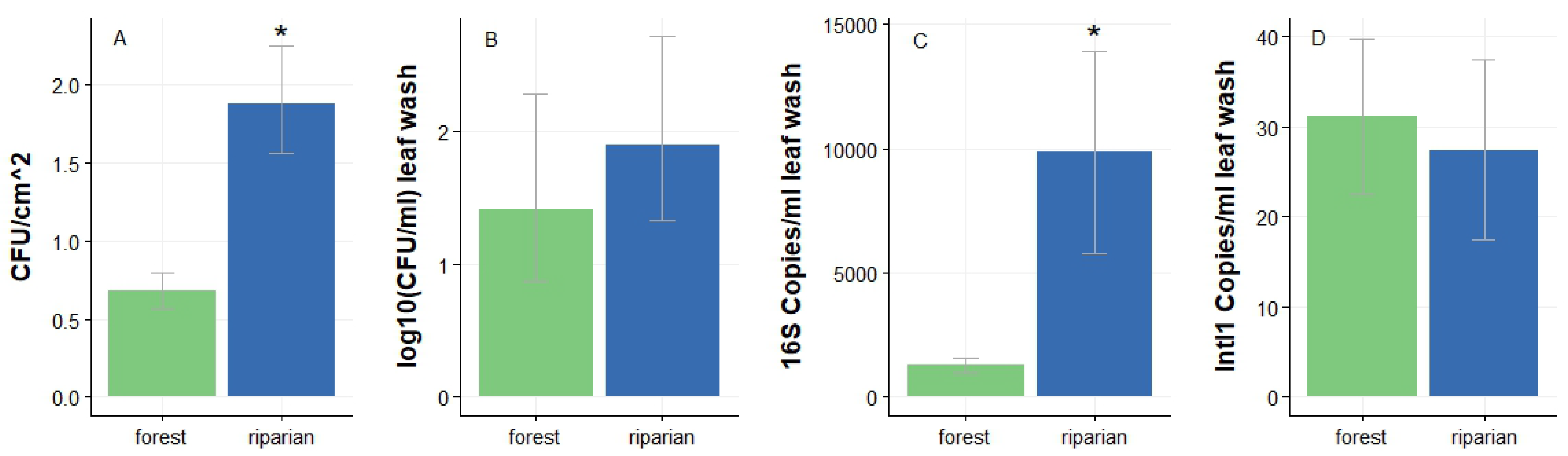

We first investigated whether the microbial load on leaves sampled in riparian sites differed from leaves sampled from forest sites. We compared PMC density by estimating the total CFU counts on the leaf surface through the leaf prints. While adaxial leaf surface area did not differ significantly between riparian and forest sites, we found that adaxial CFU density varied significantly between the two ecosystems (t = -4.3; DF = 21.11; P < 0.001; Figure 2A). The riparian phyllosphere had, on average, more than 3 times the abundance of bacterial CFU’s per cm² as the forest phyllospheres. Interestingly, we found that CFU’s grown from leaf washes (which would include abaxial communities) did not differ significantly between forest and riparian leaves (t = 0.29; DF = 30.8; P = 0.77; Figure 2B). These results suggest there might be an additional CFU source for the adaxial side of leaves in the riparian zone.

We then investigated bacterial load in leaf wash using qPCR, a culture-independent technique, to account for the large proportion of bacteria that cannot grow on agar or in normal laboratory conditions. We found that the abundance of 16S rRNA gene was significantly higher in the riparian phyllosphere than in forest phyllospheres (t = -2.17; DF = 22.1; P = 0.04; Figure. 2C). Interestingly, we found the presence of IntI1 on both riparian and forest leaves (Figure 2D), but the difference was not significant (t = 0.27, DF = 25.76, p = 0.79). Crucially, combining culture-based and culture-independent metrics, our results strongly suggest that bacterial communities are more abundant in riparian ecosystems and even more so on the adaxial surface of leaves. These results again suggest that there exists a separate bacterial source for riparian leaf PMCs, and confirms the utility of employing both traditional culture-based methods and culture-independent techniques in studying leaf PMCs.

3.2. Comparing bacterial communities in riparian and forest ecosystems

3.2.1. Riparian leaf PMCs show higher level of diversity

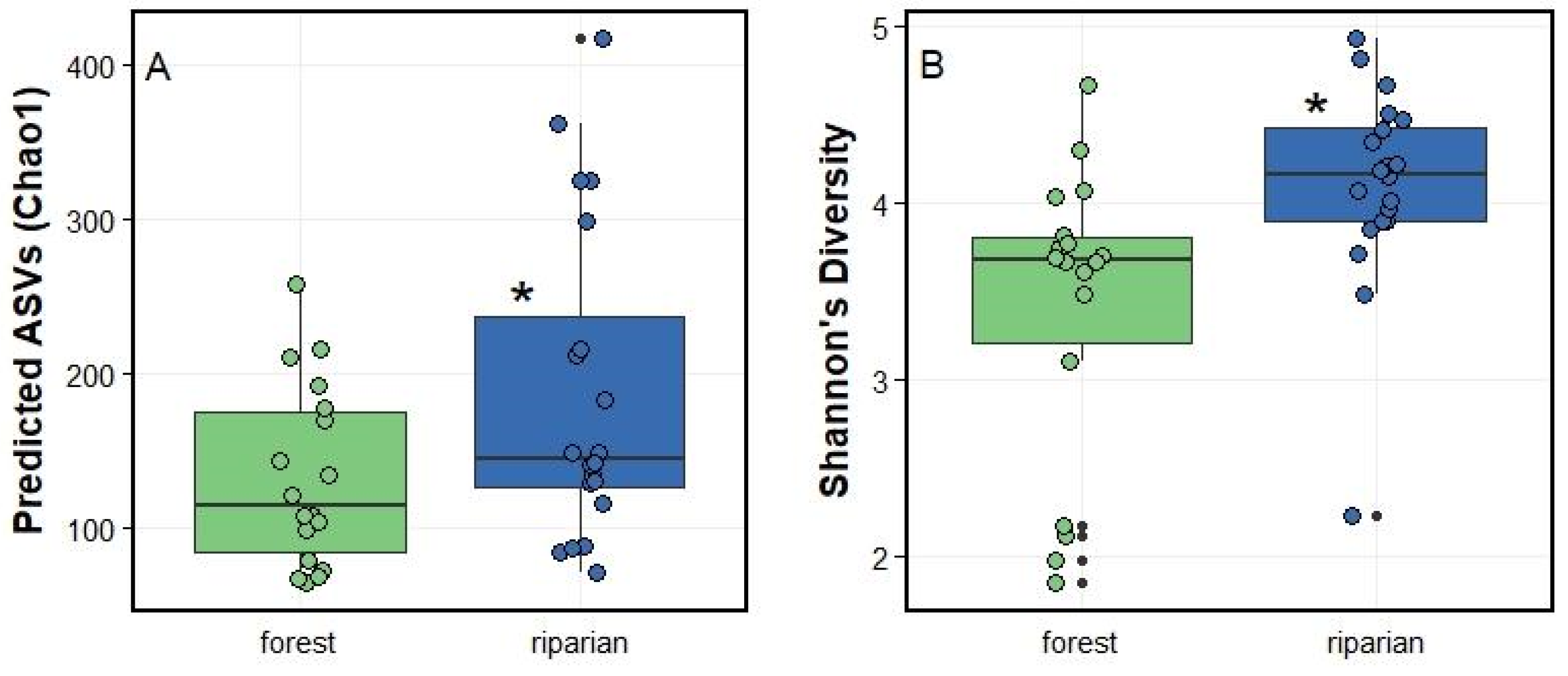

In addition to comparing total bacterial load between the riparian and forest ecosystems, we then compared the bacterial communities in terms of diversity and composition. From 39 leaf wash samples, including abaxial and adaxial surfaces, we found a total of 3975 amplicon sequence variants (ASVs), or bacterial types (Supplemental Table S1). Overall, we identified 25 different phyla, 147 orders, and 582 genera among the bacterial ASVs (Table S2). While a full list of taxonomic groups is available in Supplemental Table S2, the most common bacterial phyla were Proteobacteria (74.2 ± 2.9%) followed by Bacteroidota (14.4 ± 0.85%), Actinobacteriota (4.78 ± 0.81%), and Firmicutes (3.44 ± 1.2%). Beijerinckiaceae (14.4 ± 1.0%), was the most frequent bacterial family followed by Hymenobacteraceae (10.1 ± 1.1%), Comamonadaceae (9.78 ± 3.4%), Oxalobacteraceae (8.88 ± 2.0%), Enterobacteriaceae (7.51 ± 7.1%), and Sphingomonadaceae (6.08 ± 1.1%) (Supplemental Figure S2).

Using unique ASVs, or bacterial types, as the taxonomic unit, we then investigated whether bacterial communities associated with leaves sampled in riparian locations are different from bacterial communities sampled on leaves in forest ecosystems. On average, we found that riparian bacterial communities harbored a higher number of ASVs, i.e., 136.33 ± 54.86, than bacterial communities found on forest leaf surface, i.e., 105.22 ± 35.32 (F_(1,34) = 5.39; P = 0.03). We found a similar difference when considering the Chao1 index, which predicts the number of bacterial types using sampling depth; the number of predicted ASV was once again higher in riparian microbial communities (F_(1,34) = 4.69; P = 0.04; Figure 3A).

To account for possible differences in evenness between bacterial types, we also compared diversity using Shannon’s Diversity index. We again found a higher diversity in riparian leaf PMC (F_(1,34) = 8.56; P = 0.006; Figure 3B). The latter indicates that the riparian ecosystems host a larger number of bacterial types, and that these bacterial types are more equally distributed.

3.2.2. Bacterial communities in riparian ecosystems are distinct from forest ecosystems.

We then investigated whether leaf PMC population structure differed based on ASV taxonomic identity and relative abundance. First, we conducted a non-metric multidimensional scaling analysis using the Bray-Curtis dissimilarity matrix, which roughly identifies the proportion of similarities between each community pair. As expected, we found that the PMCs differed significantly between the riparian and forest leaves (F_(1,36) = 2.38; R² = 0.06; P = 0.004). We also compared the microbial communities according to their phylogenetic overlap. This measure, which can be weighted to account for the abundance of each ASV in addition to their phylogenetic distance, is predicted to be a better reflection of the functional diversity present in the population; close phylogenetic matches are predicted to have more similar metabolism and ecological functions. Conducting a non-metric multidimensional scaling analysis on the weighted UniFrac scores, first assessing finer changes in phylogenetic distance and abundance, we found a statistical difference between the forest and riparian leaf PMCs (F_(1,35) = 3.10; R² = 0.08; P = 0.01). Then, we repeated the analysis with unweighted UniFrac, and found again that riparian and forest PMCs differed significantly (F _(1,35) = 1.43; R² = 0.04; P = 0.04), confirming that leaf PMCs in the riparian and forest areas were fundamentally different at the composition level and likely at the functional level as well.

Given the significant difference in overall population structure between the forest and riparian leaf PMCs, we were then interested in investigating which ASVs differed between riparian and forest communities. Overall, we found 186 ASVs that changed in relative abundance between the forest and riparian areas (DESeq2; adj-P ≤ 0.05), including 161 ASVs that were higher in abundance in the riparian area. While the most important observed differences were the over-abundance of Hymenobacter sp. and Sphingomonas sp. in the riparian area, we also found an increased abundance of wastewater indicators and potential human pathogens in the riparian area, including Clostridium sp., Enterococcus sp., Klebsiella sp., Mycoplasma sp., and Yersinia sp (Supplemental Figure S3)..

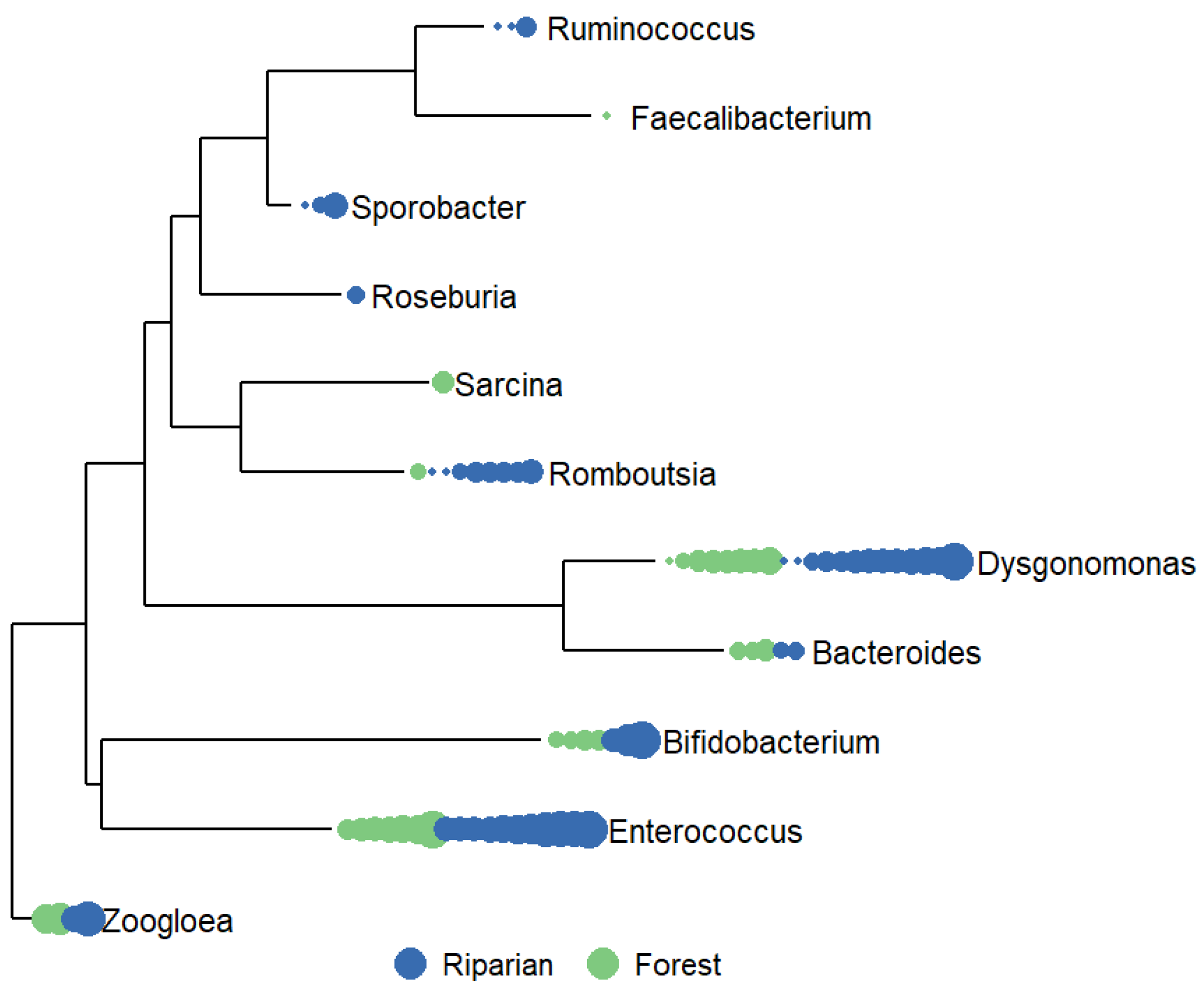

Interestingly, using methods as per Dueker et al. [35] to identify bacterial genera known to be primarily associated with sewage, we found that 80% of riparian bacterial communities (n = 20), and 78% of forest bacterial communities (n = 18) samples harbored sewage-related bacterial genera (Figure 4). While the mean relative abundance of these sewage associated bacteria was 1.7% in riparian PMC samples and 0.4% in the forest PMC samples, this difference was only marginally significant (t = -1.76; DF = 20.63; P = 0.09).

3.5. Water-phyllosphere connections

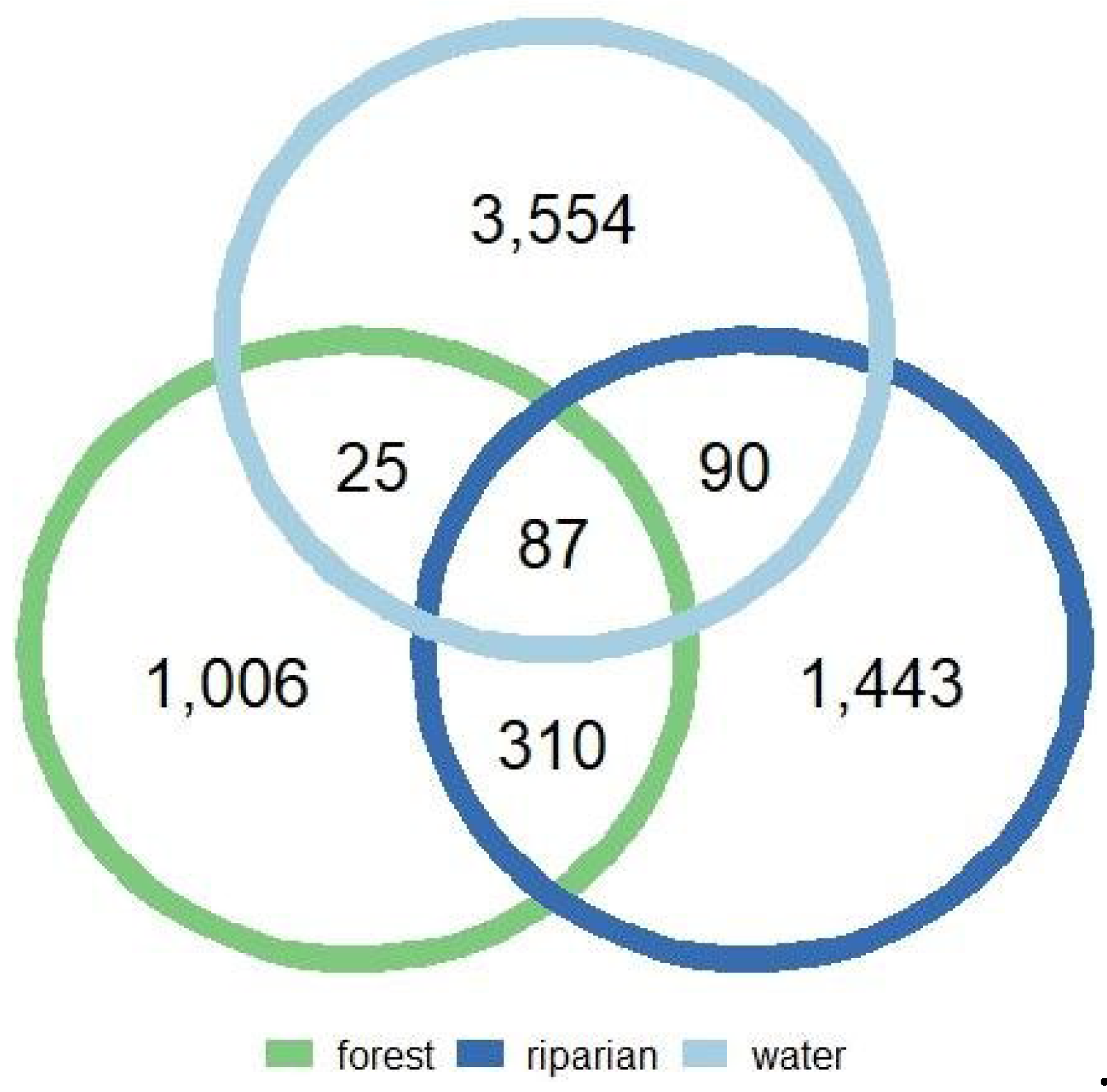

Finally, we assessed a possible connection between the phyllosphere and the water ecosystem located near the riparian trees sampled. To do so, we compared the bacterial community composition identified in the riparian and forest ecosystem to the bacterial community composition isolated from the Saw Kill stream (Figure 5). We found that only 87 ASVs were shared across all ecosystems which accounted for 6.0%, 8.6%, and 2.4% of all ASVs in riparian, forest, and stream microbiomes respectively (Supplemental Table S3). We also found that riparian and forest bacterial communities shared 310 ASVs (Supplemental Table S4) (Figure 4), which accounts for 21.5% and 30.8% of all ASVs found in riparian and forest communities respectively. The latter also represents the highest proportion of shared ASVs between two ecosystems. Interestingly, we found that riparian microbiomes shared 90 ASVs (Supplemental Table S5) with the stream microbiome while forest communities shared only 25 ASVs (Supplemental Table S6) with the stream microbiome. Using the non-parametric Fisher’s Exact test, we found that riparian bacterial communities share a significantly higher proportion of ASVs with the water surface bacteria communities than do forest bacterial communities (Fisher’s Exact test: adj-P < 0.01).

4. Discussion

Here, we investigated the possible link between bacterial communities found on the phyllospheres of trees to those found in surface waters of a freshwater stream system. Overall, we found that the leaves of A. rubrum near the stream (and a water feature creating aquatic aerosols) sustained higher numbers of culturable and total bacteria than A. rubrum in the surrounding forest. In addition, we found that the riparian leaf bacterial communities were compositionally different and more diverse than the communities isolated from forest leaves. Crucially, we also found that the riparian PMCs shared a significantly higher proportion of bacterial types with surface water bacteria communities than did the forest sites. These results, while limited to A. rubrum, suggest that there exists a strong link between riparian leaf PMCs and adjacent surface water bacterial content in freshwater ecosystems.

Studies of temperate forest leaf PMCs, and A. rubrum in particular, are sparse. To our knowledge, there has not previously been a study of riparian leaf PMC’s for A. rubrum. However, the PMC’s in our study had prominent representation of bacterial families previously noted as core PMC constituents in two temperate forests (including A. rubrum) in Québec, Canada [54]. These included Beijerinckiaceae, Enterobacteriacea, Oxalobacteraceae, and Hymenobactereacea [54,55]. Perhaps unsurprisingly, in both Québec PMC’s and our study’s PMCs, these bacterial families were dominated by bacterial genera commonly detected in aerosols, including Hymenobacter [56,57,58,59], Sphingomonas [59,60], and Oxalobacter [59].

A separate study observing leaf PMC’s across an urban gradient (including A. rubrum) used several sampling sites on the shore of the Lachine Canal in Montréal, Canada [41]. In this study, A rubrum PMC diversity increased with urban intensity, and leaf bacterial communities of A. rubrum were more impacted by urban intensity than other trees sampled (including hackberry (Celtis occidentalis), white ash (Fraxinus americana), sugar maple (Acer saccharum), and white spruce (Picea glauca) [41]. While the trees we sampled are located in a managed forest/stream area, the riparian zone trees were along a stream impacted by urban/suburban upstream activities [44].

Given the difference in overall population structure we found between riparian and forest A. rubrum, we then investigated what ASVs differ between riparian and forest communities. Our results suggest that the bacterial communities in each zone differ both at a broad phylogenetic level and at a finer scale, indicating an important difference in terms of community composition and likely at the functional level as well.

When looking at specific changes in ASVs, we found that riparian communities had a higher number of bacteria taxa and unique bacteria taxa not found in the forest ecosystem. We also found that the riparian communities were more evenly distributed, as measured as a higher Shannon Diversity Index. Interestingly, Laforest-Lapointe et al. [54] found that Québec forest A. rubrum communities had a mean Shannon Diversity Index of 3.7 +- 0.06, but in their subsequent study of urban exposure effects, near-shore A. rubrum leaf PMC Shannon Diversity Indices increased with urban exposure [41], ranging from 3.75 at low urban intensity to ~4.3 at medium urban intensity. Here, we found that riparian zone A. rubrum supported a significantly higher mean Shannon Diversity index, i.e.4.1, than the forest zone, i.e. 3.4, which is similar to that described by Laforest-Lapointe. Further study is needed to understand the drivers of this difference, but proximity to water aerosol sources and what they represent (e.g., urban influence through upstream sewage and runoff) may have significant impacts on A. rubrum PMCs.

We also found that A. rubrum PMCs in our study include water pollution-associated bacteria. While aerosolization of water pollution into coastal air is a known phenomenon [32,35,36,37], it is likely that a similar phenomenon is occurring in this freshwater stream system. Interestingly, we did find an increased abundance (albeit with marginal significance) of bacteria associated with wastewater and infectious disease in riparian leaf PMCs. The riparian leaf PMCs also had higher numbers of enterococcus (sewage indicating bacteria also detected in the stream using culture-based techniques [44]) than the forest leaf PMCs. While we did not determine the sources for PMC bacteria in this study, this finding indicates a detectable link between what is on riparian leaves and what is in adjacent waterways, which could occur either through bioaerosols originating from Sthe waterway impacting on the leaves, or the leaves providing these bacteria to the stream through runoff or re-aerosolization through wind and rain interactions. While more work is needed to explicitly determine the mechanisms of connection, our study does establish the possibility for many pathways to exist.

Finally, the fact that sewage bacteria and the micropollutant and antibiotic resistance gene IntI1 were present in a majority of water [44] and phyllosphere samples demonstrates that the A. rubrum phyllosphere could act as an extra-enteric reservoir for sewage-associated bacteria and antibiotic resistance genes, raising possible health concerns. On the other hand, our findings suggest that riparian zone vegetation could perhaps mitigate the long-distance transport of aerosolized water bacteria, which is a previously unappreciated role for riparian zones. Essentially, riparian zones may not only protect waterways from external pollutants (pesticides, herbicides, etc. [43]), but they may also be filtering and/or capturing aerosolized pollution from contaminated waterways.
