The Tectonic Framework of Parecis Basin. Insights from a Multiphysics Interpretation Workflow

1. Introduction

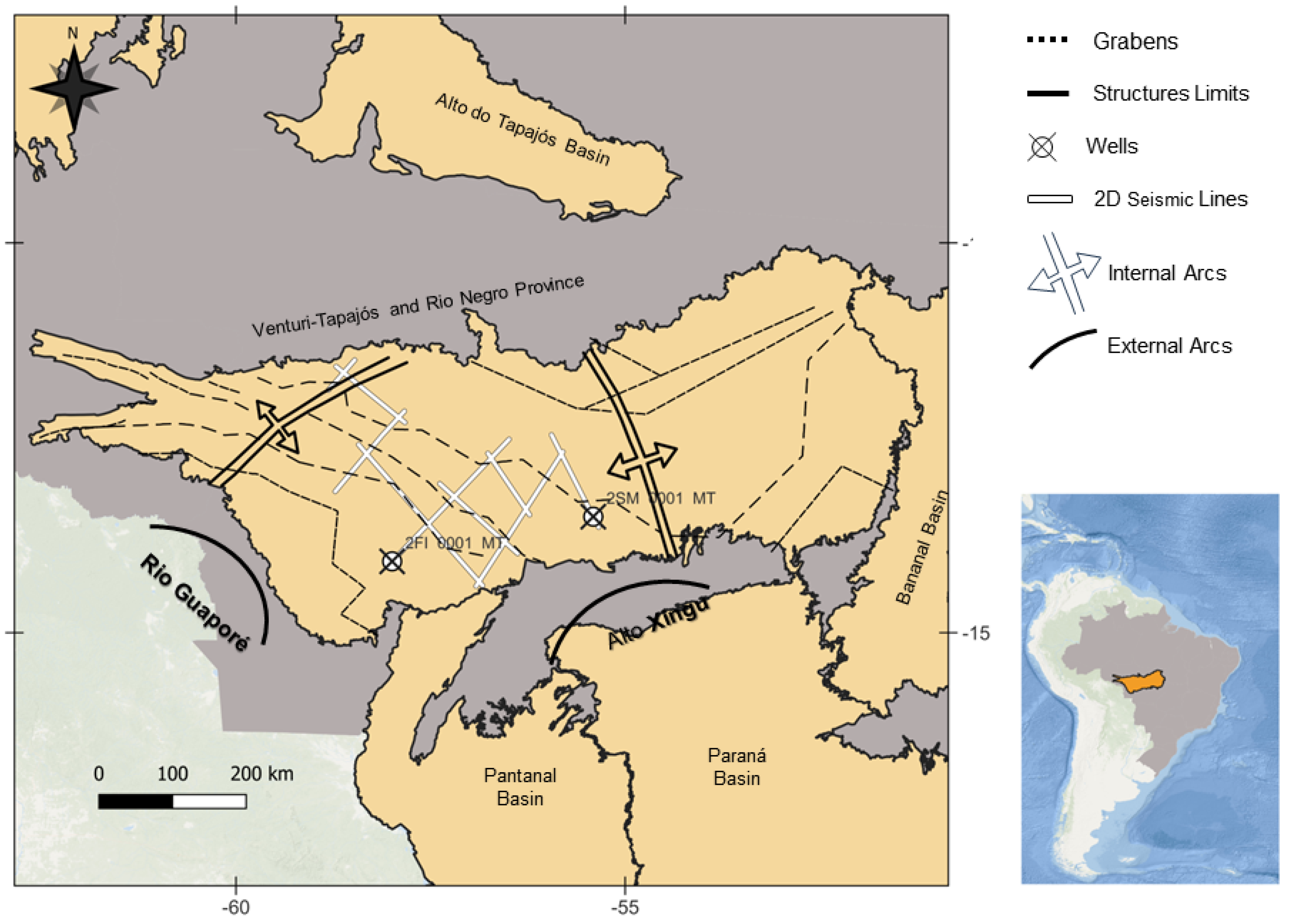

The Parecis Basin (PB) is one of the largest Brazilian intracratonic basins. Its Mesozoic cover spreads over an area of 352,077 km². PB is rectangular and elongated in the W-E direction. Its borders are: to the south, the Alto Xingu Arc; to the west, the Rio Guapore Arc; to the north, rocks of the Ventuari-Tapajós and Rio Negro-Solimões Provinces of the Amazon Craton; to the east, the Bananal Basin [1]. The PB is divided into several grabens and high compartments. They are: Pimenta Bueno, Colorado, Caiabis and Xingu grabens and Rio Branco and Brasnorte highs [2,3]. Serra Formosa and Vilhena Arcs subdivided PB into three sub-basins: Alto do Xingu, Juruena, and Rondonia. The sedimentary infilling goes up to 10 km in the grabens [4].

The initial research suggests a tectonostratigraphic correlation between PB and the Paleozoic basins of South America. These articles utilized data from shallow wells (less than 1,000 m in depth), geological mapping, and gravity analysis. They developed a geological and structural map of PB, evaluated the depths of basement structures through gravimetric and magnetic data, and, finally, proposed a structural map [2,3,5] (Figure 1).

Concerning the comprehension of lithology, two stratigraphic wells, 2-FI-1-MT and 2-SM-1-MT, were drilled during the 1990s. Their analysis led to the presentation of a new stratigraphic chart and the description of the tectonic-sedimentary evolution of PB, reinforcing the predominantly Paleozoic age of most sediments. More recently, research has suggested that the tectonic evolution of PB occurred from the Neoproterozoic to the Quaternary period, characterized by the predominance of a thick package of Neoproterozoic sediments [6,7].

Herein, we develop the findings by developing a multiphysics interpretation workflow to propose a new structural map for PB [8]. The workflow is based on the gravimetric interpretation of all currently available regional datasets, constrained by seismic and well data. That approach led to a more detailed definition of the basin structural framework, including identifying a new regional arc and defining a new set of grabens and horsts. Besides, it allowed the interpretation of thick, high-density bodies ingrained in the basin’s basement. Interpreted as mafics and ultramafics rock bodies, a known source rock for hydrogen.

2. Tectonostratigraphic Setting and Tectonic Evolution

The Amazon Craton that composes the basement of PB has been affected by several tectonic events from the Archean to the Mesoproterozoic [9]. Main geological units for PB are represented by granitoid and supracrustal rocks related to the amalgamation of the Ventuari-Tapajós (VT) and Rio Negro-Juruena (RNJ) Blocks [9]. The older VT block collided with the RNJ Block between 1.8 and 1.6 Ga ago, resulting in an extensive belt 2,700 km long and 1,000 km wide, composed of granitic, gneissic, and migmatitic rocks [10,11].

Following the cratonization of the VT province, a subsequent accretionary phase commenced between 1780-1550 Ma. Intra-oceanic magmatic arcs amalgamated during this period, giving rise to numerous rifts, aulacogens, and cratonic volcanic-sedimentary basins [12]. The closure of oceanic spaces and amalgamation of these blocks is represented by the Grevillian Orogeny. The initial pulse of ca. 1.55 to 1.3 Ga [13], known locally as the Rondônia-San Ignácio event, is followed by the second pulse of the Grenvillian Orogeny, the Sunsás stage, which developed between ca.1,3 and 1 Ga years ago. These tectonic pulses led to a major agglutination period responsible for building the Rodinia supercontinent between 1,250 and 960 Ma [14].

The Breakup of Rodinia resulted in the diachronous rupture of the Amazon and Laurentia Cratons between 1,100-700 Ma ago [14,15]. This rift initiation led to the development of passive margin basins in the region [13,16,17] and opened the Goias and Pharusian seas [10,18].

During the Neoproteozoic, when started the rift process of Rodinia, the deposition started the siliciclastic sediments of the Cuiaba Group and lower Carbonatic Sequence in Salto Magessi Formation[6], followed by the Bauxi Formation, a siliciclastic sequence [6] and by the glacial Puga Formation, correlated with the Marinoan-Ghaub glaciation (ca. 635 Ma). The last one is characterized by diamictites associated with conglomerates, sandstones, and shales are the principal rock types of this sequence; both of them are from Jangada Group [6,7,19,20].

The Araras group displays platform carbonate sequences from 100 to 1,300 meters thick. It highlights distinct geological features and comprises three formations—Mirassol D’Oeste, Nobres, and Guia [7,19,20]. The Lower Mirassol D’Oeste Formation comprises stromatolites with tube-like structures, breccias, and giant wave ripples. The sequence displays aragonite pseudomorphs, of which 20 to 32 m is considered a cap carbonate [19,20]. The Guia Formation contains limestone, mud-limestone, and mudstones developed in the middle shelf. At the top, the Nobre Formation has shallower-water breccias, grainstones, and packstones dolomites [6,16].

The next tectonic event is the result of the Western Gondwana amalgamation, involving the Congo-São Francisco, Kalahari-CMG, West Africa, Amazonia, and Rio de la Plata Blocks, with diachronic collisions between ca. 650 and 570 Ma. This major tectonic event closed the Adamastor and Goianide-Pharusian Oceans [21,22]. The final tectonic episode resulted in a Foreland continental environment in the studied region, with the deposition of the Alto Paraguay Group subdivided into four continental sequences.

The basal sequence is the Serra Azul Formation, and its deposition started with two sedimentary sequences: diamictites and laminated mudstones, siltstones, and fine sandstones at the top [23]. Any cap carbonate was identified overlying this formation, which could indicate a sea level drop. The Serra Azul Formation also correlates with the Gaskier Glaciation during the Ediacaran period [23]. The top of the Paraguai Group if made by sandstones and pebble ortho-conglomerates of the Raizama Formation [6], followed by an interdigitation of sands and shales of the Sepotuba Formation [6,24], and, at the top, by red shales, siltstones and arkoses of the Diamantino Formation [6,16].

In the Paleozoic, the amalgamation of exotic terrains contributed to building the Andean Belt, and the development of retro-arc foreland basins influenced the region. During this period, several progressive marine incursions reached the cratonic area. Because of that, sediments were deposited in a large area of the southern margin of the western Gondwana, in a sandy platform to fluvial deposits reworked [13,25]; characterized by deposition of sandstones and conglomerates of Furnas Formations and pelitic of Ponta Grossa formations. Any sample of this sequence was identified well in the study; however, there are outcrops in Alto Xingu Sub-basin [26,27].

The combination of active tectonism and climatic factors resulted in a sedimentation gap of about 45 Ma in South America. The tectonic style changed from extensional to compressional Late Carboniferous [28].

The tholeiitic basalts of Anari represent an important magmatic episode [29,30] and Tapirapuã Formation [31] with ages around 197 Ma (Sinemurian/Late Jurassic). They were identified in the northwestern and central-south sectors of the studied region and could be correlated with the basalts of the Mosquito Formation of Parnaiba Basin [32]. This magmatic event happened in the Late Jurassic before the Serra Geral large igneous event of the Paraná Basin [29].

The subsidence on PB continued in the basins until the lake-fluvial and eolic sediments deposition under the contribution of wave effects of the Parecis Group in the Late Cretaceous [2,6]. This group comprises eolic sandstones and conglomerates of Salto das Nuvens and the Utiariti Formation. Figure 2 illustrates a revised previous stratigraphic chart of the PB [6,7].

3. The Multiphysics Dataset

The Brazilian National Petroleum, Gas, and Biofuels Agency (ANP) provided the multiphysics dataset herein interpreted. The public-domain dataset comprises over 1,400 linear km of 2D seismic lines and gravity data acquired from several regional gravity surveys. ANP also provided checkshots, stratigraphy, and composite well logs (density, gamma-ray, porosity, resistivity, and sonic) of two wells, 2-FI-1-MT and 2-SM-1-MT, drilled at the ends of seismic lines (Figure 1).

The seismic data was acquired in 0295-2010 at the 0295_ANP_2D_PARECIS project. ANP provided the pre-stack time-migrated (PSTM) time-domain in the SEG-Y format. The PSTM technique better attenuates the S waves effect, reducing overall noise [33]. The processor of the seismic dataset takes on a 2500 m/s replacement velocity and a 500 m above mean sea level reference datum. The 2D lines and well-log data were loaded into commercial seismic interpretation software.

The gravity data includes surveys with different setups and parameters. Two airborne surveys were used in this study. Both were acquired in 1995 and flown at a constant altitude of 1060 m. The APP314 has flight lines along the N–S direction with a line spacing of 18 km and E-W tie lines at 36 km. The APP311 has flight lines along the NNW–SSE direction with a line spacing of 6 km and ENE-WSW tie lines with an 18 km line spacing. We merged our airborne datasets with a compilation of ground surveys along the seismic lines and regional profiles along the available roads. ANP provided each dataset in the XYZ ASCII format with five gravity station channels: latitude, longitude, topography, Free-Air anomaly, and the Bouguer anomaly. Next, we reprocessed all datasets to provide a single merged and leveled Bouguer anomaly map [34]. To that end, we upward continued the ground data to the 1060 m height, the same as the base level of the airborne surveys. Then, the leveled data was grided at a 12 x 12 km cell to produce the PB’s Bouguer gravity anomaly shown in Figure 3.

4. Interpretation Workflow

We present a novel approach for generating a structural map of the PB. This approach involves a four-step interpretation workflow: (1) integrating seismic data with well information and converting seismic lines from time to depth, (2) calculating the residual gravity anomaly, (3) performing quantitative interpretation using 2D forward modeling of gravity anomalies along the depth-converted seismic lines, and (4) conducting structural interpretation.

4.1. Seismic to Well-Tie and Time-to-Depth Conversion

Seismic to well-tie is essential to the interpreter’s work. The primary goal is to correlate the stratigraphic markers depicted in the wells with the seismic reflections, aiming to determine the horizons to pick correctly. Getting a well-tie is relatively straightforward: synthetic seismograms calculated from acoustic impedance well-log curves are matched to the actual seismic traces, so the features of the well in the depth domain are coupled to the seismic data in the time domain. As a result, we obtain a time-to-depth table that can be used in the depth conversion of the seismic lines. Two main 2D stratigraphic horizons were mapped in all seismic lines, the Top of the Neoproterozoic (ToN) and the Top of Rift (ToR) (Figure 4. Then, these 2D horizons were gridded to generate a surface covering the studied area for the time-to-depth (T–D) conversion stage.

There are several strategies for performing (T–D) conversions [35]. We used the velocity model building option and constructed a 3D three-layer cake velocity model for all 2D seismic lines (Figure 5). From top to bottom, Layer 1 corresponds to Mesozoic sediments, Layer 2 corresponds to Neoproterozoic sediments, and Layer 3 is associated with the syn-rift sediments, volcanic and basement rocks. On the top of Layer 1, we considered the seismic datum reference (SDR) surface, where at the time zero, we used the replacement velocity of 2,500 m/s.

The other two layers were ToN and ToR. By applying the Dix formula, we calculated the interval ($V_i$) (Equation 1) and average velocities ($V_{ave}$) (Equation 2) using the RMS (root means square) velocities $V_{RMS}$ [33]. Then, the average Velocities were smoothed and interpolated along the studied area, producing the velocity model (Figure 4) used in the T-D conversion.

$${\upsilon }_{int2}=\sqrt{\frac{{\upsilon }_{RMSn}^2{t}_n-{\upsilon }_{RMSn-1}^2{t}_{n-1}}{t_n-t_{n-1}}}$$

(1)

$${\upsilon }_{avg}=\frac{{\sum }_{i=1}^N{\upsilon }_i\Delta t_i}{{\sum }_{i=1}^N\Delta t_i}$$

(2)

4.2. Residual Gravity Anomaly

Separating gravity anomalies into their respective regional (deep) and residual (shallow) components is necessary for quantitative interpretation. There are various strategies for regional-residual separation. [36] applied the upward-continuation technique to interpret the Sudbury structure, Canada; [34] used robust polynomials to represent the regional field and better recover the residual gravity anomaly of the Barra de São João Graben, Campos Basin Brazil; and [37] removed the regional anomaly derived from a global crustal model [38] to isolate the gravity effects of the basement of Jequitinhonha Basin, Brazil.

To separate the gravity effects of the PB sediments and basement topography from the Moho interface and deep-seated sources, we have used the upward-continuation (UC) method. The UC attenuates the contribution of high-frequency anomalies of near-surface shallow sources in the regional anomaly. Thus, the remaining smooth low-frequency anomalies reflect the deeper causative bodies. A limitation of UC is the overlap of the gravity effects from several closely spaced high-frequency anomalies, resulting in the merger of the separate features forming a single “apparent” broader anomaly. A benefit of the UC method is the noise reduction in the original data as the continuation height increases. Besides, the effect of widely irregular density distribution is reduced [36].

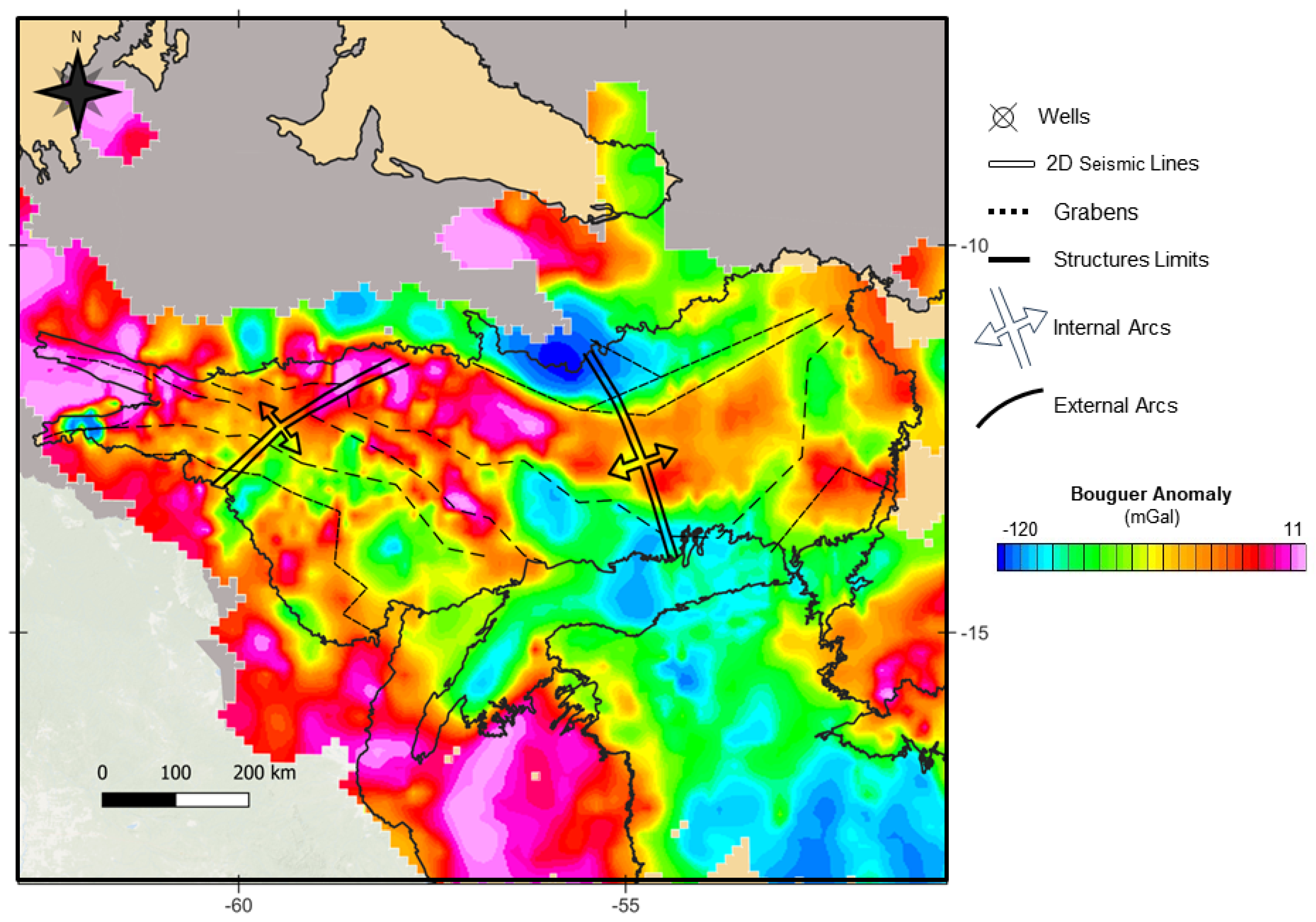

To estimate the regional anomaly, the Bouguer gravity anomaly was upward-continued to several height levels, 20, 90, 110, 120, 130, 140, 150, and 180 km (Figure 5). At the first continuation level of 20 km, tracking a prominent SW-NE short-wavelength positive anomaly associated with the Transbrasiliano Lineament, a shallow upper crustal structure [39] is possible. The short-wavelength anomaly is attenuated and smeared as the continuation level increases (Figure 5). We have chosen the 140 km level as it is where almost all short-wavelength anomalies are attenuated. Above 140 km, the low-frequencies anomalies are quite similar to the chosen upward continuation level, indicating that the high-frequency spectral content was adequately attenuated at the 140 km level. The upward continued anomaly indicates a west-to-east crustal thickening in the studied area.

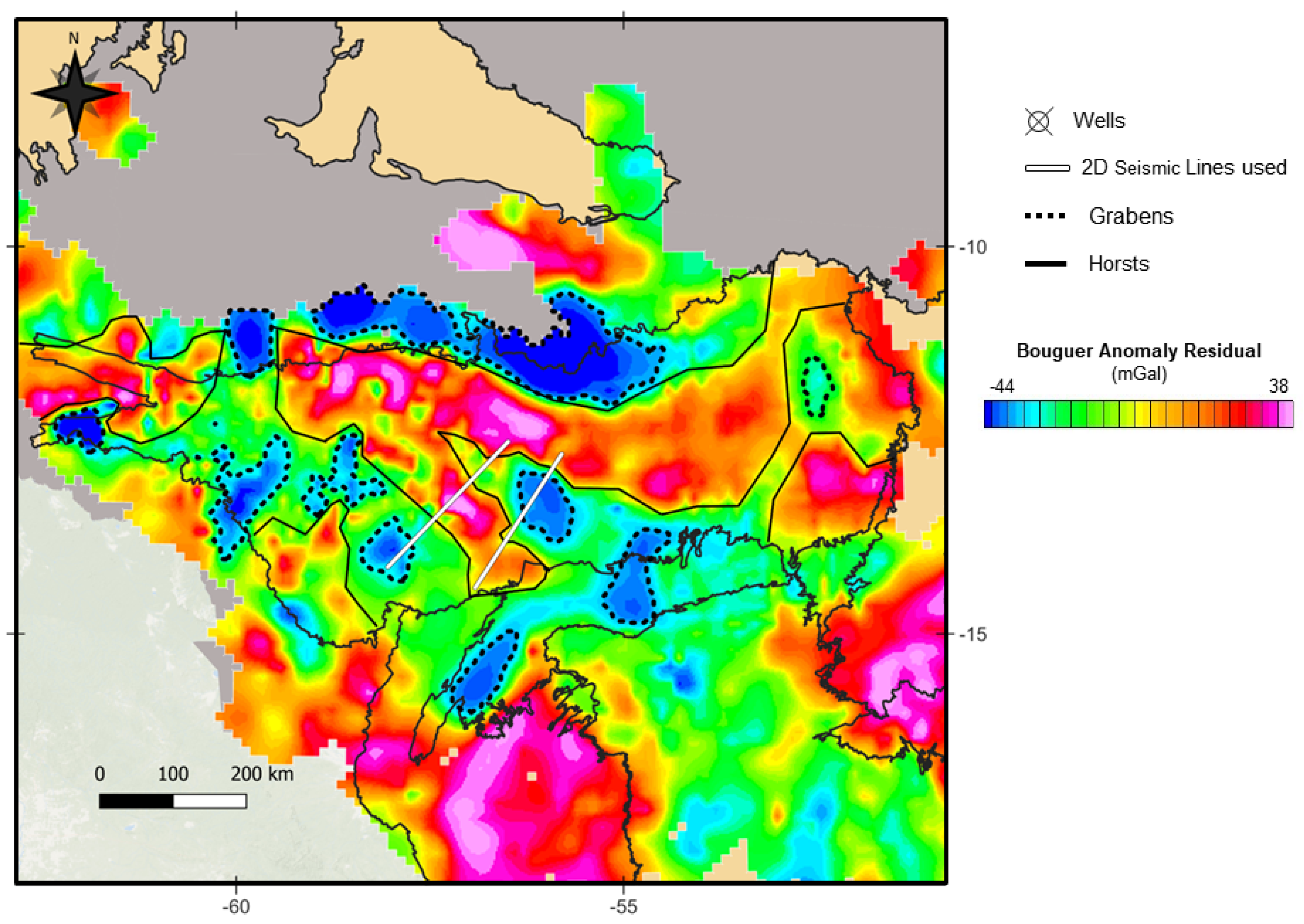

Figure 6 shows the residual anomaly over PB, corrected for deep crustal effects. The correction consisted of subtracting from the Bouguer gravity anomaly (Figure 4) the upward continued gravity field to the 140 km height (Figure 6).

As expected, the residual anomaly (Figure 6) shows several internal small gravity highs and lows within PB that were hidden or partially masked in the Bouguer anomaly (Figure 3) due to the gravity effect caused by the deep sources. These smaller anomalies, if correlated with basement features, indicate a more complicated tectonic framework than mapped previously [2,3] (Figure 1).

4.3. 2D forward Modeling

Non-uniqueness is a central subject in geophysical interpretation. To reduce this issue, geophysicists often combine two or more geophysical methods with any available geologic data to constrain the interpretation attempting to encounter the most suitable geological model that fits the geophysical data [37,40,41,42].

We have modeled all seismic lines using the residual gravity anomaly in the present work. For the sake of brevity, we show the selected results of two lines, L295-0001 and L295-0002 (Figure 7 and Figure 8), which are representative of the studied group. Moreover, they are the largest lines within the studied group and cross several gravimetric anomalies throughout the study area.

We have used commercial software to conduct the forward modeling. The algorithm is based on the classical Talwani methodology [43]. Its principal advantage is building 2D gravimetric models from seismic lines available in the standard SEG-Y format or geo-referenced image files. Besides, interpreted seismic horizons, provided in the XYZ–ASCII format, can be uploaded into the software.

Density-log data from the two available wells (Figure 1) were used to constrain the sediment densities in the modeling exercise. These densities are in the 2.42 to 2.52 g/cm³ range. To the crystalline basement, we have assigned the average 2.67 g/cm³ value, which is standard and representative of the granitic crust [44]. Densities in the 2.70 to 2.75 g/cm³ range were used for mafic and ultra-mafic bodies.

Figure 7 and Figure 8 show the interpreted final 2D model and the comparison of the observed residual gravity anomaly with calculated data along Lines L295-0001 and L295-0002, respectively. As depicted from both figures, there is a good agreement between the residual gravity highs and lows, with the basement horsts and grabens features, respectively. This is an indication that the main anomalies of the residual gravity anomaly map (Figure 6) can be associated with the PB basement features.

To help in the seismic interpretation task, we have applied the TecVA (amplitude volume technique) attribute [45]. The TecVA converts the seismic amplitude into a pseudo-relief attribute, enabling the interpreter to identify horizons and faults easily. When represented with an appropriate color scale, the TecVA attribute provides seismic-enhanced images with strengthened structural and stratigraphic features, such as unconformities, faults, fractures, and distinct seismofacies. Sub-vertical faults are seen as interruptions in the continuity of the horizontal or sub-horizontal reflections in this context. The TecVA attribute with a –90° phase rotation makes the conventional seismic amplitude sections resemble actual outcropping planes [46].

The TecVa attribute allowed the identification of several faults in the studied sections. Most are considered normal faults, but thrust faults were also observed in the studied area [8].

To produce the good fit of line L295-0002 (Figure 7), it was necessary to define a heterogeneous basement including high-density bodies (2.72 – 2.75 g/cm³) embedded within the basement. With a single density representing a homogeneous basement, we could not obtain a satisfactory fitting for the data. We will discuss the geological meaning of this body later, which is bounded by normal faults as identified in the TecVa attribute. Similar high-density bodies were also discovered in other seismic lines of the PB. These bodies can be interpreted as ophiolites generated during the Orosian-Calimian (1.8-1.6 Ga) continental compression [8].

4.4. Tectonic Framework

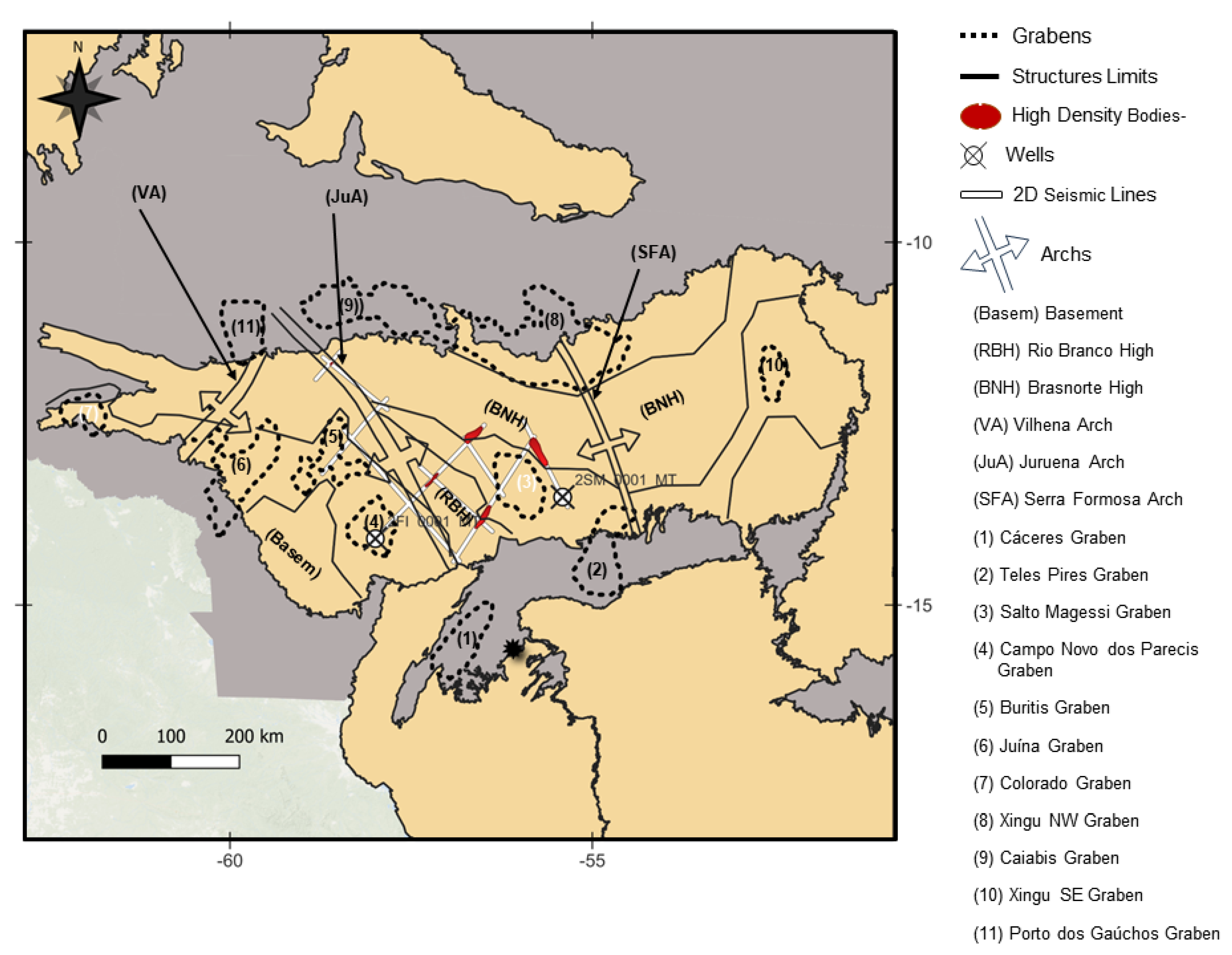

The quantitative seismic-gravity integrated interpretation correlates the PB basement features with the main anomalies (gravity highs and lows), which we mapped in the residual gravity map (Figure 6). These mapped features are synthesized in the new structural map presented in Figure 9. Figure 10 presents a three-dimensional perspective showcasing three grabens.

Notably, certain low-value anomalies on the residual Bouguer map extend beyond the currently established limits of the Paleozoic Basin. However, the delineation of the basin has thus far been based on sedimentary cover extending from the Paleozoic to the present. With the recognition that the lithologies of samples found in well 2-SM-0002-MT correlate with recognized outcrops in the Paraguay Belt, the possibility arises of the existence of one or more older sub-basins of Neoproterozoic age or earlier [6,7]. The higher resolution of the gravity residual anomaly compared to the Bouguer anomaly allowed the identification of 11 grabens in the studied area, six more than previously interpreted [3].

Our interpretation indicates the existence of a third regional arc, herein named Juruena Arc (JuA). Situated in between the two previously known arcs, Serra Formosa (SFA) and Vilhena (VA), the JuA runs sub-parallel to the VA. Trending northwest-northeast, JuA isolates, in its northern portion, strong residual gravity anomalies associated with the Brasnorte (BNH) and Rio Branco highs (RBH). In its central portion, JuA separates the Buriti and Campo Novo dos Parecis grabens. JuA is characterized by northwest-northeast trending gravimetric anomalies associated with basement uplift in its southern portion Figure 9.

Our interpretation also demonstrates that the SFA is more likely to have a north-south trending direction, as demonstrated by the residual anomalies separation along the Brasnorte High in its northern branch and separating Teles do Pires and Salto Magessi grabens in its southern branch. Our modeling results have also shown the existence of high-density enclaves and slivers associated with mafic and ultramafic rocks amidst the 2.67 g/cm³ basement. Plotting these occurrences along with the residual gravity anomalies (Figure 9), we observe these elongated mafic-ultramafic bodies are confined within the Brasnorte and Rio Branco highs, which explains part of the gravimetric anomaly.

Two tectonic hypotheses are possible for the identified mafic-ultramafic bodies within the basement. The first, suggests that these bodies originated as ophiolite fragments during the Orosian-Calimian (1.8-1.6 Ga) continental collision, wherein the Província Ventuari-Tapajós Block (older) collided with the Rio Negro-Juruena Province (younger) [47]. This collision event may have led to the obduction of a portion of the oceanic crust, preserving these ophiolites as relics of the older oceanic crust. The second suggests that denser bodies could have formed due to rifting continental compression or magmatic intrusions associated with the breakup of the Rodinia Supercontinent during the Mesoproterozoic era and correlated by magmatism in Mesoproterozoic (1.2 Ga) [10,48].

Several published studies corroborate our findings. Firstly, it is reported that the Cáceres and Teles Pires grabens are situated within the Paraguay Belt region, indicating a zone of crustal thickening likely attributable to the Brasília, Araguaia, and Paraguay Belt, which emerged during the Brasiliano Orogeny. These grabens are believed to have formed approximately 620 Ma ago through the amalgamation of three cratons: the Amazon, São Francisco, and Paranapanema [49,50,51].

Figure 11. The highest densities of the bodies are delineated through 2D gravimetric modeling.

Figure 11. The highest densities of the bodies are delineated through 2D gravimetric modeling.

Secondly, the Salto do Magessi and Campo Novo dos Parecis Grabens have been delineated on seismic lines L295-0001 and L295-0002, as depicted in (Figure 10). However, according to the Residual Bouguer Map, Campo Novo dos Parecis is situated near the border on line L295-0001. Their existence has been corroborated [52], which shows us a magnetotelluric (MT) model and suggests the same presence of two grabens in Line PC02 in almost the same location as line L295-0002. The Colorado, Xingu SE, Xingu NW, and Caiabis grabens have also been supported by additional studies [5,53]. Conversely, only the Buritis graben remains postulated. We are planning to acquire additional seismic and magnetotelluric data to provide a complete interpretation of that feature.

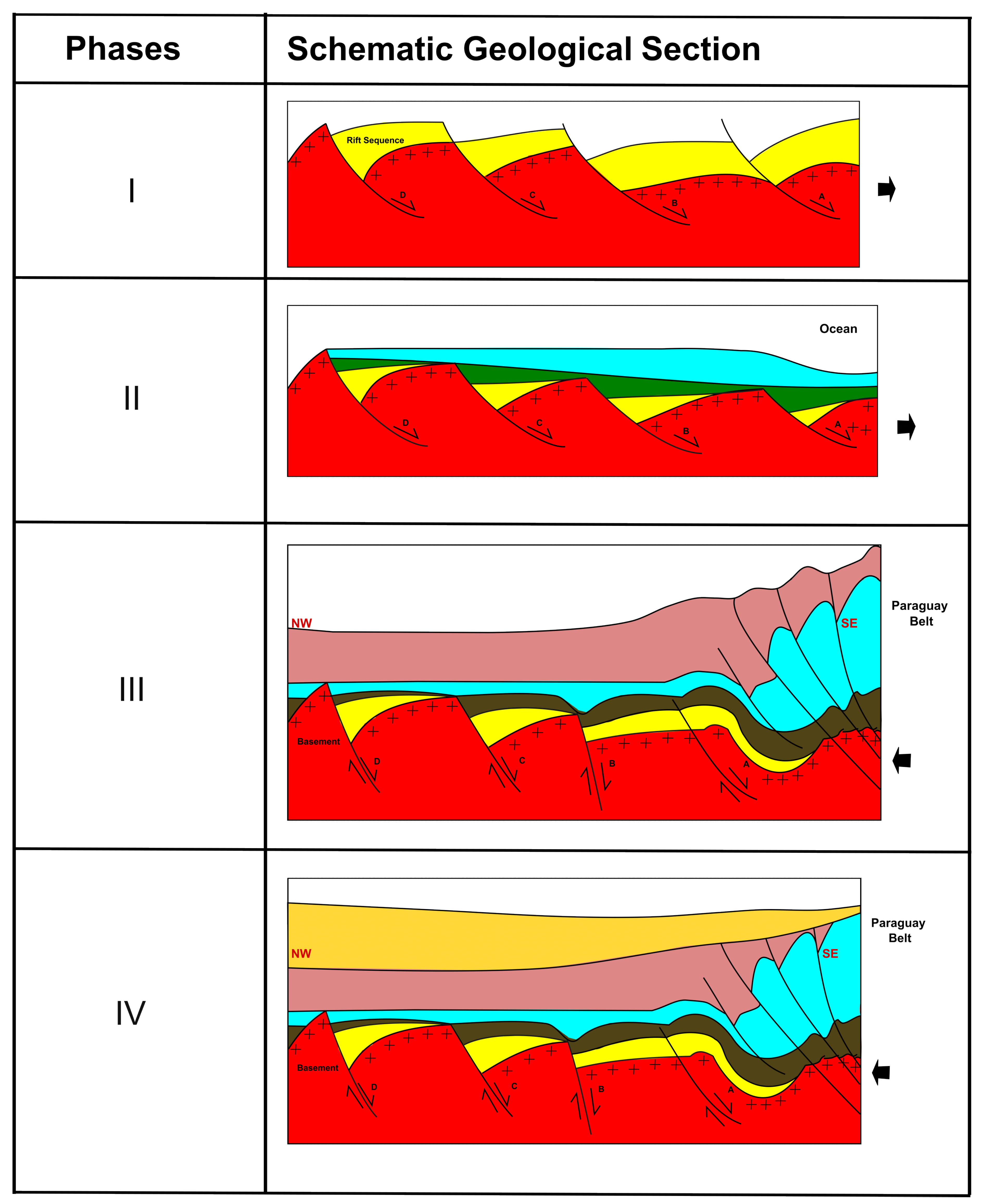

Finally, The tectonic evolution of the Parecis Basin can be summarized in four phases (Figure 12):

I. Rift Phase (1,000 to 700 Ma): Following the breakup of Rodinia, the syn-rift phase initiated the formation of normal faults on the Amazon Craton, marking the onset of deposition for the Cuiabá Group. II. Drift Phase (700 to 650 Ma): The Salto Magessi Formation and the Jangada Group were formed after the opening of the Goias Ocean. III. Foreland I (650 to 570 Ma): The formation of the foreland basin south of the Amazon Craton occurred during the Brasiliano Orogeny as part of the Gondwana Amalgamation process. This event initiated continental sedimentation and facilitated the deposition of the Alto Paraguai Group. IV. Foreland II (570 Ma to recent): During the Mesozoic era, retro-arc foreland basins associated with the Andine Orogenies developed. Deposits such as the Furnas and Ponta Grossa formations may have been laid down during this period. Additionally, sedimentation continued with the opening of the South Atlantic Ocean.

4.5. Perspectives on the Existence of Hydrogen in the Parecis Basin

The onset of climate change necessitates the exploration of new energy sources and alternatives with minimal carbon emissions. Hydrogen is emerging as a crucial energy source for decarbonization and plays a central role in the energy transition. Its applications span various sectors, including steelmaking, chemicals, glass, electronics, and providing a substitute for fossil fuels [54]. Hydrogen gas combustion produces only heat and pure water, and when combined with oxygen, this fuel yields electricity through the hydrogen fuel cell.

Most hydrogen is produced using fossil fuels, emitting 900 million tons of CO2 annually [55]. Green hydrogen, produced from renewable sources, is a favorable option but comes at a higher cost than gray hydrogen. Natural hydrogen is expected to be cheaper and more environmentally friendly than manufactured hydrogen [56].

The primary hydrogen sources of these locations comprise the alteration in Fe(II)-containing rocks, the radiolysis of water, magma degassing, reaction of water, and surface-free radicals during mechanical fracturing of silica-rich rocks [57]. An evaluation of all the proposed mechanisms concerning the origin of natural hydrogen indicates that a deep-seated origin likely explains its natural abundance [58].

Among all cited sources, the serpentinization of ultramafic rocks is considered the main. Serpentinization designates a hydrothermal reaction stirred when ultramafic minerals such as olivine and pyroxene interact with water, typically under elevated pressure and temperature conditions prevalent in deep geological settings like ophiolitic context, mid-ocean ridges, transform faults, and subduction zones. Furthermore, some studies document instances of hydrogen enrichment within ophiolitic contexts, mid-ocean ridges, transform faults, and subduction zones [59]. Consequently, cratonic basements housing Proterozoic or older rocks constitute prime targets for hydrogen enrichment due to their frequent iron-rich rock formations. Instances of hydrogen seepages have already been identified within circular depressions and what are commonly referred to as fairy circles. Fairy circles manifest as natural phenomena characterized by circular areas of sparse vegetation encompassed by a rim of denser vegetation [59].

The hydrogen exploration in Brazil is still embryonic, with no commercial discovery. There are some studies evaluating the hydrogen potential in Parana Basin [60], but most of the studies are concentrated along the Proterozoic São Francisco Basin [59,61,62,63,64].

No previous hydrogen study has been performed in the PB. Our results in interpreting those high-density bodies as ophiolites, a source rock for hydrogen, open the gate for future works on that theme. We have examined a recent ANP’s internal seismic process confidential reports and observed dim spot features in the studied area. This seismic signal attenuation usually suggests the presence of natural gas filling in fault zones [65]. Furthermore, the Brazilian Governmental Company of Energetic Research (EPE) reported no hydrocarbon gases (helium) in the geochemical analysis performed at 2-FI-1 MT and 2-SM-1-MT wells. EPE assumed that the PB could significantly participate in natural hydrogen production [66]. Incidentally, we noted in the studied area circular depressions, which could be described as a fairy circle. Of course, these assumptions are speculative at this point. Hence, we need further investigations integrating geophysical and geochemical follow-up surveys, which are critical to substantiate the presence of hydrogen within the region. That will be the object of an evaluation project we are beginning in the area.

5. Conclusions

In this paper, we interpreted gravity and seismic data to propose a new detailed structural map for the PB. The integrated interpretation workflow consisted of converting the seismic lines for the depth domain and removing the gravimetric effects of Moho from the Bouguer anomaly of PB to enhance shallow sources likely related to basement features. Next, we performed a 2D residual gravity map modeling exercise to correlate the gravity anomalies with the sedimentary section and basement features interpreted in the seismic lines. Finally, we extrapolated the findings in the previous steps to the whole PB by interpreting the residual gravity anomalies.

Our approach identified a complex structural framework composed of several horsts and grabens. Compared with previous works, an essential aspect of our interpretation is using a higher-resolution residual gravity anomaly that identified several tectonic features. Six new grabens and a new regional arc were described, and we also identified normal extensional faults as the main fault systems associated with these basement features.

The correlation of gravity and seismic data also allowed us to interpret the geologic units embedded in the basement. Intra-basement ultra-dense sources identified in the 2D modeling exercise were interpreted as ophiolite bodies obducted by the time of the continental collision of the Orosian-Calimian (1.8-1.6 Ga). Ophiolites are known globally as source rocks for hydrogen production, which makes the Parecis Basin a highly promising area for hydrogen exploration. Follow-up geophysical and geochemical surveys have been planned to investigate that hypothesis.
