Drying of Cirina Forda Caterpillar: Experiments and Modeling

1. Introduction

Insects are consumed since the prehistoric period and around 2000 insect species are globally consumed nowadays, principally Coleoptera (31%), Lepidoptera (18%), Hymenoptera (14%), Orthoptera (13%), and Hemiptera (10%). These are consumed by 2 billion people, in particular in Asia, Africa and Latin America [1]. Insects are consumed at distinct life stages: eggs, larvae, pupae or adults [2]. With a low demand for land, water and a better feed conversion than traditional farmed animals, insects provide a large amount of suitable energy, fat, and protein [3,4,5]. The growth in world population is causing an increase in the global demand for food, in particular of proteins sources, mainly in developing countries [5]. In 2050, the global human population is predicted to reach 9 billion. In this regard, edible insects present a sustainable protein source [5,6].

The literature reports that dead insects can undergo some processing for their preservation or consumption, such as drying, toasting, frying, roasting or boiling [7,8,9,10]. Drying makes seasonal insects available all year round. Sun drying is the most common process applied to the edible insects in Africa after their collection in the wild [10]. This drying is mostly based on purely empirical habits. Yet, the drying conditions have an impact on the quality of the final product. Some research showed that the processing method affects the nutritional potential of edible insects by changing the nutriment proportions, protein digestibility, and the amino acid and vitamin content [8,9,11,12]. Moreover, the process of the drying can induce a shrinkage of the product, that can have an impact on the drying dynamics as well as on the final product properties (size, shape, porosity...) [13].

The knowledge of the characteristics of the drying of a given product allows the design and the control of an efficient process, leading to an enhanced and more reproducible final product. In recent years, there has been an abundance of scientific production on edible insects but very little on the characterization of their drying [9,14] and even less on the shrinkage dynamics. Loss of water and heating during drying can cause volume reduction of foodstuffs, due to important stresses in the cellular structure leading to change in shape and decrease in dimensions [15]. The parameters controlling this shrinkage are not correctly identified for insects. Yet, this shrinkage can both impact the kinetics and the final product acceptance by the consumer [16].

Consequently, there is a lack of information on the drying of many edible insects, such as Cirina forda. However, Cirina forda caterpillars are one of the most consumed caterpillars in Central Africa. Traditionally, the caterpillars are dried in the open air under direct solar irradiation. This method has several disadvantages for food products, such as uncertain drying time, high labor cost, the need for large areas, risk of infection by insects or microorganisms, presence of other foreign bodies, etc. All these can cause a poor quality of the final product [17] and a reduced guarantee of revenue for the producer. To overcome these problems, it is necessary to develop dryers that ensure a better control of the process and, thus, of the product quality [18]. Designing a dryer requires mastering the drying characteristics of the product of interest.

Therefore, the aim of this work is to provide and understand the characteristics of Cirina forda drying by measuring the drying kinetics and the evolution of the size of Cirina forda caterpillars over time. Simple mathematical models based on strong physical assumptions are used to simulate the experimental behavior and propose first basic explanations of the phenomena controlling the drying kinetics of these caterpillars. To propose such a first explanation, a follow up of the size of the insects at different stages of the drying is realized.

2. Materials and Methods

2.1. Material: Cirina Forda Caterpillars

Living caterpillars were purchased from the market in Kinshasa, Democratic Republic of Congo. They were packed in sealed plastic bags and stored at -20°C until use. Just before use, the caterpillars were left overnight to thaw at room temperature.

2.2. Measurement of the Dry Matter Content

In parallel with each drying experiment (see below), the dry matter content of the caterpillars was evaluated by the oven method at 105°C. A sample with an initial mass $M_0$ of around 6 g was placed in an oven at 105°C and weighed every 24h until a constant mass $M_f$ was obtained.

The initial moisture content of the sample $X_0$, expressed in a dry basis (kg of water per kg of dry matter), was calculated by:

$$X_0=\frac{M_0-M_f}{M_f}$$

(1)

This analysis was done in triplicate.

2.3. Drying Experiments

Drying experiments of caterpillars were carried out in two different set-ups:

• a tunnel dryer developed by Spreutels et al. [13]. This device allows a drying with well-controlled local conditions and an in situ mass measurement. However, this device is limited to a maximal drying temperature of 60°C.
• an oven dryer with less controlled conditions and manual mass measurement that requires to take the sample out of the drying chamber for each measurement but that allows temperature above 60 °C. This set-up is used to extend the tested conditions to 70°C.

In the tunnel dryer, a fan generates an air flow of 20 Nm³.h⁻¹, corresponding to an air velocity of approximately 0.5 m.s⁻¹ around the sample. This air flow is brought to the desired temperature by a heating resistance controlled by a regulator coupled to a thermocouple. The air enters the tunnel to dry the sample that is placed on a plate connected to a Sartorius ENTRIS22021-1S weighing balance. This balance measures and records the mass of the sample every 10 minutes. A multimeter Testo 400 records the humidity and the temperature of the air a few centimeters downstream of the sample during the drying. For each experiment, a sample of three caterpillars (around 6 g) was placed on the balance. They were dried at a constant temperature during the whole experiment. Tests were realized at 40, 50 and 60°C. The sample was allowed to dry until no significant loss of its mass was recorded for at least 30 minutes. By night, tests were interrupted. Samples were sealed in aluminium and placed a dessicator overnight. Each drying condition was tested in duplicate.

For the tests in the oven dryer, a sample of around 30 g of caterpillars was placed in an oven on a tared support. The sample was weighed after every hour. Tests were realized at 60 and 70°C. The sample was allowed to dry until no significant loss of its mass was recorded for at least 2 hours. Each drying condition was tested in duplicate. Complementary tests for shrinkage measurements (without kinetics analysis) were also performed in duplicates at 50°C.

2.4. Moisture Content, Moisture Ratio and Drying Rate Calculations

For each drying experiment, the moisture content of the sample at time t, written $X_t$, expressed in dry basis (kg of water per kg of dry mater), was calculated based on its measured mass at time t, written $M_t$, and on the value of $X_0$ determined in parallel by the oven method:

$$X_t=\frac{M_t\left(1+X_0\right)}{M_{t=0}}-1$$

(2)

The moisture ratio of the sample at time t, written $M{R}_t$, was calculated as:

$$M{R}_t=\frac{X_t-X_{\mathrm{eq}}}{X_0-X_{\mathrm{eq}}}$$

(3)

where $X_{\mathrm{eq}}$ is the moisture content of the sample at the end of the drying (i.e., when equilibrium is reached between the sample and the drying air).

The drying rate $J_t=-d{X}_t/dt$ (in kg of water evaporated per unit of time and per kg of dry mater in the sample) was estimated using the Savitzky-Golay method for the first derivative, with a window size depending on the considered time step summarized in Table 1 [19].

2.5. Modeling of the Drying Kinetics

Three different classical thin layer drying models were tested against the experimental results. Two of them, giving the most relevant results and interpretation, are presented here. The third on (Page model) is presented and shortly discussed in Appendix B.

The first and simplest model of this category is the Newton model. It is based on the assumption that the evaporation rate is directly proportional to the water content:

$$\frac{d{X}_t}{dt}=-J_t=-k{X}_t$$

(4)

where k (s⁻¹) is a kinetic constant, sole parameter describing the global timescale of the drying. Integrating equation 4 gives:

$$M{R}_t=exp\left(-kt\right)$$

(5)

The second model is a variation of the Newton model, the Henderson and Pabis model [20]. This model generalizes equation 5 by multiplying the righthand side by a dimensionless constant a:

$$M{R}_t=aexp\left(-kt\right)$$

(6)

The physical interpretation of the Henderson and Pabis is limited. Nevertheless, such an expression of the moisture ratio over time can be obtained when solving an equation describing the diffusion of water in a porous slab of thickness $H_0$, with an effective diffusion coefficient $D_{\mathrm{eff}}$ (m².s⁻¹), and keeping only the first term of the series giving the exact solution of the equation, yielding [21]:

$$M{R}_t=\frac{8}{{\pi }^2}exp\left(-\frac{4{\pi }^2{D}_{\mathrm{eff}}}{H_0^2}t\right).$$

(7)

The error induced by neglecting the further terms of the series when compared to the exact solution of the diffusion equation is below 1% when $t>0.123H_0^2/\left(4D_{\mathrm{eff}}\right)$.

Expressing the model as a diffusion one allows further physical interpretation. In particular, the influence of the temperature on the effective diffusion coefficient can often be expressed following an empirical Arrhenius law:

$$D_{\mathrm{eff}}=D_{0}exp\left(-\frac{E_a}{RT}\right)$$

(8)

where $E_a$ is an activation energy (J.mol⁻¹), $D_0$ is a pre-exponential factor (m².s⁻¹), R is the ideal gaz constant (8.314 J.mol⁻¹.K⁻¹) and T the drying temperature (K).

2.6. Shrinkage Measurement

The length L, width W, and thickness H (all in mm) of the caterpillars at different stages of their drying were measured using a digital caliper (Figure 1). The distance from the tip of the head to the tail was taken as the length. Positioning the caterpillar with its feet on a horizontal surface, the width and thickness are respectively defined as the horizontal and vertical sizes of the caterpillar in the plan perpendicular to the length (see Figure 1). W and H were estimated based on the average of measurements at the head, mid-body and tail of the caterpillar. 30 fresh caterpillars were measured to characterize their geometry. For dried samples, 10 insects randomly selected were monitored during their drying in the oven, and average values of L, W and H were determined at different drying times. The volume V of a caterpillar was estimated by taking the product of the three measured dimensions:

$$V=LWH$$

(9)

2.7. Modeling of the Shrinkage

Shrinkage during air-drying is typically illustrated by plotting the dimensionless volume ratio ($V_t/V_0$) (i.e., the ratio between the volume at time t and the initial volume) as a function of the moisture ratio $MR$.

If the volume of solid is constant over time and if the fluid volume (initially assumed to be fully composed of water) decreases monotonically during the drying with a constant fraction $\alpha$ of the volume of the evaporated liquid yielding a volume of gas staying inside the sample, the link between the volume ratio and the moisture ratio writes (see Appendix C):

$$\frac{V_t}{V_0}=1-{ϵ}_0\left(1-\alpha \right)\left(1-M{R}_t\right)$$

(10)

where ${ϵ}_0$ is the initial porosity of the sample, estimated as the initial volume of water in the sample divided by the initial total volume of the sample.

The porosity ${ϵ}_t$ of the sample at time t is the fraction of the total volume of the sample that is occupied by fluid (gas and liquid). Following the same assumptions as for the evolution of the volume ratio with the moisture ratio, the porosity as a function of the moisture ratio writes (see Appendix C):

$${ϵ}_t={ϵ}_0\frac{\alpha +\left(1-\alpha \right)M{R}_t}{1-{ϵ}_0\left(1-\alpha \right)\left(1-M{R}_t\right)}$$

(11)

If a linear relationship between $M{R}_t$ and $V_t/V_0$ is indeed observed experimentally, equation (10) indicates that the slope of the line is ${ϵ}_0\left(1-\alpha \right)$, while its value at $M{R}_t=0$ is equal to $1-{ϵ}_0\left(1-\alpha \right)$, so that their sum should be equal to 1. Knowing the initial values of the volume, mass, and water content of a sample, an estimate of ${ϵ}_0$ can be calculated and a value of $\alpha$ can be further deduced. Equation (11) can then be used to estimate the evolution of the porosity of the sample as a function of $M{R}_t$.

2.8. Fitting of the Models

The k parameter appearing in equations (5) of the Newton model and (6) of the Henderson and Pabis model (with a fixed at a value of $8/{\pi }^2$) were obtained, for each drying experiment, by a linear least-square fitting of $ln\left(M{R}_t\right)$ as a function of t. To limit the impact on the fitting quality of the high relative error on the experimental values of $M{R}_t$ at low moisture content, only data for $M{R}_t>0.2$ were taken into consideration for the fitting.

Both coefficient of correlation ($r^2$) and the root mean square error analysis ($RMSE$) were used to evaluate the quality of the fitting [14]:

$$\begin{array}{ccc}\hfill r^2& =& \frac{{\sum }_{i=1}^N{\left(M{R}_{pre,i}-{\overline{MR}}_{exp}\right)}^2}{{\sum }_{i=1}^N{\left(M{R}_{exp,i}-{\overline{MR}}_{exp}\right)}^2}\hfill \end{array}$$

(12)

$$\begin{array}{ccc}\hfill RMSE& =& \sqrt{\frac{{\sum }_{i=1}^N{\left(M{R}_{pre,i}-M{R}_{exp,i}\right)}^2}{N-p}}\hfill \end{array}$$

(13)

where $M{R}_{pre,i}$ is the predicted value of $M{R}_t$ at time i, $M{R}_{exp,i}$ is the measured value of $M{R}_t$ at time i, ${\overline{MR}}_{exp}$ is the average of the experimental values of $M{R}_t$, N is the number of values and p is the number of adjusted parameters. The statistical analysis was done with Excel 2010 and Matlab R2023a.

Using the Henderson and Pabis model, the value of the effective diffusion coefficient $D_{\mathrm{eff}}$ can be deduced for each experiment from the value of k, knowing the initial thickness $H_0$ of the caterpillars. Then, the activation energy $E_a$ can be estimated by a linear least-square fitting of the plot of $log\left(D_{\mathrm{eff}}\right)$ as a function of $T^{-1}$ (see equation 8).

3. Results

3.1. Initial Sample Properties

Cirina forda dimensions and water content prior to drying are presented in Table 2.

3.2. Drying Curves

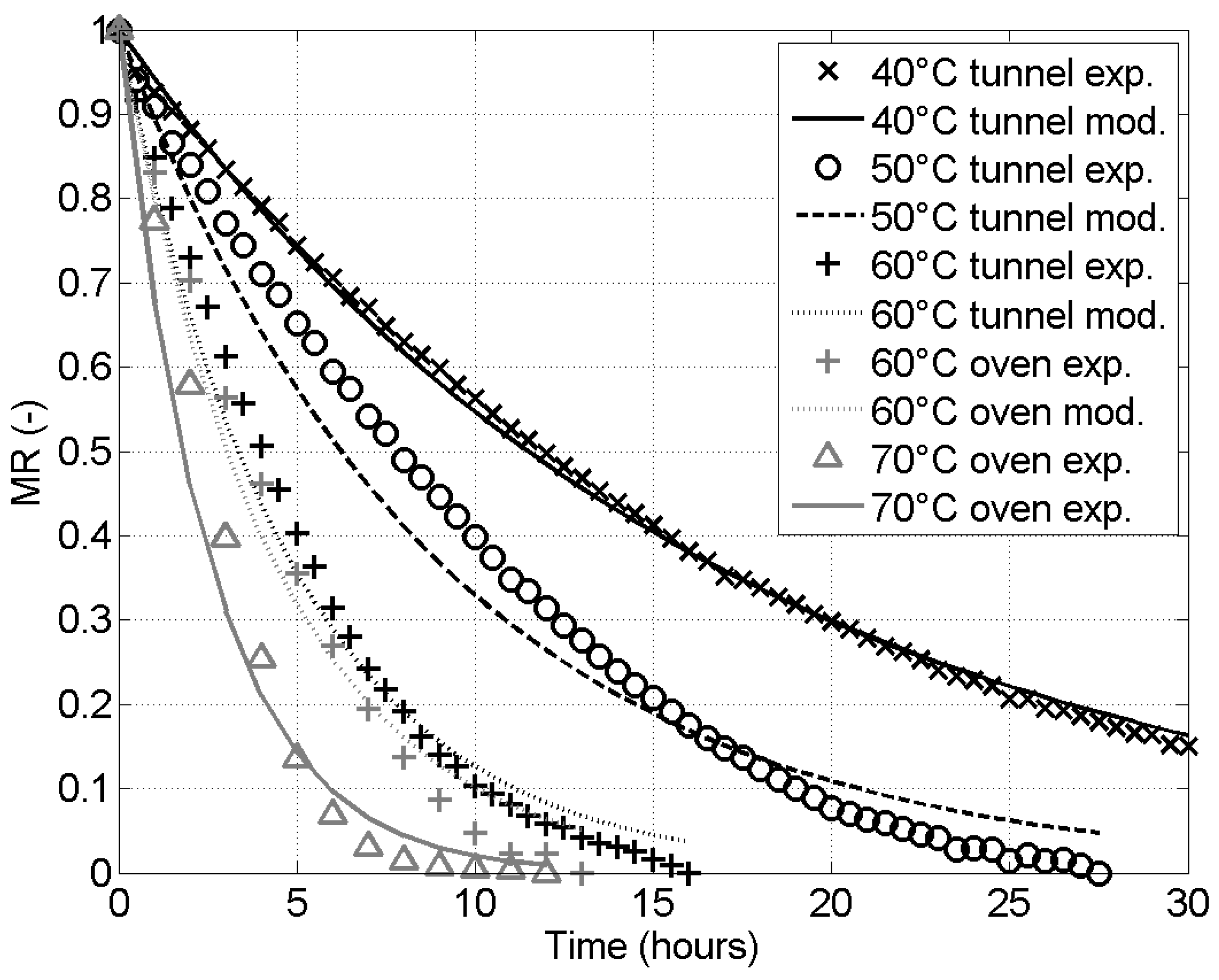

Figure 2 (left) presents the experimental drying curves with the evolution of the moisture ratio as a function of the time, for the different drying temperatures, while Figure 2 (right) presents the drying rate $J_t$ as a function of the water content $X_t$ of the sample. For the test at ${40}^{\circ }C$ in the tunnel dryer, the total duration of the drying is of 60h. The last 30h are not shown on Figure 2 (left) for clarity of the figure.

At ${60}^{\circ }C$, both the oven and the tunnel dryers were tested. We see in Figure 2 that they show similar results although the oven gives a slightly faster drying during the second half of the drying, leading to the prediction of a 12% shorter total drying time. This difference is mostly attributed to the lower control of the local conditions inside of the oven compared to the control in the tunnel. We can nevertheless conclude that it is relevant to group all the drying results, at the different temperatures, on a same figure.

Figure 2 (right) shows that, in all the tested conditions, the drying of Cirina forda caterpillars is characterized by the absence of a constant rate period, as $J_t$ monotonically decreases with a decrease of $X_t$. Therefore, we can assume that this drying is controlled by internal transport mechanisms, rather than external ones. This was also observed for many food products, including some insects, such as yellow mealworm [14].

3.3. Modeling of the Drying Kinetics

Table 3 presents the identified value of k for both the Newton and the Henderson and Pabis models, with a pre-exponential factor fixed to $8/{\pi }^2$ for the latter, along with the corresponding $r^2$ and $RMSE$. The Newton model offers, in all the tested conditions, a better fitting, with a good level of accuracy (lowest $r^2$ at 0.979 and maximum $RMSE$ at $0.055$). Appendix B also present the results obtained with the two adjustable parameter Page empirical models. The gain of offering a second degree freedom in parameter adjustment is marginal as the $r^2$ are only slightly higher. In Appendix A, Figure A1 illustrates the fitting obtained with the Newton model.

The good quality of the fitting with both the Newton and the Henderson and Pabis models highlights that, in all the tested conditions, the drying seems to be limited by the same, diffusion like, set of transport phenomena, with some minor effects inducing a deviation from the analytical solution of the diffusion equation. Possible effects might, for example, be shrinkage and/or deformation of the insects during their drying.

As expected when looking at the drying curves in Figure 2 (left), the value of k significantly increases with the temperature.

3.4. Effective Diffusion Coefficient and Activation Energy

As mentioned previously, the values of the effective diffusion coefficient $D_{\mathrm{eff}}$ were deduced from the values of k obtained using the Henderson and Pabis model, knowing the initial thickness $H_0$ of the caterpillars. Figure 3 gives the value of the logarithm of $D_{\mathrm{eff}}$ as a function of the inverse of the product of the temperature T and the ideal gas constant R. The good quality ($r^2=0.988$) of the linear fitting observed, the slope of which is the opposite of the activation energy $E_a$ (see equation 8), confirms an Arrhenius like behavior of the dependence of $D_{\mathrm{eff}}$ on T, for the tested range of temperatures.

The calculated values of $D_{\mathrm{eff}}$ are between 1.15 10⁻⁹ m².s⁻¹ (at ${40}^{\circ }C$) and 6.14 10⁻⁹ m².s⁻¹ (at ${70}^{\circ }C$). The activation energy $E_a$ and the pre-exponential factor $D_0$ are evaluated equal to 51.6 kJ.mol⁻¹ and 0.457 m².s⁻¹, respectively.

The values of the effective diffusion coefficient and of the activation energy obtained in this work are in the large ranges of values already reported for food products. Indeed, it was reported that the effective diffusion coefficient of most food products is between 10⁻¹² and 10⁻⁶ m².s⁻¹, while the activation energy is between 12.32 and 406.02 kJ.mol⁻¹ [22]. For the specific case of insects, Azzollini et al. [14] observed, for yellow mealworm (Tenebrio molitor), an effective diffusion coefficient increasing from 4.5 10⁻¹¹ m².s⁻¹ (at ${50}^{\circ }C$) to 1.62 10⁻¹⁰ m².s⁻¹ (at ${70}^{\circ }C$). They obtained an activation energy of 52.1 kJ.mol⁻¹ and a pre-exponential factor of 1.38 10⁻² m².s⁻¹.

Effective diffusion coefficients (and, accordingly, the pre-exponential factor) for Cirina forda appear to be one order of magnitude above the values observed for Tenebrio molitor by Azzollini et al. [14] while staying in an acceptable range for food product.

On the contrary, the value of the activation energy obtained in this work is really close to the value of Azzollini et al. [14] for Tenebrio molitor and it is about 20% larger than the latent heat of water vaporization (43 kJ.mol⁻¹ at ${50}^{\circ }C$). Tshanga et al. [23] have shown that the isosteric heat of sorption of Cirina forda is below 20 kJ.mol⁻¹ at ${50}^{\circ }C$, for a moisture ratio larger than 0.23. Therefore, the observed activation energy could be the expression of the latent heat of vaporisation of water modified by the isosteric heat, leading to the fact that the Arrhenius like behavior corresponds to the thermodynamic Clausius-Clapeyron law for a liquid bound to a solid [24].

This result suggests that the change of the drying rate as a function of the temperature can be mostly attributed to the change of the equilibrium vapor pressure. This confirms that the limiting drying phenomena observed at the different temperatures can be the same and that no other major change in the drying dynamics is observed in this range of temperature.

3.5. Shrinkage and Porosity Evolution

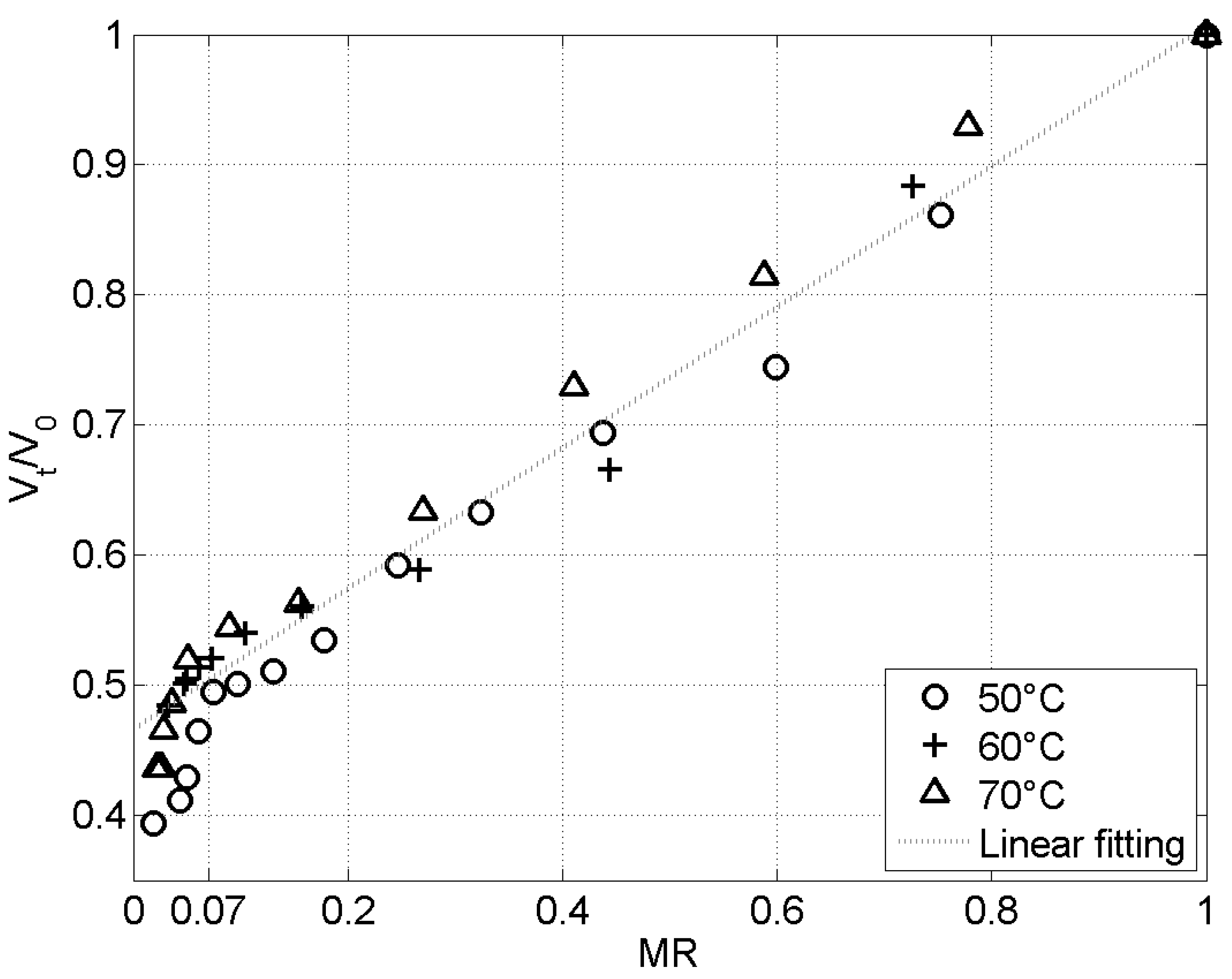

Figure 4 presents the volume ratio as a function of the moisture ratio for three tested temperatures. The three curves follow the same linear trend for $M{R}_t>0.07$ while, below that value, the decrease in the volume ratio with a decrease in the moisture ratio is greater. The least-square optimal linear fitting ($r^2=0.98$) of the combined set of data for the 3 temperatures and for $MR>0.07$ is:

$$\frac{V_t}{V_0}=0.5418M{R}_t+0.4655$$

(14)

For $M{R}_t>0.07$, a value close to 0.54 for the group ${ϵ}_0\left(1-\alpha \right)$ is thus predicted. Using values of the initial volume, mass and water content of the caterpillars, a initial porosity ${ϵ}_0=0.77$ can be estimated, leading to a value of $\alpha =0.3$. In other words, the insect structure collapses progressively as only 30% of the space freed by the evaporated water remains inside of the porous structure. The observed collapse is independent of the temperature, and thus of the kinetics itself.

For $M{R}_t<0.07$, the reduction of volume is more pronounced when the moisture ratio decreases and seems also independent of the temperature. The observed change of slope can be interpreted as a rise in the matrix degradation, loosening the mechanical properties of the solid and leading to a more important collapse.

Generally speaking, the results show that the volume of the caterpillars decreases by more than 50% when drying is complete.

4. Discussion and Conclusion

The analysis of the drying behavior of Cirina forda in the range of temperature from 40 to 70°C shows results similar to what was observed for many other foodstuffs like banana, potato, apple and carrot [15,25,26]. The drying kinetics globally fits well with a diffusion limited mechanism, with a limiting phenomenon that is the same from the beginning to the end of the drying. The temperature dependence that is observed can be mostly attributed to the change of volatility of water with temperature, including some water bounding effect.

The shrinkage of the product appears to be independent of the temperature, with a two successive steps mechanism. For the first step, corresponding to the majority of the water removal, the water content reduction leads to a partial but regular collapse of the structure. In the second, final shrinking phase, the shrinkage is more pronounced. The two steps of shrinkage cannot be correlated explicitly to a change in the drying rate, as the second shrinkage phase only happens for really low water content. The impact of the shrinkage on the drying rate is therefore hidden in the fitted value of the k parameter of both the Newton and the Henderson and Pabis models. For further use in the framework of dryer design and optimisation, the Newton model appears to give a sufficient precision, avoiding over-parametrization.

Tshanga et al. [23] suggested a conservation moisture content of 8% d.b (0.08 kg/kg) to ensure 12 months of storage in polyethylene bags at ${30}^{\circ }C$. For the drying of caterpillar with an average initial moisture content $X_0=$ 3.35 kg/kg, such a final value of the water content corresponds to a moisture ratio at the end of the drying equal to 0.024. As mentioned previously, Figure 4 shows that such a final moisture ratio corresponds to a volume reduction of the caterpillars of more than 50%. In other words, this indicates that a direct drying of the caterpillars to a moisture content that guarantees a conservation of one year leads to a loss of almost half of their volume compared to the fresh product.
