A Distributed Computational Model for Estimating the Carbon Footprints of Companies

1. Introduction

There is an increasing interest from governments, companies and NGO’s for mechanisms to inform purchasers about the carbon footprint of products and services, should the purchasers be company procurement decision makers or final consumers. The rationale is to help purchasers to minimize the climate impact of their purchasing decisions. So it is key to reduce the uncertainty of the figures provided to purchasers down to an acceptable level, to avoid erroneous decisions.

Conventional approaches of carbon footprinting still lack of precision, be it by using the GHG Protocol [1,2,3] for estimating the scopes 1/2/3 of companies, or simply using average emissions factors (EF) provided by the Life Cycle Analysis (LCA) of products and services [4,5,6,7,8,9]. For instance, the scope 3 reported by companies of the ICT sector seem to suffer from significant underestimation biases [10,11]. Using such carbon footprints estimates, a purchaser may be able to compare the carbon footprint of two products coming from two different supply chains belonging to different world regions with different carbon intensities of energy (e.g. Europe and Rest of World), but this will likely not be the case if the two supply chains belong to the same region (e.g. Europe).

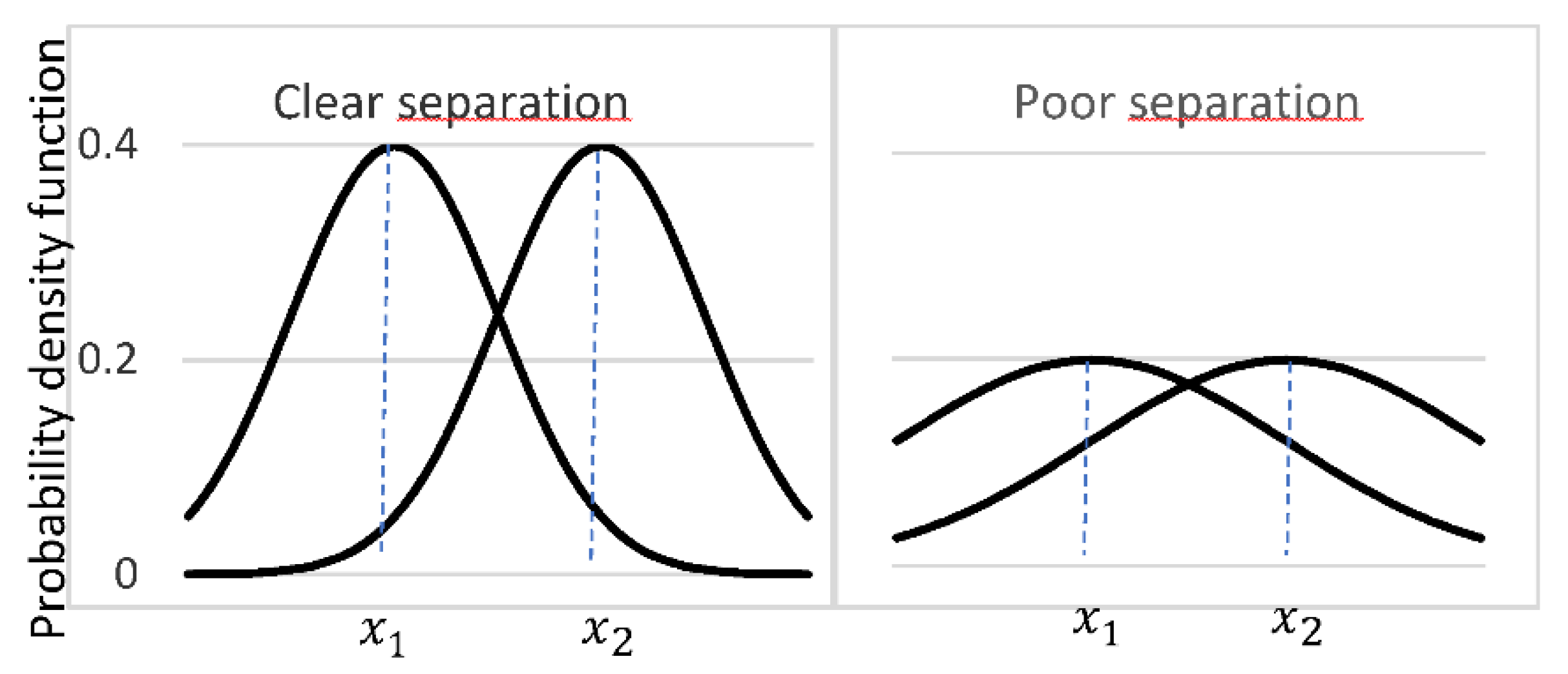

To determine the level of precision that is required, one should estimate the biases and uncertainties of the production footprints of products (their emission factors). Let’s picture a purchaser that faces the choice between two suppliers of a product with the same price but different observed production footprints x₁ and x₂ > x₁ and let’s assume they are bias free and have equal standard deviation σ. The common sense decision, based on the assumption the observed footprints are close estimators of the true footprints, is to choose the supplier with the lower observed footprint x₁. However the reliability of such a decision depends strongly on σ. We illustrate two cases in Figure 1 with two different values of σ assuming gaussian probability distributions of the true footprint. When σ is half the difference x₂ − x₁, probability distributions of the true footprints are well separated and there is around 8% probability for the purchaser to make a wrong decision; when σ is equal to the full difference, such probability raises to 24%. And the situation obviously worsens in case of non-zero biases. In reality, the purchaser must not only look at the production footprint, he must include in his analysis the carbon footprint due to the use and disposal of the products (the downstream scope 3) but the rationale remains the same.

The purpose of this paper is to contribute to the research effort towards increasing the precision of carbon footprints, or more generally, of any environmental impact. More precisely, we look at improving the figures of the production footprints, defined as the sum of scope 1, scope 2 and upstream scope 3 footprints. We do not address the downsteam scope 3 footprints. To improve the production footprints, we propose to use the distributed computational model outlined in [14], distributed ideally across all companies, or at least, to be pragmatic, involving a significant population of companies (e.g. a country or an economic sector) to obtain carbon footprints with increased reliability, from as much company-level direct emissions data as possible. The rationale is that for direct emissions, the bias is neglegible and the statistical uncertainty is small (in the order of 10%) while they are both significant for the emission factors of products and services, should they be obtained from Life Cycle Analyses (LCA) or from macroeconomic level Input Output (IO) analysis.

The computational model we propose in this paper also provides ways to estimate the level of precision, subject to hypotheses on the bias and statistical uncertainty of the input data at company-level, both for direct emissions and emission factors.

In Section 2, we introduce the distributed computational model, that is derived from the classical IO model [12]. It relies on a simple description of the economy as a network of economic players that operate both as suppliers and purchasers. The IO model can be seen as a genuine linear systemic model. For macroeconomic analyses, the number of players is small (e.g. 44 economic sectors in the ICIO database [13]), but the IO model is by no means restricted to macroeconomic analyses. We propose to use it at the very dense microeconomic level of companies. A strong simplification at this stage is that we assume single-product firms (the multi-product case is discussed in Section VI). Dealing with companies requires to solve a linear system with very high dimensionality but in practice the matrix of the linear system is very sparse, because any given enterprise has a very low number of suppliers as compared to the total number of companies. Moreover, it was shown recently in [14] that solving the linear system can be reformulated as calculating the limit of a sequence of approximated footprints converging towards the solution of the system. Because every company has a direct knowledge of its suppliers and the amounts bought from them, such sequential computation can be distributed throughout all the companies, so that the calculation finally consists of iterating sums of weighted inventories similar to the weighted inventories specified for the GHG protocol scope 3 calculations. In this paper, we review the model proposed in [14] in the ideal case where all required information is available for all world ‘s companies, and we extend it into a more flexible and realistic model to take into account companies that do not take part in the distributed computational task.

In Section 3, we look at the convergence rates. Satisfactory convergence is reached in no more than seven steps in the macroeconomic case we have studied (ICIO with 44 sectors and two world regions). However, the convergence rate depends on the mean length of the value chains. We hypothesize longer but reasonable convergence rates when working at the level of companies.

In Section 4, using linear sensitivity analysis, we show how to estimate the bias of the calculated footprints, as a function of the biases of direct emissions (scope 1) and of average scope 2 and scope 3 emission factors derived from available databases. Such bias calculation can be built into the distributed computational task, for instance if we hypothesize three different biases for scope 1, scope 2 and scope 3 emissions factors. As for statistical uncertainty, even under the assumption that direct emissions and emissions factors are statistically independent, the calculation cannot be done in a distributed fashion, it has to be done by unfolding the tree of suppliers.

In Section 5, we describe the actors involved in such a real world distributed process, and underline the necessity of a data exchange protocol. Finally, in Section 6 we discuss the practical aspects for the process to work: dealing with multi-products firms, ensuring confidentiality of company data, integrating the mechanism in the accountancy processes and software, built-in heuristics for detecting faulty estimations, the need for auditing the estimations. We also discuss the use of physical units rather than monetary units, and we discuss the impact of the options how to take into account the carbon footprint of multi-year investments.

2. Applying the Input-Output Approach to the Calculation of Companies Production Footprints

2.1. Using the Standard Demand-Driven Model

Input-Output (IO) analysis is commonly used at a macroeconomic scale by national accounts to calculate the upstream footprint of final demand of households. Moreover, it is also suitable to calculate the upstream footprints of intermediate sectors, using the EIO-LCA approach [15] and similar approaches [16,17]. Yet the underlying IO model is also theoretically relevant at the microeconomic level of companies, since it just relies on a simple description of the economy as a network of economic players that act both as suppliers and purchasers.

The economic activities are divided into n economic players, typically n = 44 ICIO economic sectors [13] at the macroeconomic level, but reaching several millions players per country (23 milllions for the EU) when we go down to the microeconomic level of companies. The economic players buy one from another to enable their own productions. We refer to this as intermediate consumption, or intermediate demand. To the n economic players correspond n final demand markets, directly consuming their products for final use.

In the standard IO model, the natural system variables are an n dimension production vector P of all economic players, and an n dimension demand vector D of the final demand for their products and services. The economic exchanges between the economic actors are described by a matrix C, its C_ij elements denoting in monetary units the sales of player i to economic player j.

The standard model is a demand driven model where the endogenous production variable P is related to the exogeneous final demand variable D by the linear system:

$$(\mathit{I}-\mathit{A}).\mathit{P}=\mathit{D}$$

(1)

where Leontief matrix A is the C matrix normalized by the production values, on a column by column basis:

$$\mathit{A}=\mathit{C}.{\left[\mathit{P}\right]}^{-1}$$

(2)

where [P] denotes the diagonal matrix derived from the production vector P.

The standard approach is used several ways. It is commonly used by national statistical offices to calculate the upstream footprint of final demand, on a global and sector level. More seldom is it used to calculate the production footprints of sectors [10,11,12]. In this case final demand D is no longer needed for the calculations, as the full information is contained in vector P and matrix A. Some care is needed in such calculations because of the interconnected nature of the economy, which induces cycling effects (e.g. cycling demand), that bring a significant overestimation bias at a macroeconomic scale [17]. However working at a microeconomic level, we expect the cycling effect should be neglegible for a vast majority of companies.

2.2. Using Downstream Propagation Models

While the standard IO model using variables P and D disseminates the demand along the value chains in a upstream direction, from purchasers to suppliers (following a demand pull approach), we use a slightly different IO model with different variables: an n dimension vector e of direct emissions intensities of the economic players (monetary intensities) as the exogeneous variable, and an n dimension vector x of production footprint intensities as the endogeneous variable (Note that other notations conventions have been used, e.g. in [18] denoting direct emissions intensities by d and production footprint intensities by e.).

It has been shown in [14,18] that they are related by the linear system:

$$(\mathit{I}-{\mathit{A}}^{\mathit{T}}).\mathit{x}=\mathit{e}$$

(3)

where A^T denotes the transpose of the Leontief matrix

When working with absolute value footprints X [P]x and direct emissions E [P]e rather than intensity variables x and e, we obtain the formulation derived in [17]:

$$(\mathit{I}-\mathit{B}).\mathit{x}=\mathit{E}$$

(4)

with B = [P]A^T[P]⁻¹.

Both formulations (3) and (4) propagate the carbon impact along the value chains downstream from suppliers to purchasers. They correspond to an impact propagation (a.k.a. impact inheritance) approach, in contrast to the demand pull approach of the standard method.

Like for endogenous variable P of the standard approach, endogeneous variables x and X are subject to the cycling effect and need to be normalized by the diagonal elements of (I − A^T)⁻¹ and (I − B)⁻¹ inverse matrices, that turn out to be identical values µ_i > 1, also equal to the diagonal element of the Leontief inverse (I − A)⁻¹. Thus, in theory, we should calculate footprints vectors net of cycling effect and $\tilde{x}$ as $\tilde{X}$ follows:

$$\tilde{x}=x_i/{\mu }_i\mathrm{and}\tilde{X}=X_i/{\mu }_i$$

(5)

But as pointed out above, working at a microeconomic scale, we expext the cycling effect to be neglegible for the vast majority of companies. In other words, we expect µ_i ≈ 1 and x to be a very good estimation of $\tilde{x}$. Therefore in the following we simply focus on calculating intensity vector x and its components, the intensity values x_i.

2.3. Distributed Iterative Framework

At a macroeconomic level, matrix C, production P and final demand D are provided by publicly available input-output tables (IOT) of yearly national accounts, in which countries report the productions, imports, exports, intermediate and final demands per industry, and on a world scale, by Multi-Region Input-Output (MRIO) tables (such as the ICIO [13] or EXIOBASE [19]), that further detail the international trade at a sector level. The information is centralized and the calculations are centralized in a single computer.

In the microeconomic approach developed in this paper, centralizing data collection and calculation become issues. The huge amount of data of matrix C is subject to confidentiality, and the linear system is of very large dimension, the order of magnitude being several millions vector components. With current ICT technology this is not impossible to do, but it is not practical. Thus we explore in the following a distributed approach whereby the C data remains at the nodes of the economic network, i.e. the companies, and part of the calculation is done by them.

The first step to obtain a distributed algorithm to solve equation (3) is to note that it can be solved iteratively as shown in [14].

Instead of computing directly x = (I − A^T)⁻¹e, we compute the following sequence of vectors x^k converging to x:

where vector x* is a first gross estimation (a “bootstrap”) of the companies production footprints. It is relevant to derive it from average emissions factors taken or derived from available LCA data, or in the absence of such data, or from average monetary emissions factors derived from IO analysis at a macro level. Yet, the choice of x* does not affect the convergence of the algorithm. In fact setting x* = 0 is acceptable and corresponds to the accumulation in x^k of direct emissions along the value chains.

For the footprint intensity of a given company i, the iterative calculation of equation (6) can be expressed as :

where a_ij denote the usual “technical coefficients” of the high dimension Leontief matrix A of the companies network. In reality, A is a sparse matrix, because all companies i have a small number of suppliers compared to the total number of companies. Only few of the a_ji coefficients are non zero for the given enterprise i. Moreover they can be straightforwardly derived from the accountant’s book of suppliers of the enterprise, as the ratio of the purchases from every supplier j to the total sales of enterprise i. We see the summation parts of formulas (7) correspond to a converging sequence of weighted inventories of the same kind used in the GHG protocol. The summation for the first term x_i⁰ is a classical GHG protocol estimation in terms of a monetary intensity.

2.4. Adapting the Distributed Framework to Real World Constraints

If such a distributed mechanism were to be deployed in real life, in what we may call an Environmental Impact Network (EIN), only a fraction of the companies would take part in the calculation, certainly for the first phases of the roll-out (on a given country or a given sector), and most realistically for a long time given that only a fraction of all countries may decide to implement such a system. We need to extend the model to take that fact into account.

To do this, we group the companies into two subsets, the subset of companies willing to enroll in the EIN system (the EIN subset), and the complementary subset of all other companies. For commodity, we arrange the numbering of the companies i as follows: the companies of the EIN subset are numbered from 1 to n_EIN, and those of the complementary subset are numbered from n_EIN + 1 to n. Transposed Leontief matrix A^T is partitioned, as shown in Figure 2, into to four sub-matrices, two square matrices A₁₁^T and A₂₂^T resp. of dimensions n_DEIN and n − n_EIN, and the two complementary rectangular matrices A₂₁^T and A₁₂^T. In the extended model, we take into account the n_EIN dimension vector of direct intensities e₁ of the EIN subset, while we use the n − n_EIN dimension vector of approximated emissions factors x₂* of the complementary subset. The n_EIN dimension vector of estimated footprint intensities x₁ is the solutions of the following modified version of equation (3):

which we reformulate as :

Obviously, the x₁ estimated intensities are different of the true intensities obtained by equations (3) or (6). The estimation error depends on the error made by replacing the true x₂ intensity values of the companies outside the EIN subset by their approximated values x₂*.

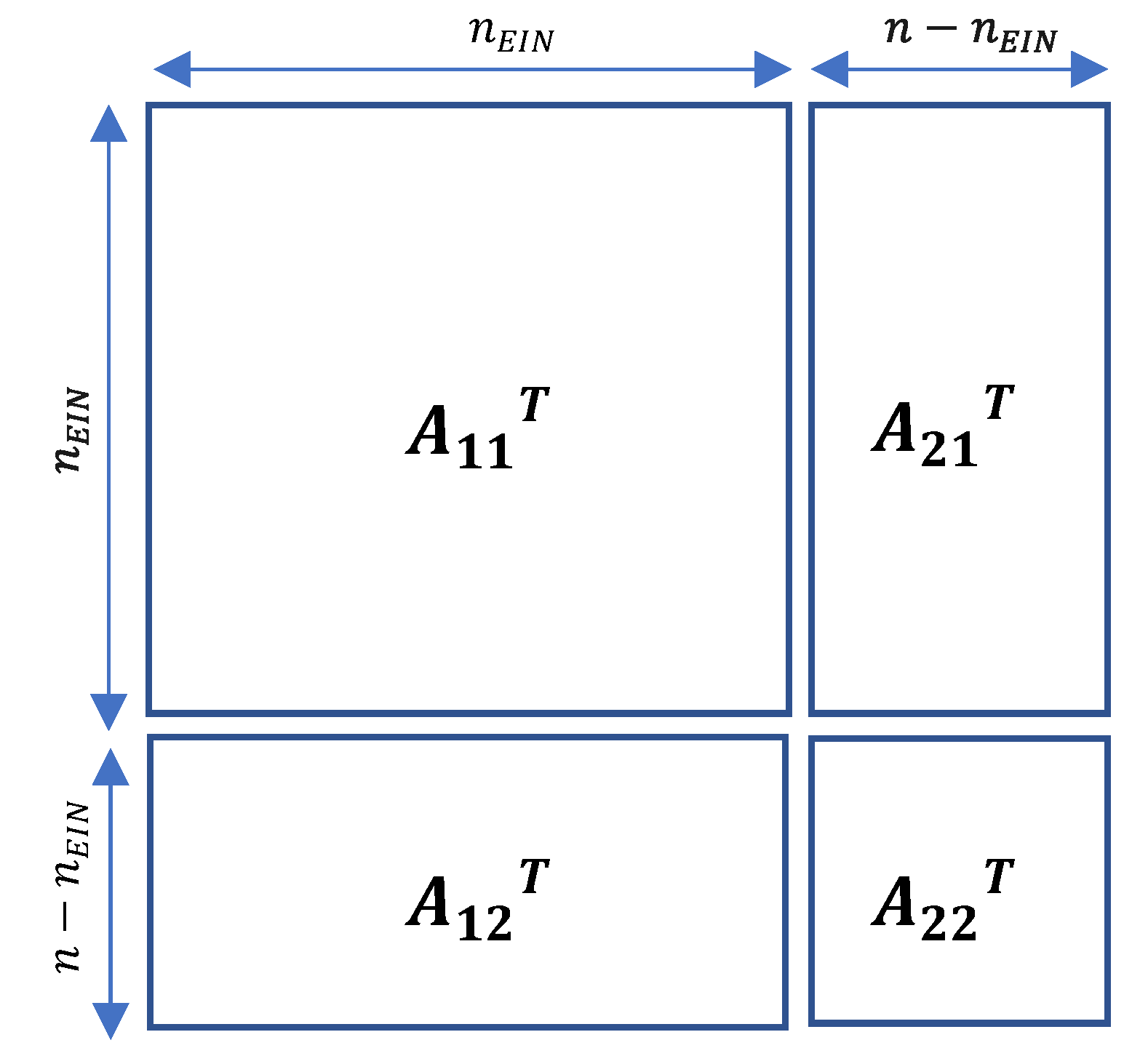

Note that Equation (8) only use the top two submatrices out of the four submatrices of Figure 2.The term A₂₁^T x₂* is a constant n_EIN dimension vector containing the scope 2 and upstream scope 3 information of the complementary set, and playing a similar role to the direct intensities e₁.

Let’s reformulate equation (8.1), using notations x for x₁ and s₁ for e₁ (the scope 1 intensity vector) and let’s split vector A₂₁^T x₂* into two vectors s₂ and s₃ (resp. the scope 2 and upstream scope 3 intensity vectors):

We can compute a sequence of n_EIN dimension vectors x^k converging to x in a similar using (6) with s₁ + s₂ + s₃ playing the role of e. Moreover, we can decompose x as the sum of three n_EIN dimension vectors x = u + v + w such that:

that can be computed iteratively as three sequences of n_EIN dimension vectors x = u^k, v^k, w^k as follows:

Therefore, for a given company i, we can split its production footprint into three parts x_i = u_i, v_i, w_i with u_i capturing the contribution of all known direct emissions intensities e_j = s_1,j of its EIN indirect suppliers, v_i capturing the contribution of all scope 2 emissions factors s_2,j of the energy suppliers of its indirect EIN suppliers (by convention energy suppliers are outside the EIN subset) and w_i capturing the contribution of upstream scope 3 emissions factors s_3,j of the non EIN suppliers of its indirect EIN suppliers. Such decomposition is interesting because the bias and uncertainty is fairly different between scope 1 and 2 emissions factors and scope 3 emissions factors.

The iteration equations (7) are replaced as follows:

In fact, taking the converging sequence x^k = u^k + v^k + w^k means starting with initial estimate x⁰ = e₁ + A₂₁^T x₂* but it does not contain an initial estimate x₁* of the footprint of the EIN member. To do this we must add term A₁₁^T x₁* to the initial term, which leads to a modified converging sequence with general term:

The residual term is obtained as:

It contains the dwindling contribution of EIN approximated emissions factors converging to zero. For a given company, it is computed as follows

The breakdown of the iterative footprints $\tilde{\mathit{x}}$ into the four components u, v, w, r is illustrated in the convergence curves of Figure 5(b).

Let’s note that the approach is flexible enough to handle finer grained divisions than breaking down the vector constants of (8.2) into three components s₁, s₂, s₃, and therefore than the three corresponding accumulation variables u, v, w. Theoretically, it can support to any classification of emissions with respect to geographical origin, economic sector or even energy versus chemical process origin.

3. Convergence Rate

To simulate the behavior of the distributed model described in the previous section, we have used input output tables from the Inter-Country Input-Output (ICIO) database published by OECD [13] for year 2018 and covering 44 economic sectors, and we have used the emissions data from EXIOBASE [20].

Such simulation is done at macro level , so we need to anticipate what may happen at micro level. We have assimilated scope 2 to scope 1 since they follow a similar behavior in the iterative accumulation process and both exhibit low bias and uncertainty.

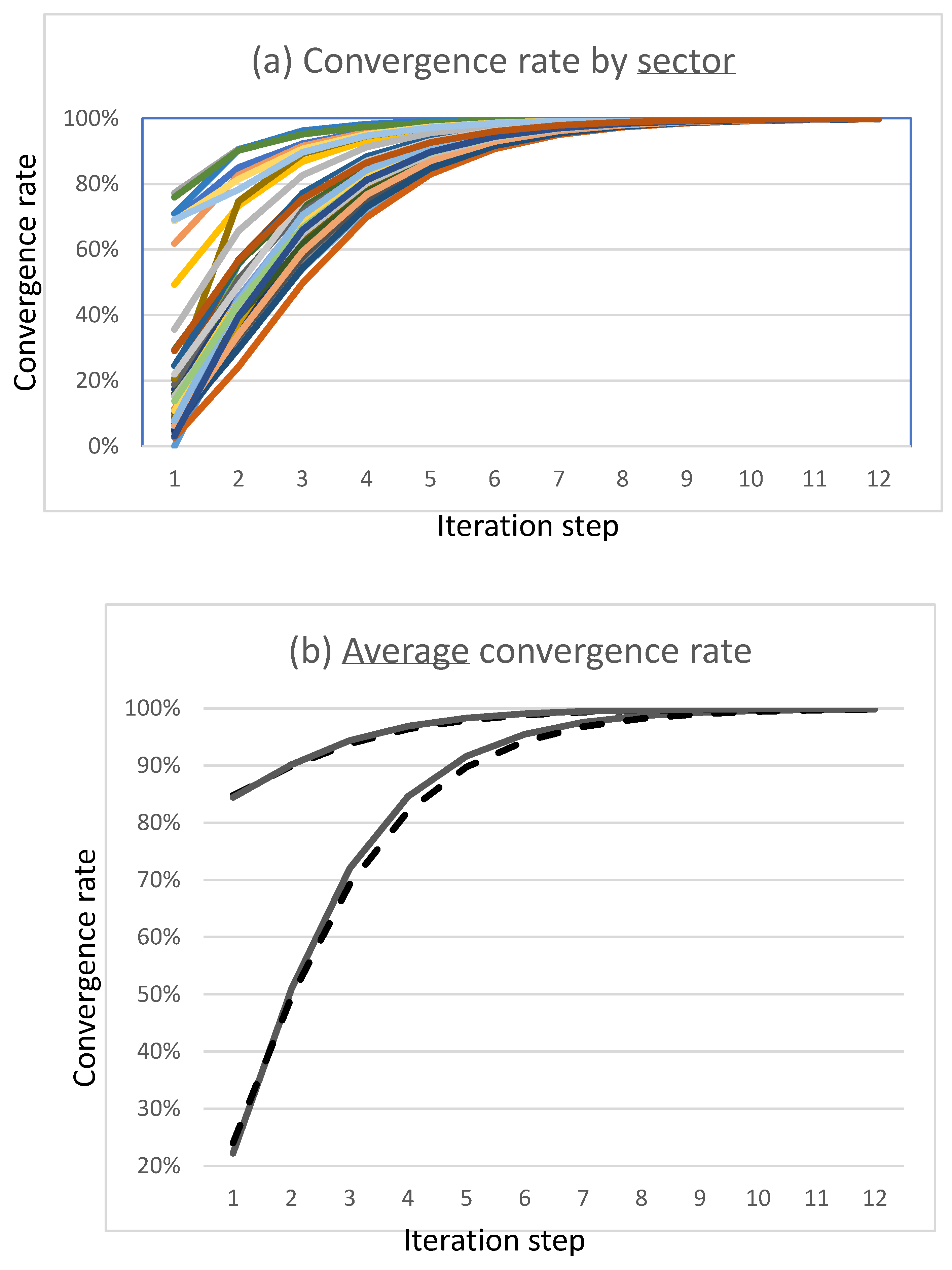

In Figure 3 we illustrate convergence rates when all world economic players take part in the EIN system, thus all taking part to the calculation using formulas (7). Figure 3(a) shows the convergence rate of the production intensities xⁱ_k for the 44 sectors aggregated at world level with zero initial values for emission factors. We observe significant dispersion of the convergence rates per sector. The heavy industry sectors start at higher value and converge faster than the service sectors that start at low values. For instance, one of the higher and faster converging curves corresponds to the sector of electricity, gas and steam production, while one of the lower and slower converging curves corresponds to the sector of IT services. Figure 3(b) shows the average of convergence rates in two cases:

• With zero initial emission factors as in Figure 3(a): this corresponds to the uⁱ_k, that is to production intensities calculated exclusively from original direct emissions data. We observe a slightly slower convergence rate for UE sectors (dashed line) than for the Rest of World.
• With initial emissions factors set to values 20% lower than their true value. The estimated production intensities start at higher values and converge faster.

The areas under the lower curves of Figure 3(b) correspond to the proportion of the xⁱ_k intensities corresponding to the intensity fractions uⁱ_k calculated from direct emissions, while the difference between lower and upper curves correspond to the proportion corresponding to the remaining intensity fractions wⁱ_k that have not been reduced to scope 1 or scope 2 intensities. As all players take part to the EIN system, the xⁱ_k values converge to the true values, and the fractions wⁱ_k tend to zero.

Taking a broad view, convergence is obtained in 4 to 7 steps which was observed by [14] on a different dataset.

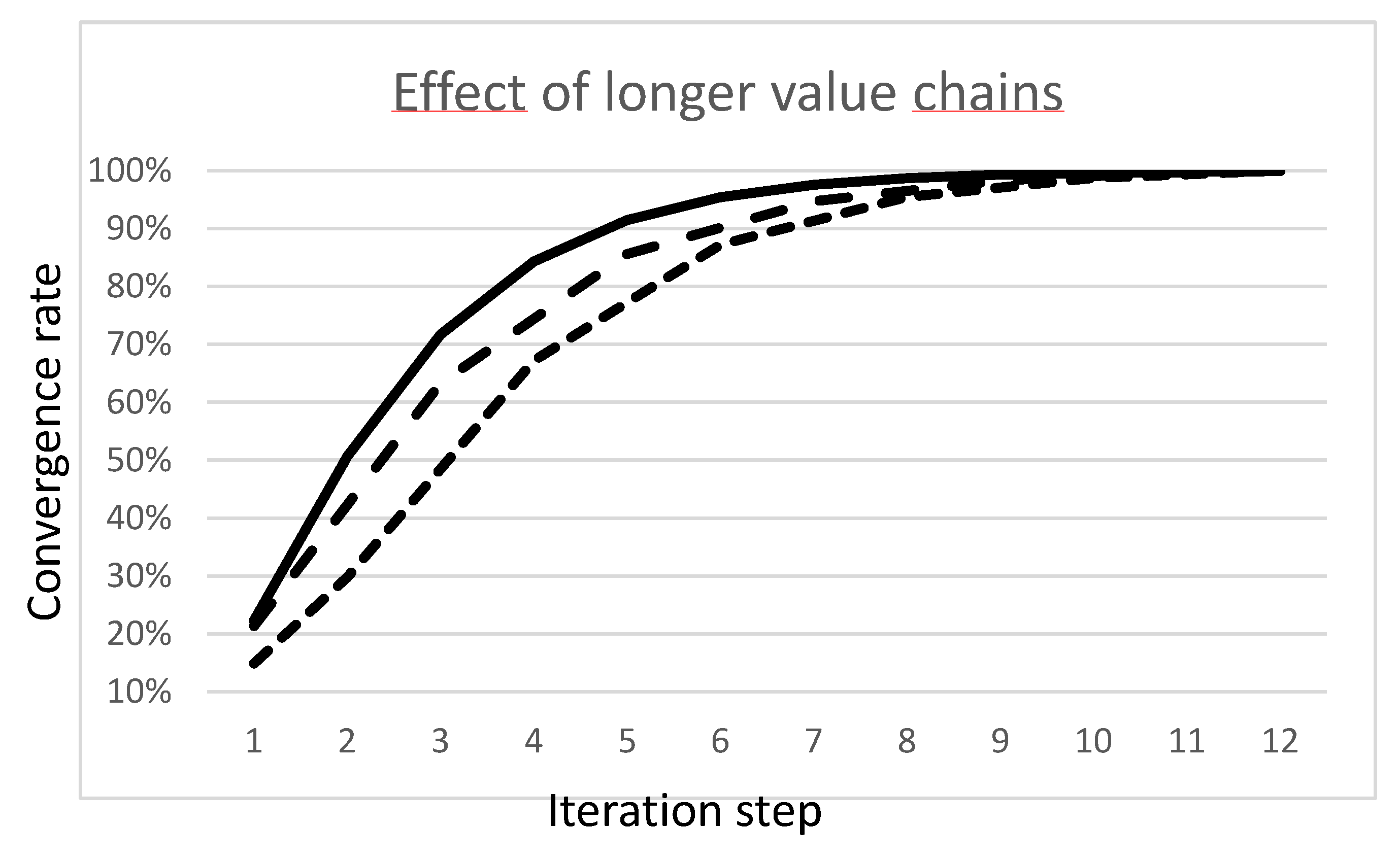

It is likely that the average length of value chains has a direct effect on convergence rate. At a micro level, the mean length of value chains are longer than at the macro level corresponding to these simulations. To evaluate the mean length of value chains, we would need realistic A data. For the time being we have illustrated the effect on the 44 sector ICIO data by splitting uniformly every sector into a production sub-sector and a distribution sub-sector. The theoretical effect is to double the value chains. In our simulation, we observe a significant slow down of the convergence rate for production sectors, in the order of one iteration step, and even more for distribution sectors (Figure 4)

In Figure 5(a), using formulas (11), we illustrate convergence rates in the case of partial deployment of the distributed computational task, with two different EIN subsets, the EU and the “Rest of World”, and with the hypothesis the emission factors outside the EIN subsets are underestimated by 20%. When we take the EU as the EIN subset, the lower solid line shows the footprints that only converge to 93% of their true values, due to the Rest of World emissions factors being underestimated by 20%. The lower dashed line shows the convergence of the fraction $u_i^k$ of the footprint calculated from direct emission data. The difference between the solid and dashed lines correspond to the fraction of footprint $w_i^k$ that have not been reduced to scope 1 or scope 2 intensities. We see it no longer tends to zero as in Figure 3(b). when the EIN domain encompassed the whole world. In the symmetrical situation where the Rest of World is taken as the EIN subset, the calculated footprints nearly attain their true values and the fraction of the footprint calculated from direct emission data accounts for most of them. Such different behavior between UE and Rest of World illustrates the strong dependency of UE on imports from Rest of World.

In Figure 5(b), we show the more detailed breakdown of the iterative footprints into the four u, v, w, r components, in .the case when the EIN domain is the UE is further decomposed. While the three components u, v, w, r with their sum converging to same limit as x and $\tilde{\mathit{x}}$, the residual r decreases with the iterations and converges to zero, and its average value may serve as a convergence criterion of the whole distributed iterative system.

4. Bias and Standard Deviation

In this section we assume that coefficients a_ji, that are derived from companies accounts, are not subject to uncertainty, and we only explore uncertainty due to the exogeneous variables: direct emissions intensities e₁ of the EIN players, and average emissions factors intensities x₂* of the non-EIN players. As in the previous section, we have assimilated scope 2 emissions to scope 1 emissions since they follow a similar behavior in the iterative accumulation process and both exhibit low bias and uncertainty.

4.1. Bias Analysis

To look at the effect of the possible biases of e₁ and x₂* on the calculation of the production footprint x we use variation formulas derived from equations (8.2). Since the model is linear, the variations are expressed as:

We express the variations with respect to direct emissions e₁ and emissions factors x₂*:

In the following we explore the effect of EIN subset size on bias and uncertainty at a macroeconomic scale (economic players are economic sectors). We model the EIN subset as a world region of n = 44 ICIO sectors, with average economic structure, of variable size, and variable autonomy with respect to the rest of world. This means the sectors of the EIN region follow the same relative distribution as the sectors of the world economy, with same carbon intensities. It also means that we may vary the size of the EIN region and vary the preference of the EIN sectors for buying from EIN suppliers.

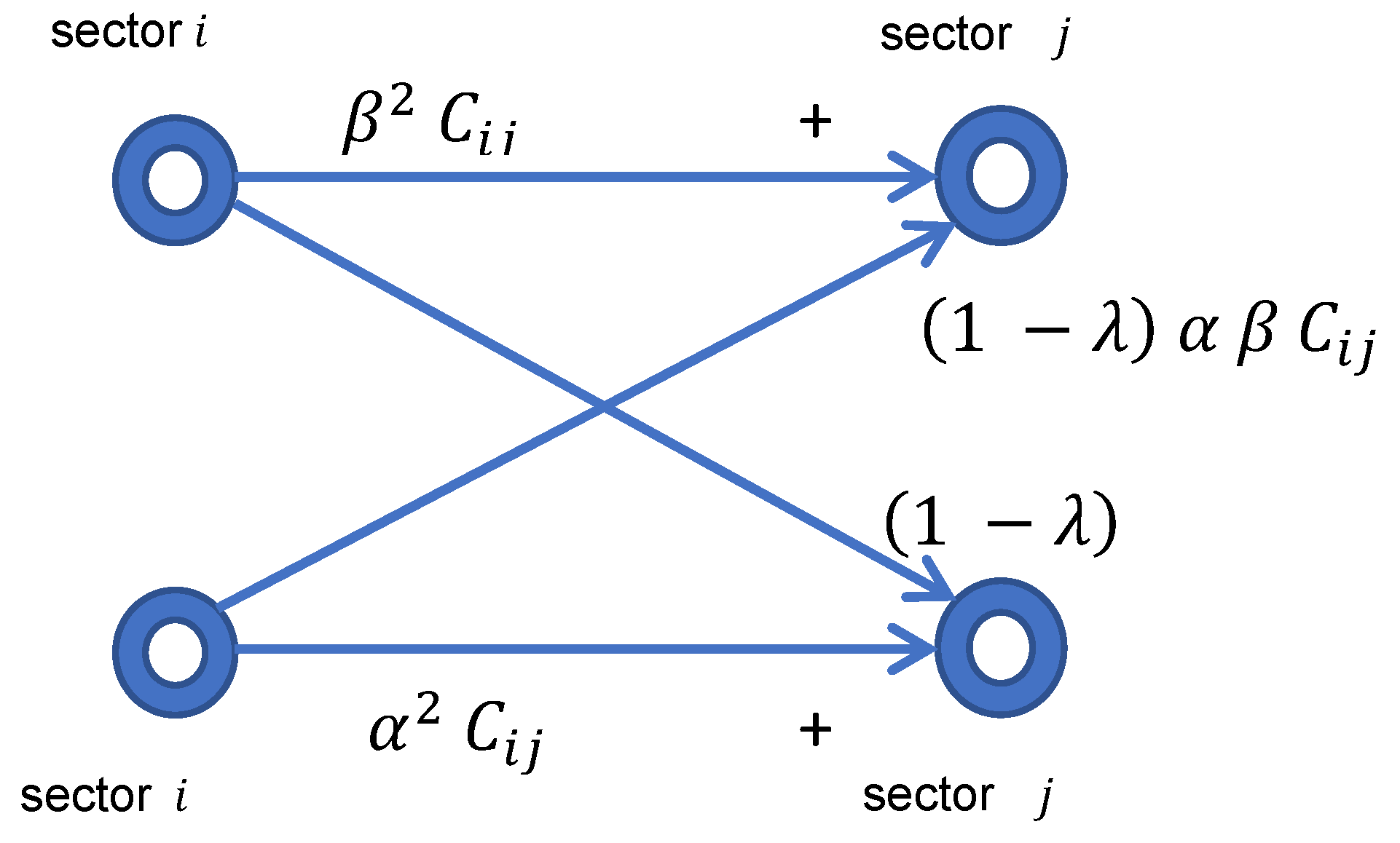

To do this we disaggregate the worldwide sectors into two regions , the EIN region itself, and the rest of world. The relative size of the EIN region is modeled by a weighting factor β, with production vector βP and the relative size of the rest of world by weighting factor α = 1 − β, with production vector αP where P is the world production. To derive the new table of intermediate consumptions, which now has a dimension 2n = 88, we proceed as described in Figure 6: we disaggregate each supply value C_ij appearing in the initial C matrix into four values with respective weights α², αβ, αβ, and β², and we model the regional preference with a parameter λ that reduces commercial exchanges between the region and the rest of the world. The Leontief matrix then results from formula (2).

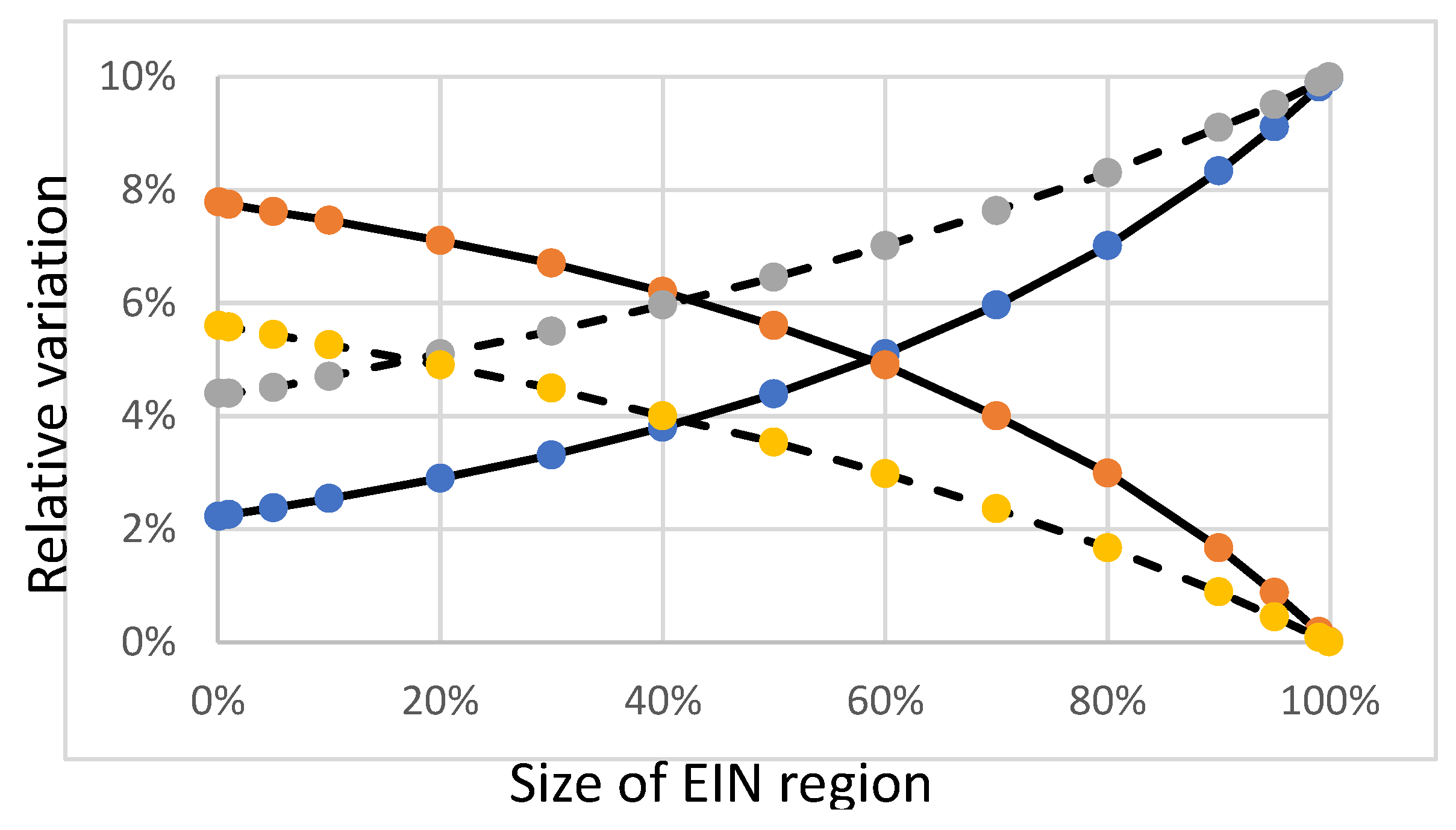

Then, we use formulas (13) to compute the relative variations of the production footprints x to 10% relative variations of direct emissions e₁ and 10% relative variation of emissions factors x₂*. Figure 7 shows such relative variation curves as a function of region size in the case the EIN region has no autonomy λ = 0 (solid lines) and in the case of significant autonomy with λ = ½ (dashed lines). For very small size regions, the influence of imports are dominant, this can be seen in the high sensitivity to external emissions factors. Then as the size of the region increases, the sensitivity decreases and tends to zero as the region encompasses the whole world. Conversely, the contribution of the regions direct emissions is minimum for very small size regions, it increases with the size of the region and rends to the maximum 10% as the regions encompasses the whole world.

In reality, biases are expected to lower than 10% on EIN direct emissions and significantly higher on non-EIN emission factors, so that the rising curves in Figure 7 are expected to be lower and the decreasing curves much higher, meaning the dominant bias is due to non EIN-emission factors.

4.2. Standard Deviation

We have used equations (8.2) to calculate the variances of the footprints assuming statistical independence of the components of the exogeneous data vectors e₁ and x₂*. Unfortunately the expression variances in not linear like (13) because of the quadratic nature of variance calculations. Calculating this for a given enterprise from the knowledge of its suppliers would require to develop the tree of its suppliers up to k − 1 levels of indirection. Figure 8 shows the relative standard deviations have smaller values than the relative variations of Figure 7 and that their variations with respect to the size of the EIN region are flatter.

In reality, standard deviations are expected to range in the order 10% on EIN direct emissions, but much higher for non-EIN emission factors that rely on Life Cycle Analyses that estimate poorly uncertainty [20]. As for biases, the dominant uncertainty due to standard deviations is expected to come from non EIN-emission factors.

5. Design of a Distributed Environmental Impact Process

In the previous section, we have simulated the results and behavior of a distributed Environment Impact Network (EIN) using ICIO data corresponding to a macroeconomic scale.

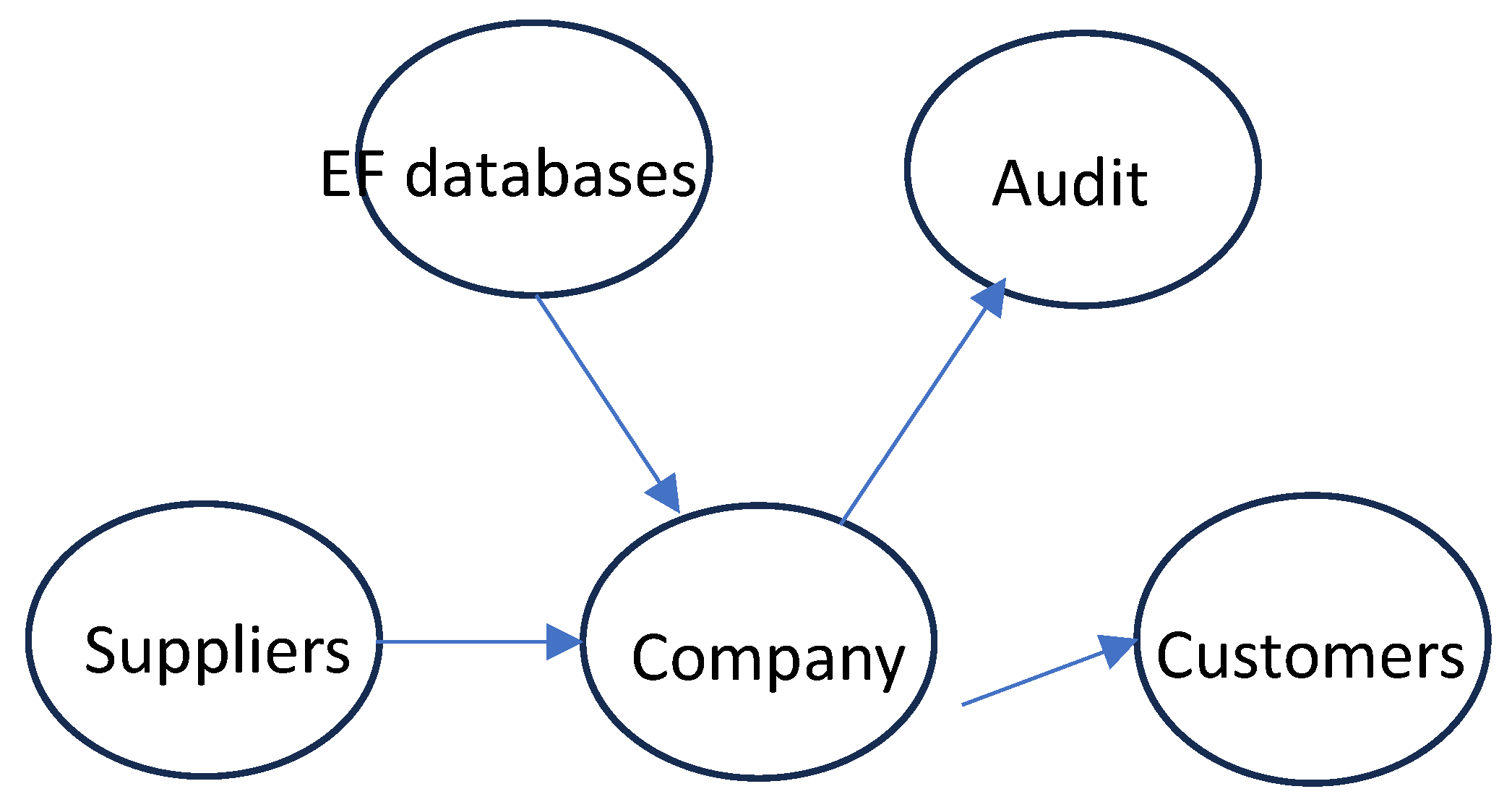

We now describe how the process may work at a microeconomic level for companies enrolled in such a EIN system. Figure 9 shows the information flows between the different parties involved in the process for any enrolled company.

The first requirement for the company is to calculate its direct emissions for the previous full year. Such estimations can be verified by auditing bodies, either systematically or on a sampling basis. Using its direct emissions intensity, the company calculates iteratively its footprint intensities and provides them to its direct customers. An updated value is provided to the customers after every iteration. In parallel, the company receives iteratively calculated footprint intensities from its suppliers also involved in the EIN process. For its suppliers outside the EIN process, the company estimates their footprint intensities from emissions factors (EF) from available databases. The calculated footprint intensities are subject to auditing, like the direct emissions.

An EIN application protocol is required for the exchange of information between suppliers and customers. The principle is very simple: send the updated values of the production footprint to the customers. A possible rule would be for the company to send an updated value only after having received the updated values from all its EIN direct suppliers. However, this may introduce delays in the process. A more flexible rule is to set a updating schedule, whereby all companies exchange their updates once every week. The protocol would include a “no change status” message to the customers.

There is a need also for a convergence criterion, for instance a threshold on the relative variation between two successive computed values. The protocol would include sending the “converged status” message to the customers. It is important to note that global convergence could be relatively fast, and would not require waiting long delay between updates. A fully converged status of the EIN calculations could be reached within a couple of months or a quarter, for the first year of operation (the “bootstrap year”). For following years (or more frequently if the accounting periods are more frequent), convergence would be much faster, since the initial values would no longer be taken from databases, but they would be the companies’ converged values of the previous year. Significant expansion of the EIN system, for instance, when the network would include new countries or new sectors, may slow down convergence, but not to the extent of the bootstrap year. Finally, the protocol must support permanent EIN boundary variations, to allow companies to join or leave the network. For instance, a company joining the EIN will be able, using the protocol, to discover the EIN members among its suppliers and customers.

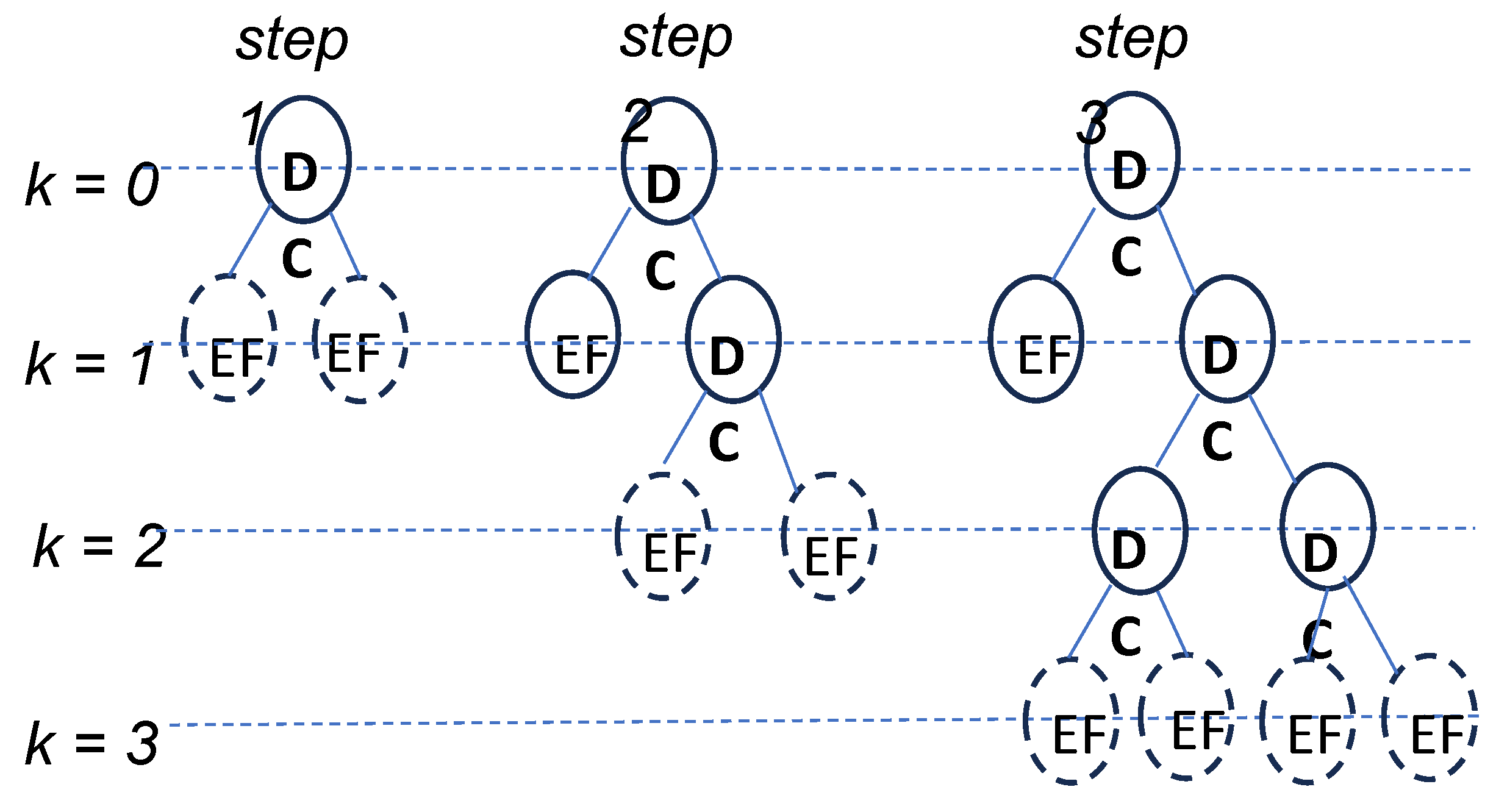

Figure 10 illustrates the iterative calculation of carbon footprints as a tree unfolding process, with k denoting the level of indirection of the suppliers. Prior to any calculation the production footprint of the company can be estimated using average emissions factors from available databases. The first step of the calculation, illustrated on the left side of the figure, consists of adding the direct carbon emissions (DC) of the company to the emissions factors (EF) of its direct suppliers (supply level k = 1). At this step, the emissions factors are temporary which is symbolized by dashed line circles. Consolidated data is symbolized by solid line circles. This first step actually corresponds to the GHG Protocol. At the second step, one of the direct suppliers is outside the DEIN, its emissions factor then gets consolidated, while another direct supplier belongs to the DEIN and provides him with its footprint calculated at its own first step. The process is iterated so that the tree of data contributing to the calculation unfolds as more and more data of the indirect suppliers is taken into account.

6. Discussion

In this paper, we have shown that with the simple linear framework of IO Analysis, it is theoretically possible to improve the current estimations of company level footprints, generally obtained by the current version of the GHG Protocol, using a distributed iterative system and a network that we have called a distributed Environmental Impact Network (EIN). This was suggested recently by [14] with an EIN identical to the entire economy. We have shown that the approach is flexible enough to take into account companies that do not enroll in the EIN. The price to pay when the EIN does not encompass the whole economy is that we only obtain approximations of the true footprints, but the larger the EIN subset we can have, the better the approximations become. Such flexibility ensures that such a EIN system could be rolled out progressively throughout the economy. At the level of a given company, the process consists of replicating weighted inventory calculations of the same kind as the GHG Protocol using continuously improving emission factors produced by its suppliers, until a convergence criterion is met. We have also shown that a EIN system is capable of splitting the footprints into three components: a first component accumulating the scope 1 direct emissions of the upstream EIN companies, a second component accumulating the scope 2 indirect energy emissions of the upstream EIN companies, and a third part accumulating the upstream scope 3 emissions of the non-EIN companies selling to the upstream EIN companies. Such decomposition is interesting to analyze uncertainty, since the uncertainty is relatively low and well estimated for the two first components, while it is high and hard to estimate for the third component. We have shown that such a distributed approach can provide the adequate information for the estimation of biases. Assuming statistical independence of direct emissions on one hand, and of emission factors on the other hand, it is possible to estimate the standard deviations, but if to be done at a company level, this requires to develop the tree of the supply chain for each company up to a certain level.

More simulation work is needed including simulations on representative data of higher granularity than the 44 sector ICIO data we have used here. An important point is to check how this would slow down the convergence rate of the calculated footprint values to the “true” values.

But in the perspective of a real EIN deployable in the real economy, we also need to address several issues.

A first issue is the quality of the data produced at the level of the companies. The first answer to this is auditing by independent bodies, on a sampling or systematic basis. The provision of certified standard accountancy software to all companies also contributes to a correct application of the calculation rules. Such software should include heuristics to detect faulty data or faulty results. The detection of such outlayers could be done on the basis of existing emissions factors from databases.

Linked to the quality of data is the homogeneity of emission factors used from the databases. Given the various databases available, it seems useful to have a “one-stop shop” for retrieving emission factors. Such an entity would ensure the homogoneity and consistency of the emissions factors used by companies. This was proposed in [14] as a “dissemination platform for GHG content data”.

A second issue is the need to calculate product footprints rather than company level footprints. In our paper we have assumed that all companies produce a single product. In reality we must handle the multi-product case. It is theoretically possible to desaggregate an enterprise into single product sub-companies. The accounting solution to this is cost accounting, whereby the procurement and expenses are attributed to specific products of the company, while general expenses are divided between all products using allocation rules. But only a few companies produce such cost accounting data. Another approach, although less precise, would be to share the total footprint of the company between its products based on the a priori knowledge contained in emissions factors from available databases.

Linked to the multi-product issue is the debate between using monetary factor of physical factors. In reality, the IO model is agnostic to that question, since a specific unit (monetary of physical) can be chosen for each economic player in the economy network. This is actually how it is implemented in Life Cycle Analysis software [20]. In the usual vector and matrix equations, this means that every vector component may have its own unit. Using a monetary unit for all companies is easy because it corresponds to common accountants’ practice. However, the weakness of monetary units is due to price fluctuations.

A third issue is the confidentiality of the enterprise data. A distributed EIN system would partially address the problem by ensuring the accounting data (supplies, sales) stay within the limits of the company. However, the key principle is to share with the customers the production footprints, either at company level or at product level. We may expect companies to resist such an obligation because it would allow purchaser’s to make purchasing decisions not only on the basis of price, but also on the basis of carbon footprint. We believe solving that issue is the task of policy makers, on large economic scales, for at instance at the European level, hopefully at World level. It may be necessary to make sure that higher impact companies have a practical way to turn to lower impact production tools.

A last issue pertains to the exact definition of the production footprint, since there is a range of flexibility. Using macroeconomic IO analysis and data, the easy path is not to take into account the long term investment (so called “Fixed capital formation”). From an ownership perspective, this is relevant since the consumer owns the product or services he/she buys, but does not own the production infrastructure. On the other hand, from a physical perspective, it is relevant to take into account all the environmental impacts necessary to deliver the product, and this does include the production infrastructure. Some approaches were proposed to handle investments (capital expenses) as intermediate consumptions in the IO framework [21,22]. The difficulty is to compensate for the absence for investments IO tables in national or international accounts, in the similar form as those available for intermediate consumption (operational expenses). On the other hand, working at the company level in an EIN system, it is easier to include long term investment, by using the usual accountant’s multi-year amortization rules. However, it is important to check that the emission factors used in the system were obtained by including the footprint of infrastructure, since it seems to be an option of LCA software [20].

Finally an opportunity of operating an EIN system would lie in the data collection at company level of direct emissions, product footprints, and even supply structure (the Leontief technical coefficients). Confidentiality is key at his stage, so it should be treated by trustworthy bodies tied by confidentiality obligations, and data could by anonymized and averaged so as to strengthen confidentiality. Such data would bring valuable new sources of data to the existing sources and in turn would help improving the robustness of the EIN system.

7. Conclusion

In this paper, we have presented a distributed iterative computational model for estimating the carbon and environmental footprints of companies, based on input-output (IO) analysis. Given the huge number of companies in the world, the direct and centralized approach remains far out of reach, but using both the iterative and the distributed feature of the model, a general footprint calculation for all companies, allowing comparability of footprints, appears a goal within reach, provided the practical hurdles discussed here above are overcome. The model is flexible enough to be able to work even though a large proportion of companies do not take part to the distributed iterative process.

Clearly ICT plays a key role since the system relies on a homogeneous computation model distributed across a large number of companies, that all interact permanently though a dedicated protocol to exchange intermediate calculations. Even though the system is highly decentralized, two functions need to be centralized to ensure homogeneity and comparability, a centralized database of emission factors and the auditing of the calculated footprints.
