Theoretical Study of the Impact of Pore Size in TiO₂ Aerogels on Photocatalytic Formaldehyde Decomposition

1. Introduction

Indoor air quality (IAQ) is an important factor affecting human health. Formaldehyde (HCHO) is a typical indoor volatile organic compound [1,2,3,4,5], (VOC) that has severe influence on IAQ, which cannot be ignored for the health hazards of occupants. Hence, the treatment of HCHO has attracted much attention. There are many traditional methods for HCHO treatment, such as adsorption purification method [6,7,8,9,10], biological degradation method [11,12,13], air negative ion technology [14,15,16], and thermal destruction method [17,18,19]. However, these methods all have certain deficiencies for poor HCHO treatment effect and easily-triggered secondary pollution. Hence, it is necessary to develop an environmentally friendly method with lower cost and higher efficiency for HCHO purification. In recent years, photocatalytic oxidation method [20,21,22,23], has attracted many interests for the advantages of high removal efficiency, low-temperature requirement (room temperature), wide applicability, and no secondary pollution. By using light energy, the organics distributed on the catalyst surface could be easily degraded into non-toxic H₂O and CO₂ [24]. This method has the advantages of high removal efficiency, low temperature requirement (room temperature), wide application range, no secondary pollution, so it has attracted extensive attention and research.

Since the discovery of water molecules decomposition under ultraviolet irradiation on the surface of TiO₂ electrodes by Fujishima Akira in 1972, the theory [25], and application of TiO₂-based photocatalysts in the field of photocatalysis have been further developed after decades, and they have also become ideal materials for photocatalytic decomposition of HCHO [26,27]. Wang et al. [28], prepared TiO₂/C/MnO₂ ternary photocatalyst for visible light degradation of formaldehyde. Huang et al. [29], found that Pd/ TiO₂ complex made of TiO₂ supported with 0.1% Pd as catalyst could decompose all HCHO into CO₂ and H₂O at room temperature. He et al. [30], found that when Ir/TiO₂ was doped with Na⁺, the decomposition rate of HCHO could reach 100%. Studied [31,32], show that nitrogen-doped nano- TiO₂ can broaden its spectral response range. In another work, Liu et al. [33], prepared nitrogen-doped TiO₂ film by sol-gel method to degrade HCHO, and the decomposition rate of HCHO reached 90% within 24 h, showing good stability and reusability. Tompsett et al. [34], modified TiO₂ by nitrogen doping and found that the modified nano TiO₂ had good photocatalytic decomposition performance under the illumination condition of 440 nm wavelength. Although a large number of experiments have been conducted to study the effect of doping ions into TiO₂ on the decomposition of HCHO, and the factors affecting the photocatalytic decomposition of HCHO by TiO₂ have been obtained, few studies have been conducted on the decomposition of HCHO by TiO₂ aerogels, and insufficient theoretical analysis has been conducted. In this study, the factors affecting the decomposition of HCHO by TiO₂ aerogels have been analyzed experimentally and theoretically.

TiO₂ aerogel is a kind of porous inorganic material with high specific surface area and high porosity [35,36,37,38,39]. Due to these structural characteristics, it is commonly used as catalyst directly or the matrix to load catalyst [40,41,42], which showing a great catalytic performance. At present, there are many methods to prepare TiO₂ aerogels, including sol-gel method [43,44,45,46,47], hydrothermal method [48,49], dry method [50,51], microemulsion method [52,53], precipitation method [54,55,56,57], and so on. Among these common strategies, the sol-gel method has received the most widely studied. The pore size and specific surface area of TiO₂ aerogels prepared by sol-gel method are affected by many factors, such as the concentration of precursor solution [58,59], preparation conditions (including temperature [60,61], pH value [62], reaction time [63,64], etc.), additives amount [65], drying ways [66,67,68], post-treatment modification [69,70], etc. However, the pore size of aerogel cannot be accurately regulated by controlling just the concentration of solution [71]. The technology of post-treatment modification is always complicated and requires sufficient strength [72,73], of TiO₂ aerogel. Notably, the introduction of additives during sol-gel process can effectively regulate the pore size distribution range of aerogel. For example, polyvinyl alcohol (PVA) is a polymer with good film-forming and adhesion properties, which is expected to enhance the structural stability of aerogels by doping into the aerogels. By adjusting the concentration and doping mode of PVA, the pore size distribution of aerogel can be precisely controlled, and thus well-designed aerogel with specific pore size could be obtained.

In this study, we combined experiments and theoretical calculations to analyze the effect of pore size on catalytic HCHO decomposition activities for TiO₂ aerogel. As a kind of small molecule organics, HCHO can be degraded rapidly by using TiO₂ aerogels as photocatalysts. Therefore, the development of effective TiO₂-based photocatalysts has become the research focus. However, most of the current studies are experimental exploration, which lacking the sufficient theoretical analysis for the corresponding decomposition process. Herein, we have prepared TiO₂ aerogels with different pore sizes by sol-gel method. Flexible molecular chains were introduced to control the pore sizes of TiO₂ aerogels. The structural characteristics were determined by infrared spectrometer, scanning electron microscope and specific surface area tester. Then, the degradation effect of HCHO was measured by ultraviolet spectrophotometer and gas chromatograph. Since oxygen plays an important role in the decomposition of HCHO by TiO₂ aerogels, the influence of pore size on the decomposition effect of HCHO was obtained by detecting the oxygen pressure in different pore sizes of TiO₂ aerogels. This study provides a theoretical idea for the application of aerogels in the photocatalysis field, which is expected to inspire further breakthroughs in the study of TiO₂ aerogels for HCHO decomposition.

2. Materials and Methods

2.1. Materials and Chemicals

Tetrabutyl titanate (C₁₆H₃₆O₄Ti, GR), anhydrous ethanol (C₂H₅OH, AR), acetic acid (CH₃COOH, GR), formamide (CH₃NO, AR), polyvinyl alcohol 1788 ([C₂H₄O]n), formaldehyde (HCHO, AR) and tert-butanol (C₄H₁₀O, AR) were purchased from Shanghai Macklin Biochemical Technology Co. Ltd., Deionized water (H₂O) is ultrapure water (18.2 MΩ/cm) treated by UHP ultra pure water machine. The reagents and raw materials involved in this experiment can be used directly without further post-treatment purification process.

2.2. Experiment Methods

2.5 ml tetrabutyl titanate was mixed with 5 ml anhydrous ethanol stirring for 10 min to prepare solution A. Aqueous solution of 0.5 ml acetic acid and 1 ml polyvinyl alcohol (PVA) was added to 5 ml anhydrous ethanol by stirring for 10 min to prepare solution B. Then, solution B was slowly added to solution A with continuous stirring for 10 min, followed by the addition of 1 ml formamide and gelled after standing for 1 h. The obtained TiO₂ wet gel was placed in the oven and aged at 60 ℃ for 12 h. After that, the as-prepared aerogel was put into 40% tert-butanol aqueous solution for 12 h and repeated 2 times, followed by vacuum freeze-drying at a temperature below -45℃ and a pressure below 0.5 Pa for 24 h. Finally, the TiO₂ aerogel photocatalyst with excellent catalytic performance was obtained by heat treatment at 800 ℃ in a tube furnace for 6 h. During the preparation process, PVA solutions with different mass fractions (0 wt%, 1 wt%, 3 wt%, 5 wt%) were added and named Ti-0, Ti-1, Ti-2, and Ti-3, respectively.

2.3. Photocatalysis Experiment

0.5 g of as-prepared TiO₂ aerogels was placed in an open centrifuge tube, and the blank sample was set as the control group. The centrifuge tube was suspended in a 50 ml volumetric bottle containing 10 ml HCHO aqueous solution with a concentration of 0.1 mol/L. The volumetric bottle was placed under the ultraviolet lamp to irradiate 10 min every 1h for 4h continuously. Taking 0.1ml HCHO aqueous solution to detect the absorption peak of HCHO aqueous solution by gas chromatography for calculating the HCHO concentration change, and the absorbance of HCHO aqueous solution was measured by ultraviolet spectrophotometer to calculate the HCHO concentration in the solution. The photocatalysis experiment was carried out three times to take an average value. Finally, the HCHO degradation efficiency of TiO₂ aerogel was obtained according to the change of HCHO concentration using the following equation:

$$\eta =\frac{c_0-c}{c_0}\times 100\%$$

(1)

Where η is the degree of decomposition of HCHO, c is the tested concentration of HCHO aqueous solution, and c₀ is the initial concentration of HCHO solution.

The formula for calculating the standard uncertainty is:

$$u_A\left(x\right)=\sqrt{\frac{\sum _{i=1}^n{\left(x_i-\overline{x}\right)}^2}{n-1}}$$

(2)

$$u_B\left(x\right)=\frac{a}{k_u}=\sqrt{{u_{B_1}\left(x\right)}^2+{u_{B_2}\left(x\right)}^2+\cdots }$$

(3)

$$u\left(x\right)=\sqrt{{u_A\left(x\right)}^2+{u_B\left(x\right)}^2}$$

(4)

In formula (2), (3) and (4), $u_A\left(x\right)$ is class A standard uncertainty; $u_B\left(x\right)$ is class B standard uncertainty, a is a known condition, $k_u$ is an inclusion factor; $u\left(x\right)$ is class B standard uncertainty.

2.4. Materials Characterization

Field Emission Scanning Electron Microscope (SEM): The morphology of the materials was analyzed using a Hitachi SU-4800 scanning electron microscope (SEM) from Hitachi, Japan. The operational parameters were set as follows: working voltage of 30kV, electron accelerating voltage of 5kV, working current of 10μA, and working distance (WD) of 8mm. Elemental and content analysis of the catalyst was carried out using X-ray spectrometry (EDS) with a Tecnai G2 F20 S-TWIN model, which is an accessory to the SEM. The test conditions included a working voltage of 30kV, electron acceleration voltage of 15kV, working current of 10μA, working distance (WD) of 15mm, and a scanning time of 120 seconds.

Field Emission Transmission Electron Microscopy (TEM): Transmission electron images were captured under high voltage using a Hitachi-7700 transmission electron microscope (TEM) operating at 120 kV. Additionally, high-resolution transmission electron microscopy (HR-TEM) was conducted at an accelerating voltage of 200 kV.

X-ray diffraction (XRD): The phase structure of the material was characterized using an X-ray powder diffractometer, specifically the Smartlab model from Rigaku. Test parameters included a Cu target (λ = 0.154 nm), tube voltage of 40 kV, tube current of 225 mA, scan rate of 15°-min-1, and a scan range of 2θ = 20° to 80°.

Thermogravimetric analysis (TG): The thermogravimetric-temperature (TG-T) characterization was performed using an HCT-1 integrated thermal analyzer from China. Samples weighing 5-10 mg of TiO₂ aerogel were placed in an alumina crucible and heated to 800°C under air atmosphere conditions with a temperature increase rate of 10°C/min.

Spectroscopic tests: The chemical properties of TiO₂ aerogels were investigated using Fourier transform infrared spectroscopy with a Bruker TENSOR instrument from Germany. The absorption wavelength range of TiO₂ aerogels was measured using a UV-visible spectrophotometer from Japan (UV-3600 Plus). A liquid UV spectrophotometer from Australia (Agilent Cary60) was utilized to measure the absorption wavelength range of formaldehyde aqueous solution. Furthermore, a gas chromatograph from China (GC7920-GTF2ZV) detected the signal peak of formaldehyde.

Specific surface area tester: The specific surface area and pore size distribution of TiO₂ aerogels were determined using a Gemini V specific surface area tester from Microneritics, USA. Samples weighing between 30mg to 100mg were subjected to N₂ adsorption-desorption tests at a liquid nitrogen temperature of 77K. The test parameters included taking six points in the P/P0 pressure range between 0.05 and 0.3, calculating the cross-sectional area of N₂ molecules as 0.162 nm², utilizing the Brunauer-Emmett-Teller (BET) analysis for specific surface area determination, determining the volume of the sample intermediary pores at P/P₀ of 0.985, and employing the Barrett-Joyner-Halenda (BJH) algorithm to ascertain the pore size distribution of the samples of interest.

3. Results

3.1. Structure and Composition Characterization of TiO2 Aerogel

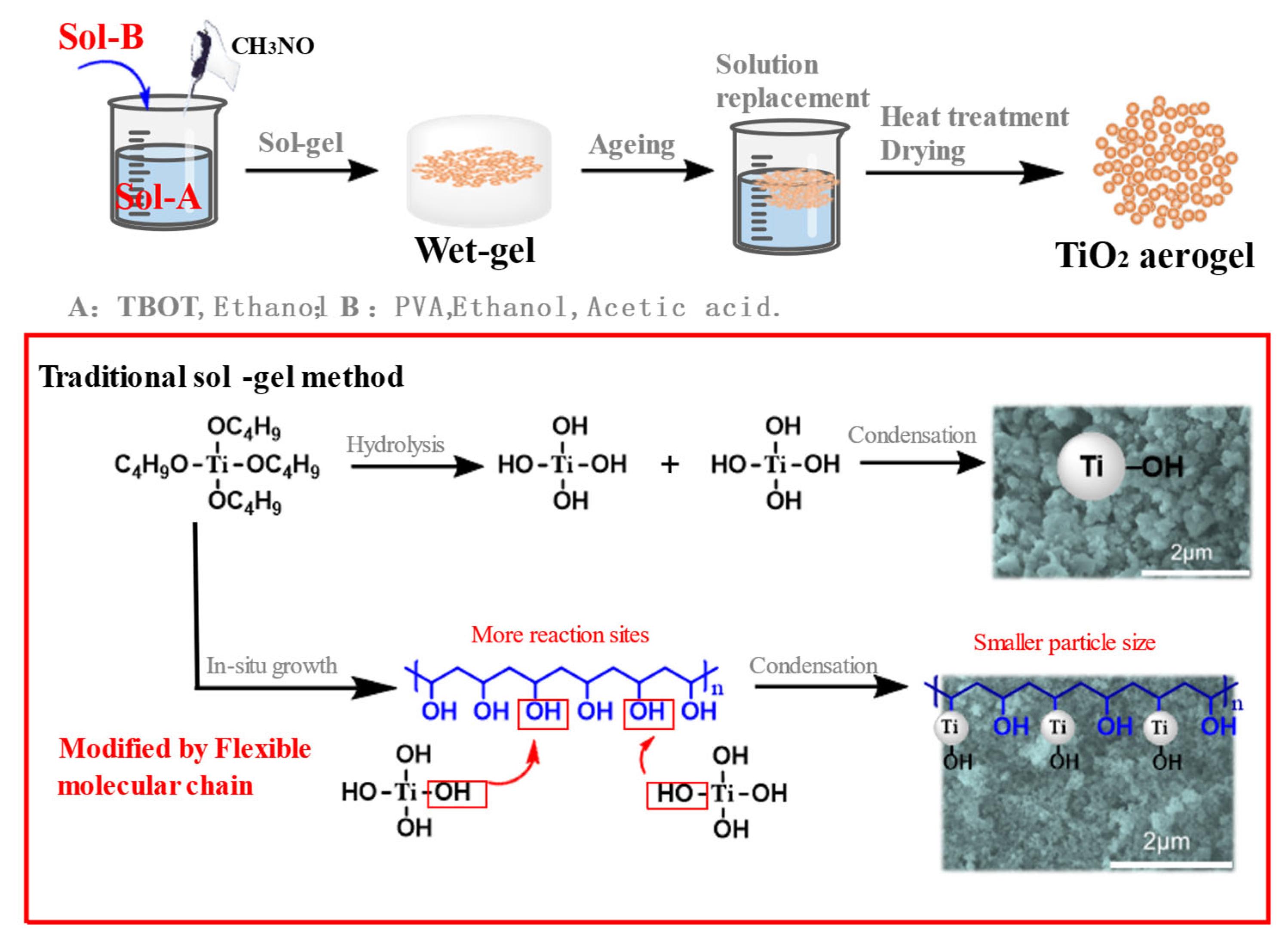

A schematic diagram of the conventional sol-gel method for the preparation of TiO₂ aerogels, which involves the hydrolysis of Ti organic salt solutions, and the condensation process is illustrated in Figure 1. The SEM image (right upper) shows TiO₂ aerogels without PVA exhibit wide pore size distribution and large average pore size. In our approach, illustrated at the bottom of Figure 1, we modify the process by incorporating flexible molecular chains and the resulting material is shown in the SEM image (right bottom). By adding PVA to the hydrolyzed precursor, we were able to achieve TiO₂ aerogels with adjustable pore size through in-situ growth and self-assembly facilitated by -OH bonding. Here, we used the mass fraction of added PVA as a variable to obtain three TiO₂ aerogels named Ti-1, Ti-2, and Ti-3, while the TiO₂ aerogel without PVA named Ti-0.

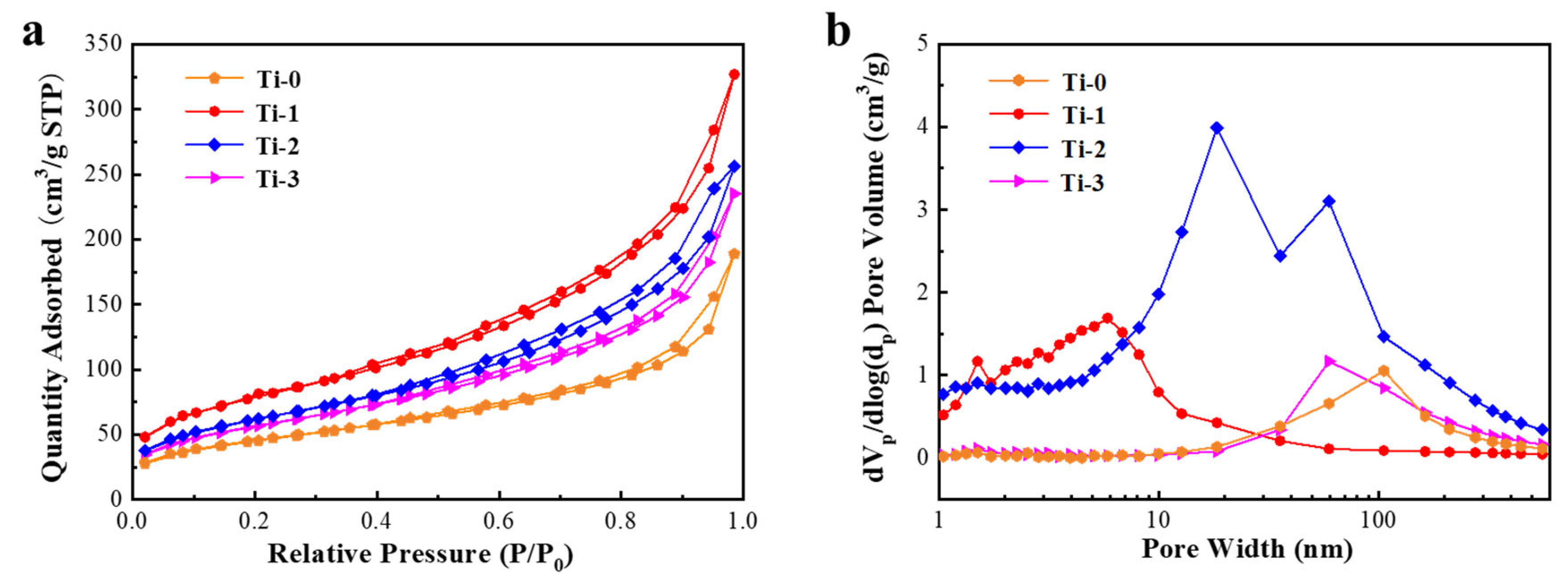

To explore the effect of added PVA on the pore size of TiO₂ aerogels, the N₂ adsorption-desorption curves, and pore size distribution curves were investigated. Due to capillary condensation, N₂ molecules undergo condensation and occupy the mesoporous at pressures lower than normal. The process of N₂ adsorption initiates from the pore wall, while N₂ desorption initiates from the orifice. Consequently, there is a disparity between the adsorption and desorption isotherms, resulting in the formation of hysteresis circles. As shown in Figure 2a, Ti-1, Ti-2 and Ti-3 showed significant hysteresis circles in the relative pressure range of 0.4-1.0, indicating that the pore size distribution was concentrated in the mesoporous region in the samples. However, Ti-0 shows no significant hysteresis circles, indicating larger pore size and fewer mesopores. Then, the pore size distribution curves of the sample were analyzed, and noticed that the average pore size of TiO₂ aerogels gradually increased with the increase of PVA content. The average pore size of Ti-1, Ti-2 and Ti-3 are 7.3 nm, 12.9 nm and 48.6 nm, respectively, and all were mesoporous. However, the average pore size of Ti-0 without PVA is 64.6 nm, which belongs to the macropore. It can be seen that by adding a small amount of PVA, the hydroxyl group on this flexible polymer chain will react with TBOT, making TiO₂ particles dispersed evenly, which is conducive to reducing the average pore size of TiO₂. It is worth noting that the pore volume displayed a noticeable decrease as the PVA content increased (as shown in Figure 2b and Table S1). This can be explained by the fact that besides bonding with the hydrolyzed precursor, the PVA molecular chains that not react completely will also intertwine with each other and occupy the aerogel's pores. Simultaneously, during the gelation process, the diffusion rate and distribution uniformity of PVA in solution will directly affect the structure of the gel. Excessive local crosslinking density arises from uneven diffusion when an excessive amount of PVA is present, subsequently impacting both pore structure and size distribution within the aerogel. In addition, due to its abundant hydroxyl groups and strong affinity with water molecules, PVA acts as an ice nucleating agent that modulates ice crystal growth and regulates pore size [74]. After high-temperature heat treatment, the PVA in the pores was thermally decomposed, yet the pore size became larger and the number of pores was greatly reduced, resulting in a decrease in the pore volume. The distribution of pore size distributions of Ti-1, Ti-2 and Ti-3 are clearly observed in Figure 2b, which concentrates on 2-10 nm, 10-20 nm and 20-50 nm. The addition of PVA can regulate the pore size of TiO₂ aerogels. Since the pore sizes of Ti-1, Ti-2 and Ti-3 are different and all belong to the mesoporous range, they were selected as photocatalysts and the Ti-0 was set as the control group to study the effect of pore size of TiO₂ aerogel on catalytic decomposition of formaldehyde.

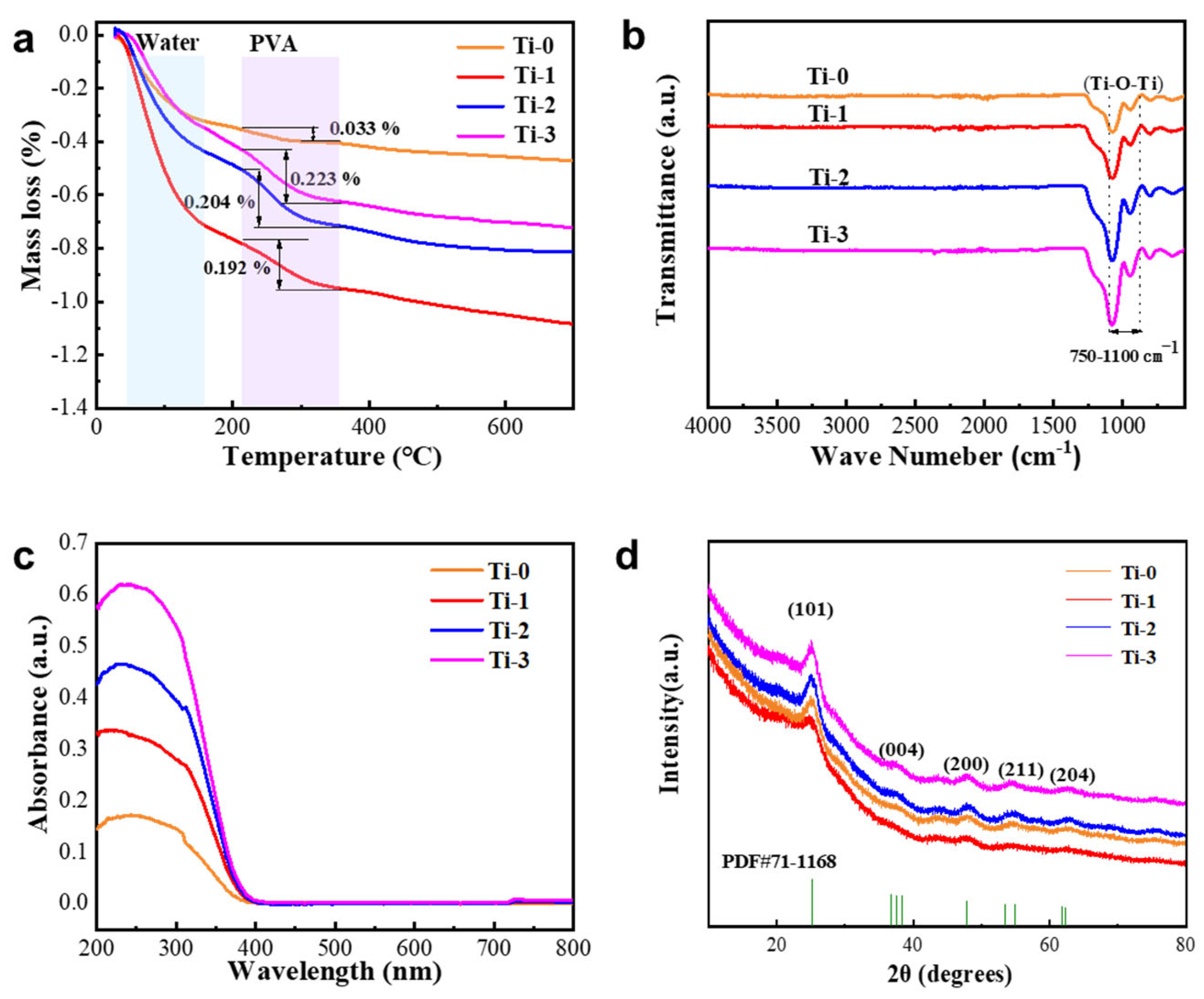

To explore the PVA content in the TiO₂ aerogel that had not been combined with TBOT, thermogravimetric analysis (TGA) was performed on the aerogel before being heated to 800 ℃ (as shown in Figure 3a). During the heating process, a considerable loss of mass was observed at temperatures ranging from 50-150°C. That was attributed to part of the water and ethanol solution would be retained in the mesopores of the TiO₂ aerogels during the drying process due to capillary coalescence. The Ti-1 aerogel, which had the smallest pore size, showed the most significant mass loss, while the Ti-2 and Ti-3 aerogels had less solution retention and lower mass loss as the capillary effect was reduced. PVA begins to decompose at 200~350°C, among which the maximum thermal weight loss of Ti-3 is 0.223 %, while the minimum is Ti-0 (0.033 %). When the TG temperature exceeded 400°C, the mass of the aerogel no longer changed, at which time the mass stabilization state had been reached. The results also indicated that not all PVA in TiO₂ was crosslinked with the hydrolyzed solution, in which the PVA remaining in the TiO₂ pores would all decompose and provide larger pore size for the TiO₂ aerogel after heat treatment at 300°C.

Further, Fourier transform infrared spectroscopy (FT-IR) was utilized to detect the chemical bonding of the TiO₂ aerogel after heat treatment at 800°C. As shown in Figure 3b, absorption peaks appeared at 950 cm^-1 and 1072 cm^-1, which is corresponded to the characteristic vibration peak of Ti-O-Ti. The high frequency region of the spectra does not detect any vibrational peaks, indicating that the PVA in the heat-treated TiO₂ aerogel has been completely decomposed. Then the light absorption performance of TiO₂ aerogels were tested (Figure 3c). All four samples exhibited excellent light absorption in the UV wavelength region of 10-400 nm, which was consistent with the properties of TiO₂ aerogels photocatalysts. X-ray diffraction (XRD) tests conducted on TiO₂ aerogels after heat treatment at 800°C. As shown in Figure 3d, a series of crystal peaks at 2θ = 25°, 38°, 48°, 55°, 63° are corresponded to the (101), (004), (200), (211) and (204) lattice plane (PDF #71-1168). All the crystal structures are anatase, which may explain the excellent photocatalytic performance of the aerogels.

3.2. Morphology Characterization of TiO₂ Aerogels

The transmission electron microscopy (TEM) tests were conducted to further confirm the crystal structure of TiO₂ aerogels shown in Figure 4. The images clearly show crystal lattice fringe with a spacing of 0.35 nm, corresponding to the (101) lattice plane of anatase crystal, consistent with the results obtained from XRD analysis (Figure 3d). According to the literature, the (101) lattice plane of anatase has excellent photocatalytic performance, which provides a basis decompose HCHO by as-prepared TiO₂ aerogels. As seen in Figure S1, TiO₂ particle clusters were formed through nanoparticle cross-linking, with pores between the clusters. Among them, the pore size of Ti-1 was about 10 nm, which was smaller than that of Ti-2 (12.9 nm) and Ti-3 (48.6 nm). TiO₂ aerogel in Figure S1(a₂, b₂, c₂) presents particles of about 3-6 nm, and these nanoparticles are cross-linked with each other, forming a porous network structure of TiO₂ aerogel. The distribution of nanoparticles in Ti-1 is relatively uniform, and there is no particle aggregation phenomenon, while the aggregation of nanoparticles in Ti-3 is obvious.

The scanning electron microscope (SEM) analysis provided further characterization of Ti-1, Ti-2, and Ti-3 microstructures. All samples displayed porosity as shown in Figure 4 (a₂-c₃). Ti-1 exhibited a relatively uniform particle distribution with no signs of particle aggregation, as shown in Figure 4 (a₂, b₂, c₂). Conversely, Ti-3 showed severe particle aggregation, consistent with TEM results. This could be attributed to cross-linking and entanglement of molecular chains due to increased of PVA content and aggregation of TiO₂ particles after high-temperature heat treatment. Consequently, the porosity of TiO₂ aerogels decreased significantly, and the pore sizes distribution became non-uniform. Meanwhile, Figure 4 (a₃, b₃, c₃) indicated that the pore sizes of all three TiO₂ aerogels were mesoporous, and these results are consistent with the data derived from the pore size distribution curves (Figure 2b) and the average pore size (Table S1). Figure S2 (a, b) shows the SEM of TiO₂ aerogel (Ti-0) without PVA. It can be seen in the Figure S2 (a), the aggregation of nanoparticles in Ti-0 is obvious, and the pore sizes of Ti-0 ranging from 50-100 nm Figure S2 (b).

3.3. Characterization of Photocatalytic Properties

Aerosols are defined as particulate matter with a diameter exceeding 0.01μm among atmospheric pollutants, while gaseous pollutants refer to those with a diameter below 0.01μm. VOCs typically combine with mineral aerosols for further migration and transformation. When formaldehyde gas volatilizes into the air and combines with aerosols, it results in an augmentation of particle size, thereby impeding the adsorption and decomposition of formaldehyde by TiO₂ aerogel. If the aerosol particle size is too large to enter the mesoporous of aerogel, hinder the decomposition of formaldehyde. Consequently, surface modification of the aerogel is necessary to disrupt the aerosol structure and facilitate formaldehyde molecule release for subsequent degradation. In this experiment, the degradation effect of aerogel on formaldehyde molecules was initially taken into account.

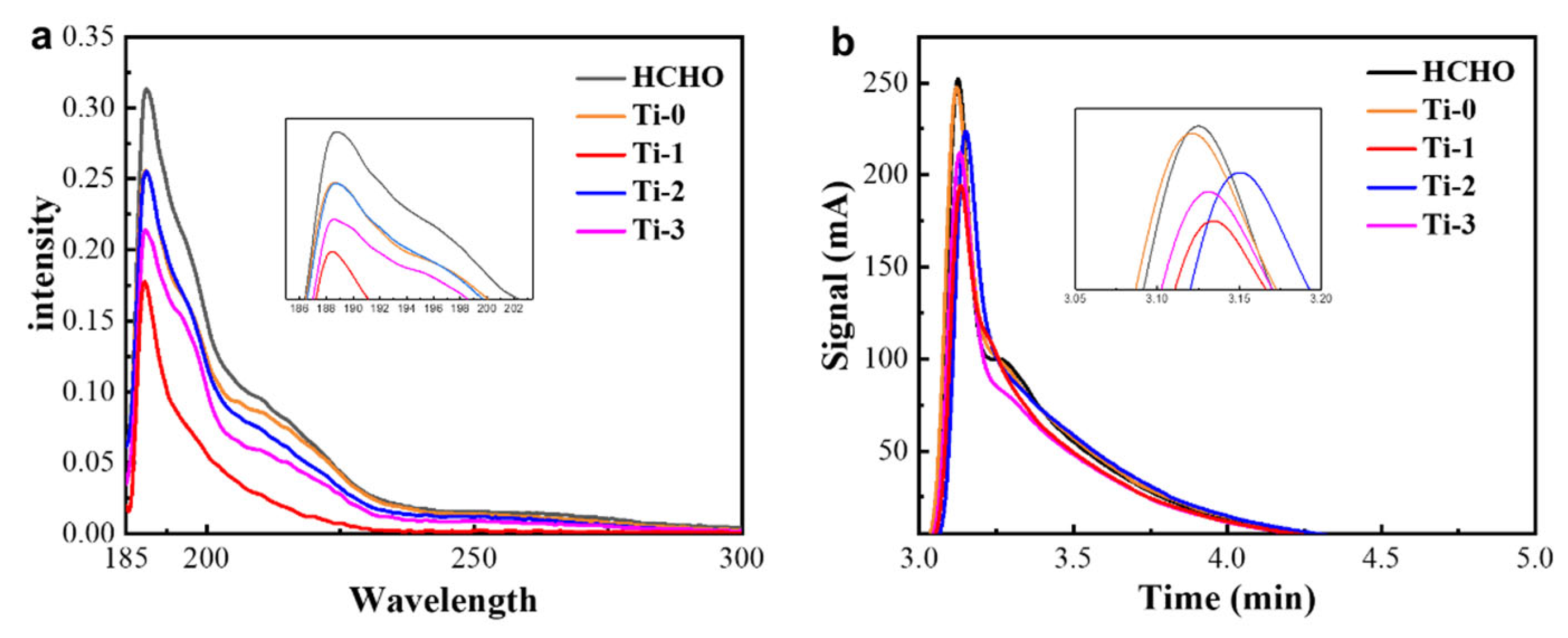

The photocatalytic decomposition experiments were carried out in a sealed volumetric bottle as illustrated in Figure S3. As the HCHO aqueous solution volatilizes, a gas-liquid balance is reached in the bottle. When exposed to UV-light, TiO₂ aerogel breaks down HCHO in the gas, disrupting the gas-liquid balance of the solution and causing the HCHO to continue to volatilize, resulting in changes in the concentration of HCHO in the solution. The absorbance of HCHO aqueous solution was measured by UV spectrophotometer, and the absorption peak of HCHO aqueous solution was detected by gas chromatography (Figure 5). Aerogel in the mesoporous range, the absorption peak and absorbance of the HCHO aqueous solution containing Ti-1 were the lowest. Obviously, the GC results (Figure 5b) showed that the lowest HCHO signal was detected in Ti-1, while the relatively higher signal was observed in Ti-2. The measurement results were statistically measured and the standard uncertainties of all measurements were considered to obtain formaldehyde concentrations at different time points, as shown in Table (S₂, S₃, S₄). Compared with the original HCHO solution, Ti-1, Ti-2 and Ti-3 all demonstrated decomposition effects, but Ti-0 had almost no effect, which is caused by the average pore size of Ti-0 (64.6nm) belonged to the macroporous range (>50nm) rather than mesoporous (2-50nm). It can be seen from Table S4 that Ti-1 possesses the more excellent catalytic effect. The above photocatalytic experimental results demonstrated that the pore size of TiO₂ aerogel has a significant effect on the photocatalytic degradation of HCHO. Based on the experimental results, the range of TiO₂ aerogel pore size with the best decomposition effect on HCHO was further determined by theoretical calculations.

3.4 Theoretical model and mechanism analysis

The photocatalytic decomposition of HCHO by TiO₂ was systematically investigated to elucidate the underlying mechanism. TiO₂ is a semiconductor that is composed of a valence band (VB) and a conduction band (CB), with the VB predominantly occupied by electrons and situated at the upper echelon, while the CB, characterized by electron vacancies, resides at the lower level. The energy disparity between the VB and the CB, known as the bandgap (Eg), delineates the forbidden gap. Under UV illumination, TiO₂ undergoes photonic excitation, generating electron-hole pairs, which play a pivotal role in the photocatalytic breakdown of HCHO. The sequence of reactions involved in the decomposition process [75,76], is detailed as follows:

$${TiO}_2+hv\to e^{-}+{h·}^{+}$$

$$O_2+e^{-}\to {O_2}^{-}$$

$${H_{2}O+h·}^{+}\to ·OH+H^{+}$$

$$HCHO+(·OH,{O_2}^{-})\to {CO}_2+H_{2}O$$

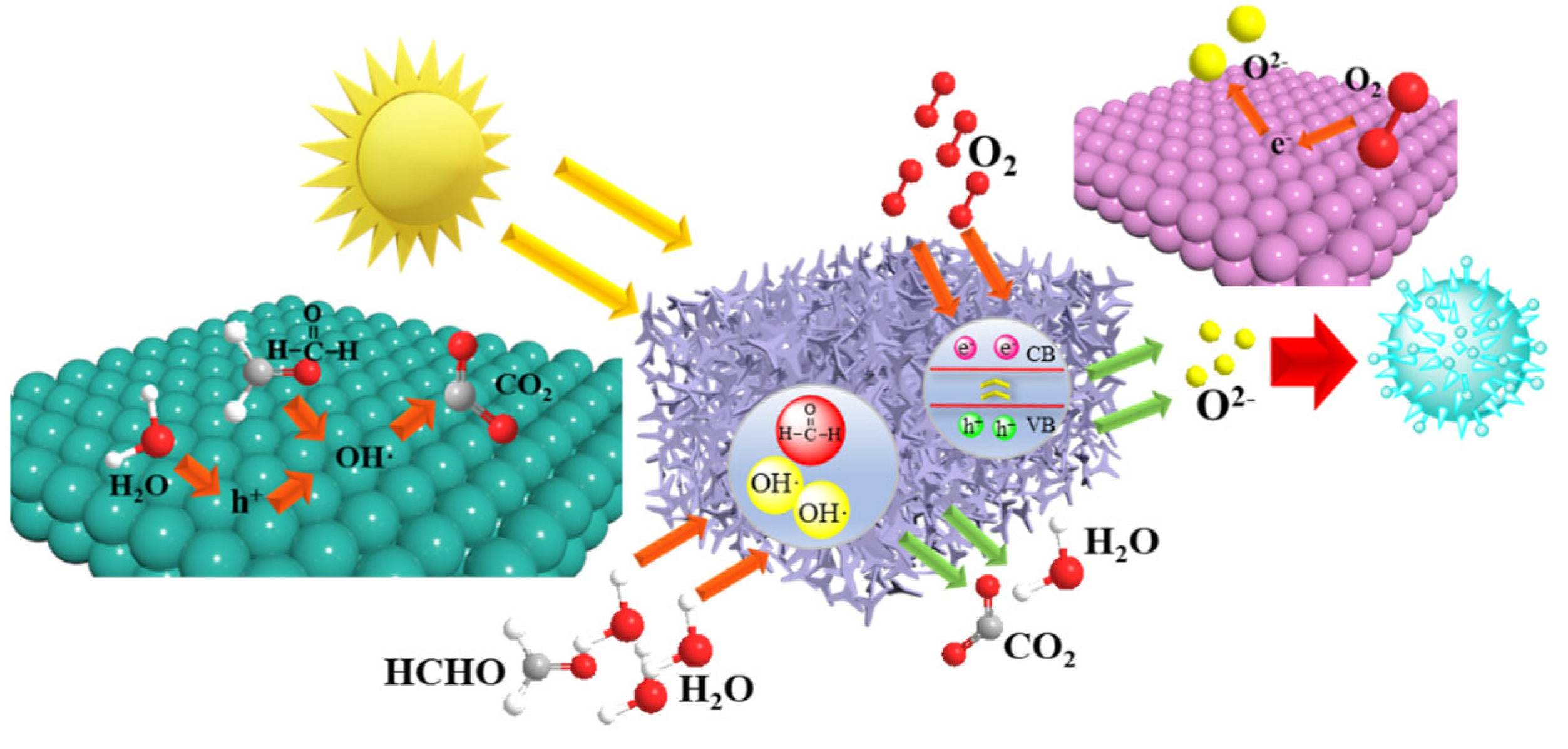

Upon UV illumination, TiO₂ surfaces initiate a photogenerated charge separation process, as illustrated in Figure 6. Electrons are excited from the VB to CB, where holes (h⁺) are generated due to the loss of electrons in the VB, while the conduction band gains electrons (e^-), generating electron-hole pairs. The hole (h⁺) located in the VB is oxidized with H₂O in the air to generate hydroxyl radicals (·OH) with strong oxidative capabilities, while the electron (e^-) at the conduction band reacts with O₂ to generate oxide anions (O^2-). These active substances engage in further reactions with HCHO, ultimately decomposing HCHO into CO₂ and H₂O. This result demonstrates that O₂ have participated in the photocatalytic HCHO decomposition process byTiO₂ and plays a key role during reaction.

To elucidate the role of O₂ in the photocatalytic process, we undertook a theoretical analysis, focusing on the pore sizes of the TiO₂ aerogels. The aerogel's porous structure encompasses a spectrum of pore sizes: micropores (diameter < 2nm), mesopores (diameter 2-50nm), and macropores (diameter > 50nm), with the TiO₂ aerogels in our samples predominantly featuring mesopores. The structural intricacies of the TiO₂ aerogel are depicted in Figure 7a, where a model showcases the intermolecular connections within the aerogels. This arrangement was modeled by considering the interconnections between TiO₂ molecules within the aerogel, resulting in the formation of TiO₂ clusters separated by different pore diameters. To more accurately represent the aerogel's environmental conditions, these pores were assumed to be air-filled, simulating the actual exposure scenario of the TiO₂ aerogel, illustrated in Figure 7b.

The existence of surface tension on the solid surface creates adsorption energy that effectively resists its effects, resulting in effective adsorption effect for liquid or gas molecules. Porous aerogels enhance this effect by continuously adsorbing multiple layers of water vapor molecules, leading to capillary condensation and a continuous gas liquefaction process. This generates an ultra-thin liquid layer on the solid surface of the pores, creating a gas-liquid interface with the gas in the pores (as shown in Figure 8a). TiO₂ aerogels exhibit the ability to adsorb multiple layers of water vapor molecules on the solid surface, forming a gas-liquid interface that conforms to the curvature of the solid. The influence of pore size on oxygen partial pressure was further investigated by simulating three pores with different curvatures, representing micropores, mesopores and macropores in TiO₂ aerogel, respectively, as illustrated in Figure S4. Regardless of the different pore sizes, the number of layers of water vapor molecules that adsorb onto the surface remains the same. This leads to a continuous gas liquefaction process and subsequent capillary condensation. However, if the pore volume is larger, the liquid volume fraction occupying the hole is smaller, resulting in a greater volume fraction of gas (as depicted in Figure 8b). The content of water molecules in the pore of TiO₂ aerogel is related to the humidity of the air at room temperature and pressure. The larger pore size in a single pore corresponds to the larger surface area and the greater amount of adsorbed water molecules for O₂ production by photocatalysis. There are numerous active centers distributed on the surface of the aerogel, which play a catalytic role in decomposition process. When O₂ contacts the active center on the surface of the TiO₂ aerogel, electron transfer will occur between O₂ and TiO₂, which in turn promotes the catalytic reaction. In other words, the larger pore size can promote the catalytic reaction. However, the larger pore volume simultaneously means the lower oxygen pressure in the pore, thus resulting in the lower catalytic efficiency. Consequently, a relatively larger pore size can result in a decrease in the catalytic reaction. In summary, there is an optimal range of pore size in TiO₂ aerogel, which is conducive to the photocatalysis.

The reaction equation for HCHO decomposition is:

$$HCHO+O_2={CO}_2+H_{2}O$$

(5)

For the reaction $mM+nN\to eE+fF$, the reaction rate equation is:

$$r_v=k{\left[M\right]}^m{\left[N\right]}^n$$

(6)

Where $r_v$ is the reaction rate, k is the reaction rate constant, m and n are the series.

k is calculated according to the Arrhenius equation:

$$k=Aexp(-E_a/RT)$$

(7)

Where A is the Arrhenius constant; E_a is the Apparent activation energy (J/mol), and T is the thermodynamic temperature (K).

HCHO is decomposed to produce intermediate products, so the decomposition reaction process is a series of reactions

$$A_1+A_2\stackrel{k_1}{\to }{B}_1+B_2\stackrel{k_2}{\to }{C}_1+C_2$$

For consecutive reactions, substances A (A₁, A₂) are reactants HCHO and O₂; substances B (B₁, B₂) are intermediate products, and the consumption and generation of substance B is occurred simultaneously; substances C (C₁, C₂) are products CO₂ and H₂O. so the equation of the rate of change of substance concentration is as follows:

$$-\frac{d{c}_{A1}}{dt}=k_1{c}_{A1}{c}_{A2}$$

(8)

$$\frac{d{c}_{B1}}{dt}=k_1{c}_{A1}{c}_{A2}-k_2{c}_{B1}{c}_{B2}$$

(9)

$$\frac{d{c}_{C1}}{dt}=k_2{c}_{B1}{c}_{B2}$$

(10)

The qualitative analysis of the calculated results only requires establishing the proportional relationship between $r_v$ and $c_A$. so it is assumed that $c_{A1}=c_{A2}$.

Integral to draw, $c_{A1}=\frac{1}{\frac{1}{c_{A1,0}}+k_{1}t}+C$Where $c_{A1}$ is concentration of substance A₁, $c_{A\mathrm{1,0}}$ is initial concentration of substance A₁.

Therefore:

$${\mathrm{c}}_{HCHO}=\frac{1}{\frac{1}{{\mathrm{c}}_{HCHO,0}}+k_{1}t}+C$$

(11)

$${\mathrm{c}}_{O_2}=\frac{1}{\frac{1}{{\mathrm{c}}_{O_2,0}}+k_{1}t}+C$$

(12)

the reaction rate equation for HCHO decomposition is:

$$r_v=k{\left[M\right]}^m{\left[N\right]}^n=k_1{c}_{HCHO}{c}_{O_2}=\left(\frac{1}{\frac{1}{{\mathrm{c}}_{HCHO,0}}+k_{1}t}\right)\left(\frac{1}{\frac{1}{{\mathrm{c}}_{O_2,0}}+k_{1}t}\right)+C$$

(13)

According to formula (13), reaction rate $r_v$ is positively correlated with ${\mathrm{c}}_{HCHO,0}$. A higher the O₂ concentration leads to a faster the reaction rate. According to Le Chatelier's principle, the concentration of the reaction gas increases, and the reaction proceeds in the direction of gas reduction. Hence, the reaction proceeds in the forward direction with the increases of O₂ concentration, resulting in the decomposition of HCHO.

Due to the surface of the pore in TiO₂ has the ability to absorb water molecules in the air, these molecules are directly contact with O₂ decomposed by TiO₂ catalysis, then participated in the catalytic decomposition of HCHO on TiO₂ aerogels. Therefore, according to the formula $S=4\pi r^2$, (where S is surface area, r is radius) the decomposition reaction and the pore surface area were positively correlated. The decomposition reaction is proportional to the square of r. Conversely, as the pore size increases, the volume fraction occupied by gas also increased, resulting in the decrease of the oxygen partial pressure. According to the ideal gas equation pV=nRT, (where p is pressure, V is volume, n is amount of substance) the oxygen pressure is inversely proportional to the third power of the pore size r. In conclusion, O₂ pressure is inversely proportional to the pore size r of TiO₂ aerogel, that is, the larger pore size will lead to the smaller O₂ pressure (Figure 9).

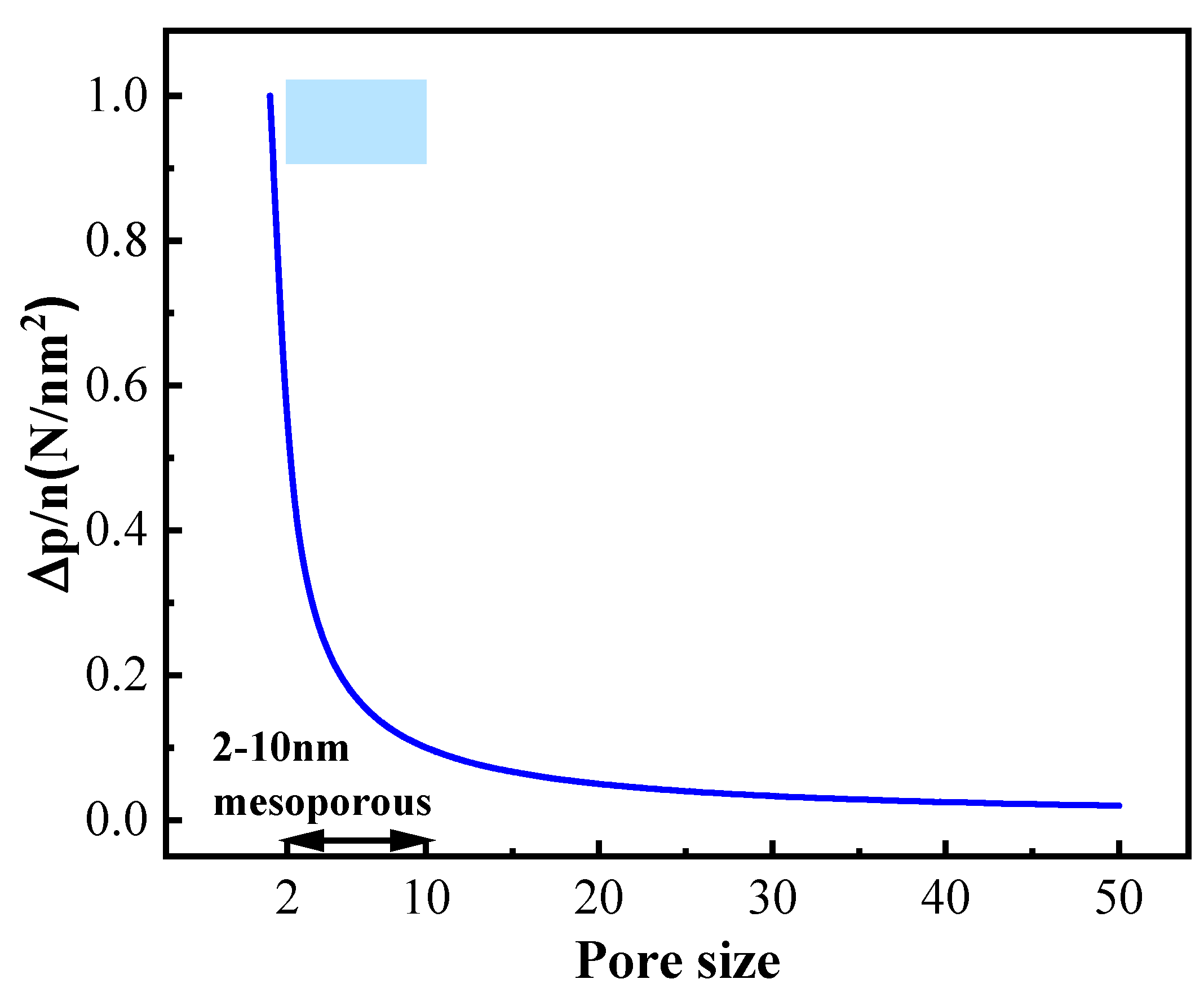

As depicted in Figure 9, within the range mesoporous pores between 2 nm-50 nm, O₂ pressure decreases with the increase of pore size. In particular, with the mesoporous pores between 2 nm-10 nm, a pronounced rapid decrease in O₂ pressure is observed. Conversely, for pores exceeding 10 nm, this decrease becomes more gradual. Therefore, the pore size with the greatest influence on oxygen partial pressure in TiO₂ aerogel falls within the 2 nm to 10 nm range. According to formula (13), when the concentration of HCHO is determined, the concentration of O₂ has a decisive effect on the decomposition rate of HCHO. According to the above calculation results, the optimal pore size range of TiO₂ aerogel for HCHO photodecomposition is 2 nm~10 nm.

This investigation not only furnishes a novel theoretical framework for employing TiO₂ aerogels in HCHO decomposition reactions but also heralds new avenues for exploration in the realm of green chemistry, leveraging TiO₂ aerogels' unique properties.

4. Conclusions

TiO₂ aerogels with different pore sizes were prepared by sol-gel method, and flexible molecular chains were introduced by adding PVA to regulate the pore sizes of TiO₂ aerogels. TiO₂ aerogels prepared by adding PVA with mass fraction of 1%, 3% and 5% had an average pore size of 7.3 nm, 12.9 nm and 48.6 nm, respectively, and the pore size of TiO₂ aerogel without PVA was 64.6nm. The samples were characterized by FT-IR, UV and XRD, the structure and composition were almost the same. But the photocatalytic performance for HCHO decomposition of TiO₂ aerogels were tested by ultraviolet spectrophotometer and gas chromatography. Results show that the efficiency of decomposition of formaldehyde varies greatly, and the TiO₂ aerogels with an average pore size of 7.3 nm (Ti-1) had the highest HCHO decomposition efficiency, while the TiO₂ aerogels with Ti-0 shown the worst performance. Therefore, the pore size of TiO₂ aerogel, as the only variable, had a great effect on the decomposition of formaldehyde. To explore the relationship between pore size and HCHO decomposition efficiency, we established a theoretical model and verified that the decomposition efficiency of HCHO is related to the oxygen pressure in the pores of TiO₂ aerogel. Through derivation and calculation, the reaction rate equation of HCHO decomposition was obtained. The oxygen pressure is inversely proportional to the pore size r of TiO₂ aerogel, which indicate that the larger pore size is corresponded to the smaller oxygen pressure. Finally, the optimal pore size range of TiO₂ aerogel for HCHO photodecomposition is determined to be 2 nm~10 nm. This provides a theoretical idea for the application of TiO₂ aerogels and even porous materials in the field of catalytic decomposition.
