Green Leaf Volatiles: A New Player in the Protection Against Abiotic Stresses?

1. Introduction

Green leaf volatiles (GLV) are a group of plant compounds that are typically associated with damage. Most people have experienced these molecules when mowing their lawns and recognize them as the typical “green” smell of plants. However, while originally considered as metabolic shunt, over the last more than 20 years GLV have come to our attention as volatile signals between plants that communicate damage, usually caused by insect herbivores, but also by microbial infections. In doing so, GLV were found to prepare or prime those receiver plants against the threat of impending damage resulting in a faster and/or stronger response when actually attacked. Consequently, most reports on GLV have focused on their role in mediating biotic interactions. However, more recently GLV have also been found to provide protection against abiotic stresses, either directly or by priming them. This included protection against cold stress, drought stress, salt stress, and high light stress. However, very little is known about the mechanisms by which GLV act in mediating abiotic stress protection. In this review I will therefore focus on this aspect of GLV-induced protective activities that are signaled by this group of compounds.

2. Green Leaf Volatiles and Abiotic Stress

The Biosynthesis of Green Leaf Volatiles

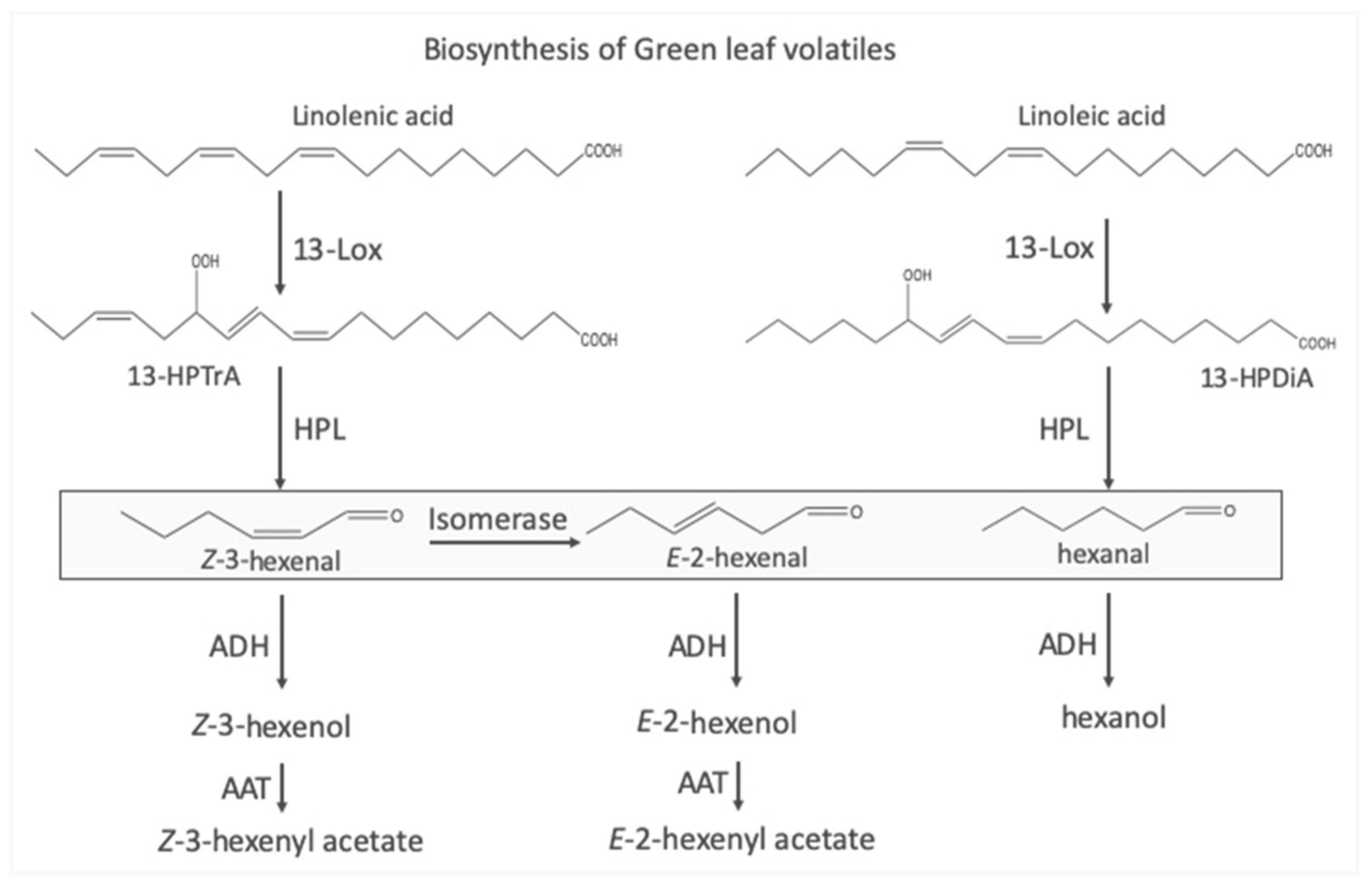

The biosynthesis of GLV is rather straight-forward starting mainly with linolenic acid, either in its free form, but also as part of typical membrane lipids (Figure 1) [1,2,3]. In a first step a lipoxygenase (LOX) inserts molecular oxygen at position 13 of the fatty acid. Then, a hydroperoxide lyase (HPL) cleaves the fatty acid into a 6-carbon compound, Z-3-hexenal (Z3al), and a 12-carbon unit, that, after a minor conversion, results in traumatin, a molecule that for some time has been recognized as a wound hormone capable of inducing callus formation [4]. The 6-carbon unit Z3al is then reduced to its corresponding alcohol (Z-3-hexenol (Z3ol)), which can then be further modified into various esters, mostly however into Z-3-hexenyl acetate (Z3ac). Additionally, some plants also have an isomerase, which quickly converts Z3al into E-2-hexenal (E2al) [5,6]. From this the corresponding alcohol and esters can also be formed. While LOX and HPL are commonly localized in chloroplasts, all other enzymes including the isomerase are cytoplasmic. However, upon damage LOX and HPL become activated in the broken cells and almost instantly start producing Z3al. If cell contain an isomerase, it will also become highly active in the damaged parts and is capable of quickly transforming Z3al into E2al. In contrast to these initial steps of GLV biosynthesis, all other reactions require intact cells, which take up the aldehydes and transform them into the corresponding alcohols and esters [7].

Plant can produce significant quantities of GLV within seconds to minutes after damage, some up to about 100µg per gram fresh weight [3,8]. This substantial and rapid production makes them ideal signaling molecules for either other parts of the same plant or even other plants in the vicinity. While little is known about how exactly Z3al is made in damaged tissue and what regulates the process, we found that even at temperatures far below 0ºC plant can still produce significant amounts of Z3al in particular [9], mainly because most cells under these conditions have died and can no further produce the alcohols and esters.

Signaling pathways related to GLV activities are currently being elucidated. Exposure to GLV for example can cause rapid changes in membrane potentials and cytosolic Ca2+ concentrations [10,11]. It further appears that Z3ol is the major biologically active form of GLV. In a series of experiment performed by Cofer et al. [12] it was shown that after mutating several enzymes involved in the hydrolyzation of GLV esters, the overall activity of these compounds was dramatically reduced. Furthermore, certain GLV seem to activate a MAP kinase signaling pathway in tomato [13]. Interestingly, the same MAP kinase pathway is normally used after pathogen infection. In support of these findings we found in a microarray study that maize plants treated with Z3ol one MAP kinase was significantly induced, suggesting that it might be a GLV-specific response [14]. However, it is still unclear if this is a common signaling pathway that is recruited by GLV and also what other signaling pathways might be involved in regulating responses to these compounds.

Green Leaf Volatiles in the Atmosphere

As mentioned before, the bioactive roles of GLV have mostly been studied in the context of plant-insect and plant pathogen interactions, both of which were shown to often cause the release of significant quantities of GLV not only from the damaged tissues, but also from yet undamaged parts of the same plant [15]. Furthermore, it was found that treatment of plants with GLV often prepared or primed them against the impending threat resulting in a stronger and/or faster response when actually attacked [16,17,18,19]. However, in recent years several reports showed the potential for GLV also being involved in regulating abiotic stresses. Initial reports came from studies investigating the lower atmosphere of the earth. There, large quantities of so-called biogenic compounds were detected and their effect on the chemistry of the atmosphere studied [20,21]. While the majority of these biogenic volatile compounds were found to be isoprene-related, which are usually emitted in large quantities under heat and high light stress, where they provide cooling as well as help in the recovery photosynthetic performance, significant amounts of GLV were also detected. Since it is unlikely that herbivory or pathogen infections are the cause of this presence in the atmosphere, other factors like mowing large areas in agriculture as well as abiotic stresses need to be taken into consideration. Proof of the later came for example from a study by Karl et al. [22] and Jardine et al. [23]. Karl et al. [22] found increased GLV levels in frost-damaged meadows in the alps with Z3al being the major compound. Jardine et al. [23] discovered in their study on the composition of the air surrounding the canopy region of rain forests in South America the authors not only detected large quantities of GLV, but also found a clear correlation between the amounts of GLV and abiotic stresses like drought and heat and concluded that atmospheric GLV could be used as a chemical sensor. Similar results were provided by Turan et al. [24] when they investigated the effects of heat on tobacco leaves. When plants were exposed to 52ºC they produced large quantities of E2al and Z3ol, but very few terpenes. This indicates that some kind of membrane damage occurs with lipid peroxidation as a consequence. Since Z3ol was among the detected compounds it can also be concluded that even at those high temperatures intact cells are still abundant and can convert the aldehydes into the alcohols. Based on these clear correlations between abiotic stresses and GLV release, it can be concluded that there should also be also a functional correlation. However, at the time little was known about what GLV might contribute to the protection against these stresses.

Green Leaf Volatiles and Cold Stress

Cold stress poses a serious threat to plants. While it is often a seasonal issue, it can still affect plants in regions closer to the poles or at higher altitudes even during the summer. However, the highest risk for plants to experience cold stress is usually during spring time, when they germinate, and in the fall. Cold stress can cause significant changes in the general physiology of plants which often result in reduced growth and yield. Cold stress may generally reduce enzyme activities, can cause cell membrane damage through altered membrane fluidity and lipid composition, decreases water potential, reduce ATP supply, and may bring about imbalanced ion distribution and solute leakage (Theocharis et al. [25]. It is therefore important for plants to have mechanisms in place that help to prevent severe consequences of this stress.

Karl et al. [22], as described above provided first insight that GLV might be a part of such a strategy since cold-damaged plant emitted significant quantities of these compounds. Likewise, Copolovici et al. [26] found that cold stress caused the release of large quantities of GLV in cold-stressed, but also in heat-stressed tomato (Solanum lycopersicum) plant. Similar to Jardine et al. [23] the authors proposed the use of these volatiles organic compounds as indicators to characterize the severity of the stress. Yet again, no studies were performed that would test for a protective role of GLV under those conditions.

In 2013 we published a microarray study on the effects of Z3ol in particular on general gene expression in maize [14]. We focused on early event and identified distinct expression patterns, many of which were likely related to defense reactions to insect herbivores. Unfortunately, at the time many genes on the microarray were still unknown or mislabeled. Later, however, we identified several genes that were typically associated with water stress in plants including dehydrins, low temperature inducible protein and several others [27]. This pointed towards a potential role of GLV in protecting cellular integrity since these types of proteins are usually involved in stabilizing cell structures including membranes. When further analyzing the effects of GLV on cold stress protection we found that the expression of the identified protective genes was not only induced by GLV but also that their expression levels were primed when later placed in the cold, resulting in significantly reduced ion leakage [9,28]. Consequently, we also found less damage in those plants treated with GLV as well as a growth spurt days after the cold stress treatment, further indicating a protective function of GLV on the general physiology of the plant, which allowed it to compensate for a loss of growth during cold. We also found that maize plants do still produce GLV, in particular Z3al, when exposed to temperatures well below 0ºC. When tested, Z3al was able to increase transcript accumulation of those protective genes even when applied during cold stress and thus, to provide significant protection [9]. This proved that GLV can protect plants against cold stress even when perceived during a cold episode and provided a potential mechanism by which this might be achieved, i.e., the activation of cell protective proteins and thus, the maintenance of cellular integrity. This is essential since it allows cells to continue to function properly even under stress conditions, which allows them to make further metabolic adaptations and to avoid even more damage.

Green Leaf Volatiles and Drought Stress

Drought is defined as an abnormal long period of shortage of water. However, a shortage of water can also be achieved by high salt concentrations or the abundance of other water-capturing chemicals, all of which result in a dramatic change in the water potential of plant This makes it more and more difficult for the plant to maintain a constant transpirational stream, which can lead to overheating of leaves, but also a reduced uptake of nutrients. Consequently, plants exposed to drought grow less and provide much lower yield. Water scarcity is therefore one of the most pressing issues when growing plants, be it in a natural environment or in an agricultural setting.

The potential role of GLV in drought stress responses was initially provided by Jardine et al. [23] through their analysis of the atmosphere of the forest canopy in the Amazonas rain forest, in which they found a clear correlation between drought, temperature, and GLV content. This was a first clear indication that GLV may also play a role in the regulation of drought and heat stress in a natural system. However, at the time it was unclear if there might also be a protective role GLV play in the system. In a related study by Catola et al. [29] it was further shown that drought stress affects the capacity to produce GLV in leaves of the pomegranate (Punica granatum L.), further establishing an involvement of GLV in the response to drought stress. Yet again, no further studies were performed to evaluate a potential protective role of GLV.

However, evidence for GLV playing an active part in the protection against drought-related stresses came from a study by Yamauchi et al. [30]. By investigating the potential for activating gene expression they tested an array of reactive leaf volatiles in a microarray assay on Arabidopsis. While the focus of the study was on reactive alpha, beta-unsaturated carbonyls, they identified E2al as a particularly effective inducer of typical abiotic stress-related genes including those that protect against drought and salt, but also heat and cold. At the same time Z3al appeared to be quite inactive and did not show any significant induction of abiotic stress-related gene expression. Nonetheless, the results provided by the study clearly showed that at least one GLV was able to induce typical abiotic stress genes and thus provided first evidence that these compounds may play a role in plant protection. However, this did not answer the question of whether or not GLV do actually provide protection against drought and salt stress. A study by Tian et al. [31] however did show that priming with Z-3-hexenyl acetate enhanced salinity stress tolerance in peanut (Arachis hypogaea L.). As a result they found positive effects on photosynthesis, higher water content, increased growth, and increased activity of antioxidant proteins. While this broad spectrum of protectionist measures may surprise, it actually fits into the overall picture of activities provided by GLV that have been shown for biotic stress responses.

A similar study investigated the effects of Z3ol on hyperosmotic stress tolerance in Camellia sinensis [32]. As above, a multitude of effects were found ranging from regulating stomatal conductance, decreases in malonyl dialdehyde as an indicator of lipid peroxidation, accumulation of abscisic acid and proline, and typical stress related gene expression. The activation of ABA and proline in particular is interesting since both are essential responses to hyperosmotic stress: ABA by acting as the major regulator of water stresses [33] and proline as an important protector of cellular integrity [34]. The involvement of ABA as a mediator of Z3ol-induced protection against drought and cold was further confirmed by Jin et al. [35]. There, it was shown that Z3ol activated the glycosylation of ABA through expression of a specific glycosyl transferase. This allows ABA-glucose conjugates to be stored in the vacuole, from where they can be easily reactivated upon cold and drought stress by a glucosidase. While this provides an elegant system that helps to explain some of the biological activities of GLV (here: Z3ol), it still needs to be confirmed in other plants. Furthermore, while Z3ol was shown to be the active compound in this study, other GLV, in particular Z3al as the one compound that is instantly produced by damage including cold, also need to be tested for their specific activity towards the activation of ABA-mediated signaling as a key element in this process.

Altogether, these results clearly showed that GLV are not only released upon drought stress in significant quantities, but also that they can provide significant protection against this stress. Furthermore, these experimental results provide a potential mechanism by which GLV may activate these processes with ABA being a central target for these compounds.

Green Leaf Volatiles and Photosynthesis

Light is a determining factor in the life of plants. It is the predominant energy source that is used by plants and other photosynthetically active organisms, which are transforming light from a physical power into energy-rich molecules that are essential for the vast majority of living things on earth. For plants light also serves as a signal that has a significant impact on growth in an effort to obtain a perfect position for light harvesting. However, light can also be too powerful and under those conditions, plants may sustain damage by the high energy levels that are contained in the radiation. This is, among other consequences, extremely challenging for the actual photosynthesis reaction, in particular the events that occur in photosystem II (PSII). There, the photolysis of water represents one of the main events during photosynthesis resulting in the production of electrons, protons, and eventually oxygen. Under normal light conditions this is a well-controlled process. However, if light intensities increase oxygen radicals are produced, which can cause significant damage to the whole photosystem, but also other parts of the chloroplast. And this is the process in which GLV appear to interfere by downregulating the activity of PSII in particular.

First indications to support a role of GLV in photosynthesis came from a study by Charron et al. [36]. They found that increased photosynthetic photon flux and the length of the photoperiod would cause an increase of GLV production and release in lettuce. While this was mainly put in the context of growing plants in controlled environments, it was nonetheless also pointing towards GLV being directly linked to photosynthesis. Further proof came from a study on bacterial photosynthesis. Mimuro et al. [37] investigated the effects of 1-hexanol on the optical properties of the base plate and the energy transfer in Chloroflexus aurantiacus. In this system it was found that adding 1-hexanol caused a suppressed flux of energy from the baseplate of the chlorosome to the photosynthetic elements located in the adhering plasma membrane section. While it is still unclear whether or not bacteria can produce GLV, the results nonetheless provided evidence that these compounds can have an effect on photosynthesis. Furthermore, considering that this kind of photosynthetic microbe might represent an ancestorial type of what may have eventually ended up as a chloroplast in plants, mechanisms to protect or at least alter the system may also have been already abundant.

Negative alterations of photosynthesis were further investigated by Matsui et al. [7]. While studying the metabolism of GLV they identified key mechanisms of the biochemical pathway. As described above, the aldehydes are mainly produced in damaged tissue, whereas the corresponding alcohols and esters require intact cells to be made. Aside from identifying these mechanisms, they further investigated the toxicity of various GLV including Z3al, E2al, and Z3ol, and found that plants exposed to the compounds as pure chemicals showed a significant impact on photosynthesis with the aldehydes being much more active than the corresponding alcohol. Similar results were obtained by Tanaka et al. [38]. Together, this led to the conclusion that plants cells have an intrinsic ability to detoxify the much more reactive aldehyde GLV into the less harmful alcohols and esters, which in turn appear to serve as the actual signaling molecules that regulate all processes attributed to GLV [12]. At the same time plants avoid the toxic effects of the aldehydes. However, a new light was shed on this issue when Savchenko et al. [39] studied the effect of GLV on photosynthesis. By using HPL overexpressing lines in Arabidopsis, they discovered that GLV play a major role in the protection of PSII under high light conditions by observing lower rate constants of PSII photoinhibition and higher rate constants of recovery. This appears to be an important feature of GLV and may explain why this biochemical system is localized in chloroplasts. Reducing the uncontrolled production of reactive oxygen species (ROS) may be key in the protection of plants cells under extreme light conditions and may explain why GLV have a negative impact on photosynthesis, which, while considered toxic in the past, is actually helping to avoid damage in leaf cells.

However, little is known about the actual mechanisms that are activated by GLV to protect against high light. Further studies in this area in particular are needed to identify these and help to explain the diverse and complex roles GLV play in plants.

3. Summary and Conclusions

Although the number of publications on the topic of GLV and abiotic stress protection is far exceeded by those on GLV and biotic stresses, it cannot be denied that this group of compounds can provide significant protection through yet to be identified signaling pathways. However, even with the limited number of publications on the topic it is astounding how broad GLV can protect against a great variety of abiotic stresses. If we compare this with other plant signaling compounds including hormones like jasmonic acid, abscisic acid, salicylic acid and many others it becomes obvious how limited these are in the regulation of protective functions when compared to GLV. And it is this broad protection that makes GLV somewhat unique within the regulatory network of plant stress responses.

To best describe the protective roles of GLV, one has to look at what is causing damage to plants. Damage in most instances is physical and thus directly linked to water loss, which may lay at the core of GLV activities. But it clearly goes beyond that when they also protect against herbivores, pathogens, drought, cold, light, salt, and other damaging stresses. Also, while they protect against those stresses, they are also often released by the same stresses they protect against, thereby potentially providing protection to other parts of the same plant or even other plants nearby, either by directly activating responses or by priming those responses resulting in a faster and/or stronger response should the stress occur there. A summary of GLV activities is shown in Figure 2. Surprisingly, all this is done with minor investments, making this a very low-cost response on the plants side.

GLV have been labelled ‘the plants multifunctional weapon” in the past based on their multifaceted biological activities against biotic stresses in particular [40]. It is however obvious from the findings summarized in here that we have to expand this characterization to include the protection against abiotic stresses as well. I would therefore also not describe GLV as new players in this context, but rather as a very old one, that just needs to be further studied to reveal their full potential in regulating a multitude of stress responses in plants.

To conclude, the role of GLV seem to lay in in the protection of plants against all those stresses, biotic and abiotic, that can cause damage in the widest meaning of this word. However, how these complex activities are regulated by these compounds is mostly still unknown. But the potential of GLV in protecting plants on such a broad scale are definitely worthy of further investigations.
