Social Network Analysis: Understanding Volleyball Dynamics Through Match Opponents

1. Introduction

In sports, game analysis helps the coach and technical committee understand indicators that modulate performance, facilitating adjustments in both training and games (Eom & Schutz, 1992; Hughes, 2004). This practice, while not novel, is actively employed to enhance tactical aspects, considering the context of training and its situational constraints (Rocha, Laporta, Rodrigues, de Lira, et al., 2023; Rocha, Laporta, Rodrigues, Guimarães, et al., 2023). Therefore, when scrutinizing team performance, one must consider the relationships within the game: involving the team, the opponent, the environment, and the multiple interactions that arise from these dynamics (Araújo & Davids, 2018; Gibson, 1966; Woods et al., 2020). Based on the information obtained from game analysis, the teams' behavior patterns are identified, strengths and weaknesses are detected, and tactical possibilities emerge, allowing departure from traditional playing structures (Lord et al., 2020; Nascimento, Laporta, Pedrosa, et al., 2023; Nascimento, Laporta, Rocha, de Lira, et al., 2023).

Studies on match analysis in sports currently indicate a correlation between performance and game location (González-Rodenas et al., 2019; Oliva-Lozano et al., 2021), player experience (Lemes et al., 2020; Trombiero et al., 2023), type of game played (Silva et al., 2020; Lemes et al., 2020; Praça et al., 2020), game rules (Praça et al., 2021; Sousa et al., 2019), offensive and defensive phases (Praça et al., 2022; Rocha, Laporta, Rodrigues, Guimarães, et al., 2023), teams level (González-Rodenas et al., 2019; Ramos et al., 2017), and other aspects inherent to the game context. Furthermore, it is observed that the analysis of tactical behaviors, for the most part, results from the interpretation of general metrics (Araújo et al., 2020; Costa, Ceccato, de Oliveira, et al., 2016; Marcelino et al., 2020), examing the team's tactical behavior that specify success or failure in the match (Costa et al., 2020; Drikos et al., 2021; Rocha et al., 2019).

When considering volleyball, the focus of this manuscript must be knowledge of match analysis and categorizes game into games complexes. Complex I consisting of reception, setting, and attack, while Complex II consists of serve, blocking, defending, setting, and counterattacking (Hurst et al., 2016; Laporta et al., 2018a, 2019, 2022a). Within this framework, analyzing the volleyball game from the Game Complexes perspective becomes necessary since the behavior of the teams differs depending on the initial of offensive construction, such as reception or defense. Moreover, it varies based on game conditions occurring within the system (in-system conditions), with ideal conditions for offensive construction, or outside the system (off-system), where limited conditions for offensive construction (Laporta et al., 2022b; Loureiro et al., 2017). Furthermore, an observation emerges that teams tend to score more attack points in complex I (Giatsis et al., 2022; Silva et al., 2016), attributed to better ball control during reception, resulting in a more robust offensive structure (Martins et al., 2022; Rocha et al., 2022; Rocha, Laporta, Rodrigues, de Lira, et al., 2023).

In this context, the analysis of Complex I in volleyball underscores a relationship between reception and subsequent actions, such as the setting effectiveness (González-Silva et al., 2020; Rocha, Laporta, Rodrigues, de Lira, et al., 2023), attack tempo (Rocha et al., 2020a, 2022; Rocha, Laporta, Rodrigues, Guimarães, et al., 2023), attack effect (Araújo et al., 2020; Nascimento, Laporta, Rocha, et al., 2023; Rocha et al., 2019, 2020a), and blockers number (Nascimento, Laporta, Pedrosa, et al., 2023; Rocha et al., 2020b; Rocha, Laporta, Rodrigues, Guimarães, et al., 2023). Furthermore, several studies indicate an association or prediction (Costa et al., 2017; Costa et al., 2014; Costa et al., 2018; Drikos et al., 2021; Rocha et al., 2019, 2020b) between the game actions of complex I, highlighting that receptions that allow an organized attack, quick settings, and powerful attacks culminate in attack point (Costa, Ceccato, de Oliveira, et al., 2016; Costa, Maia, Capuzzo, et al., 2016; Costa et al., 2017; Rocha et al., 2020b).

In this scenario, it is important to identify that research has evolved the approach to sports performance analysis over time, seeking to comprehend performance according to the match context (Lima et al., 2023; Silva et al., 2016). In this framework, Social Network Analysis (SNA) has been applied allowing for a more comprehensive analysis considering direct and indirect links between performance indicators in data processing, permitting a more detailed analysis adjusted of the match (Hurst et al., 2016; Laporta et al., 2018b, 2019; Loureiro et al., 2017; Moreira et al., 2020; Praca et al., 2017; Praça et al., 2018). In volleyball, research using SNA and Eigenvector Centrality indicate the highest values in complex I for attacks executed at the ends of the net, specially in zones 4 and 2 (Nascimento, Laporta, Pedrosa, et al., 2023; Rocha, Laporta, Rodrigues, Guimarães, et al., 2023), with 2nd attack tempo (Rocha et al., 2022; Rocha, Laporta, Rodrigues, Guimarães, et al., 2023), powerfull attack (Rocha et al., 2022; Rocha, Laporta, Rodrigues, de Lira, et al., 2023) against simple block or broken double block (Nascimento, Laporta, Rocha, Lira, et al., 2023; Nascimento, Laporta, Pedrosa, et al., 2023; Nascimento, Laporta, Rocha, de Lira, et al., 2023), defended attack or attack point (Nascimento, Laporta, Rocha, Lira, et al., 2023; Rocha et al., 2022), and middle-blocker centered in zone 3 in the initial blocking condition (Rocha, Laporta, Rodrigues, Guimarães, et al., 2023).

Although volleyball studies on game patterns are well-established in the literature, it is evident that many analyses are generalized, overlooking specificities that may vary depending on teams (Araújo et al., 2020; Costa et al., 2020; Drikos et al., 2022; Dutra et al., 2021; Giatsis et al., 2022; González-Silva et al., 2020; Martins et al., 2021; Mercado-Palomino et al., 2022; Rocha et al., 2020b). Although research in this field considers the game ecological context within a competitive environment, it often fails to consider the dynamic interaction between the individual and the game environment through the possibilities of action, which emanate from different configurations of the game (Araújo et al., 2004, 2017; Araújo & Davids, 2018; Woods, McKeown, O’Sullivan, et al., 2020; Woods, McKeown, Rothwell, et al., 2020). In essence,it is necessary to analyze the characteristics of each team, as tactical game plans are specific to the strengths and weaknesses of the teams involved. Based on the aforementioned considerations, the aim was to analyze the type of game played by the top four teams in the Brazilian Men's Volleyball Superliga, taking into account the match's opponent. We hypothesize that the game type will differ depending on the opponent..

2. Materials and Methods

Sample

Twenty-two matches were analyzed involving the top four teams against each of the 12 participating teams in the 2021/2022 Brazilian Men's Volleyball Superliga, including one home and one away game for each team. The sample comprised a total of 1699 attacks examined following receptions that enabled organized attacks with all available options (Hurst et al., 2016).

Variables

Location of middle-blocker attack: considering the position where the middle-blocker jumped to attack: the player jumps ahead and close to the setter (TF); the player jumps behind and close to the setter (TC); the player jumps ahead and away from the setter (T7) (Costa, Ceccato, Evangelista, et al., 2016; Fellingham et al., 2013).

Setting: to verify how the setter distribution by team occurred, we considered the setting for: zones 4 (SETT-P4), 3 (SETT-P3), 2 (SETT-P2), 1 (SETT-P1), and 6 (SETT -P6) and also the ball attacked by the setter in the second touch (including the setter dump) (2SETT).

Number of Blockers: To analyze the impact of the distribution on subsequent play actions, the number of blockers was considered. Blocks were classified as triple [1x3], broken triple [1x(2 + 1)], double [1x2], broken double [1x (1 + 1)], single [1x1], no block by merit of the setter [1x0] (Rocha et al., 2020a).

Attack Effect: attack effects were categorized as error (the attacker strikes the ball into the net, out of bounds, or violates the regulations), blocked (the attacker fails due to opponent block), continuity (the attack does not result in a final action and allows the counter-attack), and point (the attack results in a direct point as the ball touches the opponent side or is deflected by blocking off the court) (Marcelino et al., 2011).

Finally, we analyze the initial position of the setter at the beginning of the rally, identifying the configuration in zone 1 (P1), zone 2 (P2), zone 3 (P3), zone 4 (P4), zone 5 (P5), and zone 6 (P6). The setter's initial position provides insights into offensive organization. For instance, when the setter is in P1, there are three attackers in the net, but the opposite is in P4 and the outside hitter is in P2. On the other hand, when the setter is in P5, there are three attackers in the net, but the opposite is in P2 and the outside hitter is in P4.

Data Collection

All matches were filmed with a view from above the court, with a high-definition (1080p) Sony^® camera positioned approximately 7–9 m behind the court bottom line, and five meters above ground level. All footage was provided by the technical staff of the Brazilian Volleyball Team. Three physical education professionals with more than five years of experience as performance analysts analized the actions used in the study. For reliability testing, 30% of the actions were reanalyzed, which is above the 10% reference value (Tabachnick & Fidell, 2013). Cohen’s Kappa values for intra-observer ranged between 0.93 and 0.99 with the respective standard errors of 0.03 and 0.01. Inter-observer value was 1 with a standard error equal to 0. These values exceed the recommended value of 0.75 (Fleiss et al., 2013).

Data Analysis

For the social network analysis, we created four networks, each corresponding to one of the teams under examination. Data were recorded in a Microsoft Excel 2015 for Windows spreadsheet, and IBM SPSS Statistics (Version 23, USA) was employed for data quality control and exploratory statistics. Social network analysis was conducted using Gephi 0.8.2-beta for Windows (Version 10.10.3, France). In this study, social network analysis was chosen due to its capability to analyze and explore the connectivity and specificity of relationships among all setting variables, providing a comprehensive view. We utilized eigenvector centrality, grounded on the concept that a node exhibits greater centrality when connected to nodes that are also more central (Bonacich, 2007; Borgatti, 2005). Hence, a node's centrality is influenced not only by the number of its adjacent nodes but also by its interaction characteristics (Hurst et al., 2016). Node size and edge thickness were manipulated to highlight the magnitude of the eigenvector measure. Consequently, node size determines the visual contrast of variables based on eigenvector centrality. When a variable is directly or simultaneously related to another, it forms a connection, and through eigenvector centrality, the indirect connections of a node are also considered (Laporta et al., 2018a, 2018b). For organization, Fruchterman was utilized with Reigold distribution (area 100000), arranging nodes with the highest eigenvector centrality at the center of each sub-network (Newman, 2006).

3. Results

The analysis of social networks using the eigenvector was conducted on a per team basis, focusing on teams that finished in the top four in the Volleyball Super League. Table 1 presents the eigenvector values for each team, considering the attack construction.

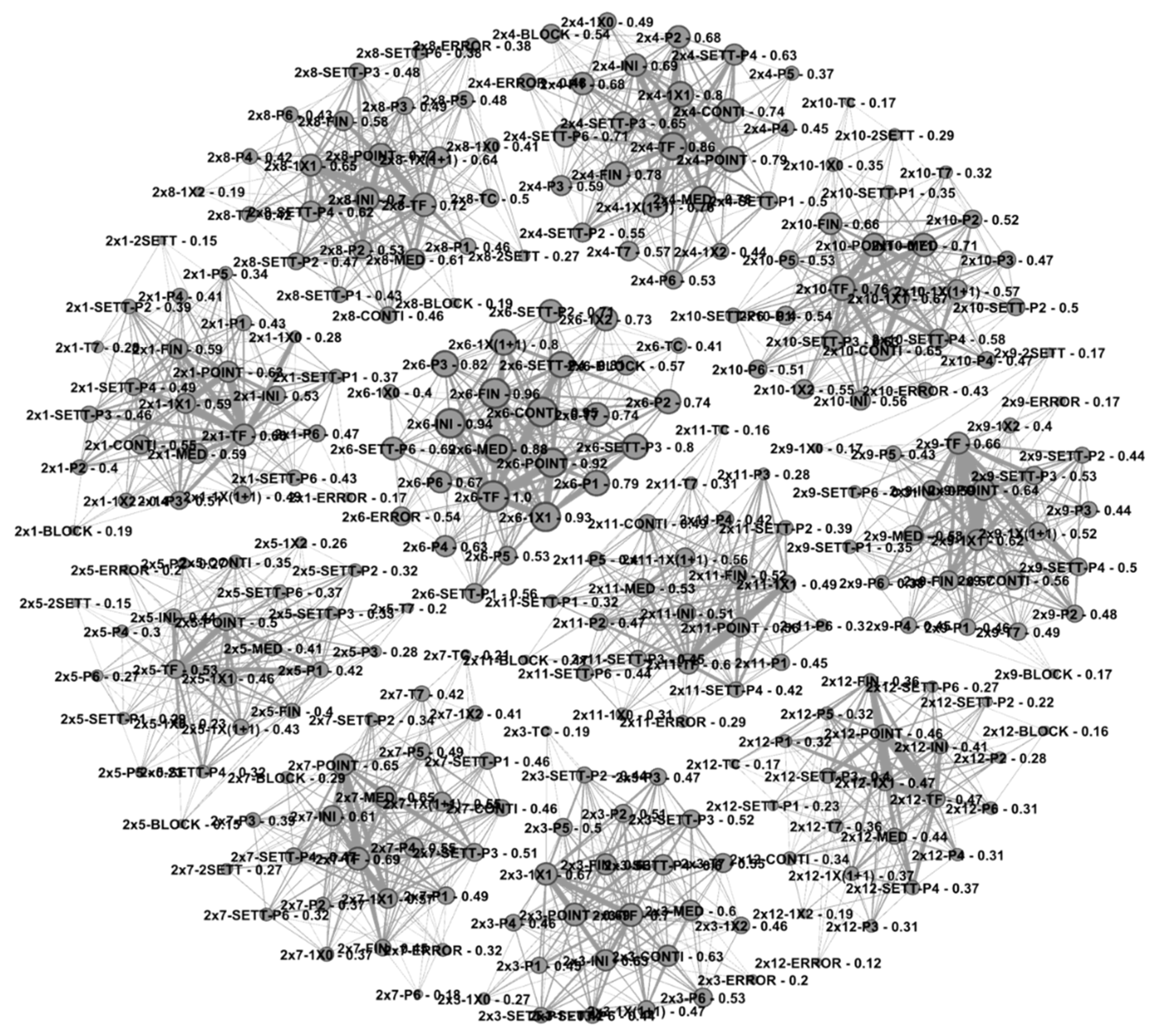

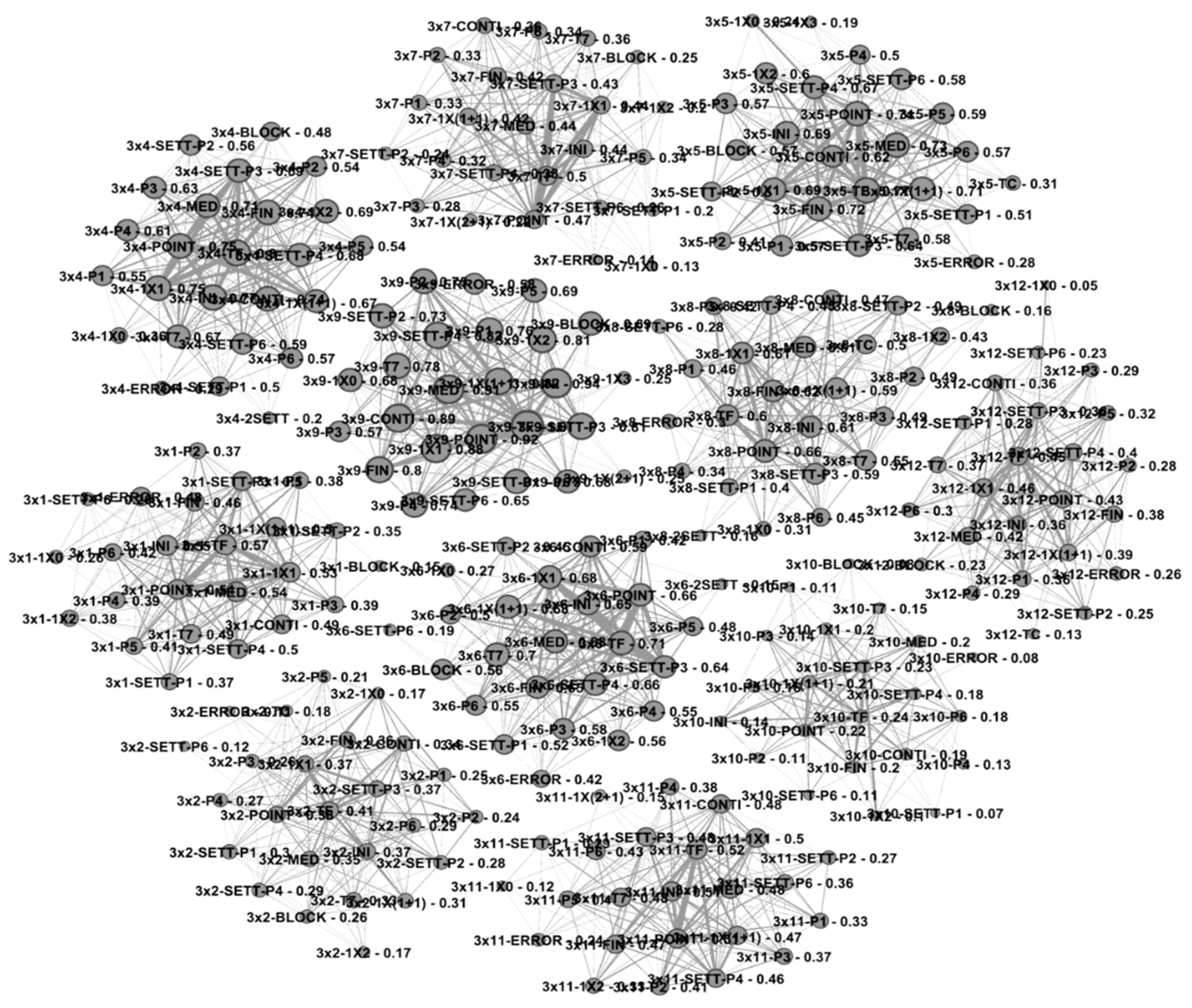

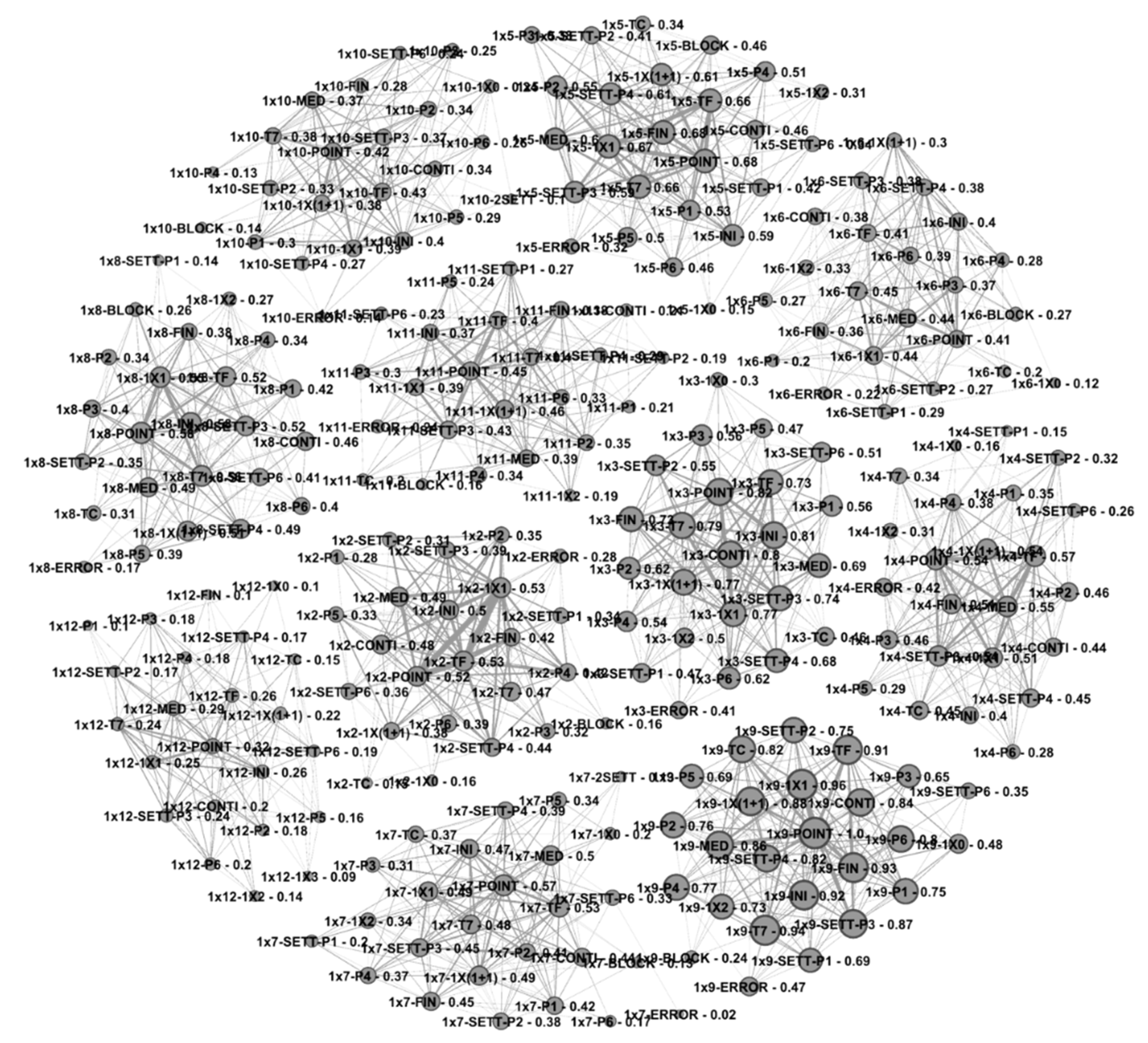

When analyzing the attack construction (See Figure 1, Figure 2, Figure 3 and Figure 4), it is observed that the teams that came in 2nd, 3rd, and 4th positions exhibited higher eigenvector values, regardless of the opponent, for the middle-blocker jumper positioned in front and close to setter (eigenvector values ranging between 0.14 and 1.00). However, the Super League champion team showed variation in offensive construction, presenting higher eigenvector values for the middle-blocker jumping in front and close to the setter and the middle-blocker jumping in front and away from the setter, depending on the opponent (ranging between 0.26 and 0.94). Regarding the setting zone, it is noteworthy that the teams predominantly setting to zones 3 and 4, depending on the opponent (ranging between 0.12 and 0.89). The second-placed team exhibited the highest variability in the setting zone, compared to the other teams analyzed.

Regarding the results about the attack condition (See Figure 1, Figure 2, Figure 3 and Figure 4 and Table 2) it is observed that the highest eigenvector values were, for the most part, for 1x1 or 1x(1+1) blocks (eigenvector values varying between 0 .13 and 0.96), attack point (ranging between 0.13 and 1.00) and the setter's initial position in the rally being specific to the opponent (ranging between 0.11 and 0.89).

4. Discussion

Match analysis should take into account the teams involved in the game to provide indications of factors that affect team performance, as the specificities characteristics of these teams determine the style of game played (Araújo et al., 2017; Araújo & Davids, 2018; Woods, McKeown, O’Sullivan, et al., 2020; Woods, McKeown, Rothwell, et al., 2020). In the volleyball context, the research in this area has predominantly analyzed, the championships in a generalized manner, indicating factors that influence overall performance (Drikos et al., 2021, 2022; Drikos & Tsoukos, 2018; Giatsis et al., 2022; Sotiropoulos et al., 2021), without considering that there are differences in game patterns depending on the opponent. Given this scenario, this research aimed to analyze the type of game played by the four best teams in the Brazilian Men's Volleyball Superliga, according to the match's opponent. We hypothesized that the game type played would differ depending on the opponent, which was partially confirmed. Below, we will discuss point by point the game procedures that were evaluated and the results found.

When considering the middle-blocker attack location, notable variations were observed only with the team ranked first. This result indicates that this team sought to start the offensive construction, generating uncertainty regarding the distribution of attack location for the opponent. Furthermore, it implies that the middle-blockers of this team attackers exhibit heightened effectiveness in these two types of settings provided for the middle-blocker. This fact is reinforced when analyzing the setting zone, as eigenvector values are consistently higher for settings carried for zone 3. Previous research in this area aligns partially with the presented results, demonstrating higher eigenvector values are higher for the TF and TC, respectively (Nascimento, Laporta, Rocha, Lira, et al., 2023; Nascimento, Laporta, Pedrosa, et al., 2023). However, there is a difference in this offensive construction of the game when teams win or lose games. Losing teams exhibit higher eigenvector values for TF and TC, while winning teams show higher eigenvector values for TF and T7 (Nascimento, Laporta, Rocha, de Lira, et al., 2023). Thus, the team's attacking performance is related to the distance the setter is from the attackers and the net (Mercado-Palomino et al., 2022; Millán-Sánchez et al., 2020), suggesting that in Brazilian volleyball, it is preferred to play with the middle blocker ahead and close to the setter (TF), increasing the displacement of the opposing team's blocker.

The results regarding the setting zone reveal that the highest eigenvector values are concentrated for setting zones 3 and 4. However, when observing the team positioned in second place, where greater variability in the setting is evident, high eigenvector values are also identified for zone 6 (notably in the games against the 4th and 5th placed teams). In this context, the second-placed team facilitates the play construction called pipe, that is, the attack of the player from zone 6 close to the player from zone 3, making defensive structure difficult. Furthermore, across the analyzed teams, a clear preference to play from the center of the court forward, that is, to set to zones 3, 4, and 6, allowing greater predictability at the location of the setting. These results corroborate with the existing literature, as Brazilian teams predominantly employ attackers from the net, preferably with attacks from zone 4 and zone 3, while at the same time avoiding setting for attackers from the backcourt (Araújo et al., 2020; Costa et al., 2017; Costa, Ceccato, de Oliveira, et al., 2016; Costa, Maia, et al., 2016; Costa et al., 2018; Dutra et al., 2021; Rocha, Ugrinowitsch, et al., 2019). In this sense, it is observed that teams rarely use the attack from the backcourt, and when they do use it, it occurs more in zone 6 (Costa, Maia, et al., 2016; Costa et al., 2018; Costa, de Britto Evangelista, et al., 2017; Costa et al., 2018), reducing the occurrence of plays that allow offensive numerical superiority in the same area of the court, as occurs in the pipe (Denardi et al., 2017; Nascimento, Laporta, Rocha, Lira, et al., 2023; Silva, Sattler, et al., 2016). In this context, teams appear to adopt a less risky and more conservative approach, avoiding backcourt attacks and favoring a style of play with attackers at the net to enhance predictability.

When considering the blocker's number and the attack effect, it was observed that the teams predominantly executed attacks against single or broken double blocks and obtained the point of attack. These results indicate that the opposing defensive system could not anticipate and adapt to the demands imposed by the offensive structure. Research in this area indicates that, for the most part, there are double and single blocks (Drikos et al., 2023; Rocha, Laporta, Rodrigues, Guimarães, et al., 2023; Sotiropoulos et al., 2022), there is a relationship between the number of blockers, the athlete who received the serve, and the reception quality (Rocha, Laporta, Rodrigues, de Lira, et al., 2023; Sotiropoulos et al., 2022). Concerning the attack point, the literature consistently demonstrates that this is the most recurrent effect in volleyball (Drikos & Tsoukos, 2018; Lima et al., 2023; Marcelino et al., 2011; Mesquita et al., 2013; Nascimento, Laporta, Rocha, De Lira, et al., 2023; Silva, Sattler, et al., 2016). In this context, when considering that the present research solely analyzed organized attack conditions with all available attackers, it is noteworthy that there are high eigenvector values for 1x(1+1) blocks. Therefore, this result may indicate that the blockers, even in ideal distribution conditions, managed to anticipate the location of the attack. Thus, the fact that the teams mostly rise from the center of the court forward (zones 3 and 4) makes it easier for blockers to read the game, allowing for better defensive organization.

The results regarding the setter’s initial position at the beginning of the rally indicate a high variability among teams, suggesting that teams sought to start the game with a specific team formation, considering the influence of this rotation on the offensive construction, especially in complex I about the opposing team rotation. Research that analyzed team rotation and performance indicators highlighted that the most effective attack often occurs when the setter’s initial position is zone 2 (López et al., 2023; Silva, Sattler, et al., 2016). Additionally, research indicates that when the setter occupies rotations in zones 6, 1, and 2, there is an association with winning the game (Silva, Sattler, et al., 2016). In this scenario, the divergences between research in the area and the results found reside in the fact that research generally analyzes championships. Consequently, the differences found in the results show specificities inherent to the opponent encountered. Accordingly, these results suggest that teams start the set-in formations that allow them to enhance performance indicators based on both team’s rotations, that is, to define the team's best attackers about the blockers and vice versa.

In a general analysis, the results showed that the teams classified in the first two positions sought to vary their offensive pattern, with the team classified in first place changing the type of setting to the Middle-Blocker, while the team classified in second place varied the setting zone. In this context, these teams probably achieved better performances by adapting better to the opponent; that is, the decision-making in the offensive construction was based on the specifying aspects of the context about the ecology of the game, something that has been discussed in the literature for a long time (Araújo et al., 2017; Rocha et al., 2021; Woods, McKeown, O’Sullivan, et al., 2020; Woods, McKeown, Rothwell, et al., 2020). On the other hand, the teams in third and fourth place opted for traditional, low-risk game strategies, suggesting that setters need more ability to interpret the game scenario, as it seems that the offensive construction was predetermined and neglected information from the opponent's defensive system (Nascimento, Laporta, Pedrosa, et al., 2023). Therefore, except for the championship finalist teams, the performance of the other teams depends on the players' characteristics, mainly attackers, since there are no differences in the playing pattern adopted about the opponents.

5. Conclusions

In this sense, high-level Brazilian volleyball teams must vary their offensive pattern in response to the opponent. Therefore, training environments should replicate and simulate scenarios that require increased attacks from the backcourt and the opposing attacker, generating unpredictability in the opponent's defensive system. Furthermore, given that this study has the limitation of not considering games that take place at home and away from home, it is suggested that future research analyzes the pattern of offensive play according to the opponent and the game location, as there are differences in performance emanating from this variable that was not specified in this manuscript.
