Abstract
Hydroponic farming systems play an increasingly important role in the sustainable production of nutrient-rich foods. The contamination of surfaces in hydroponic fresh produce production poses risks to the food safety of crops, potentially endangering public health and causing economic losses in the industry. While sanitizers are widely used in commercial hydroponic farms, their effectiveness against human pathogens on surfaces, and their impact on plant health and quality are not known. In this study, we evaluated the efficacy of chemical sanitizers in eliminating Salmonella Typhimurium from inanimate surfaces in commercial hydroponic Nutrient Film Technique (NFT) systems. Further, we assessed the impact of sanitizers on the yield, quality, and nutritional value of lettuce and basil. Sanitizers (Virkon, LanXess; Sanitate 12.0, Bi-oSafe Systems; Kleen Grow, Pace Chemical Ltd.; Green Shield, United Labs Inc.; Zerotol, BioSafe Systems; Bleach, Pure Bright), were tested against Salmonella Typhimurium inoculated on NFT surfaces (nutrient reservoirs, growing channels, top covers, drain lines). The effective treatments were then tested for their impact on lettuce and basil in a split-plot experiment conducted in commercial NFT units. Crop yield, color, and nutrient content were measured throughout the crop life cycle. While all quaternary ammonium compounds (QAC), SaniDate 12.0 (200ppm), Zorotol (5%), and Virkon (1%) eliminated Salmonella Typhimurium from commercial NFT surfaces, chlorine-based sanitizer treatments were statistically similar to water treatments on most surfaces. All chemical sanitizers impacted the yield, color, and nutritional value of lettuce and basil. SaniDate 12.0 (200ppm) was the least detrimental to crops and was identified as a potential candidate for further validation in commercial hydroponic settings. The findings of this study will be translated into recommendations for the industry and will contribute to the development of future food safety guidelines and policies.
Keywords:
sanitizer
; nutrient solution
; nutrient film technique
; food safety
; hydroponics
; Salmonella Typhimurium.
; plant health and quality
; pathogen elimination
; SaniDate 12.0
; nutritional value.
1. Introduction
The safety of food and its nutritional value play a critical role in achieving ongoing public health goals aimed at reducing diseases linked to diets [1]. Fresh produce contamination and associated foodborne disease outbreaks rank as top priorities in public health concerns in the United States (US) and globally [2,3]. Fresh produce, such as leafy greens, are increasingly produced in hydroponic systems to meet the rising demand for nutrient-dense foods. While hydroponic production in controlled environments is generally perceived as safer than open-field cultivation, outbreaks of foodborne illnesses associated with hydroponically grown produce have been reported [4,5,6] and contaminated water sources, nutrient solutions, and inadequate sanitation practices within hydroponic systems have been identified as high-risk food safety hazards and recommended to be prioritized for food safety management [7].
Hydroponic systems present unique challenges when it comes to sanitation, as the recirculating water and nutrient solutions can potentially harbor and facilitate the growth of microbial pathogens. While chemical sanitizers like sodium hypochlorite, peracetic acid (PAA), and quaternary ammonium compounds (QACs) are commonly used to eliminate human pathogens on food contact surfaces and in produce washes [8,9,10], their effectiveness in hydroponic systems has not been adequately validated and may have a detrimental effect on plant health. This is especially true for leafy greens, because of their delicate structure [11,12,13].
The health aspects of fresh leafy greens are major drivers for their consumption [14]. Lettuce and basil are excellent sources of vitamins and various phytochemicals [15,16]. For instance, carotenoids, which are abundant in dark leafy greens, safeguard human cells and tissues from oxidative damage caused by free radicals, thus reducing the risk of cancer, heart disease, and age-related eye disorders [17,18,19]. They also play an important role in skin health and immunity [20,21]. Chlorophyll is the primary pigment in leafy greens that enables plants to grow and survive through the process of photosynthesis [17]. In addition to its potential anti-carcinogenic and antimutagenic activities, chlorophyll determines the crop organoleptic quality and affects the marketability of product [17]. Introduction of any mitigation strategies during production may impact the concentrations of these valuable natural compounds, reduce nutritional quality, and diminish its marketable yield.
Validating and establishing best practices for sanitation in hydroponic systems are necessary steps in ensuring the safety and nutritional integrity of hydroponically grown produce. These efforts can help bridge the gap in recommendations for mitigating food safety hazards in hydroponics while producing high-quality, nutrient-dense produce. Studies tailored to commercial hydroponic systems, specifically nutrient film technology (NFT), were conducted to 1) evaluate the effectiveness of sanitizers in eliminating Salmonella Typhimurium on inanimate NFT surfaces and 2) assess the effect of sanitizers on lettuce and basil yield, quality, and nutritional value.
2. Materials and Methods
2.1. Effectiveness of Chemical Sanitizers against Salmonella typhimurium on NFT Surfaces
2.1.1. Experimental Design and Hydroponic Surfaces
Surfaces specific to CropKing® NFT systems including the growing channels and top covers (food grade, UV stabilized PVC), main drain line (4” PVC tube), and reservoirs (ABS plastic with UV inhibitors) were tested in this study. The NFT nutrient reservoir was cut into 5 cm x 5 cm (25 cm2) coupons and the growing channels, top covers, and main drain line were cut into 5 cm strips that resulted in 66.0, 70.0, and 62.8 cm2 pieces, respectively. The experiment was conducted twice, and each experiment was arranged in a complete block design with four replicates (n=4). Standard BSL-2 laboratory procedures were followed for all experiments as described by The Ohio State University-IBC approved protocol No. 2018R00000006.
2.1.2. Bacterial Strain and Inoculation of Surfaces
Salmonella enterica Typhimurium LT2 (strain JSG626 responsible for gastroenteritis in humans) [22] modified for resistance to 75 µG/ml kanamycin [23] was grown in 10 mL of Luria-Bertani broth (LB; Thermo Fisher Scientific, Waltham, MA), for 18 hours at 35°C with agitation (120 rpm). The liquid culture was then centrifuged (4,122 x g; 5 min), the pellet was rinsed twice with 1X phosphate-buffered solution (PBS, pH of 7.4, 0.01 M, Thermo Fisher Scientific, Waltham, MA) then suspended in Hydro-Gro Leafy Greens nutrient solution (1.2g/L) (CropKing Inc., Lodi, OH) supplemented with calcium nitrate (1 g/L). For each surface type, the inner surface directly exposed to the nutrient solution was inoculated by dispensing 5 x 0.2 ml drops of inoculum directly on the surface achieving a concentration of ~106 CFU/cm2. The inoculated surfaces were dried in a laminar flow hood for up to three hours, depending on the surface type.
2.1.3. Sanitizer Application, Sample Processing, and Bacterial Enumeration
The active ingredients, concentration, and contact times of the sanitizers are listed in Table 1. Surface samples were placed in sterile glass cake pan dishes and sprayed with sanitizer until run-off. Inoculated surfaces treated with water were used as controls. Following the prescribed contact time, the reservoir surfaces were transferred to Whirl-Pak bags containing 25 ml of sterile 1X PBS and the growing channels, top covers, and main drain lines were transferred into Whirl-Pak bags containing 140 ml of sterile 1X PBS. The samples were then sonicated in a 75HT Ultrasonic Cleaner (VWR International, Radnor, PA) at 40 Hz for 2 min to dislodge any remaining cells. For each surface, 10-fold serial dilutions were prepared using 1xPBS and spread plated in duplicate onto xylose lysine deoxycholate (XLD) (HiMedia Laboratories, Mumbai, India) (75µg/mL kanamycin) agar. The plates were incubated for up to 48 hours at 35C and colonies were enumerated. Each sample was enriched in 50 – 200 ml in tetrathionate broth base (TBB; Fisher Scientific, Hampton, NH) at 35°C for 24 hours, spread plated on XLD and the presence or absence of S. Typhimurium was determined based on colony morphology after overnight incubation at 35oC.
2.2. Impact of Chemical Sanitizers on Yield and Nutritional Attributes of Lettuce and Basil Grown in NFT Hydroponic System
2.2.1. Experimental Design and Crop Production
Eight NFT 4-6 systems were set up in a BSL-2 research greenhouse located at The Ohio State University, CFAES-Wooster, Ohio. Greenhouse temperatures were set to 30 °C daytime and 4 °C nighttime. Plants were exposed to a 12-hour-photoperiod. A single NFT system was treated with one sanitizer and consisted of six channels with three basil and three lettuce plants per channel. The experiment was a split plot design, with eight main plots (sanitizer treatments and control), split between lettuce and basil, arranged as a completely randomized design (CRD) (Figure 1). The experiment was conducted three times.
Lettuce (Lactuca sativa cv. Rex) and basil (Ocimum basilicum cv. Genovese) were propagated in rockwool pads (2.5 cm x 2.5 cm x 3.8 cm) soaked with Hydro-Gro Leafy Greens nutrient solution (1.2g/L) (CropKing Inc., Lodi, OH) supplemented with calcium nitrate (1 g/L) adjusted to pH 5.5 - 6 with 1M KOH and 30% HCL. The seedlings were transferred to the NFT 4-6 systems at the 2-4 true-leaf stage (~2 weeks old seedlings) and allowed 5 days to adapt in the system.
2.2.2. Treatment of Nutrient Solution with Sanitizers and Measurement of Fresh Edible Weight (Marketable Yield) and Leaf and Root Color
Sanitizer was added to the reservoirs (95 L) containing the nutrient solution 5 days post-transplanting to achieve the desired concentration (Table 1). Electrical conductivity (EC) and pH were continuously monitored using in-line Bluelab Guardian Monitor Connect instrumentation (Bluelab Corporation Limited, Tauranga, New Zealand) and adjusted as needed to maintain a pH 5.5-6.0 and EC=1.4-2.1 mS/cm. For the SaniDate 12.0 and Bleach treatments, peroxyacetic acid (PAA; mg/L), chlorine residuals (mg/L) and the oxidation-reduction potential (ORP; mV) respectively, were measured using two sensors (chlorine higher range (CHR) and chlorine free high range (FHR, temperature <20 oC) sensors) at each sampling time using KemioTM (Palintest, Golden, Colorado) according to the manufacturer’s instructions. Measurements were stopped when the detected residual dropped below 3%. Three plants (one plant per replicate) were randomly sampled every week (time; T: 1, 7, 14, 21, 28 days) and the rockwool-root matrix was separated from the edible leaves (shoots) at the rockwool-stem line. When possible, the roots were split from the rockwool. The weight of the rockwool-root matrix, roots, and shoots were recorded, and the color (red-green-blue, RGB) of the leaves and roots was measured using the RGB color detector mobile application (Version 2.5.02). The hexadecimal color value (HEX) containing a six-alphanumeric symbol code made of three/two-symbol elements determining red, blue, and green for each treatment were measured. Leaf sample aliquots were preserved for nutrient composition as described below.
2.2.3. Impact of Chemical Sanitizers on Nutritional Content (Chlorophyll and Carotenoid) of Lettuce and Basil
Chlorophyll and carotenoid concentrations were determined using spectrophotometry by measuring the absorbance of the extracts at various wavelengths according to Lichtenthaler et al. (1987) [24]. Leaves (0.2 g) were suspended in 15 mL 80% acetone and incubated in the dark at ambient room temperature until the leaves were bleached (24 to 48 h). A volume of 1 mL of the supernatant was extracted and the absorbance was measured at 663.2nm and 646.8 nm (chlorophyll) and 470 nm (carotenoids) using a 50 Bio UV-Visible Spectrophotometer (Varian, USA). The concentration of chlorophyll and carotenoids in the leaves was calculated using the formulas described by Lichtenthaler et al. (1987) [24] (Table 2).
2.4. Statistical Analysis
Data were organized and managed in Excel (Microsoft 2010; Redmond, WA) and all statistical tests were performed in STATA (Stata/BE 17.0 (Intel 64-bit)). Interexperimental variability between experiments was tested using Levene’s test of equal variance [26]. Due to the different inoculum drying times used in the two experiments, the data were analyzed and presented independently (Table 3 and Table 4). Cell counts were log-transformed, and the log reduction and percentage reduction were calculated. The differences between sanitizer treatments and the water-treated control were analyzed using the Kruskal Wallis test and medians were separated using Dunn’s non-parametric pairwise multiple comparison [26].
The data from three experiments testing the yield and nutrients in lettuce and basil were pooled in the statistical analysis due to non-significant interexperimental variability (p = 0.767). The fresh edible weight, RGB values, chlorophyll, and carotenoid concentrations were compared with water-treated control and analyzed in the GLM (Generalized Linear Model) at α=0.05 and means were separated using Fisher’s least significant difference test.
3. Results
3.1. Effectiveness of Chemical Sanitizers on Eliminating Salmonella typhimurium from Inanimate NFT Surfaces
Chlorine-based sanitizers and water treatment achieved variable results depending on the surface type. None of the chlorine-based treatments eliminated (100% reduction and no detection after enrichment) S. Typhimurium from any of the surfaces tested. The achieved reduction for chlorine-based treatments in experiment 1 ranged between 69.342% (0.86±0.43 log CFU/cm2) to 99.907% (4.14 ±0.40 log CFU/cm2), depending on the surface type (Table 3). Reduction of S. Typhimurium with the water treatment ranged from 64.000% (0.45 ±0.19 log CFU/cm2) on the reservoir surface to 99.559% (2.36 ± 0.60 log CFU/cm2) on the main drain line. For experiment 2, the achieved reduction for chlorine-based treatments ranged between 99.870% (3.65 ± 0.61 log CFU/cm2) to 99.999% (5.34 ±0.26 log CFU/cm2), depending on the surface type (Table 4). Water treatment reduced S. Typhimurium from 99.951% (3.68 ± 0.35 log CFU/cm2) on the growing channel to 99.997% (4.90 ±0.16 log CFU/cm2) on the main drain line. On the reservoir, the top cover, the growing channel, and the main drain line, water was as effective as chlorine-based treatments in both experiments. Although 99.999% - 100% reduction was achieved with 200ppm Bleach (growing channel and the main drain line) and NatriClor CD (reservoir), S. Typhimurium was detected after enrichment.
The PAA-based sanitizers Zerotol and SaniDate 12.0 (200 ppm only) were effective in eliminating S. Typhimurium from all the surfaces tested in this study compared to the water treatment (Table 3 and Table 4). SaniDate 12.0 (100 ppm) eliminated S. Typhimurium from the reservoir (100%; 5.60 ± 0.00 log CFU/cm2) and top cover (100%; 5.18 ± 0.00 log CFU/cm2) it was not eliminated from the main drain line (99.926%; 4.24±0.51 log CFU/cm2), or the growing channel (99.971%; 4.49 ± 0.35 log CFU/cm2 reduction) in the first experiment (Table 3). For experiment two, SaniDate 12.0 (100 ppm) eliminated S. Typhimurium on reservoir (100%; 5.60 ± 0.00 log CFU/cm2), top cover (100%; 5.18 ± 0.00 log CFU/cm2) and growing channel (100%; 5.15 ± 0.00 log CFU/cm2), but not on the main drain line (99.999%; 5.03 ± 0.10 log CFU/cm2) (Table 4).
3.2. Effect of Chemical Sanitizers on Yield, Quality, and Nutritional Value of Lettuce and Basil Grown in NFT Hydroponic Systems
3.3.1. Sanitizer Residues
Following treatment of the nutrient solution with Bleach (100 ppm), free chlorine was detected until Day 7 (0.15 ± 0.29mg/L) while total chlorine dissipated within seven days (Table 5). For Bleach 200ppm, free chlorine (0.81 ± 1.69mg/L) and total chlorine (1.25 ± 1.81mg/L) were detected 14 days post-treatment, and the concentrations were comparable to the non-treated nutrient solution (data not shown). Initial oxidation redox ORP for Bleach (100ppm and 200ppm) was 872.33 ± 33.45mV and 857.67 ± 25.45mv. Bleach declined by 94.6% for 100ppm Bleach and 60.58% for 200ppm Bleach by Day 14.
For the 200ppm SaniDate 12.0 solution, the active ingredient, peroxyacetic acid (PAA), dissipated to less than 5mg/L within the first 24 hours (data not shown). The QAC and PPMS-based sanitizers were not measured due to the plants dying within the first 5 days.
3.2.2. Quality and Yield
The color of basil and lettuce leaves grown in nutrient solutions treated with Bleach (100ppm and 200ppm) and SaniDate 12.0 (200ppm) changed by harvest (Day 28) resulting in different HEX codes compared to the non-treated control (Table 6). For lettuce, there were no significant differences in the R, G, and B values (p=0.901 [R], p=0.730 [G], p=0.629 [B]) between the sanitizers and the control. For basil, the R and G values (p=0.0001 [R], p=0.0009 [G]) were significantly higher for the sanitizers compared to the non-treated control. However, no significant differences were observed for the B value.
Basil and lettuce plants grown in the nutrient solution treated with Virkon, Kleen Grow, Zerotol, and Green Shield died by Day 5 post-treatment. In nutrient solution treated with Bleach (100 ppm, 36.30 ± 3.51 g/plant; 200 ppm 7.17 ± 2.31 g/plant) and SaniDate 12.0 (200ppm; 90.73 ± 39.50 g/plant), fresh lettuce weight at harvest (Day 28) was significantly lower when compared to the non-treated nutrient solution (160.62 ± 3.88 g/plant; p<0.001) (Figure 2). However, basil fresh weight at harvest was only significantly lower when the nutrient solution was treated with Bleach 200 ppm (13.22 ± 3.78 g/plant) (p=0.007). The fresh weight of basil on Day 28 for plants from the non-treated system (94.72 ± 9.35 g/plant), 100 ppm Bleach (77.97 ± 36.82 g/plant) and 200 ppm SaniDate 12.0 (56.78 ± 9.96 g/plant) were not significantly different.
3.3.3. Nutritional value
At harvest, the total amount of chlorophyll (‘a‘and‘b’) in lettuce was significantly lower for all treatments compared to the non-treated control (p=0.002) (Table 7). Among the sanitizers, total chlorophyll and chlorophyll ‘a’ concentrations in lettuce were least affected by SaniDate 12.0 (200 ppm) treatment. The ratio of chlorophyll ‘a:b’ was not significantly affected by the treatments (p=0.076). Total carotenoid concentrations in lettuce were significantly reduced by the chlorine-based treatments (100 and 200 ppm) compared with the non-treated control (p<0.001), while the SaniDate 12.0 treatment had no effect on total carotenoids. The total chlorophyll: carotenoid ratio was significantly reduced by all the treatments (p<0.001) compared to non-treated control.
Total chlorophyll and chlorophyll ‘a’ were significantly lower in basil grown in the nutrient solution treated with Bleach (100ppm and 200ppm) (p<0.05). There were no differences in the total chlorophyll, chlorophyll ‘a:b’, total carotenoid concentrations, or total chlorophyll: carotenoid for basil grown in the nutrient solution treated with 200ppm SaniDate 12.0 in comparison with the non-treated control at harvest (Day 28) (Table 7). Chlorophyll ‘a:b’ was significantly higher for nutrient solution treated with 200ppm Bleach compared to 100ppm Bleach and the non-treated control (p = 0.03).
4. Discussion
Chemical sanitizers are commonly used in commercial greenhouses. Although not all growers use them, many rely on sanitizers to disinfect greenhouse surfaces, equipment, and tools, as a plant disease management tool. Bleach and quaternary ammonia compounds (QACs), are the primary means of surface disinfection in greenhouses. However, chemical sanitizer efficacy against foodborne bacterial pathogens on surfaces that come into direct contact with the crops has not been extensively explored.
Chlorine-based sanitizers have been routinely the “go-to” choice among growers for surface disinfection due to their ease of use, availability, and cost-effectiveness [27]. In our study, when used at recommended concentrations (up to200 ppm) and contact times, Bleach and NatriClor CD did not eliminate Salmonella Typhimurium from NFT growing channels and top covers (referred to as channels and tops from here on out), main drain lines, or reservoirs. In fact, the efficacy of the Bleach treatments was similar to using only water.. While 500 ppm of Bleach has been shown to eliminate biofilm-forming bacteria from PVC coupons after 1h[28], the high concentrations are not recommended in hydroponics. In fact, routine use of high concentrations of Bleach is known to degrade components of pumps and aerators, seals, and tubing, restricting the usefulness of Bleach for surface sanitation in commercial NFT hydroponic operations [29], similar was observed in our study. PPA sanitizers are generally less detrimental to surfaces in processing, and hydroponic greenhouses, and thus their use in surface sanitation is increasing. In this study, Zerotol and the high rate of SaniDate 12.0 (200 ppm) eliminated S. Typhimurium from the channels, main drain lines, and reservoir surfaces. Although the lower rate of SaniDate 12.0 (100 ppm) significantly reduced S. Typhimurium on most of the surfaces, S. Typhimurium was not eliminated. The QACs (Green Shield, Kleen Grow) and PPMS-based (Virkon) also eliminated S. Typhimurium from the surfaces tested. However, these sanitizers are not labeled for food use, and in our study, we show that their use in the system damaged the plant health beyond repair.
The size, color, and nutritional value of leafy greens are important factors for consumers when purchasing vegetables. At the recommended label rates for surface sanitation, all the sanitizers tested lowered or eliminated S. Typhimurium but negatively affected yield and quality. When the nutrient solution was treated with Green Shield, Kleen Grow, Virkon, and Zerotol all the lettuce and basil plants died within 5 days. Howard et al. (2007) also found that Virkon, Chemprocide (same active ingredient as Kleen Grow), and Biosentry 904 (QAC) were phytotoxic to greenhouse-grown vegetables when sprayed onto the leaves to simulate an accidental over-spray, but they did not test leafy greens. Although lettuce and basil did not die after exposure to nutrient solution treated with Bleach, the yield was lower than plants not exposed to Bleach-treated nutrient solution. In addition, chlorophyll and carotenoid levels were lower in plants grown in Bleach-treated nutrient solution indicating a reduction in the nutritional value of lettuce and basil. The negative impacts of Bleach on plant yield and quality were not unexpected as Bleach is a potent oxidizing agent that damages cell membranes and DNA [8]. Bleach residues are also known to interact with organic material resulting in harmful byproducts, such as trihalomethane (THM) and halo acetic acid (HAA), increasing chemical food safety risks [8]. Basil and lettuce yield and chlorophyll and carotenoid levels were also reduced when grown in the nutrient solution treated with SaniDate 12.0. However, the effect on yield was not as drastic as the high rate of Bleach. Interestingly, basil was more tolerant to SaniDate 12.0 than lettuce, especially when comparing chlorophyll and carotenoid levels. Unlike chlorine-based sanitizers, PPAs do not produce harmful disinfectant byproducts but rather disassociate to produce water and acetic acid [8,30].
In plant health studies it is common to use machine modeling and monitoring to assess RGB growth and crop nutrition [30,31,32,33]. In our study, we used RGB as a crop quality indicator, but this approach did not allow us to identify differences in color intensity, chroma, and saturation between the sanitizer treatments. However, we were able to replicate the true color of the lettuce and basil crops based on the HEX codes. Although this does not allow us to make inferences about the nutritional quality of the crop, consumers often use color as an indicator of product freshness, ripeness, and nutrient content [34]. Visually lettuce and basil plants were paler in color when grown in chlorine-treated nutrient solution presenting a bleaching effect compared to the plants grown in SaniDate 12.0 treated nutrient solution or non-treated nutrient solution (Figure S1).
As a mitigation tool, chlorine-based sanitizers prove to be unsuitable. They were not effective in eliminating S. Typhimurium, and the negative effect on plant health occurred immediately after exposure. In addition, the short life cycles of lettuce and basil do not allow sufficient time for the plants to recover post-sanitizer treatment even though free chlorine levels dropped consistently and were not detected by harvest. In contrast, the study results showed that SaniDate 12.0 at 200 ppm as a one-time treatment had a marginal impact on lettuce and basil crop yield, color, and nutritional value and could be a good alternative to chlorine-based sanitizers.
5. Conclusions
The elimination of human pathogens from NFT systems without compromising plant health remains to be a critical yet challenging task. According to the United States Environmental Protection Agency (U.S.-EPA) – Office of Inspector General, more than 40% of all registered antimicrobial products have not been tested for efficacy, and between 33% and 50% fail depending on the bacterial human pathogen tested [35,36].
This study provides evidence about the effectiveness of sanitizers commonly used against S. Typhimurium on inanimate surfaces in commercial hydroponic crop production. We identified the limitations of chlorine-based sanitizers and showed the effectiveness of SaniDate 12.0 (200 ppm) in eliminating S. Typhimurium on NFT surfaces.
To facilitate chemical sanitizers in a closed system with plants, it is essential that the chosen sanitizer eliminates the target pathogen and does not adversely impact plant yield, quality, or nutritional value. We demonstrated that SaniDate 12.0 (200 ppm) can be applied to nutrient solution at-planting with marginal yield, quality, and nutritional losses on lettuce and basil. Further research is now needed to demonstrate the efficacy of SaniDate 12.0 against S. Typhimurium and other bacterial human pathogens in the closed commercial hydroponic system during the production of leafy green plants.
Supplementary Materials
The following supporting information can be downloaded at the website of this paper posted on Preprints.org, Figure S1: RGB color and visual appearance of lettuce and basil plants when grown in the sanitizer-treated nutrient solution. (A) Lettuce RGB color changes during the crop cycle and the visual appearance of lettuce leaves at harvest (Day 28). (B) Basil RGB color changes during the crop cycle and the visual appearance of lettuce leaves at harvest (Day 28). The images were pictures taken at harvest.
Author Contributions
M.L.L.I. and S.I. contributed equally to the conceptualization, methodology, writing—review and editing, visualization, supervision, data collection, project administration, resources, and funding acquisition. A.A.M. contributed to the methodology and investigation, data collection and analysis, and writing—original draft preparation. M.R.M. contributed to the methodology and investigation, and data collection. All authors have read and agreed to the published version of the manuscript.
Funding
This study was funded by the Ohio Department of Agriculture Specialty Crop Block Grant No. GRT00049110. NFT systems, CHR sensors, and SaniDate 12.0 were provided as in-kind support by Crop King Inc., Palin Kemio, and BioSafe Systems respectively.
Data Availability Statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author/s. The raw data supporting the conclusions of this article will be made available by the authors on request.
Acknowledgments
Appreciation to Therese Miller and Carlos St. Preux for their technical support.
Conflicts of Interest
The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
References
- World Health Organization. Five Keys to Growing Safer Fruits and Vegetables : Promoting Health by Decreasing Microbial Contamination; World Health Organization: Geneva, 2012. [Google Scholar]
- Prevention and Control of Microbiological Hazards in Fresh Fruits and Vegetables – Part 4: Specific Commodities; FAO; WHO;, 2023. https://doi.org/10.4060/cc7460en. [CrossRef]
- Painter, J. A.; Hoekstra, R. M.; Ayers, T.; Tauxe, R. V.; Braden, C. R.; Angulo, F. J.; Griffin, P. M. Attribution of Foodborne Illnesses, Hospitalizations, and Deaths to Food Commodities by Using Outbreak Data, United States, 1998–2008 - Volume 19, Number 3—March 2013 - Emerging Infectious Diseases Journal - CDC. [CrossRef]
- Multistate Outbreak of Salmonella Reading and Salmonella Abony Infections Linked to Alfalfa Sprouts | August 2016 | Salmonella | CDC. https://www.cdc.gov/salmonella/reading-08-16/index.html (accessed 2022-04-16).
- Factors Potentially Contributing to the Contamination of Packaged Leafy Greens Implicated in the Outbreak of Salmonella Typhimurium During the Summer of 2021. 8.
- Breuer, T.; Benkel, D. H.; Shapiro, R. L.; Hall, W. N.; Winnett, M. M.; Linn, M. J.; Neimann, J.; Barrett, T. J.; Dietrich, S.; Downes, F. P.; Toney, D. M.; Pearson, J. L.; Rolka, H.; Slutsker, L.; Griffin, P. M. A Multistate Outbreak of Escherichia Coli O157:H7 Infections Linked to Alfalfa Sprouts Grown from Contaminated Seeds. Emerg Infect Dis 2001, 7(6), 977–982. [Google Scholar] [CrossRef] [PubMed]
- Ilic, S.; LeJeune, J.; Lewis Ivey, M. L.; Miller, S. Delphi Expert Elicitation to Prioritize Food Safety Management Practices in Greenhouse Production of Tomatoes in the United States. Food Control 2017, 78, 108–115. [Google Scholar] [CrossRef]
- Aryal, M.; Muriana, P. M. Efficacy of Commercial Sanitizers Used in Food Processing Facilities for Inactivation of Listeria Monocytogenes, E. Coli O157:H7, and Salmonella Biofilms. Foods 2019, 8 (12), 639. [CrossRef]
- Allende, A.; Selma, M. V.; López-Gálvez, F.; Villaescusa, R.; Gil, M. I. Role of Commercial Sanitizers and Washing Systems on Epiphytic Microorganisms and Sensory Quality of Fresh-Cut Escarole and Lettuce. Postharvest Biology and Technology 2008, 49(1), 155–163. [Google Scholar] [CrossRef]
- Korany, A. M.; Hua, Z.; Green, T.; Hanrahan, I.; El-Shinawy, S. H.; El-kholy, A.; Hassan, G.; Zhu, M.-J. Efficacy of Ozonated Water, Chlorine, Chlorine Dioxide, Quaternary Ammonium Compounds and Peroxyacetic Acid Against Listeria Monocytogenes Biofilm on Polystyrene Surfaces. Frontiers in Microbiology 2018, 9. [Google Scholar] [CrossRef] [PubMed]
- Pahariya, P.; Fisher, D. J.; Choudhary, R. Comparative Analyses of Sanitizing Solutions on Microbial Reduction and Quality of Leafy Greens. LWT 2022, 154, 112696. [Google Scholar] [CrossRef]
- Shang, H.; Tan, B. Z.; Dakwa, V.; D’Agnese, E.; Stanley, R. A.; Sassi, H.; Lai, Y.-W.; Deaker, R.; Bowman, J. P. Effect of Pre-Harvest Sanitizer Treatments on Listeria Survival, Sensory Quality and Bacterial Community Dynamics on Leafy Green Vegetables Grown under Commercial Conditions. Food Research International 2023, 173, 113341. [Google Scholar] [CrossRef] [PubMed]
- Dankwa, A. S.; Machado, R. M.; Perry, J. J. Sanitizer Efficacy in Reducing Microbial Load on Commercially Grown Hydroponic Lettuce. Journal of the Science of Food and Agriculture 2021, 101(4), 1403–1410. [Google Scholar] [CrossRef] [PubMed]
- Aramrueang, N.; Asavasanti, S.; Khanunthong, A. Chapter 10 - Leafy Vegetables. In Integrated Processing Technologies for Food and Agricultural By-Products; Pan, Z., Zhang, R., Zicari, S., Eds.; Academic Press, 2019; pp 245–272. [CrossRef]
- Mampholo, B. M.; Maboko, M. M.; Soundy, P.; Sivakumar, D. Phytochemicals and Overall Quality of Leafy Lettuce (Lactuca Sativa L.) Varieties Grown in Closed Hydroponic System. Journal of Food Quality 2016, 39 (6), 805–815. [CrossRef]
- El-Nakhel, C.; Pannico, A.; Graziani, G.; Kyriacou, M. C.; Giordano, M.; Ritieni, A.; De Pascale, S.; Rouphael, Y. Variation in Macronutrient Content, Phytochemical Constitution and In Vitro Antioxidant Capacity of Green and Red Butterhead Lettuce Dictated by Different Developmental Stages of Harvest Maturity. Antioxidants 2020, 9(4), 300. [Google Scholar] [CrossRef] [PubMed]
- Martins, T.; Barros, A. N.; Rosa, E.; Antunes, L. Enhancing Health Benefits through Chlorophylls and Chlorophyll-Rich Agro-Food: A Comprehensive Review. Molecules 2023, 28(14), 5344. [Google Scholar] [CrossRef] [PubMed]
- Kim, M. J.; Moon, Y.; Tou, J. C.; Mou, B.; Waterland, N. L. Nutritional Value, Bioactive Compounds and Health Benefits of Lettuce (Lactuca Sativa L.). Journal of Food Composition and Analysis 2016, 49, 19–34. [CrossRef]
- Voutilainen, S.; Nurmi, T.; Mursu, J.; Rissanen, T. H. Carotenoids and Cardiovascular Health. Am J Clin Nutr 2006, 83(6), 1265–1271. [Google Scholar] [CrossRef] [PubMed]
- Grune, T.; Lietz, G.; Palou, A.; Ross, A. C.; Stahl, W.; Tang, G.; Thurnham, D.; Yin, S.; Biesalski, H. K. β-Carotene Is an Important Vitamin A Source for Humans123. J Nutr 2010, 140(12), 2268S–2285S. [Google Scholar] [CrossRef] [PubMed]
- Copolovici, L.; Lupitu, A.; Moisa, C.; Taschina, M.; Copolovici, D. M. The Effect of Antagonist Abiotic Stress on Bioactive Compounds from Basil (Ocimum Basilicum). Appl. Sci. 2021, 11 (9281).
- Deblais, L.; Miller, S. A.; Rajashekara, G. Impact of Plant Pathogen Infection on Salmonella Enterica Subsp. Enterica Serotype Typhimurium Persistence in Tomato Plants. Journal of Food Protection 2021, 84(4), 563–571. [Google Scholar] [CrossRef] [PubMed]
- Moodispaw, M. R. Establishing Science-Based Strategies for Prevention and Mitigation of Human Pathogens in Leafy Greens Grown in Nutrient Film Technique (NFT) Hydroponic Systems, The Ohio State University, 2022. https://etd.ohiolink.edu/acprod/odb_etd/etd/r/1501/10?clear=10&p10_accession_num=osu1650622577802721 (accessed 2023-10-16).
- Gillespie, D. P.; Kubota, C.; Miller, S. A. Effects of Low pH of Hydroponic Nutrient Solution on Plant Growth, Nutrient Uptake, and Root Rot Disease Incidence of Basil (Ocimum Basilicum L.). HortScience 2020, 55 (8), 1251–1258. [CrossRef]
- Lichtenthaler, H. K. [34] Chlorophylls and Carotenoids: Pigments of Photosynthetic Biomembranes. In Methods in Enzymology; Plant Cell Membranes; Academic Press, 1987; Vol. 148, pp 350–382. [CrossRef]
- Nordstokke, D. W.; Zumbo, B. D. A Ew Onparametric Levene Test for Equal Variances.
- Tech, V.; Tech, V. An Assessment of Produce Growers’ Sanitizer Knowledge and Practices on the Correct Use of Sanitizers. 7.
- Tham, C. A. T.; Zwe, Y. H.; Ten, M. M. Z.; Ng, G. S. Y.; Toh, J. Y. L.; Poh, B. L.; Zhou, W.; Li, D. Microbial Analysis and Sanitization of Hydroponic Farming Facilities in Singapore. , 2024. 9 April. [CrossRef]
- Howard, R.; Harding, M.; Savidov, N.; Lisowski, S.; Burke, D.; Pugh, S. Identifying Effective Chemical Disinfectants for Use in Sanitizing Greenhouses. In Alberta professional horticultural growers congress and foundation society, Alberta, Canada; 2007.
- Juarez-Lopez, O.-C.; Lopez-Martinez, A.-T.; Mendoza-Tafolla, R.; Ronald, E.; Ontiveros-Capurata, R. E.; Juarez-Lopez, P.; Alia Tejacal, I.; Lopez-Martinez, V.; Ruiz Alvarez, O. Nitrogen and Chlorophyll Status in Romaine Lettuce Using Spectral Indices from RGB Digital Images. Zemdirbyste-Agriculture 2021, 108, 79–86. [CrossRef]
- Zhang, H.; Zhao, Y.; Zhu, J.-K. Thriving under Stress: How Plants Balance Growth and the Stress Response. Developmental Cell 2020, 55(5), 529–543. [Google Scholar] [CrossRef] [PubMed]
- Du, L.; Yang, H.; Song, X.; Wei, N.; Yu, C.; Wang, W.; Zhao, Y. Estimating Leaf Area Index of Maize Using UAV-Based Digital Imagery and Machine Learning Methods. Sci Rep 2022, 12(1), 15937. [Google Scholar] [CrossRef] [PubMed]
- Qi, X.; Zhao, Y.; Huang, Y.; Wang, Y.; Qin, W.; Fu, W.; Guo, Y.; Ye, Y. A Novel Approach for Nitrogen Diagnosis of Wheat Canopies Digital Images by Mobile Phones Based on Histogram. Sci Rep 2021, 11(1), 13012. [Google Scholar] [CrossRef] [PubMed]
- Schifferstein, H. N. J.; Wehrle, T.; Carbon, C.-C. Consumer Expectations for Vegetables with Typical and Atypical Colors: The Case of Carrots. Food Quality and Preference 2019, 72, 98–108. [Google Scholar] [CrossRef]
- BP Comments on Chlorine Materials.601-603-605.Final.Pdf.
- EPA Needs to Assure Effectiveness of Antimicrobial Pesticide Products.
Figure 1.

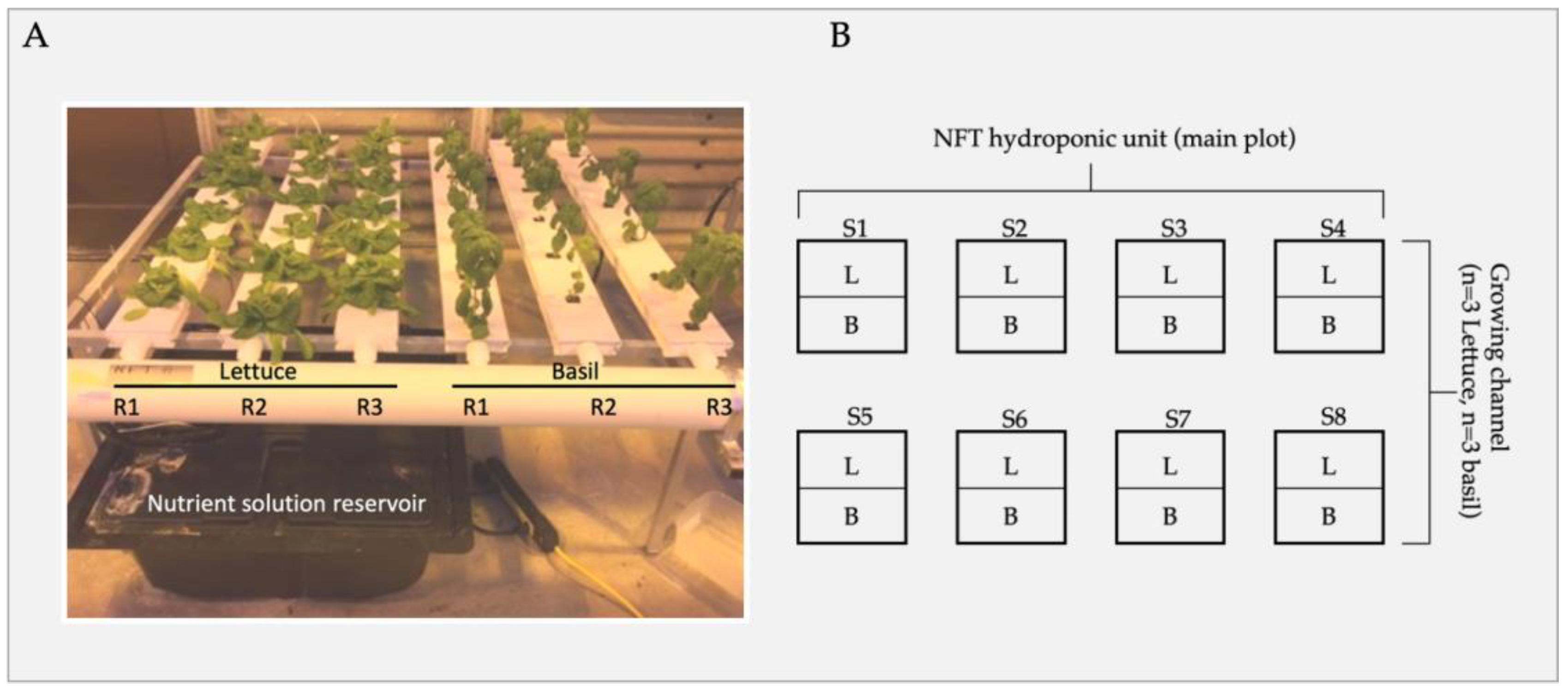

Experimental design. (A) Nutrient flow technology (NFT) hydroponic unit (main plot S) consisted of six growing channels: three lettuce (n=3 channels; subplot L) and basil (n=3 channels; subplot B) each containing six plants per channel. (B) A schematic of the split-plot experimental set-up. Each plot (S1-8) received different treatments. Crops were randomly sampled weekly until harvest (Day 1, Day 7, Day 14, Day 21, Day 28).
Figure 1.
Experimental design. (A) Nutrient flow technology (NFT) hydroponic unit (main plot S) consisted of six growing channels: three lettuce (n=3 channels; subplot L) and basil (n=3 channels; subplot B) each containing six plants per channel. (B) A schematic of the split-plot experimental set-up. Each plot (S1-8) received different treatments. Crops were randomly sampled weekly until harvest (Day 1, Day 7, Day 14, Day 21, Day 28).
Figure 2.

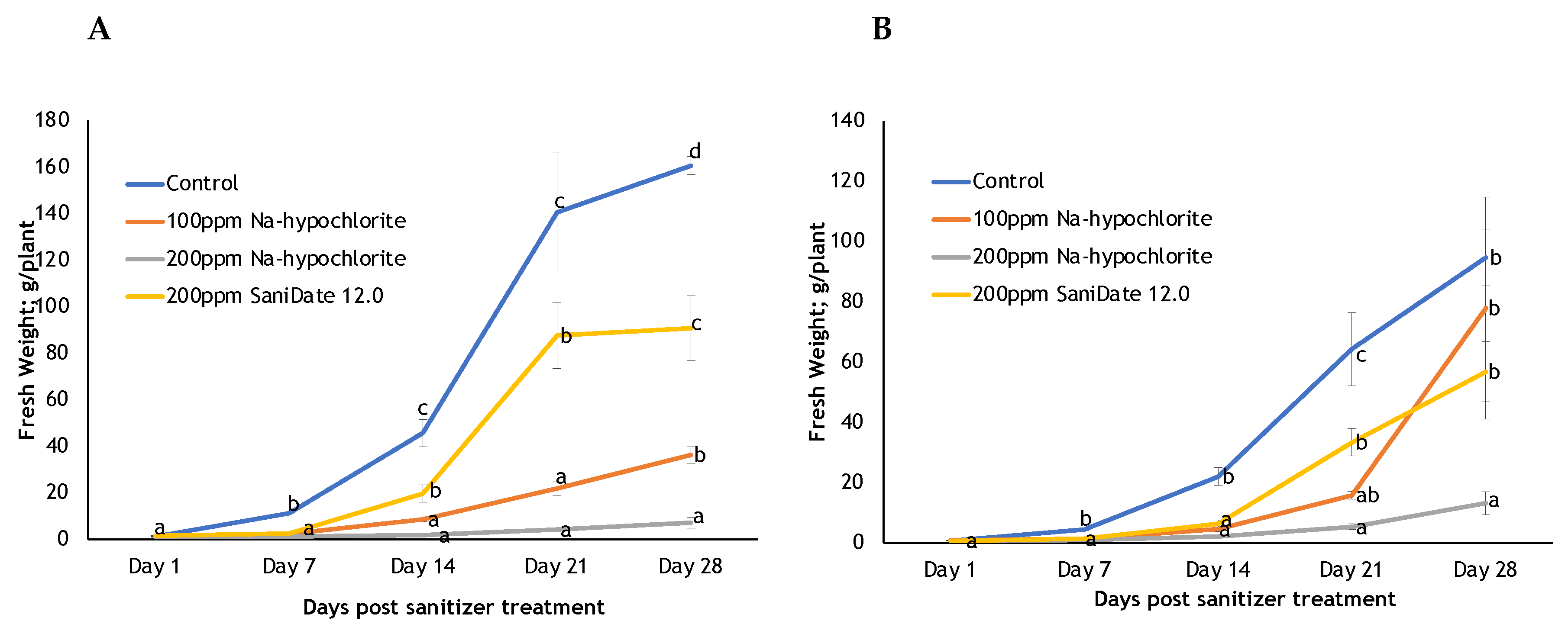

Effect of sanitizers on (A) fresh edible lettuce weight (g shoots/plant) and (B) fresh edible basil weight (g shoots/plant). Mean values are pooled from three experiments (n=9). Specific time points that share the same letters are not significantly different at the 5% level based on Fisher’s LSD post hoc analysis. Bars represent mean standard error.
Figure 2.
Effect of sanitizers on (A) fresh edible lettuce weight (g shoots/plant) and (B) fresh edible basil weight (g shoots/plant). Mean values are pooled from three experiments (n=9). Specific time points that share the same letters are not significantly different at the 5% level based on Fisher’s LSD post hoc analysis. Bars represent mean standard error.
Table 1.
Chemical sanitizers used to treat the commercial hydroponic surfaces in this study, including the active ingredients, concentrations, and contact time.
Table 1.
Chemical sanitizers used to treat the commercial hydroponic surfaces in this study, including the active ingredients, concentrations, and contact time.
| Sanitizer Type | Sanitizer Brand | Active Ingredient (%) | Treatment Concentrations | Contact Time (min) |
|---|---|---|---|---|
| Chlorine-based | Bleach | Sodium hypochlorite (6) | 100 ppm | 10 |
| Bleach | Sodium hypochlorite (6) | 200 ppm | 10 | |
| NatriChlor™ CD | Aqueous chlorine dioxide (0.3) | 10 ppm, | 10 | |
| NatriChlor™ CD | Aqueous chlorine dioxide (0.3) | 50 ppm | 10 | |
| PPA 1 | Zerotol™ | Hydrogen peroxide (27.1) and Peroxyacetic acid (2.0) | 5 % | 10 |
| SaniDate™12.0 | Hydrogen peroxide (18.5) and Peroxyacetic acid (12.0) | 100 ppm | 5 | |
| SaniDate™ 12.0 | Hydrogen peroxide (18.5) and Peroxyacetic acid (12.0) | 200 ppm | 5 | |
| Quaternary Ammonia Compounds (QAC)3 | Kleen Grow™ | Didecyl dimethyl ammonium chloride (7.5) | 2 % | 10 |
| Green Shield™ | Alkyl dimethyl benzyl ammonium chloride (10.0) and Alkyl dimethyl ethyl benzyl ammonium chloride (10) | 5 % | 10 | |
| PPM2,3 | Virkon™ | Potassium peroxymonosulfate (21.42) and Sodium chloride (1.50) | 1 % | 10 |
1 PPA-Peroxide-peroxyacetic acid 2 PPM-Potassium peroxymonosulfate-NaCl. 3 Not registered for use in the food industry.
Table 2.
Measures and calculation of chlorophyll (chl) and carotenoid (car) content in lettuce and basil leaves.
Table 2.
Measures and calculation of chlorophyll (chl) and carotenoid (car) content in lettuce and basil leaves.
| Nutrients | Concentration extract (ug/ml) |
Concentration plant tissue (ug/g fresh weight) |
|---|---|---|
| Chlorophyll a | 12.25 A663.2 – 2.79 A646.8 | Chl a extract * volume / g tissue |
| Chlorophyll b | 21.50 A646.8 – 5.1 A663.2 | Chl b extract * volume / g tissue |
| Chlorophyll a+b | 7.5 A663.2 + 18.71 A646.8 | Chl a+b extract * volume / g tissue |
| Carotenoid | 1000 A470 – 1.8 Chl a – 85.02 Chl b/ 198 | Carotenoid extract * volume / g tissue |
Table 3.
Mean log and percent reduction of Salmonella Typhimurium (initial 8 log CFU/cm2) following application of commonly used chemical sanitizers on different inanimate surfaces of NFT hydroponic systems (Experiment 1).
Table 3.
Mean log and percent reduction of Salmonella Typhimurium (initial 8 log CFU/cm2) following application of commonly used chemical sanitizers on different inanimate surfaces of NFT hydroponic systems (Experiment 1).
| Sanitizer group | Treatment | NFT surfaces for hydroponic production of leafy greens | |||
|---|---|---|---|---|---|
| Reservoir | Top cover | Growing channel | Main drain line | ||
| Log reduction (CFU/cm2 ± SE) (% reduction) |
Log reduction (CFU/cm2 ± SE) (% reduction) |
Log reduction (CFU/cm2 ± SE) (% reduction) |
Log reduction (CFU/cm2 ± SE) (% reduction) |
||
| Control | Water Treatment | 0.45 ± 0.19 b | 0.62 ± 0.10 b | 1.53 ± 0.27 b | 2.36 ± 0.60 b |
| (64.000) | (72.624) | (94.735) | (99.559) | ||
| Chlorine-based | Bleach 100ppm | 0.68 ± 0.04 b | 1.83 ± 0.43 b | 0.68 ± 0.08 b | 0.86 ± 0.43 b |
| (78.562) | (95.187) | (78.749) | (69.342) | ||
| Bleach 200ppm | 1.78 ± 0.32 ab | 3.21 ± 0.4 b | 3.42 ± 0.19 ab | 0.89 ± 0.07 b | |
| (93.810) | (99.823) | (99.931) | (86.041) | ||
| NatriChlor™ CD 10ppm | 0.57 ± 0.07 b | 1.35 ± 0.23 b | 1.37 ± 0.51 b | 1.21 ± 0.21 b | |
| (70.781) | (91.739%) | (90.616%) | (90.979%) | ||
| NatriChlor™ CD 50ppm | 0.67 ± 0.10 b | 4.14 ± 0.40 ab | 2.39 ± 0.29 b | 2.46 ± 0.06 b | |
| (73.500) | (99.907) | (98.763) | (99.643) | ||
| PPA | Zerotol™ 5% | *5.60 ± 0.00 a | *5.18 ± 0.00 a | *5.15 ± 0.00 a | *5.21 ± 0.00 a |
| SaniDate™ 12.0 100ppm | *5.60 ± 0.00 a | *5.18 ± 0.00 a | 4.49 ± 0.35 a | 4.24 ± 0.51 a | |
| (99.971) | (99.926) | ||||
| SaniDate™ 12.0 200ppm | *5.60 ± 0.00 a | *5.18 ± 0.00 a | *5.15 ± 0.00 a | *5.21 ± 0.00 a | |
| PPM | Virkon™ 1% | *5.60 ± 0.00 a | 5.18 ± 0.00 a | 5.15 ± 0.00 a | *5.21 ± 0.00 a |
|
Quaternary ammonia |
Kleen Grow™ 2% | *5.60 ± 0.00 a | *5.18 ± 0.00 a | *5.15 ± 0.00 a | *5.21 ± 0.00 a |
| Green Shield™ 5% | *5.60 ± 0.00 a | *5.18 ± 0.00 a | *5.15 ± 0.00 a | *5.21 ± 0.00 a | |
| p-value | <0.001 | <0.001 | <0.001 | <0.001 | |
1 Each data point represents the mean log reduction and standard error derived from 4 replications with 2 samples per replication (n=8) in experiment 1. 2 Values in parenthesis represent the mean percentage reduction. 3 Plus (☩) indicates recovery after enrichment for sanitizer treatment with 99.999-100% reduction. 4 Asterisk (*) indicates a 100%reduction and no detection after enrichment. 5 Values in a column followed by different letters are significantly different at p < 0.05 based on Fisher’s LSD post hoc analysis.
Table 4.
Mean log and percent reduction of Salmonella Typhimurium (initial 8 log CFU/cm2) following application of commonly used chemical sanitizers on different inanimate surfaces of NFT hydroponic systems (Experiment 2).
Table 4.
Mean log and percent reduction of Salmonella Typhimurium (initial 8 log CFU/cm2) following application of commonly used chemical sanitizers on different inanimate surfaces of NFT hydroponic systems (Experiment 2).
| Sanitizer group | Treatment | NFT surfaces for hydroponic production of leafy greens | |||
| Reservoir | Top cover | Growing channel | Main drain line | ||
| Log reduction (CFU/cm2 ± SE) (% reduction) |
Log reduction (CFU/cm2 ± SE) (% reduction) |
Log reduction (CFU/cm2 ± SE) (% reduction) |
Log reduction (CFU/cm2 ± SE) (% reduction) |
||
| Control | Water Treatment | 4.49 ± 0.07 b | 4.28 ± 0.34 b | 3.68 ± 0.35 b | 4.90 ± 0.16 b |
| (99.997) | (99.990) | (99.951) | (99.997) | ||
| Chlorine-based | Bleach 100ppm | 3.90 ± 1.18 b | 3.65 ± 0.61 b | 4.22 ± 0.54 bc | 4.98 ± 0.14 ab |
| (99.904) | (99.870) | (99.970) | (99.998) | ||
| Bleach 200ppm | 4.61 ± 0.33 b | 4.67 ± 0.30 ab | ☩5.07 ± 0.08 ac | ☩5.20 ab | |
| (99.996) | (99.996) | (99.999) | (100.000) | ||
| NatriChlor™ CD 10ppm | ☩5.08 ab | 3.90 ± 0.32 b | 4.17 ± 0.28 b | 4.87 ± 0.23 ab | |
| (99.999) | (99.977) | (99.986) | (99.998) | ||
| NatriChlor™ CD 50ppm | ☩5.34 ± 0.26 ab | 4.13 ± 0.03 b | 4.83 ± 0.23 bc | *5.11 ± 0.09 ab | |
| (99.999) | (99.991) | (99.997) | (99.999) | ||
| PPA | Zerotol™ 5% | *5.60 ± 0.00 a | *5.18 ± 0.00 a | *5.15 ± 0.00 a | *5.20 ab |
| SaniDate™ 12.0 100ppm | *5.60 ± 0.00 a | *5.18 ± 0.00 a | *5.15 ± 0.00 a | 5.03 ± 0.10 ab | |
| (99.999) | |||||
| SaniDate™ 12.0 200ppm | *5.60 ± 0.00 a | *5.18 ± 0.00 a | *5.15 ± 0.00 a | *5.20 ± 0.00 a | |
| PPM | Virkon™ 1% | *5.60 ± 0.00 a | 5.18 ± 0.00 a | *5.15 ± 0.00 a | *5.20 ± 0.00 a |
|
Quaternary ammonia |
Kleen Grow™ 2% | *5.60 ± 0.00 a | *5.18 ± 0.00 a | *5.15 ± 0.00 a | *5.20 ± 0.00 a |
| Green Shield™ 5% | *5.60 ± 0.00 a | *5.18 ± 0.00 a | *5.15 ± 0.00 a | *5.20 ± 0.00 a | |
| p-value | 0.039 | <0.001 | <0.001 | 0.097 | |
1 Each data point represents the mean log reduction and standard error derived from 4 replications with 2 samples per replication (n=8) in experiment 2. 2 Values in parenthesis represent the mean percentage reduction. 3 Plus (☩) indicates recovery after enrichment for sanitizer treatment with 99.999-100% reduction. 4 Asterisk (*) indicates 100%reduction and no detection after enrichment. 5 Values in a column followed by different letters are significantly different at p < 0.05 based on Fisher’s LSD post hoc analysis.
Table 5.
Free chlorine, total chlorine, oxidative reduction potential (ORP) of nutrient solution following treatment with Bleach.
Table 5.
Free chlorine, total chlorine, oxidative reduction potential (ORP) of nutrient solution following treatment with Bleach.
| Bleach | Day | Free chlorine 1 (mg/L) |
Total chlorine 1 (mg/L) |
ORP (mV) |
Relative ORP (∆ORP) (mV) |
Temperature of nutrient solution (°C) |
|---|---|---|---|---|---|---|
| 100ppm | 1 | 7.49 ± 3.55 | 25.73 ± 11.87 | 872.33 ± 33.45 | 203.00 ± 33.-5 | 22.64 ± 1.32 |
| 2 | 3.67 ± 0.68 | 9.90 ± 1.87 | 775.75 ± 55.78 | 113.50 ± 34.65 | 11.23 ± 2.24 | |
| 7 | 0.15 ± 0.29 | <1.0 | 417.93 ± 152.16 | 38.63 ± 39.68 | 22.53 ± 1.68 | |
| 14 | <0.10 | <1.0 | 448.20 ± 65.99 | 217 ± 6.63 | 23.86 ± 2.30 | |
| 200ppm | ||||||
| 1 | >25 | 110.69 ± 31.09 | 857.67 ± 25.45 | 194.50 ± 30.97 | 23.35 ± 1.70 | |
| 2 | 18.63 ± 4.32 | 69.90 ± 9.84 | 830.25 ± 28.34 | 144.00 ± 36.77 | 19.78. ± 2.59 | |
| 7 | 6.71 ± 6.25 | 16.46 ± 13.40 | 788.79 ± 1.58 | 365.38 ± 134.59 | 23.89 ± 2.71 | |
| 14 | 0.81 ± 1.69 | 1.25 ± 1.81 | 534.10 ± 200.14 | 33.80 ± 71.69 | 23.78 ± 2.04 |
1 Free and total chlorine concentrations were determined with the CHR (high concentration of chlorine) sensor (Palin Kemio, England). The detection range for free chlorine was 0.1 mg/L - 25 mg/L (5 °C - 25 °C) and 1 mg/L - 500 mg/L (5 °C - 30 °C) for total chlorine. 2 Only values higher than the control were used to calculate relative ORP. 3 Each data point represents the mean and standard deviation.
Table 6.
Color of lettuce and basil grown in sanitizer-treated nutrient solution at harvest expressed as red-green-blue (RGB) values and the hexadecimal color (HEX) code.
Table 6.
Color of lettuce and basil grown in sanitizer-treated nutrient solution at harvest expressed as red-green-blue (RGB) values and the hexadecimal color (HEX) code.
| R | G | B | HEX code | ||
|---|---|---|---|---|---|
| Lettuce | Non-treated (control) | 139.33 ± 24.25 | 195.33 ± 12.19 | 52.33 ± 10.61 | #8BC334 |
| Bleach 100ppm | 136.67 ± 11.17 | 190.17 ± 8.32 | 45.67 ± 3.95 | #BDE254 | |
| Bleach 200pm | 138.50 ±16.46 | 189.83 ± 11.93 | 28.50 ± 12.88 | #8BBE1D | |
| SaniDate 12.0 200ppm | 127.38 ± 6.76 | 192.88 ± 7.76 | 39.50 ± 8.73 | #7FC128 | |
| Basil | Non-treated (control) | 114.17 ± 13.10 | 177.50 ± 15.73 | 75.83 ± 12.24 | #72B24C |
| Bleach 100ppm | 189.00 ± 17.69 | 226.33 ± 6.58 | 84.00 ± 6.82 | #BDE254 | |
| Bleach 200pm | 173.67 ± 9.33 | 220.17 ± 8.93 | 69.33 ± 5.50 | #AEDC45 | |
| SaniDate 12.0 200ppm | 135.88 ± 5.40 | 199.88 ± 5.35 | 86.38 ± 6.64 | #88C856 |
1 Each RGB color represents the mean values and standard error pooled from three experiments (n=9).
Table 7.
Effect of chemical sanitizers commonly used in commercial greenhouses on the nutritional value of lettuce and basil grown in a nutrient film technique (NFT) hydroponic system.
Table 7.
Effect of chemical sanitizers commonly used in commercial greenhouses on the nutritional value of lettuce and basil grown in a nutrient film technique (NFT) hydroponic system.
| Nutritional value | |||||||
|---|---|---|---|---|---|---|---|
| Chlorophyll (ug/g. FW) | Carotenoid (ug/g. FW) | Total chlorophyll: carotenoid | |||||
| Total | "a" | "b" | "a:b" | ||||
| Lettuce | Non-treated | 2004.30 ± 104.27 A | 1206.05 ± 54.53 A | 453.64 ± 19.78 A | 2.66 ± 0.02 A | 321.29 ± 21.78 A | 6.27 ± 0.12 A |
| Bleach 100ppm | 1100.79 ± 99.03 B | 673.96 ± 64.17 B | 250.45 ± 24.50 B | 2.70 ± 0.05 A | 232.11 ± 14.19 B | 4.72 ± 0.20 B | |
| Bleach 200ppm | 730.75 ± 73.64 C | 430.72 ± 48.80 C | 147.07 ± 21.33 C | 3.01 ± 0.13 A | 116.82 ± 13.29 C | 4.36 ± 0.19 C | |
| SaniDate 12.0 200ppm | 1650.95 ± 109.30 D | 1051.67 ± 61.33 A | 352.25 ± 24.12 D | 3.04 ± 0.21 A | 280.53 ± 14.35 A | 5.85 ± 0.12 C | |
| p-value | <0.001 | <0.001 | <0.001 | 0.076 | <0.001 | <0.001 | |
| Basil | Non-treated | 1105.11 ± 77.16 A | 661.35 ± 43.29 A | 235.40 ± 17.07 A | 2.82 ± 0.05 A | 235.73 ± 18.09 A | 4.71 ± 0.07 A |
| Bleach 100ppm | 727.31 ± 29.47 B | 430.16 ± 18.34 B | 146.51 ± 8.14 A | 2.95 ± 0.06 A | 186.91 ± 6.51 A | 3.90 ± 0.12 A | |
| Bleach 200ppm | 490.74 ± 22.11 B | 282.74 ± 18.08 B | 78.24 ± 7.06 A | 3.66 ± 0.11 B | 149.85 ± 3.09 A | 3.27 ± 0.12 A | |
| SaniDate 12.0 200ppm | 1047.37 ± 162.36 A | 738.94 ± 159.95 A | 357.67 ± 191.02 A | 3.23 ± 0.35 AB | 110.89 ± 89.54 A | 3.44 ± 1.08 A | |
| p-value | 0.002 | 0.018 | 0.276 | 0.03 | 0.426 | 0.39 | |
1 Each datapoint represents the combined mean (n=9) and standard error of three independent experiments. 2 Means within the same column followed by the same letters are not significantly different at the 5% level based on Fisher’s LSD post hoc analysis.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2024 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
