Analyzing the Approximate Error and the Applicable Condition of Fractional Reduced Differential Transform Method

1. Introduction

Fractional calculus is an extension of integer calculus from integer dimension to fractional dimension, and can be applied to depict real physical systems with arbitrary accuracy. Fractional models are treated in many areas such as signal processing[1], image processing, control engineering[2], mechanic engineering etc[3,4,5,6].

The fractional calculus is defined by a convolution operation and is computationally complex. How to simplify this computation is an important research topic in the fractional field. Many approximate approaches have been proposed for this issue [7,8,9,10,11,12]. Without exception, only an approximation solution, but not an exact solution, can be obtained by any approximate method. There must exist an approximate error between the approximate solution and the exact solution. Only within the allowable range of the approximate error can this approximate method be correct. Or else, the achievements obtained may be incorrect[13,14,15]. For example, Ahmadian A. obtained the approximate solution in the time domain by its approximate value in Laplace domain[12], but Zhao L. etc[16] analyzed the approximate error and pointed out that this approach may mislead.

Similarly, fractional reduced differential transform method is also an approximate approach, and the approximate value is obtained by omitting some high order items of fractional expansions. It has been applied to solve fractional partial differential equations [17,18,19], higher-dimensional fractional equation[20], fractional nonlinear equation[21], fractional transport model[22], fractional financial models of awareness[23,24] etc. By this approach, the calculating process can be simplified and the approximate value can be drawn when the omitted high-order items are infinitesimal, but it can also mislead when the omitted high-order items are not infinitesimal. On the other hand, the high-order terms that are ignored may be infinitesimal within a certain time range and gradually increase over this time range. This method can only be applied in a certain time range. However, the approximate error and the applicable condition have rarely been reported in the obtained achievements. Some special examples presented cannot verify the effectiveness of the mentioned method.

In this paper, we study the fractional expansion and obtain its parameters according to the mean value theorem. The parameters are drawn step by step based on the hypothesis that the high-order items are infinitesimal. Then, we draw the applicable condition from the allowable error. Some examples are taken to verify our analysis. Numerical simulations show that the approximate error is convergent in a certain time range and increases rapidly over this time range.

The rest of this paper is organized as follows. Section 2 addresses the definitions and some properties of fractional calculus. Fractional reduced differential transform method is formulated in Section 3. We analyze the approximate error and the applicable condition in Section 4. In Section 5, some examples are taken to verify our analysis. Lastly, a conclusion is drawn in Section 6.

2. The Definitions and Some Properties of Fractional Calculus

There exist many fractional derivative definitions, among which the Caputo fractional derivative definition is widely adapted as it is irrelevant to the initial condition. In this paper, the Caputo fractional derivative definition is adapted.

Definition 1.

The fractional derivative in the Caputo sense of the function $\varsigma \left(t\right)\in C^n(t\in [t_0,+\infty ),\mathbb{R})$ with order ϵ is defined as

$$\begin{array}{cc}\hfill { }_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right)& =\frac{1}{\Gamma (n-ϵ)}{\int }_{t_0}^t\frac{{\varsigma }^{\left(n\right)}\left(\tau \right)}{{(t-\tau )}^{ϵ-n+1}}d\tau \hfill \end{array}$$

(1)

where $\Gamma (·)$ is the Gamma function, $\varsigma \left(t_0\right)$ is the initial value of $\varsigma \left(t\right)$ and n is a positive integer such that $n-1<ϵ<n$.

Definition 2.

The fractional integral of function $\varsigma \left(t\right)$ with order ϵ is defined as

$$\begin{array}{cc}\hfill { }_{t_0}{I}_t^{ϵ}\varsigma \left(t\right)& =\frac{1}{\Gamma \left(ϵ\right)}{\int }_{t_0}^t{(t-\tau )}^{ϵ-1}\varsigma \left(\tau \right)d\tau \hfill \end{array}$$

(2)

Some properties of fractional calculus that may be adapted are introduced in the following.

$\left(i\right)$ For a continuous function $\varsigma \left(t\right)$, ${ }_{t_0}{I}_t^{ϵ}{[}_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right)]=\varsigma \left(t\right)-\varsigma \left(t_0\right)$.

$\left(ii\right)$${ }_{t_0}^C{D}_t^{ϵ}C=0$, where C is a constant.

$\left(iii\right)$${ }_{t_0}^C{D}_t^{ϵ}{t}^{\xi }=\frac{\Gamma (\xi +1)}{\Gamma (\xi -ϵ+1)}{(t-t_0)}^{\xi -ϵ}$, where $n-1<ϵ<n$ and $ϵ$ is not an integer less than n.

$\left(iv\right)$${ }_{t_0}^C{D}_t^{\alpha }{(}_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right)){=}_{t_0}^C{D}_t^{\alpha +ϵ}\varsigma \left(t\right)$.

Theorem 1.

If ${\varsigma }^{\left(n\right)}\left(t\right)(t\in [t_0,a])$ is a continuous function, there must exist a constant $\nu \in [t_0,a]$ satisfying

$$\begin{array}{cc}\hfill & { }_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right)=\frac{{\varsigma }^{\left(n\right)}\left(\nu \right)}{\Gamma (n-ϵ+1)}{(t-t_0)}^{n-ϵ}\hfill \end{array}$$

(3)

Proof.

According to the mean value theorem, there must exist $\nu \in [t_0,a]$ satisfying the following equation,

$$\begin{array}{cc}\hfill & { }_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right)=\frac{1}{\Gamma (n-ϵ)}{\int }_{t_0}^t\frac{{\varsigma }^{\left(n\right)}\left(\tau \right)}{{(t-\tau )}^{ϵ-n+1}}{d\tau |}_{t=a}\hfill \\ \hfill & ={\varsigma }^{\left(n\right)}\left(\nu \right)\frac{1}{\Gamma (n-ϵ)}{\int }_{t_0}^t\frac{1}{{(t-\tau )}^{ϵ-n+1}}d\tau \hfill \\ \hfill & =\frac{{\varsigma }^{\left(n\right)}\left(\nu \right)}{\Gamma (n-ϵ+1)}{(t-t_0)}^{n-ϵ}\hfill \end{array}$$

(4)

where $min\left({\varsigma }^{\left(n\right)}\left(t\right)\right)\le {\varsigma }^{\left(n\right)}\left(\nu \right)\le max\left({\varsigma }^{\left(n\right)}\left(t\right)\right)$.

The proof of Theorem 1 is completed. □

Conclusion 1: If $\varsigma \left(t\right)(t\in [t_0,a])$ is a continuous function, there must exist a constant $\nu \in [t_0,a]$ satisfying

$${ }_{t_0}{I}_t^{ϵ}\varsigma \left(t\right){\mid }_{t=a}=\varsigma \left(\nu \right)\frac{1}{\Gamma \left(ϵ\right)}{\int }_{t_0}^t{(t-\tau )}^{ϵ-1}d\tau$$

Note 1: Especially, when $t\to t_0$, it yields ${\varsigma }^{\left(n\right)}\left(\nu \right)={\varsigma }^{\left(n\right)}\left(t_0\right)={\varsigma }^{\left(n\right)}\left(t\right)$ and

$$\begin{array}{cc}\hfill & \underset{t\to t_0}{lim}{ }_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right)=\frac{{\varsigma }^{\left(n\right)}\left(t_0\right)}{\Gamma (n-ϵ+1)}{(t-t_0)}^{n-ϵ}\hfill \end{array}$$

(5)

Obviously, the above holds only when $t\to t_0$. Or else, it may be incorrect.

Theorem 2.

When $0<ϵ\le 1$, if $\varsigma \left(t\right)$ and $g\left(t\right)$ ($t\in (t_0,t_b)$) are continuous differentiable functions, there must exist a constant $\nu \in [t_0,t_b]$ making the following equation hold,

$$\begin{array}{c}\hfill \frac{\varsigma \left(t_b\right)-\varsigma \left(t_0\right)}{g\left(t_b\right)-g\left(t_0\right)}=\frac{{ }_{t_0}^C{D}_t^{ϵ}{\varsigma \left(t\right)|}_{t=\nu }}{{ }_{t_0}^C{D}_t^{ϵ}{g\left(t\right)|}_{t=\nu }}\end{array}$$

(6)

Proof.

Define function $\vartheta \left(t\right)=\varsigma \left(t\right)-\frac{\varsigma \left(t_b\right)-\varsigma \left(t_0\right)}{g\left(t_b\right)-g\left(t_0\right)}g\left(t\right)$ and get

$$\begin{array}{c}\hfill \vartheta \left(t_b\right)-\vartheta \left(t_0\right)=0\end{array}$$

(7)

From the property of fractional calculus, it yields

$$\begin{array}{cc}\hfill & \vartheta \left(t_b\right)-\vartheta \left(t_0\right)\hfill \\ \hfill & {=}_{t_0}{I}_t^{ϵ}{[}_{t_0}^C{D}_t^{ϵ}\vartheta \left(t\right)]\hfill \\ \hfill & =\frac{1}{\Gamma \left(ϵ\right)}{\int }_{t_0}^t{(t-\tau )}^{ϵ-1}{[}_{t_0}^C{D}_{\tau }^{ϵ}\vartheta \left(\tau \right)]d\tau \hfill \end{array}$$

(8)

According to Conclusion 1, we obtain

$$\begin{array}{cc}\hfill & \vartheta \left(t_b\right)-\vartheta \left(t_0\right)\hfill \\ \hfill & =\frac{1}{\Gamma \left(ϵ\right)}{\int }_{t_0}^t{(t-\tau )}^{ϵ-1}{[}_{t_0}^C{D}_{\tau }^{ϵ}\vartheta \left(\tau \right)]d\tau \hfill \\ \hfill & ={[}_{t_0}^C{D}_t^{ϵ}\vartheta \left(t\right)]{|}_{t=\nu }\frac{1}{\Gamma \left(ϵ\right)}{\int }_{t_0}^t{(t-\tau )}^{ϵ-1}d\tau \hfill \\ \hfill & =0\hfill \end{array}$$

(9)

Then, there must exist a constant $\nu \in [t_0,a]$ satisfying

$$\begin{array}{cc}\hfill & {[}_{t_0}^C{D}_t^{ϵ}\vartheta \left(t\right)]{{|}_{t=\nu }{=}_{t_0}^C{D}_t^{ϵ}[\varsigma \left(t\right)-\frac{\varsigma \left(t_b\right)-\varsigma \left(t_0\right)}{g\left(t_b\right)-g\left(t_0\right)}g\left(t\right)]|}_{t=\nu }\hfill \\ \hfill & ={[}_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right)-\frac{\varsigma \left(t_b\right)-\varsigma \left(t_0\right)}{g\left(t_b\right)-g\left(t_0\right)}{ }_{t_0}^C{D}_t^{ϵ}g\left(t\right)]{|}_{t=\nu }\hfill \\ \hfill & =0\hfill \end{array}$$

(10)

We can obtain

$$\begin{array}{c}\hfill \frac{\varsigma \left(t_b\right)-\varsigma \left(t_0\right)}{g\left(t_b\right)-g\left(t_0\right)}=\frac{{ }_{t_0}^C{D}_t^{ϵ}{\varsigma \left(t\right)|}_{t=\nu }}{{ }_{t_0}^C{D}_t^{ϵ}{g\left(t\right)|}_{t=\nu }}\end{array}$$

(11)

The proof of Theorem 2 is completed. □

Theorem 3.

If $\varsigma \left(t\right)$ and $g\left(t\right)$ are continuous differentiable functions satisfying $\underset{t\to t_0}{lim}\varsigma \left(t\right)=0$ and $\underset{t\to t_0}{lim}g\left(t\right)=0$, the following equation holds

$$\begin{array}{c}\hfill \underset{t\to t_0}{lim}\frac{\varsigma \left(t\right)}{g\left(t\right)}=\underset{t\to t_0}{lim}\frac{{ }_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right)}{{ }_{t_0}^C{D}_t^{ϵ}g\left(t\right)}\end{array}$$

(12)

where $0<ϵ\le 1$.

Proof.

As $\underset{t\to t_0}{lim}\varsigma \left(t\right)=0$ and $\underset{t\to t_0}{lim}g\left(t\right)=0$, we set $\varsigma \left(t_0\right)=0$ and $g\left(t_0\right)=0$. According to Theorem 2, it gets

$$\begin{array}{c}\hfill \underset{t\to t_0}{lim}\frac{\varsigma \left(t\right)}{g\left(t\right)}=\underset{t\to t_0}{lim}\frac{\varsigma \left(t_b\right)-\varsigma \left(t_0\right)}{g\left(t_b\right)-g\left(t_0\right)}=\underset{t\to t_0}{lim}\frac{{ }_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right)}{{ }_{t_0}^C{D}_t^{ϵ}g\left(t\right)}\end{array}$$

(13)

The proof of Theorem 3 is completed. □

3. Fractional Reduced Differential Transform Method

Suppose $\varsigma \left(t\right)$ is a continuous and differentiable function. This function can be embodied as

$$\begin{array}{c}\hfill \varsigma \left(t\right)=\sum _{k=0}^{\infty }{V}_{kϵ}{(t-t_0)}^{kϵ}\end{array}$$

(14)

where $0<ϵ\le 1$, $V_{kϵ}$ represents the spectrum of function $\varsigma \left(t\right)$.

Usually, we can only calculate finite but not infinite items. Then, many items will be omitted and equation (14) can be expressed as

$$\begin{array}{c}\hfill \varsigma \left(t\right)=\sum _{k=0}^j{V}_{kϵ}{(t-t_0)}^{kϵ}+o{\left((t-t_0)\right)}^{kϵ}\end{array}$$

(15)

When t is within the neighborhood of $t_0$, $o{\left((t-t_0)\right)}^{kϵ}$ is the $kϵ$ order infinitesimal of $(t-t_0)$. Then, we can obtain the approximate ${\tilde{\varsigma }}_j\left(t\right)$ of $\varsigma \left(t\right)$.

$$\begin{array}{c}\hfill {\tilde{\varsigma }}_k\left(t\right)=\sum _{k=0}^j{V}_{kϵ}{(t-t_0)}^{kϵ}\end{array}$$

(16)

Obviously, the approximate error decreases with j increasing.

Based on the above hypothesis, when $0<ϵ<1$, let us study the expression of $V_{kϵ}$ step by step.

When $k=0$, it has

$$\begin{array}{c}\hfill \underset{t\to t_0}{lim}\varsigma \left(t\right)=V_{ϵ0}{(t-t_0)}^0+o{\left((t-t_0)\right)}^0\end{array}$$

(17)

and we have

$$\begin{array}{c}\hfill V_0=\underset{t\to t_0}{lim}\varsigma \left(t\right)=\varsigma \left(t_0\right)\end{array}$$

(18)

When $k=1$, it yields

$$\begin{array}{c}\hfill \varsigma \left(t\right)=\varsigma \left(t_0\right)+V_{ϵ1}{(t-t_0)}^{ϵ1}+o{\left((t-t_0)\right)}^{ϵ1}\end{array}$$

(19)

We can get

$$\begin{array}{cc}\hfill V_{ϵ1}& =\underset{t\to t_0}{lim}\frac{\varsigma \left(t\right)-\varsigma \left(t_0\right)+o{\left((t-t_0)\right)}^{ϵ1}}{{(t-t_0)}^{ϵ1}}\hfill \end{array}$$

(20)

According to Theorem 3 , it has

$$\begin{array}{cc}\hfill V_{ϵ1}& =\underset{t\to t_0}{lim}\frac{\varsigma \left(t\right)-\varsigma \left(t_0\right)+o{\left((t-t_0)\right)}^{ϵ1}}{{(t-t_0)}^{ϵ1}}\hfill \\ \hfill & =\underset{t\to t_0}{lim}\frac{{ }_{t_0}^C{D}_t^{ϵ}[\varsigma \left(t\right)-\varsigma \left(t_0\right)]}{{ }_{t_0}^C{D}_t^{ϵ}\left[{(t-t_0)}^{ϵ1}\right]}+\underset{t\to t_0}{lim}\frac{o{\left((t-t_0)\right)}^{ϵ1}}{{(t-t_0)}^{ϵ1}}\hfill \\ \hfill & =\underset{t\to t_0}{lim}\frac{1}{\Gamma (1+ϵ)}{ }_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right)\hfill \end{array}$$

(21)

When $k=2$, it can obtain

$$\begin{array}{c}\hfill \varsigma \left(t\right)=\underset{t\to t_0}{lim}\varsigma \left(t_0\right)+V_{ϵ1}{(t-t_0)}^{ϵ1}+V_{ϵ2}{(t-t_0)}^{ϵ2}+o{\left((t-t_0)\right)}^{ϵ2}\end{array}$$

(22)

Then, it yields

$$\begin{array}{cc}\hfill V_{ϵ2}& =\underset{t\to t_0}{lim}\frac{\varsigma \left(t\right)-\varsigma \left(t_0\right)-V_{ϵ1}{(t-t_0)}^{ϵ1}+o{\left((t-t_0)\right)}^{ϵ2}}{{(t-t_0)}^{ϵ2}}\hfill \\ \hfill & =\underset{t\to t_0}{lim}\frac{\varsigma \left(t\right)-V_{ϵ1}{(t-t_0)}^{ϵ1}-\varsigma \left(t_0\right)}{{(t-t_0)}^{ϵ2}}+\underset{t\to t_0}{lim}\frac{o{\left((t-t_0)\right)}^{ϵ2}}{{(t-t_0)}^{ϵ2}}\hfill \end{array}$$

(23)

By Theorem 3,

$$\begin{array}{cc}\hfill V_{ϵ2}& =\underset{t\to t_0}{lim}\frac{\varsigma \left(t\right)-V_{ϵ1}{(t-t_0)}^{ϵ1}-\varsigma \left(t_0\right)}{{(t-t_0)}^{ϵ2}}+\underset{t\to t_0}{lim}\frac{o{\left((t-t_0)\right)}^{ϵ2}}{{(t-t_0)}^{ϵ2}}\hfill \\ \hfill & =\underset{t\to t_0}{lim}\frac{{ }_{t_0}^C{D}_t^{ϵ}[\varsigma \left(t\right)-V_{ϵ1}{(t-t_0)}^{ϵ1}-\varsigma \left(t_0\right)]}{{ }_{t_0}^C{D}_t^{ϵ}\left[{(t-t_0)}^{ϵ2}\right]}+\underset{t\to t_0}{lim}\frac{o{\left((t-t_0)\right)}^{ϵ2}}{{(t-t_0)}^{ϵ2}}\hfill \\ \hfill & =\underset{t\to t_0}{lim}\frac{{[}_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right)-V_{ϵ1}\Gamma (1+ϵ)]}{\left[\frac{\Gamma (1+2ϵ)}{\Gamma (1+ϵ)}{(t-t_0)}^{ϵ}\right]}\hfill \end{array}$$

(24)

By again, by Theorem 3 , we have

$$\begin{array}{cc}\hfill V_{ϵ2}& =\underset{t\to t_0}{lim}\frac{{[}_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right)-V_{ϵ1}\Gamma (1+ϵ)]}{\left[\frac{\Gamma (1+2ϵ)}{\Gamma (1+ϵ)}{(t-t_0)}^{ϵ}\right]}\hfill \\ \hfill & =\underset{t\to t_0}{lim}\frac{{ }_{t_0}^C{D}_t^{ϵ}{[}_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right)-V_{ϵ1}\Gamma (1+ϵ)]}{{ }_{t_0}^C{D}_t^{ϵ}\left[\frac{\Gamma (1+2ϵ)}{\Gamma (1+ϵ)}{(t-t_0)}^{ϵ}\right]}\hfill \\ \hfill & =\underset{t\to t_0}{lim}\frac{{ }_{t_0}^C{D}_t^{2ϵ}\varsigma \left(t\right)}{\Gamma (1+2ϵ)}\hfill \end{array}$$

(25)

When $k=i(i\ge 2)$, we can suppose

$$\begin{array}{cc}\hfill V_{ϵi}& =\underset{t\to t_0}{lim}\frac{{ }_{t_0}^C{D}_t^{iϵ}\varsigma \left(t_0\right)}{\Gamma (1+iϵ)}\hfill \end{array}$$

(26)

Let us analyze what happens when $k=i+1$.

When $k=i+1$, we can obtain the following

$$\begin{array}{c}\hfill \varsigma \left(t\right)=\underset{t\to t_0}{lim}\sum _{k=0}^i{V}_{ϵi}{(t-t_0)}^{ϵi}+V_{ϵ(i+1)}{(t-t_0)}^{ϵ(i+1)}+o{\left((t-t_0)\right)}^{ϵ(i+1)}\end{array}$$

(27)

It has

$$\begin{array}{cc}\hfill V_{ϵ(i+1)}& =\underset{t\to t_0}{lim}\frac{\varsigma \left(t\right)-\sum _{k=0}^i{V}_{kϵ}{(t-t_0)}^{kϵ}-o{\left((t-t_0)\right)}^{ϵ(i+1)}}{{(t-t_0)}^{ϵ(i+1)}}\hfill \\ \hfill & =\underset{t\to t_0}{lim}\frac{{ }_{t_0}^C{D}_t^{ϵ}[\varsigma \left(t\right)-\sum _{k=0}^i{V}_{kϵ}{(t-t_0)}^{kϵ}]}{{ }_{t_0}^C{D}_t^{ϵ}\left[{(t-t_0)}^{ϵ(i+1)}\right]}\hfill \\ \hfill & =\underset{t\to t_0}{lim}\frac{{[}_{t_0}^C{D}_t^{ϵ}\varsigma \left(t\right){-}_{t_0}^C{D}_t^{ϵ}\sum _{k=1}^i{V}_{kϵ}{(t-t_0)}^{kϵ}]}{\frac{\Gamma (1+(i+1\left)ϵ\right)}{\Gamma (1+iϵ)}{ }_{t_0}^C{D}_t^{ϵ}\left[{(t-t_0)}^{ϵ\left(i\right)}\right]}\hfill \\ \hfill & ⋮\hfill \\ \hfill & =\underset{t\to t_0}{lim}\frac{{ }_{t_0}^C{D}_t^{(i+1)ϵ}\varsigma \left(t\right)}{\Gamma (1+(i+1\left)ϵ\right)}\hfill \end{array}$$

(28)

From the above reasoning process step by step, we have

$$\begin{array}{c}\hfill \underset{t\to t_0}{lim}\varsigma \left(t\right)=\underset{t\to t_0}{lim}\sum _{k=0}^{\infty }\frac{{ }_{t_0}^C{D}_t^{kϵ}\varsigma \left(t_0\right)}{\Gamma (1+kϵ)}{(t-t_0)}^{kϵ}\end{array}$$

(29)

It is noticed that $V_{ϵ\left(i\right)}$ is calculated by ${ }_{t_0}^C{D}_t^{iϵ}\varsigma \left(t_0\right)$, the initial value of ${ }_{t_0}^C{D}_t^{iϵ}\varsigma \left(t_0\right)$ is $t_0$, and the above equation holds only when $t\to t_0$.

4. Analyzing the Approximate Error and the Applicable Condition

In many cases, we can only calculate finite items but not infinite items according to Equation (29).

Function $\varsigma \left(t\right)$ in Equation (29) is usually approximated by n order fractional expansion ${\tilde{\varsigma }}_n\left(t\right)$

$$\begin{array}{c}\hfill {\tilde{\varsigma }}_n\left(t\right)=\sum _{k=0}^n\frac{{ }_{t_0}^C{D}_t^{\left(k\right)ϵ}\varsigma \left(t_0\right)}{\Gamma (1+kϵ)}{(t-t_0)}^{kϵ}\end{array}$$

(30)

Especially, when $n\to \infty$, we have the following relation

$$\begin{array}{c}\hfill \varsigma \left(t\right)=\underset{n\to \infty }{lim}{\tilde{\varsigma }}_n\left(t\right)=\sum _{k=0}^{\infty }\frac{{ }_{t_0}^C{D}_t^{kϵ}\varsigma \left(t_0\right)}{\Gamma (1+kϵ)}{(t-t_0)}^{kϵ}\end{array}$$

(31)

When n is taken as a bounded value, there must exist an approximate error between ${\tilde{\varsigma }}_n\left(t\right)$ and $\varsigma \left(t\right)$. The proposed method can only be applied if the maximum error is within the allowable range.

Let us analyze these approximate errors and the applicable condition.

Define the absolute error as $e_{{\tilde{\varsigma }}_n\left(t\right)}=|\varsigma \left(t\right)-{\tilde{\varsigma }}_n\left(t\right)|$ and obtain

$$\begin{array}{cc}\hfill & e_{{\tilde{\varsigma }}_n\left(t\right)}=\left|\sum _{k=n+1}^{\infty }\frac{{ }_{t_0}^C{D}_t^{kϵ}\varsigma \left(t_0\right)}{\Gamma (1+kϵ)}{(t-t_0)}^{kϵ}\right|\hfill \\ \hfill & \le \sum _{k=n+1}^{\infty }\left|\frac{{ }_{t_0}^C{D}_t^{kϵ}\varsigma \left(t_0\right)}{\Gamma (1+kϵ)}{(t-t_0)}^{kϵ}\right|\hfill \end{array}$$

(32)

According to the convergence properties of proportional sequences, when t satisfies the following condition

$$\begin{array}{cc}\hfill & |\frac{\frac{{ }_{t_0}^C{D}_t^{(k+1)ϵ}\varsigma \left(t_0\right)}{\Gamma (1+(k+1\left)ϵ\right)}{(t-t_0)}^{ϵ(k+1)}}{\frac{{ }_{t_0}^C{D}_t^{kϵ}\varsigma \left(t_0\right)}{\Gamma (1+kϵ)}{(t-t_0)}^{kϵ}}|\hfill \\ \hfill & =|\frac{\Gamma (1+kϵ){ }_{t_0}^C{D}_t^{(k+1)ϵ}\varsigma \left(t_0\right)}{\Gamma (1+(k+1)ϵ){ }_{t_0}^C{D}_t^{kϵ}\varsigma \left(t_0\right)}{(t-t_0)}^{ϵ}|\hfill \\ \hfill & <1,(k=1,2,3,\cdots )\hfill \end{array}$$

(33)

The absolute error $e_{{\tilde{\varsigma }}_n\left(t\right)}$ decrease with order k increasing. That is to say that the convergence radius $r_{\tilde{\varsigma }\left(t\right)}=min\left(\right|\frac{\Gamma (1+(k+1)ϵ){ }_{t_0}^C{D}_t^{kϵ}\varsigma \left(t_0\right)}{\Gamma (1+kϵ){ }_{t_0}^C{D}_t^{(k+1)ϵ}\varsigma \left(t_0\right)}{\left|\right)}^{\frac{1}{ϵ}}$.

Equation (32) also indicates that the absolute error increases rapidly with time t.

Define the relative error as $R{e}_{{\tilde{\varsigma }}_n\left(t\right)}=\frac{|\varsigma \left(t\right)-{\tilde{\varsigma }}_n\left(t\right)|}{\varsigma \left(t\right)}*100\%$ and get

$$\begin{array}{cc}\hfill & R{e}_{{\tilde{\varsigma }}_n\left(t\right)}=\frac{|{\displaystyle \sum _{k=n+1}^{\infty }}\frac{{ }_{t_0}^C{D}_t^{kϵ}\varsigma \left(t_0\right)}{\Gamma (1+kϵ)}{(t-t_0)}^{kϵ}|}{|{\displaystyle \sum _{k=0}^{\infty }}\frac{{ }_{t_0}^C{D}_t^{kϵ}\varsigma \left(t_0\right)}{\Gamma (1+kϵ)}{(t-t_0)}^{kϵ}|}*100\%\hfill \end{array}$$

(34)

By simplify deducing, we can also see that the relative error increases with time t.

The above analysis shows that the approximate error increases with time t and the mentioned approach can be studied in a certain time range, and the time range depends on the allowable error, fractional order and the specific system.

5. Examples

In this section, we take some examples to verify our analysis.

Example 1.

Suppose $\varsigma \left(t\right)=E_{ϵ}\left(t^{ϵ}\right)$ as a Mittag-Leffler function, which can be expressed by a fractional expansion as

$$\begin{array}{c}\hfill \varsigma \left(t\right)=\sum _{k=0}^{\infty }\frac{t^{kϵ}}{\Gamma (1+kϵ)}\end{array}$$

(35)

From Equation (34), the n order approximate expansion is expressed as

$$\begin{array}{c}\hfill {\tilde{\varsigma }}_n\left(t\right)=\sum _{k=0}^n\frac{1}{\Gamma (1+kϵ)}{t}^{kϵ}\end{array}$$

(36)

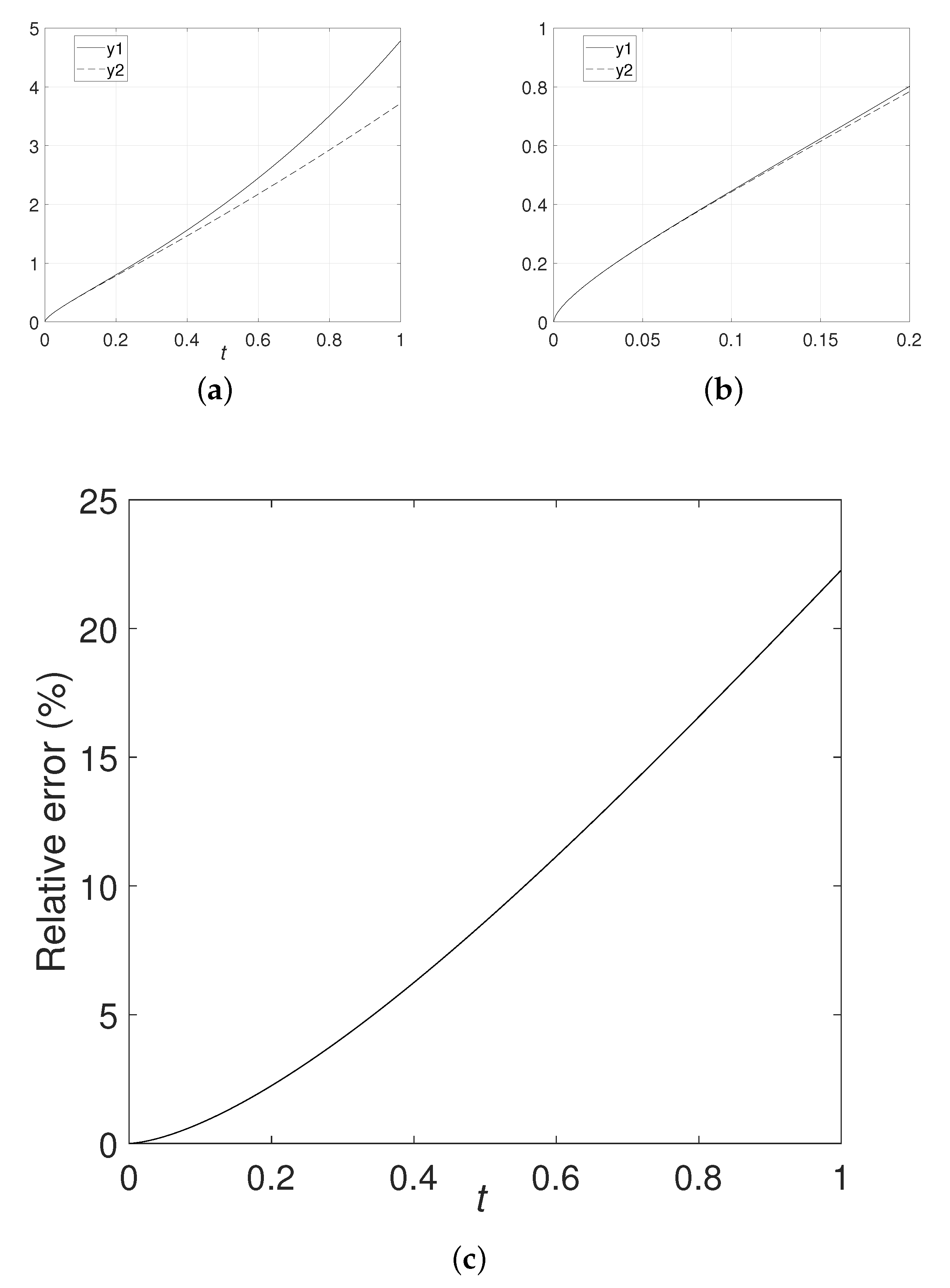

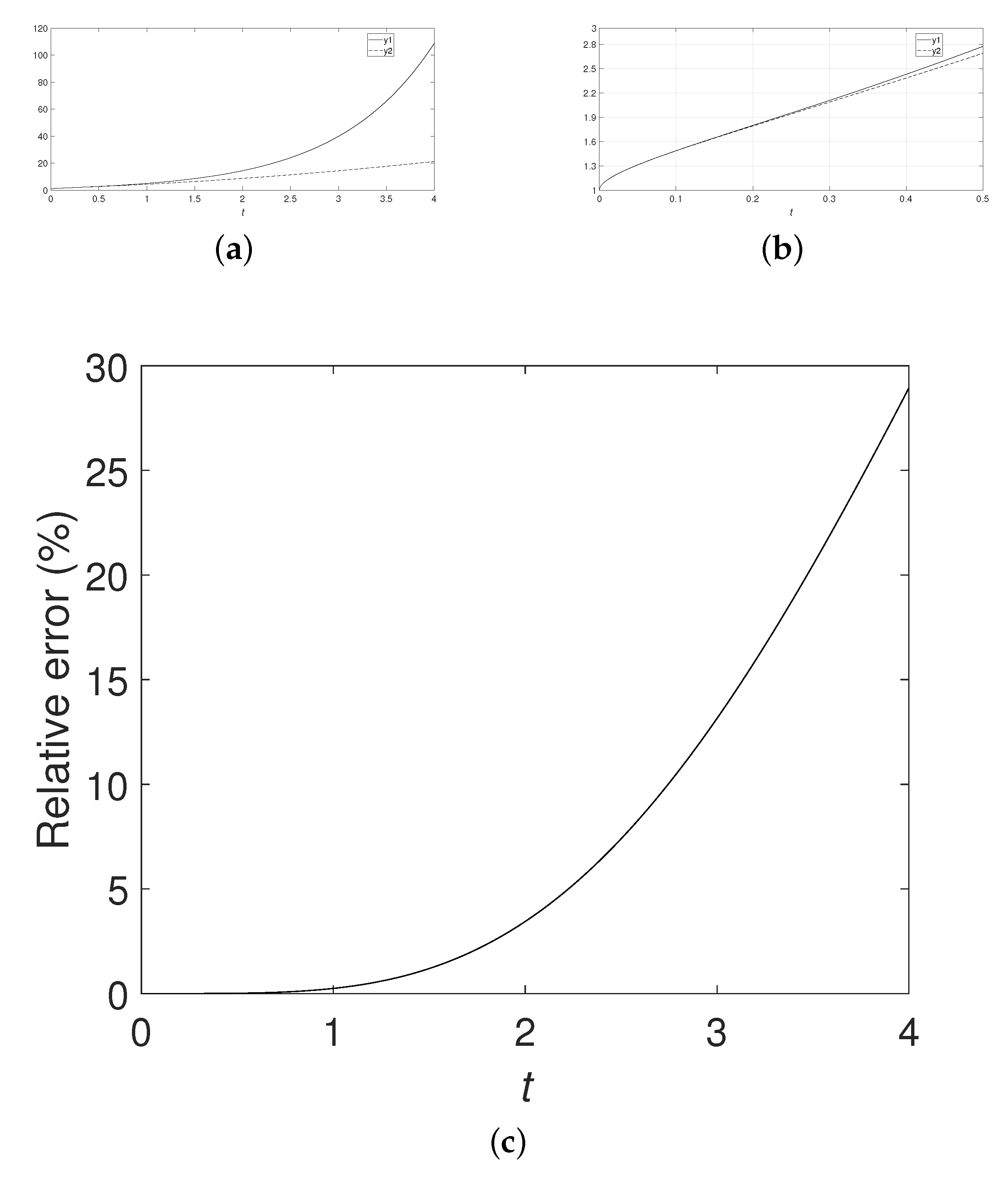

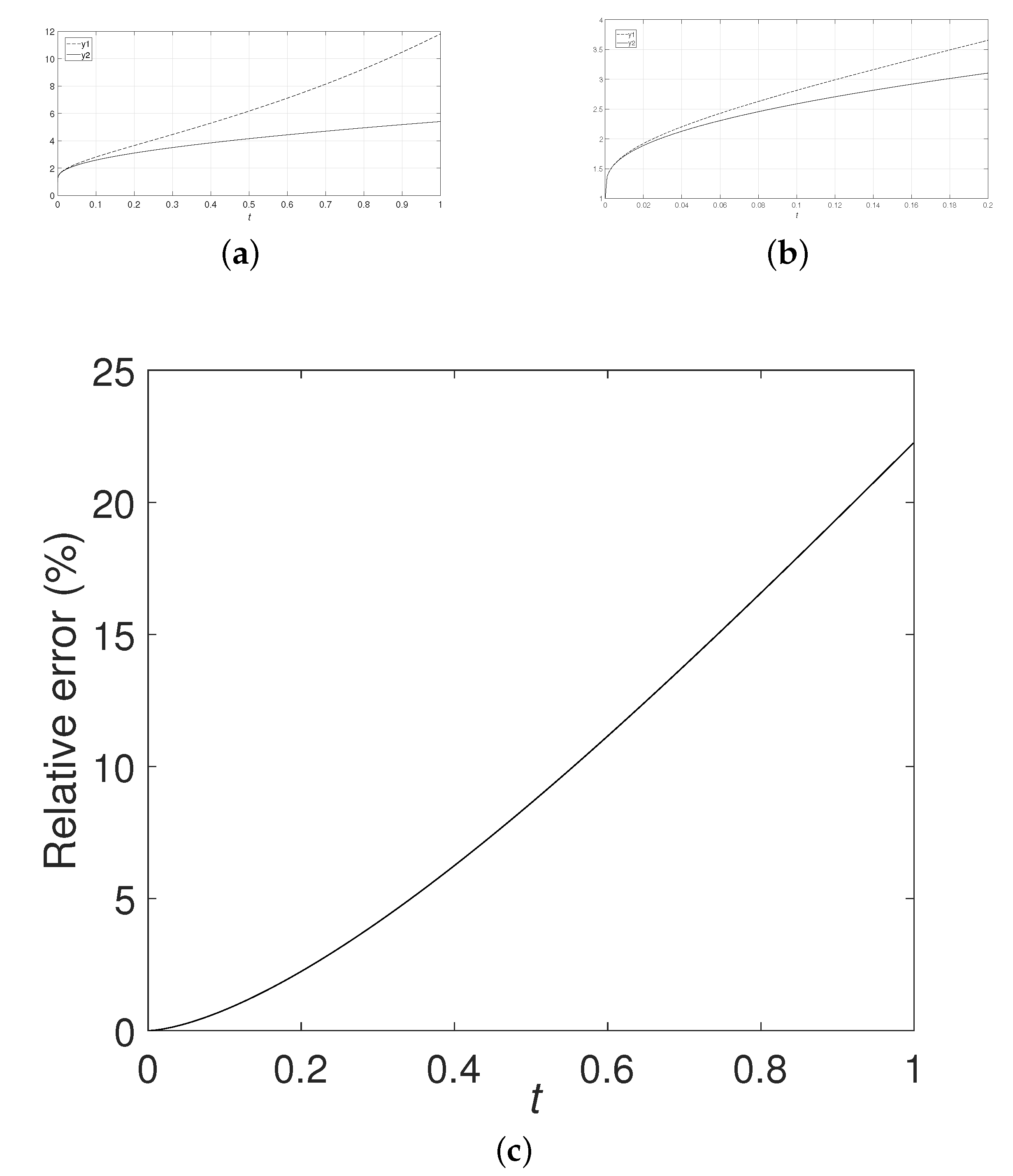

Define $y_1=\varsigma \left(t\right)$, $y_2={\tilde{\varsigma }}_n\left(t\right)$ where $n=4$ and take numerical simulation. The numerical simulation results are shown in Figure 1 with $ϵ=0.5$, Figure 2 with $ϵ=0.2$ and Figure 3 with $ϵ=0.8$. Numerical simulations show that the absolute error and the relative error have high accuracy within a time range, but quickly diverge and may mislead over this time range.

Example 2.

Suppose $\varsigma \left(t\right)=\sum _{k=0}^{\infty }\frac{t^{2kϵ+1}}{\Gamma (1+2kϵ)}$. Then, the n order approximate expansion is expressed as

$$\begin{array}{c}\hfill {\tilde{\varsigma }}_n\left(t\right)=\sum _{k=0}^n\frac{t^{2kϵ+1}}{\Gamma (1+2kϵ)}\end{array}$$

(37)

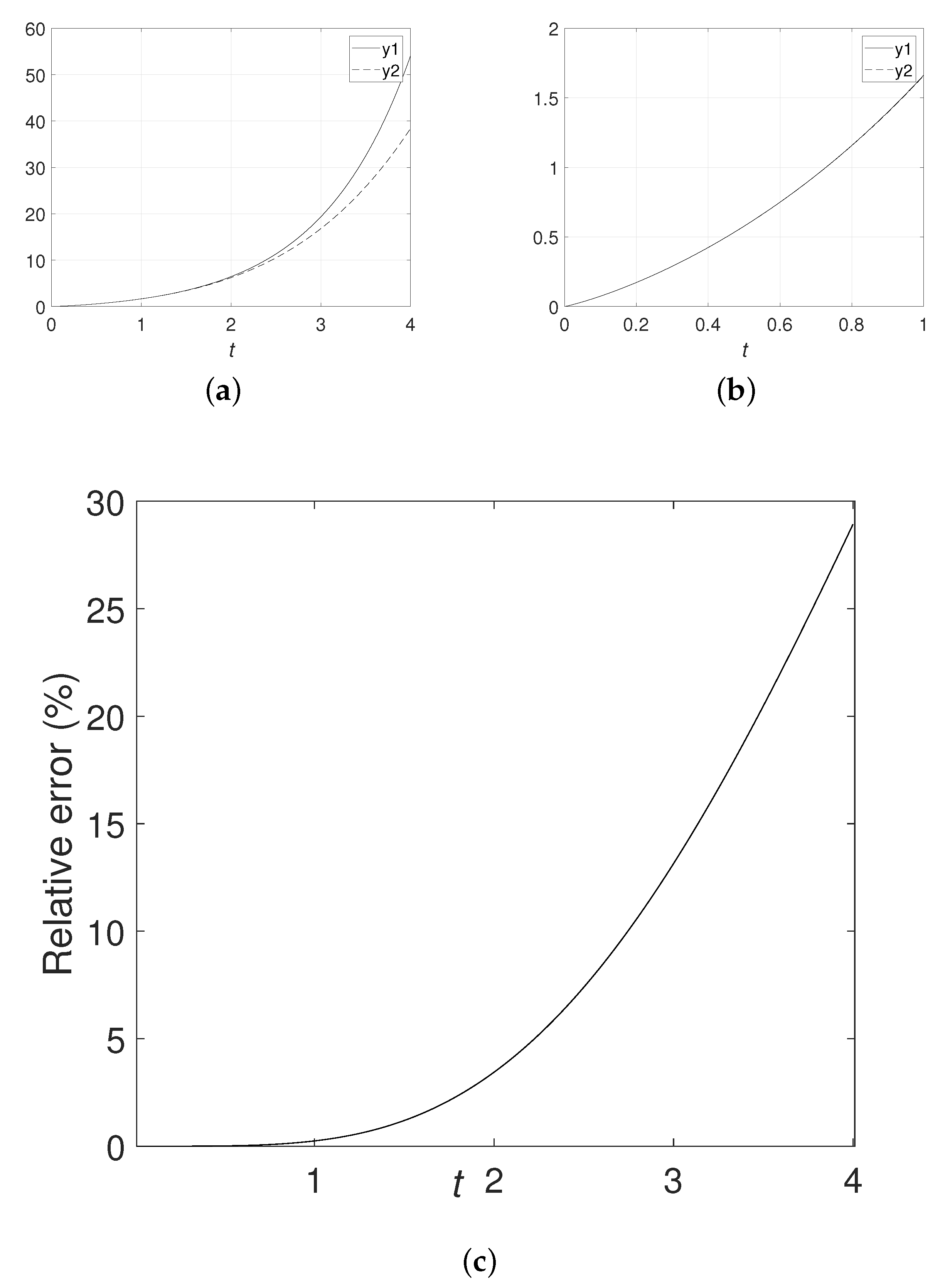

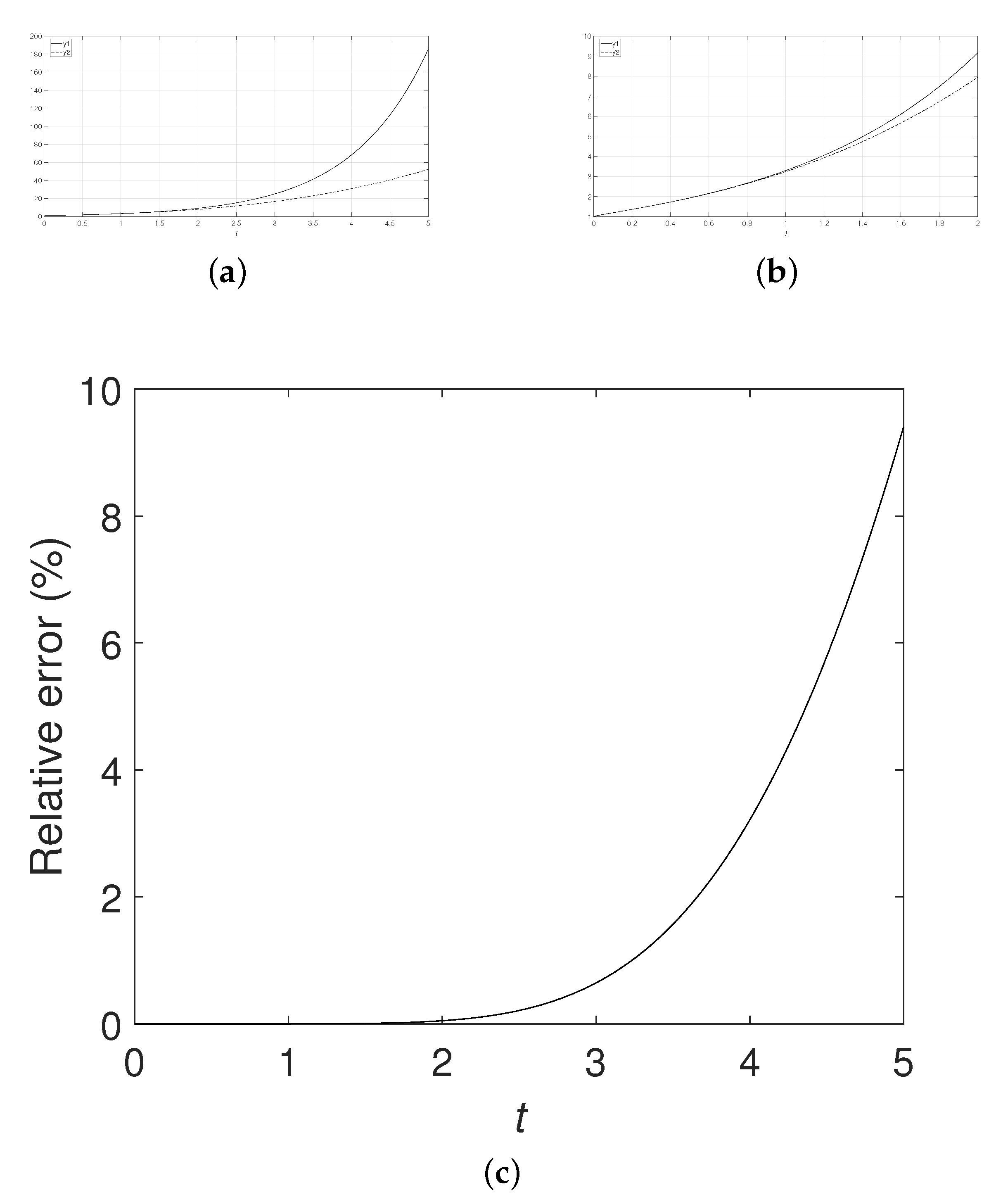

Similarly, let $y_1=\varsigma \left(t\right)$, $y_2={\tilde{\varsigma }}_n\left(t\right)$ where $n=4$ and take numerical simulation. The numerical simulation results are shown in Figure 4 with $ϵ=0.5$, Figure 5 with $ϵ=0.2$ and Figure 6 with $ϵ=0.8$. Numerical simulations also show that the absolute error and the relative error have high accuracy within a certain time range, but quickly diverge and may mislead over this time range.

The numerical simulations in the above examples all verify our theorem analysis. The mentioned method can only be applied in a time range. Over this range, it may mislead.

6. Conclusions

In this paper, we present the detailed analysis process of the fractional reduced differential transform method. Theorem analysis and numerical simulation show that this method can only be applied in a certain time range. Then, by this method, we first need to know the time range. The mentioned can only be studied in this time range. During this time range, the achievement obtained may be mislead.
