Unbound Low-Energy Nucleons As Semiclassical Quantum Networks

1. Introduction

Energetic unbound protons and neutrons are extremely complex structures [1,2] and their structures are still not fully understood [3,4]. However, at least at low energies, they appear to precisely maintain several important parameters. These include mass, net charge, spin, isospin, parity, magnetic moment, and rms charge radius. While free neutrons spontaneously decay with a mean lifetime of a little under 15 minutes [5], free protons possess such a stable ground state that free-proton decay has never been observed.

Quantum field theory (QFT) is arguably the most successful scientific theory developed to date [6]. It has produced the highly-precise Standard Model of particle physics [7]. However several Standard Model parameters must be experimentally determined. A reason why QFT, sans experiment, may be incapable of precisely explaining the values of certain particle properties could be because operators are applied to create and annihilate particles [6,8]. This conceptual shortcut mathematically precludes potential physical mechanisms that create and annihilate mass and charge.

This paper develops an argument that quantum networks of interfering virtual vacuum momenta continually regenerate the mass and charge of unbound nucleons when in their ground state. These are called unbound ground-state quantum vortex (GSQV) nucleon models. As with Reference [9], during nucleon-antinucleon pair production, it is assumed that one real spin-1 photon splits into two virtual circularly-polarized spin-half photon vortices. When in its ground state, each unbound spin-half nucleon’s mass energy is assumed to be generated from its toroidal vortex component via the combined zitterbewegung and circular Unruh effects [9]. The circular polarization of a toroidally revolving virtual photon results in a poloidal vortex component that Reference [9] assumes generates charge. This paper goes further by mathematically developing a mechanism via which unbound GSQV nucleon charge is generated and maintained via twin poloidal circulations.

In each unbound GSQV nucleon, the combined toroidal and poloidal actions are proposed to form twin virtual Möbius bands with length set to unbound nucleon Compton wavelength. The width of each virtual Möbius band is set to half the wavelength of an ensemble of quantized virtual vacuum momenta. In an unbound GSQV proton, each virtual Möbius band is proposed to be optimal in the sense of being maximally confined given its length [10,11,12,13]. This maximal confinement is interpreted as a state of minimum energy. By the same metric, an unbound GSQV neutron’s virtual Möbius bands are suboptimal. This may explain why neutron mass energy necessarily exceeds proton mass energy. Importantly, these unbound GSQV nucleon models are purely field-based and therefore avoid the fundamental dilemmas of point-like particles [8]. This proposed conceptual framework may align with energetic causal set theory–where spacetime emerges from momentum space and the conservation of energy-momentum [14,15,16,17,18,19,20,21].

The modeling presented in this paper is proposed to add to QFT without replacing any of its long-established aspects. The goal is to enhance established QFT by explaining the creation and maintenance of nucleon mass, charge, and magnetic moment while in the ground state. This paper in no way doubts the fundamental validity of quantum chromodynamics (QCD) [22,23]. Nucleon modeling via lattice QCD may be conceptually correct, but is extremely computationally expensive [24], and it is not known how bare current quarks transition into dressed constituent quarks [25,26]. The precision of chiral effective field theory (EFT) [27] has generally been good, but recent discrepancies have emerged at the lowest energies [28,29,30,31,32,33]. This paper offers an alternative approach to modeling unbound ground-state nucleons that seamlessly merges with chiral EFT [27] and lattice QCD [24,34] at higher energies.

2. Materials and Methods

All calculations use publicly available CODATA [35,36] and Particle Data Group [5] data. All calculations were performed using the supplied Excel file. All mathematical manipulations were performed by the authors.

3. Results

3.1. Nucleon Properties from Quantum Networks

Recent photon-based nucleon models, conceptually similar to those presented in this paper, have been proposed [9,37,38,39]. However, References [37,38], and [39] propose models that directly conflict with established QCD. In contrast this paper, as with Reference [9], fully accepts established QCD. As with Reference [9], this paper also conceptually explains the origin of quarks, gluons, color charge, and virtual pion clouds. This paper adds an explanation for intrinsic charm quarks [1,40,41,42,43,44,45,46,47,48,49,50].

This paper proposes that any unbound nucleon, in its lowest energy (ground) state, is a completely coherent self-synchronizing structure. At energies above the ground state, these unbound nucleon structures are proposed to transform into the quarks and gluons of established QCD theory. Therefore, at higher energies, there should be no conflict with the established chiral EFT [27] and lattice QCD [24,34] models. The unbound nucleon models developed in this paper may help resolve recently-discovered discrepancies occurring at the lowest energies [28,29,30,31,32,33]. Section 3.1.3 shows that up, charm, and top quark charge appears to depend only on Planck charge, the proportionate area of an unbound GSQV proton’s charge-exclusion zone, and $\pi$. Section 3.2 applies these quantum network-based models to calculate several parameters related to quarks and neutron decay. The proton models developed both in this paper and Reference [9] are statistically consistent with a recent experimental estimate of proton polar charge radius [51].

As with Reference [9], this paper proposes that the properties of an unbound ground-state nucleon’s measured projection can be derived from those of a hypothetical revolving circularly-polarized virtual photon. Such a virtual photon is proposed to propagate via both toroidally and poloidally revolving virtual electromagnetic fields. The virtual photon’s energy is assumed to be identical to nucleon mass energy. The unbound nucleon’s mass energy is proposed to be a quantized manifestation of the circular Unruh energy [52,53,54,55,56,57,58,59,60,61,62,63,64] of an uncharged zitterbewegung fermion [9]. It is reasonable to assume that the Unruh effect is fundamentally local [65]. Reference [9] explains mathematically how such an uncharged zitterbewegung fermion could generate a gravitational field by concentrating circular Unruh energy and curving spacetime [66].

The proposed central uncharged zitterbewegung fermion is not shown in this paper’s figures. Following Reference [9], it’s radius is ${\lambda }_N/4\pi$, where ${\lambda }_N$ is unbound nucleon Compton wavelength. This puts it well inside each massless charge arc described in this paper. Recent experimental evidence has shown proton rms mass radius to be substantially smaller than proton rms charge radius [67]. The experimental analysis shows that proton rms mass radius tends to decrease at lower energies [67]. Hansson has argued [68], that at low momentum transfers, the quarks and gluons of QCD cannot be defined and thus do not really exist within a proton. As with Reference [9], this paper proposes that quarks and gluons do not exist in a nucleon’s absolute ground state, but that gluon energy and quark relativistic energy are sourced from the central zitterbewegung fermion’s mass energy at energies above the ground state. Therefore, as nucleon energy increases, the nucleon models developed this paper are fully consistent with the increase in proton rms mass radius experimentally determined by Reference [67].

In 1989, Reference [69] reported vortex solutions of the Maxwell-Bloch equations and described the concept of optical vortices. Such vortices involve both toroidal and poloidal motion [69,70,71,72]. This paper models unbound nucleons as virtual optical vortices of much higher energy, and on a much smaller scale, than those produced by non-nuclear optics experiments. This is called the zitterbewegung effect [8,9,37,38,39,73,74,75,76,77,78,79,80,81], where toroidal motion is associated with quantum mechanical spin. This paper, and Reference [9], associate poloidal motion with isospin [82,83] and charge. Recent experimental evidence [84,85,86,87], supports the concept of the zitterbewegung effect being due to stable intrinsic high frequency oscillations.

During nucleon-antinucleon pair production, this paper assumes that a virtual photon’s toroidal motion generates nucleon mass energy. It is also assumed that such a virtual photon’s poloidal motion generates nucleon charge. Such charge generation was described conceptually, but not mathematically, in Reference [9]. This paper mathematically develops a mechanism via which nucleon charge is generated and maintained. This mechanism features multiple charge arcs–each assumed to maintain its charge. These are shown in Figure 1, Figure 2, Figure 3, and Figure 4, where e represents quantized electronic charge. The application of higher symmetries in QFT has shown that evolving one-dimensional charge strings can conserve charge on their world sheets [88,89].

When in its ground state, this paper assumes that nucleon charge and mass are coupled and continually regenerate each other. This assumption may align with energetic causal set theory–where spacetime emerges from momentum space and the conservation of energy-momentum [14,15,16,17,18,19,20,21]. For each charge arc, this coupling may be represented in the form of a virtual Möbius band. Each charge arc is assumed to be regenerated by half a poloidal turn, at radius $R_N$, each zitterbewegung cycle. For the proton, $R_N=R_p={\lambda }_p/\sqrt{3}$, where ${\lambda }_p$ is proton Compton wavelength. For the neutron, $R_N=R_n={\lambda }_n/2$, where ${\lambda }_n$ is neutron Compton wavelength. Since unbound ground-state nucleons are spin-half particles, each zitterbewegung cycle involves two revolutions of the central zitterbewegung fermion [9]. A zitterbewegung cycle may be characterized by Compton wavelength, ${\lambda }_N$, and Compton frequency, $f_N=c/{\lambda }_N$, where c is the speed of light.

Figure 5 illustrates the virtual Möbius bands of unbound GSQV nucleons. The aspect ratio of each virtual Möbius band in an unbound GSQV neutron is ${\lambda }_n/R_n=2$. The aspect ratio of each virtual Möbius band in an unbound GSQV proton is ${\lambda }_p/R_p=\sqrt{3}$. Note that $2>\sqrt{3}$ and that $\sqrt{3}$ is the minimum possible aspect ratio of a smooth Möbius band [10,11,12,13]. This implies that the geometry of an unbound GSQV proton may be optimal. This may explain why free protons do not decay. Appendix A discusses supplementary details of the optimal Möbius band.

The proposed charge generation and regeneration mechanism involves interfering standing waves of vacuum momenta. The massless charge arcs of the proposed unbound GSQV nucleon models are shown in Figure 1, Figure 2, Figure 3, and Figure 4. Each charge arc is proposed to be associated with an ensemble of vacuum standing waves continually reflecting between all points on each charge arc and its radial center. These standing waves are proposed to be fundamental harmonics. Section 3.1.3 and Section 3.1.5 propose that arc charge is continually regenerated via mass-energy coupling.

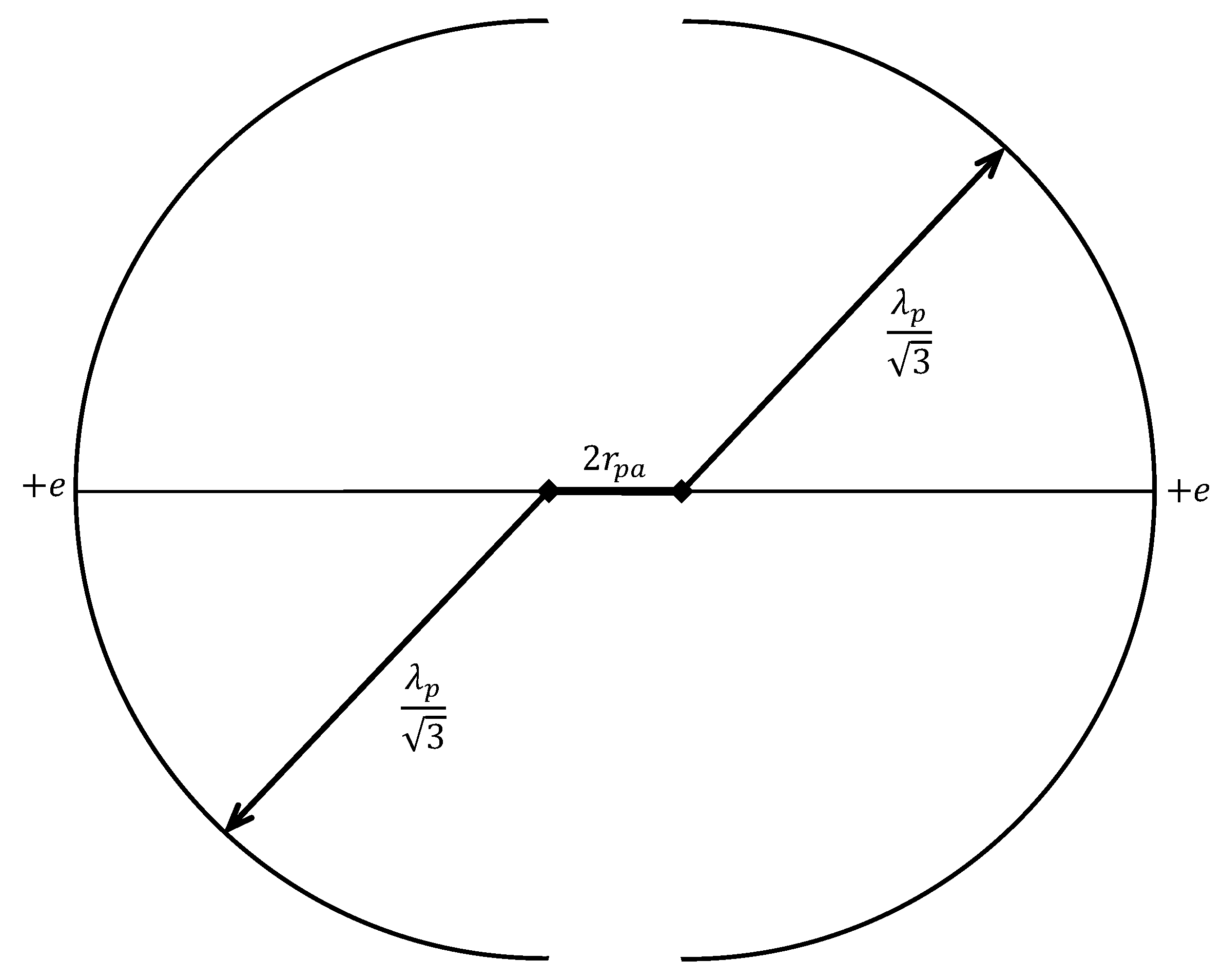

The inner charge arcs of the proposed GSQV proton are shown in Figure 2. Section 3.1.2 proposes that the charge arc standing-wave ensembles, of all four charge arcs shown in Figure 1 and Figure 2, interfere with another standing wave connecting the equatorial points of the two charge arcs in Figure 2. This equatorial standing wave is consistent with quantum electrodynamics (QED), where electric force is carried by virtual photons [90,91,92]. Section 3.1.2 shows that the rms value of the sum of the fundamental equatorial harmonic, and the fundamental proton charge-arc harmonic, is the second equatorial harmonic. As with Reference [9], the wavelength of this second equatorial harmonic is set to the proton Compton wavelength. This inner-arc equatorial separation distance is the key to calculating proton magnetic moment and charge radius from proton mass [9].

The inner charge arcs of the proposed GSQV neutron are shown in Figure 4. A standing wave is proposed to connect the equatorial points of the two charge arcs in Figure 4. This equatorial standing wave is consistent with QED, where electric force is carried by virtual photons [90,91,92]. The wavelength of this fundamental equatorial harmonic is set to the neutron Compton wavelength. This inner-arc equatorial separation distance is the key to calculating neutron magnetic moment.

Section 3.1.2 proposes that the charge arc standing-wave ensembles, of all four charge arcs shown in Figure 3 and Figure 4, interfere with another standing wave connecting the poles of the two charge arcs in Figure 4. This polar standing wave is consistent with QED, where electric force is carried by virtual photons [90,91,92]. Section 3.1.2 shows that the rms value of the sum of the fundamental polar harmonic, and the fundamental neutron charge-arc harmonic, is the second polar harmonic.

A crucial difference between the charge arcs of the GSQV proton and GSQV neutron is that the proton’s inner charge arcs are quantized with magnitude $e/2$ instead of e. In Section 3.1.3, Equation (31) models charge arc regeneration as a virtual poliodal flow. Charge generation via the poloidal overturning of virtual electromagnetic fields was subjectively proposed in Reference [9]. As shown in Figure 6, this paper proposes that virtual poloidal flow is split between two paths of equal magnitude where charge regeneration switches off in the GSQV proton’s polar regions. This split flow does not occur in the GSQV neutron’s polar regions. This difference may explain why the GSQV proton’s inner charge arcs are of half the magnitude of the GSQV neutron’s inner charge arcs. Because the equatorial points of all GSQV charge arcs circulate at light speed, the inner charge arcs rotate at a higher frequency than do the outer charge arcs. This necessarily causes a general step discontinuity, in the direction of virtual poloidal flow, at the transition point between an uncharged polar arc and a charged inner arc.

It will be assumed, that in the ground-state orbital of a ground-state proton, an electron or muon spin combines with the proton spin into a singlet state. Key evidence of this is the 21 cm hydrogen line observed in the galactic radio spectrum [93,94,95]. This implies that a ground-state electron or muon orbital magnetically interacts with a ground-state proton in such a way that it appears to possess the properties of the proton model projection presented in this paper. This assumption is used in Section 3.3.5 to estimate proton polar radius, consistent with a recent experimental result [51]. Section 3.3.5 also calculates an effective proton charge radius consistent with the 2022 recommended Particle Data Group proton rms charge radius range, $r_p=0.8409\left(4\right)$ fm [5].

It will be assumed that an external magnetic field will cause the nucleon models, developed in this paper, to undergo Larmor precession [96,97,98,99]. A nucleon’s gyromagnetic ratio, called its g-factor, directly depends on Larmor precession frequency [96,97,98,99]. However, nucleon g-factor is independent of Larmor precession angle [96,97,98,99]. Therefore the nucleon models, developed in this paper, will be assumed to be in the superposition of all possible precession angles. This may be described by a spherically-symmetric Bloch sphere [96,99].

3.1.1. Ground-State Quantum Vortex Neutron Model

An unbound ground-state neutron model is developed following a similar rationale to the development of the refined GSQV proton model in Reference [9]. An unbound GSQV neutron is constructed from four rotating charge arcs, as shown in Figure 3 and Figure 4. The charge on each arc is quantized as the elementary charge, $\pm e$.

It is clear from Panel (a) of Figure 7 that this proposed neutron model contains three times as much positive charge, and three times as much negative charge, as that needed to form the neutron’s valence quarks. However the minimally excited GSQV proton model, shown in Panel (b) of Figure 7 and initially developed in Reference [9], includes a virtual up sea quark ($+2e/3$ charge) and a virtual antiup sea quark ($-2e/3$ charge). These virtual sea quarks are assumed to initiate a proton’s virtual pion cloud. Note that up and antiup quarks have approximately half the mass energy of down and antidown quarks. Therefore, an up-antiup quark pair represents a lower energy state than would a down-antidown quark pair. The GSQV neutron model, developed here, includes two pairs of virtual up-antiup sea quarks assumed to initiate a neutron’s virtual pion cloud.

The Gerasimov-Drell-Hearn (GDH) sum rule [28,100,101,102,103,104,105,106], initially developed in the 1960s, relates the proton and neutron anomalous magnetic moments. The GDH sum rule involves two adjustable parameters that may be calculated–to high precision–from nucleon masses, nucleon magnetic moments, and the fine-structure constant. Experimental verification of the GDH sum rule parameters has only recently been attained [28,105].

Recent analysis shows that single-pion photoproduction off the nucleon is the dominant contribution to the GDH sum rule [106]. Reference [106] found that non-single-pion photoproduction off the proton amounts to about 10%, whereas non-single-pion photoproduction off the neutron amounts to about 44%. This large difference may be partly explained by the minimally excited GSQV neutron containing twice as many virtual sea quarks as the minimally excited GSQV proton. The quarks above and below the dashed lines in Panel (a) of Figure 7, and above the dashed line in Panel (b) of Figure 7, may initiate pion production upon sufficient excitation. Therefore, Reference [106] provides experimental support for the GSQV neutron model plausibly containing two $+e$ and two $-e$ charge arcs.

In this paper, c is the speed of light, h is Planck’s constant, and $\hslash =h/2\pi$ is the reduced Planck constant. As in Reference [9], proton zitterbewegung radius is defined as

$$\begin{array}{c}\hfill r_{pz}=\frac{\hslash }{2m_{p}c}=\frac{{\lambda }_p}{4\pi },\end{array}$$

(1)

where $m_p=1.67262192369\left(51\right)\times {10}^{-27}$ kg is proton mass [35,36] and ${\lambda }_p$ is proton Compton wavelength. Neutron Compton wavelength is defined as

$$\begin{array}{c}\hfill {\lambda }_n=\frac{h}{m_{n}c},\end{array}$$

(2)

where $m_n=1.67492749804\left(95\right)\times {10}^{-27}$ kg is neutron mass [35,36]. Based on the refined GSQV proton model, developed in Reference [9], and Figure 3 and Figure 4 in this paper, neutron magnetic moment will be approximated by

$$\begin{array}{c}\hfill {\mu }_n=\left(\frac{2V_{ni}}{{(R_n-r_{na})}^2}-\frac{2V_{no}}{(1-Q_{n\mathrm{ex}}){(R_n+r_{na})}^2}\right)\frac{{\mu }_N}{4\pi r_{pz}},\end{array}$$

(3)

where $V_{ni}$ is the lemon volume formed by rotating the neutron’s two inner charge arcs about the neutron center, $V_{no}$ is the apple volume formed by rotating the neutron’s two outer charge arcs–plus uncharged extensions–about the neutron center, $Q_{n\mathrm{ex}}$ is the uncharged proportion of the neutron’s outer (apple) surface,

$$\begin{array}{c}\hfill R_n=\frac{{\lambda }_n}{2},\mathrm{and}{r}_{na}=\frac{{\lambda }_n}{4}.\end{array}$$

(4)

Following Reference [9], define

$$\begin{array}{c}\hfill {\varphi }_{nl}={cos}^{-1}\left(\frac{r_{na}}{R_n}\right)={cos}^{-1}\left(\frac{1}{2}\right)=\frac{\pi }{3}\end{array}$$

(5)

and

$$\begin{array}{c}\hfill {\varphi }_{na}=\pi -{\varphi }_{nl}=\frac{2\pi }{3}.\end{array}$$

(6)

Following the Appendix of Reference [9],

$$\begin{array}{c}\hfill V_{ni}=\frac{4}{3}\pi R_n^3\left[{sin}^3{\varphi }_{nl}-\frac{3}{4}cos{\varphi }_{nl}(2{\varphi }_{nl}-sin2{\varphi }_{nl})\right]=\frac{\pi {\lambda }_n^3}{96}\left(9\sqrt{3}-4\pi \right)\end{array}$$

(7)

and

$$\begin{array}{c}\hfill V_{no}=\frac{4}{3}\pi R_n^3\left[{sin}^3{\varphi }_{na}-\frac{3}{4}cos{\varphi }_{na}(2{\varphi }_{na}-sin2{\varphi }_{na})\right]=\frac{\pi {\lambda }_n^3}{96}\left(9\sqrt{3}+8\pi \right).\end{array}$$

(8)

Also following the Appendix of Reference [9], the charged proportion of the neutron’s outer (apple) surface, $(1-Q_{n\mathrm{ex}})$, will be the area of the surface of revolution formed by the outer charge arcs divided by the apple surface area:

$$\begin{array}{c}\hfill 1-Q_{n\mathrm{ex}}=\frac{2{\pi }^2{R}_n\left(r_{na}+\frac{2R_n}{\pi }\right)}{4\pi R_n^2\left(sin{\varphi }_{na}-{\varphi }_{na}cos{\varphi }_{na}\right)}=\frac{1+\frac{\pi }{4}}{\frac{\sqrt{3}}{2}+\frac{\pi }{3}}=\frac{3(4+\pi )}{2\left(3\sqrt{3}+2\pi \right)}.\end{array}$$

(9)

Substituting Equations (4), (7), (8), and (9) into Equation (3) yields

$$\begin{array}{c}\hfill {\mu }_n=\left[9\sqrt{3}-4\pi -\frac{2\left(9\sqrt{3}+8\pi \right)\left(3\sqrt{3}+2\pi \right)}{27(4+\pi )}\right]\frac{{\lambda }_n{\mu }_N}{12r_{pz}}.\end{array}$$

(10)

Substituting Equations (1) and (2) into Equation (10) and simplifying,

$$\begin{array}{c}\hfill {\mu }_n=\left[\frac{53\sqrt{3}}{36}-4-\frac{35\pi }{27}+\frac{3}{\pi }\left(3\sqrt{3}-\frac{1}{2}\right)\right]\frac{4{\pi }^2}{3(4+\pi )}\frac{m_p}{m_n}{\mu }_N\approx -1.91000{\mu }_N,\end{array}$$

(11)

which is about 0.16% less negative than the 2018 CODATA value [35,36] displayed later in this section as Equation (23). Note that the $m_p/m_n$ factor, in Equation (11), is due to the convention of defining the nuclear magneton, ${\mu }_N$, in terms of the proton mass. If the nuclear magneton was instead defined in terms of the neutron mass, the form of Equation (11) would imply a neutron g-factor independent of the nucleon masses.

Since the ratio of proton to neutron mass is close to unity,

$$\begin{array}{c}\hfill {\mu }_n\approx \left[\frac{53\sqrt{3}}{36}-4-\frac{35\pi }{27}+\frac{3}{\pi }\left(3\sqrt{3}-\frac{1}{2}\right)\right]\frac{4{\pi }^2}{3(4+\pi )}{\mu }_N\approx -1.91263{\mu }_N,\end{array}$$

(12)

which is more than 7 times closer, than Equation (11), to the 2018 CODATA value [35,36] displayed later in this section as Equation (23). The surprising precision of Equation (12) may provide insights into the electron capture process of a proton-rich nucleus [107,108,109]. In an unstable proton-rich nucleus, suppose that the most loosely-bound proton experiences electron capture via the weak interaction [110]. Suppose that this process has the effect of the loosely-bound proton absorbing the former electron’s charge, via a W boson, but not its mass, $m_e$. The weak interaction is addressed in detail in Section 3.2. During electron capture, suppose the former electron’s mass energy cannot primarily be incorporated into the mass of the former proton. Energy dissipation pathways are therefore needed to facilitate the electron capture process. This may help explain the very low probabilities for neutral hydrogen and molecular hydrogen to undergo electron capture in extremely low-energy environments.

Suppose, that following the weak interaction [110], this loosely-bound former proton has the charge structure implied by Equations (3) and (10)–(12). Modifying Equation (11), if the mass of this loosely-bound former proton is close to $0.39717m_e$ less than that of an unbound proton, its magnetic moment will closely resemble that of an unbound neutron:

$$\begin{array}{c}\hfill \left[\frac{53\sqrt{3}}{36}-4-\frac{35\pi }{27}+\frac{3}{\pi }\left(3\sqrt{3}-\frac{1}{2}\right)\right]\frac{4{\pi }^2}{3(4+\pi )}\frac{m_p}{(m_p-0.39717m_e)}{\mu }_N\approx {\mu }_n.\end{array}$$

(13)

The experimentally determined value of ${\mu }_n$ is displayed later in this section as Equation (23). This mass defect can be attributed to a relatively minor nuclear binding energy [111], which is consistent with a loosely-bound nucleon. Being electrically neutral, and possessing a substantial magnetic moment, this new nuclear neutron should be magnetically attracted to nearby nucleons and bind relatively strongly to the nucleus. Therefore, neutron binding may be initiated by semiclassical magnetic forces.

Evaluating the Equation (12) terms in the square parentheses,

$$\begin{array}{c}\hfill \frac{53\sqrt{3}}{36}-4-\frac{35\pi }{27}+\frac{3}{\pi }\left(3\sqrt{3}-\frac{1}{2}\right)\approx -1.037976\approx -\frac{\pi }{3}.\end{array}$$

(14)

Substituting $-\pi /3$ for the square-parentheses terms in Equation (12) yields

$$\begin{array}{c}\hfill {\mu }_n\approx \frac{-4{\pi }^3}{9(4+\pi )}{\mu }_N=-{\left(\frac{2}{3}\right)}^2\frac{{\pi }^3}{(4+\pi )}{\mu }_N=-{\left(\frac{q_u}{e}\right)}^2\frac{{\pi }^3}{(4+\pi )}{\mu }_N\approx -1.9296{\mu }_N,\end{array}$$

(15)

where $q_u$ is the charge of an up, charm, or top quark. These compact equations offer only 2-digit precision. However, their precision improves to 5 digits if the number 4, in the denominator, is replaced by $\sqrt{33/2}$:

$$\begin{array}{c}\hfill {\mu }_n\approx -{\left(\frac{2}{3}\right)}^2\frac{{\pi }^3}{\left(\sqrt{\frac{33}{2}}+\pi \right)}{\mu }_N=-{\left(\frac{q_u}{e}\right)}^2\frac{{\pi }^3}{\left(\sqrt{\frac{33}{2}}+\pi \right)}{\mu }_N\approx -1.913008{\mu }_N.\end{array}$$

(16)

While no rationale is offered to support the quantity $\sqrt{33/2}$, it is surprising that an equation involving just one 2-digit numeral can calculate an experimentally deterimined quantity to 5-digit precision.

Apart from the polar charge-exclusion zones on the GSQV neutron’s outer apple-shaped charge surface, Equations (3) and (10)–(13) assume a direction-independent steradian charge distribution. This was a key assumption applied when developing the GSQV proton model in Reference [9]. This assumption implies that the linear charge density, along each charge arc, depends only on distance from nucleon center. This results in a non-uniform linear charge density along each charge arc.

It will now be assumed that each charge arc’s linear charge density is slightly less non-uniform due to internal self-interaction that tends toward evening out charge distribution. This will not lead to a measurable electric quadrupole moment. This is because Larmor precession would still result in a uniform steradian charge distribution in the form of a Bloch sphere [96,97,98,99]. This slight charge redistribution will slightly change the magnetic moment contributed by each charge surface formed by the toroidally rotating charge arcs.

The neutron’s inner positively-charged lemon-shaped surface will be assumed to redistribute via a slight poleward migration. Since the magnetic moment of a current loop depends on loop cross-sectional area, the neutron’s inner positively-charged surface will now contribute a slightly smaller positive magnetic moment. Equation (3) will be modified by dividing the first term by $(1+{\delta }_n)$, where ${\delta }_n$ is dimensionless, positive, and much smaller than 1. Similarly, the neutron’s outer negatively-charged surface will be assumed to redistribute via a slight equatorial migration. The neutron’s outer negatively-charged surface will now contribute a slightly larger negative magnetic moment. Equation (3) will be modified by dividing the second term by $(1-{\delta }_n)$. An alternative implementation of adjustable parameter, ${\delta }_n$, would be to multiply the first term of Equation (3) by $(1-{\delta }_n)$ and to divide the second term of Equation (3) by $(1+{\delta }_n)$. This alternative was not selected because it results in a larger ${\delta }_n$ value.

Therefore, a precise calculation of GSQV neutron magnetic moment may be obtained from

$$\begin{array}{c}\hfill {\mu }_n=\left(\frac{2V_{ni}}{(1+{\delta }_n){(R_n-r_{na})}^2}-\frac{2V_{no}}{(1-{\delta }_n)(1-Q_{n\mathrm{ex}}){(R_n+r_{na})}^2}\right)\frac{{\mu }_N}{4\pi r_{pz}}.\end{array}$$

(17)

Substituting Equation (4) into Equation (17) yields

$$\begin{array}{c}\hfill {\mu }_n=\left(\frac{V_{ni}}{(1+{\delta }_n)}-\frac{V_{no}}{9(1-{\delta }_n)(1-Q_{n\mathrm{ex}})}\right)\frac{8}{\pi {\lambda }_n^2{r}_{pz}}{\mu }_N.\end{array}$$

(18)

This equation may be solved for ${\delta }_n$ by collecting terms to form a quadratic equation in terms of ${\delta }_n$:

$$\begin{array}{c}\hfill a{\delta }_n^2+b{\delta }_n+c=0,\end{array}$$

(19)

where

$$\begin{array}{c}\hfill a=-9\pi (1-Q_{n\mathrm{ex}}){\lambda }_n^2{r}_{pz}\frac{{\mu }_n}{{\mu }_N},\end{array}$$

(20)

$$\begin{array}{c}\hfill b=72(1-Q_{n\mathrm{ex}})V_{ni}+8V_{no},\end{array}$$

(21)

and

$$\begin{array}{c}\hfill c=16V_{no}-a-b.\end{array}$$

(22)

Using the 2018 CODATA value [35,36],

$$\begin{array}{c}\hfill {\mu }_n=-1.91304273\left(45\right){\mu }_N,\end{array}$$

(23)

and applying the quadratic formula yields

$$\begin{array}{c}\hfill {\delta }_n=\frac{-b\pm \sqrt{b^2-4ac}}{2a}=3.70115\left(55\right)\times {10}^{-4}\mathrm{and}-4.3027973\left(10\right).\end{array}$$

(24)

The second solution is unphysical because ${\delta }_n$ is defined to be positive and much smaller than 1. Therefore ${\delta }_n=3.70115\left(55\right)\times {10}^{-4}$. Note that ${\delta }_n$ is more than 180 times smaller than $Q_{n\mathrm{ex}}$. This tiny proportion indicates that the charge distribution shift provided by ${\delta }_n$ is very slight.

3.1.2. Charge Arcs as Quantum Networks

In the refined GSQV proton model developed in Reference [9], the fine-tuned adjustable parameter, $R=0.76273\mathrm{fm}$, agrees with ${\lambda }_p/\sqrt{3}\approx 0.76292\mathrm{fm}$ to 3-digit precision, where

$$\begin{array}{c}\hfill {\lambda }_p=\frac{h}{m_{p}c}\end{array}$$

(25)

is proton Compton wavelength. This paper models unbound GSQV nucleons as self-sustaining networks of one-dimensional harmonic waves in 3+1 spacetime dimensions. This involves assuming

$$\begin{array}{c}\hfill R_p=\frac{{\lambda }_p}{\sqrt{3}}\mathrm{and}{R}_n=\frac{{\lambda }_n}{2}.\end{array}$$

(26)

Section 3.1.3 proposes that radial ensembles of virtual photon standing waves generate the charge arcs. It will be assumed that the radial systems of virtual photon standing waves interfere with the virtual photon standing waves–assumed to exist between the equatorial points of the proton inner arcs and the polar points of the neutron inner arcs.

Suppose the GSQV proton has both fundamental and second harmonic equatorial standing waves between the equatorial points of its inner charge arcs–shown in Figure 2. Since these equatorial points are ${\lambda }_p$ apart, the wavelength of the fundamental harmonic will be $2{\lambda }_p$ with momentum $h/2{\lambda }_p$. If the virtual standing waves generating the proton charge arcs are fundamental harmonics, they will be of wavelength $2{\lambda }_p/\sqrt{3}$ with momentum $\sqrt{3}h/2{\lambda }_p$. The rms value of the sum of interfering momenta $h/2{\lambda }_p$ and $\sqrt{3}h/2{\lambda }_p$ is given by

$$\begin{array}{c}\hfill p_{\mathrm{rms}}=\frac{h}{2{\lambda }_p}\sqrt{1^2+{\left(\sqrt{3}\right)}^2}=\frac{h}{{\lambda }_p},\end{array}$$

(27)

which is the momentum of the second harmonic presumed to exist between the equatorial points of the GSQV proton’s inner charge arcs. This second-harmonic standing wave, with wavelength ${\lambda }_p$, was a key assumption used to develop the original GSQV proton model in Reference [9]. This paper therefore proposes that the ensemble of an unbound GSQV proton’s charge arc fundamental harmonics interfere with its equatorial fundamental harmonic to generate the second equatorial harmonic–quantized as the rms value of this interference.

Similarly, suppose that the neutron has both fundamental and second harmonic standing waves between the polar points of its inner charge arcs–shown in Figure 4. Since these polar points are $\sqrt{3}{\lambda }_n/2$ apart, the wavelength of the fundamental harmonic will be $\sqrt{3}{\lambda }_n$. Such a wave has momentum $h/\sqrt{3}{\lambda }_n$. If the virtual standing waves generating the neutron charge arcs are fundamental harmonics, they will be of wavelength ${\lambda }_n$ with momentum $h/{\lambda }_n$. The rms value of the sum of interfering momenta $h/\sqrt{3}{\lambda }_n$ and $h/{\lambda }_n$ is given by

$$\begin{array}{c}\hfill p_{\mathrm{rms}}=\frac{h}{{\lambda }_n}\sqrt{{\left(\frac{1}{\sqrt{3}}\right)}^2+1^2}=\frac{2h}{\sqrt{3}{\lambda }_n},\end{array}$$

(28)

which is the momentum of the second harmonic presumed to exist between the polar points of the GSQV neutron’s inner charge arcs. This second-harmonic standing wave has wavelength $\sqrt{3}{\lambda }_n/2$, which is the polar-point separation shown in Figure 4. This paper therefore proposes that the ensemble of an unbound GSQV neutron’s charge arc fundamental harmonics interfere with its polar fundamental harmonic to generate the second polar harmonic–quantized as the rms value of this interference.

3.1.3. Charge Arc Generation and Proton Charge-Exclusion Zone

This paper proposes that the charge structure of an unbound GSQV nucleon consists of a pair of positive charge arcs and a pair of negative charge arcs. These are shown in Figure 1 and Figure 2 for the GSQV proton and Figure 3 and Figure 4 for the GSQV neutron. The outermost point of each charge arc resides at the zitterbewegung equator. Each charge arc is proposed to toroidally revolve about the particle center with its outermost point moving at light speed. This charge motion is proposed to generate the nucleon magnetic moments.

A proton’s $+e$ net charge, and positive magnetic moment, is proposed to be generated from a pair of negative charge arcs, each with charge $-e/2$, revolving inside a pair of positive charge arcs, each with charge $+e$. These charge arcs are depicted in Figure 1 and Figure 2. A neutron’s zero net charge, and negative magnetic moment, is proposed to consist of a pair of positive charge arcs, each with charge $+e$, revolving inside a pair of negative charge arcs, each with charge $-e$. These charge arcs are depicted in Figure 3 and Figure 4.

An ensemble of virtual photon standing waves is proposed to connect each point on a charge arc to its radial center. Each radial center resides on the zitterbewegung equator–substantially closer to the nucleon center than the arc’s equatorial point. Each radial center coherently revolves about the particle center with the charge arc.

For unbound GSQV nucleons, the zitterbewegung effect [8,9,37,38,39,73,74,75,76,77,78,79,80,81] will be assumed to behave as a circulation of nucleon mass energy. Since unbound low-energy nucleons are spin-half particles, two loops of circulation represent a full zitterbewegung cycle. This mass-energy flow will be modeled as a type of power that will be called zitterbewegung inertial power (ZIP). This ZIP power may be interpreted as the rate at which the mass-energy of an unbound GSQV nucleon progresses forward in time. This may align with energetic causal set theory–where spacetime emerges from momentum space and the conservation of energy-momentum [14,15,16,17,18,19,20,21]. Unbound GSQV nucleon ZIP will be defined as

$$\begin{array}{c}\hfill P_N=E_N{f}_N,\end{array}$$

(29)

where $E_N=h{f}_N$ is nucleon mass energy, and Compton frequency, $f_N$, is the number of full zitterbewegung cycles per second. Therefore

$$\begin{array}{c}\hfill P_N=h{f}_N^2.\end{array}$$

(30)

It will be assumed that an ensemble of virtual photons forms an ensemble of one-dimensional standing waves between every point on a charge arc and its radial center. Each charge arc is therefore continually reflecting and accelerating an ensemble of virtual photons. Each charge arc is a poloidal structure with poloidal radius $R_N$, which takes the value $R_N=R_p={\lambda }_p/\sqrt{3}$ for the proton or $R_N=R_n={\lambda }_n/2$ for the neutron.

For each unbound GSQV nucleon, vacuum energy poloidal acceleration density per poloidal radian will be assumed to be divided evenly among four charge arcs:

$$\begin{array}{c}\hfill \frac{d{a}_{\mathrm{pol}}}{d\varphi }=\frac{1}{4}{R}_N{\omega }_N^2,\end{array}$$

(31)

where $a_{\mathrm{pol}}$ denotes the magnitude of poloidal centripetal acceleration, $\varphi$ denotes latitude, and Compton angular frequency, ${\omega }_N=2\pi f_N$, implies the key assumption that unbound GSQV nucleon charge and mass regenerate at the same rate. This assumption is explored in Section 3.1.5.

Since $R_N$ and ${\omega }_N$ are independent of $\varphi$, it is trivial to integrate Equation (31) to obtain the total poloidal acceleration for each charge arc:

$$\begin{array}{c}\hfill a_{\mathrm{pol}}=\frac{1}{4}{R}_N{\omega }_N^2{\int }_{\mathrm{arc}}d\varphi =\frac{1}{4}{R}_N{\omega }_N^2\Delta {\varphi }_{\mathrm{arc}}=\frac{1}{4}s{\omega }_N^2,\end{array}$$

(32)

where $\Delta {\varphi }_{\mathrm{arc}}$ is the poloidal angular extent of the charge arc, and s is poloidal charge arc length. Compton angular frequency, ${\omega }_N$, may be interpreted as the temporal rate at which charge, $q_{\mathrm{arc}}$, is regenerated on arclength, s. This rate is tied to nucleon Compton or zitterbewegung frequency, $f_N={\omega }_N/2\pi$, and is independent of arclength, s.

Note that magnetic moment is generated by toroidal charge circulation. Poloidal acceleration, $a_{\mathrm{pol}}$, is due to the circular polarization of the revolving virtual photon assumed to initially generate the GSQV nucleon during pair production [9]. Therefore poloidal acceleration, $a_{\mathrm{pol}}$, is a circulation of virtual fields. This virtual field circulation is assumed to generate the four charge arcs of an unbound GSQV nucleon. The classical Larmor formula [112] will be repurposed to describe the amount of ZIP, $P_{\mathrm{pol}}$, that couples with the four poloidal virtual field accelerations to generate the four charge arcs:

$$\begin{array}{c}\hfill P_{\mathrm{pol}}=4\frac{q_{\mathrm{arc}}^2{a}_{\mathrm{pol}}^2}{6\pi {\epsilon }_0{c}^3},\end{array}$$

(33)

where ${\epsilon }_0$ is the electric permittivity of free space. Note that the classical Larmor formula is closely associated with the quantum Unruh effect [62,113,114,115,116,117,118].

Following Reference [9], $Q_{p\mathrm{ex}}$ is defined as the uncharged (polar) proportion of the GSQV proton’s outer surface. This outer surface is a surface of revolution formed by the GSQV proton’s outer charge arcs. It can be seen from Figure 6 that the uncharged proportion of the GSQV proton’s outer surface should resemble a flat cap at each pole. The quantity $(1-Q_{p\mathrm{ex}})$ represents the charged proportion of the GSQV proton’s outer surface. Since vacuum energy reflects only from the charged portion of each arc, it is reasonable to assume that for an unbound GSQV proton,

$$\begin{array}{c}\hfill P_{\mathrm{pol}}=(1-Q_{p\mathrm{ex}})P_p=(1-Q_{p\mathrm{ex}})h{f}_p^2\end{array}$$

(34)

For each proton outer charge arc, $R_p={\lambda }_p/\sqrt{3}$ and $\Delta {\varphi }_{\mathrm{arc}}=\pi$. These quantities are depicted in Figure 1. Substituting into Equation (32) yields

$$\begin{array}{c}\hfill a_{\mathrm{pol}}=\frac{\pi {\lambda }_p}{4\sqrt{3}}{\omega }_p^2.\end{array}$$

(35)

The relation $E_N=hc/{\lambda }_N=\hslash {\omega }_N$ implies ${\lambda }_N{\omega }_N=2\pi c$. Therefore

$$\begin{array}{c}\hfill {\lambda }_N{\omega }_N^2=2\pi c{\omega }_N=4{\pi }^{2}c{f}_N,\end{array}$$

(36)

since ${\omega }_N=2\pi f_N$.

Substituting Equation (36) into Equation (35) yields

$$\begin{array}{c}\hfill a_{\mathrm{pol}}=\frac{{\pi }^3}{\sqrt{3}}c{f}_p.\end{array}$$

(37)

Squaring,

$$\begin{array}{c}\hfill a_{\mathrm{pol}}^2=\frac{{\pi }^6}{3}{c}^2{f}_p^2.\end{array}$$

(38)

Substituting Equation (38) into Equation (33), with $q_{\mathrm{arc}}=e$, yields

$$\begin{array}{c}\hfill P_{\mathrm{pol}}=\frac{2{\pi }^5{e}^2{f}_p^2}{9{\epsilon }_{0}c}.\end{array}$$

(39)

Substituting Equation (34) into Equation (39) yields

$$\begin{array}{c}\hfill (1-Q_{p\mathrm{ex}})h=\frac{2{\pi }^5{e}^2}{9{\epsilon }_{0}c}.\end{array}$$

(40)

Rearranging,

$$\begin{array}{c}\hfill e^2=\frac{9{\epsilon }_{0}hc}{2{\pi }^5}(1-Q_{p\mathrm{ex}}).\end{array}$$

(41)

At low energies, the fine-structure constant may now be written as

$$\begin{array}{c}\hfill \alpha =\frac{e^2}{2{\epsilon }_{0}hc}=\frac{9}{4{\pi }^5}(1-Q_{p\mathrm{ex}}).\end{array}$$

(42)

Presuming Equation (42) to be exact, the 2018 CODATA value [35,36],

$$\begin{array}{c}\hfill \alpha =7.2973525693\left(11\right)\times {10}^{-3},\end{array}$$

(43)

can be used to calculate

$$\begin{array}{c}\hfill Q_{p\mathrm{ex}}=1-\frac{4}{9}{\pi }^5\alpha =1-\alpha {\pi }^5{\left(\frac{q_u}{e}\right)}^2=7.49620754\left(15\right)\times {10}^{-3}.\end{array}$$

(44)

This value is entirely reasonable, since it is just $2.1\%$ larger than that estimated in Reference [9]. Also note that $Q_{p\mathrm{ex}}$ is only $2.7\%$ larger than $\alpha$. Surprisingly, the low-energy fine-structure constant is found to depend only on the proportionate area of the GSQV proton’s charge-exclusion zone in 3+1 spacetime dimensions. At low energies, additional hidden dimensions may not be required to explain the coupling constant, $\alpha$, that enables the unrivaled precision of quantum electrodynamics [90,91,92].

Planck charge, $q_P$, may now be written in terms of quantized electronic charge, e, and the low-energy fine-structure constant, $\alpha$, as

$$\begin{array}{c}\hfill q_P^2=\frac{e^2}{\alpha }=\frac{4{\pi }^5{e}^2}{9(1-Q_{p\mathrm{ex}})},\end{array}$$

(45)

where $e^2$ was divided by the right-hand expression in Equation (42). Taking the square root,

$$\begin{array}{c}\hfill q_P=\frac{2e}{3}\sqrt{\frac{{\pi }^5}{(1-Q_{p\mathrm{ex}})}}=q_u\sqrt{{\pi }^5/(1-Q_{p\mathrm{ex}})},\end{array}$$

(46)

where $q_u=2e/3$ is the charge of an up, charm, or top quark. Rearranging,

$$\begin{array}{c}\hfill q_u=q_P\sqrt{(1-Q_{p\mathrm{ex}})/{\pi }^5},\end{array}$$

(47)

Surprisingly up, charm, and top quark charge appears to depend only on Planck charge, the proportionate area of an unbound GSQV proton’s charge-exclusion zone, and $\pi$. It follows that

$$\begin{array}{c}\hfill q_d=\frac{q_P}{2}\sqrt{(1-Q_{p\mathrm{ex}})/{\pi }^5},\end{array}$$

(48)

where $q_d=e/3$ is the charge of a down, strange, or bottom quark.

Since $Q_{p\mathrm{ex}}\approx \alpha$,

$$\begin{array}{c}\hfill q_u\approx q_P\sqrt{(1-\alpha )/{\pi }^5}\approx 0.056955q_P\mathrm{and}{q}_d\approx \frac{q_P}{2}\sqrt{(1-\alpha )/{\pi }^5}\approx 0.028478q_P.\end{array}$$

(49)

To the same level of precision, the actual relationships are

$$\begin{array}{c}\hfill q_u=\frac{2}{3}\sqrt{\alpha }{q}_P\approx 0.056950q_P\mathrm{and}{q}_d=\frac{1}{3}\sqrt{\alpha }{q}_P\approx 0.028475q_P.\end{array}$$

(50)

Therefore Equation (49), which eliminates the $2/3$ and $1/3$ factors, overestimates quark charges by only 1 part in 10,000. However, note that Eqns. (47) and (48) also eliminate the $2/3$ and $1/3$ factors and are presumed exact.

Substituting $Q_{p\mathrm{ex}}\approx \alpha$ into Equation (42) yields

$$\begin{array}{c}\hfill \frac{1}{\alpha }\approx \frac{4{\pi }^5}{9}+1={\left(\frac{2}{3}\right)}^2{\pi }^5+1={\left(\frac{q_u}{e}\right)}^2{\pi }^5+1\approx 137.01,\end{array}$$

(51)

which is accurate to 4 digits. Note that Equation (51) is much simpler, although less accurate, than Equation (59) of Reference [119]. The next section shows how the low-energy fine-structure constant can be calculated to 5-digit precision from the unbound nucleon charge arc quantum networks developed in this paper.

3.1.4. Five Digit Precision

Extending the assumption applied in Equation (34), mass energy coupling with each type of charge arc will be defined as

$$\begin{array}{c}\hfill P_{\mathrm{pol}}={\beta }_{\mathrm{arc}}(1-Q_{p\mathrm{ex}})P_N={\beta }_{\mathrm{arc}}(1-Q_{p\mathrm{ex}})h{f}_N^2,\end{array}$$

(52)

where ${\beta }_{\mathrm{arc}}\le 1$ depends on charge arc type. Note that each charge arc type exists as a pair, and that the same nucleon mass energy is assumed to simultaneously couple with all four charge arcs of an unbound GSQV nucleon.

Comparing Equation (34) to Equation (52), ${\beta }_{po}=1$ for the proton outer charge arcs. For each proton inner charge arc, $R_p={\lambda }_p/\sqrt{3}$ and $\Delta {\varphi }_{\mathrm{arc}}=2{\varphi }_{pl}$. These quantities are depicted in Figure 2. Substituting into Equation (32) and applying Equation (36) yields

$$\begin{array}{c}\hfill a_{\mathrm{pol}}=\frac{2{\pi }^2}{\sqrt{3}}c{\varphi }_{pl}{f}_p.\end{array}$$

(53)

Squaring,

$$\begin{array}{c}\hfill a_{\mathrm{pol}}^2=\frac{4{\pi }^4}{3}{c}^2{\varphi }_{pl}^2{f}_p^2.\end{array}$$

(54)

Substituting Equation (54) into Equation (33), with $q_{\mathrm{arc}}=e/2$, yields

$$\begin{array}{c}\hfill P_{\mathrm{pol}}=\frac{2{\pi }^3{\varphi }_{pl}^2{e}^2{f}_p^2}{9{\epsilon }_{0}c}.\end{array}$$

(55)

Substituting Equation (52) into Equation (55) yields

$$\begin{array}{c}\hfill {\beta }_{pi}(1-Q_{p\mathrm{ex}})h=\frac{2{\pi }^3{\varphi }_{pl}^2{e}^2}{9{\epsilon }_{0}c}.\end{array}$$

(56)

Rearranging,

$$\begin{array}{c}\hfill e^2=\frac{9{\beta }_{pi}{\epsilon }_{0}hc}{2{\pi }^3{\varphi }_{pl}^2}(1-Q_{p\mathrm{ex}}).\end{array}$$

(57)

Comparing with Equation (41),

$$\begin{array}{c}\hfill {\beta }_{pi}=\frac{{\varphi }_{pl}^2}{{\pi }^2}.\end{array}$$

(58)

For each neutron outer charge arc, $R_n={\lambda }_n/2$ and $\Delta {\varphi }_{\mathrm{arc}}=\pi$. These quantities are depicted in Figure 3. The reason why the outer charge arcs, in both unbound GSQV nucleon models, should extend for $\pi$ radians is as follows: Charge is assumed to be regenerated by twin poloidal revolutions phase-locked with each other. Another assumption, is that at each moment in time, at most one inner and one outer charge arc can be regenerated. Therefore, whenever both phase-locked poloidal circulations are on outer arcs, only one can regenerate charge.

Substituting into Equation (32) and applying Equation (36) yields

$$\begin{array}{c}\hfill a_{\mathrm{pol}}=\frac{{\pi }^3}{2}c{f}_n.\end{array}$$

(59)

Squaring,

$$\begin{array}{c}\hfill a_{\mathrm{pol}}^2=\frac{{\pi }^6}{4}{c}^2{f}_n^2.\end{array}$$

(60)

Substituting Equation (60) into Equation (33), with $q_{\mathrm{arc}}=e$, yields

$$\begin{array}{c}\hfill P_{\mathrm{pol}}=\frac{{\pi }^5{e}^2{f}_n^2}{6{\epsilon }_{0}c}.\end{array}$$

(61)

Substituting Equation (52) into Equation (61) yields

$$\begin{array}{c}\hfill {\beta }_{no}(1-Q_{p\mathrm{ex}})h=\frac{{\pi }^5{e}^2}{6{\epsilon }_{0}c}.\end{array}$$

(62)

Rearranging,

$$\begin{array}{c}\hfill e^2=\frac{6{\beta }_{no}{\epsilon }_{0}hc}{{\pi }^5}(1-Q_{p\mathrm{ex}}).\end{array}$$

(63)

Comparing with Equation (41),

$$\begin{array}{c}\hfill {\beta }_{no}=\frac{3}{4}.\end{array}$$

(64)

For each neutron inner charge arc, $R_n={\lambda }_n/2$ and $\Delta {\varphi }_{\mathrm{arc}}=2\pi /3$. These quantities are depicted in Figure 4. Substituting into Equation (32) and applying Equation (36) yields

$$\begin{array}{c}\hfill a_{\mathrm{pol}}=\frac{{\pi }^3}{3}c{f}_n.\end{array}$$

(65)

Squaring,

$$\begin{array}{c}\hfill a_{\mathrm{pol}}^2=\frac{{\pi }^6}{9}{c}^2{f}_n^2.\end{array}$$

(66)

Substituting Equation (66) into Equation (33), with $q_{\mathrm{arc}}=e$, yields

$$\begin{array}{c}\hfill P_{\mathrm{pol}}=\frac{2{\pi }^5{e}^2{f}_n^2}{27{\epsilon }_{0}c}.\end{array}$$

(67)

Substituting Equation (52) into Equation (67) yields

$$\begin{array}{c}\hfill {\beta }_{ni}(1-Q_{p\mathrm{ex}})h=\frac{2{\pi }^5{e}^2}{27{\epsilon }_{0}c}.\end{array}$$

(68)

Rearranging,

$$\begin{array}{c}\hfill e^2=\frac{27{\beta }_{ni}{\epsilon }_{0}hc}{2{\pi }^5}(1-Q_{p\mathrm{ex}}).\end{array}$$

(69)

Comparing with Equation (41),

$$\begin{array}{c}\hfill {\beta }_{ni}=\frac{1}{3}.\end{array}$$

(70)

Average neutron mass energy coupling with its charge arcs,

$$\begin{array}{c}\hfill \overline{{\beta }_n}=\frac{({\beta }_{no}+{\beta }_{ni})}{2}(1-Q_{p\mathrm{ex}})=\frac{\left(\frac{3}{4}+\frac{1}{3}\right)}{2}(1-Q_{p\mathrm{ex}})\approx 0.537606,\end{array}$$

(71)

where the value of $Q_{p\mathrm{ex}}$ is obtained from Equation (44). Average proton mass energy coupling with its charge arcs,

$$\begin{array}{c}\hfill \overline{{\beta }_p}=\frac{({\beta }_{po}+{\beta }_{pi})}{2}(1-Q_{p\mathrm{ex}})=\frac{(1+{\varphi }_{pl}^2/{\pi }^2)}{2}(1-Q_{p\mathrm{ex}})\approx 0.599996,\end{array}$$

(72)

where ${\varphi }_{pl}={cos}^{-1}(1-\sqrt{3}/2)$. When rounded to 5 digits, $\overline{{\beta }_p}$ is the same as $3/5$. The quantity $Q_{p\mathrm{ex}}$ will now be recalculated from ${\varphi }_{pl}$ and the assumption $\overline{{\beta }_p}=3/5$:

$$\begin{array}{c}\hfill \overline{{\beta }_p}=\frac{(1+{\varphi }_{pl}^2/{\pi }^2)}{2}(1-Q_{p\mathrm{ex}})=\frac{3}{5}.\end{array}$$

(73)

Rearranging,

$$\begin{array}{c}\hfill Q_{p\mathrm{ex}}=\frac{{\varphi }_{pl}^2-{\pi }^2/5}{{\pi }^2+{\varphi }_{pl}^2}\approx 7.4897836\times {10}^{-3}.\end{array}$$

(74)

Substituting Equation (74) into Equation (42) yields

$$\begin{array}{c}\hfill \frac{1}{\alpha }\approx \frac{10{\pi }^3}{27}\left({\pi }^2+{\varphi }_{pl}^2\right)\approx 137.03511,\end{array}$$

(75)

which implies

$$\begin{array}{c}\hfill \alpha \approx 7.2973998\times {10}^{-3}.\end{array}$$

(76)

This agrees to five-digit precision with the established experimental value $7.2973526\times {10}^{-3}$ [35,36] rounded to the same level of precision. This is more than four times more accurate than

$$\begin{array}{c}\hfill \alpha ={\left(\frac{3}{32}\right)}^{2}exp\left[\frac{2}{3}\left(\frac{1}{3}-\sqrt{\frac{3}{8}}\right)\right]\approx 7.2971363\times {10}^{-3},\end{array}$$

(77)

calculated from Equation (59) of Reference [119]. Note that the fine-structure constant is known to increase with energy, and that the value obtained from Equation (75) and shown in Equation (76) is slightly larger than the experimentally established ground-state value. This is not the case with Equation (77). Could Eqns. (73) to (76) correspond to an energy above which an unbound GSQV nucleon transforms into a minimally excited state, as depicted in Figure 7?

The up and down quark charges may be estimated by substituting Equation (74) into Equations (47) and (48):

$$\begin{array}{c}\hfill q_u\approx q_P\sqrt{6/\left[5{\pi }^3\left({\pi }^2+{\varphi }_{pl}^2\right)\right]}\approx 1.068121\times {10}^{-19}\mathrm{C}\end{array}$$

(78)

and

$$\begin{array}{c}\hfill q_d\approx q_P\sqrt{3/\left[10{\pi }^3\left({\pi }^2+{\varphi }_{pl}^2\right)\right]}\approx 5.340606\times {10}^{-20}\mathrm{C},\end{array}$$

(79)

which are accurate to at least 5 digits compared to the exact SI base unit values,

$$\begin{array}{c}\hfill q_u=\frac{2e}{3}=1.068117756\times {10}^{-19}\mathrm{C}\mathrm{and}{q}_d=\frac{e}{3}=5.34058878\times {10}^{-20}\mathrm{C},\end{array}$$

(80)

defined in 2019 [35,36]. Note that Equations (47) and (48) are simpler than Equations (78) and (79) and are presumed exact.

3.1.5. Nucleon Charge and Mass Coupling

For most of the known unstable particles, decay times are well established [5]. However, very little is known about particle formation times [120]. It is plausible that a nucleon’s charge and mass creation, annihilation, and regeneration all occur on the timescale equal to the length of the nucleon’s zitterbewegung cycle. This is the time, $t_z$, for light to travel a nucleon Compton wavelength, ${\lambda }_N$:

$$\begin{array}{c}\hfill t_z=\frac{{\lambda }_N}{c}\approx 4.4\times {10}^{-24}\mathrm{s},\end{array}$$

(81)

which is the same order of magnitude as the strong interaction timescale. This may conceptually align with energetic causal set theory–where stable particles may continually regenerate themselves at each moment in time [14,15,16,17,18,19,20,21].

Substituting Equation (42) into Equation (52) yields

$$\begin{array}{c}\hfill P_{\mathrm{pol}}=\frac{4{\pi }^5}{9}{\beta }_{\mathrm{arc}}\alpha P_N=k_{\mathrm{arc}}{P}_N,\end{array}$$

(82)

where

$$\begin{array}{c}\hfill k_{\mathrm{arc}}=\frac{4{\pi }^5}{9}{\beta }_{\mathrm{arc}}\alpha \end{array}$$

(83)

represents the coupling between nucleon mass and each type of charge arc. Section 3.1.4 derived the ${\beta }_{\mathrm{arc}}$ values: ${\beta }_{po}=1$; ${\beta }_{pi}={\varphi }_{pl}^2/{\pi }^2$; ${\beta }_{no}=3/4$; and ${\beta }_{ni}=1/3$. Substituting these values into Equation (83), using the 2018 CODATA value, $\alpha =7.2973525693\left(11\right)\times {10}^{-3}$[35,36], and ${\varphi }_{pl}={cos}^{-1}(1-\sqrt{3}/2)$ yields the nucleon mass-to-charge coupling constants:

$$\begin{array}{c}\hfill k_{po}=\frac{4{\pi }^5}{9}\alpha =0.99250379246\left(15\right);\end{array}$$

(84)

$$\begin{array}{c}\hfill k_{pi}=\frac{4{\pi }^3}{9}{\varphi }_{pl}^2\alpha =0.20748840645\left(31\right);\end{array}$$

(85)

$$\begin{array}{c}\hfill k_{no}=\frac{{\pi }^5}{3}\alpha =0.74437784434\left(11\right);\end{array}$$

(86)

and

$$\begin{array}{c}\hfill k_{ni}=\frac{4{\pi }^5}{27}\alpha =0.330834597485\left(50\right).\end{array}$$

(87)

It is apparent from Equations (71) and (72) that an unbound GSQV neutron’s mass energy couples with its charge arcs only about 10% less than an unbound GSQV proton’s mass energy couples with its charge arcs. However, Equations (84) to (87) show that nucleon mass energy couples much more with outer charge arcs than inner charge arcs, and that this coupling ratio is more than twice as much for the unbound GSQV proton as it is for the unbound GSQV neutron:

$$\begin{array}{c}\hfill \frac{k_{po}}{k_{pi}}>2\frac{k_{no}}{k_{ni}}.\end{array}$$

(88)

Also note that

$$\begin{array}{c}\hfill \frac{1-k_{no}}{1-k_{po}}\approx 34,\end{array}$$

(89)

which implies that GSQV neutron outer charge arcs are about 34 times less coupled with mass energy compared to GSQV proton outer charge arcs.

3.2. Quarks and Neutron Decay

3.2.1. Quark Formation

When minimally excited above its ground state, about 1-2% of an unbound GSQV nucleon’s mass energy may couple with the Higgs field and transfer from the GSQV nucleon’s central zitterbewegung fermion to its system of revolving formerly-massless charge arcs. As proposed in Reference [9], for the proton, this process may initially form three valence quarks and a virtual $\mathrm{u}\overline{\mathrm{u}}$ quark pair that initializes the formation of a virtual pion cloud.

A neutral pion exists as the slightly imbalanced superposition of bound $\mathrm{u}\overline{\mathrm{u}}$ and $\mathrm{d}\overline{\mathrm{d}}$ quark pairs [110]. The imbalance is due to unequal bare quark masses. Since bare down quarks are more massive than bare up quarks [5], it will be assumed that the GSQV proton’s precursor, to a virtual neutral pion, is purely the lower energy $\mathrm{u}\overline{\mathrm{u}}$ quark pair. Note that this paper assumes that the virtual $\mathrm{u}\overline{\mathrm{u}}$ quark pairs shown in Figure 7 are initially unbound sea quarks.

3.2.2. Intrinsic Charm Quark Formation

In addition to a minimally excited unbound GSQV proton containing an initial unbound $\mathrm{u}\overline{\mathrm{u}}$ virtual quark pair, which may bind and initialize a virtual neutral pion, the same unbound $\mathrm{u}\overline{\mathrm{u}}$ virtual quark pair may occasionally transform into a charm quark, c, and an anticharm quark, $\overline{\mathrm{c}}$. This unbound $\mathrm{c}\overline{\mathrm{c}}$ quark pair may momentarily bind with the proton’s three valence quarks to form bound states such as $\left|\mathrm{uudc}\overline{\mathrm{c}}\right.〉$[1,40,41,42,43,44,45,46,47,48,49,50]. The instrinsic charge values do not change, since up and charm quarks are like-charged. However, a substantial amount of mass energy will need to be temporarily borrowed from, and returned to, the local vacuum. Therefore, a minimally excited unbound GSQV proton model may partly explain the experimental evidence for the proton’s probabilistically small intrinsic $\mathrm{c}\overline{\mathrm{c}}$ component [1,40,41,42,43,44,45,46,47,48,49,50].

The unbound GSQV proton model may explain charm quark mass as follows: With both unbound GSQV nucleon models, charge is assumed to be regenerated by twin poloidal revolutions phase-locked with each other. Another assumption, is that at each moment in time, at most one inner and one outer charge arc can be regenerated. Therefore, whenever both phase-locked poloidal circulations are on an outer arc, only one can regenerate charge. This explains how the polar charge-exclusion zones form. With the unbound GSQV proton model, the uncharged polar poloidal circulation is divided into two paths as shown in Figure 6.

For the unbound GSQV neutron model, this phase locking prevents the twin poloidal vectors from overlapping. However, for the unbound GSQV proton model, the two poloidal vectors will occasionally overlap. As illustrated in Figure 2, two overlaps will occur almost simultaneously–half a poloidal cycle apart. Suppose each of these twin overlapping lengths momentarily forms a fundamental harmonic standing wave of vacuum energy. Each of these standing waves will be of wavelength

$$\begin{array}{c}\hfill 2\left(\frac{{\lambda }_p}{\sqrt{3}}-2r_{pa}\right)=2{\lambda }_p\left(1-\frac{1}{\sqrt{3}}\right),\end{array}$$

(90)

which is proportionately shorter than the wavelength of the fundamental harmonic ensemble regenerating the charge arcs, $2R_p=2{\lambda }_p/\sqrt{3}$, by the factor

$$\begin{array}{c}\hfill \sqrt{3}-1.\end{array}$$

(91)

The unbound GSQV proton’s virtual optimal Möbius band relationship between charge and mass generation is assumed to hold. This momentary shortening of the $R_p$ vector will be assumed additive and equivalent to proton mass energy, $m_p\approx 938.272{\mathrm{MeV}/\mathrm{c}}^2$[5,35,36], increasing by the factor ${(\sqrt{3}-1)}^{-1}$. This will appear as a momentary increase in proton mass energy by the amount

$$\begin{array}{c}\hfill \frac{m_p}{\sqrt{3}-1}\approx 1281.70{\mathrm{MeV}/\mathrm{c}}^2.\end{array}$$

(92)

Since there are two momentary overlaps, the proton mass increase should appear to be twice this amount. This is more than enough mass energy to generate the charm and anticharm quark "running" masses [5].

Since the charge associated with this momentary increase in proton mass energy already exists in the form of a virtual unbound $\mathrm{u}\overline{\mathrm{u}}$ quark pair, the bare mass of an up quark [5] will be subtracted. Up quark bare mass at the charm quark "running" mass renormalization scale will be applied [5]. At the energy of the charm quark "running" mass, the up quark mass is close to 25% larger than that at $2.0\mathrm{GeV}$[5]. In Section 3.3, Equation (103) estimates up quark mass as $m_u=2.{30}_{-0.10}^{+0.23}{\mathrm{MeV}/\mathrm{c}}^2$ on the $2.0\mathrm{GeV}$ scale. This becomes $m_u=2.{88}_{-0.13}^{+0.29}{\mathrm{MeV}/\mathrm{c}}^2$ when increased by 25%. We therefore estimate the mass energy of each intrinsic charm or anticharm quark as

$$\begin{array}{c}\hfill m_c=\frac{m_p}{\sqrt{3}-1}-2.{88}_{-0.13}^{+0.29}{\mathrm{MeV}/\mathrm{c}}^2=1278.{82}_{-0.29}^{+0.13}{\mathrm{MeV}/\mathrm{c}}^2.\end{array}$$

(93)

Both Equation (92) and Equation (93) are well within the 2022 recommended Particle Data Group range: $m_c=1270\pm 20{\mathrm{MeV}/\mathrm{c}}^2$ [5].

The twin charge-regenerating vectors are poloidally phase locked. However, they are generally in different planes which rotate toroidally with the charge arcs. This is because the equators of the inner and outer charge arcs rotate toroidally at the same speed (light speed), which implies a different toroidal frequency for each charge arc type. As shown in Figure 2, the twin charge-regenerating vectors align perfectly only on the zitterbewegung equator.

Suppose the twin charge-regenerating vectors become entangled whenever both vector tips, which is where charge is regenerated, are no farther from the zitterbewegung equator than the zitterbewegung radius, $r_{cz}$[9], of the charm quark "running" mass, $m_c$[5]. Also suppose that charm quark mass-energy is generated during such entanglement. During this charm quark mass-energy generation, the maximum angular separation, ${\theta }_{\mathrm{ent}}$, between each $R_p$ vector and the zitterbewegung equator will be

$$\begin{array}{c}\hfill {\theta }_{\mathrm{ent}}={sin}^{-1}\left(\frac{r_{cz}}{R_p}\right)={sin}^{-1}\left(\frac{\sqrt{3}{m}_p}{4\pi m_c}\right).\end{array}$$

(94)

It will be assumed that this angular separation will uniformly manifest as any combination of poloidal and toroidal misalignments. It is well known that such a uniform angular distribution will cover angular area $2\pi (1-cos{\theta }_{\mathrm{ent}})$. Since there are $4\pi$ steradians in a sphere, this angular area is

$$\begin{array}{c}\hfill \frac{(1-cos{\theta }_{\mathrm{ent}})}{2}=\frac{1}{2}\left(1-\sqrt{1-\frac{3m_p^2}{16{\pi }^2{m}_c^2}}\right)\approx 0.26\%\end{array}$$

(95)

of the total spherical angular area, where the identity $cos\left({sin}^{-1}\left(x\right)\right)=\sqrt{1-x^2}$ has been applied. This suggests that the $\left|\mathrm{uudc}\overline{\mathrm{c}}\right.〉$ bound state occurs about 0.26% of the time. Since this momentary state includes two charm quark masses, and each charm quark "running" mass [5] is significantly larger than the proton mass, we estimate the fraction of the proton momentum carried by intrinsic charm quarks as

$$\begin{array}{c}\hfill \frac{m_c}{m_p}\left(1-cos{\theta }_{\mathrm{ent}}\right)=\frac{m_c}{m_p}-\sqrt{{\left(\frac{m_c}{m_p}\right)}^2-\frac{3}{16{\pi }^2}}=0.704\left(11\right)\%,\end{array}$$

(96)

where the uncertainty is propagated from the 2022 recommended Particle Data Group range: $m_c=1270\pm 20{\mathrm{MeV}/\mathrm{c}}^2$[5]. Our estimate is consistent with the value $(0.62\pm 0.28)\%$, reported in Reference [1], and at least an order of magnitude more precise. Note that all quantities calculated from proton mass, $m_p$, are time-averaged. The momentary intrinsic charm and anticharm quarks are assumed to exchange energy and momentum with the time-averaged proton energy and momentum. The Heisenberg uncertainty principle allows intrinsic fluctuations of proton energy and momentum on short timescales [121,122].

3.2.3. Gluon Flux Tube Formation

Except for the unbound GSQV neutron’s outer charge arc pair, all other unbound nucleon charge arc pairs must merge before decomposing into the quark charge values shown in Figure 7. Such merging presumably momentarily forms charge shells [9]. It can be seen from the right-hand column of Panel (a) of Figure 7 that the two neutron outer charge arcs do not necessarily need to merge before decomposing into the four quarks shown. It is important to remember that color charge cycles extremely rapidly–to the degree that the color charge of each valence quark is effectively the superposition of all three colors and the color charge of each sea quark is the superposition of all three colors and all three anticolors.

The remaining 98-99% of a minimally excited unbound GSQV nucleon’s mass energy is proposed to transform into gluon flux tubes and quark relativistic kinetic energy [123]. This paper proposes that the curvature of the unbound GSQV charge arcs and charge shells prevents the initial formation of gluon flux tubes between quarks on the same arc or shell. It will therefore be assumed that initially two gluon flux tubes form between inner and outer valence quarks. In particular, each of two outer valence quarks connects to the same inner valence quark via a gluon flux tube. It will be assumed that this initial double gluon flux tube structure immediately transforms into the three-way symmetric gluon flux tube structure described by the Standard Model of particle physics [123].

The nucleon’s spin angular momentum may partially migrate from the gluon flux tubes to the valence quarks [9]. This partial migration may be interaction-dependent and provide a conceptual clue to the nucleon spin crisis [9,124,125,126].

For the minimally excited unbound GSQV proton, Panel (b) of Figure 7 illustrates the transition from massless charge arcs to massive quarks. The proton’s two up valence quarks originate from its outer charge arcs, while the proton’s down valence quark originates from its inner charge arcs. Comparing Figure 1 and Figure 2, clearly the proton’s inner arcs are less symmetrical than its outer arcs. Therefore, the proton’s up-quark probability distribution should be more symmetrical than its down-quark probability distribution. This expected effect has been confirmed to occur in recent lattice QCD computations [34].

For the minimally excited unbound GSQV neutron, Panel (a) of Figure 7 illustrates the transition from massless charge arcs to massive quarks. The neutron’s two down valence quarks originate from its outer charge arcs, while the neutron’s up valence quark originates from its inner charge arcs. The minimally excited unbound GSQV neutron contains two unbound $\mathrm{u}\overline{\mathrm{u}}$ quark pairs that are proposed to initialize the formation of a virtual pion cloud.

3.2.4. Neutron Decay

The long-established neutron decay mechanism is for a down valence quark to decay to an up valence quark via the emission of a ${\mathrm{W}}^{-}$ boson or absorption of a ${\mathrm{W}}^{+}$ boson [127]. Both processes are equivalent and emit an electron and an electron antineutrino. The unbound GSQV nucleon models offer the following similar, but more detailed, mechanism. Suppose that the weak interaction [110] involves one of the unbound GSQV neutron’s outer charge arcs either transforming into a ${\mathrm{W}}^{-}$ boson or absorbing a ${\mathrm{W}}^{+}$ boson. Note that in the minimally excited GSQV neutron model, illustrated in Panel (a) of Figure 7, each outer charge arc initially transforms into an unbound $\overline{\mathrm{u}}\mathrm{d}$ quark pair. The Standard Model allows a W boson to both form from, and decay into, a first-generation quark pair [123]. Examples include leptonic decay of a charged pion and charged kaon decay into three charged pions. It is therefore plausible that the weak interaction [110] applies to the absolute ground state of the GSQV neutron model as well as its minimally excited state illustrated in Panel (a) of Figure 7.

Panel (b) of Figure 7 shows that the minimally excited unbound GSQV proton model does not contain an intrinsic $\overline{\mathrm{d}}$ quark (charge $+e/3$). The absence of an intrinsic $\overline{\mathrm{d}}$ sea quark may be associated with proton stability. An $\overline{\mathrm{d}}$ quark would presumably be needed to either form and emit a ${\mathrm{W}}^{+}$ boson from an $\mathrm{u}\overline{\mathrm{d}}$ quark pair, or annihilate with an $\overline{\mathrm{u}}\mathrm{d}$ quark pair that decomposes from an absorbed ${\mathrm{W}}^{-}$ boson. Note that the electron capture [107,108,109,110] and positron emission [128] processes may generally involve a W boson interacting with a loosely bound proton’s inner charge region, which is more likely to occur with the assistance of other bound nucleons [111]. Section 3.1.1 discusses some details of how this paper’s GSQV nucleon models explain aspects of electron capture.

Once an unbound GSQV neutron has emitted a ${\mathrm{W}}^{-}$ boson, or absorbed a ${\mathrm{W}}^{+}$ boson, it will resemble an inside-out unbound GSQV proton. Such an inside-out configuration should be electromagnetically unstable. All other parameters remaining unchanged, Equation (18) will now be modified by removing $-e$ from the neutron’s outer charge arcs. This halves the charge on the outer arcs, so that the former neutron’s magnetic moment becomes

$$\begin{array}{c}\hfill \mu =\left(\frac{V_{ni}}{(1+{\delta }_n)}-\frac{V_{no}}{18(1-{\delta }_n)(1-Q_{n\mathrm{ex}})}\right)\frac{8}{\pi {\lambda }_n^2{r}_{pz}}{\mu }_N\approx +0.623{\mu }_N,\end{array}$$

(97)

which is of opposite magnetic polarity to the neutron. This magnetic moment is also considerably weaker than that of either free nucleon.

Suppose that electrostatic effects dominate the dynamics of this magnetically weakened environment. The former neutron’s inner charge region will have a far greater charge density than its outer charge region. It will be assumed that this causes the inner positive charge region to expand outward, which should result in an increasingly positive magnetic moment. This outward expansion could conceivably stop once the perturbed nucleon’s magnetic moment becomes strong enough to contain the charge structures via the unbound GSQV nucleon’s magnetic self-interaction. Details of such self-interaction are subjectively described in Reference [9]. It will be assumed that the expansion of the inner positive charge region will not stop until after it has completely passed through the negative charge region. This new structure is assumed to stabilize once it becomes identical to that of an unbound GSQV proton–with its twin virtual optimal Möbius bands [10,11,12,13]. See Section 3.1 and Appendix A for details.

For the decay process of a minimally excited GSQV neutron, it will be assumed that a similar electromagnetic restructuring occurs. In addition, the trilateral gluon flux tube structure must disconnect from the down valence quark that combines with an intrinsic antiup sea quark. This unbound $\overline{\mathrm{u}}\mathrm{d}$ quark pair will presumably either form and emit a ${\mathrm{W}}^{-}$ boson or annihilate with a $\mathrm{u}\overline{\mathrm{d}}$ quark pair that decomposes from an absorbed ${\mathrm{W}}^{+}$ boson. The trilateral gluon flux tube structure then presumably connects with an intrinsic up sea quark, causing it to transform into a valence up quark.

The Standard Model assumes that a valence quark may change flavor by emitting or absorbing a ${\mathrm{W}}^{+}$ or ${\mathrm{W}}^{-}$ boson. Other quarks are not directly involved. The ${\mathrm{W}}^{+}$ and ${\mathrm{W}}^{-}$ bosons share the same mass, $m_{\mathrm{W}}$, which may be calculated from other Standard Model parameters. Reference [129] recently calculated the following Standard Model prediction of the W boson mass:

$$\begin{array}{c}\hfill m_{\mathrm{W}}=80354.5\pm 5.9{\mathrm{MeV}/\mathrm{c}}^2,\end{array}$$

(98)

which is statistically consistent with the ATLAS Collaboration’s recent experimental determination [130],

$$\begin{array}{c}\hfill m_{\mathrm{W}}=80366.5\pm 9.8(\mathrm{stat}.)\pm 12.5(\mathrm{syst}.)=80366.5\pm 15.9{\mathrm{MeV}/\mathrm{c}}^2.\end{array}$$

(99)

Note that Reference [129] performs a global fit of electroweak data within the Standard Model without directly incorporating the first-generation quark masses.

This paper proposes the following unbound neutron decay process as an extension of the Standard Model:

• An outer charge arc decomposes into an intrinsic unbound $\overline{\mathrm{u}}\mathrm{d}$ quark pair. This quark pair either forms and emits a ${\mathrm{W}}^{-}$ boson or annihilates with a $\mathrm{u}\overline{\mathrm{d}}$ quark pair that decomposes from an absorbed ${\mathrm{W}}^{+}$ boson. This causes the decaying nucleon to initially lose mass equal to the sum of the bare masses of these intrinsic $\overline{\mathrm{u}}$ and d quarks. This results in an unstable structure that is less massive than, but of the same charge as, a proton;
• The inner charge arcs expand to become outer charge arcs and two new inner charge arcs form;
• All four charge arc radii increase to the Compton wavelength of this restabilizing nucleon’s mass divided by $\sqrt{3}$, which forms twin virtual optimal Möbius bands [10,11,12,13];
• Once this virtual optimal Möbius band structure has formed, the restabilizing nucleon is assumed to have the same angular charge distribution and equatorial speed as that of an unbound GSQV proton;
• Being less massive than a proton, this restabilizing nucleon will be larger than a proton. It will therefore have a lower charge density and larger magnetic moment compared to an unbound GSQV proton. Applying classical electromagnetism to this quantum system, the lower charge density is assumed to be associated with a lower tendency for outward expansion due to electrostatic forces. The larger magnetic moment is assumed to result in larger inward equatorial magnetic forces compared to an unbound GSQV proton [9];
• This larger inward equatorial compression, combined with reduced outward expansion, is assumed to cause the restabilizing nucleon to uniformly contract–and thereby increase its mass–to that of an unbound proton. An unbound GSQV proton is assumed to be a balanced system of internal quantum electromagnetic interactions [9].

3.2.5. W Boson Mass

Note that this paper does not attempt to explain the absolute or relative values of the nucleon masses. This paper proposes that the W boson of the Standard Model should be amended by adding an up quark mass and a down quark mass. During leptonic decay of a charged pion [131], it is plausible that the W boson mass actually includes the bare masses of the pion’s two quarks: one up or antiup; one down or antidown. For most W boson interactions, the principle applied by this paper is that quark flavor change necessarily involves up and down sea quarks. This implies that a second or third generation quark transforms into a first generation quark before emitting or absorbing a W boson. The converse also applies and each generation change will involve an exchange of mass and vacuum energies.

This paper assumes that the intrinsic properties of unbound nucleons are determined at the energy scale of nucleon-antinucleon pair production, which is about $2\mathrm{GeV}$. At this energy scale, the sum of the up and down bare quark masses is approximately $6.9{\mathrm{MeV}/\mathrm{c}}^2$[5], with a much smaller absolute uncertainty than of the W boson mass estimates in Equations (98) and (99). This paper therefore proposes amending Equation (98) by adding $6.9{\mathrm{MeV}/\mathrm{c}}^2$:

$$\begin{array}{c}\hfill m_{\mathrm{W}}=80361.4\pm 5.9{\mathrm{MeV}/\mathrm{c}}^2.\end{array}$$

(100)

Note that the means of Equations (99) and (100) differ by only $5.1{\mathrm{MeV}/\mathrm{c}}^2$, which is less than both the statistical uncertainty of Equation (99) and the uncertainty of Equation (100). Clearly the neutron decay model proposed by this paper agrees substantially better with the recent analysis of the ATLAS Collaboration [130] than does the Standard model. The ATLAS Collaboration is expected to produce future W boson mass estimates with substantially lower uncertainty. It is possible that these future estimates could agree substantially more with the Standard Model than the model proposed by this paper. Such an outcome could falsify key aspects of the modeling proposed by this paper.

3.3. Improved Unbound GSQV Proton Model

The accuracy of this both this section and Section 3.4 depends on the precise sum of the up and down quark masses at the energy scale of nucleon-antinucleon pair production. This energy scale is approximately $2\mathrm{GeV}$. At the $2\mathrm{GeV}$ energy scale, the sum of the up and down quark masses is experimentally determined to be [5]

$$\begin{array}{c}\hfill m_u+m_d=2\overline{m}=6.{90}_{-0.30}^{+0.70}{\mathrm{MeV}/\mathrm{c}}^2.\end{array}$$

(101)

While this central estimate and uncertainties are appropriate for Equation (100) in Section 3.2.5, these uncertainties are much too large to convincingly demonstrate the claimed precision of the proton model developed in this section and the neutron model developed in Section 3.4.

Similarly, the experimentally determined up-to-down quark mass ratio [5],

$$\begin{array}{c}\hfill \frac{m_u}{m_d}=0.{474}_{-0.074}^{+0.056}{\mathrm{MeV}/\mathrm{c}}^2,\end{array}$$

(102)

is much too inaccurate for our purposes. Instead, this paper will assume the exact relationship $m_u=m_d/2$, which is well within the uncertainty of Equation (102). Combining this assumption with Equation (101) yields

$$\begin{array}{c}\hfill m_d=\frac{4\overline{m}}{3}=4.{60}_{-0.20}^{+0.47}{\mathrm{MeV}/\mathrm{c}}^2\mathrm{and}{m}_u=\frac{2\overline{m}}{3}=2.{30}_{-0.10}^{+0.23}{\mathrm{MeV}/\mathrm{c}}^2.\end{array}$$

(103)

3.3.1. Theoretical Down Quark Mass

It is often speculated that the down quark mass, at the precise energy threshold of nucleon-antinucleon pair production, may be precisely 9 electron masses [5]:

$$\begin{array}{c}\hfill m_d=9m_e=9\times 0.51099895000\left(15\right){\mathrm{MeV}/\mathrm{c}}^2=4.5989905500\left(14\right){\mathrm{MeV}/\mathrm{c}}^2,\end{array}$$

(104)

which closely agrees with the central estimate in Equation (103).

This paper will apply this hypothesis and also propose that the down quark mass, at the precise energy threshold of nucleon-antinucleon pair production, is precisely the difference between the charged and uncharged pion masses [5,132]:

$$\begin{array}{c}\hfill m_d=m_{{\pi }^{\pm }}-m_{{\pi }^0}=4.59364\left(48\right){\mathrm{MeV}/\mathrm{c}}^2.\end{array}$$

(105)

Note that Equations (104) and (105) differ by more than 11 standard deviations, and so are unlikely to be consistent with each other. At the precise energy threshold of nucleon-antinucleon pair production, suppose that virtual neutral pions are in equilibrium with virtual photons. Also suppose that the formation of a virtual charged pion pair requires the temporary borrowing of vacuum energy equal to the mass energy of an unbound bare $\mathrm{d}\overline{\mathrm{d}}$ quark pair. A pair of virtual charged pions will then be formed from the d quark (charge $-e/3$) binding with an intrinsic $\overline{\mathrm{u}}$ quark and the $\overline{\mathrm{d}}$ quark (charge $+e/3$) binding with an intrinsic u quark. If this occurs, it is plausible that

$$\begin{array}{c}\hfill m_{{\pi }^0}+m_d=m_{{\pi }^{\pm }},\end{array}$$

(106)

from which Equation (105) follows. Note the complete absence of antidown quarks (charge $+e/3$) and absence of sea down quarks (charge $-e/3$) in Figure 7, where no pions are present. Pions are assumed to form at higher energies.

In the minimally excited GSQV nucleon models, depicted in Figure 7, it is possible–but not necessary–that each unbound up and antiup quark possesses relativistic energy equaling the mass energy of a neutral pion. This may explain how these quarks are able to initiate charged pion production. Reference [106] found that non-single-pion photoproduction off the proton amounts to about 10%, whereas non-single-pion photoproduction off the neutron amounts to about 44%. This large difference may be partly explained by the minimally excited GSQV neutron containing twice as many charged pion-production sites, in the form of virtual up and antiup sea quarks, as the minimally excited GSQV proton.

3.3.2. Perturbed Charge Distributions

Section 3.1.1 defined and calculated a parameter, ${\delta }_n$, which represents a slight perturbation of the unbound GSQV neutron’s charge distribution along each charge arc. This perturbation will be assumed due to the interaction between the radial vacuum standing wave ensemble, maintaining each charge arc, and the charge arc itself.

During Steps 3 & 4 of the unbound neutron decay process described in Section 3.2.4, new charge arcs form with radius, $R_{n^{\prime }}$, equal to the Compton wavelength of the decaying neutron’s temporarily reduced mass divided by $\sqrt{3}$. It will be assumed, that during Steps 3 & 4, the charge perturbation parameter changes with the inverse square of the charge arc radius. The reason for this inverse square relationship is as follows. The wavelength of the radial standing wave ensembles will increase linearly with charge arc radius, which will cause their energies to decrease linearly with arc radius. In addition, the energy density of these radial standing wave ensembles, along each charge arc, will dilute linearly with charge arc radius. The charge perturbation parameter is assumed proportional to this energy density, which declines with the square of charge arc radius.

It will be assumed that the charge perturbation parameter, ${\delta }_{n^{\prime }}$, does not change further during Steps 5 & 6. Therefore define unbound proton charge perturbation parameter,

$$\begin{array}{c}\hfill {\delta }_p={\delta }_{n^{\prime }}={\left(\frac{R_n}{R_{n^{\prime }}}\right)}^2{\delta }_n={\left(\frac{\sqrt{3}{m}_{n^{\prime }}}{2m_n}\right)}^2{\delta }_n=\frac{3}{4}{\left(\frac{m_n-\frac{3}{2}{m}_d}{m_n}\right)}^2{\delta }_n,\end{array}$$

(107)

since Compton wavelength is inversely proportional to mass and this paper assumes $m_u+m_d=\frac{3}{2}{m}_d$.

3.3.3. Cosmic Origin of Quark Masses

Reference [9] combines the zitterbewegung and circular Unruh effects to propose that proton mass energy is quantized as approximately $2\sqrt{3}/0.2855\approx 98.9\%$ of the median thermal excess vacuum energy due to the circular Unruh effect. The approximate value $0.2855$ is obtained by numerically integrating the Planck spectrum and the relationship $k_{B}T/0.2855\approx 3.503k_{B}T$, where $k_B$ is the Boltzmann constant and T is temperature. A more precise numerical integration yields median thermal energy to be approximately $3.50302k_{B}T$ [133]. Reference [133] argues that the median energy is the most physically meaningful numerical criterion for the thermal spectrum peak, and that this should be more widely taught.

In the early universe, unbound nucleons initially formed during the hadron epoch. Early in the hadron epoch, each unbound nucleon was completely surrounded by the quark-gluon plasma (QGP) from which it formed [134]. Prior to neutrino decoupling, protons were in equilibrium with neutrons and antiprotons were in equilibrium with antineutrons [134].

This paper proposes that each proton-neutron pair, and each antiproton-antineutron pair, of quantum vortices generated more than enough circular Unruh energy for the mass energy of each nucleon. It is proposed that these quantum vortices generated additional circular Unruh energy amounting to the bare mass energies of the nucleon pair’s six valence quarks. This excess energy is proposed to replace the mass energies of the QGP quarks from which the nucleon pair formed. It is therefore proposed that

$$\begin{array}{c}\hfill 3.50302k_B\left(T_p+T_n\right)\approx \left(m_p+m_n+3m_u+3m_d\right)c^2,\end{array}$$

(108)

where $T_p$ and $T_n$ respectively represent the circular Unruh temperatures of the proton and neutron. Reference [9] shows that $T_p=\frac{m_p{c}^2}{2\sqrt{3}{k}_B}$, which implies $T_n=\frac{m_n{c}^2}{2\sqrt{3}{k}_B}$. Substuting into Equation (108) yields

$$\begin{array}{c}\hfill \frac{3.50302}{2\sqrt{3}}\left(m_p+m_n\right)\approx m_p+m_n+3m_u+3m_d.\end{array}$$

(109)

Rearranging and substituting proton and neutron mass values in units of ${\mathrm{MeV}/\mathrm{c}}^2$ [5,35,36] yields

$$\begin{array}{c}\hfill m_u+m_d\approx \frac{1}{3}\left(\frac{3.50302}{2\sqrt{3}}-1\right)\left(m_p+m_n\right)\approx 7.032{\mathrm{MeV}/\mathrm{c}}^2,\end{array}$$

(110)

which is less than $2\%$ above the central estimate in Equation (101). Since this paper assumes $m_u=m_d/2$,

$$\begin{array}{c}\hfill m_d\approx \frac{2}{9}\left(\frac{3.50302}{2\sqrt{3}}-1\right)\left(m_p+m_n\right)\approx 4.6882{\mathrm{MeV}/\mathrm{c}}^2,\end{array}$$

(111)

which is only about $2\%$ above the $m_d$ values calculated from Eqns. (103), (104), and (105). The consistency between Eqns. (103), (104), (105), and (111) is encouraging. The additional $2\%$ calculated by Equations (110) and (111) may be due to an intrinsic heavy quark component [1,40,41,42,43,44,45,46,47,48,49,50].

3.3.4. Proton Magnetic Moment from a Charge Arc Geometry

Following Reference [9], Section 3.1.1, and Section 3.3.2, proton magnetic moment will be calculated from

$$\begin{array}{c}\hfill {\mu }_p=\left(\frac{2V_{po}}{(1+{\delta }_p)(1-Q_{p\mathrm{ex}}){(R_p+r_{pa})}^2}-\frac{V_{pi}}{(1-{\delta }_p){(R_p-r_{pa})}^2}\right)\frac{{\mu }_N}{4\pi r_{pz}},\end{array}$$

(112)

where $V_{pi}$ is the lemon volume formed by rotating the proton’s two inner charge arcs about the proton center, $V_{po}$ is the volume formed by rotating the proton’s two outer charge arcs, with flat end caps, about the proton center, $Q_{p\mathrm{ex}}$ is the uncharged proportion of the proton’s outer surface, $R_p={\lambda }_p/\sqrt{3}$, and

$$\begin{array}{c}\hfill r_{pa}=R_p-\frac{{\lambda }_p}{2}={\lambda }_p\left(\frac{1}{\sqrt{3}}-\frac{1}{2}\right).\end{array}$$

(113)

Substituting Equations (1) and (113) into Equation (112) yields

$$\begin{array}{c}\hfill {\mu }_p=\left(\frac{6V_{po}}{(1+{\delta }_p)(1-Q_{p\mathrm{ex}}){(4-\sqrt{3})}^2}-\frac{V_{pi}}{1-{\delta }_p}\right)\frac{4{\mu }_N}{{\lambda }_p^3}.\end{array}$$

(114)

Following the Appendix of Reference [9],

$$\begin{array}{c}\hfill V_{pi}=\frac{4}{3}\pi R_p^3\left[{sin}^3{\varphi }_{pl}-\frac{3}{4}cos{\varphi }_{pl}(2{\varphi }_{pl}-sin2{\varphi }_{pl})\right]\end{array}$$

(115)

and

$$\begin{array}{c}\hfill V_{po}={\pi }^2{R}_p^2\left(r_{pa}+\frac{4R_p}{3\pi }\right)+2\pi r_{pa}^2{R}_p.\end{array}$$

(116)

Note that

$$\begin{array}{c}\hfill {\varphi }_{pl}={cos}^{-1}\left(\frac{r_{pa}}{R_p}\right)={cos}^{-1}\left(1-\frac{\sqrt{3}}{2}\right).\end{array}$$

(117)

Clearly, both $V_{pi}$ and $V_{po}$ are proportional to ${\lambda }_p^3$. The form of Equation (114) therefore implies a proton g-factor independent of proton mass.

The quantity $Q_{p\mathrm{ex}}$ will be calculated from Equation (44); the quantity ${\delta }_p$ will be calculated from Equation (107). The uncertainty of ${\delta }_n$, obtained from Equation (24), dominates the uncertainty of Equation (107) to the degree where the discrepancy between Equations (104) and (105) becomes negligible. Therefore, applying either Equation (104) or Equation (105) to Equation (107) yields

$$\begin{array}{c}\hfill {\delta }_p=2.7353\left(4\right)\times {10}^{-4}.\end{array}$$

(118)

Substituting Equation (118) into Equation (114) yields

$$\begin{array}{c}\hfill {\mu }_p=2.7928474\left(3\right){\mu }_N,\end{array}$$

(119)

which is consistent with experiment. However, proton magnetic moment has been experimentally determined to far greater precision [35,36,135]:

$$\begin{array}{c}\hfill {\mu }_p=2.79284734463\left(82\right){\mu }_N.\end{array}$$

(120)

It is clear from Equation (20) that ${\delta }_n$ depends on neutron mass, $m_n$, proton mass, $m_p$, and neutron magnetic moment, ${\mu }_n$, which is the precision-limiting factor. It is clear from Equation (107) that ${\delta }_p$ also depends on the sum of the up and down quark masses, $m_u+m_d=\frac{3}{2}{m}_d$. It is clear from Equation (44) that $Q_{p\mathrm{ex}}$ depends on the low-energy value of the fine-structure constant, $\alpha$. Therefore proton magnetic moment, ${\mu }_p$, can be calculated from neutron mass, $m_n$, proton mass, $m_p$, neutron magnetic moment, ${\mu }_n$, the sum of the up and down quark masses, $m_u+m_d=\frac{3}{2}{m}_d$, and the low-energy value of the fine-structure constant, $\alpha$. However the precision of this calculation, displayed as Equation (119), is limited by the experimental precision of the neutron mangnetic moment, ${\mu }_n$.

3.3.5. Effective Proton Charge Radii

A recent antineutrino-proton scattering experiment estimated the axial vector form factor of free protons without the need for nuclear theory corrections [51]. In simpler terms, Reference [51] estimated the proton polar axial charge radius, $r_A=0.73\pm 0.17\mathrm{fm}$. Figure 1 shows the GSQV proton’s effective polar positive-charge radius to be

$$\begin{array}{c}\hfill r_A\approx R_p=\frac{{\lambda }_p}{\sqrt{3}}\approx 0.763\mathrm{fm}.\end{array}$$

(121)

Figure 2 shows the GSQV proton’s effective polar negative-charge radius to be

$$\begin{array}{c}\hfill r_A\approx R_{p}sin{\varphi }_{pl}={\lambda }_p\sqrt{\frac{1}{\sqrt{3}}-\frac{1}{4}}\approx 0.756\mathrm{fm}.\end{array}$$

(122)

Both of the proton polar axial charge radius estimates, given by Equations (121) and (122), are well inside the experimental range reported in Reference [51]. The research program reported in Reference [51] is ongoing and could potentially falsify the GSQV proton models developed both in this paper and Reference [9].

A key assumption applied when developing the GSQV proton model in Reference [9] was that charge distribution is the radial projection of two concentric uniformly-charged spheres. To a first approximation, this assumption persists in Equations (112) and (114). Deviations from this key assumption are the polar charge-exclusion zones on the GSQV proton’s outer apple-shaped charge surface and the relatively tiny ${\delta }_p$ perturbation.

Consider a GSQV proton model without charge-exclusion zones and no ${\delta }_p$ perturbation. Radially projecting all charge out to $R_{Eo}$ yields a spherically symmetric charge distribution with electric potential at distance $R_{Eo}$ from the proton center,

$$\begin{array}{c}\hfill U\left(R_{Eo}\right)=\frac{ke}{R_{Eo}},\end{array}$$

(123)

where k is Coulomb’s constant. Since the GSQV proton model is approximately spherical, electric potential on its outer surface, at average distance

$$\begin{array}{c}\hfill r_s=\sqrt[3]{\frac{3}{4\pi }{V}_{po}}\end{array}$$

(124)

from the proton center, may be approximated by

$$\begin{array}{c}\hfill U\left(r_s\right)\approx \frac{ke}{r_s},\end{array}$$

(125)

which implies

$$\begin{array}{c}\hfill \frac{U\left(r_s\right)}{ke}\approx \frac{1}{r_s}.\end{array}$$

(126)

For a sphere of radius r, surface area, A, and volume V,

$$\begin{array}{c}\hfill \frac{rA}{V}=3.\end{array}$$

(127)

Note that the number 3 is precise in Equation (127). Since a perfect sphere has the minimum surface area to volume ratio for its size, Equation (127) should yield a number greater than 3 for a perturbed sphere. The Appendix of Reference [9] shows how to calculate the surface areas of the volumes defined in Section 3.1.1 and Section 3.3.4:

$$\begin{array}{c}\hfill A_{ni}=4\pi R_n^2(sin{\varphi }_{nl}-{\varphi }_{nl}cos{\varphi }_{nl});\end{array}$$

(128)

$$\begin{array}{c}\hfill A_{no}=4\pi R_n^2(sin{\varphi }_{na}-{\varphi }_{na}cos{\varphi }_{na});\end{array}$$

(129)

$$\begin{array}{c}\hfill A_{pi}=4\pi R_p^2(sin{\varphi }_{pl}-{\varphi }_{pl}cos{\varphi }_{pl});\end{array}$$

(130)

$$\begin{array}{c}\hfill A_{po}=2{\pi }^2{R}_p\left(r_{pa}+\frac{2R_p}{\pi }\right)+2\pi r_{pa}^2.\end{array}$$

(131)

For the unbound GSQV proton model of Section 3.3.4,

$$\begin{array}{c}\hfill \frac{r_s{A}_{po}}{V_{po}}\approx 3.0059.\end{array}$$

(132)

Also note that

$$\begin{array}{c}\hfill \frac{r_{pi}{A}_{pi}}{V_{pi}}\approx 3.0067,\end{array}$$

(133)

where

$$\begin{array}{c}\hfill r_{pi}=\sqrt[3]{\frac{3}{4\pi }{V}_{pi}}\approx 0.6810\mathrm{fm}.\end{array}$$

(134)

Similarly for the unbound GSQV neutron model, developed in Section 3.1.1,

$$\begin{array}{c}\hfill \frac{r_{no}{A}_{no}}{V_{no}}\approx 3.0791\mathrm{and}\frac{r_{ni}{A}_{ni}}{V_{ni}}\approx 3.1205,\end{array}$$

(135)

where

$$\begin{array}{c}\hfill r_{no}=\sqrt[3]{\frac{3}{4\pi }{V}_{no}}\approx 0.90083\mathrm{fm}\mathrm{and}{r}_{ni}=\sqrt[3]{\frac{3}{4\pi }{V}_{ni}}\approx 0.37856\mathrm{fm}.\end{array}$$

(136)

To a first approximation, combining Equations (126) and (132) yields

$$\begin{array}{c}\hfill \frac{U\left(r_s\right)}{ke}\approx \frac{A_{po}}{3V_{po}}.\end{array}$$

(137)

This implies that a change in outer surface charge area would have approximately three times the effect, on a muon or electron orbital, as a change in charge volume. The charge-exclusion zones of a GSQV proton result in a reduced outer surface charge area,

$$\begin{array}{c}\hfill A_{\mathrm{eff}}=A_{po}(1-Q_{p\mathrm{ex}}).\end{array}$$

(138)

This is assumed equivalent to an approximately three times smaller effective change in charge volume,

$$\begin{array}{c}\hfill V_{\mathrm{eff}}\approx V_{po}\left(1-\frac{Q_{p\mathrm{ex}}}{3}\right),\end{array}$$

(139)

with effective charge radius,

$$\begin{array}{c}\hfill r_{\mathrm{eff}}=\sqrt[3]{\frac{3}{4\pi }{V}_{\mathrm{eff}}}\approx \sqrt[3]{\frac{3}{4\pi }{V}_{po}\left(1-\frac{Q_{p\mathrm{ex}}}{3}\right)}\approx 0.8409\mathrm{fm},\end{array}$$

(140)

where $Q_{p\mathrm{ex}}$ has been calculated by inserting the low-energy fine-structure constant, $\alpha$, into Equation (44). This estimate is in the middle of the 2022 experimental range of the proton rms charge radius range recommended by the Particle Data Group [5,136], $r_p=0.8409\left(4\right)\mathrm{fm}$. However, since historical experiments to determine proton rms charge radius have been surprisingly variable, this unbound GSQV proton model could be falsified by future experimental estimates of proton rms charge radius.

3.4. Precise Unbound GSQV Neutron Model

Section 3.3.4 showed that proton magnetic moment, ${\mu }_p$, can be calculated to 7-digit precision from neutron mass, $m_n$, proton mass, $m_p$, neutron magnetic moment, ${\mu }_n$, the sum of the up and down quark masses, $m_u+m_d=\frac{3}{2}{m}_d$, and the low-energy value of the fine-structure constant, $\alpha$. The precision-limiting factor is the neutron magnetic moment, ${\mu }_n$. Since the proton magnetic moment, ${\mu }_p$, is known to far greater precision than is ${\mu }_n$, this section will show how to calculate neutron magnetic moment, ${\mu }_n$, from proton magnetic moment, ${\mu }_p$, neutron mass, $m_n$, proton mass, $m_p$, the sum of the up and down quark masses, $m_u+m_d=\frac{3}{2}{m}_d$, and the low-energy value of the fine-structure constant, $\alpha$. The resulting calculation will be substantially more precise than experiment and may place limits on the value of the sum of the up and down quark masses.

The dimensionless quantity, ${\delta }_p$, will now be used as an adjustable parameter to calculate proton magnetic moment, ${\mu }_p$, as accurately as the 2018 CODATA value [35,36]. Note that ${\mu }_p$ is the only parameter dependent on ${\delta }_p$. In particular, $Q_{p\mathrm{ex}}$ will retain its value calculated from Equation (44). Rearranging Equation (114) by collecting terms to form a quadratic equation in terms of ${\delta }_p$,

$$\begin{array}{c}\hfill a{\delta }_p^2+b{\delta }_p+c=0,\end{array}$$

(141)

where

$$\begin{array}{c}\hfill a=-{\left(4-\sqrt{3}\right)}^2\left(1-Q_{p\mathrm{ex}}\right)\frac{{\lambda }_p^3{\mu }_p}{4{\mu }_N},\end{array}$$

(142)

$$\begin{array}{c}\hfill b={\left(4-\sqrt{3}\right)}^2\left(1-Q_{p\mathrm{ex}}\right)V_{pi}+6V_{po},\end{array}$$

(143)

and

$$\begin{array}{c}\hfill c=b-12V_{po}-a.\end{array}$$

(144)

Applying the quadratic formula,

$$\begin{array}{c}\hfill {\delta }_p=\frac{-b\pm \sqrt{b^2-4ac}}{2a}=2.7353468\left(15\right)\times {10}^{-4}\mathrm{and}\approx 2.64,\end{array}$$

(145)

where the 2018 CODATA value of ${\mu }_p$, displayed as Equation (120), is input to Equation (142). The second solution is unphysical, so ${\delta }_p=2.7353468\left(15\right)\times {10}^{-4}$ provides a calculated proton magnetic moment, ${\mu }_p$, as precise as the 2018 CODATA value [35,36]. Note that the 2018 CODATA uncertainties in $\alpha$ and ${\mu }_p$ contribute almost equally to the uncertainty in ${\delta }_p$.

Inverting Equation (107),

$$\begin{array}{c}\hfill {\delta }_n=\frac{4}{3}{\left(\frac{m_n}{m_n-\frac{3}{2}{m}_d}\right)}^2{\delta }_p.\end{array}$$

(146)

The value ${\delta }_p=2.7353468\left(15\right)\times {10}^{-4}$ will always be used when evaluating Equation (146). Applying the assumption $m_d=9m_e$ to Equation (146) yields

$$\begin{array}{c}\hfill {\delta }_n=3.7012807\left(20\right)\times {10}^{-4},\end{array}$$

(147)

where the uncertainty is dominated by the uncertainty in ${\delta }_p$. Applying the assumption $m_d=m_{{\pi }^{\pm }}-m_{{\pi }^0}$ to Equation (146) yields

$$\begin{array}{c}\hfill {\delta }_n=3.701217\left(6\right)\times {10}^{-4},\end{array}$$

(148)

where the uncertainty is dominated by the experimental uncertainty in the pion mass difference–displayed in Equation (105). Inserting the ${\delta }_n$ value, displayed as Equation (147), into Equation (18) yields

$$\begin{array}{c}\hfill {\mu }_n=-1.9130428377\left(17\right){\mu }_N.\end{array}$$

(149)

Inserting the ${\delta }_n$ value, displayed as Equation (148), into Equation (18) yields

$$\begin{array}{c}\hfill {\mu }_n=-1.913042785\left(5\right){\mu }_N.\end{array}$$

(150)

As with Equations (104) and (105), Equations (149) and (150) differ by more than 11 standard deviations. Therefore the different assumptions applied are unlikely to be consistent with each other.

The ${\mu }_n$ estimates displayed as Equations (149) and (150) are both consistent with the 2018 CODATA value of ${\mu }_n$[35,36], displayed as Equation (23). Compared to the experimental uncertainty in the 2018 CODATA value of ${\mu }_n$, the uncertainties in ${\mu }_n$ displayed in Equations (149) and (150) are respectively about 260 and 90 times lower.

To date, the lowest experimental uncertainty in the neutron magnetic moment was established in 1979 [137]. Reference [138] is a contemporary historical summary of efforts to model, calculate, and measure the neutron magnetic moment. Historically, modeling and calculations have been much less accurate than experiment. However, this paper claims to calculate the neutron magnetic moment substantially better than experiment. Hopefully, this will provide an incentive to design and build new experiments to increase the experimental precision of the neutron magnetic moment.

The experimental uncertainty in the neutron magnetic moment, displayed as Equation (23), may be obtained by varying the sum of the up and down bare quark masses, which were used to derive Equations (107) and (146). Rearranging Equation (107) or (146), and substituting $\frac{3}{2}{m}_d$ with the more general $m_u+m_d$, yields

$$\begin{array}{c}\hfill m_u+m_d=m_n\left(1-\sqrt{\frac{4{\delta }_p}{3{\delta }_n}}\right)=6.{88}_{-0.05}^{+0.07}{\mathrm{MeV}/\mathrm{c}}^2,\end{array}$$

(151)

where the respective ${\delta }_n$ and ${\delta }_p$ values calculated by Equations (24) and (145) have been applied. Note that the uncertainty in Equation (151) is dominated by the uncertainty in ${\delta }_n$, and that the uncertainty in ${\delta }_n$ is dominated by the experimental uncertainty in the neutron magnetic moment, ${\mu }_n$. The experimental uncertainty in $m_u+m_d$, displayed in Equation (101), is almost an order of magnitude larger than that calculated by Equation (151). One way to falsify the unbound GSQV nucleon models developed in this paper would be to experimentally determine $m_u+m_d$ to be statistically inconsistent with Equation (151).

4. Discussion

This paper invokes networks of quantum vacuum waves to develop unbound low-energy nucleon models which calculate several measurable parameters. Using only the proton and neutron mass values as inputs, a physical model is developed that calculates neutron magnetic moment, in the form of Equation (11), to 3-digit precision. If the nuclear magneton was instead defined in terms of the neutron mass, Equation (11) would become an equation that calculates neutron g-factor independently of the nucleon masses. Modifying Equation (11) to Equation (13) possibly illuminates new details of the electron capture process.

Based on quantum networks of standing vacuum waves, this paper develops a model for unbound GSQV nucleon charge arc generation and maintenance. This model establishes a connection between unbound GSQV proton charge structure and the low-energy fine-structure constant. This connection enables the quark charge values to be precisely expressed by Equations (47) and (48) without involving the usual $2/3$ or $1/3$ factors. Noting a numerical coincidence in Equation (72), the low-energy asymptotic value of the fine-structure constant is calculated to 5-digit precision in the form of Equation (75). The quark charge values are then calculated to at least 5-digit precision in the form of Equations (78) and (79).

The unbound GSQV proton model is used to calculate charm quark mass, as Equation (93), and the fraction of the proton momentum carried by intrinsic charm quarks, as Equation (96). This paper proposes a physical model of neutron decay that predicts the W boson mass to be consistent with Equation (100). This prediction is statistically consistent with consensus experimental results. It is shown that the unbound nucleon magnetic moments may be precisely related via the values of the nucleon masses, the sum of the up and down quark masses, and the low-energy fine-structure constant. The most accurate experimental estimate of proton rms charge radius [136] is statistically consistent with the value calculated using Equation (140).

This paper’s unbound proton and neutron models are shown to be precisely connected via a parameter dependent on neutron mass and the sum of the up and down bare quark masses. Due to this precise connection, and the relatively high experimental precision of proton magnetic moment, unbound nucleon masses, and the low-energy fine-sructure constant, Equations (149) and (150) calculate neutron magnetic moment about two orders of magnitude more precisely than the most accurate experiments to date.

Each of the following would at least partly falsify the unbound low-energy nucleon models developed in this paper:

• A consensus experimental estimate of charm quark "running" mass [5] that is statistically inconsistent with Equation (93);
• A consensus experimental estimate of the fraction of the proton momentum carried by intrinsic charm quarks, that is statistically inconsistent with Equation (96), will falsify the assumptions used to derive Equation (94);
• A consensus experimental estimate of proton rms charge radius that is statistically inconsistent with Equation (140);
• A consensus experimental estimate of W boson mass, $m_W$, that is statistically inconsistent with Equation (100), will falsify the assumptions used to derive Equations (107) and (146);
• A consensus experimental estimate of neutron magnetic moment, ${\mu }_n$, that is statistically inconsistent with Equation (149), will falsify the assumption expressed by Equation (104);
• A consensus experimental estimate of neutron magnetic moment, ${\mu }_n$, that is statistically inconsistent with Equation (150), will falsify the assumption expressed by Equation (105);
• On the $2\mathrm{GeV}$ scale, a consensus experimental estimate of the sum of the up and down bare quark masses, $m_u+m_d$, that is statistically inconsistent with Equation (151) will falsify the assumptions used to derive Equations (107) and (146).
