In the present study, a multilayer high barrier thin blown film based on a polybutylene adipate terephthalate (PBAT) blend with polyhydroxyalkanoate (PHA), and composed of four layers, including a cellulose nanocrystals (CNC) barrier layer and an electrospun poly(3-hydroxybutyrate-co-3-hydroxyvalerate) (PHBV) hot-tack layer, was characterized in terms of surface roughness, surface tension, migration, mechanical and peel performance, barrier properties and disintegration rate. The results showed a material with a smooth surface. The overall migration test showed that the material was suitable for its use as a food contact layer. The addition of the CNC interlayer had a significant effect on the mechanical properties of the system, drastically reducing the elongation at break and, thus, the flexibility of the material. However, the material retained its elastic modulus and tensile strength. The CNC coating had a negative impact on the peeling strength, weakening the inherently strong interlayer adhesivity of the electrospun PHBV fibers. The multilayer had a good barrier to water vapor, and especially to oxygen, with its permeance reduced by up to a 90 % when the CNC layer was present. Finally, the monolayer blend film disintegrated in a period of less than 55 days in a laboratory-scale composting experiment, while the multilayer system disintegrated in 60 days. Overall, the multilayer system formed a fully compostable structure with great potential for use in food packaging applications.
Keywords:
biopolyesters
;
nanocellulose
;
multilayers
;
compostable
;
packaging
Subject:
Chemistry and Materials Science  -   Materials Science and Technology

1. Introduction

Packaging is one of the main strategies for preserving food and maintaining its quality and safety. The objective of food packaging is to satisfy both industrial requirements, i.e. transport and preservation, and customer satisfaction, that is, safety and marketing and information. The most commonly used materials in food packaging are metals, glass, and paper. However, plastics, since their massive use from the 1950s onwards, have been replacing these other materials thanks to their extraordinary characteristics, such as durability, low cost, and ease of production as well as their excellent physical and barrier properties [1]. There is a wide variety of polymers in use today including polyethylene (PE), polyethylene terephthalate (PET), polypropylene (PP), polystyrene (PS) and polyvinyl chloride (PVC), which can be used in a large range of applications including food packaging, both in flexible and rigid designs, in the form of trays, bottles or films [2]. However, these plastics are petroleum-based and non-biodegradable, and their huge use leads to a depletion of natural resources, as well as to an accumulation of waste that causes serious environmental damage [3].
Bioplastics have been claimed to be suitable substitutes for these synthetic plastics. They are of fully or partially renewable origin, and can be obtained directly from biomass products, including animals and plants, from conventional synthesis such as poly(lactic acid) (PLA) and from natural/genetically modified organisms including polyhydroxyalkanoates (PHA) [4]. They have attracted attention because of their similarity to conventional plastics, their biocompatibility, biodegradability, and non-toxicity, among other characteristics [5]. In this context, PHAs have gained a prominent position due to their biodegradability in different scenarios, i.e. compost, soil or aquatic media [6]. Moreover, their physical properties can be modified by changing their monomeric components, which broadens their field of application. Poly(3-hydroxybutyrate) (PHB), for instance, is one of the most studied and widely used PHAs, because it has some properties that are very similar to conventional plastics such as PP and PE [7]. However, it also has some drawbacks including brittleness, rigidity and high crystallinity, which make its industrial processing difficult. Thus, the addition of monomers such as 3-hydroxyvalerate (3HV) or 3-hydroxyhexanoate (HHx) leads to a reduction in crystallinity and an increase in flexibility [8]. Nevertheless, although the use of copolymers can improve some properties, PHAs still have a narrow processing window and are susceptible to thermal degradation during manufacturing processes such as extrusion. For this reason, blending PHAs with other polymers has been used as an alternative to improve some of their mechanical and thermal properties. Thus, when PHAs have been blended with other bio-based biodegradable polymers such as PLA or chitosan, the materials showed an improvement in ductility, toughness and thermal stability as reported by previous authors [9,10]. However, this does not solve the problem of high production costs. Therefore, PHAs have also been blended with biodegradable polymers of petroleum origin, which maintain the biodegradability of the mixture but reduces the costs. Between them, poly(butylene adipate-co-terephthalate) (PBAT) stands out for its degradability in a few weeks by natural enzymes, as well as for its excellent mechanical properties, improving the processability of the blends [11]. For instance, an increase of up to 500 % in strain at break and about two orders of magnitude in toughness was reported for a PHBV/PBAT blend compared to pure PHBV [12].
In addition to polymer blending, the use of nanoparticles (NPs) has been studied as an alternative or additional method to improve certain characteristics such as transparency, mechanical and barrier properties [13]. Cellulose nanocrystals (CNC), obtained by acid hydrolysis of cellulosic sources, are one of the most widely used NPs due to their unique properties such as high transparency, reinforcing capacity, and high oxygen barrier [14]. Moreover, they are biodegradable and renewable materials. They have a low aspect ratio with lengths ranging from 50–500 nm and widths between 5–70 nm and their potential properties are associated with the percolation threshold, where the formation of a specific network with the polymeric matrices occurs [15]. All this makes CNC perfect candidates for their use in combination with biopolymers such as PHAs. Thus, when PHB was blended with the CNC, the nanocomposite showed a 50 % and 35 % increase in Young´s modulus and tensile strength, respectively [16]. In addition, the nanocomposite exhibited a reduction in water vapor permeability (WVP) because the CNC resulted in a larger tortuous pathway for water vapor. Similarly, in another study, the addition of CNC to a PHB matrix resulted in a 52.9 % and 46.6 % decrease in WVP and oxygen permeability (OP), respectively [17]. However, one of the main drawbacks of these nanocelluloses is that their high gas barrier in the dry state is lost at high relative humidity (RH). Many attempts have been made to make the surface of CNC hydrophobic, using physical and chemical modification methods [18]. Nevertheless, these modifications sometimes change not only the surface properties, but also the original morphology and integrity of the crystal [19]. For this reason, the strategy of using multilayer systems in order to protect the layer of CNC between hydrophobic polymers could solve this challenge. In these structures, the outer layers are made of polymers that have proven mechanical and moisture resistance while the interlayers provide the gas barrier and other properties such as antimicrobial or antioxidant effects [20]. In the field of food packaging, these multilayer systems consist of three to seven layers that meet all requirements and functionalities but in a lighter and more compact form [21]. Different techniques have been developed to form these multilayer systems such as layer by layer, lamination, co-extrusion, coating, among others [22]. In recent years, electrospinning has emerged as an impressive technique for the development of thin biopolymers layers.
Electrospinning technology focuses on the development of polymeric fibers through the application of electrical and hydrodynamic forces to polymeric solutions. The high voltage causes the appearance of charges on the surface of the solution, which after a certain threshold results in the so-called Taylor cone, which is emitted to the collector in the form of fibres (electrospinning) or particles (electrospraying) [23]. The characteristics of the resulting polymeric material can be modified by adjusting both the parameters of the equipment and the properties of the polymeric solution. Environmental conditions could also affect the final result [24]. In addition to the production of polymeric nanostructures, electrospinning has been used for the encapsulation of active substances, due to its high specific surface area, its high encapsulation efficiency and the preservation of oxidation- and heat- sensitive ingredients by processing at room temperature [25]. This provides the material with antimicrobial and/or antioxidant properties for a longer period of time [26]. Mechanical and barrier properties can also be improved by the addition of some nanoparticles to the fibers, such as CNC [27]. Moreover, electrospun fibers can act not only as a film, after a thermal post-treatment, but also as a coating layer that can be used as interlayers in multilayer systems [28]. As interlayers, in addition to providing barrier and antimicrobial properties, they can act as adhesive layers, the so-called hot-tack (HT), eliminating the use of synthetic glues [29]. Previous studies, developed barrier [30] and barrier and antimicrobial [29] multilayers based on different blown film substrates based on commercial PHA, containing a CNC layer and an electrospun hot-tack adhesive layer made of PHBV derived from residues. The latter studies focused, among other PHA-based materials, on blends of commercial PHA with PBAT, in which the content of PHA in the blend was of ca. 50 wt.%. This relatively high content of PHA in the blends made the films more difficult to stabilize during film blowing of thin films. Moreover, the latter two studies focused their characterization on morphology, barrier and antimicrobial properties.
In this context, the objective of this study was to develop a similar compostable multilayer system based on fully compostable materials and characterize additional properties, but in which the PHA content of the substrate was reduced to 30% to increase blowing processability. For this purpose, two outer layers made of a PHB/PBAT blown film (30/70) were used as a mechanical support and water vapor barrier. Moreover, one of these layers was coated with a layer of CNC to provide the system with a high oxygen barrier. Finally, the system was laminated using a hot-tack made from electrospun fibers of a PHA derived from fermented cheese whey biowaste. The final multilayer structure was characterized in terms of surface roughness, surface tension, migration, mechanical, adhesion and barrier properties, as well as disintegration performance during composting in order to assess the necessary requirements for its use in food packaging.

2. Materials and Methods

2.1. Materials

The PHA blend compound contained 30 wt% PHB and 70 wt% PBAT and 2 parts per hundred resin (PHR) of Joncryl ADR-4400 from BASF (Ludwigshafen am Rhein, Germany), was added to the blend composition as a chain extender to improve processability. The PHB grade used was Biomer® P309, which was produced by Biomer (Krailling, Germany). This grade has a melt flow index (MFI) of 10 g/10 min at 180 °C for a load of 2.16 kg. The PBAT, a film blowing grade named as Ecoflex® F blend C1200, was purchased from BASF (Ludwigshafen am Rhein, Germany), which has an MFI of 2.5–4 g/10 min at 190 °C for a load of 2.16 kg and, according to the manufacturer, it is fully industrial compostable. The manufacture of the blown film blend was carried out as previously reported [29,30] and the processing parameters were adjusted as follows: screw speed of 84 rpm, screw pressure of 258 bar, screw temperature profile of 175 °C/175 °C/177 °C/180 °C, superior roll speed of 1.0 m/min, collection roll speed of 2.2 m/min, and tower height of 1500 mm. The final blown film, termed PBAT Blend, had a thickness of about 50 µm and a film width of 250 mm.
A biomass-derived PHBV copolyester was produced using a biowaste of the dairy industry, fermented cheese whey (CW). The 3HV content of the copolymer was 20 mol%. Further information on this material and its production can be found elsewhere [31].
The commercial CNC was supplied by Melodea Ltd. (Rehovot, Israel), as an aqueous solution with a concentration of 2 wt%, and a pH of 4.5. Chloroform of 99.8 % purity was purchased from Panreac S.A. (Barcelona, Spain). 1-Butanol, reagent grade with 99.5 % purity, was supplied by Sigma Aldrich S.A. (Madrid, Spain). The food contact primer, Loctite Liofol PR1550, was obtained from Henkel Ibérica S.A. (Barcelona, Spain). Ethanol absolute (EtOH), ≥ 99.9 % vol., was supplied by Honeywell® (Frankfurt, Germany). Acetic acid (AA) glacial, 99 % purity, was supplied by Fisher Chemical® (Loughborough, UK). Methyl methacrylate (MMA) and glycidyl methacrylate (GMA) standards were obtained from Merck Life Science (Darmstadt, Germany).

2.2. Application of CNC Coating

Firstly, the PBAT Blend film substrate, pre-processed with a corona treatment (100 watt∙cm2/min), was coated with a food contact primer to which a wetting agent was added. The primer was applied in a Rotary Koater (ROKO) Model 30-30-01 equipment (TMI Machine Testing Inc., New Castle, US) with one meter bar head with a 6 µm profile rod, a rolling speed of 2.5 m/min and a drying temperature of 50 °C. Then, the CNC solution was applied on the top of the primer also on the ROKO machine using a 50 μm profile rod and a drying temperature of 90 °C during the lamination at 2.5 m/min. Two layers of CNC were applied in order to obtain a complete coating of the PBAT Blend substrate. More details can be found in reference [30].

2.3. Electrospun Hot-Tack Layer from Food Waste PHBV

A layer of CW-derived PHBV electrospun fibers was coated onto the PBAT Blend substrate as described before [30].

2.4. Lamination

The two PBAT Blend substrates, one covered by a CNC layer and the other by a layer of electrospun PHBV fibers, were laminated as previously described [30]. The thickness of the complete multilayer system was about 100 µm. Figure 1 displays the final multilayer structure.

2.5. Characterization

2.5.1. Confocal Laser Scanning Microscopy (CLSM) and Atomic Force Microscopy (AFM)

The topographic surface of the PBAT Blend monolayer was obtained by a 3D confocal laser scanning microscopy (CLSM) (LEXT OLS5000, Olympus, Tokyo, Japan). A MPLAPON50xLEXT objective lens was used and a 4x4 image grid was stitched to reach a scanning area of 0.9 mm². Multiscan mode was used to obtain at least three scanning areas per sample. Areal roughness was calculated in compliance with ISO 25178-6 by OLS50-BSW Software (Olympus, Tokyo, Japan). Nanoscope III Multimode Atomic Force Microscope (AFM) (Digital Instruments, New York, USA) and DI-TESP probe (42 N/m, 320 kHz, No Reflex Coating) in tapping mode was used to check confocal results. Profile parameters were measured according to ISO 4287.
Main roughness parameters were determined. The mean roughness (Sa) represents the arithmetical mean height deviation of the surface and it is not affected by extreme points (either high peaks or deep valleys). The root mean square (RMS) of the heights of the surface (Sq) is the standard deviation of the height distribution and compares the amplitude of peaks and valleys. The maximum height of the surface (Sz) is the vertical distance between the deepest valley and highest peak. The Skewness (Ssk) is related to the asymmetry of height distribution and zero (dimensionless) represents normally distributed areas above and below the mean height. The Kurtosis (Sku) represents the sharpness of the peaks and Sku = 3 (dimensionless) indicate normally distributed peaks and valleys. Finally, the developed interfacial area ratio of the surface (Sdr) is the increment ratio of the topographic area over the definition area.

2.5.2. Surface Tension

The surface tension of the PBAT Blend film with corona discharge treatment (100 watt∙cm2/min) was measured and compared to the same film without corona treatment. The equipment was DATAPHYSICS model OCA 35 (Filderstadt, Germany) equipped with an UpUSB 52H camera. The measurement of surface tension was made using 3 solvents of different polarity (water, ethylene glycol and diiodomethane). Ten measurements were taken per solvent with a variation of the angle less than ± 5°.
The surface energy values were also determined by Extended Fowkes method. This method is used to know surface properties in polymers subjected to corona treatments through the assessment of the interactions between a liquid and solid in terms of dispersive (van der Waals) and polar interactions. In Extended Fowkes method, the hydrogen bond part is also separated out of the polar part.

2.5.3. Migration Test

2.5.3.1. Overall Migration

The overall migration of the multilayer was carried out using the standard procedure of the European Normative EN 1186:2002 [32], which determines the overall migration into food simulants from plastic intended to come into contact with foodstuffs. To demonstrate compliance with the overall migration limit for all type of foods testing in food simulant A, EtOH 10 % (v/v) in aqueous solution, food simulant B, AA 3 % (w/v) in aqueous solution and food simulant D2, vegetable oil, were performed. The overall migration test was performed by total immersion (both sides in contact) of the film with a simulation surface/volume ratio of 1 dm2/100 ml of simulant at 40 °C for 10 d.

2.5.3.2. Specific Migration

Methyl methacrylate (MMA) specific migration potentially arising from the food contact permitted chain extender used in the blend, was deemed as the most relevant potential migrant within the composition of the multilayer, which is constrained by a specific migration limit. The specific migration limit set by the European Normative EN 13130-1:2004, stablishes a maximum migration limit for this chemical expressed as methacrylic acid (MA) of 6 mg/kg [33]. Three different types of food simulants were used in this test to determine specific migration of MMA: EtOH 10 % (v/v) for food that have hydrophilic character, AA 3 % (v/v) for food that have hydrophilic character with pH below 4.5, and EtOH 95 % (v/v) as substitute test media for migration tests for fatty simulant.
Films (0.5 dm2) were immersed in 83.33 ml of food simulant during 10 d at 40 °C. For each formulation, the specific migration tests were carried out in triplicate and a blank (jar with food simulant) was also used, to check for contaminations. All results were blank subtracted. High-performance liquid chromatography (HPLC) was used to quantify the MMA content in the simulant fluids. A sample of 1 ml of each simulant fluid was transferred to a glass capped vial. HPLC analysis was performed using an Agilent 1260 Infinity Quaternary LC (Agilent Technologies, Santa Clara, CA, USA) equipped with a Kinetex 2.6 µm C18 100 Å, LC Column (150 × 4.6 mm, Phenomenex, Torrance, CA, USA). The mobile phase was water and acetonitrile (50:50) under a flow rate of 1.0 ml/min, 40 °C and the injection volume was 10 µl. The compound was eluted and monitored with a Diode Array Detector (DAD) (Agilent Technologies, Santa Clara, CA, USA) at 205 nm, being the retention times 2.5 min. Then, the area of the peak in the samples was compared to the areas of a calibration curve constructed using a series of MMA standards solutions prepared in each of the simulants at concentrations ranging from 0.001 to 1.000 mg/ml.

2.5.4. Mechanical Tests

The mechanical properties were evaluated by tensile tests using an AG-X 100 Kn Tester from Shimadzu Corporation (Kyoto, Japan) according to UNE-EN ISO 527-3:2018. Ten measurements were achieved per sample, at room conditions, with a speed of 1 mm/min and a gripping distance of 100 mm. Five sets of specimens were tested parallel to the direction of polymer orientation (MD - machine direction) and five sets perpendicular to the direction of polymer orientation (TD - transverse direction).

2.5.5. Adhesion Properties

A peeling strength test was carried out in the laminated multilayer. The standard method used was the ASTM D1876-08 Standard Test - Method for Peel Resistance of Adhesives (T-Peel Test) [34]. This test method can be used for determining the relative peel resistance of a hot-tack bond between two layers using T-type specimens. These were tested in a universal testing machine (AG-X 100 Kn Tester, Shimadzu, Kyoto, Japan). Five measurements with a width of 15 mm were done parallel to the direction of polymer orientation (MD), and five other sets, perpendicular to the direction of polymer orientation (TD), with a speed of 100 mm/min and a gripping distance of 150 mm.

2.5.6. Permeance Tests

The water vapor permeance (WVP) of the monolayer and multilayer with and without CNC was determined using the gravimetric method ASTM E398:03 on a tested surface of 5 cm2, in duplicate, for 24 h. The equipment was a PERMATRAN-W 398 from Mocon (Minneapolis, USA) used at 30 °C and 90 % RH.
The oxygen permeance (OP) coefficient was derived from the oxygen transmission rate (OTR) measurements that were recorded using an OXTRAN 2/21 MH (Mocon, Minneapolis, USA). The procedure used was the ASTM 3985-2010, where the samples were measured in duplicate, with an exposure are of 5 cm2 at 0 % RH and 23 °C.

2.5.7. Industrial Composting Disintegration

The Industrial Composting Disintegration was tested according to ISO 20200:2015. Test items were cut in 25x25 mm pieces and kept in contact with compost substrate. The test was performed in triplicate for each time of extraction and the incubation temperature was continuously kept at 58 ± 2 °C. The total test duration was for a maximum of 60 days. The disintegration percentages are based on mass loss of samples over composting time.

2.6. Statistical Analysis

Results were evaluated through analysis of variance (ANOVA) using STATGRAPHICS Centurion XVI v 16.1.03 from StatPoint Technologies, Inc. (Warrenton, VA, USA). Fisher’s least significant difference (LSD) was used at the 95 % confidence level (p < 0.05). Mean values and standard deviations were also reported.

3. Results and Discussion

3.1. Surface Roughness

The topographic surface of the substrate film was measured in order to identify possible irregularities in the outer layer material during processing. The values of the roughness parameters as well as the 3D surface images are presented in Table 1 and Figure 2, respectively. The surface of the film showed some irregularity points that were probably formed during the blowing process (Figure 2b* and c*). However, as these defects were isolated and did not represent the real topography of the film, they were not considered for roughness calculation but for the surface description. The negative value obtained for Ssk, i.e. -4.9, indicated the predominance of deep valleys rather than peaks, with the presence of some scratches on the surface [35]. For the Sku parameter, the sample presented a value of 193.9. This parameter evaluates the randomness of surface heights [36]. Thus, a value higher than 3 indicated a narrow height distribution and, consequently, a surface with spiked valleys and peaks. Moreover, the lower values of Sa and Sq, 0.079 and 0.14 µm, respectively, with respect to the higher value of Sz, i.e. 12.4 µm, confirmed the presence of some extreme points (peaks and valleys). Finally, the developed surface area over the defined area, represented by the parameter Sdr, was not too significant, with a value of 4.1 %. The additional surface caused by roughness is relevant in packaging technologies because it means an increase in the interfacial area where relevant reactions may occur [37].
CLSM was chosen as a non-contact and non-destructive method for topographic measurement with submicron resolution. To verify the results obtained with the CLSM, AFM was used to determine profile roughness parameters and topographic surfaces, depicted in Figure 3. The parameters Ra and Sa are correlated with each other. In this case, the Ra value was of the same magnitude as the corresponding Sa value shown previously in Table 1. It has been reported that as the similarity decreases, the heterogeneity of the sample surface increases [38]. The standard deviation of the heights (Rq) and the vertical distance between the deepest valley and highest peak (Rz) were not comparable. These great differences may be mainly due to the fact that the areas scanned by AFM are much smaller than those of CLSM. Then, in this sense, CLSM analyses seem to be more representative and more reliable for describing the surface. Finally, despite some outliers, the sample may be considered very smooth. The predominance of valleys rather than peaks confers more wear resistance and decreases the probability of scratching and surface loss.

3.2. Surface Tension

The surface tension of the inner side of the substrate layer film was tested before and after corona treatment (100 watt∙cm2/min). The corona treatment was carried out to activate the layer before deposition of the CNC oxygen barrier layer. Three different solvents were used, namely water, ethylene glycol and diiodomethane, and the values obtained are presented in Table 2. It can be observed that for both water and ethylene glycol the contact angle decreased when the corona treatment was applied to the film surface. Thus, for water, the material presented a contact angle of 73.9° without corona treatment, while after surface treatment a contact angle of 53.2° was obtained. Similarly, for ethylene glycol the material showed contact angles of 53.2° and 24.5° for the untreated and corona treated film, respectively. On the other hand, a different behaviour was observed when tested with diiodomethane, with an increase in the contact angle when the treatment was applied to the surface, from 31.6° to 46°. From these trials, it can be concluded that the surface treatment significantly enhanced the wetting properties of the surface with water suspensions such as a CNC water-based solution, since according to the literature, the smaller the water contact angle, the more hydrophilic the surface becomes [39].
In terms of surface tension values, determined by Extended Fowkes method with the contact angle values obtained, the corona treatment resulted in an increase of the surface energy (SE) from 52.8 to 55.5 mN/m. The increase in SE implies an improvement in hydrophilic properties, thus improving the wettability of the surface [40]. This is consistent with the decrease in the water contact angle observed above. Corona discharge treatment introduces oxygen-containing polar groups on the surfaces of the modified films [41]. Therefore, the increase in wettability is also related to the polar groups formed, in this case by the hydrogen bonds, as shown in Table 2, with values increasing from 3.0 to 15.6 mN/m when the surface was treated. This increase in wettability after corona treatment is in agreement with previous reported in the literature [42,43].

3.3. Migration Assessment of the Film

The overall migration of the multilayer film was tested in three different food simulants in order to evaluate its performance in all food types. The film was fully immersed in the three simulants studied, i.e. EtOH 10 % (v/v), AA 3 % (w/v), and vegetable oil, at 40 °C for 10 d. The material showed similar behaviour with three simulants, with values of 1.7 mg/dm2 for EtOH and AA, and 2.5 mg/dm2 for olive oil (as shown in Table 3). In all three cases, the values obtained were below the regulatory limit of 10 mg/dm2. Therefore, it can be concluded that, in the overall migration, the multilayer can be used as food contact layer for all types of foods.
Specific migration of methacrylic acids (MA) monomers on the PBAT monolayer film was performed in different food simulants (Table 4). There is a list of monomers, starting substances and additives that are regulated by the Commission Regulation (EU) No 10/2011 for use in the manufacture of plastic materials and articles. The MA is authorized to be used as an additive in plastic as established in Annex 1 with a specific migration limit (SML) of 6 mg/Kg. MMA is used as an additive for the manufacture of various food contact materials, such as polymethyl methacrylate (PMMA), PET, polyamide (PA), and polycarbonate (PC). Both acrylic ester monomers and MA monomer can migrate from the packaging materials into foods [44].
In this study, it was observed that the MA migration was higher for hydrophilic simulants, with values of 10.7 and 7.49 mg/Kg for 10 % EtOH and 3 % AA, respectively, which are above the SML, i.e. more than 6 mg/Kg. However, for hydrophobic simulant (95 % EtOH), the MA detected was in accordance with the legislation, with a value of 0.63 mg/Kg.

3.4. Mechanical Properties

The mechanical properties of the PBAT Blend monolayer and multilayer were assessed in terms of elastic modulus (E), tensile strength (σy), and elongation at break (εb), both in machine direction (MD) and transversal direction (TD), and the results are gathered in Table 5. The monolayer showed a ductile and flexible mechanical performance, with a tensile strength of 20.3 and 17.8 MPa and an elongation at break of 330 and 243 %, in the MD and TD, respectively. The high values of σy and εb in the MD, could be attributed to the orientation of molecular chains along that direction [45]. At the same time, the sample showed low values of elastic modulus, around 1 GPa. PBAT is a very flexible material with an exceptionally high εb, around 700 % [46], so its incorporation in a blend results in a toughening of the material. In the present work, the PBAT phase reduced the brittleness and stiffness of the PHB [47], showing higher εb values that other reported PBAT/PHB blends with lower PBAT content [29].
When the multilayer was developed, which contained an interlayer of CNC, the E and σy values did not significantly change with respect to the monolayer. However, a considerable reduction in elongation at break occurred, with values of 27 and 7.6 % in MD and TD, respectively. This high decreasing of 91.7 % (MD) and 96.9 % (TD) was probably due to the fact that the CNC added reinforcement to the material, indicating a strong interaction with the polymer that reduced its motion. It has been largely reported in the literature that the use of CNC in polymeric matrices has a reinforcing effect [48,49]. Thus, similar results were previously reported in our laboratory when a CNC coating was added to a PHA multilayer blend [29,30].

3.5. Peeling Strength

The adhesion capacity of the multilayer with the HT and CNC interlayers was assessed by T-peel adhesion tests both in MD and TD. The results obtained, shown in Table 6, were similar in both directions with a peeling load of 0.082 N and a T-peel strength of 0.006 N/mm. It can be seen that the relative peel resistance of the adhesive bond between the flexible thin films with a layer of CNC was firmed but not very strong. This is related to the fact that the smoothness of both the film and the CNC coating was not optimal and made it difficult to achieve a strong interlayer adhesion on the multilayer.

3.6. Barrier Properties

The permeance to water vapor (WVP) and oxygen (OP) of the PBAT Blend monolayer and of the multilayers with and without CNC were measured in order to evaluate their barrier performance. Table 7 shows the thickness and permeance values in terms of WVP and OP. For WVP, the three materials presented similar values, which ranged from 2.0 to 3.6 x 10-12 kg·m-2·Pa-1·s-1, with a slight reduction in permeance in multilayers. The water vapor barrier obtained here are significantly higher than those of other multilayers reported in our laboratory [29,30]. In these studies, the PBAT content was 50 wt%, with WVP values of about 8.5 x 10-12 kg·m-2·Pa-1·s-1. This reduction in WVP may be attributed to the higher content of PBAT in the blend of this work. The flexible nature of PBAT could have favoured a better film formation, with a more homogeneous morphology, resulting in a higher barrier. The addition of a coating of CNC did not affect WVP, despite the hydrophilic nature of these nanoparticles, because it was protected between the outer layers. In general, all three materials showed an optimum water vapor barrier similar to commercial materials [50].
In relation to OP, a clear difference can be seen between the three materials. The monolayer film showed an OP of 9.3 x 10-15 m3·m-2·Pa-1·s-1 while the multilayer without CNC reduced the permeance to 5.9 x 10-15 m3·m-2·Pa-1·s-1. However, the greatest difference was achieved when the CNC coating was added, which resulted in a permeance of 0.5 x 10-15 m3·m-2·Pa-1·s-1. The reduction of more than 90 % of OP is due to the high oxygen barrier provided by CNC, which is similar to synthetic polymers such as ethylene vinyl alcohol (EVOH) or poly(vinyl alcohol) (PVA) [51]. CNC coating of polymeric matrices has been reported to improve the barrier properties of these materials. For example, a PP film coated with CNC showed an oxygen barrier improvement of 92 % [52]. However, these results are higher than those obtained in previous works with lower PBAT content, in contrast to water vapor [29,30]. This is because PBAT is composed of non-polar molecules, so non-polar oxygen can more easily pass through the film with higher PBAT content, decreasing its barrier [53].

3.7. Disintegration Tests

The industrial composting disintegration of the PBAT Blend film was carried out in a laboratory-scale test. For this purpose, the material was kept at 58°C for 55 d in contact with the compost substrate in order to assess its disintegration rate. Figure 4 shows the visual disintegration process of the PBAT Blend monolayer. It can be observed that after 52 days there was 100 % disintegration of the material, making it suitable for its use in food packaging that requires a short disposal time, such as single-use products.
The disintegration test was also carried out on the multilayer. The results showed 100 % degradation 60 days after the start of the test, with an exponential progression (Table 8). The visual progress of the multilayer is shown in Figure 5. In addition, the dry solids and volatiles obtained were measured. The results showed a total of 24.03 % dry solids and 86.22 % volatiles.

4. Conclusions

In this study, a high barrier compostable multilayer system was developed in order to produce a sustainable food packaging. For this purpose, structural outer layers made of commercial PHB/PBAT blend, so-called PBAT Blend, produced by blown extrusion were laminated in a pilot roll-to-roll system, with an inner electrospun layer of biomass-derived PHBV fibers acting as an adhesive. In addition, an interlayer of CNC was added by coating. The results showed that the PBAT Blend monolayer exhibited a smooth surface but with some flaws that occurred during production, but not sufficient wettability for coating the CNC layer. This hydrophilicity was improved by corona treatment of the surface, which increased its surface tension, decreasing the water contact angle. The addition of the CNC layer produced changes in the mechanical properties of the PBAT Blend, greatly reducing its elongation at break by more than 90 % and, therefore, the flexibility and toughness of the material. The adhesive properties provided by the electrospun fibers were sufficient to generate a firm adhesion between layer but this was not very strong. However, the addition of the CNC significantly increased the barrier properties of the material, especially to oxygen, resulting in a reduction of its permeance to water and oxygen by 33 % and 95 %, respectively. Overall migration tests confirmed that the material could be used as a food contact film and disintegration studies showed complete disintegration of the PBAT Blend and the multilayer system in less than 60 days. From the above results, it can be concluded that the film developed here exhibited very promising physical properties to be consider for compostable food packaging applications a lidding film to preserve food with high quality and safety.

Author Contributions

Conceptualization, J.M.L..; methodology, J.M.L.; L.C.; A.A.V; L.H.G.H.; L.P.; I.A.; validation J.M.L.; L.C.; A.A.V; L.H.G.H.; L.P.; M.A.C; I.A.; formal analysis, J.M.L.; L.C.; A.A.V; L.H.G.H.; L.P.; M.A.C; I.A.; investigation, B.M.R; C.P.; M.P.F.; A.I.B.; I.R.A.; MA.C; L.H.G.H.; L.C.; resources, J.M.L.; L.C.; A.A.V; L.H.G.H.; L.P.; I.A.; data curation, B.M.R; C.P.; M.P.F.; A.I.B.; I.R.A.; M.A.C.; L.C.; writing—original draft preparation, B.M.R; C.P.; M.P.F.; A.I.B.; I.R.A.; M.A.C; L.H.G.H.; L.C.; writing—review and editing, J.M.L.; B.M.R; C.P.; M.P.F.; A.I.B.; I.R.A.; M.A.C.; L.C.; supervision, J.M.L.; C.P.; A.A.V.; L.P.; M.A.C.; project administration, J.M.L.; funding acquisition, J.M.L.. All authors have read and agreed to the published version of the manuscript.

Funding

This research work was funded by the H2020 EU project YPACK (reference number 773872) and by the Spanish Ministry of Science Innovation and Universities (MCIU), project PID2021-128749OB-C31.

Acknowledgments

The authors would also like to acknowledge the Unidad Asociada IATA(CSIC)-UJI in “Polymer Technology”.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Rhodes, C.J. , Solving the plastic problem: From cradle to grave, to reincarnation. Science Progress, 2019. 102(3): p. 218-248.
  2. Millet, H. , et al., The Nature of Plastics and Their Societal Usage, in Plastics and the Environment. 2019, The Royal Society of Chemistry. p. 1-20.
  3. Hernández-López, M. , et al., Bio-based composite fibers from pine essential oil and PLA/PBAT polymer blend. Morphological, physicochemical, thermal and mechanical characterization. Materials Chemistry and Physics, 2019. 234: p. 345-353.
  4. Bhagwat, G. , et al., Benchmarking Bioplastics: A Natural Step Towards a Sustainable Future. Journal of Polymers and the Environment, 2020. 28(12): p. 3055-3075.
  5. Ashter, S.A. , 10 - New Developments, in Introduction to Bioplastics Engineering, S.A. Ashter, Editor. 2016, William Andrew Publishing: Oxford. p. 251-274.
  6. Wang, J.H., Y. Tian, and B. Zhou, Degradation and Stabilization of Poly(Butylene Adipate-co-Terephthalate)/Polyhydroxyalkanoate Biodegradable Mulch Films Under Different Aging Tests. Journal of Polymers and the Environment, 2021.
  7. McAdam, B. , et al., Production of Polyhydroxybutyrate (PHB) and Factors Impacting Its Chemical and Mechanical Characteristics. Polymers, 2020. 12(12): p. 2908.
  8. Puppi, D., G. Pecorini, and F. Chiellini, Biomedical Processing of Polyhydroxyalkanoates. Bioengineering, 2019. 6(4): p. 108.
  9. Arrieta, M.P. , et al., On the Use of PLA-PHB Blends for Sustainable Food Packaging Applications. Materials (Basel, Switzerland), 2017. 10(9): p. 1008.
  10. Sadeghi, D. , et al., Electrospun poly(hydroxybutyrate)/chitosan blend fibrous scaffolds for cartilage tissue engineering. Journal of Applied Polymer Science, 2016. 133(47).
  11. Javadi, A. , et al., Processing and characterization of microcellular PHBV/PBAT blends. Polymer engineering and science, 2010. 50(7): p. 1440.
  12. Javadi, A. , et al., Processing and characterization of solid and microcellular PHBV/PBAT blend and its RWF/nanoclay composites. Composites Part A: Applied Science and Manufacturing, 2010. 41(8): p. 982-990.
  13. Svagan, A.J. , et al., Transparent Films Based on PLA and Montmorillonite with Tunable Oxygen Barrier Properties. Biomacromolecules, 2012. 13(2): p. 397-405.
  14. Wu, Y. , et al., Advanced nanocellulose-based gas barrier materials: Present status and prospects. Chemosphere, 2022. 286: p. 131891.
  15. Thomas, P. , et al., Comprehensive review on nanocellulose: Recent developments, challenges and future prospects. Journal of the Mechanical Behavior of Biomedical Materials, 2020. 110: p. 103884.
  16. Seoane, I.T. , et al., Development and characterization of bionanocomposites based on poly(3-hydroxybutyrate) and cellulose nanocrystals for packaging applications. Polymer International, 2016. 65(9): p. 1046-1053.
  17. Zhang, B. , et al., Effects of Cellulose Nanocrystals and Cellulose Nanofibers on the Structure and Properties of Polyhydroxybutyrate Nanocomposites. Polymers, 2019. 11(12): p. 2063.
  18. Eyley, S. and W. Thielemans, Surface modification of cellulose nanocrystals. Nanoscale, 2014. 6(14): p. 7764-7779.
  19. Trinh, B.M. and T. Mekonnen, Hydrophobic esterification of cellulose nanocrystals for epoxy reinforcement. Polymer, 2018. 155: p. 64-74.
  20. López de Dicastillo, C. , et al., Designing Biodegradable and Active Multilayer System by Assembling an Electrospun Polycaprolactone Mat Containing Quercetin and Nanocellulose between Polylactic Acid Films. Polymers, 2021. 13(8): p. 1288.
  21. Anukiruthika, T. , et al., Multilayer packaging: Advances in preparation techniques and emerging food applications. Comprehensive Reviews in Food Science and Food Safety, 2020. 19(3): p. 1156-1186.
  22. Cerqueira, M.A., S. Torres-Giner, and J.M. Lagaron, Chapter 6 - Nanostructured Multilayer Films, in Nanomaterials for Food Packaging, M.Â.P.R. Cerqueira, et al., Editors. 2018, Elsevier. p. 147-171.
  23. Echegoyen, Y. , et al., High throughput electro-hydrodynamic processing in food encapsulation and food packaging applications: Viewpoint. Trends in Food Science & Technology, 2017. 60: p. 71-79.
  24. Vlachou, M., A. Siamidi, and S. Kyriakou, Electrospinning and Drug Delivery, in Electrospinning and Electrospraying - Techniques and Applications, S. Haider and A. Haider, Editors. 2019, IntechOpen: London, UK.
  25. Drosou, C.G., M. K. Krokida, and C.G. Biliaderis, Encapsulation of bioactive compounds through electrospinning/electrospraying and spray drying: A comparative assessment of food-related applications. Drying Technology, 2017. 35(2): p. 139-162.
  26. Tampau, A., C. González-Martínez, and A. Chiralt, Release kinetics and antimicrobial properties of carvacrol encapsulated in electrospun poly-(ε-caprolactone) nanofibres. Application in starch multilayer films. Food Hydrocolloids, 2018. 79: p. 158-169.
  27. López de Dicastillo, C. , et al., Improvement of Polylactide Properties through Cellulose Nanocrystals Embedded in Poly(Vinyl Alcohol) Electrospun Nanofibers. Nanomaterials, 2017. 7(5): p. 106.
  28. Cherpinski, A. , et al., Multilayer structures based on annealed electrospun biopolymer coatings of interest in water and aroma barrier fiber-based food packaging applications. Journal of Applied Polymer Science, 2018. 135(24): p. 45501.
  29. Figueroa-Lopez, K.J. , et al., Development of Active Barrier Multilayer Films Based on Electrospun Antimicrobial Hot-Tack Food Waste Derived Poly(3-hydroxybutyrate-co-3-hydroxyvalerate) and Cellulose Nanocrystal Interlayers. Nanomaterials, 2020. 10(12): p. 2356.
  30. Melendez-Rodriguez, B. , et al., High-Oxygen-Barrier Multilayer Films Based on Polyhydroxyalkanoates and Cellulose Nanocrystals. Nanomaterials, 2021. 11(6): p. 1443.
  31. Cruz, M.V. , et al., Valorization of fatty acids-containing wastes and byproducts into short- and medium-chain length polyhydroxyalkanoates. New Biotechnology, 2016. 33(1): p. 206-215.
  32. EN1186:2002, Materials and articles in contact with foodstuffs-Plastics.
  33. EN13130-1:2004, Materials and articles in contact with foodstuffs- Plastic substances subject to limitation, concerned with the determination of specific migration from plastic materials into food stuffs and food simulants and the determination of specific monomers and additives in plastics.
  34. ASTM-D1876-08, Standard Test Method for Peel Resistance of Adhesives (T-Peel Test). 2015.
  35. Baby, M. , et al., Bio-mimicking hybrid polymer architectures as adhesion promoters for low and high surface energy substrates. Journal of Industrial and Engineering Chemistry, 2021. 100: p. 351-363.
  36. Shi, R. , et al., Effect of Surface Topography Parameters on Friction and Wear of Random Rough Surface. Materials, 2019. 12(17): p. 2762.
  37. Marinello, F. , et al., Atomic Force microscopy techniques to investigate activated food packaging materials. Trends in Food Science & Technology, 2019. 87: p. 84-93.
  38. Singh, M. , et al., Advances in high temperature ceramic matrix composites and materials for sustainable development. Vol. 263. 2017: John Wiley & Sons.
  39. Vatanpour, V. , et al., A thin film nanocomposite reverse osmosis membrane containing amine-functionalized carbon nanotubes. Separation and Purification Technology, 2017. 184: p. 135-143.
  40. Louzi, V.C. and J.S.d.C. Campos, Corona treatment applied to synthetic polymeric monofilaments (PP, PET, and PA-6). Surfaces and Interfaces, 2019. 14: p. 98-107.
  41. Sellin, N. and J. Campos, Surface composition analysis of PP films treated by corona discharge. Materials Research, 2003. 6(2): p. 163-166.
  42. Podgorski, L. , et al., Modification of wood wettability by plasma and corona treatments. International Journal of Adhesion and Adhesives, 2000. 20(2): p. 103-111.
  43. Wolf, R. and A.C. Sparavigna, Role of Plasma Surface Treatments on Wetting and Adhesion. Engineering, 2010. 2(6): p. 397-402.
  44. Huang, Z. , et al., Determination of methacrylic acid in food simulants by pyrolytic butylation-gas chromatography. Journal of Chromatography A, 2016. 1454: p. 101-106.
  45. Pan, H. , et al., Improved mechanical properties, barrier properties and degradation behavior of poly (butylenes adipate-co-terephthalate)/poly (propylene carbonate) films. Korean Journal of Chemical Engineering, 2017. 34(5): p. 1294-1304.
  46. Jian, J., Z. Xiangbin, and H. Xianbo, An overview on synthesis, properties and applications of poly(butylene-adipate-co-terephthalate)–PBAT. Advanced Industrial and Engineering Polymer Research, 2020. 3(1): p. 19-26.
  47. Yeo, J.C.C. , et al., Recent advances in the development of biodegradable PHB-based toughening materials: Approaches, advantages and applications. Materials Science and Engineering: C, 2018. 92: p. 1092-1116.
  48. Spagnol, C. , et al., Mechanically improved polyvinyl alcohol-composite films using modified cellulose nanowhiskers as nano-reinforcement. Carbohydrate Polymers, 2018. 191: p. 25-34.
  49. Khan, A. , et al., Mechanical and barrier properties of nanocrystalline cellulose reinforced chitosan based nanocomposite films. Carbohydrate Polymers, 2012. 90(4): p. 1601-1608.
  50. Wu, F., M. Misra, and A.K. Mohanty, Challenges and new opportunities on barrier performance of biodegradable polymers for sustainable packaging. Progress in Polymer Science, 2021. 117: p. 101395.
  51. Wang, J. , et al., Moisture and Oxygen Barrier Properties of Cellulose Nanomaterial-Based Films. ACS Sustainable Chemistry & Engineering, 2018. 6(1): p. 49-70.
  52. Nuruddin, M. , et al., Gas and Water Vapor Barrier Performance of Cellulose Nanocrystal–Citric Acid-Coated Polypropylene for Flexible Packaging. ACS Applied Polymer Materials, 2020. 2(11): p. 4405-4414.
  53. Zhai, X. , et al., Effects of high starch content on the physicochemical properties of starch/PBAT nanocomposite films prepared by extrusion blowing. Carbohydrate Polymers, 2020. 239: p. 116231.
Preprints 105729 g001

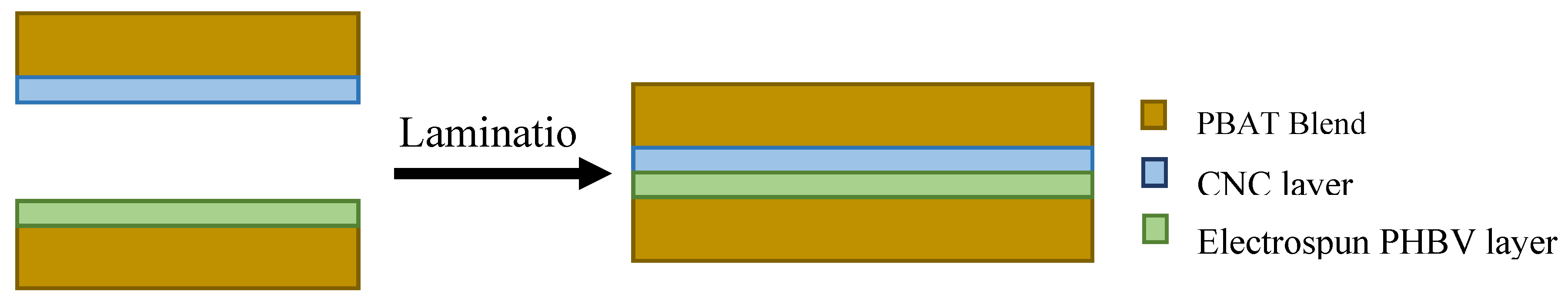

Figure 1. Lamination process of the PBAT Blend with a layer of cellulose nanocrystals (CNC) and a layer of electrospun poly(3-hydroxybutyrate-co-3-hydroxyvalerate) (PHBV) fibers.
Figure 1. Lamination process of the PBAT Blend with a layer of cellulose nanocrystals (CNC) and a layer of electrospun poly(3-hydroxybutyrate-co-3-hydroxyvalerate) (PHBV) fibers.
Preprints 105729 g001
Preprints 105729 g002

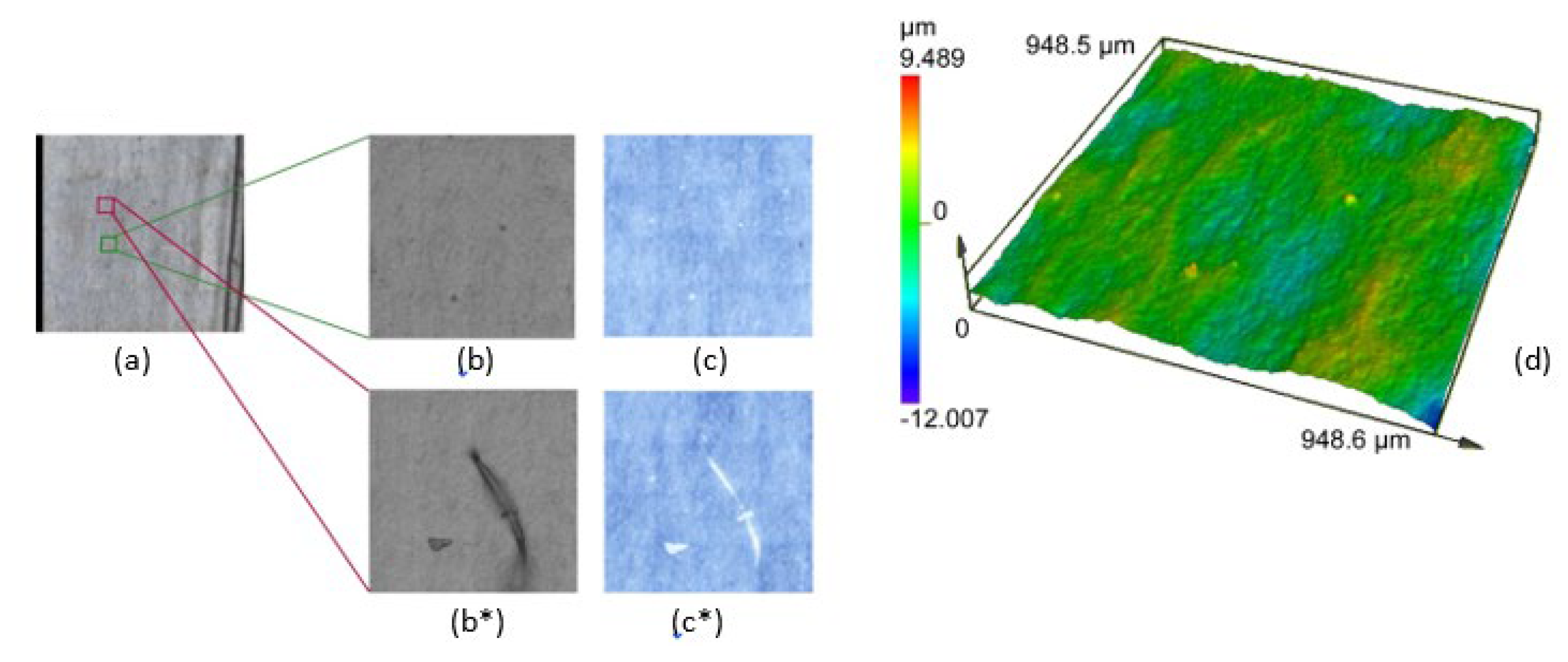

Figure 2. Scanning map (a), intensity (b) and colour (c) mode images for the selected area, and 3D surface (d) for the PBAT Blend film taken by confocal laser scanning microscopy (CLSM).
Figure 2. Scanning map (a), intensity (b) and colour (c) mode images for the selected area, and 3D surface (d) for the PBAT Blend film taken by confocal laser scanning microscopy (CLSM).
Preprints 105729 g002
Preprints 105729 g003
Figure 3. Atomic Force Microscope (AFM) 3D topographic images for 10 µm x 10 µm scanning areas of PBAT Blend film. Profile parameters: arithmetic mean value of the single roughness depths of consecutive sampling lengths (Rz), mean profile roughness (Ra), root mean square height (Rq), and maximum height (Rmax).
Figure 3. Atomic Force Microscope (AFM) 3D topographic images for 10 µm x 10 µm scanning areas of PBAT Blend film. Profile parameters: arithmetic mean value of the single roughness depths of consecutive sampling lengths (Rz), mean profile roughness (Ra), root mean square height (Rq), and maximum height (Rmax).
Preprints 105729 g003
Preprints 105729 g004

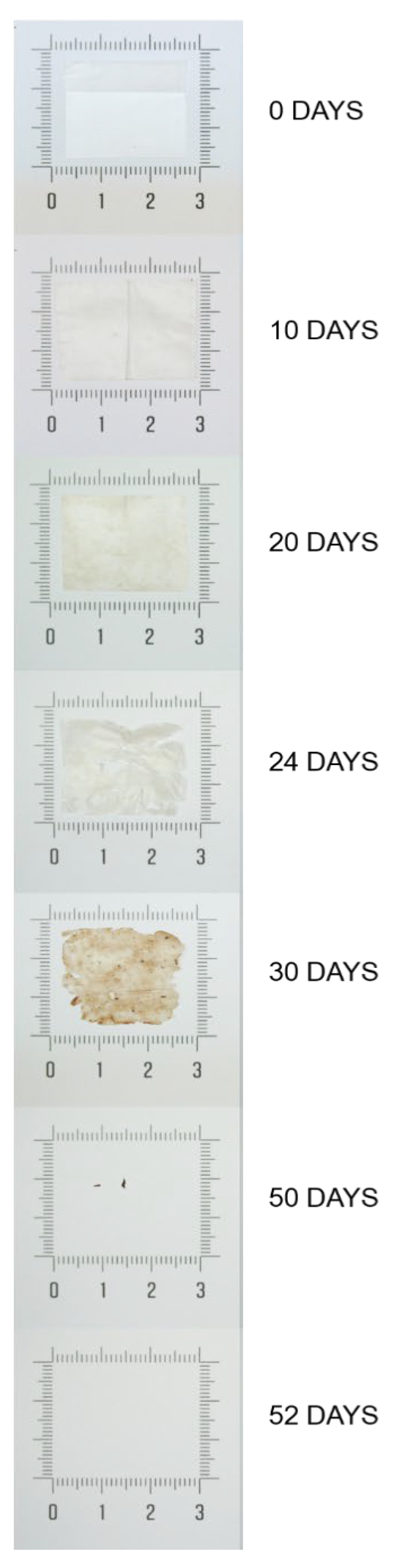

Figure 4. Visual progress of disintegration over time of PBAT Blend film monolayer.
Figure 4. Visual progress of disintegration over time of PBAT Blend film monolayer.
Preprints 105729 g004
Preprints 105729 g005

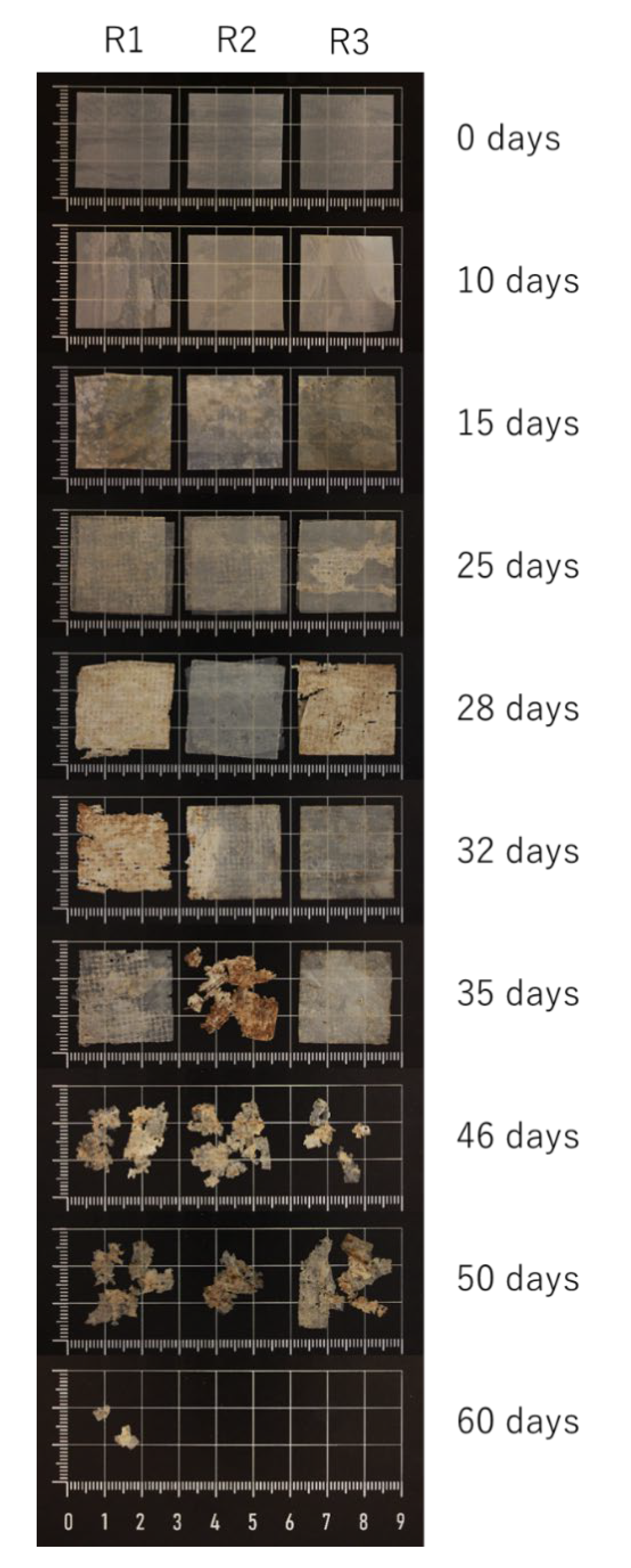

Figure 5. Figure 5. Visual progress of disintegration over time of the multilayer.

Figure 5. Figure 5. Visual progress of disintegration over time of the multilayer.
Preprints 105729 g005
Table 1. Surface roughness parameters for the substrate PBAT Blend film.
Table 1. Surface roughness parameters for the substrate PBAT Blend film.
Sample L-filter
(µm)		 Sq
(µm)		 Sa
(µm)		 Sz
(µm)		 Ssk Sku Sdr
(%)
Film 10 0.14 ± 0.01 0.079 ± 0.002 12.4 ± 2.3 -4.9 ± 3.6 193.9 ± 96.5 4.1 ± 0.6
L-filter is the Gaussian filter for removal of waviness, Sq is the root mean square height of the surface, Sa is the arithmetical mean height of the surface, Sz is the maximum height of the surface, Ssk is the Skewness of height distribution, Sku is the Kurtosis of height distribution, and Sdr is the developed area ratio.
Table 2. Solvent contact angle and surface tension measurements for the PBAT Blend film with and without corona treatment.
Table 2. Solvent contact angle and surface tension measurements for the PBAT Blend film with and without corona treatment.
Samples
Film without surface treatment Film with surface treatment
Contact angle Θ (o) Water 73.9 ± 0.7a 53.2 ± 1.0b
Θ (o) Ethylene Glycol 53.2 ± 0.8a 24.5 ± 1.1b
Θ (o) Diiodomethane 31.6 ± 1.6a 46.0 ± 1.2b
Surface tension Surface Energy (mN/m) 52.8 ± 0.2a 55.5 ± 0.3b
Dispersive (mN/m) 31.7 ± 0.6a 27.8 ± 0.5b
Polar (mN/m) 18.2 ± 0.4a 12.0 ± 0.3b
H-H (mN/m) 3.0 ± 0.1a 15.6 ± 0.3b
a-b Different letters in the same column indicate a significant difference among the samples (p < 0.05).
Table 3. Overall mean migration of the multilayer film.
Table 3. Overall mean migration of the multilayer film.
Sample Test (40 °C, 10 days) Result (mg/dm2)
Multilayer Migration in ethanol 10 % (A) 1.7 ± 0.6
Migration in acetic acid 3 % (B) 1.7 ± 0.6
Migration in olive oil (D2) 2.5 ± 0.7
Table 4. Methyl methacrylate (MMA) expressed as methacrylic acid (MA) migrated from the monolayer and multilayer films into different food simulants after contact condition of 10 days at 40 °C.
Table 4. Methyl methacrylate (MMA) expressed as methacrylic acid (MA) migrated from the monolayer and multilayer films into different food simulants after contact condition of 10 days at 40 °C.
Sample Food simulants
10 % (v/v) Ethanol/Water 3 % (v/v) Acetic acid/Water 95 % (v/v) Ethanol / Water *
[mg/Kg] [mg/g film] [mg/Kg] [mg/g film] [mg/Kg] [mg/g film]
PBAT Film 10.70 ± 2.17 3.74 ± 1.12 7.49 ± 6.34 3.24 ± 1.53 0.63 ± 1.00 0.49 ± 0.25
Multilayer Film ND ND ND ND ND ND
* It was used to replace vegetable oil since it was not possible to make the identification/quantification of the compounds as suggested in the European standard EN13130-1:2004 with this food simulant. **ND_ not detectable.
Table 5. Mechanical properties in terms of elastic modulus (E), tensile strength at yield (σy), elongation at break (εb) of PBAT Blend monolayer and multilayer with cellulose nanocrystals (CNC) in machine direction (MD) and transverse direction (TD).
Table 5. Mechanical properties in terms of elastic modulus (E), tensile strength at yield (σy), elongation at break (εb) of PBAT Blend monolayer and multilayer with cellulose nanocrystals (CNC) in machine direction (MD) and transverse direction (TD).
Sample MD TD
Thickness (mm) E
(MPa)		 σy
(MPa)		 εb
(%)		 E
(MPa)		 σy
(MPa)		 εb
(%)
Monolayer 0.05 1270 ± 64a 20.3 ± 1.3a 330 ± 22a 1030 ± 87a 17.8 ± 0.3a 243 ± 19a
Multilayer 0.105 950 ± 64b 20.6 ± 1.7a 27 ± 20b 1030 ± 64a 14.3 ± 0.5b 7.6 ± 2.3b
a-b Different letters in the same column indicate a significant difference among the samples (p < 0.05).
Table 6. Peeling properties of the multilayer with cellulose nanocrystals (CNC) in machine direction (MD) and transverse direction (TD).
Table 6. Peeling properties of the multilayer with cellulose nanocrystals (CNC) in machine direction (MD) and transverse direction (TD).
Machine direction Peeling load (N) T-peel strength (N/mm)
MD 0.083 ± 0.024a 0.006 ± 0.002a
TD 0.081 ± 0.009a 0.005 ± 0.001a
a Different letters in the same column indicate a significant difference among the samples (p < 0.05).
Table 7. Thickness and permeance values in terms of water vapor permeance (WVP) and oxygen permeance (OP) of polyhydroxybutyrate (PHB) Blend film monolayer and multilayer with and without cellulose nanocrystals (CNC).
Table 7. Thickness and permeance values in terms of water vapor permeance (WVP) and oxygen permeance (OP) of polyhydroxybutyrate (PHB) Blend film monolayer and multilayer with and without cellulose nanocrystals (CNC).
Permeance
Sample Thickness
(mm)		 WVP x 1012
(kg·m-2·Pa-1·s-1)		 OP x 1015
(m3·m-2·Pa-1·s-1)
Monolayer PBAT Blend 0.045 3.6 ± 0.3a 9.3 ± 0.1a
Multilayer PBAT Blend with hot-tack 0.107 2.0 ± 0.6b 5.9 ± 0.4b
Multilayer PBAT Blend with hot-tack and CNC 0.105 2.4 ± 0.1b 0.5 ± 0.3c
a-c Different letters in the same column indicate a significant difference among the samples (p < 0.05).
Table 8. Percentage disintegration of the multilayer from start to 60 days.
Table 8. Percentage disintegration of the multilayer from start to 60 days.
Time (days) Disintegration (%)
0 0.0 ± 0.0
10 -1.8 ± 0.2
15 2.8 ± 3.7
21 18.3 ± 7.5
23 24.6 ± 7.5
25 30.5 ± 0.7
28 47.9 ± 7.4
30 49.8 ± 5.7
32 53.4 ± 14.1
35 56.8 ± 10.6
37 58.7 ± 11.2
46 84.5 ± 5.2
50 82.7 ± 6.8
60 99.9 ± 0.2
