The Role of the Unbinding Cycle on the Coordination Abilities of the Bi-Cyclopeptides Toward Cu(II) Ions

1. Introduction

Cyclic peptides include in their structure or are themselves rings of polypeptide chains, which can be synthesized by selective side-chain to side-chain or head to tail cyclization strategies, respectively. Homodetic cyclopeptides are based on lactam analogues, compared to heterodetic ones based for example on the classical side-chain to side-chain disulfide bridges but also on other proteolytically stable non-native bonds such as triazolyl bridges [1].

The cyclization affects the stiffening of the structure [2] and allows the mimicry of the secondary structure of some protein fragments [3]. Moreover, the cyclic structure promotes the anchoring of metal ions by amino acid side chains [4]. Studies have proven that cyclic peptides show specificity in forming bonds with certain metal ions. Experiments with native cyclopeptides like oxytocin and vasopressin have proven that despite their lack of coupling to metal ions in nature, they show high ability and efficiency to form bonds with particular metal ions [5,6,7,8].

There are many cyclic peptides with antibacterial, anticancer, immunosuppressive, or toxic properties [9,10]. They are increasingly used in medicine, showing better biological activity than linear peptides [11]. But also natural bicyclic peptides are known to be produced by different organisms. Romidepsin, actinomycin D, moroidin and celogentin C are some examples of natural bicyclic peptides displaying different activities, such as inhibition of tubulin polymerization, prevention of the actin filaments polarization, inhibition of RNA polymerase II, among others [12,13,14]. Interestingly the concept of Bicycles® [15] attracted more and more pharmaceutical companies as synthetic bicyclic peptides rotationally limited by symmetrical small molecule scaffolds that constrain the molecule into rigid two-loop structures. Their versatile peptide scaffold allows iterative and fast optimization processes to increase affinity and selectivity to difficult-to-drug targets. Bicycles are made stable through optimization and their low molecular weight delivers favorable pharmacokinetics, enabling deep tissue penetration, high solubility and flexibility in the areas of manufacturing, route of administration and formulation. The routes of administration of drugs containing bicyclic peptides feature a wide range of choices. Their additional advantage is rapid penetration into tissues. Furthermore, elimination occurs by renal metabolism, which can be of great importance in the use of these compounds in patients with a history of liver disease. The advantage of bicycle peptides is their size and increased conformational rigidity, which improves proteolytic stability in the blood. In addition, each ring can function independently of the other. Moreover, studies point to their use as platforms due to their biocompatibility, similarity, and chemical diversity with previously known native proteins [16,17].

The presence of a second cycle results in an even greater increase in biological stability and ability to bind to the receptor, as each ring in the bicyclic structure can function independently, which makes these peptides bifunctional [18]. Thus, bicycle peptides offer high expectations for the development of new drug carriers due to their similarity with proteins [19].

Previous studies on coordination properties of the bicyclic peptide with one non-binding cycle and a second cycle with two histidine residues as anchoring groups have shown that the bicyclic structure strongly influences the efficacy of the Cu(II) coordination [20], which may be related to the H-bond formation [21].

The investigations of the binding abilities of other bicyclopeptides with the c(PKKHP-c(CFWKTC)-PKKH) (BCL) sequence have shown that, above pH 7.4, the peptide forms copper complexes with the untypical transition at 483 nm in the UV-Vis spectra [22]. Owing to this fact we propose herein the results of the studies of four different monocyclic analogues of the original bicyclopeptide BCL. The first, MCL1 (sequence: Ac-PKKHPc(CFWKTC)PKKH-NH₂, Bachem AG, Bubendorf, Switzerland), is composed of the unbinding cycle and two linear parts, N- and C-terminal, with two histidine residues, one per part. The next two monocyclic ligands contain one histidine residue in the N-terminal (MCL2: Ac-PKKHPc(CFWKTC)PKKS-NH₂) or C-terminal positions (MCL3: Ac-PKKSPc(CFWKTC)PKKH-NH₂), respectively, and the last ligand has a linear structure (LNL: Ac-PKKHPSFWKTSPKKH-NH₂).

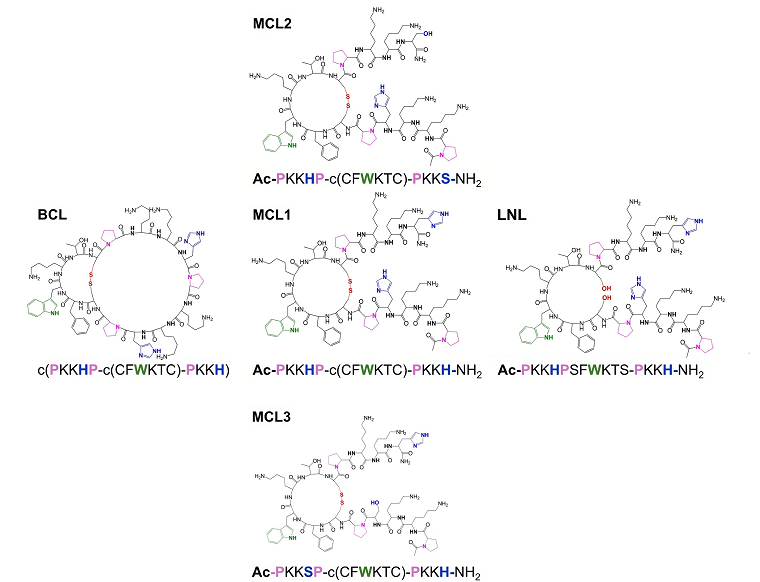

Scheme 1. Structures of the synthetic peptides BCL, MCL1, MCL2, MCL3, and LNL.

Scheme 1. Structures of the synthetic peptides BCL, MCL1, MCL2, MCL3, and LNL.

2. Results and Discussion

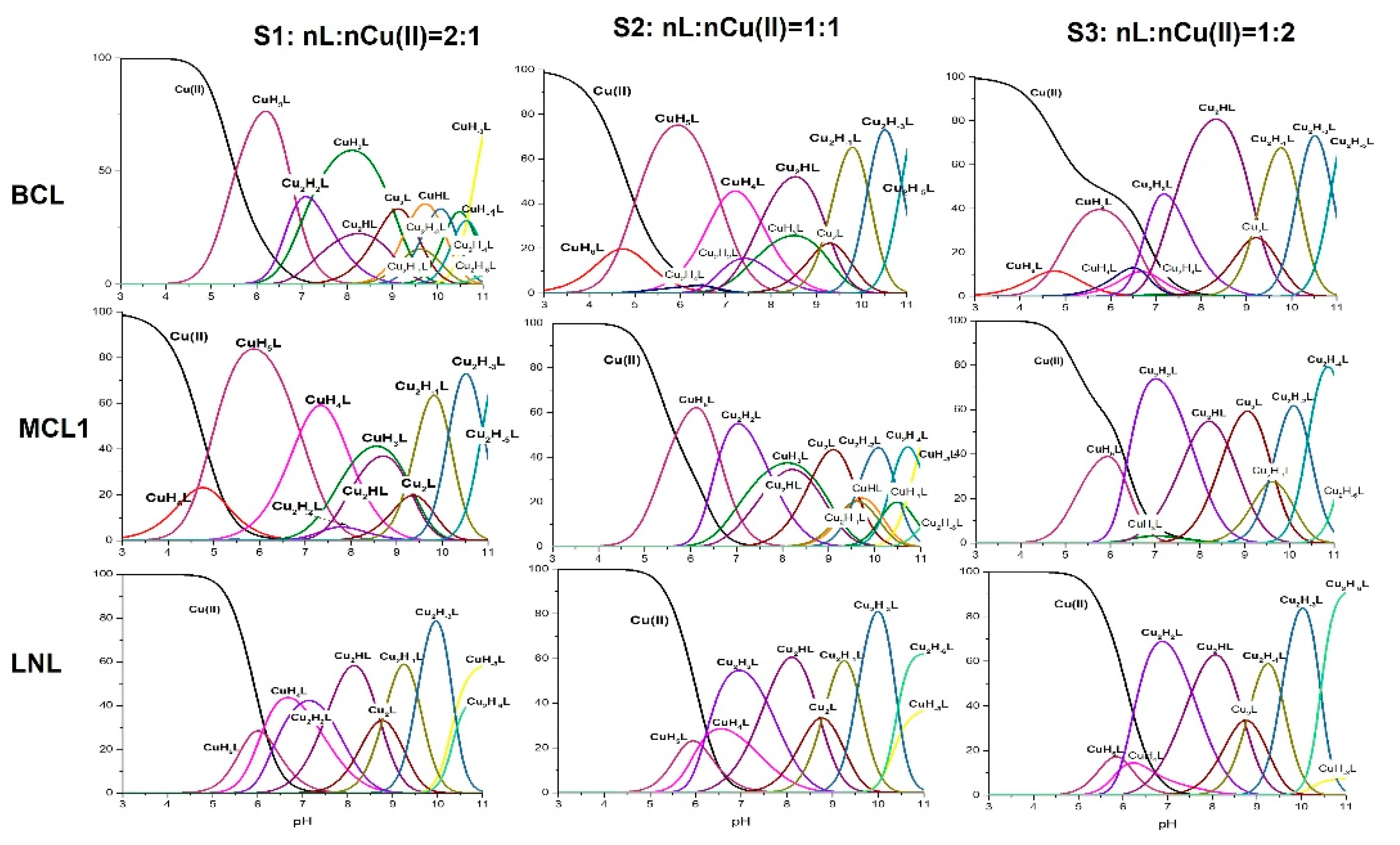

The analyses of the acid-base properties of MCL1 allowed to determine all protonation constants related to the five side chains of Lys residues and two of the imidazole rings of both His residues (Table1). The values of all protonation constants are comparable to those previously obtained for BCL [22].

The MCL1 and LNL peptides have in their structure the same type and number of deprotonating groups as BCL. Due to this fact, the stoichiometry of the formed complexes can be compared. Both peptides have two separated His residues and based on the fact that imidazole nitrogen is the anchoring group for Cu(II) ions, three systems with nL:nCu(II) = 2:1 (S1), nL:nCu(II) = 1:1 (S2) and nL:nCu(II) = 1:2 (S3) of MCL1 and LNL were investigated with potentiometry. Both MCL1 and LNL form mono- and dinuclear complexes as BCL (Table 1, Figure 1).

MCL1, as well as LNL form the CuH₅L species as first complex. The appearance of this complex in both systems is related to the dissociation of two protons from the ligand molecules. In the case of BCL, the CuH₅L is characterized by the {2 N_Im} binding mode [22]. The value of the calculated stability constants depends on the protonation state of the ligand. It is therefore more advantageous to compare the values of the constants independently of the protonation of the ligand, calculated as logβ* = logβ_CuHnL – logβ_HmL. The value of the corrected stability constants, logβ*_MCL1 = 4.52 and logβ*_LNL = 4.08, are significantly lower than logβ*_BCL = 5.68, which supports the involvement of only one imidazole donor in copper binding [25]. In contrast to BCL, which forms the final mononuclear species CuH₃L with the {N_Im, 2N_amide} coordination manner, MCL1 and L form the CuH_-3L species with the {N_Im, 3N_amide} binding mode.

MCL1, in both linear parts, has His residues and due to this fact, it is difficult to define which linear part (N- or C-terminal) favors copper coordination. Because of this, its binding abilities were compared to the analogues having one His residue in the structure (MCL2 in the N-terminal part and MCL3 in the C-terminal part). MCL2 and MCL3 form the CuH₄L complex as the first. Its formation, as it was found is related to the dissociation of two protons. The value of the corrected stability constant (logβ*_MCL2 = 5.27 and logβ*_MCL3 = 6.16) is significantly higher than the stability of MCL1. This result strongly supports different binding mode: one imidazole and one amide moiety.

Both MCL2 and MCL3 form the final species with the {N_im, 3N_amide} binding mode that was observed in the MCL1 system. The stability of this species formed by MCL1 is almost the same as the stability of MCL3 (Table 2), which strongly suggests that the linear C-terminal part of the MCL1 sequence is favored.

The di-nuclear complexes existing in the studied system are the second group. Similarly to the BCL systems, the formation of these complexes is promoted with the increase of the Cu(II) concentration concerning the ligand concentration.

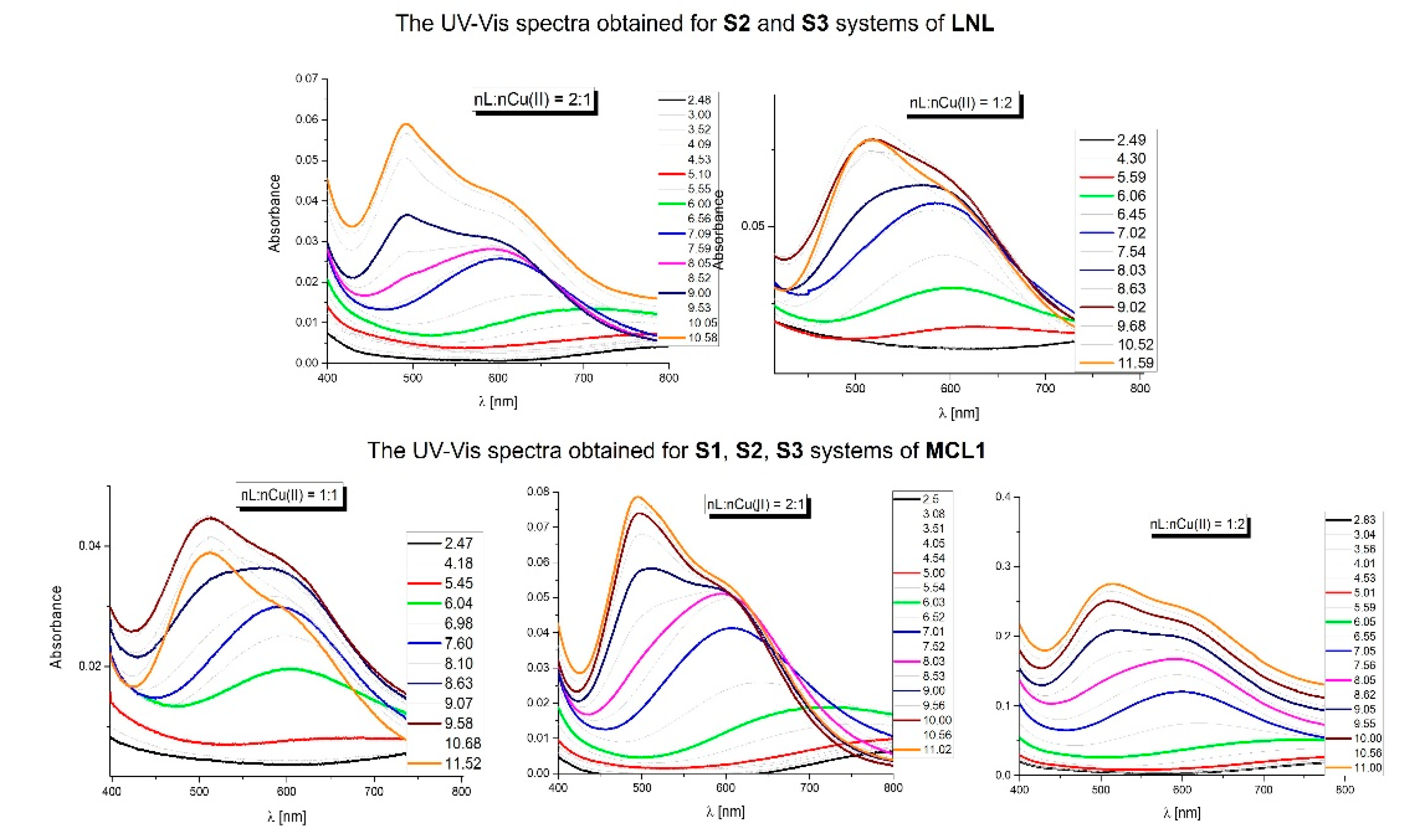

As it was mentioned above, in the UV-Vis spectra of all BCL systems [22] is present the untypical transition at 483 nm. Figure 2 shows the UV-Vis spectra obtained for the MCL1-Cu(II) in the systems with the 2:1 (S1), 1:1 (S2), and 1:2 (S3) molar ratios and 1:1 (S2) and 1:2 (S3) systems of the LNL.

The absorption spectra obtained for both systems of the linear peptide LNL, are typical of copper complexes of the peptide and are in good agreement with the potentiometric results. Analyzing the absorption spectra obtained for the MCL1 peptide, we observed that the spectra of the system S3 are similar to those obtained for the LNL. The difference can be observed for the two first systems (S1 and S2) with transition below 500 nm (what was observed for the BCL [22]).

The transition located below 500 nm appears above pH 8. In these conditions in both systems, two complexes dominate the mononuclear CuH₃L and the di-nuclear Cu₂HL. The concentration of the CuH₃L decreases with the change of the molar ratio MCL1:Cu(II) = 2:1 > 1:1 (in the system with the molar ratio MCL1:Cu(II) = 1:2 its concentration = 0) and it can be assumed that the presence of the transition below 500 nm is determined by the mononuclear species.

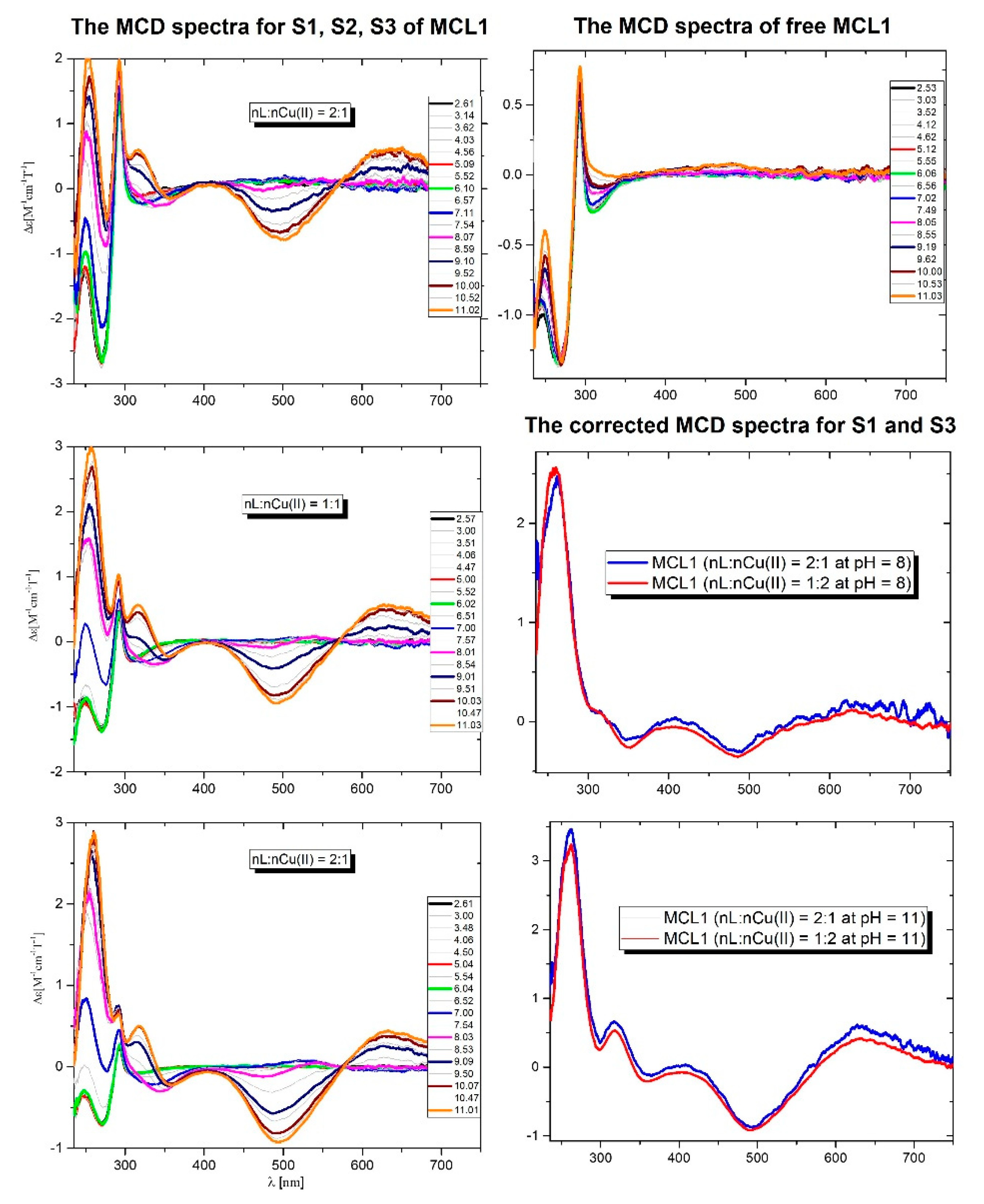

In the unbinding cycle of the BCL as well as of the MCL1 peptide, the Trp moiety is present. Based on the fact that Trp gives the characteristic transition in the MCD spectra (Figure 3), all MCL1-Cu(II) systems were investigated with MCD.

In all systems with metal ions are present two transitions: one positive at 650 nm and one negative at 500 nm, which are related to the d-d transitions. Below 400 nm are present the transitions characteristic for Trp, CT_{Nim → Cu(II)}, and CT_{Nim → Cu(II)}. The pH-dependent changes in the MCD spectra well correlate with the potentiometric results.

The detailed analysis of the Trp region of the Cu(II) complexes concerning the free ligand may give information on the possible interaction of Cu(II) with the Trp side chain. Based on the potentiometric results, the MCD spectra were analyzed at pH 8 and 11 for S1 and S3 molar ratios.

At pH 8 in the first system (S1) exist two main complexes: the dominant CuH₃L and Cu₂HL whilst in the system with the nL:nCu(II) = 1:2 (S3) the dominant is the Cu₂HL. In the CuH₃L species, the metal ion is coordinated by three N-donors: one imidazole and two amides. The formation of the Cu₂HL complexes is related to the loss of six protons from the ligand molecule. Based on the fact that in these conditions all Lys residues are protonated, there are two main possibilities for binding of both Cu(II) ions: {1N_Im, 1N_amide}/{1N_Im, 3N_amide} or {1N_Im, 2N_amide}/{1N_Im, 2N_amide}. At pH 8.5 the corrected MCD spectra (complex spectrum – ligand spectrum) of both systems are almost the same. This result strongly supports the same binding mode of copper ions in the mono- as well as in the dinuclear complexes (Figure 3). A similar situation is observed at pH 11 where the final complexes are formed. In the first system dominates the CuH_-3L species whilst in the second dominates the Cu₂H_-5L complex. The corrected spectra are the same what confirms the same {1N_Im and 3N_amide} donors in the coordination sphere of the Cu(II) ions. Moreover, the region characteristic for the Trp residue is not affected, which strongly supports that the bound Cu(II) ions do not affect the Trp residue, and the presence of this additional transition below 500 nm is not related to an interaction of the side chain of Trp with metal ions.

The next step of the presented studies was the analysis of the EPR spectra for the BCL-Cu(II) and MCL1-Cu(II) systems.

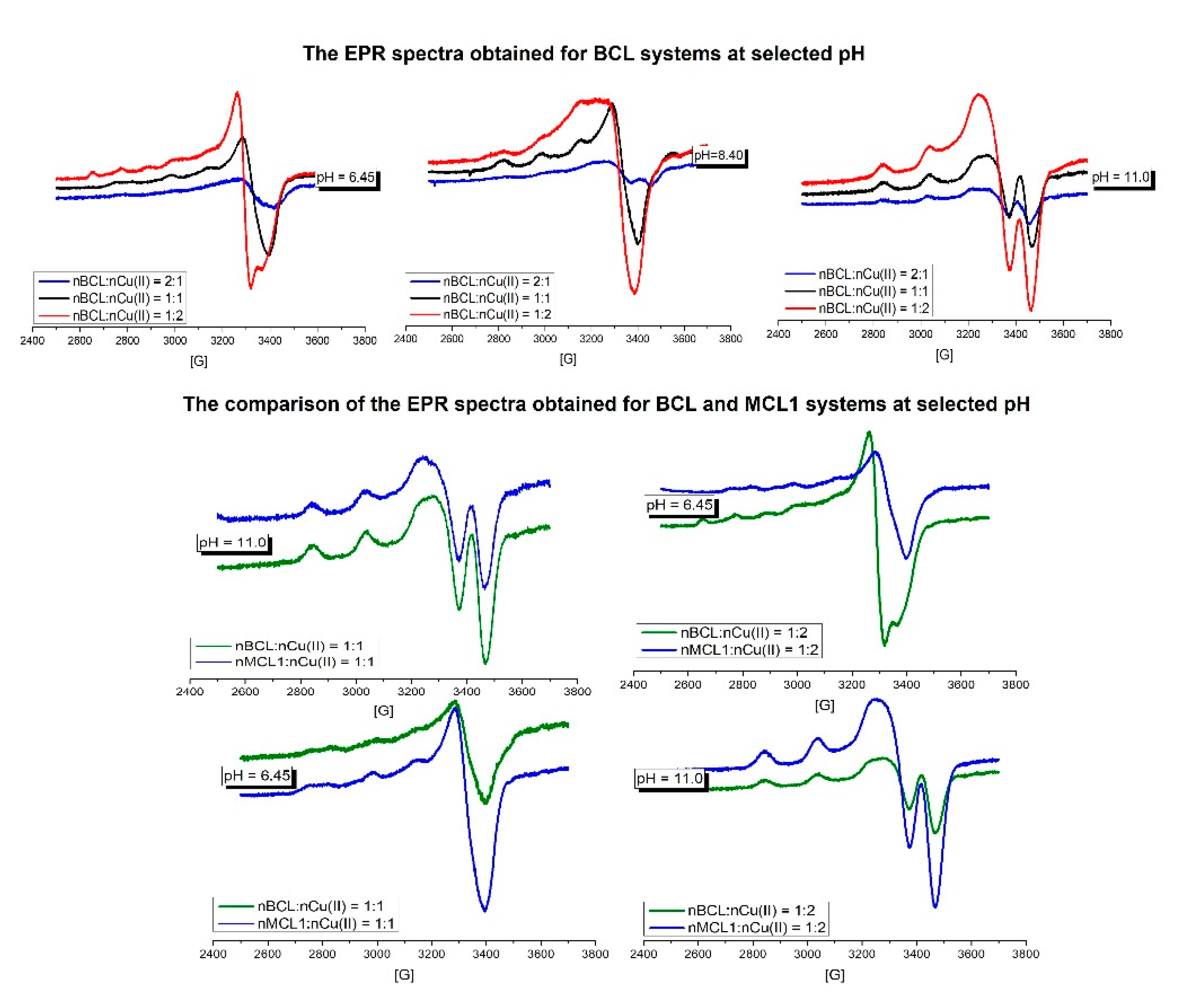

The investigated BCL-Cu(II) systems were systems with all three molar ratios at pH 6.45, 8.4, and 11. The comparison of the EPR spectra obtained for all BCL systems at pH = 6.45 is shown in Figure 4. At this pH in all systems, the CuH₅L species is dominating but other complexes are also present. Due to this fact, it is difficult to obtain the EPR parameters for this species. However in the system with 1:2 molar ratio, EPR parameters characteristic for the Cu(II)_aq species can be identified, in good agreement with the potentiometric results. The EPR spectra from pH 8.4 (Figure 4) of all BCL systems are very similar with A_II = 169 G and g_II = 2.234 parameters and support the presence of three N-donors in the coordination sphere of the Cu(II) ion. The EPR parameters: A_II = 192 G and g_II=2.187 found at pH 11, confirm the existence of the 4N-type of the complex.

In relation to our previous results [22], the untypical transition below 500 nm is present in all systems of MCL1_. Due to this fact two MCL1-Cu(II) systems i.e., the nL:nCu(II) = 1:1 and nL:nCu(II) = 1:2, were investigated and compared to BCL in the same conditions. The comparison of the spectra of the investigated systems around pH = 6.45 as well as pH = 11 are very similar and support the same number of N-donors and similar environment of the metal ion. These results suggest that the presence of the transition below 500 nm is not related to the interaction of the additional group with the metal ion.

3. Materials and Methods

3.1. Synthesis of the Peptides LNL, MCL2, and MCL3

Materials for Peptide Synthesis

Fmoc-L-Pro-OH; Fmoc-L-Lys(Boc)-OH; Fmoc-L-Ser(tBu)-OH; Fmoc-L-Cys(Trt)-OH; Fmoc-L-Phe-OH; Fmoc-L-Trp(Boc)-OH; Fmoc-L-Thr(tBu)-OH; Fmoc-L-His(Trt)-OH, CH₃CN, TFA, EtOAc, DMSO, DIC, Oxyma Pure, DMF, Piperidine, Acetic anhydride, DCM, Et₂O were purchased from Sigma-Aldrich (Milan, Italy).

3.2. Peptide sequences

LNL: Ac-PKKHPSFWKTSPKKH-NH₂

MCL2: Ac-PKKHPc(CFWKTC)PKKS-NH₂

MCL3: Ac-PKKSPc(CFWKTC)PKKH-NH₂

The peptides LNL, MCL2, and MCL3 were synthesized using fully automated induction-assisted solid-phase peptide synthesis (Gyros Protein Technologies, PurePrep^® Chorus, Tucson AZ, USA). The Fmoc/tBu induction-assisted SPPS protocol, performed on a 50 μmol scale, consisted of the following steps:

• Swelling in EtOAc/DMSO (4:1 v/v, 3 mL) for 30 minutes at room temperature.
• Fmoc removal for 1 minute at 90°C using 20% piperidine in DMF (2 mL).
• Washings with EtOAc/DMSO (4:1 v/v, 3 x 2 mL).
• Coupling: Fmoc-L-aa-OH, DIC, Oxyma Pure (5:5:5), 2 minutes at 90°C in DMF.
• Washings with EtOAc/DMSO (4:1 v/v, 2 mL).

Peptide elongation involved repeating the following general protocol for each amino acid adequately orthogonally protected, including Fmoc-L-His(Trt)-OH, Fmoc-L-Lys(Boc)-OH, Fmoc-L-Pro-OH, Fmoc-L-Cys(Trt)-OH, Fmoc-L-Thr(tBu)-OH, Fmoc-L-Trp(Boc)-OH, Fmoc-L-Phe-OH, and Fmoc-L-Ser(tBu)-OH.

Both deprotection and coupling reactions occurred in a glass vessel under mechanical mixing and nitrogen bubbling. Following the last cycle of Fmoc removal, the N-terminal position was acetylated using a 10% v/v solution of acetic anhydride in DMF (2 mL).

After washing with DMF and DCM (3 x 3 mL/g resin), the resin was dried under vacuum. Peptide cleavage from the resin, along with deprotection of acid-labile amino acid side-chains, was achieved by treating the peptide-resin with a cocktail of TFA/TIS/DODT/H₂O (10 mL, 94:2.5:2.5:1) for 2 hours at room temperature under mechanical shaking. The resin was then filtered and rinsed with fresh TFA. The cleavage mixture was precipitated by adding ice-cold Et₂O (35 mL). The resulting crude peptide precursor was washed with ice-cold Et₂O (35 mL) and dried under vacuum.

The crude peptides with free cysteine residues MCL2 and MCL3 were solubilized in a mixture of water and CH₃CN (1:1) and stirred for approximately 15 minutes to facilitate the formation of intramolecular disulfide bonds. After complete dissolution, additional water was added to the reaction mixture to achieve a final concentration of 5.3 mM. Initially, the pH that was measured 2.5, was adjusted to 9.5 by adding NH₄OH (7.5%). H₂O₂ (0.8 eq) was then added, and the mixture was mechanically stirred for 2 hours at 350 rpm, at room temperature. Finally, the reaction was quenched by adding TFA to readjust the pH to 2.5. The reaction mixture was subsequently lyophilized without further evaporation.

The crude peptides were purified via reverse-phase flash chromatography, monitored by a UV detector (Teledyne ISCO CombiFlash NextGen 300+, Lincoln NE, USA) using a SNAP Ultra C18 column (30 g), with a Column Volume (CV) of 45 mL; flow rate set at 25 mL/min; eluents composed of 0.1% TFA in H₂O (A) and 0.1% TFA in CH₃CN (B); gradient: 3 CV A, followed by 10 CV from 0% to 50% B, and ending with 3 CV of B.

Subsequent lyophilization yielded the desired peptides as a white powder, with HPLC purity of 98.5% for LNL, 98.5% for MCL2, and 99.1% for MCL3.

The eluted fractions were subjected to analysis by RP-UHPLC-MS using a Thermo Scientific Ultimate 3000 equipped with a diode array detector and a Thermo Scientific-MSQ PLUS, and employing a C18 Waters Acquity CSH™ column (130Å, 1.7 µm, 2.1 × 100 mm). Operating conditions were maintained at a temperature of 318.15 °K, with a flow rate of 0.5 mL/min, eluents consisting of 0.1% TFA in H₂O (A) and 0.1% TFA in CH₃CN (B), and monitoring at λ 215 nm. The gradient ranged from 25% to 60% B in A over 5 minutes.

LNL: R_t: 3.22 min, [M+2H]²⁺ calcd. 938.12; [M+2H]²⁺ found 938.42.

MCL2: R_t: 3.57 min, [M+2H]²⁺ calcd. 928.14; [M+2H]²⁺ found 928.38.

MCL3: R_t: 3.58 min, [M+2H]²⁺ calcd. 928.14; [M+2H]²⁺ found 928.35.

RP-UHPLC traces and ESI-MS spectra of LNL, MCL2, and MCL3 are reported in the Supplementary materials.

3.3. Potentiometric Measurements

Potentiometric measurements were performed at 25 °C using a Metrohm semi-micro combination electrode and a pH-meter system calibrated with HCl at a hydrogen ion concentration. The pH-metric titrations were carried out in an ionic strength I=0.1 mol L^-1 KCl/HCl solution with a sample volume of 1.5 mL at a ligand concentration of 6x10^-4 mol L^-1. A 2 mL micrometer syringe was used to introduce KOH. It included 0.1 mol L^-1 of KOH. The pH range of 2.5 to 11.5 served as the measurement range. The titration curves, HYPERQUAD [23], and SUPERQUAD [24] software were used to calculate the stability constants and stoichiometry of the complexes.

3.4. Spectroscopic Measurements

Using a Varian Cary 50 Bio spectrophotometer (Varian Inc., USA), visible spectra in the 300–800 nm range were captured at 25 °C. For all systems under investigation, magnetic circular dichroism (MCD) spectra were captured at 25 °C using a Jasco J-1500 spectrometer (Jasco, Japan). The MCD spectra were captured using a Permanent Magnet PM-491 accessory and were collected in a magnetic field of +1.6 T in the N/S field direction. All spectroscopic measurements were collected in the pH range of 2.5 to 11. The reactions were carried out in a 0.3 mol L1 KCl solution with a ligand concentration of 6x10^-4 mol L^-1. 2.0 mL was used for each sample. With the aid of a Mettler Toledo pH meter and modest additions of concentrated KOH and HCl solutions, the pH values were determined. The electron paramagnetic resonance (EPR) spectra were recorded on Bruker ELEXSYS E500 CW-EPR, X-Band spectrometer, equipped with ER 036TM NMR Teslameter and E 41 FC frequency counter. A microwave power of 10 mW, a modulation frequency of 100 kHz, a modulation amplitude of 10 G, a time constant of 82 ms, and a conversion time of 164 ms were adopted. The samples were sealed in quartz tubes and placed inside a standard EPR quartz tube for measurements.

4. Conclusions

We report herein the study of four analogues of the bicyclic peptide with the sequence c(PKKHP-c(CFWKTC)-PKKH) (BCL) and the role of the structural aspects on the coordination abilities of the bi-cyclopeptide with the unbinding cycle -c(CFWKTC)-, are presented. The analysis of the potentiometric results have shown that the bi-cyclic structure promotes the involvement of the side chain imidazole donors in the Cu(II) binding. Based on the results obtained for the mono-cyclic analogues containing two His residues (MCL1: Ac-PKKHPc(CFWKTC)PKKH-NH₂) and one His residues (MCL2: Ac-PKKHPc(CFWKTC)PKKS-NH₂ and MCL3: Ac-PKKSPc(CFWKTC)PKKH-NH₂), respectively, it can be assumed that the coordination of the histidine moiety as anchoring group is promoted by its location in the peptide sequence further from the nonbinding cycle that strongly influences the involvement of the amide donors in the Cu(II) coordination. The spectroscopic studies, based on MCD and EPR, support the hypothesis that neither the direct interaction of tryptophan side chain with the Cu(II) ion nor other groups affect the appearance of an unusual band below 500 nm in the UV-Vis spectrum.
