Corrosion Assessment and Classification in SPCC Steel Using Eddy Current Testing

1. Introduction

Steel Plate Cold-Rolled Commercial (SPCC) denotes a steel variant that has undergone a cold-rolling process, enhancing its strength and hardness. Predominantly, it is utilized in sectors demanding precise shapes and dimensions, such as automotive manufacturing [1]. Notably, SPCC offers heightened corrosion resistance compared to hot-rolled steels, rendering it a preferred choice for applications exposed to harsh environmental conditions. However, when a material corrodes, it undergoes oxidation and other chemical changes that lead to the loss of material, formation of surface irregularities, and degradation of its mechanical properties [2,3]. These changes can include the loss of structural integrity, reduced tensile strength, and increased susceptibility to fractures.

Over time, the cumulative effects of corrosion can significantly weaken the material, potentially leading to structural failure or diminished performance in various applications. The cost of corrosion has been estimated as losses to the national economy due to corrosion of up to 5% of Gross Domestic Product (GDP) in several countries including Japan, UK, USA [4]. Hence, the detection and classification of corrosion levels play a vital role in ensuring the safety, reliability, and performance of assets and infrastructures.

Over the years several nondestructive testing techniques based on radiography, acoustic emission, and thermography have been widely used for the monitoring of the material’s properties and characterization of corrosion [5,6,7,8]. One way for the detection of corrosion is based on electromagnetic method like eddy current testing [5,8]. Frankowski et al. validated the feasibility of eddy current testing for the detection of both uniform and localized corrosion in reinforcing bars [9], while Yusa et al. [10] successfully applied eddy current testing for the detection of fatigue cracks and pressure corrosion cracks. In addition, Li et al. [11] used pulsed modulation eddy current testing to detect subsurface corrosion.

Investigations pertaining to detection and monitoring of corrosion have paved the way for their characterization. Characterization of the corroded regions is necessary because small pits on the surface of the material pose no big threat to the materials underneath. On the other hand, the presence of deeper pits forces the replacement of the material. One method to characterize the extent of corrosion under coatings in steel samples, performed by Kopf et al. [12]. It was based on binarizing the thermal images obtained from pulsed thermography technique, yielding an absolute error of less than 3% in quantifying the extent of corrosion. Alamin et al. [13] employed pulsed eddy current testing for corrosion detection in mild steel, and based on principal component analysis, classified and characterized the corrosion. Postolache et al. [14] utilized giant magnetoresistance (GMR) magnetic sensors to detect changes in the magnetic field for defect characterization, followed by defect classification using neural networks. Nevertheless, the exploration of classifying corrosion through eddy current testing remains on going. Hence this paper aims to detect corrosion using traditional eddy current testing and characterize the corrosive state of SPCC steel specimens, using a generative model and a discriminative model and classifying them in two states: a less corroded state (state-1) and a highly corroded state (state-2).

The content of this paper is organized as follows. In Section 2, the experimental setup and the experiments carried out to detect the corrosion based on eddy current testing are detailed, with emphasis on measuring the magnetic field components at two different frequencies, and the extraction of features for the subsequent classification models are presented. Section 3 describes supervised generative and discriminative classifiers and classifies some unknown data (test data) in two states; demonstrates the classification results and evaluates the performance of the models based on metrics such as accuracy, precision, recall and F1 scores. In Section 4, some important conclusions about the classification models are discussed.

2. Experiments and Metrology

2.1. SPCC Steel Specimens and Magnetic Sensors

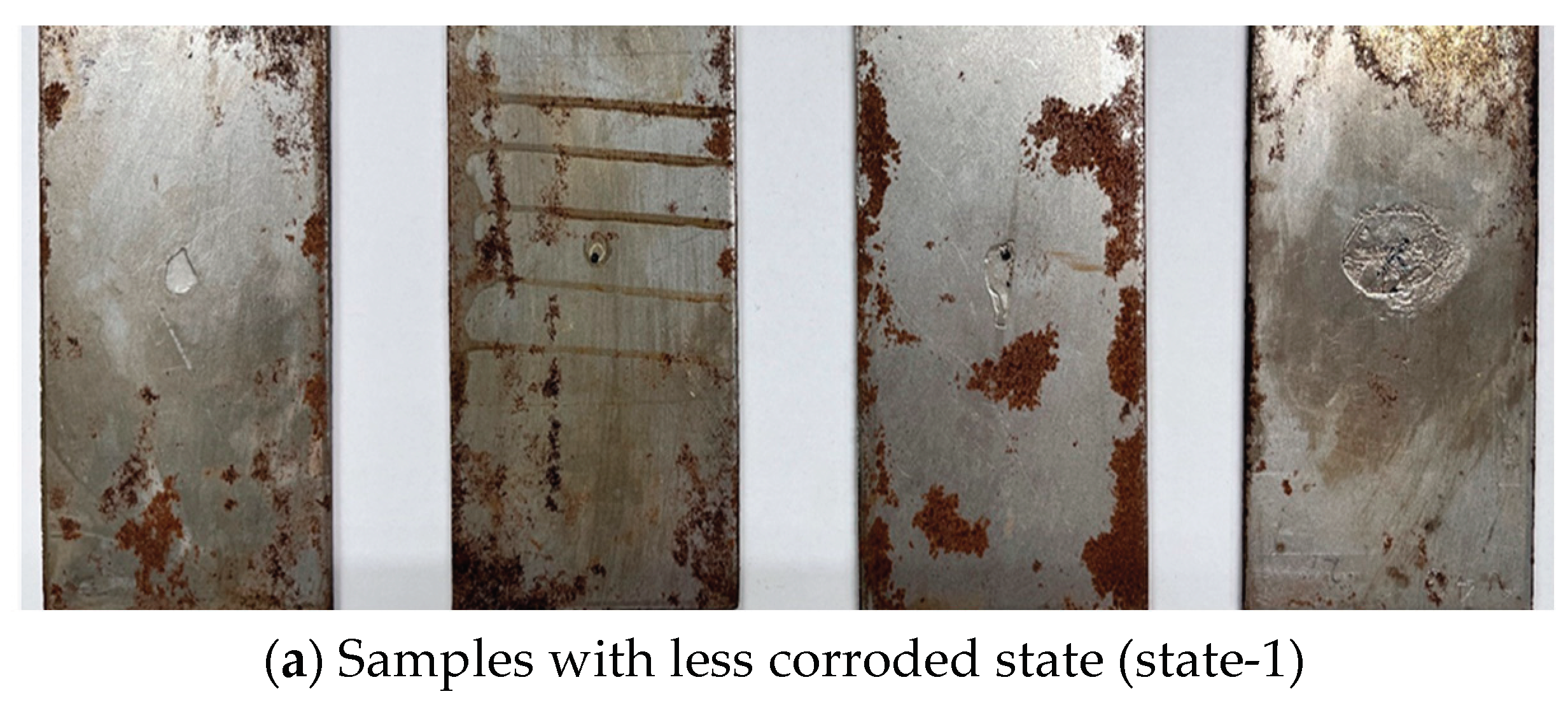

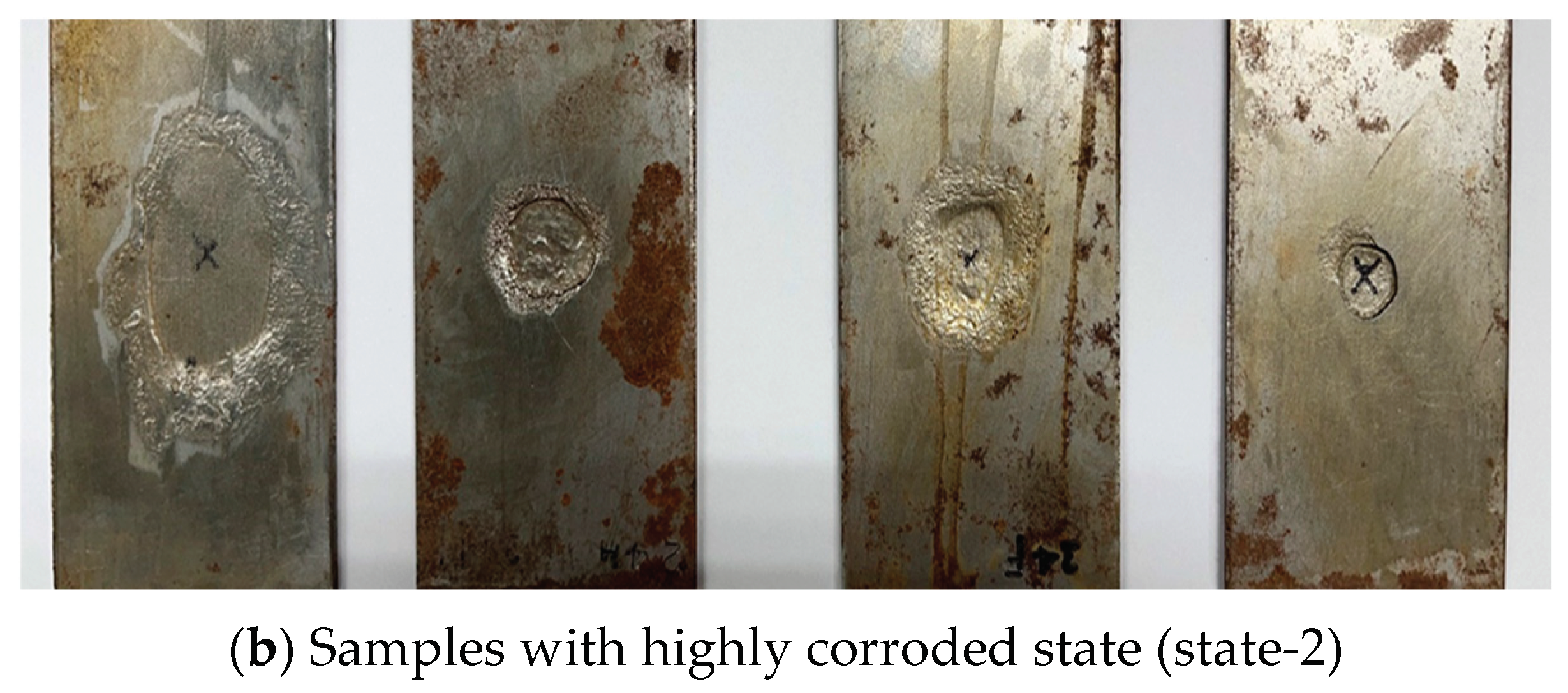

In this work, 49 SPCC steel specimens, each measuring 50 × 100 × 2 mm³ are evaluated. The specimens were artificially corroded with a solution of ferric chloride to obtain different corroded states. Eight of the specimens under investigation depicting the two corroded states are shown in Figure 1.

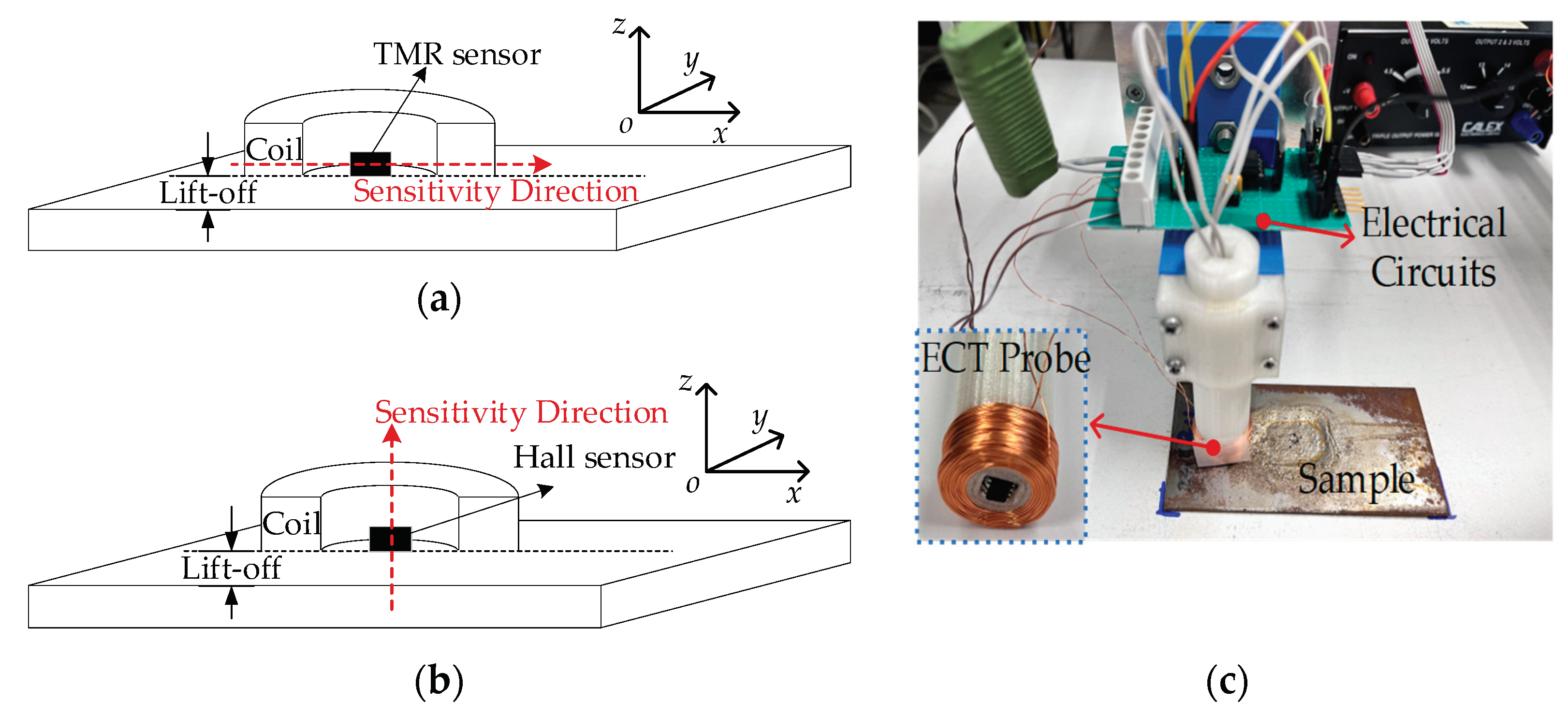

To measure the magnetic field, a Hall sensor and a Tunneling Magneto Resistance (TMR) sensor are used. Each probe contains an excitation coil and a magnetic sensor, as shown in Figure 2 (a) and (b). The fabricated ECT probe is shown in Figure 2 (c), featuring an excitation coil with 460 turns, internal radius r = 6 mm, external radius R = 12 mm, and the height H = 10 mm.

2.2. Experimental Setup

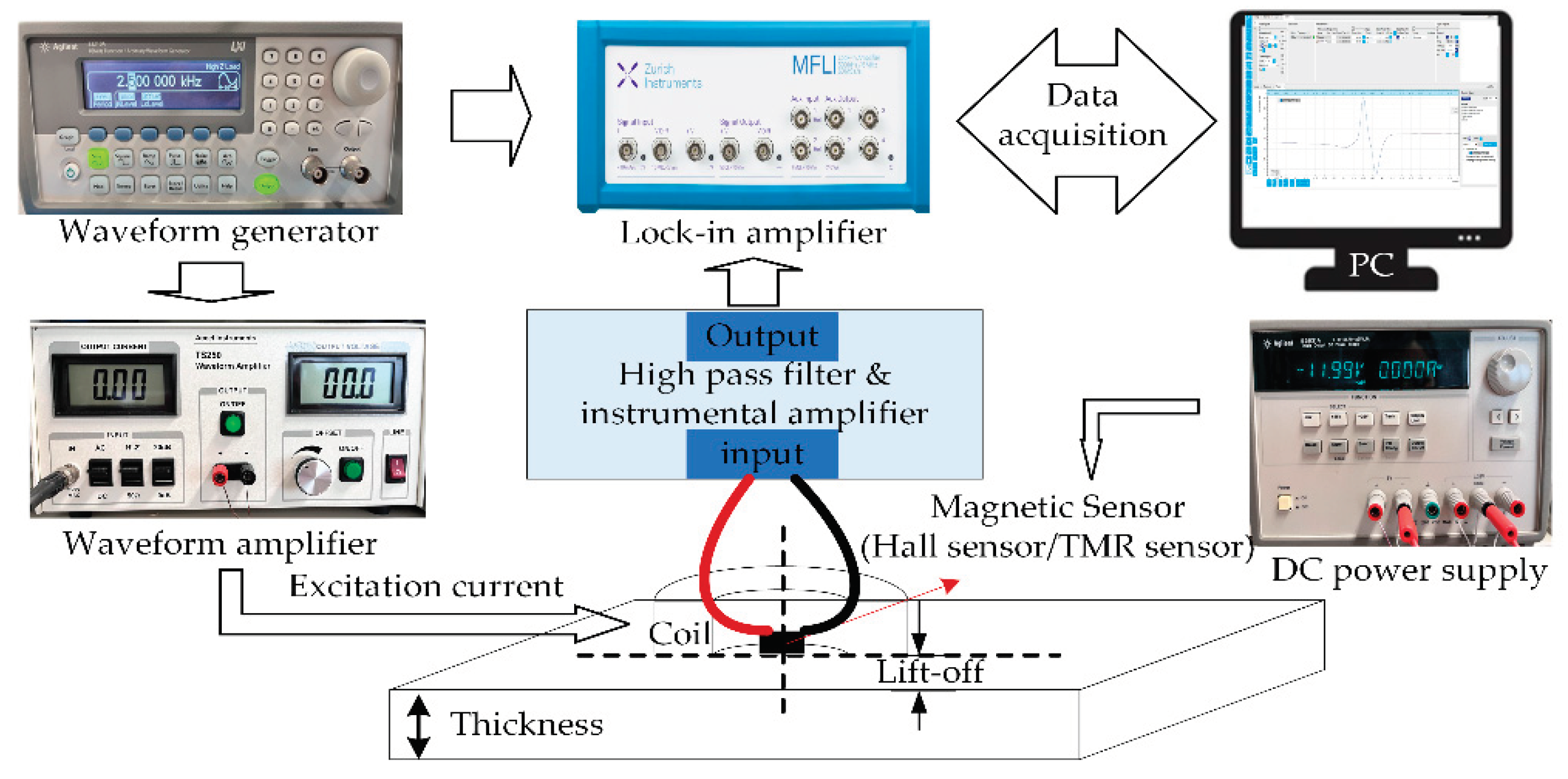

The experimental setup is illustrated in Figure 3, with the lift-off settled at 1 mm. A sinusoidal voltage generated by the Agilent-33210A waveform generator is injected into the excitation coil after passing through the TS250 waveform amplifier.

The output from the sensor goes through the signal conditioning circuit, which contains two parts: first part is composed of a high pass filter and an instrumentation amplifier to filter the DC bias and amplify the signal; the second part is a digital lock-in amplifier from Zurich Instruments MFLI which is integrated with a high-order low pass filter. Then the PC obtains the signal from an acquisition board integrated within the lock-in amplifier.

2.3. Measurements

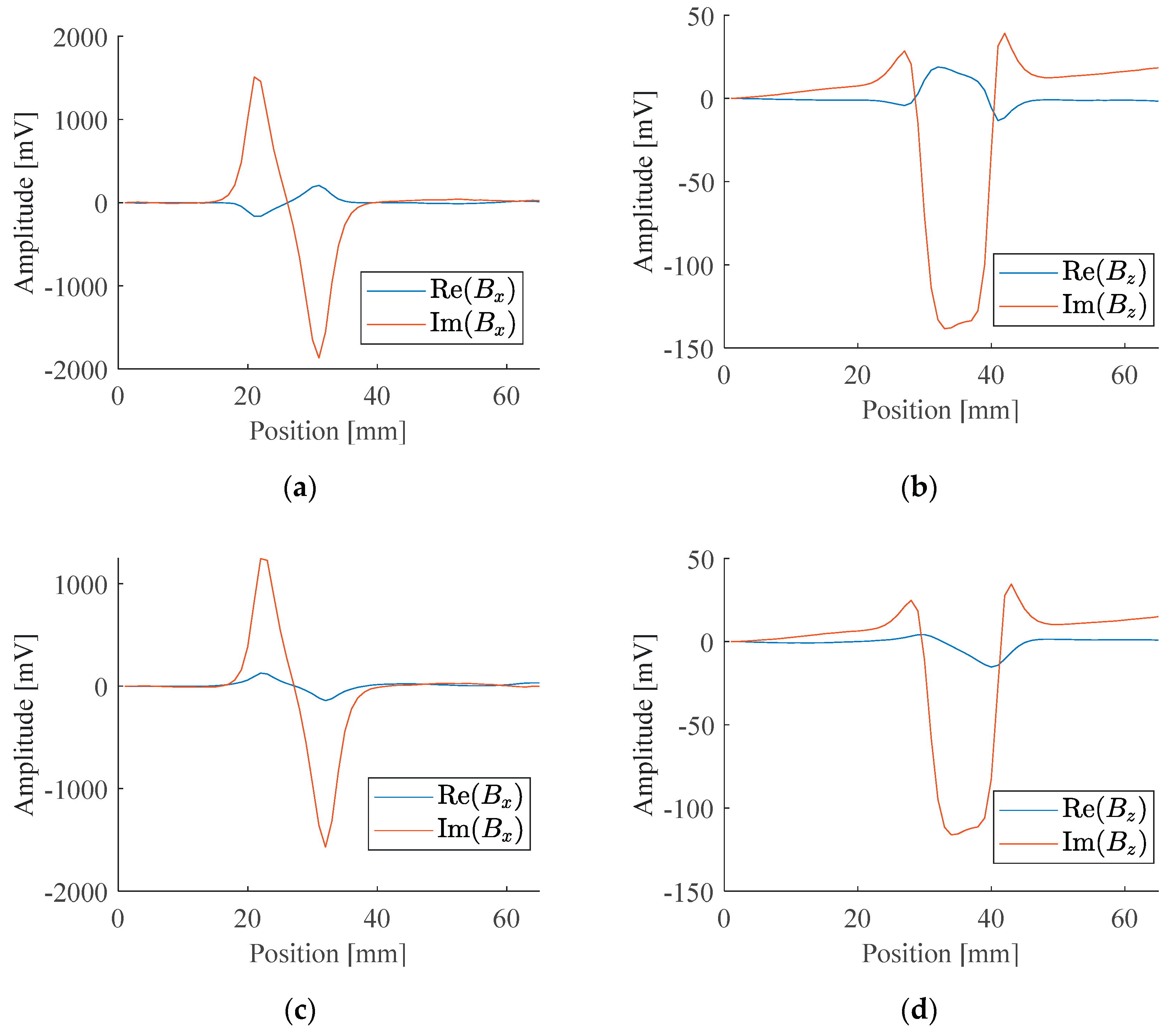

Due to the measuring range of the magnetic sensor, the ECT probe with the Hall sensor is used to measure the magnetic field component B_z. Another probe with the TMR sensor is used to measure the magnitude of B_x. The coil is excited at two different frequencies, 2.5 kHz and 5 kHz, and the signals of B_z and B_x are measured. The real part and imaginary part of the signals are analyzed and recorded. Figure 4 shows the differences in the characteristics of B_z and B_x from the same specimen at these two frequencies.

After the measurements, eight features of each specimen are generated to train and test with the generative and discriminative models. The peaks of the real and imaginary parts of the perturbed magnetic field components, B_x and B_z are selected as the features, as listed in Table 1. To have statistical significance in the data for the classification models, to better estimate the model parameters, a technique using interclass averaging of the features is performed so that there are 100 features in each class.

3. Classification Algorithms

There are several supervised machine learning algorithms that can classify unknown data (test data) based on previously defined data (training data). There are two major perspectives in supervised machine learning techniques: a generative model (GM) and a discriminative model (DM) [15]. In its broadest sense, a classifier based on GM models the distribution of features in individual class together with the class prior and then using Bayes' theorem to compute the posterior distribution, whereas a classifier based on DM models the posteriors directly from the learning examples. In this work, we have used two different techniques to classify the corrosive state of steel specimens: Gaussian mixture model (a type of GM) and logistic regression model (a type of DM). To know specific metrics on the model performance, confusion matrix and subsequently other evaluation metrics such as accuracy, precision, recall and F1 scores have been computed for both the cases.

3.1. Gaussian Mixture Model

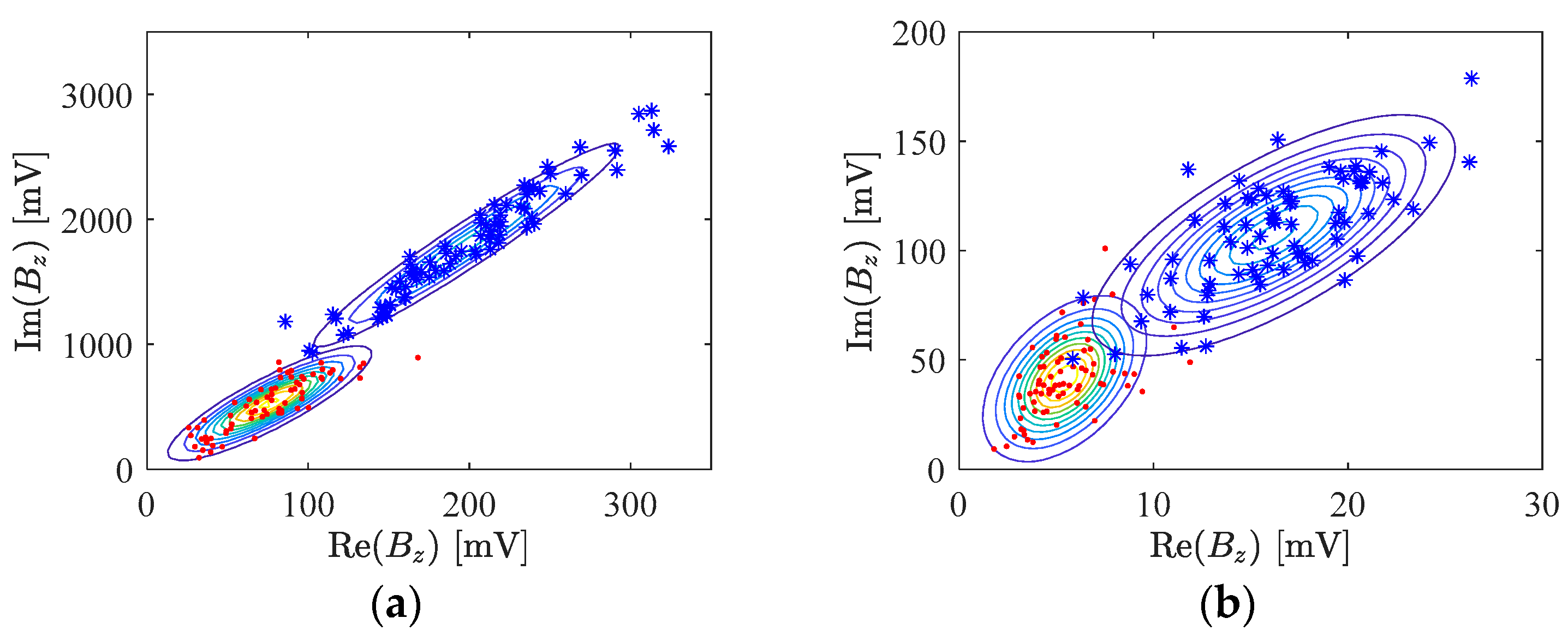

In the Gaussian mixture models (GMM), the observation sets are needed to compute the empirical mean, ${\widehat{\mu }}_j$, and empirical covariance, $\widehat{K_j}$, of a given class j. From the mean and the covariance matrix, we can construct the probability density function for each class i.e.,

$$x|C_j~N(\cdot ;{\widehat{\mu }}_j,\widehat{K_j}),$$

(1)

where $x$ represents the feature domain, $C_j$ represents the $j^{th}$class, and in our case $j=0$ is the state-1 of corrosion and $j=1$ is the state-2 of corrosion). The parameters ${\widehat{\mu }}_j$ ($=E\left(x_j\right)$) and $\widehat{K_j}(=E(x_j^T{x}_j\left)\right)$ are the parameters of the Gaussian distribution $N$. The circumflex hat indicates that the parameters are estimated empirically. For brevity and clarity, we show examples of 2-D data (considering only two features) of each state of corrosion in Figure 5.

To validate the model, out of the 100 observations of each class, 80% of them were randomly sampled (without repetition) to estimate the Gaussian parameters for each class. In this case we have assumed the priors (the probability of occurrence of a class $C_j$) to be the same for each class as there is no information about the occurrence of the class. The remaining 20% of the data for each class was used to test the model. The test data was assigned to one of the classes based on the Mahalanobis distance between the test point and the Gaussian’s centers. The Mahalanobis norm, for a test point $x_t$ is given by

$$d_M^{\left(j\right)}=\sqrt{{\left(x_t-{\widehat{\mu }}_j\right)}^T{\widehat{K_j}}^{-1}\left(x_t-{\widehat{\mu }}_j\right)},$$

(2)

which is the normed distance between the test point $x_t$ and the center of the Gaussian distribution $N(\cdot ;{\widehat{\mu }}_j, \widehat{K_j})$ of the j^th class. Assignments to the classes are made by the following rule:

$$y_{pred}^{GM}=\left\{\begin{array}{cc}0& \leftarrow \\ 1& \leftarrow \end{array}\right.\begin{array}{c}{d}_M^{\left(0\right)}<d_M^{\left(1\right)}\\ d_M^{\left(0\right)}\ge d_M^{\left(1\right)}\end{array}.$$

(3)

3.2. Logistic Regression Model

A binary classifier is represented as $f:R^d\to \left\{\mathrm{0,1}\right\}$. Let the domain of the observed samples be represented as $D=\left\{\right(x_1,y_1 ),(x_2,y_2 ),\dots (x_n,y_n \left)\right\}$, where $n$ is the total number of observed samples (training set). This follows Bernoulli’s distribution. The samples are independent and identically distributed with $y_i\in Y_i$, where $Y_i ~ f_{\left(Y|X\right)} \left(y\right|x_i)$. The logistic function squashes the outputs between 0 and 1. The logistic function is represented as

$$f\left(x\right)=\frac{1}{1+e^{-w^{T}x}},$$

(4)

where the parameter w is the weight function that determines the slope and the shift of the logistic function. Thus, for a binary class model, the posterior distribution is written as

$$f_{Y|X}\left(y|x\right)=\left\{\begin{array}{c} \frac{1}{1+e^{-w^{T}x} } \leftarrow C_1\\ 1-f_{Y|X}\left(y=1|x\right)=\frac{1}{1+e^{w^{T}x} } \leftarrow C_0\end{array}\right..$$

(5)

In this case $C_0$ corresponds to corrosion state-1 and $C_1$corresponds to corrosion state-2. Now to estimate the w, it is necessary to form the likelihood function from the set of n independent observations. The likelihood function $L\left(w\right)$ for the Bernoulli’s distribution is given by

$$L\left(w\right)=\prod _i{\left(f_{Y|X}\left(y=1|x\right)\right)}^{y_i}*{\left(f_{Y|X}\left(y=0|x\right)\right)}^{1-y_i}.$$

(6)

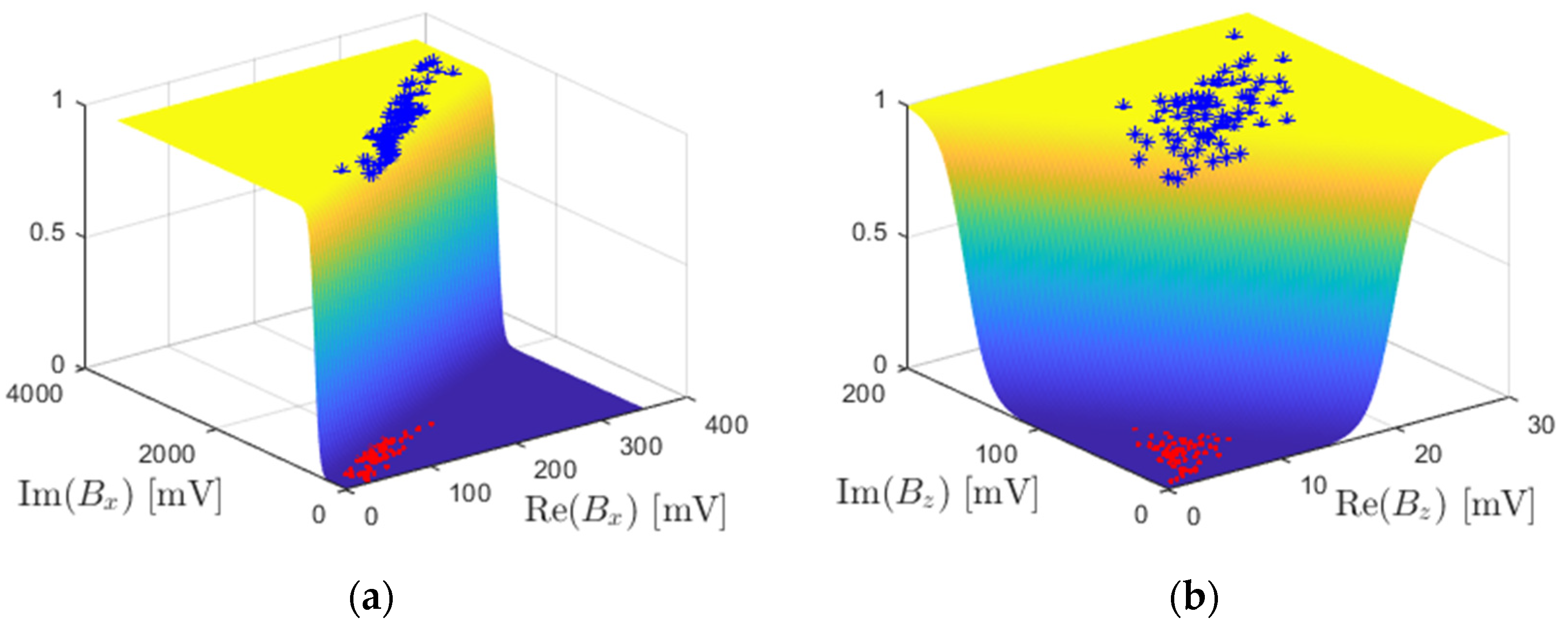

As the closed-form solution for the weight estimate $\widehat{w}$ cannot be found directly, generally gradient-descent algorithms will be preferred to get its optimal estimate. The main problem with this technique is the time consumption for multiple evaluations. So, alternatively, in this work, we used the logistic regression model, expressed in log scale as $w^{T}x=\mathrm{l}\mathrm{o}\mathrm{g}\left(y/(1-y)\right)$. The advantage of this form is the existence of a closed-form solution. However, in this case, the right-hand side is $\pm \infty$ as $y$ is either or $1$ or $0$. To overcome this, we took the class as either $ϵ$ ($C_0$) or $1-ϵ$ ($C_1$), where $ϵ\to 0$. Thus, we were able to successfully apply the least-squares technique to get $w$. For brevity and clarity, in Figure 6, we show examples of 2-D data (considering only two features) of each state of corrosion.

Similar to GMM, to validate the logistic regression model, we randomly split the observations to training dataset (80% data) and testing dataset (20% data). Once the weights are found (training step), the test data $x_t$ is substituted into Eq. (4) yielding

$$y_{pred}^{DM}=\left\{\begin{array}{cc}0& \leftarrow \\ 1& \leftarrow \end{array}\right.\begin{array}{c}f\left(x_t\right)<0.5\\ f\left(x_t\right)\ge 0.5\end{array}.$$

(7)

3.3. Classification Results and Discussion

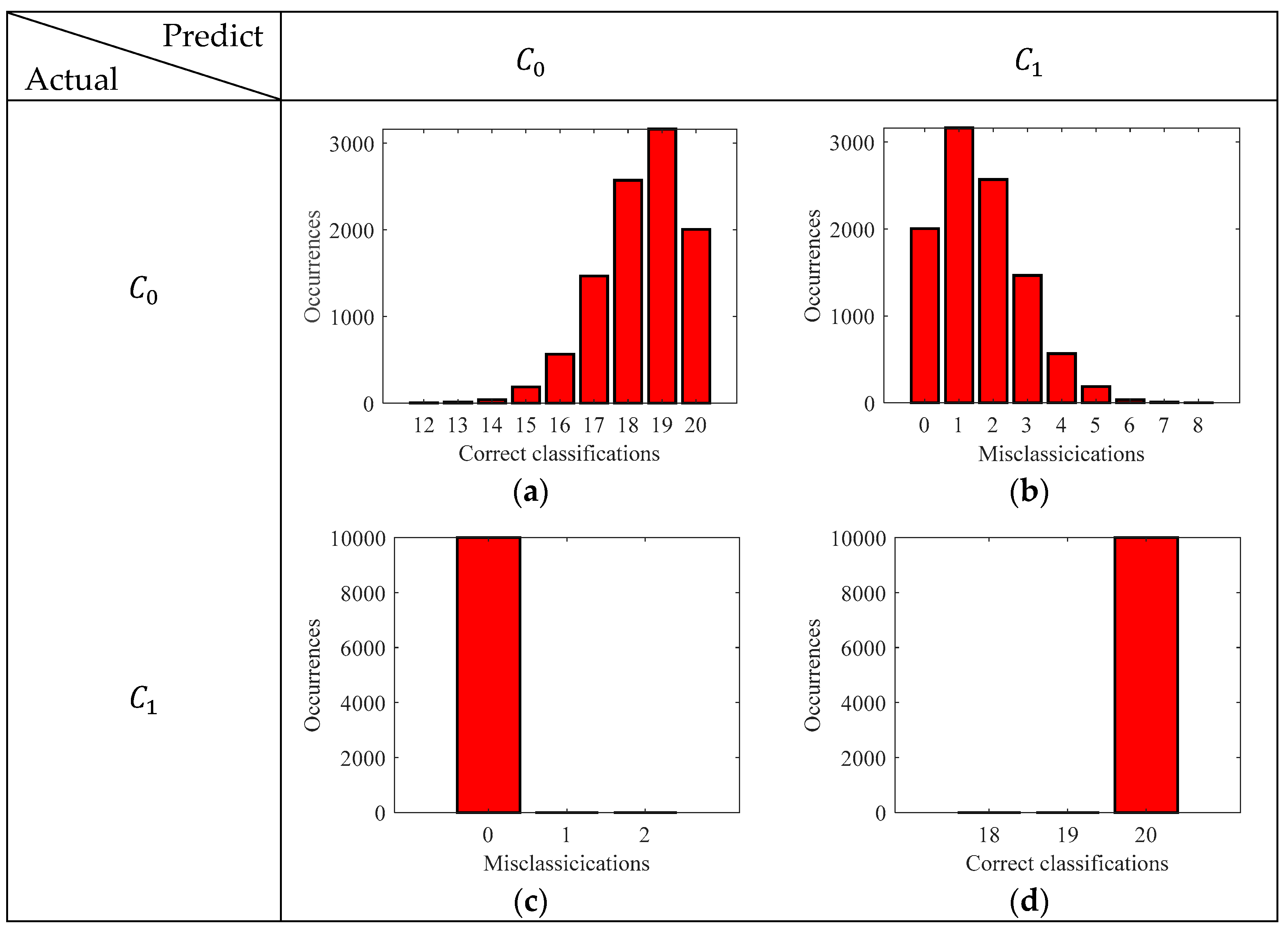

Both the GMM and logistic regression model were evaluated for 10000 times, where in each iteration the train data (80%) and test data (20%) for each class were randomly chosen. Once the test points are introduced, the absolute errors, $|y-y_{pred}^{GM/DM}|$, were recorded and summed to find the total errors in each iteration of the GMM and the logistic regression model. The total absolute errors with their frequencies are shown in Figure 7.

We saw that, for the case of GMM, there was an expected error of 1.637 miscalculations in a test sample set of 40 (20 for each class). On the other hand, the logistic regression gave an expected error of 0.903 in a test sample set of 40. The absolute errors only provide us the misclassification due to the model, however, do not provide us with the details of those classes that were misclassified. Hence to get the class-specific performance of the models, other metrics based on the confusion matrix were computed for the GMM model and logistic regression model as shown in Figure 8 and Figure 9, respectively.

An important observation on the GMM, to be made here is the false negatives and true positives are 0% and 100% respectively i.e., the model always correctly predicts the highly corroded samples and never misclassifies it as less corroded. On the other hand, for the logistic regression model, the true negatives and false positives are always 100% and 0%, meaning that the model always correctly predicts less corroded samples. To extract further information about the class-specific performance of the models, we used metrics such as accuracy, precision, recall and F1 score, which were all derived from the confusion matrix. Figure 10 depicts these metrics for both the GMM and logistic regression model.

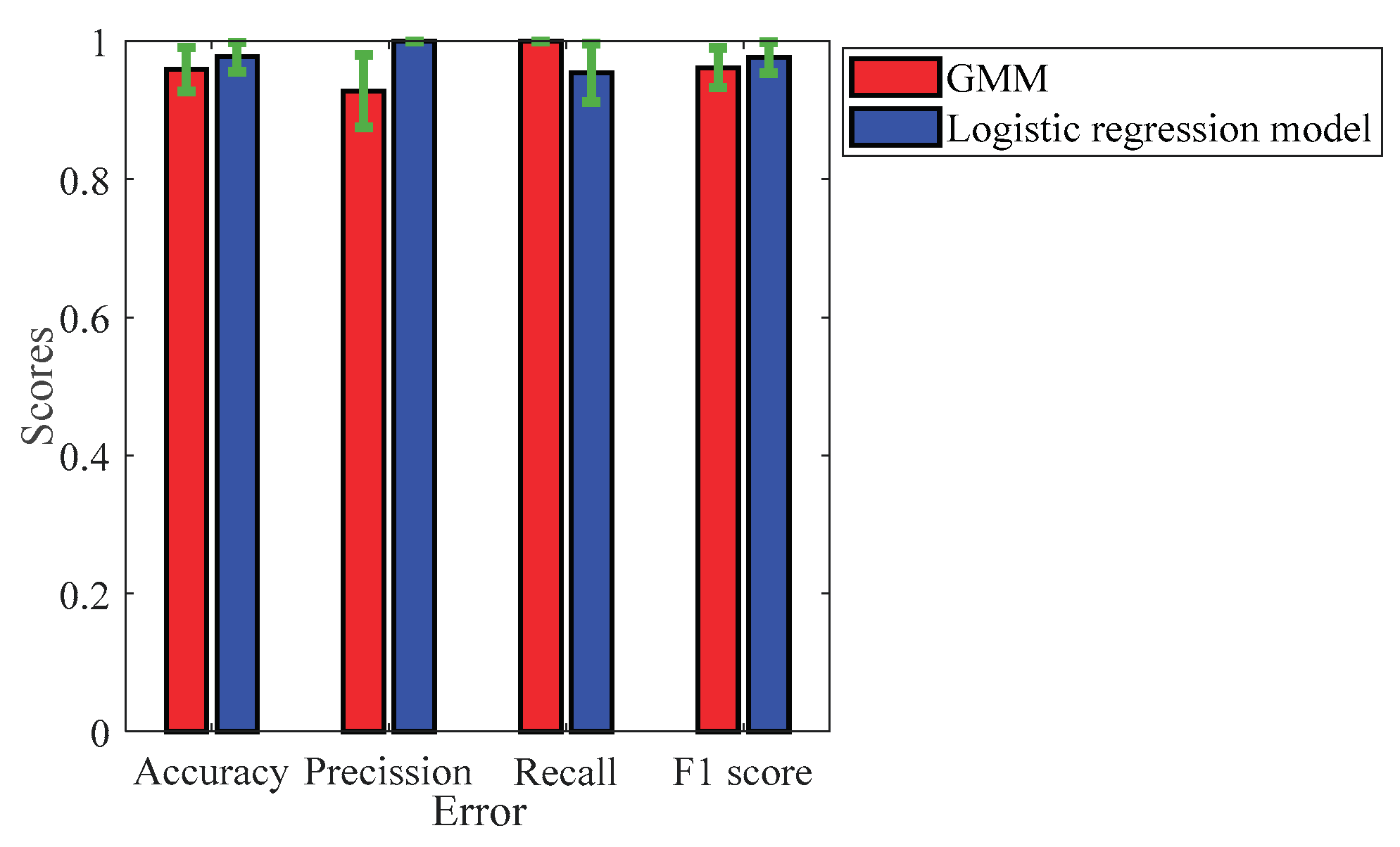

The accuracy of the model dictates the rate of correct classification, and the GMM can correctly classify the corrosive state of the samples 95.9% of the time with an uncertainty of 3.18%, while for the logistic regression model it is 97.69% with an uncertainty of 2.14%. It can be seen that the recall score is 100% for the GMM model whereas, the recall score of the logistic regression model is not as good as the GMM. Giving a misclassification rate of 4.62% with an uncertainty of 4.2%. The recall score dictates the rate of misclassification of highly corroded state-2 samples. For the study presented here, it is important that the recall score is as high as possible, so that potential mis-happenings of the structure can be avoided.

Precision score dictates the rate of misclassification error of less corroded state-1 samples (false positives). It can be seen that the precision score of the model is 100% which means there is never a misclassification of less corroded samples. However, the GMM model does not have a satisfactory performance giving a misclassification rate of 4.62% with an uncertainty of 4.2%. The F1 score, which is basically the geometric mean between the precision and recall is 97.63% for the GMM, while it is 96.19% for the logistic regression model.

It can be noted that the GMM has provided a very good performance in terms of no misclassification errors due to the state-2 samples and hence it is potentially a very good classifier to identify the highly corroded samples. On the other hand, the logistic regression model has also provided a good classification performance in terms of accuracy and precision. The misclassification errors due to the less corroded samples is 0, and hence it is a potentially very good classifier to identify the less corroded samples.

4. Conclusions

Classification of corrosion states of a material is crucial because it enables precise assessment of damage severity and informs tailored maintenance strategies. Hence, in this study, we have investigated the classification of the corrosive states of steel specimens by supervised machine learning algorithms using features from traditional eddy current testing. Two broad methodologies based on generative modelling (Gaussian mixture model) and discriminative modelling (logistic regression model) were investigated for the classification and to compare the models’ performance in distinguishing two states of corrosion, a less corroded state (state-1) and a highly corroded state (state-2), often denoted in the paper as $C_0$ and $C_1$ respectively. The features that were used for the study were the peaks of the perturbations in the magnetic field components, real and imaginary parts of B_x and B_z, at two different frequencies amounting to 8 independent features. Both the models were trained with 80% of randomly selected data and the remaining 20% were used to test the models and determine the absolute error of misclassification. Further statistics on the model performance and class-wise misclassification rate, such as accuracy, precision, recall and F1-scores, were estimated from the confusion matrix. The results have dictated us the following:

• Both the models, GMM and logistic regression model, can classify the corrosive state of the steel samples, using features from the perturbed magnetic flux density components.
• The GMM model had a recall score of 1, indicating that it never misclassified the samples that are highly corroded (state-2). On the other hand, the logistic regression model occasionally misclassified the state-2 samples.
• The logistic regression model had a precision score of 1, indicating that it never mis-classified those samples that are less corroded (state-1), while the GMM model occasionally misclassified them.
• Both the models have a good F1 score indicating the potential application of these models to classify the corrosive state of steels.
