Revolutionary Analysis of the Pointwise Stationary Fluid Flow Approximation model of the non-stationary queue with Pointwise Stationary Fluid Flow Approximation applications to the Internet of Things

1. Introduction

The field of transient/non-stationary analysis has limited literature, which can be categorized into simulation, transient analysis, analysis, and applications techniques. These categories encompass various approaches to studying systems that change over time, including simulations, analysing transient behaviour, and exploring non-stationary phenomena. In certain cases, mathematical transformations can be used to obtain a closed form expression for analysing non-stationary queueing systems. However, evaluating these expressions can be computationally complex. As a result, there has been a focus on numerically determining the transient behaviour of such systems instead of deriving closed form expressions.

The current exposition contributes to solving for first time ever, the longstanding unsolved problem of obtaining the state variable of the time varying $M/D/1$ queueing system.

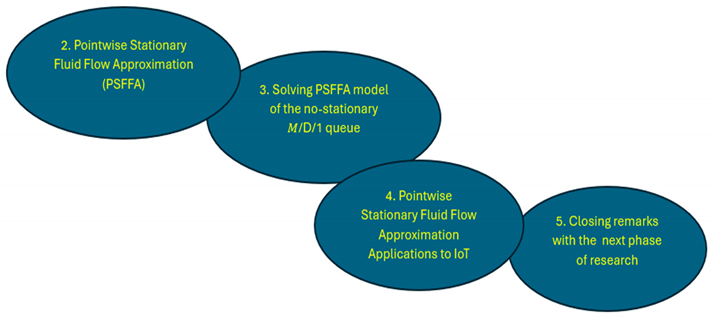

The following flowchart shows how this paper is organized.

2. PSFFA

Let $f_{in}\left(t\right)$ and $f_{out}\left(t\right)$ serve as the temporal flow in, and fow out$,$respectively. Therefore,

$$\frac{dx\left(t\right)}{dt}=x^{.}\left(t\right)=-f_{out}\left(t\right)+f_{in}\left(t\right), x(t)\mathrm{a}\mathrm{s}\mathrm{t}\mathrm{h}\mathrm{e}\mathrm{s}\mathrm{t}\mathrm{a}\mathrm{t}\mathrm{e}\mathrm{v}\mathrm{a}\mathrm{r}\mathrm{i}\mathrm{a}\mathrm{b}\mathrm{l}\mathrm{e}$$

(2.1)

$f_{out}\left(t\right)$ links server utilization, $\rho \left(t\right)$ and the time-dependent mean service rate, $\mu \left(t\right)$ by:

$$f_{out}\left(t\right)=\mu \left(t\right)\rho \left(t\right)$$

(2.2)

For an infite queue waiting space:

$$f_{in}\left(t\right)=\mathrm{M}\mathrm{e}\mathrm{a}\mathrm{n}\mathrm{a}\mathrm{r}\mathrm{r}\mathrm{i}\mathrm{v}\mathrm{a}\mathrm{l}\mathrm{r}\mathrm{a}\mathrm{t}\mathrm{e}=\lambda \left(t\right)$$

(2.3)

Thus (2.1) rewrites to:

$$x^{.}\left(t\right)=-\mu \left(t\right)\rho \left(t\right)+\lambda \left(t\right) , 1>\rho \left(t\right)=\frac{\lambda \left(t\right) }{\mu \left(t\right)}>0$$

(2.4)

The stable subcase of (2.4) (i.e., $x^{.}\left(t\right)=$0), implies:

$$x=G_1\left(\rho \right)$$

(2.5)

The numerical invertibility of $G_1\left(\rho \right)$, yields

$$\rho =G_1^{-1}\left(x\right)$$

(2.6)

Hence,

$$x^{.}\left(t\right)=-\mu \left(t\right)\left(G_1^{-1}\left(x\left(t\right)\right)\right)+\lambda \left(t\right)$$

(2.7)

The $M/D/1$ queueing system is made of Poisson arrival, one exponential (Poisson) server, FIFO (First-In-First-Out). Thus, $M/D/1$ queueing system’s -$G_1$ (c.f., [1]) reads:

$$G_1\left(x\right)=\left((x+1)-\surd (x^2+1)\right)$$

(2.8)

Therefore, the time varying $M/D/1$ queueing system’s -PSFFA model reads:

$$x^{.}=-\mu \left((x+1)-\surd (x^2+1)\right)+\lambda$$

(2.9)

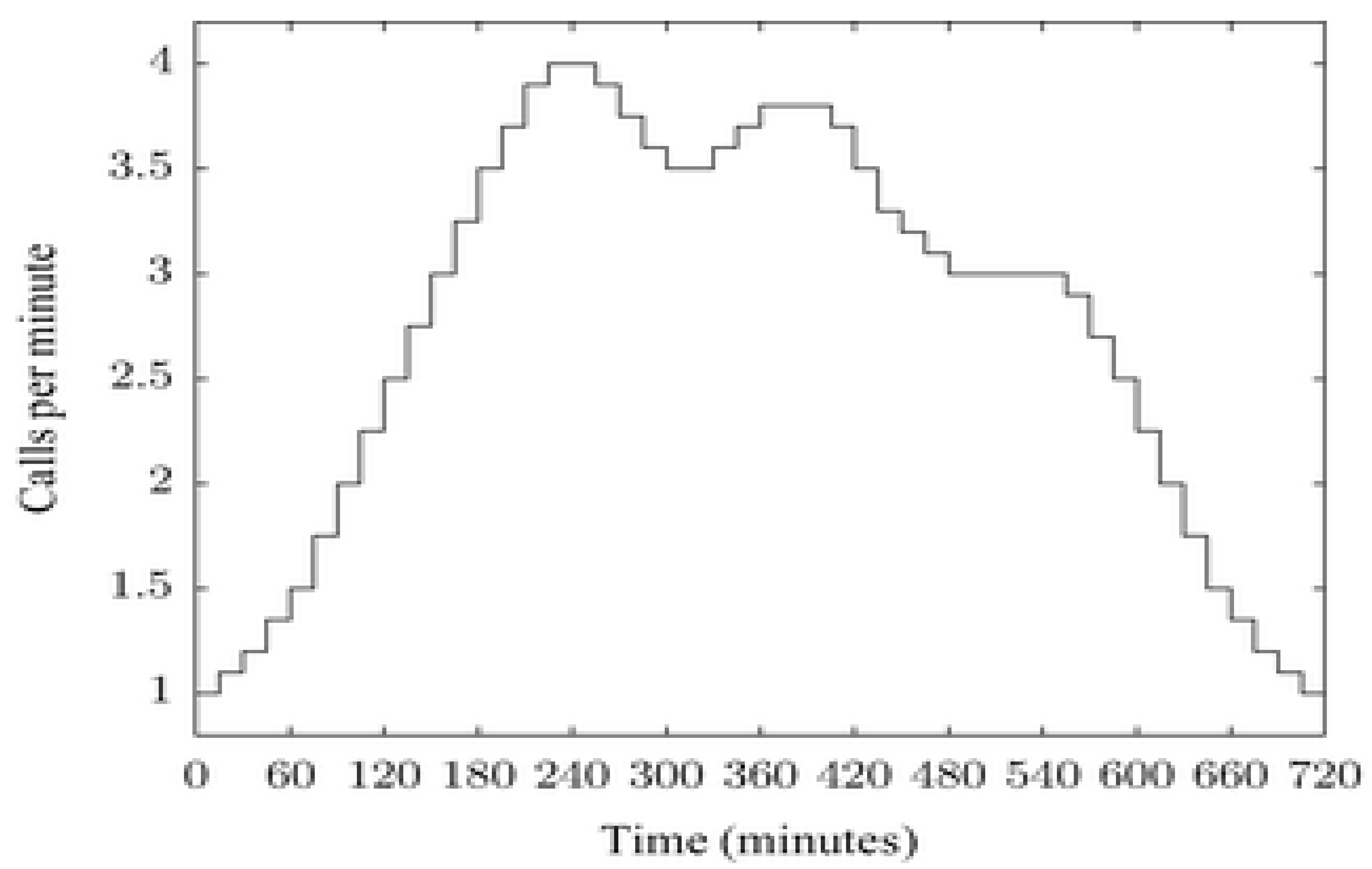

Non-staionary queues’ life example [6] is depicted by Figure 1.

3. Solving the non-stationary queueing system’s PSFFA (c,f., (2.9))

Theorem 3.1 Ismail’s ration,$\beta$ solves (2.9), with a closed form expression to read as:

$${\left(x-\beta \left(x+1\right)\right)}^{\frac{1}{{\left(1-\beta \right)}^2}}={\gamma e}^{[\frac{(x+1)}{\left(1-\beta \right)}-\int \mu (t\left)dt\right]} ,\beta =\frac{\lambda \left(t\right)}{\mu \left(t\right)}$$

(3.1)

Proof

We have

$$x^{.}=-\mu \left((x+1)-\surd (x^2+1)\right)+\lambda$$

(c.f., (2.9))

Let, then $x^{.}={-y}^{.} cothy cschy$. Setting, $\beta =\frac{\lambda \left(t\right)}{\mu \left(t\right)}.$Thus, we have

$${-y}^{.} cothy cschy=-\mu \left((1+cschy)-cothy\right)+\lambda =-\mu [\left(1+cschy)-cothy\right)-\beta ]$$

(3.2)

Therefore, we have

$$\frac{-cothy cschydy}{[\left(1+cschy)-cothy\right)-\beta ]}=-\mu dt$$

$$\frac{coshydy}{[-\left(1+sinhy-coshy\right)+\beta sinhy]sinhy}=-\mu dt$$

(3.3)

$$\frac{\frac{2}{\beta }(e^{3y}+e^y)dy}{\left[e^{2y}-\frac{e^y}{\beta }+(\frac{2}{\beta }-1)\right](e^{2y}-1)}=-\mu dt$$

$$e^{2y}-\frac{e^y}{\beta }+\left(\frac{2}{\beta }-1\right)=0⟹e^y=a,b$$

where

$$a=\frac{\left(\frac{1}{\beta }+\sqrt{(\frac{1}{{\beta }^2}}-\frac{8}{\beta }+4)\right)}{2}, b=\frac{\left(\frac{1}{\beta }-\sqrt{(\frac{1}{{\beta }^2}}-\frac{8}{\beta }+4)\right)}{2}$$

Let

$$\frac{\frac{2}{\beta }(e^{3y}+e^y)}{\left[e^{2y}-\frac{e^y}{\beta }+(\frac{2}{\beta }-1)\right](e^{2y}-1)}=\frac{A}{(e^y-a)}+\frac{B}{(e^y-b)}+\frac{C}{(e^y-1)}+\frac{D}{(e^y+1)}$$

(3.4)

Hence, it is implied that:

$A+B+C+D=\frac{2}{\beta } ⟹A=\frac{2}{\beta }-(B+C+D)$

$$\therefore B=\frac{\left(1-a\right)(C-D)}{\left(\frac{2}{\beta }+a\right)}$$

(3.5)

Thus,

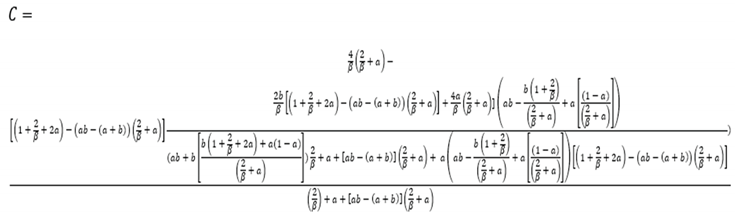

$$C=\frac{\frac{4}{\beta }\left(\frac{2}{\beta }+a\right)-\left[\left(1+\frac{2}{\beta }+2a\right)-\left(ab-\left(a+b\right)\right)\left(\frac{2}{\beta }+a\right)\right]D}{\left(\frac{2}{\beta }\right)+a+\left[ab-\left(a+b\right)\right]\left(\frac{2}{\beta }+a\right)}$$

$bA+aB+abC-abD=0$

Therefore, we have

$$D=\frac{\frac{2b}{\beta }+a\left(ab-\frac{b\left(1+\frac{2}{\beta }\right)}{\left(\frac{2}{\beta }+a\right)}+a\left[\frac{\left(1-a\right)}{\left(\frac{2}{\beta }+a\right)}\right]\right)\left[\frac{\frac{4}{\beta }\left(\frac{2}{\beta }+a\right)}{\left(\frac{2}{\beta }\right)+a+\left[ab-\left(a+b\right)\right]\left(\frac{2}{\beta }+a\right)}\right]}{(ab+b\left[\frac{\left(1+\frac{2}{\beta }+2a\right)}{\left(\frac{2}{\beta }+a\right)}\right]+a\left[\frac{\left(1-a\right)}{\left(\frac{2}{\beta }+a\right)}\right])+a\left(ab-\frac{b\left(1+\frac{2}{\beta }\right)}{\left(\frac{2}{\beta }+a\right)}+a\left[\frac{\left(1-a\right)}{\left(\frac{2}{\beta }+a\right)}\right]\right)[\frac{\left[\left(1+\frac{2}{\beta }+2a\right)-\left(ab-\left(a+b\right)\right)\left(\frac{2}{\beta }+a\right)\right]}{\left(\frac{2}{\beta }\right)+a+\left[ab-\left(a+b\right)\right]\left(\frac{2}{\beta }+a\right)}}$$

(3.6)

(3.7)

$$A=\frac{2}{\beta }-\frac{\left(1+\frac{2}{\beta }\right)C}{\left(\frac{2}{\beta }+a\right)}-\frac{\left(1+\frac{2}{\beta }+2a\right)D}{\left(\frac{2}{\beta }+a\right)}, B=\frac{\left(1-a\right)(C-D)}{\left(\frac{2}{\beta }+a\right)}$$

(3.8)

This finally solves the complicated mathematical computations to obtain:

$$\left[\frac{\mathit{A}{e}^{-y}}{\left(1-a{e}^{-y}\right)}+\frac{\mathit{B}{e}^{-y}}{\left(1-b{e}^{-y}\right)}+\frac{C{e}^{-y}}{\left(1-e^{-y}\right)}+\frac{D{e}^{-y}}{\left(1+e^{-y}\right)}\right]dy=-\mu dt$$

Integrating both sides, implies $\mathrm{f}\mathrm{o}\mathrm{r}\mathrm{s}\mathrm{o}\mathrm{m}\mathrm{e}\mathrm{n}\mathrm{o}\mathrm{n}-\mathrm{n}\mathrm{e}\mathrm{g}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{v}\mathrm{e}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{l}\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{s}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{t}\mathrm{p}\mathrm{a}\mathrm{r}\mathrm{a}\mathrm{m}\mathrm{e}\mathrm{t}\mathrm{e}\mathrm{r}\eta ,$

$$\frac{{\left|\left(1-a{e}^{-y}\right)\right|}^A|{\left(1-b{e}^{-y}\right)|}^{\mathit{B}}{\left|\left(1-e^{-y}\right)\right|}^C}{{\left(1+e^{-y}\right)}^D}=\eta e^{-\int \mu dt}$$

(3.9)

This transforms to the final required closed form solution:

$$\frac{{\left|\left(1-a{e}^{-{csch}^{-1}\left(x\right)}\right)\right|}^A|{\left(1-b{e}^{-{csch}^{-1}\left(x\right)}\right)|}^{\mathit{B}}{\left|\left(1-e^{-{csch}^{-1}\left(x\right)}\right)\right|}^C}{{\left(1+e^{-{csch}^{-1}\left(x\right)}\right)}^D}=\eta e^{-\int \mu dt}$$

(3.10)

By mathematical analysis, it is well known that:

$${csch}^{-1}\left(x\right)=ln\left(\frac{1+\sqrt{1+x^2}}{x}\right)$$

(3.11)

with the domain of real line with zero removed

Thus, one gets

$$\frac{{(|\left(1-\frac{ax}{1+\sqrt{1+x^2}}\right)|)}^{\mathit{A}}{\left(|\left(1-\frac{bx}{1+\sqrt{1+x^2}}\right)|\right)}^B{(|\left(1-\frac{x}{1+\surd (1+x^2)}\right)|)}^C}{{\left(1+\frac{x}{1+\surd (1+x^2)}\right)}^D}=\eta e^{-\int \mu dt}$$

(3.12)

Corollary 2:

As $x\left(t\right)\to 0$, we have

$$\eta e^{-\int \mu dt}={lim}_{x\left(t\right)\to 0}\frac{{\left(|1-\frac{ax}{1+\sqrt{1+x^2}}|\right)}^{\mathit{A}}{\left(|\left(1-\frac{bx}{1+\surd (1+x^2)}\right)|\right)}^{\mathit{B}}{\left(|1-\frac{x}{1+\sqrt{1+x^2}}|\right)}^C}{{\left(1+\frac{x}{1+\surd (1+x^2)}\right)}^D}=1$$

Implying

$$\int \mu dt=ln\gamma$$

(3.13)

Corollary 3

As $x\left(t\right)\to \infty$, we have

$$\begin{array}{l}\eta e^{-\int \mu dt}={lim}_{x\left(t\right)\to \infty }\frac{{\left(|1-\frac{ax}{1+\sqrt{1+x^2}}|\right)}^{\mathit{A}}{\left(|\left(1-\frac{bx}{1+\surd (1+x^2)}\right)|\right)}^{\mathit{B}}{\left(|1-\frac{x}{1+\sqrt{1+x^2}}|\right)}^C}{{\left(1+\frac{x}{1+\surd (1+x^2)}\right)}^D}\\ ={lim}_{x\left(t\right)\to \infty }\frac{{\left(|1-\frac{a}{\frac{1}{x}+\sqrt{1+{\left(\frac{1}{x}\right)}^2}}|\right)}^{\mathit{A}}{\left(|\left(1-\frac{b}{\frac{1}{x}+\surd (1+{\left(\frac{1}{x}\right)}^2)}\right)|\right)}^{\mathit{B}}{\left(|1-\frac{1}{\frac{1}{x}+\sqrt{1+{\left(\frac{1}{x}\right)}^2}}|\right)}^C}{{\left(1+\frac{1}{\frac{1}{x}+\surd (1+{\left(\frac{1}{x}\right)}^2)}\right)}^D}\\ =\frac{{\left(|1-a|\right)}^{\mathit{A}}{\left(|\left(1-b\right)|\right)}^{\mathit{B}}{\left(|1-\frac{1}{\frac{1}{x}+\sqrt{1+{\left(\frac{1}{x}\right)}^2}}|\right)}^C}{{\left(1+\frac{1}{\frac{1}{x}+\surd (1+{\left(\frac{1}{x}\right)}^2)}\right)}^D}\end{array}$$

(3.14)

Numerical experiments

Numerical experiment One

Let $\beta =2 ,$then $a=0.5 , b=0 , \eta =1, \mu \left(t\right)=t$, $A=-7.923076923,B=1.846153846,\mathrm{C}=6,\mathrm{D}=0.4615384615$We have

$$\surd 2[\frac{{(|\left(1-\frac{0.5x}{1+\sqrt{1+x^2}}\right)|)}^{-7.923076923}{(|\left(1-\frac{x}{1+\surd (1+x^2)}\right)|)}^6}{{\left(1+\frac{x}{1+\surd (1+x^2)}\right)}^{0.4615384615}}]=t$$

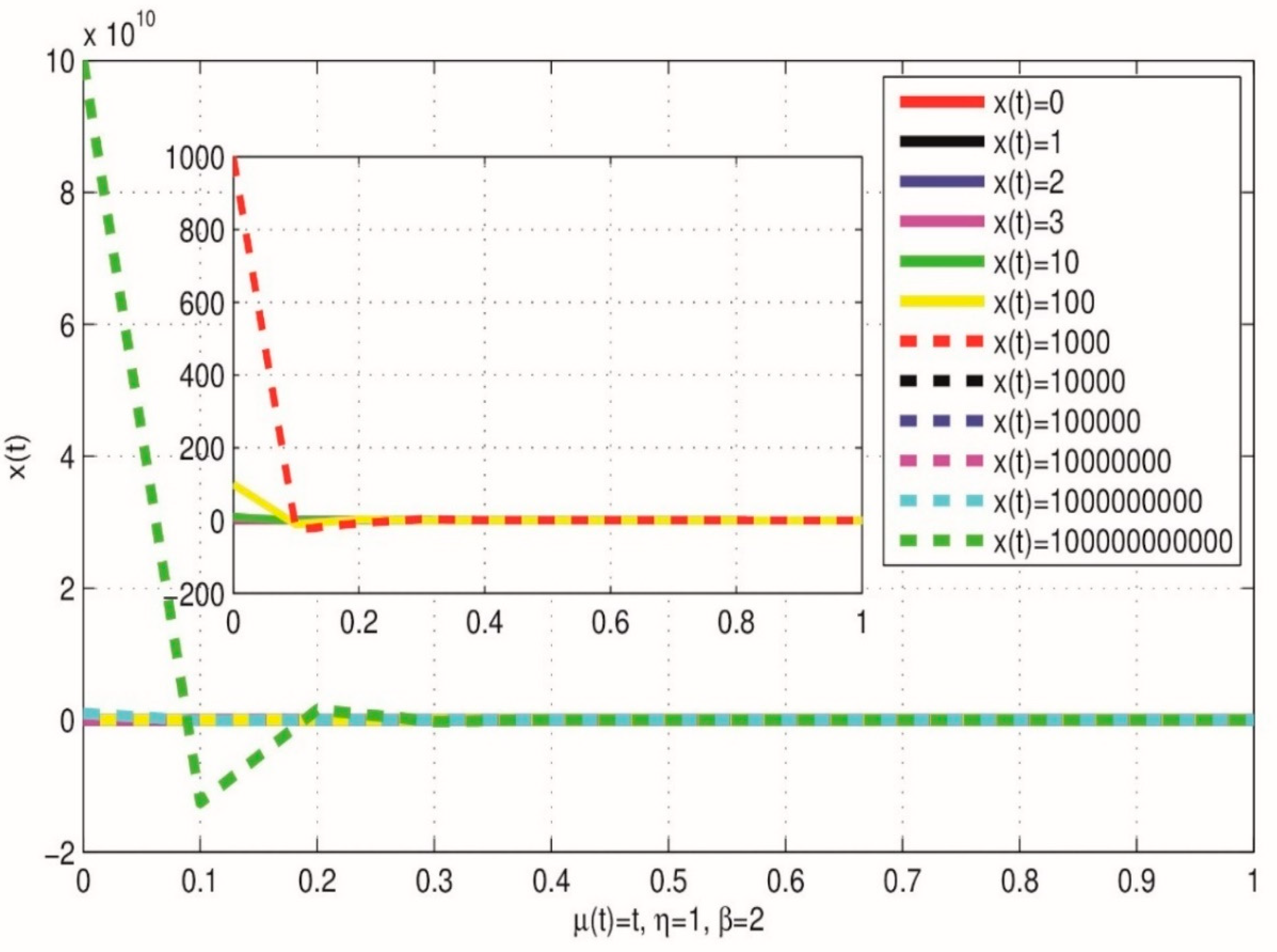

Figure 2 shows a new phenomenon to queuing theorist. The possibility that time will converge to a certain value for sufficiently large number in the time varying $M/D/1$ queuing system. This is for an increasing temporal mean service rate.

This shows that as the time varying $M/D/1$ queuing system’s state variable becomes sufficiently large, time vanishes.

Numerical experiment Two

Let $\beta =2,$then $a=0.5,b=0,\eta =1,\mu \left(t\right)=\frac{1}{t}$

$$A=-7.923076923,B=1.846153846,\mathrm{C}=6,\mathrm{D}=0.4615384615$$

We have

$$[\frac{{(|\left(1-\frac{0.5x}{1+\sqrt{1+x^2}}\right)|)}^{7.923076923}{\left(\left|\left(1-\frac{x}{1+\sqrt{1+x^2}}\right)\right|\right)}^{-6}}{{\left(1+\frac{x}{1+\surd (1+x^2)}\right)}^{-0.4615384615}}]=t$$

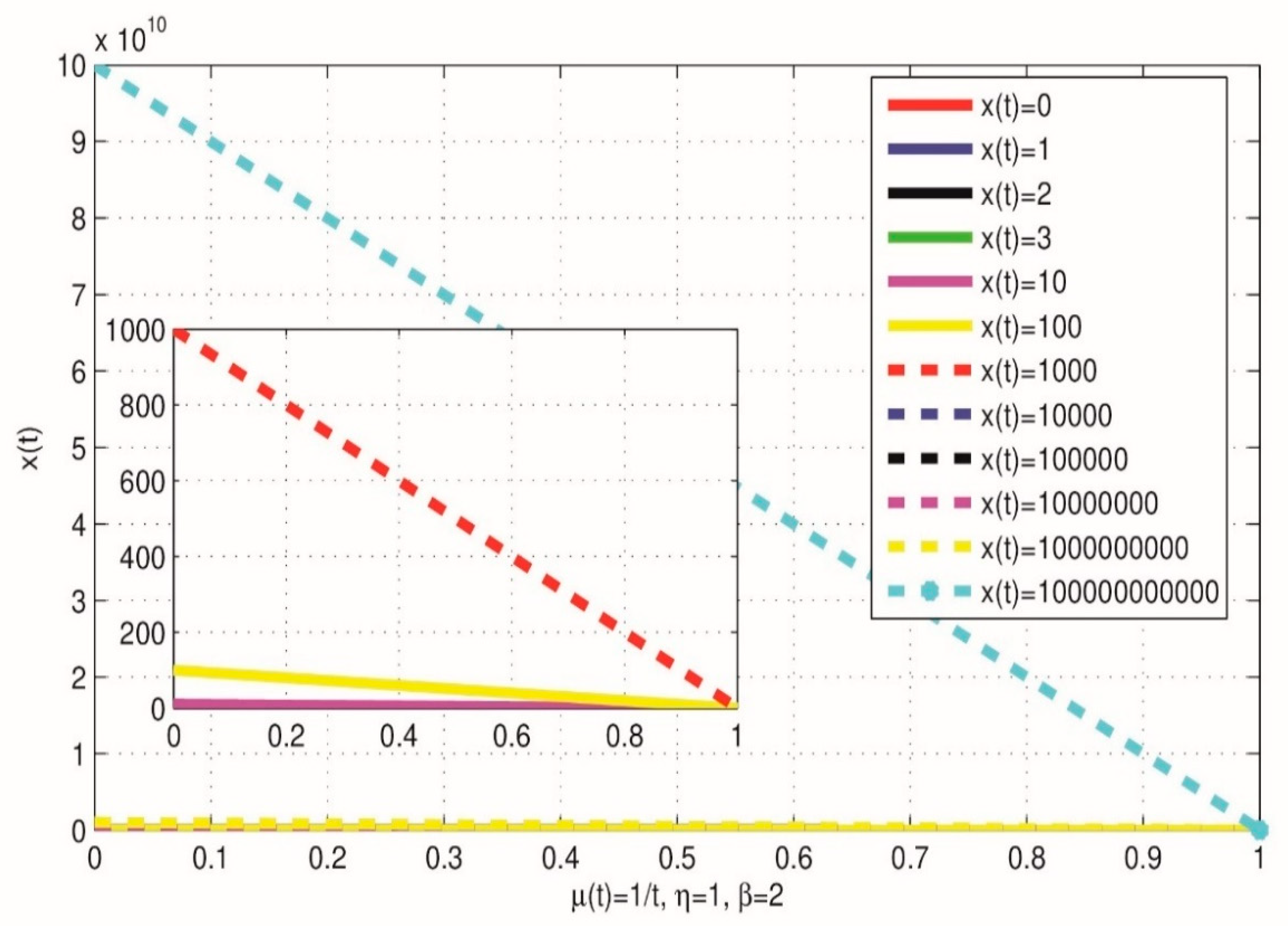

Figure 3 visualizes a new phenomenon to queuing theorist. The possibility that time will converge to a certain value for sufficiently large number in the time varying $M/D/1$ queuing system. This is for a decreasing temporal mean service rate.

4. Some PSFFA applications to IoT

By describing how vehicles in a platoon use 802.11p communication to exchange messages and change their movement characteristics at intersections, a time-dependent model for assessing the platooning communications’ effectiveness at intersections phase was thoroughly investigated[7]. The model evaluates the effectiveness of platooning communications and addresses potential safety concerns by considering variables including vehicle behaviours, traffic signals, and the changing connectivity among vehicles.

The authors [7] used PSFFA to describe the transmission queue’s dynamic behaviour in platooning communications. They also create models that characterise the continuous backoff freeze and four access categories (ACs) of 802.11p as they relate to the time-dependent access procedure.

For 802.11p communication in platooning situations at junctions, the authors created models. [7] consider continual backoff freezing and use the PSFFA to describe the gearbox queue’s dynamic behaviour. The access process with its four Access Categories (ACs), they also use a z-domain linear model was demonstrated by [7].

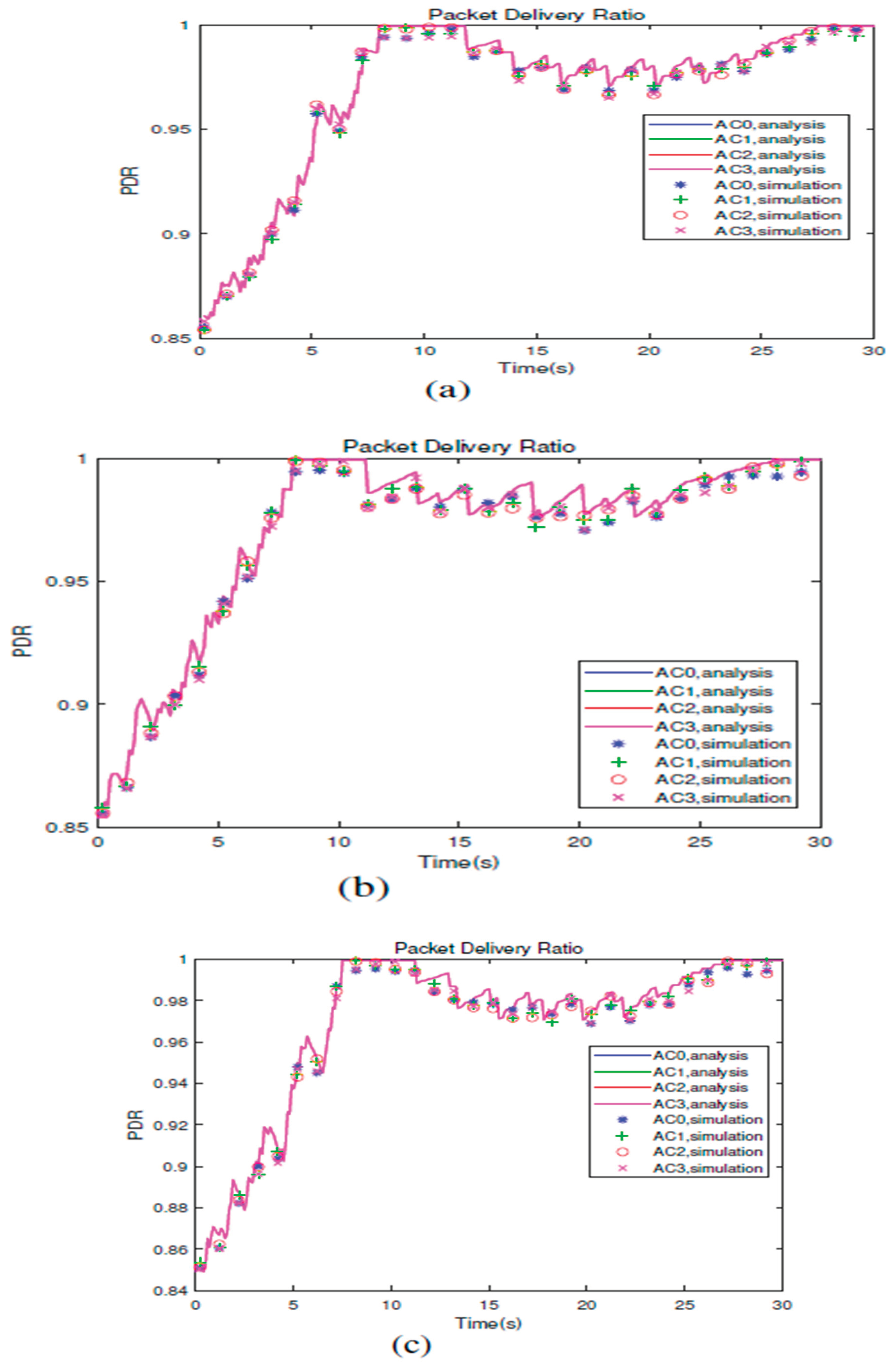

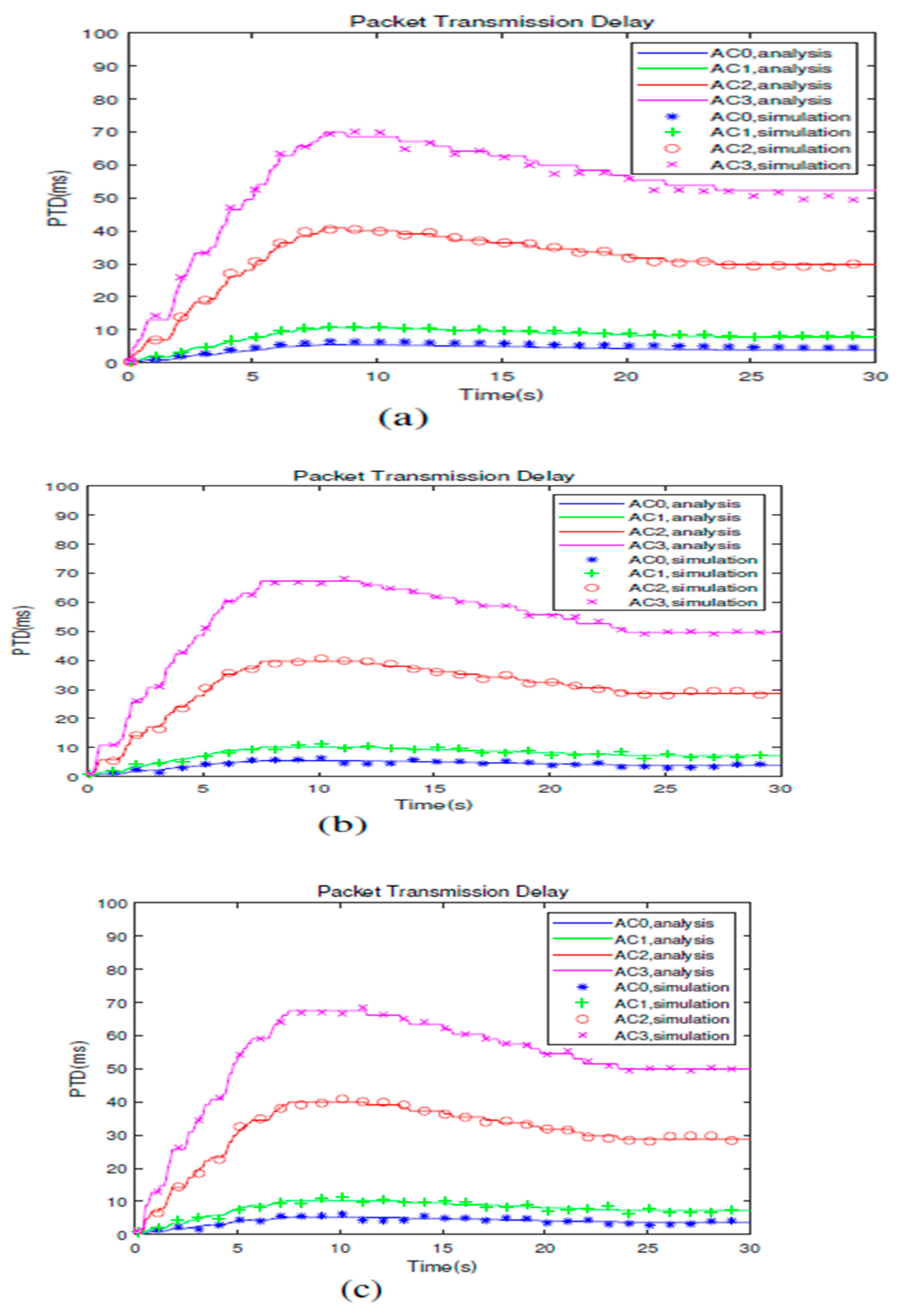

The display of time-dependent packet transmission delay and packet delivery ratio of four Acs can be visualized by Figure 4a, Figure 4b, Figure 4c, Figure 5a, Figure 5b and Figure 5c, respectively.

The findings of a study[8] into the variables influencing queue utilisation dynamics on routers in telecommunication networks. The investigation shows that the average queue length reaches a steady state value following a transient process lasting from a few to tens of seconds when utilising a dynamic model, specifically PSFFA. It is advised to calculate the average queue length using steady state estimations only after the transient process has finished and a more precise differential model may be used.

To accurately predict the average queue length while analysing the average queue length and Quality of Service[8] in a network, a dynamic model with a nonlinear differential equation must be used. Only when the transient process has ended, and the length of the transient process is controlled by variables like flow rate, router interface capacity, and service discipline, are steady-state estimations useful for determining the average queue length. A better choice of queuing models and smaller packet sizes can further hasten the average queue length's convergence.

5. Closing remarks with next phase of research
