ATF4 Signaling in HIV Infection: Viral Subversion of a Stress Response Transcription Factor

1. Introduction

One of the main regulators of cellular homeostasis is the Activating Transcription Factor 4 (ATF4). This bZIP domain transcription factor plays a crucial role in both the integrated stress response (ISR) and the mitochondrial stress response (MSR) [1,2,3]. In reaction to oxidative stress, misfolded protein accumulation, or nutrient deprivation, ATF4 triggers the expression of genes involved in cellular processes participating in the control of autophagy or cell death. Furthermore, the role of ATF4 in cellular responses to stress is intimately linked to its dimerization partners such as the transcription factor ATF5, an ATF4 paralogue found in mammals, which belongs to the ATF4 bZIP-domain transcription factor family [4,5]. ATF5 is also strongly involved in stress responses and can be a target of ATF4. Thus, ATF4 and ATF5 are key cellular factors that integrate various stress signals.

During viral infections, these cellular processes can be modulated by virus machineries. In this context, it has been shown that numerous viral infections modulate ATF4 activity, which contributes to or represses viral replication, depending on the virus (Table 1) and the targeted host cell. Whereas ATF4 levels have been shown to be increased by human immunodeficiency virus-1 (HIV-1) infection and to promote viral replication [6,7,8,9,10,11,12], data concerning the implementation of this regulation remain scarce. Thus, apart from its transcription activity at the HIV-1 promoter, our understanding of the impact of its various cellular functions on the HIV-1 viral cycle remains patchy. Understanding the mechanisms of ATF4 activation in the context of HIV-1 infection also merits to be further explored as ATF4 is envisaged as a latency-reversing agent (LRA), that could be capable to reactivate HIV-1, thereby giving a chance to eliminate viral reservoirs that are a major obstacle to the eradication of the virus from the infected organism [10].

This article aims to provide an overview of the role of ATF4 in HIV infection. We summarize models in which ATF4 activation has been reported during HIV-1 infection and focus on how HIV-1 can induce ATF4 activation. We then explore the consequences of ATF4 activation on host cells and viral cycle. Finally, we also consider that ATF5, the paralogue of ATF4 in mammals, could be a potent actor during viral infections.

2. HIV infection regulates ATF4

2.1. ATF4 is up-regulated during HIV and SIV infections

HIV-1 infection leads to the development of acquired immunodeficiency syndrome (AIDS) associated with the depletion of CD4⁺ T cells, mainly by apoptosis [66,67,68] which predicts further pathogenicity [69,70]. Of interest, the induction of ATF4 following HIV-1 infection has been observed in several in vitro models. It was first described in Jurkat T cells, in which ATF4 was up-regulated at both the transcript and protein levels 8 hours post-infection and remained elevated 48 hours later [6]. This increase in ATF4 transcript levels was further observed in primary human CD4⁺ T cells at day 5 post-infection [8]. In a model of HIV-1 latency, ATF4 transcript and protein levels are weakly detectable [10] but increased with viral reactivation [6,8,10]. In vivo, in monkeys infected with simian immunodeficiency virus (SIV), ATF4 transcripts are also up-regulated in the gut mucosa. This increase occurred during the acute phase of SIV infection, i.e. 1 to 2 weeks post-infection, but are not observed during the chronic phase [8]. Viral proteins released in the microenvironment of infected cells such as Tat has been proposed to be sufficient for inducing ATF4 gene expression through ER stress in non-infected cells [11,12]. Altogether, these observations show that ATF4 expression is differentially regulated during both the early and chronic phases of viral replication, in infected but also non-infected cells, which are close to the former, suggesting that ATF4 induction is related to viral stress and plays a potential role in the establishment of latency.

2.2. How can HIV-1 regulate ATF4?

2.2.1. HIV-1 induced ISR/ATF4 signaling

The ISR leads to global translation blockade through the phosphorylation of eIF2α, which increases ATF4 translation [3]. Several kinases are responsible for eIF2α phosphorylation: double-stranded RNA-dependent protein kinase (PKR), PKR-like ER kinase (PERK), general control non-derepressible 2 (GCN2), heme-regulated eIF2α kinase (HRI), microtubule affinity regulating kinase 2 (MARK2) and family with sequence similarity 69 member C (FAM69C) [3,71,72] (Figure 1). The role of eIF2α and its kinases during viral infection has been recently reviewed by Liu et al. [73]. We focus on HIV studies providing evidence that eIF2α phosphorylation by ISR kinases can be associated with ATF4 induction, and that a direct control of these kinases by HIV-1 proteins may affect ATF4 activity.

Among the ISR kinases, PKR is the best characterized viral nucleic acid sensor [74,75]. It is activated mainly by double-stranded RNAs (dsRNA) [76,77,78,79]. PKR regulates HIV infection as it can bind the hairpin structure within the transactivation-response region of the HIV-1 genome [80]. Whereas PKR contributes to ATF4 translation in response to endoplasmic reticulum (ER) stress [81], paradoxically, to our knowledge, no study reports the induction of ATF4 in the context of HIV-1 infection through an endogenous PKR/eIF2α pathway. A reason that may explain this lack of evidence is the rapid inhibition of PKR by multiple mechanisms during HIV-1 replication [80] (Figure 1): PKR activation is inhibited by high levels of dsRNA and by the direct binding of cellular proteins, including TAR RNA binding protein (TRBP) and adenosine deaminase acting on RNA (ADAR1) [82,83,84,85,86,87,88]. Moreover, the viral Tat protein may counteract PKR activation by preventing PKR autophosphorylation. Tat also serves as a competitive inhibitor limiting PKR binding to eIF2α thanks to a sequence homology between one of its motifs and eIF2α [89,90,91].

Cells experiencing ER stress due to nutrient deprivation or viral replication may lead to the activation of PERK. Like many other viruses, HIV is known to induce protein misfolding and ER stress [92]. Campestrini et al. have previously reported induction of ER Unfolded Protein Response (UPR) genes such as PERK and ATF4, following the treatment of Jurkat cells with the HIV-1 Tat protein [11]. Additionally, PERK activation has been observed in Tat-treated human brain microvascular endothelial cells (HBMECs) and in HIV-infected CD4⁺ T cell lines [12,93]. Whereas PERK is one of the sensors of the UPR with IRE-1 and ATF6, the functional role of PERK in ATF4 induction in response to HIV infection is not fully demonstrated.

GCN2 is activated in response to amino acid deprival and metabolic dysfunction (Figure 1). These alterations are reported in plasma of HIV-infected patients and in the gut of SIV-infected monkeys [8,94,95,96,97]. Moreover, GCN2 is activated in vitro by HIV or SIV infection [8,98] suggesting that metabolic disorders observed in HIV-infected patients could also lead to GCN2 activation. GCN2 phosphorylates the HIV 1 integrase, which reduces viral integration [99]. This property is not limited to HIV-1 since various integrases from other retroviruses are also recognized as substrates by GCN2 [99]. The anti-viral activity of GCN2 can be overcame by the HIV-1 protease that can cleave GCN2 [100]. Jiang et al. have reported that HIV-induced ATF4 transcription would result from the activation of the GCN2/ATF4 pathway [8]. Serum deprivation triggers HIV-1 replication of CD4+ T cells, correlating with the GCN2-mediated activation of ATF4, which is recruited to the HIV-1 long terminal repeat (LTR) to facilitate viral transcription.

Both heme/iron depletion and arsenite-induced oxidative stress activate HRI [3]. Arsenite-induced HRI activation increases viral protein production and infection rate of reovirus[101]. It can also regulate the level of the viral factor Zta that plays a role in the lytic cycle of EBV [102,103]. HRI has been shown to be able to activate ATF4, triggering the expression of genes involved in autophagy [104,105,106] and oxidative-stress response including the antioxidant heme oxygenase-1 (HO-1) gene [106]. Several groups have reported a role of HO-1 in regulating viral replication [107,108] including HIV’s [109]. HO-1 dysfunction has been associated with neuronal diseases in people living with HIV [110]. For instance, despite a link between HO-1 and viral replication, to date no study has addressed the role of an HRI pathway regulating HIV infection and replication.

Recently, two other kinases able to phosphorylate eIF2α have been characterized, namely MARK2 and FAM69C [71,72]. Both kinases are induced by proteotoxic stress. FAM69C KO mice-derived microglia displayed an indirect increase in inflammation, and HIV-1 binds MARK2 to control motor adaptor function on viral cores [72,111]. However, no HIV-induced ATF4 activation depending on these kinases has been reported yet.

To conclude, PERK and GCN2 may lead to ATF4 activation after HIV-1 infection, and the direct interaction of HIV-1 components with GCN2 and MARK2 may in turn control their ability to activate ATF4. Thus, the control of ATF4 by these additional eIF2α kinases in this context is highly probable.

2.2.2. Mitochondrial Stress response, ATF4 and HIV.

The contribution of HIV-1 infection to the induction of mitochondrial dysfunctions has been described earlier [112,113,114]. During HIV-1 infection, mitochondrial functions are compromised resulting in reduced oxidative phosphorylation (OXPHOS), ATP synthesis, gluconeogenesis, and β-oxidation. In addition to membrane depolarization and release of cytochrome C [115,116], HIV-1-induced alterations may also disrupt cellular homeostasis, increase oxidative stress, affect mitochondrial dynamics, and lead to the loss in mitochondrial DNA [115,117,118]. Mitochondrial dysfunctions are not only observed in CD4⁺ T cells, but also in myeloid cells such as neutrophils [119,120], monocytes [121] and CD8⁺ T cells [122], which are non-infected T cells. Therefore, indirect mechanisms may contribute to the alteration of mitochondrial functions during HIV and SIV infections.

ATF4 is induced by several mitochondrial stress-like alterations affecting proteostasis, respiration, and mitochondrial membrane potential (MMP) loss [123,124,125]. A multi-omics study has suggested that ATF4 coordinates the mitochondrial stress response [125]. ATF4 induction was shown to depend on HRI in response to the respiratory chain and ATP synthesis disruptions [126,127]. Individual knockdown of each of the four original ISR kinases (i.e. HRI, PERK, PKR and GCN2) did not abolish the induction of ATF4 and its target genes. These results suggest the role of either an unknown or newly identified ISR kinases (as indicated above), or some redundancy.

In response to mitochondrial misfolded protein accumulation, ATF4 plays a significant role in cell homeostasis as a transcription factor of the canonical mitochondrial UPR (UPRmt) [124]. ATF4 is also associated with the transcription of genes encoding mitochondrial chaperonin and proteases [124]. For instance, Li et al. suggest that unfolded mitochondrial proteins would be degraded by lysosomes, leading to the increase in amino acids that would activate mTORC1 via the lysosomal v-ATPase through a still unknown mechanism during the UPRmt [128,129,130,131]. mTORC1 would then phosphorylate and activate ATF4, thereby triggering transcription of chaperone-encoding genes, and increasing the mitochondrial folding capacity [129].

ATF4 is also activated in response to alterations in mitochondrial dynamics. The deletion of Optic atrophy protein 1 (OPA1), which is crucial for the fusion of inner membranes during mitochondrial fusion, and contributes to the release of apoptogenic factors [132,133], generates mitochondria-derived reactive oxygen species (ROS) and thus causes increased oxidative stress and death [117]. This process triggers ER stress and a PERK-dependent UPR, resulting in the transcriptional activation of ATF4 and other genes. This response initiates a catabolic program contributing to muscle loss and systemic aging [134]. The knockdown of Drp1, a major effector of mitochondria fission [135], leads to eIF2α phosphorylation and ATF4 activation in the liver [136]. Although modulation of OPA1 was not directly associated with ATF4 activation, it has been show that the OMA1 protease, which cleaves the mitochondrial protein DELE1, but also OPA1 [137,138], leads to the release in the cytosol of the DELE1’s carboxy-terminal domain that oligomerizes with HRI (Figure 1) [126,127,139]. The authors propose that in turn, HRI increases ATF4 protein level [127]. Therefore, affecting mitochondrial fission or fusion can be associated with an ATF4-mediated stress response. To date, ATF4 activation in the context of HIV infection has not been reported to originate from mitochondrial stress. Nevertheless, this lack of data certainly stems from the fact that ATF4 is also involved in the response to other HIV-1-induced stresses that-trigger ISR, like ER stress and amino acid depletion. It is thus challenging to determine the respective contribution of HIV-1-induced stress sources to ATF4 activation.

2.2.3. The viral Vpu protein stabilizes the ATF4 protein

The HIV viral protein U (Vpu) is an HIV-1 accessory protein that down-modulates CD4 and BST-2/tetherin. A cellular Skp, Cullin, F-Box (SCF) E3 ubiquitin ligase complex is recruited by Vpu to target CD4 for ubiquitination and proteasomal degradation [140]. This process involves the recruitment of the F-box β-transducin repeat-containing protein (βTrCP) [141,142,143,144]. Additionally, Vpu reduces BST-2/tetherin from the cell surface by preventing the trafficking of BST-2/tetherin to the plasma membrane from the trans Golgi network and/or the recycling endosome [145,146,147]. Furthermore, Vpu targets BST-2/tetherin for degradation, thus promoting viral progeny release and inhibiting NF-κB signaling [143,148].

The SCF-βTrCP E3 ubiquitin ligase complex has been reported to contribute in the degradation of ATF4 (Figure 1) [149]. Unlike its effect on CD4 and BST-2/tetherin, Vpu inhibits ATF4 βTrCP-mediated proteasomal degradation [150]. This apparent discrepancy in the effect of Vpu on βTrCP-dependent proteasomal degradation may be explained by the existence of two distinct paralogs of β-TrCP, βTrCP1/BTRC and βTrCP2/FBXW11 [151]. Recent work by Pickering et al. demonstrates that Vpu has contrasting effects on βTrCP1 and βTrCP2 and suggests that Vpu would induce proteasomal degradation mediated by βTrCP2 and inhibit βTrCP1-dependent protein degradation [152]. Thus, the contribution of viral proteins encoded by HIV merits further investigation regarding the role of ATF4.

3. ATF4 role during HIV-1 replication

3.1. ATF4 positively regulates HIV-1 cycle

The induction of ATF4 during HIV-1 infection raises the possibility that ATF4 may play a role in viral replication (Table 2). Thus, it has been shown that the overexpression of ATF4 increases viral replication whereas its silencing decreases HIV-1 replication [6,7]. Using compounds that inhibit GCN2 or PERK or that lead to ATF4 levels increase, it has been shown that the induction of the ISR/ATF4 pathway reactivates HIV-1 in models of HIV-1 latency [8,9,10]. Altogether, these data strongly suggest a role for ATF4 in regulating HIV-1 replication both during the acute infection and the exit from latency. However, given the nature of infected cells in particular because memory CD4 T cells and T follicular helper cells (Tfh) [153,154,155,156,157], which represent the main reservoirs in visceral tissues, further analyses should be performed to elucidate the role of ATF4 in primary T cell subsets.

3.2. How ATF4 favorizes HIV-1 replication

3.2.1. ATF4 binds to the HIV-1 LTR and promotes viral gene transcription

ATF4 can be a direct regulator of HIV-1 transcription. During HIV-1 infection, various cellular transcription factors including some bZIP domain proteins have been shown to bind the 5’ long terminal repeat (LTR) -that contains the transcriptional promoter of the viral genome of HIV-1- and regulates transcription of HIV-1 genes [158] (Figure 2).

ATF4 induces HIV’s gene transcription and regulates the Human T-cell Leukemia Virus (HTLV) promoter [159]. As an ATF/CREB family member, ATF4 binds to the C/EBP-ATF consensus sequence (TGACGT (C/A) (G/A)). Two C/EBP-ATF binding sites were first identified in the LTR of HIV-1, but super-electrophoretic mobility shift assay (EMSAs) failed to show the binding of ATF4 to these regions [160,161]. A bioinformatics approach led by Jiang et al. identified additional potential C/EBP-ATF binding sites in the LTR [8]. Caselli et al. reported that co-expression of Tat and ATF4 induced higher LTR transcription than the sole expression of Tat, suggesting a synergistic interaction between the two proteins [6]. ChIP experiments showed that ATF4 binds to the LTR sequence. This interaction is positively regulated by Forkhead box O 1 (FOXO1) inhibition and amino acids deprival [8,9]. Further works suggest that Tat may be unnecessary for ATF4-mediated HIV-1 promoter activation [6,7]. However, this effect has only been observed in HeLa cells, but not in Jurkat and 293T cells [6].

ATF4 can also bind to sequences that differ from the C/EBP-ATF consensus sequence, depending on its dimerization partners (Figure 3) [1,162,163]. ATF4 can dimerize with Jun and Fos [164] that heterodimerize to form the AP-1 transcription factor [164]. The fact that the HIV-1 promoter presents an AP-1 binding site could suggest that a heterodimer of ATF4 with Jun or Fos can be formed to activate the LTR activity. However, the partners able to dimerize with ATF4 to control HIV-1 transcription are still unknown.

Five to twenty percent of HIV-infected patients are co-infected by the Hepatitis B virus (HBV). The X protein of HBV has been shown to regulate HIV-1 transcription by stimulating the binding of ATF4 to the LTR of HIV-1 [165]. ATF4 can also directly interact with the HTLV-1 transcriptional activator Tax protein and act as an adapter between Tax and the HTLV-1 promoter [159,166]. Therefore, co-infections may provide a permissive environment for ATF4 to activate the HIV-1 promoter.

3.2.2. ATF4, HIV and apoptosis

It is well known that HIV pathogenicity is associated with the depletion of CD4⁺ T cells leading to the development of AIDS. In this context, it has been shown that a form of programmed cell death, namely apoptosis, may contribute to the depletion of CD4⁺ T cells and be associated with pathogenicity [66,167,168]. In vitro and in vivo, HIV and SIV infections mediate T cell death [68,169] through the intrinsic apoptotic pathway that is characterized by the expression of the pro-apoptotic proteins Bax, Bak and Bim [170], leading to the release of apoptogenic mitochondrial factors and consequently to caspase activation. CD4⁺ T cell apoptosis also involves the extrinsic pathway in which Fas (CD95) is critical [171,172,173,174]. Thus, caspase inhibition prevents in vivo the depletion of CD4⁺ T cells and delays the progression to AIDS [67].

It has been shown that Tat up-regulates UPR mediators with an increase in the transcript levels of ATF4, CHOP and the pro-apoptotic BH3-only BIM (BCL2L11), thus leading to apoptosis [11]. Of interest, ATF4 mediates cell death through the activation of the bZIP transcription factor CHOP [3], which also induces the transcription of BIM and of the pro-apoptotic BH3-only PUMA (also known as BBC3) [175,176]. Additionally, the CHOP-ATF4 dimer up-regulates ATF5, NOXA (also known as PMAIP1), APAF-1, and TXNIP, which in turn amplify cell death [177,178,179]. ATF4 also promotes degradation of the caspase inhibitor X chromosome-linked inhibitor of apoptosis (XIAP) protein through the ubiquitin-proteasome system, which allows the activation of caspases [180]. Neill and Masson recently reviewed ATF4 target genes that may take part in various potent routes through which ATF4 may promote apoptosis [162] (Table 3). In a model of HIV latency, inducing ISR/ATF4 by a prolonged pharmacological treatment, which is significantly associated with cell death [10], increases ATF4 and CHOP protein levels. Thus, several apoptotic genes have been found induced by ATF4 in CD4⁺ T cells during HIV and SIV infections. However, the role of ATF4 in regulating the death of CD4⁺ T cells in the context of HIV-infection has been poorly explored.

Other genes have been identified [162] that could contribute to ATF4-mediated death of CD4⁺ T cells such as Tumorous imaginal disc 1 (TID1), Transmembrane Bax inhibitor-1 motif-containing protein 5 (TMBIM5), G0/G1 switch gene 2 (G0S2) and p53-binding protein 2 (TP53BP2).

TID1, also known as DnaJ homolog subfamily A member 3 (DNAJA3), which belongs to the DnaJ family of proteins is involved both in apoptosis and autophagy. It has been proposed that TID1 helps the oncosuppressor protein p53 to translocate to the mitochondria under hypoxic conditions, thus leading to a transcription-independent mitochondrial apoptotic pathway [205]. Given the role of p53-mediated death in productive HIV-infected cells [206,207], TID1 regulation of p53 merits to be further explored. Interestingly, TID1 transcript levels are increased in T cells following HIV-1 infection, and a recent study shows that TID1 positively regulates HIV-1 replication [186,208].

TP53BP2, also known as apoptosis-stimulating of p53 protein 2 (ASPP2), can interact with p53, thereby enhancing its DNA binding and transactivation functions on the promoters of pro-apoptotic genes [209]. ATF4 regulates the TP53BP2 gene in liver ischemia-reperfusion (I/R) injury and contributes to hepatocyte apoptosis [210]. In cells exposed to the HIV glycoprotein gp120, the role of TP53BP2 would depend on stress intensity as exemplified by the use of varying doses of gp120 and could control both autophagy and apoptosis [203,211].

Another interesting but poorly described target of ATF4 is the TMBIM5 protein, also known as Growth hormone inducible transmembrane protein (GHITM, or MICS1). TMBIM5 localizes at the mitochondrial inner-membrane and is essential to maintain both mitochondrial structure and function [212,213]. This protein seems to ensure cell survival by allowing Ca²⁺ efflux from mitochondria and limiting mitochondrial hyperpolarization [214,215,216]. TMBIM5-knockout cells are more sensitive to apoptosis elicited by staurosporine or BH3 mimetic inhibitors of Bcl-2 and Bcl-xL [212,213]. Interestingly, global gene expression data show that TMBIM5 transcript levels are down-regulated in infected monocytes and increased in astrocytes of HIV HAND patients [201,202]. Given the limited data available, further investigations are needed to determine whether TMBIM5 plays a role in the induction of apoptosis downstream of ATF4 in response to HIV-1 infection.

Lastly, the transcription of G0/G1 switch gene 2 (G0S2) that regulate lipid production [217] has also been found to be a target of ATF4. Initially identified in cultured mononuclear cells in response to drug-induced cell cycle transition from the G0 to G1 phase [218,219,220], G0S2 displays opposite roles toward apoptosis. It prevents cells from ATP depletion, induces a cellular tolerance for hypoxic stress [221], and acts as a survival molecule in endothelial cells, protecting them from serum starvation- and hydrogen peroxide (H₂O₂)-induced apoptosis [222]. Interestingly, G0S2 is down-regulated in macrophages but induced in dendritic cells upon HIV-1 infection [187,188]. The biological significance of these observations has yet to be established.

Altogether, the identified ATF4 targets represent multiple new mechanisms to be explored by which ATF4 could regulate cell death or survival of HIV-infected cells.

3.2.3. ATF4, HIV and autophagy

Autophagy is a pro-survival intracellular catabolic process that targets protein aggregates and damaged organelles in response to stress. ATF4 activates the transcription of genes involved in the initiation (BECN1), in the elongation of the phagophore and the maturation of the autophagosome (WIPI1, ATG12, ATG5, ATG10, ATG16L1, ATG3, ATG7, MAP1lc3B, GABARAPL2), and in the selective clearance of cargo (p62/SQSTM1 and NBR1) [162,223]. Interestingly, ATF4 triggers the transcriptional activation of the autophagy genes directly as a homo or heterodimer with CHOP or indirectly through CHOP induction (Figure 3) [223]. The ratio between ATF4 and CHOP is decisive for the regulation of these genes, underpinning a fine-tuned control of the different stages of autophagy, the subtleties of which remain to be elucidated. ATF4 can also act upstream of autophagy to induce this process; ATF4 can increase the expression of the gene encoding Regulated in development and DNA damage response 1 (REDD1; also known as Ddit4), which suppresses mTOR complex 1 (mTORC1) activity, allowing autophagy induction upon ER stress and starvation [224,225,226].

HIV-1 modulates autophagy in a cell-type-dependent manner [227,229]. The Env protein found at the cell surface of infected cells induces an autophagy-dependent cell death of bystander CD4⁺ T cells [231]. Thus, ARF6, which promotes autophagosome biogenesis by facilitating endocytic uptake of the plasma membrane into autophagosome precursors, has been proposed to promote the fusion of HIV-1 envelope with the plasma membrane, therefore permitting the entry of HIV-1 in CD4⁺ T lymphocytes [232,233]. Other groups have reported that HIV inhibits autophagy [234,235]. After virus entry, the Vpr protein decreases the amount of proteins like MAP1LC3 and BECN1 [236]. Furthermore, although autophagy is initiated in primary CD4⁺ T cells infected with HIV, this process aborts due to a lysosome destabilization by DRAM, a p53-inducible gene. This permeabilization of lysosomes and resulting cell death has been proposed has an altruistic self-defense mechanism limiting viral dissemination by the elimination of infected cells [207]. Despite the obvious link between ATF4 and autophagy, the role of ATF4 in autophagy in the context of HIV infection remains poorly documented.

3.2.4. Immune response and ATF4 activation during HIV infection

ATF4, innate immunity and HIV

Pattern recognition receptors (PRRs) are fundamental molecules for innate immune response recognizing pathogen-associated molecular patterns (PAMPs). PRRs bind to PAMPs and trigger cell signaling cascades. PRRs include Toll-like receptors (TLRs), Nucleotide-binding oligomerization domain (NOD)-like receptors (NLRs), RIG-I-like receptors (RLRs) and C-type lectin receptors (CLRs). For example, TLR7 and TLR8 can recognize single-stranded RNAs, which are present in the HIV genome [237], leading to Interferon regulatory factor 3 and 7 (IRF3 and IRF7) activations and inducing robust expression of type I interferon (IFN) genes [238]. ATF4 inhibits IRF7 transcription but also its activation by inhibiting TANK-binding kinase 1 (TBK1) and IκB kinase (IKK)ε-mediated IRF7 phosphorylation [58]. To be activated, IRF7 also requires its ubiquitination by Tumor necrosis factor receptor-associated factor 6 (TRAF6) (Figure 3). GADD34 that binds to and inhibits TRAF6 activity is an ATF4 target [239]. Its transcript levels have been shown to be increased in HIV-infected cells in a p53-dependent manner [240]. Inhibition of TRAF6 enhanced HIV-1 replication in macrophages [241] whereas GADD34 reduced viral protein expression [242]. Therefore, the role of ATF4 and its targets merits to be further explored in innate immunity.

HIV-1 also up-regulates TLR2 levels and signaling in vivo and in vitro [243]. This is of particular significance since HIV-1 provirus integration is increased in TLR2-bearing cells compared to cells that do not express TLR2 [244]. Although a role of ATF4 in this regulation of TLR2 has not been so far demonstrated, ER and oxidative stresses up-regulate TLR2 mRNA levels in an ATF4-dependent manner [56,245]. A ChIP assay revealed a binding site for ATF4 in an intronic region of the TLR2 gene [56]. Therefore, it can be hypothesized that ER stress-induced by HIV infections could activate ATF4 and regulate TLR2 gene expression in infected cells. ATF4 also mediates TLR4-triggered cytokine production [246], and it has been shown that the level of TLR4 is increased upon HIV-1 infection [243]. Given the role of ATF4 in the regulation of TLRs, and that microbial antigens may activate innate cells, ATF4 activation could explain the inflammation that characterizes people living with HIV and therefore merits further clarification.

ATF4, cellular immunity and HIV

Viruses have developed a diverse array of strategies to manipulate host cell metabolism and reorientate metabolic resources toward their benefit [118]. Current knowledge on T-cell metabolism in HIV infection suggests that HIV-1 takes advantage of the glycolytic process in CD4⁺ T cells to infect them and to boost viral replication [247,248,249]. It has been shown that IL-7-mediated thymocytes survival through the increase of Glut1 protein level at the cell surface, leading to glucose uptake and favoring viral infection [250]. Interestingly, ATF4 can influence a network of genes responsible for metabolic flux when activated by an extracellular oxidizing environment [251]. Thus, ATF4 up-regulates genes involved in glycolysis and promotes the anaplerotic flux through enhanced glutaminolysis, which plays a role in T cell growth in oxygen- or amino acid-deprived environments [251]. Glutaminolysis fuels the tricarboxylic acid (TCA) cycle and oxidative phosphorylation (OXPHOS) in T-cell receptor-stimulated naïve CD4 subsets, as well as memory CD4 subsets [252]. This balance in the bioenergetics pathways is essential for T cell polarization [253]. ATF4 has also been implicated in regulating the differentiation of naïve T cells in T helper 17 cells (Th17). T cells from ATF4-deficient mice are characterized by a diminished Th1 differentiation and an elevation in factors promoting Th17 commutation, such as Interleukin-17 (IL-17) [251]. This association is further supported by the effect of the small molecule halofuginone (HF), which inhibits Th17 differentiation in both mice and humans and increasesATF4 protein levels [254]. Notably, adding amino acids in excess counteracts the inhibition of Th17 differentiation by HF, suggesting the involvement of the amino acid starvation response mediated by ATF4 in targeting Th17 differentiation. Interestingly, Th17 cells are highly vulnerable to HIV-1 infection [255] and this population represents a major viral reservoir under ART [256]. The loss of Th17 homeostasis contributes to disease progression in SIV-infected rhesus macaques associated with the loss of intestinal epithelial integrity, leading to microbial translocation [257,258,259,260]. This alteration in the balance of T cell subsets persists despite ART [261]. Given the role of ATF4 in regulating mitochondrial and reticulum stress-associated apoptosis, a contribution of ATF4 dysregulation in the alteration of the Th17 balance at the mucosal barrier cannot be excluded. Taken together, these results suggest that the induction of ATF4 observed in CD4⁺ T lymphocytes during HIV-1 infection [10] may contribute to the increased production of energy and amino acids required for viral replication.

4. ATF5 the paralog of ATF4

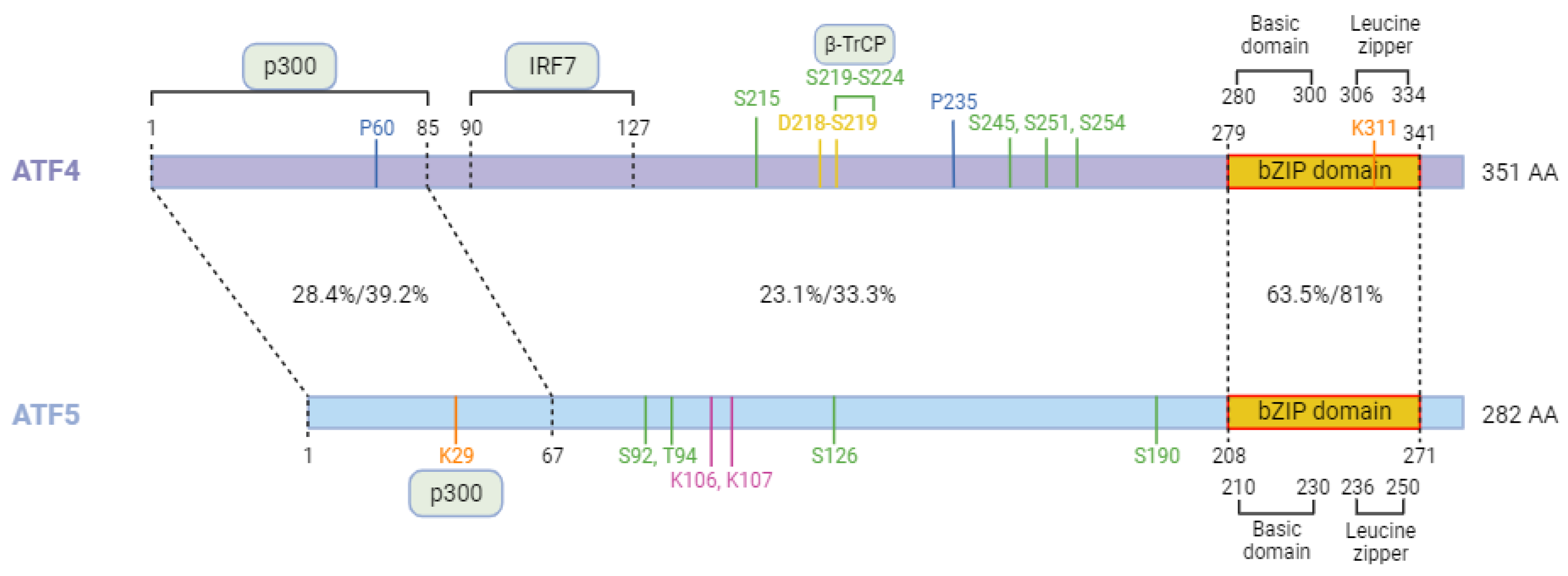

ATF5 is a member of the bZIP transcription factor family, like CREB, Fos and NRF2 [262]. Based on its bZIP domain sequence, ATF5 has been classified into the ATF4 subgroup family (Figure 4). ATF5 also shares many functional features with ATF4, especially in stress cellular responses [263,264]. Interest in ATF5 has risen sharply in recent years, and its role in regulating cellular stress, cell survival, immunity, and cancer has recently been reviewed [265,266]. ATF5 is also involved in cell proliferation and differentiation of various cell types [262]. Thus, a growing number of studies implicate ATF4 and ATF5 in the regulation of the immune response and reveal how the dialogue between stress responses and immune pathways can be fundamental for the regulation of tissue homeostasis by the cell in response to infection [267]. Of particular interest, how ATF4/ATF5 and NF-κB coordinate their activity and their effects on viral replication, latency, and cell survival need further investigation.

Data concerning the involvement of ATF5 in the viral stress response and its possible role during infections remain sparse. During Epstein-Barr virus (EBV) infection, the viral protein Latent membrane protein 1 (LMP-1) positively regulates the ATF5 protein level via the NF-κB pathway [268]. In this context, ATF5 transcriptionally inhibits the Signaling lymphocyte activation molecule-associated protein (SAP) gene, promoting a Th1-like cytokine profile in T lymphocytes. Intriguingly, LMP-1 not only activates ATF5 but also positively controls PERK to induce phosphorylation of eIF2α, which up-regulates ATF4 expression in B cells [44]. ATF4, in turn, transactivates LMP-1’s promoter in a positive feedback loop to enhance LMP-1 protein levels and activity. Thus, LMP-1 activates both ATF4 and ATF5, which seem to have different functions in the viral cycle.

ATF5 has also been shown to play a role in the replication of Herpes simplex virus type 1 (HSV-1). It promotes the replication of the virus by activating the transcription of viral genes, but this activity is counteracted by the cellular HSV-1 infection response repressive protein (HIRRP), through physical interaction [269]. Interestingly, an elevation in the eIF2α/ATF4 signaling is observed towards the end of HSV-1 replication, which leads to the completion of virion production and release [51]. Therefore, as in EBV infection, ATF4 and ATF5 act at different steps of the HSV-1 infection.

In glioma cells that are highly permissive to Human cytomegalovirus (HCMV) infection, the viral immediate-early protein of 86-kDa (IE86) interacts with and acetylates ATF5, thereby promoting cell survival [270]. Furthermore, the HCMV protein pUL38 is required to maintain the viability of infected fibroblasts by increasing phosphorylation of both PERK and eIF-2α and inducing robust accumulation of ATF4 protein [46]. Thus, both ATF4 and ATF5 contribute to the survival of infected cells.

Microarray and RNAseq analyses have shown that the levels of ATF5 transcripts increase in cells infected with viruses such as ZIKV or dengue [201]. ZIKV infection also increases ATF4 transcript and protein levels [39,40,271]. In the context of HIV-1 infection, ATF5 transcript levels are up-regulated in Th1Th17 vs Th1 cells [272]. However, the roles of ATF4 and ATF5 are still poorly understood in these models. ATF5, like ATF4, can be activated by various stresses and involved in the ISR and UPRmt pathways. Therefore, whether ATF5 is activated in response to HIV-1 infection and regulated by HIV proteins have to be determined.

5. Conclusions

In this review, we provide an overview of ATF4 functions during HIV-1 infection and explore the role of some of the poorly characterized ATF4 transcriptional targets that are involved in cell death, autophagy, metabolism or in the immune response. This review thus proposes some molecular mechanisms that should be investigated for understanding the role of ATF4 in the context of HIV-1 but also by other viruses. Although most of the research on ATF4 is generally associated with the demonstration of protein and transcript levels modulation, it is also of interest to determine proteins relocation and ATF4 binding partners at promoter levels. It is also becoming well-established that post-translational modifications regulate ATF4 activity. This last point is less understood, and advances in our knowledge of the impact of post-translational modifications, particularly on the choice of ATF4 heterodimerization partners, should be decisive in understanding the control of ATF4 activity in the context of HIV infection. Given its similarity with ATF5, it is crucial to decipher the roles of ATF5, depending on cell types and its fine regulations. Understanding the role of theses transcriptional factors may pave the way to identifying new drug therapies.
