Development of qPCR Detection Kit for Langya Henipavirus L Gene

1. Introduction

Langya Henipavirus (LayV) is a zoonotic Henipavirus reported in 2022 [1]. At the time of writing, 35 cases of febrile illness were associated with this virus in Shandong and Henan province, China [1], with no deaths reported [2]. LayV demonstrates genetic proximity to Mojiang Henipavirus, a strain known for its ability to cause fatal human pneumonia [1]. Considering that some Henipavirus exhibit high mortality rates, it is recommended to monitor the LayV closely [3]. Presently, shrews are suspected to be the primary host of this virus [1] with no known human-to-human transmission reported.

Henipavirus is a genus under Mononegavirus [1], and are enveloped negative-sense RNA viruses with six main function proteins: structural components encompass the matrix protein, fusion glycoprotein, and attachment glycoprotein; whereas non-structural elements encompass the nucleocapsid, phosphoprotein, and polymerase [4]. The non-structural components form a complex in charge of the replication of viral RNA [4]. Polymerase, also known as the multifunctional enzyme monomeric L (L protein), is the biggest protein in all Mononegavirales [5]. The L protein is a single polypeptide, highly conserved in sequence [6], with five major domains of L protein: RNA-dependent RNA polymerization domain (RdRp), capping domain (Cap), connector domain (CD), methyltransferase domain (MT), and C-terminal domain (CTD) [5]. The L protein is not only in charge of the duplication of genomic RNA but also possess transcription activity [5]. Given the its many enzymatic functions, it is a popular target also in Ebolavirus and Rabies virus [7,8]. In this study, we chose the L gene, responsible for encoding the L protein in LayV, as the target for designing primer sets.

LayV infection is characterized by typical cold symptoms, such as fever, cough, fatigue, poor appetite, and muscle pain, with occasional myalgia and nausea. Leucopenia and thrombocytopenia are common, while severe complications such as pneumonia and organ dysfunction were reported in a small proportion of cases [1,9]. In light of LayV infection displaying symptoms similar to other Henipavirus, and considering the potential seriousness of complications seen in the highly pathogenic members of this genus, there is need to monitor LayV infections for human-to-human transmissions [3]. Hence, there is a need to develop a detection method to monitor LayV infections for pandemic prepardedness, as ought to be performed for other zoonotic viruses [10].

Nucleic acid detection was shown to be the gold standard for diagnosis during the recent COVID-19 pandemic given its high sensitivity [11] compared to alternative methods such as antigen rapid tests (ART) [12]. Thus, learning from COVID-19, the best diagnostic for LayV would be qPCR [13].

Primer sets are pivotal components of nucleic acid detection kits. Thus, this study addressed the need to monitor LayV infections by designing three specific primer sets that target a segment of the LayV L gene. The L gene is responsible for encoding the highly conserved L protein of LayV. Two primer sets had demonstrated potential applicability in the development of LayV nucleic acid detection kits.

2. Materials and Methods

2.1. Synthesis of LayV L Gene Template

The L gene template sequence was obtained from GenBank (Accession number: OM101125.1), and the initial 540bp of DNA sequence in the L gene was selected as the template. The provided template was inserted into the pUC57 plasmid and transformed into Top10 Escherichia coli [14], followed by processing as previously discussed [15,16].The DNA synthesis was performed by Sangon Biotech (Shanghai, China).

2.2. Design of LayV L Gene Primer

The selected initial 540bp segment of L gene was selected as the template for primer design. Primer set 1 was designed by Sangong Biotech, primer set 2 and primer set 3 were designed using the Primer3Plus by ourselves [17].

Table 1. Designed primer sets of target L genes.

	Target	Sequence (5’-3’)	Length (bp)	Product size (bp)
Primer set 1	L Gene	F1: GATCCGACTCTGAATGATGTCATTG R1: CAGTCAAGCAGTCCACCAAGC	25 21	202
Primer set 2	L Gene	F2: CGGTTCAGTGAGATTCCATGC R2: TCAGTCAAGCAGTCCACCAAG	21 21	215
Primer set 3	L Gene	F3: GGCTGTACGGTTCAGTGAGA R3: CAGTCCACCAAGCTAGGGTC	20 20	214

Table 1. Designed primer sets of target L genes.

	Target	Sequence (5’-3’)	Length (bp)	Product size (bp)
Primer set 1	L Gene	F1: GATCCGACTCTGAATGATGTCATTG R1: CAGTCAAGCAGTCCACCAAGC	25 21	202
Primer set 2	L Gene	F2: CGGTTCAGTGAGATTCCATGC R2: TCAGTCAAGCAGTCCACCAAG	21 21	215
Primer set 3	L Gene	F3: GGCTGTACGGTTCAGTGAGA R3: CAGTCCACCAAGCTAGGGTC	20 20	214

2.3. Extraction of DNA Template

To revive E. coli with the gene template from glycerol freezing, the glycerol culture was streaked on LB solid medium (Qingdao Hope Bio-Technology) without antibiotics [16]. After 24 hours of cultivation at 37°C, a single colony was selected and inoculated into 5mL of LB broth (Qingdao Hope Bio-Technology). The culture was then incubated for 18 hours at 37°C with shaking at 210rpm. Ampicillin was added at a concentration of 100μg/mL for subsequent use. After the culture became turbid, 100μL of the culture was transferred to a new medium containing 5ml of LB broth, and the incubation was continued for another 18 hours under the same conditions. The bacterial culture from the second generation of liquid medium was used for DNA extraction. Plasmid extractions were performed as previously study described [15].

2.4. Preliminary qPCR Assessment

To evaluate the the potential of the candidate primers, a preliminary qPCR assay was employed before more comprehensive testing. Primers demonstrating unsatisfactory performance were excluded in subsequent experiments.

2.5. Assessment of Specificity of Designed Primer

To ensure the specificity of the designed primer sets for the L gene, Primer-BLAST was employed to check whether the primer yielded positive results in humans (Homo sapiens), shrews (Soricidae), bats (Chiroptera), and Mononegavirales[17,18]. During the alignment, it was set to ignore targets with five or more mismatches to the primer by default.

2.6. Determination of Copy Number

The concentration of the extracted DNA was determined using NanoDrop One (Thermo Fisher Scientific, U.S.A). Given that the plasmid pUC57 used has a known length of 2710 bp, and the selected L gene template is 540 bp, the following formula can be used to calculate the copy number of the extracted DNA:

$$\mathrm{Copy} \mathrm{number}=\left(\frac{\mathrm{DNA} \mathrm{concentration} \left(\frac{\mathrm{ng}}{\mathrm{uL}}\right)}{\mathrm{Plasmid} \mathrm{Length} \left(\mathrm{bp}\right)\times 660}\right)\times 6.022\times {10}^{23}$$

(1)

The determined copy number was used to titrate the qPCR sensitivity.

2.7. Real-Time qPCR

Before adding samples to qPCR, DNA was first subjected to a tenfold dilution gradient ranging from 10⁰ to 10^-12 using ddH2O. Subsequently, each well was loaded with 5μL of 2× S6 Universal SYBR qPCR Mix (EnzyArtisan, Shanghai, China), 0.2μL of forward primer, 0.2μL of reverse primer, 0.5μL of diluted DNA, and 4.1μL of ddH2O, making a total volume of 10μL. Finally, the 96-well plate containing the samples was centrifuged at 500rpm for 5 minutes.

The qPCR instrument utilizedin in this experiment is the QuantStudio^TM 3 Real-Time PCR Instrument (96-well 0.2ml Block, Thermo Fisher Scientific, U.S.A). The experiment type was set to standard curve, and the reaction program was configured based on a previous study: the pre-denaturation phase for 30 seconds at 95°C for one cycle; the denaturation, annealing, and extension phase were for 3 seconds at 95°C, then 10 seconds at 60° for 40 cycles, respectively; the melting curve at 95°C for 15 seconds, then 60 seconds at 60°C, and finally at 95°C for 1 second, similar to previous procedure [19]. All processes were performed in at least three independent replicate experiment, and each replicate was performed in triplicate for both primer sets

2.8. Construction of Standard Curves

Standard curves were constructed to visually represent the relationship between DNA copy number and CT value [20]. Logistic regression analysis was applied to model the observed relationship in the standard curves between the DNA copy number and CT value. The R² values, calculated from the regression analysis, depicted how well the data fits the model.

2.9. Efficiency Calculation

The efficiency of primer set was calculated using the following formula:

$$\mathrm{Efficiency}=-1+{10}^{\left(\frac{-1}{\mathrm{Slope}}\right)}$$

(2)

This formula, derived from the slope of the standard curve, provides a quantitative measure of how effectively the PCR reaction doubles the amount of DNA in each cycle.

2.10. Validation of Reliability

Validation procedures were implemented to ensure the reliability of the developed qPCR assay in practical application scenarios. Following prior qPCR procedures, the lowest detectable concentration of DNA samples was subjected to qPCR analysis, simulating a real-world detection scenario. The identical qPCR reaction conditions were repeated with 2.0 μL of ddH2O substituted with saliva, emulating a real-world detection scene. This simulation aimed to assess the effect of the saliva on the qPCR sensitivity This saliva experiment was also conducted in triplicates for each primer set.

3. Results

3.1. Preliminary qPCR Assessment

During the preliminary qPCR analysis, the melt curve and standard curve results of primer set 3 were found to be unsatisfactory, leading to its exclusion from further investigation. Primer sets 1 and 2 both exhibited high sensitivity and specificity; therefore, subsequent testing and analyses were performed. The detailed results of the melt curve and standard curve for three primers are shown in Supplementary Figure S1.

3.2. Specificity of Designed Primers

Primer set 1 was designed by the Sangon Biotech company whereas primer set 2 was designed using online web-tools. To assess the differences in specificity between the two primer sets, Primer-BLAST was employed to predict their reactivity with gene templates of the potential host organisms for LayV. In addition to human genes, templates derived from bats (the host of many Henipaviruses, including LayV), shrews (the host of LayV), and the Mononegavirales order were also investigated for potential reactivity. we first set the programs to ignore targets with five or more mismatches by default. Under this setting, Primer-BLAST did not show any matches with the selected genomes.

To further discover the differences in specificity between the two primer sets, a higher primer specificity stringency was applied. When Primer-BLAST was adjusted to ignore targets with six or more mismatches to the primers, three target templates were identified. Primer Set 2 showed the potential to match gene templates of both Suncus etruscus and Sorex araneus, both belonging to the Soricidae family, as illustrated in Supplementary Figure S2.

Figure 1. Melt curves for qPCR. (a) Melt curves for Primer set 1 against LayV L gene; (b) Melt curves for Primer set 2 against LayV L gene. Both melt curves exhibited a single sharp peak. Figure 1 represents a randomly selected set of melt curves from one replicate experiment for analysis. All repeated experiments showed consistent results, the detailed results of the repeated experiments are provided in Supplementary Figure S3.

Figure 1. Melt curves for qPCR. (a) Melt curves for Primer set 1 against LayV L gene; (b) Melt curves for Primer set 2 against LayV L gene. Both melt curves exhibited a single sharp peak. Figure 1 represents a randomly selected set of melt curves from one replicate experiment for analysis. All repeated experiments showed consistent results, the detailed results of the repeated experiments are provided in Supplementary Figure S3.

3.3. Specificity of qPCR Products

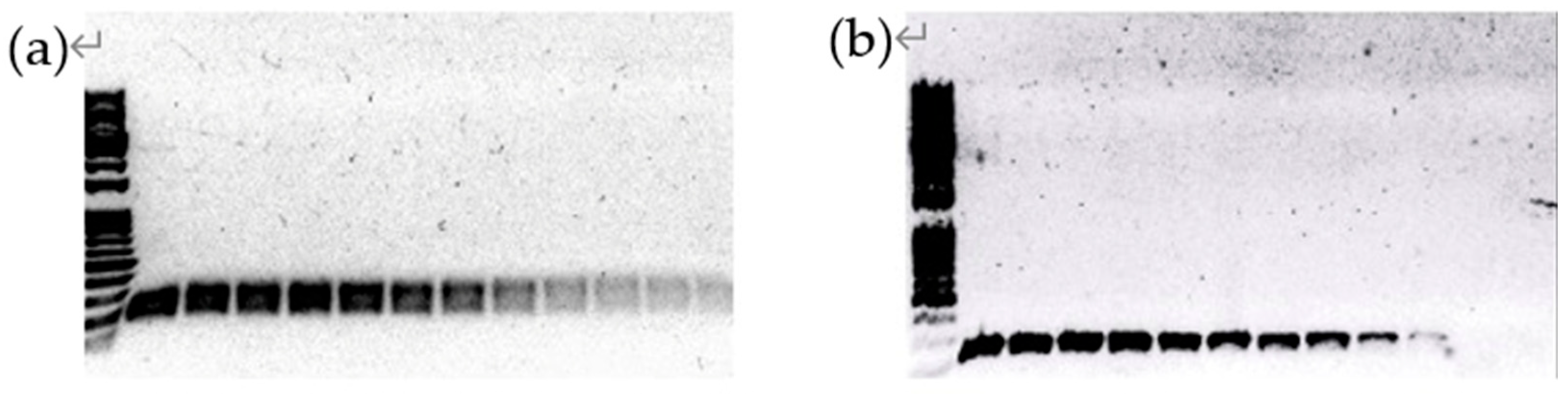

To further validate the specificity of the designed primer sets in generating a single qPCR product, gel electrophoresis was employed to detect qPCR products. Figure 2 presents the results of a randomly selected set of gel electrophoresis results from one replicate experiment for analysis. All repeated experiments showed consistent results, the detailed results of the repeated experiments are provided in Supplementary Figure S4.

3.4. Standard Curve Analysis

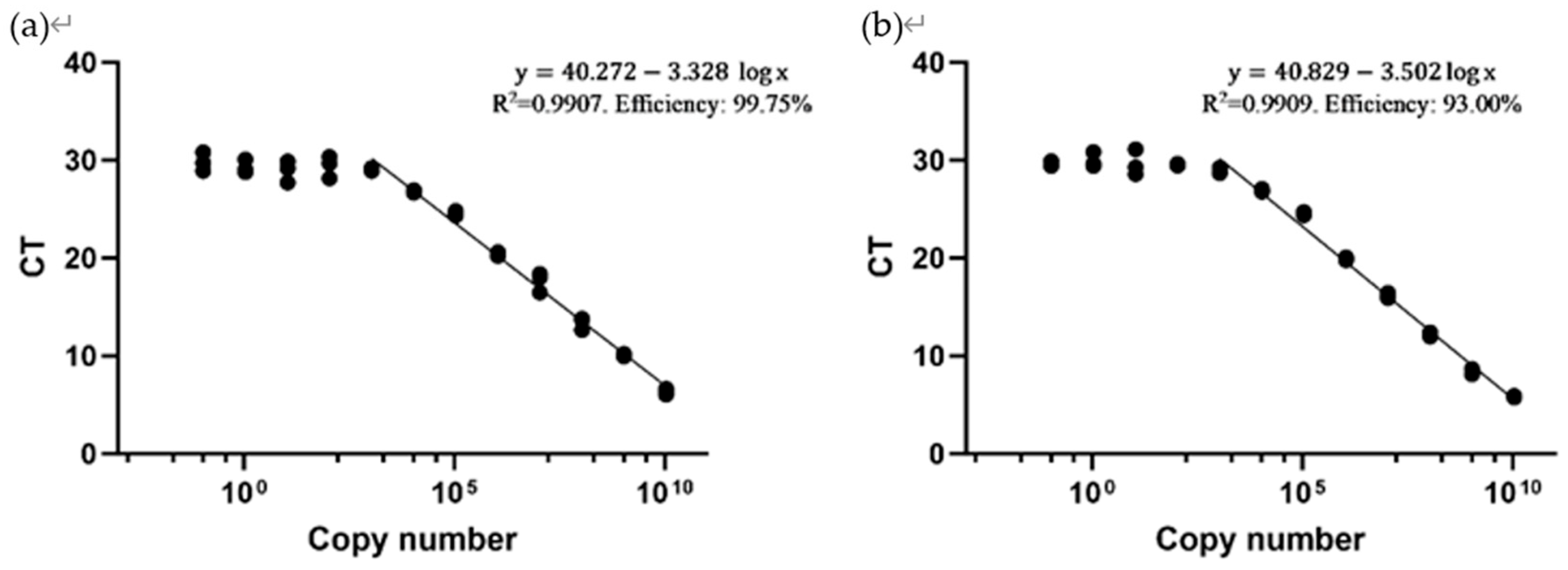

Standard curves were constructed to evaluate the sensitivity and accuracy of the primer sets. The CT values corresponding to different DNA copy numbers were determined for both primer set 1 and primer set 2.

For primer set 1, the CT value ranged from 28.923 (corresponding to 1075 DNA copies) to 6.043 (corresponding to 1.075*10^10 DNA copies). Notably, at lower DNA concentrations, a CT value plateau was observed around 29.5, indicating that primer set 1 requires a minimum DNA copy number of approximately 1000 for amplification and detection.

Similarly, for primer set 2, the CT value spanned from 28.677 (corresponding to 1075 DNA copies) to 5.623 (corresponding to 1.075*10^10 DNA copies). Primer set 2 also demonstrated a CT value plateau near 29.5, suggesting that a minimum DNA copy number of approximately 1000 is required for amplification and detection.

3.5. Validation of Reliability

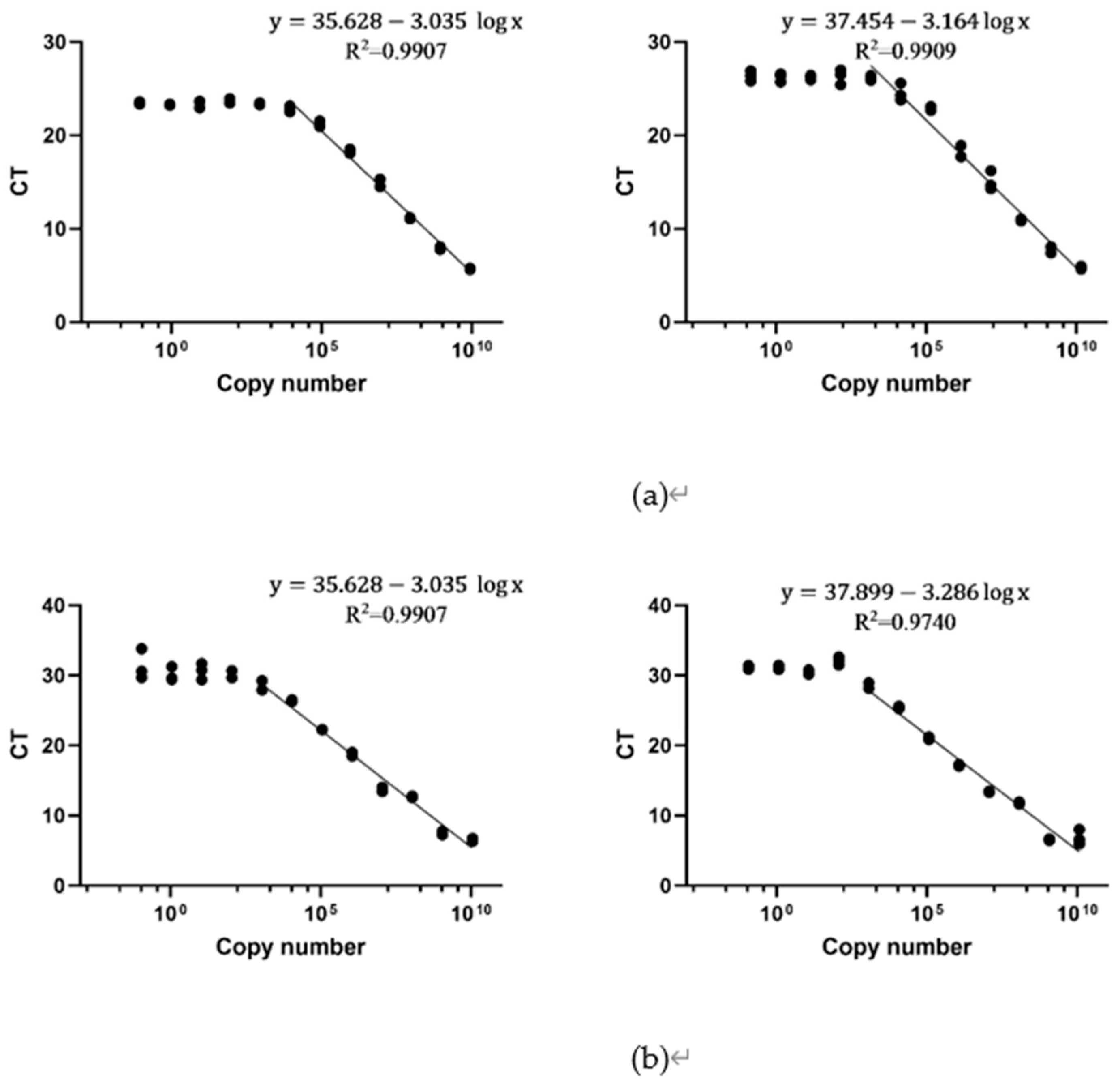

To assess the reliability of the developed qPCR assay in practical diagnostic applications, the assay's performance was evaluated under conditions simulating real-world detection scenes by substituting 2.0 μL of ddH2O with human saliva. The CT values representing the amplification of the target gene, are summarized in Table 2. The CT values were obtained through triplicate analyses for both primer sets. A CT value greater than 30 indicated a failure to amplify the target gene. The results showed successful amplification of the target gene for bothe primer sets in three replicates.

4. Discussion

This study aimed to address the need for an accurate detection method for LayV infections. Specifically, we designed three primer sets for qPCR assay for LayV infections. The results showed that primer set 1 and primer set 2 have the potential to develop detection kits for LayV infections. After preliminary qPCR assessment, primer set 3 was excluded from further investigation. For the remaining two designed primer sets targeting the LayV L gene, the specificity of primer sets was determined by primer-BLAST. When assessing the potential binding of designed primer sets to DNA templates of other species, primer set 2, as indicated in Supplementary Figure S2, showed three potential binding results with the gene sequences of shrews (Soricidae). Based on previous research, shrews in China carrying LayV include Crocidura lasiura and Crocidura shantungensis [1]. Since Primer-BLAST did not provide reference sequences for these two species, the gene sequences of shrews were aligned using the option for the family Soricidae during the alignment process. Therefore, it is currently unknown whether primer set 2 would yield a positive detection for the DNA of the two native Chinese shrew species that may carry LayV. However, considering that both Crocidura lasiura and Crocidura shantungensis belong to the family Soricidae, primer 1 is more recommended when detecting LayV for Soricidae.

Melt curve analysis and gel electrophoresis confirmed the specificity of the qPCR products. Figure 1 and 2 indicate the presence of a single sharp peak in melt curves and a distinct band around 200 bp in gel electrophoresis, substantiating the amplification of the intended target without nonspecific products, validating the specificity of the qPCR assay when using pure plasmid templates. It should be noted that in the initial experiment with primer set 1, additional small peaks were observed in front of the main peaks (see Supplementary Figure S3). These additional peaks only showed up at low concentrations of the template but disappeared when the DNA copy number was over 1,000. It should be noted that primer set 1 has the probability of producing a false positive result through possible primer dimmers compared to primer set 2.

Standard curve analysis demonstrated the sensitivity and efficiency of both primer set 1 and primer set 2 with detectable DNA copy numbers spanning several orders of magnitude. The plateau observed around a CT value of 29.5 suggests the lowest limit for effective detection, approximately 1000 DNA copies (Figure 3). The efficiency was calculated by formula (2), and primer set 1 showed a higher efficiency. The sensitivities of the two primer sets are almost the same. Therefore, both primer sets are capable of detecting the presence of LayV, but primer set 1 has higher efficiency compared to primer set 2.

The validation of the qPCR assay under simulated real-world conditions, substituting ddH2O with saliva, aimed to simulate the variability encountered in practical diagnostic scenarios. The consistently low CT values (below 30) for all triplicate analyses with both primes affirm the reliability and potential utility of detecting LayV in real-world conditions (Table 2).

While the current 1000 copy limit sensitivity is suitable for some cases, the practicality of detecting lower copy numbers may be needed, especially in early-stage infections or situations with low viral loads. Future optimization strategies could be explored involving the optimization of dNTP concentrations, Taq polymerase and reaction volumes. For lower copy number detection, primer concentrations could also be increased, alongside the optimization of Tm, and annealing temperature.

Given the suspected role of shrews as primary hosts for LayV, the specificity of primer sets to shrew genes suggests their potential utility for on-site monitoring in wildlife habitats to better understand the virus's transmission in wild hosts. This could aid in early intervention to prevent zoonotic transmission between humans and animals. However, challenges such as the need for rapid, point-of-care detection in remote locations need to be further addressed.

The current hypothesis for SARS-CoV-2 suggests it is a bat-derived virus to infecting pangolins, eventually spreading to humans and subsequent human-to-human spread through a series of mutations and recombination events [21]. As for the LayV virus, which currently exhibits transmission between humans and animals, there is a potential concern that it might undergo mutations that could enable human-to-human transmission in the future [10,22,23]. Such mutations can lead to primer escapes as well, preventing detection. Thus, there is a need to monitor the LayV mutation rate as well. Nonethless, at the moment, our primers serve as an effective method of early detection. While LayV currently relies on human-animal transmission, the existence of reliable primer sets offers a proactive approach to detect and monitor potential shifts towards human-to-human transmission. This foresighted detection strategy is crucial for timely intervention and containment. In the context of the ongoing pandemic with SARS-CoV-2, the experience highlights the importance of early detection tools. Our primer sets can play a role in proactive surveillance and pandemic prepardness.

5. Conclusion

In conclusion, We initially designed three primers targeting L gene to detect LayV. The preliminary qPCR assessment led to the exclusion of primer set 3, while primer sets 1 and 2 were chose to detailed tested. The qPCR results indicated that primer set 1 and primer set 2 could detect LayV in the presence of biological fluid. Melt curve analysis and gel electrophoresis confirmed the assay's specificity, and standard curve analysis demonstrated the sensitivity and efficiency of both primer sets. While a plateau around a CT value of 29.5 was observed, indicating a minimum detectable DNA copy number of approximately 1,000. This study showed potential applications of two primer sets in LayV monitoring in both human and animal samples, and suggested the need for further optimization for broader field applicability, especially in scenarios with low viral loads. Overall, primer set 1 and primer set 2 offer a valuable tool for early LayV diagnosis, surveillance, and assistance in preventing zoonotic transmission between humans and animals.
