Using Transient Fourier Analysis at Some EE Applications in a Slightly Different Way

1. Introduction

It is known that transient analysis of dynamical systems is a crucial aspect that is just as significant as steady-state analysis. While steady-state analysis focuses on the equilibrium behavior of systems, transient analysis delves into the study of rapid changes in these systems [1,2,3,4]. However, it is important to note that these fast changes cannot occur instantaneously or abruptly, as the transient processes involve the exchange of energy, typically stored in the magnetic field of inductances or the electrical field of capacitances. Sudden changes in energy would lead to infinite power, which contradicts the principles of physical reality [1,2]. To investigate transient phenomena, various methods have been developed, including the classical method, the Cauchy-Heaviside ($C\text{-}\mathcal{H}$) operational method, the Fourier transformation method, and the Laplace transformation method. The $C\text{-}\mathcal{H}$ operational method, also known as the symbolic method, replaces derivatives with symbols (such as s or p) to facilitate the analysis.

Transient processes in power electronic systems (PES) manifest in various forms, sharing common characteristics such as short timescales and significant energy exchange [2]. The applications of Fourier series span across numerous fields in the natural sciences and mathematics itself [3]. In the work [5], the author introduces two novel methods for analyzing circuits with semiconductor elements: the method of Φ-functions and the method of complex conjugated amplitudes. In this work the authors show two new effective approaches for solving transient analysis in the EE field, and that:

-

uses the L-C transform in the complex domain, thereby significantly simplifying the calculation of the original function, and

-

uses the Fourier transform for transient states of the whole systems especially in electrotechnical applications.

This paper on Fourier analysis covers three broad areas: Fourier series/expansions, more generally in orthonormal complex domain and Fourier integral transforms. The article is structured as follows:

-

introduction,

-

Fourier analysis in the time and complex domain including method of complex

conjugated amplitude, and transient analysis under non- harmonic excitation,

-

transient analysis of PES system using Fourier integral transform including two

application examples from EE field,

-

verification of chosen system states using the Matlab/Simulink environment,

-

discussion and conclusion.

2. Fourier Analysis in the Time and Complex Domain

Fourier series are, in a certain sense, more universal than the familiar Taylor series in calculus because many discontinuous periodic functions that come up in applications can be developed in the Fourier series but do not have Taylor series expansions [4]. As an example, let’s introduce some pulse time waveforms generated by power electronic systems [5,6].

Fourier series is given by the relation, [1,2,3,4]

$$u\left(t\right)=\sum _{\nu =1}^{\infty }\left[A_{\nu }\cos k\omega t+B_{\nu }\sin k\omega t\right]$$

(1)

where $A_k, B_k$ are amplitudes of harmonic functions, which are the function of the Fourier coefficients $a_k, b_k$, multiplicated by maximal value $U_m$ or [7]

$$u\left(t\right)=\sum _{\nu =1}^{\infty }{C}_{\nu }\cos (\nu \omega t+{\delta }_{\nu })$$

(1a)

where

$$C_{\nu }=\sqrt{A_{\nu }^2+B_{\nu }^2}; \tan {\delta }_{\nu }=\frac{B_{\nu }}{A_{\nu }} .$$

(1b)

Current waveform under linear R-L load can be derived using complex conjugate amplitudes [5] applied on Equation (4b) and zero initial conditions

$$\mathit{i}\left(t\right)=\sum _{\nu =1}^{\infty }\frac{C_{\nu }\cos (\nu \omega t+{\delta }_{\nu })}{{\mathit{Z}}_{\nu }}=\frac{1}{2}\sum _{k=0}^{\infty }{C}_{\nu }\frac{e^{j\left(\nu \omega t+{\delta }_{\nu }\right)}+e^{-j\left(\nu \omega t+{\delta }_{\nu }\right)}}{\left|Z_{\nu }\right|e^{j{\phi }_{\nu }}}=$$

$$=\frac{1}{2}\sum _{k=0}^{\infty }\frac{C_{\nu }}{\left|Z_{\nu }\right|}\left[e^{j\left(\nu \omega t+{\delta }_{\nu }-{\phi }_{\nu }\right)}+e^{-j\left(\nu \omega t+{\delta }_{\nu }-{\phi }_{\nu }\right)}\right]$$

(2a)

where $\left|Z_{\mathsf{\nu }}\right|=\sqrt{R^2+{\left(\mathsf{\nu }\omega L\right)}^2}$ and ${\phi }_{\mathsf{\nu }}={\mathrm{t}\mathrm{a}\mathrm{n}}^{-1}\frac{\mathsf{\nu }\omega L}{R}$.

• Imagining the course of the current in complex notation [5,8], we get

  $$\mathit{i}\left(t\right)=\frac{1}{2}\sum _{k=0}^{\infty }\left[{\mathit{I}}_{\nu }{e}^{j\nu \omega t}+{\dot{\mathit{I}}}_{\nu }{e}^{-j\nu \omega t}\right].$$

  (2b)

Comparing amplitudes of component in (.) and $(..)$ we obtain

$$\frac{1}{2}{\mathit{I}}_{\nu }=\frac{U_m}{2}\frac{C_{\nu }{e}^{-j\left({\delta }_{\nu }+{\phi }_{\nu }\right)}}{\left|Z_{\nu }\right|}.$$

(2c)

after substituting $\left(5\mathrm{c}\right)$ into $\left(5\mathrm{b}\right)$, the relation for the steady state is obtained

$$i\left(t\right)=\frac{U_m}{2}\sum _{k=0}^{\infty }\left\{C_{\nu }\left[\frac{e^{j\left(\nu \omega t+{\delta }_{\nu }-{\phi }_{\nu }\right)}}{\left|Z_{\nu }\right|}+\frac{e^{-j\left(\nu \omega t+{\delta }_{\nu }-{\phi }_{\nu }\right)}}{\left|Z_{\nu }\right|}\right]\right\}=$$

$$=U_m\sum _{k=0}^{\infty }{C}_{\nu }\frac{\cos \left(\nu \omega t+{\delta }_{\nu }-{\phi }_{\nu }\right)}{\left|Z_{\nu }\right|},$$

(2d)

The Equation (5d) thus represents the steady-state component of the current. In our case of rectangular supply voltage, (Figure 1b)

$$i_{steady,RL}\left(t\right)=\frac{4}{\pi }{U}_m\sum _{\nu =1}^{\infty }\frac{1}{\nu \left|Z_{\nu }\right|}\mathrm{c}\mathrm{o}\mathrm{s}\left({\omega }_{\nu }t+{\delta }_{\nu }.-{\phi }_{\nu }\right)$$

(3a)

the transient component can be calculated easily because of first order system

$$i_{trans,RL}\left(t\right)=\frac{4}{\pi }{U}_m\sum _{\nu =1}^{\infty }\frac{1}{\nu \left|Z_{\nu }\right|}\left(-1\right){\mathrm{c}\mathrm{o}\mathrm{s}\left(+{\delta }_{\nu }.-{\phi }_{\nu }\right)e}^{-t/\tau }$$

(3b)

where $\tau =R/L$.

Then, the total transient time waveform of the load current will be

$$i_{total,RL}\left(t\right)=i_{steady}\left(t\right)+i_{trans}\left(t\right)=$$

$$=\frac{4}{\pi }{U}_m\sum _{\nu =1}^{\infty }\frac{1}{\nu \left|Z_{\nu }\right|}\left[\mathrm{c}\mathrm{o}\mathrm{s}\left({\omega }_{\nu }t+{\delta }_{\nu }.-{\phi }_{\nu }\right)-{\mathrm{c}\mathrm{o}\mathrm{s}\left(+{\delta }_{\nu }.-{\phi }_{\nu }\right)e}^{-t/\tau }\right].$$

(3c)

Note: In the case, when the system is the 2nd and higher order the transient component can be calculated using Laplace or Laplace-Carson transform ($\mathcal{L}\text{-}C$), respectively, when the notation of Equation (1a) is [7]

$$U\left(p\right)=\sum _{\nu =0}^{\infty }{C}_{\nu }\frac{p\left(\mathrm{pcos}{\delta }_{\nu }+\nu \omega \sin {\delta }_{\nu }\right)}{p^2+{\left(\nu \omega \right)}^2}.$$

(4)

The last Equation (4) can be used later for the transient Fourier analysis, but it will be significantly simplified which is one of the goals of this paper.

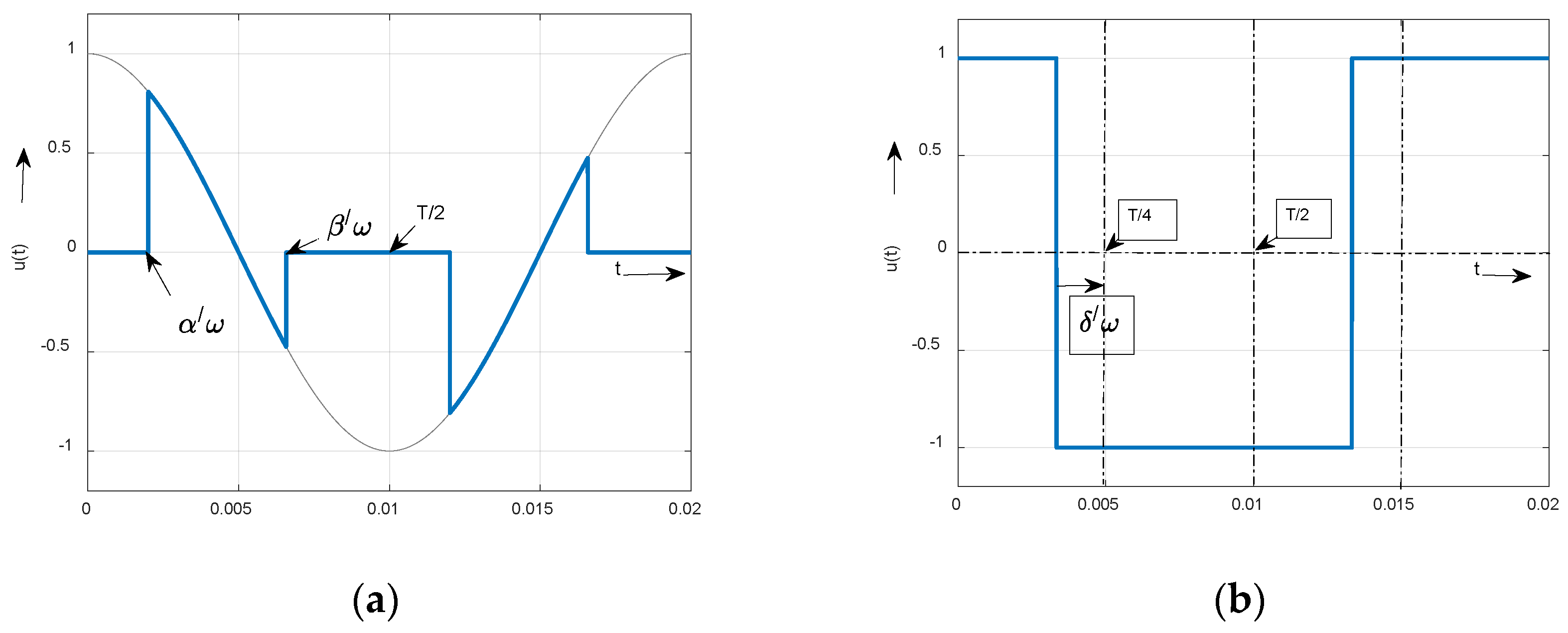

Figure 1. Time waveforms of non-harmonic courses used in EE generated by PES compensator (a) and inverter (b).

Figure 1. Time waveforms of non-harmonic courses used in EE generated by PES compensator (a) and inverter (b).

• # Analytical solutions of transient using Fourier series using the Laplace-(Carson) transform and complex time vectors inside one period

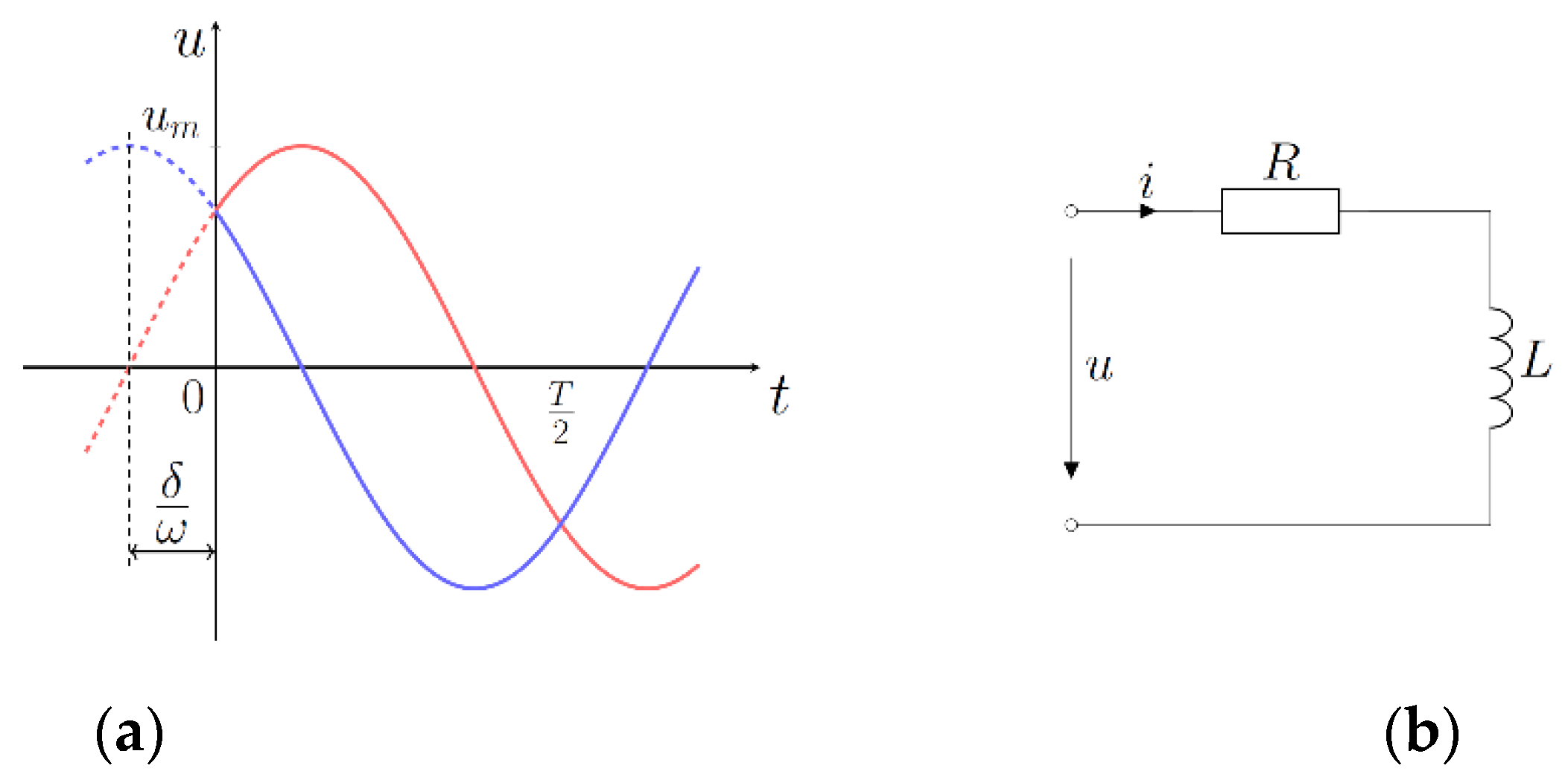

Let´s suppose a single electrical R-L circuit supplied by harmonic voltage, Figure 2.

In case of harmonic sinusoidal supply, it is valid

$$u\left(t\right)=U_m\sin (\omega t+\delta ) \mathrm{o}\mathrm{r} u\left(t\right)=U_m\cos (\omega t+\delta )$$

(5a,b)

where $\delta$ is a voltage connection angle to the load circuit or/and the initial angle of the time vector in the complex Gaussian plane.

Going back to the Fourier series, then using the relation $\left(4\mathrm{b}\right)$we can write in complex domain

$$\mathit{U}\left(t\right)=U_{m,\nu }\sum _{\nu =1}^{\infty }{\mathrm{e}}^{j\left({\omega }_{\nu }t+{\delta }_{\nu }\right)},$$

(6a)

where time course of any$\nu$-th harmonic of, e.g., the course in Figure 1b, while the angle frequency $\omega$ will be replaced by the frequency of $\nu$-th harmonic ${\omega }_{\nu }$, the phase displacement $\phi$ by ${\phi }_{\nu }$, and $\delta$ by ${\delta }_{\nu }$.

After decomposing as a sum of the first and higher harmonic components where the first term is a simple vector (${\mathit{U}}_1\left(t\right)$) starting at $\omega t=0$ rotated by an angle $\delta$, and the second one is the sum of the higher harmonic phasors ${\mathit{U}}_{\nu }\left(t\right)$.

$$\mathit{U}\left(t\right)={\mathit{U}}_1\left(t\right)+{\mathit{U}}_{\nu }\left(t\right).$$

(6b)

It is simpler to sum these two current vectors in a coordinate system fixed to the fundamental of the voltage vector. In this rotary coordinate system, the fundamental current is stationary, and the path of the current harmonics is a closed loop.

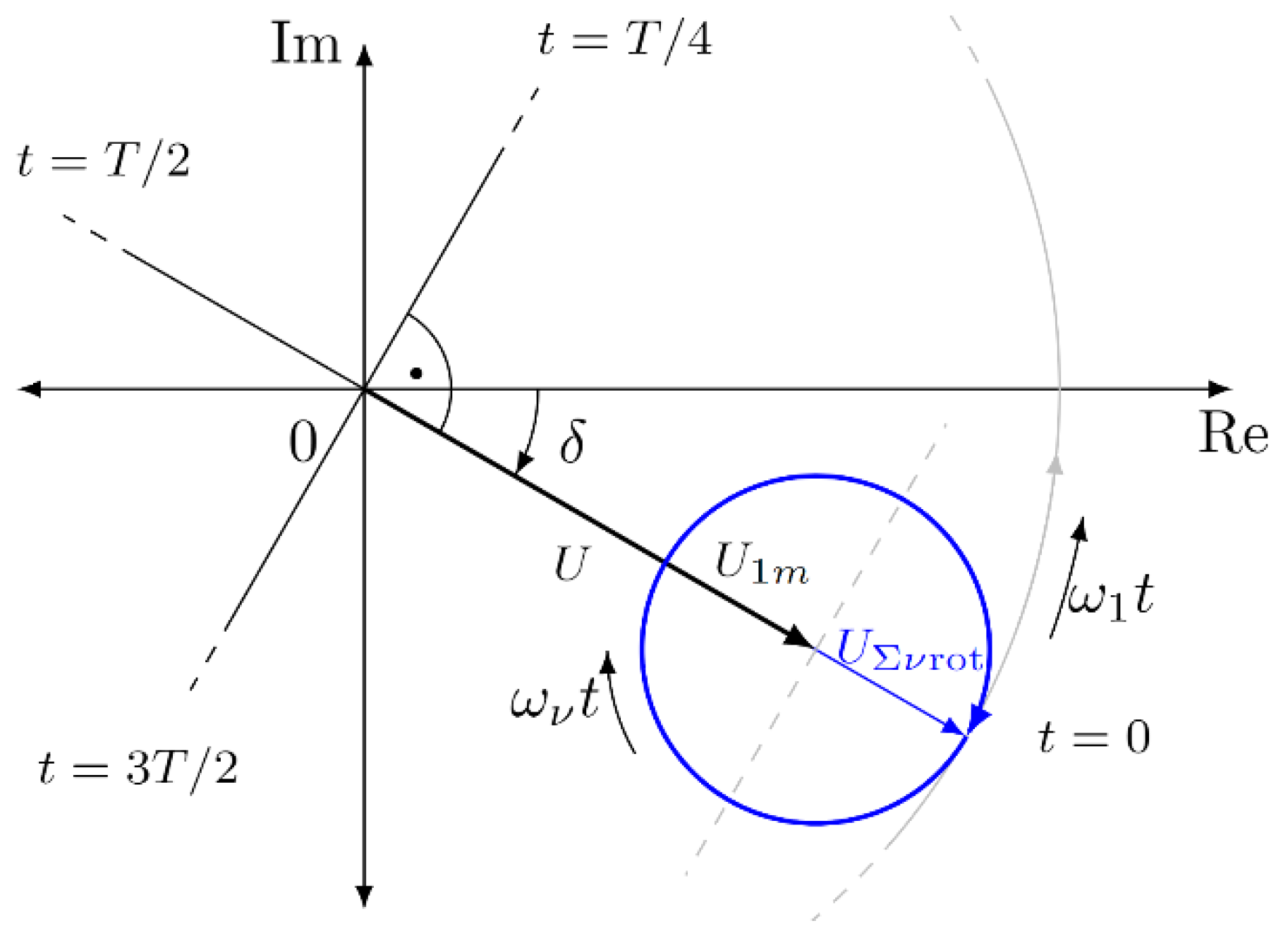

Graphics interpretation in the Gauss plane is shown in Figure 3.

Going back to the transfer analysis, each harmonic component of the sum in Equation (6a) can be further processed using Laplace or Laplace-Carson transform. So, by transforming any harmonic given by Equation (5c) we get

$$\mathit{U}\left(p\right)=\mathit{U}\left(0\right)\frac{1}{p-j\omega }$$

(7a)

using Laplace transform or

$$\mathit{U}\left(p\right)=\mathit{U}\left(0\right)\frac{p}{p-j\omega }$$

(7b)

using Laplace-Carson transform.

Comparing Equations $(9\mathrm{a},\mathrm{b})$ and $\left(7\right)$ we can see a considerable simplification of the notation.

• Then, since the operator impedance $Z\left(p\right)=R+pL$, $I\left(0\right)=0$ and using Equation $\left(9\mathrm{b}\right)$ the complex time vector of the operator current gives

$$\mathit{I}\left(p\right)=\frac{\mathit{U}\left(0\right)}{L}\frac{p}{\left(p-j\omega \right)\left(p+\frac{R}{L}\right)}$$

(8)

where the roots of the denominator are

$$p_1=j\omega ; p_2=-\frac{R}{L}.$$

(..)

Applying inverse transform using Cauchy-Heaviside theorem

$$f\left(t\right)=\sum _{k=1}^N\underset{p\to p_k}{\lim }\left(p-p_k\right) \left[\frac{F\left(p\right)}{p}{e}^{p_{k}t}\right].$$

(9)

Then the relationship is obtained

$$\mathit{I}\left(t\right)=\frac{\mathit{U}\left(0\right)}{L}\frac{1}{j\omega +\frac{R}{L}}\left({\mathrm{e}}^{j\left(\omega t\right)}-{\mathrm{e}}^{-\frac{R}{L}t}\right).$$

(10a)

By introducing complex impedance $\mathit{Z}=\left|Z\right|{\mathrm{e}}^{j\phi }$ we get

$$\mathit{I}\left(t\right)=\frac{\mathit{U}\left(0\right)}{\mathit{Z}}\left({\mathrm{e}}^{j\left(\omega t\right)}+{\mathrm{e}}^{-\frac{R}{L}t}\right)$$

(10b)

and consequently, respecting the different switch-on $\delta$ angle

$$\mathit{I}\left(t\right)=\frac{U_m}{\left|Z\right|}\left({\mathrm{e}}^{j\left(\omega t+\delta -\phi \right)}-{\mathrm{e}}^{j\left(\delta -\phi \right)}{\mathrm{e}}^{-\frac{R}{L}t}\right).$$

(10c)

From this Equation (5c) holds for the real part

$$i\left(t\right)=\frac{U_m}{\left|Z\right|}\left[\mathrm{c}\mathrm{o}\mathrm{s}\left(\omega t+\delta -\phi \right)-\mathrm{c}\mathrm{o}\mathrm{s}\left(\delta -\phi \right){\mathrm{e}}^{-\frac{R}{L}t}\right]$$

(11a)

for $u\left(t\right)=U_m\cos (\omega t+\delta )$ or/and

$$i\left(t\right)=\frac{U_m}{\left|Z\right|}\left[\mathrm{s}\mathrm{i}\mathrm{n}\left(\omega t+\delta -\phi \right)-\mathrm{s}\mathrm{i}\mathrm{n}\left(\delta -\phi \right){\mathrm{e}}^{-\frac{R}{L}t}\right]$$

(11b)

for $u\left(t\right)=U_m\sin (\omega t+\delta )$, respectively.

Supposing $t\to \infty$ we can easily get the steady state for variable $i\left(t\right)$, such as

$$i\left(t\right)=\frac{U_m}{\left|Z\right|}\left[\mathrm{c}\mathrm{o}\mathrm{s}\left(\omega t+\delta -\phi \right)\right]$$

(11c)

for $u\left(t\right)=U_m\cos (\omega t+\delta )$.

Steady-state component is also - more easily - obtained using symbolic calculus and complex time vectors respectively, directly without $\mathcal{L}\text{-}C$ transformation.

$$\mathit{I}\left(t\right)=\frac{U_m{\mathrm{e}}^{j(\omega t+\delta )}}{R+j\omega L}=\frac{\mathit{U}\left(0\right){\mathrm{e}}^{j\left(\omega t\right)}}{\left|Z\right|{\mathrm{e}}^{j\phi }}=\frac{\mathit{U}\left(0\right){\mathrm{e}}^{j\left(\omega t-\phi \right)}}{\left|Z\right|},$$

(12a)

From where the real part is founded the time waveform of the fundamental current variable $i\left(t\right)$.

$$i\left(t\right)=\frac{U_m}{\left|Z\right|}\cos \left(\omega t+\delta -\phi \right).$$

(12b)

Time waveforms of the higher harmonics are similarly, while the angle frequency $\omega$ will be replaced by the frequency of $\nu$-th harmonic ${\omega }_{\nu }$, the phase displacement $\phi$ by ${\phi }_{\nu }$, and $\delta$ by ${\delta }_{\nu }$

$$i_{\nu }\left(t\right)=\frac{{U_m}_{\nu }}{\left|Z_{\nu }\right|}\cos \left({\omega }_{\nu },t+{\delta }_{\nu }-{\phi }_{\nu }\right).$$

(12c)

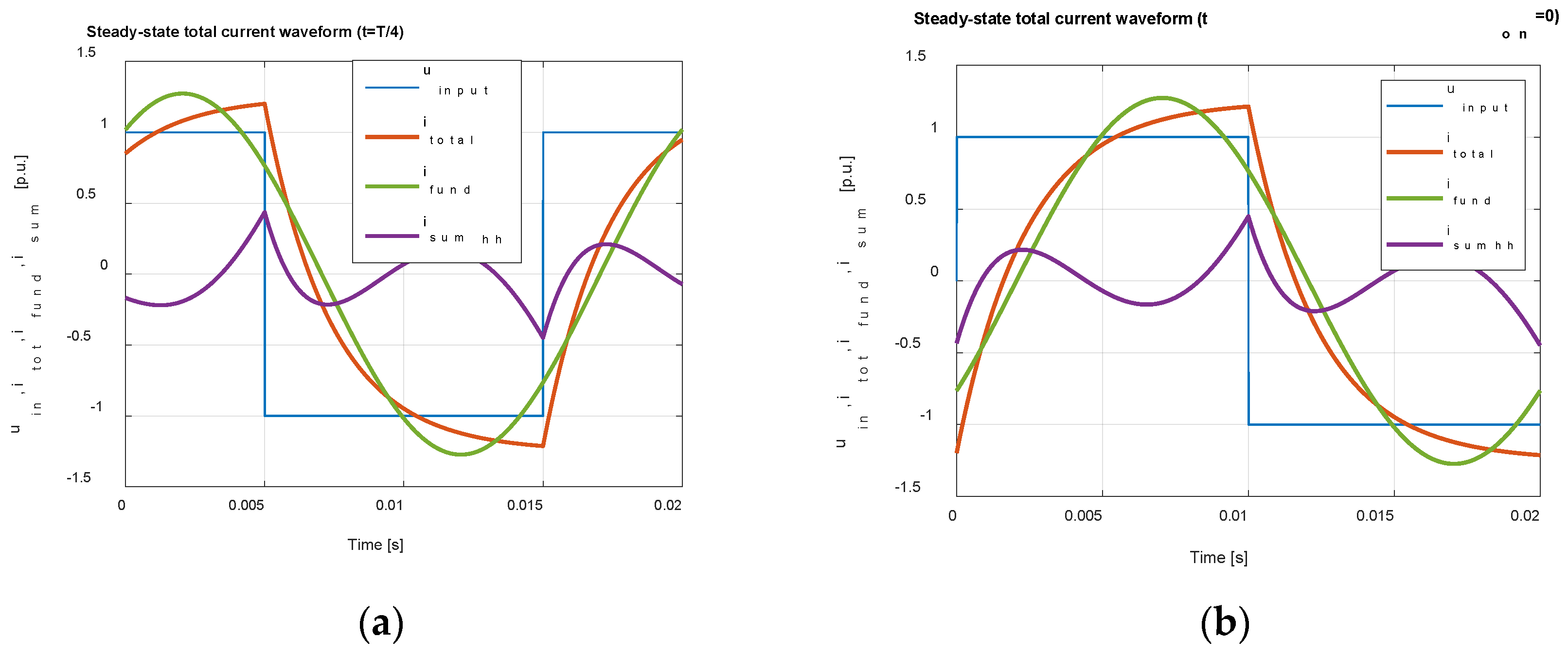

That circumstances are graphically presented as sum of fundamental and higher harmonics in Figure 4.

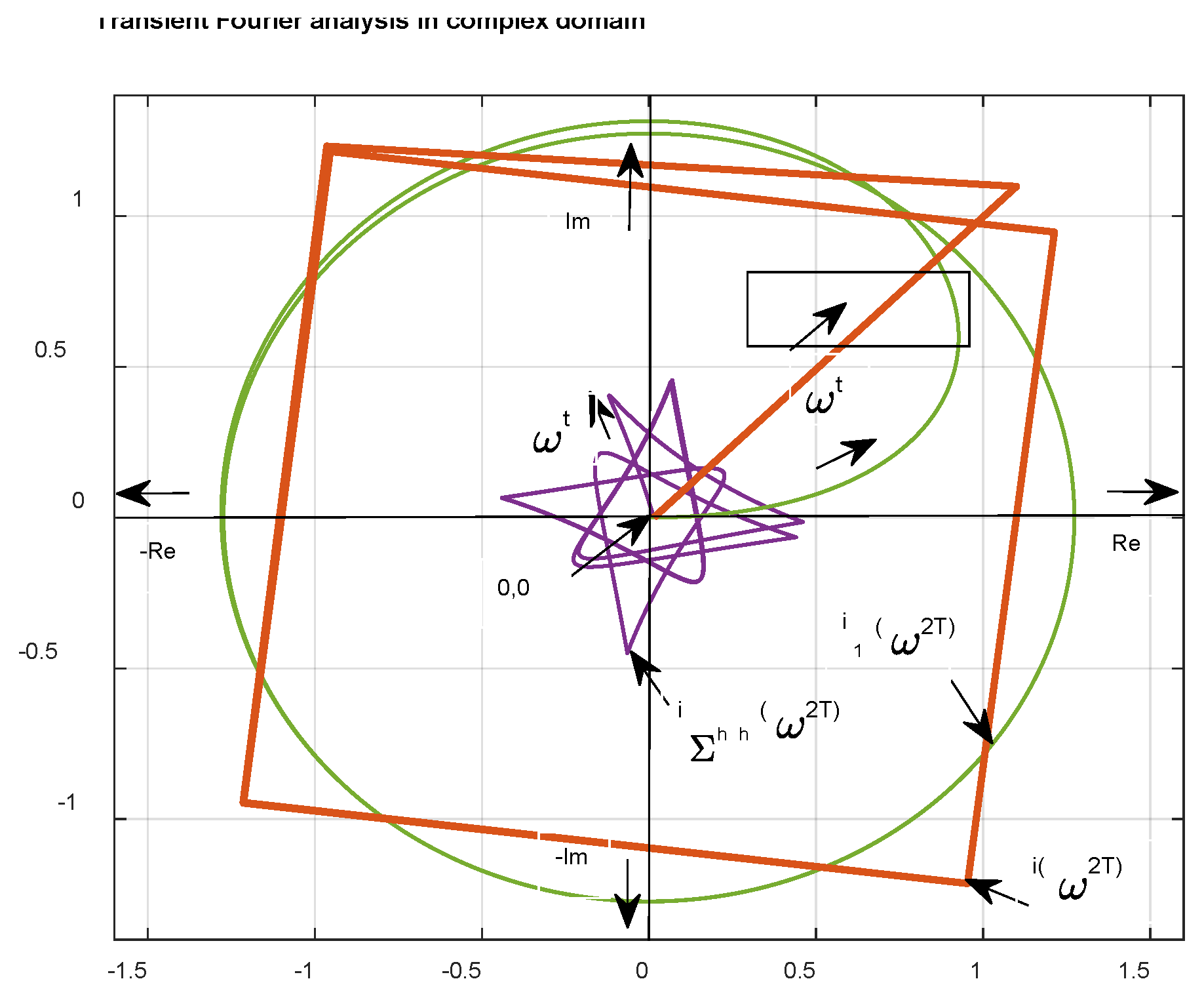

• Respecting Equation (10b) and (10c) we can graphically image in the complex Gauss plane in Figure 5.

The course of higher harmonics in the range $0-\pi /2$ is shown separately in Figure 6a in both stationary and revolving coordinate system [6] and for the transformation of the vector of higher harmonics, the relation applies

$${\mathit{i}}_{hh,rot}\left(t\right)={\mathit{i}}_{hh}\left(t\right)\mathrm{e}\mathrm{x}\mathrm{p}\left[-j\left(\omega t-\pi /2\right)\right].$$

(13)

Adding vectors of fundamental and higher harmonic components - similarly as in time domain – we get

$$\mathit{I}\left(t\right)={\mathit{I}}_1\left(t\right)+{U_m}_{\nu }\sum _{\nu =3}^{\infty }\frac{1}{\nu \left|Z_{\nu }\right|}{\mathrm{e}}^{j\left({\omega }_{\nu }t-{\phi }_{\nu }\right)}.$$

(13c)

Since the first term is a simple rotating vector (i.e., phasor) starting at $\omega t=0$ rotated by an angle $-\phi$, the second one is the sum of the higher harmonic phasors ${\mathit{I}}_{\nu }\left(t\right)$.

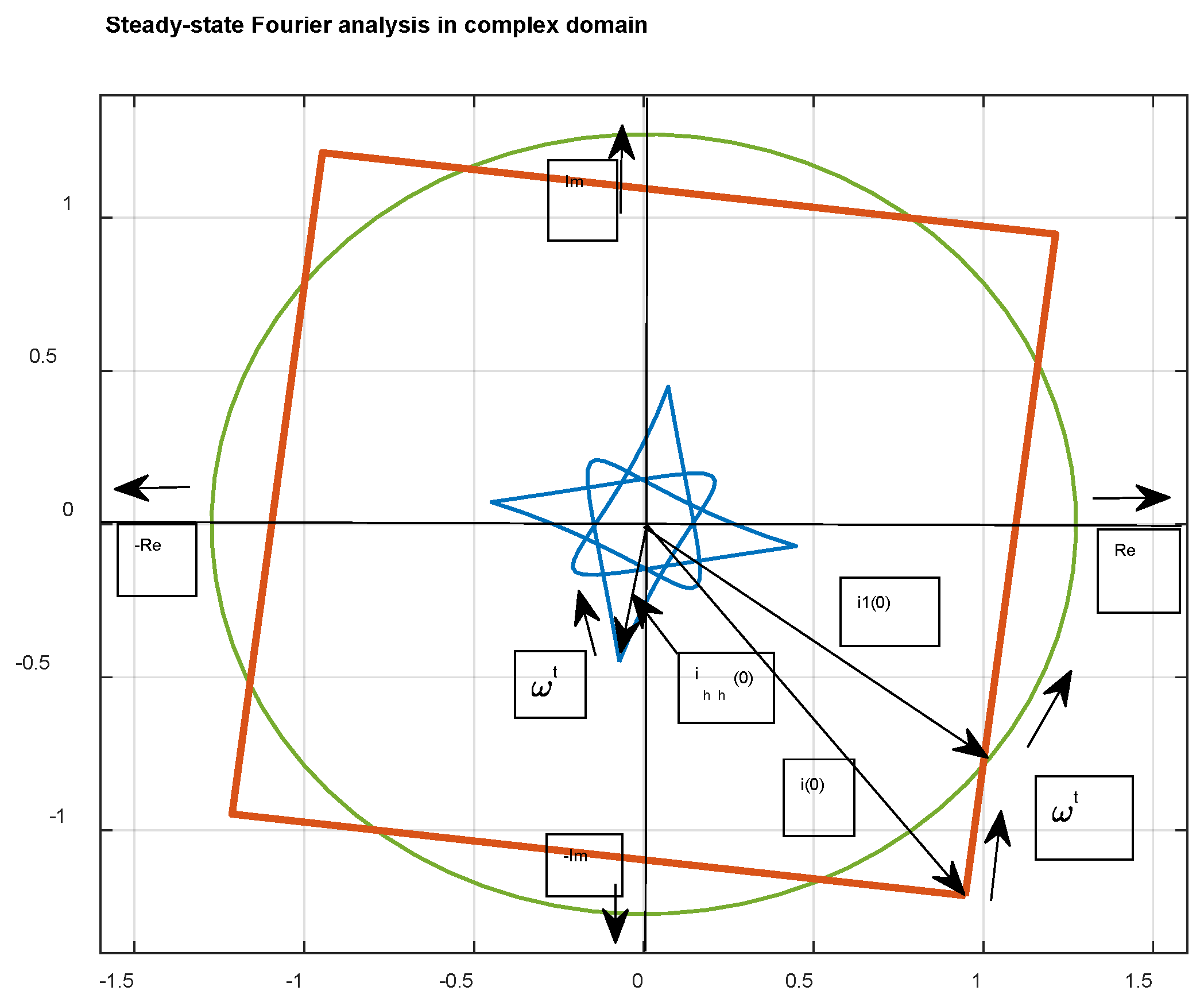

The obtained result can be displayed, Figure 6.

Supposing $\delta$ equal 0 the steady-state is simply

$${\mathit{I}}_{\nu }\left(t\right)=\frac{{U_m}_{\nu }}{\left|Z_{\nu }\right|}{\mathrm{e}}^{j\left({\omega }_{\nu }t-{\phi }_{\nu }\right)}$$

(14a)

where ${U_m}_{\nu }=U_m/\nu$ and thus the amplitude spectrum is monotonically decreasing. The fundamental harmonic in time domain is given by Equation (14b) if the switching angle δ were zero.

$$i\left(t\right)=\frac{U_m}{\left|Z\right|}\left[\mathrm{c}\mathrm{o}\mathrm{s}\left(\omega t+\delta -\phi \right)\right]$$

(14b)

for $u\left(t\right)=U_m\cos (\omega t+\delta )$.

The transient component one obtains from Equation $\left(11\mathrm{a}\right)$ for ‘cosine’ supply (with cosine components)

$$i\left(t\right)=\frac{U_m}{\left|Z\right|}\left[-\mathrm{c}\mathrm{o}\mathrm{s}\left(\delta -\phi \right){\mathrm{e}}^{-\frac{R}{L}t}\right]$$

(14c)

Or $\left(11\mathrm{b}\right)$ for ‘sine’ supply (with sine components).

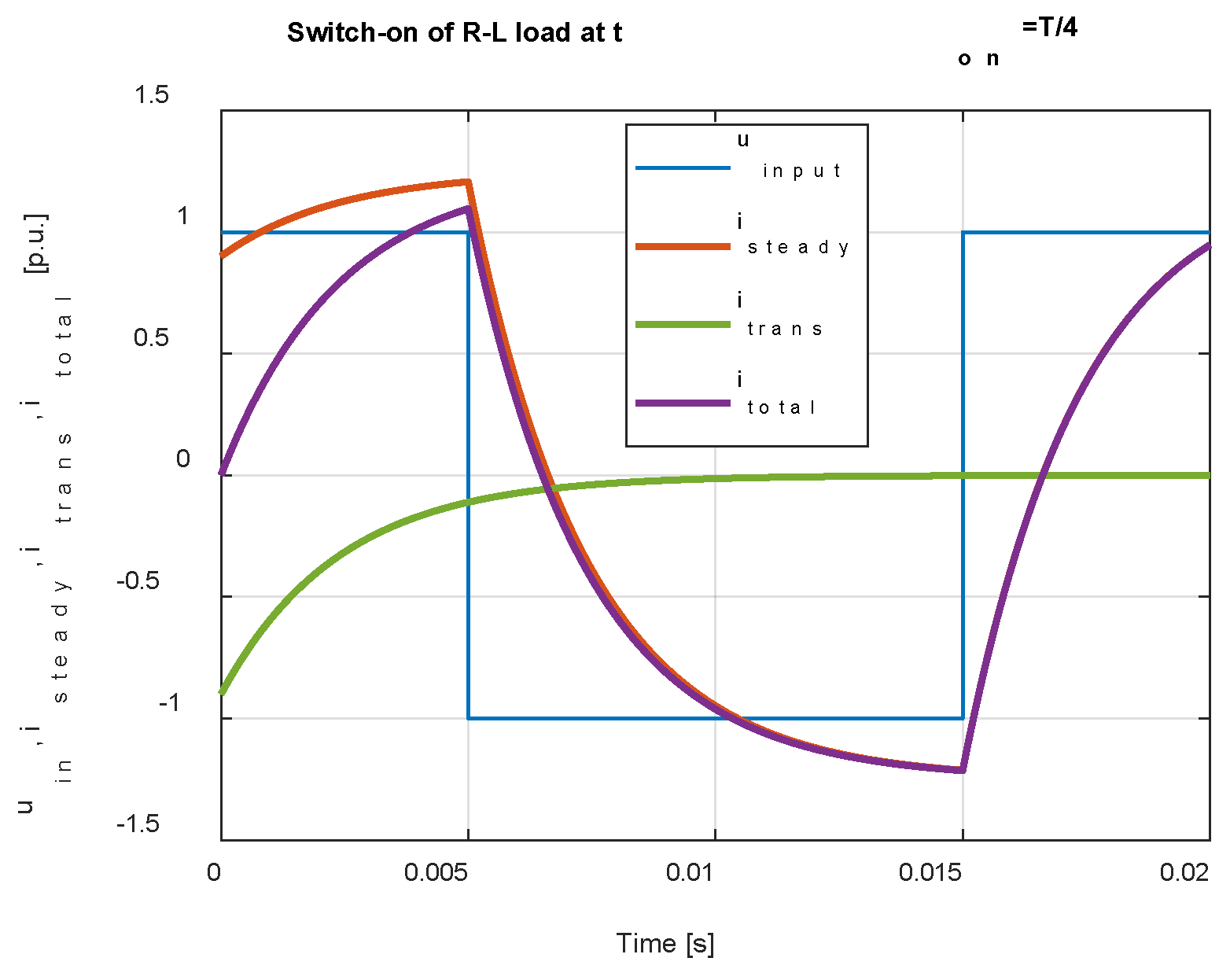

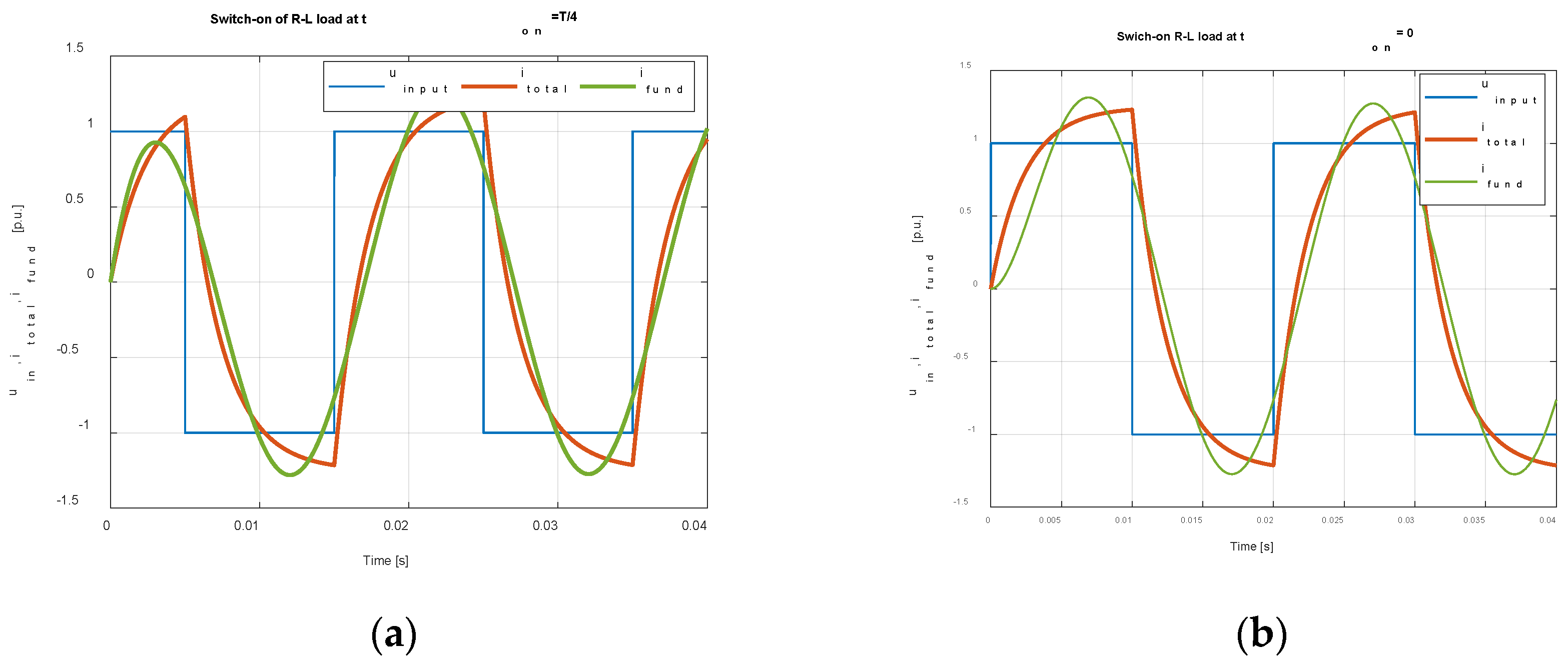

Graphic imaging in the time domain is shown in Figure 7.

Using the above approach given by Equations (7a,b)–(11c), it is possible to calculate the current time course of any $\nu$-th harmonic, thus

$${\mathit{I}}_{\nu }\left(t\right)=\frac{{U_m}_{\nu }}{\left|Z_{\nu }\right|}\left({\mathrm{e}}^{j\left({\omega }_{\nu }t+{\delta }_{\nu }-{\phi }_{\nu }\right)}-{\mathrm{e}}^{j\left({\delta }_{\nu }.-{\phi }_{\nu }\right)}{\mathrm{e}}^{-\frac{R}{L}t}\right).$$

(15a)

and its real part

$$i_{\nu }\left(t\right)=\frac{{U_m}_{\nu }}{\left|Z_{\nu }\right|}\left[\mathrm{c}\mathrm{o}\mathrm{s}\left({\omega }_{\nu }t+{\delta }_{\nu }.-{\phi }_{\nu }\right)-\mathrm{c}\mathrm{o}\mathrm{s}\left({\delta }_{\nu }.-{\phi }_{\nu }\right){\mathrm{e}}^{-\frac{R}{L}t}\right].$$

(15b)

So, the transient course will be

$$i_{trans}\left(t\right)=\frac{4}{\pi }{U}_m\sum _{\nu =1}^{\infty }\frac{1}{\nu \left|Z_{\nu }\right|}\left[\mathrm{c}\mathrm{o}\mathrm{s}\left({\omega }_{\nu }t+{\delta }_{\nu }.-{\phi }_{\nu }\right)-\mathrm{c}\mathrm{o}\mathrm{s}\left({\delta }_{\nu }.-{\phi }_{\nu }\right){\mathrm{e}}^{-\frac{R}{L}t}\right].$$

(16)

Graphic interpretation of Equation $\left(16\right)$ is shown in Figure 8.

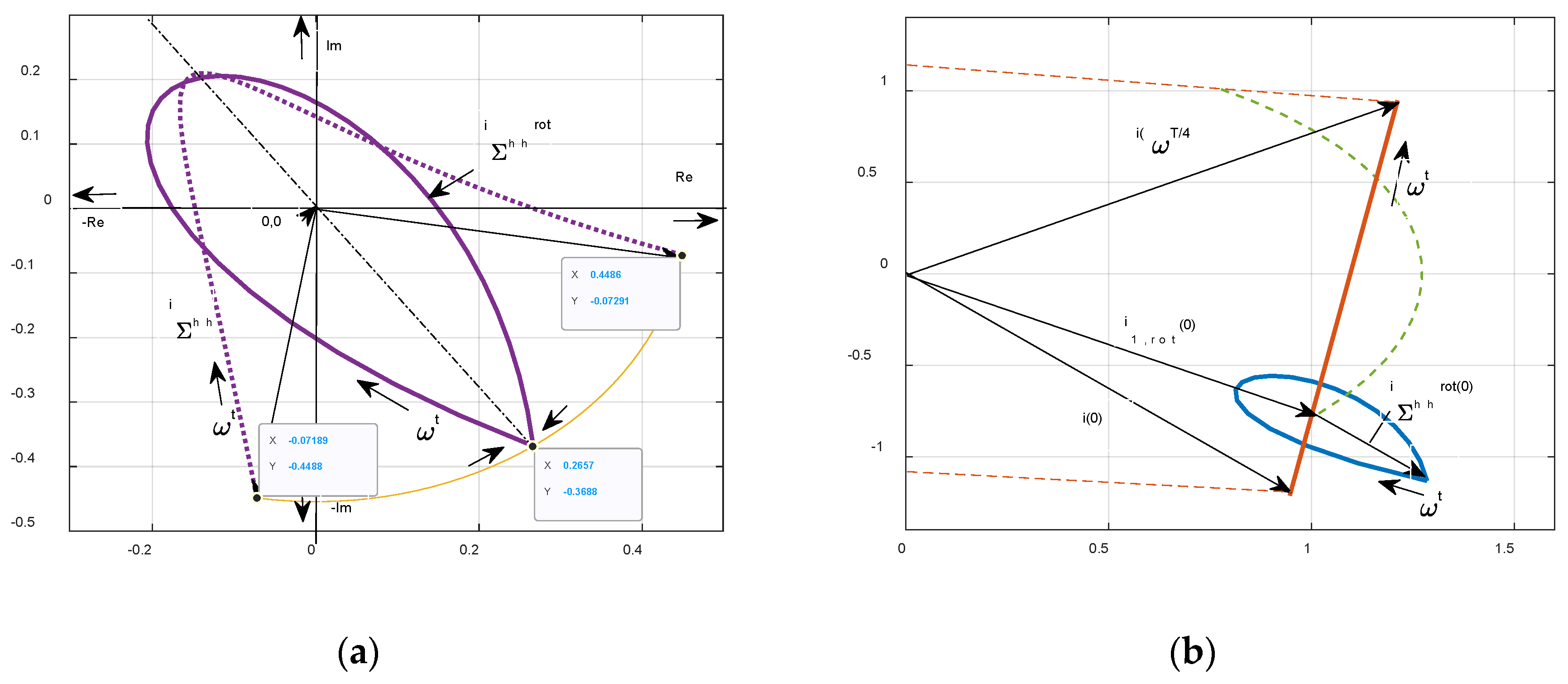

Respecting Equations (15a) and (16) we can graphically image in the complex Gauss plane in Figure 9.

3. Transient Analysis of PES System using Fourier Integral Transform

As the Fourier transformation is defined over the entire time and not just for the positive values of time. However, in the circuit analysis, as was previously mentioned, the forcing functions and their responses are usually initiated at $t=0$. Therefore, for such functions, the Fourier transform (Equation (4.13a)) might be written as

$$\mathit{F}\left(j\omega \right)=\underset{-\infty }{\overset{\infty }{\int }}u\left(t\right)f\left(t\right)e^{-j\omega t}\mathrm{d}t=\underset{0}{\overset{\infty }{\int }}f\left(t\right)e^{-j\omega t}\mathrm{d}t$$

(17)

where $u\left(t\right)$ means the unit-step function at $t=0$.

Compared to the Laplace transform, for the function that does possess condition (Equation (4.39a)) we may find the Fourier transform by just replacing s with $j\omega$ in the Laplace transform, i.e.,

$$\mathit{F}\left(j\omega \right)=\mathit{F}{(\left.s)\right|}_{\mathit{s}=j\omega }$$

(17a)

This way of finding the function spectra for most of the non-periodic functions is the simplest and most convenient one.

In the next power electronics applications, we solve the transient analysis by both methods: firstly, using Fourier series/expansions focusing on the steady-steady operation, and then by Fourier transform focusing on the transient analysis.

• # Case of passive resistive-inductive load (without e.m.f.)

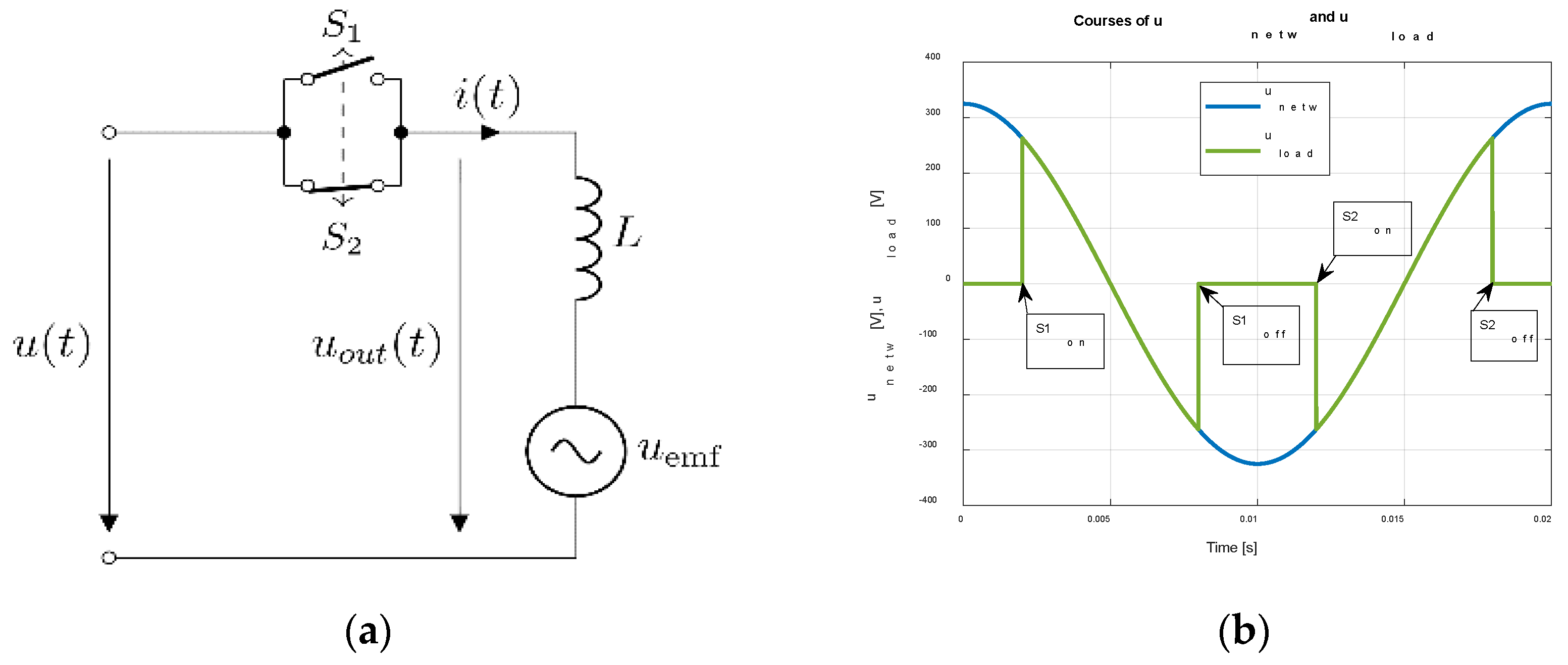

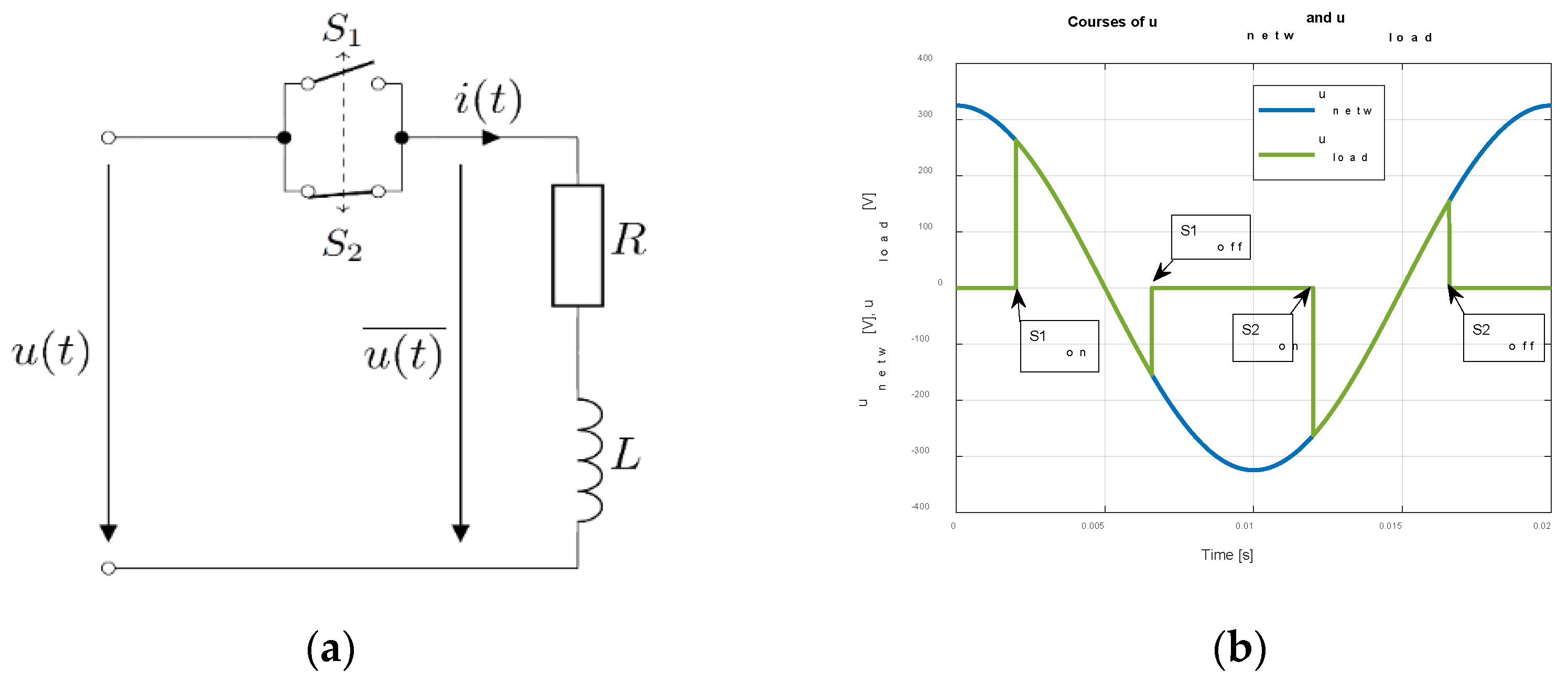

The connection of the electrical circuit is shown in Figure 10a, principle courses of the input and output (load) voltages in Figure 10b.

For AC symmetric waveform is valid

$$f\left(t\right)=a_1\cos \omega t+\dots +a_{\nu }\cos \omega t++b_1\sin \omega t+\dots +b_{\nu }\sin \omega t.$$

(18)

Fourier coefficients for $\nu$-harmonics type of cosine

$$a_{\nu }=U_m\frac{2}{T}\underset{0}{\overset{T}{\int }}\cos \omega t.\cos \nu \omega t \mathrm{d}t=$$

$$=U_m\frac{1}{\pi }\underset{0}{\overset{2\pi }{\int }}\cos \omega t.\cos \nu \omega t \mathrm{d}\mathsf{\omega }t=U_m\frac{2}{\pi }\underset{0}{\overset{\pi }{\int }}\cos \omega t.\cos \nu \omega t \mathrm{d}\mathsf{\omega }t=$$

$$=U_m\frac{1}{\pi }\underset{0}{\overset{\pi }{\int }}\left[\cos \left(1-\nu \right)\omega t+\cos \left(1+\nu \right)\omega t\right] \mathrm{d}\mathsf{\omega }t=$$

$$=U_m\frac{1}{\pi }(\underset{\alpha }{\overset{\pi /2}{\int }}+\underset{\pi /2}{\overset{\beta ?}{\int }})\left[\cos \left(1-\nu \right)\omega t+\cos \left(1+\nu \right)\omega t\right] \mathrm{d}\mathsf{\omega }t$$

$${=U}_m\frac{1}{\pi }\left\{{\left[\frac{\sin \left(1-\nu \right)\mathit{\omega t}}{\left(1-\nu \right)}+\frac{\sin \left(1+\nu \right)\omega t}{\left(1+\nu \right)}\right]}_{\alpha }^{\pi /2}+{\left[\frac{\sin \left(1-\nu \right)\mathit{\omega t}}{\left(1-\nu \right)}+\frac{\sin \left(1+\nu \right)\omega t}{\left(1+\nu \right)}\right]}_{\pi /2}^{\beta }\right\}=$$

$${=U}_m\frac{1}{\pi }\left[\frac{\mathrm{s}\mathrm{i}\mathrm{n}\left(1-\nu \right)\beta -\mathrm{s}\mathrm{i}\mathrm{n}\left(1-\nu \right)\alpha }{\left(1-\nu \right)}+\frac{\sin \left(1+\nu \right)\beta -\sin \left(1+\nu \right)\alpha }{\left(1+\nu \right)}\right].$$

(18a)

As $\mathsf{\nu }=2k+1$ then $1-\mathsf{\nu }=2k$ and $1+\mathsf{\nu }=2k+2$

$$a_{\nu }=U_m\frac{1}{\pi }\left[\frac{\mathrm{s}\mathrm{i}\mathrm{n}2k\beta -\mathrm{s}\mathrm{i}\mathrm{n}2k\alpha }{2k}+\frac{\sin 2\left(k+1\right)\beta -\sin 2\left(k+1\right)\alpha }{2\left(k+1\right)}\right].$$

(18b)

Since

$$\underset{k=0}{\lim }\frac{\mathrm{s}\mathrm{i}\mathrm{n}2k\beta -\mathrm{s}\mathrm{i}\mathrm{n}2k\alpha }{2k}=\beta -\alpha$$

$$a_1=U_m\frac{1}{\pi }\left[\left(\beta -\alpha \right)-\frac{\sin 2\beta -\sin 2\alpha }{2}\right].$$

(18c)

And similarly for sine-coefficients

$$b_{\nu }=U_m\frac{2}{T}\underset{0}{\overset{T}{\int }}\cos \omega t.\sin \nu \omega t \mathrm{d}t=$$

$$=U_m\frac{1}{\pi }\underset{0}{\overset{2\pi }{\int }}\cos \omega t.\sin \nu \omega t \mathrm{d}\mathsf{\omega }t=U_m\frac{2}{\pi }\underset{0}{\overset{\pi }{\int }}\cos \omega t.\sin \nu \omega t \mathrm{d}\mathsf{\omega }t=$$

$$=U_m\frac{1}{\pi }\underset{0}{\overset{\pi }{\int }}\left[\sin \left(1+\nu \right)\omega t-\sin \left(1-\nu \right)\omega t\right] \mathrm{d}\mathsf{\omega }t=$$

$$=U_m\frac{1}{\pi }(\underset{\alpha }{\overset{\pi /2}{\int }}+\underset{\pi /2}{\overset{\beta }{\int }})\left[\sin \left(1+\nu \right)\omega t-\sin \left(1-\nu \right)\omega t\right] \mathrm{d}\mathsf{\omega }t$$

$${=U}_m\frac{1}{\pi }\left\{{\left[\frac{-\cos \left(1+\nu \right)\omega t}{1+\nu }-\frac{-\cos \left(1-\nu \right)\omega t}{1-\nu }\right]}_{\alpha }^{\pi /2}+{\left[\frac{-\cos \left(1+\nu \right)\omega t}{1+\nu }-\frac{-\cos \left(1-\nu \right)\omega t}{1-\nu }\right]}_{\pi /2}^{\beta }\right\}=$$

$${=U}_m\frac{1}{\pi }\left\{{\left[\frac{\cos \left(1+\nu \right)\omega t}{1+\nu }-\frac{\cos \left(1-\nu \right)\omega t}{1-\nu }\right]}_{\pi /2}^{\alpha }+{\left[\frac{\cos \left(1+\nu \right)\omega t}{1+\nu }-\frac{\cos \left(1-\nu \right)\omega t}{1-\nu }\right]}_{\beta }^{\pi /2}\right\}=$$

$${=U}_m\frac{1}{\pi }{\left(-1\right)}^{\nu }\left[\frac{\cos \left(\nu +1\right)\beta -\cos \left(\nu -1\right)\alpha }{\nu -1}-\frac{\cos \left(\nu +1\right)\beta -\cos \left(\nu +1\right)\alpha }{\nu +1}\right].$$

(19a)

As $\mathsf{\nu }=2k+1$ then $1-\mathsf{\nu }=2k$ and $1+\mathsf{\nu }=2k+2$

$$b_{\nu }=U_m\frac{1}{\pi }\left[\frac{\mathrm{c}\mathrm{o}\mathrm{s}2k\beta -\mathrm{c}\mathrm{o}\mathrm{s}2k\alpha }{2k}+\frac{\cos 2\left(k+1\right)\beta -\cos 2\left(k+1\right)\alpha }{2\left(k+1\right)}\right].$$

(19b)

Since

$$\underset{k=0}{\lim }\frac{\mathrm{s}\mathrm{i}\mathrm{n}2k\beta -\mathrm{s}\mathrm{i}\mathrm{n}2k\alpha }{2k}=0$$

$$b_1={-U}_m\frac{1}{\pi }\frac{\cos 2\beta -\cos 2\alpha }{2}.$$

(19c)

Thus, the input voltage expressed by the Fourier series is defined using Equations $\left(1\right)-\left(3\right)$.

Then, for the load current using Equations (18b) and (19)

$$i\left(t\right)=U_m\sum _{\nu =1}^{\infty }{c}_{\nu }\frac{\cos \left(\nu \omega t-{\vartheta }_{\nu }-{\phi }_{\nu }\right)-\cos \left({\vartheta }_{\nu }-{\phi }_{\nu }\right)e^{-t/{\tau }_{\nu }}}{\sqrt{R^2+{\left(\nu \omega L\right)}^2}}$$

(20a)

where ${\phi }_{\mathsf{\nu }}=\mathrm{a}\mathrm{t}\mathrm{a}\mathrm{n}\left(\mathsf{\nu }\omega L/R\right)$ and ${\tau }_{\mathsf{\nu }}=\mathsf{\nu }L/R$.

Note: with a purely inductive load ($R=0$) the transient component $e^{-t/{\tau }_{\nu }}$ will zero

$$i\left(t\right)=U_m\sum _{\nu =1}^{\infty }{c}_{\nu }\frac{\cos \left(\nu \omega t-{\vartheta }_{\nu }-{\phi }_{\nu }\right)}{\sqrt{R^2+{\left(\nu \omega L\right)}^2}}.$$

(20b)

Note: if $\alpha =0$ and $R=0$ the load current will be purely sinusoidal one i.e., for fundamental harmonic

$$i\left(t\right)=\frac{U_m}{\left|Z\right|}\cos \left(\omega t-\phi \right).$$

If the load current $i\left(t\right)$ will be zero, then $\omega t=\beta$ and so

$$\sum _{\nu =1}^{\infty }{c}_{\nu }\frac{\cos \left(\nu \beta -{\vartheta }_{\nu }-{\phi }_{\nu }\right)}{\sqrt{R^2+{\left(\nu \omega L\right)}^2}}=0$$

(20c)

from where it is possible to obtain the angle $\beta$, e.g., in an iterative way. If $\beta =\pi -\alpha$ it means that the load is purely inductive.

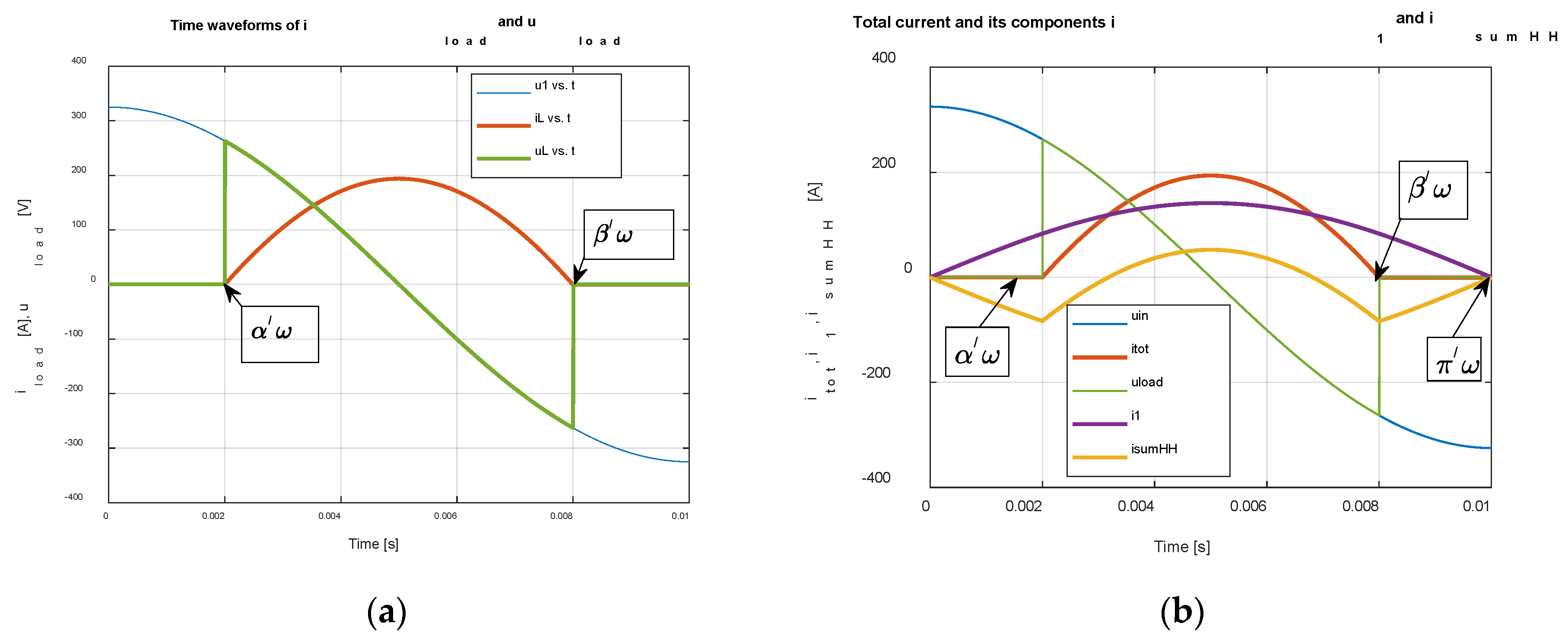

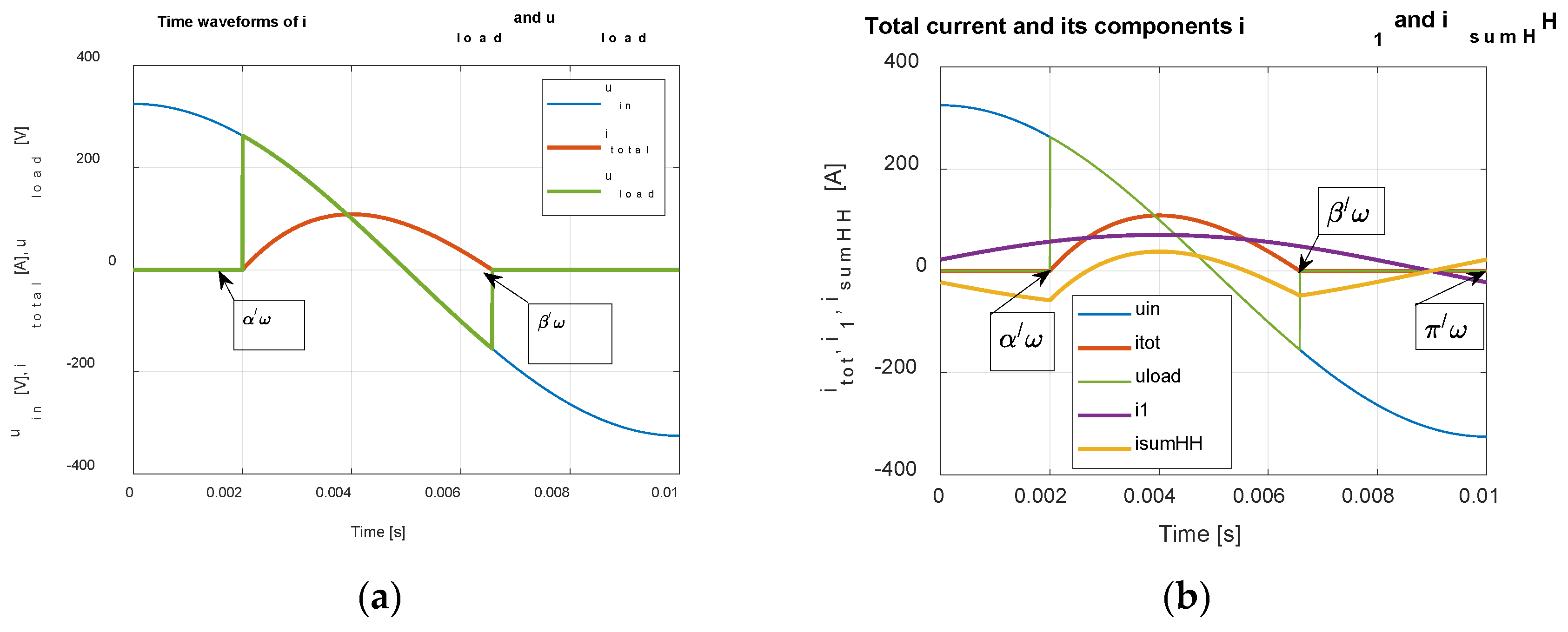

Graphic interpretation of Equatiom $\left(20\mathrm{b}\right)$ is shown in Figure 11. Parameters of the system are given in Table 1.

The solution of the transient phenomenon of the system is significant only in the case of uninterrupted current, with the turn-on angle equal to the phase shift angle, i.e., 36.76 – 90 = - 53.24 °el. Then the current will be pure sinusoidal. During the transient state by switching on at α = 0 the current will increase from zero to a steady state according to relation (6c) modified for the fundamental harmonic

$$i_{RL}\left(t\right)=\frac{U_m}{Z}{\left.\left[\mathrm{c}\mathrm{o}\mathrm{s}\left({\omega }_{1}t+\alpha -{\phi }_1\right)-{\mathrm{c}\mathrm{o}\mathrm{s}\left(\alpha -{\phi }_1\right)e}^{-t/{\tau }_1}\right]\right|}_{\alpha =0}.$$

(21)

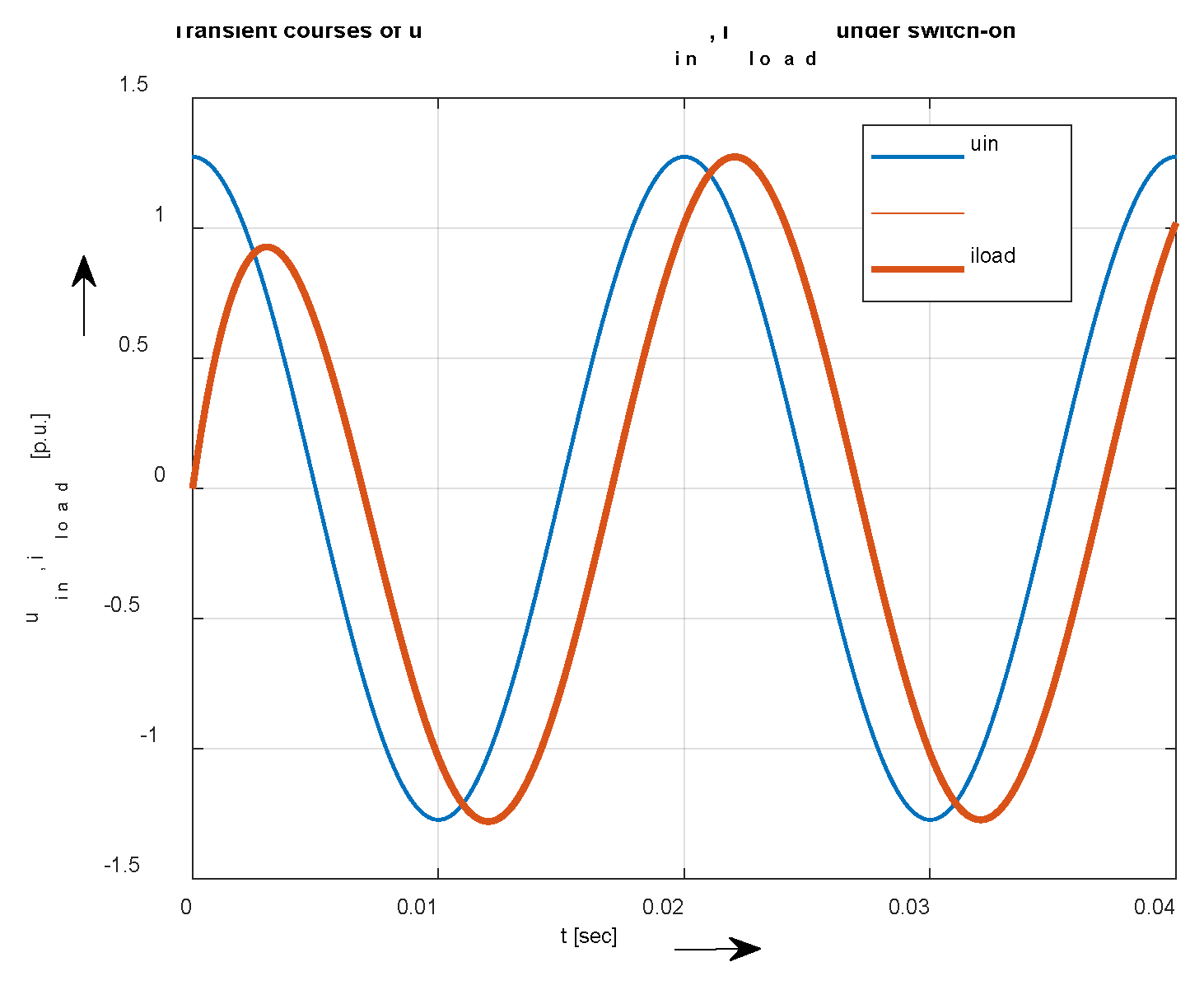

The waveform for $\alpha =0$ is shown in Figure 12.

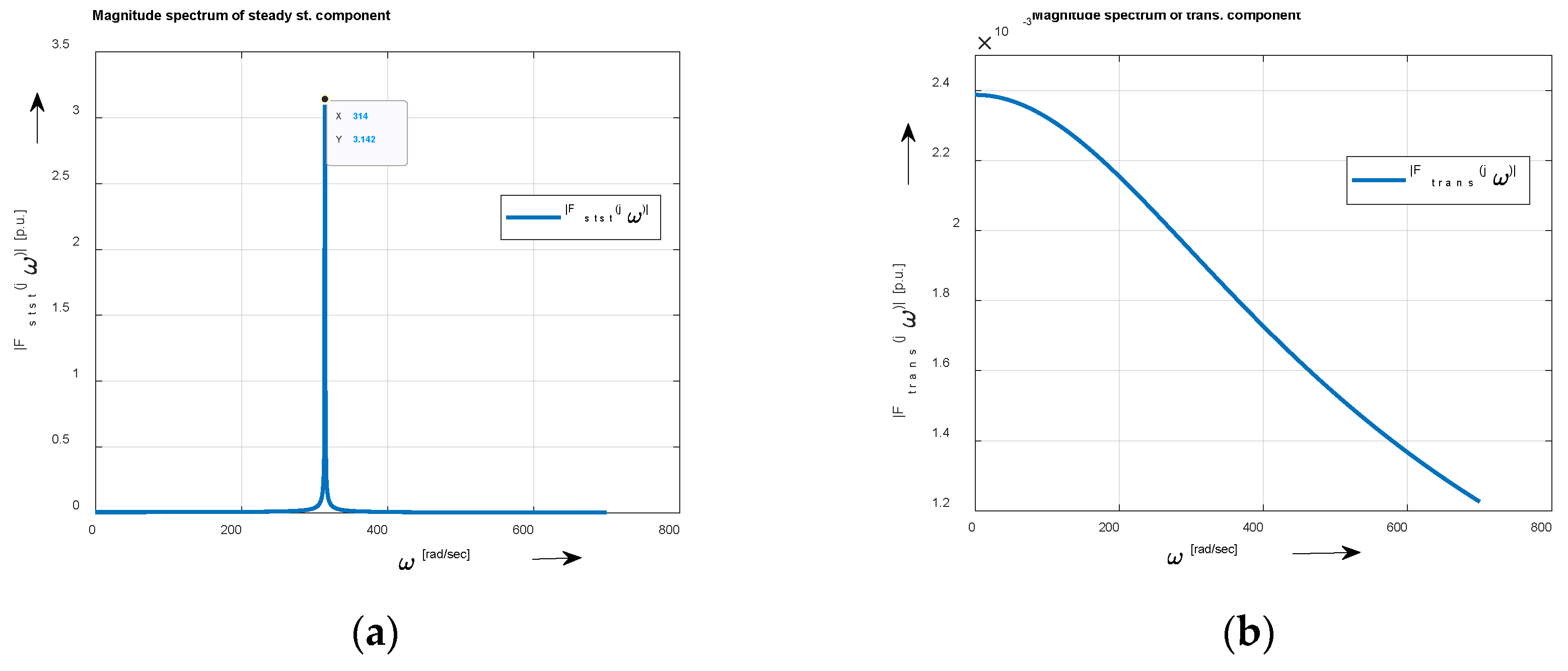

Since the equation consists of steady- and transient-state components, we can write

$${\mathit{F}}_{i_{RL}}\left(j\omega \right)={\mathit{F}}_{st-st}\left(j\omega \right)+{\mathit{F}}_{trans}\left(j\omega \right)=$$

$$=\frac{U_m}{Z}\underset{0}{\overset{\infty }{\int }}\mathrm{c}\mathrm{o}\mathrm{s}\left({\omega }_{1}t-{\phi }_1\right)e^{-j\omega t}\mathrm{d}t+\frac{U_m}{Z}\underset{0}{\overset{\infty }{\int }}\mathrm{c}\mathrm{o}\mathrm{s}\left(-{\phi }_1\right)e^{-t/{\tau }_1}{e}^{-j\omega t}\mathrm{d}t.$$

(22)

Taking into account Tables 4.2 and 4.3 in [Sh] the Fourier transform of $i_{RL}\left(t\right)$ function can be derived (a simplified approach [Sh]) namely the time-shift rule

$$f\left(t\pm t_1\right) \leftrightarrow e^{j\omega t_1}\mathcal{F}\left\{f\left(t\right)\right\}$$

(23)

where $t_1=\frac{{\phi }_1}{{\omega }_1}$.

Then, for steady-state component

$${\mathit{F}}_{st-st}\left(j\omega \right)=e^{j{\phi }_1}{\mathcal{F}}_{st-st}\left\{u\left(t\right)\mathrm{c}\mathrm{o}\mathrm{s}{\omega }_{1}t\right\}=\frac{U_m}{Z}{e}^{j{\phi }_1}{\mathcal{F}}_{st-st}\left\{\frac{1}{2}\left[e^{j{\omega }_{1}t}+e^{-j{\omega }_{1}t}\right]\right\}=\frac{U_m}{Z}\frac{1}{2}{e}^{j{\phi }_1}\left\{{\mathit{F}}_u\left[j\left(\omega -{\omega }_1\right)\right]+{\mathit{F}}_u\left[j\left(\omega +{\omega }_1\right)\right]\right\}=$$

$$=\frac{U_m}{Z}\frac{1}{2}{e}^{j\omega \frac{{\phi }_1}{{\omega }_1}}\left[\pi \delta \left(\omega -{\omega }_1\right)+\frac{1}{j\left(\omega -{\omega }_1\right)}+\pi \delta \left(\omega +{\omega }_1\right)+\frac{1}{j\left(\omega +{\omega }_1\right)}\right]=$$

$$=\frac{U_m}{Z}\left\{\frac{\pi }{2}\left[\delta \left(\omega -{\omega }_1\right)+\delta \left(\omega +{\omega }_1\right)\right]e^{j{\phi }_1}+\frac{j\omega }{\left({{\omega }_1}^2{-\omega }^2\right)}{e}^{j{\phi }_1}\right\}.$$

(24)

And, for transient component

$${\mathit{F}}_{trans}\left(j\omega \right)={\mathcal{F}}_{trans}\left\{\frac{U_m}{Z}\mathrm{c}\mathrm{o}\mathrm{s}\left(-{\phi }_1\right)e^{-t/{\tau }_1}\right\}=\frac{U_m}{Z}\cos {\phi }_1\frac{1}{j\omega +\frac{1}{{\tau }_1}}.$$

(25)

The graphic interpretation of the amplitude spectra of both components is shown in Figure 13 in the relative p.u. units (i.e., $U_m/Z\equiv 1)$.

Since the time constant ${\tau }_1$ is rather small (2.3875 msec.), i.e., smaller than one-fourth of the time-period (Figure 12) the predominant component is the steady-state one.

# Case of active-inductive load with back e.m.f.

The connection of the electrical circuit is shown in Figure 14a, principle time waveforms of the input and output (load) voltages in Figure 14b, where the input voltage $u_{in}\left(t\right)$ is harmonic cosine function, and S₁ and S₂ are electronic switches.

Fourier coefficients of that series are calculated by Euler relations.

If $\beta =\pi -\alpha$

$$a1=\frac{8}{T}\underset{\frac{\alpha }{\omega }}{\overset{\frac{T}{4}}{\int }}\cos \omega t.\cos \omega t \mathrm{d}t=\frac{2}{\pi }\underset{\alpha }{\overset{\pi }{\int }}{\cos }^2\omega t\mathrm{d}\mathsf{\omega }t=$$

$$=\frac{1}{\pi }\underset{\alpha }{\overset{\pi }{\int }}\left(1+\mathrm{c}\mathrm{o}\mathrm{s}2\omega t\right)\mathrm{d}\mathsf{\omega }t=\frac{1}{\pi }(\underset{\alpha }{\overset{\frac{\pi }{2}}{\int }}+\underset{\frac{\pi }{2}}{\overset{\beta =\pi -\alpha }{\int }})\left(1+\mathrm{c}\mathrm{o}\mathrm{s}2\omega t\right)\mathrm{d}\mathsf{\omega }t=$$

$$=\frac{1}{\pi }{\left[\omega t\right]}_{\alpha }^{\pi /2}+\frac{1}{2\pi }{\left[\mathrm{s}\mathrm{i}\mathrm{n}2\omega t\right]}_{\alpha }^{\pi /2}+\frac{1}{\pi }{\left[\omega t\right]}_{\frac{\pi }{2}}^{\pi -\alpha }+\frac{1}{2\pi }{\left[\mathrm{s}\mathrm{i}\mathrm{n}2\omega t\right]}_{\frac{\pi }{2}}^{\pi -\alpha }=$$

$$=\frac{1}{\pi }\left(\frac{\pi }{2}-\alpha \right)+\left(0-\frac{1}{2\pi }\mathrm{s}\mathrm{i}\mathrm{n}2\alpha \right)+\frac{1}{\pi }\left(\pi -\alpha -\frac{\pi }{2}\right)+\frac{1}{2\pi }\mathrm{s}\mathrm{i}\mathrm{n}2\left(\pi -\alpha \right)-0=$$

$$=\frac{2}{\pi }\left(\frac{\pi }{2}-\alpha \right)-\frac{1}{2\pi }\mathrm{s}\mathrm{i}\mathrm{n}2\alpha +\frac{1}{2\pi }\mathrm{s}\mathrm{i}\mathrm{n}2\left(\pi -\alpha \right)=$$

$$=1-\frac{2\alpha }{\pi }-\frac{1}{2\pi }\mathrm{s}\mathrm{i}\mathrm{n}2\alpha -\frac{1}{2\pi }\mathrm{s}\mathrm{i}\mathrm{n}2\alpha =1-\frac{2\alpha }{\pi }-\frac{\sin 2\alpha }{\pi }.$$

(26a)

Or

$$=\frac{2}{\pi }\underset{\alpha }{\overset{\pi /2}{\int }}\left(1+\mathrm{c}\mathrm{o}\mathrm{s}2\omega t\right)\mathrm{d}\mathsf{\omega }t=\frac{2}{\pi }{\left[\omega t\right]}_{\alpha }^{\pi /2}+\frac{1}{\pi }{\left[\sin 2\omega t\right]}_{\alpha }^{\pi /2}=$$

$$=\frac{2}{\pi }\left(\frac{\pi }{2}-\alpha \right)+\frac{1}{\pi }\left(\sin \pi -\sin 2\alpha \right)=1-\frac{2\alpha }{\pi }-\frac{\sin 2\alpha }{\pi }.$$

(26b)

The same result we get using Equation $\left(20\mathrm{c}\right)$ for $\beta =\pi -\alpha$

$$a_1=U_m\frac{1}{\pi }\left[\left(\pi -\alpha -\alpha \right)-\frac{\sin 2\left(\pi -\alpha \right)-\sin 2\alpha }{2}\right]=$$

$$=U_m\left(1-\frac{2\alpha }{\pi }-\frac{\mathrm{s}\mathrm{i}\mathrm{n}2\alpha }{2\pi }\right).$$

(26c)

Similarly for sine-coefficient of fundamental harmonic

$$b1=\frac{2}{\pi }\underset{\alpha }{\overset{\pi }{\int }}\cos \omega t.\sin \omega t \mathrm{d}\mathsf{\omega }t=\frac{1}{\pi }\underset{\alpha }{\overset{\pi }{\int }}\sin 2\omega t \mathrm{d}\mathsf{\omega }t=$$

$$=\frac{1}{\pi }\underset{\alpha }{\overset{\pi }{\int }}\sin 2\omega t \mathrm{d}\mathsf{\omega }t=\frac{1}{\pi }(\underset{\alpha }{\overset{\frac{\pi }{2}}{\int }}+\underset{\frac{\pi }{2}}{\overset{\pi -\alpha }{\int }})\sin 2\omega t \mathrm{d}\mathsf{\omega }t=$$

$$=\frac{1}{2\pi }\left[\cos 2\alpha -\left(-1\right)+\left(-1\right)-\cos 2\alpha \right]=0.$$

(26d)

Checking, $\alpha =0,A1=1$

$$u\left(t,\alpha \right)=U_m\sum _{\nu =1}^{\infty }{\left(-1\right)}^{\frac{\nu -1}{2}}\frac{A_{\nu }}{\nu }\cos \nu \omega t.$$

(27)

Fundamental harmonic rms value

$$I_{1m}=\frac{2}{\pi }\underset{\alpha }{\overset{\pi -\alpha }{\int }}\frac{U_m}{\omega L}\left(\mathrm{c}\mathrm{o}\mathrm{s}\omega t+\mathrm{c}\mathrm{o}\mathrm{s}\alpha \right)\mathrm{c}\mathrm{o}\mathrm{s}\omega t.\mathrm{d}\omega t=\frac{V_m}{\omega L}\frac{2}{\pi }\left(\frac{1}{2}\mathrm{s}\mathrm{i}\mathrm{n}2\alpha +\pi -\alpha \right).$$

(27a)

Parameters of the system are given in Table 2.

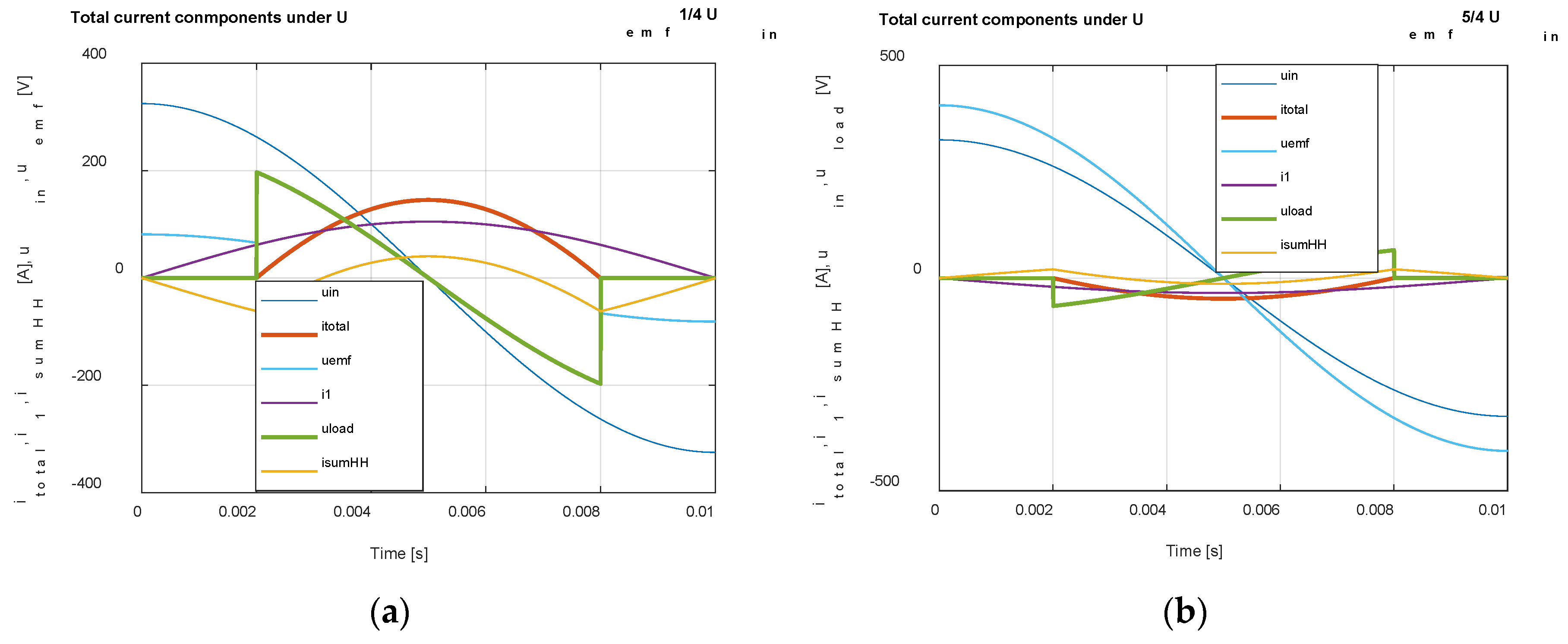

Graphic interpretation of Equation $\left(18\right)$ is shown in Figure 15 and Figure 16.

# Transient analysis using Fourier transform (and under decreasing cosine function)

Supposing exponentially increasing back emf voltage (e.g., start-up of electric motor) and constant harmonic input voltage then the voltage on the load (inductor) will be decreasing cosine function

$$u_L\left(t\right)=U_m\mathrm{c}\mathrm{o}\mathrm{s}{\omega }_{1}t .{\mathrm{e}}^{-\frac{t}{{\tau }_{rise}}}$$

(28)

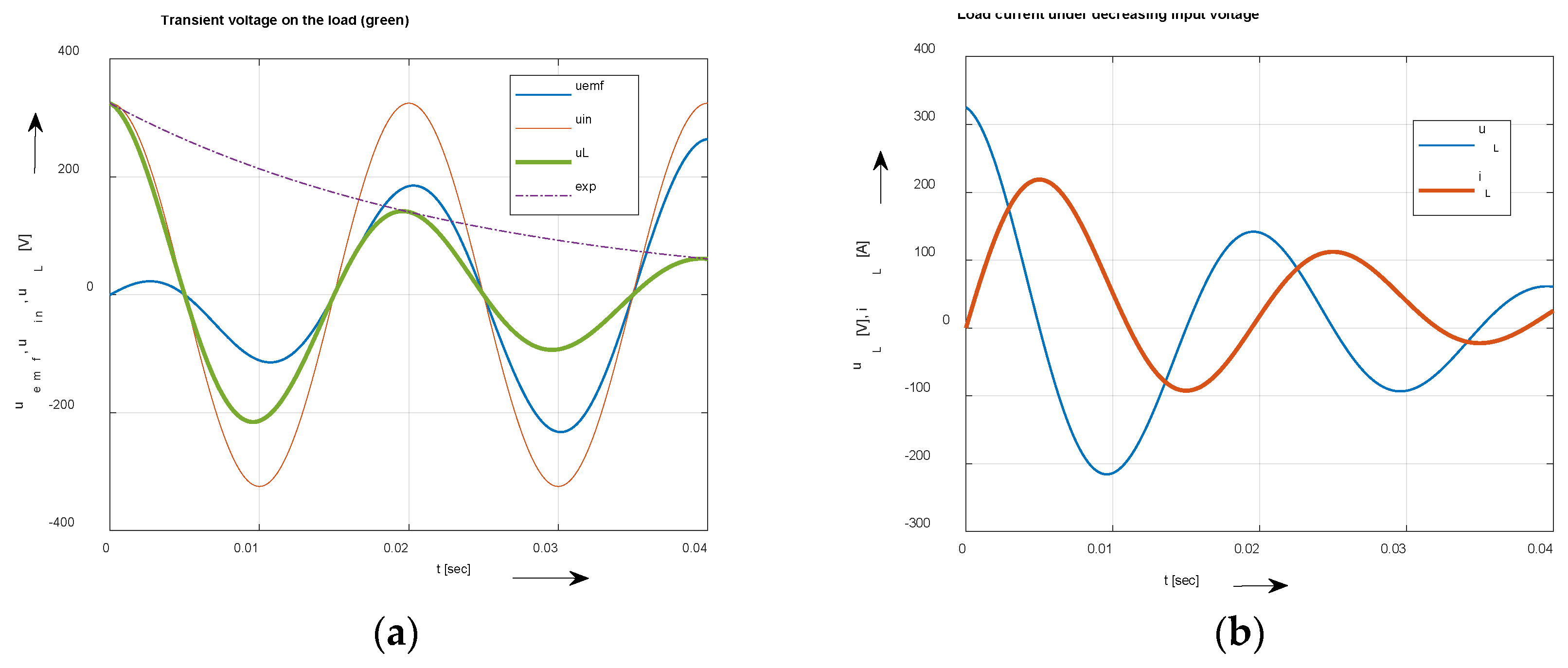

where ${\tau }_{rise}$ respects a rise of the back-emf voltage, Figure 17a (green). If we take $u_L\left(t\right)$ according to (28) the corresponding load current of the inductor can be calculated, in Figure 17b (red).

Applying the Fourier transform on the transient voltage $u_L\left(t\right)$ we can write [1]

$${\mathit{F}}_u\left( j\omega \right)=U_m\underset{0}{\overset{\infty }{\int }}{e}^{-at} \mathrm{c}\mathrm{o}\mathrm{s} {\omega }_{1}t e^{-j\omega t}\mathrm{d}t$$

(29)

where $a(=1/{\tau }_{rise})$ represents a damping of the circuit and ${\omega }_1$ is an angular frequency of the input voltage.

The infinitive integral $\int \left(.\right)$ can be calculated substitution or per partes rules with the result

$$\int \left(.\right)=\frac{e^{-(a+j\omega )}}{{\left[-(a+j\omega )\right]}^2+{{\omega }_0}^2}\left(-\left(a+j\omega \right)\mathrm{c}\mathrm{o}\mathrm{s} {\omega }_{1}t+{\omega }_0\mathrm{s}\mathrm{i}\mathrm{n} {\omega }_{1}t\right)$$

(30)

with use of the Euler formula as a substitution for $\mathrm{c}\mathrm{o}\mathrm{s} {\omega }_{1}t$.

So, after the establishment of integration boundaries

$$\underset{0}{\overset{\infty }{\int }}\left(.\right)=\left[0-\frac{-\left(a+j\omega \right)}{{\left[-(a+j\omega )\right]}^2+{{\omega }_1}^2}\right]=\left[\frac{\left(a+j\omega \right)}{{(a+j\omega )}^2+{{\omega }_1}^2}\right],$$

(30a)

thus

$${\mathit{F}}_u\left( j\omega \right)=U_m\frac{a+j\omega }{a+{{\omega }_1}^2-{\omega }^2+j2a\omega }.$$

(31)

The magnitude spectrum of ${\mathit{F}}_u\left( j\omega \right)$

$$\left|{\mathit{F}}_u\left( j\omega \right)\right|=U_m\sqrt{\frac{a^2+{\omega }^2}{{\left(a^2+{{\omega }_1}^2-{\omega }^2\right)}^2+4a^2{\omega }^2}} .$$

(31a)

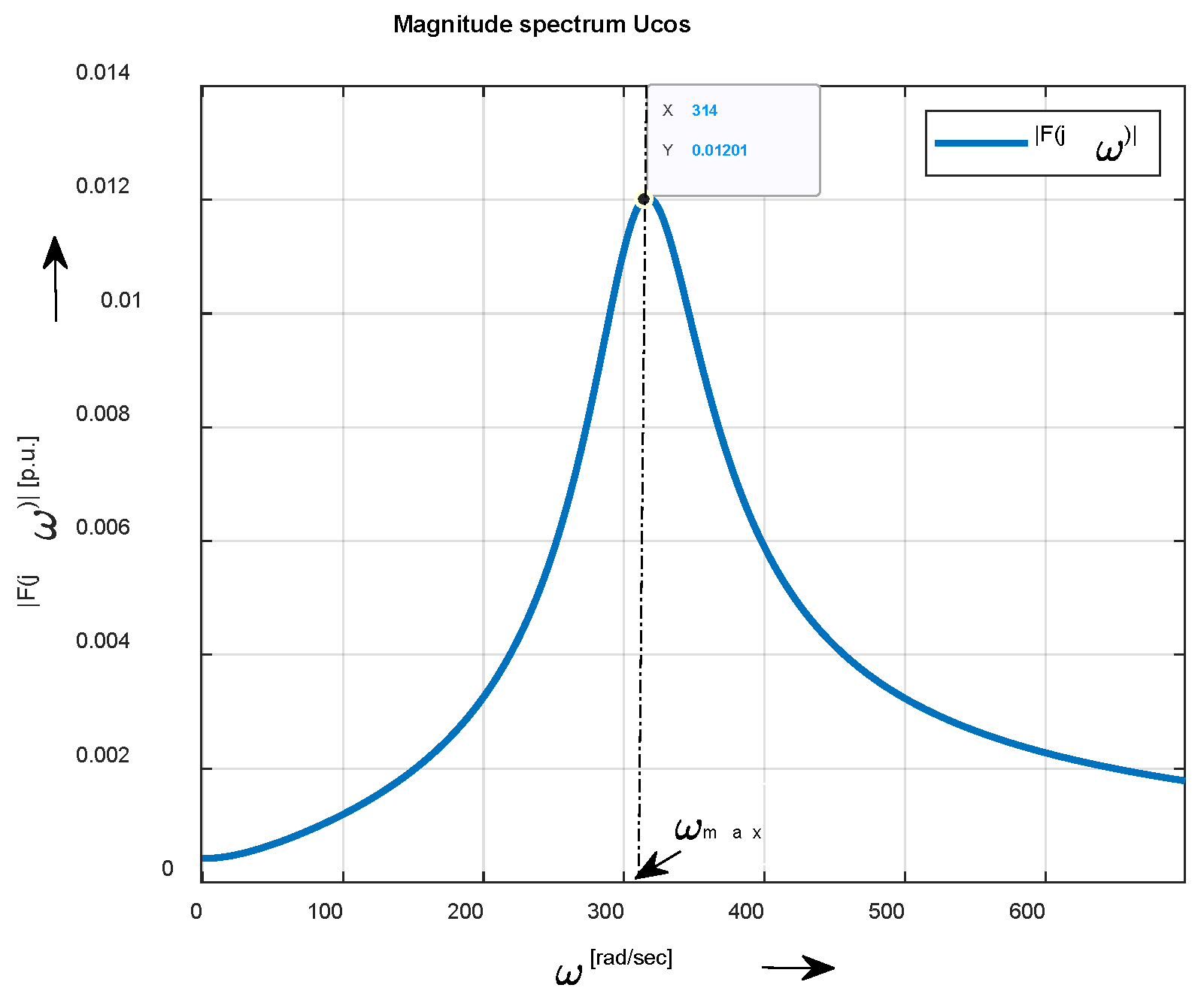

The graphic interpretation of the magnitude spectra of $\left|{\mathit{F}}_u\left( j\omega \right)\right|$ is shown in Figure 18 in the relative p.u. units (i.e., $U_m\equiv 1)$.

The phase spectrum of $\mathit{F}\left( j\omega \right)$ we can calculate as an arctan function of the share quotient of the imaginary and real part of the magnitude spectrum ($\left|{\mathit{F}}_u\left( j\omega \right)\right|$)

$$\mathit{\Phi }\left(\omega \right)={\mathrm{t}\mathrm{a}\mathrm{n}}^{-1} \frac{Im\left\{{\mathit{F}}_u\left( j\omega \right)\right\}}{Re\left\{{\mathit{F}}_u\left( j\omega \right)\right\}}.$$

(32)

Similarly, as for $u_L\left(t\right)$ - if we admit that load current is decreasing quasi sinusoidal function (Figure 17b) - we can apply its Fourier transform

$${\mathit{F}}_i\left( j\omega \right)=I_m\underset{0}{\overset{\infty }{\int }}{e}^{-at} \left[\mathrm{s}\mathrm{i}\mathrm{n} {(\omega }_{1}t-{\phi }_L)+\mathrm{s}\mathrm{i}\mathrm{n}{\phi }_L\right] e^{-j\omega t}\mathrm{d}t$$

(33)

where the maximal value of the load current

$$I_m=\frac{U_m}{L\sqrt{a^2+{\omega }_1^2}},$$

(34)

and ${\phi }_L={\mathrm{t}\mathrm{a}\mathrm{n}}^{-1}\left(\frac{a}{{\omega }_1}\right)$ where $a=1/{\tau }_{rise}$ as mentioned above.

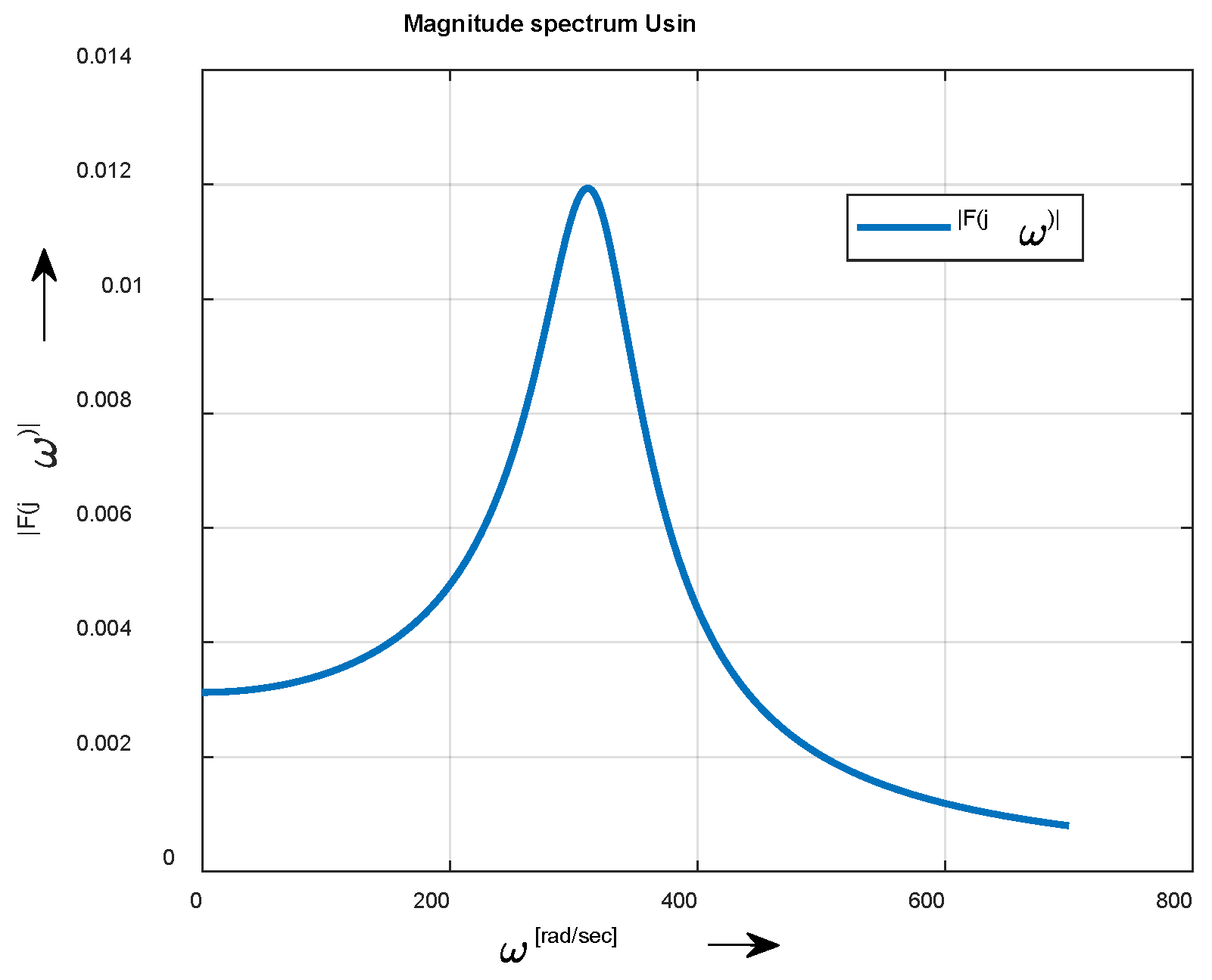

The magnitude spectrum of the current Fourier transform $\left|{\mathit{F}}_i\left( j\omega \right)\right|$ is depicted in Figure 19.

4. Discussion and Conclusions

It is evidently from the Figure 13b, Figure 18 and Figure 19 that during the transient state both quantities show a continuous spectrum of harmonic components, including the fundamentals. It means that electric power as a product of current and voltage, it will also contain a distortion component despite being a harmonic network and a linear load (resistive or inductive, or both). Although slightly strange it is one of the important contributions to practical applications.

Although classical Fourier analysis with specifically Fourier analysis, are not particularly suitable for transient signal analysis compared to other analysis, after all, they also bring certain advantages. It is primarily:

-

knowledge of the content of harmonics in the investigated course,

-

resulting easy calculation of the harmonic distortion of the signal [10],

-

the investigated function does not necessarily have to be analytical in the scope of the period, and can be specified e.g., as a look-up table.

In combination with Laplace, or Laplace-Carson transform can also be used in Fourier analysis to solve transient phenomena particularly when solving the steady states within one time-period.

The article shows two new effective approaches for solving transient analysis and that:

-

uses combine the Fourier and L-C transform in the complex domain, thereby significantly simplifying the calculation of the original function (Figure 5, Figure 6 and Figure 9), and

-

uses the Fourier transform for transient states of the whole systems especially in electrotechnical applications (Figure 13b, Figure 18 and Figure 19) as mentioned above.

That transformation with its magnitude and phase frequency spectra which cannot be obtained by other known transformations [11].

In conclusion, this paper presents a significant advancement in transient Fourier analysis, offering novel insights into the behavior of single harmonics and their superposition in dynamic systems. The utilization of complex time domain analysis and the innovative techniques employed herein hold great promise for further advancements in this domain.
