RFID-Based Localization System for Monitoring the Oak Acorns Dispersal

1. Introduction

A very valuable source of information on the behavior of animals is the observation of their movements in everyday life or the monitoring of their migratory processes. A well-known method of tracking animals is the so-called ringing method, which has made it possible to observe individuals tagged in this way. The ringing technique, however, requires physical contact with the animal at least at two times: when the ring is applied and when it is read, which can be awkward and stressful for both the observer and the animal. Developments in RF techniques have made it possible to track animals much more effectively. These techniques use RF transmitters placed on animals, which are then tracked using antenna systems (usually directional). The first radiolocation system was used in 1963 to monitor the behavior of rabbits, skunks and raccoons where a transistor transmitter with a dipole antenna and a military BC-453 radio receiver were used.[1]. Currently, the most common tracking methods include radio tracking (operating on VHF and UHF frequencies), satellite tracking (e.g., Argos satellite Doppler-based positioning system) and Global Navigation Satellite System (GNSS) tracking [2,3,4]. The wildlife radio tracking system consists of two devices: transmitter and receiver. The tracked object has a radio transmitter that sends a signal. This signal is received by a second device - a VHF/UHF receiver. The receiver can be stationary or mobile (moved in a car, airplane/drone or handheld). Satellite tracking involves sending data to satellites via a transmitter mounted on the object being tracked. The data collected by the satellite system is made available to the user for a fee [5]. The GNSS tracking, on the other hand, uses commonly used satellite navigation receivers.

The development of autonomous vehicles (especially unmanned aircraft systems) has improved the radio tracking process because it allows the VHF/UHF receiver to be placed right on the autonomous drone [6]. Thus, for example, Mesquitaa et al.[7] proposed a user-friendly system combining drones, smartphones and tags using Bluetooth and UWB (Ultra-Wideband) signals, which could be used to wildlife tracking. In their research, they used very small and lightweight AirTags that were tracked using an autonomous drone and a user with a smartphone independently. Another example of the use of drones can be found in the work of Desrochers et al [8], which examined the use of drones to determine the position of tracked objects in hard-to-reach areas (hilly and dense borealforest in southern Québec, Canada)

Most wildlife tracking studies use commercial tracking systems. The abundance of these systems makes it possible to purchase one that is suitable for specific purposes (appropriate weight, range and operating time related to battery life). There are also designs for lightweight low-cost tracking systems. One of these is an automatic and open-source radio-tracking system for small animals, which can track objects up to about 190 meters away [9].

1.1. RFID Techniques in Wildlife Tracking

An increasingly common technique in VHF/UHF radio tracking wildlife is RFID (Radio-Frequency Identification) technique. RFID systems consist of transponders (so-called tags) that transmit their own unique identification code to readers called RWD (Read Write Device) [10,11]. An important classification of RFID tags is the distinction according to the power supply of the transponder. A distinction is made between passive and active transponders. Passive transponders have no power source of their own. They use the energy emitted by the reader in the form of an electromagnetic wave both to power their own microchip and to transmit data back to the reader. Active transponders, on the other hand, have their own power supply (usually in the form of a battery). The electromagnetic field emitted by the reader is no longer needed to power the chip, so the EM field can be much weaker than that required to operate a passive tag. There is also a subtype of passive tag, the so-called semi-passive transponder. Semi-passive tags, also known as battery-assisted passive tags (BAP) or battery-assisted tags (BAT), have their own power supply to power the chip only, but like a passive tag, they have no active transmitter. It means that they still need energy emitted by the reader to communicate with the reader (they use so-called backscattering). The use of a semi-passive tag therefore allows the transmitter to increase its operating range because it is more sensitive (i.e., it needs less energy from the reader than a passive tag to activate). The unquestionable advantage of using RFID tags in tracking is their very small size and long operating time (in the case of passive tags we can even talk about infinite time, in the case of semi-passive tags it is months, years).The disadvantage, however, may be a shorter tracking range than classic radio transmitters.

RFID tracking techniques are used to track farm animals such as cows, horses, pigs, etc., as well as for wildlife , such as deer lions, beavers, etc. There are also RFID techniques for tracking fish, especially salmon [12]. An example of wildlife tracking where limitations to the size of the transmitter are of huge importance is mouse tracking using RFID techniques both in laboratory conditions [13] as well as in the natural environment in the wild [14]. In both examples the RFID passive tags were implanted subcutaneously in the mouse neck region. An example of long-term wildlife RFID tracking is the monitoring of beavers tagged with passive tag implants during the period from June 2018 to July 2019 where the stationary reader has been installed in beaver lodges [15]. Due to the limited range of the RFID system, a network of RWD readers can be used instead of one. An example of such a network is a system for tracking badgers equipped with RFID collars over an area of about 1.2 ${\mathrm{km}}^2$ [16]. In addition to commercial RFID systems, there are also open-source low-cast solutions. One of them is the WildWID system consisting of active tags placed on wild animals (lions and koalas) that send data to a logger equipped with a GSM module for data transmission [17].

1.2. Radio-Tracking Techniques in Acorn Dispersal

An interesting phenomenon in nature is the zoochoric spread of oak acorns [18]. Acorns can be spread by gravity, water and wind, but it turns out in most cases they are spread by animals - this process is called zoochory [19,20]. In the case of oak, the animals that spread acorns are jays. Because of their small size, bird-dispersed seeds are difficult to track, especially when spread over long distances.

As it turns out, the radio tracking techniques has also been applied in this wildlife research area. An example of research using radio-tracking of oak acorns is a study conducted in 2004 in Spain [21]. In this experiment, the TW-4 Biotrack VHF radio transmitters (weight: 2.2 g, battery life: approximately 3 months) with the antenna coiled inside were implanted into selected acorns. The acorns were then closed and sealed with superglue. The location of the acorns (previously placed in feeders, from where they were spread by jays) was carried out using a ’Mariner 57’ portable radio receiver. During testing, it was found that signal detection was lower (typically tens of metres) than transmitter specifications (hundreds of metres) due to the fact that the transmitter antenna was coiled inside the acorn. The average range of acorn dispersal by jays was 68.6 m (90% of acorns were within 149.60 m of the feeder), so that the reduced detection range (caused by antenna coiling) was not a major handicap. Other seed tracking experiments used Telenax’s TXA-001G radio transmitters (small 0.5 g devices equipped with a 13 cm flexible antenna) [22,23]. The transmitters broadcast a signal in the VHF band on several different frequencies ranging from 150 to 151 MHz. This time the antenna was left unfurled outside the acorn, which, it turned out, did not arouse the jays suspicions. This study confirmed that the average range of acorn dispersal by jays is less than 100 m.

1.3. Our Motivations and Contributions

Taking into account the results of the acorn radio tracking experiments (in particular the average spread range of about 100 metres), we decided to investigate the possibility of using the RFID technique in the acorn radio tracking. The advantage of using RFID technology can be the uniqueness of each tag being tracked (provided by a unique ID number) rather than a finite number of transmit frequencies in a specific band. Another advantage in favour of RFID is the battery life, which can be counted in years (and practically unlimited in the case of passive tags). The last important issue is the legal conditions for the use of the frequency band in the 150 to 151 MHz range in European Union countries: according to EU telecommunications law, this band is not available for radio tracking purposes, while the 865-868 MHz frequency band can be used for RFID purposes with a transmission power of up to 2 Watts [24].

To verify the feasibility of using the RFID system for tracking we selected and constructed RFID tags, which we then tested in an anechoic chamber. On the basis of the tests in the chamber, we selected one RFID tag, which we equipped with an sound indicator and then tested under quasi-real conditions. The results obtained confirmed the applicability of the RFID technology in acorn dispersal tracking.

The paper is organised as follows: Section 2 (Materials and Methods) describes the method to determine the range of the RFID system, presents the tags used in the experiment and describes the conditions under which the experiments were carried out; Section 3 (Results) presents the experimental results obtained under laboratory conditions (anechoic chamber) and results from experiments under quasi-real conditions; the final Section 4 (Discussion) contains a discussion of the presented results, as well as the conclusions drawn from these results.

2. Materials and Methods

This chapter provides information on the methodology used to determine the operating range of the RFID system. It also describes the experimental methods used to test the selected RFID tags.

2.1. Determining the Operation Range of the RFID System

One of the most important parameter determining the quality of an RFID system is the so-called read range. It is determined by two parameters: read range forward and read range reverse. Read range forward $r_{PwrMax}$ is the maximum range, at which the RWD reader is able to deliver the minimum power $P_{tag,min}$ to properly activate the RFID tag [25]. Read range reverse $r_{BtrMax}$ is the maximum distance at which the backscatter transmit power (power backscattered by tags) $P_{tag,BS}$ is sufficient for the RWD reader to be able to read the RFID tag. The relationship between reading ranges and delivered/backscattered powers is described by the Friis transmission equation [26]. The value of the power delivered to the chip is determined using the equation:

$$P_T=P_{RWD}\frac{G_T{G}_R{c}^2\tau \chi }{{\left(4\pi rf\right)}^2}$$

(1)

where c is speed of light in a vacuum, f - frequency, $P_{RWD}$ - power delivered to RWD antenna terminals, $G_R$ - gain of impedance-matched RWD antenna, $G_T$ - gain of impedance-matched tag antenna, $\chi$ - polarization matching factor of antennas, $\tau$ - power transfer coefficient, r - distance between the RWD and the transponder.

The value of the power transfer coefficient depends on the impedance parameters of the RFID chip and the antenna attached to it, as described by the equation [25]:

$$\tau =\frac{4Re\left(Z_{TA}\right)Re\left(Z_{TC}\right)}{Re{(Z_{TA}+Z_{TC})}^2+Im{(Z_{TA}+Z_{TC})}^2}$$

(2)

where $Z_{TC}$ is the chip impedance and $Z_{TA}$ is the antenna impedance.

The maximum value of the power transfer coefficient is 1 and is obtained in the case of impedance matching of the antenna and the chip, when $Z_{TA}$= *$Z_{TC}$. The value of $Z_{TA}$≈ *$Z_{TC}$ should be obtained for the operating frequency of the RFID system (for Europe about 865 MHz), so that it is possible to power the chip from the maximum distance. The maximum distance to properly power the chip can be determined from the equation:

$$r_{PwrMax}=\frac{c}{4\pi f}\sqrt{\frac{P_{RWD}{G}_T{G}_R\tau \chi }{P_{Tmin}}}$$

(3)

where $P_{Tmin}$ is the minimum power that must be delivered to the chip for it to function properly.

In practice, determining the distance directly using equation 3 is very difficult. Therefore, for this purpose it will be easier to use the value of the power $P_{tag,min}$, delivered to the transponder antenna. In terms of theoretical relationships, the $P_{tag,min}$ power is the $P_{Tmin}$ power with additional consideration of the influence of the transponder antenna parameters and can be described by the equation:

$$P_{tag,min}=\frac{P_{Tmin}}{G_T\tau \chi }$$

(4)

In addition, it is also possible to determine $G_R$ antenna gain and $P_{RWD}$ power as $P_{EIRP}$ radiated power, according to the equation (given in Watts):

$$P_{EIRP}=P_{RWD}{G}_R$$

(5)

The maximum value of power that can be radiated, $P_{max,EIRP}$, is limited by the regulatory standards in force in the region (e.g. ETSI standards [27]). The largest distance $r_{PwrMax}$ will be achieved at $P_{EIRP}$ = $P_{max,EIRP}$, according to the equation [28]:

$$r_{PwrMax}=\frac{c}{4\pi f}\sqrt{\frac{P_{max,EIRP}}{P_{tag,min}}}$$

(6)

In the case of $r_{BtrMax}$ distance, the factor that causes the limitation of the range of proper functioning of the RFID system is the value of reflected power $P_R$, received with the RWD antenna. One of the basic parameters of any RWD is sensitivity, that is, the minimum recordable value of $P_R$ power ($P_{Rmin}$). For communication to take place between the transponder and the RWD, it is necessary to meet the condition that $P_R$ > $P_{Rmin}$. The value of the received reflected power depends on the radiated power, losses in the transmission path and the ability of the transponder to reflect a wave of a given frequency (defined as the effective reflection area ${\sigma }_T$). However, for simplicity, it is possible to determine the distance $r_{\mathrm{BtrMax}}$ based on an analysis of the received $P_R$ reflected power, using the equation [28]:

$$r_{BtrMax}=\frac{c}{4\pi f}\sqrt{\frac{P_{tag,BS}}{P_{Rmin}}}$$

(7)

The value of $P_{tag,BS}$ can be determined by analyzing the received power value $P_R$ and the transmission path losses, according to the equation (values given in decibel scale):

$$P_{tag,BS}=P_R-G_R+L_{cable}+FSPL$$

(8)

where $L_{cable}$ is cable losses and $FSPL$ is the free space loss.

In a similar way, it is possible to determine the power $P_{tag,min}$, using the equation (values given in decibel scale):

$$P_{tag,min}=P_{RWD,min}+G_R-L_{cable}-FSPL$$

(9)

where $P_{RWD,min}$ is the minimum value of $P_{RWD}$ power at which the transponder feedback will be obtained.

In summary, in order to properly carry out communication between the RWD and the transponder, it is necessary to obtain an adequate value of both $P_{tag}$ power and $P_R$ power, which is possible only at a certain distance (the smaller of $r_{PwrMax}$ and $r_{BtrMax}$). An analysis of the power transmitted/received by the RWD, taking into account the transmission path losses, will enable a preliminary determination of the maximum theoretical reading distance of a given RFID system. However, it should be borne in mind that in real conditions the obtained distances $r_{PwrMax}$ and $r_{BtrMax}$ may be smaller, due to the presence of interference and the possibility of antenna jitter, caused, for example, by contact with the ground, temperature or other atmospheric conditions. Therefore, it seems that it will be necessary to measure the distance of the correct reading, both under ideal conditions (maximum possible range) and real conditions (practical application). It should also be remembered that the gain value of antennas changes depending on the polarization coordinates. In RFID systems, the largest range of proper operation, will be obtained for coaxial alignment of RWD and transponder antennas.

2.2. Selection of RFID Tags for Experimental Studies

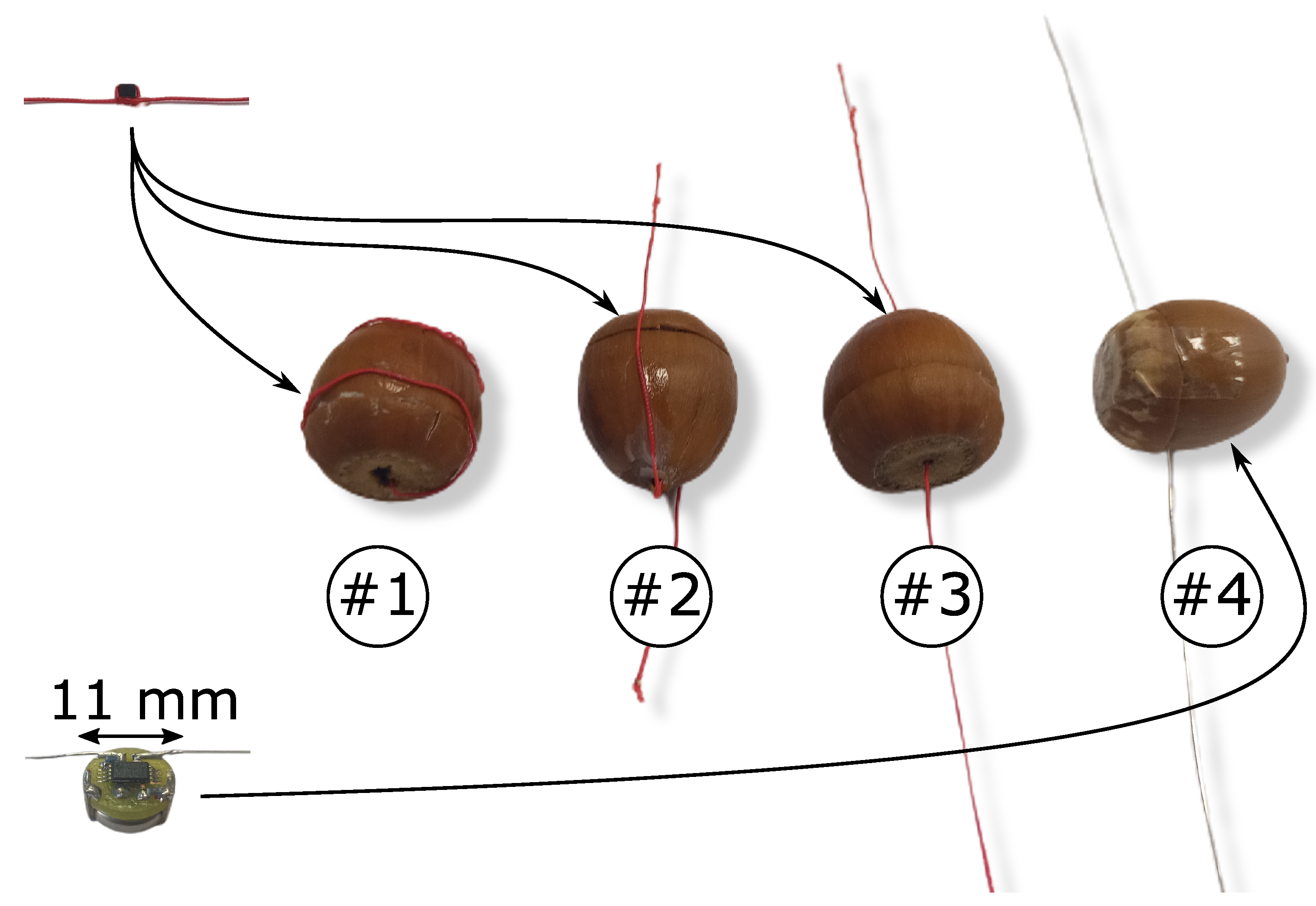

For the acorn prototypes, we used two types of RFID tags: a passive tag with industry-leading read sensitivity of up to $-22.1$ dBm MONZA R6-P [29] and a semi-passive tag (otherwise called battery assisted passive (BAP)) with configurable sensitivity set to $-31$ dBm EM4325 [30]. The passive tag MONZA R6-P was inductively coupled to a flexible dipole antenna (see red wire in Figure 1). The semi-passive tag EM4325, together with the power supply, was placed on a dedicated PCB (bottom left corner of Figure 1). Both tags were tuned to 868 MHz (for RFID purposes with a transmission power of up to 2 W in the European Union). The use of a flexible dipole antenna seems to be the optimal choice when considering the use of acorn tags to be spread by jays. It was decided to test three antenna configurations for the passive tag: the spiral configuration (see in Figure 1), the s-shaped configuration and the straight line configuration , and one straight line configuration for the semi-passive tag .

The semi-passive tag was powered by a 3 Volt CR927 battery with a capacity of 30 mAh. According to the manufacturer’s documentation, the EM4325 tag consumes an average battery current in sleep mode of a maximum of 2.6 $\mu$A, and therefore the CR927 battery should power the chip for approximately 16 months.

2.3. Laboratory Experimental Set-Up

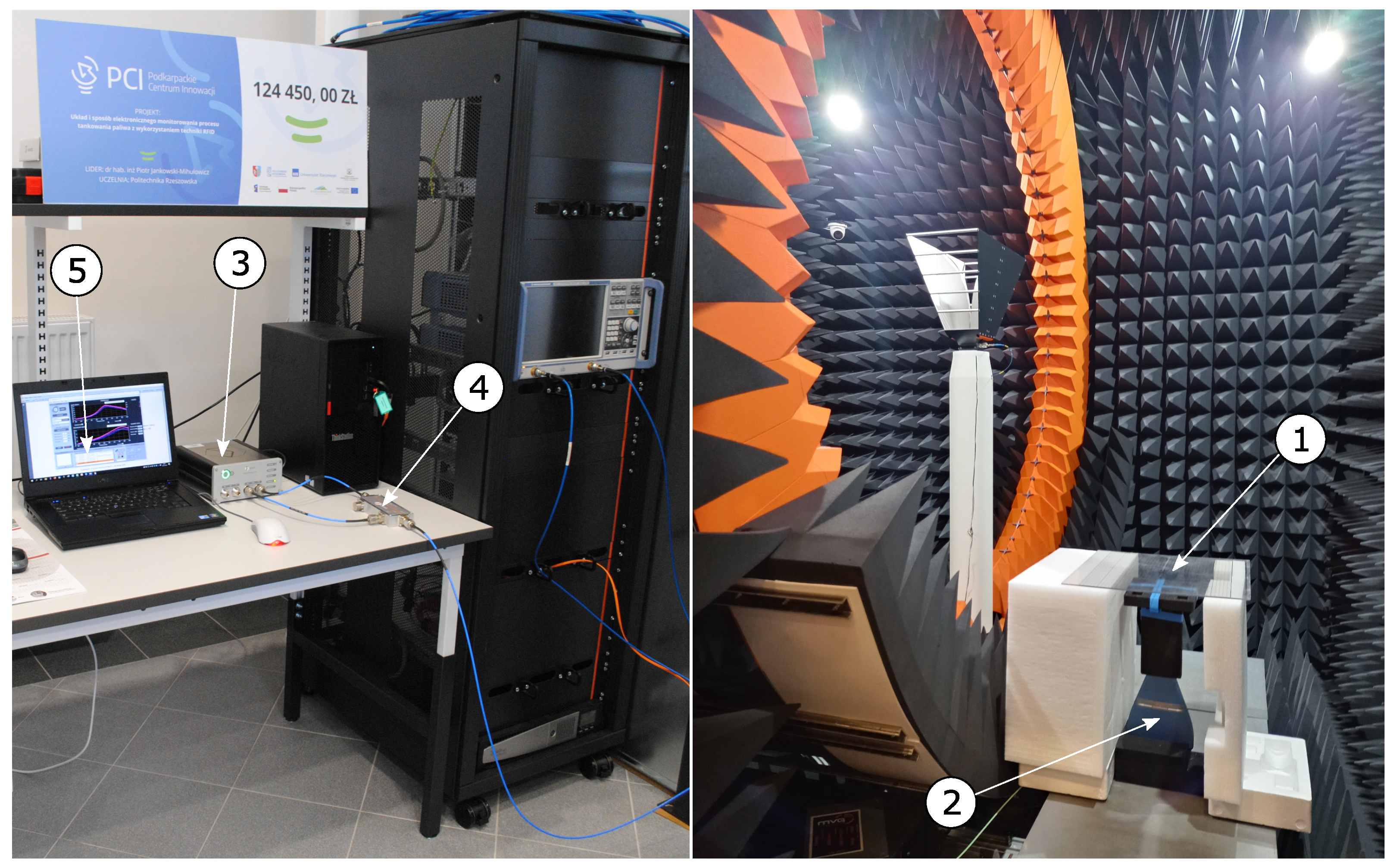

Laboratory experiments were performed in the Microwave Vision Group anechoic chamber, which is shown in Figure 2. For the measurements, the Voyantic Tagformance Pro system was used [28] (see ③in Figure 2) together with Tagformance UHF software ≤. The AARONIA HyperLOG 7025 broadband logarithmic-periodic antenna ②[31] was coupled with a directional coupler (frequency band: 600-1300 MHz, TX-ANT insertion loss: 1.2 dB, ANTRX insertion loss: 6.5 dB, maximum input power: 250 W) ④. A measuring top ①was mounted in the chamber, on which the RFID acorns under test were placed. The quantities measured by the Voyantic Tagformance Pro system were the minimum power $P_{tag,min}$ to power up the RFID tag ( so-called power on tag forward) and the backscatter transmit power $P_{tag,BS}$ ( so-called power on tag reverse) for data transmission performed in the 800-1000 MHz band. Based on the measured powers, the read ranges were calculated according to equations 6 and 7.

Many leading RFID reader models have a sensitivity of -84 dBm (e.g. readers: UR1A, FR900, IMPINJ Speedway Revolution R420, YRI1 or UR4), which combined with an antenna gain of -4dBm gives a reader system with a sensitivity of -88 dBm = 1.58 pW. According to equation 7, the read range reverse $r_{BtrMax}$ depends on the sensitivity of the RWD reader $P_{Rmin}$. The read range reverse for the experiments in the anechoic chamber were determined for a reader sensitivity just equal to $P_{Rmin}$=1.58 pW. The read range forward $r_{PwrMax}$ described by the equation 6, on the other hand, depends on the maximal reader power $P_{max,EIRP}$, whose value for data from an anechoic chamber was assumed to be $P_{max,EIRP}$=2 W (the maximum allowed for RFID in the European Union).

Figure 2. Laboratory experimental set-up.

Figure 2. Laboratory experimental set-up.

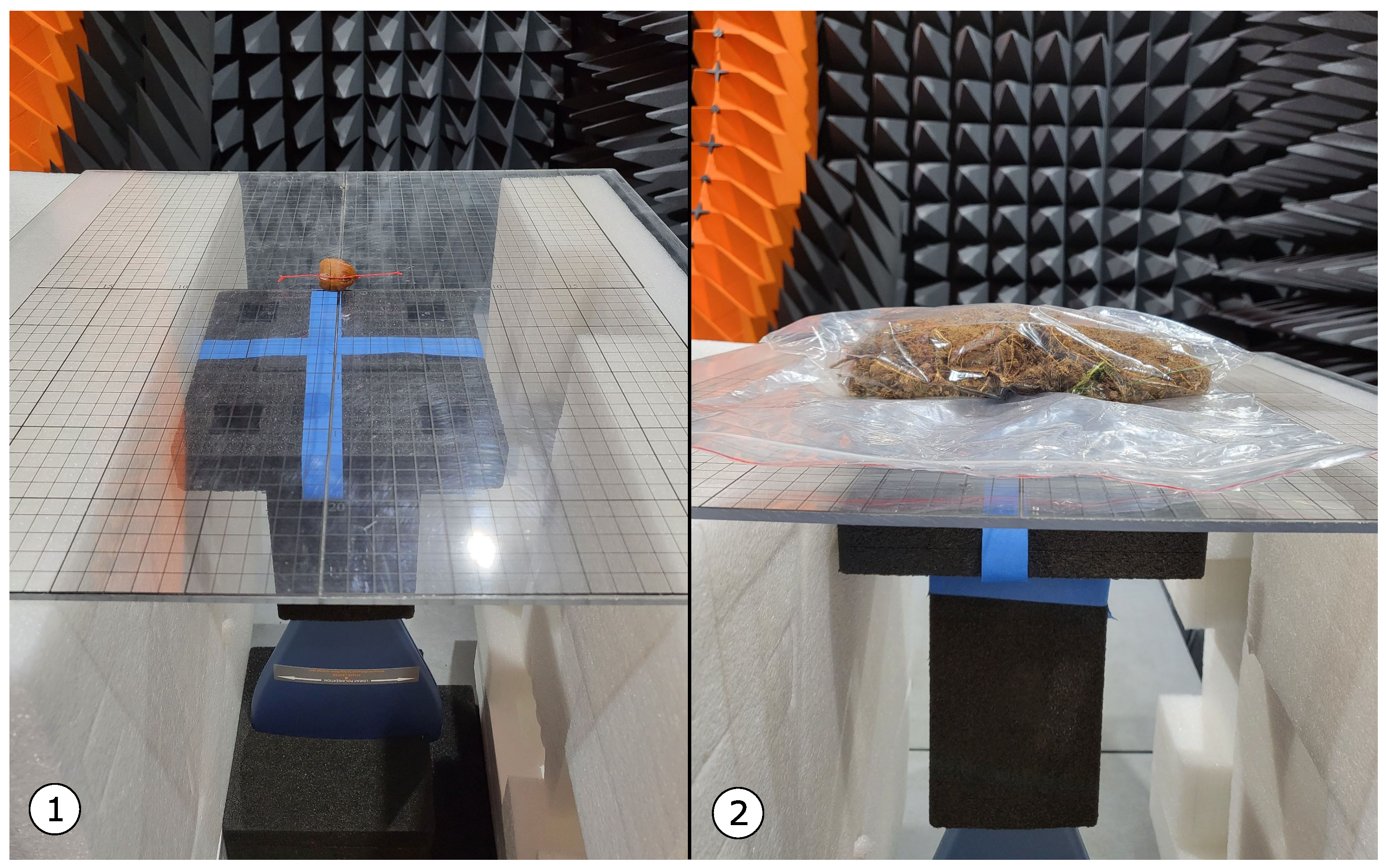

The prototype acorn tags were pre-tested in an air environment, as indicated by ①in Figure 3, and then the selected tag with the best performance was tested in a quasi-real environment. The quasi-real environment was a piece of soil (arranged in order: antenna-tag-soil), which can be seen in Figure 3 ②.

2.4. Experimental Set-Up under Quasi-Real Conditions

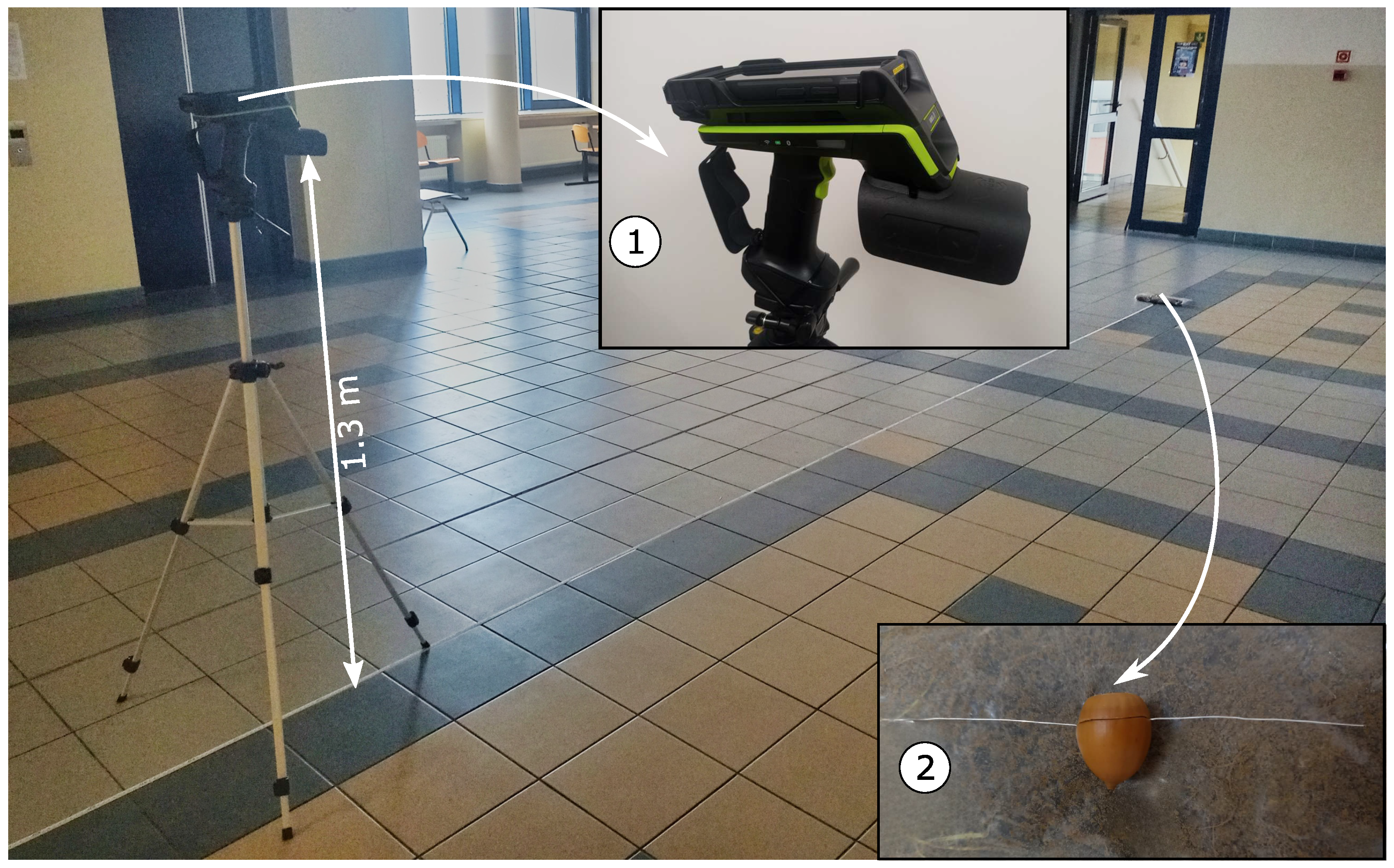

The quasi-real experiments were conducted in a large area hall as shown in Figure 4. An oak acorn equipped with a sound indicator (see ②in Figure 4) was placed on a piece of soil (as in the anechoic chamber during the laboratory tests). The measurements were taken using an industry-leading RFD9090 long-range handheld RFID reader ①operating in the 865-868 MHz band [32]. During the experiment, the read range of the acorn tag dependents on the reader-tag antennas relative orientation was measured: the read range indicated by the RFD9090 reader (Reader indication range in Table 1) and the read range indicated by sound indicator (Sound indication range in Table 1) located inside the acorn.

3. Results

This section describes and discusses the results of the experimental studies.

3.1. Laboratory Experiments Results

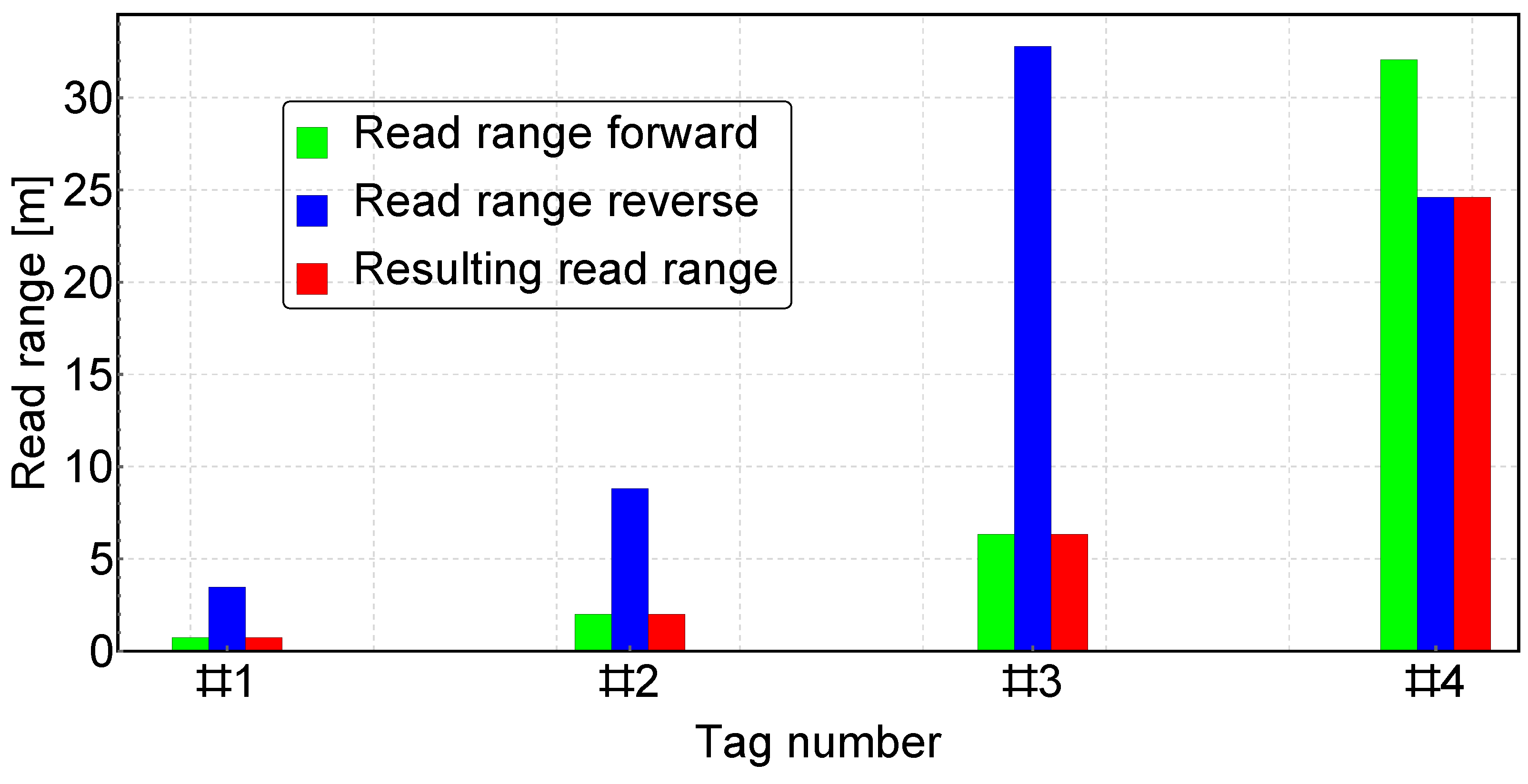

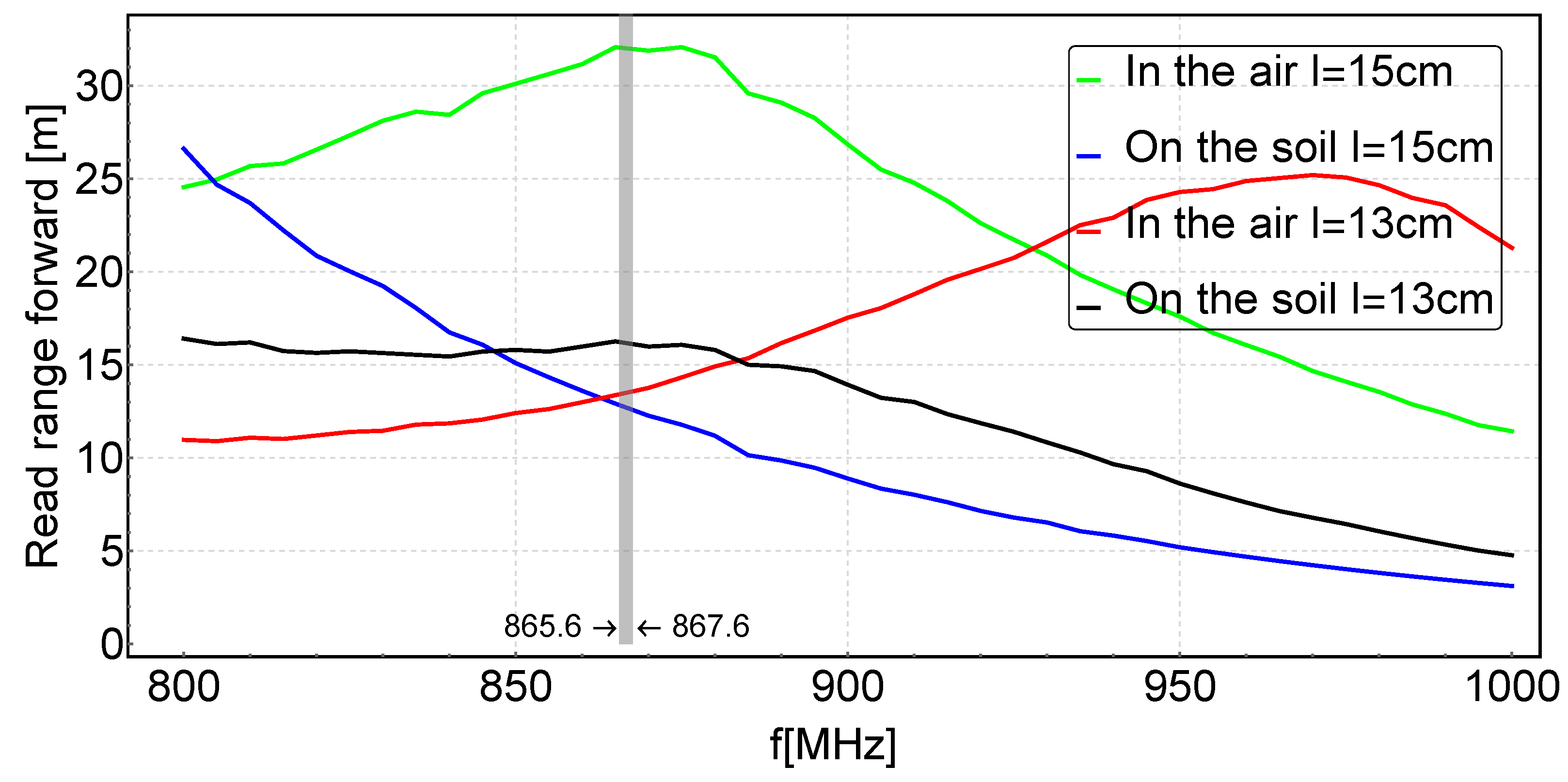

The first laboratory experiment consisted of determining the read range of the four RFID tags described in Section 2.2 in the air environment. Figure 5 shows the read ranges for data transmission 868 MHz. Resulting read range shown in Figure 5 is the minimum value from among the two ranges: Read range forward and Read range reverse. It is clear from laboratory experiments that twisting the antenna drastically reduces the range of the RFID tag (a result that is not surprising). Configurations and can therefore be immediately ruled out as useless. Configuration i.e. a passive tag with a straight line antenna gives a good result for Read range reverse, but the result for Read range forward is poor (the chip can be sufficiently powered up from a distance of no more than about 7 m). The best results were obtained for sample with a semi-passive RFID tag, for which the Resulting read range was 24.6 m. Given the results obtained in the first laboratory test, it was decided that further tests would only be carried out on the RFID acorn sample .

A further laboratory test examined the read range of acorn in a quasi-real environment, i.e. a soil environment (see ②in Figure 3). The response of the chip was investigated for data transmission performed in the 800-1000 MHz band. The performed study showed that the read range of the RFID acorn on the soil decreased. Furthermore, the RFID antenna system became untuned due to the presence of the soil in close neighbourhood of the tag. As can be seen in Figure 6, a 15 cm long antenna tuned to 868 MHz appeared to be untuned in the soil environment, whereas a 13 cm long antenna appeared to be tuned. The phenomenon of performance degradation of UHF RFID tags in the neighbourhood of a material surface is well known and has been described for example in papers [33,34].

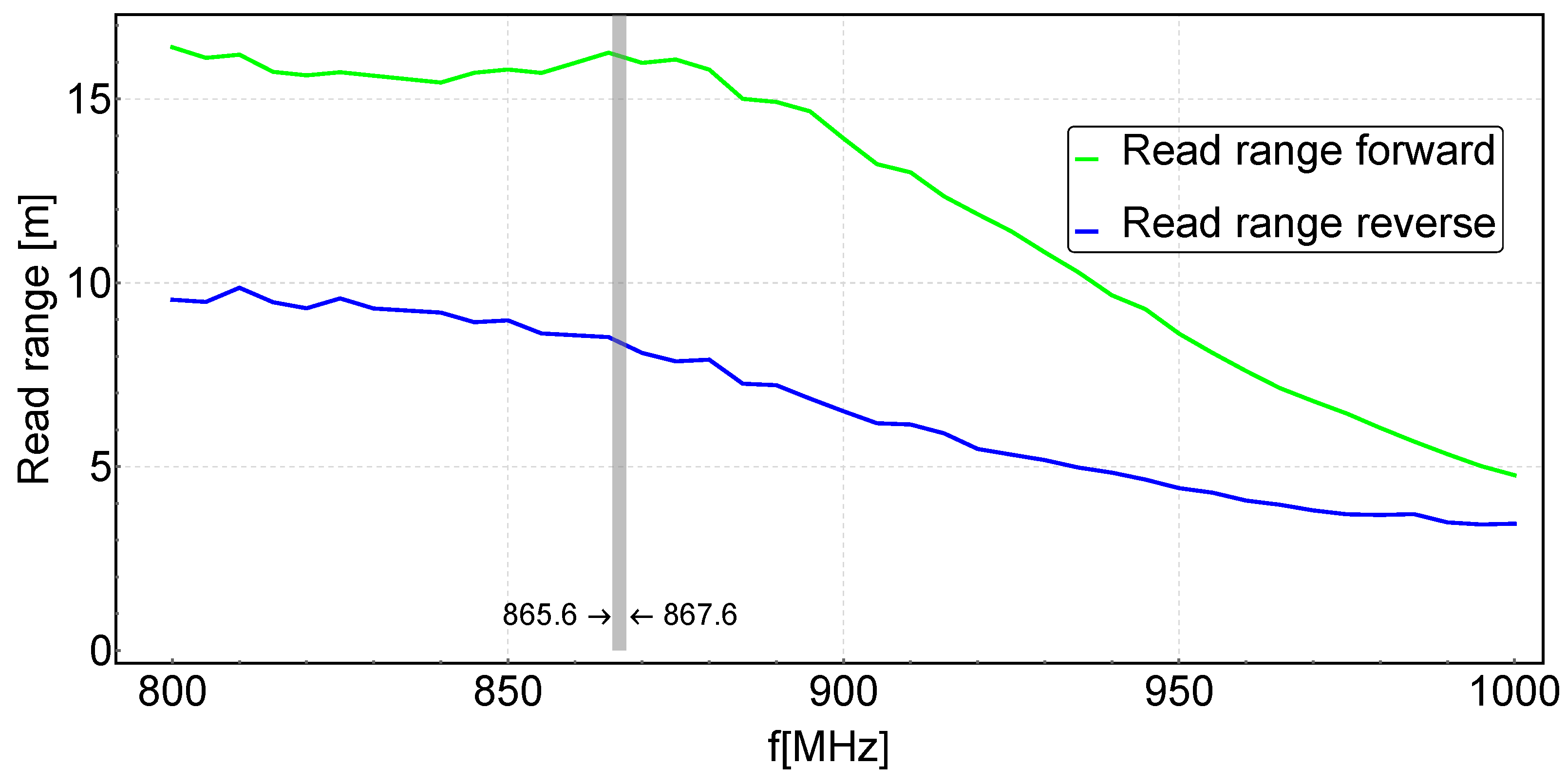

The read range characteristics of the tuned semi-passive tag to the soil environment are shown in Figure 7. It can be seen here that the value of Read range forward is greater than Read range reverse. It can therefore be said that the semi-passive tag (with greater sensitivity than a passive one) ’hears’ the RWD reader’s query from further away than it is able to respond to the query. The same results were shown in paper [35] where the read range of a semi-passive RFID tag was investigated. This fact can be used to improve the localization range of the RFID acorn, as will be shown in the next section.

3.1.1. Conclusions from Laboratory Experiments - RFID Tag Concept with Sound Indicator

Previous experimental results have shown that the semi-passive tag ’hears’ the reader’s query from a greater distance than it can respond to. Therefore, it is possible to design the RFID tag circuit in such a way that it responds to the reader’s query, but not via the RFID channel only via another communication channel, for example it could be a sound channel. The use of the EM4325 tag actually provides such an opportunity, because this chip contains a configurable digital ports. The auxiliary I/O port of the EM4325 RFID tag can be configured as an output for RF event notification (i.e., detection of Gen2/6C commands). Its operation is as follows: upon detecting a request sent by the RWD reader, the RFID tag sets a high logic state on the AUX port for about 3 ms. By maintaining this trigger for an extended time period (with a properly selected resistor and capacitor), it is possible to activate an sound signal, which will be heard even if the RDW reader does not receive a response.The electronic circuit of the tag including the sound system and its physical implementation are shown in Figure 8. The circuit uses a miniature buzzer with a sound frequency of 2.7 KHz and an intensity of 85 dB at 10 cm, which, despite being enclosed in an acorn, is well audible from a distance of more than 20 m.

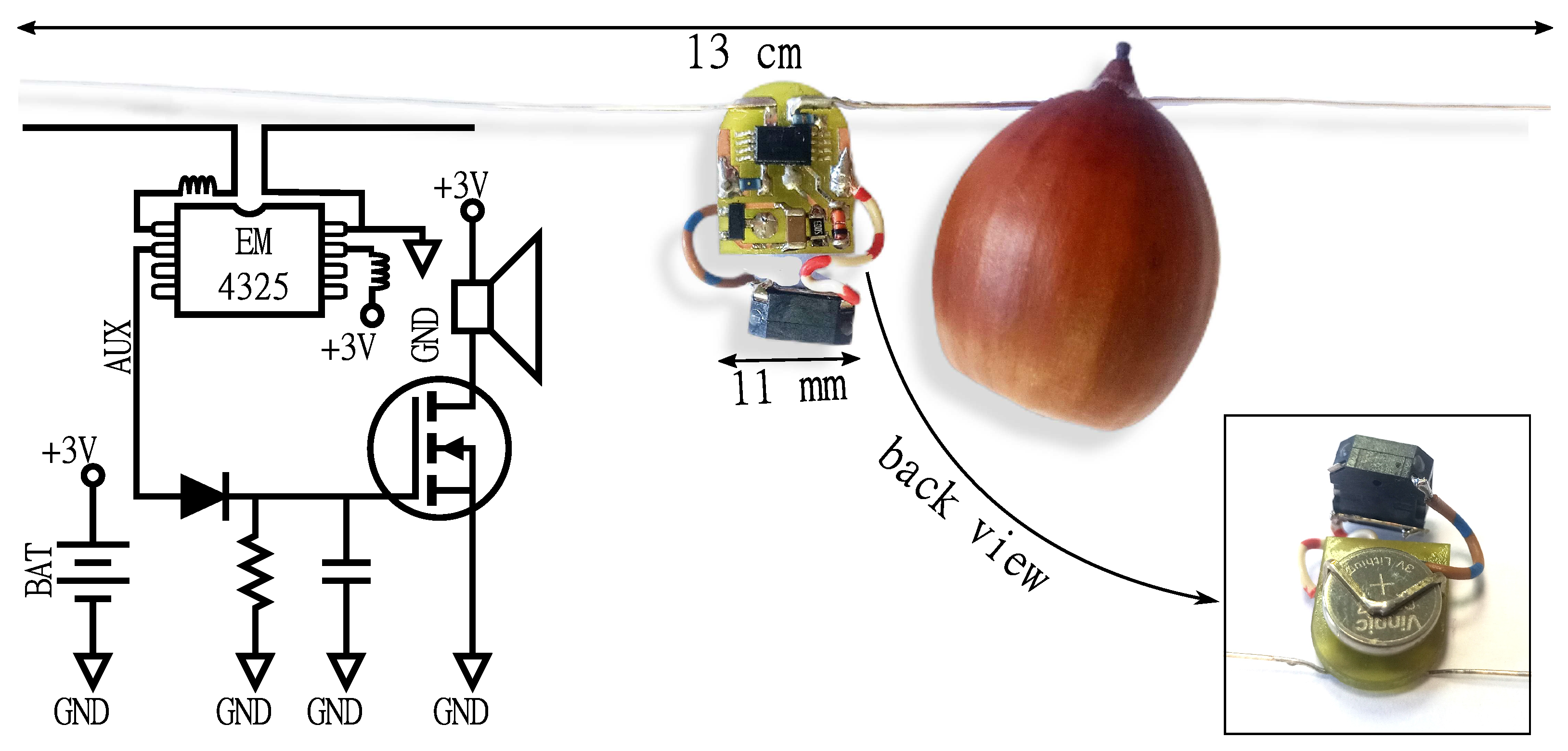

This RFID chip with a sound indicator was placed in the acorn and then tested under quasi-real conditions.

3.2. Experiments Results under Quasi-Real Conditions

The quasi-real conditions experiment described in Section 2.4 measured acorn tag response ranges dependent on the relative orientation of the reader-tag antennas (in the angular range 0${ }^{\circ }$ - 90${ }^{\circ }$). The read range indicated by the handheld RFID reader and the sound range indicated by the sound indicator placed inside the acorn were measured. The results of this experiment are shown in Table 1 and Figure 9.

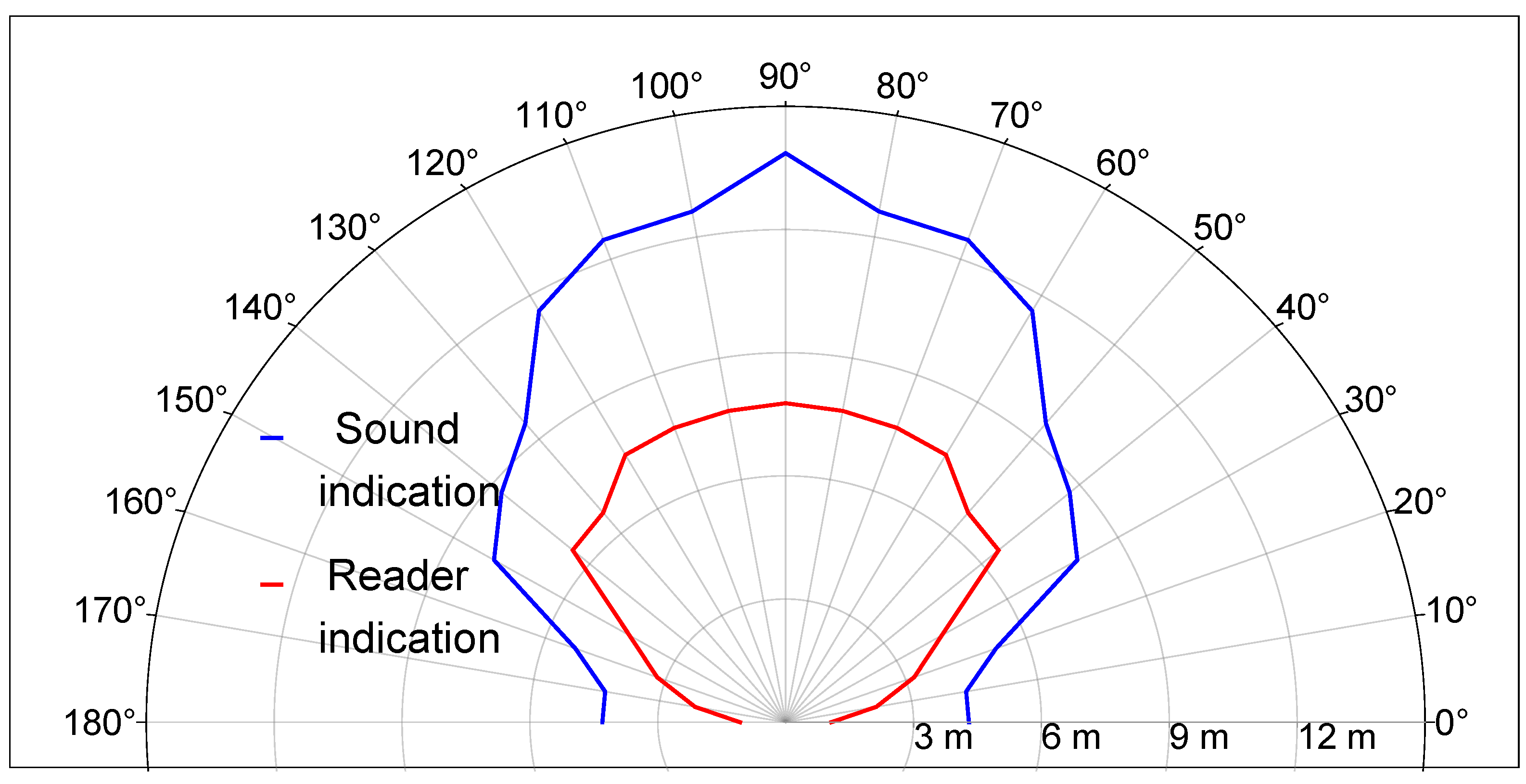

According to the data presented in Table 1 and Figure 9, the Sound indication range of the RFID acorn tag is almost double compared to the Reader indication range. In the most favourable orientation, the Sound indication and Reader indication ranges were 13.86 m and 7.77 m respectively. In the worst case, the ranges dropped to 4.30 m and 1.07 m respectively.

4. Discussion

In this paper, we have shown that there is a potential opportunity to use the RFID technique to track oak acorns. This method can also be used to track other small objects but rather in cases where their position distribution is measured in tens or eventually in a few hundred metres. To demonstrate this possibility, we have prepared several samples of RFID tags, both passive and semi-passive, in various antenna configurations. The tags we prepared were initially tested under laboratory conditions in an anechoic chamber in order to select the best case. It turned out that the winning solution, due to the maximum read range, was a semi-passive RFID tag.

In a further laboratory study, already on a selected semi-passive tag, it was found that the read range strongly depends on the close environment of the tag - it has decreased significantly in the soil environment. In addition, the antenna parameters changed and the tag antenna had to be re-tuned in the soil environment by shortening its length. Laboratory experimental results have shown that the semi-passive tag ’hears’ the reader’s query from a greater distance than it is able to respond to, which gives the possibility to use an acoustic indication channel to determine the RFID tag’s location. To investigate this option, an additional semi-passive RFID tag with a sound indicator was constructed and then tested under quasi-real conditions. The results obtained in the quasi-real experiment confirmed a significant increase in the range of acorn localization using the acoustic communication channel. The use of the sound indicator in acorn tracking results in lower hardware requirements for the RWD reader, as the sensitivity of the reader to the backscattered signal is no longer relevant. Therefore, the RWD reader doesn’t need to be state-of-the-art, it just needs to have high signal transmitting power so that it can be ’heard’ by an RFID tag equipped with an sound indicator.
