Responsive Microgels Based on Raft-Hda Dynamic Covalent Bonding

1. Introduction

The Diels-Alder (DA) reaction [1] is a well-known and commonly used organic cycloaddition reaction in chemical synthesis, materials science, and biomedicine [2,3,4,5,6,7,8,9,10,11,12]. The combinational pairing of dienes and dienophiles, which gives birth to a vast variety of DA reactions, is the central aspect of DA reactions. The inverse electron demand Diels-Alder reaction is a modern variation on traditional DA reactions like the reaction between furan and maleimide (iEDDA) [13]. The challenge with traditional DA reactions is their sluggish kinetics at room temperature, when equilibrium is either reached slowly or at very high temperatures. In order to achieve quantitative conversion, research has been done on effective Diels-Alder reactions such reversible addition fragmentation chain transfer-hetero Diels-Alder (RAFT-HDA) reactions, to reach quantitative conversion within minutes at ambient temperature [14].

Barner-Kowollik proposed the RAFT-HDA reaction in 2008, based on the heteroatomic DA reaction between electron-absorbing dithioesters and cyclopentadiene or linear dienes. In general, an electron-absorbing dithioester acts as a chain transfer agent in reversible addition-break chain transfer (RAFT) polymerization to mediate monomer polymerization, followed by HDA reaction with corresponding dienes in the form of macromolecular chain end group as a dienophile. The RAFT-HDA reaction can be quantitatively converted in minutes to hours at room temperature or 50°C, allowing for the preparation of block polymers in water without the use of a catalyst. The RAFT-HDA reaction is beneficial for a variety of applications in high molecular weight block polymers (BCP), star-shaped polymers, surface modification, and biomedicine due to properties like high efficiency, speed, and reasonably good modularity [15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32]. The extensively researched RAFT-HDA reaction is based on a number of relatively electron-rich dithioesters, including diethoxyphosphoryl dithiocarbonate (BDEPDF) and benzyl pyridin-2-yl dithiocarbonate (BPDF), which act as dienophiles and can effectively close the HOMO-LUMO gap in the DA reaction due to the electron-absorbing groups, leading to efficient and quick DA reactions. Cyclopentadienes and linear dienes make up the majority of all dienes. To obtain the building blocks with dienes as end groups for future reactions, the manufacture of dienes often needs several steps of reaction. Topological structures with higher complexity are characterized by more difficult steps and lower efficiency [33,34,35,36].

Microgels are characterized by a high water content, biocompatibility, and acceptable chemical and mechanical properties with changeable dimensions. They are functionalized nanoparticles with an internal three-dimensional cross-linked network. Applications in drug delivery, bioimaging, and other fields (coatings, catalysis, photonics) are made possible by the material’s responsiveness to external stimuli (temperature, pH, light, electric field, and ionic strength) [37,38,39,40,41,42,43]. Microgels can be broadly divided into two kinds based on the molecular network structure: covalent cross-linking and supramolecular cross-linking. Free radical polymerization, click chemistry, Schiff base reaction, thiol-disulfide exchange reaction, and light reaction are the main covalent crosslinking techniques. Covalent cross-linking generally necessitates the introduction of various cross-linking agents into the microgel system in order to prepare precursors with various reactive functional groups. On the one hand, the introduction of cross-linking agents can result in the introduction of toxicity, but on the other hand, the preparation of microgels and the regulation of various properties necessitates more complex synthesis steps. Microgels formed by supramolecular cross-linking are based on the self-assembly polymerization of various physical interactions (including ionic, hydrophobic, and hydrogen bonds) and are typically prepared under mild conditions, primarily in water, to avoid toxic effects [44,45,46,47,48,49,50,51]. Gels formed by supramolecular cross-linking, on the other hand, may have lower mechanical strength and stability [52,53,54,55,56,57]. Covalently cross-linked microgels are formed by coupling reactive functional groups, allowing for the modulation of the structure and properties of microgel particles with colloidal stability, which is required to prevent the gel network from dissociating and leaking drug. To prepare microgels with dynamic covalent bonding capable of maintaining strength while achieving functional flexibility, efforts to develop stable microgels with simple, efficient, and mild reaction conditions are critical.

Herein we achieved ultrasound responsive properties of the microgels as well as the release of model drug molecules using a simple preparation of responsive microgels based on RAFT-HDA dynamic covalent bonding. Firstly, the polymerization of styrene mediated by RAFT reagent with double-ended BDEPDF as a double-ended dienophile linker, and the copolymerization of furfuryl methacrylate (FMA) with styrene monomer to obtain a chain [58] pendant side group was used to realize the successful occurrence of DA reaction between phosphoryl disulfide and furan. Following that, the microgel system was created via HDA reaction between phosphoryl disulfide and furan groups, with the dienophile building block being a copolymer of poly(ethylene glycol monomethyl ether acrylate) (OEGMA) and FMA, and the cross-linker and hydrophobic segment being a polystyrene dienophile linker. We investigated the effects of single-molecule chain functional group degree (f), furan/dithioester ratio (r), and polystyrene linker length (D) on the DA reaction and thus on the microgel system by varying the number of furans in the dienophile chain and the length of the dienophile linker on the DA reaction and thus on the microgel system. We investigated the effects of single-molecule chain functional group degree (f), furan/dithioester ratio (r), and polystyrene linker length (D) on the DA reaction and consequently on the microgel system by varying the quantity of furans in the dienophile chain and the length of the dienophile linker because RAFT polymerization has good end-group retention and controllable molecular weight. These microgels have the ability to release model drug molecules under regulated conditions, and their mild, easy, and effective production processes are anticipated to have significant promise for use in areas like biomedical materials.

2. Materials and Methods

1,4-bis(bromomethyl)benzene (97%, Aladdin), sodium hydride (60% dispersion in mineral oil, Aladdin), tetrahydrofuran (THF) (anhydrous, ≥99.9%, J&K), diethyl phosphate (99.0%, Aladdin), carbon disulfide (anhydrous, ≥99.9%, Aladdin), toluene(Macklin), chloroform(J&K), dimethyl sulfoxide (DMSO)(J&K), styrene(Amethyst, ≥99.5%), silica gel(Aladdin), Polyethylene glycol monomethyl ether acrylate(OEGMA)(Mn=480, Aladdin, ≥99%), Furfuryl methacrylate(≥95%, J&K), 2,2″-azobisisobutyronitrile (AIBN)(J&K), alkaline alumina(200-300 order, Macklin).The RAFT agents 1,4-phenylenebis(methylene)bis((diethoxyphosphoryl)methanedithioformate) (P-Di-linker) and 4-Cyano-4-(dodecyl trithiocarbonate)pentanoic acid(DDTCP)was prepared according to published procedures (Scheme S1, Supporting Information).

Characterizations

¹H Nuclear Magnetic Resonance (NMR) spectroscopy was performed on a AVANCE III 400 spectrometer operating at 400 MHz for hydrogen nuclei. All samples were dissolved in either CDCl₃ or DMSO-d6.

Gel permeation chromatography (GPC) system equipped with 10 μm mixed columns in series and line with a 20 A refractive index detector (SEC) was used. The mobile phase of the instrument is N, N-dimethylacetamide (DMAC), the flow rate is 1ml.min^-1, the temperature of the gel chromatographic column rises to 50℃, and the standard curve is made by testing polystyrene with different molecular weights.

Light scattering (DLS) performed on a Malvern Zetasizer Nano series (Nano-ZS) instrument was used to measure the size of the microgels. The samples were illuminated with a 633 nm He–Ne laser, and the scattering light at a 90° angle was recorded using an avalanche photodiode detector.

Hitachi HT7700 transmission scanning electron microscope (TEM) was used to observe the morphology of micro gel with an observation voltage of 120 kV.

Synthesis of Phosphoryl Disulfide Terminated Polystyrene(PS1-PS4). Prepare a mixture of styrene monomer (in advance with alkaline alumina to remove the polymerization inhibitor), azo diisobutyronitrile (AIBN), and P-Di-linker in a Schlenk tube.

Oxygen and water were removed from the system through three freeze-evacuate-thaw cycles. The reaction was carried out at 75 °C for 12 h, and then stopped by placing the solution in an ice water bath and exposing it to oxygen. The product mixture was precipitated three times by cold methanol and subsequently dried in a vacuum oven to obtain the corresponding products. The details of the four polymers are as follows (PS1-[M]0/[RAFT]0/[AIBN]0=300:1:0.2, Mn=6689g.mol^-1,Ð=1.15, conversion=21%; PS2-[M]0/[RAFT]0/[AIBN]0=145:1:0.2, Mn=2832g.mol^-1,Ð=1.15, conversion=18.86%; PS3-[M]0/[RAFT]0/[AIBN]0=200:1:0.2, Mn=3987g.mol^-1,Ð=1.4, conversion=19.2%; PS4-[M]0/[RAFT]0/[AIBN]0=400:1:0.2, Mn=7563g.mol^-1,Ð=1.13, conversion=18.2%).

Synthesis of Long Chain with Furan as Group vertical side group. A mixture of styrene monomer or OEGMA, furfuryl methacrylate monomer (in advance with alkaline alumina to remove the inhibitor), azo diisobutyronitrile (AIBN), and DDTCP was prepared in a Schlenk tube. Oxygen and water were removed from the system by three freeze-evacuate-thaw cycles. The reaction was carried out at 75°C for 12h or 5h, and then stopped by placing the solution in an ice water bath and exposing it to oxygen. The copolymers of styrene and FMA were precipitated three times by cold methanol and the copolymers of OEGMA and FMA were precipitated three times by cold hexane, followed by drying in a vacuum oven to obtain the corresponding products. The details of several polymers are as follows (SF1-[S]0/[F]0/[RAFT]0/[AIBN]0=150:44:1:0.2, conversiona=40%, conversionb=79.5%, [S]/[F]=60:35;SF2-[S]0/[F]0/[RAFT]0/[AIBN]0=115:20:1:0.2,conversiona=37.4%, conversionb=84.6%,[S]/[F]=43:17;OF1-[O]0/[F]0/[RAFT]0/[AIBN]0=55:5:1:0.2, conversiona=81.8%, conversionb=40%, [O]/[F]=45:2

OF2-[O]0/[F]0/[RAFT]0/[AIBN]0=55:10:1:0.2,conversiona=81.8%,conversionb=40%, [O]/[F]=45:4;OF3-[O]0/[F]0/[RAFT]0/[AIBN]0=55:15:1:0.2,conversiona=81.8%, conversionb=46.7%,[O]/[F]=45:7;OF4-[O]0/[F]0/[RAFT]0/[AIBN]0=55:10:1:0.2, conversiona=72.7%, conversionb=50%, [O]/[F]=40:5).

Reversible Addition Fragmentation Chain Transfer Hydro Diels–Alder Cyclization Between Phosphoryl Disulfides and Furan Rings. The phosphoryl dithioester capped polymer and the pendant furan ring long chain polymer were dissolved in toluene, dissolve in a glass bottle with stirring and heat at 55℃ for 24h. The resulting block copolymers were separated by precipitation in cold hexane and analyzed by GPC (THF or DMAC) and NMR (CDCl₃).

Preparation of Polymeric Microgels. By pipetting 20μl of the reaction mixture with a pipette, add toluene and dilute to 0.6ml, then stir the diluted mixture for 10min. Ultra-pure water is then added dropwise to the mixture using a peristaltic pump at a rate of 0.67 mL.h^-1 until the desired volume ratio of water to toluene. The mixed solution is then placed in a cellulose dialysis strip and the toluene and unreacted building blocks are removed by ultra-pure water dialysis (water changes every 3 hours, at least 5 times). The solutions were subsequently used for TEM and DLS characterization.

3. Results and discussion

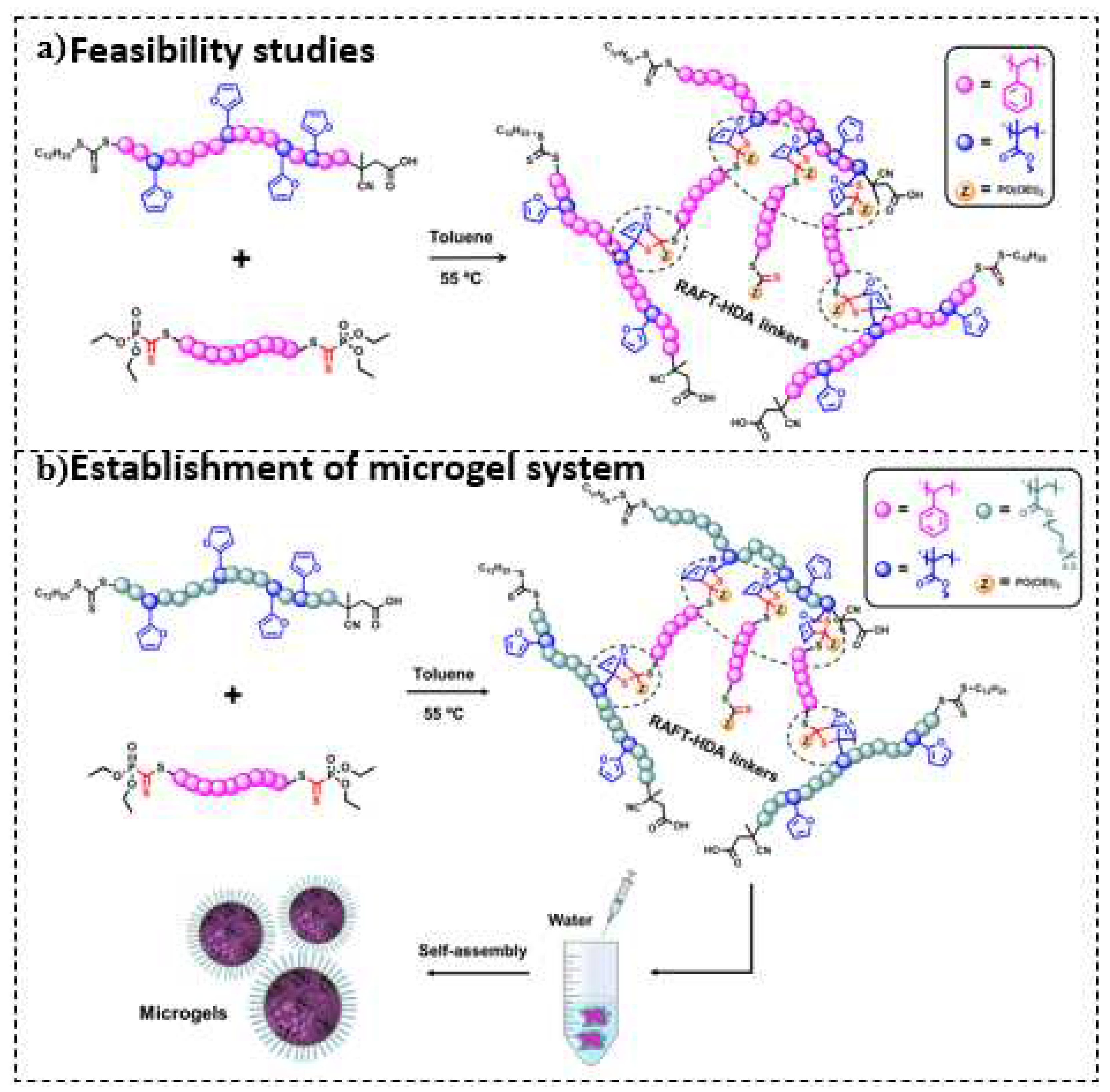

Scheme 1 depicts the main working concept. We prepared polystyrene with phosphoryl disulfide caps as the dienophile and a copolymer of FMA and styrene as the dienophile in order to test the viability of the HDA reaction between the phosphoryl disulfide and furan ring. By creating copolymers of FMA and OEGMA as in Scheme 1b, the concept of Scheme 1a was later expanded to include the creation of microgels. In the microgel system, polystyrene, a dienophile-type double-ended cross-linker, was subjected to an HDA reaction with OEGMA-co-FMA to produce microcrosslinked block polymers, in which polystyrene served as a hydrophobic segment and OEGMA as a hydrophilic segment. Following the HDA reaction, the hydrophilic balance of the system was then further assembled in aqueous solution to produce the microgel.

Polystyrene (PS1-PS4) was created by RAFT polymerization adopting 1,4-phenylbis(methylene) bis((diethoxyphosphoryl) methyl dithiocarbonate) as a chain transfer agent as the anticipated dienophile molecule in the HDA model concept (Scheme S2a). Simultaneously, 4-cyano-4-(dodecyl trithiocarbonate)pentanoic acid (DDTCP) was used to prepare RAFT copolymers of furfuryl methacrylate and styrene (SF1-SF2) (Scheme S2b) or Polyethylene glycol monomethyl ether acrylate (OF1-OF4) (Scheme S2c). Table 1 shows the molecular weight assessment of these building blocks.

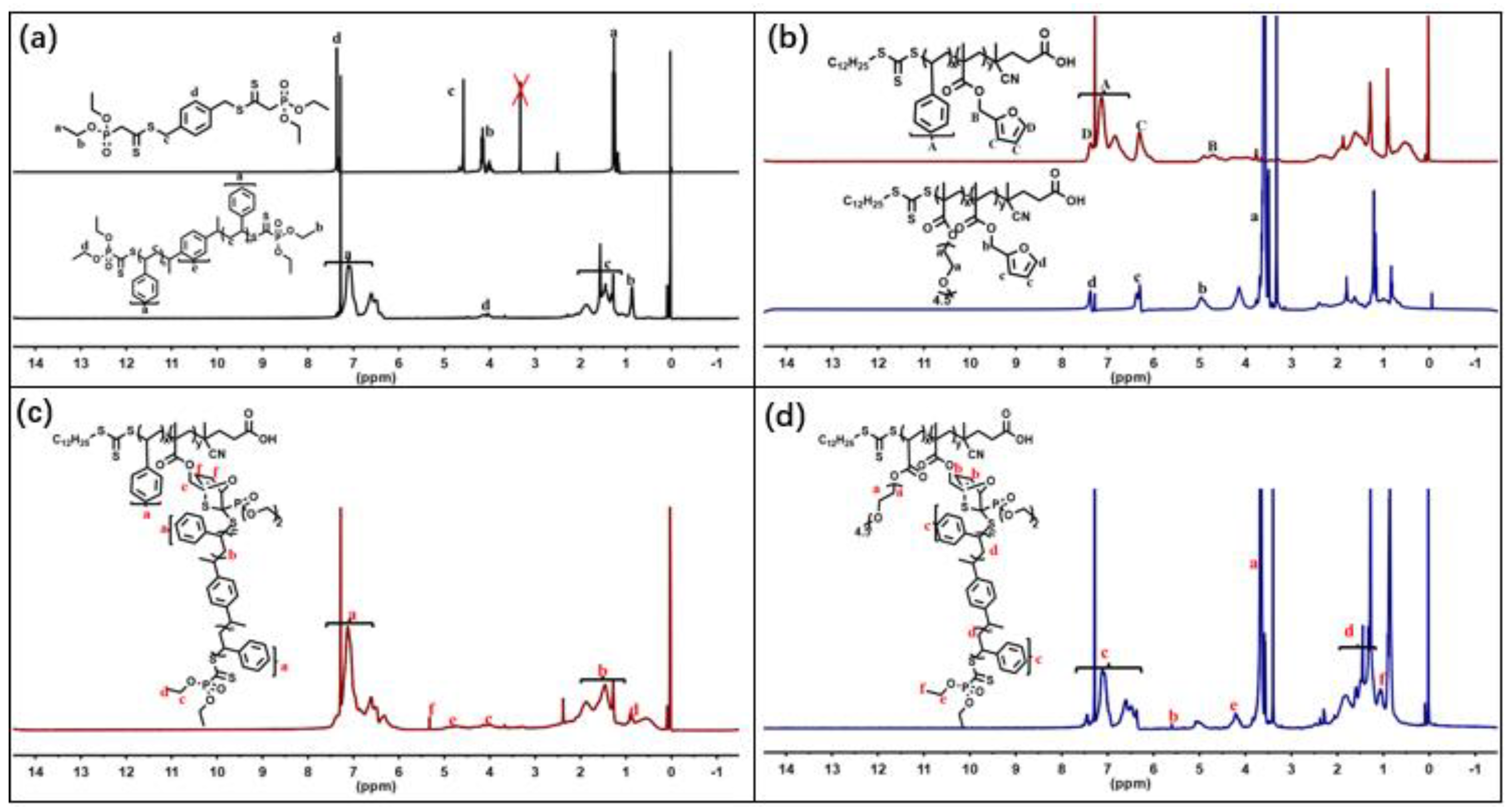

The produced polymers were evaluated by ¹H NMR analysis to ascertain the structure of the aforementioned polymers. All of the distinctive peaks of the RAFT reagent, dienophile, and pro-dienophile building blocks can be seen in Figure 1. As seen in Figure 1a, the characteristic peaks in proton signals b,d corresponding to phosphoryl disulfide show that the P-Di-linker successfully mediated the polymerization of styrene, resulting in the presence of a well-defined disulfide end group. In addition, the characteristic peaks in proton signals A,a,C,D,c,d corresponding to styrene, ethylene glycol, and furan. In order to investigate the feasibility of the reaction of phosphoryl dithioesters with furan HDA, two sets of dienophile building blocks of different lengths and different numbers of furan units, SF1 an characterized by several different means.

In the ¹H NMR analysis (Figure 1c), the proton signals f correspond to the formation of new double-bonded hydrogen characteristic peaks after the cycloaddition reaction of the furan ring with the dithioester ring. Figure 2a,b then gives the relationship between the molecular weights of the two sets of reaction building blocks and the block copolymers. The GPC chromatograms show the traces of the formed block copolymers relative to the individual building blocks. The significantly reduced retention time of the traces and the absence of significant shoulders also indicate successful and effective block formation, which is consistent with the data in Table 1. It should be emphasized that none of the block copolymers produced in the current investigation were pure when they underwent GPC testing. We can infer from the GPC spectra of the block copolymers that the grafting rate of the block system, or the effectiveness of the HDA reaction, is influenced by the length of the block and the number of furan units in a single diene building block. This, in turn, results in a variety of molecular weights and molecular weight distributions for the system. This item was not thoroughly explored, and the microgel part will be investigated at and confirmed.

To further examine the thermal reversibility of the Diels-Alder reaction in the system, DSC and variable temperature FTIR were applied. It is possible to visualize the system after the HDA reaction in the DSC curve with a heat absorption peak at approximately 120°C (Figure 3b), which corresponds to the inverse DA reaction of the DA bond between the furan and dithioester and also supports the viability of the HDA reaction between the furan ring and phosphoryl dithioester from the side. The cross-linked polymers were analyzed by variable temperature FTIR spectroscopy in addition to DSC (Fig. 3a). The technique is highly sensitive to the exact molecular structures created by the Diels-Alder and reverse Diels-Alder processes being absorbed. The samples were heated to a temperature over the 120 °C threshold for the inverse DA reaction, a gradient of 20 °C was set, and each temperature was kept for 10 minutes before the corresponding analysis, which consisted of heating and cooling for one cycle, was conducted. With symmetric and asymmetric stretching vibrations of the intra-ring C- O- C bonds, furan rings have the cyclic bis(vinyl ether) structure that is typical of these compounds. Asymmetric stretching vibrations of the ring’s C- O- C bonds occur in furan acrylates at a frequency of 1220 cm^-1. The cyclic C-O-C bond’s asymmetric stretching vibration occurs at a frequency of 1220 cm^-1 in -furan acrylate, while its symmetric stretching vibration occurs at a reasonably steady frequency of 1076 cm^-1 and is less affected by the substituent. [IR analysis of the structure and IR spectral features of α-furan esters]. The characteristic peaks at 1030 cm^-1 and in the range of 1750–2400 cm^-1 vary in the spectra of the cross-linked polymers. The analysis shows that the stretching vibration of the C-O-C bond, which is responsible for the absorption band at 1030 cm^-1, the stretching vibration of the carbonyl group, which is responsible for the absorption band at 1750 cm^-1, and the variation of the absorption intensity of the C=C=O bond, which is responsible for the absorption band at 2400-2150 cm^-1. As can be seen, as the temperature rises, the system experiences an inverse DA reaction and the relevant IR characteristic peaks’ absorption intensities vary accordingly. However, the system’s recyclability is relatively poor. However, the feasibility of the HDA reaction in this system can be confirmed, and Figure S1 further shows that the system is reversible. The pro-dienophile building block PS, dienophile building block SF, and SF-S block polymerization’s typical TGA curves are shown in Figure 3c. As can be observed, the inclusion of FMA lowers the temperature at which breakdown begins but raises the quantity of carbon that is still present at 700°C. A greater amount of residual char was left after the crosslinking with PS, which is more proof that the crosslinking was successful. The degree of crosslinking and the amount of residual char are directly connected, and the relative amount of FMA is proportional to both (Figure S2). It is important to note that the stability of the system decreased after the reaction, which can be attributed to the further increase in the amount of FMA after the grafting of the system, the fact that the cross-linked system did not form a large cross-link density, the fact that the reaction system was not purified and there were unreacted building blocks.

As a result of the research above, we expand the DA reaction between furan and phosphoryl disulfide to create a microgel system. The amount of functional groups (f) of single-chain polystyrene is fixed at 2, and the disulfide ester and furan ring exist here as cross-linking reaction sites. The number of furan sites of single-chain furan copolymer can be adjusted, but it is not advisable to have too many as cross-linking reaction sites form for the creation of microgel system. At the same time, OEGMA and polystyrene interact to generate hydrophilic linkage segments and comb, trapezoidal, or smaller cross-link density block polymers, depending on the molecular structure of the copolymer. Here, we used adjustable RAFT polymerization to create microgels more easily while examining the impact of hydrophobic segment length and cross-link density on the microgel system.

We first prepared polystyrene of three different lengths (DP 30, 40, and 80, respectively) of S2, S3, and S4 as crosslinkers in order to investigate the impact of hydrophobic chain segment length on microgels. We then obtained a series of solutions containing the S/OF reaction system by controlling the dithioester to furan ratio of 1 (r=1), reacting with OF4 via HDA, and performing subsequent microgel preparation (for details, see Experimental section). The size and shape of the grafted polymer aggregates were investigated using transmission electron microscopy (TEM). The TEM morphology supported our prior theory that the polymers generated from the S/OF process were capable of forming microgel structures in water, as illustrated in Figure S3. Meanwhile, the TEM images and DLS data show (Figure 4) that the size of the microgel gradually increases with the length of the hydrophobic segment. This is explained by the fact that as the hydrophobic part of the system grows, the system must reach a new affinity for water, which results in a corresponding change in the microgel size. The crosslinking density of the microgel system, which has varied impacts on the particle size and dispersion of the microgel, is affected by the size of the building block for the DA reaction as well.

The control group (Figure 5) with varying water concentrations (40–80v%) demonstrates, that the water content has no effect on the microgels’ fundamental spherical form. We explain this by the formation of a micro-crosslinked network structure that is difficult to change, which is coupled by DA bonds between the hydrophobic chain segment S and the hydrophilic chain segment OF. According to the TEM images, however, the existence of numerous stiff benzene rings on the molecular weight also contributes to the production of a few components, such as bowl-shaped morphology and porous morphology, because the hydrophobic chain segment of the system is polystyrene. Naturally, this has some research value as well and won’t be covered here. The DLS data show that the microgel’s particle size fluctuates with increasing water content but does not change appreciably either way.

In subsequent experiments, we simply and effectively controlled the number of cross-linking sites by regulating the number of furan groups in single chains via RAFT polymerization regulation, achieving the goal of controlling the cross-linking density of the cross-linked system. To investigate the effect of crosslinking density on the microgel system, we prepared OEGMA-co-FMA block copolymers OF1, OF2, OF3 (=2, 4, 7) containing varying numbers of furan units while keeping the length of hydrophobic and hydrophilic chains constant. The morphology of the resulting microgels composed of S3 and OF with different is shown in TEM images after a similar preparation process (Figure 6). The microgels of various crosslinking densities have a spherical shape. As the number of single-chain furan units rises, the system’s crosslinking density also rises along with it, as does the number of linked hydrophobic chain segments. This results in a general increase in gel size as well as a corresponding narrowing of the particle size distribution. It should be noted that the research of the hydrophobic chain length and the amount of single-chain furan units both rely on the same initial functional group concentration and a dithioester/furan ratio of 1 ([S]/[F] = r = 1). Next, we investigate how r affects the microgel system. Using r=2 for the corresponding reaction process, we find that too much furan causes the system to gel, resulting in an insoluble fraction. Only a small amount of soluble fraction is needed for the corresponding characterization, which reveals that the large aggregated system is not a properly prepared microgel (Figure S4). The microgels made using this method also exhibit good stability; just a small amount of precipitation was discovered in the system after 36 days in a normal environment, and the solution of the microgel system changed from pure white to translucent white. The accumulation is more significant.

Microgels have the potential for biomedical applications such as controlled release because of their response to external stimuli. At the moment, temperature and pH variations are the main focus of microgels’ responsiveness. The microgel system’s responsiveness to temperature is often constrained by the type of polymer used and depends on its LCST properties. The manufacture of microgels with physically cross-linked structures necessitates the use of unique molecules and structures, which is a dilemma because the reaction to pH typically depends on specific bonding, such as hydrogen bonding.

The DA bond created by the RAFT-HDA reaction is thermally reversible, but still up to a temperature of 120 °C, according to the study mentioned above. Despite the fact that the DA bond will break to give the microgel a stimulating responsiveness, the microgel at this temperature will undoubtedly disintegrate owing to the high temperature and will not match the application requirements of microgel. In 2014, Zhijian Wang’s team created a brand-new mechanical carrier made of At room temperature, this polymer can undergo an inverse HDA reaction through ultrasonication, which will cause the system to disintegrate and give it force-responsive characteristics.Inspiring by the aforementioned, we undertook a cursory research of the force responsiveness of the HDA bond between the furan ring and phosphoryl dithioester. We chose two systems, OF3-S2 and OF4-S2, for 2 hours of sonication to test the microgel systems’ force responsiveness. Figure 7a,b show the phenomena of polystyrene molecules separating from the microgels and generating flocculent precipitates. Gel chromatography analysis will reveal that the molecular weight of the sonicated systems significantly decreased, and lower peaks appeared in the higher molecular weight fraction corresponding to the non-detached fraction (Figure 7c,d). The analysis was subsequently expanded upon by coating rhodamine B.

Rhodamine B was coated by the microgel technique at a comparatively high rate, as seen in Figure 8. The bonding of the microgel system was broken after sonication, which therefore reduced the pace at which the medication was coated. The particle size change of the microgel particles was also noticeably smaller after sonication. The mechanical force that disrupts the bonding between the polystyrene and copolymer chain segments, which results in the microgel system’s disruption and gives the microgel force responsiveness, is thought to be responsible for the results mentioned above. However, further research must be done to determine the precise mechanism and contributing elements.

4. Conclusions

In conclusion, Finally, based on the cascade reaction of RAFT polymerization and Diels-Alder, this paper investigates a new diene, furan ring, for the HDA reaction, and applies the new RAFT-HDA reaction to the preparation of microgels. On the one hand, the furan ring can participate in the HDA reaction, providing a more readily available dienophore for the RAFT-HDA reaction, expanding the variety of dienophores in the RAFT-HDA reaction system, and making it easier to obtain more complex topologies from RAFT-HDA; on the other hand, the RAFT-HDA reaction can be extended to some extent for more applications. In this paper, we investigate the effects of hydrophobic chain length and crosslinking density on microgel systems, and we obtain stable microgel assemblies in a very simple way, while achieving easy modulation of their properties thanks to the introduction of controllable RAFT polymerization, which makes them mechanically responsive. The presence of furan rings in a very large number of monomers and their investigation as novel dienes gives more possibilities for the RAFT-HDA reaction. In this paper, we investigate the effects of hydrophobic chain length and crosslinking density on microgel systems, and we obtain stable microgel assemblies in a very straightforward manner while achieving easy property modulation thanks to the introduction of controllable RAFT polymerization. Furan rings are found in a very large number of monomers, and their research as novel dienes expands the RAFT-HDA reaction’s potential.
