Multibeam Cylindrical Conformal Array in the Presence of Enhanced Mutual Coupling

1. Introduction

Modern communication and sensing technologies such as remote sensing (RS) or 5G communications heavily rely on antenna arrays to maximize energy efficiency and performance. For instance, RS is a technology embedded with interdisciplinary sciences that aims to gather information and analyze objects without making any kind of physical contact. The idea of it had an origin for topographic mapping of Earth’s surfaces when the camera was first invented. The technology has flourished in many sectors in addition to its original purpose of surface mapping mainly related to geography. For instance, one widely known instrument based on this technology is the geographic information system (GIS) [1,2]. The application of remote sensing technologies has been increasingly seen in transportation systems and vehicles due to the growing developments in assisted and autonomous driving technologies [3]. Remote sensing sensors for data collection [4,5] have witnessed tremendous developments in recent years.

RS sensors are instruments that measure the properties of EM radiation reflected from an object’s surface. In general, radiance is the property measured as a function of wavelength but could also include other parameters such as cross-polarization ratio. Technology for developing microwave sensors is quite different from that of optical-infrared (OIR) sensors [6]. Sensors based on microwave spectrum have two advantages: data packages about certain geographic locations can be gathered despite weather conditions; the RS parameter related to polarization can be acquired.

The ability of remote sensing sensors to provide accurate and reliable data on weather and road surface conditions was investigated in [7]. These conventional sensors based on infrared radiation or spectroscopic methods have shown a limited distance coverage (i.e., up to 15 meters) and the accuracy is heavily dependent on in situ conditions. Future intelligent transportation systems (ITSs) will need to collect various information about the surroundings of the vehicle regardless of weather conditions in order to improve mobility, transport safety, and comfort while also reducing the negative impacts on the environment. Phased arrays with multi-dimensional electronic scanning capability show advantages in ITS [8,9] and remote sensing systems [10]. By utilizing high data rate wireless communication technologies in addition to sensing, transportation systems can be improved and redesigned with the use of the data uncovered using remote sensing in combination with wireless communications. Moreover, recently dual-function systems have been proposed to combine sensing and communications on the same platform for vehicular networks to further improve both energy efficiency and system performance [17].

The main sensing technologies for ITS are summarized and compared in Table 1, which demonstrates that sensing with electromagnetic waves such as in integrated communication and sensing systems and radars provides high accuracy and significant advantages over other methods in complex environments. Low-cost and compact antenna arrays and beamforming technologies are necessary in modern vehicular systems to provide high-accuracy sensing and high data rate communications.

The antenna or elements generally behave very differently when they are isolated or in an array. The impedance, radiation pattern, and efficiency of the antennas in an array are dominated by the mutual coupling with the neighboring elements. The spacing between the elements and the geometry of the array influence the mutual coupling [19]. Mutual coupling may be utilized to increase the bandwidth of the antenna arrays [20]. The characteristics of mutual coupling in an array are complex, in particularly, for non-planar arrays, for instance, cylindrical conformal arrays. Therefore, it is important to study and understand mutual coupling and its benefits and disadvantages in non-planar arrays, especially in the case of multibeam applications.

Unlike a planar antenna array, a cylindrical conformal array (CCA) can provide omnidirectional coverage around the antenna array [19,20,21]. This feature is not typically required for tracking or detecting services. However, it is desired for scientific applications in remote sensing, e.g., Cylindrical Polarimetric Phased Array Radar (CPPAR) is capable of maintaining broadside polarimetric purity at all azimuthal directions [22]. The angular measurement errors of differential reflectivity on the order of 0.1 dB were expected for polarimetric weather radar missions. This is a substantial challenge to achieve for planar arrays due to azimuth scan losses and the large polarization bias that occurs when the main lobe is steered away from the principal planes [23]. The arrays on a cylinder can be analyzed by employing Bessel functions to obtain solutions for active element patterns and mutual coupling relationship between elements which is typically represented by an impedance matrix [24].

In this study, an ultrawideband cylindrical array based on tightly coupled crossed disk elements is investigated. This array structure was chosen for scrutinizing the mutual coupling effect because coupling in this arrangement is essential for the array to obtain broad bandwidth. The cylindrical array is in a dual slant-polarized configuration and mutual coupling between the elements was significant to achieve a low profile. The effect of mutual coupling with respect to impedance matching and radiation characteristics of the elements in the array is examined. The potential of such arrays for multi-beam capability is explored based on studies on the subarrays.

As the technology for ITSs is developed, the demand for the coverage of both a wider range and a broader spectrum increases. In addition, polarimetric measurement with a high polarization purity is critical to improve classification accuracy in certain conditions. The dual slant-polarized cylindrical array based on the tightly coupled crossed disk antennas presented advantages in all aspects of concern.

In Section 2, the dual slant-polarized cylindrical array for a study on the mutual coupling effect is described. Section 3 analyzes the effect of mutual coupling with respect to impedance matching and radiation characteristics. The results and discussion are presented in Section 4, and finally, a conclusion is drawn in Section 5.

2. The Cylindrical Array Design

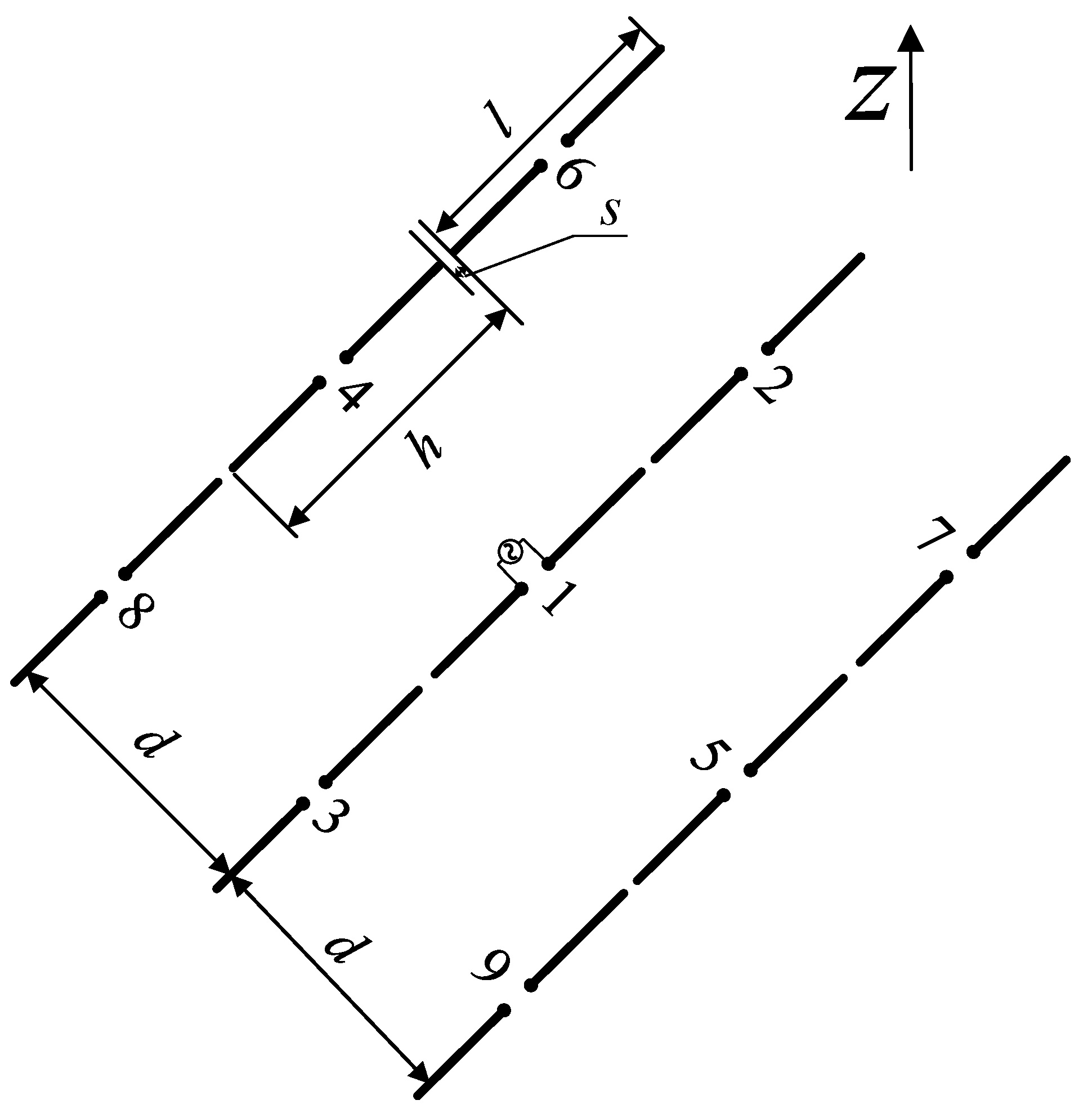

When two or more antennas are placed close to each other, an interchange of energy occurs. It happens whether the antennas are in transmitting or receiving mode. The energy exchange between the antenna elements in the array is caused by mutual coupling. The mutual coupling changes the terminal impedance, antenna gain, beamwidth, and efficiency of the array. In order to investigate this effect more thoroughly on a cylindrical surface with a more complex elements structure, a dipole array as shown in Figure 1 is examined first. The mutual coupling between the element ”1” with a length l and the surrounding elements with side-by-side configuration is expressed by [25]

$$R_{41}=\frac{\eta }{4\pi }\left[2C_i\left(u_0\right)-C_i\left(u_1\right)-C_i\left(u_2\right)\right],$$

(1)

$$X_{41}=-\frac{\eta }{4\pi }\left[2S_i\left(u_0\right)-S_i\left(u_1\right)-S_i\left(u_2\right)\right],$$

(2)

$$\begin{array}{cc}\hfill u_0& =kd\hfill \\ \hfill u_1& =k\left(\sqrt{d^2+l^2}+l\right)\hfill \\ \hfill u_2& =k\left(\sqrt{d^2+l^2}-l\right)\hfill \end{array}$$

(3)

where $S_i\left(x\right)$ and $C_i\left(x\right)$ are the sine and cosine integral functions, and d is the distance between the two dipoles of interest at the feed point.

For the collinear configuration, the mutual impedance is expressed by

$$\begin{array}{cc}\hfill R_{21}=& -\frac{\eta }{8\pi }cos\left(v_0\right)\left[-2C_i\left(2v_0\right)+C_i\left(v_2\right)+C_i\left(v_1\right)-ln\left(v_3\right)\right]\hfill \\ \hfill & +\frac{\eta }{8\pi }sin\left(v_0\right)\left[2S_i\left(2v_0\right)-S_i\left(v_2\right)-S_i\left(v_1\right)\right]\hfill \end{array}$$

(4)

$$\begin{array}{cc}\hfill X_{21}=& -\frac{\eta }{8\pi }cos\left(v_0\right)\left[2S_i\left(2v_0\right)-S_i\left(v_2\right)-S_i\left(v_1\right)\right]\hfill \\ \hfill & +\frac{\eta }{8\pi }sin\left(v_0\right)\left[2C_i\left(2v_0\right)-C_i\left(v_2\right)-C_i\left(v_1\right)-ln\left(v_3\right)\right]\hfill \end{array}$$

(5)

$$\begin{array}{cc}\hfill v_0& =kh\hfill \\ \hfill v_1& =2k\left(h+l\right)\hfill \\ \hfill v_2& =2k\left(h-l\right)\hfill \\ \hfill v_3& =\left(h^2-l^2\right)/h^2\hfill \end{array}$$

(6)

For the parallel-in-echelon configuration, the mutual impedance is expressed by

$$\begin{array}{cc}\hfill R_{61}=& -\frac{\eta }{8\pi }cos\left(w_0\right)\left[-2C_i\left(w_1\right)-2C_i\left({w_1}^{\prime }\right)+C_i\left(w_2\right)\right.\hfill \\ \hfill & \left.+C_i\left({w_2}^{\prime }\right)+C_i\left(w_3\right)+C_i\left({w_3}^{\prime }\right)\right]\hfill \\ \hfill & +\frac{\eta }{8\pi }sin\left(w_0\right)\left[2S_i\left(w_1\right)-2S_i\left({w_1}^{\prime }\right)-S_i\left(w_2\right)\right.\hfill \\ \hfill & \left.+S_i\left({w_2}^{\prime }\right)-S_i\left(w_3\right)+S_i\left({w_3}^{\prime }\right)\right]\hfill \end{array}$$

(7)

$$\begin{array}{cc}\hfill X_{61}=& -\frac{\eta }{8\pi }cos\left(w_0\right)\left[2S_i\left(w_1\right)+2S_i\left({w_1}^{\prime }\right)-S_i\left(w_2\right)\right.\hfill \\ \hfill & \left.-S_i\left({w_2}^{\prime }\right)-S_i\left(w_3\right)-S_i\left({w_3}^{\prime }\right)\right]\hfill \\ \hfill & +\frac{\eta }{8\pi }sin\left(w_0\right)\left[2C_i\left(w_1\right)-2C_i\left({w_1}^{\prime }\right)-C_i\left(w_2\right)\right.\hfill \\ \hfill & \left.+C_i\left({w_2}^{\prime }\right)-C_i\left(w_3\right)+C_i\left({w_3}^{\prime }\right)\right]\hfill \end{array}$$

(8)

$$\begin{array}{cc}\hfill w_0& =kh\hfill \\ \hfill w_1& =k(\sqrt{d^2+h^2}+h)\hfill \\ \hfill {w_1}^{\prime }& =k(\sqrt{d^2+h^2}-h)\hfill \\ \hfill w_2& =k(\sqrt{d^2+{(h-l)}^2}+(h-l))\hfill \\ \hfill {w_2}^{\prime }& =k(\sqrt{d^2+{(h-l)}^2}-(h-l))\hfill \\ \hfill w_3& =k(\sqrt{d^2+{(h+l)}^2}+(h+l))\hfill \\ \hfill {w_3}^{\prime }& =k(\sqrt{d^2+{(h+l)}^2}-(h+l))\hfill \end{array}$$

(9)

The total antenna efficiency is used to take into account losses at the input terminals and within the structure of the antenna. The total efficiency of the elements in the array is related to the impedance matching status partially dependent on the mutual coupling effect. The total efficiency and the active input impedance of the element have the following relationship,

$$\Gamma =\frac{Z_{in}-Z_o}{Z_{in}+Z_o}$$

(10)

where $\Gamma$ is the voltage reflection coefficient at the input terminals of the antenna, $Z_{in}$ is antenna input impedance, $Z_o$ is the characteristic impedance of the transmission line.

$$e_r=1-{|\Gamma |}^2$$

(11)

where $e_r$ is reflection efficiency.

$$e_0=e_r{e}_c{e}_d$$

(12)

where $e_0$ is total antenna efficiency, $e_c$ is conduction efficiency, $e_d$ is dielectric efficiency.

$$e_0=e_r{e}_{cd}=e_{cd}\left(1-{|\Gamma |}^2\right)$$

(13)

where $e_{cd}$ = $e_c$$e_d$ is the antenna radiation efficiency [26]. It is usually implicit to compute and measure, however, it can be obtained from full-wave simulations with high accuracy and it is adopted in this investigation.

The calculated terminal impedance, mutual coupling coefficients, active input impedance, and the total radiation efficiency of the element ”1” in the presence of other 8 elements were given in Table 2. It indicated that as the number of active elements increases, the real part fluctuates around the characteristic value, and the absolute value of the imaginative part of the input impedance tends to decrease, hence, the total radiation efficiency of the center element also tends to decrease. The total radiation efficiency reaches 99 % with all 9 elements becoming active. However, the operational bandwidth of such arrays is limited. Hence, mutually coupled disk arrays were designed and studied, furthermore, they were put on a curved surface for low profile and accommodating array carriers of uneven surfaces, the unique features of such arrays were investigated based on disk arrays with enhanced mutual coupling.

The array formed by coupling enhanced disk pairs demonstrated broad bandwidth characteristics. It is also bendable to make it deployable on curved surfaces. The wideband cylindrical array design is shown in Figure 2. It consists of three layers, one active layer of tightly coupled crossed disks in the middle and one metasurface on the outside, backed up by a ground plane in the core of the cylinder with a smaller radius and hollow inside. These three layers are concentric. Four subarray configurations are also illustrated where 1, 3, 5, or 9 elements are included in the subarray respectively. The cross-section view of the cylindrical array is shown in Figure 3.

3. Mutual Coupling in a Cylindrical Array

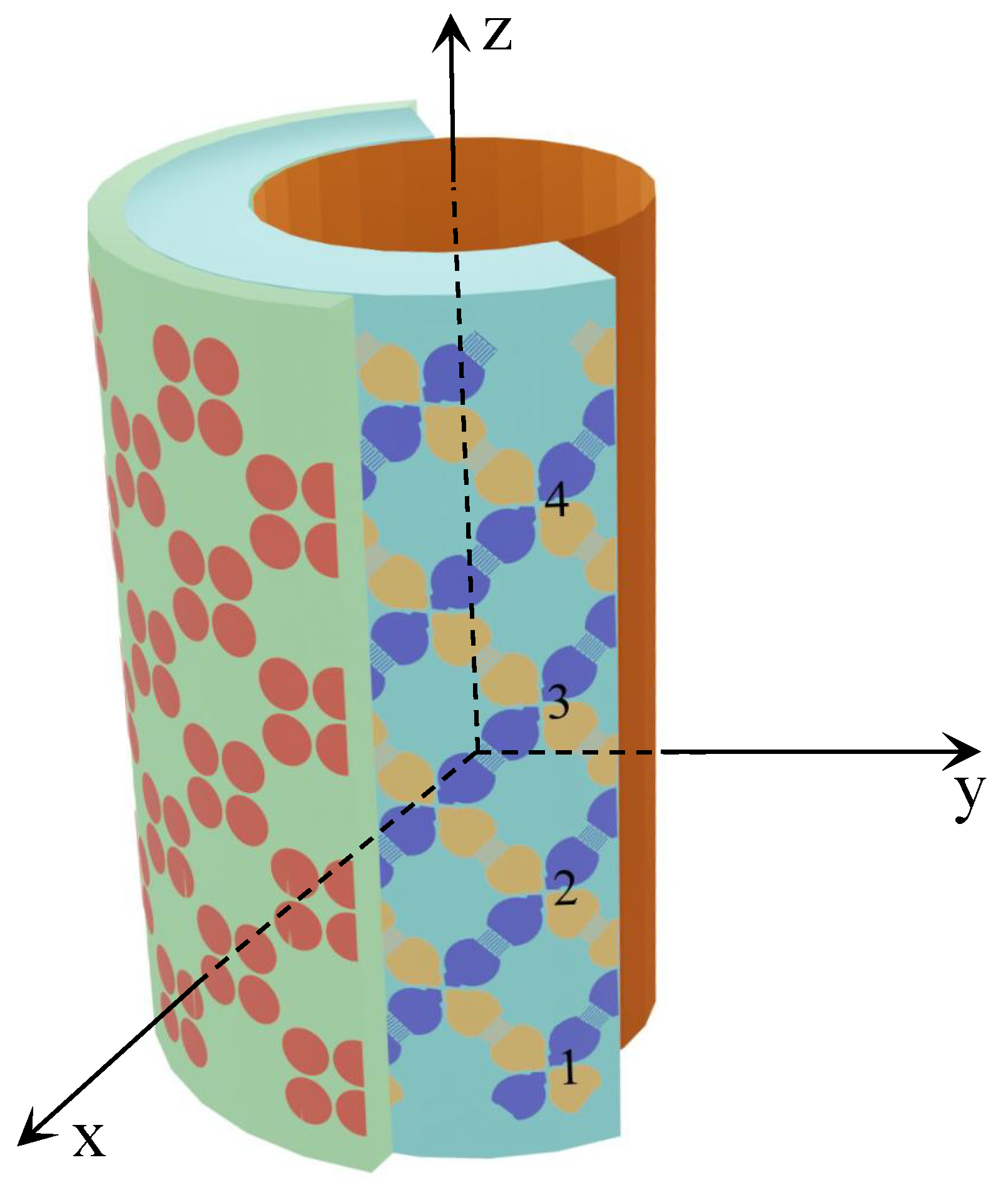

The mutual couplings between the center element and its surrounding elements in the cylindrical array and its corresponding reference planar array are illustrated in Figure 4 for comparison, where (3,3) represents the physical location of the center element. The element in the center with 4 other adjacent elements (two at each side in +${45}^{\circ }$, i.e., the orientation for co-polarization) formed the center row of the 5 × 5 subarray. Three frequencies of 3 GHz, 4 GHz, and 5.9 GHz were studied for the element in the two forms of the array.

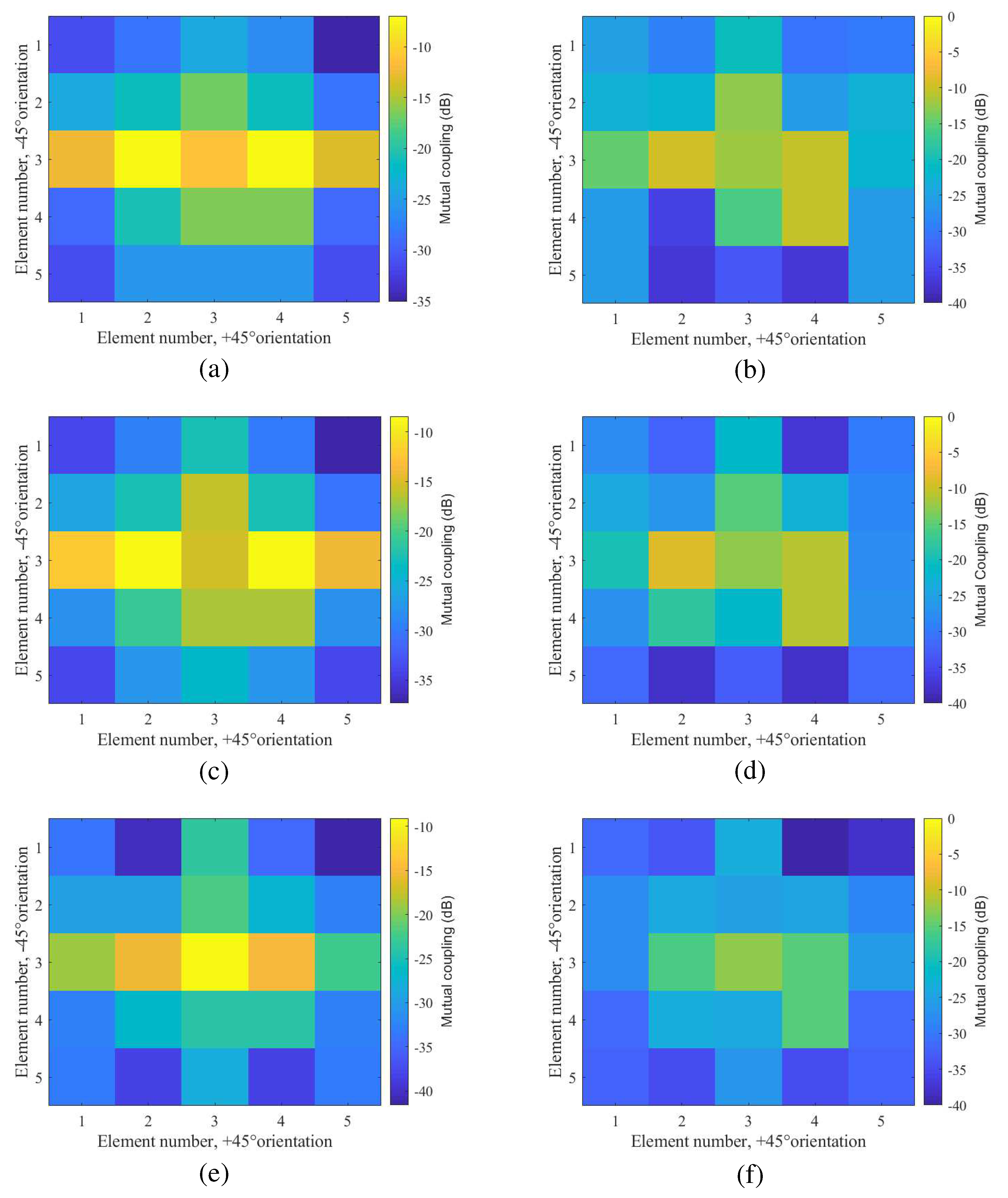

It is clearly shown in Figure 4 that mutual coupling between the elements in a planar array is spreading over a greater electrical distance than the same elements in a cylindrical form. In other words, the mutual coupling effect in a cylindrical array can be observed only between a few surrounding elements rather than being observed across the 5 × 5 subarray. This implied that a small subarray (with 3 × 3 elements in it) of the cylindrical array can demonstrate the potential benefits of the full array in particular the operation frequency bandwidth. This unique feature enables the cylindrical array to form agile multiple beams with a relatively low profile. It was also noticed that the center element has a stronger coupling with the elements in the same row—colinear position than the elements in the parallel rows. Hence, irregular subarrays can be formed with more elements in the center row to improve its radiation performance.

Three aspects of array characteristics have been investigated including impedance matching, far-field radiation patterns, and multibeam scan capability. They are all closely related to the mutual coupling effect with its different role in planar arrays being compared and analyzed.

In a cylindrical array, the mutual impedance $Z_{nm}$ between the element n and the element m in the paraxial region can be calculated in closed form by analyzing the surface tangential field at the position of the mth element excited by a hypothetical current source (with the current mode, ${\mathbf{J}}_n$) representing the element n, it is simply given by

$$Z_{nm}={\int }_{S_m}{\mathbf{E}}_n·{\mathbf{J}}_{n}ds$$

(14)

where ${\mathbf{E}}_n$ is the field due to source ${\mathbf{J}}_n$ and $S_m$ is the area occupied by source ${\mathbf{J}}_m$. The current modes are assumed sinusoidal current sources (with an infinitesimal length, approximately 0.05${\lambda }_0$) along the polarized direction of the element. Relation between ${\mathbf{E}}_n$ and ${\mathbf{J}}_n$ can be represented by a dyadic Green’s function. As the tangential components of the dyadic Green’s function are periodic, hence, it can be approximated by a Fourier series (FS). The oscillatory nature of the coupling as the separation changes indicated that there are at least two types of field contributions adding in and out of phase. This characteristic was demonstrated in Table 2 and Figure 4, where for a fixed separation between two elements, mutual coupling changes with frequency in a periodic manner.

3.1. Effect on Impedance Matching

The active reflection coefficient for the element m at a scan angle $({\theta }_0,{\phi }_0)$ for a finite array has the following relation with the scattering parameters,

$${\Gamma }_{act,m}\left({\theta }_0,{\phi }_0\right)=\sum _{n=1}^N{S}_{m,n}{e}^{-jk\left(x_{n}sin{\theta }_{0}cos{\phi }_0+y_{n}sin{\theta }_{0}cos{\phi }_0\right)}$$

(15)

where ($x_n$, $y_n$) is the position of the element n, k is the wavenumber, $S_{m,n}$ is the scattering parameter demonstrating mutual coupling between two elements of m and n, and N is the total number of elements in the array for observation.

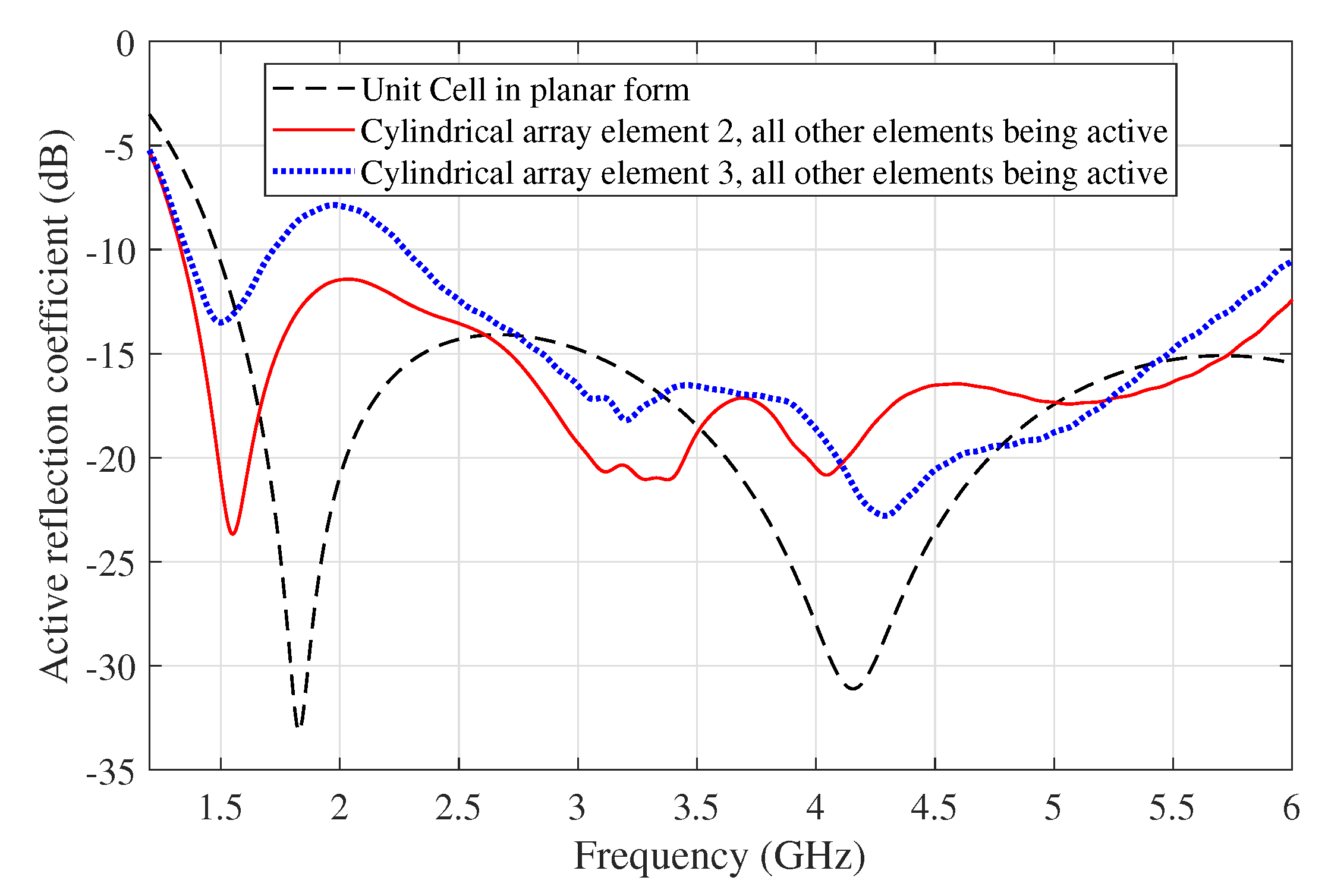

Figure 5 shows the active reflection coefficient of the center elements (the elements “2” and “3” shown in Figure 3) in the cylindrical array, compared with the active reflection coefficient of the unit cell for the reference planar array at the broadside scan. It indicated that with fewer elements in the cylindrical array configuration, the array elements can work collaboratively over a broad frequency bandwidth, and more active elements are needed in the case of a planar array.

Table 3. The input impedance of the center element and total efficiency of the subarrays.

Frequency	Number of mutual coupling elements	S-Parameters dB	${\mathit{Z}}_{\mathbf{in}}$ $\mathit{\Omega }$	Total antenna efficiency dB (%)
1.7 G	1	-3.9486	62.82-j130.66	-2.2391 ( 59.72)
	3	-3.9204	27.76-j24.12	-2.2583 (59.45)
	5	-8.0147	53.00-j16.81	-0.7466 (84.20)
	9	-30.1146	116.16-j6.29	-0.0042 (99.90)
2.5 G	1	-8.3272	77.3413-j67.655	-0.6904 (85.30)
	3	-7.8620	76.310+j72.498	-0.7759 (83.64)
	5	-17.0512	140.95+j30.367	-0.0865 (98.03)
	9	-17.0527	139.46-j31.102	-0.0865 (98.03)
4 G	1	-14.5749	95.351-j32.346	-0.1542 (96.51)
	3	-5.8523	362.52-j47.795	-1.3070 (74.01)
	5	-11.7313	194.92-j33.444	-0.3018 (93.29)
	9	-14.1703	161.27-j37.123	-0.1695 (96.17)
5.9 G	1	-12.4752	81.31+j29.03	-0.2528 (94.34)
	3	-13.8363	91.36-j32.73	-0.1834 (95.87)
	5	-16.3371	99.60-j26.86	-0.1021 (97.68)
	9	-16.9269	91.5265+j9.96	-0.0890 (97.97)

Table 3. The input impedance of the center element and total efficiency of the subarrays.

Frequency	Number of mutual coupling elements	S-Parameters dB	${\mathit{Z}}_{\mathbf{in}}$ $\mathit{\Omega }$	Total antenna efficiency dB (%)
1.7 G	1	-3.9486	62.82-j130.66	-2.2391 ( 59.72)
	3	-3.9204	27.76-j24.12	-2.2583 (59.45)
	5	-8.0147	53.00-j16.81	-0.7466 (84.20)
	9	-30.1146	116.16-j6.29	-0.0042 (99.90)
2.5 G	1	-8.3272	77.3413-j67.655	-0.6904 (85.30)
	3	-7.8620	76.310+j72.498	-0.7759 (83.64)
	5	-17.0512	140.95+j30.367	-0.0865 (98.03)
	9	-17.0527	139.46-j31.102	-0.0865 (98.03)
4 G	1	-14.5749	95.351-j32.346	-0.1542 (96.51)
	3	-5.8523	362.52-j47.795	-1.3070 (74.01)
	5	-11.7313	194.92-j33.444	-0.3018 (93.29)
	9	-14.1703	161.27-j37.123	-0.1695 (96.17)
5.9 G	1	-12.4752	81.31+j29.03	-0.2528 (94.34)
	3	-13.8363	91.36-j32.73	-0.1834 (95.87)
	5	-16.3371	99.60-j26.86	-0.1021 (97.68)
	9	-16.9269	91.5265+j9.96	-0.0890 (97.97)

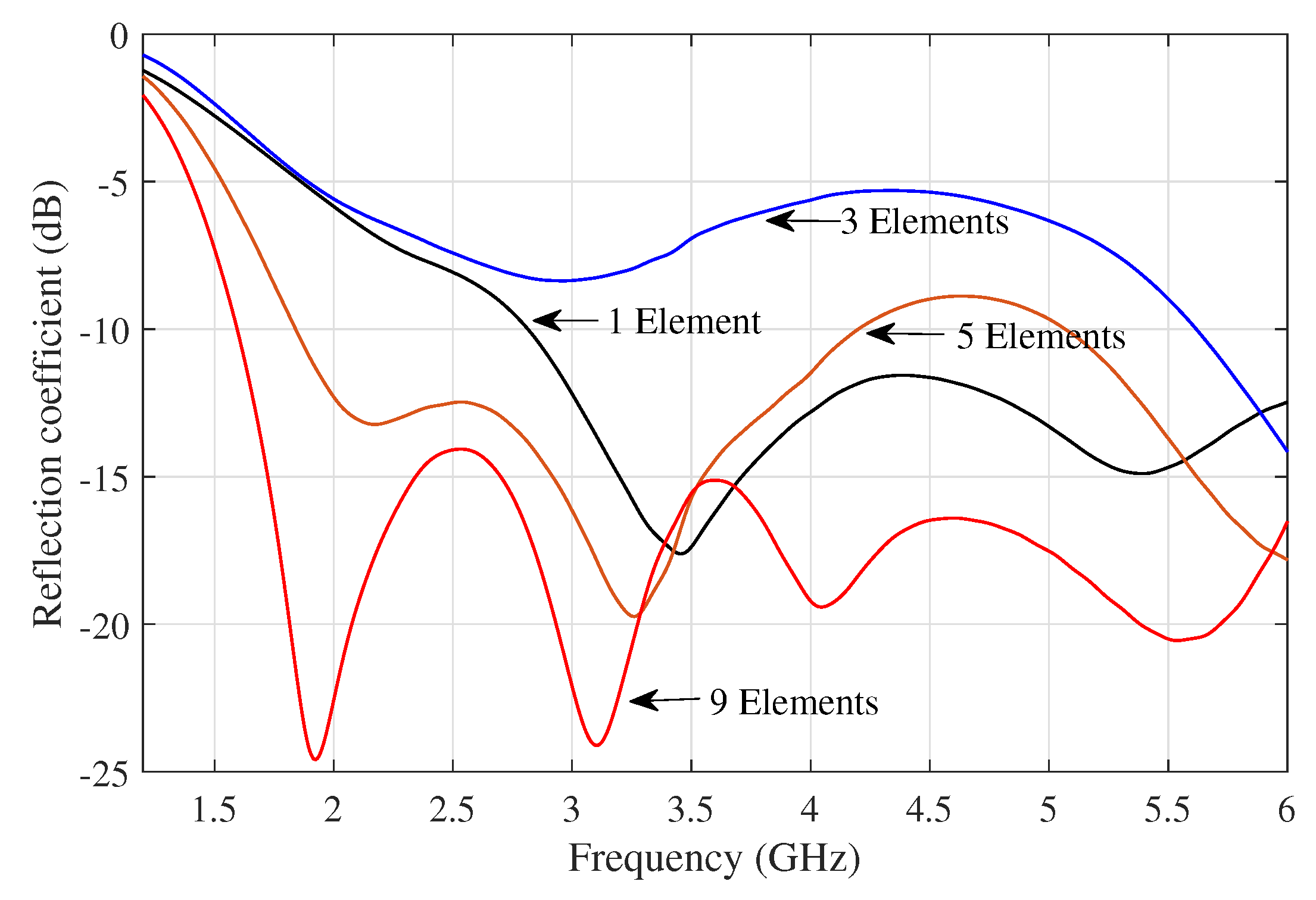

Figure 6 shows the active reflection coefficient of the center element in the subarrays consisting of 1, 3, 5, and 9 elements respectively. It clearly indicated that as the number of active element in subarrays increases, the input impedance becomes more matched; and the active reflection coefficient is lower and better. For the subarray of 9 active elements, the operational band of the center element covered frequency from 1.7 GHz to 6 GHz entirely.

3.2. Effect on the Radiation Pattern

The active element pattern of the array is considered when a single element is excited when all other array elements are terminated with matched loads. In this case, the radiation pattern of the array is significantly affected by the position of the element that is excited. Moreover, all mutual coupling effects also influence the radiation pattern.

The array beam pattern is calculated by

$$F\left(\theta \right)=EP·AF,$$

(16)

where the array factor ($AF$) describes the spatial response of all array elements. For the element pattern ($EP$), unlike the traditional element pattern in a planar array, the normal of each array element is oriented in a different direction in a conformal array. The element pattern can be defined by

$$EP(\theta ,\varphi )={\widehat{\mathbf{n}}}_i,\widehat{\mathbf{r}},$$

(17)

where

$${\widehat{\mathbf{n}}}_i=\frac{{\mathbf{r}}_i}{\left|{\mathbf{r}}_i\right|},$$

(18)

and $\widehat{\mathbf{r}}$ is the spatial unit vector, and ${\widehat{\mathbf{n}}}_i$ is the normal vector for the ith element position.

The radiation patterns of the subarrays consisting of different numbers of elements are investigated. The patterns were synthesized under two different scenarios: 1) the radiation patterns of the subarrays are generated while all the other elements in the cylindrical array are terminated with matched loads; 2) the radiation patterns of the subarrays are produced while all the rest elements are left open.

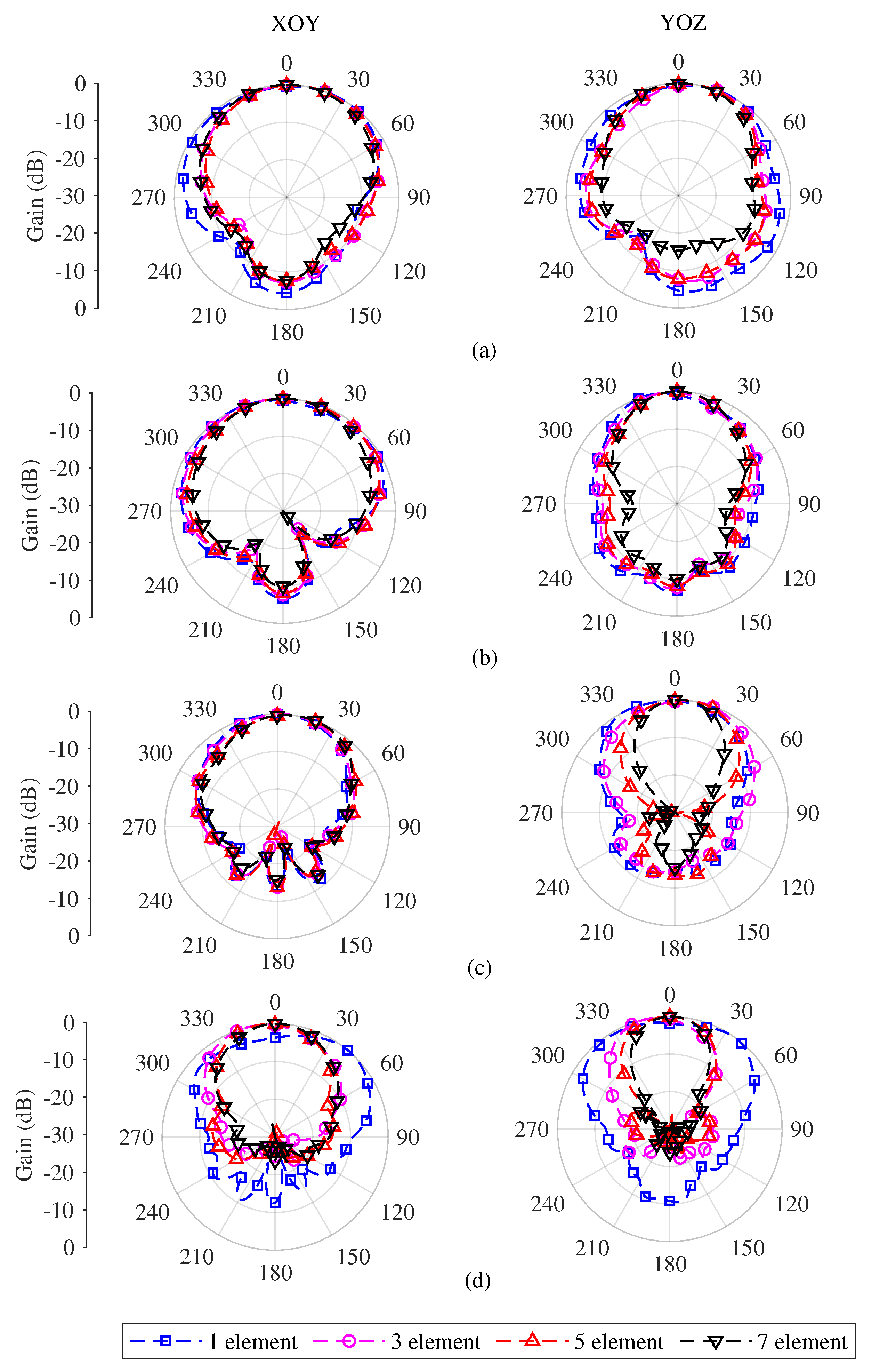

The radiation patterns for 4 subarray scenarios on the cylindrical surfaces were compared in Figure 7. The number of elements in the subarrays is 1, 3, 5 and 9 respectively, and the radiation patterns of four frequencies have been given. As expected, as the number of elements in the subarray increases, the beamwidth becomes narrower. The pattern in $XOY$- plane is narrower than in the $YOZ$-plane, which reflects the dipole-like nature of such antenna elements. The characteristics of the radiation patterns of subarrays are summarized in Table 4, and the intermediate frequency of 4 GHz is selected. As expected the 3 dB beamwidth becomes gradually narrower in both planes as the number of active elements increases. The scenario with 3 elements in the subarray shows a slightly odd feature than other cases it may be due to poor impedance matching as shown in Figure 6.

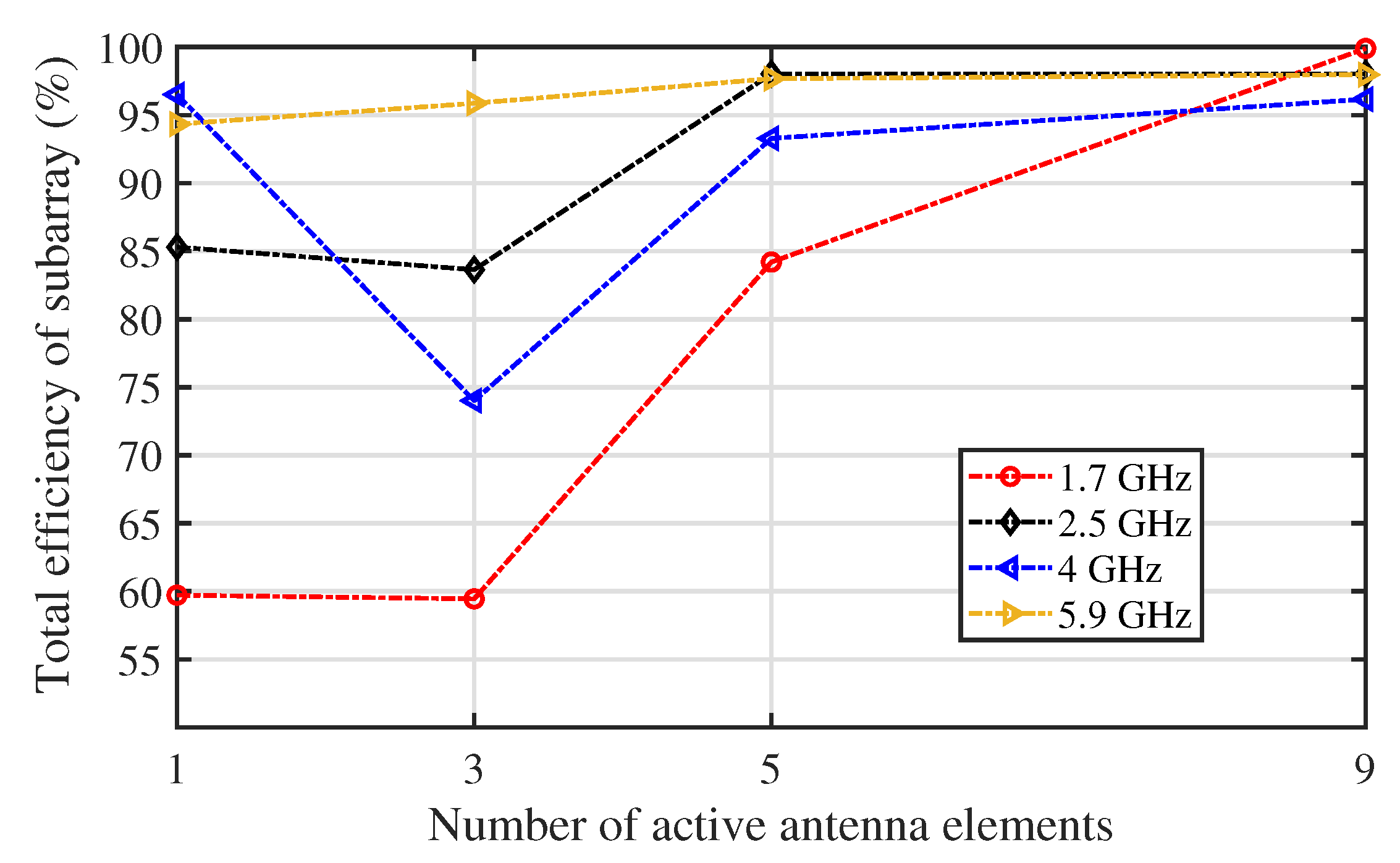

The change in the total efficiency of the subarrays formed by different numbers of elements is shown in Figure 8. The trend is clear that the total efficiency of the subarrays increases with the total number of active elements in the subarrays. This is in particular more obvious at the low frequency where mutual coupling between the adjacent elements plays a more significant role in improving impedance matching and accordingly the efficiency. However, there is an exception in certain frequencies such as at 4 GHz, where a degraded performance for the subarray with 3 elements is observed compared to that of a single active element, this is due to the phenomenon that the negative mutual coupling effect occurs, making the impedance matching worse. The deteriorated impedance matching from a single element to a subarray with 3 elements was shown in Figure 6.

3.3. Multibeam Capabilities

As shown in the earlier study on mutual coupling, a significant coupling concentrated among only a few close elements is a unique characteristic of the cylindrical array based on the tightly coupled disk antennas. This feature can be adapted to produce multibeams by forming many subarrays on the cylindrical surface. The number of beams the array can produce depends on the impedance matching of the elements in the subarray, the total number of elements, the dimension of the array, and the beam characteristic required.

It was demonstrated that a subarray with 9 elements on the cylindrical surface yields a sound impedance matching for the center element of the subarray due to the mutual coupling effect. In the cylindrical array with 80 elements (dual polarized), as shown in Figure 3, 10 beams were formed with 10 subarrays—they were distributed uniformly in the horizontal plane. The radiation patterns for the 10 subarrays (of 9 elements in each subarray) are shown in Figure 9. The characteristics of the radiation beams of the subarrays of different sizes at 2.5 GHz are summarized in Table 4. For the subarray with a size of 3×3, a gain of 10.54 dB can be obtained from each subarray and 10 subarrays on the cylindrical surface can cover the entire horizontal space. The 3-dB beamwidth in the elevation plane is over 40 degrees. The realized gains of all subarrays showed little discrepancy among them. Azimuth scan-invariant beam characteristics have been demonstrated.

4. Results and Discussion

To demonstrate the performance of the cylindrical array in the presence of significant mutual coupling and its advantages for multibeam capability, a compact cylindrical array with a diameter of 50 mm is examined following the design illustrated in Figure 2. There are 80 dual-slant-polarized elements on the cylindrical surface. The height of the cylindrical array is 60 mm. The target operation frequency band ranges from 1.7 GHz to 6 GHz. The key aspects of the performance of the tightly coupled cylindrical array are compared with other existing array designs on convex surfaces in Table 5. The dual slant-polarized cylindrical array based on tightly coupled crossed disks demonstrated a considerably wider bandwidth compared to other cylindrical arrays. The array investigated presented a higher mutual coupling between the adjacent elements reaching as high as -9 dB. Moreover, it has a compact structure, making it ideal for multibeam applications that also require a low-profile structure.

The impedance matching over a frequency bandwidth of 110% was yielded by the proposed cylindrical array. The broad impedance matching capability is related to the tight mutual coupling in the array. This is clearly indicated in Figure 5 and Figure 6. When more elements are in the subarray and become active, the operation frequency bandwidth becomes wider. The subarray consisting of 9 elements demonstrated the largest frequency bandwidth among the four subarray configurations—Active $S11$ of the center element is approximately below -15 dB.

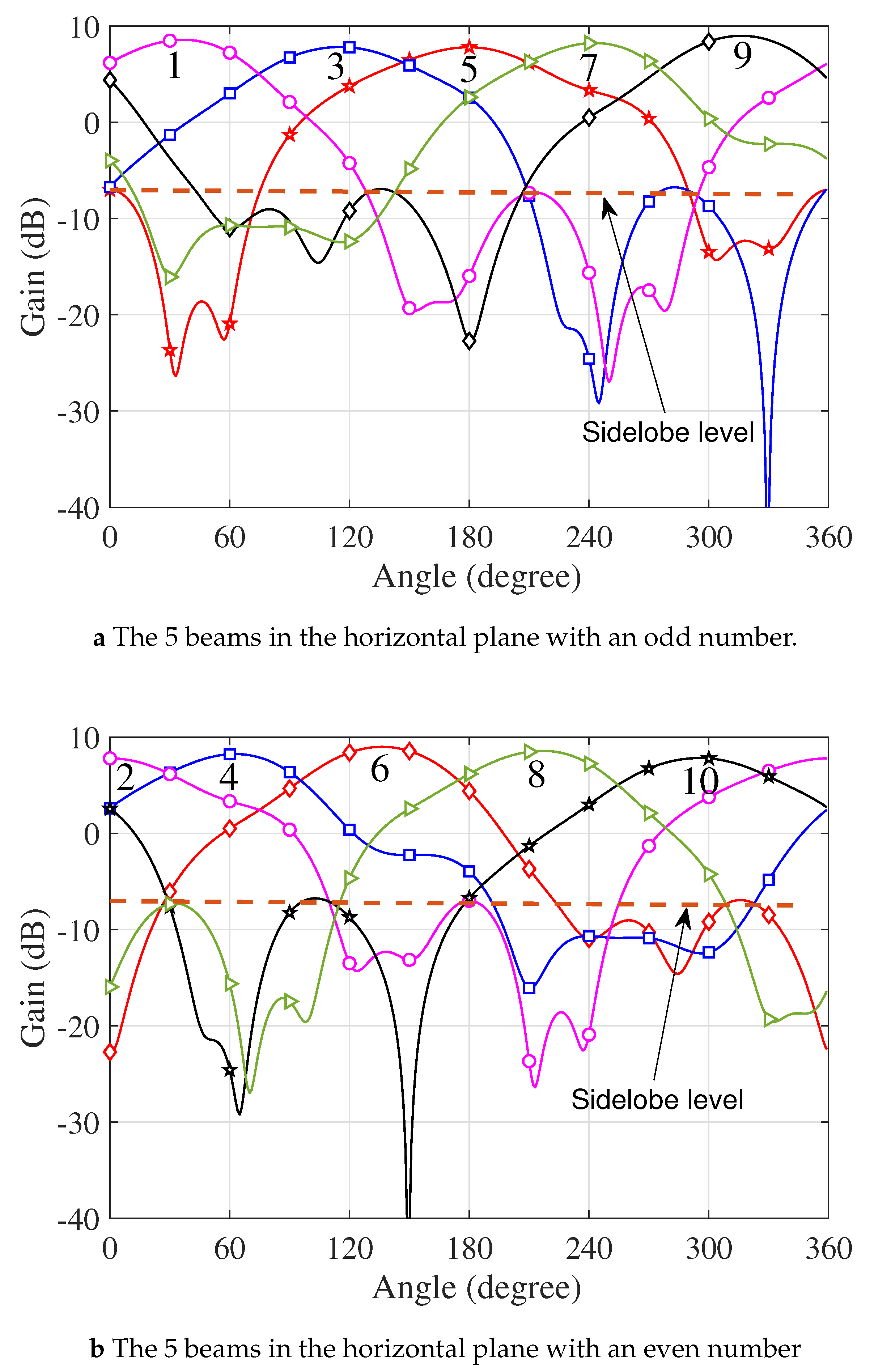

Providing multiple beams is an important feature for antenna arrays to improve the scanning speed and increase the diversity gain. With a diameter of 50 mm, the proposed cylindrical array can produce 10 beams horizontally covering the entire horizontal plane by utilizing 10 subarrays with 80 elements of one polarization, some of the elements were shared between neighboring subarrays. At the center frequency of 4 GHz, the gain varied between 7.81 dB and 10.54 dB, 10 beams can be controlled to offer a fully agile coverage for the horizontal scan, and over 40 degrees coverage in the elevation domain is observed.

The efficiency of the array was investigated by monitoring the far-field radiation patterns under each subarray scenario in different frequencies. It is found that the improvement in efficiency due to the mutual coupling effect outweighs the concern about absorption-caused loss within the array. As illustrated in Table 3 and Figure 8, the total antenna efficiency of the center element significantly increased from approximately 60% to over 95 % in most of the frequencies across the band. It is also noticed when the number of active elements increases, the total antenna efficiency rises, e.g., at 1.7 GHz, the total antenna efficiency changed from 59.72% for one active element to 99.9% with 9 elements becoming active together. It is noticed that the efficiency at the low frequency increases more rapidly as the number of active elements rises.

Mutual coupling can affect the impedance of individual array elements and changes in impedance can lead to reflection and mismatch losses, it is conventionally one of the main concerns of mutual coupling to decrease the overall efficiency array. However, it is found from the cylindrical array that the enhanced mutual coupling plays a positive effect improving the efficiency instead of decreasing it, in particular at the low frequency.

It is worth mentioning that despite high mutual coupling between the array elements in the proposed cylindrical array, the negative effect on the radiation patterns were found to be minimal, and smooth radiation patterns were obtained for subarrays of different configuration as shown in Figure 7. No anomalies in radiation patterns were observed from the low frequency 1.7 GHz to 6 GHz at the high frequency—even the mutual coupling was more pronounced at the low-frequency band.

Arrays with multibeam capability can be beneficial to ITS, particularly in the context of improving transportation efficiency and safety. Multibeam arrays could be used in sensor systems to improve the accuracy and coverage of data collection, as they can transmit and receive signals in multiple directions simultaneously, providing enhanced coverage and resolution compared to a single-beam system, e.g., 10 beams can be steered to produce a panorama view of the horizontal plane with a high resolution. The integration of multibeam arrays with ITS would depend on specific use cases and technological advancements. These concepts represent the ongoing efforts to make transportation systems more efficient, safe, and technologically advanced.

5. Conclusions

The effect of mutual coupling in the cylindrical conformal array based on tightly coupled disk antenna was investigated. It was revealed that enhanced mutual coupling was essential to obtain the ultrawide bandwidth desired from such arrays. The efficiency of the subarray increased due to the mutual coupling as it contributed to improve the impedance matching. Hence, more energy was transported by the subarrays. A significant mutual coupling exists only between the elements that are physically close to each other, and this feature can be used to form multibeams simultaneously spanning the entire azimuthal plane out of the cylindrical array. The array configuration shows a great prospect in intelligent transportation systems where data from omnidirectional monitoring and a broader spectrum is required.
