Abstract

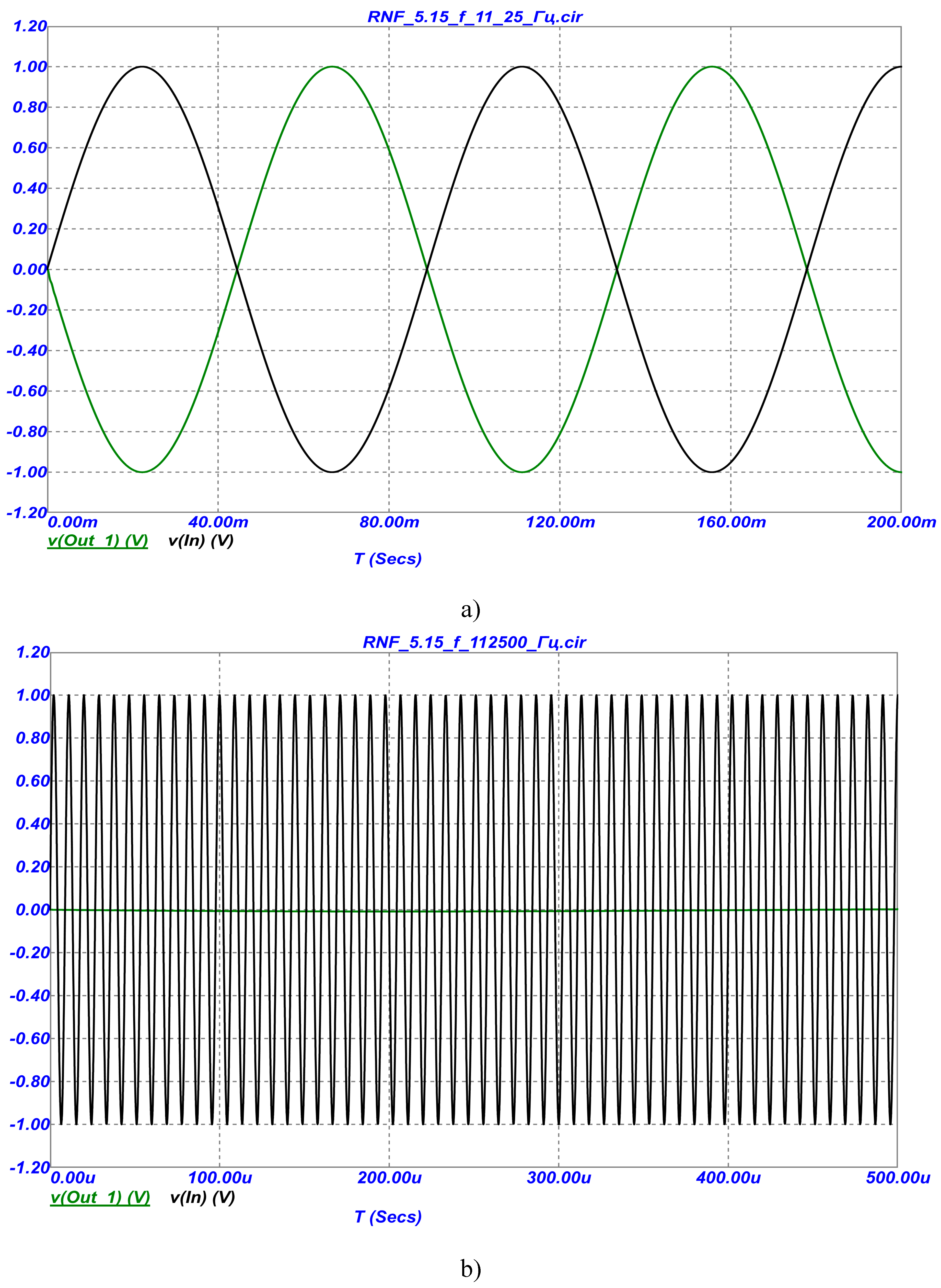

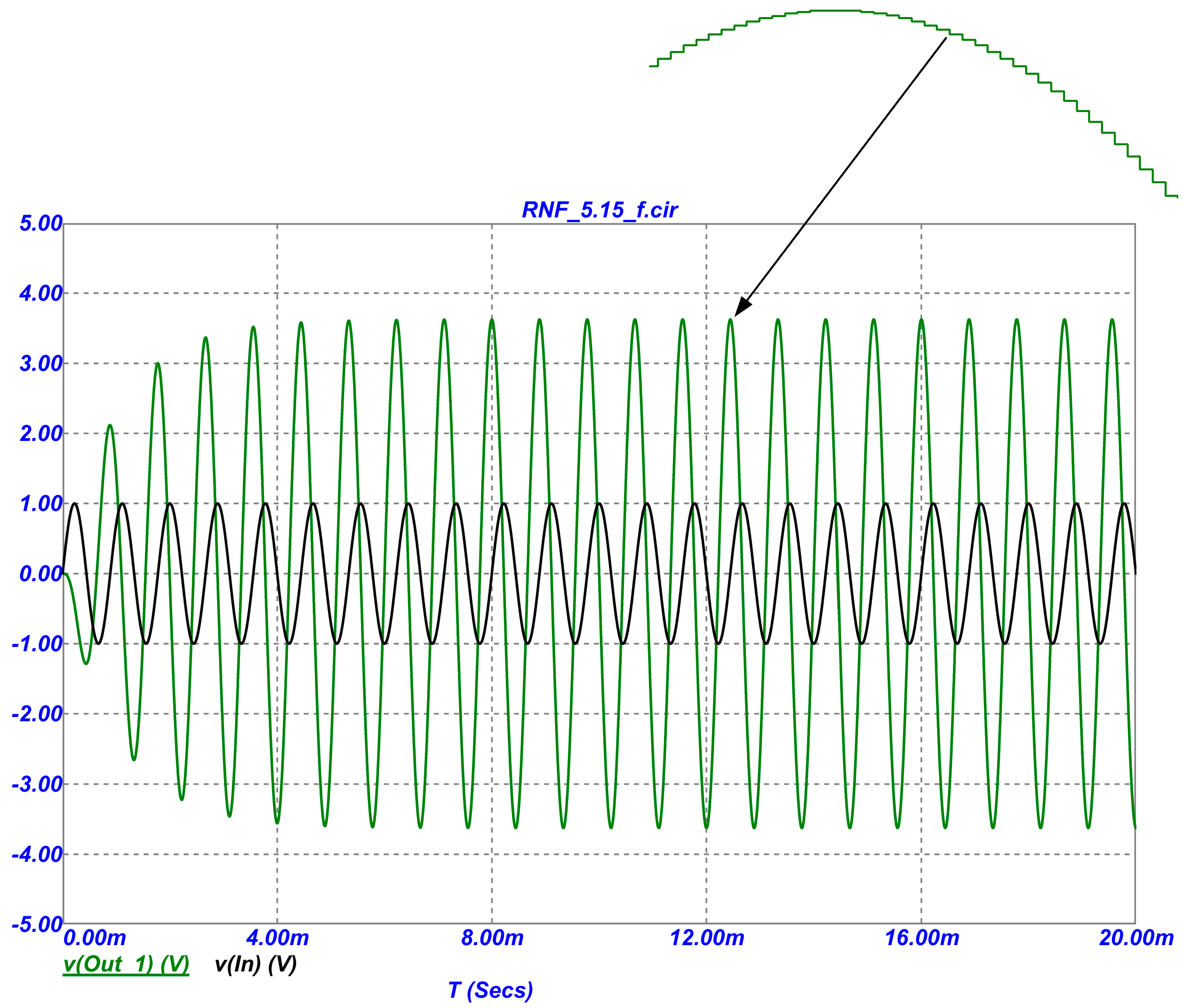

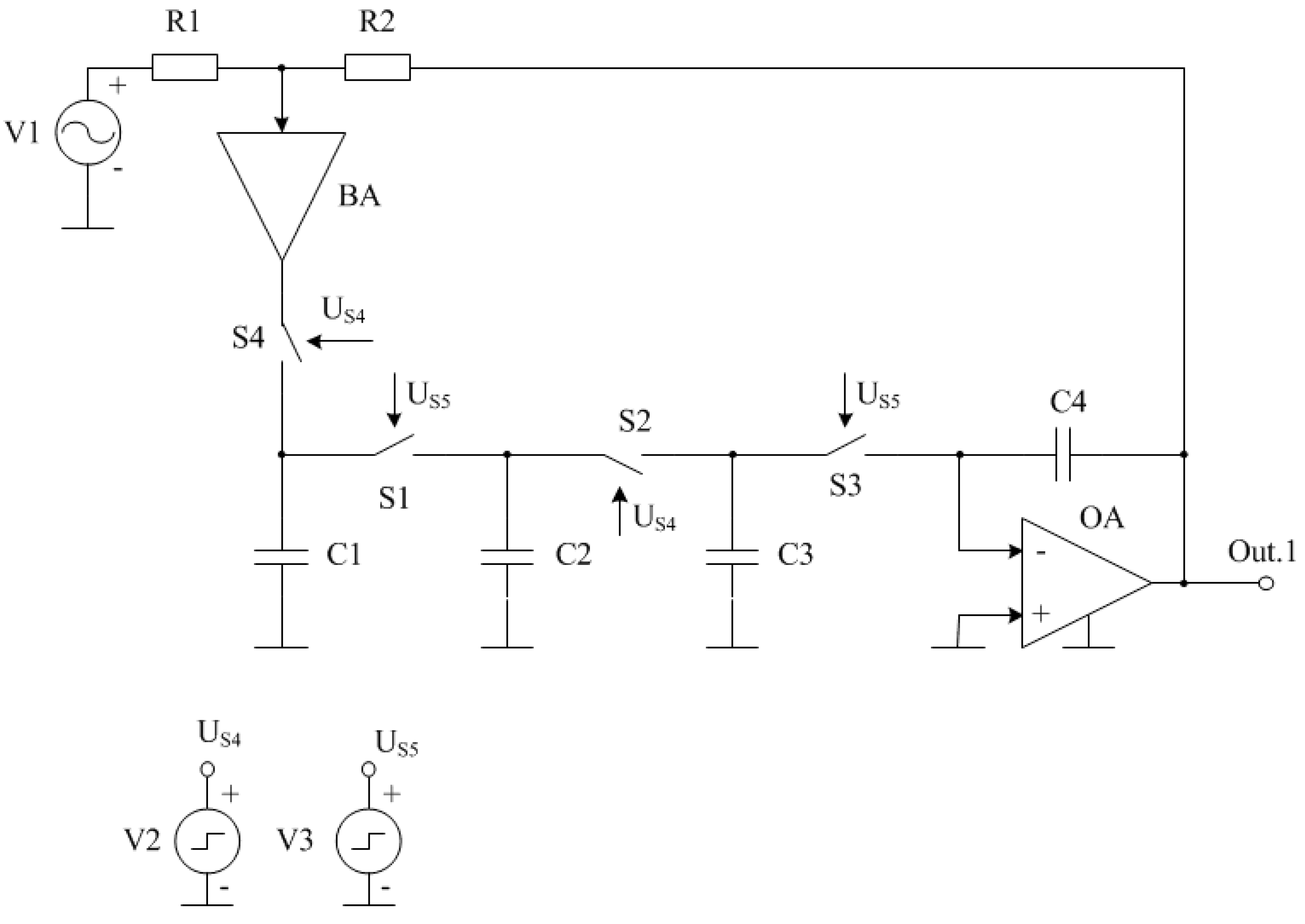

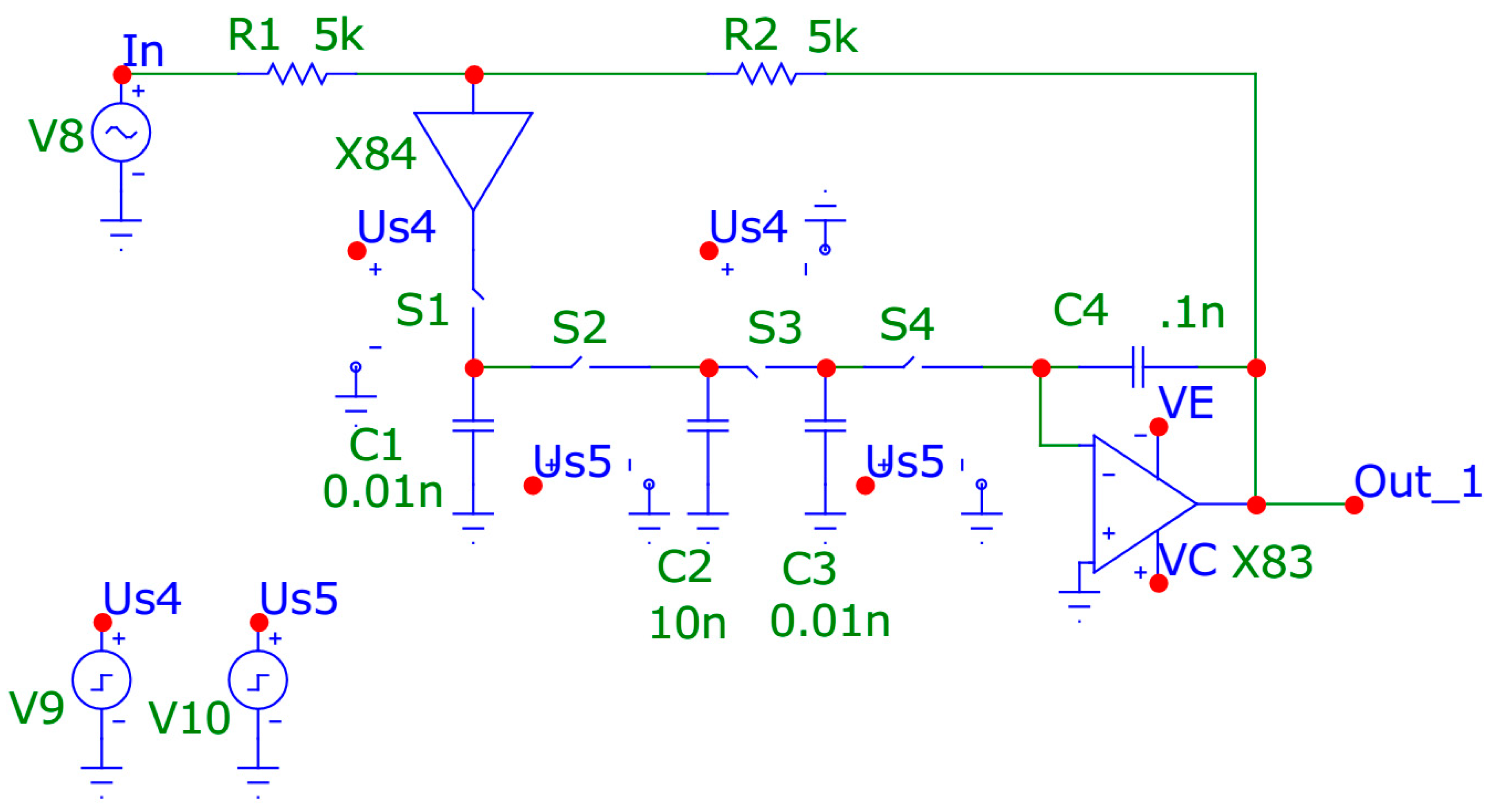

We offered the circuit of a discrete analog filter (DAF) low frequencies of second-order on switchable capacitors, which differs from the known ones in that three capacitors with one terminal are connected to a common bus, and the frequency of the DAF pole depends not only on the ratio of the capacitances of the frequency-setting capacitors, but also on the ratio of resistances two additional resistors in the feedback. This allows at constant values of the capacitances and a fixed switching frequency of electronic switches, control the pole frequency by changing the resistance ratio of additional resistors. Computer simulation of the developed circuit was performed in the Micro-Cap environment. It has been established that the DAF has a transmission coefficient close to minus one at very low frequencies and a transmission coefficient close to zero at higher frequencies.
Engineering, Electrical and Electronic Engineering
