Photo-Thermal Functionality in Silicon Photonic Chips with 2D Graphene Oxide Films

Submitted:

06 November 2023

Posted:

06 November 2023

You are already at the latest version

Abstract
On-chip integration of two-dimensional (2D) materials with unique structures and distinctive properties endow integrated devices with new functionalities and improved performance. With a high flexibility in modifying its properties and a strong compatibility with various integrated platforms, graphene oxide (GO) becomes an attractive 2D material for implementing functional hybrid integrated devices. Here, we demonstrate novel functionalities that go beyond the capabilities of conventional photonic integrated circuits, by harnessing the photo-thermal effects in 2D GO films integrated onto them. These include all-optical control and switching, optical power limiting, and non-reciprocal light transmission. The 2D layered GO films are on-chip integrated with precise control of their thicknesses and sizes. Benefitting from the broadband response of 2D GO films, all the three functionalities feature a very wide operational bandwidth. By fitting the experimental results with theory, we also extract the changes in material properties induced by the photo-thermal effects, which reveal interesting insights about 2D GO films. These results highlight the versatility of 2D GO films in implementing functional integrated photonic devices for a range of applications.
Keywords:
Third-order optical nonlinearity
;
2D materials
;
telecommunications band
Subject:
Engineering  -   Electrical and Electronic Engineering

Introduction

The advancement of integrated circuits, featured by compact footprint, low power consumption, high scalability, and the ability to significantly reduce cost by mass production, drives many technological breakthroughs in this information age1,2. Compared to their electronic counterparts, photonic integrated circuits (PICs) offer significantly greater processing bandwidth and robust immunity to electromagnetic interference, making them play crucial roles in a wide range of applications such as telecommunications, artificial intelligence, sensing, displays, and astronomy3-6.
Silicon (Si) photonic platform that leverages the well-developed complementary metal-oxide-semiconductor (CMOS) fabrication technologies has been a leading platform for the state-of-the-art PICs7,8. Despite their wide deployment, Si PICs face intrinsic limitations arising from Si’s material properties, presenting challenges in meeting the growing demands for device functionalities and performance. To address these challenges, on-chip integration of functional materials with superior properties has emerged as a promising solution9-11.
Since the first experimental isolation of graphene in 200412, two-dimensional (2D) materials with atomically thin film structures and exceptional properties have garnered significant attention13. Among the various 2D materials, graphene oxide (GO) shows attractive advantages for implementing hybrid integrated photonic devices with high performance14,15. First, GO exhibits many excellent optical properties, such as ultrahigh optical nonlinearity, significant material anisotropy, and broadband response16-18. Second, there is a high flexibility in altering GO’s properties through various reduction and doping methods, which substantially increases the variety of devices that can be developed19,20. Finally, GO has facile synthesis processes and transfer-free film coating with precise control over the thickness, showing a strong capability for large-scale on-chip integration21,22.
Here, we propose and experimentally demonstrate novel functionalities for Si PICs enabled by on-chip integration of 2D GO films. By leveraging the unique property changes induced by photo-thermal effects in 2D GO films, three different functionalities are realized using GO-Si hybrid integrated waveguides, including all-optical control and switching, optical power limiting, and non-reciprocal light transmission. For all-optical control and switching, we first realize this functionality in non-resonant waveguides using continuous-wave (CW) light with low peak powers. For optical power limiting, we first demonstrate on-chip integration of a functional material to achieve power limiting for light propagation through integrated waveguides. For non-reciprocal light transmission, we first realize this functionality through on-chip integration of a 2D material, and our devices provide a considerably broader operation bandwidth that has not been achieved previously. Based on the experimental results, we further analyze the changes in the material properties induced by the photo-thermal effects, providing intriguing insights about 2D GO films. These results highlight the extensive opportunities arising from on-chip integration of 2D GO films for implementing functional integrated photonic devices.

Results

Device design and fabrication

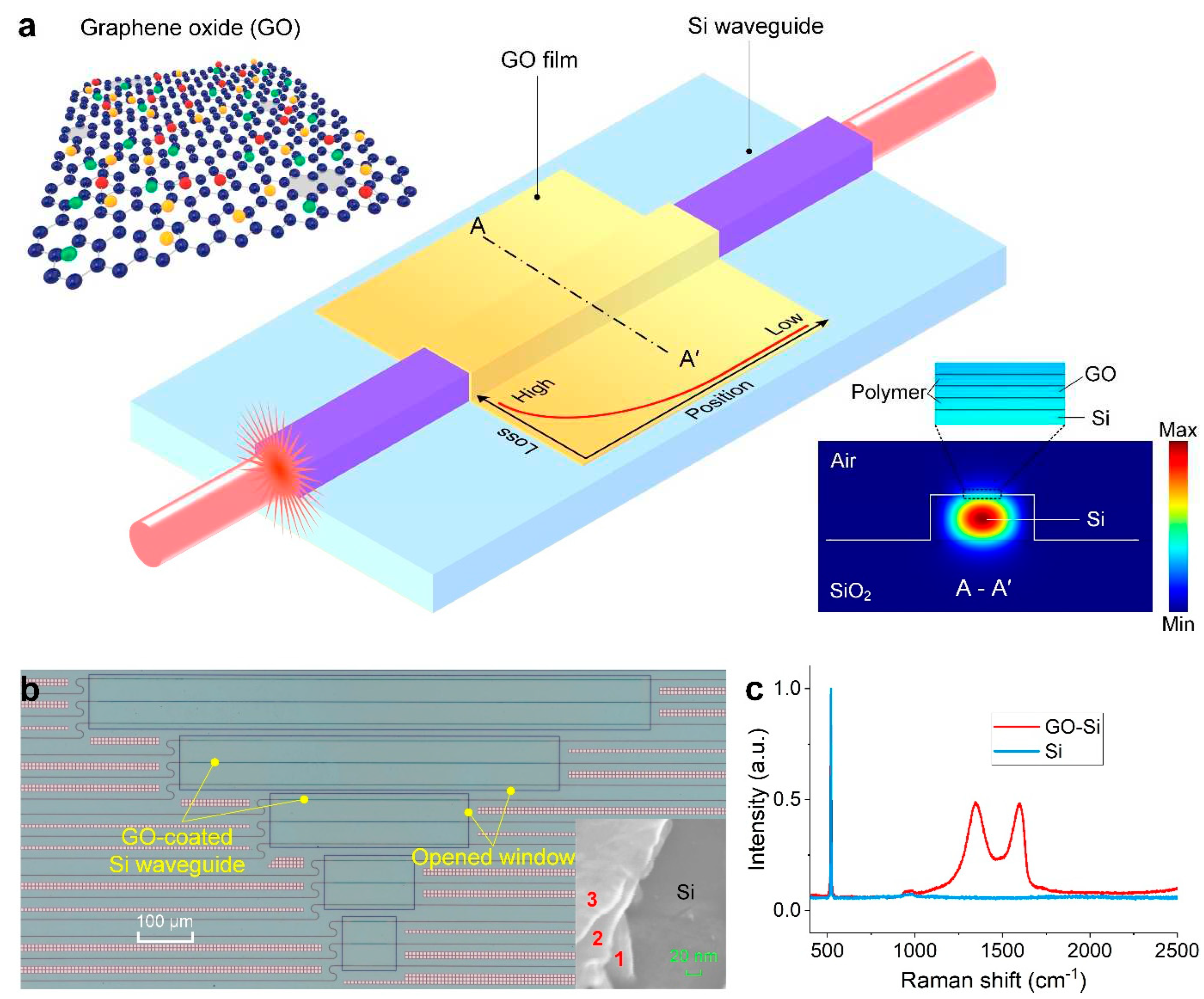

Figure 1a shows schematic of a Si waveguide integrated with a 2D GO film. The GO film is conformally coated onto the Si waveguide, which enables its strong interaction with the waveguide’s evanescent field. Compared to integrated waveguides made from silicon nitride and doped silica14, Si waveguides provide significantly increased optical mode overlaps with GO films. The enhanced mode overlap with GO allows for increased efficiency for the photo-thermal processes within it, consequently improving the device performance in the various applications we investigate in this study.
In the inset of Figure 1a, we show the schematic of GO’s atomic structure. As a common derivative of graphene, GO is comprised of carbon networks decorated with various oxygen-containing functional groups (OCFGs), such as hydroxyl, carboxyl, and carbonyl groups15. These OCFGs form bonds with certain carbon atoms in the carbon network through sp3 hybridization, giving rise to a highly heterogeneous chemical structure19. Unlike graphene, which possesses a gapless Dirac cone20, GO has an open bandgap (typically between 2 ‒ 3.5 eV) that results from the presence of isolated sp2 domains within the sp3 C–O matrix15. The large bandgap of GO allows for a substantial reduction in its optical absorption, making it advantageous for optical applications that demand minimal loss14,21. In addition, the concentrations of sp2 and sp3 hybridizations in GO can be adjusted by reducing the OCFGs or doping treatments22,23. This provides a high level of flexibility in tailoring GO’s properties, making it a versatile material platform for a variety of applications15,21.
The transverse electric (TE) mode profile of the hybrid waveguide with a monolayer of GO is also shown in the inset. The GO layer is enclosed between two polymer layers that are incorporated during film coating based on self-assembly (See Methods), and such film structure is beneficial for enhancing the photo-thermal effects in the GO layer. The cross-section of the Si waveguide is 450 nm × 220 nm. We opt for TE-polarization here and in our subsequent experiments because it supports in-plane interaction between the waveguide’s evanescent field and the 2D GO film. Due to the strong optical anisotropy in 2D materials, the in-plane interaction well surpasses the out-of-plane interaction in strength17,24, thereby leading to an enhancement in the photo-thermal processes in GO and hence the device performance.
Figure 1b shows a microscopic image of a Si integrated chip coated with a monolayer of GO film. The uncoated Si waveguides were fabricated on a silicon-on-insulator (SOI) wafer using CMOS-compatible fabrication technologies (see Methods). To enable GO films coating onto the Si waveguides, windows were opened on the silica upper cladding of the integrated chip. The coating of the 2D GO film was achieved by using a solution-based self-assembly method that enables transfer-free and layer-by-layer film deposition (see Methods). A scanning electron microscope (SEM) image of a 2D layered GO film with up to three layers of GO on a Si substrate is shown in the inset. Our GO coating method allows for ultrathin GO film coating with a well-controlled thickness on a nanometer scale, offering both high repeatability and compatibility with various integrated material platforms14,25,26. The thickness of the as-prepared GO film, characterized via atomic force microscopy measurements, was ~2 nm / per layer. In addition, our approach can yield conformal film coating with direct contact and envelopment of GO films around the Si waveguides27,28. This results in efficient light-matter interaction and holds an advantage in contrast to film transfer methods typically employed for coating other 2D materials such as graphene and TMDCs29. The GO film’s length can be controlled by adjusting the size of the opened window on the silica upper cladding, providing a way to optimize the device performance by changing the film length. In our fabricated chips, the length of all Si waveguides was ~3.0 mm, while the lengths of the opened windows varied from 0.1 mm to 2.2 mm. Figure 1c shows the measured Raman spectra of a Si integrated chip before and after coating a GO film. The existence of the representative D (1345 cm−1) and G (1590 cm−1) peaks of GO in the Raman spectrum for the GO-coated chip confirms the successful on-chip integration of the GO film.

Photo-thermal effects in 2D GO films

In Figure 1a, we illustrate that the loss in the GO-Si waveguide decreases along the direction of light propagation. Such decrease in loss occurs due to power-dependent photo-thermal processes within the GO film, which include a range of effects such as self-heating, thermal dissipation, and photo-thermal reduction21. These effects act together and mutually influence each other, resulting in alterations to GO’s material properties such as refractive index and optical absorption. As mentioned previously, the reduction of the OCFGs in GO leads to changes in its properties. In the GO-Si waveguides, localized heating occurs due to optical absorption. Upon reaching a critical light power, the reduction of GO can be triggered when the thermal heating initiates a deoxygenation reaction in GO30,31. Such reaction leads to an increase in the optical absorption of the GO films14 and hence the propagation loss of the hybrid waveguides. As a result, the propagation loss decreases in tandem with the attenuation of the light power along the GO-Si waveguides.
Figure 2 shows a schematic illustration of the changes in GO’s atomic structure induced by the photo-thermal effects. Four stages, denoted as I ‒ IV, correspond to different levels of light power applied to the GO-Si waveguide. Stage I represents the initial condition, with no incident light into the waveguide. At stage II, the light power in the waveguide is below Pthres1 ‒ the threshold to initiate the reduction of GO, resulting in minimal and negligible changes in its properties. At stage III, GO reduction occurs when the light power in the waveguide exceeds Pthres1. An intriguing characteristic of this stage is the reversibility of GO reduction, meaning that when the light power is switched off, the waveguide can return to stage I with the same propagation loss. This reversibility is attributed to the fact that the reduction of GO induced by the photo-thermal effects is inherently unstable, and the reduced GO can readily revert to its initial state after cooling down. At stage IV, as the light power continues to rise, the temperature increase due to localized heating becomes sufficiently high to permanently break the chemical bonds between the OCFGs and the carbon network. This leads to a permanent change in the properties of the GO film, and the power threshold for initiating such a change is denoted as Pthres2. In this stage, the waveguide loss can decrease to some extent when the optical power is turned off, but it can no longer return to the loss level as observed in stage I.
In addition to the reversible photo-thermal reduction, another noteworthy characteristic of the photo-thermal effects in GO is their broad response bandwidth. This is enabled by the nearly flat absorption spectrum of GO that covers wavelengths from the visible to the infrared14,25, as well as the heat-driven nature of these processes. The broadband response of these effects opens up the possibility of implementing various functional optical devices with broad operation bandwidths, as exemplified in our subsequent experimental demonstrations.
Previously16,32, we observed relatively weak photo-thermal effects in GO films coated on silicon nitride and doped silica waveguides. In these waveguides used for nonlinear optical applications, the increased loss induced by photo-thermal reduction of GO deteriorated the device performance. In this study, from a different perspective, we harness the photo-thermal effects in GO films to realize several new functionalities for Si PICs. Si waveguides with much stronger mode overlaps with GO films coated on them facilitate significantly enhanced photo-thermal effects. In addition, we optimized the device design by incorporating a polymer cover layer over the coated GO films (See Methods), as opposed to the direct exposure of the GO films to air in our previous studies16,17,32. This can effectively prevent the escape of the OCFGs that are released during the photo-thermal processes and facilitate their chemical bonding back into the carbon network, thus expanding the power ranges for reversible GO reduction (see Note 7, Supplementary Information for detailed performance comparison).

All-optical control and switching

Here we utilize the photo-thermal effects in GO to realize optical control and switching. Figure 3a illustrates the operation principle, where a high-power pump light and a low-power probe light at different wavelengths were combined before injecting into a GO-Si waveguide with a monolayer of GO. After propagation through the hybrid waveguide, the pump light was filtered out, leaving only the probe light for characterization (see Note 1, Supplementary Information for detailed experimental setup).
Figure 3b shows measured insertion loss (IL) of the probe light (excluding coupling loss between chip and fibres) versus power of the pump light (coupled into the waveguide). Both the pump and probe were CW light. As the pump power increased, the power of the probe light was maintained at a constant level of ~0 dBm. The ‘pump on’ results were recorded when the pump light was tuned on, and after the waveguide reached a steady thermal equilibrium state with no significant variations in the IL. Whereas the ‘pump off’ results were taken by initially activating the pump light and then deactivating it after the waveguide reached the thermal equilibrium state. For comparison, the corresponding results for the uncoated Si waveguide are also shown. For the GO-Si waveguide, the IL of the probe increased significantly when applying high pump powers. In contrast, the uncoated Si waveguide exhibited minimal variations in the IL. This confirms that the loss change was induced by the coated GO film. Note that the additional loss induced by two photon absorption (TPA) and free carrier absorption of Si is negligible (< 0.1 dB) within the power range we investigate here (see Note 2, Supplementary Information).
When the pump power was below ~8 dBm, the IL in Figure 3b remained constant, indicating negligible variations in the optical absorption of the GO film. This reflects that the light power was insufficient to trigger any noticeable changes induced by the photo-thermal effects. When the pump power ranged between ~8 dBm and ~19 dBm, the IL of the probe increased as the pump power was raised. Upon deactivating the pump, the IL could return to the level observed when the pump power was below 8 dBm. These phenomena reflect that the changes induced by the photo-thermal effects in GO were reversible, with no permanent changes in the GO film after cooling it down. When the pump power exceeded ~20 dBm, the IL measured after turning off the pump no longer returned to the level at low powers but instead increased with the pump power, indicating that there were permanent changes in the GO film. The change in the intensity ratio of the D to G peaks observed in measured Raman spectra provides evidence that the GO at the start of the GO-coated segment experienced reduction (see Note 3, Supplementary Information). All of these observations align with the changes depicted in Figure 2, providing evidence for the existence of photo-thermal effects in 2D GO films at high power levels.
In Figure 3b, the lower and upper limits of the pump power range for the reversible photo-thermal changes are marked as Pthres1 and Pthres2, respectively, which align with those used in Figure 2. At the pump power of Pthres2, the change in the IL between the pump being switched on and off are marked as ∆ILmax. This represents the maximum variation in the IL within the power range associated with reversible photo-thermal changes. In Figs. 3c-f, we provide characterization for these three parameters by varying the wavelength tuning between the pump and probe and the GO coating length Lc. In each figure, the data points represent the average values obtained from the measured results of three duplicate devices and the error bars indicate the variations across different samples.
The results in Figure 3c,d were measured using devices with the same Lc of 0.4 mm. None of the three parameters display any significant variations within the investigated wavelength detuning range. This is attributed to the broadband response of the photo-thermal effects in the 2D GO films, as discussed earlier. Noted that in our experiments the range for wavelength detuning was constrained by the operation bandwidth of the optical amplifier, while the absorption response bandwidth for the GO films is, in fact, quite extensive, covering infrared wavelengths and even extending into the visible range17. The broadband response allows for optical control with the wavelengths of the pump and probe separated by several hundreds of nanometres or even higher, which is challenging for integrated photonic devices based on bulk materials33.
Figure 3e,f show the results measured at the same wavelength detuning of ~30 nm using devices with different Lc. As Lc increases, both Pthres1 and Pthres2 remain nearly unchanged, with only minimal decreases due to the slightly reduced loss along the Si waveguides before reaching the start of the GO films (given that the windows of various lengths were opened at the center of the waveguides). This reflects the fact that the photo-thermal changes occurred primarily at the initial section of the GO film near the waveguide input and gradually diminished as the light power attenuated along the film. On the other hand, ∆ILmax initially increases with Lc, and then gradually levels off when Lc becomes > 0.4 mm. This reflects that the variation in the IL caused by the photo-thermal effects accumulated over a specific GO film length between 0.4 mm and 1.0 mm (See Note 12 for detailed analysis). For GO films longer than this length, only the initial section of the films experienced substantial changes due to the photo-thermal effects. The remaining portion remained unaffected because the light power in it was insufficient to induce any significant photo-thermal changes.
We also demonstrated on–off power switching using the hybrid waveguide, where the pump light was modulated with a 1-ms square electrical signal and then amplified to ~19 dBm (see experimental setup in Note 4, Supplementary Information). We chose a GO film length of Lc = 1.0 mm in order to minimize the loss of the unreduced portion and reduce the IL of the hybrid waveguide. As the pump light at ~1560 nm switched between the on and off states, the photo-thermal effects in GO resulted in corresponding changes of the probe light at ~1530 nm. The extinction ratio between the on and off states at the probe wavelength was ~10 dBm ‒ consistent with the value of ∆ILmax at a pump power of ~19 dBm in Figure 3b. In Figure 3g, by fitting the temporal waveform of the probe light after propagation through the hybrid waveguide, we obtained the rising and falling time constants of ∼52 μs and ~98 μs, respectively (see Note 5, Supplementary Information). These values show agreement with the typical thermo-optic responses31,34, providing further evidence that the changes were induced by the photo-thermal effects in GO.
Although all-optical switching with much faster time responses can be achieved based on saturable absorption (SA)35, it usually necessitates optical pulses with high peak powers to trigger the SA, and in Si waveguides the high peak powers also induce significant TPA5. In contrast, our device in Figure 3a operates effectively with CW light at considerably lower peak powers that do not cause any significant SA or TPA. This makes it attractive for applications that use CW light and do not demand ultrafast response times. In addition, our device is based on non-resonant waveguides that provide a very broad operation bandwidth. This distinguishes it from all-optical switching based on wavelength shifts of resonators36, where the operation bandwidths are constrained by the resonance bandwidths of the resonators.

Optical power limiting

Here we employ the photo-thermal effects in GO to realize optical power limiting, which provides protection against potential damages induced by excessive light power37. As illustrated in Figure 4a, the light with a higher power propagation through the GO-Si waveguide experiences a greater loss compared to the light with a lower power. Despite the difference between the input powers, the output powers remain nearly identical in both cases.
Figure 4b compares the measured output power (Pout) versus input power (Pin) for a CW light propagation through the uncoated waveguide and the hybrid waveguide with a monolayer of GO (see experimental setup in Note 6, Supplementary Information). Note that the Pin and Pout mentioned here and in our subsequent discussions refers to the average power at the start and end of the 3-mm-long Si waveguides (excluding coupling loss between chip and fibres), respectively. As Pin increased from ~0 to ~25 dBm, Pout from the uncoated Si waveguide exhibited a linear increase. In contrast, Pout from the hybrid waveguide showed a power limiting behaviour when Pin exceeded ~8 dBm. Such behaviour was enabled by the photo-thermal effects in GO, which introduced additional propagation loss in the GO-coated segment. Due to the light-driven nature of the photo-thermal effects, the increase in the IL of the hybrid waveguide, once naturally reaching a stable thermal equilibrium state, was self-adjusting. It matched the rise in Pin, and consequently resulted in a limited Pout.
In Figure 4c, the measured curve for the hybrid waveguide in Figure 4b is further divided into four sections, each corresponding to a different input power range. For Pin below ~8 dBm, the power limiting phenomenon was not observed because the photo-thermal changes at such low powers are negligible. For Pin in the range between ~8 dBm and ~19 dBm, where reversible photo-thermal changes occurred, Pout increased very slightly when Pin < 13 dBm and remained nearly constant when Pin > 13 dBm. In addition, the power limiting behaviour was repeatable upon reinjection of the same light power. When Pin ranged between ~20 dBm and ~22 dBm, despite the permanent changes in the GO film, the power limiting capability was still maintained. This is because the increase in loss arising from the permanent photo-thermal changes also adjusted itself to align with the increase in Pin. For Pin exceeding ~23 dBm, a decline in the output power was observed due to the limited durability of the polymer layers that enclosed the GO layer (see Methods for GO film coating based on self-assembly), which were unable to endure the elevated temperatures at such high power levels. When Pin reached ~25 dBm, the polymer layers suffered substantial thermal damage, resulting in a rapid drop in Pout. Nevertheless, even in this situation, the film still protected the output power from overloading.
The above characteristics allow the 2D GO films to function as fuses in integrated photonic devices, similar to their role in electronic circuits. It is worth noting that although a range of power limiting materials have been studied38, the results here represent the first demonstration of on-chip integration of a functional material to achieve power limiting for light propagation through integrated waveguides. In addition, the broadband response of 2D GO films, along with their ease of removal (e.g., via plasma oxidation17) and subsequent recoating, enhances their practical utility over a wide wavelength range.
In Figure 4d‒f, we characterize the power limiting performance of the hybrid waveguides with different GO coating length Lc. For comparison, all the waveguides were coated with a monolayer of GO. As shown in Figure 4d, for the waveguides with a Lc smaller than 1.0 mm (i.e., the same as that in Figure 4c), the input power range exhibiting reversible power limiting behaviour is diminished. This is because at high powers the loss increase accumulated along the relatively small GO film length was insufficient to compensate for the rise in Pin. On the other hand, the input power range for power limiting does not further increase for the waveguide with a Lc larger than 1.0 mm. This is due to the fact that, after propagation through the initial 1.0-mm-long GO film section, the light power becomes inadequate to induce substantial photo-thermal changes. In Figure 4e, we provide characterization for Pthres1, Pthres2, and Pthres3, which are the input power thresholds dividing different sections in Figure 4c. Similar to that in Figure 3e, all of them exhibit minimal changes with increasing Lc, further confirming that the photo-thermal effects mainly took place at the initial portion of the GO film. As shown in Figure 4f, the increase in Lc leads to a decrease in the maximum output power from the hybrid waveguide. This is mainly due to the increased loss induced by a longer GO film length, and can be utilized to customize the output power according to various needs in practical applications.
Figs. 4g‒i show characterization for the power limiting performance of hybrid waveguides coated with different numbers of GO layers (N = 1‒ 4). For all the waveguides, Lc = 1.0 mm. In Figure 4g, the input power range with power limiting behaviour decreases for an increased N. In Figure 4h, the three power thresholds also decrease as N increases. These observations reflect the fact that the photo-thermal effects become more significant in thicker GO films, which can be attributed to the increased GO mode overlap and reduced thermal dissipation. In addition, the increase in impurities and defects within the GO layers, along with the unevenness and imperfect contact within the multi-layered film structure, result in reduced power endurance in thicker GO films. Similar to that in Figure 4f, there is a decrease in the maximum output power as N increases, mainly resulting from the increased loss for thicker GO films.
We compared the Pthres1, Pthres2, and Pthres3 for different waveguide configurations, including uncoated Si waveguides, Si waveguides coated with a polymer layer, Si waveguides coated with a polymer layer and a monolayer of GO, and Si waveguides coated with a monolayer of GO sandwiched between two polymer layers (see Note 7, Supplementary Information). The results show that the last configuration, which is also the one we employed to obtain the results in Figure 3, Figure 4 and Figure 5, provides the largest input power range for reversible photo-thermal changes. The performance for different light polarizations and Si waveguide geometries is also compared, as detailed in Notes 8 and 9, Supplementary Information. In practical applications, the values of Pthres1, Pthres2, and Pthres3 can be tailored by adjusting the input polarization and waveguide geometry to meet different requirements.

Non-reciprocal light transmission

In linear and time-invariant optical transmission media, as those commonly found in PICs, the Lorentz reciprocity theorem imposes constraints that prohibit the breaking of time-reversal symmetry and reciprocity39. Nevertheless, achieving non-reciprocal light transmission holds fundamental significance for PICs and forms the basis for functional devices like optical diodes39-41 and isolators42-44. In previous reports, non-reciprocal light transmission was realized by introducing various nonlinear mechanisms into PICs, such as those based on magneto-optic materials45,46, Brillouin scattering or optomechanically induced transparency47,48, Kerr optical effect43,46, acousto-optic modulation42,44, Parity-time symmetric devices49,50, and thermo-optic effects40,41. Although these methods have been successful in achieving high NTRs, challenges remain in achieving non-reciprocal light transmission over broad bandwidths. This is primarily because most of them rely on optical resonators with limited resonance bandwidths for enhancing the nonlinear response.
The photo-thermal effects in GO coated on integrated waveguides provide a new mechanism for realizing broadband nonreciprocal light transmission based on all-passive and non-resonant devices. As shown in Figure 5a, a part of the GO film coated on a Si waveguide is permanently reduced. Compared to pristine GO, the permanently reduced GO (PR-GO) has significantly increased light absorption and does not show any obvious loss increase induced by the photo thermal effects25,26. For a high-power light traveling in the forward direction, it first goes through the PR-GO segment and subsequently enters the GO segment. After passing the PR-GO segment with substantial loss, the power entering the GO segment is insufficient to induce significant photo-thermal effects. In contrast, a light with the same power but propagating in the backward direction first encounters the GO segment, where it experiences additional loss due to the photo-thermal effects, before reaching the PR-GO segment with a consistent loss. Hence, it experiences higher loss compared to light traveling in the forward direction, leading to non-reciprocal light transmission. The broadband response of the photo-thermal effects in GO enables non-reciprocal light transmission over wide spectral ranges. Because the photo-thermal effects in GO are driven by light power in the hybrid waveguide, the nonreciprocal behaviour is influenced by the input power levels. This makes the hybrid waveguide cannot function as an optical isolator39,51. Nevertheless, the nonreciprocal transmission property can be effectively utilized in applications such as optical diodes, nonreciprocal switching, and signal processing41,49.
In the experimental demonstration, we first measured a hybrid waveguide with a monolayer of GO. The PR-GO segment was fabricated via direct laser writing on the coated GO film with a length of Lc = ~1.0 mm (see Methods). By adjusting the laser power and writing length, we achieved a consistent loss of ~10.6 dB for the PR-GO segment, which remained unaffected by a Pin up to ~25 dBm. Such loss aligned with the value of ∆ILmax in Figure 3d, which was aimed to improve the non-reciprocal transmission ratio (NTR) and minimize the extra loss caused by the PR-GO. Figure 5b shows the measured waveguide IL as a function of wavelength for light propagating in both the forward and backward directions (see experimental setup in Note 10, Supplementary Information). The input power for light in both directions was kept the same as Pin = ~19 dBm. Clearly, the light in the forward direction experienced a lower loss than that in the backward direction. The NTR, defined as the difference in the IL between light traveling in opposite directions, is further extracted and depicted in Figure 5c. We obtained a flat NTR curve with uniform NTR values of ~10 dB across the entire C-band, which has not been achieved in previous reports (See detailed comparison in Note 11, Supplementary Information). In our demonstration, the wavelength tuning range was limited by the operation bandwidth of the optical amplifier. As previously mentioned, the photo-thermal effects in GO exhibit a much broader response bandwidth. This allows for a significantly wider bandwidth for non-reciprocal transmission than what was demonstrated in our experiments.
In Figure 5d, we show the NTR as a function of the input power Pin for the hybrid waveguide measured in Figure 5b,c. The corresponding result for another hybrid waveguide with over-reduced PR-GO is also shown for comparison. For the over-reduced PR-GO, we increased the length of the PR-GO segment to achieve a higher loss of ~15.0 dB, in contrast to ~10.6 dB for the PR-GO that was not over-reduced. For both cases, the NTR started to increase above 0 at Pin = ~8 dBm and reached a maximum value of ~10.1 dB at Pin = ~19 dBm. The power thresholds and the maximum NTR match with Pthres1, Pthres2, and ∆ILmax in Figure 3b. For the waveguide with PR-GO that was not over-reduced, the NTR began to decrease as Pin exceeded ~20 dBm. This occurs because the PR-GO segment was unable to entirely offset the surplus input power above Pthres2, allowing the forward-propagating light to still induce photo-thermal changes after passing through the PR-GO segment. Whereas for the waveguide with over-reduced PR-GO, despite having a higher IL, the maximum NTR could be sustained within a certain input power range where the excess input power can be adequately compensated. Note that when the input power of the backward-propagating light exceeded ~19 dBm, there was a permanent increase in the IL for both waveguides, but this did not impact the NTR values.
In Figure 5e, we compare the non-reciprocal transmission performance for both a CW light and a 10-Gbit/s non-return-to-zero (NRZ) signal, using the device with PR-GO that was not over-reduced. Both the CW light and the NRZ signal exhibited similar NTRs at the same average power, reflecting that the photo-thermal effects are primarily influenced by the average power. Due to the substantial delay in the response of the photo-thermal effects compared to the rapid variations in the NRZ signal, the loss induced by the photo-thermal changes can be considered constant for the NRZ signal. This results in a similar NTR as observed with the CW light.
Figure 5f,g show characterization for the non-reciprocal transmission performance of hybrid waveguides with different GO film lengths (Lc) and layer numbers (N), respectively. The change in the maximum NTR (NTRmax) with Lc is consistent with the trend observed for the change of ∆ILmax in Figure 3f. As N increases, NTRmax decreases, showing a trend similar to that observed for the maximum output power in Figure 4i. In addition, the input powers to achieve NTRmax values follow similar trends as those for Pthres2 in Figure 3 and Figure 4. These observations indicates that the three functionalities rely on the same fundamental mechanism of photo-thermal effects in 2D GO films.

Theoretical analysis and discussion

Based on the above experimental results, we theoretically model the photo-thermal changes in 2D GO films coated on integrated waveguides and analyze the film property changes with varying light power and temperature.
As the light power attenuates along the waveguide, the photo-thermal effects become weaker, leading to a smaller difference in properties between the photo-thermally reduced GO and the unreduced GO. This non-uniform behaviour represents an interesting characteristic for the photo-thermal changes in GO films coated on integrated waveguides. Figure 6a shows a schematic illustration of a GO-Si waveguide with photo-thermal changes in GO induced by light propagation through. The GO film is divided into three segments with lengths of LPR-GO, LRR-GO, and LNR-GO, which exhibit permanent reduction (PR), reversible reduction (RR), and no reduction (NR) behaviours, respectively. Figure 6b shows the lengths of the three GO segments versus input power Pin, which was calculated based on the experimental results for the hybrid waveguide with N = 1 and Lc = ~1.0 mm in Figure 4 (see Note 12, Supplementary Information). As can be seen, for Pin < ~8 dBm, LNR-GO equals to Lc, indicating the presence of exclusively unreduced GO. Within the power range for reversible photo-thermal changes, LRR-GO increases with the input power, while LNR-GO shows an opposite trend, showing agreement with the observations in Figure 3b and Figure 4c. In addition, LPR-GO remains at 0 until Pin exceeds Pthres2, reflecting that the permanent changes only manifest within this specific power range. In a waveguide with permanently reduced GO, LRR-GO remains constant at ~0.43 mm. This constancy occurs because when the light power decreases to a level associated with reversible photo-thermal changes, the behaviour of GO closely resembles that observed within this power range, and LRR-GO = ~0.43 mm corresponds to Pin = Pthres2.
Based on the results in Figure 6b, we calculated the evolution of light power along the hybrid waveguide (see Note 13, Supplementary Information). In Figure 6c, we show the results for four different input power levels. At Pin = ~7.0 dBm that is insufficient for any noticeable photo-thermal changes, there is only linear loss in both the uncoated and the GO-coated segments, which are ~0.3 dB/mm and ~2.3 dB/mm, respectively. For Pin = ~14.5 dBm and ~19.2 dBm that fall within the range for reversible photo-thermal changes, the light power undergoes a substantial decrease in the RR-GO segment, followed by the same linear loss of ~2.3 dB/mm in the NR-GO segment. At Pin = ~21.0 dBm, the light power first diminishes in the PR-GO segment to reach Pthres2 = ~19.2 dBm, and then experiences a loss similar to that observed for Pin = ~19. 2 dBm.
Figure 6d shows the propagation loss of the hybrid waveguide (PLhybrid) as a function of the light power injected into the hybrid waveguide cross-section (Pin, hybrid), which was calculated based on the results in Figure 6c (see Note 14, Supplementary Information). Note that the Pin, hybrid is directly related to PLhybrid, and it is slightly different from Pin in Figure 6b,c. As Pin, hybrid increases, PLhybrid first remains at a constant level, and then gradually increases in the power range for reversible photo-thermal changes. After that, there is a steep rise near the power threshold for permanent photo-thermal changes, followed by a subsequent gradual increase. In Figure 6d, the extinction coefficient of the GO film (kGO) is also plotted as a function of Pin, hybrid, which was extracted from the results for PLhybrid (see Note 14, Supplementary Information). The reversibly reduced GO exhibits higher light absorption compared to unreduced GO, and the permanently reduced GO shows even higher absorption. In a hybrid waveguide with significant photo-thermal effects, the reduced GO at the start of the waveguide absorbs a significant portion of light power, acting as a barrier to prevent reduction in the subsequent GO film. The degree of reduction in the reversibly reduced GO decreases as the light power attenuates along the film. This, in turn, amplifies the non-uniformity of the photo-thermal changes along the GO film.
Figure 6e shows the temperature distributions along the hybrid waveguide for four different input powers Pin that match those in Figure 6c, which were measured by scanning a probe along the direction of the waveguide after it had achieved a stable thermal equilibrium state. The probe was positioned at a distance of ~2.5 μm from the bottom of the Si waveguide (i.e., ~2.28 μm away from the GO film coated on the waveguide top surface). At Pin = ~7.0 dBm, the temperature gradually decreases along the waveguide as the optical power attenuates, and there is no significant difference between the uncoated and GO-coated segments. As Pin increases, the rise in the temperature at the start of the GO-coated segment (i.e., L = 1 mm) becomes more obvious, indicating the presence of more significant photo-thermal effects. The temperature experiences a rapid increase followed by a return to a typical level within the GO-coated segment, providing further evidence for the non-uniform photo-thermal changes in the GO film.
Figure 6f shows the thermal conductivity of the 2D GO film (KGO) as a function of Pin, hybrid, which was obtained by fitting the results in Figure 6e with theoretical simulations (see Methods and Notes 15 and 16, Supplementary Information). In the fitting process, we also used the data from Figure 6c,d. With an increase in Pin, hybrid, KGO also increases, and the increase becomes more obvious at higher Pin, hybrid levels. These results, along with those in Figure 6d for the extinction coefficient, reflect the transition from GO to reduced GO, which exhibits enhanced light absorption and increased thermal conductivity. At a high Pin, hybrid of ~21.7 dB, KGO reaches ~312.4 Wm-1K-1. This value is much higher than the reported value for a 40-μm-thick reduced GO film52, indicating a substantial increase in the thermal conductivity for reduced GO film in 2D form. We also note that this value is close to that reported for graphene on a dielectric substrate53, which confirms the similarity in material properties between highly reduced GO and graphene.
The temperature distributions in Figure 6e were measured using a probe positioned at a certain distance from the GO film. As a result, they cannot accurately reflect the temperature changes within the GO film during the photo-thermal processes. Based on the results in Figure 6f, we performed simulations to estimate the temperature variations within the GO film (see Note 16, Supplementary Information). Figure 6g shows the simulated temperature variation ∆TGO as a function of Pin, hybrid. As expected, ∆TGO increases with Pin, hybrid. The increase becomes more prominent within the power range for reversible reduction, and even more so within the power range for permanent reduction. At Pin, hybrid = ~18.9 dB, ∆TGO = ~23.0 K. We note that this value is lower compared to the reported values for much thicker GO films subjected to permanent reduction52,54. Such difference can be attributed to several factors, such as the much lower thicknesses of our films, the improved heat-trapping in the 2D GO layer enclosed by the polymer layers, and the existence of air voids in the layered film structure.
The various OCFGs in GO exhibit different bonding energies, resulting in the difference in their reduction temperatures15. Previous studies have found that hydroxyl (‒OH) and carbonyl (C=O) groups possess much lower bonding energies compared to carboxylic (‒COOH) and epoxy (‒O‒) groups54. Therefore, we infer that the reversible reduction of GO films at relatively low temperatures was primarily induced by changes in these two types of OCFGs. The difference between Pthres1 and Pthres2, which corresponds to the input power range for revisable photo-thermal changes in the GO films, is a crucial parameter in applications such as power limiting and non-reciprocal transmission. For instance, a larger difference between them enables a higher NTR. Further improving this parameter can be achieved by increasing the oxidation level of the unreduced GO, optimizing the film fabrication to better restrain the release of OCFGs, and minimizing the air voids and impurities within the multi-layered film structure. The thermal stability of the polymer layers (which enclose the GO layers) at high temperatures can also be improved by replacing the polymer used in our film coating (See Methods) with polyimide, which has a notably high thermal stability55. These results have wide applications to GO based devices 58-74 as well as other novel photonic platforms. 75-87 Ultimately this could be useful for both classical and quantum microcomb based applications.88-158

Conclusion

In summary, we harness the photo-thermal effects in 2D GO films integrated onto Si photonic waveguides to realize three new functionalities that are challenging for conventional PICs. These include all-optical control and switching, optical power limiting, and non-reciprocal light transmission. The 2D layered GO films are integrated onto Si photonic waveguides with precise control over their thicknesses, sizes, and placement. Owing to the broadband response of 2D GO films, all the three functionalities exhibit an exceptionally wide operational bandwidth. Based on the experimental results, we provide detailed analysis for the changes in material properties induced by the photo-thermal effects, providing insights into the characteristics of 2D GO films. These results provide a new route towards implementing high-performance functional integrated photonic devices though on-chip integration of 2D GO films.

Methods

Fabrication of Si waveguides. The Si waveguides were fabricated on a SOI wafer with a 220-nm-thick top Si layer and a 2-μm-thick buried silicon dioxide (SiO2) layer. The device layout was first defined on a negative photoresist using 248-nm deep ultraviolet photolithography and subsequently transferred to the top Si layer through photoresist development and inductively coupled plasma etching. Following this, a 1.5-μm-thick silica layer was deposited using plasma enhanced chemical vapor deposition to serve as the upper cladding layer. Finally, windows of different lengths were created down to the buried SiO2 layer through the processes of photolithography and reactive ion etching. Lensed fibres were employed to butt couple light into and out of the fabricated Si waveguides with inverse-taper couplers at both ends. The coupling loss was ∼5 dB per facet.
GO synthesis and film coating. First, a GO solution composed of negatively charged GO flakes was prepared using a modified Hummers Method56 that is facile and shows a high compatibility with CMOS fabrication. Vigorous sonication was employed to ensure that the dissolved GO flakes were in monolayer thickness and with lateral sizes < 100 nm. Second, the Si chip with a negatively charged surface was immersed in a 2.0% (w/v) polyelectrolyte polydiallyldimethylammonium chloride (PDDA) solution to obtain a polymer-coated integrated chip with a positively charged surface. Next, the polymer-coated Si chip was immersed in the prepared GO solution, where a GO monolayer was in-situ self-assembled onto the top surface through electrostatic forces. Finally, the Si chip with GO film on the top surface was re-immersed in the polymer solution to create a protective polymer top layer, shielding the GO film from direct exposure to air. The strong electrostatic forces enable conformal film coating with a high uniformity. Following the coating of each polymer or GO layer, the film surface was subjected to nitrogen gas blowing using an air gun. This was done to achieve a firm contact between the polymer and GO layers. By repeating the above steps, layer-by-layer coating of GO films can be realized, with high scalability and accurate control of the layer number or the film thickness25,26. After the GO film coating, the chip was dried in a drying oven at low temperature.
Laser reduction of GO films. The permanently reduced GO films in the non-reciprocal light transmission experiments were fabricated via direct laser writing using femtosecond optical pulses (~140-fs pulse width, ∼800 nm wavelength) generated by an optical parametric oscillator. The laser writing system was modified on the basis of a Z-scan measurement system used in our previous studies57,58 which has been used on a wide range of devices.59-92 The generated laser beam was first expanded using a concave lens and two convex lenses, and then focused by an objective lens, resulting in a spot size of ∼1.6 μm. The GO-Si waveguides were positioned perpendicular to the direction of the beam axis. The alignment of the light beam to the target position was achieved through a high-definition charge-coupled device (CCD) imaging system. To adjust the incident light power, a half-wave plate in conjunction with a linear polarizer was employed as a power attenuator. We did not fabricate permanently reduced GO induced by photo-thermal effects in the hybrid waveguides. This was because the difference between Pthres2 and Pthres3 was not sufficient to provide a loss of over 10 dB for the PR-GO segment. In addition, it proved challenging to precisely control the loss increase by raising the input power once the polymer layer sustained permanent thermal damage.
Thermo-optic modeling and simulation. The steady-state temperature distributions in the waveguide cross section were simulated using commercial finite-element multi-physics software to solve the heat equation described by the Fourier’s law as
q = − K · ∇ T
where q is the heat flux density, K is the material’s thermal conductivity, and ∇T is the temperature gradient. In our simulation, the heat power densities in different material regions were calculated individually, using the corresponding optical mode distribution and material property parameters (as detailed in Note 15, Supplementary Information). The values of K for each of the material regions were also specified, with the exception of those that needed fitting. By fitting the experimental results with theoretical simulations, we obtained the fitted K values of reduced GO at different input light powers. This was achieved by analyzing the measured temperature difference in the GO-coated segment (see details in Note 16, Supplementary Information). With the fitted K values, the temperature variations within the GO film (as shown in Figure 6g) were further calculated through thermal simulation using the same software. Due to the much lower mode overlap with GO on the sidewalls compared to that on the waveguide’s top surface (see Note 17, Supplementary Information), our thermal simulations did not account for the variations in material properties arising from the anisotropy of 2D layered GO films, including parameters such as the extinction coefficient and thermal conductivity.
