A Spectral Polak-Ribi{\'e}re-Polyak Conjugate Gradient Method on Quantum Derivative for Unconstrained Optimization Problems

1. Introduction

Conjugate gradient methods remain a preferred alternative for solving a variety of multi-variable objective functions due to its good convergence rate and high accuracy [1]. Several authors have developed novel and high performing CG optimization methods [2,3,4]. These methods are: classical [5], hybrid [6], scale [7], and parameterized [8] CG methods. The key challenges to address are precisely computing the step-length and choosing orthogonal conjugate directions in succession until the optimum point is attained [9]. When the starting point is far from the optimal solution and the objective functions contain multiple local optima, the classical steepest descent method based on gradient direction hits its limits [10]. Conjugate gradient methods require the gradient of the function. Generally, researchers use classical derivative to compute the gradient. The quantum derivative is also useful to find the quantum gradient of the function. We now consider the following nonlinear UO problem:

$$\mathrm{minimize}\theta \left(z\right),z\in {\mathbb{R}}^n,$$

(1)

where $\theta :{\mathbb{R}}^n\to \mathbb{R}$ is a continuously quantum differentiable function whose quantum gradient is given by $h_q\left(z\right)$. A better CG algorithms always converge to an optimum solution and converge quickly as well. Researchers have already shown the efficient performance by replacing the gradient vector with quantum gradient vector [11,12,13,14,15,16,17,18,19]

The CG method [1] is one of the most efficient and accurate methods for solving large-scale UO problems (1), whose iterative sequence [10] $\left\{z^{\left(\lambda \right)}\right\}$ is generated in the context of quantum calculus as:

$$z^{(\lambda +1)}=z^{\left(\lambda \right)}+{\alpha }_{\left(\lambda \right)}{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)},\mathrm{where}\lambda =0,1,2\cdots ,$$

(2)

where scalar variable ${\alpha }_{\left(\lambda \right)}$ is a positive step-length. This variable is computed through any LS, and $p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}$ is a quantum descent search direction as:

$$p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}=-h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)},\mathrm{where}\lambda =0.$$

(3)

The vector $h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}={\nabla }_{q^{\left(m\right)}}\theta \left(z^{\left(\lambda \right)}\right)$ is the quantum steepest descent direction [11] at the starting point $z^{\left(0\right)}$. For next quantum iteration,

$$p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}=-h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}+{\beta }_{\left(\lambda \right)}^{Quantum-PRP}{p}_{q^{(\lambda -1)}}^{(\lambda -1)},\mathrm{where}\lambda \ge 1.$$

(4)

Note that ${\beta }_{\left(m\right)}^{quantum-PRP}$ is the scalar quantity and it is assumed as a quantum CG parameter. The quantum PRP CG method given by Mishra et al. [11] is a popular CG method whose quantum CG parameter is given as:

$${\beta }_{\left(\lambda \right)}^{Quantum-PRP}=\frac{{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}-h_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2},$$

(5)

where $\parallel ·\parallel$ denotes the Euclidean norm of vector $h_{q^{(\lambda -1)}}^{(\lambda -1)}$. Further, sufficient quantum descent condition is required to reach the global convergence (GC) point for objective function (1). This condition is represented as:

$${\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\le c{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2,c>0.$$

(6)

Researchers have proposed the variant of the PRP CG method that establishes the condition (6). For instance, Zhang [12] suggested a modified PRP method that consistently executes a descent direction regardless of the LS employed. Wan et al. [20] established a distinct PRP method called the spectral PRP method. At each iteration, the search direction of the suggested method was demonstrated for the descent direction of the objective function.Hu et al. [21] proposed a class of improved CG method in the support of descent direction to solve unconstrained non-convex optimization problems. More pertinent contributions are available in [22,23,24,25,26] and references therein.

In this article, we propose to merge the concept of quantum derivative with the spectral gradient and CG. We present a quantum-spectral-PRP approach where the search direction is a quantum-descent direction at each quantum iteration. The rapid search for the descent point in the proposed algorithm is made possible by the quantum variable q.

1.1. A Quantum Spectral PRP CG Algorithm

In this subsection, we construct our method step by step. Consider the UO problem defined by (1). The CG method of Wan et al. [20] solves (1) by generating a sequence of iterate $\left\{z^{\left(\lambda \right)}\right\}$. As shown by Wan et al. [20], we now introduce the quantum-spectral PRP method for solving (1). The iterative schema of this method based on the quantum gradient is already shown. Motivated by [20], the quantum search direction $p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}$ for $\lambda \ge 1$ is presented as:

$$p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}=-t_{\left(\lambda \right)}{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}+{\beta }_{\left(\lambda \right)}^{Quantum-PRP}{p}_{q^{(\lambda -1)}}^{(\lambda -1)},$$

(7)

where

$$\begin{array}{c}\hfill t_{\left(\lambda \right)}=\frac{{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}-h_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}-\frac{{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2{∥h_{q(\lambda -1)}^{(\lambda -1)}∥}^2}.\end{array}$$

(8)

Based on all above, we present the algorithm for the quantum-spectral PRP-CG method as follows:

Algorithm 1.1.

A Quantum-Spectral PRP CG Algorithm

• Step 0 Given a starting point $z^{\left(0\right)}\in {\mathbb{R}}^n$, constants $0<\rho <\sigma <1$, ${\delta }_1,{\delta }_2>0$, $ϵ>0$. Let $\lambda =0$.
• Step 1 If $∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥\le ϵ$, the algorithm terminates. Otherwise, compute $p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}$ using (3)-(4), and go to Step 2.
• Step 2 Find the step-length ${\alpha }_{\left(m\right)}>0$ such that

  $$\left\{\begin{array}{c}\theta \left(z^{\left(\lambda \right)}\right)-\theta \left(z^{\left(\lambda \right)}+{\alpha }_{\left(\lambda \right)}{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)\ge {∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2\rho {\left({\alpha }_{\left(\lambda \right)}\right)}^2,\hfill \\ h_{q^{\left(\lambda \right)}}{\left(z^{\left(\lambda \right)}+{\alpha }_{\left(\lambda \right)}{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\ge -2{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2\sigma {\alpha }_{\left(\lambda \right)}.\hfill \end{array}\right.$$

  (9)
• Step 3 Compute quantum descent point as $z^{(\lambda +1)}:=z^{\left(\lambda \right)}+{\alpha }_{\left(\lambda \right)}{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}$.
• Step 4 Set $q_i^{(\lambda +1)}=1-\frac{q_i^{\left(\lambda \right)}}{{(\lambda +1)}^2}$ for all $i=1,\cdots ,n$.
• Step 5 Set $\lambda =\lambda +1$, go to Step 1.

2. Convergence Analysis

In this section, the GC of Algorithm 1.1 is proved. We begin with the given assumptions that play an important role in establishing the convergence proof of the proposed technique.

Assumption 2.1.

A1.

The level set $L=\left\{z|\theta \left(z\right)\le \theta \left(z^{\left(0\right)}\right)\right\}$ is bounded, where the starting point is $z^{\left(0\right)}$.

A2.

There exists a constant $L>0$ such that θ is continuously quantum differentiable in the neighborhood N of Ω and its quantum gradient is Lipschitz continuous such that

$$∥h_q\left(y\right)-h_q\left(z\right)∥\le L\parallel y-z\parallel ,\forall y,z\in N.$$

(10)

A3.

The following inequality holds for λ large enough:

$${\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\ge \frac{1}{2}{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}>0.$$

(11)

Remark 2.2.

Assumptions $\left(A1\right)$ and $\left(A2\right)$ imply that there exists positive constants γ such that

$$∥h_q\left(z\right)∥\le \gamma ,\forall z\in N.$$

(12)

Lemma 2.3.

If the direction $p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}$ is yielded by (3) and (7), then the following equation holds for any quantum iteration m

$${\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}=-∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥.$$

(13)

Proof.

First, for $\lambda =0,$ using (3) and (7), it is easy to see that (13) is true. For $\lambda >0$, we assume that

$${\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}=-{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2$$

(14)

holds for $\lambda -1$. Thus, We have the following:

$$\begin{array}{c}\hfill {\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}=-t_{\left(\lambda \right)}{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2+\frac{{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}-h_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}{{∥g_{q^{m-1}}^{m-1}∥}^2}{\left(p_{q^{(m-1)}}^{(m-1)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}.\end{array}$$

From (9), we have

$$\begin{array}{c}{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}=-\left(\frac{{\left(p_{q^{(m-1)}}^{(m-1)}\right)}^T\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}-h_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}-\frac{{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}\right){∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2\hfill \\ \hfill +\frac{{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}-h_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}.\end{array}$$

Therefore,

$$\begin{array}{c}{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}=\frac{{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}-\frac{{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}-h_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2\hfill \\ \hfill +\frac{{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}-\frac{{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)},\end{array}$$

that is,

$${\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}=-\frac{{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2+\frac{{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2+\frac{{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}.$$

Therefore,

$${\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}=\frac{{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2.$$

From (14), we get

$${\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}=-{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2.$$

Therefore, proof is accomplished. □

Remark 2.4.

It is known from Lemma 2.3 that the descent direction of θ at $z^{\left(\lambda \right)}$ is $p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}$. Additionally, if the exact LS is employed, then ${\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{(\lambda -1)}}^{(\lambda -1)}=0$, thus

$$t_{\left(\lambda \right)}=\frac{{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}-{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}}{{\left(h_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}}-\frac{{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{(\lambda -1)}}^{(\lambda -1)}{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}.$$

Therefore,

$$t_{\left(\lambda \right)}=-\frac{{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}=1.$$

Since from (14), we have

$${\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}=-{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2,$$

thus,

$$t_{\left(\lambda \right)}=1.$$

We are aware that Lemma 2.3 and Algorithm 1.1 are both clearly specified. In addition, the Lemma 2.3 and Assumption 2.1 can be used to demonstrate this result.

Lemma 2.5.

Suppose Assumption 2.1 hold, we have

$$\sum _{\lambda \ge 0}\frac{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^4}{{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}<\infty .$$

(15)

Proof.

From the LS rule (9) and Assumption 2.1, it follows that

$$\begin{array}{c}\hfill (2\sigma +L){\alpha }_{\left(\lambda \right)}{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2=2\sigma {\alpha }_{\left(\lambda \right)}{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2+L{\alpha }_{\left(\lambda \right)}{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2.\end{array}$$

Therefore,

$$-{\left(h_{q^{(\lambda +1)}}^{(\lambda +1)}-h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\le (2\sigma +L){\alpha }_{\left(\lambda \right)}{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2.$$

We get

$$-{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T\left(p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)\le (2\sigma +L){\alpha }_{\left(\lambda \right)}{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2.$$

(16)

Hence,

$$\begin{array}{cc}\hfill {\alpha }_{\left(\lambda \right)}{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2& \ge \frac{1}{2\sigma +L}\left(\frac{-{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}}{{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}\right).\hfill \end{array}$$

Therefore,

$$\begin{array}{cc}\hfill {\left({\alpha }_{\left(\lambda \right)}\right)}^2{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^4& \ge {\left(\frac{1}{2\sigma +L}\right)}^2{\left(\frac{-{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}}{{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}\right)}^2.\hfill \end{array}$$

From the quantum LS procedure and Assumption A1, we have

$$\begin{array}{cc}\hfill \sum _{\lambda =0}^{\infty }{\left(\frac{-{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}}{{∥p_{q^{\left(\lambda \right)}}^{\lambda }∥}^2}\right)}^2& \le {(2\sigma +L)}^2\sum _{\lambda =0}^{\infty }{\left({\alpha }_{\left(\lambda \right)}\right)}^2{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2\hfill \\ \hfill & \le \frac{{(2\sigma +L)}^2}{\rho }\sum _{\lambda =0}^{\infty }\left[\theta \left(z^{\left(\lambda \right)}\right)-\theta \left(z^{(\lambda +1)}\right)\right]\hfill \\ \hfill & <+\infty .\hfill \end{array}$$

It is simple to finish the proof of (15) using Lemma 13. □

The following results are established for the GC.

Theorem 2.6.

Under Assumption 2.1, we have

$$\underset{\lambda \to \infty }{lim\; inf}∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥=0.$$

(17)

Proof.

Assume that condition (17) is false, and there exists an $ϵ>0$ such that for any $\lambda$,

$$∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥\ge ϵ.$$

(18)

We are able to write as:

$${∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2={\left(p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}.$$

From (4), we can express as:

$$\begin{array}{cc}\hfill {∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2& ={\left(-t_{\left(\lambda \right)}{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}+{\beta }_{\left(\lambda \right)}^{Quantum-PRP}{p}_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T\left(-t_{\left(\lambda \right)}{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}+{\beta }_{\left(\lambda \right)}^{Quantum-PRP}{p}_{q^{(\lambda -1)}}^{(\lambda -1)}\right)\hfill \\ \hfill =& {\left(t_{\left(\lambda \right)}\right)}^2{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2-2t_{\left(\lambda \right)}{\beta }_{\left(\lambda \right)}^{Quantum-PRP}{\left(p_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}+{\left({\beta }_{\left(\lambda \right)}^{Quantum-PRP}\right)}^2{∥p_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2.\hfill \end{array}$$

From (7), we can write as:

$$\begin{array}{cc}\hfill {∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2& ={\left(t_{\left(\lambda \right)}\right)}^2{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2-2t_{\left(\lambda \right)}\left[{\left(p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T+{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{t}_{\left(\lambda \right)}\right]h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}+{\left({\beta }_{\left(\lambda \right)}^{Quantum-PRP}\right)}^2{∥p_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2\hfill \\ \hfill & ={∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2{\left(t_{\left(\lambda \right)}\right)}^2-2t_{\left(\lambda \right)}{\left(p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}-2{\left(t_{\left(\lambda \right)}\right)}^2{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}+{\left({\beta }_{\left(\lambda \right)}^{Quantum-PRP}\right)}^2{∥p_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2.\hfill \end{array}$$

Therefore,

$${∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2={\left({\beta }_{\left(\lambda \right)}^{Quantum-PRP}\right)}^2{∥p_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2-2t_{\left(\lambda \right)}{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}-{\left(t_{\left(\lambda \right)}\right)}^2{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2.$$

Dividing by ${∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^4$ in both sides of the above equality

$$\frac{{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^4}=\frac{{\left({\beta }_{\left(\lambda \right)}^{Quantum-PRP}\right)}^2{∥p_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2-2t_{\left(\lambda \right)}{\left(p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}-{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2{\left(t_{\left(\lambda \right)}\right)}^2}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^4}.$$

From (5), we get

$$\frac{{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^4}=\frac{{\left({\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}-{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^2}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^4}\frac{{∥p_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^4}-\frac{2t_{\left(\lambda \right)}{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{p}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}+{\left(t_{\left(\lambda \right)}\right)}^2{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^4}.$$

Thus,

$$\begin{array}{c}\frac{{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^4}=\frac{{∥p_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^4}-\frac{{∥p_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^4}\frac{\left(2{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}-{\left(h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\right)}^T\left(h_{q^{(\lambda -1)}}^{(\lambda -1)}\right)\right){\left(h_{q^{(\lambda -1)}}^{(\lambda -1)}\right)}^T{h}_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}}{{\parallel h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}\parallel }^4}\hfill \\ \hfill -\frac{{\left(t_{\left(\lambda \right)}-1\right)}^2}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}+\frac{1}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}.\end{array}$$

We get

$$\begin{array}{c}\hfill \frac{{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^4}\le \frac{{∥p_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^4}+\frac{1}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}.\end{array}$$

Therefore,

$$\begin{array}{cc}\hfill \frac{{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^4}& \le \frac{1}{{∥h_{q^{\left(0\right)}}^{\left(0\right)}∥}^2}+\cdots +\frac{1}{{∥h_{q^{(\lambda -1)}}^{(\lambda -1)}∥}^2}\hfill \\ \hfill & \le \sum _{i=0}^{\lambda -1}\frac{1}{{∥g_{q^{\left(i\right)}}^{\left(i\right)}∥}^2}.\hfill \end{array}$$

We get the following

$$\begin{array}{cc}\hfill \frac{{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^4}& \le \frac{\lambda }{{ϵ}^2}.\hfill \end{array}$$

The above inequality implies that

$$\sum _{\lambda \ge 1}\frac{{∥h_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^4}{{∥p_{q^{\left(\lambda \right)}}^{\left(\lambda \right)}∥}^2}\ge {ϵ}^2\sum _{\ell \ge 0}\frac{1}{\lambda }={\int }_0^1\frac{1}{\lambda }{d}_q\lambda ={\left[\begin{array}{c}log\lambda \end{array}\right]}_0^1=log1-log0=+\infty .$$

This contradicts with (15). Thus, the result (17) holds.

□

3. Numerical Illustration

3.1. Test on UO Problems

We now solve numerical problems using Algorithm 1. We have taken 30 test problems from [27] and performed 37 experiments using 37 starting points. Our numerical tests are carried out on R 3.6.1 with an Intel(R) Core(TM) CPU (i5-4005U@1.70GHz). We apply the stopping condition as:

$$∥h_{q^{\left(\lambda \right)}}\left(z^{\left(\lambda \right)}\right)∥\le {10}^{-5}.$$

The code terminates if the quantum iteration number is greater than 400.Dolan and Moré [28] proposed an appropriate approach to illustrate the performance profile, which is a statistical process. The performance ratio is as:

$${\rho }_{pr,s}=\frac{r_{(pr,s)}}{min\{r_{(pr,s)}:1\le r\le n_s\}},$$

(19)

where $r_{(pr,s)}$ denotes the number of quantum iteration for solver s resided on test problem $pr$ and $n_s$ refers to the number of total test problems given in the model test. The cumulative distribution function is presented as:

$$p_s\left(\tau \right)=\frac{1}{n_{pr}}\mathrm{size}\left\{pr\in {\rho }_{(pr,s)}\le \tau \right\},$$

(20)

where $p_s\left(\tau \right)$ is the probability that a performance ratio ${\rho }_{(pr,s)}$ is within a factor of $\tau$ of the optimum possible ratio. We plot the fraction $p_s\left(\tau \right)$ of test problems to analyze the subset of test problems under the assumption that the algorithm is within a factor $\tau$ of the optimum. We use this technique to depict the efficiency of Algorithm 1. Thus, Figure 1 shows that quantum-spectral-PRP method is efficient in comparison to other existing method.

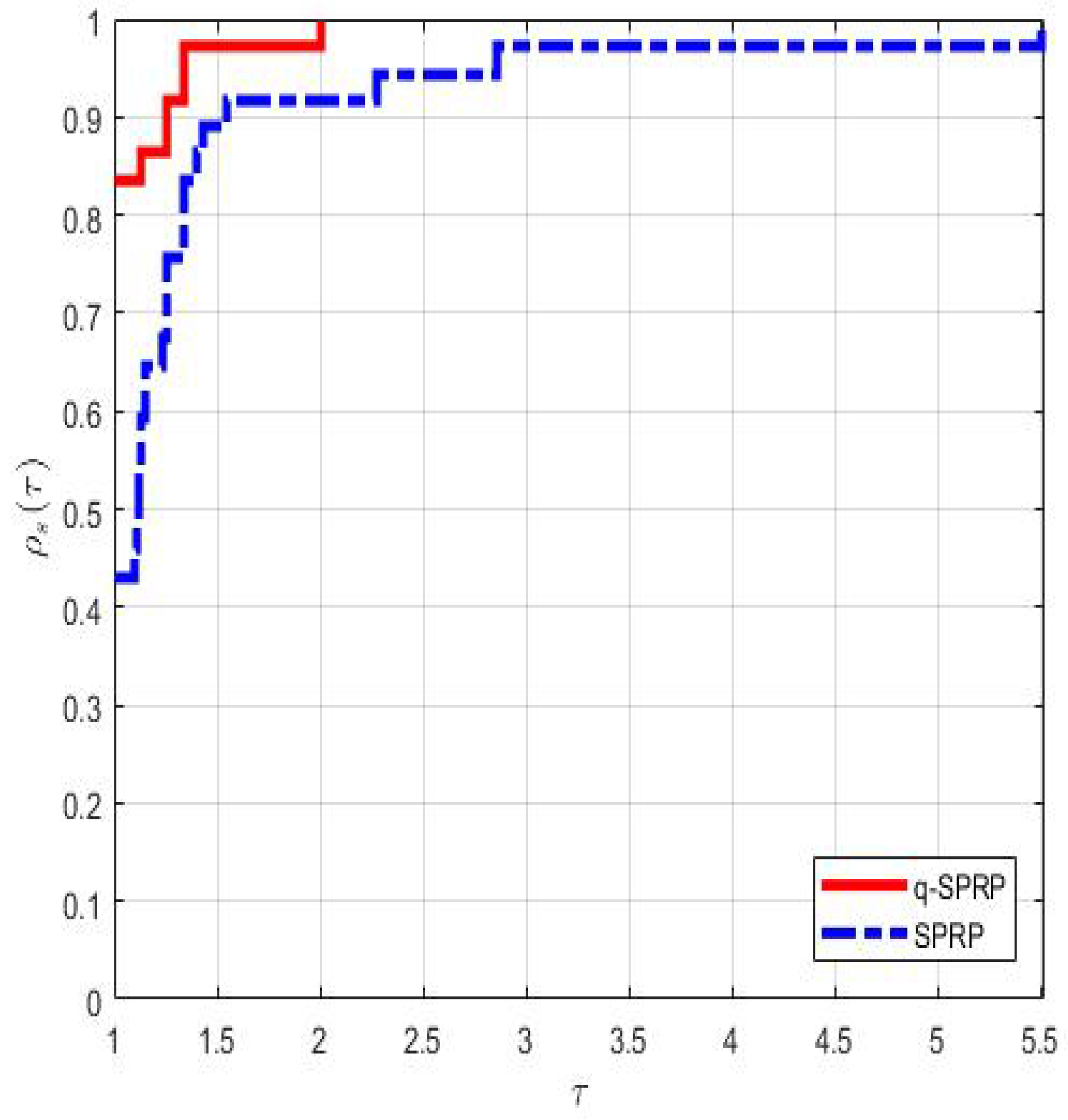

Figure 1. Performance profile based on number of quantum iterations using Table 1 and Table 2.

Figure 1. Performance profile based on number of quantum iterations using Table 1 and Table 2.

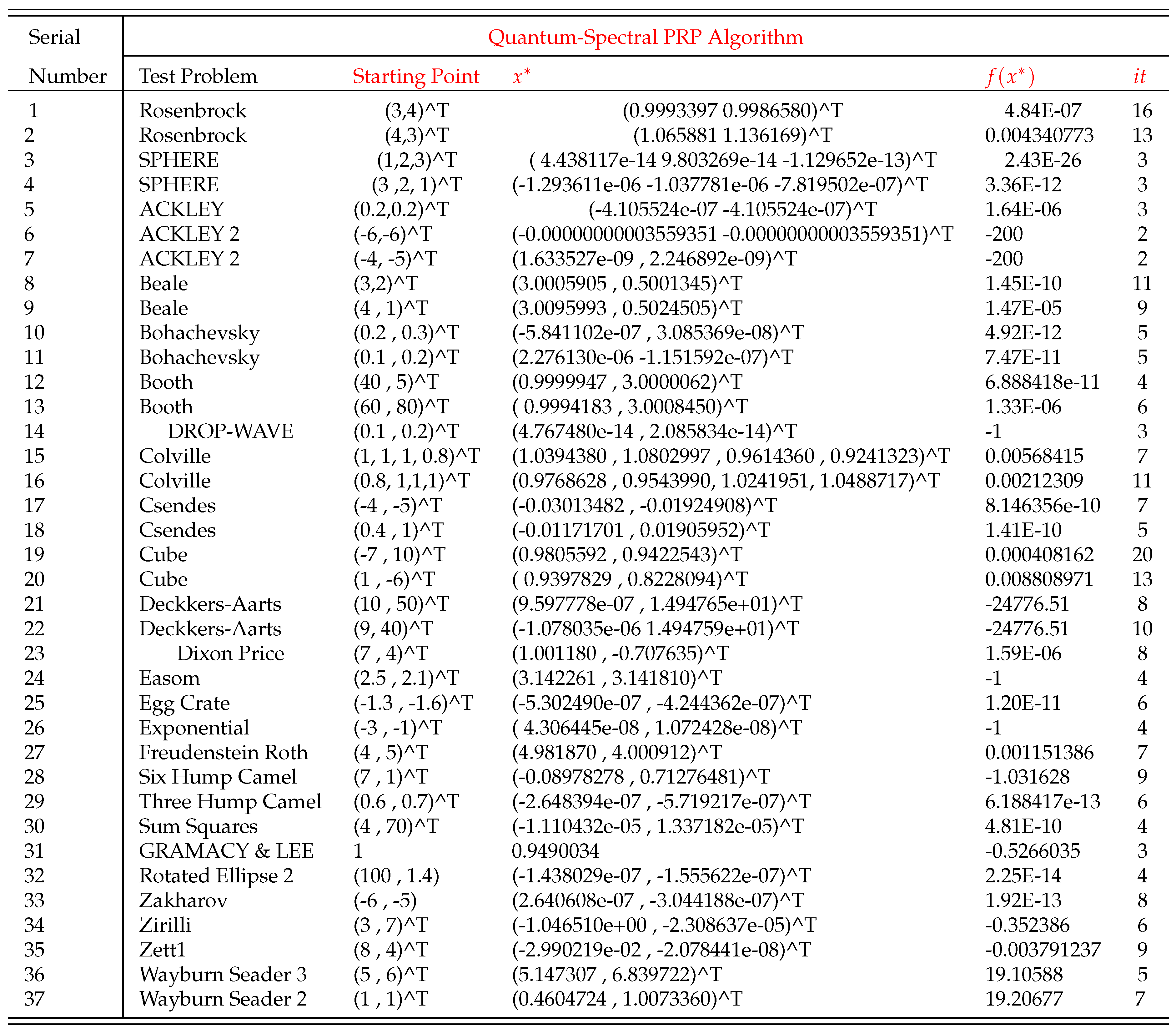

Table 1. Numerical Results

Table 1. Numerical Results

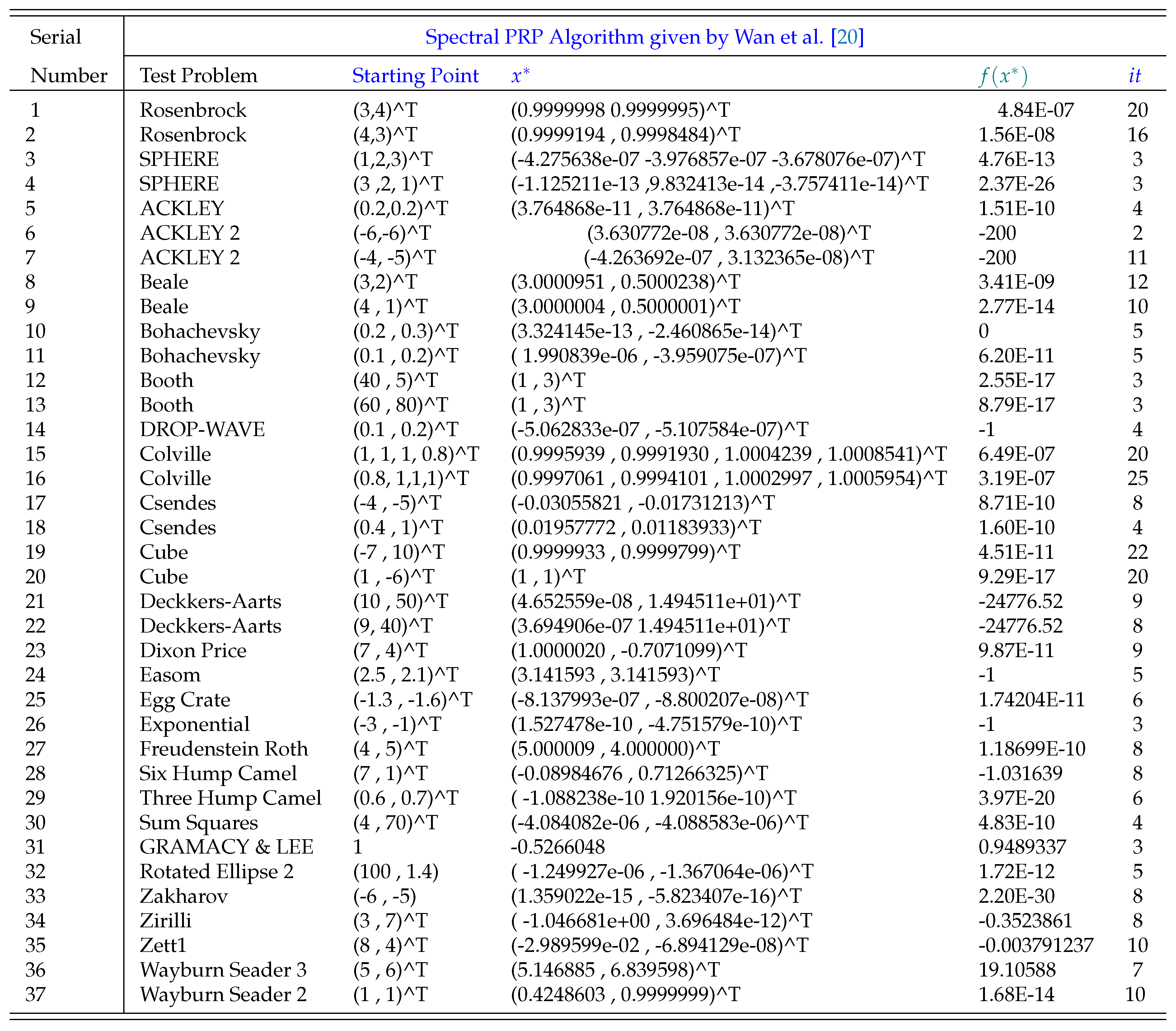

Table 2. Numerical Results

Table 2. Numerical Results

4. Conclusion

A quantum-spectral PRP CG method has been put forth for solving UO problems. The GC theorem of the generalized algorithm has been established with Wolfe LS conditions of quantum type. The choice of quantum variable q effects the practical behavior of the method. With the proper selection of iterative value of q, the proposed algorithm clearly outperforms. We compared our proposed algorithm with the existing method. The numerical results confirmed that the proposed strategy performs better.
