Vestibular Testing – New Physiological Results Optimize Clinical Vemp Stimuli

1. Introduction

The classical methods of testing human otolith function using linear acceleration stimuli have now been complemented in the clinic by the use of air conducted sound (ACS) and bone conducted vibration (BCV) as vestibular, and specifically otolithic, stimuli [1,2,3]. Sound and vibration are more clinically practical, and physiological and anatomical evidence shows that the otolith organs are activated by such stimuli (for reviews see [4,5]).

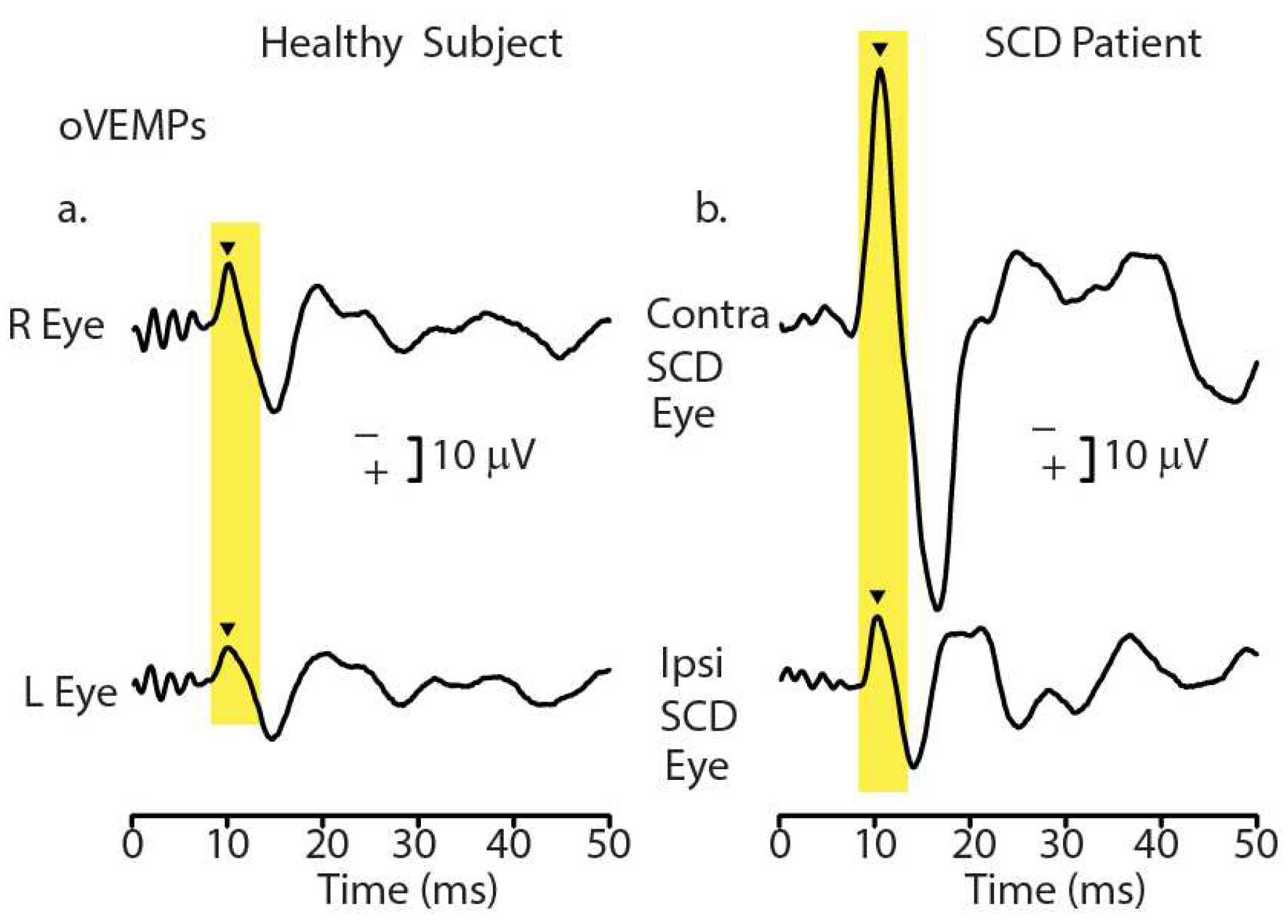

ACS or BCV stimuli can activate vestibular receptors resulting in small myogenic potentials called vestibular evoked myogenic potentials (VEMPs). VEMPs are due to synchronized action potentials of vestibular afferents activated at the onset of the stimulus since, as we explain below, prolonging the stimulus rise-time degrades synchronization of action potentials and degrades VEMPs [6]. VEMPs are being used to identify unilateral utricular and saccular loss [7,8,9], semicircular canal dehiscence (see Figure 1) [10] and central deficits [11]

The use of VEMPs as indicators of vestibular function rests on physiological evidence that vestibular receptors and neurons are activated by sound and vibration. Mostly this has come from recording the response of single identified otolithic afferent neurons to sound or vibration in guinea pigs and other species (for reviews see [4] ). As we show below, new physiological results are clarifying how the initial neural activation by BCV or ACS takes place, and so are validating the use of particular stimuli for clinical VEMP testing. These physiological studies use procedures which allow differentiation of vestibular from cochlear responses, since obviously both cochlear and vestibular receptors and afferent neurons are activated by ACS and BCV. Here we review those procedures, their results, and their interpretation.

2. Physiological Evidence – Overview

In anaesthetized guinea pigs we have measured VIII nerve activation (mainly the compound action potential (CAP)) in response to transient ACS and BCV stimuli (usually click stimuli)[12,13,14]. CAPs are mass neural potentials caused by synchronized action potentials of many individual primary afferent neurons triggered by transient ACS or BCV stimuli such as clicks [15]. An electrode near the VIII nerve records a response composed of many electrophysiological potentials caused by ACS or BCV stimulation: among them: cochlear compound action potential (cCAP), vestibular compound action potential (vCAP), cochlear and vestibular microphonics (CM and VM) and auditory and vestibular nerve neurophonics (ANN and VNN) [16,17]. The largest component is the cochlear compound action potential (cCAP) and for convenience and to relate these data to previous results, we refer to the whole VIII nerve compound action potential as cCAP, recognizing the existence of many components in this potential. We clarify these matters below. These peripheral CAP responses are also the basis for the vestibular evoked potential (VsEP) recorded by scalp electrodes [18,19,20,21,22,23]. The VsEP is a smaller far field correlate of the localized near field response. Our experiments compare vestibular CAPs (vCAPs) to cochlear CAPS (cCAPS) under controlled experimental conditions, and that is the main focus of this review. As we show below, one particularly useful aspect of these physiological recordings is that they provide an objective measure at the vestibular periphery of the optimum stimulus parameters for recording VEMPs in the clinic.

2.1. Independence of Cochlear and Vestibular Labyrinthine Divisions

The vestibular and cochlear divisions of the labyrinth share the same fluids and have receptor cells of superficially similar appearance, so the vestibular and cochlear divisions appear to be interdependent. That appearance is false [24]. It has been shown that the vestibular system can function independently of the cochlea in humans and guinea pigs: Plontke et al showed that after total surgical ablation of the cochlea in (rare) human patients with intracochlear schwannoma, the semicircular canals and the otoliths continue to function normally [25]. In 27 consecutive patients there was no significant decline of any of the measured indicators of canal or otolith function after total surgical cochlear ablation. This result shows conclusively that in the human the canals and otoliths can continue to function normally after surgical ablation of the cochlea and, as we show below, that is also the case in guinea pigs. We have measured CAPs in guinea pigs after chemical cochlear ablation (by KCl infusion) which we term that CAP the vCAP identifying it as being of vestibular origin since cochlear function is absent. The vCAP allows us to measure clinically relevant vestibular aspects of transient stimuli which activate vestibular receptors and so optimize the stimulus parameters maximising the vestibular component of VEMPs.

2.2. Differentiating Vestibular and Cochlear Compound Action Potentials

There have been two approaches to differentiating vestibular from cochlear responses in animal experimental studies: either

(a) use stimuli which are accepted as otolithic – transient linear accelerations - and interpret the results (such as the VsEP) as being due to vestibular rather than cochlear activation [20],

or

(b) use transient BCV or ACS clicks which can activate all labyrinthine sensory regions but use various controls, such as disabling or even removing the cochlea, to identify the vestibular component of the total CAP nerve response [14,26].

The problem with using linear acceleration is that the presumably specific otolithic stimulus most likely has aspects that affect the cochlea – it is difficult to deliver a transient linear acceleration without sound or vibration - so it is wise to use broadband masking noise to minimize any possible cochlear contribution [27]. As we show below, masking by broadband noise has surprisingly little effect on vestibular receptors and afferents. To address these matters, we first briefly review the relevant anatomical and physiological evidence before showing how these physiological results relate to clinical VEMP testing.

3. Anatomy

3.1. Cochlea

Inner hair cells have a fairly uniform appearance throughout the cochlea, although stereocilia height varies along the basilar membrane (see [28,29] for reviews). In the cochlea, each individual afferent neuron contacts just one inner hair cell with a bouton synapse (see [24] for a review), but each inner hair cell receives many afferent bouton contacts from different axons. For every synapse the transmitter is glutamate, released by synaptic ribbons in the inner hair cell [24,30,31,32]. Ribbons appear to be the main mechanism of glutamatergic synaptic transmission for cochlear primary afferents and are held to be responsible for the temporal precision of cochlear responses to transient stimuli and phase-locking of cochlear afferent action potentials to sinusoidal stimuli [24,33,34,35].

Transient stimuli such as clicks deflect cochlear receptor hair bundles causing the mechanoelectrical transduction (MET) channels on the stereocilia to open and depolarize the hair cell and so generate a receptor potential - the cochlear microphonic (CM) - and also action potentials in individual afferents (see [24,29,36] for reviews). The synchronized action potentials of many simultaneously activated cochlear afferents in response to a broadband click stimulus are the major components of the mass neural response – the cochlear action potential (cCAP) - recorded by gross electrodes on, or close to, the auditory nerve. Individual primary cochlear afferents have a remarkable temporal precision as shown by the precision of their phase-locked response to sinusoidal stimuli [35]. In individual neurons, action potentials are generated at a particular stimulus phase angle (or a narrow band of phase angles) up to high frequencies (>1000Hz) [33,35]. Classic examples of phase-locking of individual primary cochlear primary afferents in guinea pig were published by [37]

3.2. Vestibular

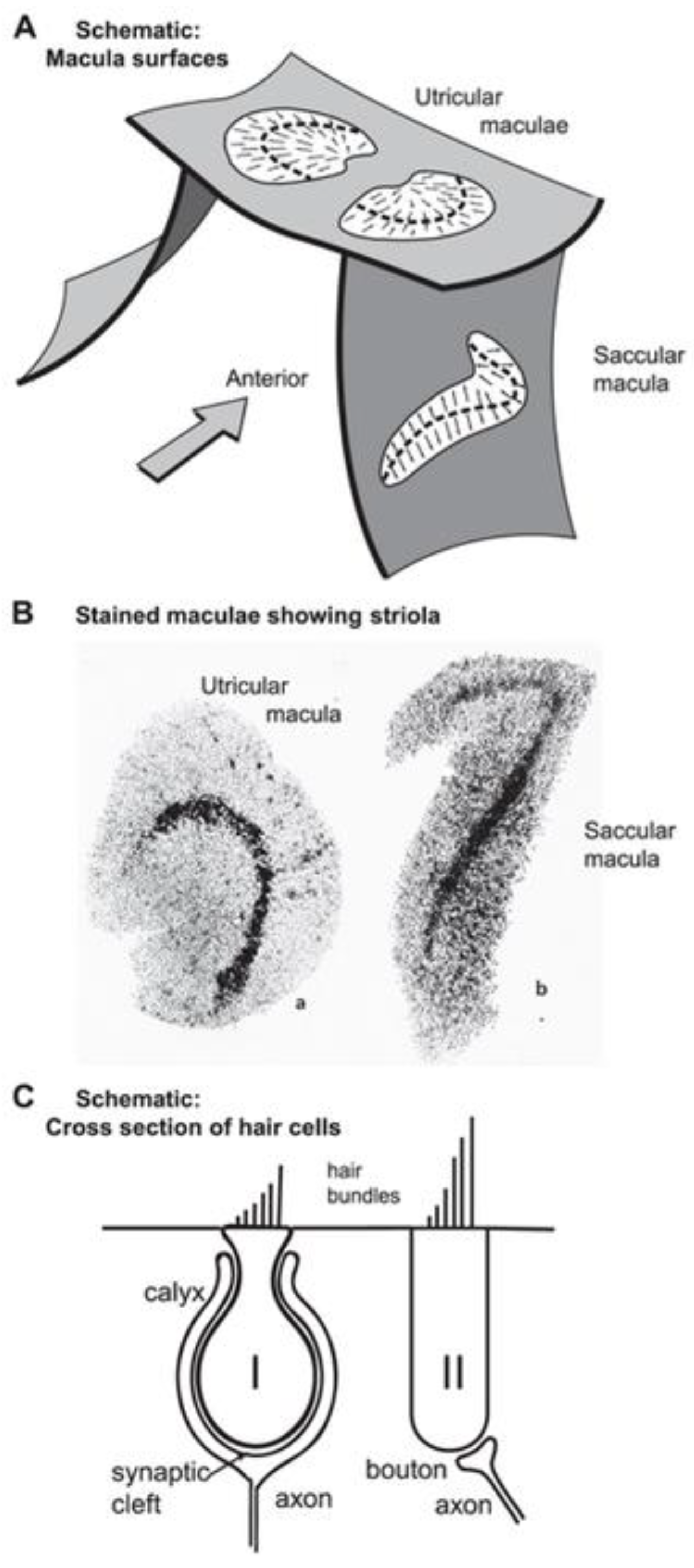

Vestibular receptors have a similar hair bundle appearance as cochlear receptors (see [29]) but there are systematic anatomical and physiological differences in vestibular receptors across vestibular receptor surfaces [38,39,40,41]. The receptors and afferents from a particular region in each otolithic macula (a stripe called the striola (see Figure 2A and B) are distinct - it is here that amphora shaped type I receptors, enveloped by a calyx afferent ending are plentiful (Figure 2C) [32,42,43,44,45,46]. Paralleling cochlear responses, transient vestibular stimuli such as abrupt linear accelerations or ACS or BCV clicks, deflect vestibular hair bundles causing MET channels in the stereocilia to open [28,47] resulting in a receptor potential - the vestibular microphonic (VM) [48] and in action potentials in primary vestibular afferents. Clicks generate vCAPs with the main contributor to the vCAP to click stimuli being from otolithic afferents with irregular resting discharge originating from type I receptors at the striola since it is these otolithic receptors and afferent neurons which are selectively activated by sound or vibration in the guinea pig [4,49,50]. Vestibular afferents with regular resting discharge synapse on type I and II receptors in extrastriolar regions [51] and have poor or non existent response to ACS or BCV [41,49,52,50]. Regular afferents are rarely (and then only weakly) activated by sound and vibration at clinically appropriate stimulus levels. In stark contrast, irregular otolithic afferents are activated and phase-lock at low intensities to these stimuli up to high frequencies (>2000Hz ) [53,54]. The vestibular type I/calyx afferent synapse is very unusual – the calyx ending of the vestibular afferent fiber envelops the amphora-shaped type I receptor (Figure 2C), instead of making a punctate synapse as in the cochlea inner hair cells [46,55,56]. However, at this type I/calyx afferent junction the transmitter is glutamate again, as in the cochlea.

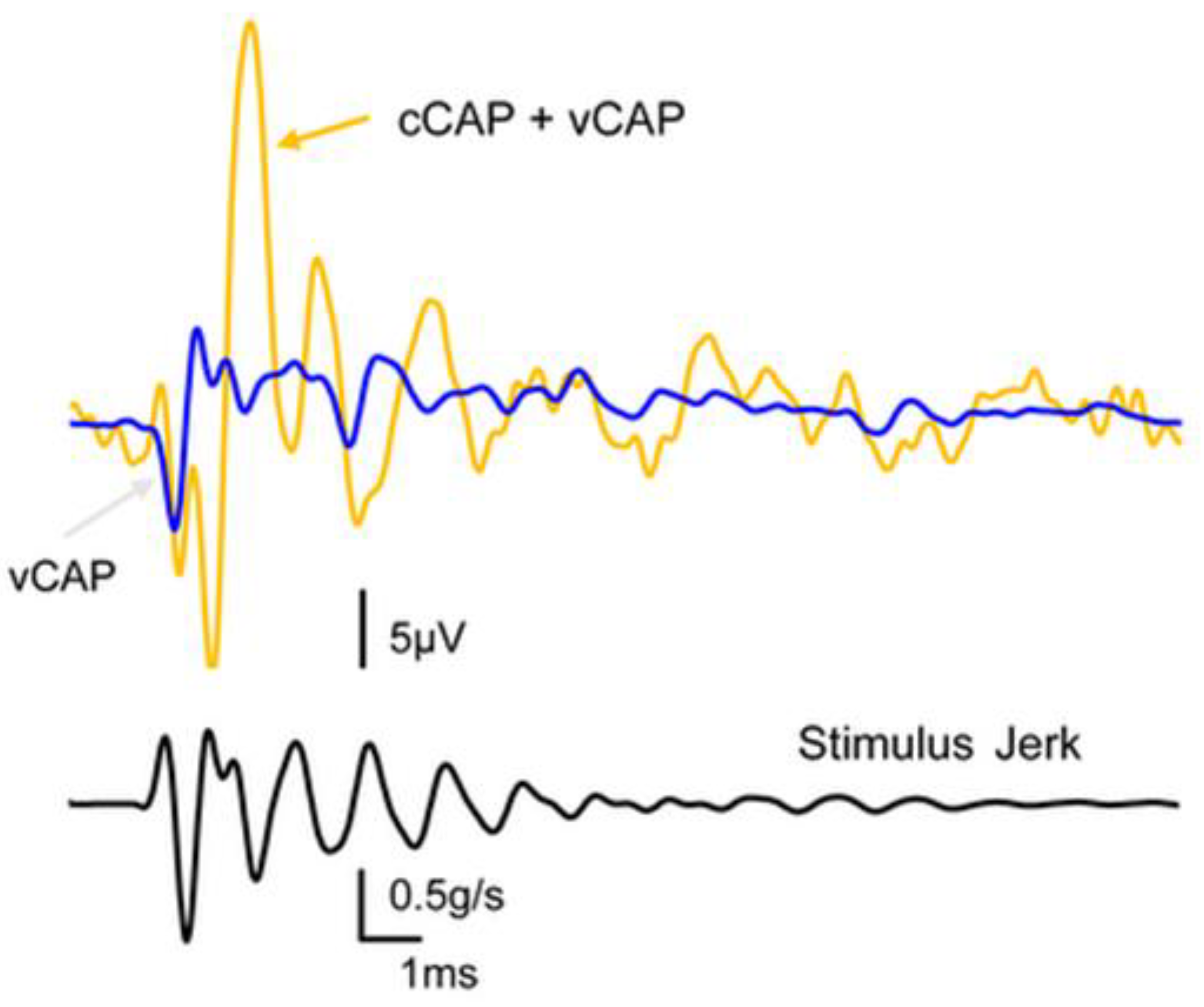

The vCAP is identified as being vestibular since it is present after total cochlear ablation and disappears after vestibular endorgan ablation (Figure 3). A related potential - the vestibular evoked potential (VsEP), is recorded at the scalp, and the VsEP is also held to reflect the synchronized activity of the vestibular receptors and afferents [16,18,20,22,58]. Our simultaneous recording of both vCAP and VsEP in the guinea pig to the same stimuli shows that tight relationship, although the VsEP is smaller than the vCAP by a factor of about 100.

3.3. Specificity

After cochlear ablation the cCAP is abolished, and the remaining CAP is termed the vCAP since it is generated by the remaining vestibular afferents [59] (see Figure 3). This is an extremely important control which differentiates the vCAP from the cCAP and allows us to identify optimum vestibular stimuli after eliminating cochlear contributions. Total surgical cochlear ablation involves opening the bony wall of the cochlea and removing the entire cochlear division of the labyrinth, whilst leaving the vestibular division intact. In guinea pigs the vestibular division continues to function, and transient stimuli continue to generate vCAPs after the major surgery on the cochlea. The second method of cochlear ablation, chemical ablation, uses Tasaki’s method of infusing KCl slowly through a small hole in the bony wall of the cochlea at the apex, whilst repeatedly testing the cCAP and CM to verify the decline and eventual absence of cochlear function [60]. Once cochlear function is lost, the KCl infusion is terminated, and the hole is sealed, so the walls of the bony labyrinth are again intact, and transient stimuli continue to generate vCAPs.

Of the two procedures, chemical ablation is to be preferred since it leaves the bony wall of the labyrinth intact, whereas after surgical ablation of the cochlea, there is a large dehiscence of the bony labyrinth, which acts to change the mechanical operation of the vestibular labyrinth [61] and so cause enhanced neural responses to ACS and BCV [62]. Another result of dehiscence is that canal afferents with irregular resting discharge as well as the usual otolithic afferents with irregular resting discharge, will be activated by ACS and BCV stimuli [3,62]. This enhanced and broader vestibular activation is unlikely after chemical ablation by KCl since the bony wall of the labyrinth is intact. Importantly after either cochlea ablation procedure, click stimuli can still activate vestibular receptors and generate a vCAP confirming in two different ways that the vCAP is minimally contaminated by a cochlear contribution. The vCAP is probably driven primarily by otolithic afferents, most likely originating from the sound- and vibration- sensitive striolar receptors and irregular afferents, since it is these receptors and afferents which respond to ACS and BCV [49]. We contend that these different effects of cochlear vs vestibular responses are due to the different synaptic mechanisms.

3.4. Transmitter

The neurotransmitter between receptors and primary afferents in both cochlear and vestibular system is the same – glutamate (see [29] for a review). However blocking of glutamate transmission by the AMPA receptor antagonist, CNQX, has very different effects in the two systems :

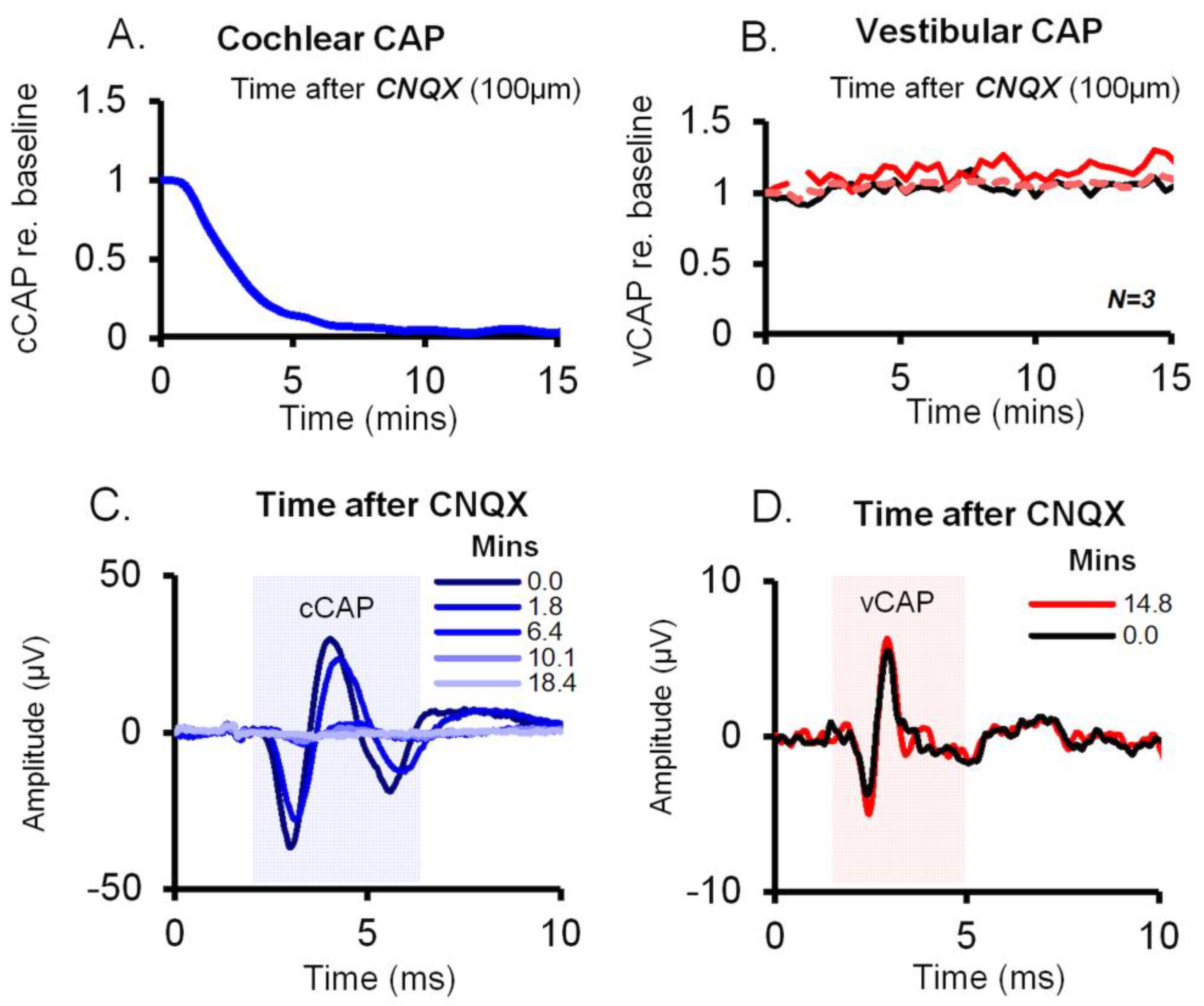

• in the cochlea, CNQX blocks cochlear afferent responses to sound - the cCAP is greatly reduced and almost completely disappears (Littman et al., 1989; Pastras et al., 2023a; Rutherford et al., 2021; Doi et al., 1990) (see Figure 4) whereas
• in the vestibular system CNQX does not block vestibular activation - CNQX has very little effect on the vCAP response to BCV or ACS transient stimuli (Pastras et al., 2017; Pastras et al., 2023) (Figure 4) – compare A and B.

Contini et al have shown that synaptic transmission at the type I-calyx synapse is very unusual [63,64]. By means of simultaneous patch-clamp recordings of a type I receptor and its own calyx afferent, Contini et al have shown there are three factors governing transmission at this synapse:

• glutamate release (quantal transmission)
• the level of potassium in the synaptic cleft
• resistive coupling between the type I receptor and the enveloping calyx (non-quantal transmission).

Addressing each factor :

a) Glutamate release is apparently similar to that in the cochlea – vestibular type I receptors contain ribbon synapses which release glutamate probably by relatively slow (sustained ) stimuli. This is quantal glutamate transmission. Activation of the post-synaptic neuron by glutamatergic transmission is relatively slow [65].

b) Vestibular stimulation causes the deflection of the stereocilia and so opens the mechanoelectrical transduction (MET) channels on the stereocilia of type I receptors, so potassium enters the type I receptor from the potassium-rich endolymph and is released by the receptor into the narrow (femtolitre) synaptic cleft between the type I receptor and its enveloping calyx. Potassium levels in the narrow synaptic cleft act to modulate the membrane potential of the receptor and the calyx [64,66,67].

c) Most importantly, the simultaneous patch clamp recording of a type I receptor and its enveloping calyx afferent showed a form of synaptic transmission which is not dependent on glutamate reception on the post-synaptic membrane – it is called resistive coupling. This is a form of ultrafast electrical coupling between the type I receptor and calyx afferent: channels on the type I receptor membrane and the facing membrane of its calyx afferent are both open near resting potential allowing ultrafast depolarization of the irregular primary afferent [63,68]. We contend that this ultrafast non-quantal resistive coupling explains the precision of vestibular phase-locking and the extremely short latency of some irregular primary afferents to ACS clicks (0.5ms) [69] and is likely the key neural event in the generation of the vCAP and so the generation of VEMPs.

One consequence of blocking glutamate transmission by CNQX is that after CNQX blockade a stimulus will still open the MET channels on the stereocilia of the type I receptors and so will still cause receptor membrane depolarization (and so vestibular microphonics). The receptor membrane depolarization allows ultrafast resistive coupling between the type I receptor and its calyx to take place independently of the (relatively slow) quantal glutamatergic synaptic transmission [65,70]. This explains why the vestibular microphonic and the vCAP will be relatively unaffected by CNQX blockade of glutamatergic transmission.

3.5. Temporal Precision of Irregular Vestibular Afferents. 1. Latency

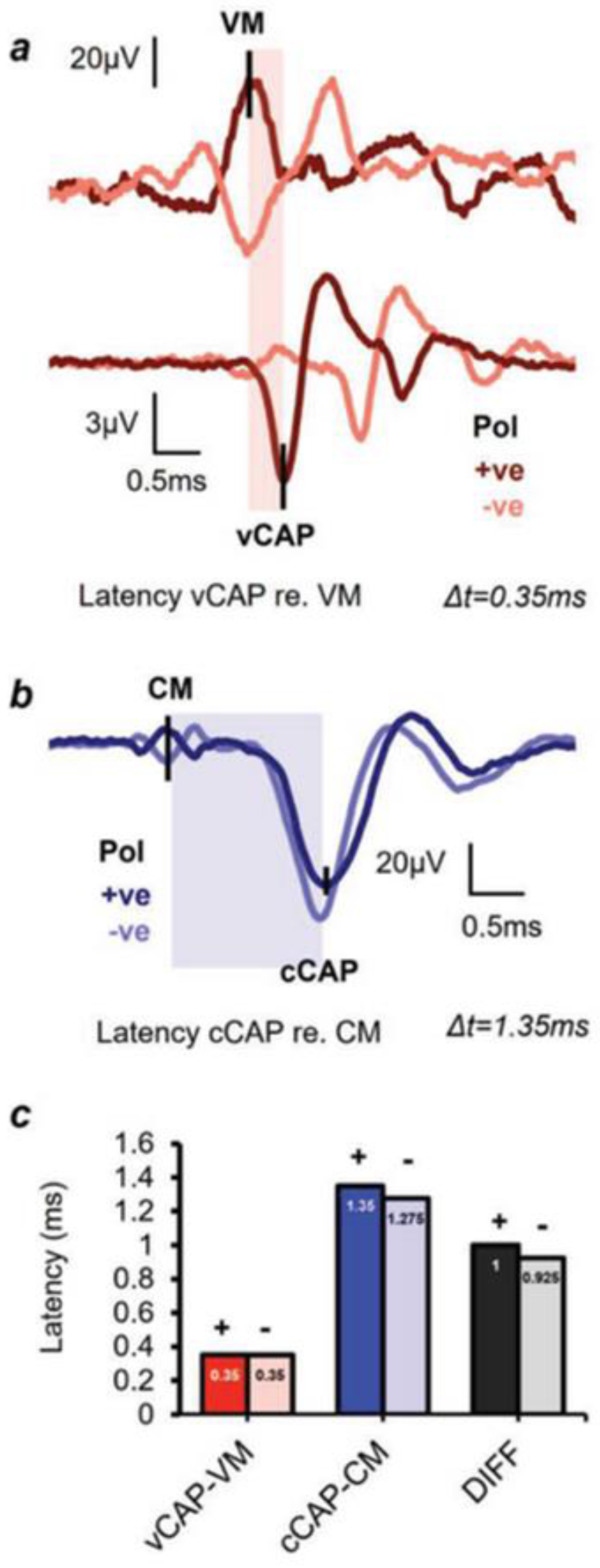

By using the peaks of the cochlear and vestibular microphonics as the benchmark for comparing the latencies of the vCAP and the cCAP, we have shown that the vCAP has a shorter latency than the cCAP (see Figure 5). That result corresponds to the short latency of primary vestibular afferents to ACS clicks, with latencies of some primary vestibular afferents to air conducted clicks being as short as 0.5ms [69].

(b) The latency difference between the onset of the CM and the onset of the cCAP is 1.35 ms. So the cochlear afferent response to clicks is around 1ms slower than the vestibular afferent response. (c) The averaged latencies and latency differences of the vCAP and cCAP (across 5 animals). Both vestibular and cochlear responses in a) and b) were evoked by an identical 0.6ms air-conducted sound (ACS) pulse, with a 0.3ms rise-fall time at a stimulus intensity 20dB above threshold.

3.6. Temporal Precision of Irregular Vestibular Afferents. 2. Phase-Locking

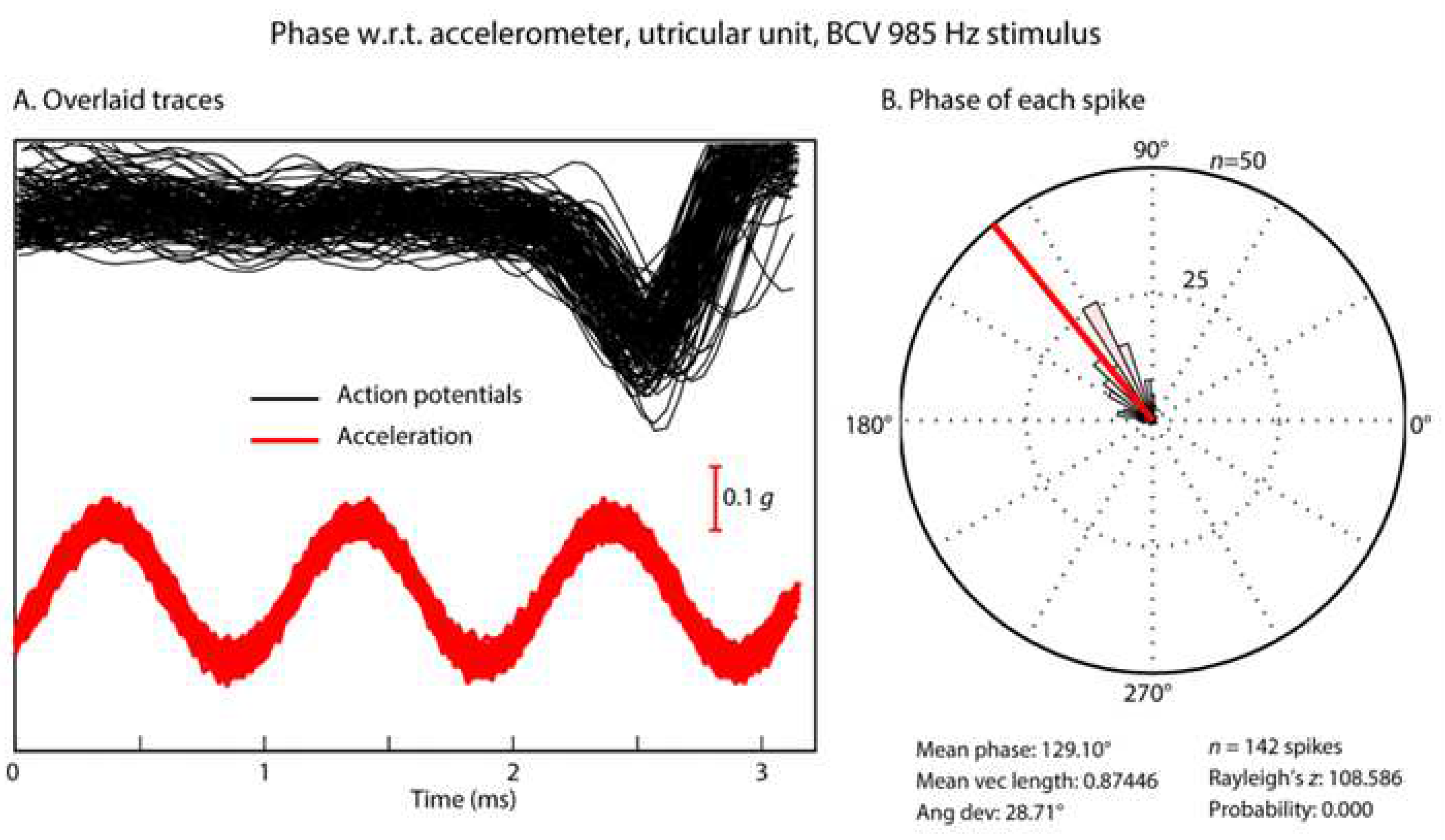

In response to sinusoidal stimuli, individual cochlear and vestibular afferents with irregular resting activity show precise phase-locking: action potentials are generated at a particular phase angle (or a narrow band of phase angles) of the stimulus with a high precision [24,35,53,71]. This does not mean that the neuron fires on every cycle of the stimulus, indeed it may miss many cycles, but the moment when the neuron fires is locked to a particular phase angle of the sinusoidal stimulus [24] (see Figure 6). Phase-locking in vestibular afferents is similar to that shown for cochlear afferent neurons, however the precision of phase-locking in irregular primary vestibular afferents to sound and vibration, as measured by vector strength, is as least as good (and apparently superior to) to that reported for cochlear afferents [37,53] (see Figure 7).

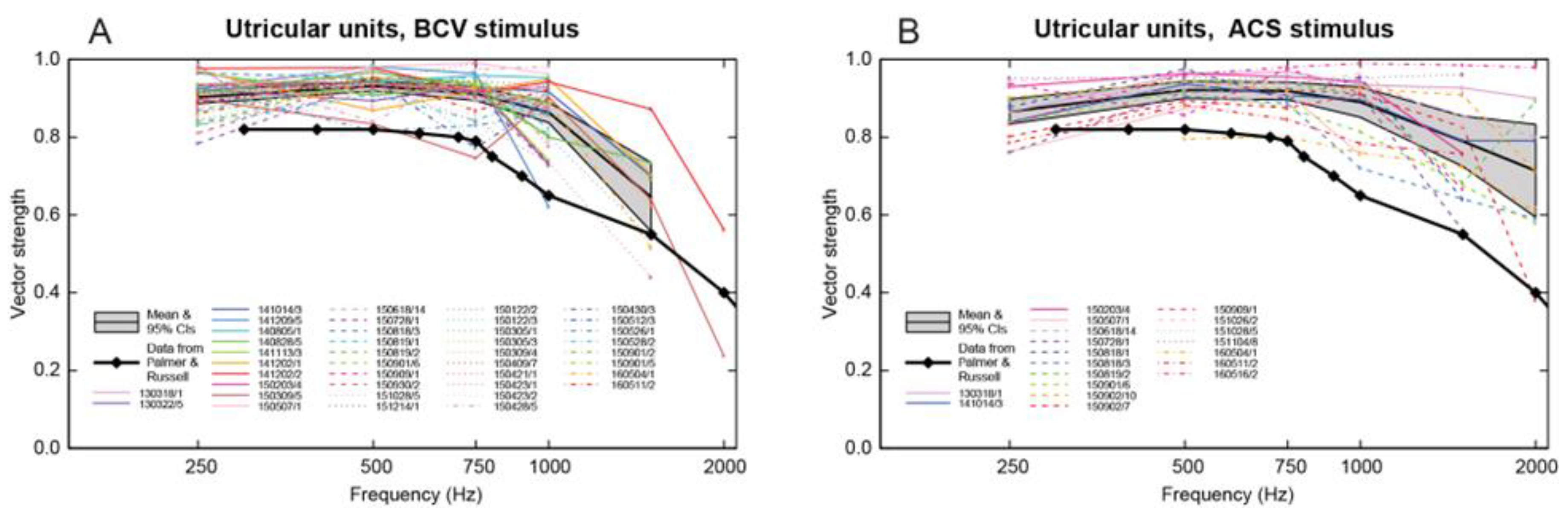

Further evidence of the temporal precision of irregular vestibular afferents comes from examining the frequency limits of phase locking (Figure 7). The upper frequency of phase-locking and average vector strength of vestibular primary afferents in the anaesthetized guinea pig appears to be higher (3000Hz) than reported for cochlear primary afferents by [37] (Figure 7). We suggest that the precise vestibular phase-locking at high frequencies is most likely primarily due to resistive coupling, whereas recent evidence has shown that for cochlear afferents the high precision of phase-locking is most likely due to multiple ribbon synapses [24,34,72]. Tight vestibular phase-locking may be due to a different mechanisms in the cochlear and vestibular systems.

4. Applications of Physiological Results to Clinical Vestibular (VEMP) Testing

In light of the above evidence we consider how the cochlear and vestibular systems respond to various stimulus manipulations of relevance for clinical vestibular testing. In some experiments these manipulations are carried out using the kind of procedures outlined above to eliminate or minimize cochlear contributions to the measured vestibular response.

4.1. Effect of Rise-Time

The importance of stimulus onset in VEMP testing of human subjects is shown by a study which systematically decreased the total duration of a 500Hz tone burst stimulus from 10 ms to 2ms with the result that the oVEMP n10 for a 2ms stimulus had the same amplitude as the response amplitude to a stimulus of 10ms duration [73]. We have confirmed that result which shows that it is the onset of the stimulus which is the key parameter in the generation of VEMPs.

Systematic variation of the rise-time of short 500Hz BCV tone bursts shows the importance of stimulus rise-time in generating VEMPs in human subjects: increasing the rise-time of 7ms 500Hz tone bursts decreased VEMP amplitude (Burgess et al 2013), with the largest VEMPs being to stimuli with zero ms rise-time (see Figure 8).

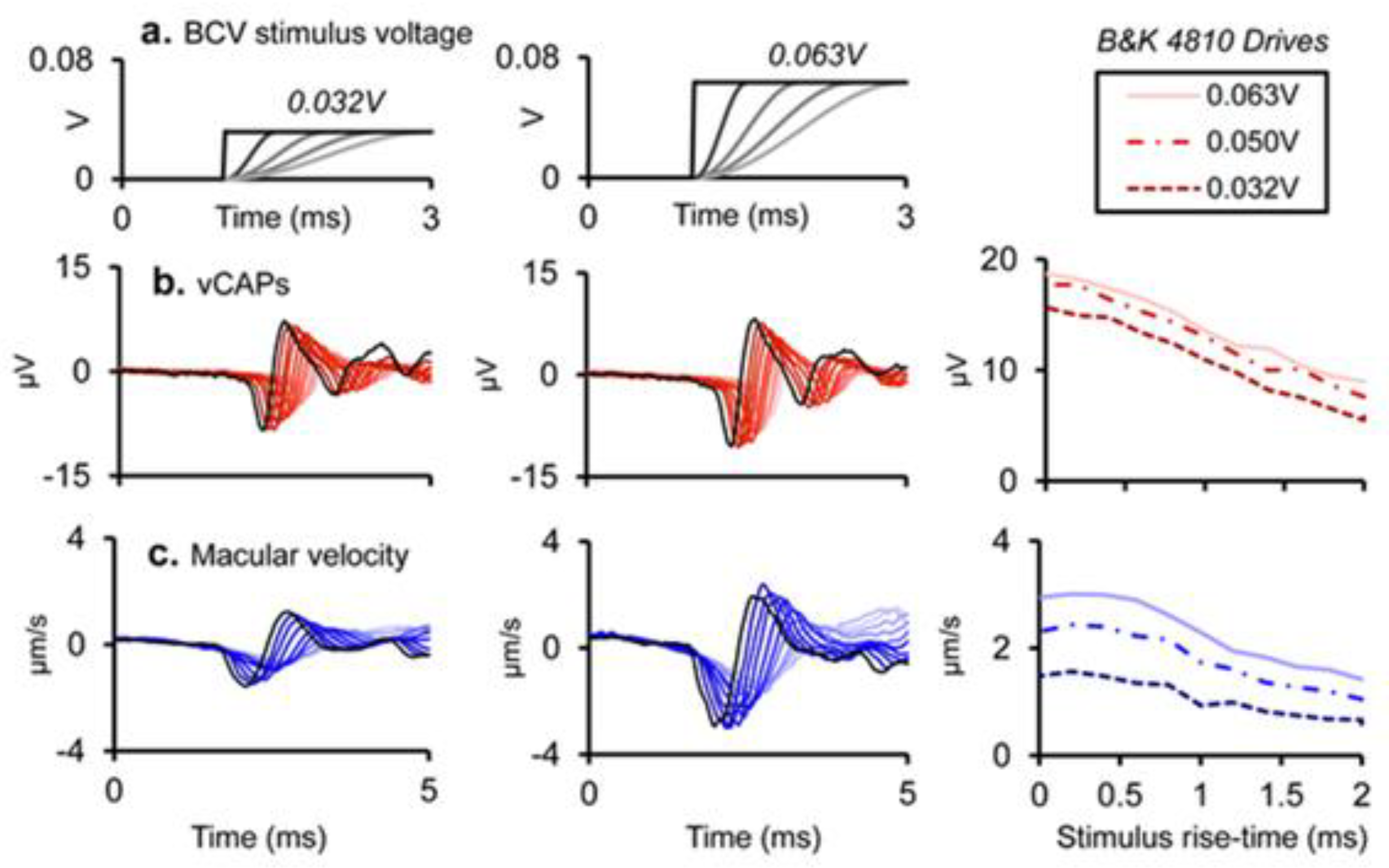

These clinical data correspond to the results from primary vestibular afferents. We have shown that as rise-time of a click is increased the amplitude of the vCAP decreased. This is expected because increasing rise-time will decrease the synchronisation of action potentials across neurons [15] (see Figure 8). The optimum stimulus for maximum vCAPs (and so large VEMPs) is one with zero rise-time [6,14] (see Figure 9).

Evidence from single neuron recordings shows the excellent temporal precision of irregular vestibular afferents, which respond with short latencies to transient stimuli [75] and phase-lock with small variability to high frequencies [53]. However some clinical studies continue to use long (2ms or even longer) rise-times for testing VEMPs. Such stimuli generate modest VEMPs, but they are much less than optimum stimuli. The use of such long rise-times for VEMP testing is an inappropriate carryover from audiological testing of perceptual thresholds to pure tone stimuli where it is necessary to use a long rise-time in order to eliminate audible clicks at stimulus onset. However in testing VEMPs the situation is exactly opposite to that in audiometric testing of pure tone thresholds: for VEMPs the most effective VEMP stimulus is one with a very short rise-time which synchronises vestibular action potentials in primary afferent neurons. Unfortunately some audiometers do not allow rise-times less than 2ms, and some audiologists do not realize how important it is to minimise the rise-time for VEMP testing as opposed to auditory threshold testing.

4.2. Masking

The amplitude of the cCAP to ACS or BCV is reduced by masking – both simultaneous broadband masking or forward masking [59] whereas the amplitude of the vCAP is minimally affected by masking. On the other hand we have confirmed that in the guinea pig, vCAPs to ACS or BCV click stimuli are minimally affected by simultaneous broadband noise or forward masking by noise stimuli at levels which effectively mask cCAPs [20].

4.3. Paired Pulse Stimuli

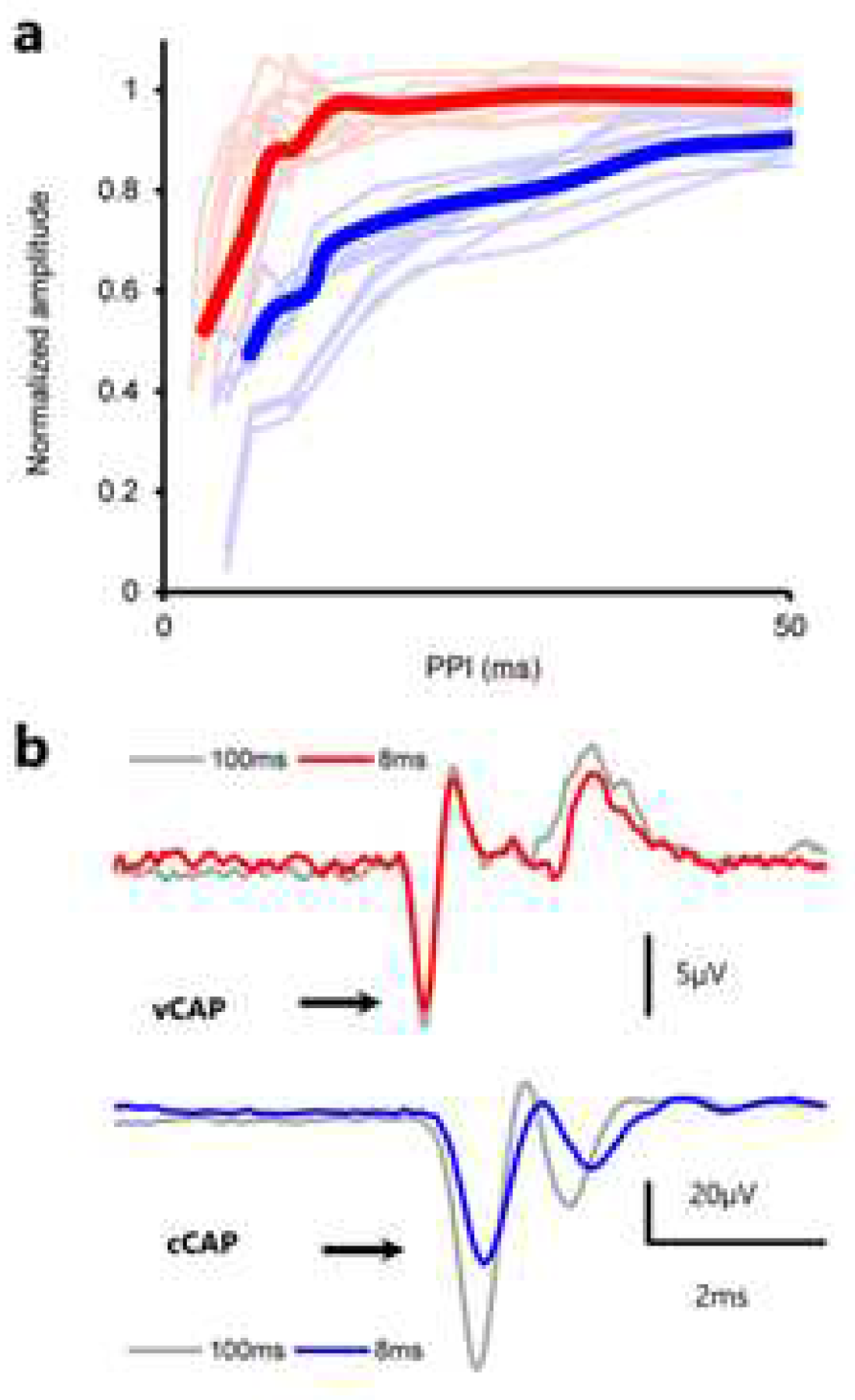

Reducing the interval between successive pulses reduces the cCAP to the second pulse, with reductions in cCAP amplitude beginning at an interstimulus interval of about 50ms, and reaching a 50% response suppression at an interstimulus interval of ~10ms [76,77](se Figure 10). However in the same paradigm the vCAP to the second pulse is minimally reduced at short interstimulus intervals [59] (see Figure 10).

Vestibular afferents are resistant to masking, whereas with cochlea afferents it is relatively easy to mask their response. We contend that the differences in synaptic transmission, cochlea vs vestibular, are responsible for this differential effect of masking stimuli.

5. Other Stimuli

For both auditory and cochlear systems there are other components and variants of these labyrinthine electrophysiological potentials to stimuli other than transients (see [16], but these are beyond the scope of this review , e.g.

• The vestibular evoked potential at the scalp (VsEP),
• The vestibular Summating potential [17],
• Auditory Nerve Neurophonic (ANN) [78],
• Vestibular Nerve Neurophonic (VNN).

6. Conclusion

One outcome of measuring vCAPs is that they allow us to evaluate which particular stimulus parameters, at the level of otolithic receptors, are likely optimum for clinical testing of VEMPs. So for example the results have confirmed the importance of short rise-times of optimizing VEMPs stimuli. A simple way of reducing cochlear contributions to vestibular responses is to use simultaneous masking noise as confirmed by the physiological results here. Another preliminary result is that the CE chirp stimulus (500-4000Hz sweeps (also called narrow band chirps)) are particularly clinically effective stimuli for oVEMPs [79,80]. Our recordings of the vCAP to chirp stimuli confirm that the chirp stimulus with zero rise-time is particularly effective in generating vCAPs at the level of primary afferents in comparison to simple clicks [12].

7. Summary

1. It is otolithic receptors and their afferents with irregular resting discharge originating from the striola which are activated by sound and vibration (for reviews see [4,49,54] and so are responsible for the vCAP.

2. Vestibular receptors and afferents can function independently of the cochlea, both in humans and guinea pigs.

3. It is possible to differentiate between the vestibular and cochlear responses to transient stimuli. Such differentiation provides further support of the basis of present vestibular testing using to sound and vibration stimuli and may allow new clinical tests of dynamic vestibular function. For future studies of putative vestibular responses to clinically realistic transient stimuli, we suggest that it is advisable to have continuous broadband masking present simultaneously to minimize cochlear contributions to the response [27].

4. In clinical testing of VEMPs the situation is exactly opposite to that in audiometric testing of pure tone thresholds: the effective VEMP stimulus is one with an abrupt rise-time which synchronises vestibular action potentials in primary afferent neurons. In contrast, for audiometric testing of thresholds, a long rise-time is mandatory. Unfortunately some audiometers do not allow rise-times less than 2ms and some audiologists do not realize how important it is to minimise the rise-time for VEMP testing as opposed to auditory threshold testing. Our recordings of the vCAP to chirp stimuli confirm that the chirp stimulus is particularly effective in generating vCAPs at the level of primary afferents in comparison to simple clicks.

Dedication. This paper is a tribute to Wally Grant, a great friend, a brilliant scientist and engineer whose insights and contributions advanced the understanding of so many areas of vestibular function.
