Life Cycle Assessment in Flange Part Production Comparing Wire and Arc Additive Manufacturing Method (WAAM) and Conventional Manufacturing in Terms of Energy Consumption, Greenhouse Gas Emissions and Solid Waste Generation

1. Introduction

Industry 4.0 has enabled a world of virtual and physical manufacturing systems that work jointly in a flexible way and on a global scale, with machines connected to each other to make decisions without human involvement [1,2,3,4]. The automation of the system and the exchange and accumulation of data in the production stages make the industry more productive and efficient, in addition to reducing waste [5,6,7,8,9]. A relatively new concept compared to other traditional processes on the market, additive manufacturing (AM) has proven to be essential to support this production shift present in Industry 4.0. It consists of a manufacturing method capable of creating objects on a large scale through a three-dimensional digital model [10,11,12,13]. Its application has proven to reduce use of materials and optimize the final product, as well as presenting high deposition rate and lower equipment cost. [14,15]. The F42 American Society Committee for Testing and Materials (ASTM) defined AM as a process of joining materials to make objects from 3D model data, usually layer upon layer, as opposed to subtractive manufacturing methodologies, thus obtaining, in a first result, a geometry closer to the final result of the part [16,17,18].

Among the various AM processes, the Wire Arc Additive Manufacturing (WAAM) stands out in the manufacture of metallic parts, aiming to save production time and cost by reducing raw material waste and generated energy, as well as making the production process more sustainable [19,20]. WAAM is a well-structured and complex process, derived from electric arc welding processes, in which a torch is used with continuous wire feed for deposition of base material [21,22]. Its effectiveness can be observed by carrying out a Life-Cycle Assessment (LCA), a method used for analyzing the environmental impact of a product, process, service or other economic activity, throughout its life cycle [23,24,25,26,27,28,29], being an important tool to help decision-making aligned with sustainable practices. It is, therefore, a comprehensive tool for quantifying and interpreting the environmental impacts of a product or service from cradle to grave, that is, from raw material extraction process to its final disposal [30,31].

In addition to environmental factors, LCA studies can be useful to evaluate cost and performance in order to improve decisions on processes and products. It can also identify transfers of environmental impacts and, aiding in control measurements, quantify emissions into the atmosphere, soil and effluents during the life cycle of a process or production [32,33,34]. Many LCA works allow the comparison between product and process alternatives, evaluating factors such as changes in the use of raw materials and production processes, in order to minimize their effects. For this purpose, it becomes necessary to evaluate the stages of the life cycle and their effects Subsequently, it is possible to carry out comparative analyses of life cycles of competing systems with the same function, to identify which one has lower impact in the environment by generating less pollution and requiring less resources, among other relevant indicators for decision-making [35,36,37].

LCA involves the collection, organization and evaluation of all inputs and outputs of a production system, allowing the analysis of the potential environmental impact throughout its life cycle. This comprehensive approach involves assessing all attributes and aspects related to natural environment, human health and resources, enabling the understanding and management of environmental impacts more efficiently. It also stands out for focusing on the perspective of products life cycle, which grants it a broad scope. This characteristic is fundamental to avoid the undesirable transfer from one phase of the life cycle to another, from one region to another [38,39].

Life-Cycle Assessment methodology can be useful to acquire a comprehensive knowledge of the environmental impacts generated by industrial products throughout their life cycle. However, in Latin America, local Life Cycle Inventory (LCI) data necessary for the industry is extremely scarce, despite initiatives to support LCA issues and ongoing efforts in developing local LCI data. The information needed for these evaluation methods can be measured or calculated, with consumption factors expressing the amount of materials and energy consumed by an activity per amount of final product, and emission factors expressing the amount of pollutant emitted by an activity per amount of final product generated or energy consumed [40,41,42,43,44,45].

However, despite many LCA applications, the methodology has limitations that should be take into account in the studies as well as in the evaluation of their results. In Brazil, in particular, the greatest limitations in LCA studies are national database unavailability, method uncertainty in relation to results for decision making, difficulties collecting primary data, complexity in life cycle inventory (LCI) phase, difficulty comparing quantitative results of studies with the same object and high cost and time spent to execute an LCA.

Since there is an environmental context of large emissions, discards, resources exploitation and environment degradation, it becomes increasingly necessary to change production processes and the initiative of industries to invest in these changes. By using norms, bibliographic research and collection of experimental data, this work proposes, in a Life Cycle Analysis, a comparison between two manufacturing methods: conventional subtractive manufacturing by forging and Wire and Arc Additive Manufacturing (WAAM), of the same flange piece, using energy demands, greenhouse gas (GHG) emissions and waste generated in each production process as comparative factors.

2. Materials and Methods

This work was developed by the National Laboratory of Welding Technology (LNTSold) and the Air Pollution Control Laboratory, both located at the Technology Center of the Federal University of Rio de Janeiro, Brazil. It aims to perform a comparative LCA between two manufacturing methods of the same flange part whose main function is to seal the connection between two pipes, preventing any fluid from escaping at these junctions.

Life Cycle Assessment (LCA) was prepared in accordance with the ABNT NBR ISO 14040:2009 and ABNT NBR ISO 14044:2009 standards [46,47], with three defined stages: objective and scope; inventory analysis; and impact assessment. One more phase, interpretation, was added and is present in all stages, as shown in Figure 1.

This work adopted, as functional unit, the production of a flange unit considering the limit of gate-to-gate systems, and the phases assessed for the work analysis comprehend the material production until its manufacture in the factory. The study was restricted to the stage in which the company operates directly, within its production processes, having the transport stages removed from the analysis.

2.1. Data Quality

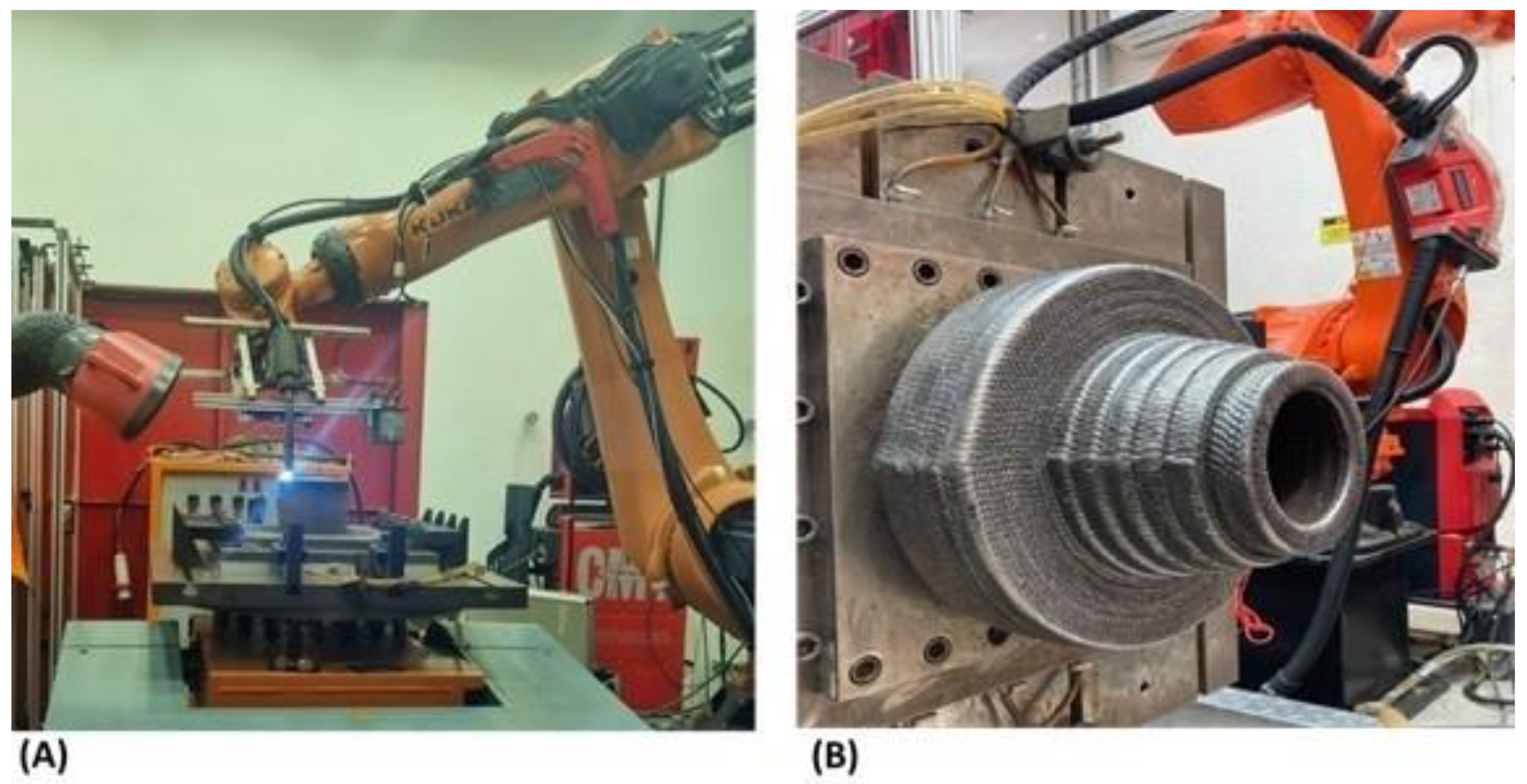

For the study to be successful, data quality and reliability are essential items. Thus, it used data from primary sources for information on WAAM system inputs and outputs measured by LNTSold laboratory. Figure 2 shows the construction of the flange part carried out in laboratory to obtain experimental data. Secondary and other data were obtained from bibliographic research and database.

2.1.1. Product and Equipment Edge System

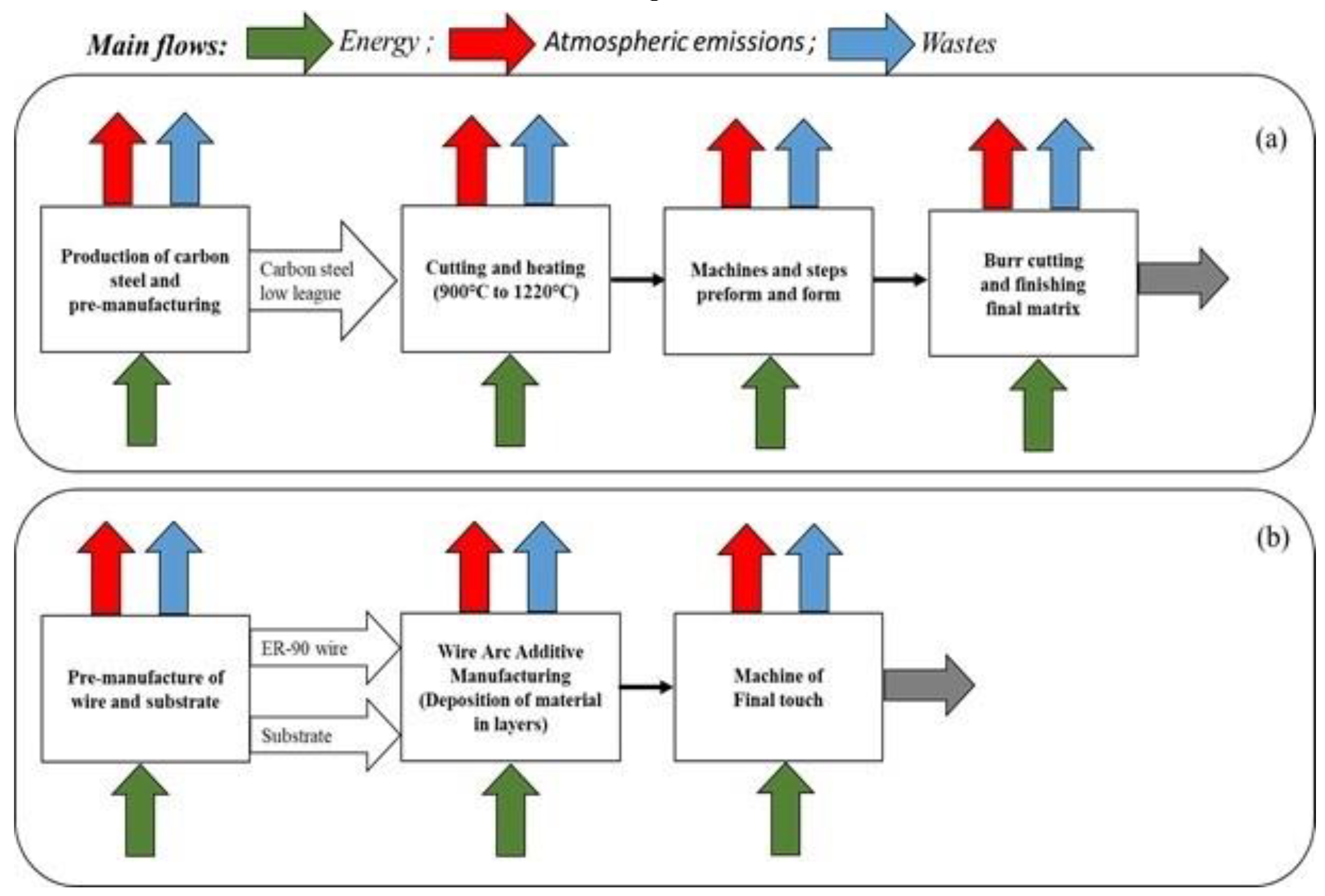

WAAM edge systems and conventional manufacturing are shown in Figure 3. Figure 3a shows the part production sequence by conventional manufacturing, using low alloy carbon steel, and Figure 3b presents WAAM flange production sequence, using ER-90 wire for the part production. Inputg flows work as electricity for running machines, while outputs are the gases emitted in the process and the solid waste discarded at each stage.

2.2. Life Cycle Inventory Analysis (LCI)

2.2.1. Conventional Manufacturing Data (Forging)

Data referring to the process shown in Figure 3a were found in literature per kg of the built part using the forging method [48] and, to obtain the results, they were multiplied by the mass used in the process to obtain a flange. Value of the raw material mass used in the calculation of results was based on the size of the flange produced by WAAM, obtaining a value of m = 340.5kg.

2.2.2. Impacts on WAAM Material Production and Pre-Manufacturing

The first stage of Figure 3a took into account the material fabrication, its hot rolling into large plates and wiredrawing. At this manufacturing stage, it was possible, with the use of literature [49], to obtain data on energy spent in the respective processes and emission of greenhouse gases (GHG) directly or indirectly into the atmosphere in CO₂ equivalent (CO₂e), and the results were 54.8 MJ kg^-1 and 4.35 KgCO₂e Kg^-1, respectively.

Using information from Worldsteel Association (WSA) and Aço do Brasil institute, it was possible to obtain data on greenhouse gas (GHG) emissions in CO₂e, waste generation and embodied energy related to crude steel production. It was also possible to remove emission data using the OpenLca software, and agribalyse database that contains some Ecoinvent data. The methodologies used were IMPACT 2002+, ReCiPe 2016 Midpoint (H) and IPCC 2013 GWP 100a. The values are shown in Table 1.

According to the Brazilian Steel Industry, in its 2021 sustainability report, more than 90% of co-products and waste generated in the steel production process can be reused. Its uses are diverse such as primary coating, bases and sub-bases to replace gravel, and in agriculture as a corrective of soil acidity replacing limestone. Even blast furnace slag is used in cement production. The calculation of stand-by times in the WAAM is shown in Table 2.

The time spent in deposition (Tmad) was calculated through the consumption of shielding gas. Once the consumption flow of 15 L/min, and the amount of volume used for deposition of 55,000 L, are known, the value obtained was 61.1 hours. The energy incorporated into the shielding gas for the WAAM deposition system was calculated and a value of 0.03 MJ/L obtained, considering shielding gas with a mixture of Argon with 8% of CO₂. During the machining of the part, the material is extracted and removed, the holes in the flange are made, obtaining the part in its final format, ready for use. Machining data are presented in Table 3.

2.3. Life Cycle Impact Assessment (LCIA)

2.3.1. Calculation of Energy Demand in WAAM Process

In the second stage of the production process, shown in Figure 3b, the electrical energy required during the process was evaluated. For this calculation, the energy consumed by the machine in 2 operating moments was considered: during stand-by and during material deposition. Energy demand is calculated according to Equation (1):

$$E_{WAAM2}={(P}_{masb}\times T_{masb})+\left(P_{mad}\times T_{mad}\right)+(E_{gás}\times C_g\times T_{mad})$$

(1)

where,

$E_{WAAM2}$: electrical energy demand of the WAAM unit process in step 2 (MJ)

$P_{masb}$: WAAM system power demand in stand-by mode (kW)

$T_{masb}$: time of initialization, configuration and wait between layers and strands (h)

$P_{mad}$: WAAM system power demand in deposition mode (kW)

$T_{mad}$: deposition time (h)

$E_{gás}$: shielding gas embodied energy (MJ/L)

$C_g$: shielding gas consumption rate (L/h).

In step 3 of Figure 3b, for finishing machining, 2 machines are used, one to machine the internal diameter and the external part ad other to make the holes in the flange. For this stage, the operating and stand-by time of the machines was disregarded and the operating times were estimated according to manufacturing information. The required electrical energy was calculated according to Equation (2):

$$E_{MAAA3}={(P}_{mq1}\times T_{mq1})+\left(P_{mq2}\times T_{mq2}\right)$$

(2)

where,

E_WAAAM3: electrical energy demand of the WAAM unit process in step 3 (MJ)

P_mq1: machining machine power demand (inside diameter) (kW)

T_mq1: machine time (h)

P_mq2: power demand of the machining machine (parts hole) (MJ)

T_mq2: final finishing machine time in cutting (h)

2.3.2. Calculation of CO₂e Emissions in WAAM Process

To transform this measured energy into CO₂ emissions in the environment, it is necessary to calculate the Carbon Emission Factor (CEF), an estimate of CO₂ amount associated with a given electrical energy generation. This study is carried out by the Brazilian Ministry of Science, Technology, Innovations and Communications, which prepares constant inventories on CO₂ Emission Factor in electricity generation in Brazilian National Interconnected System and makes them available on its online portal [50]. Through the CEF it is possible to value the environmental impact using electricity in machinery, and the average in the last 5 years, from 2018 to 2022, was calculated as 0.0759. It became then possible to calculate the average value of the Carbon Emission Factor of the local electricity network as 0.4943 kgCO₂ kWh-1.

To calculate CO₂ emission in the WAAM production process it was necessary to use electrical energy demands in WAAM found and applied in Equation (3):

$${CO}_{2WAAM}={(E}_{WAAM2}+E_{WAAM3})\times CEF+{Cf}_{gas}$$

(3)

where,

${CO}_{2WAAM}$: CO₂ emission in WAAM (kgCO₂e)

$E_{WAAM2}$: energy demand of WAAM unit process in step 2 (kWh)

$E_{WAAM3}$: energy demand of WAAM unit process in step 3 (kWh)

$CEF$: Carbon Emission Factor of local electricity grid (kgCO₂e kWh^-1)

${Cf}_{gas}$: Carbon footprint related to shielding gas (kgCO₂e)

In order to calculate the greenhouse gases (GHG) emission in CO₂e in this work, it was necessary to convert the gas volume (Argon + 8% CO₂) to kg. Using the European Life Cycle database and the Intergovernmental Panel on Climate Change [51,52], we could obtain the GHG emission factors involved in the production of gases, in kgCO₂e Kg^-1, for argon and CO₂, 0.88425 and 0.811, respectively. The total CO₂e emission present in shielding gas is shown in Table 4.

2.3.3. Calculation of Waste Generation from Conventional and Additive Manufacturing

Considering steps 2 and 3 of WAAM process (Figure 3) and steps 2, 3 and 4 of conventional manufacturing by forging, it was possible to calculate the amount of waste generated by the difference, in mass, between the amount of material used at the beginning of production and in the final part. For additive manufacturing, initial mass was considered as the wire amount necessary to manufacture the part, and for conventional manufacturing, initial mass was considered as the initial block mass before forging. The calculation is performed from Equation (4).

$$Solidwaste\left(kg\right)={Initialmass}_{wireorblock}\left(kg\right)-Finalmass\left(kg\right)$$

(4)

It is important to point out that at WAAM there is also the substrate used as support in the manufacturing process, cut and discarded at the end of production.

3. Results and Discussion

With primary and secondary data, measured and collected, presented in “Methodology”, it was possible to obtain information regarding energy demand, CO₂e emissions and solid waste generation in the life cycle of the product manufactured using conventional methodology by forging and WAAM. The results obtained are shown on Table 5 and Table 6.

3.1. Environmental Impact

By using the data collected, modeled and calculated in the conventional and WAAM manufacturing processes presented in Table 5 and Table 6, we observed that the WAAM pre-manufacturing stage was the one that consumed the greatest amount of energy, 67.8% of the total, followed by the deposition manufacturing and the machining steps, with 22.8% and 9.4% energy consumption, respectively. The deposition manufacturing phase is dependent on the deposition rate of the solder material and in this work the Pulsed GMAW process was used, with 1.2 mm wire diameter and 1.9 kg h^-1 melting/deposition rate. The WAAM process machining step showed lower energy consumption, 9.4%, as this phase is very efficient and spends shorter time and, consequently, lower energy consumption. The production stages of raw materials and pre-manufacturing were responsible for the highest electricity expense in both manufacturing techniques. The total result obtained from energy consumption in conventional manufacturing was about 90% greater than in WAAM, shown in Figure 4.

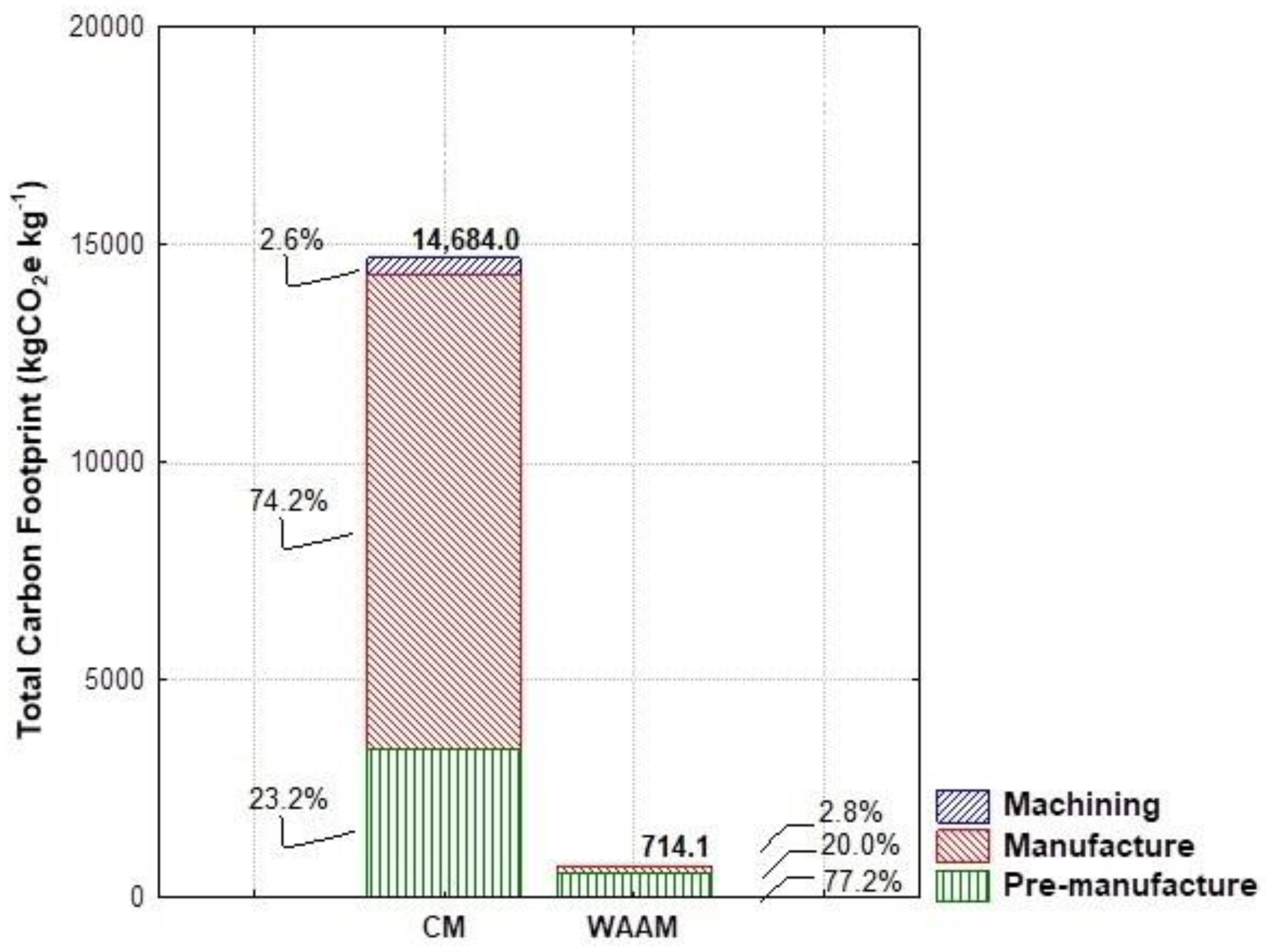

In WAAM, the highest CO₂e emission occurred in pre-manufacturing, 77.2%, followed by deposition manufacturing with 20.0% and machining with 2.8%. It is important to highlight that in the deposition stage, the gas was only used during deposition and, when the machine was in stand-by mode, the shielding gas was not released from the cylinder. The greater the amount of material used in the manufacturing process, the greater the emission of CO₂e. Reductions in environmental impact are predominantly propelled by reduction of shielding gas and electricity for fume extraction per kilogram of printed material. The result obtained from the total carbon footprint in conventional manufacturing was approximately 95% greater than in WAAM and is displayed in Figure 5. Conventional manufacturing generated higher CO₂e emissions in steps 2 and 3 of Figure 3b, which requires high temperatures, consumes a lot of energy and consequently generates high concentrations of greenhouse gases.

In 2019, Brazil produced about 30 million tons of crude steel (WSA) and the global CO₂ emissions of the steel sector in the same year were approximately 3.6 Gt, representing more than 8% of total energy use and than each ton of crude steel, generating about two tons of CO₂ emissions [53]. In this context, when compared to conventional manufacturing, WAAM would be a promising manufacturing technique in terms of environmental impact.

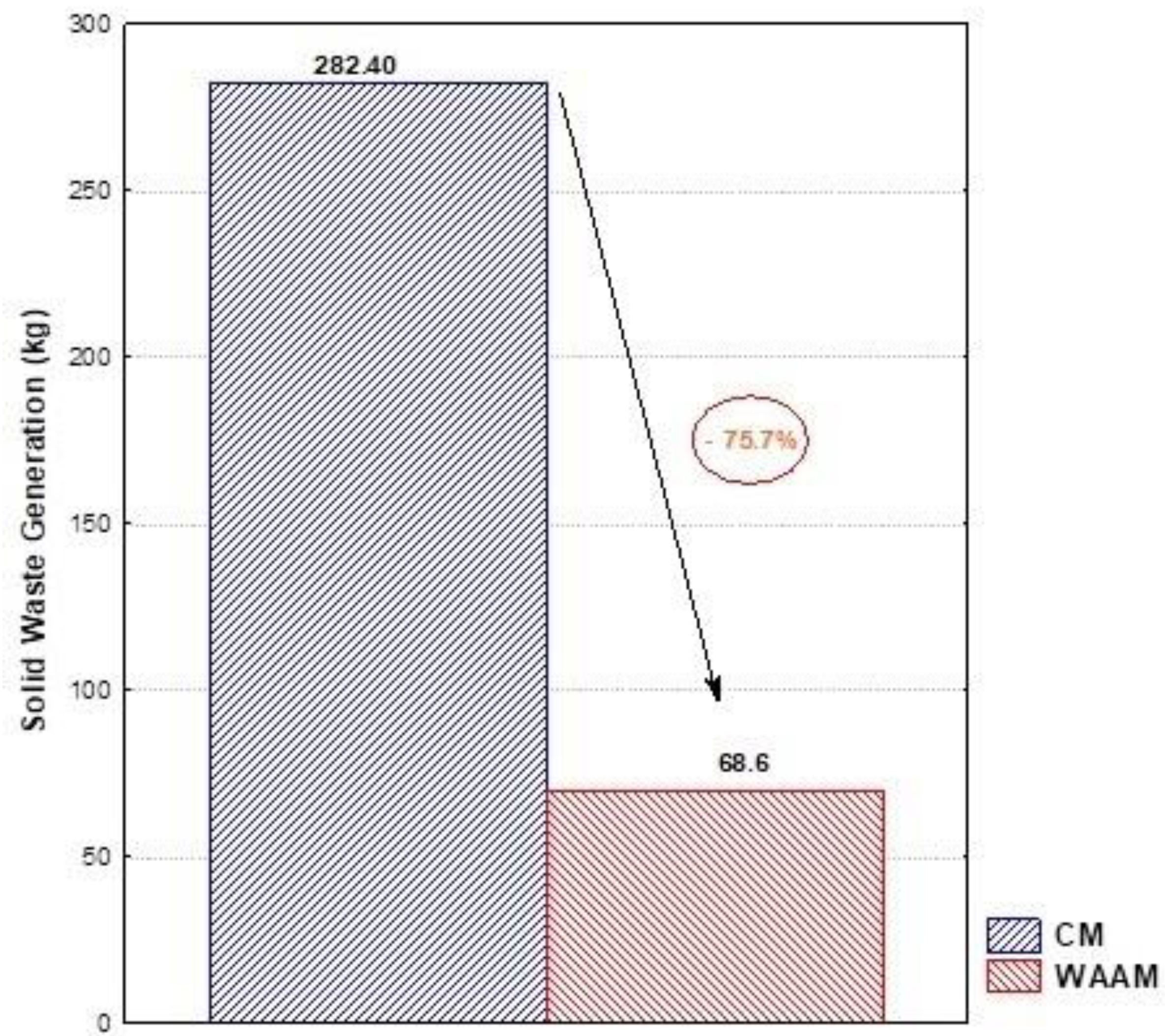

Solid waste generated in WAAM was 75.7% lower than in conventional manufacturing, proving that WAAM consumes less energy and emits less greenhouse gases into the atmosphere. Figure 6 shows the difference, per kg, of solid waste generated in the two manufacturing systems. Traditional manufacturing processes often involve cutting and shaping materials, causing additional waste and potentially lower energy efficacy compared to WAAM.

It is important to emphasize that at WAAM there is also the substrate used as support in the manufacturing process, cut from the part and discarded after production. However, it is important to note that this iron plate, the substrate, has a high recycling potential, since it presents little alteration during the process. There is a difference in the waste generated in the two processes: in WAAM the waste generated consists of iron chips, that is, small pieces of cast iron from the machining process. In conventional manufacturing, the main generated residue is mill scale, a superficial exfoliation formed by oxidized residues. That is to say scale is iron oxides, therefore, it has low recycling value, unlike cast iron chips.

4. Conclusions

Steel industry contributes to the harmful effects in the environment through material waste, resource and energy consumption and CO₂ emissions, besides other greenhouse gases related to climate change. In this sense, Life Cycle Assessment (LCA) was the method used in this work to analyse life cycle during flange manufacturing and Wire and Arc Additive Manufacturing (WAAM), compared to Conventional Manufacturing. WAAM showed a high reduction of all parameters evaluated in this manufacturing technique, proving to be an excellent alternative in the steel industry and indicating a promising option for industries in the production of parts with lower environmental impact. WAAM provided acquisition of components with geometry similar to the final format design, with reduction of post-processing steps, low solid waste generation, reduced electricity and lower greenhouse gases emission throughout the production chain, proving to be a promising alternative for sustainable development.
