Fast Converging Gauss-Seidel Iterative Algorithm for Massive MIMO Systems

1. Introduction

Massive multiple-input multiple-output (MIMO) is a pioneering technology for expanding channel capacity without increasing spectrum width [1]. Compared to traditional MIMO art, more users can be served at the same time on the same frequency with massive MIMO that can increase network capacity [2] and data transmission rates [3]. However, the signals are subject to interference from other antennas during transmission, which create an order of magnitude higher complexity to detect the required signal. Therefore, a detector for massive MIMO needs to be designed at the receiver side that can achieve low complexity and high performance.

Maximum likelihood [4] detection algorithm finds the signal closest to the transmitted signal by rounding through all the received signals, but the high complexity of traversal makes them difficult to apply in practice. In order to mitigate the cost of computing, linear detection schemes are recommended to obtain near-optimal detection performance, commonly known as zero-forced [5] algorithm and minimum mean squared error (MMSE) [6] detection algorithm. A highly complex matrix inversion is used in the MMSE method, which is unfriendly in practice.

Avoidance of inverse operations on high-dimensional matrices, a few iterative algorithms have emerged based on MMSE detection algorithm. Depending on the iterative approach, they can be classified into the following three categories. The first category is the iterative algorithm based on gradient search. The convergence speed of the steepest descent [7] iterative algorithm, influenced by the initial point, becomes slower when approaching the final estimated signal. The conjugate gradient (CG) [8] detection algorithm is offered to increase the speed of convergence, but a complex pre-processing process is required. The second category is repetitive methods that rely on series expansion, like the Neumann series expansion algorithm [9], where the complexity is acceptable if the quantity of series expansion terms is less than 3, but high complexity arises if the quantity of level expansion levels is larger than or equal to 3. The third group is that rely on iterative schemes for solving linear equations. The common ones are Jacobi iterative method [10], successive over relaxation (SOR) iterative algorithm [11], Richardson iterative algorithm [12], Gauss-Seidel (GS) [13] iterative algorithm, etc. Such detection algorithms reverse the matrices into solving a system of linear equations, which has a strong stepwise nature and high requirements for the filter matrix.

There is a limit to what can be achieved using a single algorithm to detect [14]. Therefore, the combination of different detection algorithms in a complementary manner can further improve the detection capability. A hybrid iterative algorithm combining adaptive damped Jacobi and conjugate gradient was proposed in the literature [15], which requires several iterations to achieve near-optimal performance. The literature [16] indicates that combining QR with traditional techniques to detect provides excellent manifestations and effectively improves the plant throughput. In the literature [17], a hybrid iterative algorithm has been suggested that further reduces the complexity of the ML detection algorithm by using a sphere decoding algorithm suitable for high signal-to-noise ratio and an easy-to-use DM algorithm. The literature [18] proposes the JAGS detection such as QR-MLD, on algorithm, which is initialized by the Jacobi method and then estimated by GS, but the convergence speed is slow. The preprocessing Gauss-Seidel iterative algorithms [19,20] use the preprocessing matrix to transform the original linear equation into a completely new linear equation, which results in a faster convergence rate in the new framework. However, complex preprocessing processes create additional computational difficulties.

1.1. Contributions

This study utilizes a low-complexity iterative algorithm for signal detection based on solving linear equations to address the high cost associated with the inverse operation of MMSE detection. By analyzing the nature of massive MIMO system, a new initialization method is used, which can obtain an initial solution closer to the final solution than other initialization methods. An improved Gauss-Seidel iterative algorithm based on conjugate gradient and Jacobi (CJ) joint preprocessing is proposed, which can be described as CJGS iterative method. The proposed algorithm attempts to combine CG and Jacobi iteration to accelerate the convergence of GS. Then the GS detector is employed to converge faster and iterate less.

Simulation manifestations show that the BER ability of the CJGS iterative scheme outperforms the traditional Gauss-Seidel repetitive method and improved iterative program based on GS, regardless of the channel correlation. It is less complex, requiring fewer iterations to achieve MMSE detection ability. Therefore, the suggested scheme is superior in the balance of complexity and detection efficiency.

1.2. Paper Outline

The remainder of the article is structured as follows: Section 2 describes the system model for large-scale MIMO, the channel model, and the principles of the MMSE detection algorithm. The third part discusses the proposed detection algorithm. In the fourth part, the BER performance of the proposed algorithm is analyzed in comparison with existing results. Then calculate the complexity of the proposed algorithm. Conclusions are obtained in the fifth part.

1.3. Notation

Vectors and matrices are displayed in bold lowercase and bold uppercase letters respectively. Scalars are represented in lowercase letters. The operators ${(.)}^{-1}$ and ${(.)}^H$ indicate matrix inverse and Hermitian transpose. The identity matrix $U\times U$ is represented by $I_U$ . denotes the element in row i, column j of the matrix $A$ . The result after the i-th iteration is the vector $s^{(i)}$ .

2. Massive MIMO System Model

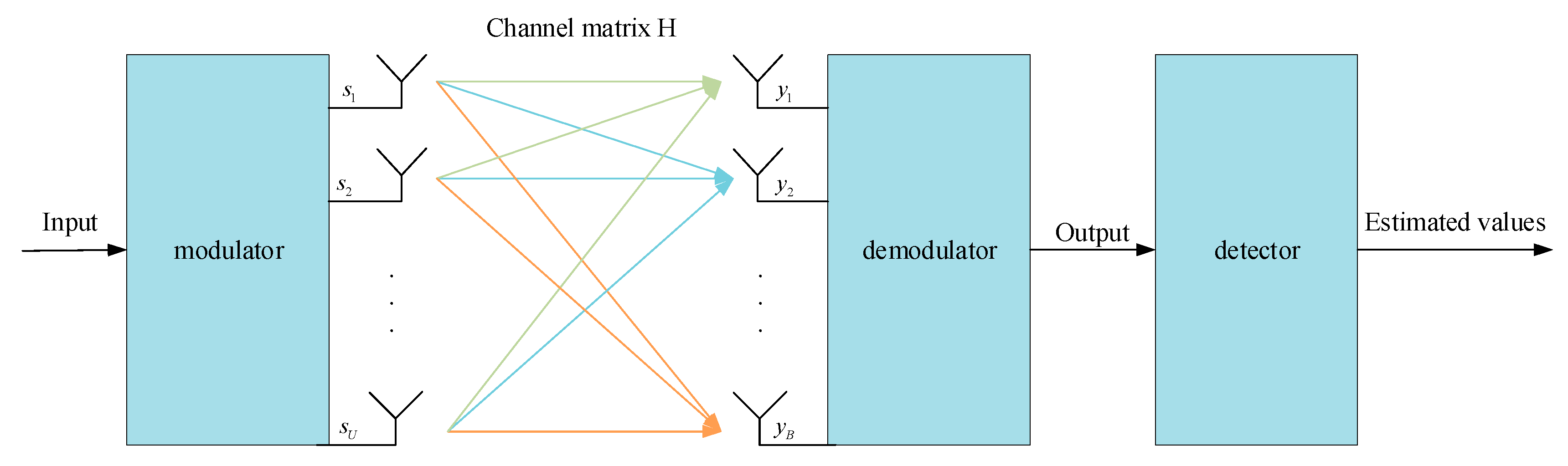

The uplink of an uncoded massive MIMO system is studied, which consists of $B$ antennas configured at the received side serving $U$ single-antenna users within the same time-frequency resource [21]. Figure 1 illustrates schematic diagram. And $B$ is much greater than $U$ .

The $U\times 1$ dimensional symbol vector transmitted by total users in the meantime is $s_c=[s_1,s_2,\cdots ,s_U]$ , where $s_U\in \Omega$ is the symbol vector sent by the $U$ th user and $\Omega$ is the set of modulated symbols. The channel gain between the antennas at the receiving and transmitting form the channel matrix $H_c\in {ℂ}^{B\times U}$ Then the reception signal vector has the form

$$y_c=H_c{s}_c+n_c$$

(1)

where $n_c$ denotes a $B\times 1$ dimensional complex Additive White Gaussian Noise(AWGN) vector with zero mean, and covariance matrix is ${\sigma }^{2}I$ . To simplify the operation, equation (1) is transformed into an analogue real-valued model as

$$y=Hs+n$$

(2)

The assumption is that there is perfect channel state information available at the receiving end.

2.1. Channel Model

In practical large-scale MIMO communications, channels are generally correlated. The detection is getting complicated when channels are correlated. Considering the correlation between the transceiver and received antennas in massive MIMO communications, Kronecker’s channel model [22] is described by

$$H=R_r^{\frac{1}{2}}{H}_{i,i,d}{R}_t^{\frac{1}{2}}$$

(3)

where H_i,i,d denotes the independent identically distributed complex channel fading matrix, $R_r$ and $R_t$ denote the degree of channel correlation between the receiving and transmitting antennas, respectively.

$$R_r(n,m)=\{\begin{array}{c}{({\zeta }_r{e}^{j{\varphi }_{n,m}})}^{m-n},n\le m\\ R_r^{*}(m,n),n>m\end{array}$$

(4)

$$R_t(n,m)=\{\begin{array}{c}{({\zeta }_r{e}^{j{\theta }_{n,m}})}^{m-n},n\le m\\ R_t^{*}(m,n),n>m\end{array}$$

(5)

where $\theta$ and $\varphi$ represent the random phases of the transmit and receive antennas that are uniformly distributed, respectively. Assuming that ${\zeta }_r$ and ${\zeta }_t$ are known at the base station side, the channel correlation scenarios are classified into four types according to the different values taken by, which are as follows [23].

(1) ${\zeta }_r=0$ and ${\zeta }_t=0$ , the channel is independent and identically distributed.

(2) ${\zeta }_r=0$ and ${\zeta }_t\ne 0$ , the channel is user-side relevant.

(3) ${\zeta }_r\ne 0$ and ${\zeta }_t=0$ , the channel is base station side related.

(4) ${\zeta }_r\ne 0$ and ${\zeta }_t\ne 0$ , the channel is fully correlated.

2.2. MMSE Detection

Applied at the recipient side of a massive MIMO communication, the MMSE iterative scheme offers near-optimal detection performance by degrading inaccuracies of the transmitted and received signals [24]. Estimation of the transmitted signal using MMSE detection method is expressed in terms of [25]

$$\hat{s}=(H^{H}H+{\sigma }^2{I}_U)H^{H}y=A^{-1}{y}_{MF}$$

(6)

where $G=H^{H}H$ denotes the Gram matrix, $y_{MF}=H^{H}y$ represents the matched filter. The MMSE detection method has $O(U^2)$ computational complexity, so it is difficult to apply in practice.

3. Proposed Algorithm

The MMSE detection algorithm has near sub-optimal detection performance when applied to large-scale MIMO systems, which generates a high exponential level of complexity. The algorithm is difficult to re-engineer in hardware devices. This paper applies the CJGS iterative algorithm to signal detection in massive MIMO communication. The scheme can be broken down three parts: initialization, CJ joint processing and GS iterative estimation, and the block method of the CJGS detection is shown in Figure 2. During the initial stage, the optimal initial value is selected to speed up convergence. In the CJ joint processing phase, the CG iteration is used to select the optimal search direction and combined with Jacobi iteration to reduce the number of subsequent iteration cycles. In the GS iteration estimation phase, Gauss-Seidel iteration is used to converge quickly, thus improving the overall detection performance of the massive MIMO system.

3.1. GS Iterative Estimation

When GS is used for signal detection at the receiving end of a massive MIMO communication, the GS scheme can be executed according to the following steps.

1. matrix decomposition. If there are fewer antennas at the user site than at the base station site for massive MIMO communication, the channels tend to be orthogonal to each other. The MMSE filter matrix is a positive definite matrix with diagonal dominance [26]. Matrix A can be divided into

$$A=E+F+D$$

(7)

where $D$ , $E$ and $F$ denote the diagonal matrix, the strict upper triangular matrix and the strict lower triangular matrix of matrix A respectively.

2. Calculate the initial value $s^{(0)}$ .

3. GS iterative estimation. The signal estimation formula of GS iterative algorithm is

$$s^{(i)}={(D-F)}^{-1}(E{s}^{(i-1)}+y_{MF})$$

(8)

3.2. Initialization

The initial estimate has an impact on the computational complexity, the convergence speed and the number of subsequent iterations required in massive MIMO signal detection. Traditional detection algorithms generally have zero vectors as initial values, which are far away from the final estimate, so convergence is slower. When the matrix $A$ is a Hermitian positive definite matrix, the GS repetitive scheme converges for any initial solution [27]. For this reason, two initialization schemes are proposed below. We perform performance simulations of the two initialization schemes in Chapter 4, with the initial estimated value of the zero vector as the reference object.

1. In a given massive MIMO, the quantity of transmitting and receiving antennas is set. Thus, estimation of the initial solution by means of a linear transformation of the number estimating the initial solution, which can avoid matrix inversion operations and further limit computing power.

$$s^{(0)}=\frac{y_{MF}}{B+U}$$

(9)

2. The diagonal elements of the matrix $A$ is dominant in massive MIMO communication. Therefore, the elements of matrix A can be grouped into diagonal elements that are not negligible and non-diagonal elements that are negligible, i.e. $A\approx D$ . The computational complexity of inverting the matrix could decreased by replacing $A$ with $D$

$$s^{(0)}=D^{-1}{y}_{MF}$$

(10)

3.3. CJ Joint Processing

CJ joint processing combines CG and Jacobi to pre-iterate the initialized signal, taking advantage of the good convergence of the CG initial iteration. It is CJ joint processing that reduces the number of cycles required for subsequent iterative estimation.

The CG [8] detection algorithm searches in the direction conjugate to the gradient until the search converges the residuals to zero. The CG iteration algorithm gives a good initial detection direction, but the pre-processing step generates high complexity over many iterations of the loop. Therefore, we choose one conjugate gradient iteration to avoid the increase in complexity.

In the CG iterative algorithm, it is known that the initial residuals and the starting conjugate search direction are assumed to be $r^{(0)}=y_{MF}-A{s}^{(0)}$ and $r^{(0)}=p^{(0)}$ , respectively. Then the result for the CG iterative algorithm after one iteration is

$$s_{CG}^{(1)}=s^{(0)}+u^{(0)}{p}^{(0)}$$

(11)

where $u^{(0)}=\frac{(r^{(0)},r^{(0)})}{(r^{(0)},A{p}^{(0)})}$ is the search step.

The expression for the signal estimate of the Jacobi iterative algorithm [10] applied to massive MIMO communication is

$$s^{(i+1)}=D^{-1}(y_{MF}+(E+F)s^{(i)})$$

(12)

Using the CG iterative algorithm as the starting value of Jacobi iterative scheme, the result after one repetition of Jacobi can be given,

$$s^{(1)}=D^{-1}(y_{MF}+(E+F)s_{CG}^{(1)})$$

(13)

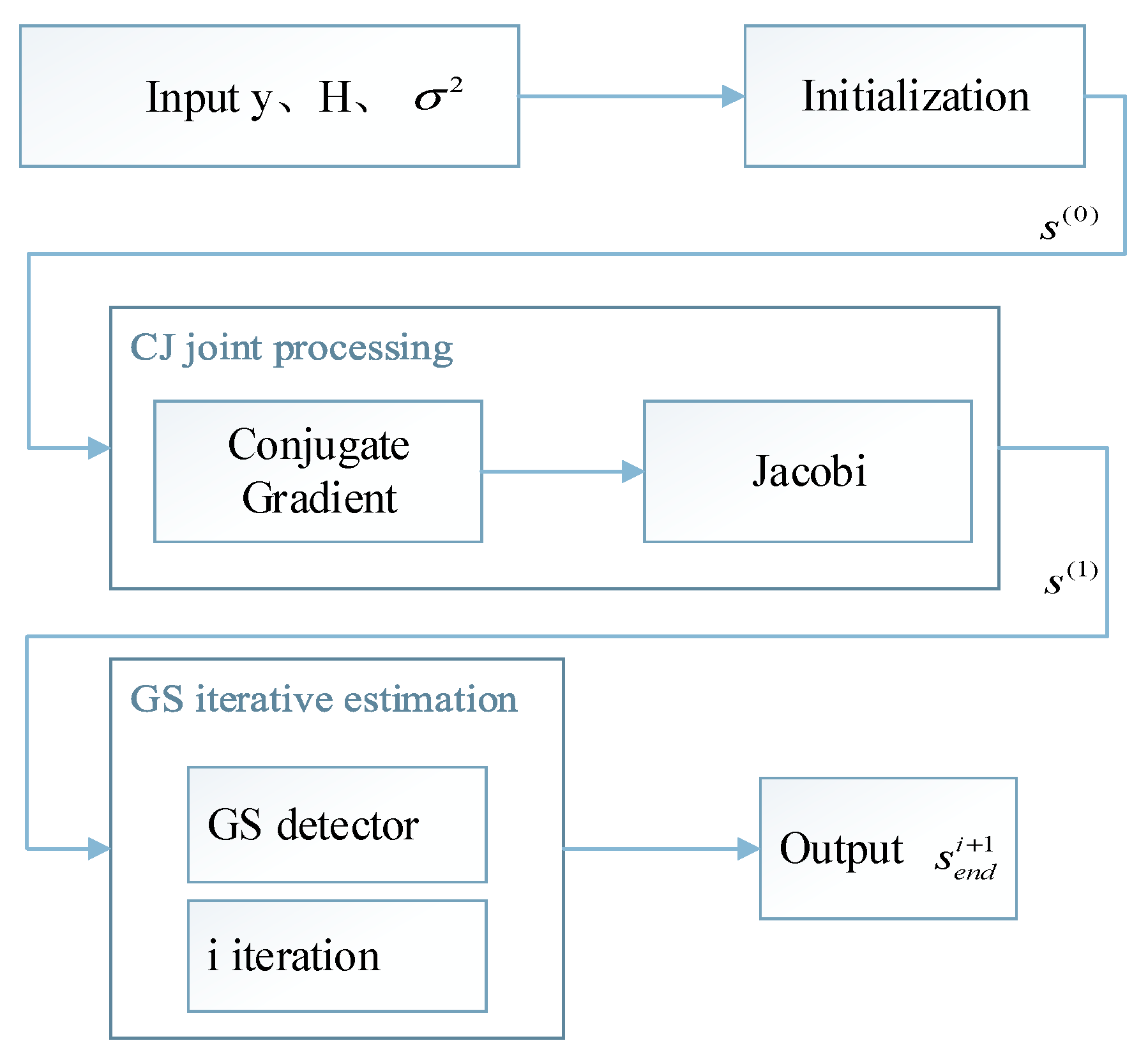

Combined with the description of the above, the CJGS iterative algorithm is shown in Algorithm 1.

Algorithm 1. CJGS iterative algorithm

Input: y H ${\sigma }^2$ B U

Initialization:

1. $\mathrm{A}={\mathrm{H}}^{\mathrm{H}}\mathrm{H}+{\sigma }^2\mathrm{I}$

2. ${\mathrm{y}}_{MF}=H^{H}y$

3. $D=diag(diag(A))$

4. $E=-triu(A,1)$

5. $F=-tril(A,-1)$

CJ joint processing:

6. $r^{(0)}=y_{MF}-A{s}^{(0)}$

7. $r^{(0)}=p^{(0)}$

8. $u^{(0)}=\frac{(r^{(0)},r^{(0)})}{(r^{(0)},A{p}^{(0)})}$

9. $s^{(1)}=D^{-1}(y_{MF}+(E+F)(s^{(0)}+u^{(0)}{p}^{(0)}))$

GS iterative estimation:

For i=2 do

10. $s^{(i)}={(D-F)}^{-1}(E{s}^{(i-1)}+y_{MF})$

End

Output: $s_{end}^i$

4. Simulation Results and Analysis

MMSE detection algorithms are employed as a benchmark, approximating optimal detection. Firstly, the bit error ratio (BER) of five algorithms, including GS, CPGS, PGS and JAGS iterative algorithms, is compared in uncorrelated and correlated channels, respectively. The MMSE scheme is utilized as a reference object. Its performance is not very different from that of the best detection system. Then, the initial values of the CJGS iterative algorithm are simulated and examined. Finally, a comparison of the computational difficulty for the above-mentioned methods has been made. Where i is the scheme’s number of iterations.

4.1. BER Performance

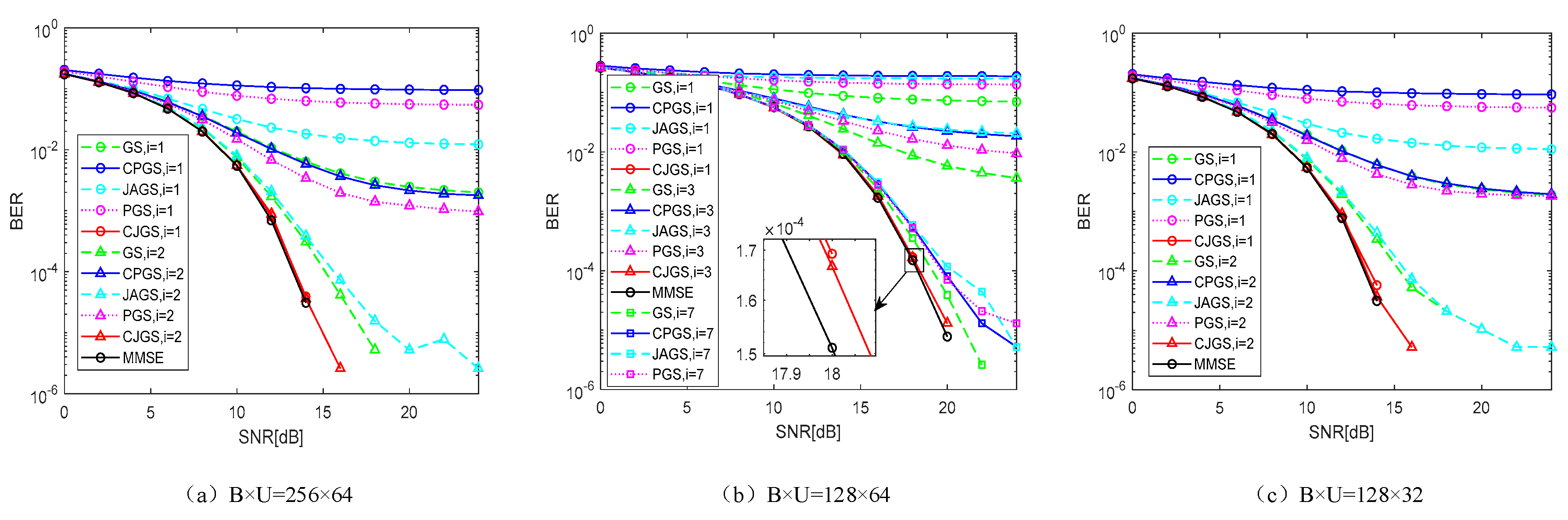

A comparison and analysis of the BER performance of different iterative algorithms with different antenna configurations is shown in Figure 3. The channel matrix is independent and identically distributed, that is ${\zeta }_r=0$ , ${\zeta }_t=0$ . Signal modulation is 16-QAM.

In Figure 3a, it is clear that all schemes have excellent BER performance after a modest quantity of rounds, and that the CJGS scheme has improved BER performance over the other repetition methods for the identical number of rounds. The BER of the CJGS and JAGS iterative algorithms is $2.604\times {10}^{-6}$ after two iterations, but the gap between them is 8 dB. Therefore, the CJGS iterative method is better. From Figure 3b, it can be noticed that the CJGS iterative scheme requires three iterations, while the other four iterative schemes require more than seven iteration cycles to achieve the ability of MMSE scheme when the MIMO antenna configuration is $128\times 32$ . If the signal-to-noise ratio (S/N) is 20 dB, BER achievable by the CJGS iterative method is $1.302\times {10}^{-5}$ after 3 iterations, and the BER achievable by GS, CPGS, JAGS and PGS after 7 iterations are $3.906\times {10}^{-5}$ , $8.073\times {10}^{-5}$, $0.0001172$ and $7.031\times {10}^{-5}$ ,respectively. From Figure 3c, it can be shown that with the MIMO antenna configuration of $128\times 32$ , CJGS, GS and JAGS can achieve better BER performance after 2 iterations, but the BER performance of CPGS and PGS is not very good.

Furthermore, by keeping $U$ at a fixed value and increasing $B$ , all algorithms can gain the identical BER in a fraction of the repetitions from Figure 3a,b. Conversely, if $B$ remains fixed and $U$ increases, all algorithms need a higher signal-to-noise ratio to get the identical results, and the quantity of receptions required increases from Figure 3b,c.

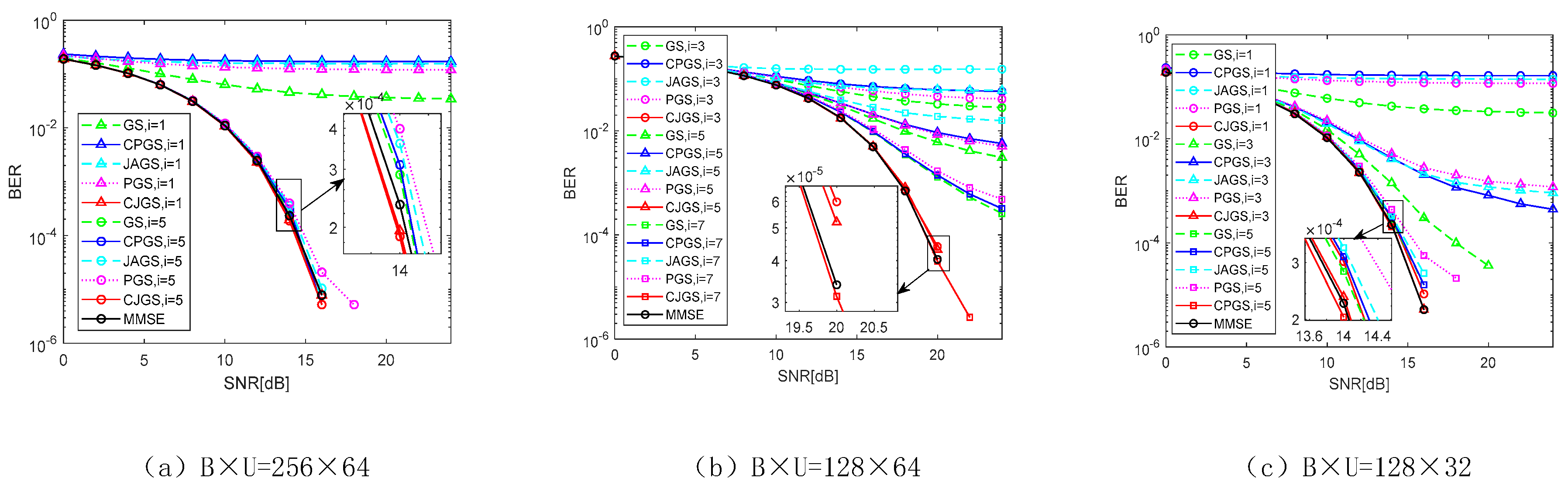

Figure 4 is a comparison and analysis of the BER behavior of different iterative algorithms. The antenna configurations are different. The channel matrix satisfies as ${\zeta }_r=0.3$ , ${\zeta }_t=0$ . Signal modulation is 16-QAM.

In Figure 4a, with the MIMO antenna configuration of $256\times 64$ , the performance of the other four iterative algorithms after running five iterations is still worse than that of the CJGS iterative algorithm in one iteration. The minimum BER achieved by MMSE detection is $7.813\times {10}^{-6}$ , while the BER of the CJGS iteration is $5.208\times {10}^{-6}$ after one iteration. From Figure 4b, the CJGS iterative scheme provides much more superior performance when the MIMO antenna configuration is $128\times 64$ , which converges faster than the remaining iterative methods From Figure 4c, it can be found that the CJGS iterative algorithm after three iterations can achieve the identical effects as the MMSE detection scheme if the S/N is 16 dB.

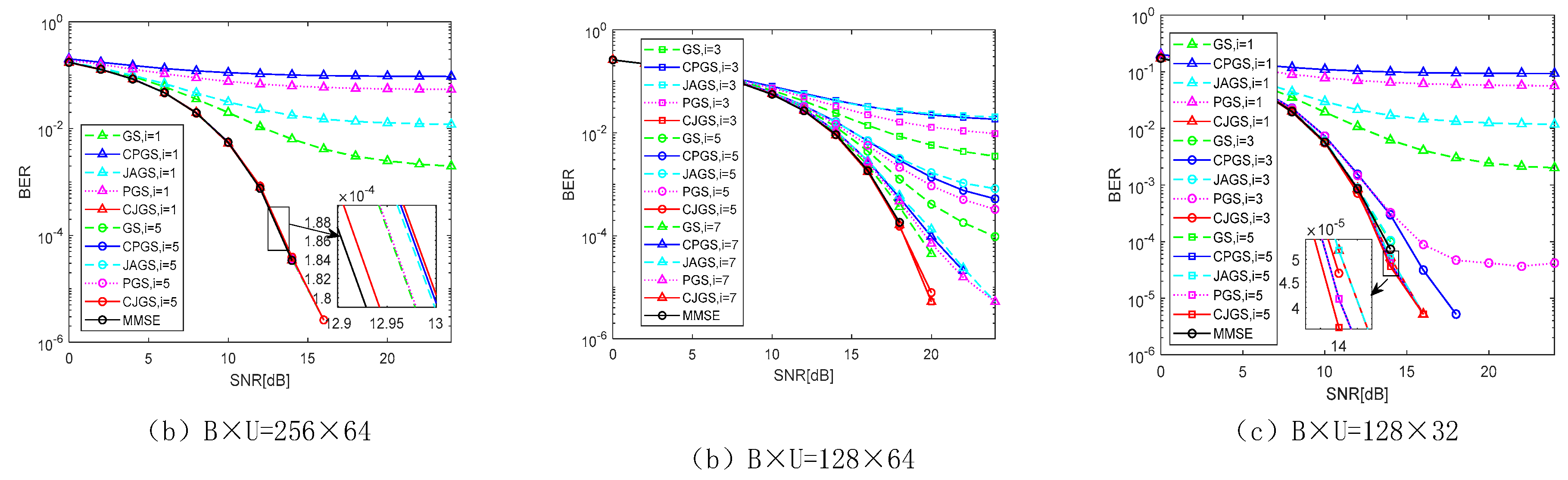

A comparison and analysis of BER performance for different algorithms with different antenna configurations is shown in Figure 5. The channel matrix satisfies as ${\zeta }_r=0$ , ${\zeta }_t=0.3$ . Signal modulation is 16-QAM.

The detection performance of the GS, CPGS, JAGS and PGS iterative algorithms is less satisfactory for an iteration number of one in Figure 5, while the CJGS iterative algorithm achieves a desirable performance close to MMSE detection. All iterative algorithms become better in detection performance as the number of iterations increases. As shown in Figure 5 and Figure 3, all algorithms require more iterations to achieve optimal performance when the transmit-side antenna is correlated. If the MIMO antenna configured is set to $128\times 64$ and the BER reaches $5.208\times {10}^{-6}$ , the required S/N ratio for CJGS is 20 dB, while the S/N ratio requirement for PGS and JAGS iterations is 24 dB. Therefore, the proposed algorithms are more suitable for channel scenarios where correlation exists on the transmit side of large-scale MIMO systems.

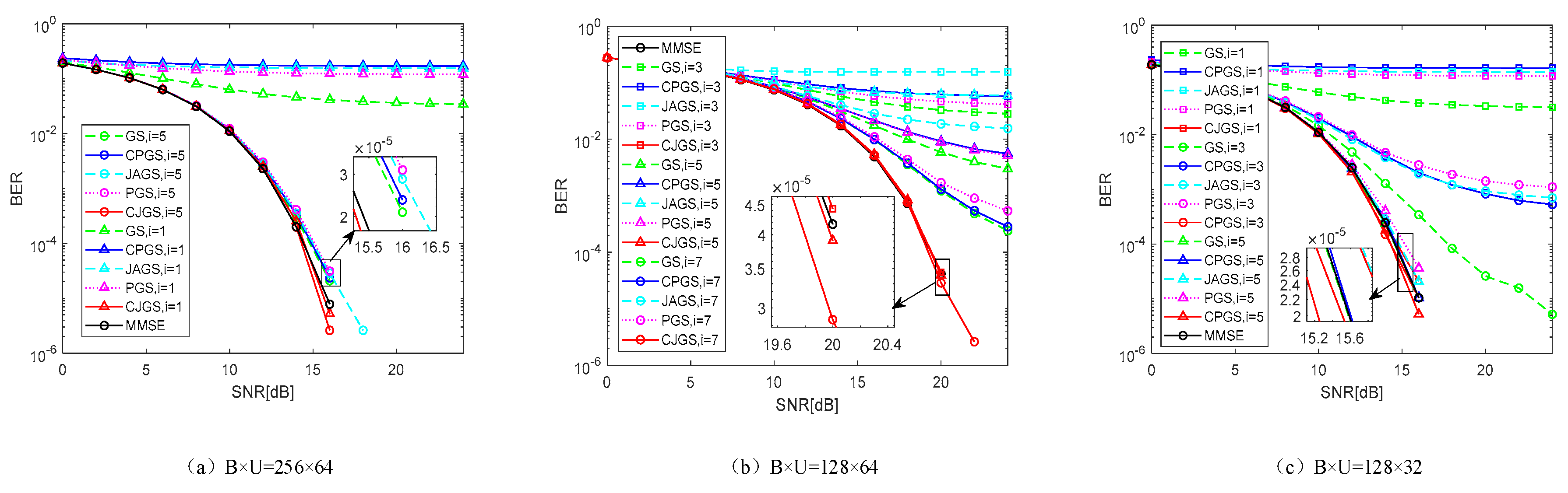

In Figure 6, the fully correlated channel was concerned, i.e., ${\zeta }_r=0.3$ , ${\zeta }_t=0.3$ . The BER performance of the GS iterative algorithm, CPGS iterative method, JA-GS detection algorithm, PGS detection method and CJGS iterative algorithm are compared and analyzed for different antenna configurations with 16-QAM modulation.

As shown in Figure 6, the detection capability of all the algorithms becomes better with more repetitions. From Figure 6a, the designed algorithm is shown to perform as well as the performance of MMSE detection at one iteration when the MIMO antenna configuration is $256\times 64$ , while all other iterations require more than five iterations to achieve the same results. If the S/N ratio is 16 dB, the BER achievable by the MMSE detection algorithm is $7.813\times {10}^{-6}$ , while the BER of the CJGS iterative algorithm is $5.208\times {10}^{-6}$ after five iterations. Thus, the CJGS iterative method can achieve a lower BER. From Figure 6b, it can be observed that to achieve the performance of MMSE detection when the MIMO antenna configuration is $128\times 64$ , the CJGS iterative algorithm needs to perform 3 iterations, while the other four iterative algorithms need more than 7 iteration cycles. From Figure 6c, there has been evidence that all algorithms achieve lower BER after five iterations when the MIMO antenna configuration is $128\times 32$ , but the suggested method has superior performance for equal iterations.

According to the previous description, near MMSE detection performance is achieved with proposed method with only a few iterations. The novel scheme outperforms the other four iterative algorithms. A reduction in the quantity of received side and increase in the sending side, then the ratio between them decreases. The proposed algorithm still shows a reliable performance, which can be well adapted to both channel-uncorrelated and channel-correlated scenarios.

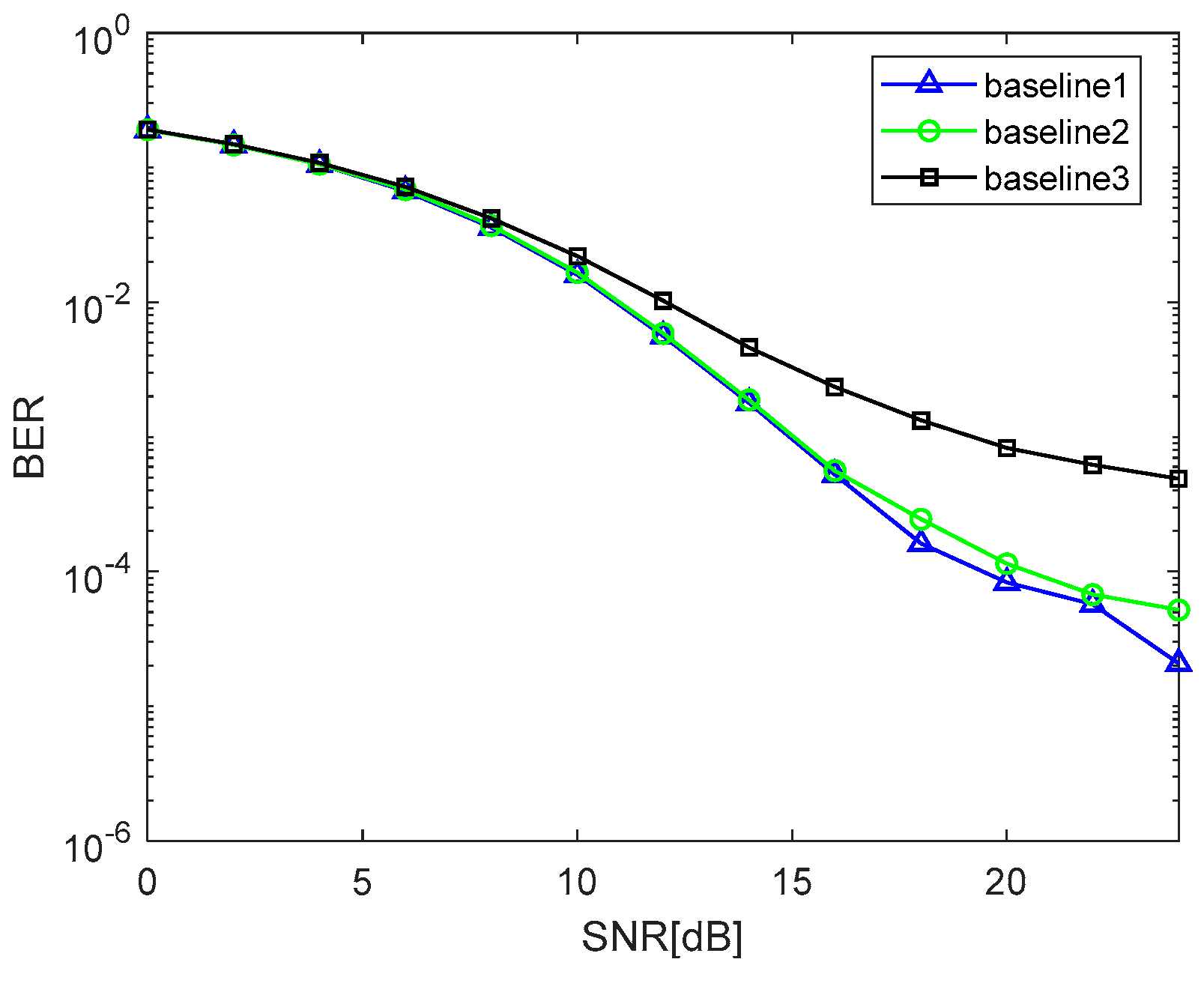

As shown in Figure 7, baseline1, baseline2 and baseline3 are the initial values of schemes 1, 2 and zero vector mentioned in Chapter 3, part B, respectively. When the Massive MIMO antenna configuration is $128\times 32$ , the number of iterations is two and the baseband modulation method is 16-QAM, the CJGS iterative method has superior BER performance and faster convergence when initial values proposed in scheme 1 are used.

4.2. Complexity Analysis

In massive MIMO communications, computational cost is a critical metric for signal detection algorithms [28]. The sophistication of the CJGS iterative scheme consists of three parts: initialization, Conjugate Gradient and Jacobi co-processing and GS iteration estimation, and only the number of true multiplicative operations of the method is considered in the analysis. The computation of $A$ and $y_{MF}$ is only once required, which is the same as the MMSE detection algorithm. Therefore, this part of the calculation is ignored and only the complexity of the subsequent steps is analyzed. One real multiplication is noted as one real multiplication times, the multiplication of a complex number with a constant is noted as two real multiplication times, and the multiplication of two complex numbers is noted as four real multiplication times.

The complexity of $s^{(0)}$ : it involves multiplying a constant $\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$B+U$}\right.$ and a vector $y_{MF}$ of $B\times 1$ with a complexity of $2U$ .

The complexity of Conjugate Gradient and Jacobi co-processing:

The complexity of $r^{(0)}$ : it involves multiplying a matrix $A$ of $U\times U$ and a vector $y_{MF}$ of $U\times 1$ , with a complexity of $4U^2$ .

The complexity of $u^{(0)}$ : it concerns multiplying a vector ${(r^{(0)})}^H$ of $1\times U$ and a vector $r^{(0)}$ of $U\times 1$ , with a complexity of $2U$ . And it involves multiplying a matrix $A$ of $U\times U$ and a vector $p^{(0)}$ of $U\times 1$ , with a complexity of $4U^2$ . It concerns multiplying a vector ${(r^{(0)})}^H$ of $1\times U$ and a vector $p^{(0)}$ of $U\times 1$ , with a complexity of $2U$ .

The complexity of $s^{(1)}$ : it involves multiplying a constant $u^{(0)}$ and a vector $p^{(0)}$ of $U\times 1$ , with a complexity of 2U. The complexity of $D^{-1}(y_{MF}+(E+F)(s^{(0)}+u^{(0)}{p}^{(0)}))$ is $8U^2$.

The complexity of the GS iteration: the calculation of $s^{(i+1)}$ involves multiplying twice a matrix of $\mathrm{U}\times \mathrm{U}$ and a vector of $U\times 1$ with a complexity of $8U^2$ .

Hence, total complexity of CJGS algorithm is $16U^2+8U+8i{U}^2$ .Taken together, the computational complexity of the various algorithms is shown in Table 1.

In Figure 8, the complexity of the different algorithms for MIMO systems are compared. Base station antenna count is 128 and user-side antenna count ranges from 0 to 30 with three iterations. The suggested algorithm is much less complex than MMSE scheme whose complexity is $O(U^2)$ .

5. Conclusion

In this work, the Gauss-Seidel iterative algorithm based on joint processing conjugate gradient and Jacobi iteration for massive MIMO communication was introduced. CG and Jacobi iterations are used in combination with GS iterations to enhance convergence and improve BER performance. Through theoretical and simulation analysis, the suggested method in this work is not easily affected by the degree of channel correlation. Only a small number of rounds are required to achieve the result of the MMSE detection scheme. For various antenna configurations, the CJGS algorithm performs markedly superior to other detection schemes. Unfortunately, precoding and soft decision techniques can be added in subsequent studies to further improve the reliability of detection, although the analysis in this study only considers the influence of channel correlation and antenna configuration.
