Comparative Study of Novel Non-Fluorine Polymers as Electron Transport Layer for Perovskite Solar Cell

1. Introduction

Hybrid perovskite materials have demonstrated excellent performance over the past several years in the field of solar devices and as a result their power conversion efficiency increased from a few percent to 27% in a very short period of time [1,2,3]. To further improve the performance of perovskite solar cells, substantial research efforts are being made to address several outstanding problems. Due to these efforts, perovskite solar cells are more advantageous than other types of solar cells in a number of aspects, including cost, weight, flexibility, portability, wide-area application, and low-temperature production [4,5]. Even though perovskite solar cells have made great advances in the laboratory environment, there are still a number of barriers to their general commercialization [6,7].

It is commonly known that the lead-based toxicity, power-conversion efficiency, stability, and degradation of perovskite solar cells are the most significant unsolved challenges [8,9]. A highly stable double perovskite class of Cs₂AgBiBr₆ absorber layer has recently been reported as a viable substitute for Pb-based perovskite. As a result, Cs₂AgBi_0.75Sb_0.25Br6 is favored for this study due to its several benefits, including being lead-free, non-toxic, extremely stable, and compatible with a variety of transport layers as reported in the literature [10,11,12].

Despite the perovskite absorber layer, the design architectures, material properties of the charge transport layer, and other design limitations also have serious impacts on the abovementioned problems. Two design architectures —(i) standard n-i-p and (ii) inverted p-i-n are frequently used for the fabrication of perovskite solar cells, depending on the front electron-transport layer or hole-transport layer facing the photons for solar cell applications. In both architectures, the perovskite absorber layer is sandwiched between the electron transport layer and the hole transport layer. Additionally, each architecture has unique benefits and drawbacks. Currently, the traditional n-i-p design is used to create the highest-performing photovoltaic devices [13,14,15]. Therefore, the proposed devices use n-i-p architecture for this study.

The electron transport layer is one of the most significant functional layers in perovskite solar cells due to its crucial role in enhancing stability, power-conversion efficiency, cost, and consequently overall performance [15,16,17]. The vital electronic parameters of the electron transport layer that are fundamentally necessary for fine-tuning the effective photovoltaic response such as (i) energy bandgap, (ii) electron affinity (LUMO), (iii) ionization energy (HOMO), (iv) molecular packaging, (v) carrier mobilities, (vi) reorganization energy, etc. The great majority of polymer and perovskite solar cells used for photovoltaic applications include an electron transport layer composed of fullerene materials as PC₆₀BM ([6,6]-phenyl C61-butyric acid methyl ester) and/or PC₇₀BM ([6,6]-phenyl-C71-butyric acid methyl ester) [18,19,20]. The fullerene-based electron transport layer, unfortunately, has several drawbacks, such as (i) poor optical absorption, especially in the near-infrared and visible range; (ii) thermal instability; (iii) photochemical instability; (iv) restricted tuneability; etc. [21,22].

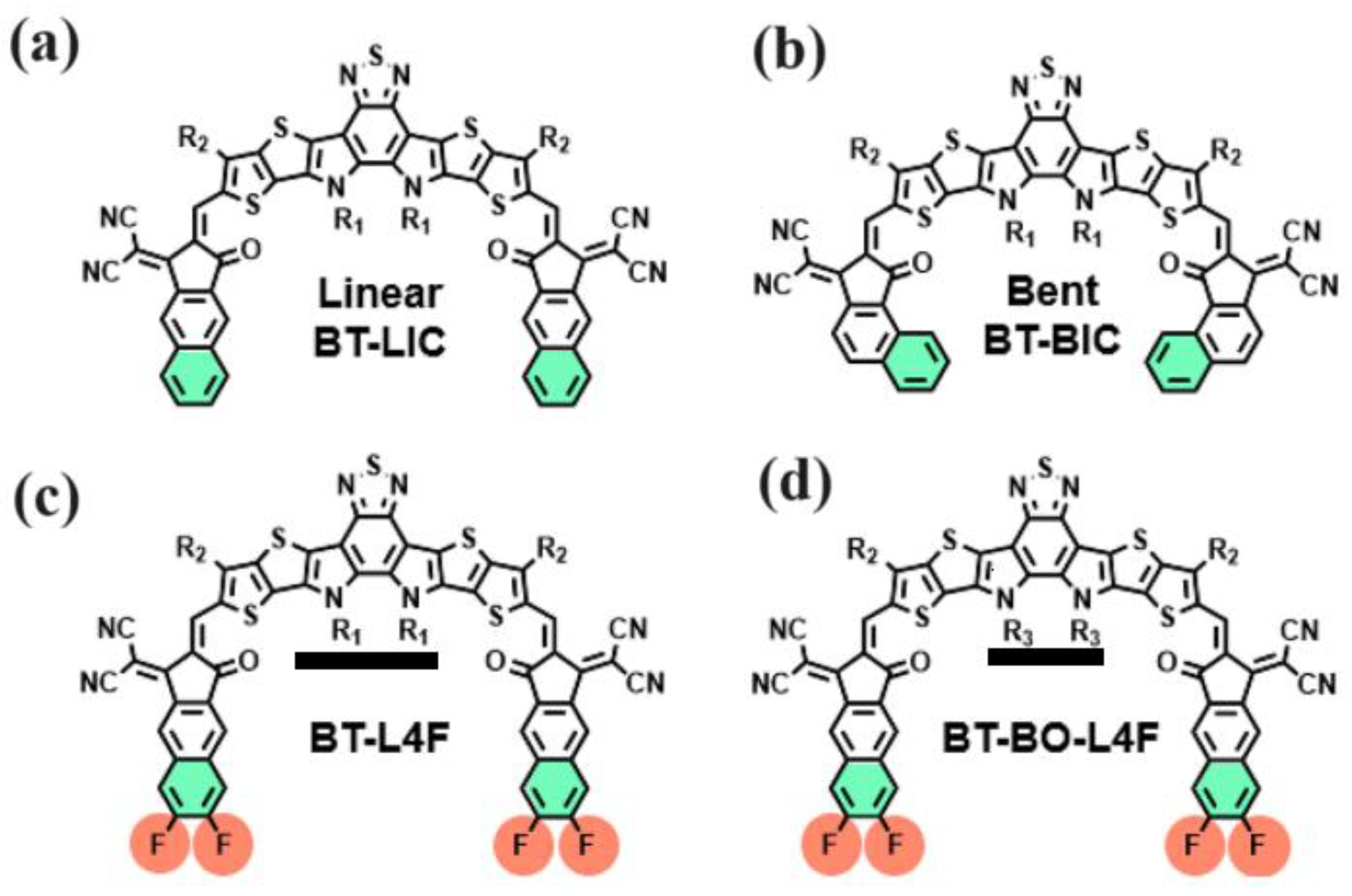

Designing a non-fullerene-based (NFA) electron transport layer might potentially overcome the drawbacks of the fullerene-based electron transport layer. The stability, tuneability, and optical absorption can all be improved by easily adjusting the chemical molecular structure, highest-occupied molecular orbital (HOMO), and lowest unoccupied molecular orbital (LUMO) of a non-fullerene-based electron transport layer over a reasonably wide range [23,24,25]. The design of NFAs that are reported often falls into one of the two categories. One choice is the acceptor-donor-acceptor (A-D-A) type molecule, which has a simple manufacturing process and an energy level that is easily adjusted. The other A-DA'D-A type molecule, on the other hand, was supported by a greater short-circuit current density (J_SC) and wider absorption thanks to its bigger conjugated plane and enhanced intramolecular charge transfer (ICT). It is quite interesting to design organic/polymer electron transport materials, notably with the help of A-DA'D-A type NFA and their variants [26,27,28,29,30,31,32,33,34,35]. All these designing parameters can be greatly tuned for an effective electron transport layer in a perovskite solar cell by making use of various physiochemical methodologies [36,37,38,39]. On the basis of these physiochemical methodologies, four novel A-DA’D-A types of NFA as electron-transport layers have recently been reported, which are the end-group derivatives of Y5 and Y6 materials and named linear as BT-LIC, bent as BT-BIC, BT-L4F, and BT-BO-L4F [40,41,42,43], as shown in Figure 1. All these (i) BT-LIC, (ii) BT-BIC, (iii) BT-L4F, and (iv) BT-BO-L4F are highly novel materials for the electron-transport layer, with very little and nearly negligible information available in the reported literature.

In most cases, it may be difficult to dope polymers for electron/hole transport layers (ETLs) at higher concentrations. This problem is caused by many variables, including (i) solubility and compatibility, (ii) aggregation and phase separation, (iii) doping-induced defects, and (iv) doping process restrictions. It is crucial to note that although high doping concentrations in polymer transport layers might be difficult, they are not always required. The maximum doping of the electron/hole transport layer is still reported in the literature at a value of 1020cm-3. For this reason, in our simulation of the suggested solar cell, we employ a maximum doping density of up to 1020 cm-3 for both electron and hole transport layers [44,45].

In this study, conventional n-i-p type perovskite solar cells were chosen as they demonstrate relatively higher efficiency and ease of fabrication, as discussed above [46,47,48,49,50]. Similarly, PEDOT: PSS (poly(3,4-ethylenedioxythiophene) polystyrene sulfonate) as the hole transport layer, and Cs₂AgBi0_.75Sb_0.25Br₆ was selected for the perovskite layer due to many advantages such as being lead-free, highly stable, compatible with both transport layers, etc. [51,52]. Figure 2 shows the design architecture of the four proposed devices with their energy band diagrams, namely (i) FTO/PEDOT: PSS/ Cs₂AgBi_0.75Sb_0.25Br₆/BT-LIC/Au (Device BT-LIC), (ii) FTO/PEDOT: PSS/ Cs₂AgBi_0.75Sb_0.25Br₆/BT-BIC/Au (Device BT-BIC), (iii) FTO/PEDOT: PSS/ Cs₂AgBi_0.75Sb_0.25Br₆/BT-L4F/Au (Device BT-L4F), and (iv) FTO/PEDOT: PSS/ Cs₂AgBi_0.75Sb_0.25Br₆/ BT-BO-L4F /Au, (Device BT-BO-L4F) respectively. The main goal of this study is to comprehensively investigate, optimize, and compare the devices as a function of above hole-transport layer to determine the different design parameters that can offer the maximum power conversion efficiency.

2. Device Models for Simulation

Software for modeling solar cells typically solves a set of coupled differential equations for semiconductor devices using conventional mathematical techniques. The general photovoltaic responses of solar cells, such as short-circuit current, open-circuit voltage, fill factor, and power conversion efficiency, will be identified using the solution of these equations. The solar model differential equations can be classified into the following groups [53,54,55,56]:

2.1. Poisson’s Equation

The electric field and potential (φ) produced by this excess charge (hole (p(x)), electron (n(x)), donor (N_D), acceptor (N_A), trapped hole (ρ_p,), trapped electron (ρ_n) densities) as well as their relationship to the charge distribution inside the various solar cell layers as a function of the thickness (x), is described by Poisson's equation. Mathematically, Poisson's equation can be defined as

$$\frac{d^2\varphi \left(x\right)}{d{x}^2}=\frac{e}{{\mathsf{ϵ}}_o{\mathsf{ϵ}}_r}\left(p\left(x\right)-n\left(x\right)+N_D-N_A+{\rho }_p-{\rho }_n\right)$$

(1)

In this case, the absolute and relative dielectric constants of the semiconducting material in each layer are $"{ϵ}_0"$ and “${ϵ}_r"$ respectively, and $"e$” represents the electric charge (1.602 x 10^-19 C).

2.2. Continuity Equation

An equation that explains the life cycle (generation (G), recombination ( R)) of electrons and holes in terms of electron current density (J_n) and hole current density (J_p) separately is known as a continuity equation or in some literature known as a transport equation.

$$\frac{d{J}_n}{dx}=G-R$$

(2)

$$\frac{d{J}_p}{dx}=G-R$$

(3)

2.3. Charge Transport Model

The proposed devices FTO/PEDOT: PSS/ Cs₂AgBi_0.75Sb_0.25Br₆/ETL/Au are simply p-i-n diodes. The semiconductor p-i-n junction diode is the basic building block of any solar cell. Therefore, to simulate the photovoltaic response, any charge transport models that are appropriate to p-i-n junction diodes may be utilized and one of the most common of them is listed below. The diode charge transport model states that each current density also represents the overall responses of the drift and diffusion currents, respectively, and that the total current is the sum of the current densities of both electrons and holes.

$$J=J_n+J_p$$

(4)

$$J_n=D_n\frac{dn}{dx}+{\mu }_{n}n\frac{d\varphi }{dx}$$

(5)

$$J_p={-D}_p\frac{dp}{dx}+{\mu }_{p}p\frac{d\varphi }{dx}$$

(6)

2.4. Photons Absorption Model

From a variety of optical absorption models offered by SCAPS-1D, the conventional model for optical absorption is selected for this study and it is given below as Equation (7). According to this conventional model, the optical absorption coefficient " $\mathsf{\alpha }$ " is defined as " $\mathsf{\alpha }\left(\mathsf{\lambda }\right)$" and is dependent on the optical wavelength "$\mathsf{\lambda }$" with energy "$h\nu$ ". Equation (7) states that in this model, $A$ and $B$ are both arbitrary constants, and "$E_g$" stands for the energy bandgap of the relevant thin-film layer and all these variables are interrelated as [57].

$$\mathsf{\alpha }\left(\mathsf{\lambda }\right)=\left(A+\frac{B}{h\nu }\right)\sqrt{h\nu -E_g}$$

(7)

3. Simulation Software

A solar cell's photovoltaic response may be estimated using the mathematical equations mentioned above, which are the foundation of any photovoltaic modeling software. In theory, simulation software is a tool that allows users to foretell the output response of solar devices without doing actual testing in a variety of settings. Simulation software can reasonably predict the experimental results of a solar cell [58,59]. The conditions must be met by modeling software to accurately forecast the output of photovoltaic responses accurately. Numerous researchers assert that SCAPS 1D is extremely trustworthy software that satisfies many of the criteria listed in the reference [60,61,62,63] and may be used to simulate a wide range of photovoltaic processes. SCAPS 1D has thus been selected for this investigation.

4. Simulation Steps:

In general, the SCAPS-1D simulation steps are a list of feasible actions that must be executed. The following is a list of the simulation processes necessary applied to the suggested devices in order to obtain the highest power conversion efficiency.

• Step 1, Start of Simulation: Define the environment, geometry, and physical parameters of all the device’s layers.
• Step 2, Extraction of Simulation Parameters: Extract the input physical and material characteristics for the perovskite absorber layer, the hole-transport layer (HTL), and the electron-transport layer (ETL) using the literature [62,63,64,65,66,67,68,69,70] as a guide.
• Step 3, Estimation of Ranges for Different Parameters: Propose the range of thickness and doping density for each layer of the devices (i) Device BT-LIC, (ii) Device BT-BIC, (iii) Device BT-L4F, and (iv) Device BT-BO-L4F from the literature.
• Step 4, Thickness Optimization of HTL: Determine the optimal thickness of PEDOT:PSS for each device as a hole transport layer through a series of simulations, which gives the maximum power-conversion efficiency and quantum efficiency (QE). After that, update with the optimal thickness of PEDOT:PSS for further simulations.
• Step 5, Determination of PV Parameters as a Function of HTL Thickness: Determine the photovoltaic parameters such as open-circuit voltage, short-circuit current, fill factor, and power conversion efficiency of each device as a function of PEDOT:PSS thickness. But for simplicity, only the photovoltaic parameters of a highly efficient device are shown and discussed.
• Step 6, Thickness Optimization of ETL: Determine the optimal thickness of ETL ( (i) BT-LIC, (ii) BT-BIC, (iii) BT-L4F, and (iv) BT-BO-L4F) for each device as an electron transport layer through a series of simulations, which gives the maximum power-conversion efficiency and quantum efficiency. After that, update with the optimal thickness of ETL for further simulations.
• Step 7, Determination of PV Parameters as a Function of Optimized ETL Thickness: Determine the photovoltaic parameters such as open-circuit voltage, short-circuit current, fill factor, and power conversion efficiency of each device as a function of electron-transfer layer thickness. But for simplicity, only the photovoltaic parameters of a highly efficient device are shown and discussed.
• Step 8, Thickness Optimization of Perovskite Absorber Layer: Determine the optimal thickness of the perovskite absorber layer Cs₂AgBi_0.75Sb_0.25Br₆) for each device as an absorber layer through a series of simulations, which gives the maximum power-conversion efficiency and quantum efficiency. Then, update with the optimal thickness of the absorber for further simulations.
• Step 9, Determination of PV Parameters as a Function of Perovskite Thickness: Determine the photovoltaic parameters such as open-circuit voltage, short-circuit current, fill factor, and power conversion efficiency of each device as a function of absorber thickness. But for simplicity, only the photovoltaic parameters of a highly efficient device are shown and discussed.
• Step 10, Determination of PV parameters as a function of ETL Doping: Determine the photovoltaic parameters such as open-circuit voltage, short-circuit current, fill factor, and power conversion efficiency of each device as a function of ETL doping density.
• Step 11, Determination of PV Response and Parameters of the Optimized Devices: Determine the photovoltaic current-voltage response and other photovoltaic parameters of all the optimized devices. such as open-circuit voltage, short-circuit current, fill factor, and power conversion efficiency of each device as a function of ETL doping density.
• Step 12, Determination of QE Response of the Optimized Devices: Determine the quantum efficiency of all the optimized devices.
• Step 13, End of Simulation.

5. Simulation Material Parameters

For the optimization of each layer of a perovskite solar cell as well as for the prediction of reliable photovoltaic behavior of the proposed devices, the proper selection of material parameters for each layer is essential. For this reason, great care was taken when choosing the simulation material parameters for this study. As electron transport materials (i) BT-LIC, (ii) BT-BIC, (iii) BT-L4F, and (iv) BT-BO-L4F are novel, the extensive amount of related literature is reviewed to extract the simulation parameters, while for PEDOT: PSS and Cs₂AgBi_0.75Sb_0.25Br₆ materials, the parameters are selected from highly reliable references as listed in Table 1.

Both the proposed perovskite absorber and the polymer-based transport layer offer an inherently high density of defects. In most cases, these electronic defects are grown during the crystal growth or fabrication process due to uncontrolled impurities, inconsistencies in polymerization or crystal growth, thin film deposition processes, and other environmental parameters [73,74,75,76]. Therefore, a defect density of 10¹⁴ cm² is introduced into the bulk region of the absorber, hole-transport layer, and electron transport layer, as indicated in Table 1.

6. Results and Discussion

6.1. Thickness Optimization of the Hole-Transport Layer

Generally, for any type of solar cell, the thickness of the hole transport layer (HTL) plays a crucial role in improving the overall performance of the solar cell. The effectiveness of the charge transfer process between the perovskite absorber layer and the electrode can be considerably impacted by the thickness of the hole transport layer. To obtain the highest possible efficiency in solar cells, it is essential to optimize the thickness of the hole transport layer.

Therefore, determining the optimized thickness of the hole transport layer is a design challenge for perovskite solar cells. In order to determine the optimal thickness of hole transport layer thickness, each of these four devices is simulated as a function of hole transport layer thickness, and a nearly very similar photovoltaic response is observed, here for simplicity randomly elected Device D ( BT-LIC) responses are shown for in Figure 3. The photo current-voltage response may be used to estimate the thickness of the hole transport layer for perovskite solar cells with the maximum feasible efficiency. Therefore, the photovoltaic responses of Device D are depicted in Figure 3 as functions of the thickness of the hole transport layer, which ranges from 10 nm to 90 nm, respectively. Based on Figure 3, it can be seen that Device D exhibits respectable photovoltaic behavior. However, when thickness increases, the photovoltaic responsiveness suffers as they are severely degraded.

The photovoltaic parameters are calculated, and the results are shown in Figure 4 as a function of PEDOT: PSS thickness. Therefore, the photovoltaics parameters such as (i) open-circuit voltage, short-circuit current (Figure 4a), (ii) fill factor, and power-conversion efficiency (Figure 4b) follow more or less very similar trends, where all these parameters are severely degraded. According to a previous report, PEDOT: PSS like many other organic/polymer semiconductors inherently has a large number of traps that serve as recombination centers. The density of traps exponentially rises as PEDOT: PSS thickness increases, and photovoltaic characteristics rapidly deteriorate [77,78,79]. As power-conversion efficiency is a decisive parameter and it is maximum at 10 nm for each device (here only Device D is shown), it can be justified that 10 nm is the optimum thickness of the hole transport layer for each device. Because the optimal PEDOT:PSS doping density for each proposed device is obtained at 10²⁰ cm^-3 through simulation, which is quite comparable to our previous results [7,60,61,67,68,69], simulation data are not shown here for simplicity.

For a perovskite-type solar cell, the optimal thickness of the hole transport layer can also be estimated using external quantum efficiency (EQE). The external quantum efficiency depends on the wavelength of the incident light and is often stated in terms of percentage. Figure 5 shows the external quantum efficiency of Device D (BT-BO-L4F) as a function of the thickness of PEDOT: PSS. It also confirms that as thickness increases then, the area under the QE curve also decreases. It clearly demonstrates that the total charges collected at the respective electrodes also decrease and hence it can be inferred that more and more recombination will take place at the higher thickness of PEDOT:PSS. Both power-conversion efficiency and external quantum efficiency are decisive factors in the selection of the thickness of PEDOT:PSS for efficient photovoltaic response and maximum power conversion efficiency and quantum efficiency is observed at 10 nm of PEDOT:PSS, so it can be justified that 10 nm is the most optimum thickness of PEDOT:PSS for the proposed devices.

6.2. Thickness Optimization of the Absorber Layer

To increase the photo-conversion efficiency of perovskite solar cells, the thickness of the absorber layer of Cs₂AgBi_0.75Sb_0.25Br₆ must be optimized. The ideal thickness of the perovskite absorber layer depends on a number of parameters, including the composition of the perovskite material, the design of the photovoltaic device, and the thin-film deposition process. While thick perovskite absorber layers can boost photon absorption, and on the other side thin perovskite absorber layers can decrease recombination losses and lead to improved power conversion efficiency [80,81]. In the literature, both experimental methods and device simulation modeling can be used to determine the optimal thickness of the perovskite absorber layer.

As discussed above the optimization of perovskite layer thickness is a critical parameter in determining the performance of a solar cell. In order to achieve a suitable balance between light absorption and charge carrier extraction, it is often necessary to optimize the thickness of the active layer. Increased thickness of the active layer facilitates enhanced light absorption due to the greater availability of material for photon interaction. However, a thick active layer increases the carrier recombination. In thicker active layers, the distance that charge carriers need to travel to reach the electrodes increases. Conversely, when the active layer is very thin, it may lead to inadequate light absorption, thus leading to less production of photocurrent. Similarly, a thin active layer may also limit the ability to extract charge carriers efficiently, leading to poor charge collection and reduced overall performance.

Here, the optimal thickness of the perovskite absorber Cs₂AgBi_0.75Sb_0.25Br₆ layer was estimated using simulation techniques. The photovoltaic response of device D is depicted in Figure 6 as a function of absorber layer thickness from 10 nm to 100 nm. According to the device's photovoltaic response, unlike the thickness of the hole transport layer, the photovoltaic response is degraded at lower absorber layer thicknesses, increases up to the absorber layer reaches its maximum photovoltaic response, and then again gradually decreases, the above discuss responses are more clearly observed in Figure 7.

Figure 7a,b illustrate the photovoltaic parameters of each device as a function of absorber layer thickness, including open-circuit voltage, short-circuit current, fill factor, and power conversion efficiency. Complex photovoltaic parameter patterns are observed, where the open-circuit voltage and fill factor climb suddenly, peak, and then rapidly deteriorate. While short-circuit current and power-conversion efficiency behavior are different for a device as a function of absorber layer thickness, both of these photovoltaic parameters increase gradually, and the power conversion efficiency in particular reaches its maximum at 70 nm thickness of absorber layer before beginning to slowly decline.

Figure 8 illustrates the quantum efficiency response of the proposed perovskite solar cell for devices where the thickness of the absorber layer (Cs₂AgBi_0.75Sb_0.25Br₆) is varied from 10 nm to 100 nm and the thickness of the PEDOT: PSS is optimized at 10 nm. It is not clearly observed from the figure which thickness of the absorber layer gives the maximum area under the quantum efficiency curve. However with the help of software calculations, it is found that at the thickness of 70 nm absorber layer, the device gives the maximum quantum efficiency, which further supports the finding that 70 nm is the optimum thickness of the absorber layer.

The thickness of the hole transport layer can directly or indirectly affect the performance of quantum efficiency. Under normal conditions, the hole transport layer PEDOT:PSS demonstrates a high degree of transparency with little optical absorption enabling the efficient passage of light to the perovskite layer as shown in Figure 2. Therefore, the quantum efficiency of a perovskite solar cell is not directly affected by the thickness of the hole transport layer owing to its optical transparency. However, the influence of the thickness of the hole transport layer on the quantum efficiency may be indirect in nature. The quantum efficiency can be defined as the fraction of electron-hole pairs generated in the external circuit for a particular wavelength of incoming photon. It depends on several parameters, such as charge extraction, recombination, transport, and energy-level alignment. The use of PEDOT:PSS as a hole transport layer exhibits dispersive charge transport, whereby the efficiency of both charge transport and recombination decreases considerably with an increase in the thickness of the hole transport layer. Hence, it can be shown from Figure 5 that a thickness of 70 nm for the PEDOT:PSS layer demonstrates the most favorable thickness for the hole transport layer.

6.3. Thickness Optimization of Electron Transport Layer

Another critical design factor for producing highly efficient perovskite solar cells is the thickness optimization of the electron transport layer. Thickness optimization, particularly for polymer-based electron layers, is very important because it affects several physical, material, and photovoltaic parameters.

(a)

Device architecture: The optimal electron transport layer thickness may vary according to the specific device architecture, such as whether the solar cell has a planar or mesoporous structure.

(b)

Material characteristics: The ideal thickness for effective charge transfer and extraction can be influenced by the electron transport layer's material characteristics, such as (i) electron transport, (ii) series resistance, (iii) shunt resistance, (iv) carrier lifetime, (v) electron mobility, (vi) electron density, (vii) recombination losses, (viii) charge extraction efficiency, (ix) optical absorption, and (x) interface energy level alignment, among others.

(c)

Thin film deposition method: There are several thin-film deposition methods that may be used to manage the electron transport layer's thickness, and each has advantages and limitations of its own. Spin-coating, for instance, is a very cheap and simple method.

(d)

Post-deposition method: By modifying the thickness of the electron transport layer using post-deposition techniques like solvent or annealing, the morphology and interface properties of the electron transport layer may be altered.

(e)

Photovoltaic performance matrices: Depending on the device's individual performance metrics, such as power conversion efficiency, short circuit current, and fill factor, the ideal electron transport layer thickness may vary. These metrics may all be influenced by the electron transport layer's thickness.

(f)

Trade-offs: When determining the ideal electron transport layer thickness, it is frequently necessary to compromise between several device characteristics, such as reducing leakage currents while increasing charge transfer efficiency.

(g)

Interaction with other layers: The electron transport layer's thickness can have an impact on how the electrode, absorber layer, and hole transport layer interact with other layers in the device. This might make the optimization procedure more challenging.

Overall, the complicated interactions between these variables make optimizing the electron transport layer thickness a difficult iterative process that frequently calls for simulation methods.

The photovoltaic parameters (a) open-circuit voltage, (ii) short-circuit current, (iii) fill-factor, and (d) power-conversion efficiency are shown in Figure 9 as functions of the thickness of the electron transport layer for the devices (i) A (BT-LIC), (ii) B (BT-BIC), (iii) C (BT-L4F), and (iv) D (BT-BO-L4F), respectively. Figure 9 demonstrates that although the open-circuit voltage varies for each device, it does not change relatively as the thickness of the electron transport layer increases. Because the open-circuit voltage is generally determined by the energy bandgap offset, and its value is generally unaffected by the thickness of the electron transport layer [82,83], as observed in Figure 9. In addition, Figure 9 shows the relative short-circuit responses for the devices as functions of the thickness of the electron transport layer. The figure demonstrates that all devices behave in a consistent manner, with short-circuit current reducing as the thickness of the electron layer grows. Device A's behavior stands out, whereas other devices' rates of decrease are very insignificant. Similarly, when the thickness of the electron transport layer increases, the fill-factor behavior of all devices likewise deteriorates. It could be because devices experience increasing series resistance and recombination losses as the thickness of the electron layer rises. The power-conversion efficiency responses, which are the resultant behavior of open-circuit voltage, short-circuit current, and fill-factor responses, also behave in a very similar way. Where power-conversion efficiency deteriorates as a function of electron-transport layer thickness. The figure clearly demonstrates that device A (BT-LIC) is sharply degraded, while device B (BT-BIC) shows excellent power conversion efficiency response as a function of electron-transport layer thickness. Power conversion efficiency is the most important parameter, and all devices show maximum power conversion efficiency at 25 nm. So, it can be inferred that 25 nm is the most optimal thickness of the corresponding electron-transport layer for each device.

6.4. Doping Density Optimization of the Electron Transport Layer

The electron transport layer's doping density can have a big influence on the electrical conductivity of solar cells, charge carrier mobility, and overall power conversion efficiency. Usually, organic, or polymeric compounds with strong electron-withdrawing groups and significant electron affinities are used as dopants to dope polymer-based electron-transport layers [84,85]. High doping of the electron transport layer (ETL) can improve the power conversion efficiency of a perovskite solar cell by lowering the series resistance and electrode-transport layer interface losses, but on the other hand, excessive doping can increase charge carrier recombination and degrade the device's overall efficiency. Therefore, doping optimization of the electron transport layer is crucial for the efficient design of the proposed perovskite solar cells.

Therefore, the photovoltaic parameters (a) open-circuit voltage, (ii) short-circuit current, (iii) fill-factor, and (d) power-conversion efficiency were estimated through simulation and the results are shown in Figure 10 as functions of the doping density of the electron transport layer for the devices (a) A (BT-LIC), (b) B (BT-BIC), (c) C (BT-L4F), and (d) D (BT-BO-L4F), respectively. The figure shows that all photovoltaic parameters open-circuit voltage, short-circuit current, fill factor, and power-conversion efficiency are improving as the doping density is increased in the corresponding electron transport layer. The thickness of the electron-transport layer is already optimized, it can be assumed that the electron transport layer offers very little recombination losses, therefore reduction of resistivity as a function of increasing doping density is the dominating factor for each device. As power-conversion efficiency is a decisive parameter and it is maximum at 10²⁰ cm^-3 for each device, it can be justified that 10²⁰ cm^-3 is the optimum doping of the electron transport layer for each device.

6.5. Photo Current-Voltage Response of the Optimized Devices

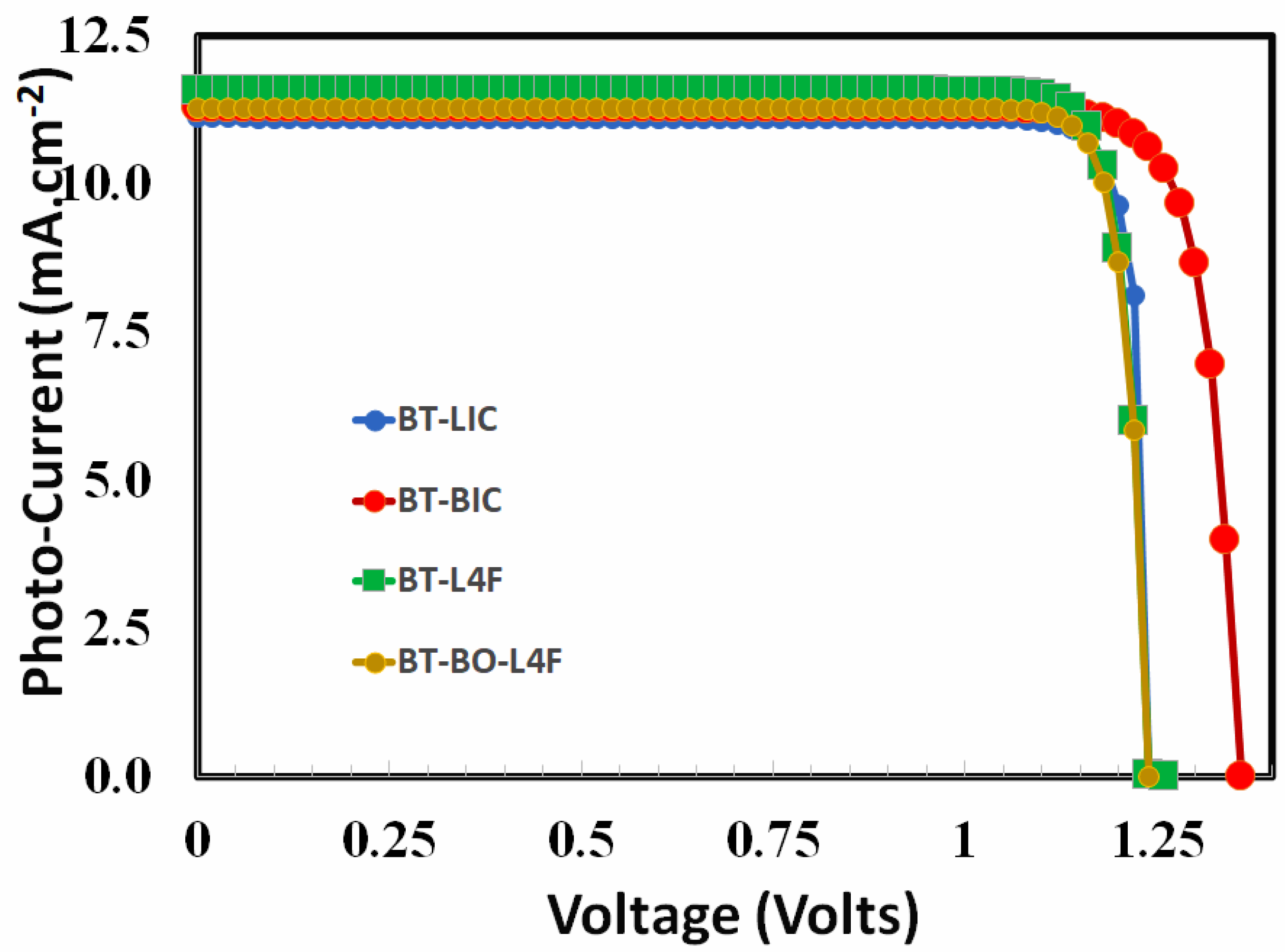

The influence of the electron-transport layer on the overall performance of perovskite solar cells may be further investigated by using the photo current-voltage responses of the optimized perovskite solar cells. In Figure 11, the typical photo current-voltage responses of the perovskite solar cells are observed. The figure offers important information about its photovoltaic performance parameters such as open-circuit voltage, short-circuit current, fill factor, and power-conversion efficiency, respectively. Table 2 displays all these photovoltaic parameters as estimated from Figure 11 for each device. The figure and Table 2 clearly reveal that all devices perform differently, while device B (BT-BIC) has the best photovoltaic response (power-conversion efficiency ~13.2% ), and device A (BT-LIC) has the worst photovoltaic response (power-conversion efficiency ~6.8% ). It is also observed that the improvement in open-circuit voltage as well as Fill-Factor are relatively higher for device B. This clearly demonstrates that the photovoltaic device B fabricated with BT-BIC as an electron transport layer may manage high build-in potential and excellent interface quality which in turn improve the overall charge collection, charge transport and to suppress recombination losses [86,87,88], compared to the other electron transport layers for devices A, C and D respectively.

6.6. External Quantum Efficiency Response of the Optimized Devices

The external quantum efficiency responses of the fully optimized devices may be used to further examine the impact of the electron-transport layer on the overall performance of perovskite solar cells. The external quantum efficiency can be defined as the fraction of the total number of collected charge carriers at the electrodes to the total number of incident photons [89]. Mathematically, external quantum efficiency (QE) can be defined as a function of either energy (E) or wavelength (λ) and therefore the relation between quantum efficiency and short-circuit current (Jsc) can be expressed as:

$$J_{SC}=\mathrm{q}\int \varnothing \left(\lambda \right)QE\left(\lambda \right)\mathrm{d}\mathsf{\lambda }$$

(8)

where φ(λ) is the incident flux of photons per unit wavelength. Figure 12 shows the external quantum efficiency responses of the devices (i) A (BT-LIC), (ii) B (BT-BIC), (iii) C (BT-L4F), and (iv) D (BT-BO-L4F) as a function of incident photon wavelength from 300 to 900 nm, more or less very similar responses are observed for all devices. It can be spotted from the figure that for all devices the quantum efficiency raises from photons wavelengths greater than 300 nm; while the highest QE is achieved about 480-485 nm range of photons wavelengths for all devices, and then the QE of devices are gradually decreased, the relative magnified of quantum efficiency responses for all devices are shown in the inset of Figure 12. This clearly reveals that Device B, which uses BT-BIC as its electron transport layer, exhibits relatively improved quantum efficiency, and it also confirms the earlier simulation results that were already discussed.

In addition, Figure 12 shows that the quantum efficiency of the BT-BIC device reaches its optimum value, even though the short-circuit current does not. As shown in Figure 11, the device BT-L4F displays the maximum short-circuit current. While there is a correlation between short-circuit current and quantum efficiency, it is essential to recognize that recombination losses can lead to such discrepancies. Quantum efficiency refers to the measurement of the effectiveness of photon absorption and subsequent transformation into charge carriers. In contrast, the short-circuit current density includes other variables, such as recombination losses, resistive losses, and other internal variables. Consequently, the presence of these losses may cause a slight decrease in the short-circuit current relative to the theoretical quantum efficiency. Given the comparative nature of this study, it can be argued that while the BT-LIC device has a slightly lower short circuit current than the BT-L4F device, it has superior electrical and optical properties. Figure 11 depicts the enhanced photovoltaic response as evidence.
