Microgrids Overview and Performance Evaluation on Low-voltage Distribution Network

1. Introduction

Population growth, technological innovation, access to clean energy, and environmental concerns are some of the factors that compelled governments and scholars across the globe to hunt for alternate ways to generate electricity to fulfill the world's continual increase in energy demand. Furthermore, due to considerations such as geographical location, lack of accessibility, and transportation infrastructure restrictions, a considerable proportion of rural and remote areas in Sub-Saharan Africa lack access to a steady power supply [1,2,3]. Some of the conventional tactics deployed by the utility to address these challenges have not yielded positive outcomes. However, with the recent advancement in technology, renewable energy sources (RESs) are one of the possible solutions to these issues. Renewable energy provides cleaner energy and is capable of supplying electricity to rural areas and communities [4]. Integrating RESs into distribution networks offers utilities and electricity consumers different technical, conservational, and financial benefits [5,6,7]. The direction of power flow on the grid has also changed from unidirectional to bi-directional due to the emerging technology of grid integration of RESs. Power distribution operators and consumers are impacted positively and negatively by the change in the flow of power [8, 9]. The concept of renewable energy-based microgrids was developed by researchers and governments to maximize the benefits and alleviate grid integration limitations [10, 11]. According to [4], a microgrid is a power network unit that uses small power-generating sources, such as RESs and other distributed generation sources, connected with energy storage devices to meet the load demand. The microgrid enhances grid integration of renewable energies, reduces transmission and distribution losses, and offers a dependable electricity supply. The general overview of microgrids and performance evaluation of the system when connected to the power grid and off-grid, considering various power issue scenarios, are presented in this paper. The microgrid under investigation consists of wind farms, a small hydroelectric power plant, and energy storage systems. Various case studies, such as fault conditions, system overload, and the transition from one operating system to another, are used to assess the system’s performance. The network under investigation is molded and simulated using MATLAB/Simulink. The paper is structured as follows: Section 2 provides a comprehensive overview of microgrids. Section 3 discusses the network under investigation and simulation scenarios, Section 4 presents simulation results and discussion, while microgrid limitation, conclusion, and future works are presented in sections 5 and 6 respectively.

2. Microgrids Overview

Scholars have assigned several meanings to microgrids. A microgrid is described by the US Department of Energy as a set of unified distributed generation sources (DGs) and loads within definite electrical restrictions that can operate as an independent controlled entity on the electrical grid [5,6,7]. European Union research project defines microgrids as a low-voltage (LV) distribution network consisting of DGs, energy storage units, and variable loads that can operate when coupled or decoupled from the utility grid [15,16]. Furthermore, in [17], a microgrid (MG) is said to be a moderate power network with DGs, mosnitoring circuits, and electrical loads. Generally, the given definitions recognized the significance of distributed energy sources in microgrids and their ability to function as an independent entity on the grid.

2.1. Components and classification of microgrids

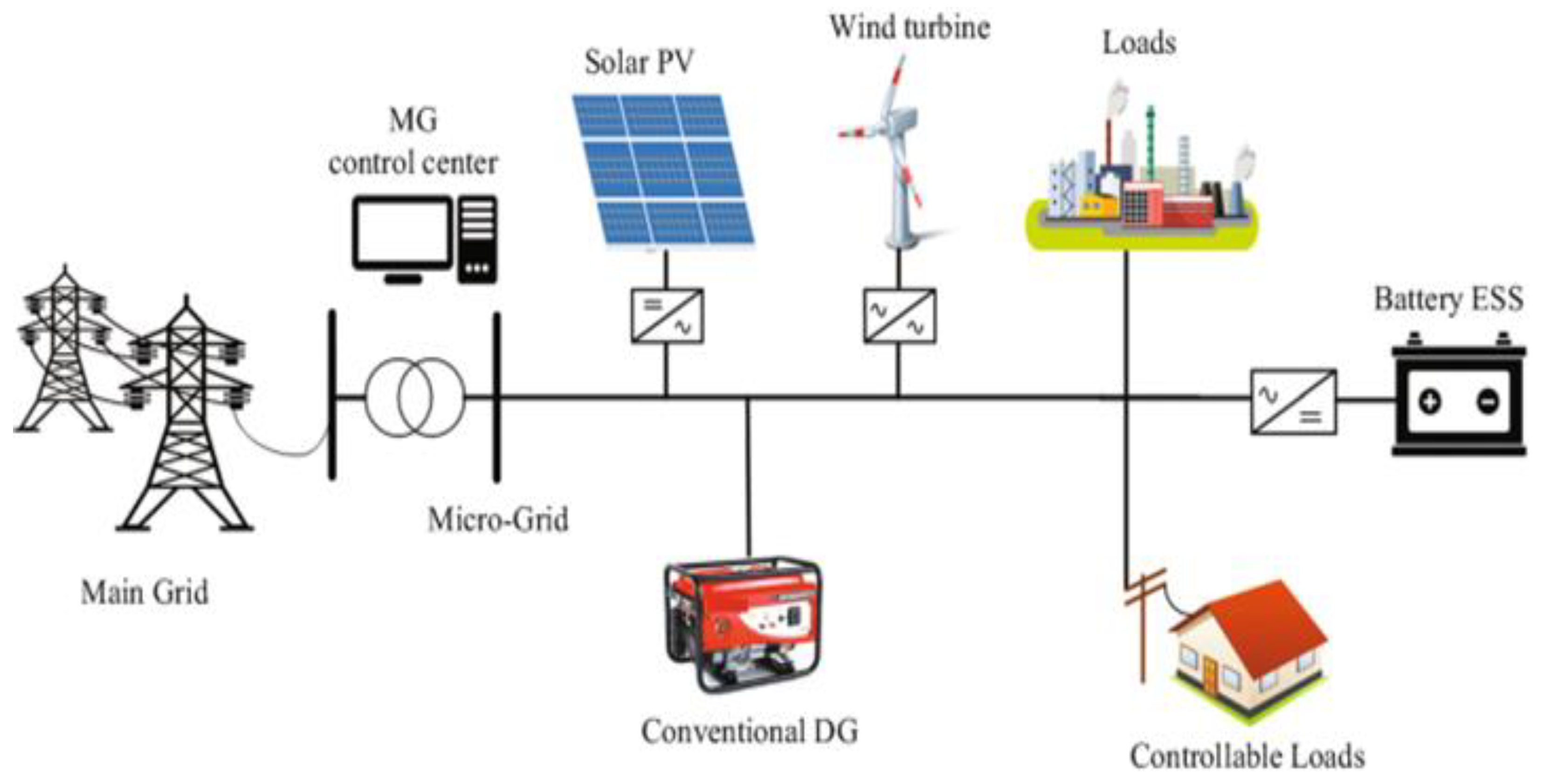

Microgrid comprises electricity generation sources, energy storage systems, and electrical loads that are electrically interconnected [16], [18,19]. Figure 1 shows the fundamental structure of a microgrid.

Microgrids (MGs) generate electricity using renewable energy sources like solar, wind, small hydropower plants, and microturbines. Another essential component of MGs is energy storage units. Energy storage systems (ESSs) ensure an uninterrupted and continuous power supply to the loads and contribute to the stability of the microgrid due to the irregular supply from the RESs. Storage systems can enhance the power quality by maintaining the grid's nominal voltage. BESSs are commonly used with microgrids [20, 21]. Different loads, such as AC, DC, linear and non-linear, and dynamic loads, can be integrated into microgrids. Load management systems are vital components in microgrid systems. Microgrid energy loads have a wide range of controllable characteristics, from critical loads to adjustable loads. The use of critical loads, such as hospital loads, cannot be shaded; the use of adjustable loads, like heating or cooling, lighting, and pool filters, can temporarily be shaded for peak load reduction.

Other loads, like business buildings with backup power sources and residential buildings, should be shaded during emergencies to maintain microgrid reliability and avoid power outages [22, 23]. Power conditioning units (PCUs), energy management systems, and control systems are other essential elements of MG. In MG, energy conversion units comprise transformers (step up and step down) and PCUs that convert produced power to the necessary and suitable power and voltage to be provided directly to the grid or end user [24]. Hybrid microgrids require an energy management system (EMS) due to the range of intermittent energy sources involved. The EMS must be able to control all interconnected power generation sources and provide swift responses to situations on the grid [25,26,27].

2.2. Microgrid Classification

Microgrids are classified based on architecture, supervisory control, modes of operation, and phases [28,29]. However, classification based on the microgrid architectures and voltage characteristics is reviewed [30,31,32,33,34,35].

• AC Microgrid
• DC Microgrid
• Hybrid Microgrid

2.2.1. AC Microgrid (ACMG)

This is the most implemented MG. In this category, various forms of renewable energy sources are integrated into the grid using a power electronic converter (PEC) [36]. The AC microgrid offers minimal modifications for integration into the existing grid. It is commonly used in medium- and low-voltage distribution networks to enhance current flow and minimize power loss in transmission lines. In addition, the ability to integrate with traditional distribution networks or operate in stand-alone mode makes the system flexible, allowing it to operate directly with AC distribution devices such as AC loads. It does not require any inverters for AC loads, and the protection system is cost-effective. However, system integration causes stability and power quality issues for distribution operators [33], [37, 38]. Lower conversion efficiency, high DC-AC conversion costs, controllability challenges due to frequency factors, voltage regulation, unbalanced compensation, and poor power supply reliability, which can impede device performance, are some of the challenges of an AC microgrid [39,40,41,42]. However, the use of advanced control technology solves these problems [33, 37, 43].

2.2.2. DC Microgrid (DCMG)

Due to modern advancements in electrical power generation techniques, several power conversion units have been employed for various applications in power systems [24]. Furthermore, DC-based RESs and various forms of ESS technologies provide new opportunities for the development of DC microgrids. Benefits of DC microgrids include limited energy conversion processes and reactive current restrictions [33, 44, 45]. DC/AC PCU is required for connecting a DC microgrid to an existing traditional power distribution network. DC and AC microgrids are very similar in their operating modes. The main difference is that DC microgrids use DC buses for connectivity, while AC buses connect DGs and utility network loads together. The ideal operating voltage for a DC bus is between 350 and 400 Volts. The main DC bus can be separated into other low-voltage buses to meet the low-voltage prerequisites of electronic loads. In contrast, DC-type microgrid high-voltage DC-DC converters increase the connectivity of low-voltage sources like solar modules with a voltage range between 20 to 45 volts by supplying them with high voltage from the DC bus bar. DC-Microgrid offers several advantages to distribution operators over AC-Microgrid. Transmission efficiency due to non-reactive power, supply reliability even in remote locations, relatively small wiring due to high voltage at low temperatures, and convenient system control without causing complications such as synchronization, harmonics, reactive power, and frequency regulation are some of the advantages of DC microgrids [46,47,48]. However, some disadvantages include inconsistent AC load proportional to the number of AC loads and large voltage drop in the absence of a reactive power source, especially for large systems [38], [49,50,51,52,53].

2.2.3. Hybrid Microgrids (HMGs)

HMGs are achieved by integrating ACMG and DCMG on the same distribution network. In HMG, AC, and DC elements are separately integrated into their respective sections, therefore grid harmonization is not required for the energy generation and storage components. Since AC and DC elements are separately integrated into their respective sections in HMG, grid harmonization is not required for the energy generation and storage segment [54,55,56]. Combining the advantages of ACMG and DCMG, HMG enhances the network’s reliability and efficiency and enables easy integration of different RESs and ESSs into the existing distribution network [28, 57, 58]. HMG reduces the number of energy conversion processes and thus reduces power loss [59, 60]. However, the high cost of complex storage and control systems poses challenges for the microgrid. Furthermore, MGs may be grouped according to their usage into utility, institutional, commercial, industrial, and transport microgrids [11, 61].

2.3. Microgrid Mode of Operations

Microgrids can operate in both stand-alone and grid-connected modes [13], [62,63,64].

2.3.1. Grid-Connected Modes

The microgrid is connected to the grid through a common point coupling (PCC). Depending on the amount of power generated and customers’ demand, excess power generated can be shared with the utility grid through PCC [18, 65]. Distribution network feeders must be adequately equipped for this purpose.

2.3.2. Stand-alone Mode of operation

This is a situation where MGs operate autonomously with connected loads when detached from the main utility power network. Microgrids can be intentionally or unintentionally disengaged from the utility network to operate independently. In this condition, MG supplies electricity to the connected loads through the micro-sources. The intentional disconnection of microgrids is predefined and follows a predefined process, while unintentional islanding can be a result of unwanted situations such as faults on the grid. During this time, the microgrid can automatically switch from grid-tied to stand-alone mode through a protective device. In autonomous operation, differences in the generated power and load demand cause voltage and frequency fluctuations in the network. In renewable energy-based MG, the output power of each micro-source must be effectively coordinated to enhance the stability of the system. Microgrids must be adequately equipped with monitoring systems for a smooth transition from stand-alone to grid-connection mode to obtain voltage-frequency information on the utility grid [42, 66 -68]. Maintaining constant voltage-frequency amplitude and sustaining power balance in MG are the main challenges of islanding mode in microgrids.

2.4. Technical Benefits and Challenges of Microgrids

This section discusses the general overview of the technical benefits and challenges of microgrids.

2.4.1. MGs Technical Benefits

Some of the technical advantages of MGs as presented by different researchers are reviewed in this section. The technical benefits are presented in Table 1 [20], [69,70,71,72,73,74].

2.4.2. Technical challenges of microgrids

• Microgrid stability

Microgrids in grid-tide mode affect the microgrid's stability due to power-sharing support for the network's instantaneous balance. Renewable energy-based MG in stand-alone with flexible loads causes grid instability. The microgrid transition from grid-connected to stand-alone leads to power imbalance and voltage variation. A stand-alone microgrid requires a reliable energy management system with storage, efficient control systems, and management to maintain stable operation. The ability to compensate for reactive power and fault voltage ride-through capability is required in stand-alone mode to ensure voltage stability [2, 75, 76].

• Microgrid control

MG depends on energy storage devices to maintain an efficient energy balance between generating sources and connected loads. An accurate charge and discharge control system is essential for the microgrid to operate efficiently. The choice of microgrid management systems such as centralized control, distributed control, decentralized control, or coordinated control are challenges facing microgrid systems [25], [77,78,79]. A synchronized control system is pivotal for the microgrid's security and unfaltering working. The control frameworks can be centralized or decentralized and may be actualized with or without a communication interface [33, [80, 81].

• Harmonics

The major cause of harmonics in a microgrid system is the high-power conditioning units (PCUs) involved in the conversion system of renewable energy-based microgrids. It can have various effects on the system's reliability and stability and pose a threat to the effectiveness and safety of the ESSs [82, 83]. Different filtering systems are used to reduce the impacts of harmonics on the grid [84]. In DC microgrids, the heat created by capacitor charging and discharging worsens harmonics. Therefore, the effectiveness of ESS is jeopardized because of its sensitivity to harmonics. Microgrid optimization in autonomous and grid-tide scenarios is critical for system reliability [85].

• Microgrid protection issues

Advanced protection techniques are required for the electrical grid and MG's power-sharing to function properly. Additionally, the MG protection system must respond quickly to isolate the system to safeguard the grid components during a power failure and guarantee continuous power delivery to the loads [38], [86-88].

• Power quality

Power quality is one of the elements to be managed in a grid-tied microgrid. The measurement, investigation, and enhancement of the bus voltage to maintain a sine waveform at the rated voltage and frequency constitute power quality [2]. The significant increase in the use of power electronics-based switching devices and the presence of nonlinear loads on the grid cause power quality problems in distribution networks. Furthermore, the variation in some RESs impacted the quality of microgrid power. In both islanding and grid-connected modes, unconventional control approaches are used to counteract the negative impacts of intermittent renewable energy-based microgrids [89, 90].

3. System under investigation

MATLAB/Simulink software was used to simulate the utility grid and microgrid that make up the system under study. The MG is coupled to the utility grid at a low-voltage distribution network (0.415 kV) via PCC. The microgrid will be operated in both grid-connected and stand-alone modes to allow for effective system performance analysis. The utility grid and microgrid system operate at 50 Hz. The complete one-line diagram of the proposed and simulated network for the investigation is shown in Figure 10.

3.1. Utility Grid

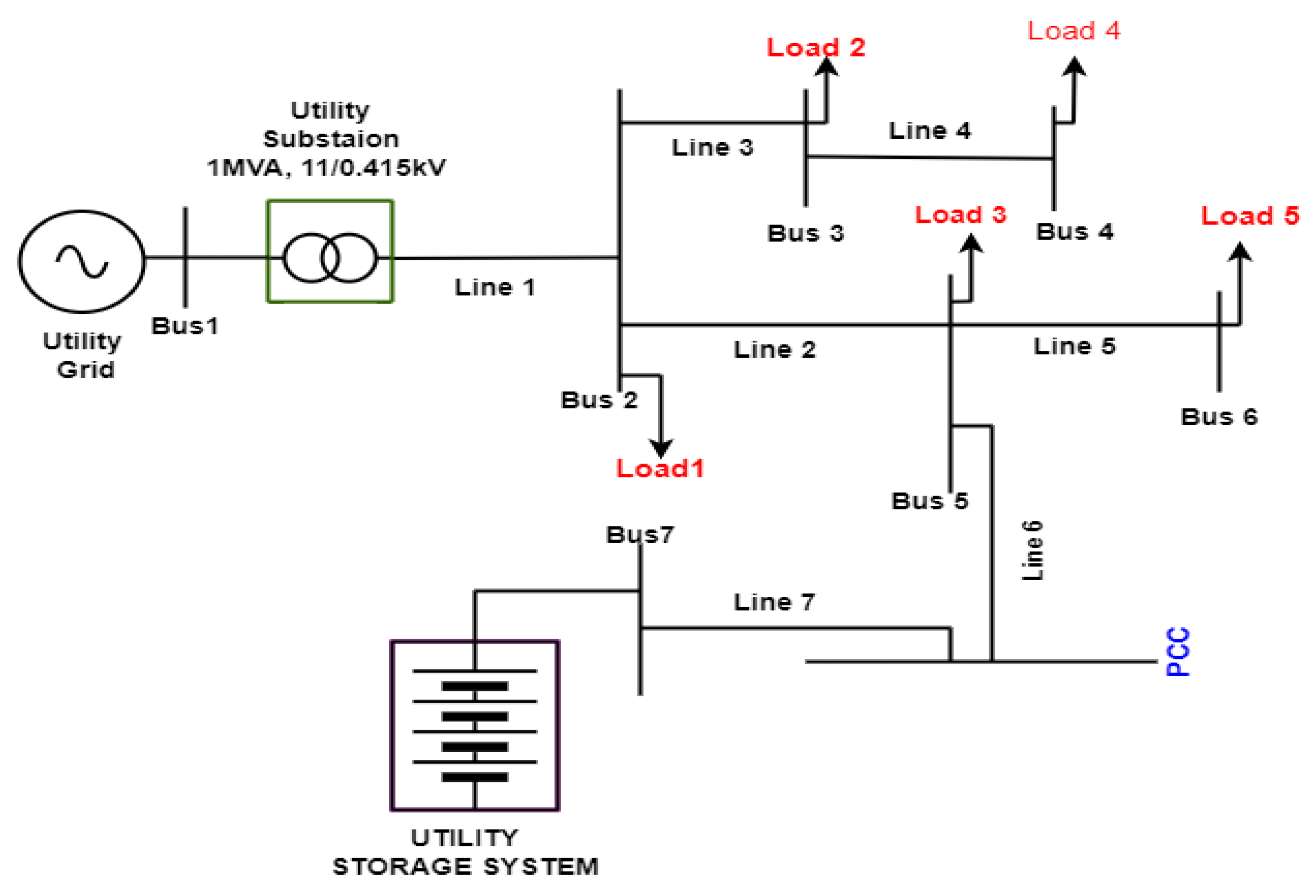

The utility grid consists of a utility substation, 6 buses, and 5 loads. The utility substation is a step-down transformer with a capacity rating of 1MVA, 11/0.415 kV. In addition, the system comprises a backup power storage at the point of PCC which supports the grid and microgrid during power shortages and disturbances on the grid. The storage at PCC is referred to as utility storage in this paper. The loads are scattered across the 5 buses on the network. The total active power on the utility grid is 185 kW, while the reactive power is 151 KVar. Figure 2 depicts the utility grid under investigation's one-line diagram, and Table 2 lists the grid's loads and line parameters.

3.2. Microgrid under study

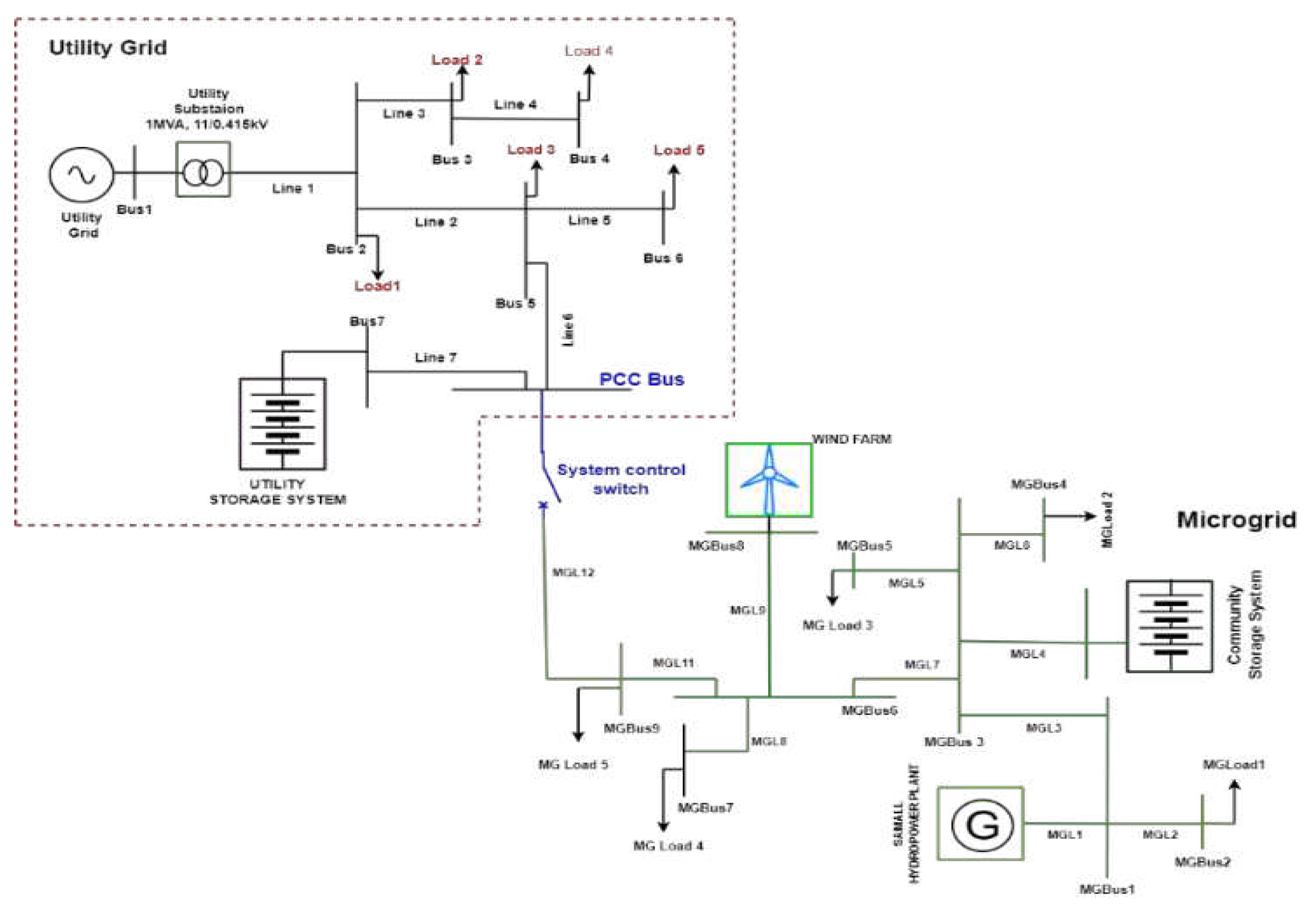

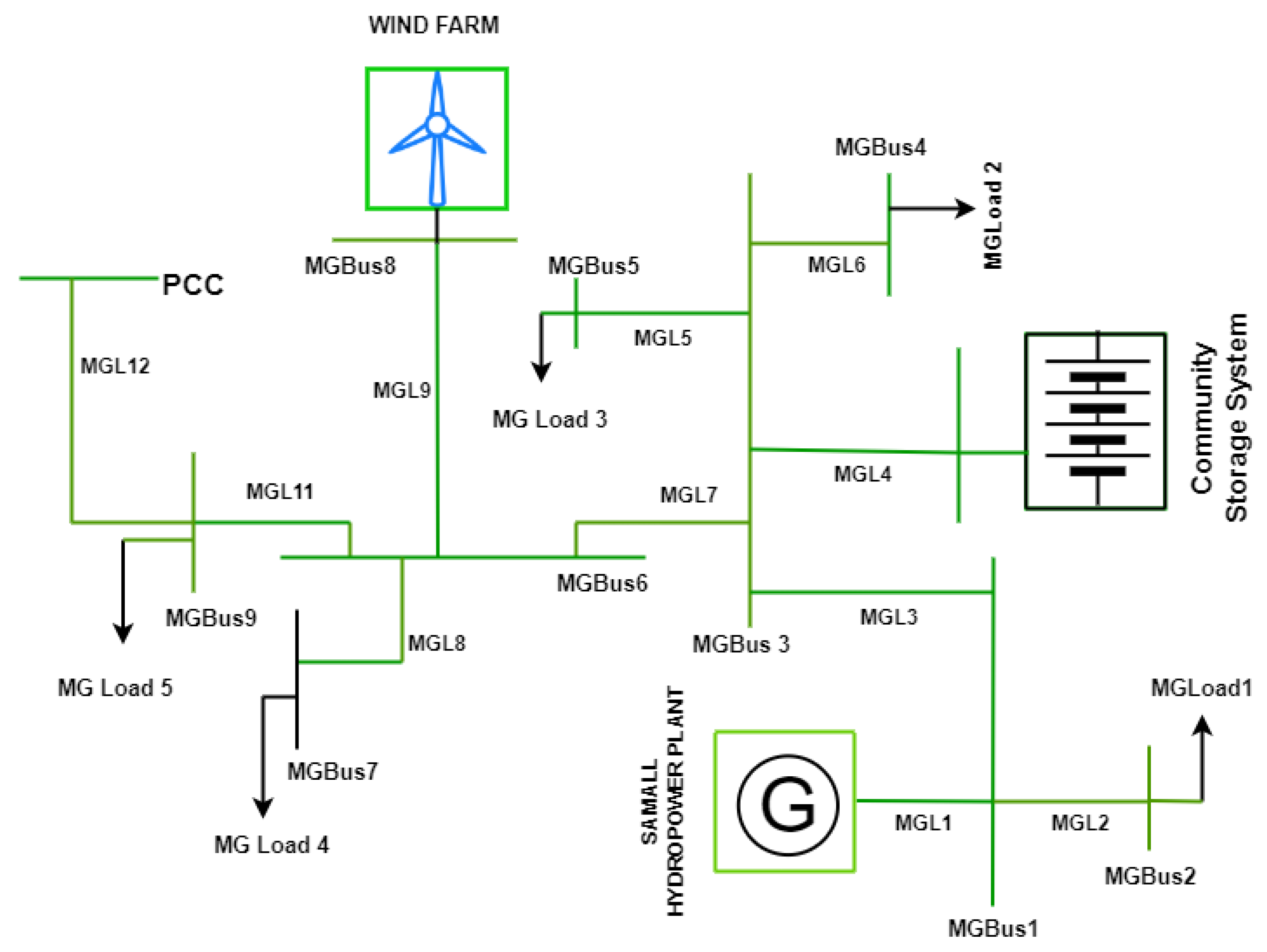

Figure 3 shows a one-line design of the microgrid architecture under investigation, while Figure 10 illustrates how the MG under study is connected to the electric distribution grid using a circuit breaker at PCC. The circuit breaker regulates all system functions, including the switching of the MG from on-grid to self-operating modes. The microgrid comprises a wind farm, small hydropower plants, and an energy storage system (ESS) interconnected to electrical loads. In this paper, it is presumed that each load represents different streets in the community.

4. Microgrid Components Modelling and Control

4.1. Wind energy conversion system modeling and Wind farm Layout

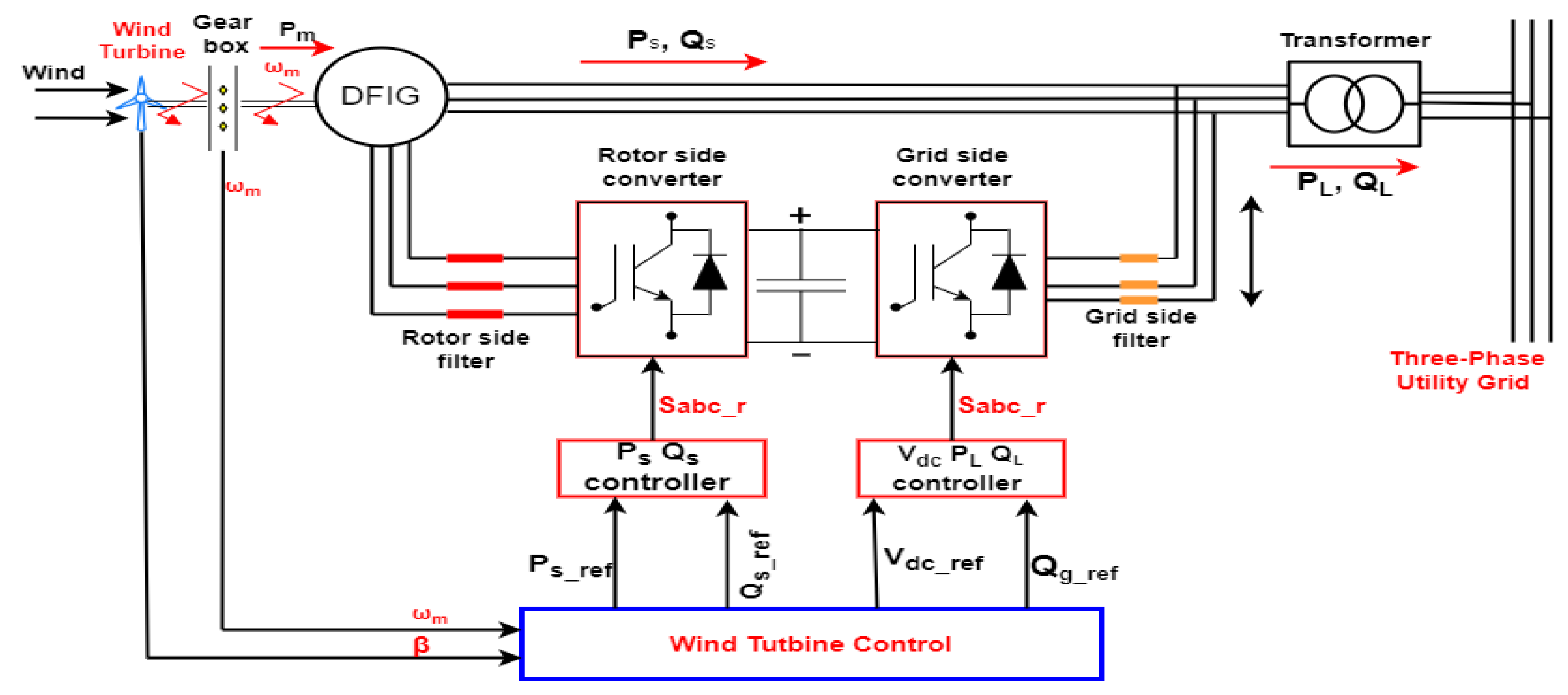

A wind turbine (WT), a doubly fed inductor generator (DFIG), rotor-side converters, and grid-side converters constitute the wind energy conversion system. While the rotor windings are linked to the prime mover via back-to-back converters, the stator windings are attached to the grid directly. The converter at the rotor side regulates the power (active and reactive) at the grid output; the DC link and grid voltages are controlled by the network-side converter. Wind power is transformed from mechanical power to electrical energy, which is then connected to the utility system. The wind farm is made up of six similar wind turbines (WTs) integrated into a distribution network via 0.415 kV. To reduce mechanical stress on the turbine during gusts, the wind speed must be regulated; DFIG extricates maximum power at a reduced wind speed [38], [91,92,93]. Figure 4 shows the one-line schematic diagram of the wind power conversion system, while Figure 5 depicts the association between turbine output and speed.

The interaction of the rotor and wind velocity determines the extricated power of the wind turbine. The power generated from the wind turbine is given in Equation 1.

$$P_w=0.5\rho \pi r^2{C}_p\left(\lambda ,\theta \right)V^3$$

(1)

where $P_w$ is the generated power by the wind, the air density is $\rho \left(kg/m^3\right)$, the turbine blade radius is $r$, wind speed is $V\left(m/s\right)$, $C_p$ is the wind turbine power coefficient. The tip-speed ratio $\lambda$ is given in Equation (2) [94, 95]:

$$\lambda =\frac{r\omega }{V}$$

(2)

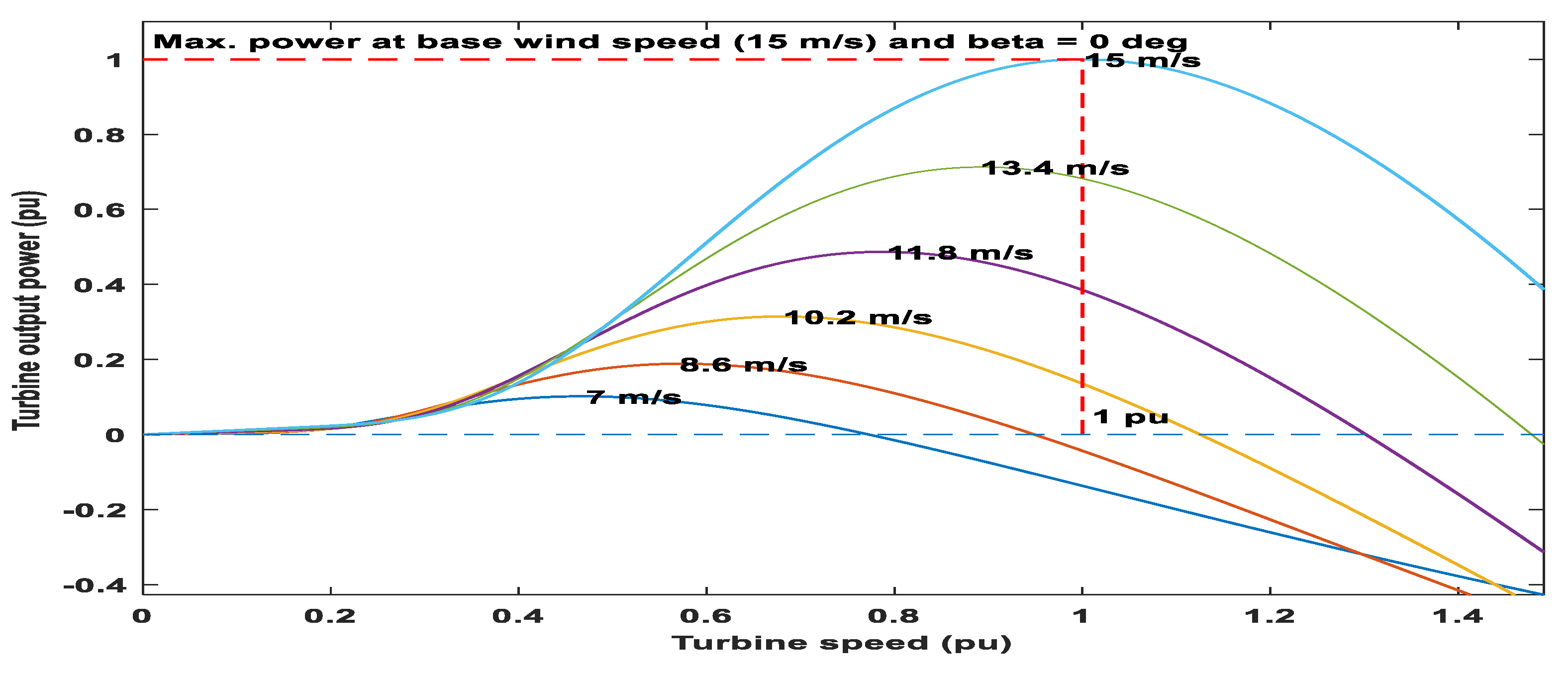

$\omega \left(rad/s\right)$ is the angular velocity, and the air velocity on the rotor is $V$. Using equations (1) and (2), the wind turbine's maximum output power is specified in Equation (3):

$${\mathrm{P}}_{\mathrm{w},\mathrm{m}\mathrm{a}\mathrm{x}}={\mathrm{K}}_{\mathrm{o}\mathrm{p}\mathrm{t}}{\mathsf{\omega }}_{\mathrm{t},\mathrm{o}\mathrm{p}\mathrm{t}}^3$$

(3)

where $K_{opt}$ and ${\omega }_{t,opt}$ is given in Equation (4) and (5):

$$K_{opt}=0.5\rho \pi r^2{C}_{p,max}{\left(\frac{r}{{\lambda }_{opt}}\right)}^3$$

(4)

$${\omega }_{t,opt}=\frac{{\lambda }_{opt}{V}_w}{r}$$

(5)

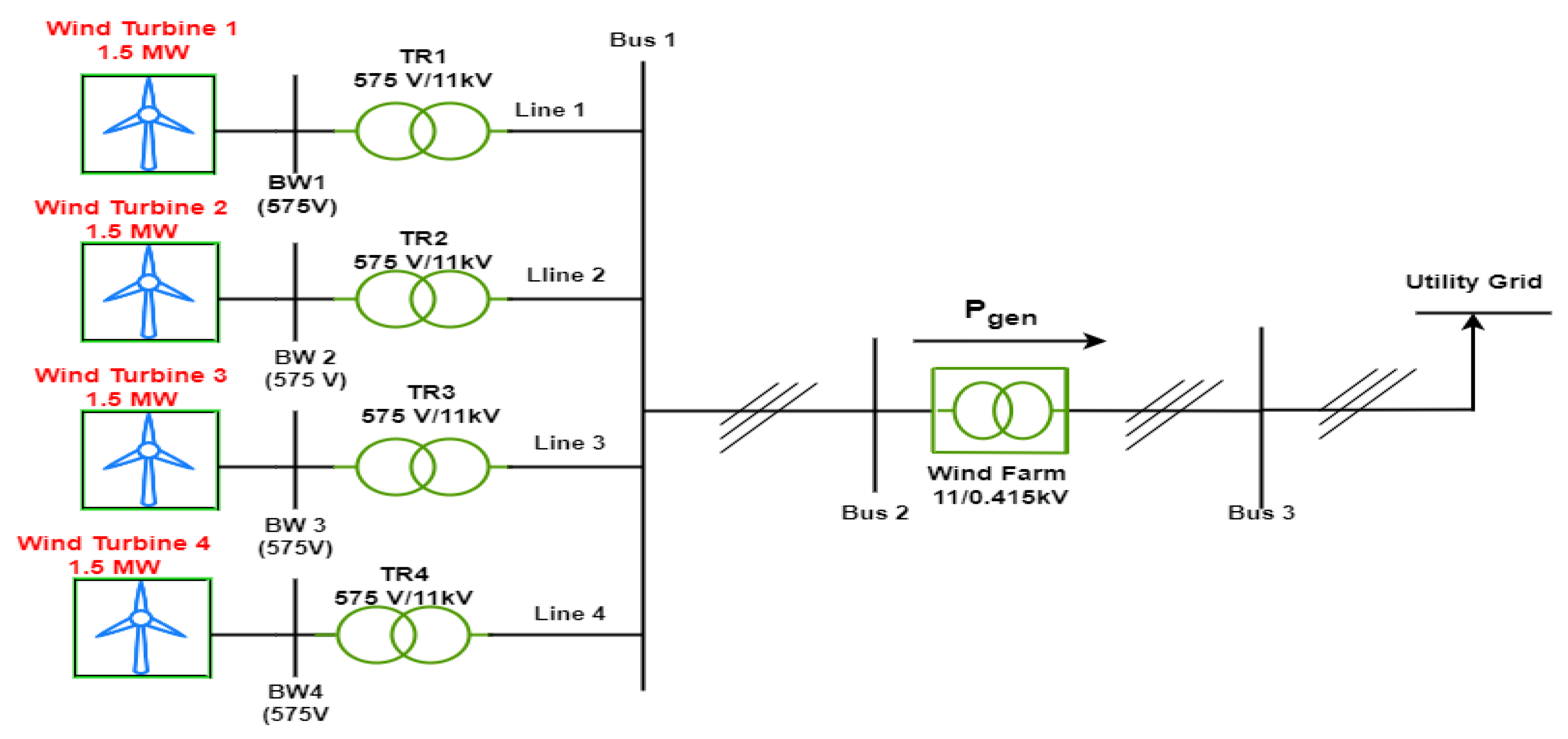

A wind farm is an assembly of installed WT that generates electricity within a certain geographic location. Its size varies from a few turbines to hundreds of turbines distributed across a wide area. Wind farms can be onshore or offshore; however, this study focuses on onshore wind farms. The wind farm under investigation consists of four equal wind turbines with power ratings of 1.5 MW each, adding up to 6 MW; coupled to a low-voltage distribution network. Figure 6 depicts a one-line representation of the wind farm architecture, while Table 3 summarizes the wind turbine and wind farm parameters.

4.2. Small hydropower plant

The small hydroelectric power plant is considered as a source of renewable energy because it requires a significantly small amount of water to operate and its harmful impacts on the environment are minimal compared to large hydropower plants [96, 97]. Small hydroelectricity, in most cases, does not require dams or water storage. It is a cost-effective source of energy to consider for developing countries [96, 98]. The main electrical and mechanical components of a small hydroelectric plant are the water turbine and the generator(s) [99, 100]. Synchronous and asynchronous generators are two types of generators commonly used in technology. Synchronous generators can work independently, while asynchronous generators work together with other generators. Synchronous generators are used in small, stand-alone hydroelectric applications. A hydraulic turbine consists of a pressure hose, tunnel, servo motor, turbine, and pressure reducer. Figure 7 depicts a modest hydropower system with a permanent magnet synchronous generator (PMSG) and a power conditioning unit [101].

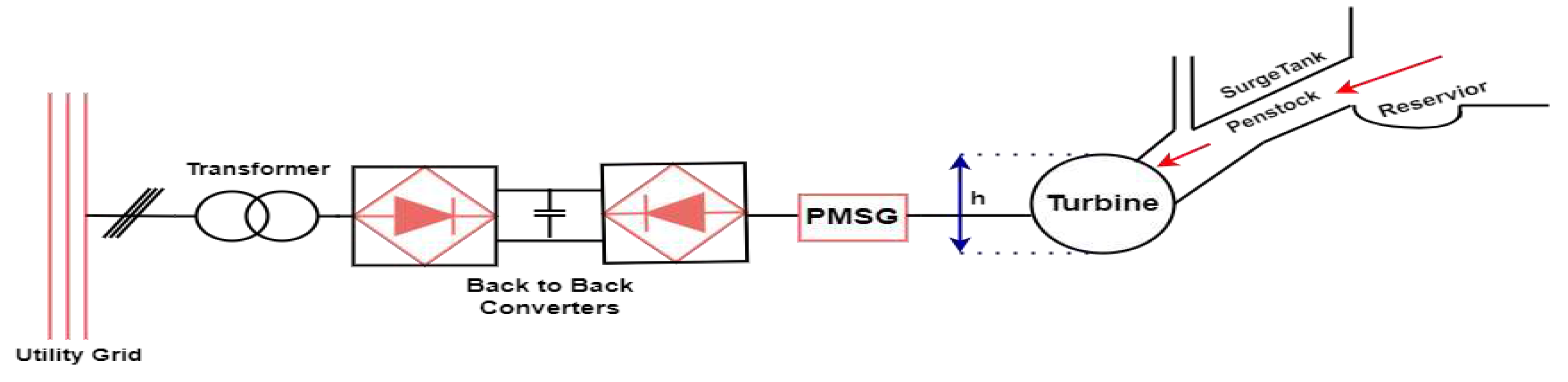

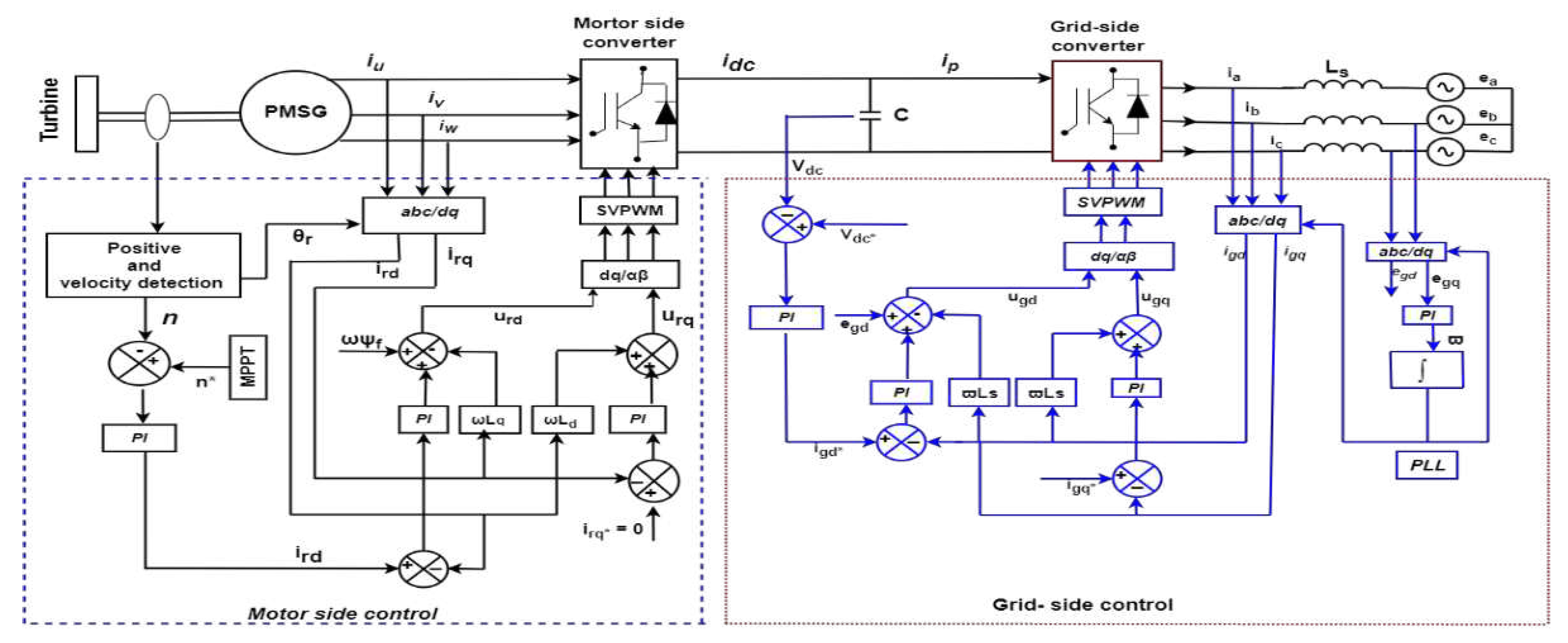

The small hydropower plant regulatory system is shown in Figure 8. The main components are a hydraulic turbine, PMSG, and a back-to-back converter with pulse width modulation (PWM). The control system is grouped into motor and grid sides. Voltage-current dual closed-loop control systems are used to control the grid side. The direct current voltage of the back-to-back converter is regulated by a voltage loop system, while both active and reactive powers are coordinated by the current loop. The voltage controller determines the value of the active component for the current$(i_{gd}^{*}$) based on the discrepancy between the real voltage ($V_{dc}$) and reference ($V_{dc}^{*}$) voltages. The power factor specification is used to adjust the reference value of the reactive current. Similarly, the difference between the reference current value and the actual value is used by the current controller, and the voltage reference value is required with the feedforward compensation. The converter switches are driven by a pulse signal generated by the Space Vector Pulse Width Modulation (SVPWM), allowing the converter output current to follow the DC bus power variation in real time, thus enhancing the management of energy production associated with the network [102]. On the generator side, a double closed-loop speed and current control approach are used, taking the velocity of the hydraulic turbine as the controller. The control algorithm that tracks the output power of the hydro-turbine is determined by the target speed of the generator. The difference between the desired and real speed (n*) is fed into the speed’s supervisory system, and the output is the reference value of the torque current component${(i}_{rd}^{*}$). The reference value of the excitation current component is set to 0. The variation in the reference values${(i}_{rd}^{*}$,$i_{rq}^{*}$) and the actual value ($i_{rd}$,$i_{rq}$) is transmitted to the current regulator, thus the voltage reference value$(u_{rd}^{*}$,$u_{rq}^{*}$) and the feedforward correction is acquired. To synchronize the output current and power variation in real-time and enable energy conversion and transmission, the SVPWM generates a signal that energizes the converter. The pulse modulation of the motor and grid-side converters using the SVPWM algorithm increases the DC voltage usage rate, reduces losses, and increases the effectiveness of the system [102, 103].

In the synchronous rotation coordinate system, the equation for the voltage on the grid-side converter component is given as:

$$\left[\begin{array}{c}{u}_{gd}\\ u_{gq}\end{array}\right]=\left[\begin{array}{cc}{R}_s+p{L}_s& -{\omega }_e{L}_s\\ {\omega }_e{L}_s& R_s+p{L}_s\end{array}\right]\left[\begin{array}{c}{i}_{gd}\\ i_{gq}\end{array}\right]+\left[\begin{array}{c}{e}_{gd}\\ e_{gq}\end{array}\right]$$

(6)

The output voltage vectors ($u_s$,) are $u_{gd}$,$u_{gq}$,$u_{gd}$, the current vectors ($i_s$) are given as $i_{gd}$, $i_{gq}$and the grid voltage vector components of the dq-axis of the converter are $e_{gq}$ and$e_{gd}$. The grid-side inductance and resistance are $L_s$ and $R_s$, ${\omega }_e$ is the angular frequency. To increase the efficacy of the control system, the internal current loop of the grid-side converter implements PI with feedforward decoupling control method in the on-grid [104]. The reference values $u_{gd}$, and $u_{gq}$ of grid-connected voltage are produced by inserting the feedforward components of current $i_{gd}$,, and $i_{gq}$ to compensate $u_{gd}$, and $u_{gq}$ from equation 6, we have equation 7.

$$\left[\begin{array}{c}{u}_{gd}^{\mathrm{*}}\\ u_{gq}^{\mathrm{*}}\end{array}\right]=\left(K_p+\frac{K_i}{S}\right)\left[\begin{array}{c}\left(i_{gd}^{\mathrm{*}}-i_{gd}\right)\\ \left(i_{gq}^{\mathrm{*}}-i_{gq}\right)\end{array}\right]+\left[\begin{array}{c}{-\omega }_e{L}_s{i}_{gq}+e_{gd}\\ {\omega }_e{L}_s{i}_{gd}+e_{gq}\end{array}\right]$$

(7)

where $K_p$ and $K_i$are the proportional integral (PI), and integral gain respectively. The grid voltage vector is expected to correlate with the d-axis of the dq coordinate to accomplish active-reactive power separation in a grid-connected regulator. The dq-axis components thus fulfill$e_{gd}=e$, and $e_{gq}=0$ respectively. The active power $\left(P\right)$ and reactive power $\left(Q\right)$ are:

$$P=\frac{3}{2}\left(i_{gd}{e}_{gd}+i_{gq}{e}_{gq}\right)=P=\frac{3}{2}{i}_{gd}e$$

(8)

$$Q=\frac{3}{2}\left(i_{gd}{e}_{gq}-i_{gq}{e}_{gd}\right)=-\frac{3}{2}{i}_{gq}e$$

(9)

The grid receives active power when P is positive, and inductive reactive power when Q is positive.

4.3. Electrical energy storage and Bi-directional converter

Batteries, supercapacitors, compressed air, superconducting magnetic, and flywheels are all forms of energy storage. However, battery energy storage systems (BESS) are used for the investigation in this paper. The storage systems are coupled to the grids using a bidirectional DC-DC converter. The configuration ensures the charging and discharging of the ESSs. The structure of the bidirectional system with the control is shown in Figure 9. The converter's ability to operate in both directions is provided by switches S1 and S2, which are triggered by additional signals from the controller. The operation of switch S1 is for charging when it brings $V_{dc}$ on the right side down to $V_b$, while the operation of switch S2 is for discharging, which operates during boost mode [105,106].

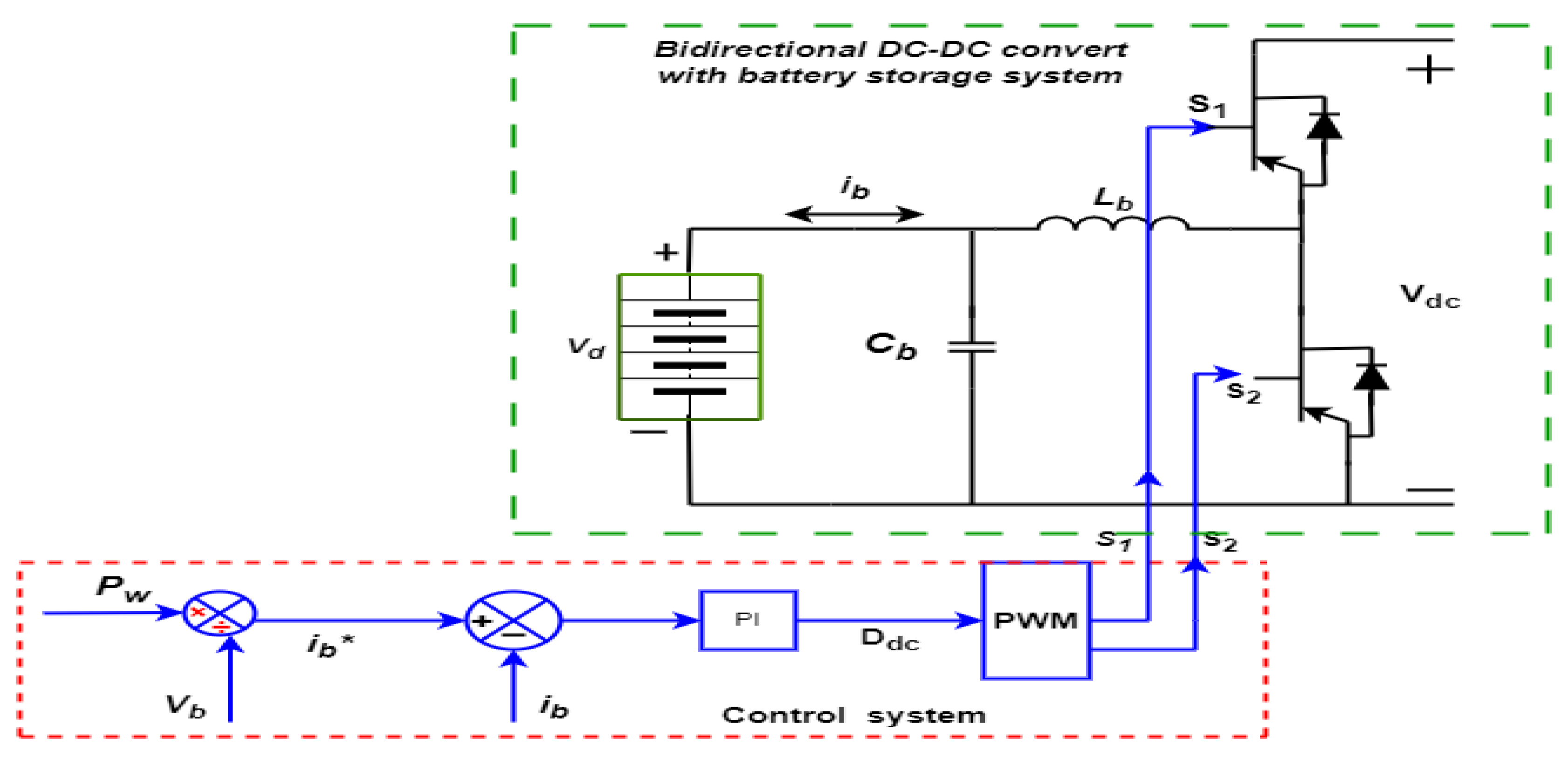

From the above Figure, the inductor$L_b$ and capacitor $C_b$ are given in equations 10:

$$L_b=\frac{V_{dc}-V_b}{2∆i_L{f}_s}{D}_1=\frac{V_b}{2∆i_L{f}_s}{D}_2\mathrm{and}{C}_b=\frac{∆i_L}{8∆V_C{f}_s}$$

(10)

where $V_{dc}$ is the DC-link voltage, $V_d$ is the battery nominal voltage, inductance ripple current is $∆i_L$, and $f_s$ is the switching frequency. Buck and boost converters duty ratio are given in equations 11 and 12 respectively.

$$D_1=\frac{V_b}{V_{dc}}$$

(11)

$$D_2=1-\left(\frac{V_b}{V_{dc}}\right)$$

(12)

The PI control block is cascaded with the battery current loop to provide the $D_{dc}$ duty ratio. Switch S1 and S2 are operated by the PWM, which receives the duty ratio. The duty ratio is defined in Equation 13:

$$D_{dc}={(i}_{b^{\mathrm{*}}}-i_b)\left(K_p+\frac{K_i}{S}\right)$$

(13)

The battery reference current is given as $i_{b^{\mathrm{*}}}$, $P_w$ is the active power reference. The PI controller proportional and integral gains are $K_p$ and $K_i$. The battery state of charge (SOC) is given in Equation 14 [107, 108].

$$SOC=100\left(1+\frac{\int I_{bat}dt}{Q}\right)$$

(14)

The battery capacity is $Q$ and $I_{bat}$ is the battery current. The battery charging and discharging depend on the generated power and the energy restriction which are controlled by the SOC limit [107,108]. The charge and discharge equation are in Equation 15:

$$C\left(t+1\right)=C\left(t\right)-∆t{P}_t^e$$

(15)

$$\left|P_t^e\right|\le P_e^{Max}$$

$$C_{min}\le C\left(t\right)\le C_{Max}$$

(16)

$$C\left(0\right)=C_S$$

(17)

where $P_t^e$is out the power of the battery time, $P_e^{Max}$ is the maximum charge or discharge rate, total power at time

t is $C\left(t\right)$, $∆t$ is the time interval, $C_S$ stored energy, $C_{min}$ and $C_{Max}$ are the minimum and maximum stored energy.

4.4. Voltage Constraints

The designed system must work synchronously with the existing grid and maintain standard voltage limits. The integration RESs must be complied with the IEEE standards [109]. Equation 18 defines the allowable voltage fluctuation range for the designed system.

$$V_{min}\le V_n\left(t\right)\le V_{max}$$

(18)

where $V_n$ is the voltage at buses, $V_{min}$ is the lowest voltage threshold, and $V_{max}$ is the maximum allowable voltage. In this paper, the minimum and maximum voltage were set to 0.88pu and 1.1pu. Figure 10 depicts the full one-line diagram of the system under investigation.

5. Simulation results discussion

The paper aimed to assess the performance of the designed systems under various operating conditions. Some of the simulated instances for performance evaluation include stand-alone mode, grid-connected mode, and transition from one mode of operation to another. In each case, normal operation, fault occurrences, increase in power generation, increase in loading system, and sudden de-energized of RESs are some of the simulated and evaluated in each instance.

5.1. Stand-alone mode of operation

In this scenario, the utility grid is intentionally decoupled from the microgrid so that both networks supply power to the connected loads independently. In this mode, two cases were simulated and analyzed.

• Case1: Simulation of Normal operation

The system parameters were simulated without considering any disturbances on the utility and microgrid. The storage systems were set to charging modes. The simulation results are shown in Figure 11 (a)–(c).

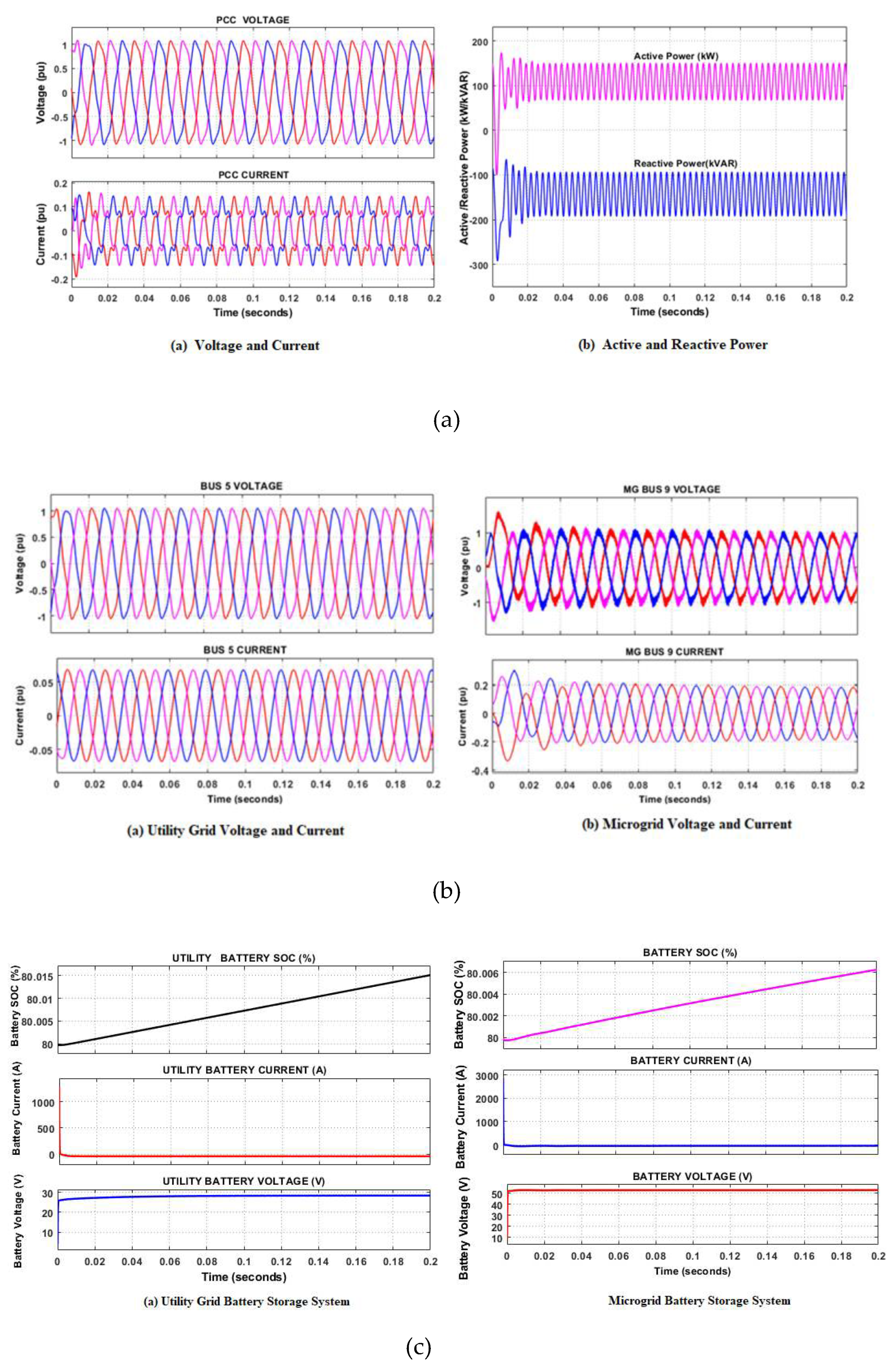

Figure 11 (a) shows the voltage, current, and power (active and reactive) measured at the PCC; Figure11 (b) shows the voltage and current measured at some selected buses from the main grid and MG, and Figure11 (c) shows the utility grid and community (microgrid) battery energy storage characteristics. As indicated in Section 4.4, the designed system must be operating within the acceptable minimal and maximal voltage ranges of 0.88 pu and 1.1 pu respectively. From Figure 11 (a) and (b), the systems complied with the maximum and minimum voltage ranges because there were no disturbances, such as faults or changes in the loading system, on the grids.

• Case 2: Simulation of fault scenarios.

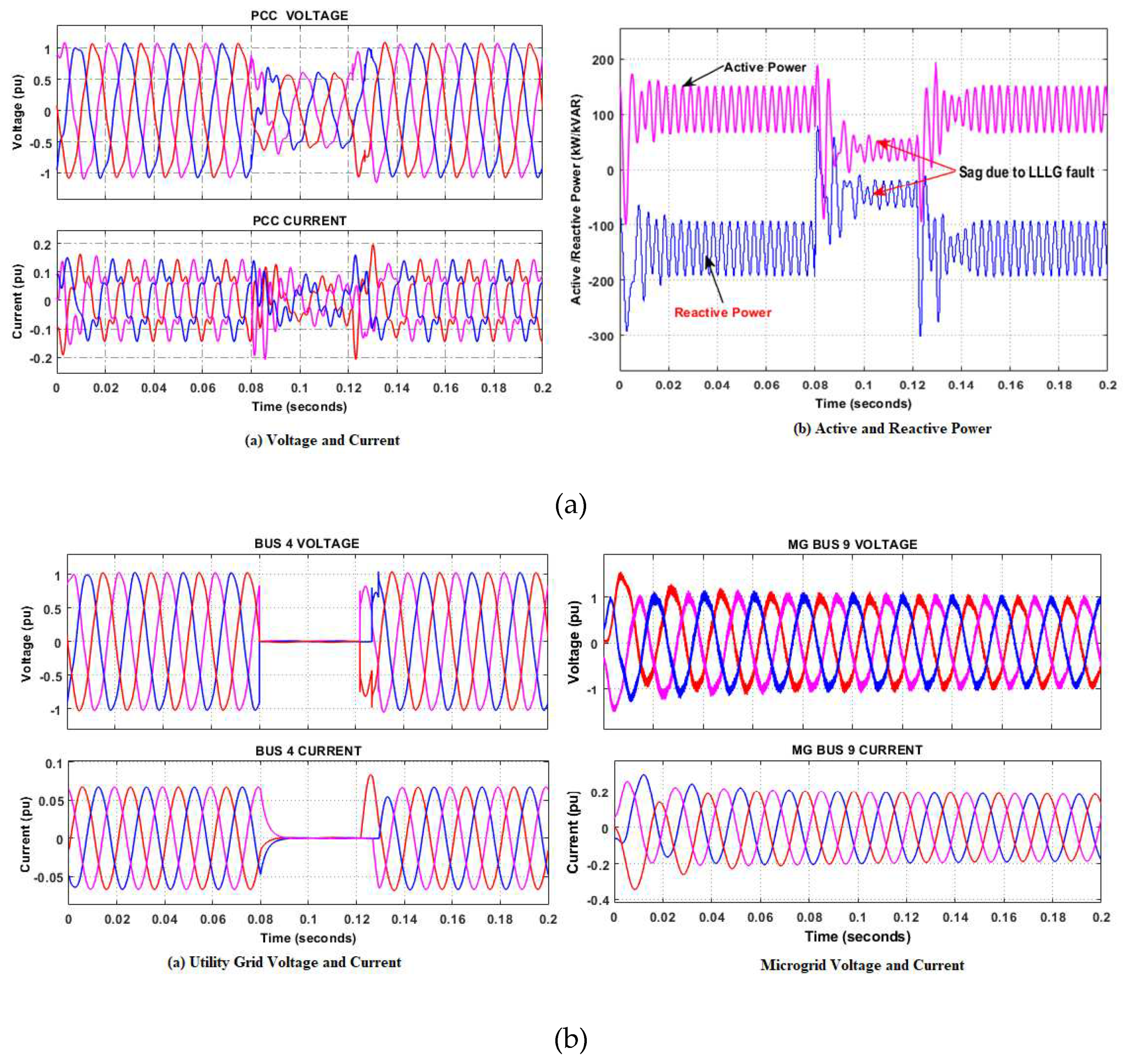

In this case, the system is subjected to a three-phase fault at line 4 between bus 3 and bus 4 on the utility grid side. Figure 12 (a–b) shows the response of the system at PCC and the selected buses on the utility grid and microgrid during the fault. According to the waveforms in Figure 12 (a-b), the fault affected only the utility grid for a period of 0.08 to 1.12 seconds and did not influence the microgrid side, as indicated in Figure (b) microgrid voltage and current.

5.2. Grid-connected mode

The system's grid-integrated simulation results are presented in this section. The case studies include faults, transitions from autonomous mode to grid-connected, increases in total generation on the microgrid, sudden disconnection of a micro-source, and changes in the loading system of the microgrid.

• Case 1 Fault occurrence on the grid

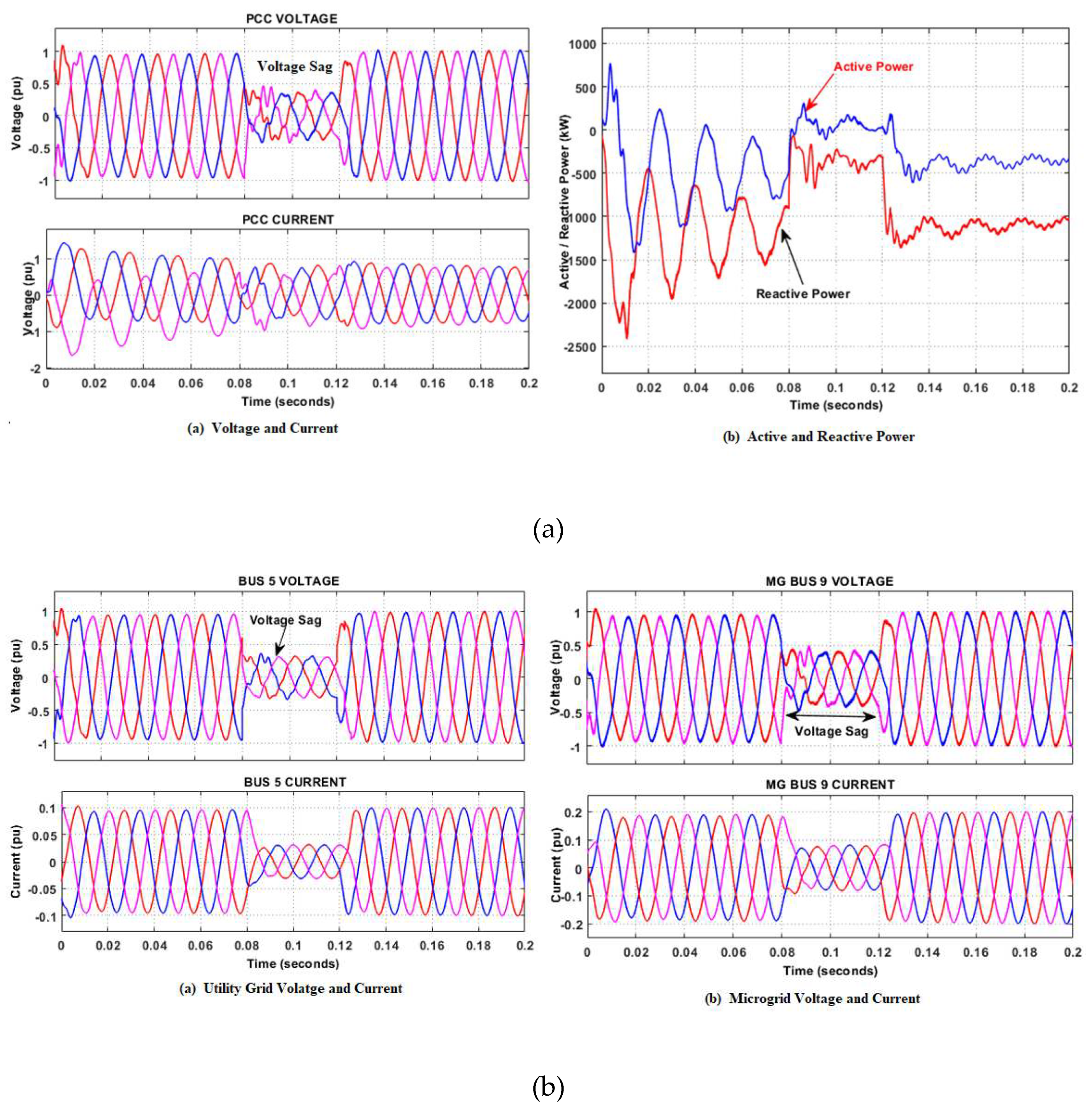

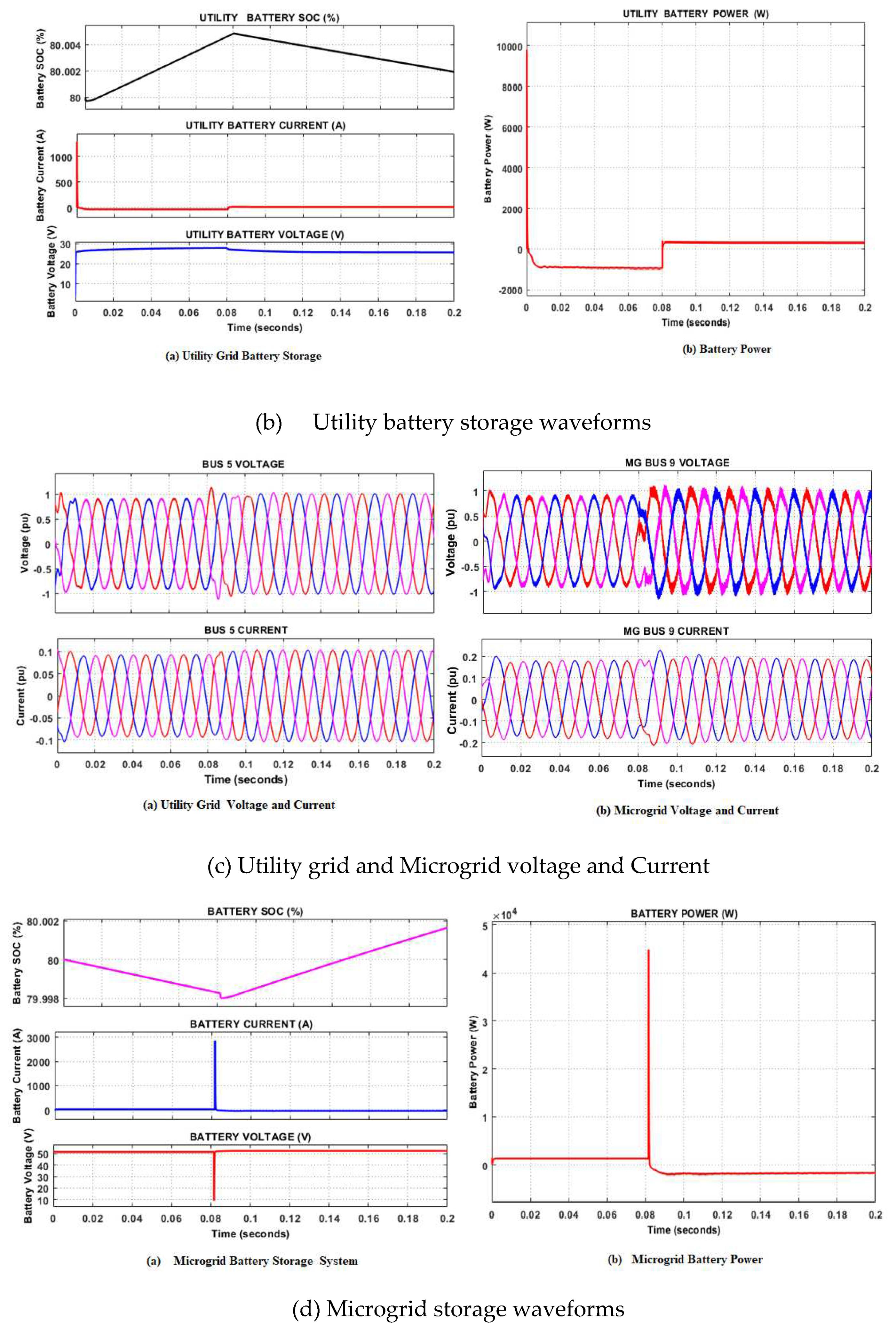

The system is exposed to a three-phase fault between Bus 5 and Bus 6 on the utility grid. Figure 13 (a–b) shows the performance of the system during the fault. The voltage, current, and power waveforms at PCC are shown in Figure 13 (a), while Figure 13 (b) shows the voltage and current waveforms on the utility and microgrid. The fault is set to occur within 0.08 seconds and 0.12 seconds on the system, and it was observed that the fault effect spread all over the utility grid and microgrid, as shown in Figure 13 (b).

Case 2: Transition from stand-alone to grid connected.

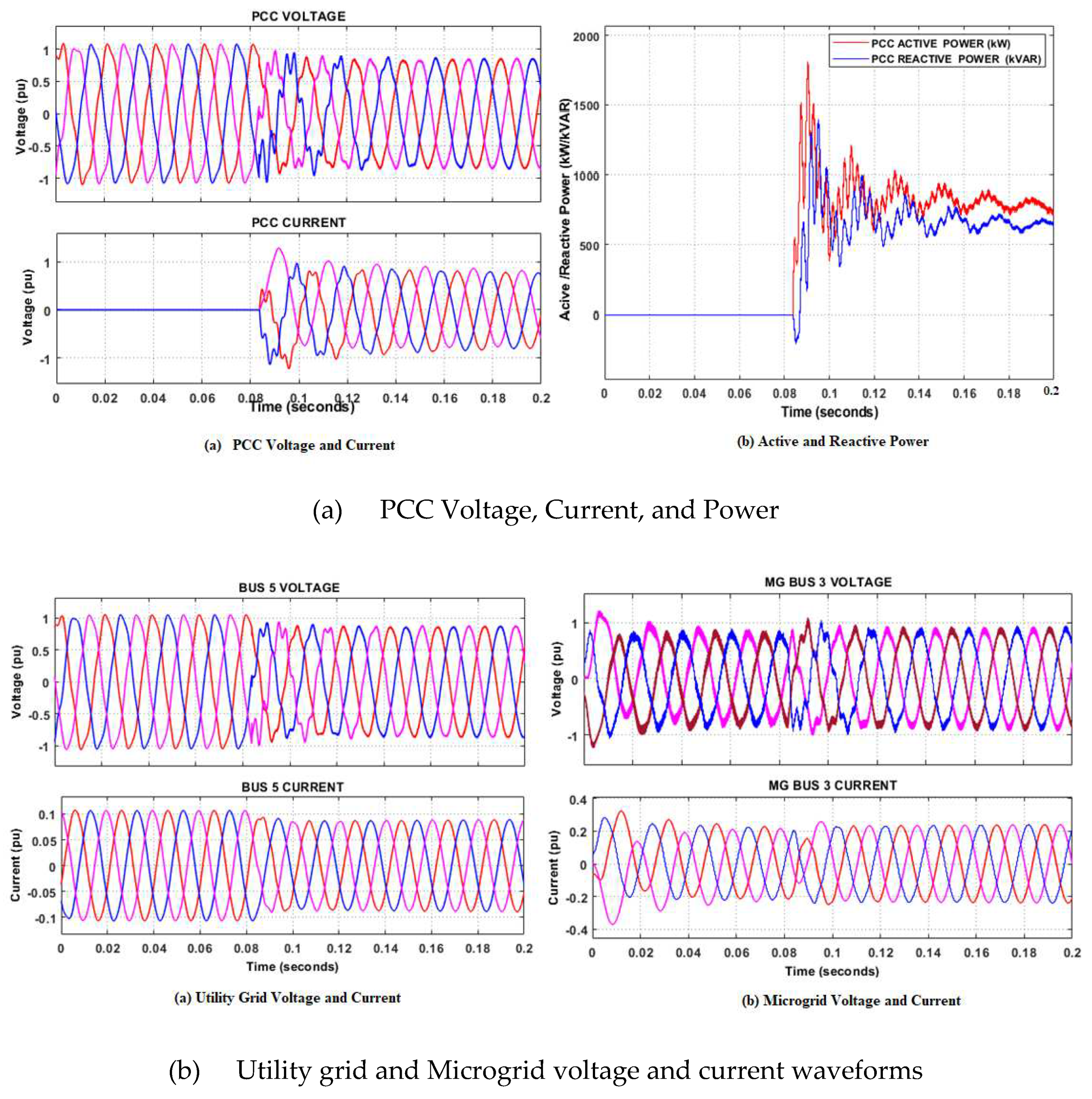

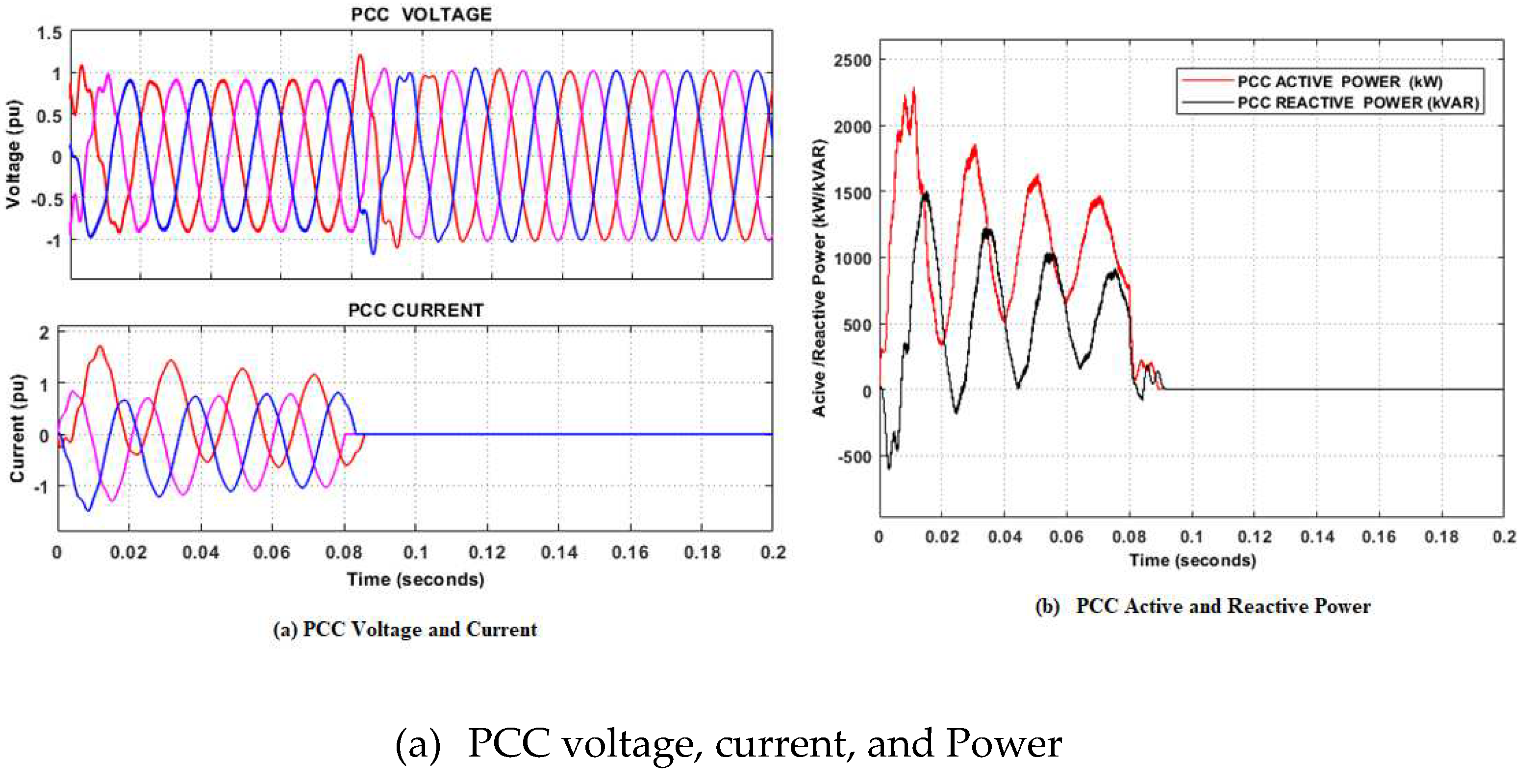

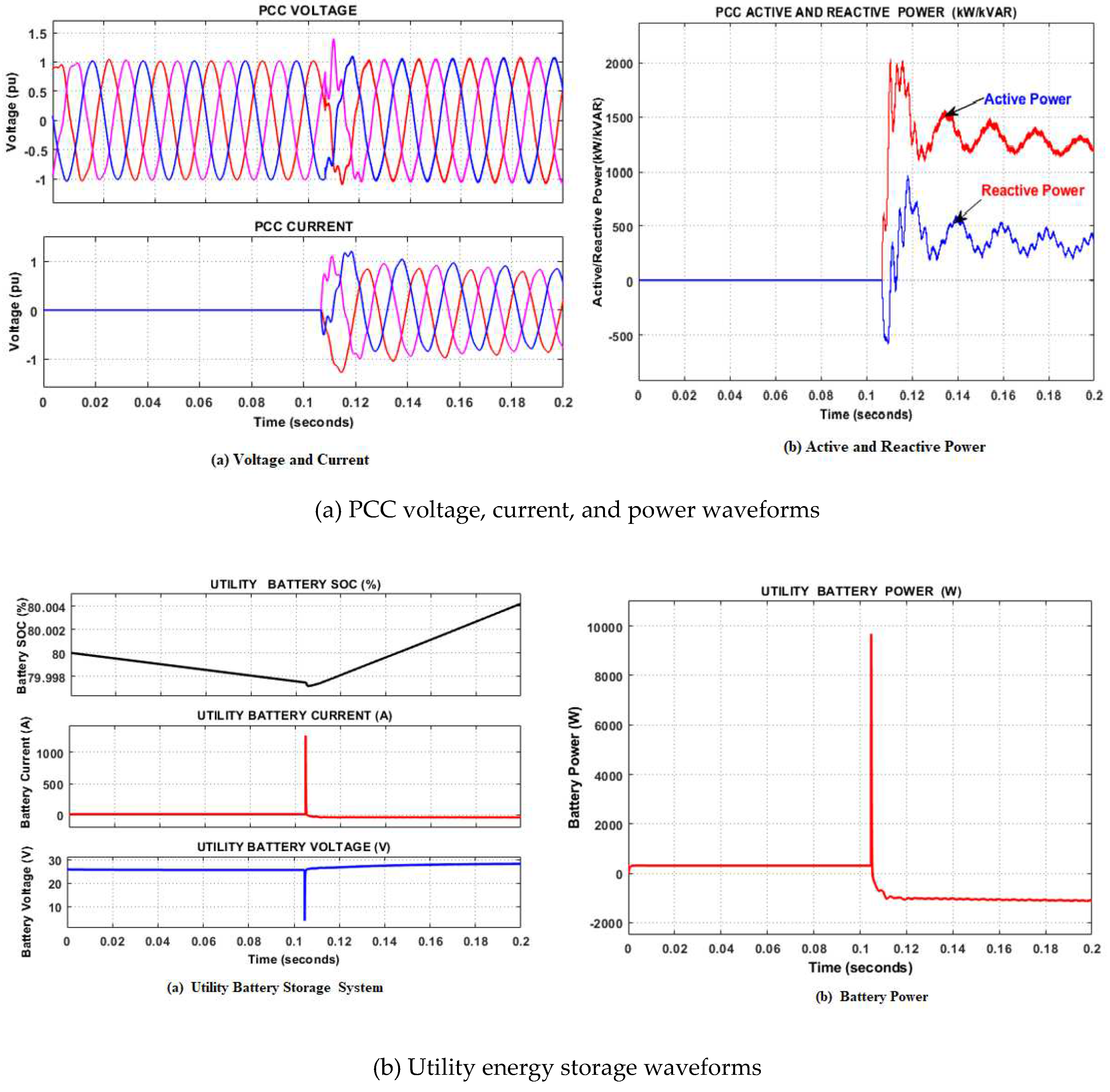

This section evaluates the grid performance during the transition from grid-connected to standalone. Figure 14 (a-c) shows the voltage-current waveforms from the utility grid, while Figure 14 (a-b) shows the microgrid performance during the transition mode of operation.

To ensure a smooth transition and ensure grid stability, storage systems were activated to support the grid. As can be observed in Figure 14(b), after a few seconds of transition, the utility grid storage system was engaged to deliver extra power to the MG. The upward movement of the SOC indicates the charging mode of the battery, while the downward movement indicates that the battery was discharging, delivering extra supply to the system. To avoid overvoltage on the microgrid side, the utility battery was switched to charging mode, as shown in Figure 14 (d). Figure 14(a) shows voltage, current, and powers at PCC during the transition from grid-connected to stand-alone mode of operation. At t = 0.08s, the shift from grid-connected to stand-alone mode was activated during this period, and there were occurrences of ripple on the entire system voltage before the system became stable again.

• Case 3: Increase in microgridgeneration.

In this case, the small hydropower plant source increases its power generation by 0.9 MW at 0.12 s for almost half a second, after which the storage systems are activated to provide support to the grid. Figure 15 (a–d) shows the system performance during an increase in microgeneration sources.

For a period of 0.1 s, the microgrid experienced overvoltage before the storage system was activated, as seen in Figure 15 (c). Figure 15(a) is the PCC voltage, current, and power during an increase in microgrid generation. Figure 15(a) depicts the PCC voltage, current, and power experience during the activation of the storage system for storing the excess power. The active and reactive power increased before the system storage was activated, and the microgrid system also switched to grid-connected mode. To ensure system stability during the increase in power generation, energy storage system switches were energized to charging mode to store the excess power generated, as shown in Figure 15 (b and d).

• Case 4: Change in system loading

The scenarios of increases and decreases in microgrid system loading are discussed and analyzed in this section. Figure 16(a-b) shows the performance of the system during an increase in the microgrid loading system, while Figure 17(a-d) shows the operation of the system during a reduction in system loading.

Figure 16(a) shows the voltage, current, and powers at PCC from 0s to 0.08s, while Figure 16(b) shows the utility grid and microgrid voltage and current. During an increase in microgrid system load, there is a reduction in microgrid voltage and current during the increase in load from 0s to 0.8s; on the contrary, the utility grid maintains its normal voltage and current level during the period of 0s to 0.08s. At 0.08 s, energy storage systems were activated to discharge mode to provide support to the microgrid; during this period, the microgrid system adjusted itself back to normal voltage and current, as can be seen in Figure 16(b), nevertheless, the microgrid voltage experienced a little ripple. However, the utility grid suffers a reduction in voltage and current due to the transition from stand-alone mode to grid-connected mode; however, the voltage and current still operate within the acceptable range of 0.85 pu to 1.0 pu. Figure 17(a-b) shows the performance of the system during a reduction in the microgrid loading system.

As stated in Section 3.1, each load in the microgrid system represents a street in a community; thus, it is assumed that one street is suddenly out of service in the community supplied by the microgrid system. The response of the system to this situation is presented in this section. Figure 17 (b) shows that the microgrid maintain normal and acceptable voltage and current limit until 0.09 s when a street in the community was suddenly out of service for a period of 0.14 s when the storage systems were activated to ensure stability on the grid. However, the microgrid experienced overvoltage during the period when the street was out of service, as seen in Figure (b). As soon as the utility grid was activated and connected to the microgrid and energy storage systems were activated to charging mode to store the excess power, the microgrid system voltage and current were restored to their normal operation, as seen in Figure 8(b), from 0.14s to 0.2s.

• Case 4: Sudden de-energized of a micro-source

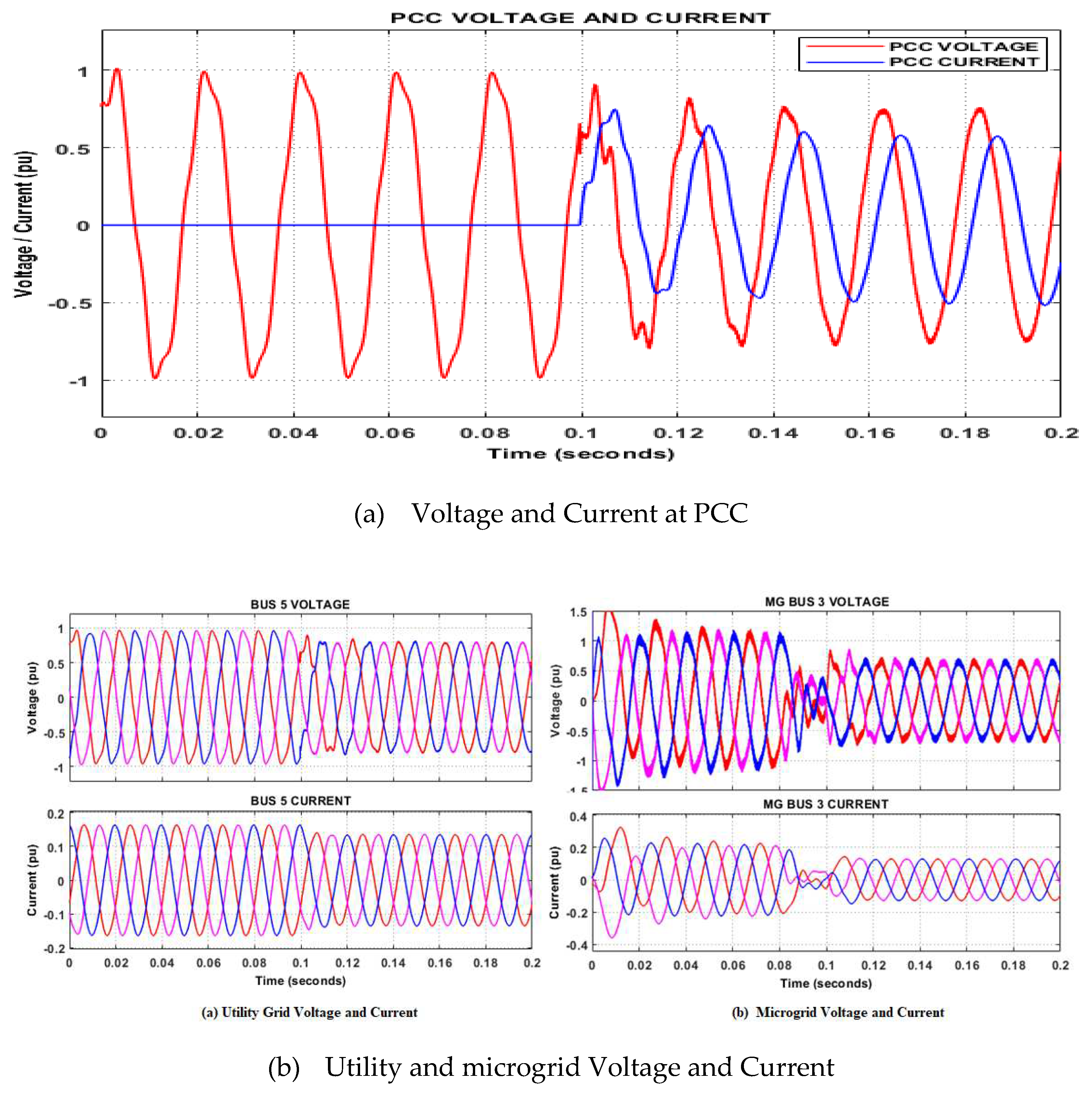

In this case, the small hydropower plant was suddenly out of service. Figure 18 (a–b) shows the system's response to the situation. Figure 18(a) shows single-phase voltage and current at the PCC. As can be seen, the system experiences a voltage and current reduction for a period of 0.1s when the micro-source is deactivated. Furthermore, Figure 18(b) shows the voltage and current, of the utility grid, the system experiences voltage and current reduction from the period of the micro-source deactivation. Also, the microgrid experiences voltage sag during the period of deactivation (0.08s to 0.1s). However, the microgrid was unable to restore to its normal operating condition even though the storage systems were active in charging mode, as shown in Figure 18(b).

1.

Overview of microgrid limitation

The inconsistency of power supply from diverse RESs, like solar and wind, poses a restriction to renewable energy-based MGs. It is also challenging to resynchronize and coordinate the microgrid with the utility grid when the fault on the grid has been cleared. Another limitation to the utilization of microgrids is the implementation of an effective protection mechanism. Furthermore, power quality issues are another limitation of microgrids [110].

Conclusion and Future Works

This paper presents a comprehensive review of MGs and evaluates the system performance when integrated into the low-voltage distribution network, considering different operating scenarios. The paper evaluates the system performance both in grid-connected and island modes of operation. Normal operation, fault analysis, an increase in the generating capacity of microgrids, an increase in system loading, and a sudden loss of energy sources from microgrids are some of the simulated and evaluated cases considered in the paper. In addition, the transition from grid-connected to stand-alone mode, as well as re-synchronization with the main grid, were validated. Finally, the limitations of microgrid implementation were reviewed. Power quality issues and grid synchronization and protection during the transition from the grid-connected mode to stand-alone modes are some of the challenges identified during the performance evaluation carried out in this paper. It was observed that the effects of the fault escalated throughout the system during fault analysis on either side of the system during grid-connected mode. Therefore, microgrid stability, prevention of power quality issues, and effective energy storage systems for grid stability at low-voltage distribution networks are some of the proposed topics for future work.
