Effects of Enrofloxacin and Ciprofloxacin on Growth and Toxin Production of Microcystis aeruginosa

1. Introduction

The global average annual consumption of antibiotics is about 2 million tons [1]. In China, the production and consumption of antibiotics rank among the top in the world, with an annual per capita consumption of 138 grams [2]. According to statistics in 2013, the annual consumption of antibiotics in China is 9 times that of the United States and 150 times that of the United Kingdom, reaching as high as 162,000 tons [3,4]. Over the past ten years, with the rapid development of aquaculture in China, the output of aquatic products in China has gradually ranked first in the world. The problem of frequent bacterial diseases of various aquatic animals (including fish and shrimps) that follow is also becoming more and more serious [5]. Therefore, antibiotics are also increasingly used for the prevention and treatment of bacterial infections in aquaculture. However, due to the metabolic rate of antibiotics in organisms of 20%-30%, most antibiotics taken cannot be fully metabolized by humans and animals, about 20.0%-97.0% are excreted in the form of active substances and enter the environment. Currently, more than 50 antibiotics have been detected in various water bodies [6]. The enrofloxacin (EF) and ciprofloxacin (CF) not only have a high detection rate of pollutants in water bodies, but also are the two most common and easiest to detect antibiotics in aquatic products [7]. In particular, the residues of EF in some aquatic products have exceeded the 50 μg/kg stipulated by the Food and Agriculture Organization of the United Nations/World Health Organization (FAO/WHO), with a detection rate of 46.9% and a maximum residue of 67 μg/kg [8,9,10,11].

As the primary producers of aquatic ecosystems, the diversity and primary production of algae species directly affect the community structure and function of aquatic ecosystems. At the same time, algae usually have low tolerance to pollutants and are more sensitive than crustaceans and fish in water bodies, algae have often several orders of magnitude higher sensitivity to pollutants than other aquatic organisms. Therefore, algae are ideal test organisms for new pollutants.

According to the survey of the United Nations Environment Program, 30% to 40% of the world's lakes and reservoirs are affected by eutrophication [12]. More than 80% of lakes and reservoirs in China are in eutrophication state [13]. The outbreak of cyanobacterial blooms will destroy biodiversity and ecosystem balance [14], leading to a serious decline in water quality and threats to drinking water sources [15]. It also releases algae toxins, which are harmful to human health. Microcystis aeruginosa is a common cyanbacteria species of water bloom, and in most eutrophic water bodies in China, M. aeruginosa dominates in both quantity and occurrence frequency [16]. Therefore, studying the toxic response of M. aeruginosa to quinolone antibiotics is of great significance.

For evaluating the ecological risks of quinolone antibiotics in water environment, two quinolone antibiotics (EF and CF), which are still widely used, were used as toxic substances to explore their effects on the population density and MCs production of M. aeruginosa in this study. So firstly we use index of semi-inhibitory effective concentration (EC₅₀) to compare the toxicity of the two quinolone antibiotics against M. aeruginosa. On this basis, the effects of long-term exposure to safe concentrations of the two quinolone antibiotics on the toxin production of M. aeruginosa were measured and explored. The aim of this study will be to provide reference data for the impact of quinolone antibiotics on non-target organisms in waterbody and their ecological risk assessment.

2. Materials and Methods

2.1. Test material

2.1.1. Algal species tested

Microcystis aeruginosa (No. FACHB-930) was purchased from the Freshwater Algae Species Bank of the Institute of Hydrobiology, Chinese Academy of Sciences. M. aeruginosa was used in this experiment after multi-generation domestication and cultivation in the laboratory.

2.1.2. Test drugs

EF injection (5% purity), was produced by Shanghai Veterinary Medicine Factory of Shanghai Tongren Pharmaceutical Co., Ltd. CF hydrochloride injection (5% purity), was produced by Jiangxi Heguang Pharmaceutical Co., Ltd. Drugs are ready-to-use and prepared, and a certain volume is added to the culture medium according to the required concentration.

2.2. Methods

2.2.1. Preparation of BG11 medium

(1) Stock1: Take 0.30 g, 0.30 g, and 0.05 g of citric acid (C₆H₈O₇), ferric ammonium citrate (C₆H₈FeNO₇), and disodium ethylene diamine tetra acetic acid (EDTA-Na₂) and dilute to 100 mL with ultrapure water; (2) Stock2: Take Sodium nitrate (NaNO₃), dipotassium hydrogen phosphate (K₂HPO₄), magnesium sulfate heptahydrate (MgSO₄·7H₂O) 2.00 g, 30.00 g, 0.78 g were adjusted to 1000 mL with ultrapure water; (3) Stock3: take calcium chloride (CaCl₂· 2H₂O) 1.90 g to 100 mL; (4) Stock4: Take 2.00 g of sodium carbonate (Na₂CO₃) to 100 mL; (5)Stock5: Take boric acid (H₃BO₃), manganese dichloride (MnCl₂ 4H₂O), cobalt nitrate hexahydrate (Co (NO₃)2·6H₂O), sodium molybdate (NaMoO₄·2H₂O), zinc sulfate heptahydrate (ZnSO₄·7H₂O), copper sulfate pentahydrate (CuSO₄·5H₂O) 2.86 g, 1.81 g, 0.04 g, 0.391 g, 0.222 g , 0.079 g respectively and dilute to 1000 mL.

Take 2 mL each of Stock1 and Stock3, take 1 mL each of Stock4 and 5, and take 20 mL of Stock2 and dilute to 1000 mL to prepare BG11 medium [17]. The test reagents were all analytically pure.

2.2.2. Culture of M. aeruginosa

Before culturing, the medium and containers used in the cultivating process need to be sterilized at high temperature(121°C) for 30 minutes. Then transfer the relevant experimental supplies to the aseptic operating table, wait for the culture medium to cool down and sterilize by ultraviolet light for 30 minutes. Then proceed to the follow-up operation. To ensure that under sterile conditions, the algae were cultured to the logarithmic growth phase in the BG11 culture medium, and further expanded the culture fluids.

The culture conditions are: day and night temperature 25-34°C, light-dark ratio 12 h:12 h, static culture under natural light. Manually shake 3 times a day at regular intervals to reduce algae cell adhesion. After the microscopic examination of the normal cells, the algae in the logarithmic growth phase were taken for the test [18].

2.2.3. Establish standard curve

The absorption peak, that is, the optical density value, is related to the composition and content of microalgae pigments. Judging from the absorption peaks of different algae, they are consistent. The absorption peaks between 670 and 680 nm are generally the absorption peaks of pigments in algae cells [19]. Based on the conditions and accuracy of the experiment, the algal cell density was calculated by establishing a standard curve between the absorbance value at 680 nm wavelength and the algal cell density [20]. The specific method is as follows:

(1) Measure 1, 3, 5, 10, 15, and 20 mL of algae liquid into 6 beakers with a graduated cylinder, add deionized water to make the volume to 25 mL, and obtain algae liquid with different densities. Take a small amount of algae liquid, and use a 0.1 mL phytoplankton counting box to accurately count the algal cells of the sample under a microscope. Each group of samples was counted three times and the average value was taken.

(2) Take samples of different concentrations to be tested. Using a UV spectrophotometer, with deionized water as a reference, the absorbance values ​​of different densities of algae liquids were measured at a wavelength of 680 nm. Each sample was measured three times and the average value was taken.

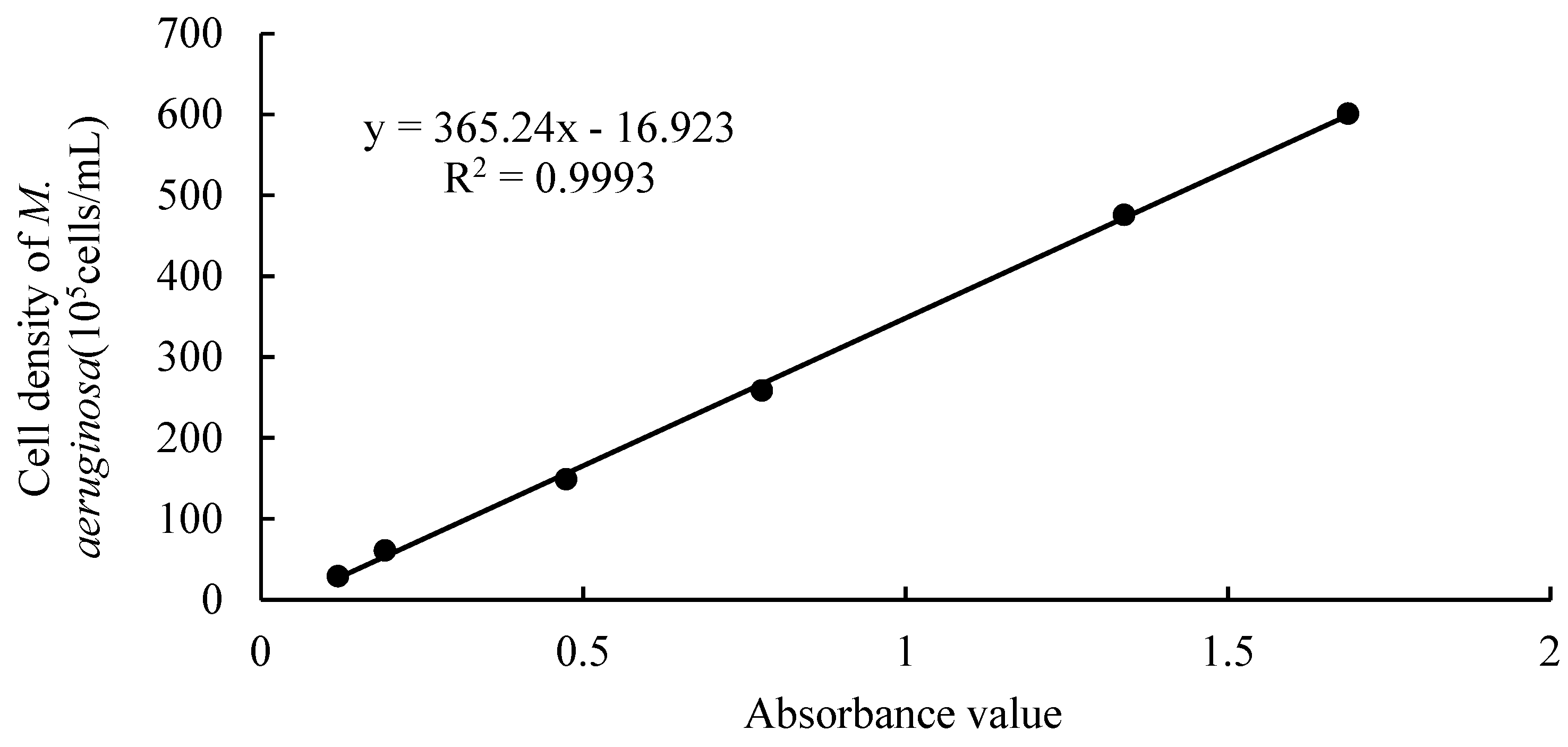

(3) Create a standard curve between the absorbance value and the algae cell density in Excel based on the measured data (Figure 1).

2.2.4. Toxicity test of EF and CF on M. aeruginosa

Before the formal test starts, a preliminary experiment is carried out to determine the mass concentration range required for the formal test. A 20 mL test tube was taken, and a certain amount of serial mass concentration injections of CF hydrochloride and EF, then 15 mL of algae liquid were added respectively, so that the EC₅₀ value at 96 h was included in it [21].

Four concentration values ​​were selected within the concentration range determined in the pre-experiment as the exposure dose for the formal experiment. At the same time, a blank control group was set, and the mass concentration gradients of the two antibiotics to the four algae were set as shown in the Table 1.

Take the algae liquid in the logarithmic growth phase and mix the two antibiotics according to the concentrations set in Table 1. Three groups of parallel groups were set up for each concentration, and the initial absorbance was measured. Afterwards, microalgae were routinely cultured. At 24 h, 48 h, 72 h, 96 h, 168 h, 240 h, 336 h, measure its absorbance. This was substituted into the standard curve to calculate the algae density and growth inhibition rate.

2.2.5. Effects of EF and CF on the Toxicity Production of M. aeruginosa

(1) Test treatment

Three treatment groups with EF and CF concentrations of 0.1%, 0.5%, and 2.5% of the 96h EC₅₀ value of M. aeruginosa were set, that is 1 times safe concentration (1×SC), 5 times safe concentration (5×SC) and 25 times safe concentration (25×SC). At the same time, set up a control group (CK) (Table 2).

Further explore the effects of exposure to low concentrations of EF and CF on the toxicity of M. aeruginosa. Prepare M. aeruginosa liquid containing EF or CF at the above concentration, and measure the content of M. aeruginosa on the 4th day, 8th day and 14th day.

(2) Determination of algae toxin content

The assay was performed according to the kit instructions.

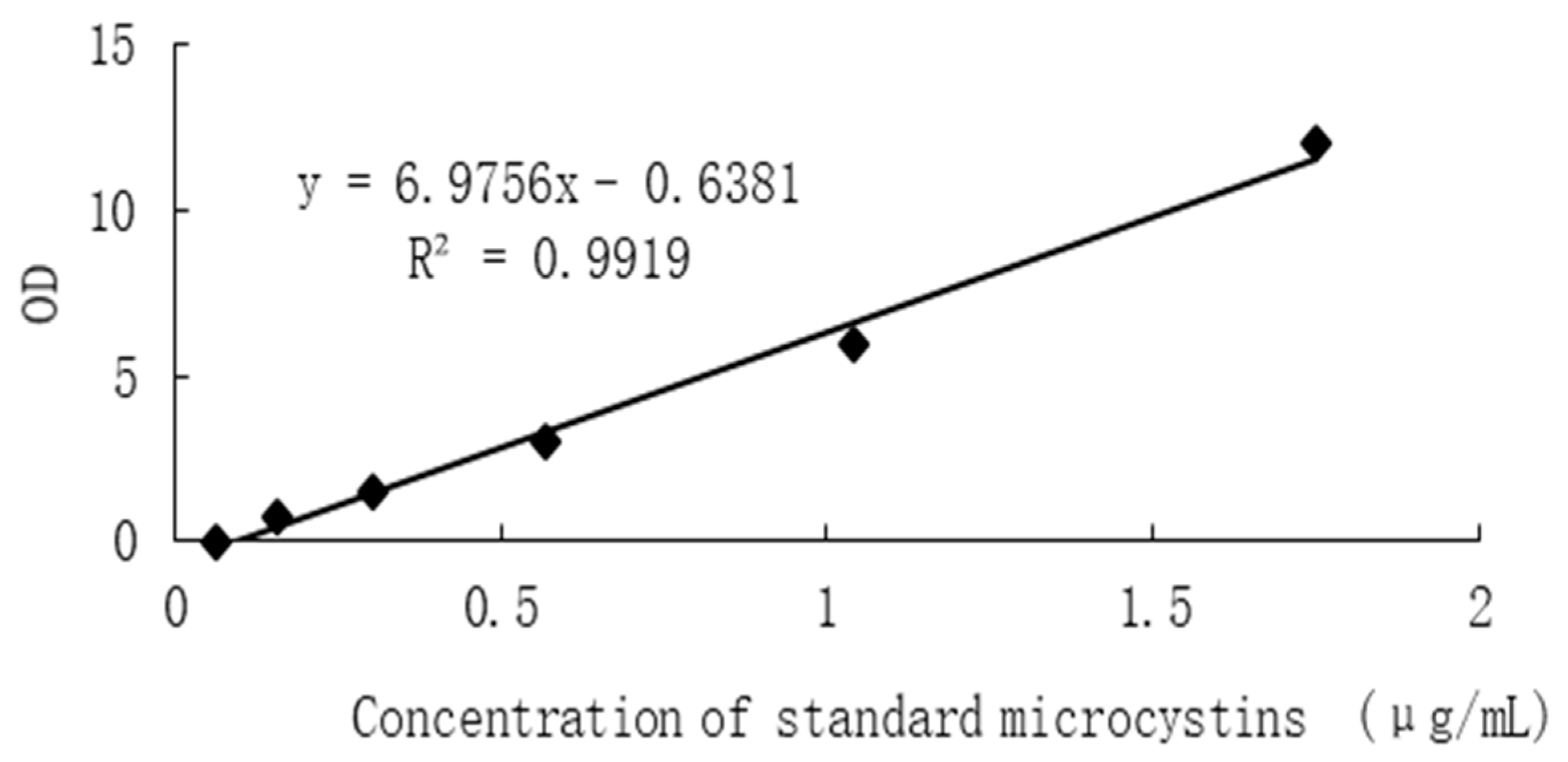

(3) Draw the standard curve:

In the Excel worksheet, the concentration of the standard substance is set as the abscissa, the corresponding OD value is the ordinate, and the linear regression curve of the standard substance is drawn (Figure 2).

2.3. Data processing and statistics

For passable cells, the reduction in cell number can be expressed as cell growth inhibition, while drug sensitivity is usually expressed as when the cell growth inhibition rate reaches 50% compared with the control group without treatment, the drug concentration, namely EC₅₀ (50% inhibitory concentration) [22].

(1) Growth inhibition rate

Y(%) = (N- N₀)/N×100

(1)

where N is the concentration of algae in the test group, and N₀ is the density of algae in the control group.

(2) Inhibitory concentration (EC_X)

The experimental data was statistically analyzed using the Boltzmann function fitting (Boltzmann constant) in the Origin 2021 software to analyze the sensitivity of green algae to different concentrations of antibiotics [23]. At the same time, the nonlinear function model was used to carry out nonlinear fitting to the growth inhibition data of algae cells at 96 h, and then the relevant parameters of each fitting model were obtained. The effect value of pollutants on the concentration gradient is obtained by fitting the nonlinear function Boltzmann, and the function formula is:

$$ECX=\mathrm{A}2+\frac{(\mathrm{A}1-\mathrm{A}2)}{(1+{\mathrm{e}}^{（\mathrm{x}-\mathrm{x}0）\text{·}{\mathrm{dx}}^{-1}}）}$$

(2)

where X represents the concentration of antibiotics, Y represents the inhibition rate of M. aeruginosa, dx is the slope parameter, X₀ is the center point of the curve, A₁ and A₂ are the upper and lower asymptotes respectively, and the effect of each antibiotic on algae is obtained [24], quantitative analysis of the antibiotics effects on algae growth.

(3) Safe concentration (SC)

LC₀= 96h LC₅₀×0.01

(3)

(4) Algal toxin content

Find out the corresponding concentration from the standard curve according to the OD value of the sample, and then multiply it by the dilution factor to get the actual concentration of algae toxin in the sample. The experimental data were processed in SPSS 22 software, expressed as mean ± S.D., and analyzed by one-way ANOVA, and the sample means was analyzed by LSD multiple comparison, p<0.05 is a significant difference, and p<0.01 is an extremely significant difference.

3. Results

3.1. Effects of EF and CF on the population density of M. aeruginosa

Under the stress of EF and CF, the growth curve of M. aeruginosa within 336 hours is shown in Figure 3.

Compared with the blank control group, exposure to 4 concentrations of EF within 168 hours could inhibit the growth of M. aeruginosa (Figure 3a). When the concentration of EF exceeds 36 mg/L, the algal cell density does not increase significantly with time. The highest concentration group (120 mg/L) even showed a downward trend. The population growth of M. aeruginosa was continuously inhibited within 336 h. However, when the concentration was not more than 36 mg/L, EF first inhibited and then accelerated the population growth of M. aeruginosa. After 240 hours, the population density has exceeded that of the blank control group, and the algae cell density has reached above 10⁷/mL. EF with different concentrations had different inhibitory effects on algae cells, that is, with the increase of EF concentration, the inhibitory effect on algae density was enhanced.

It can be seen from Figure 3b that compared with the blank control group, the algae cell density of the treatment groups was lower than that of the control group within 336 hours, this shows that the CF had continued inhibition of population growth M. aeruginosa. At 96 h and 336 h, the algal cell density in the lowest concentration (30 mg/L) group accounted for 76% and 100% of that in the control group, respectively. The algal cell density of the highest concentration (150 mg/L) group accounted for 12% and 26% of the control group, respectively. But when the concentration was not more than 60 mg/L, the population density could return to the level of the control group at 336 h. M. aeruginosa can relieve the stress effect of ciprofloxacin over time.

In summary, the effects of EF and CF on the population growth density of M. aeruginosa showed significant concentration-effect and time-effect relationships. The higher the antibiotic concentration, the stronger the inhibitory effect on population growth of M. aeruginosa. However, when concentration of EF was below 36 mg/L, with the increase of time, the inhibitory stress effect of antibiotics on M. aeruginosa gradually weakened, and even after 168 h (7d) lower concentration of enrofloxacin can promoted population growth of M. aeruginosa (Figure 3a).

3.2. EC₅₀ values ​​of EF and CF on M. aeruginosa

The 96h inhibition rate curves of EF and CF against M. aeruginosa are shown in Figure 5. The curve equation and determination coefficient are shown in Table 3. R² is greater than 0.9, indicating that the curve fit is good.

Figure 4. Dose response curve of EF and CF to M. aeruginosa: (a) EF; (b) CF.

Figure 4. Dose response curve of EF and CF to M. aeruginosa: (a) EF; (b) CF.

As the EF and CF concentrations increase, the slope of the curve gradually decreases (Figure 4). Infinitely approaching 0, which means that the inhibitory effect of the two antibiotics on M. aeruginosa will not increase infinitely with the concentration, but infinitely approach a certain critical value. When this value was reached, no matter how the concentration of antibiotics increased, its inhibitory effect on M. aeruginosa would no longer increase. The growth of M. aeruginosa was almost completely inhibited when the concentration of EF was 120 mg/L. The inhibition rates were all over 85%. When the concentration of CF was 150 mg/L, the growth of M. aeruginosa was almost completely inhibited.

The 96 h EC₅₀ values ​​of EF and CF against M. aeruginosa were 56.10 mg/L and 49.80 mg/L respectively, and the safe concentrations (SC) were 0.56 mg/L and 0.5 mg/L respectively (Table 3). So, CF is slightly more toxic than EF to the population growth of M. aeruginosa.

Table 4. Washington State Chemical toxicity Classification Standard.

Grade Toxic	Aquatic organisms96h LC50（mg/L）	Rat oral 96h LC50 (mg/L)
Grade X (very high toxic)	<0.1	＜0.5
Grade A (high toxic)	0.1-1.0	0.5-5.0
Grade B (medium toxic)	1.0-10.0	5.0-50.0
Grade C (medium low toxic)	10.0-100.0	50.0-500.0
Grade D (low toxic)	＞100.0	＞500.0

Table 4. Washington State Chemical toxicity Classification Standard.

Grade Toxic	Aquatic organisms96h LC50（mg/L）	Rat oral 96h LC50 (mg/L)
Grade X (very high toxic)	<0.1	＜0.5
Grade A (high toxic)	0.1-1.0	0.5-5.0
Grade B (medium toxic)	1.0-10.0	5.0-50.0
Grade C (medium low toxic)	10.0-100.0	50.0-500.0
Grade D (low toxic)	＞100.0	＞500.0

According to "Washington State Chemical Toxicity Grading Standards (Aquatic Organisms)" [25], EF and CF belong to grade C for M. aeruginosa, that is, medium low toxic substances.

3.3. Effects of EF and CF on the toxin production of M. aeruginosa

(1) Effects ofEF on the toxin production of M. aeruginosa

The change of algal toxin content in M. aeruginosa exposed to different concentrations of EF is shown in Figure 5.

As Figure 5 showed that, the MCs content of the blank control (CK) group from 1.159 μg/g(4thday) reached to the maximum value 22.766 μg/g (14th day). It shows a gradual increase with the test time. The MCs content of 56.1 μg/L EF group from 95.539 μg/g on the 4th day, then drop 83.972μg/g on the 8th day, and rise 86.265 μg/g on the 14th day; The MCs content of 280.5 μg/L EF group from 91. 950 μg/g on the 4th day, then drop 76.324 μg/g on the 8th day, and drop 75.026 μg/g on the 14th day; The MCs content of 1402.5 μg/L EF group from 60. 024 μg/g on the 4th day, then rise 78.486 μg/g on the 8th day, and rise up 87.418 μg/g on the 14th day.

As Figure 5 showed that, on the 4th day, the MCs content of CK group was only 1.159 μg/g, but the MCs value of 56.1 μg/L EF group, 280.5 μg/L EF group and 1402.5 μg/L EF group were 95.539 μg/g, 91.950 μg/g and 60.024 μg/g respectively; these three treatment groups were 82.432, 79.336 and 51.789 times of CK group on the 4th day respectively. So, the MCs content of these three treatment groups was extremely significantly higher than that of CK group on the 4th day (P<0.01).

On the 8th day, the MCs content of CK group was 19.35 μg/g, but the MCs value of 56.1 μg/L EF group, 280.5 μg/L EF group and 1402.5 μg/L EF group were 83. 972 μg/g, 76.324 μg/g and 78. 486μg/g respectively; these three treatment groups were 4.34, 3.94 and 4.06 times of CK group on the 8th day respectively. So, the MCs content of these three treatment groups was extremely significantly higher than that of CK group on the 8th day(P<0.01).

On the 14th day, the MCs content of CK group was 22.766 μg/g, but the MCs value of 56.1 μg/L EF group, 280.5 μg/L EF group and 1402.5 μg/L EF group were 86. 265 μg/g, 75.062 μg/g and 87. 418 μg/g respectively; these three treatment groups were 3.789, 3.296 and 3.840 times of CK group on the 14th day respectively. So, the MCs content of these three treatment groups was extremely significantly higher than that of CK group on the 14th day (P<0.01).

During the test period, the MCs content of M. aeruginosa in each EF treatment group was significantly (p<0.05) higher than that of the blank group; the MCs value of the three EF treatment groups was more than above 51.8 times that of CK group on the 4th day; from 8th day to 14th day, the MCs value of these three enrofloxacin treatment groups was more than above 3.2 times that of CK group.

(2) Effects of CF on the toxin production of M. aeruginosa

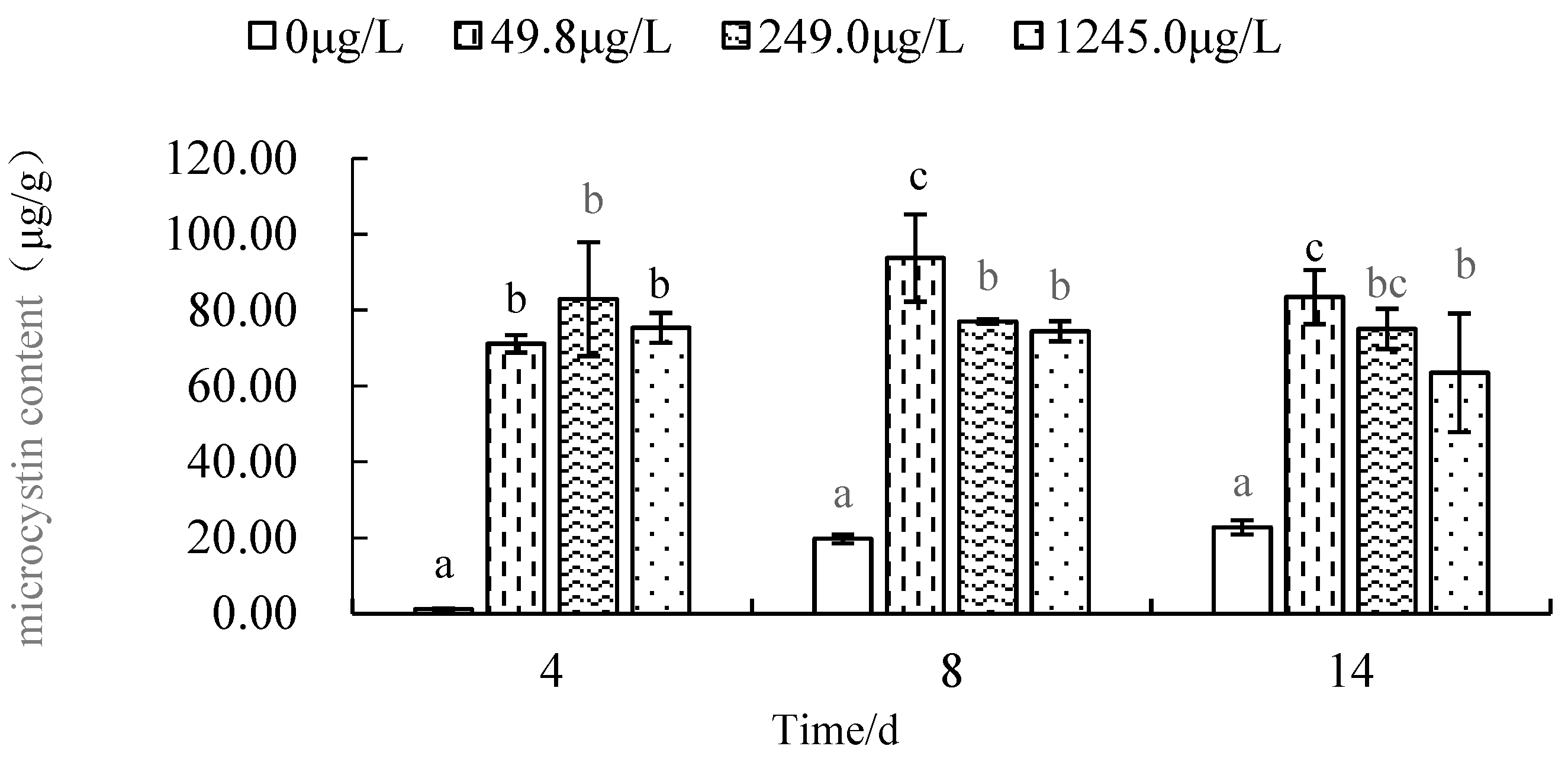

The change of algal toxin content in M. aeruginosa exposed to different concentrations of CF is shown in Figure 6.

As Figure 6 showed that, the MCs content of CK group from 1.159 μg/g (4th day) reached to the maximum value 22.766 μg/g (14th day), it shows a gradual increase with the test time. The MCs content of 49.8 μg/L CF group from 75.538 μg/g on the 4th day, then rise 93.720 μg/g on the 8th day, and drop 83.562 μg/g on the 14th day. The MCs content of 249.0 μg/L CF group from 82. 911 μg/g on the 4th day, then drop 80.230 μg/g on the 8th day, and drop 78.932 μg/g on the 14th day. The MCs content of 1245.0 μg/L CF group from 75.310 μg/g on the 4th day, then drop 72.368 μg/g on the 8th day, and drop 61.532 μg/g on the 14th day.

On the 4th day, the MCs content of CK group was only 1.159 μg/g, but the MCs value of 49.8 μg/L CF group, 249.0 μg/L CF group and 1245.0 μg/L CF group were 75.538 μg/g, 82.911 μg/g and 75.310μg/g respectively; the three CF treatment groups were 65.175, 71.537 and 64.978 times of CK group on the 4th day respectively. So, the MCs content of these three treatment groups was extremely significantly higher than that of CK group on the 4th day (P<0.01).

On the 8th day, the MCs content of CK group was 19.35 μg/g, but the MCs value of 49.8μg/L CF group, 249.0 μg/L CF group and 1245.0 μg/L CF group were 93. 720 μg/g, 80.230 μg/g and 72. 368μg/g respectively; these three treatment groups were 4.843, 4.164 and 3.740 times of CK group on the 8th day respectively. So, the MCs content of these three treatment groups was extremely significantly higher than that of CK group on the 8th day (P<0.01).

On the 14th day, the MCs content of CK group was 22.766 μg/g, but the MCs value of 49.8 μg/L CF group, 249.0 μg/L CF group and 1245.0 μg/L CF group were 83. 562 μg/g, 78.932 μg/g and 61. 532μg/g respectively; these three treatment groups were 3.67, 3.47 and 2.70 times of CK group on the 14th day respectively. So, the MCs content of these three treatment groups was extremely significantly higher than that of CK group on the 14th day (P<0.01).

During the test period, the MCs content of M. aeruginosa in each CF treatment group was significantly (p<0.05) higher than that of the blank group; the MCs value of these three CF treatment groups was more than above 64.98 times on the 4th day, that of CK group on the 4th day; From 8th day to 14th day, the MCs value of these three CF treatment groups was more than above 2.7 times that of CK group.

In summary, both exposure to low concentrations of EF and CF will significantly (p<0.05) improve the toxin-producing ability of M. aeruginosa and increase the content of algal toxins. This indicated that EF and CF had very long-lasting enhancement effects on the toxin-producing ability of M. aeruginosa.

4. Discussion

4.1. Toxic effects of antibiotics on M. aeruginosa

Studies have found that antibiotics can interfere with the protein synthesis of algal cells, damage the two photosystem components or block the electron transfer process between the two components, thereby reducing the photosynthetic efficiency of algal cells. For example, erythromycin can inhibit the synthesis of thylakoid membrane proteins in algal cells, and this change can directly reduce the photosynthetic efficiency of Selenastrum capricornutum [26]. Antibiotics can also inhibit photosynthesis in algal cells by interfering with the synthesis of proteins and chlorophyll a. This affects the synthesis of chlorophyll a in algal cells, and produces a "low-stimulation and high-suppression" effect on the photosynthesis of algal cells. Antibiotics also increase reactive oxygen species (ROS) in algal cells and disrupt their antioxidant-reduction systems. Changes in the physiological and morphological characteristics of algae cells will inevitably change the state of population growth, but the specific effect depends on the concentration of antibiotics, which may produce a "low promotion and high suppression" effect [27]. Taking Scenedesmus tetraceras as an example, the antibiotic norfloxacin can reduce the volume of cell clusters and increase the specific surface area. Therefore, the ability and growth rate of algal cells to absorb nutrients in the environment may increase with the increase of norfloxacin [28].

Some studies have shown that the effect of ofloxacin on Tetrastrella obliquus increases with the exposure concentration increase, and its growth inhibitory effect also increases continuously, and the decomposition of algae cells increases gradually with the concentration increase of the test substance [29]. Su et al. found that after EF exposure for 96 h, with the increase of EF concentration, the content of soluble protein in Chlorella gradually decreased. This shows that the cell viability decreases with the increase of drug concentration. However, there is a negative correlation between SOD, MDA and drug concentration, indicating that with the increase of drug concentration, the active oxygen in organisms increases, the degree of damage is aggravated, and the degree of damage to the membrane system is also deepened [30]. The results of this experiment are consistent with the above reports, indicating that the effect of antibiotics on algae is significantly related to the concentration.

Wan [31] showed that the three antibiotics of levofloxacin, ofloxacin, and erythromycin all showed the phenomenon of "low promotion and high suppression" on the growth of two types of microalgae. Lei also showed that low concentration groups of three quinolone antibiotics (pimidic acid, CF, and norfloxacin) could all promote the growth of Chlorella pyrenoidosa. Under the action of low concentration of antibiotics, the antioxidant system of Chlorella did not change significantly. Under the action of high concentrations of antibiotics, the activity of antioxidant enzymes in green algae was induced, the content of malondialdehyde was significantly increased, and the growth of algae was inhibited [32]. This is consistent with the results of this experiment. In addition, it was found in the pre-test that low concentrations of EF and CF can both promote the growth of M. aeruginosa. In the formal experiment, M. aeruginosa also showed the situation of promoting first and then inhibiting at the concentration of 12 mg/L EF. This shows that EF and CF can promote the growth of algae cells at lower concentrations. As it grows over time, it may cause damage to algal cells due to its accumulation in algal cells reaching a certain amount. Yang et al. studied the effects of EF and erythromycin thiocyanate exposure on the growth and physiology of M. aeruginosa. The test results show that EF and erythromycin thiocyanate can hinder the photosynthesis of M. aeruginosa, and there is also a phenomenon of low promotion and high inhibition of the synthesis of soluble proteins [19]. The specific mechanism of action leading to this phenomenon is still unclear and needs further investigation.

In this experiment, it was also found that when the concentration of antibiotics reached a certain value, the inhibition rate no longer changed significantly with the increase of the concentration. For example, when the concentration of CF increased from 60 mg/L to 150 mg/L, the growth inhibition rate of M. aeruginosa only increased by 9%, and the curve showed an obvious "S" shape. It can be seen from this that no matter whether it is EF or CF, when the concentration reaches a certain value, as the concentration continues to increase, its growth inhibitory effect on algae does not change significantly. Lian et al. studied the toxicological effects of two quinolone antibiotics, EF and CF hydrochloride, on P. subcordiformis. It was also found that at high concentrations, the higher the antibiotic concentration, the more obvious the inhibitory effect on the growth of flat algae, chlorophyll and extracellular polymers. However, when the concentration reaches a certain height, the inhibition will reach its threshold [33].

4.2. Effect of antibiotics on toxin production by M. aeruginosa

The maximum growth rate of cyanobacteria is not high, but its biomass can exceed other algae under certain conditions. Therefore, it is believed that MC produced by cyanobacteria can promote cyanobacteria to produce more offspring, gain a competitive advantage, and lead to the death of other algae species [34]. MCs are a class of hepatotoxic bioactive substances produced by cyanobacteria. MCs inhibit the activity of protein phosphatase 1 (pp1) and protein phosphatase 2A (pp2A). This makes the phosphorylation and dephosphorylation of proteins in the cells unbalanced, which in turn causes great harm to the human body, such as liver toxicity, nephrotoxicity, intestinal toxicity, and cancer-promoting effects. How to control the overgrowth of cyanobacteria and effectively remove microcystins has become a major water environment problem faced by countries all over the world [35].

At present, scholars have conducted research on its growth and toxin production characteristics under different conditions. However, due to the different types of algal species, medium, culture conditions, and detection conditions used, the results are not the same [36,37]. Environmental factors including temperature, light, pH, trace elements, and nutrients all have an impact on the growth and toxin production of M. aeruginosa. However, due to the complex interaction among various factors, no consistent conclusions have been drawn, and even contradictory views have emerged. For example: Watanabe [38] found that the suitable growth temperature for M. aeruginosais higher than the optimum temperature for toxin production. But Wu et al. [39] got the opposite conclusion. Wu et al. [40] believed that lower light is more suitable for the production of toxin by M. aeruginosa. It shows that the nitrogen-phosphorus ratio of 100:1 (atomic number ratio) is the most suitable for the growth and toxin production of M. aeruginosa. And Yi et al. [41] believed that when the concentration of nitrogen and phosphorus was 16:1, the growth rate of M. aeruginosawas the fastest. Other studies have found that the growth and toxin production of M. aeruginosa have obvious responses to temperature rise and nutrient salt increase, but the response of M. aeruginosa synthetic toxins to temperature is not consistent with growth. Future climate warming and eutrophication will significantly promote the growth of M. aeruginosaand the expansion of cyanobacterial blooms. However, the concentration of MCs does not necessarily increase all the time, which may be related to its ability to produce toxins [42]. There are few reports on the effects of antibiotic pollutants on the toxicity of M. aeruginosa. In this study, the content of M. aeruginosain the blank group increased with time. However, exposure to low concentrations of EF and CF significantly enhanced the toxin-producing ability of M. aeruginosa nosa. Although this effect has changed over time, the content of algal toxins in the treatment group was always significantly higher than that in the blank group, indicating that its effect on improving the toxin production capacity of M. aeruginosa is relatively long-lasting. Some studies have found that the optimal toxin-producing conditions of some algae species are not equal to the optimal growth conditions, and when the water body is seriously polluted or the living conditions are harsh, algae produce and release toxins in greater quantities [43]. This is also consistent with the results of this experiment.

This experiment found that the long-term presence of antibiotics in the environment may be more likely to cause the outbreak of algae blooms and improve the toxin production capacity of M. aeruginosa. It revealed for the first time another potential ecological risk of antibiotic pollution-aggravating the hazards of cyanobacteria blooms.

5. Conclusions

There is a good effect relationship between the concentration of the two quinolone antibiotics and the inhibition rate of M. aeruginosa cells growth, that is, the inhibition rate of can be increased with increasing antibiotic concentration. But when the concentration of the two quinolone antibiotics reaches a certain height, the inhibitory effect will reach its threshold, and with time increase, the inhibitory effect of antibiotics on M. aeruginosa gradually weakened, and even showed a promoting effect.

The 96h EC₅₀ values ​​of EF and CF against M. aeruginosa were 56.10mg/L and 49.80mg/L respectively, and the safe concentrations (SC) were 0.56mg/L and 0.5mg/L respectively. CF is slightly more toxic than EF on M. aeruginosa.

Low concentration of EF (<36 mg/L) can inhibit the growth of M. aeruginosa. But after 240 h, its growth can be promoted, and the density of algae cells exceeds that of the control group, reaching more than 10⁷/mL. When the concentration of CF was lower than 150 mg/L, it was basically the same as that of the control group at 336 hours. This indicates that long-term exposure to low concentrations of quinolone antibiotics does not inhibit the population growth of M. aeruginosa, but even more easily leads to the outbreak of algal blooms.

The highest algal toxin content in the CK group was 22.766 μg/g at the 14th day, the highest MCs content in the 56.1 μg/L EF group was 95.539 μg/g at the 4th day, and the highest MCs content in the 49.8 μg/L CF group was 93.720 μg/g at the 8th day. The MCs value of these three EF treatment groups was more than above 51.8 times that of CK group on the 4th day; from 8th day to 14th day, the MCs value of these three EF treatment groups was more than above 3.2 times that of CK group. The MCs value of the three CF treatment groups was more than above 64.98 times that of CK group on the 4th day, from 8th day to 14th day, the MCs value of the three CF treatment groups was more than above 2.7 times that of CK group. Exposure to EF and CF would increase the toxin-producing ability of M. aeruginosa, and this effect lasted for a long time. During the test period, the content of M. aeruginosa in each EF and CF treatment group was significantly (p<0.05) higher than that of the blank group, which was more than 4 times of CK group.
