Impact Pressure Influence of Flood on Bridge Deck under Sediment Deposition Conditions: An Experimental Study

1. Introduction

Bridges are essential components of global transportation networks, serving as vital links that connect regions, facilitate trade, and foster socio-economic development. According to statistics, the USA has over 600,000 bridges [1], the UK has over 150,000 bridges [2], and China has about 500,000 road bridges alone [3]. Bridge failure can result in devastating consequences, ranging from loss of lives and injuries to disruption of critical transportation nexus, economic losses, and long-term societal implications, necessitating a comprehensive understanding of their causes and mechanisms. The primary causes of bridge collapse are categorized into internal causes and external factors. The former comprises design errors, construction flaws, and lack of maintenance, whereas the latter includes floods, earthquakes, and strong winds [4]. Lee et al. (2013) summarized 1062 bridge failures during 1980- 2012 in the USA and concludes that floods, accounting for 28.3% of all accidents, are the leading cause of bridge failure [5]. Fu et al. (2012) collected 157 bridge collapses from 2000 to 2012 in China, addressing 72 failures due to floods [6].

The failure mechanism of bridge infrastructure in a flood event is complex. Phenomena induced or exacerbated by flooding including scour, erosion, river convergence, insufficient embedment depth, softened bedrock, sand mining, debris impact, and abrasion on bridge foundations could incur the failure [7,8,9]. In mountainous areas, the geographical terrain poses unique challenges for bridge infrastructure due to the occurrence of intense rainfalls and floods, which can trigger a range of hazardous events such as slides, debris avalanches, rock falls, and spontaneous instability of steep streambeds. These natural phenomena significantly increase the risk of debris flow formation within the river channels, exacerbating the potential damage to bridges in the region [10]. For instance, the middle seven spans of the Jinshajiang Bridge (in Sichuan, China) were completely washed away, while the beams of the remaining three spans were displaced following the flood peak in 2018 [11]. Similarly, the Morandi Bridge (in Liguria, Italy) experienced a catastrophic event in the same year when its cable stays ruptured and subsequently led to a collapse during a torrential rainstorm [12]. These real-world examples underscore the critical implications of flood-related failures on bridge infrastructure in mountainous areas.

Debris flow, characterized by a downhill movement of water and particles caused by gravity, has been extensively studied in river channels. One potential damage stems from the fact that as debris flow evolves downstream, its components change, and volume and inertia increase, resulting in an exceptionally high impact pressure directly exerted on bridges [13,14] Investigations have revealed that the impact pressure of debris flows is influenced by many factors including front velocity, flow depth, bulk density, liquid volume fractions, solid volume fractions, and the interaction between debris flows and obstructions [15,16,17,18], and both laboratory experiments and in situ tests have been conducted to physically explain and quantify the impact pressure of debris flow on bridge decks, piers foundation, and abutment [10,19,20]. Additionally, numerical simulations have aided vulnerability analysis of bridge structures [21], and hybrid models have been utilized to simulate both horizontal and vertical forces exerted on bridge decks by debris flow [22]. Another possible reason for bridge destruction comes from the accumulation of debris. According to Parola et al. (2000) [23], debris collection on bridge piers and superstructures can generate large pressures. Kimura et al. (2017) [24] confirmed the increased flow pressure upstream produced by wood debris accumulation at bridges and discovered that flow pressure upstream rises with the length of the obstacle. Oudenbroek et al. (2018) [25] investigated the influence of debris on bridge hydrodynamic forces and discovered that debris is a significant contributor to bridge deck collapse.

Beyond the above two potentially destructive ways of debris flows with bridges, another significant concern lies in the debris buildup around the bridge's riverbed [26]. This buildup restricts the flow, causing a clog and subsequently increasing the horizontal pressure of water flow exerted on the bridge deck. As a result, following a sudden debris flow event, the ensuing elevation of the riverbed and continuous strong water impact could also contribute to bridge destruction. However, there remains a dearth of information concerning horizontal impact pressure under various conditions of sediment accumulation. Addressing this research gap, our study focused on exploring the hydrodynamic characteristics of the bridge deck with sediment deposited in the riverbed underneath, while investigating the influence of sediment deposition height and incoming flow conditions on the horizontal impact pressure and flow fluctuation frequency of the bridge through a channel experiment.

2. Experimental Set-up

2.1 Experimental Facility and Instrumentations

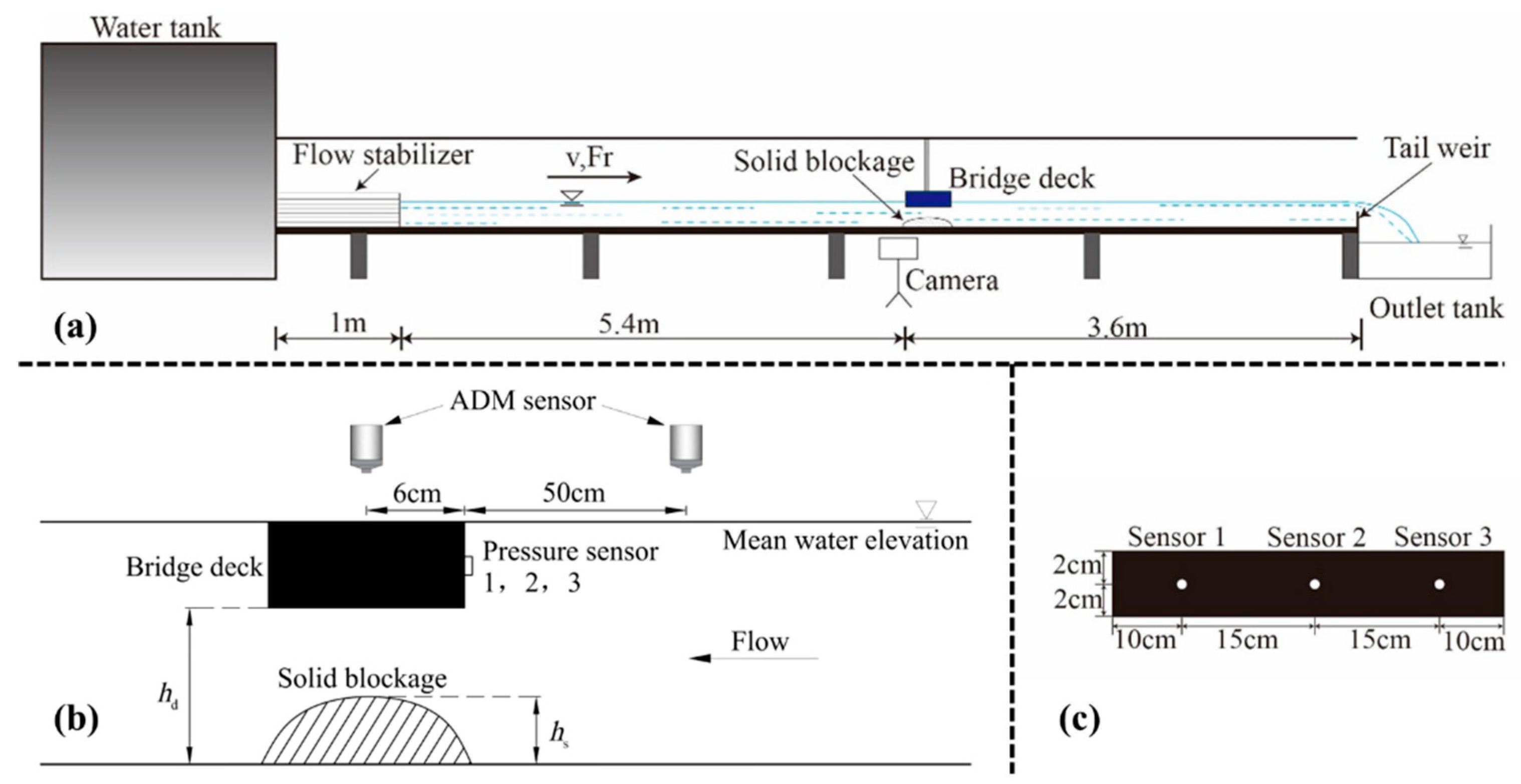

The physical experiment was conducted in a recirculated system with a rectangular glass channel with dimensions of 10 m in length, 0.5 m in width, and 0.6 m in height. A 5 m high head tank was placed at the front. The pumping water from the head tank passed through a channel equal width orifice and a current stabilizer to reach a smooth incoming flow. The current stabilizer comprised an array of PVC pipes, each with an inner diameter of 3 centimeters and a length of 1 meter. A maximum flow rate of 60 L/s could be provided by the water pump set, and a broad range of discharge could be precisely controlled by regulating the water valve. A tail weir (overshoot) with adjustable height was installed at the rear of the tank to control the water depth in the tank, thus achieving different experimental conditions. The flow rate of the model experiment was calibrated by a rectangular weir downstream (not shown in Figure 1), with a measurement error of ±1%.

The model bridge was placed 6.4 m after the inlet and 3.6 m before the tail weir, and the featured dimensions are as follows: its length measures 0.5 m, with a thickness of 0.04 m, and a width of 0.12 m. Three pressure sensors (Test Electron, TST3828E, with a precision of ±0.5%) were installed on the upstream face of the bridge deck to measure the horizontal impact pressure. Herein, one sensor is arranged in the middle of the bridge front, and the other two are symmetrically distributed on both sides. Pressure sensors were sampled simultaneously for 5 mins with a sampling frequency of 50 Hz. Two acoustic displacement meters (ADMs) (Microsonic Mic + 25/IU/TC) were installed 50cm upstream of the bridge deck and above the deck respectively to obtain the instantaneous water surface elevations. ADMs were sampled simultaneously for 2 mins for each test with a sampling frequency of 60 Hz. The flow patterns were documented from a side view near the bridge with a Nikon D750 camera and a 28 – 75 mm f/ 4S lens. The schematic diagram of the experimental setup and the layout of the upstream face measuring points of the bridge deck are shown in Figure 1.

2.2 Data Processing

The horizontal impact pressure samples taken by pressure sensors 1-3 followed a normal distribution:

$$f(x)=\frac{1}{\sqrt{2\pi }\sigma }\exp \left(-\frac{{\left(x-\mu \right)}^2}{2{\sigma }^2}\right)$$

(1)

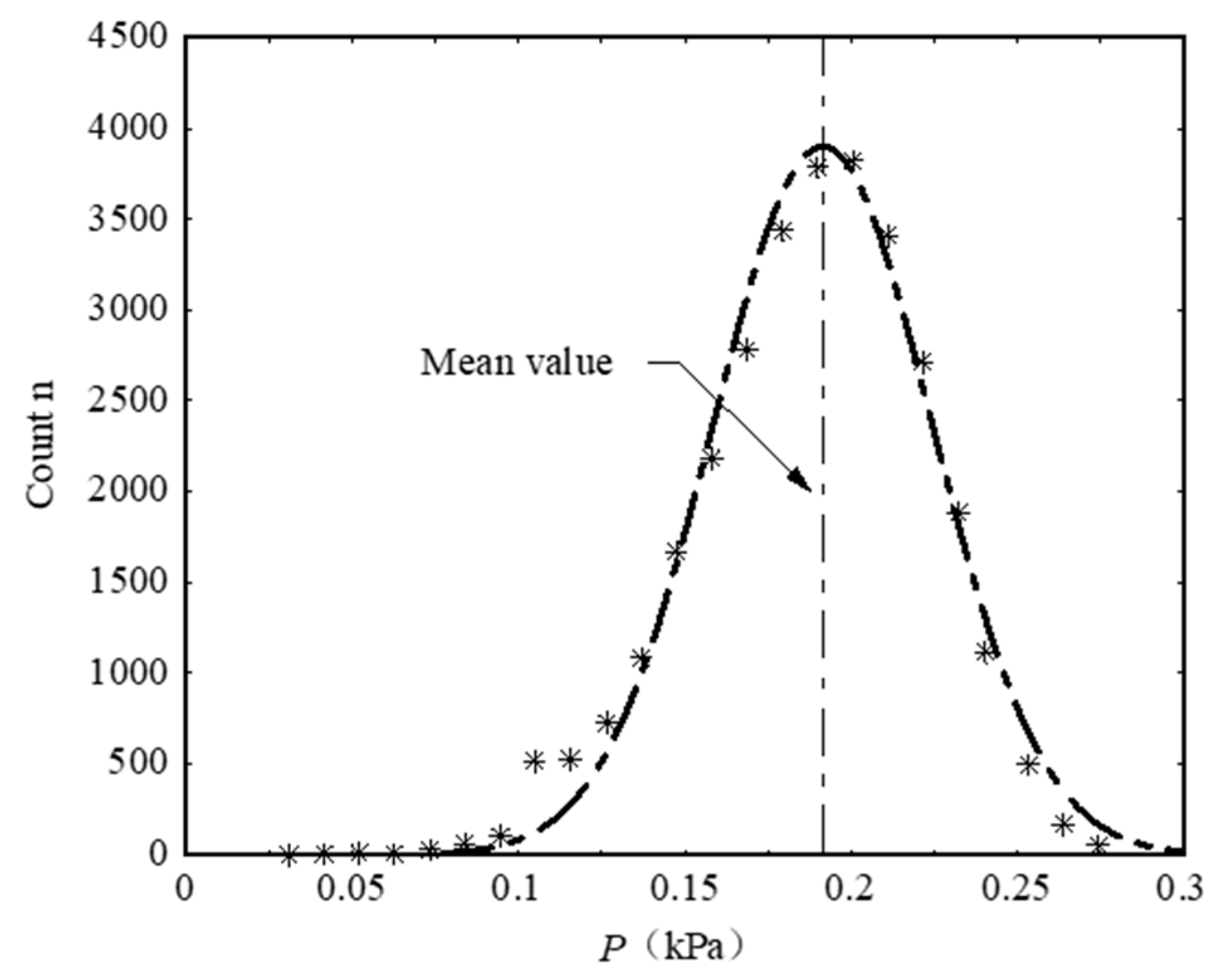

where μ is the average pressure, σ is its standard deviation. The Gaussian curve is fitted by the sampled values, from which the mean voltage around the maximum sample count and the standard deviation proportional to the curve broadening are documented (shown in Figure 2). This processing method ensures the derivation of the mean pressure and fluctuation magnitude is not affected by the subjective removal of erroneous points.

The flow surface elevations were measured and recorded by ADMs, but potential contamination from splashes can lead to erroneous data. To address this issue, a robust outlier cutoff filtering approach was utilized to post-process all ADM sample data. Using the median (MED) and Median Absolute Deviation (MAD) as robust estimators for both location and variance, these estimators have a breakdown point of 50% and are more robust against outliers compared to mean and standard deviation [27,28]. The technique guarantees reasonably stable mean water elevation and fluctuation magnitude results.

2.3 Scaling Issues and Experimental Conditions

Investigating the typical debris flow that led to the destruction of bridges during the '8.13 debris flows' disaster in Sichuan, China, revealed several key features. The maximum flood flow velocity reached 5-7 m/s, while sediment in the riverbed accumulated to heights ranging from 2 to 20 m. Additionally, the channel widths ranged from 40 to 100 m. [29]. Following a length scale λ_L = 100, the sediment heights were set to range from 0.06 m to 0.11 m, the channel width was fixed at 0.5 m; the velocity ratio λ_v = λ_L^0.5 = 10, and the incoming flow velocity V at set to 0.26 m/s-0.63 m/s.

Ten experiments divided into 3 groups of different Froude numbers (Fr = V/(gh)^0.5) were conducted, as shown in Table 1. In each group, the flow discharge Q and incoming flow velocity V were kept constant and several maximum sediment deposition heights h_s were adjusted. To ensure capturing the correct horizontal flow pressure value on the upstream face of the bridge deck, the sensors should be completely submerged in the water, thus the height of the bridge for the control experiment in each group was adjusted to be compatible with the flow height, viz., the mean water elevation aligns with the height of bridge deck on the top. Ordinary sediment was placed in sandbags under the bridge and ensured not to be washed away by the incoming flow.

3. Water Flow over the Bridge Deck

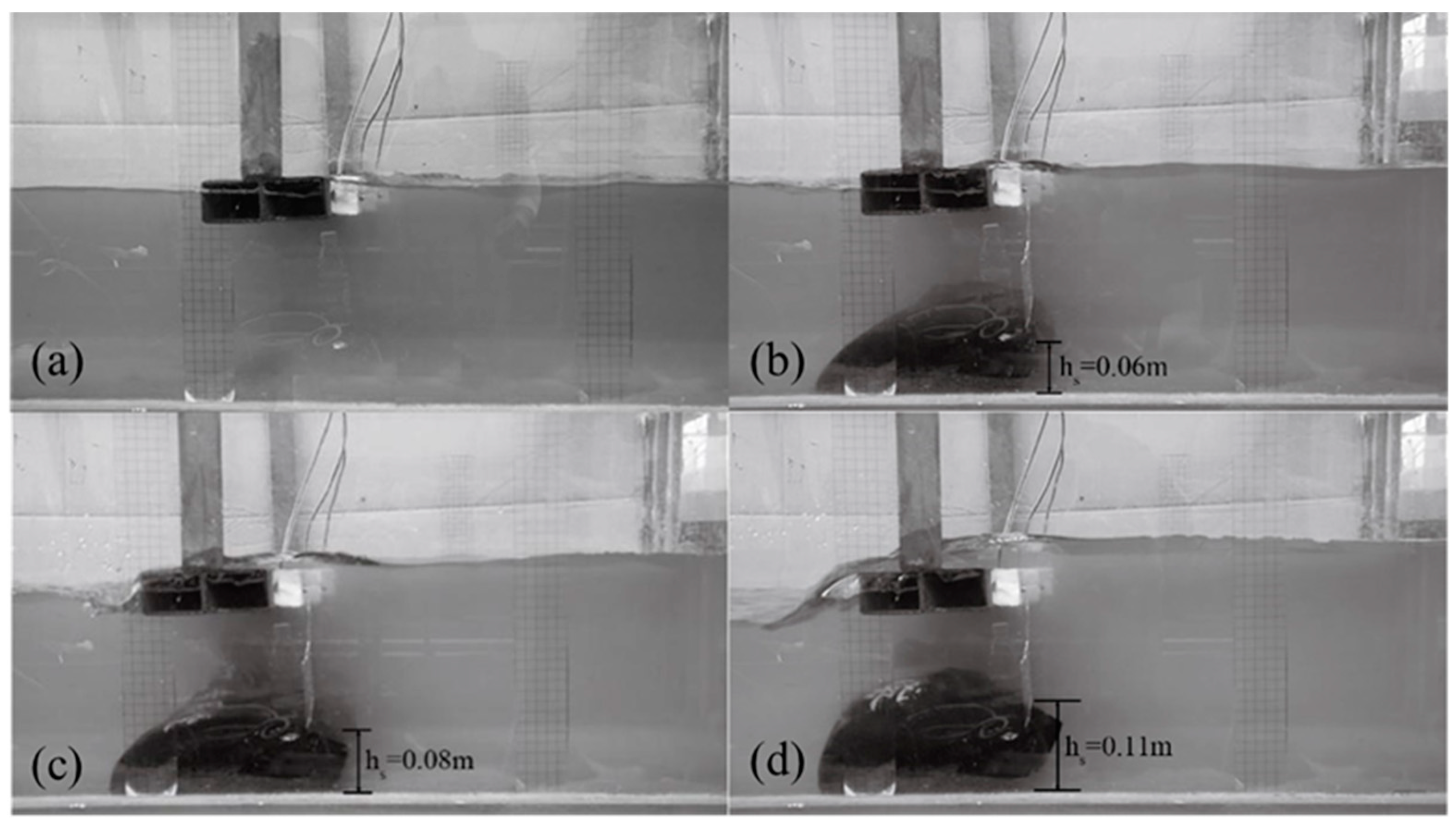

When exploring the impact of sediment accumulation on the characteristics of water flows, the discharge and incoming flow velocity were kept constant in the experiments. Figure 3 shows the flow conditions in the channel under different sediment deposition heights ranging from 0.06 m to 0.11 m when the discharge Q = 0.0339 m³/s, and the incoming flow velocity V = 0.47m/s. It was observed that a higher sediment deposition height silts a higher water level, primarily attributed to the gradual reduction in flow area with increasing sediment deposition height, accentuating the clogging effect.

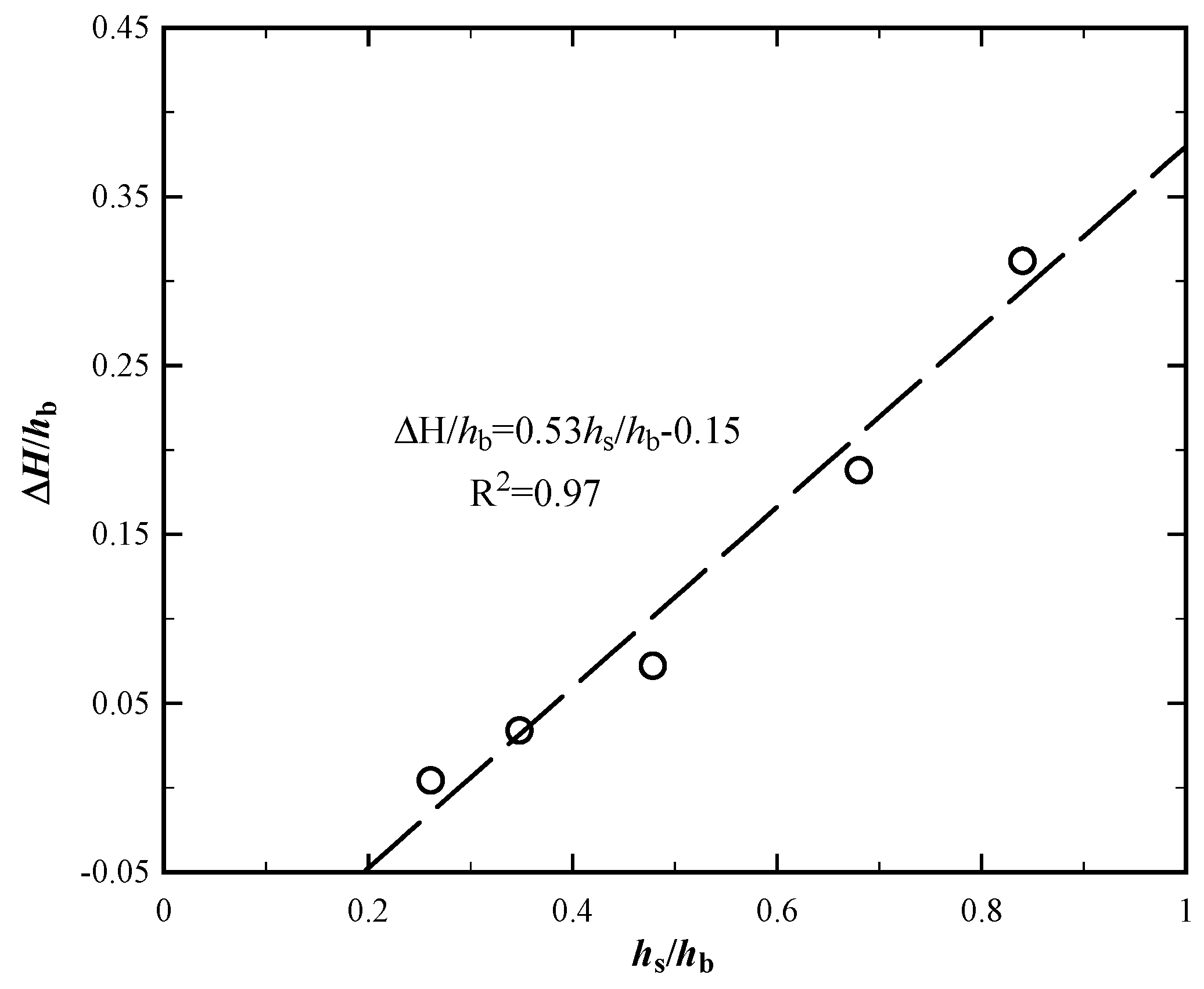

To further quantify the interaction between sediment deposition and water flow, special attention was given to the rising height of the mean water level at the front face of bridge deck, denoted as ΔH. A linear correlation was established between the dimensionless sediment deposition height (h_s/h_b) and the dimensionless elevated water surface (ΔH/h_b). Figure 4 illustrates this relationship, focusing on the specific case of Fr = 0.31.

$$\Delta H/h_b=0.53h_s/h_b-0.15$$

(2)

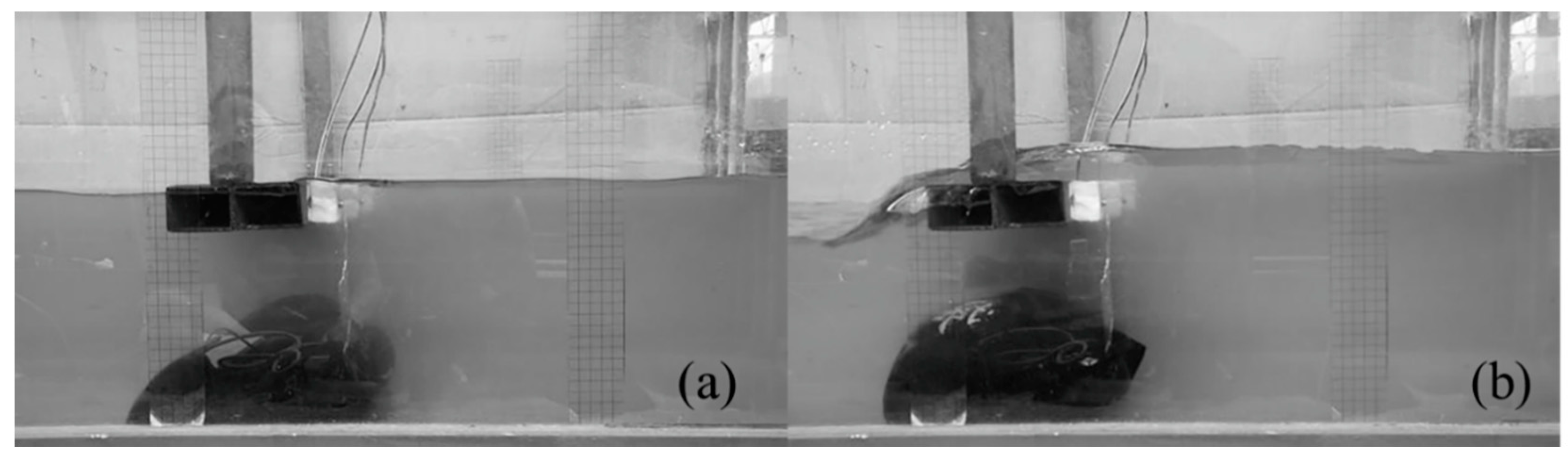

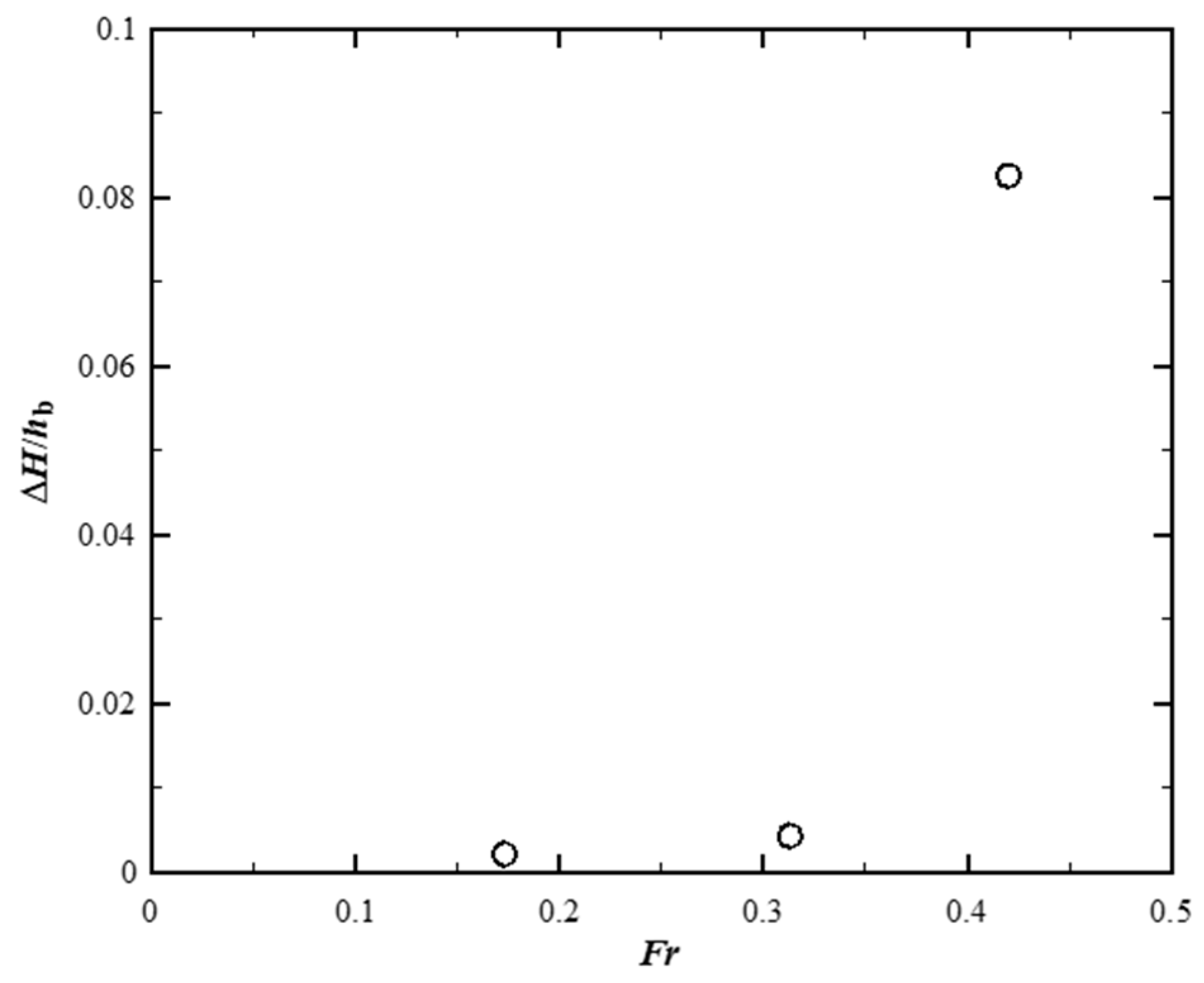

When investigating the impact of flow velocity on the characteristics of water flows, the sediment deposition height was maintained. The flow conditions near the bridge deck were captured in Figure 5, under varying flow velocities of V = 0.26 m/s and V = 0.63 m/s, with sediment deposition height h_s held at a constant value of 0.06 m. Evidently, as the flow velocity increased, we observed a more pronounced rise in the water level. This rise was accompanied by a greater volume of water passing through the bridge deck and a larger difference in elevation before and after the bridge. Additionally, a heightened level of turbulence on the water surface was noted downstream of the bridge. Figure 6 shows the relationship between Froude number and dimensionless elevated water surface ΔH/h_b keeping sediment deposition heights h_s at 0.06 m. Remarkably, this figure reveals a substantial augmentation in the influence of flow velocity as the Froude numbers escalated from 0.31 to 0.42, in comparison to the case between 0.17 to 0.31. This observation underscores the intensified impact of flow velocity on the water surface elevation, indicative of a nonlinear relationship between Froude number and water flow dynamics under constant sediment deposition heights.

4. Horizontal Impact Pressure on the Bridge Deck

Pressure sensors 1- 3 were arranged on the bridge deck facing the upstream flow. To establish a baseline reference pressure (denoted as P₀), the average pressure measurement (for each sensor) for cases without sediment deposition under the bridge was utilized. It is noteworthy that, in general, the reference pressure P₀ obtained at the middle of the bridge (corresponding to sensor 2) demonstrated a 20% - 35% bigger compared to the other two P₀ readings obtained at the sides, which could be attributed to the wall effect.

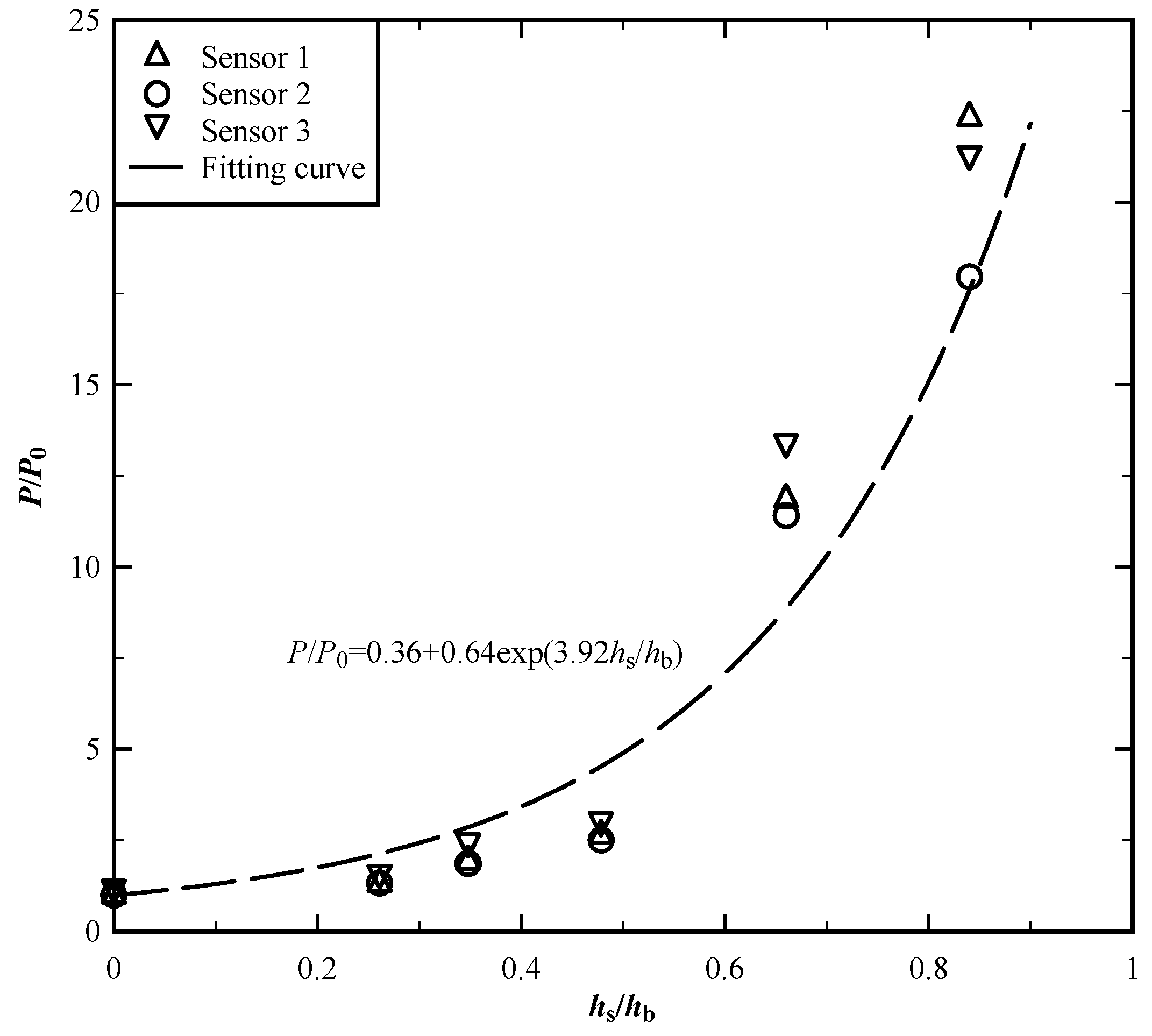

With an increase in sediment accumulation height, there was a discernible rise in the average horizontal pressure experienced by the bridge structure. The dimensionless horizontal impact pressure P/ P₀ and dimensionless sediment deposition height h_s/h_b present an exponential correlation. Figure 7 exhibits the case when Fr = 0.31. It is illustrated in this figure that a minor degree of blockage beneath the bridge has a negligible impact on the pressure exerted on the bridge deck. However, as blockage increases, the pressure on the bridge deck rises significantly. More specifically in this scenario, when approximately one-fourth of the space beneath the bridge deck is filled with sediments, there is no significant change in the pressure on the bridge deck. Nonetheless, when half of the space is filled, the pressure increases twofold. Subsequently, with the accumulation of another one-fourth of sediment, the pressure experiences a substantial increase, surpassing the original pressure by tenfold. These results emphasize the critical importance of timely dredging to maintain safe and optimal pressure levels on the bridge deck. The correlation could be described by:

$$P/P_0=0.36+0.64e^{3.92h_s/h_b}$$

(3)

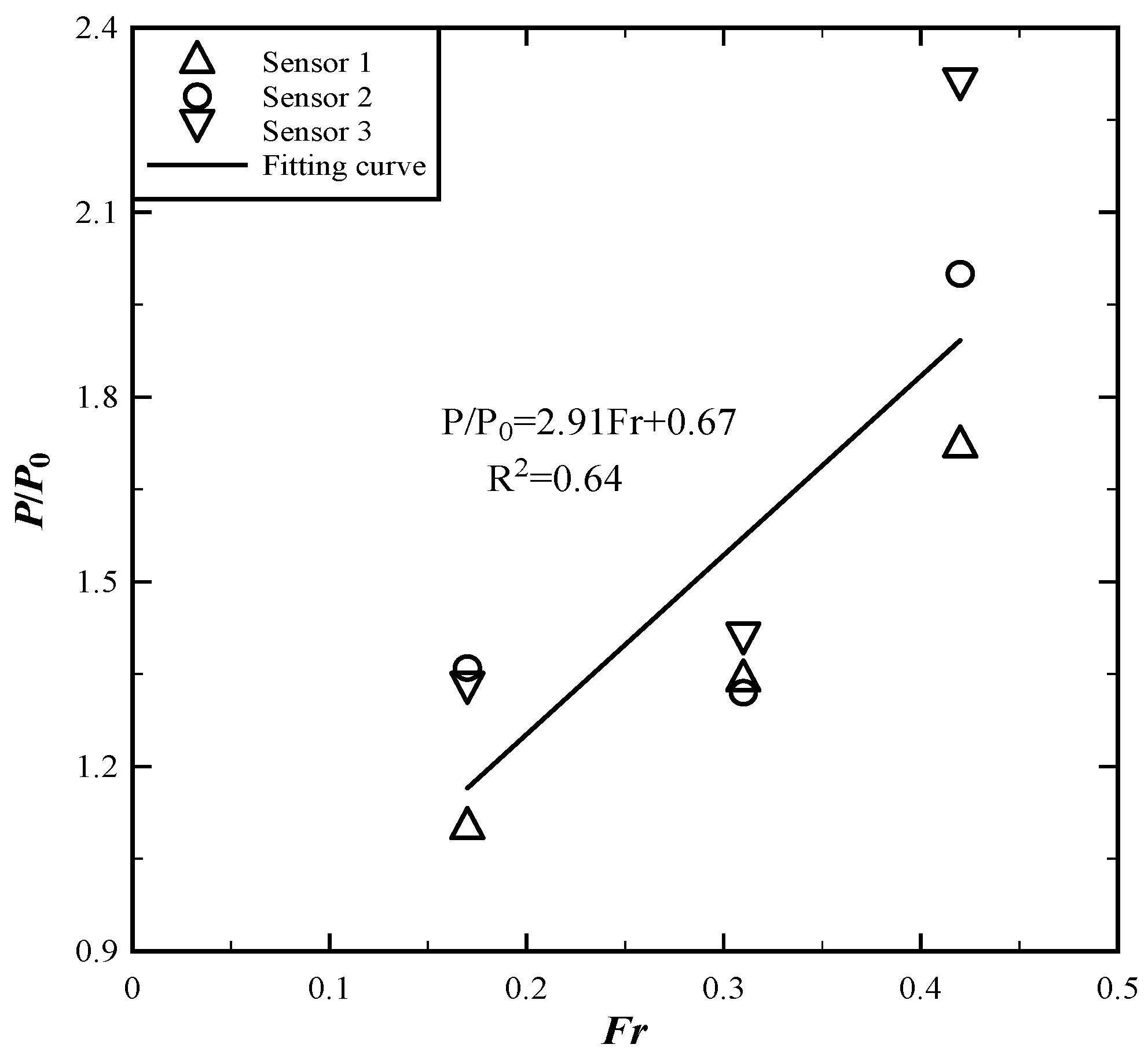

Regardless of the presence of sediment deposition, it was evident that the average impact pressure values at each measurement point exhibited a consistent increase in response to rising flow velocities. When comparing scenarios under the same flow velocity, cases with sediment deposition experienced heightened impact pressures, accentuating the effect of sediment on flow dynamics. Furthermore, the discrepancies in impact pressures between cases with and without sediment deposition became more pronounced as flow velocity increased. To offer a comprehensive representation of this relationship, Figure 8 illustrates the correlation between the Froude number and the dimensionless impact pressure. The relationship could also be expressed as:

$$P/P_0=2.91Fr+0.67$$

(4)

When examining the combined influence of both sediment deposition height and flow condition on the horizontal impact pressure exerted on the bridge deck, a linear regression analysis of the experimental data was conducted. As a result, it yields the following equation:

$$P/P_0=5.34h_s/h_b+2.85Fr-0.76$$

(5)

In our experiments, the dimensionless sediment deposition height of h_s/h_b ranged from 0.261 to 0.478, while the Froude number Fr ranged from 0.17 to 0.42. The coefficients of these two parameters are positive, reflecting a similar growth relationship. Furthermore, the dimensionless sediment deposition height coefficient is greater than that of Froude numbers, indicating that sediment accumulation height has a more significant impact on horizontal impact pressure. It is recommended to pay more attention to sediment deposition near bridges in flood risk management and bridge safety risk management. Timely dredging should be carried out in daily management, and corresponding engineering measures can be adopted to reduce the entry of solid material sources into the river and alleviate sediment accumulation, thereby reducing the risk of bridge collapse due to flood impact.

5. Characteristic Fluctuation Frequency

Vibration has also been identified as a prominent factor contributing to bridge destruction [21,30]. The induced vibration is likely to initiate structural cracks within the bridge, leading to a decrease in its critical threshold and an augmented susceptibility to potential damage. Thus, the characteristic frequencies of the horizontal impact pressure and water level fluctuations were investigated in this study.

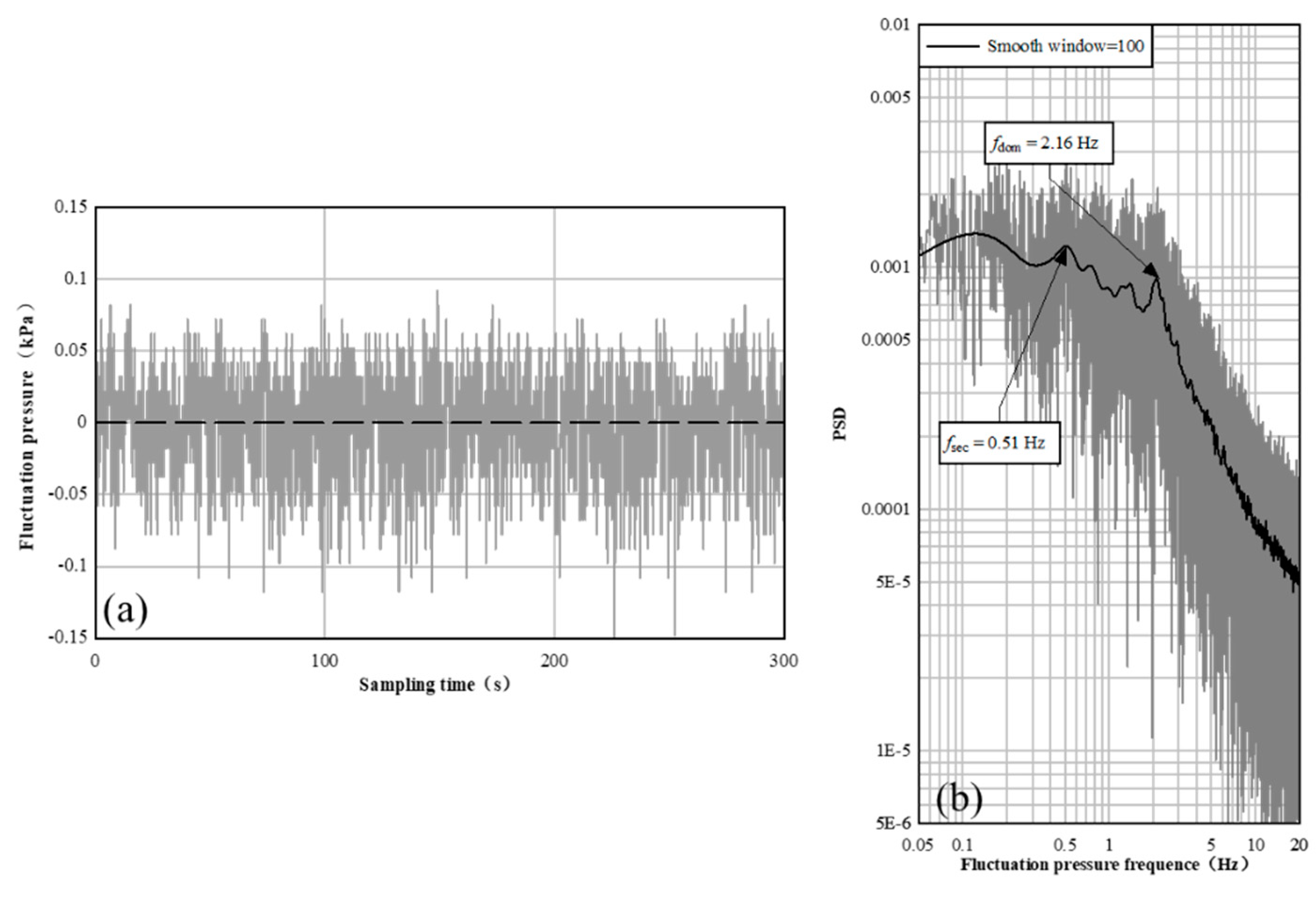

The water flow fluctuation characteristics were obtained by performing a Fast Fourier Transform (FFT) on the pressure signals and water level signals collected under various experimental conditions. For instance, Subtracting the average pressure from the instantaneous pressure sampled by the pressure sensor, fluctuation pressure P’ was obtained. Figure 11(a) shows the time-domain diagram of fluctuation pressure for case 3. Then an FFT transformation on the data was performed, and the frequency-domain diagram of fluctuation pressure was obtained in Figure 11(b). Smoothing the gray curve with a window width of 100 yields the dominant frequency f_dom and secondary frequency f_sec of fluctuation pressure, with f_dom = 2.16 Hz and f_sec = 0.51 Hz. Applying the same analytical procedure to the pressure signals collected in other experiments, the dominant and secondary frequencies corresponding to each condition were obtained. Figure 12 (a) shows the comparison of the dominant and secondary frequencies of fluctuation pressure under different sediment deposition heights for various Froude numbers. It can be found that the dominant fluctuation pressure increases with the increase of both the dimensionless sediment deposition height and Froude number, while the secondary fluctuation frequency is basically distributed between 0.39 - 0.58 Hz with a small variation.

Similarly, the upstream fluctuated water levels, monitored by the Acoustic Doppler Method (ADM), were subjected to data processing to ascertain their dominant and secondary fluctuation frequencies, as demonstrated in Figure 13(b). It can be seen from the figure that the dominant frequency of water level fluctuation is slightly smaller than that of pulsating pressure, and it presents a similar trend to fluctuation pressure, viz. increasing with the increase of both the dimensionless sediment deposition height and Froude number. The secondary frequency of fluctuation water level is also relatively stable, basically distributed between 0.31- 0.55 Hz.

The elevated water impact frequency and heightened flow turbulence may expedite the onset of structural issues such as cracks, corrosion, and material fatigue, ultimately compromising the bridge's strength and longevity. Concurrently, the increased water impact frequency places greater loads on the bridge deck, potentially overloading components and increasing the risk of structural damage. Furthermore, these conditions can induce vibrations that may lead to resonance phenomena, further augmenting the potential for structural harm. Therefore, especially for bridges in mountainous areas prone to flooding, the design should take these results into account.

6. Conclusions

In this study, we examined the effects of impact pressure and flow conditions on sediment accumulation under a bridge during flash floods. By testing varying sediment deposition heights and inflow conditions, we sought to unravel the intricate interplay between these factors and their consequences on horizontal pressure and flow fluctuations on the bridge deck. Based on our findings, the following conclusions can be drawn:

Firstly, we observed a direct correlation between the increase in sediment deposition height and several significant changes: elevated inflow levels, enlarged differences in water surface elevation between the bridge's front and downstream, and heightened turbulence after the bridge. These observed phenomena can be attributed to the gradual reduction in flow area due to sediment accumulation, leading to a more pronounced water-blocking effect by the sediment body and a climb over the bridge deck for the excessive water. Notably, we established an exponential correlation between dimensionless horizontal impact pressure and dimensionless sediment deposition height. As sediment accumulation height approached 50% of the bridge deck clearance height, the impact pressure surged to approximately 3 times the pressure observed in the absence of sediment accumulation.

Secondly, under similar sediment accumulation volumes, higher inflow velocities resulted in a more significant water-blocking effect and increased horizontal impact pressure. Compared to conditions prior to sediment accumulation, the magnitude of the horizontal impact pressure increment after sediment accumulation was found to be directly proportional to the flow velocity.

Thirdly, through linear regression analysis of the experimental data, we determined that the relative sediment deposition height had a more substantial influence on the horizontal impact pressure compared to the Froude number within the range of our experiments. We recommend implementing measures to mitigate sediment accumulation, as this would subsequently reduce the risk of bridge collapse during flood events.

Lastly, by conducting a Fast Fourier Transform (FFT) analysis on the pressure and water level signals, we identified two characteristic frequencies for both the horizontal impact pressure fluctuation and the bridge deck water level fluctuation: the dominant and secondary frequencies. The dominant frequency of both signals exhibited a positive correlation with the relative sediment accumulation height and the Froude number. Meanwhile, the secondary frequencies remained relatively stable, ranging from 0.31 to 0.58 Hz.

These research findings provide valuable insights into the influence of flash floods on bridge deck impact pressure under sediment accumulation conditions. They contribute to a better understanding of flow dynamics in channels with sediment accumulation and the interaction between flow and bridge structures. Furthermore, these findings offer theoretical support for engineering disaster assessment and mitigation strategies.
