Assessment of Land Desertification in the Brazilian East Atlantic Region using the Medalus Model and Google Earth Engine

1. Introduction

Several soil, climatic, and socioeconomic factors drive desertification, resulting in environmental degradation, especially in areas located in arid and semi-arid regions [1]. The multi-disciplinary understanding of desertification drivers is essential for the implementation of monitoring systems to assess land degradation and to develop early warning systems for timely mitigation of negative environmental impacts [2, 3].

Remote sensing techniques have allowed large-scale, cost-effective monitoring in environmentally sensitive areas [4-6]. Of desertification monitoring methods, a relatively common approach is the use of multi-disciplinary approaches to create Environmentally Sensitive Areas (ESAs) [7]. Overall, this approach integrates qualitative and quantitative factors of soil and climatic characteristics, and human influence on a region to assess the susceptibility of areas to desertification [8]. A well-studied multi-disciplinary approach is the Mediterranean Desertification and Land Use (MEDALUS) model, which has been conceived from the parameterization of environmental factors driving the desertification process and recommended due to its simplicity [9]. The model is formed from the combination of climatic, soil, land management, and vegetation factors [10].

The MEDALUS model, initially proposed for Mediterranean Europe [11], has been used in other regions of the world to assess land desertification due to the universal characteristics of the parameters of the model [12, 3]. In Brazil, the application of the MEDALUS model has shown good performance in mapping areas susceptible to desertification in the Northeast region [13]. This region is mainly characterized by a semi-arid climate and long extensions of degraded land resulting from decades of inadequate land use, such as slash-and-burn, overgrazing, and overexploitation of natural resources [14]. However, limited computer power has been a major limitation to studies analyzing the many variables involved in desertification; therefore, studies have generally focused on small areas to decrease computational requirements [15]. The high computer power necessary to analyze large amounts of data can be addressed by cloud computing platforms, such as Google Earth Engine, which allow convenient and effective data processing, analysis, and storage [16-19].

In this study, we used the MEDALUS model to assess the susceptibility to desertification of the East Atlantic Basin, Brazil, using Google Earth Engine (GEE). The East Atlantic Basin has four distinct climate regimes (arid, semi-arid, humid, and sub-humid), a strong incidence of solar radiation, altitudes ranging from sea level to as high as 1,100 m [20], and average annual precipitation rates ranging from 600 and 2,200 mm [21]. This diversity in terms of climate, relief, and vegetation makes the basin an interesting choice for land desertification assessment and testing the GEE processing capacity. The objectives were to (i) assess the sensibility of the East Atlantic Basin to desertification and (ii) the influence of each model’s component on the performance of the MEDALUS model.

2. Materials and Methods

2.1. Study site and database

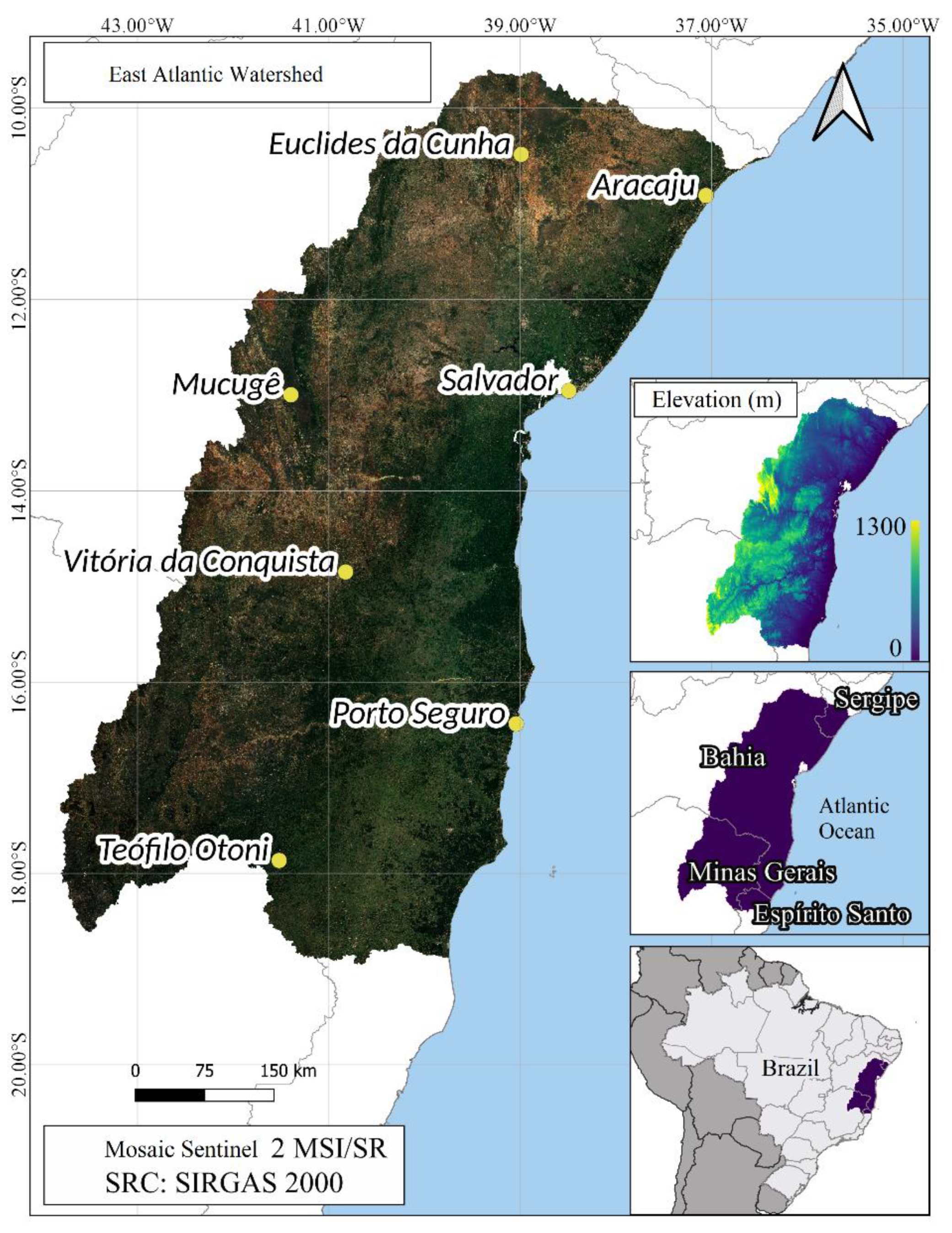

The East Atlantic Basin (Figure 1) is located among the states of Bahia, Espírito Santo, Minas Gerais, and Sergipe, with a total area of approximately 386,511.95 km².

Digital geospatial databases were used to map the areas sensitive to desertification in the East Atlantic Basin. Some of these data underwent the removal of topological errors and the addition of population data. These adjustments were made using the open-source software QGIS, version 3.14. Then, these files were uploaded to the GEE platform.

2.2. The MEDALUS model

The Environmentally Sensitive Area (ESA) index was based on the modified framework of the MEDALUS model [11], which uses four quality indices (QI): climate quality index (CQI), soil quality index (SQI), vegetation quality index (VQI), and management quality index (MQI). The framework has variations from that of the original method, such as the addition of information on Soil Carbon Content and Normalized Difference Vegetation Index (NDVI) (Table 1).

Driving factors of the desertification process were classified according to scores ranging from 1 (least sensitive to desertification) to 2 (most sensitive to desertification) for the determination of quality indices (Qis); values between 1 and 2 indicate intermediate susceptibility. Thus, obtaining the Environmentally Sensitive Areas (ESAs) took place in two stages: in the first stage, the QIs were obtained using the geometric mean of the variables that compose the indices using Equations 1 and 2 [9].

QI_x = (variable_1_ij * variable_2_ij * variable_3_ij … * variable_n_ij)^1/n

(1)

where: n = number of variables; x = quality indices (CQI, SQI, VQI, and MQI); iej = row and column of a pixel of the used rasters, respectively.

In the second stage, the previously obtained QIs were used to calculate the ESA:

ESA_ij = (CQI_ij * SQI_ij * VQI_ij * MQI_ij)^1/4

(2)

where: i and j = is the row and column, respectively, of a pixel of the rasters.

Thus, ESAs obtained from the listed QIs were classified into eight desertification sensitivity classes [22]: unaffected (N), potentially affected (P), fragile (F1, F2, F3), and critical (C1, C2 and C3) (Table 2).

Table 2. Types of Desertification Sensitivity Indices.

Susceptibility	Weights	Subclasses
Not affected	< 1.170	No
potentially affected	1.170 - 1.225	P
Fragile	1.225 - 1.275	F1
	1.275 - 1.325	F2
	1.325 - 1.375	F3
Critical	1.375 - 1.425	C1
	1.425 - 1.530	C2
	> 1.530	C3

Table 2. Types of Desertification Sensitivity Indices.

Susceptibility	Weights	Subclasses
Not affected	< 1.170	No
potentially affected	1.170 - 1.225	P
Fragile	1.225 - 1.275	F1
	1.275 - 1.325	F2
	1.325 - 1.375	F3
Critical	1.375 - 1.425	C1
	1.425 - 1.530	C2
	> 1.530	C3

2.3. Quality scores

The respective QIs were obtained using digital databases in raster format. Part of these bases were already available in the GEE catalog. The unavailable ones in the platform were acquired and reclassified according to the weights (Table A1) established in the methodology to finally send them to the GEE platform for the creation of the ESAs map (Figure 1).

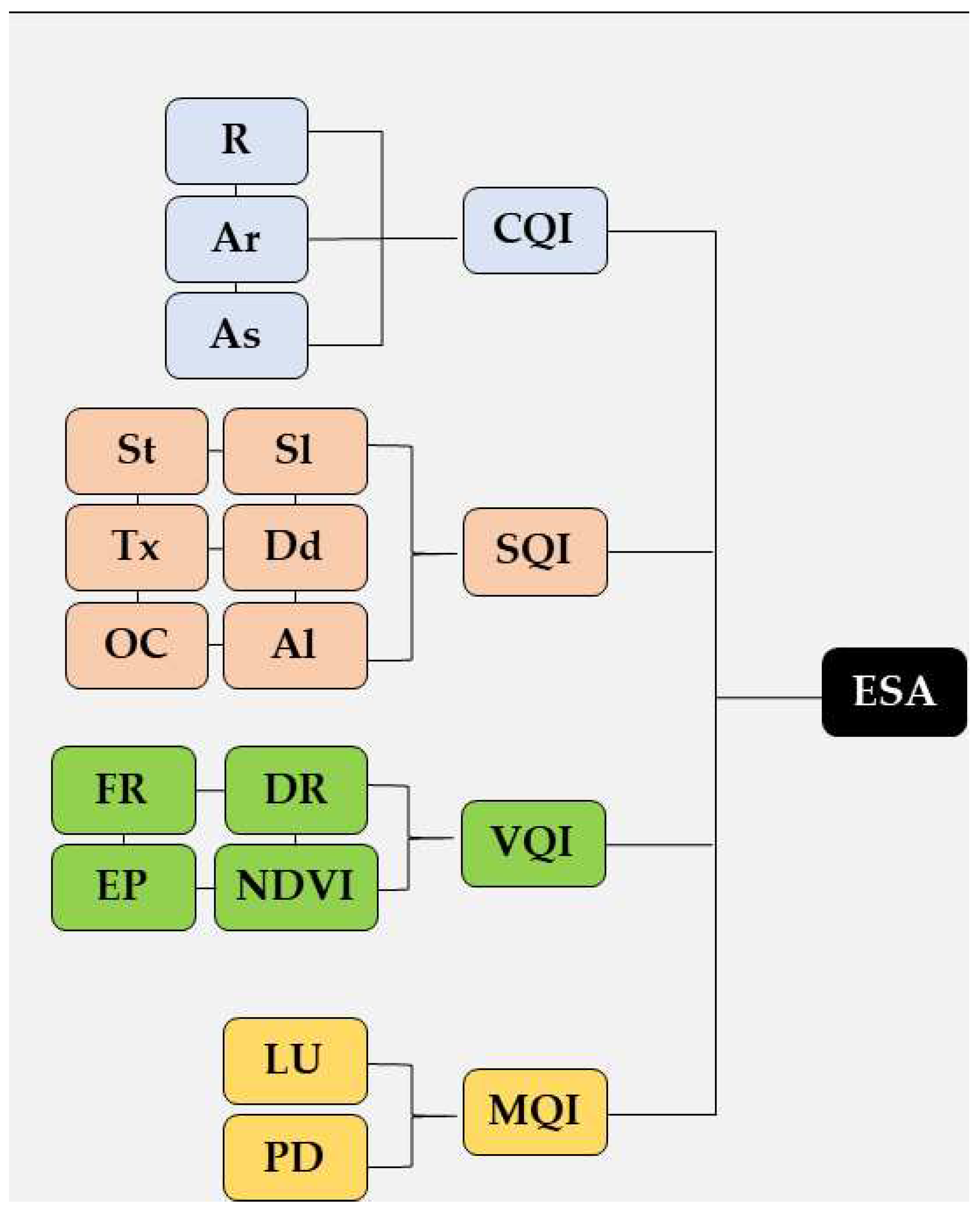

Figure 2. Flowchart showing the components associated with climate (CQI), soil (SQI), vegetation (VQI) and management (MQI) quality indexes to calculate the Environmental Sensitive Area (ESA). R – rainfall; Ar – aridity; As – basin orientation; St – soil type; Sl – basin slope; Tx – soil texture; Dd – drainage classes; OC – organic carbon content; Al – albedo; FR – fire risk; DR – drought resistance; EP – erosion protection; NDVI – normalized difference vegetation index; LU – land use; PD – population density. .

Figure 2. Flowchart showing the components associated with climate (CQI), soil (SQI), vegetation (VQI) and management (MQI) quality indexes to calculate the Environmental Sensitive Area (ESA). R – rainfall; Ar – aridity; As – basin orientation; St – soil type; Sl – basin slope; Tx – soil texture; Dd – drainage classes; OC – organic carbon content; Al – albedo; FR – fire risk; DR – drought resistance; EP – erosion protection; NDVI – normalized difference vegetation index; LU – land use; PD – population density. .

CQI was determined using the variables rainfall (R), aridity (Ar), and basin orientation (As) based on the GEE catalog bases. The mean annual total precipitation information (mm) came from the TerraClimate global dataset [23]. Aridity was calculated using the UNESCO aridity index [24] from the ratio between precipitation (mm) and potential evapotranspiration (mm). Potential evapotranspiration (ETP), for the period 2010 to 2019, necessary to obtain Ar, came from the Terra Net Evapotranspiration Digital Base, which uses MODIS satellite images by the Land Processes Distributed Active Archive Center (LPDAAC). Basin orientation was obtained using SRTM images from Hole-filled SRTM for the globe, version 4.

SQI was obtained using the variables soil type (St), basin slope (Sl), soil texture (Tx), drainage classes (Dd), organic carbon content (OC), and albedo (Al). Basin slope was extracted from the previously cited SRTM data. Information on texture, drainage classes and organic carbon content was extracted from the Harmonized World Soil Database [25], reclassified according to the defined weights, and sent to the GEE platform. Surface albedo was obtained from an annual mosaic for the year 2019, composed of pre-processed images from the Sentinel-2 (S2) satellite. Albedo calculation in S2 images was performed using coefficients defined in an approach proposed by [26].

VQI is composed of the sub-indices fire risk (FR), drought resistance capacity (DR), erosion protection capacity (EP) and the NDVI. The FR, DR and EP variables were obtained from the reclassification (Table 1) of a land use mosaic made available by MapBiomas [14] for the year 2019. The image, available on GEE, was then cut and reclassified according to the parameters established for each variable that composes the VQI. The NDVI for the study area was obtained using the mosaic composed of S2 images using the following equation:

NDVI = (IR – RED)/(IR – RED)

(3)

where IR is the infrared surface reflectance on band eight; RED is the red surface reflectance on band four of the S2 satellites.

MQI was composed of the variables intensity of land use (LU) and population density (PD) of the municipalities present in the basin under study. Land use intensity data come from the land cover classification image provided by MapBiomas and had scores assigned to each class, as previously determined in Table 1. The PD variable was acquired from the ratio between the number of inhabitants in a municipality and its respective area in km². As the last population census was carried out in Brazil in 2010, it was necessary to estimate the population in 2020.

Maps based on the Environmentally Critical Factors (ECF) index were created to complement the ESA map for the East Atlantic Basin. The composition of the ECF index was performed with the following equation [27]:

$${\mathrm{ECF}}_{\mathrm{ij}}={\sum }_{\mathrm{n}=1}^{15}\mathrm{f}({\mathrm{v}\mathrm{ariable}}_{\mathrm{nij}})$$

(4)

$$f(x)=\left\{\begin{array}{c}1, \mathrm{s}\mathrm{e} x \text{>} 1,425\\ 0, \mathrm{s}\mathrm{e} x \text{≤} 1,425\end{array}\right.$$

(5)

Pixels with values lower than the critical limit (C2) of 1.425 were not considered when processing. Thus, the composition of the ECF index was made from counting the number of variables that exceeded the critical value of 1.425 for each pixel.

2.4. Statistical analysis

Principal Component Analysis (PCA) was used on the matrix of variables to evaluate the relationship between the component variables of the produced ESAs. The four QIs and the ESA were used as supplementary parameters. The averages of the 20 variables (15 factors, Qis, and ESA) were obtained for each of the 541 municipalities located within the limits of the basin's area, composing 10,820 observations. The PCA was performed using the R software.

3. Results

3.1. Quality scores

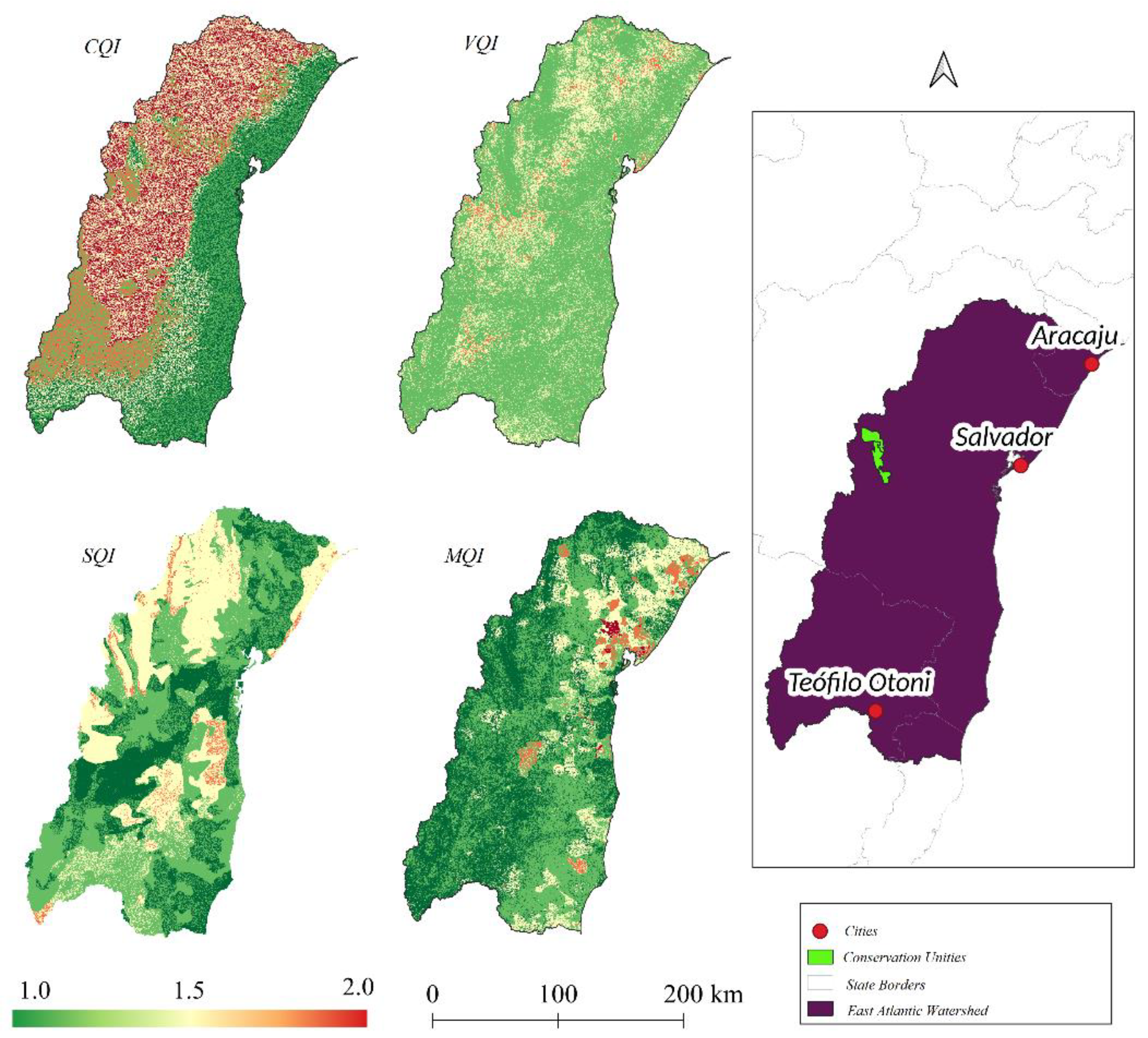

The maps resulting from the application of Equation 1 for the generation of QIs are shown in Figure 3. Each generated raster has pixels with values from 1 to 2, so that the greater the value of a certain index, the greater its contribution to the sensitivity to basin desertification.

3.2. Environmentally Sensitive Area (ESA)

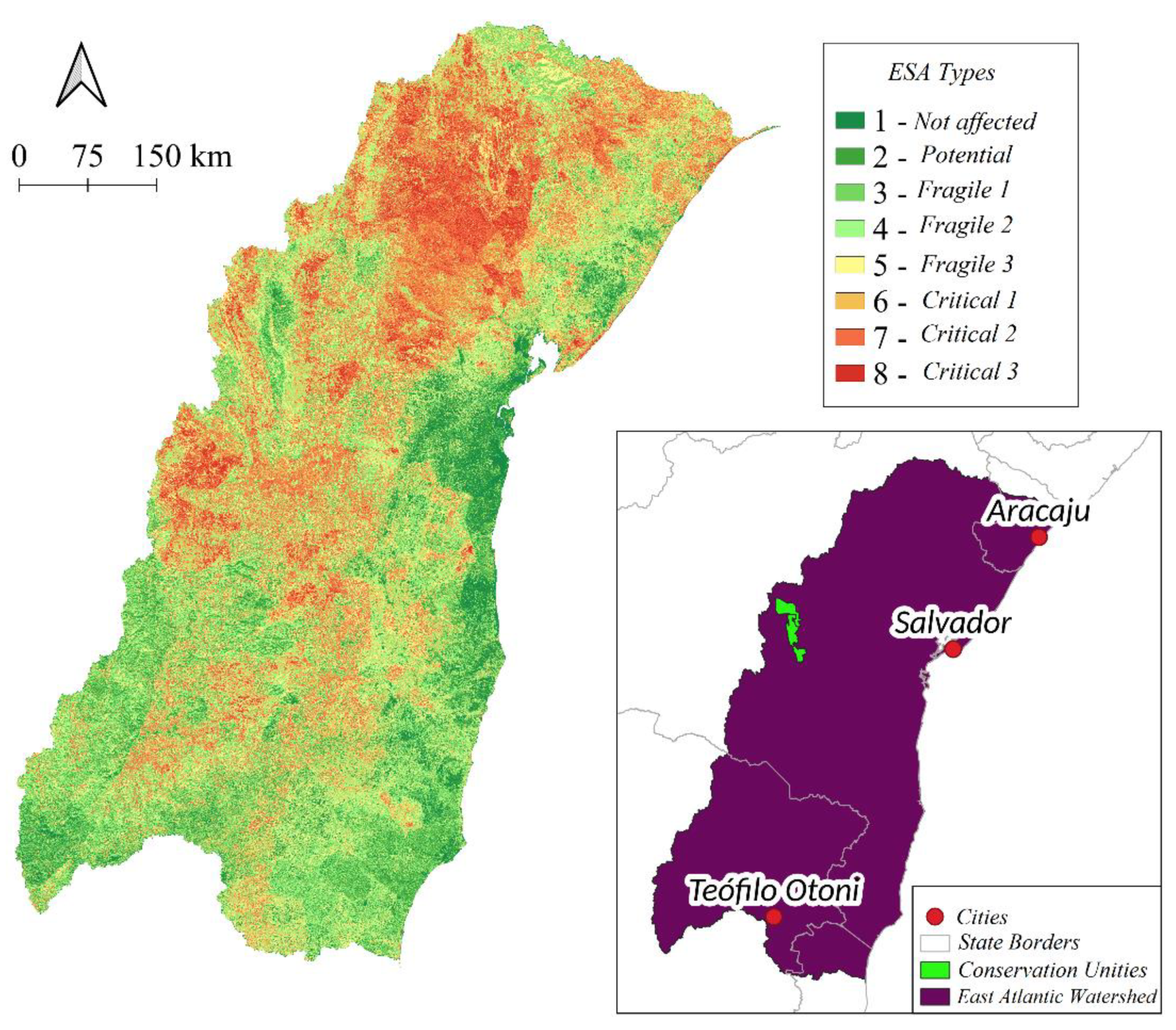

After applying Equation 2 using previously generated QIs, an ESAs map was obtained (Figure 4). The ESAs comprise the geometric mean of the four QIs generated in the first stage of the work.

In analyzing the ESA map, the north and central-west regions of the study area has areas with greater vulnerability to desertification. Conversely, areas located closer to the coastal zone and to the southwest of the basin were less susceptible. Only 5.0% of the basin area (Table 2) can be classified in the “Not affected” category (N), with emphasis on areas located in the region further to the coast and southwest of the basin.

The areas included in the “Potentially affected” (P) class comprise about 10.1% of the total area of the basin and are located, as well as the N class, in the coastal and southern regions. The three levels corresponding to the “Fragile” (F) class have a relatively uniform spatial distribution throughout the basin, occupying around 49.3% of the entire area. In general, subclasses F1 and F2 have similar spatial distribution to classes N and P, while subclass F3 is more present in the northern and central portion of the studied area, the latter being more associated with the “Critical” class (C). Class C corresponds to a portion of 35.7% of the basin and, as previously mentioned, the areas included in this classification (C1, C2, C3) are located to the north and center of the area under study.

Table 2. Desertification susceptibility classes and their respective areas within the East Atlantic Basin, Brazil.

Susceptibility	Weights	Subclasses	Area (km²)	Area (%)
Not affected	< 1.170	No	19177.49	5.0%
potentially affected	1.170 - 1.225	P	38883.42	10.1%
Fragile	1.225 - 1.275	F1	56033.22	14.5%
	1.275 - 1.325	F2	68675.25	17.8%
	1.325 - 1.375	F3	65941.47	17.1%
Critical	1.375 - 1.425	C1	54968.20	14.2%
	1.425 - 1.530	C2	70176.42	18.2%
	> 1.530	C3	12656.84	3.3%

Table 2. Desertification susceptibility classes and their respective areas within the East Atlantic Basin, Brazil.

Susceptibility	Weights	Subclasses	Area (km²)	Area (%)
Not affected	< 1.170	No	19177.49	5.0%
potentially affected	1.170 - 1.225	P	38883.42	10.1%
Fragile	1.225 - 1.275	F1	56033.22	14.5%
	1.275 - 1.325	F2	68675.25	17.8%
	1.325 - 1.375	F3	65941.47	17.1%
Critical	1.375 - 1.425	C1	54968.20	14.2%
	1.425 - 1.530	C2	70176.42	18.2%
	> 1.530	C3	12656.84	3.3%

When analyzing the areas characterized by high sensitivity to desertification, more specifically to the north of the basin, the presence of low-quality soils and high rates of aridity are predominant factors in these locations.

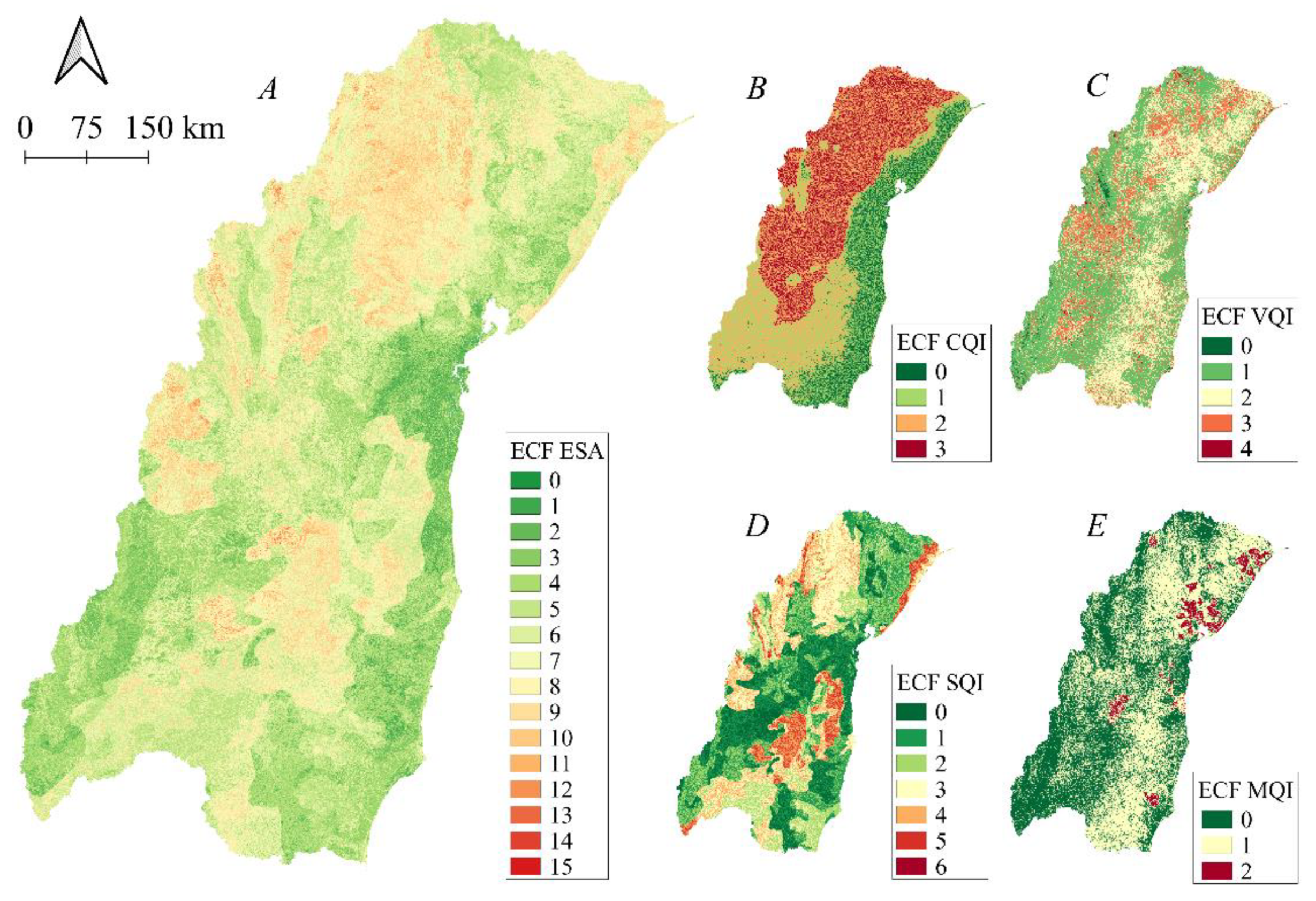

A joint analysis of the ECF index (Figure 5) and ESA allows a better understanding of the contribution of each model component to the desertification process. This analysis shows that certain areas with the same ESAs have variables with different sensitivity to desertification [27]. Thus, when analyzing the ECF maps, we can observe that variables related to the climate and soil of the study area are the most common factors for determining sensitivity to desertification in the East Atlantic Basin.

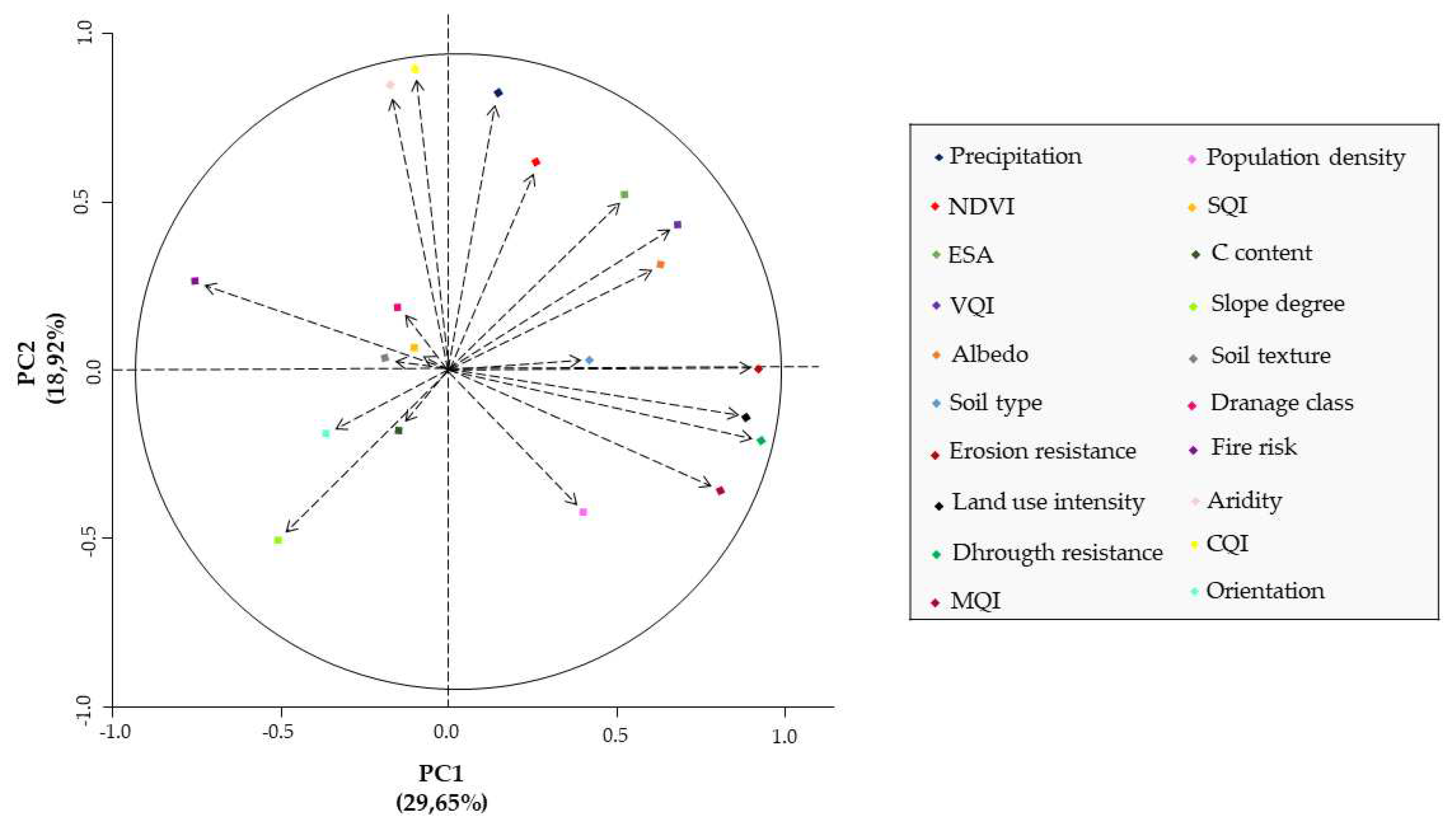

The PCA results (Table 3 and Figure 6) allowed a more objective assessment of the contribution of each edaphoclimatic and anthropic variable used for the composition of the ESAs maps for the East Atlantic Basin, enabling the optimization of the model in future research.

The first three PCs could explain 61.31% of the total variance, which can be considered a significant value due to the spatial extent of the study area. Principal component 1 (29.65%) was associated with variables related to VQI (Fire Risk, Resistance to Drought and Resistance to Erosion) and MQI (Land Use Intensity). PC1 was also associated with albedo, although it did not show a high correlation. Principal component 2 (18.92%) showed a significant correlation with the climatic variables that compose the CQI (Rainfall and Aridity), also correlating with the NDVI. Finally, PC3 (12.75%) was exclusively linked to the component variables of the SQI (Soil Texture, Drainage Classes, and Organic Carbon Content).

In analyzing the results in Figure 6, we can have a better understanding of the relationship between the selected variables, Qis, and ESAs, showing that NDVI, albedo, and VQI are positively correlated with ESAs.

4. Discussion

Difficult access to high computing power has been the main hindrance in analyzing satellite images. The challenge is particularly important in land desertification assessments because of the large amount of data involved in the models, such as the Medalus model. The results have shown the possibility of assessing the extensive area of the East Atlantic Basin.

The CQI exhibits a relatively well-defined spatial distribution, in which the regions to the east of the basin, characterized by having lower altitudes and proximity to the coastal region, are defined as areas of better climate quality. This characteristic can be attributed to high rainfall in the region, which can exceed 2,000 mm in total per year [17]. However, regions close to Chapada Diamantina, in the state of Bahia, are an exception to this spatial distribution, as they have high CQIs, especially the areas located close to two considerably large environmental conservation units, such as the Chapada Diamantina National Park and the Marimbus/Iraquara Environmental Protection Area. The presence of fauna and flora conservation areas works as a mechanism for maintaining and conserving environmental resources, especially water resources.

The regions located to the west and north of the basin are the most sensitive areas from a climatic point of view. These drier regions have a semi-arid climate, with the annual aridity index reaching a value of 0.2, and are distributed across the northeastern agreste and sertão [14]. These areas are still associated with low mean annual rainfall (~600 mm), and higher altitudes when compared to the rest of the East Atlantic Basin, thus receiving a higher incidence of solar energy [18].

The vegetation cover in the study area has a very diversified spatial distribution, being composed mainly of pastures, agriculture and forest occupations. Regarding the VQI, it is noticeable the occurrence of patches or areas with high environmental sensitivity in the central strip, which extends from the northernmost portion of the basin to its southernmost area. These patches are associated with areas with drier characteristics and little rainfall, such as the north of Minas Gerais, west of Sergipe, Center-South and North of Bahia, in addition to having considerable centers of agricultural activities, mainly horticulture and cattle raising, which have been expanding in recent decades [15].

With behavior similar to that observed for CQI, virtually the entire coastal region of the basin, located within the Atlantic Forest biome, shows high vegetation quality, except heavily urbanized and populated areas. Along the entire eastern face of the basin, agricultural and forestry activities stand out, the latter activity being one of the economic engines of this region, mainly due to eucalyptus plantations and pulp and paper industries. Therefore, the presence of vigorous vegetation cover, whether planted or native, tends to protect the soil against erosion and have greater resistance to lack of water, when compared to areas with less vigorous vegetation cover [28-29].

The basin's soils, for the most part, have medium to good quality, according to the characteristics used for the construction of the SQI. The soils mostly have good drainage and texture classes, in addition to most of the area having low albedo values (< 0.20), indicating a low presence of bare surface. The albedo is indicative of the presence of the forest cover removal process in semi-arid regions, demonstrating that high reflectance values can point to the presence of environmental degradation and increased sensitivity to desertification in regions characterized by drier climate regimes [30]. The areas in the basin with the lowest SQI are located in regions that have sandy soils (S), which are, by nature, highly vulnerable to the erosion process and low water retention capacity [12]. These lower-quality areas are found in the northeast, northwest and south-central portions of the East Atlantic Basin. Compared to the other quality indices, SQI has a low temporal variability, especially the variables St, Sl, Tx and Dd, which take a considerable period to change their characteristics. Thus, when establishing a continuous desertification monitoring program using cloud processing applications, supported by edaphoclimatic variables, the soil parameters require only punctual updates in their configurations.

The MQI of the East Atlantic Basin shows, in the western portion, the areas with lower environmental susceptibilities. These areas are located further inland on the continent and are characterized by having low population density rates (< 100 inhabitants/km. The areas of the western portion of the basin still have a characteristic of low intensity of land use, mainly about the grazing index, showing a tendency to maintain the natural vegetation cover, especially the savanna forest formation [15], and low soil disturbance, although this trend has been changing in recent years, mainly for the development of pastures [31].

Municipalities located closer to the coastal zone of the basin have historically shown higher population densities (> 100 inhab/km²). The high rainfall that occurs in most of these regions made them suitable for the development of these rural activities, as in the extreme south of Bahia [15].

4.1. Environmentally Sensitive Areas (ESAs)

Overall, the spatial distribution of sensitivity to desertification in the East Atlantic Basin was linked to the presence of vigorous vegetation also related to the distribution of rainfall. A considerable portion of the west face of the basin, close to the protection areas in Chapada Diamantina, are little susceptible to desertification, indicating the existence of such areas as a contributing factor to the reduction of impacts and expansion of desertification on ecosystems. When analyzing the areas characterized by high sensitivity to desertification, more specifically to the north of the basin, we can observe that the presence of low-quality soils and high rates of aridity are predominant factors in these locations. Regions with high potential ET rates and low P rates tend to be more susceptible to degradation due to desertification [32, 33].

Overall, VQI and MQI jointly contributed to the definition of levels of sensitivity to desertification. This can be attributed to the fact that the Land Use variable was obtained as a function of the vegetation classification present in the basin. SQI and CQI influenced the definition of the basin's environmental sensitivity independently, not showing a synergistic effect with the other quality indices. These results differ from those obtained elsewhere, in which the CQI and VQI had a correlated influence on the definition of desertification classes and the MQI acted independently [34]. However, in both studies, the SQI had an autonomous contribution, compared to the other indices.

The use of the modified framework of the MEDALUS model proved to be a useful tool for identifying areas susceptible to desertification in the East Atlantic Basin. The model holds the potential to direct public policies and measures aimed at mitigating the impacts resulting from this process that causes environmental degradation. The creation of online and universally accessible tools for monitoring desertification is necessary to help mitigate the impacts of this phenomenon in regions with few economic resources. Thus, access to geoprocessing technologies with high computational capacity to public institutions, free of charge, helps managers in decision-making. From the point of view of methodological improvements, assessing the contribution of more socio-ecological factors to the occurrence of environmental degradation processes resulting from desertification is an important step that may be inserted into the framework of the MEDALUS model in future situations [27] conditioned to the creation and publication of current databases about these parameters.

Spectral indices, such as the NDVI, are viable tools for monitoring and understanding the occurrence of the process of environmental degradation resulting from desertification in arid regions. Conversely, it is possible to observe the existence of a negative correlation between slope and sensitivity to desertification. The slope is an important factor to be observed when analyzing the existence of degradation and desertification processes in an area, as it is a crucial component for the development of erosion processes [8, 12], and, similarly to the NDVI, it is possible to use it to monitor areas under environmental pressures and the degradation process [31]. The observation of the existence of a correlation between ESA, slope and NDVI variables is important because of the possibility of using these factors as responses to the process of environmental degradation resulting from desertification [35].

When assessing susceptibility to desertification in Mongolia in different years, a similar trend has been reported between ESA and NDVI over time, indicating that areas with low NDVI values may indicate areas in critical situations of desertification [36]. Under conditions of low information availability, knowing the most important variables allows for building models of environmental sensitivity using these factors as independent variables [37-39]. However, it is important to mention that the monitoring of the desertification process using the NDVI does not allow obtaining information about the causes and factors acting on this phenomenon, thereby limiting the planning and management of a certain area.

The use of cloud GEE revealed benefits when compared with GIS software, especially in terms of speed and processing capacity [18, 19, 40]. Further, GEE also stands out for the high-quality digital databases already available in its public catalog, streamlining. The creation of an environmental monitoring model related to desertification, in a cloud processing system, allows the creation and analysis of historical series from smaller time intervals because of reduced limitations to processing and storage capacity.

A considerable portion of the East Atlantic Basin showed susceptibility to desertification, requiring greater attention from public entities and civil society to reduce the possible impacts of this phenomenon on the local population. The regions further north and midwest of the basin, in the states of Bahia and Sergipe, are in a more critical state. Thus, it is important to prioritize the establishment of public policies in municipalities in these areas. Due to the importance of the parameters related to vegetation for the ESA, the establishment of measures for the promotion, recovery, and conservation of forested areas, and the establishment of sustainable soil management, can help to mitigate the susceptibility of the area to degradation.

5. Conclusions

Approximately 36% of the total area of the East Atlantic Basin is in a critical state of sensitivity to desertification, with areas located in the north and midwest portions having the highest levels of sensitivity to desertification. Conversely, coastal regions had the lowest levels of environmental vulnerability across the basin.

NDVI, slope, and VQI were the edaphoclimatic variables most correlated with the Environmentally Sensitive Area Index of the East Atlantic Basin.

The analysis of the Environmentally Critical Factors Index, in parallel with the Environmentally Sensitive Index, is a relevant mechanism for understanding the importance of each variable for the composition of the MEDALUS model.
