Cervical Cancer or Cervical Endometriosis – Review and Case Report

1. Introduction

Cervical endometriosis does not usually generate signs and symptoms, it can be difficult to diagnose [1,2]. Cervical endometriosis appears to be a diverse pathology. Asymptomatic cervical endometriosis may not necessitate therapy until it is identified by an abnormal screening. Patients should be recommended to take four weeks of progesterone or oral contraceptive pill treatment to postpone monthly flow for four weeks prior to any endometrial implantation of the cervix [3].

Endometriosis is described as the presence of endometrial glands and stroma out the uterine cavity. Although endometriosis is a prevalent condition, particularly among women of reproductive [4] age, cervical endometriosis is uncommon. A few case reports have been published since the 1950s, as it is an uncommon pathology with a small incidence rate varying between 0.11 and 2.4% [5]. Cervical endometriosis may be mistaken as a cervical cancer and discovered accidentally during a regular workup to screen out cervical malignant tumors [6]. The reported incidence is rising due to the increased use of cervical invasive procedures for the identification of cervical diseases, such as cervical biopsy and loop excision [7].

Around 10% (190 million) of women and adolescents in reproductive age suffer with endometriosis worldwide. It is an ongoing disease that causes excruciating, life-altering agony during periods, sexual activity, bowel and/or bladder movements, chronic pelvic discomfort, stomach bloating, nausea, exhaustion, and occasionally depression, anxiety, and infertility.

Endometriosis therapy often focuses on managing symptoms because there is presently no recognized cure for the disease. Although it is crucial, not everyone has access to early detection and efficient endometriosis treatment, especially in countries with middle and low incomes. Endometriosis is a disorder where tissue that resembles uterine lining develops outside of the uterus. It can make getting pregnant more difficult and result in severe pelvic discomfort. Endometriosis can develop during a person's first menstruation and persist beyond menopause. Endometriosis has no recognized cause. Endometriosis cannot be prevented in any known method. There is no cure, although medications or, in certain situations, surgery can be used to address the symptoms [8].

Deep penetrating cervical endometriosis involving the ureter mimicking cervical cancer, the need of include cervical endometriosis as a differential diagnosis in cases of period abnormalities, and its potential to produce severe problems [9]. Several hypotheses have been offered to explain the etiology of cervical endometriosis; however, no one explanation can explain all cases; hence, the interaction of coupled elements indicated by each postulated theory plays a part in the formation of cervical endometriosis [1].

Cervical endometriosis is classified as superficial, profound, or polypoid [9,10,11]. The presence of endometrial tissue on the anterior lip of the cervix, restricted to the cervix surface and not spreading beyond the squamous epithelium, is defined as primary cervical endometriosis. Secondary cervical endometriosis is more frequent than primary endometriosis and refers to disease extensions from the pelvis, most often the rectovaginal septum. After a standard cervical screening, superficial endometriosis is generally identified by fne-needle aspiration, colposcopy, and cervical biopsy, because endometrial cells discovered during a Pap smear may be incorrectly eliminated as atypical glandular cells. Pelvic discomfort, vaginal bleeding, are all symptoms of deep endometriosis [12,13].

It is a benign disease that is often asymptomatic but can occasionally show signs like intermenstrual spotting and post-coital bleeding. For superficial endometriosis, colposcopy, cervical biopsies, and Fine Needle Aspiration Cytology (FNAC) are crucial investigations since only a histopathological report can definitively diagnose the disease and guide future care. For profound endometriosis, surgical therapy is the best option to ease the patient's discomfort and lower the fatality. [9] It is quite uncommon for endometriosis in the cervical region to cause bleeding during pregnancy. It is highly uncommon for bleeding to occur during pregnancy due to cervical endometriosis. This case emphasizes the significance of a comprehensive pelvic examination in women who arrive with bleeding in the early stages of pregnancy and the need for a biopsy of any lesions, if possible and safe to do so. Cervical endometriosis with ongoing symptoms may make vaginal delivery impossible [14].

Height, shorter menstrual cycles, and early menarche are all linked to an increased risk of endometriosis, whereas parity, a higher body mass index (BMI), and smoking are linked to a lower risk. Endometriosis frequently manifests as infertility or persistent pelvic discomfort despite analgesic and cyclic oral contraceptive pill therapy. Endometriosis symptoms are treated with hormone therapy and analgesics for pain. However, because endometriosis frequently returns, the effectiveness of these therapies is limited [15].

The implantation and persistence of lesions deposited in the pelvic cavity may be influenced by other variables such as the hormonal, inflammatory, or immunologic context or as a result of Müllerian remnants that failed to correctly migrate or differentiate when a fetus was developing or as a result of circulating blood cells that differentiate into endometriosis. In addition, this tissue, in its invasion of the myometrium, frequently extends in the spaces occupied by the vessels and sinuses of the uterine wall but is separated from the lumen of the latter by the layer of endothelial tissue in a direct or primary endometriosis (so-called adenomyoma of mucosal origin).

Robert Meyer's discoveries on the extra-endothelial course of endometrial tissue around the uterine wall vessels in a direct endometriosis were verified, however it is thought that these are often venous veins rather than lymph vessels. Although it hasn't been able to conclusively establish it, it was thought that the endometrial tissue next to a vessel's endothelial lining may rupture during menstruation, allowing fragments of endometrial tissue to escape into the lumen of a blood vessel. Jacobson has demonstrated via his experimental work with rabbits and monkeys that small fragments of the uterine mucosa of these species become implanted on the peritoneum and result in peritoneal endometriosis that is identical to that occurring in humans [16,17,18,19,20,21,22,23].

Endometriosis manifests differently clinically in different female patients. Intermenstrual bleeding, painful periods (dysmenorrhea), painful sexual activity (dyspareunia), painful defecation, and painful urination (dysuria) are among the symptoms that patients frequently complain of [24]. Before menstruation even starts, there may be pelvic discomfort. Endometriosis frequently has no symptoms and is only discovered by a doctor while doing an infertility examination [15]. Endometriosis has been compared to a malignant tumor even though its histology normally shows it to be benign because the lesions enlarge, infiltrate, and connect to nearby tissues, interfering with physiologic functions. Similar to ectopic endometrium, ectopic endometriotic growths multiply and shed cells in response to cyclical fluctuations in estrogen. This recurrent ectopic activity causes internal bleeding, the development of scar tissue, inflammation, and even life-altering chronic pain [25,26]. The real incidence of endometriosis is unclear since laparoscopy is the only procedure that provides confirmation of the diagnosis, and an unidentified proportion of women are either asymptomatic or choose not to get treatment for their symptoms [27,28]. About 20% (within a range of 2% to 78%) of women receiving laparoscopic infertility investigations and 24% (within a range of 4% to 82%) of women undergoing laparoscopic investigations for pelvic discomfort have also been discovered to have endometriosis [29]. Women of reproductive age are affected by endometriosis; the average age of initial diagnosis is 28. There is no ethnic or socioeconomic tendency to the disorder, although among women with severe disease, there does seem to be a familial association [30,31].

Endometriosis is assumed to be the gynecologic outward sign of a systemic illness that encompasses a variety of medical conditions with underlying immunological or hormonal issues. Asthma, eczema, allergies, fibromyalgia, asthma, autoimmune inflammatory disease, chronic fatigue syndrome, and hypothyroidism are among the other symptoms that endometriosis patients frequently experience. Women who have endometriosis may develop autoimmune disorders such Hashimoto's thyroiditis, systemic lupus erythematosus (SLE), Sjogren's syndrome (SS), rheumatoid arthritis (RA), and multiple sclerosis (MS) if their immune surveillance is compromised. The endometriosis has an immunological component is supported by the early start of thyroid illness and rheumatoid arthritis, as well as the greater risk of autoimmune inflammatory disorders [32,33].

Due to their greater exposure to enhanced endogenous estrogen, women with endometriosis who are diagnosed after age 40 also have a higher chance of developing breast cancer [34,35]. Studies indicate that women with endometriosis may be more susceptible to some cancers, including breast cancer. A significant indicator of breast cancer risk is mammographic breast density (MBD). MBD and endometriosis had an opposite correlation. Additionally independent influencing variables for MBD were age and past progesterone [36] usage. This result demonstrates that the favorable link between endometriosis and breast cancer is not mediated by MBD [37].

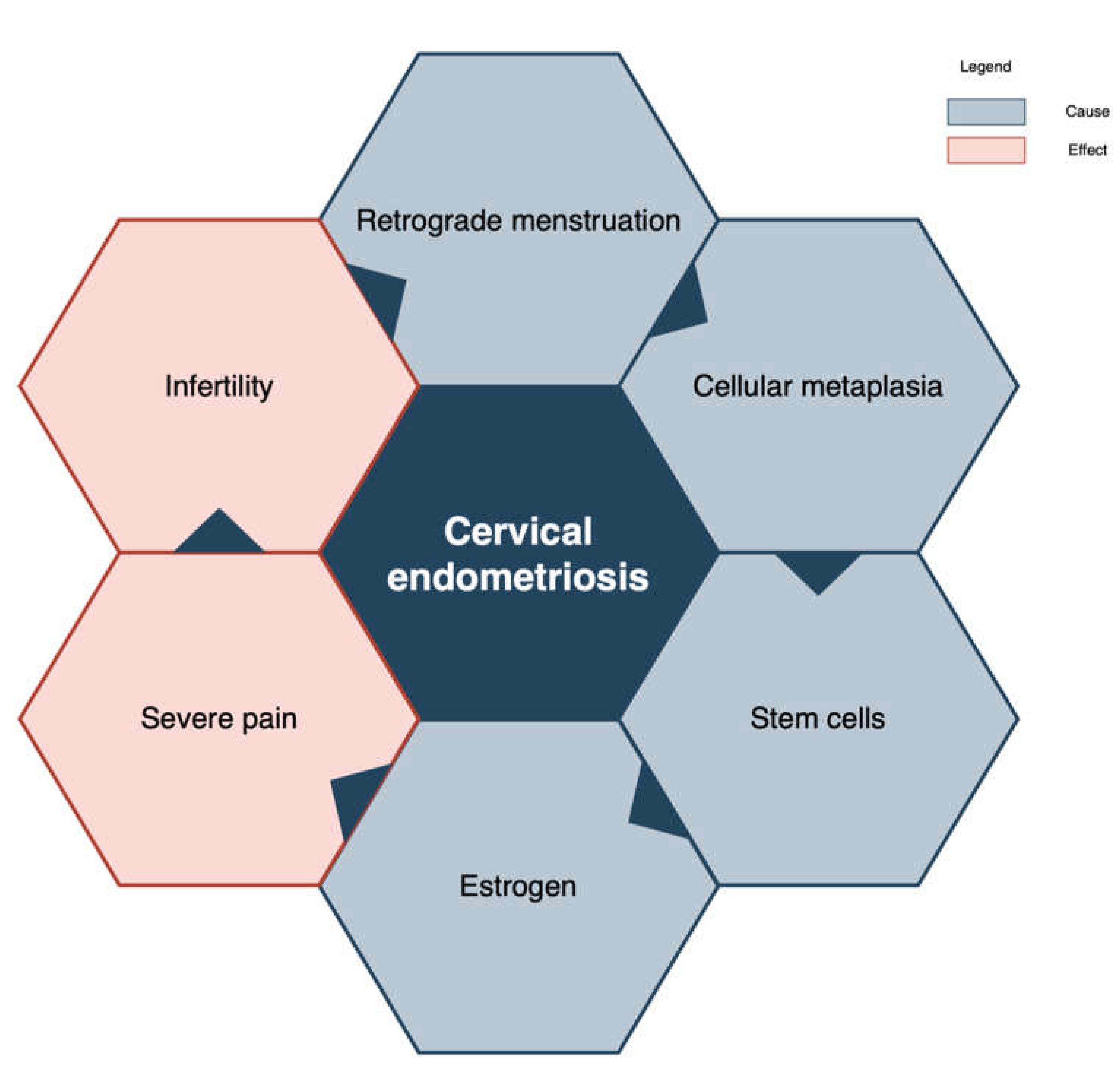

The coelomic metaplasia theory asserts that endometriosis originates from the metaplasia of the multipotent coelomic epithelium since peritoneal and endometrial cells both stem from the same embryonic progenitor [38].

The "retrograde menstruation" idea is currently the most widely recognized explanation for most endometriosis types [39]. The anatomical distribution of endometriosis in the pelvis, where it is more common on the left side than the right, which is consistent with the anatomical differences between the right and left hemipelvis, and the distribution of peritoneal fluid in the abdomen, where it is more common on the right diaphragm than the left, further support the "retrograde menstruation" theory (Figure 1) [40,41,42]. Studies show that hormones play an important role into endometriosis detection [43].

The economic cost of endometriosis to society is significant. The chronic nature of endometriosis, the length of time between development of symptoms and diagnosis, expensive medical and surgical therapies, and indirect expenses related to diminished capacity to work are the causes of this burden. The morbidity, healthcare costs [44], and lost productivity related to endometriosis can be significantly decreased by raising awareness of the condition, speeding up diagnosis, and offering centralized, evidence-based specialized care [45].

It is extremely uncommon for endometrioid tumors to concentrate on the cervix, and this condition often manifests after trauma (Table 1), such as childbirth, abortion, or damaging manipulations [46].

Recent large population-based cohort studies have showed a slightly higher incidence of ovarian cancer in women with endometriosis [47,48,49].

2. Materials and Methods

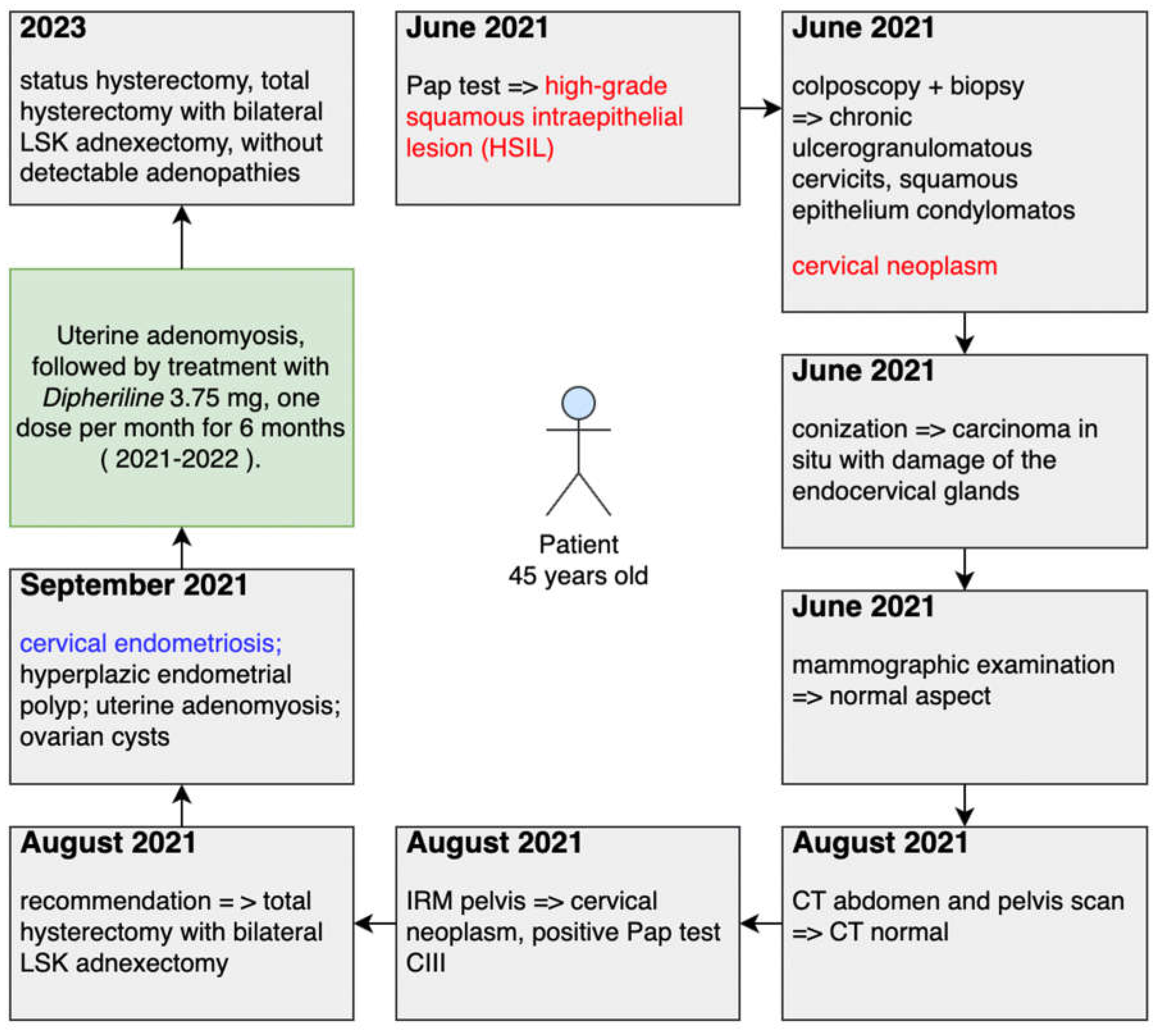

A case report about cervical cancer or cervical endometriosis was conducted among a patient from Romania, Timisoara. The 45-year-old patient is diagnosed in June 2021 according to the Pap test with high-grade squamous intraepithelial lesion HSIL (Figure 2). According to the protocol, the investigation of colposcopy (Figure 3) with biopsy from the tumor formation, the result being the cervical neoplasm.

Conization is then performed. The result of the histopathological examination reveals cervical fragment, conization – cone with height of 12 mm – excision with the flange, seriated sections, fully processed material. Resection margins marked with green tusk.

Diagnosis: Chronic ulcer granulomatous cervicitis, condyspilomatous squamous epithelium that shows at the level of the squamous-cylindrical junction area the aspects of severe dysplasia CIN gr. III and carcinoma in situ with damage and package of endocervical glands (high grade intraepithelial squamous lesion), limited area of microinvasion- 1 mm in surface, 1 mm in depth. Microinvasive carcinoma diagnosed only microscopically, with no lymphovascular damage. Tangential resection edges to endocervical dysplastic epithelium.

Laboratory analyzes were performed and their values ​​are within normal limits.

3. Results

This section provides the visualization, description of the experimental results and their interpretation.

Complementary is performed, in July, mammography examination – the result reveals: skin, subcutaneous tissue of normal appearance, radiopaque neomogenous structure, relatively dense. Multiple round-oval radiopaque masses with diameters up to about 8 mm, on the right and 11 mm on the left, with net or blurred contours. Normal appearance, and in conclusion: dense breasts, suckling appearance for firbrochistic mastosis ACR-BIRADS C/2. Posttherapeutic ultrasound control is recommended after 3 months.

In august 2021, the patient is doing computer Tomography (CT) abdomen and pelvis. It is observed: uterus with homogeneous structure and iodifixation. There is a spatial demarcation from the neighboring structures. No peri-aorto-cave celiomesenteric adenopathies in renal or inguinal-pelvic hiles. The rest of normal CT organs.

The IRM pelvis is performed.

Diagnosis of referral: uterine tumor with unpredictable evolution; cervical neoplasm biopsied; Positive CIII Pap test result.

Uterus in antero-flexion, with dimensions up to 73.5/46.4mm. Linear endometrium. Hypertrophied junctional area diffuse up to 15.2mm. Uterine endocol mildly native and postcontrast; Small uterine fibroids. Moderate angorging of parauterine venous plexuses. Fluid blade at the bottom of the Douglas bag. Right Bartholin gland cyst (max. 26/16.2mm). The bladder is free of volume, without parietal or endocavitary lesions. Rect, sigma is normal. No obvious intrapelvic lymphadenopathy. No secondary pathological changes in the pelvic belt bones.

Discharge diagnostics: Carcinoma in situ cervix, without specification.

Secondary diagnosis: The leiomyoma of the uterus, without specification. Functional disorders of neutrophil polynucleate. Spondylosis, unspecified, lumbo-sacral region. Other specified conditions of an intervertebral disc

The person advised to explain the results or examinations. Uterus tumor with unpredictable and unknown evolution.

An oncological consultation is performed that establishes the diagnosis of cervical neoplasm biopsied by conization.

Recommendations:

• Total hysterectomy with bilateral LSK adnexectomy
• Post-operative oncological reassessment

The patient is discharged with good general condition, afebrile, appetite, present intestinal transit, physiological myctions, soft mobile abdomen, painless, without vaginal bleeding.

Recommendations: Return for admission and surgery.

In September 2021, the surgery is performed, total hysterectomy with bilateral LSK adnexectomy, having favorable postoperative evolution. The result from the histopathological examination to paraffin is highlighted:

Macroscopy:

Total hysterectomy with bilateral LSK adnexectomy piece with total dimensions 7/6.5/4.5 cm, with partially smooth outer surface, tan, partially irregular appearance. The piece consists of:

• Cervical size 4.5/3.5/2 cm, with white brown exocervical mucosa, smooth, linear OCE.

At sectioning, endocervical canal lined by mucosa endocervical slightly falliduration, whitish-yellowish, with maximum thickness of 0.3 cm, without macroscopic obvious tumor formation.

• uterine body 5/6.5/4.5 cm. At sectioning, endometrial cavity lined with brown mucosa with brown areas, with a maximum thickness of 0.2 cm; the presence of intracavitary polypoid formation with dimensions of 1.3/0.5/0.1 cm, white-brown, with the implantation base in the isthmic area; white-brown myometer with a beam drawing.
• the right uterine appendix consists of the ovary with dimensions of 2.5/2.2/1.5 cm, with the external surface of the cuneal with a bosselated and the uterine tube with length of 5 cm. At sectioning, non-homogeneous, brown-black appearance, with a cystic with gelatinous, brown-hemorrhagic content; there are present yellow bodies. Paratubar identifies small cystic areas (1.8 cm in diameter).

At section of the ovary and section of the fallopian tube:

• the left uterine annex consists of the ovary with dimensions of 3/2.5/1 cm, with the external surface of the cuneal and 4.5 cm long fallopian tube. In the sectioning, a non-homogeneous appearance, brown-tan with multiple cystic areas with gelatinous-green content, the largest with a diameter of 0.9 cm.

At the section of the ovary and section of the fallopian tube:

Histopathological examination complete Hematoxylin-Eosin (HE) procedure:

The usual color is Hematoxylin-Eosin.

Cervical: Subacute non-specific cervical cervix with areas of endocervical mucosa ulceration, showing lesions of mature squamous metaplasia of the surface endocervical epithelium and sometimes glandular, cystic dilated glands and foci of tubo-endometriosis metaplasia of the epithelium of some glands; interstitial fibrosis, hyperemised vessels and hematic welding in the thickness of the endocervical wall; large caliber vessels at parameters with fibrous thickened walls and dystrophic calcifications.

Additional: Multifocal lesions of cervical endometriosis (glands + hemorrhagic cytogenic chorion) dislocated predominantly in the exocervical superficial chorion; slightly thickened and discreetly inflamed zonal squamous epithelium, with aspects of exocytosis and discrete epithelial atypia in the lower layers - more likely reactive, associating aspects of diffuse parakeratosis. No tumor aspects obviously on the sections examined.

Uterine body captured by the benign histological endometrium, in the proliferative phase; associated, hyperplastic endometrial polyp consisting of numerically enhanced glands arranged in a fibrous chorion, with proliferated blood vessels and interstitial hematic suffusions.

Diffuse leiomyoma thickened myometer with discreet nodular sketches, associating lesions of florid adenomyosis at the isthmic level.

Serous uterine without significant histological changes.

Conclusions:

• Cervical endometriosis associating non-specific subacute cervicitis lesions.
• Hyperplastic endometrial polyp; uterine adenomyosis.
• Bilateral functional ovarian cysts.

Postoperatively received treatment with Dipheriline 3.75 mg, one dose per month for 6 months (2021-2022).

In 2023 pelvic and abdominal MRI, total post-hysterectomy with bilateral LSK adnexectomy, without detectable adenopathies.

4. Discussion

Anatomically, the cervix is located in the lower part of the uterine cavity and is lined with two types of cells: glandular and squamous. The junction area of the two cell types is called the transformation area. This area is very important because most cervical cancers occur here. From the total case of neoplasms, histologically two major histological types of an epithelial tumor of the cervix are identified: squamous cell carcinoma (95%) and adenocarcinoma (5%). Rarely, the tumor can also derive from an unquamous variant: adenosine carcinoma, neuroendocrine carcinoma, carcinoma glass cells [58].

Anatomically, endometriosis is spread in several places in the pelvis: on the ovaries, uterus, fallopian tubes, uterosacral ligaments, wide ligaments, round ligaments, cul-de-sac or ovarian fossa, as well as on the appendix, large intestine, ureters, bladder or rectovaginal septum. In the reported case, our focus is on the endometriosis of the cervix [59].

Literatures published in English from 1980 to the present have been searched in the PubMed database using the keywords “cervical endometriosis”, or “cervical cancer”.

A total of 110,295 works related to cervical endometriosis or cervical cancer have been returned in search of the database.

Cervical cancer is the abnormal growth of cells in the lining of the cervix. Squamous cell carcinoma is the most frequent type of cervical cancer. [60] Cervical cancer incidence in the Romania is estimated to affect 3,380 (7.5%) women (Figure 4) in 2020, with 1,805deaths [61].

The pregnancy of cervical cancer remains high in many parts of the world, and in most countries the incidence and mortality of the disease remain much higher than the threshold set by the World Health Organization (WHO) initiative at elimination of cervical cancer [61].

In the early stages of cervical cancer, patients are largely asymptomatic, but few of those who are symptomatic, accuse lower abdominal pain, postcoital vaginal bleeding, abnormal menstrual bleeding, postmenopausal bleeding, vaginal discharge and disappearance [62].

One of the 13 genotypes of human papillomavirus (HPV) that are known to cause cancer, namely 16, 18, 31, 33, 35, 39, 45, 51, 52, 56, 58, 59 and 68, is the leading cause of almost all cervical malignant tumors in the world. Vaccination against HPV between the ages of 9 and 12 is likely to prevent more than 90% of cervical cancer and precancers. Cervical precancer, also known as high-grade squamous intraepithelial lesions of the cervix (HSIL), is detected and treated in women aged 21 to 65 years who have a cervix to avoid cervical cancer. In the absence of treatment, high-grade lesions can turn into cervical cancer [63].

The literature also shows an association of clear cervical cell carcinoma (CCC) and cervical endometriosis [64]. According to an epidemiological study to analyze the association between the two diseases, it was observed that the low risk of cervical cancer decreased in women with cervical endometriosis [65].

Cervical endometriosis is one of the rare types of endometrioses. In the literature, the prevalence is 0.7–2.4%, but no precise data are available for Romania [5,56,66,67].

In situations of cervical endometriosis, the results of cervical smear may be misleading. Cervical smears can be misinterpreted as high-grade squamous intraepithelial lesions, atypical glandular cells of undetermined meaning or adenocarcinoma in situ, especially in patients who have cervical endometriosis and have previously received cone for pre-invasive cervical lesions [11,68,69,70].

On pelvic examination, computed tomography and even macroscopic inspection at laparotomy, endometriosis can be misinterpreted for easy tumor extension, leading to inaccurate staging and wrong therapeutic choices. Frozen sections are advised to help intraoperative management whenever the diagnosis of endometriosis could be accepted, because clinical staging is often erroneous in patients with cervical cancer with a history of endometriosis. Pre-treatment surgical evaluation should also be considered [71,72].

Extending screening and vaccination programs can lead to reductions in the incidence and mortality of cervical cancer [61,73,74,75].

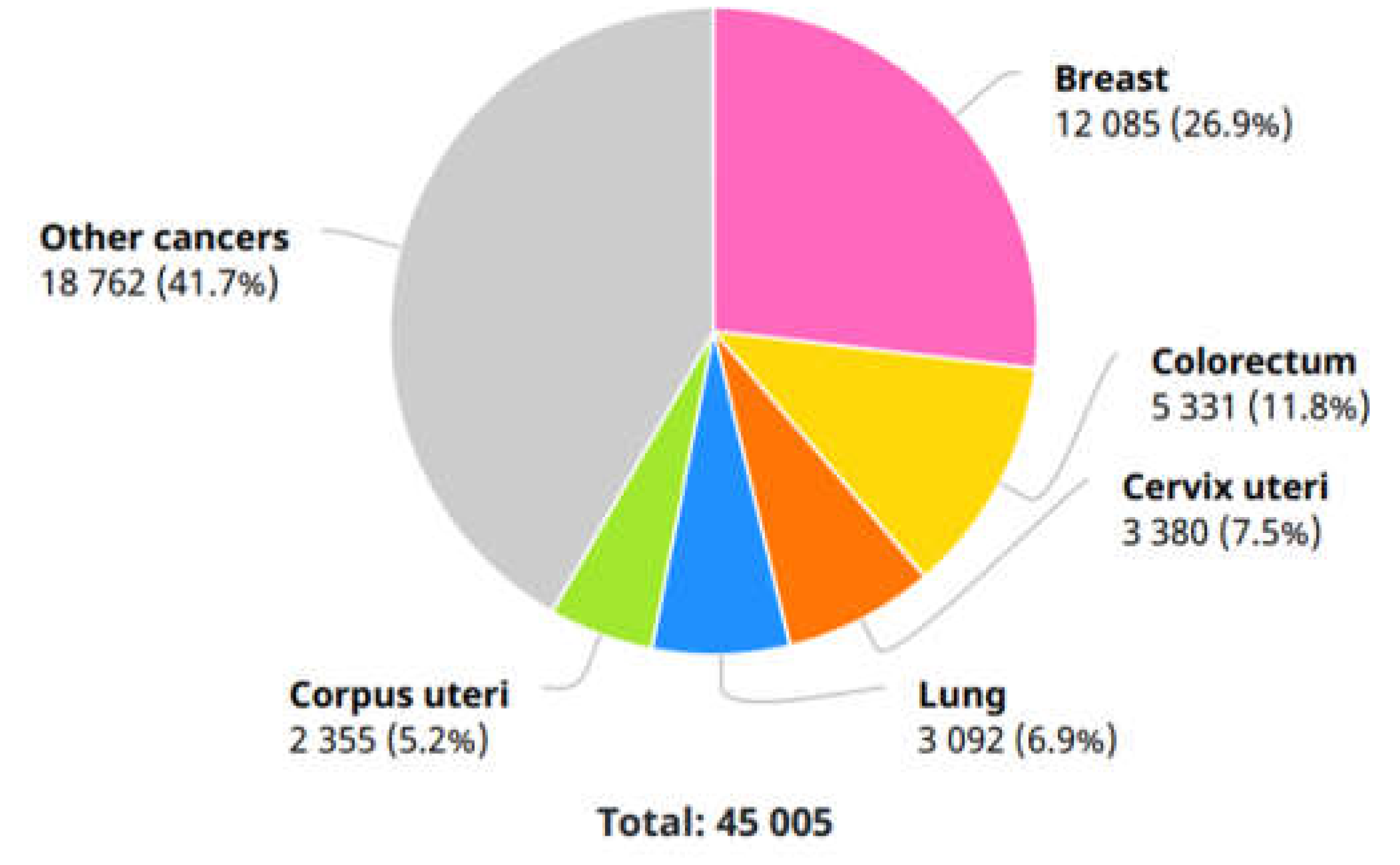

Cervical cancer ranks 4th in the most common types of cancer found in women globally. It was noted that the incidence is higher in low- and middle-income countries than high-income countries [75,76].

It is important to be aware that cervical endometriosis should be considered as a differential diagnosis in cases of menstrual abnormalities since it can have catastrophic consequences and is a rare instance of deep infiltrating cervical endometriosis affecting the ureter that mimics cervical cancer [9].

5. Conclusions

Our analysis study shows that the elimination of cervical cancer as a major health problem, and the HPV vaccine is a very feasible solution in low-income and lower-middle-income countries, proof being given by the registration of a low death rate in developed countries where this vaccine was made.

Furthermore, due to technological development, cervical cancer screening algorithms based on artificial intelligence (AI) could be developed that have the potential to become a key tool due to their ability to learn from data to identify patterns in new patients enrolled in rapid, efficient detection and high performance of cervical cancer.

Moreover, AI to support cervical cancer screening would be an extremely desirable solution, especially in the absence of medical infrastructure and staff trained to quickly identify potential risks and recommend personalized treatment depending on the pathology detected.

In this case report we could observe how easily it can be wrong to make a diagnosis, a condition that can have serious repercussions on the patient's health. But with the appearance of clinical symptoms, correlated with blood markers, even if there is no clear picture of paraclinical investigations, to raise the suspicion of cervical endometriosis.

In this way a clinical picture can be outlined for both cervical cancer and cervical endometriosis in order to reduce the likelihood of confusion of the two pathologies, and the rapid identification of the neoplasm in order to initiate an adequate treatment as soon as possible in order to diminish its effects and the degree of evolution.

Without any additional intervention, in order to combat cervical cancer, the death rate due to cervical cancer is expected to increase, similarly by the inability to put the correct diagonal of cervical endometriosis to lead to a decrease in the patient's quality of life.
