Energy Gap-Refractive Index Relations in Semiconductors − Using Wemple-DiDomenico model to unify Moss, Ravindra, and Herve-Vandamme Relationships

1. Introduction

Light interacts with solids through several ways, depending on the material and incident frequency under consideration. Many semiconductors are normally opaque to some higher frequencies and transparent to lower frequencies. Insulators or dielectrics are mostly transparent to visible light and metallic solids appear shiny as they reflect practically any frequency of light. The complex refractive index is adequate to assess light interaction with solids. Depending on the frequency of incident light, a material with a real refractive index closer to unity is generally transparent to that incident light, and transparency decreases with increasing refractive index. The energy gap, on the other hand, defines the threshold for light absorption in solids. In semiconductors, opacity is defined by incident photon energy surpassing the energy gap. Visible light is not absorbed by insulators or dielectrics due to their wider energy gap. Because metallic solids lack an energy gap, mobile electrons reflect incident photons, making them shine. As a result, one can simply conclude that the refractive index has an inverse relationship with the energy gap. Furthermore, the refractive index and the energy gap are two fundamental variables that play an important role in understanding electronic, optical, or optoelectronic properties in semiconductor based devices [1,2,3]. In general, a material’s refractive index is a function of frequency and doping, and various literature studies highlight the refractive index’s dependence on thickness, voids, grain boundaries, and other parameters [4,5,6]. To avoid such variations, it is best practice to consider the static refractive index determined from the time-independent electric field, and it should be noted that this article only addresses the static refractive index.

In 1950, Moss was the first to establish the inverse relationship between refractive index (n) and energy gap ($E_g$) [7]. This relationship was built on the broad assumption that all energy levels in a solid are scaled down by a factor of $\frac{1}{{ϵ}_{eff}^2}$, where ${ϵ}_{eff}$ being the effective dielectric constant (${ϵ}_{eff}\approx n^2$). The photo effect process that occurs in the lattice defects found in alkali halides provides support for this claim. Such lattice defect spots behave as hydrogen-like centers where the electron behaves as an electron in an isolated atom with a bulk material-based dielectric constant. As a result, there appears to be some correlation between the scale factor and the ionization energy of the hydrogen atom. Moss observed a good relationship between the experimental data of the threshold long wavelength $\lambda$ for photoconductive substances with the corresponding refractive index n and found that the ratio $\frac{n^4}{\lambda }$ close to 77 /$\mu m$. Regarding the energy gap, the Moss relation becomes

$$n^4{E}_g=95eV$$

(1)

The constant on the right hand side of Equation 1 is found by fitting the data and depends on the solids’ lattice structure. One of the limitations of the Moss relation is the lack of uniqueness of its constant. According to Moss, the constant for zinc blende and diamond structure lies within $\pm 8\%$ of 174 $eV$ [8]. Based on the nature of the constant, numerous adjustments to the Moss relation are made by better fitting experimental data. Ravindra and Srivastava [9] proposed the following revised value of Moss constant,

$$n^4{E}_g=108eV$$

(2)

Similarly, Reddy and Ahammed [10] altered Moss’s relationship as

$$n^4(E_g-0.365)=154eV$$

(3)

Since the energy levels in a solid are highly complex and require band structure theory, all of these variations are caused by a structural restriction on the Moss relation. Second, the constant can vary amongst solids, ranging from direct to indirect interband transitions.

In 1979, Ravindra et al. [11] proposed an alternative linear empirical relation linking n with $E_g$ as,

$$n=K_1-K_2{E}_g$$

(4)

where the values of the constants $K_1$ and $K_2$, which were determined through empirical fitting, are $4.084$ and $0.62$ $e{V}^{-1}$, respectively. After a year, the mathematical underpinnings of this linear relation were provided by Gupta and Ravindra [12], based on the Penn model [13] and Wemple-DiDomenico single oscillator model [14,15]. Their formulations made the assumption that the trajectories of the valence and conduction bands are roughly parallel to one another, at least along the symmetry axes, and that the difference between the Penn gap or the oscillatory resonance energy with the energy gap is constant. In contrast to the Moss relation, the Ravindra relation has no structural constraints. The latter relation, on the other hand, places an upper limit on the refractive index (do not predict refractive index beyond $4.1$) and provides a good approximation for the intermediate value of the energy gap (from $0.3$ $eV$ to $3.5$ $eV$) in semiconductors. One serious limitation of Ravindra relation is that it gives negative indices for $Eg>6.6$ $eV$.

In 1994, Herve and Vandamme [16] presented n-$E_g$ relationship based on the classical oscillatory theory as

$$n=\sqrt{1+{\left(\frac{A}{E_g+B}\right)}^2}$$

(5)

where A and B are constants. The value of B is thought to reflect a constant difference between the UV resonance energy and the energy gap, which is $3.4$ $eV$, whereas the constant A was discovered by fitting to be $13.6$ $eV$, which corresponds to the hydrogen ionization energy. Except for $IV-VI$ materials ($PbS$, $PbSe$, $PbTe$), the Herve-Vandamme relation provides a good fit to the related experimental data for the majority of materials.

Since 1950, multiple empirical relations have been proposed by various researchers to account for both the structural and refractive index restrictions of the Moss and Ravindra relations. There is still a lack of a robust theoretical foundation in this discipline. Finkenrath [17] used the band theory in 1988 to theoretically develop the Moss-like relation $({({ϵ}_{eff}-1)}^2{E}_g=constant)$ and the Ravindra relation.

This paper’s main goal is to establish a single mathematical framework for the formulation of Moss, Ravindra, and Herve-Vandamme relationships. Since these relationships are empirical, the physical knowledge of the fitting parameters (constants) is limited. Additionally, this work aims to provide light on these fitting parameters.

2. Mathematical formulation

This model suggests an arbitrary function $f\left(E_g\right)$, which is expressed as a power series of $E_g$ as,

$$f\left(E_g\right)=\sum _{n=0}^{\infty }{(-1)}^n{K}_n{E}_g^{np}=K_o+\sum _{n=1}^{\infty }{(-1)}^n{K}_n{E}_g^{np}$$

(6)

where, p is a number and it will be shown here that for a suitable value of p, the series (6) converges to

$$K_o{\left[1+\frac{E_g^p}{K^p}\right]}^{-1/p}$$

(7)

iff

$$K_n=\frac{K_o}{n!p^n{K}^{np}}\prod _{i=1}^n\left[1+(i-1)p\right],\forall n\in I\&n\ge 1$$

(8)

Proof.

Starting from

$$f\left(E_g\right)=K_o+\sum _{n=1}^{\infty }{(-1)}^n{K}_n{E}_g^{np}$$

(9)

and substituting the value of $K_n$ from equation (8) yields,

$$f\left(E_g\right)=K_o\left[1+\sum _{n=1}^{\infty }\left\{\frac{{(-1)}^n}{n!p^n}{\left(\frac{E_g}{K}\right)}^{np}\prod _{i=1}^n\left[1+(i-1)p\right]\right\}\right]$$

(10)

evaluating the summation and rearranging yields,

$$\begin{array}{cc}\hfill f\left(E_g\right)=& K_o[1+(-\frac{1}{p})\left(\frac{E_g^p}{K^p}\right)+\frac{1}{2!}(-\frac{1}{p})(-\frac{1}{p}-1){\left(\frac{E_g^p}{K^p}\right)}^2+\hfill \\ \hfill \frac{1}{3!}(-\frac{1}{p})& (-\frac{1}{p}-1)(-\frac{1}{p}-2){\left(\frac{E_g^p}{K^p}\right)}^3+\frac{1}{4!}(-\frac{1}{p})(-\frac{1}{p}-1)\hfill \\ \hfill (-\frac{1}{p}-2)& (-\frac{1}{p}-3){\left(\frac{E_g^p}{K^p}\right)}^4+......]\hfill \end{array}$$

(11)

The bracketed terms is a well-known binomial series, which converges to an equation (7) whenever $\mid \frac{E_g^p}{K^p}\mid <1$

$$f\left(E_g\right)=K_o{\left[1+\frac{E_g^p}{K^p}\right]}^{-\frac{1}{p}}$$

(12)

Conversely, let us define a function

$$g\left(\frac{E_g^p}{K^p}\right)={\left[1+\frac{E_g^p}{K^p}\right]}^{-\frac{1}{p}}$$

(13)

then, the value of g and its derivatives at zero can be found as,

$$\begin{array}{c}g\left(0\right)=1\end{array}$$

(14)

$$\begin{array}{c}{g}^{\left(i\right)}\left(0\right)=-\frac{1}{p}\end{array}$$

(15)

$$\begin{array}{c}{g}^{\left(ii\right)}\left(0\right)=(-\frac{1}{p})(-\frac{1}{p}-1)\end{array}$$

(16)

$$\begin{array}{c}{g}^{\left(iii\right)}\left(0\right)=(-\frac{1}{p})(-\frac{1}{p}-1)(-\frac{1}{p}-2)\end{array}$$

(17)

$$\begin{array}{c}{g}^{\left(iv\right)}\left(0\right)=(-\frac{1}{p})(-\frac{1}{p}-1)(-\frac{1}{p}-2)(-\frac{1}{p}-3)\end{array}$$

(18)

$$\begin{array}{c}.............................................\end{array}$$

(19)

$$\begin{array}{c}{g}^{\left(n\right)}\left(0\right)=\frac{1}{p^n}\prod _{i=1}^n\left[1+(i-1)p\right]\end{array}$$

(20)

This allows to express $g\left(\frac{E_g^p}{K^p}\right)$ and $f\left(E_g\right)$ as,

$$g\left(\frac{E_g^p}{K^p}\right)=\sum _{n=0}^{\infty }\frac{g^{\left(n\right)}\left(0\right)}{n!}{\left(\frac{E_g^p}{K^p}\right)}^n$$

(21)

$$f\left(E_g\right)=K_o\sum _{n=0}^{\infty }\frac{g^{\left(n\right)}\left(0\right)}{n!}{\left(\frac{E_g^p}{K^p}\right)}^n$$

(22)

Comparing equation (22) with equation (6) yields,

$$K_n=\frac{K_o}{n!p^n{K}^{np}}\prod _{i=1}^n\left[1+(i-1)p\right]$$

(23)

Furthermore, the convergence condition $\mid \frac{E_g^p}{K^p}\mid <1$ yields the following two possibilities:

(i) positive p and $K>E_g$⇒$\mid \frac{E_g^p}{K^p}\mid <1$

(ii) negative p and $E_g>K$⇒$\mid \frac{E_g^p}{K^p}\mid <1$

This completes the proof. Here, it is not disclosed about $K_o$ and K. In the next section, the search for the physical meaning of $K_o$, K and p is implemented. □

3. $K_o$, K and p

The well-known Sellmeier dispersion model [18] is,

$$n^2-1=\sum _i{A}_i$$

(24)

$A_i$ is the empirical parameter that corresponds to the strength of undamped Lorentz oscillators. Using generalized Lorentz oscillator model [19],

$$n^2-1={\omega }_p^2\sum _i\frac{f_i}{{\omega }_i^2}$$

(25)

where ${\omega }_p$ is the plasma frequency and $f_i$ is the oscillator strength associated with transitions at frequency ${\omega }_i$. Wemple and DiDomenico (WD) [14,15] suggested a single oscillator model that could be considered dominant among other oscillators and proposed,

$$n^2-1=\frac{F}{E_o^2}$$

(26)

F being the overall oscillator strength and is given as,

$$F={\hslash }^2{\omega }_p^2\sum _i\frac{{\omega }_j^2}{{\omega }_i^2}{f}_i$$

(27)

${\omega }_j$ is the dominant oscillator frequency. Using the $r^{th}$ moment of the optical spectra and Kramers-Kronig relation [14,15], WD found that $F=E_o{E}_d$, where the parameters $E_o$ and $E_d$ are the oscillator resonance energy and dispersion energy, respectively. In terms of Sellmeier model this can also be written for $j^{th}$ dominant oscillator as $A_j=\frac{E_d}{E_o}$, where $A_j$ is the dominant oscillatory strength instead of the electric-dipole oscillator strength associated with transitions at a specific frequency. Thus, the well known WD model is,

$$n^2=1+\frac{E_d}{E_o}$$

(28)

If K is the separation of the dominant oscillator energy $E_o$ from the minimum energy gap $E_g$ then under the condition $K>E_g$ the WD model can be written as,

$$n^2=\frac{E_o+E_d}{K}\left[1-\left(\frac{E_g}{K}\right)+{\left(\frac{E_g}{K}\right)}^2-{\left(\frac{E_g}{K}\right)}^3+.....\right]$$

(29)

Equation (29) satisfies the requirement shown by Equation (3), and therefore enables us to compare with Equation (11), which yields, $p=1$

$$K_o=\frac{E_o+E_d}{K}$$

(30)

where,

$$K=E_o-E_g$$

(31)

Hence, the required model for the refractive index n can be written as,

$$n^2=\sum _{n=0}^{\infty }{(-1)}^n{K}_n{E}_g^n=K_o+\sum _{n=1}^{\infty }{(-1)}^n{K}_n{E}_g^n$$

(32)

and based on the convergence condition (i),

$$n^2=K_o{\left[1+\frac{E_g}{K}\right]}^{-1}$$

(33)

In most semiconductors, the refractive index’s dependence on the energy gap is mostly governed by UV oscillator energy and thus it is plausible to consider K usually exceeds $E_g$. Furthermore, if $p>0$ then K might be expressed as $K={(E_o^p-E_g^p)}^{1/p}$ and thus, from the band structure point of view p as unity is more preferable at least for direct band gap materials, which has also been justified by the WD model. Moreover, one can clearly notice that $K_o$ is a unitless quantity and K has a unit of energy. In the next section, it will be shown that Equation (33) is the basis equation that can connect the Moss, Ravindra, and Herve-Vandamme relations and offer insight on the physical understanding of the constants used in these relations.

4. Results

4.1. Moss Relation

By squaring Equation (33) and simplifying one can easily get that,

$$n^4{E}_g=\frac{K_o^{2}K}{2+\frac{E_g}{K}+\frac{K}{E_g}}$$

(34)

One can estimate Moss constant from the WD’s constant-conductivity dielectric model [14,15], which approximate the ratio $E_o$ to $E_g$ as,

$$\frac{E_o}{E_g}=\sqrt{\frac{3b^2}{b^2+b+1}}$$

(35)

where b is a coefficient with a value of $3.4$ for covalent solids and $2.1$ for ionic solids. Equation (35) allows us to write,

$$2+\frac{E_g}{K}+\frac{K}{E_g}=\frac{3b^2}{\sqrt{3b^2}\sqrt{b^2+b+1}-(b^2+b+1)}$$

(36)

The term $\left[\frac{\sqrt{3b^2}\sqrt{b^2+b+1}-(b^2+b+1)}{3b^2}\right]$, therefore, has a value $0.217$ for covalent solids and $0.185$ for ionic solids. This suggests to write the Moss relation as,

$$n^4{E}_g=[0.185,0.217]\times K_o^{2}K\approx 0.2\times K_o^{2}K$$

(37)

The WD’s constant-conductivity dielectric model assumes the ratio $\frac{E_o}{E_g}=0.8\sqrt{b}\approx 1.33$, and in many solids, this ratio roughly ranges from $1.7$ to $2.0$, which might cause slight changes in the Moss constant. Table 1 highlights the calculated values of Moss constant for different materials.

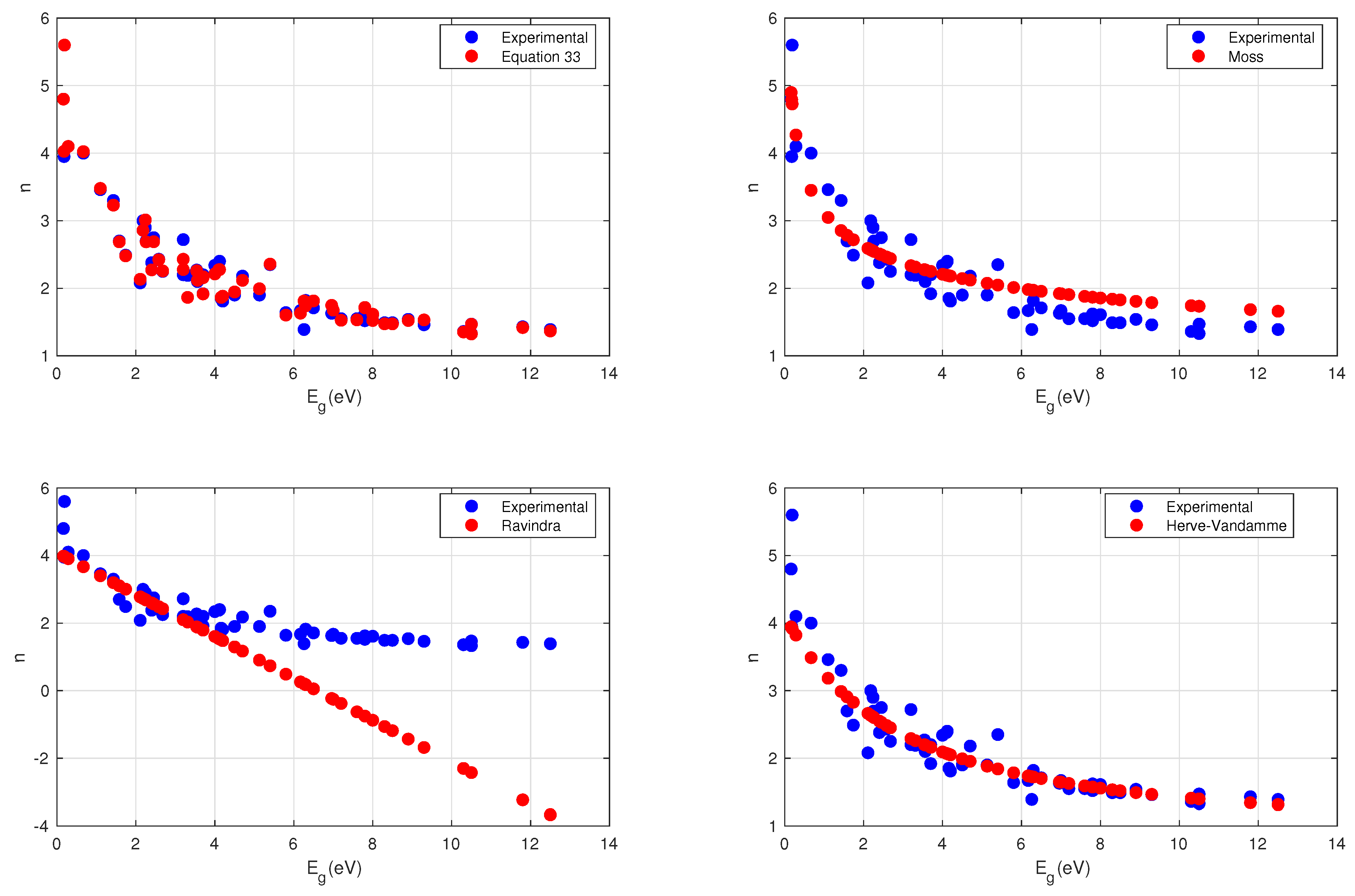

Table 1. The data in columns 3, and 4 are from sources [14,15] and rest are calculated. Columns 5, 6, and 7 show the computed Ravindra, Herve-Vandamme, and Moss constants, respectively. The data in the second and last columns are taken from source [20].

	${\mathit{E}}_{\mathit{g}}\left(\mathit{e}\mathit{V}\right)$	${\mathit{E}}_{\mathit{o}}\left(\mathit{e}\mathit{V}\right)$	${\mathit{E}}_{\mathit{d}}\left(\mathit{e}\mathit{V}\right)$	$\mathit{R}\mathit{a}\mathit{v}\mathit{i}\mathit{n}\mathit{d}\mathit{r}\mathit{a}$ $\mathit{C}\mathit{o}\mathit{n}\mathit{s}\mathit{t}\mathit{a}\mathit{n}\mathit{t}\mathit{s}$: ${\mathit{K}}_1$; ${\mathit{K}}_2$	$\mathit{H}-\mathit{V}$ $\mathit{C}\mathit{o}\mathit{n}\mathit{s}\mathit{t}\mathit{a}\mathit{n}\mathit{t}\mathit{s}$: A; B	$\mathit{M}\mathit{o}\mathit{s}\mathit{s}$$\mathit{C}\mathit{o}\mathit{n}\mathit{s}\mathit{t}\mathit{a}\mathit{n}\mathit{t}$	$\mathit{n}\left(\mathit{e}\mathit{x}\mathit{p}\right)$
C	5.4	10.9	49.7	3.32; 0.30	23.27; 5.5	166.91	2.35
$Si$	1.1	4.0	44.4	4.08;0.70	13.32;2.9	161.06	3.46
$Ge$	0.67	2.7	41.0	4.64;1.14	10.52;2.03	175.51	4.0
$GaAs$	1.43	3.55	33.5	4.18;0.98	10.90;2.12	155.76	3.3
$GaP$	2.24	4.46	36.0	4.27;0.96	12.67;2.22	184.34	2.9
$InSb$	0.18	2.3	35.0	4.19;0.99	8.97;2.12	47.34	3.95
$AlP$	2.45	5.6	34.9	3.58;0.57	13.98;3.15	128.14	2.75
$AlAs$	2.18	4.7	33.7	3.90;0.77	12.58;2.52	145.52	3.0
$LiF$	12.50	17.1	14.9	2.63;0.28	15.96;4.6	43.77	1.39
$NaF$	10.5	15	11.3	2.42;0.27	13.01;4.5	32.28	1.33
$KF$	10.3	14.8	12.3	2.45;0.27	13.50;4.5	34.53	1.36
$NaCl$	8.9	10.3	13.6	4.13;1.47	11.83;1.40	47.92	1.54
$KCl$	8.5	10.5	12.3	3.38;0.84	11.96;2	40.08	1.49
$RbCl$	8.3	10.4	12.2	3.28;0.78	11.26;2.1	39.19	1.49
$CsCl$	8	10.6	14	3.97;0.59	12.18;2.60	43.09	1.61
$RbBr$	7.2	9.1	12.1	3.34;0.88	10.54;1.90	39.08	1.55
$KI$	6.17	7.7	12.8	3.66;1.19	9.92;1.53	43.73	1.67
$RbI$	5.8	7.7	12.1	3.23;0.85	9.65;1.90	38.35	1.64
$CsCl$	8.0	10.6	17.1	3.26;0.63	13.46;2.6	54.63	1.61
$CsBr$	7.0	9.4	17	3.32;0.69	12.64;2.40	55.21	1.67
$CsI$	6.3	7.5	15.2	4.35;1.81	10.67;1.20	57.71	1.82
$TlCl$	2.11	5.8	20.6	2.67;0.36	10.93;3.69	43.71	2.08
$TlBr$	2.68	5.3	21.7	3.21;0.61	10.72;2.62	69.55	2.25
$Ca{F}_2$	11.8	15.7	15.9	2.84;0.36	15.80;3.90	47.80	1.43
$Ba{F}_2$	10.5	13.8	15.9	3.0;0.45	14.81;3.3	48.63	1.47
$AgCl$	5.13	7.4	22	3.6;0.80	12.76;2.27	80.97	1.9
$CuCl$	3.31	7.3	18.1	2.52;0.31	11.49;3.99	40.07	2.19
$ZnO$	3.7	6.4	17.1	2.95;0.55	10.46;2.70	49.88	1.92
$CdS$	2.4	4.9	20.4	3.18;0.64	9.99;2.5	63.98	2.38
$CdSe$	1.74	4.0	20.6	3.29;0.73	9.08;2.26	65.81	2.49
$ZnS$	3.54	6.15	25.2	3.46;0.66	12.45;2.61	91.98	2.27
$MgO$	7.8	11.3	22.0	3.08;0.44	15.77;3.5	67.74	1.62
$CaO$	6.26	9.9	22.6	2.98;0.41	14.96;3.64	67.46	1.39
$A{l}_2{O}_3$	6.96	13.4	27.5	2.52;0.195	19.19;6.44	64.84	1.63
$Y_{3}A{l}_5{O}_{12}$	6.5	11.1	25.4	2.82;0.31	16.80;4.60	70.28	1.71
$Te{O}_2$	3.7	6.24	23.2	3.40;0.67	12.03;2.54	82.36	2.2
$SrTi{O}_3$	4.10	5.68	23.7	4.31;1.36	11.60;1.58	109.70	2.38
$BaTi{O}_3$	4.12	5.57	23.3	4.46;1.54	11.40;1.45	110.68	2.4
$KTa{O}_3$	3.70	6.50	23.7	3.28;0.58	12.41;2.8	79.87	2.2
$LiTa{O}_3$	4.7	7.49	26.1	3.47;0.62	13.98;2.80	94.53	2.18
$LiNb{O}_3$	4.0	6.65	25.9	3.50;0.66	13.12;2.65	95.83	2.34
$Ti{O}_2$	3.2	5.24	25.7	3.89;0.95	11.60;2.04	111.56	2.72
$MgA{l}_2{O}_4$	7.80	12.1	23.3	2.87;0.33	16.80;4.3	66.76	1.52
$CaW{O}_4$	4.20	9.15	23.3	2.56;0.25	14.60;4.95	52.82	1.81
$ZnW{O}_4$	3.56	7.46	26.0	2.93;0.37	13.93;3.9	71.62	2.1
$CaMo{O}_4$	4.50	8.26	23.0	2.88;0.38	13.78;3.76	64.45	1.90
$PbMo{O}_4$	3.2	5.40	22.60	3.56;0.81	11.04;2.2	86.03	2.2
$SrMo{O}_4$	4.16	8.60	21.30	2.60;0.29	13.53;4.44	50.28	1.85
$Si{O}_2$	9.3	13.6	18.3	2.72;0.32	15.77;4.30	51.16	1.46
$ZnS$	3.54	6.36	26.1	3.39;0.60	12.88;2.82	92.21	2.27
$ZnSe$	2.58	5.54	27.0	3.31;0.56	12.23;2.96	89.0	2.43
$ZnTe$	2.26	4.34	27.0	3.88;0.93	10.82;2.08	117.85	2.70
$CdTe$	1.58	4.13	25.7	3.42;0.67	10.30;2.55	82.42	2.7
$PbS$	0.286	3.5	55.33	4.28;0.66	13.91;3.21	80.55	4.1
$PbSe$	0.165	3.0	66.12	4.94;0.87	14.08;2.83	87.58	4.8
$PbTe$	0.190	2.2	66.80	5.86;1.46	12.12;2.01	186.90	5.6
