Results and discussion
Reaction mechanism and kinetics for
ter-butyl
p-cumarate ester and its counterpart
tri-butyl tin-
p-cumarate ester,

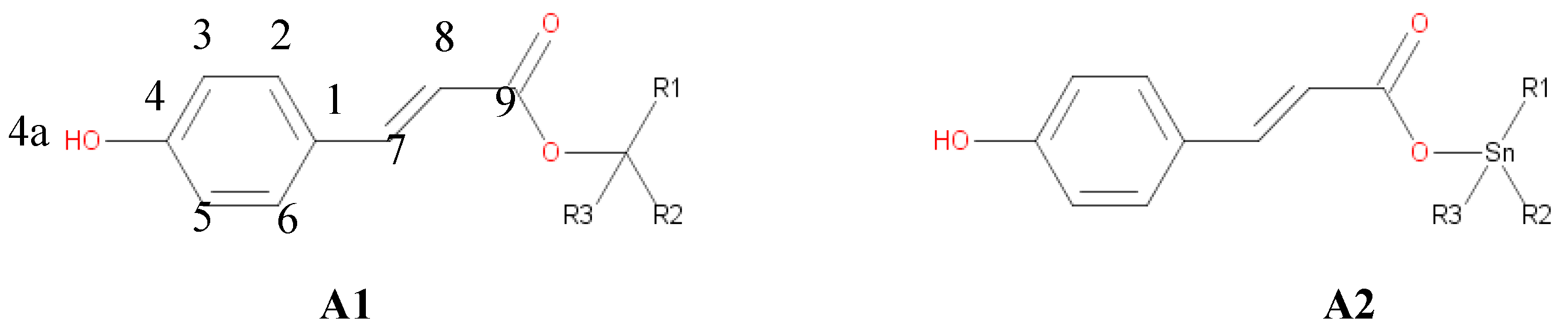

Figure 1, are shown. Once optimized ester geometries are obtained, multireference character is determined by a single point calculation employing CCSD method to compute the T1 parameter. T1 parameter is used to know multireference character of an organometallic complex [
51,
52] For neutral molecules, if the T1 value is higher than 0.023, they have mutireference and for transition state geometries, if T1 is higher than 0.044, they have multireference character. The T1 values for A1 and A2 was 0.032.
The theoretical calculations performed in this work address the following reaction pathways:
1.- Hydrogen transfer (HT)
A-H + R˙ → A˙ + R-H
2.- Radical adduct formation (RAF)
A-H + R˙ → [A-H-R]˙
3.- Single electron Transfer from neutral form (SET-1)
A-H + R˙ → A˙+ + Rˉ
4.- Single electron transfer from deprotonated form (SET-2)
Aˉ + R˙ → A˙ + Rˉ
In the HT mechanism we have considered the Hydrogen atom abstraction from the hydroxyl group at the position 4, and the abstraction of the hydrogen atoms bounded to carbons at the 7 and 8 positions. The object of the present work is to determinate how the presence of the Sn(IV) influences the different reaction mechanism and their rate constants in the reaction of A1 and A2 with the ˙OOH and ˙OH free radicals, in water and in lipid media. The thermochemical feasibility of the different mechanism and channels of reaction was investigated first, since it determinates the viability of chemical process.
For
A1 and
A2 molecules,
values, mol fraction in aqueous solution, bond dissociation energy (BDE) for hydrogen atoms on reaction channels 7 (C7), 8 (C8) and OH on C4 reaction channel for the HT
-1 mechanism, in water and pentylethanoate media, was computed and shown in
Table 1.
BDE for channel 4a showed the lowest value in comparison with reaction channel 7 and 8, whereby channel 4a is energetically the most viable for A1 and A2. BDE for the molecule A2 slightly increases with the presence of the Sn(IV) moiety.
Single electron transfer (SET) mechanism
Relative reaction Gibbs free energy values (
) for the
SET-1 and
SET-2 mechanisms, calculated at 298.15 K in water and pentylethanoate with radical ˙OOH and ˙OH, are shown in
Table 1.
Table 2.
Reaction Gibbs free energy (ΔG0), in kcal/mol, with the ˙OOH and ˙OH radical, in water and pentylethanoate at 298.15 K.
Table 2.
Reaction Gibbs free energy (ΔG0), in kcal/mol, with the ˙OOH and ˙OH radical, in water and pentylethanoate at 298.15 K.
| Channel |
A1(I)
|
A1(II)
|
A2(I)
|
A2(II)
|
| |
ΔG0
|
ΔG0
|
ΔG0
|
ΔG0
|
| |
˙OOH |
˙OH |
˙OOH |
˙OH |
˙OOH |
˙OH |
˙OOH |
˙OH |
| SET-1 |
26.04 |
0.62 |
64.88 |
41.35 |
26.54 |
0.82 |
68.21 |
44.67 |
| SET-2 |
2.62 |
-22.97 |
- |
- |
0.81 |
-24.91 |
- |
- |
For the SET-1 mechanism, where the radical cation is formed from neutral geometry, the reaction Gibbs free energy (), in aqueous solution, with the radical ˙OOH is highly endergonic for A1 and A2 and the reaction is not viable. With ˙OH radical, the reaction is slightly endergonic. Activation energy values for A2 reaction with ˙OH radicals decrease with respect to A1. The rate order of the apparent rate constant for reaction of A1 and A2 with ˙OH radical doesn´t change, 109 M−1 s−1, showing that the presence of the Sn(IV) in A2 contributes to decrease the height of the barrier but not to decrease the width, which is essential in the electron tunnel effect, but this contribution do not influence to improve the scavenger activity.
In pentylethanoate is highly endergonic with both ˙OOH and ˙OH radicals because the formation of the ionic specie is not viable. Comparing behavior of A1 and A2 in their neutral form, an increase in is shown with the ˙OOH and ˙OH radicals in aqueous and lipid media. This shows that the presence of the Sn(IV) in the organometallic moiety acts like an electro-acceptor group, withdrawing electron density to the ester.
For the SET-2 mechanism is endergonic with the radical ˙OOH and highly exergonic with the radical ˙OH. For A2, which has a Sn(IV), is less endergonic in the reaction with ˙OOH radical and more exergonic with ˙OH radical, in comparison to A1. It shown that the organometallic moiety acts like an electron-donor group, donating electron density to the ester in their deprotonated form favoring the charge transfer. Contrary to that shown for SET-1 mechanism.
Activation energy values on the reaction of A2 with ˙OOH radical, slightly decreases in comparison with A1. On the other hand, on the reaction of A2 with ˙OH radical, decreases considerably in comparison with A1.
Table 3.
Reaction Gibbs activation energy ΔG‡ in kcal/mol, apparent rate constant kapp in M−1 s−1.
Table 3.
Reaction Gibbs activation energy ΔG‡ in kcal/mol, apparent rate constant kapp in M−1 s−1.
| |
A1(I)
|
A2(I)
|
| SET-1 |
ΔG‡
|
kapp |
ΔG‡
|
kapp |
| ˙OOH |
- |
- |
- |
- |
| ˙OH |
1.28 |
8.55 × 109
|
0.34 |
8.78 × 109
|
| SET-2 |
ΔG‡
|
kapp |
ΔG‡
|
kapp |
| ˙OOH |
4.65 |
1.25 × 106
|
4.03 |
9.13 × 107
|
| ˙OH |
44.41 |
8.53 × 10-24
|
28.40 |
2.12 × 108
|
With respect to the apparent rate constant
for reaction of
A1 and
A2 with ˙OOH and ˙OH radicals, the order of
increases from 10
6 M
−1 s
−1 to 10
7 M
−1 s
−1 on the reaction with radical ˙OOH and, from 10
−24 M
−1 s
−1 to 10
8 M
−1 s
−1 for reaction with radical ˙OH. Therefore, the presence of Sn(IV) contributes to improve the reactivity of the ester increasing its efficiency like a scavenger. The order of
for
A2 with the radical ˙OOH, is comparable with that shown by glutation (2.7 × 10
7 M
−1 s
−1) [
53] and the propensulphonic acid (2.6 × 10
7 M
−1 s
−1) [
54].
Hydrogen Transfer (HT) Mechanism
Gibbs free energy values
in kcal/mol for
HT mechanism, regarding reaction channels 4a, 7 y 8 in aqueous media are shown in
Table 1. On reaction of
A1 y
A2 with radical ˙OOH,
for reaction channel 7 y 8 is endergonic, in both, aqueous and lipid media. In reaction channel 7,
increases in water and decreases in lipid media with the presence of Sn(IV), which shows that the presence of Sn(IV) favored the reaction in lipid media. For reaction channel 8, the presence Sn(IV) on
A2 contribute to increase
, even in water and lipid media. Therefore, reaction channel 8 is the less favored.
Table 4.
Reaction Gibbs free energy in kcal/mol for A1 and A2 esters with radical ˙OOH and ˙OH.
Table 4.
Reaction Gibbs free energy in kcal/mol for A1 and A2 esters with radical ˙OOH and ˙OH.
| |
A1(I)
|
A1(II)
|
A2(I)
|
A2(II)
|
| 4a |
|
|
|
|
| ˙OOH |
-6.65 |
1.75 |
-6.27 |
-4.27 |
| ˙OH |
-41.92 |
-33.94 |
-42.04 |
-39.97 |
| 7 |
|
|
|
|
| ˙OOH |
12.67 |
16.06 |
14.31 |
15.93 |
| ˙OH |
-23.09 |
-19.64 |
-21.46 |
-19.76 |
| 8 |
|
|
|
|
| ˙OOH |
23.16 |
23.85 |
87.47 |
24.79 |
| ˙OH |
-12.11 |
-11.86 |
51.71 |
-10.92 |
On the other hand, reaction with ˙OH radical, in reaction channels 7 y 8 is exergonic, except for A2 on water, where is highly endergonic. In aqueous and lipid media, an increase in for reaction channel 7 on A2 is show in presence of Sn(VI) in comparison with A1. For reaction channel 8, is exergonic on A1 in water and lipid media. For A2, the presence of the Sn(IV) increases considerably in water media. In lipid media the presence of Sn(IV) on A2 contributes to increase , showing that channel 7 is more viable than channel 8, and that the presence of the Sn(IV) contributes to increase of HT mechanism.
For reaction channel 4a, is exergonic for the reaction with radical ˙OOH on A1 (except in lipid media) and A2. On water, Gibbs free energy slightly increases with the presence of Sn(IV). In pentylethanoate, is endergonic for A1, and exergonic when Sn(IV) is present on A2, showing that the presence of Sn(IV) influences the transferring of light atoms like H.
For reaction with radical ˙OH, is exergonic, even higher than that shown on channel 7 y 8, therefore, reaction channel 4a is the most viable, in both, pentylethanoate and water media. When Sn(IV) is included in A2, is more exergonic than A1, which means, that the presence of the Sn(IV) contributes to increase the hydrogen transfer in both media.
For hydrogen transfer mechanism, transition state geometries were optimized for A1 and A2 with ˙OOH radical, verifying that each transition state has a negative frequency corresponding to the reaction coordinate. Transition state geometries, for reaction with ˙OH radical, cannot be obtained. Even their are highly exergonic, and it is probably that the reaction is carried out by diffusion.
Figure 2.
Optimized transition state geometry of A1 and A2 with radical ˙OOH in water (I) and pentylethanoate (II) and their imaginary frequencies.
Figure 2.
Optimized transition state geometry of A1 and A2 with radical ˙OOH in water (I) and pentylethanoate (II) and their imaginary frequencies.
Activation energy
and rate constant
k were computed and show in
Table 6. For reaction of
A1 and
A2 with ˙OOH radical on water, computed values of
were 13.07 y 12.26 kcal/mol respectively. With respect to
k, computed values were 1.24 × 10
6 y 4.64 × 10
6 M
−1 s
−1, for
A1 and
A2 respectively. Even though, the presence of the Sn(IV) on
A2 contribute to decrease the
barrier, the rate order of
k remains without change. It can be due to the presence of the metal, which contribute to decrease the activation energy barrier, but do not contribute to modify the width of the barrier during the tunnel effect through the hydrogen transfer.
Table 5.
Activation energy barrier ΔG‡ in kcal/mol and rate constant k in M−1 s−1.
Table 5.
Activation energy barrier ΔG‡ in kcal/mol and rate constant k in M−1 s−1.
| |
A1(I)
|
A1(II)
|
A2(I)
|
A2(II)
|
| |
ΔG‡
|
k |
ΔG‡
|
k |
ΔG‡
|
k |
ΔG‡
|
k |
| ˙OOH |
13.07 |
1.24 × 106
|
18.47 |
4.12 × 103
|
12.26 |
4.64 × 106
|
12.56 |
1.25 × 105
|
In pentylethanoate, for reaction of A1 and A2 were 18.47 and 12.56 kcal/mol respectively, and computed k values were of 4.12 × 103 M−1 s−1 for A1 and 1.25 × 105 M−1 s−1 for A2. In non-polar face, it was shown that the influence of the Sn(IV) contributes to decrease the activation barrier improving the tunnel effect, and increasing the rate order on A2, which means that the presence of the metal contribute to improve its efficiency like scavenger, on this type of systems.
