Annual Solar Geoengineering: Mitigating Yearly Global Warming Increases

Altmetrics

Downloads

208

Views

93

Comments

1

A peer-reviewed article of this preprint also exists.

This version is not peer-reviewed

Submitted:

15 September 2023

Posted:

15 September 2023

Read the latest preprint version here

Alerts
Abstract
Solar geoengineering (SG) solutions have many advantages compared to the difficulty of carbon removal (CR): SG produces fast results, is shown here to have much higher efficiency than CR, is not related to fossil fuel legislation, and is something we all can participate in brightening the Earth with cool roofs, and roads. SG requirements detailed previously to mitigate global warming (GW) have been concerning primarily because of overwhelming goals and climate circulation issues. In this paper, the advantages of annual solar geoengineering (ASG) to mitigate yearly global warming increases are explored and detailed as it provides higher feasibility in geoengineering applications. ASG area modification requirements found here are generally 50 to possibly higher than 150 times less compared to the challenge of full SG GW mitigation reducing circulation concerns. Results indicate that AI paint drone technology is likely needed for Earth brightening to meet annual mitigation goals. As well, results show much higher feasibility for L1 space shading compared to prior literature estimates for full GW mitigation. However, stratosphere injections appear challenging in the annual approach. Because ASG earth brightening area requirements are much smaller than those required for full mitigation, we have concerns that worldwide negative SG would interfere with making positive advances for a number of reasons. Negative SG currently dominates yearly practices with the application of dark asphalt roads and roofs. This issue is discussed.
Keywords:
Subject: Environmental and Earth Sciences  -   Environmental Science

1. Introduction

This paper provides fundamental physics-based annual solar geoengineering (ASG) equations to aid in estimated requirements for yearly solar radiation modification (SRM). Therefore, this paper provides baseline assessments without using computer-aided full climate solutions. Solar geoengineering physics should add a deeper understanding of ASG. Estimates are simplified by focusing on temperature which is the key thermodynamic driver for the climate system and ASG.
A goal of this paper is to provide the key solar geoengineering equations for applications in reverse forcing. Many climatologists have anticipated goals of about -5 Wm-2 reduction requirements to reverse global warming for an approximate 1oC rise. Depending on their interests, this is likely an overestimate. We illustrate that the goal should be closer to -1.5 Wm-2. This recommendation can be extended to reverse forcing estimated ASG goal of − 0.0293   W m − 2 / Y r . , a factor of 50 times less than the 1.5 Wm-2. Overestimates of goals can lead to discouraging reflective area modification requirements in ASG applications for Earth brightening, space mirrors, and SAI.
The IPCC worries about an increase of a 1.5oC rise over the pre-industrial period. This is estimated to possibly occur around 2039-2043 at the current rate of yearly temperature increases. This can be estimated from Figure 1 which shows the short-term GW trends occurring around 2052. However, the graph displays changes since 1975. The IPCC warning is referenced to the pre-industrial period. Translating Figure 1 to the pre-industrial period requires adding about 0.17oC. Then this would occur around 2043 from the graph. Some authors predict that this could occur 5 to 10 years sooner (Diffenbaugh and Barnes, 2023) which can make the task of ASG more difficult.
ASG will require timely yearly construction rate reflective modified areas both on Earth and possibly in space to reduce some of the Sun’s energy to mitigate yearly global warming increases. Thus, a key purpose of ASG is to maintain the status quo allowing time for future mitigation improvements. Because goals are limited to mitigating yearly warming increases, many controversial SG and governance issues are minimized.

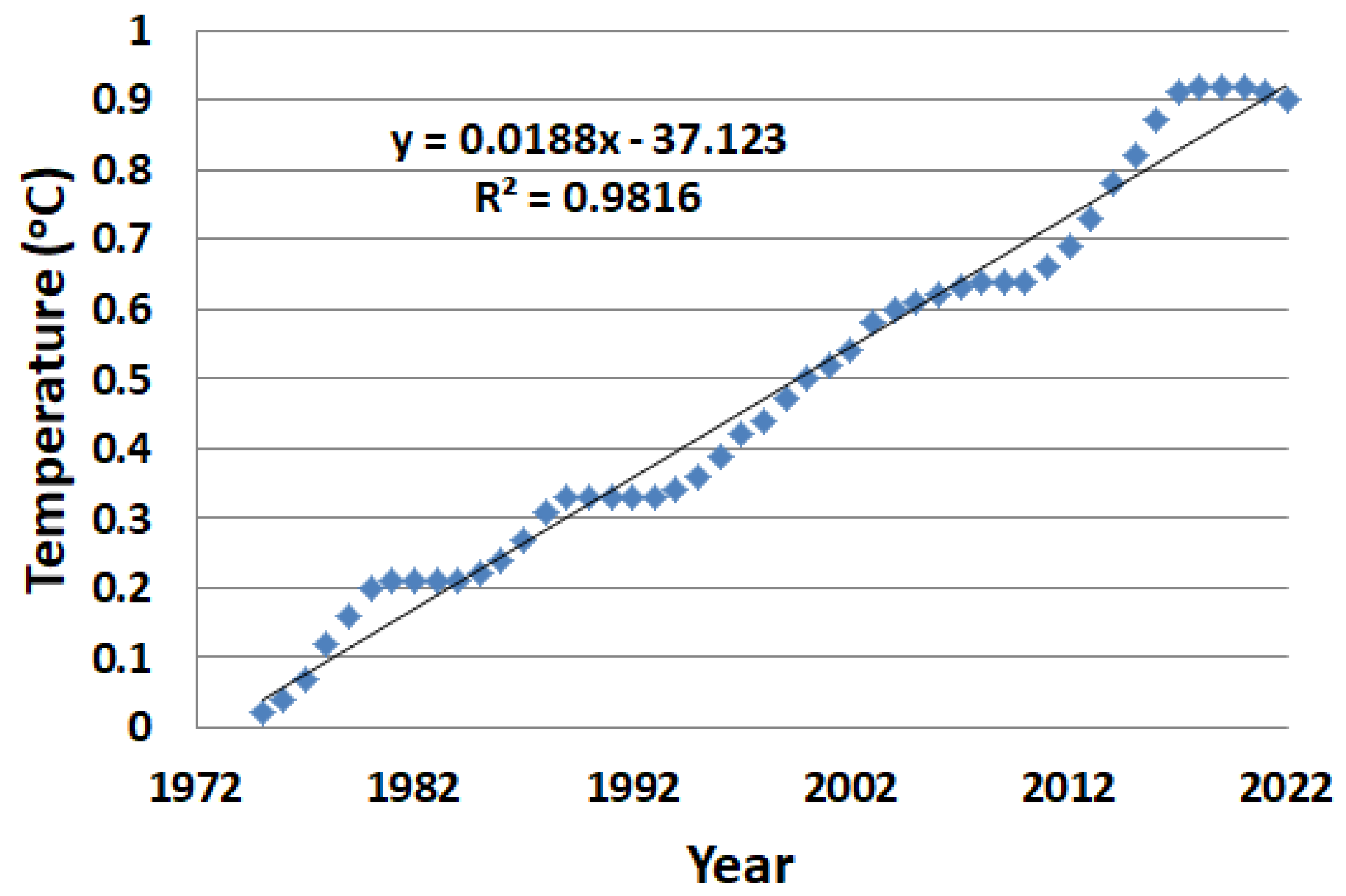

From the graph’s trend analysis equation, the current rate of global warming is an increase in temperature of 0.019oC/year. To maintain the status quo for zero global warming growth, we can divide up the ASG construction task into two parts for simplicity. Half relegated to the stratosphere (Sec. 3.4) or space shading methods. Half relegated to land-based solutions such as that proposed by project MEER (2023) but on a larger scale (see Sec 3.4). Therefore, a reasonable goal is to mitigate a 0.019oC/year global warming increase. This should minimize circulation concerns (Barrett et al., 2014; Jiang et al., 2019; Malik et al., 2020; NASEM, 2021) and many other controversial governance issues. This goal turns out to be about 50 to possibly higher than 150 times less mitigation in Earth brightening area modification requirements compared to prior full mitigation estimates (Feinberg, 2022).
Most of the current SRM literature is focused on stratosphere aerosol injections (SAI). As this is covered by computer-aided models and there are a lot of concerns in this area, this paper focuses more on Earth-brightening and L1 space Sun dimming solutions. However, overviews of physics goals that may be helpful for SAI are presented. There are many reasons that SAI may not be appropriate for ASG. The primary one is yearly maintenance needs (Barrett et al., 2014; Jiang et al., 2019; Malik et al., 2020; NASEM, 2021). This is less of a problem in SRM methods like Earth-brightening. For example, negative SRM appears well maintained in the area of asphalt roads and roofs. This negative example illustrates the low maintenance requirements that could occur with Earth-brightening modifications. Negative solar geoengineering is a worldwide problem and impedes opportunities for positive ASG advances. This needs to be addressed and is discussed in Sec. 4.4.

2. Method and Data

2.1. Zero global warming growth

In this paper, the approach is to provide key physics-based equations and estimates to achieve just enough solar geoengineering to reverse the potential yearly increase in global warming, which we can refer to as annual solar geoengineering. For example, global warming from 1975 to 2022 was 0.9oC (NASA, 2023). If a status quo annual solar geoengineering approach was applied, the ideal result would be a zero temperature increase. The warming level would stay at 0.9oC. According to Fig. 1, the current temperature reversal requirement for ZGWG per year is
TR=-0.0188oC/year

2.2. Theory

In this section, key physics-based ASG equations and goals are presented. The numbers used in this section and Sec. 3 can be updated for more complex computer-aided models depending on the reader’s interest and the changing climate. As well, mostly averages in approximating estimates are used. The estimated general requirements to offset a temperature increase in energy units is
TR=-0.0188oC/year=-0.102Wm-2/year
This conversion to energy units is obtained (using the Stephan-Boltzmann relation) as
Δ P = P 2 − P 1 = σ ( T 2 4 − T 1 4 ) = 0.102 W m − 2
Here T1 is taken as the average surface temperature of the Earth of about 14.5oC and T2=14.5 oC+0.0188oC=14.519oC.
The SG strategy indicates to reverse the global warming that occurred from 1950 to 2019 having a temperature rise of 0.95oC, would require a reversal of Δ P Re v = − 5.1 W m − 2 . This is just the global warming rise from 1950 to 2019 of 0.95oC in energy units where Δ P Re v = − σ ( T 2021 4 − T 1950 4 ) = − 5.1 W m − 2 = − σ ( ( 288.6 K ) 4 − ( 287.65 K ) 4 ) . Here 287.65K=14.5oC is roughly the average temperature of the Earth. Then we can write for full global warming mitigation (from 1950 to 2019), the reversal equates to (Feinberg, 2022)
Δ P Re v = − 5.1 W m − 2 = − Δ P T ( 1 + f 1 )   A ¯ F
In this equation, the reverse forcing due to an albedo change of the target is denoted by Δ P T . We note that increasing the reflectivity of a hotspot surface also reduces its associated greenhouse gas effect. This is estimated in Eq. 4 with the 1+f term, using an average re-radiation estimate for f of 62% (Feinberg, 2021; Hartmann et al., 2013). In this equation, we assume that feedback, which is dominated by water vapor, will also reverse. That is, SG reverse forcing causes a cooling effect and cooler air holds less water vapor. In Eq. 4, the average feedback value is estimated in 2019 as A ¯ F = 2.15 (Feinberg, 2021, 2023a). We note that many other authors have anticipated that water vapor feedback likely has a doubling effect (Dessler et al., 2008; Liu et al., 2018). Note that this value can be written with temperature dependence, and this is discussed in Appendix A.
Then inserting A ¯ F = 2.15 into Eq. 4, we can write
Δ P T = − 2.38 W m − 2   ( 1 + f ) = − 1.47 W m − 2
This is the estimated recommended goal for a total reversal of global warming from 1950 to 2021. Other updated estimates may be used depending on the reader’s interest. Since in this paper, we are interested in zero global warming annual growth, the ASG requirement for a reversal is approximated as (from Eq. 3-5)
Δ P A S G = − 1.47 W m − 2 5.11 W m − 2 x 0.102 W m − 2 / Y r = − 0.0293 W m − 2 / Y r .
This is the estimated main reverse forcing ASG recommendation used in this paper.

2.2.1. Area estimates for annual solar geoengineering

It is helpful to note the SG advantage in Eq. 5. To mitigate the 5.1Wm-2 in Eq. 4, requires an estimated SG change of -1.47Wm-2 compared to trying to do it with GHG removal which would require the full -2.38Wm-2 (Eq. 5). This yields a work savings of 0.91Wm-2 (=2.38Wm-2-1.47Wm-2). This is a 38% (=0.91Wm-2 /2.38Wm-2) SG advantage (Feinberg, 2021) yielding much higher efficiency compared to CR. That is in SG, fundamentally, we can take into account a 1+f re-radiation reduction in Eq. 5, (i.e., increasing the reflectivity of a hotspot surface also reduces its associated greenhouse gas effect).
This is a key SG effective advantage that this paper recommends when working on SG mitigation goals. Therefore, 62% of SRM goes into an additional “GHG equivalent reduction’.
This GHG-albedo effect may also in certain areas, decrease the high levels of possible CO2 and often water vapor feedback re-radiation that can occur in UHIs in the presence of high heat flux (Feinberg, 2022a, 2023).
Alternately, worldwide negative solar geoengineering equivalently increases the GHG effect by this 1+f factor (Sec. 4.4), and its additional associated water vapor feedback increases. When these average effects are considered in addition to the background climate, urbanization heat fluxes from impermeable surfaces can be problematic on both the local and global levels (Feinberg, 2022a; 2023) as discussed in Sec. 4.4.
2.2.1. Area estimates for annual solar geoengineering
To estimate the Eq. 6 area modification requirements for a -0.0293Wm-2 reversal, the approach is to use the following solar geoengineering estimate (Feinberg, 2022) given by
Δ P T = Δ P A S G = − S o 4 A T A E X C X O X S H T [ ( Δ α T ) ]
This SG physics-based equation indicates that in SRM, as anticipated, the reversal is proportional to the average solar energy over 24 hours, S o / 4 , the fractional target area AT relative to the Earths area AE, the amount of irradiance Xc falling on the target with global averages of 47% (Hartmann et al., 2013), the amount of outgoing reflected irradiance from the target (primarily applicable for Earth brightening, see Sec. 3.1), a space irradiance factor and an UHI de-amplification factor, both discussed below. In addition, the albedo change is Δ α T = α ′ T − α T , where the target’s albedo is given by α T , and its increase is denoted by α ′ T .
The space irradiance factor XS introduced is generally taken as unity. However, for space mirror application, the optimal L1 point rotates around the Sun with the same angular speed as the Earth, thus allowing constant shading. Then the irradiance shading occurs 24 hours a day and the Earth’s curvature is not a factor. This increases So/4 to So. To account for the increase in space irradiance, we can let XS=4 in Eq. 7.
This equation also provides provisions for targets in urban heat island (UHI) areas which can have microclimate de-amplification effects denoted by HT (Feinberg, 2020, 2022a). For example, in UHIs, the solar canyon effect amplifies warming when buildings reflect light onto pavements amplifying heat at the surface. Other amplification issues can include re-radiation due to the increase in local CO2 GHGs, local water vapor feedback, temperature inversions, loss of wind and evapotranspiration cooling, increases in solar heating of impermeable surfaces from building sides, pavements heat fluxes, and so forth (Feinberg, 2023). Some of these effects could reverse and de-amplify in ASG urban applications, increasing cooling, and can be accounted for in Eq. 7 with the HT variable. City heat flux amplification is often observed by the UHI’s dome and footprint. The footprint and dome growth are indications of amplified heat flux that is observed to spread beyond the boundaries of the city itself both horizontally and vertically (Zhou et al., 2015; Feinberg, 2020, 2023).

3. Results

3.1. Earth brightening transmission loss

In Eq. 7, the XO factor for the outgoing transmission of reflected short wave radiation is mainly applicable for Earth brightening. When taken as unity, the results for Eq. 7 in Earth brightening applications yields a minimum required area to achieve a specific reversal goal. In Earth brightening, there are a number of eventual losses that can occur for the outward short wavelength transmission through the upper atmosphere. The primary ones are clouds and aerosols that can impede the reflected sunlight (Smoliak et al., 2022). These losses in the upper atmosphere areas can affect the mean lower surface air temperature (MSAT).
The incoming solar irradiance XC in this paper is taken as 47% due to clouds as indicated in the IPCC global mean Earth energy budget assessment (Hartmann et al., 2013). However, one might anticipate that the outgoing transmission from an Earth brighten surface has a higher transmissibility than the incoming irradiance. For example, given that the incoming radiation occurred through a clear portion of the sky, we can estimate the probability that there will be loss issues on the outgoing reflective radiation. One helpful estimation method is to use a Bayesian approach. Using this prior information, the Bayesian result indicates that the probability for clear transmission is 78%. This is estimated in Appendix C. Therefore the minimum required area obtained in Eq. 7 for Earth brightening, is adjusted in this paper using a Bayes correction XO-Bayes=0.78 factor.
Readers may wish to model this further for specific areas and adjust this factor using other probability methods and factors (such as aerosols) to improved transmission estimates. One should note that it may not be well known how transmission loss affects the MSAT. As well there are areas for Earth brightening where SRM is optimal, such as near the equator yielding higher irradiance (Smoliak et al., 2022).

3.1.1. Pavement Example

As an example, consider the required area for worldwide cool pavements. We can consider an average asphalt pavement albedo of about α T = 0.1 , and using cool road methods, estimate an increase for a target pavement area with albedo of α ′ T = 0.4 . Then considering an average irradiance of X C = 0.47 , with X S = 1 , H T = 1 , and A ¯ F = 2.15 , and using a 50% ASG reversal goal, the requirement is
Δ P A S G _ 50 % = − S o 4 A T A E X C { X O − B a y e s X O − M i n i m u m } X S H T [ ( α ′ T − α T ) ] = − 340 W   m − 2 A T A E 0.47 { 0.78 1 }   [ 0.3 ] = − 0.0293 2 W m − 2 / Y r                                           = − 0.01465 W   m − 2 / Y r .
Solving we obtain the SG target area percentage for half of ZGWG yielding a minimum and Bayesian estimated modification area of
A T A E = { 0.039 %   p e r   y e a r ​ B a y e s 0.0306 %   p e r   y e a r M i n i m u m
The pavement modification area that needs to be cooled for a Δ α T = 0.3 change equates to
A T = { 0.00039   p e r   y e a r ​ B a y e s 0.000306   p e r   y e a r M i n i m u m x 196.6 E 6 m i 2 = { 77 , 024   m i 2 p e r   y e a r ​ B a y e s 60 , 079   m i 2 p e r   y e a r M i n i m u m
This yields an equivalent radius of 138 miles. This result is summarized in Section 3.4. This example illustrates the minimum SRM area modification requirements for ASG. Other values may be used depending on the reader’s interest.
For pavements that are cooled with A F = 4.3 (see Eq. A-4), the requirement for area modification is much less according to Appendix A. In this case, it is likely that Δ α T > 0.3 . Letting Δ α T = 0.5 for this example, the area modification is reduced from Eq. 10 to
A T = { 23 , 091   m i 2 p e r   y e a r ​ B a y e s 18 , 011   m i 2 p e r   y e a r M i n i m u m
This yields a reduced equivalent radius of 76 miles. This result is also summarized in Sec. 3.4. Note that to achieve these results; the goal for 50% mitigation is reduced by more than half.
If we could do full global warming SG mitigation per the equivalent cool pavements in Eq. 10 but with Δ P = 1.47 W m − 2 , Δ α T = 0.3 , and A F = 2.15 , the area required would be about 6 million square miles. In comparison, this ASG requirement where Δ P A S G = − 0.0293 W m − 2 / Y r . , Δ α T = 0.5 , and hotspot mitigation estimate for A F = 4.3 (see Eq. A-4), the resulting area reduction is 36,000mi2. The ASG area factor is reduced by about 160 compared to full SG mitigation.

3.2. L1 Space shading estimates

We can translate an AT area modification requirement to a solar reflective space disc mirror-type shading application. In this case, we note that most authors consider the Sun-Earth L1 position as optimum. For the irradiance in space mirror shading estimation, we can take XC=100% and XS=4 (as discussed above). Sun-shading can effectively translate to changing a target on Earth’s reflectivity to ~100% from the average Earth’s albedo of 30%, so that Δ α T =0.7. Using these parameters and our 50% ASG goal, Eq. 7 is
Δ P A S G − S p a c e M i r r o r = − X S S o 4 A T A E X C [ ( α ′ T − α T ) ] = − 1361 W m − 2 A T A E ( 1 ) [ ( 0.7 ) ] = 0.01465 W m − 2
Solving we obtain the ASG percentage for half of ZGWG of
A T A E = 0.0015 %   p e r   y e a r     ( 50 %   m i t i g a t i o n )
This yields a disc of about 7843 km2 (radius 50 km). Results are summarized in Sec. 3.4.
Note when we talk about space mirrors with a value for AT/AE, this value becomes the required percent of incident solar radiation that is estimated to be reflected away from the Earth to achieve a mitigation goal in Eq. 12.

3.3. Annual Stratospheric Injection Estimates

Results appear quite challenging to meet ASG area modification requirements (summarized in Sec. 3.4) for both Earth brightening or space mirror size estimates. Unfortunately, there is no easy solution. Although this paper does not focus on SAI as it is often assessed with computer climate models, it is helpful to overview the ASG goals and estimated differences compared to full GW mitigation. Much has been written about an alternate less expensive Sun-dimming temporarily reflecting particle method such as SO2 injected into the stratosphere (Keutsch et al., 2020; Keith et al., 2016, Tollefson, 2018; Ferraro et al., 2015; Dykema et al., 2014; Crutzen, 2006). Here SO2 injected into the stratosphere at the top of the atmosphere (TOA) reduces the Sun’s energy reaching the Earth through solar aerosol reflectivity. As an estimate for annual SAI, we can use the equation given by Niemeier and Timmreck (2015) where the reduction in radiation at the top of the atmosphere Δ R T O A is
Δ R T O A = − 65 W m − 2   exp − ( 2246 M t ( S ) y r − 1 / I S O 2 ) 0.23
The actual injection rate I S O 2 (in units of MT(S)/year - megatonnes of SO2 per year) for full GW reduction according to Eq. 6 requires a goal of 1.47Wm-2. To provide the first-year annual requirements rather than full mitigation, the injection rate using Eq. 14 is 32x less as shown in Table 1. Here full climate mitigation requires an injection of 6.9MT(S)Yr-1 for a goal of 1.47Wm-2, whereas, for the first year, the ASG goal is reduced to an injection of 0.216Mt(S)Yr-1 for a 0.01465 Wm-2 50% reduction goal. Unfortunately, depending on the SO2 dissipation per year, this would need to be possibly doubled in the second year, tripled in the third year, and so forth for ZGWG.
The stratosphere area modification required has not been fully established. Initial assessments appear problematic as outlined in Appendix B due mainly to the reflection efficiency. Estimates are often equated to one Pinatubo eruption which may be unreliable.

3.4. Overview of estimates

Table 2 provides an overview of the needed estimates based on the suggested inputs to mitigate the annual global warming growth trend of 0.019oC/year for ASG. The results in Table 2 are divided, with Earth brightening area modification of surface land and half to space-type application. The objective for each is to reduce the incoming solar energy by -0.01465Wm-2 per year for 50% annual GW mitigation. Therefore, any two combinations would ideally meet the ASG requirements. Note that in Table 2, the HT value, as an example, is taken as 3 for UHI areas and conservatively 2 for Earth mirrors used on urban rooftops as often implemented by project MEER (2023). This HT average estimate can vary depending on the UHI microclimate (Feinberg, 2023). In the case of something like sea-type floating mirrors, HT=1, also is shown in Table 2.
Note the ASG requirement (Eq. 6) compared to full mitigation (Eq. 5) is ~50 times (=1.47Wm-2/0.029Wm-2) reduced in energy flux requirements and area modification (per Eq. 7). For example, desert treatment is reduced from the author’s initial estimate of 1.0% (Feinberg, 2022) to 0.010% for 50% annual mitigation in Table 2. Therefore the areas in ASG mitigation are in general a factor of 50 times smaller which also minimizes any potential circulation concerns (Barrett et al., 2014; Jiang et al., 2019; Malik et al., 2020; NASEM, 2021). Table 2 suggests several options including multiple combinations that can be considered in annual mitigation. For hotspot cooling shown in Table 3, this has the potential to reduce area requirements by a factor of over 150 (per Eq. 11).

4. Discussion

4.1. Annual Solar Radiation Management

4.1.1. Annual Solar geoengineering allocation by country area

If we take Eq. 9 for cool roads and double it for the task of a full year of ASG it yields A T A E = 0.061 % per year. To aid solar radiation management, we can allocate goals amongst countries by their area. For example, consider the requirements for the United States (with an area of 3.8E6 mi2) and England (with an area of 5E4 mi2). Then the area requirements with surface albedo change Δ α T = 0.3 in Sec. 3.1 are:
U.S. mitigation =0.00061 x 3.8E6mi2=2,318mi2/Yr or 6.4mi2/day with a radius of 27.2mi/Yr or 0.074mi/day
  • England mitigation =0.00061 x 5E4mi2=30.5mi2/Yr or 0.084mi2/day with a radius of 3.1mi/Yr or 0.0085mi/day
Such goals are obtainable with drone paint spray technology (see Sec. 4.2).
Costs associated with solar geoengineering in space shading can similarly be divided possibly by a country’s population for a mitigation tax. This can aid in the cost of solar radiation space management.

4.1.2. L1 Space particle clusters

Another similar idea that may merit investigation is to use space particle clusters instead of space mirrors, at or near the L1 Sun-Earth region. This idea has been suggested in the past (Mautner , 1991). A cluster of particles such as calcium carbonate, SO2, or moondust (Bromley et al., 2023) in space at L1 may have a long suspension time reducing the injection rate. Diffusion would likely be slow due to low outer space temperatures (~2.7K) and studies could be done to estimate issues.
We can estimate the requirement for solar reduction for an ASG value using a transmissibility method (Feinberg, 2022). For example, considering the Earth’s solar absorbed radiation estimate as S o 4 ( 1 − .3 ) = 238.175 W   m − 2 a required absorption reduction estimate can be found for Eq. 6 from
S o 4 ( 1 − .3 ) = 238.175 W   m − 2 − 0.0293 W   m − 2 = 238.1457 W   m − 2
Solving yields So=1360.833Wm-2. Then one finds 0.167Wm-2 (=1361 Wm-2 -1360.833Wm-2) is the reduction required for the incoming solar radiation.
If we measure the transmission of the incoming solar radiation above and below the particle treatment, the transmissibility (TR) from sun-dimming should be (Feinberg, 2022)
T R = 1360.833 W   m − 2 / 1361 W   m − 2 = 99.9877 %
Measuring the transmissibility is likely a helpful method to assess the injection amount. Note, that we can also use similar measurement methods for SAI.

4.2. Earth brightening advances

Earth brightening SG’s state-of-the-art potential is a lot higher today. Drone technology has had major advances in painting buildings (Maghazel and Netland, 2019) and agriculture spray methods (Klauser and Paushinger, 2021). For example, consider the US and England’s goals for Earth brightening in Sec. 3.4 in terms of area per day
  • U.S. Mitigation Goal Earth Brightening is 6.4 mi2/day
  • England Mitigation Goal Earth Brightening is 0.084 mi2/day
A typical two-gallon per acre agriculture drone can spray about 1 mi2/day (Agri Spray Drones, 2023) which includes refills. Then if we assume paint drones can be designed with similar capabilities, this requires the
  • U.S. Mitigation Goal of about 6 drones per day for a full year
  • England Mitigation Goal of about 1 drone per day for 31 days per year
Although paint drones are not equivalent and rated similar to agriculture drones, technology improvements likely should be able to provide this type of capability for paint drones. Given AI technological advances, improvement in Earth-brightening drones, while difficult, is likely more feasible than one might think.
New ultra-thin bright white paint surface treatments (98.1% reflective and half as thick) have been developed to help cool the Earth (Li et al., 2021; Felicelli et al., 2022). Possibly other technologies could be developed specifically for the Earth-brightening of buildings, streets, desert areas, mountain tops, and UHI areas. Possibly an agency like SpaceX or NASA could vastly improve AI drone use for SG implementation. AI technology could allow for 24-hour-a-day drone ASG work with automatic target brightening, refilling, and target recognition. Furthermore, studies could help assess the best strategies to try and improve coverage areas including mountain ranges since mountains cover about 24% of the Earth. Brightening mountain areas could also increase condensation and snowfall as was done on the Peruvian Andes mountain tops (Grossman, 2012) which can increase snowfall and spring runoff to reservoirs in drought-prone areas.
Annual mitigation using Earth mirrors, as suggested by project MEER (2023), has several advantages. Mirrors can be placed in areas of high irradiance, yielding a likely large albedo change, and when used in city areas on roofs, HT>1. These reduce the Earth’s annual SG area requirements per Eq. 7. Alternately, it may be of interest to use something like floating sea mirrors which would yield a high albedo change as exemplified in Table 2.
One might question the practice of painting the Earth a light color. Yet, we continue to accept negative solar geoengineering (Sec. 4.4). Unfortunately, we may already be at the point where we are faced with these types of difficult decisions.

4.3. Natural Hotspots

Natural hotspots like deserts and mountain areas are likely good SG targets to consider cooling to help reduce global warming. They may cover a significant area and are relatively free from urbanized regions. Similar to pavements and UHIs, natural hotspot cooling would likely help reduce atmospheric water vapor feedback. As well certain regions are optimal such as the tropics and subtropics (Smoliak, 2022). Certainly, natural hotspots would be highly controversial geoengineering targets. Nevertheless, their amplification of heat and its effect on the Earth’s temperature will likely be related to their area and temperature differences compared to the global ambient. Some examples of such hotspots include:
  • Flaming Mountains, China
  • Bangkok Areas in Thailand (with planet’s hottest city)
  • Death Valley California
  • Deserts
  • Badlands of Australia
  • Tropics and Subtropics

4.4. Worldwide negative solar geoengineering

ZGWG is challenging enough. However, the problem of yearly increases in black asphalt roads, rooftops, and even dark-colored cars worldwide makes the task harder. Although many issues like black electric vehicles and gas cars do not contribute significantly to global warming, it encourages bad behavior in solar color choices. This illustrates the lack of SG awareness which is highly problematic for an increasing population (Feinberg, 2022a). As a suggestion, restricting cars to light colors would go a long way in greatly increasing such awareness.
In terms of global warming, these issues are a form of ‘negative solar geoengineering’. Currently, it is estimated that roads occupy about 14% of all manmade impermeable surface areas (Huang et al., 2022) of which impermeable surfaces occupy an estimated 0.26% of the Earth (Sun et al., 2022). Then the estimated area of the Earth occupied by roads is small, about 0.0364%. This is a bit higher compared to Eq. 9 estimated requirement for area modification but illustrates the negative ASG interference issue. By comparison to the estimated total impermeable surfaces, it is a factor of 8.5 times higher than the Eq. 9 requirement (0.26%/0.0305%). This illustrates the difficult task of annual surface area modification requirements with worldwide negative solar geoengineering. Feinberg (2023) estimated that 1.1% of global warming is likely due to asphalt roads using only the average feedback factor which if brightened similar to concrete with an albedo increase of 5, could have reduced global warming by 5.5%. An MIT pavement study (MIT, 2020) concluded that in all U.S. urban areas, an increased temperature of 1.3°C occurs in summer months and heatwaves are 41% more intense with 50% more heatwave days due to asphalt pavements. Expansion of cities is increasing rapidly where 55% of the world’s population lives and this is expected to grow to about 70% by 2050 (Wikipedia, 2021).
Feinberg (2022) estimated that heat from asphalt roads and roofs can produce 7.5 times more energy in heat pollution per acre than a solar power plant where studies have found they average about 0.33GWh per acre per year (Ong, 2013). Furthermore, a gallon of gas equates to 33.6 kWh (Wikipedia, 2021). Then this heat pollution equates to 74,200 gallons of gasoline energy per year per acre.
This illustrates the enormous energy in an acre of asphalt heat pollution and how black roads and roofs make significant incremental warming contributions.
Negative solar geoengineering also has the potential to increase local and global water vapor feedback as it creates increases in warm air which can hold more water vapor. Hotspots can increase water vapor feedback dramatically as illustrated in the assessment in Appendix A and 3.1. As discussed previously, Zhao et al. (2014) observed that UHI temperatures increase in the daytime (ΔT) by 3.3K more in humid compared to dry climates. A primary issue in humid UHI areas is the use of black asphalt which, given the worldwide urban heatwave problems, this author feels should be banned in most cases. The warming consequences of black asphalt are not fully understood, but it is bad for the local environment and is well-documented for many problems, especially in concentrated urban areas where heatwaves cause related health issues (MIT, 2020; EPA, 2005).

5. Conclusion

In this paper, estimates are provided for annual solar geoengineering requirements. The results illustrate many challenges. However, results show higher feasibility for annual solar geoengineering modification to help mitigate global warming. This is due to reductions in goals that lead to a factor of 50 to possibly over 150 times less area modification requirements compared to full SG mitigation. This minimizes circulation concerns and many other controversial issues.
Many recommendations are made in this paper. These include the use of and calculations for ASG, the use of drone technology for SG modification, the suggested method of using space clusters that may be highly useful, and UHI use of the HT value in Table 2. Results in general point to challenging but feasible solutions. Suggestions are provided for solar radiation management using area allocations by country for Earth brightening to improve feasibility (Sec 4.1).
It is pointed out that for ASG to be effective; it is helpful to address many global warming issues including the ongoing negative solar geoengineering especially the practice of black asphalt use. We should not condone the bad behavior of dark color choices whether it be in automotive or the construction practices of roads, houses, and buildings. It also impedes the efforts of positive solar geoengineering. Such issues should be addressed in worldwide climate meetings. There is little time left to meet the IPCC suggested 1.5oC goal as shown in Fig. 1. The longer we delay in implementing an ASG program, the more unacceptable our status quo will be due to increases in global warming reducing our options. This paper provides improved solar geoengineering feasibility with annual mitigation goals that can greatly supplement carbon removal and reduction efforts.

Author Contributions

The author, Alec Feinberg, performed the research and written content in this manuscript and has full consent to publish this material.

Funding

This work was unfunded

Conflict of Interest Statement

The author, Alec Feinberg, states that he has no conflicts of interest with this research work.

Competing Interests

The author declares that he has no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

List of abbreviations and nomenclature:

Solar geoengineering SG Reverse forcing change in Watts/m2 PRev
Zero global warming growth ZGWG Reverse forcing albedo change from a target area T in Watts/m2 Δ P T      
top of the atmosphere TOA Reverse forcing albedo change from a target area T in Watts/m2 Δ P T      
Solar radiation management SRM Re-radiation factor (62%) f
Greenhouse gas GHG Secondary feedback amplification, taken as 2.15 AF
Long Wavelength LW Solar irradiance averaging 47% Xc
Space irradiance: Space=4, else=1 XS
Transmissibility TR Annual reversal in Watts/m2 PASG
Target area A T Target albedo, SG target’s albedo modification α T , α ′ T
Earth area A E α ′ T − α T Δ α T
Temperature reversal TR microclimate amplification factor HT
Average solar radiation 340Wm-2 S o / 4 Radiation change, at the TOA Δ R T O A
Annual solar geoengineering ASG SO2 Injection rate, Particle Overlap I S O 2 , O
Clausius-Clapeyron relation CC Stratosphere Aerosol Injections SAI
Mean surface air temperature MSAT

Appendix A: Earth brightening of hotspots and its influence on water vapor feedback

In terms of an albedo change, it is clear from Eq. 4, the larger the albedo change, the smaller the required target area that is needed to meet a specific SG goal. However, the impact of different albedo changes, according to Equations 4 and 5 creates the same average water vapor feedback effect in humid areas. Therefore, we would like to assess the effect of cooling a high-temperature hotpot surface by considering its feedback temperature dependence rather than using an average A ¯ F factor. We later define a hotspot area below.
To look at hotspot influence on water vapor feedback in humid areas, consider the Clausius-Clapeyron relation. To assess this potential effect, Eq. 4 can be written with temperature dependence
Δ P Re v ( T ) = − 5.1 W m − 2 = − Δ P T ( 1 + f 1 ) A F ( T )
The rule of thumb is a decrease in water vapor goes as the temperature ratio changes. However, the most accurate method is to use the Clausius-Clapeyron humidity relationship between two temperature changes as
A F ( T ) =   E x p [ - 2.465 E 6 / 461.5 { 1 / T 2 - 1 / T 1 } ] ​ ​ = C C ( T 2 , T 1 )
Here T1 and T2 are in degrees K, 2.465E6 J-kg−1 is the latent heat of vaporization and 462 J-kg−1 K−1 is the specific gas constant for water vapor, and we can denote the Clausius-Clapeyron humidity relationship by CC.
For example, if we take the average temperature of the Earth as 14.5oC, the estimated AF factor at 27oC is
A F ( T ) ​ ​ = C C ( 14.5 ° C , T ) = C C ( 14.5 ° C , 27 ° C ) = 2.17
This is close to the average A ¯ F = 2.15 . It is estimated that water vapor feedback is dominated by tropical areas (Desler et al., 2008; Liu et al. 2018) where an average temperature of 27oC may be reasonable. This provides a helpful point estimate for the average value A ¯ F = 2.15 which is dominated by the water vapor feedback effect.
Consider an effort to do Earth brightening focusing solely on hotspot surfaces in humid areas. As an example, consider an asphalt hotspot surface area averaging 61oC that is changed to a cool road close to the region’s ambient which in this example we can take as 33oC. Then the Clausius-Clapeyron relation indicates the potential for a local region cooling to reduce its water vapor effect and how it could change its feedback factor. Then the potential feedback factor could effectively increase to
A F ( T ) ​ ​ = C C ( 33 ° C , 61 ° C ) = 4.3
Compared to A ¯ F = 2.15 , the local value is doubled to A F ( T ) ​ ​ = 4.3 . Then according to Equations 4 and 5, the Eq. 6 local goal would be cut in half where
Δ P A S G = − 0.735 W m − 2 5.11 W m − 2 x 0.102 W m − 2 / Y r = − 0.0147 W m − 2 / Y r .
This feedback is related to thermal equilibrium and how it can factor into reducing water vapor content in the atmosphere and its potential local re-radiation effect. Therefore, these are potential estimates and likely maximum assessments. A full computer climate model may provide more insight. This is simply an example to help illustrate the importance of hotspot cooling and its potential water vapor feedback effect in humid regions. Note in comparison to Eq. 5, ASG in this case is a factor of 100 times reduced. Section 3.4 summarizes this maximum hotspot cooling potential results. Sec. 3.1 illustrates the potential full advantage of selecting hotspot targets for cooling and the importance of being able to cool T2 where T2 >> T1. We might then define a hotspot as having the potential in which AF(T) is reasonably greater than the estimated average A ¯ F = 2.15 .
Note that a factor of two higher (Eq. A-4) is not unreasonable for an urban heat island water vapor feedback compared to the standard atmosphere. Zhao et al. (2014) compared similarly constructed cities with twenty-four located in the humid southeastern United States to 15 cities in dry climates. They found an average ΔT increase of 3.3 K observed in daytime hours in humid climates with little differences in nighttime hours. Feinberg (2022a) modeled UHI water vapor feedback based on Zhao et al.’s (2014) dataset. The mathematical treatment found a UHI local feedback value of 3.4 Wm−2 K−1 (Feinberg, 2022a) for cities in humid environments at 15 °C. This is about a factor of 2.1 higher compared to some authors’ estimates for average feedback in the standard atmosphere (Liu, 2018).
Again on the flip side, we note the potential water vapor feedback effect causes warming increases associated with worldwide negative solar geoengineering (Sec. 4.4).

Appendix B: CaCO3 Stratospheric Injections – Alternate approach

In this section, a CaCO3 injection rate example is provided for ASG. Here, we can use the approach of Eq. 7 rather than Eq. 14 to illustrate stratosphere area requirements that may provide some alternate insights. Consider the Earth’s average albedo of about α T = 0.3 , then for this CaCO3 example, assume an increased reflectivity by a factor of 2 with a CaCO3 injection bringing an area’s atmospheric albedo to α ′ T = 0.6 . Then, considering full irradiance, X C = 1 , with H T = 1 , and using a 50% reversal annual climate mitigation goal for half of zero global warming growth, in Eq. 7 yields
Δ P S Q S G _ 50 % = − S o X S 4 A T A E X C H T [ ( α ′ T − α T ) ] = − 340 W   m − 2 ( 1 ) A T A E ( 1 ) ( 1 ) [ 0.3 ] = − 0.01465 W   m − 2
Solving we obtain the SG stratospheric target area modification initial estimated
A T A E = 0.0144 % /   e f f
Here the particle reflection efficiency issues is denoted by eff. For example, for an 80% efficiency in Eq. B-2, the results requires more area where A T A E = 0.0144 % / 0.8 = 0.018 % . This stratosphere area modification equates to
A T = 28 , 237 m i 2 / e f f = 7.31 E 10   m 2 / e f f
Estimates for the specific surface area (m2/g) of CaCO3 vary widely depending on the type of CaCO3 from 5-24 m2/g (SciencDirect, 2023) to 30-60 m2/g (AmericanElements, 2023). If we conservatively use 10 m2/g, we can calculate the injection rate using Eq. B-3 as
7 . 31 E 10 m 2 / 10 m 2 / g / yr . / eff = 7310   metric   tons / yr . / O = 0 . 0073 Mt ( CaCO 3 ) / yr . / eff
For a 70% efficiency
0 . 0073 Mt ( CaCO 3 ) / yr . / eff = 0 . 010 Mt ( CaCO 3 )
This is one partial solution as the dissipation rate in this approach needs to be estimated to maintain coverage over time. The area saturated is given by Eq. B-2 with eff=0.7 and is A T / A E = 0.02 % . Because of this large area and its replenishing needs, in the annual approach, particle injection is difficult due to the cumulative yearly requirements. Such estimates are likely better assessed with a computer model.

Appendix C: Bayesian estimate for outgoing transmission loss in Earth brightening

In this assessment, we have prior information. Our calculation is based on XC=0.47 for the irradiance in Eq. 7. Then to find the Bayes correction for the outgoing transmission X O − B a y e s in Eq. 8, we start with the prior information that Sunlight falls on a target area. Using Bayes theorem, this is P ( Β | A )   = P ( C l e a r | C l o u d y ) = 0.47 . We then have prior knowledge that the sunlight makes it to the reflective target so that P ( C l e a r ) = P ( B ) = 1 . We wish to know the probability of non-transmission of the reflected light due to a cloudy area given that the incoming sky had a clear area P ( A | Β ) = P ( C l o u d y | C l e a r )   . The probability that the sky will be cloudy is P ( A ) = P ( C l o u d y ) = X C = 0.47 . This yields from Bayes theorem
P ( A | Β ) = P ( Β | A )   P ( A ) P ( B ) = 0.22
where:
P ( A | Β ) = P ( C l o u d y | C l e a r )  
P ( Β | A )   = P ( C l e a r | C l o u d y ) = 0.47
P ( A ) = P ( C l o u d y ) = 0.47 ,
P ( B ) = P ( C l e a r ) = 1
We conclude that the probability for clear outgoing transmission is TClear=1-0.22=0.78.

References

  1. Agri Spray Drones, How many acres per hour or day can a spray drone spray? Available online: https://agrispraydrones.com/how-many-acres-per-hour-or-day-can-a-spray-drone-spray/ (accessed on 9 June 2023).
  2. AmericanElements, Calcium Carbonate Nanoparticles. https://www.americanelements.com/calcium-carbonate-nanoparticles-471-34-1#:~:text=About%20Calcium%20Carbonate%20Nanoparticles,60%20m2%2Fg%20range. (accessed on 23 April 2023).
  3. Barrett, S., Lenton, T. M., Millner, A., Tavoni, A., Carpenter, S. R., Anderies, J. M., Chapin III, F. S., Crépin, A. S., Daily, G., Ehrlich, P., Folke, C., Galaz, V., Hughes, T. P., Kautsky, N., Lambin, E. F., Naylor, R., Nyborg, K., Polasky, S., Scheffer, M.,... de Zeeuw, A. J. (2014). Climate engineering reconsidered. Nature Climate Change, 4(July 2014), 527-529. 20 July.
  4. Bromley B, Khan S, Kenyon S (2023) Dust as a solar shield, PLOS Clime. [CrossRef]
  5. Crutzen P (2006). Albedo Enhancement by Stratospheric Sulfur Injections: A Contribution to Resolve a Policy Dilemma? Climatic Change, 77(3), 211. [CrossRef]
  6. Dessler, A.; Zhang, Z.; Yang, P. Dessler, A.; Zhang, Z.; Yang, P. Water-vapor climate feedback inferred from climate fluctuations, 2003–2008. Geophys. Res. Lett. 2008, 35, 20. [Google Scholar] [CrossRef]
  7. Diffenbaugh N, Barnes E (2023) Data-driven predictions of the time remaining until critical global warming thresholds are reached, PNAS. [CrossRef]
  8. Dykema J, Keith D, Anderson J, Weisenstein D (2014) Stratospheric controlled perturbation experiment: a small-scale experiment to improve understanding of the risks of solar geoengineering. Phil. Trans. R. Soc. A. [CrossRef]
  9. EPA. Study Cambridge Systematics. Cool Pavement Report, Heat Island Reduction Initiative. 2005. Available online: https://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.648.3147&rep=rep1&type=pd (accessed on 12 March 2023).
  10. Feinberg, A. Urban heat island amplification estimates on global warming using an albedo model. SN Appl. Sci. 2020, 2, 2178. [CrossRef]
  11. Feinberg A (2021) A Re-Radiation Model for the Earth’s Energy Budget and the Albedo Advantage in Global Warming Mitigation, Dynamics of Atmospheres and Oceans. [CrossRef]
  12. Feinberg A (2022) Solar Geoengineering Modeling and Applications for Mitigating Global Warming: Assessing Key Parameters and the Urban Heat Island Influence, Frontiers in Climate. [CrossRef]
  13. Feinberg, A (2022a) Urban Heat Island High Water-Vapor Feedback Estimates and Heatwave Issues: A Temperature Difference Approach to Feedback Assessments Sci 4, no. 4: 44. (Feature Papers—Multidisciplinary Sciences 2022). [CrossRef]
  14. Feinberg A (2023) Urbanization Heat Flux Modeling Confirms it is a Likely Cause of Significant Global Warming: Urbanization Mitigation Requirements, recently accepted in Land (in production).
  15. Feinberg A (2023a) Climate change trends due to population growth and control: Feedback and CO2 doubling temperature opposing rate model, ResearchGate (submitted for review).
  16. Felicelli A, Katsamba I, Barrios F, Zhang Y, Guo Z, Peoples J, Chiu G, Ruan X, (2022), Thin layer lightweight and ultrawhite hexagonal boron nitride nanoporous paints for daytime radiative cooling, Physical Science, V3, I10, 101058. [CrossRef]
  17. Ferraro A, Charlton-Perez A, Highwood E. Stratospheric dynamics and midlatitude jets under geoengineering with space mirrors and sulfate and titania aerosols. Journal of Geophysical Research: Atmospheres 2015, 120, 414–429. [CrossRef]
  18. Grossman, D. (2012) With Sawdust and Paint, Locals Fight to Save Peru’s Glaciers. Available online: https://theworld.org/stories/2012-09-25/sawdust-and-paint-locals-fight-save-perus-glaciers.
  19. Hartmann DL, Klein AMG, Tank M, Rusticucci LV, Alexander S, Brönnimann Y, Charabi FJ, Dentener EJ, Dlugokencky D, Easterling DR, Kaplan A, Soden BJ, Thorne PW, Wild M, and Zhai PM (2013) Observations: Atmosphere and Surface. In: Climate Change 2013: The Physical Science Basis. Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change [Stocker, T.F., D. Qin, G.-K. Plattner, M. Tignor, S.K. Allen, J. Boschung, A. Nauels, Y. Xia, V. Bex and P.M. Midgley (eds.)]. Cambridge University Press, Cambridge, United Kingdom and New York, NY, USA.
  20. Huang X, Yang J, Wang W, Liu Z (2022) Mapping 10 m global impervious surface area (GISA-10m) using multi-source geospatial data, Earth Syst. Sci. [CrossRef]
  21. Jiang J, Cao L, MacMartin D, Simpson I, Kravitz B, Cheng W, Visioni D, Tilmes S, Richter J, Mills M, (2019) Stratospheric Sulfate Aerosol Geoengineering Could Alter the High-Latitude Seasonal Cycle. [CrossRef]
  22. Keutsch F. (2020) The stratospheric controlled perturbation experiment (SCoPEx), Harvard University. Available online: https://scopexac.com/wp-content/uploads/2021/03/1.-Scientific-and-Technical-Review-Foundational-Document.pdf.
  23. Keith D, Weisenstein D, Dykema J, Keutsch F (2016). Stratospheric Solar Geoengineering without Ozone Loss. Proceedings of the National Academy of Sciences. Available online: http://www.pnas.org/content/113/52/14910.full.
  24. Klauser F, Pauschinger D (2021) Entrepreneurs of the air: Sprayer drones as mediators of volumetric agriculture, J. of Rural Studies. [CrossRef]
  25. Li X, Peoples J, Yao P, Ruan X, (2021) Ultrawhite BaSO4 Paints and Films for Remarkable Daytime Subambient Radiative Cooling, ACS Applied Materials & Interfaces. [CrossRef]
  26. Liu, R.; Su, H.; Liou, K.; Jiang, J.; Gu, Y.; Liu, S.; Shiu, C. An Assessment of Tropospheric Water Vapor Feedback Using Radiative Kernels. JGR Atmos. 2018, 123, 1499–1509. [Google Scholar] [CrossRef]
  27. Maghazel O, Netland T (2019) Drones in manufacturing: exploring opportunities for research and practice, J. of Manufacturing Technology Management ISSN: 1741-038X. Available online: https://www.emerald.com/insight/content/doi/10.1108/JMTM-03-2019-0099/full/html.
  28. Malik, P. Nowack, J. Haigh, L. Cao, L. Atique, Y. Plancherel (2020), Tropical Pacific climate variability under solar geoengineering: impacts on ENSO extremes, Atmospheric Chemistry and Physics.
  29. Mautner M. N., (1991) A space-based solar screen against climatic warming, J. of the British Interplanetary Society, Vol. 44, pp.135-138.
  30. MEER Project (2023) Mirrors for Earth’s Energy Rebalancing, meer.org.
  31. MIT Study on Roads: AzariJafari, H.; Kirchain, R.; Gregory, J. Mitigating Climate Change with Reflective Pavements. CSHub Top. Summ. 2020. Available online: https://cshub.mit.edu/sites/default/files/images/Albedo%201113_0.pdf (accessed on 25 November 2022).
  32. NASA Vital Signs (2023) Global Temperature Vital Signs – Climate Change: Vital Signs of the Planet. Available online: nasa.gov (accessed on 10 April 2023).
  33. National Academies of Sciences, Engineering, and Medicine (2021) Reflecting sunlight: recommendations for solar geoengineering research and research governance. Consensus Study Report. NASEM. [CrossRef]
  34. Niemeier, U. Niemeier, U. & Timmreck, C. (2015) What is the limit of climate engineering by stratospheric injection of SO2? 2015; 15, 9129–9141. [Google Scholar]
  35. Ong S, Campbell C, Denholm P, Magolis R, Heath G (2013) Land-use requirements for solar power plants in the United States, NREL, Technical Report NREL/TP-6A20-56290. Available online: https://www.nrel.gov/docs/fy13osti/56290.pdf.
  36. ScienceDirect, Calcium Carbonate. Available online: https://www.sciencedirect.com/topics/chemistry/calcium-carbonate (accessed on 23 April 2023).
  37. Smoliak B, Gelobter M, Haley J 2022 Environ. Res. Commun. 4 065003. [CrossRef]
  38. Sun Z, Du W, Jiang H, Weng Q, Guo H, Han Y, Xing Q, Ma Y, (2022) Global 10-m impervious surface area mapping: A big earth data based extraction and updating approach. Int. J. of Applied Earth Observation and Geoinformation. [CrossRef]
  39. Tollefson, J. (2018), First sun-dimming experiment will test a way to cool the Earth, Nature. Available online: https://www.nature.com/articles/d41586-018-07533-4.
  40. Wikipedia (2021) Gasoline gallon equivalent. Available online: https://en.wikipedia.org/wiki/Gasoline_gallon_equivalent (accessed on 4 December 2021).
  41. Worldbank, Urban development (2020). Available online: https://www.worldbank.org/en/topic/urbandevelopment/overview#1 (accessed on 4 December 2021).
  42. Zhao, L.; Lee, X.; Smith, R.; Oleson, K. Strong, contributions of local background climate to urban heat islands. Nature 2014, 511, 216–219. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, P., Ren, G., Qin, Y., Zhai, Y., Zhai, T., Tysa, S. K., et al. Urbanization effects on estimates of global trends in mean and extreme air temperature. 2021, 34, 1923–1945. [CrossRef]
  44. Zhou D, Zhao S, Zhang L, Sun G, Liu Y (2015) The footprint of urban heat island effect in China. Sci Rep 2015, 5, 11160. [CrossRef] [PubMed]
Preprints 85187 g001
Figure 1. Global warming linear short-term trend (smoothed) assessment (NASA, 2023).
Figure 1. Global warming linear short-term trend (smoothed) assessment (NASA, 2023).
Preprints 85187 g001
Table 1. SO2 Injection requirements for SRM.
Table 1. SO2 Injection requirements for SRM.
Stratosphere Injection Full
Reversal		 Annual
50%
Reversal
ΔRTOA (Wm-2) 1.47 0.01465
I S O 2 (Mt(S)Yr-1) 6.9 0.216
Savings 0.4 32x
Table 2. ASG requirements for land and space.
Table 2. ASG requirements for land and space.
Earth Brightening Space
Parameters Pavements Desert Treatment UHIs Earth(Sea)Mirrors L1 Space Shading Parameters Stratosphere Injections
ΔPASG(Wm-2) -0.01465 -0.01465 -0.0147 -0.01465 ΔPASG(Wm-2) -0.01465 -0.01465
XS=1,XO=1,XC,= 0.47 0.92 0.47 0.7 XC=1, XS= 4 1
Δ α T 0.3 0.44 0.1 0.75 Δ α T 0.7 0.3
HT 1 1 3 2 (1) HT 1 1
A ¯ F 2.15 2.15 2.15 2.15 A ¯ F 2.15 2.15
Earth Brightening Minimal Results L1 Space Disc Results CaCO3 Injec.
AT/AE 0.0305% 0.0106% 0.031% 0.0041%(0.0082%) AT/AE Earth Shade 0.00154% 0.0144%/eff
AT (Mi2) 60,035 20,940 60,035 8061 (16,124) Shade AT (Mi2, km2) 3023, 7843 ~27,924,~74,322
Radius (Mi) 138 81.6 138 51 (71.6) Shade Radius (Mi, km) 31, 50 ~94.3, ~153.8
AT (km2) 1.56E+05 5.42E+04 1.6E+05 2.1E+04 (4.2E+04) Disc Area (Mi2, km2)* 3023, 7843 -
Radius (km) 223 131 223 81.6 (115) Disc Radius (Mi, km)* 31, 50 -
*Depends on Sun blocking efficiency of the disc and actual distance relative to L1.
Table 3. ASG potential hotspot possible requirements.
Table 3. ASG potential hotspot possible requirements.
T2, T1 Δ α T XC 61oC, 33oC
0.5, 0.47
AF 4.3
ΔPASG(Wm-2) -0.01465
AT/AE 0.0092%
AT (Mi2) 18,011
Radius (Mi) 76
AT (km2) 0.47E+05
Radius (km) 122
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
