Design and Testing of Key Components of Waste Ground Film Impurity Removal Equipment

1. Introduction

Mulch cultivation technology is crucial for the development of dryland agriculture, where water resources are limited. It plays a critical supporting role in ensuring national food security [1]. Millions of tons of plastic mulch are used globally every year, with China alone requiring more than 1.15 million tons per year [2]. The mulch is not recycled in time and is difficult to degrade naturally, which leads to serious white pollution in farmland soil. Japan, Europe and the United States use mulch products that are generally between 0.15 and 0.02 mm thick and have good toughness, allowing for complete recycling after crop harvest. Other Asian countries such as China generally use ultra-thin mulch with a thickness of less than 0.008 mm, which makes it difficult to recycle after crop harvest due to broken mulch. At the same time, the residual film is a polyethylene material, which is a valuable renewable resource and can be used to process plastic pellets, forming a virtuous cycle of "use - recycle - process - reuse" of the film, as shown in Figure 1.

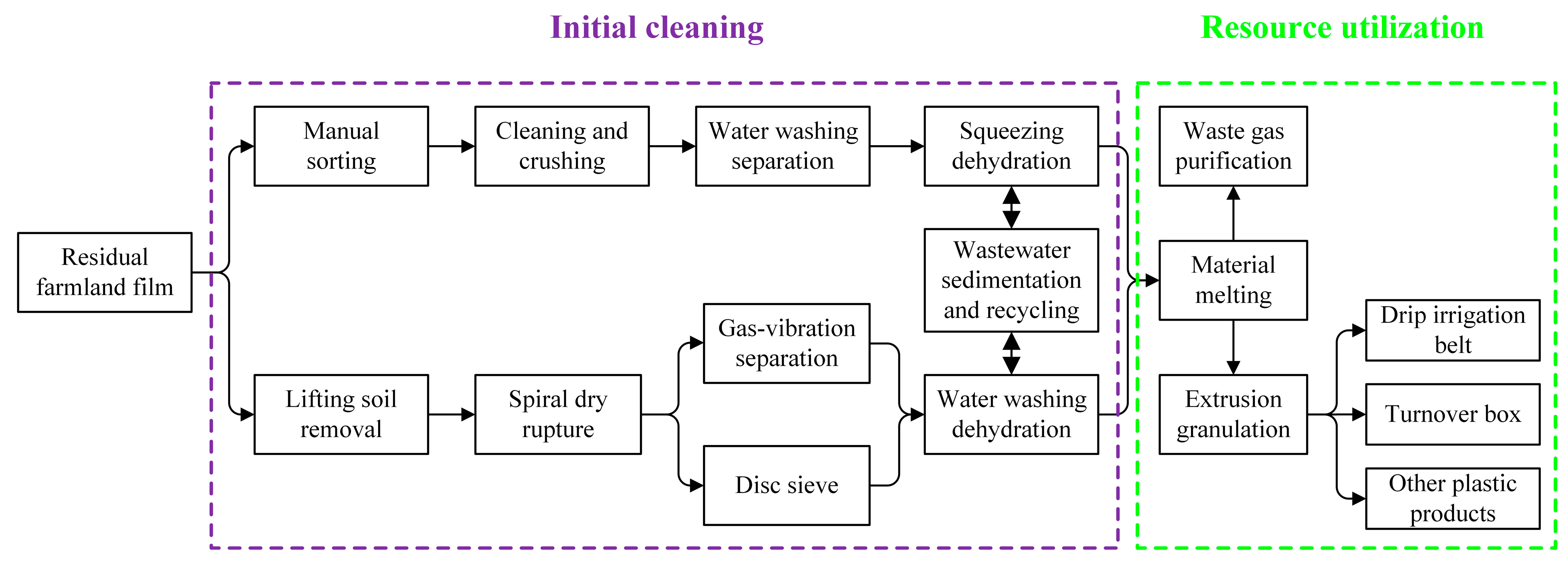

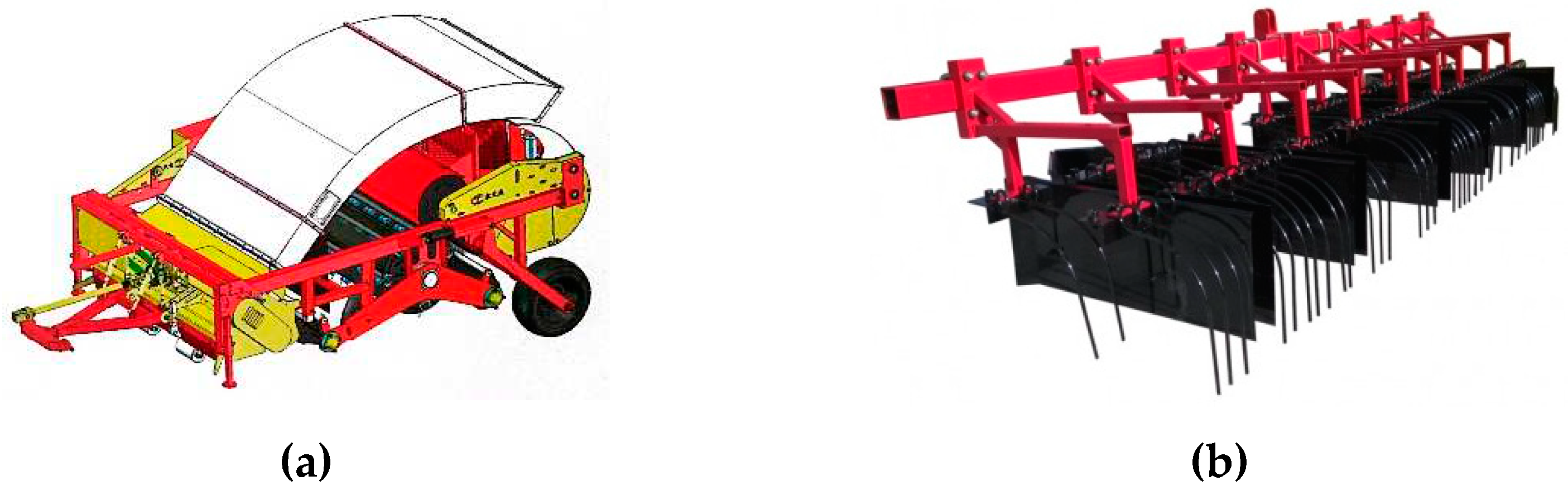

Contemporary methods of mechanized recycling of residual film have shown good results, and a variety of types of film recovery machinery have emerged, as shown in Figure 2. However, mechanically recovered film residues contain a large number of impurities, making it difficult to reuse the recovered film residues and can only be randomly stacked, buried, or burned, causing secondary pollution to the environment, which has not fundamentally solved the problem of residual film pollution. The residual film–impurity mixture has to be cleaned before further use. A tumbler screen type film wind separator (also referred to as the film wind separator) has been widely used in the residual film resource utilization of debris removal mechanisms [3-4]. When after a study it was found that in the same time interval, the ratio of impurities in the residual film increased suddenly, which led to higher impurity content in the residual film even after cleaning. This seriously affected the subsequent residual film melting and granulation processes.

Scholars from various fields have extensively investigated the depolymerization processes of different materials. Such as Jiao et al. [5] used the discrete element method (DEM) to numerically simulate the depolymerization of wet granular agglomerates of coated structures by collision with the wall and investigated the mode of wet particle agglomerate depolymerization during collision. Antonov et al. [6] study thermal aggregation and disaggregation processes in complex carrageenan/lysozyme systems with a different linear charge density of the sulphated polysaccharide. Based on agglomerate size, Zhou [7] conducted force analysis for a single particle disaggregating from the agglomerate and calculated the corresponding wind speed. The agglomerates transported at this wind speed were depolymerized into smaller agglomerates and single particles via mutual collisions. Zhai et al. [8] used a bonding model and the DEM to simulate the bonding behavior of liquid bridges in wet particle agglomerates. They developed a model of wet coal agglomerates formed by bonding of small particles with equal diameters. They investigated the laws of bonding and breaking of the internal parts of the agglomerates during collision as well as the effect of collision velocity and other factors on the degree of agglomerate disaggregation. Zhang et al. [9] explored the various force relationships between particles as well as between particles and airflow at the microscopic scale. Bellocq et al. [10] studied morphological changes in sieved material during wet agglomeration and determined the elemental conditions that must be achieved in the relevant operating steps. The agglomeration of residual film–impurity mixtures is a more complex multi-material bonding unlike the agglomeration of microscopic particles. During disaggregation, the soil and straw detach from the residual film, ensuring that the residual film remains clean. Therefore, for analyzing the depolymerization of miscellaneous residual film–impurity mixtures, the study of traditional microscopic particle depolymerization is not suitable.

During separation in a residual film–impurity mixture wind separator, a large amount of residual film–impurity mixture is not depolymerized during continuous operation. Herein, we conducted simulations and presented insights for addressing this problem. Based on the principle of agglomeration and depolymerization of the residual film–impurity mixture, the key factors affecting the depolymerization were analyzed. Using CFD-DEM fluid-solid coupling simulation, the location of the maximum collision force was determined, and force analysis was conducted for this stage. The maximum collision force was influenced by the feeding volume and inlet structure. Simulations were performed for different forms of inlet structures. The maximum collision force of the residual film–impurity mixture agglomerates on the trommel screen was used as the evaluation index, and the optimum inlet structure and feed rate were determined. Figure 3 shows the flow chart of the complete research process for some mixtures that are difficult to disaggregate. The findings of this study provide theoretical insights for determining the optimal inlet structure and feed rates of various cleaning devices.

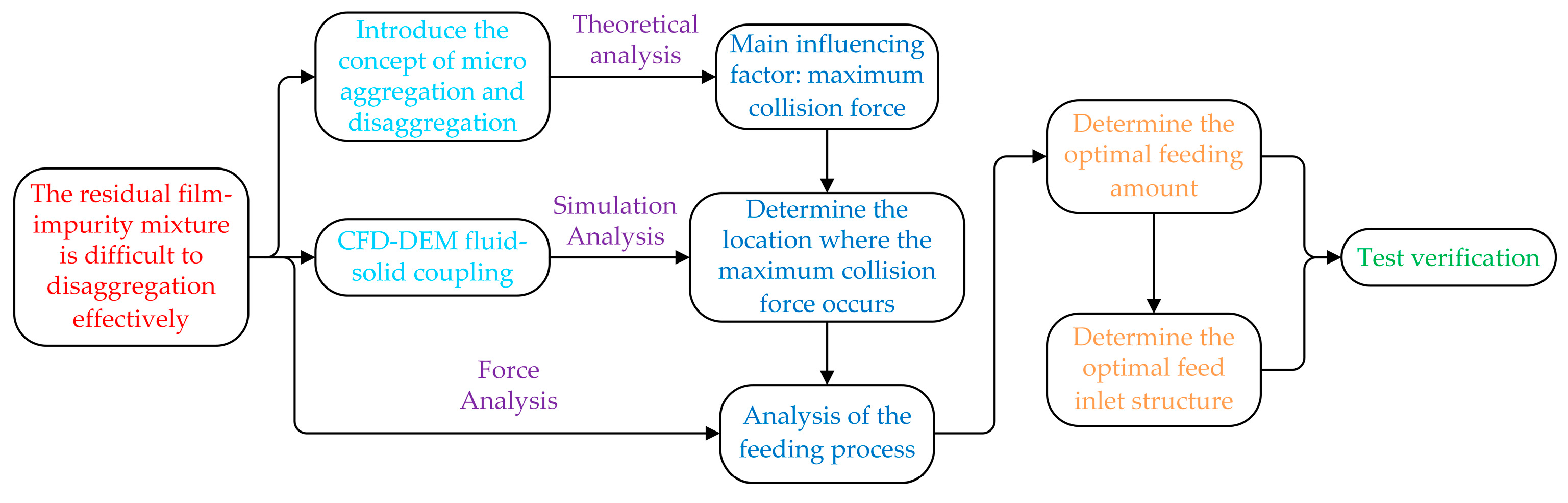

2. Materials and Methods

2.1. Overall structure and working principle of the film miscellaneous wind separator

2.1.1. Overall structure

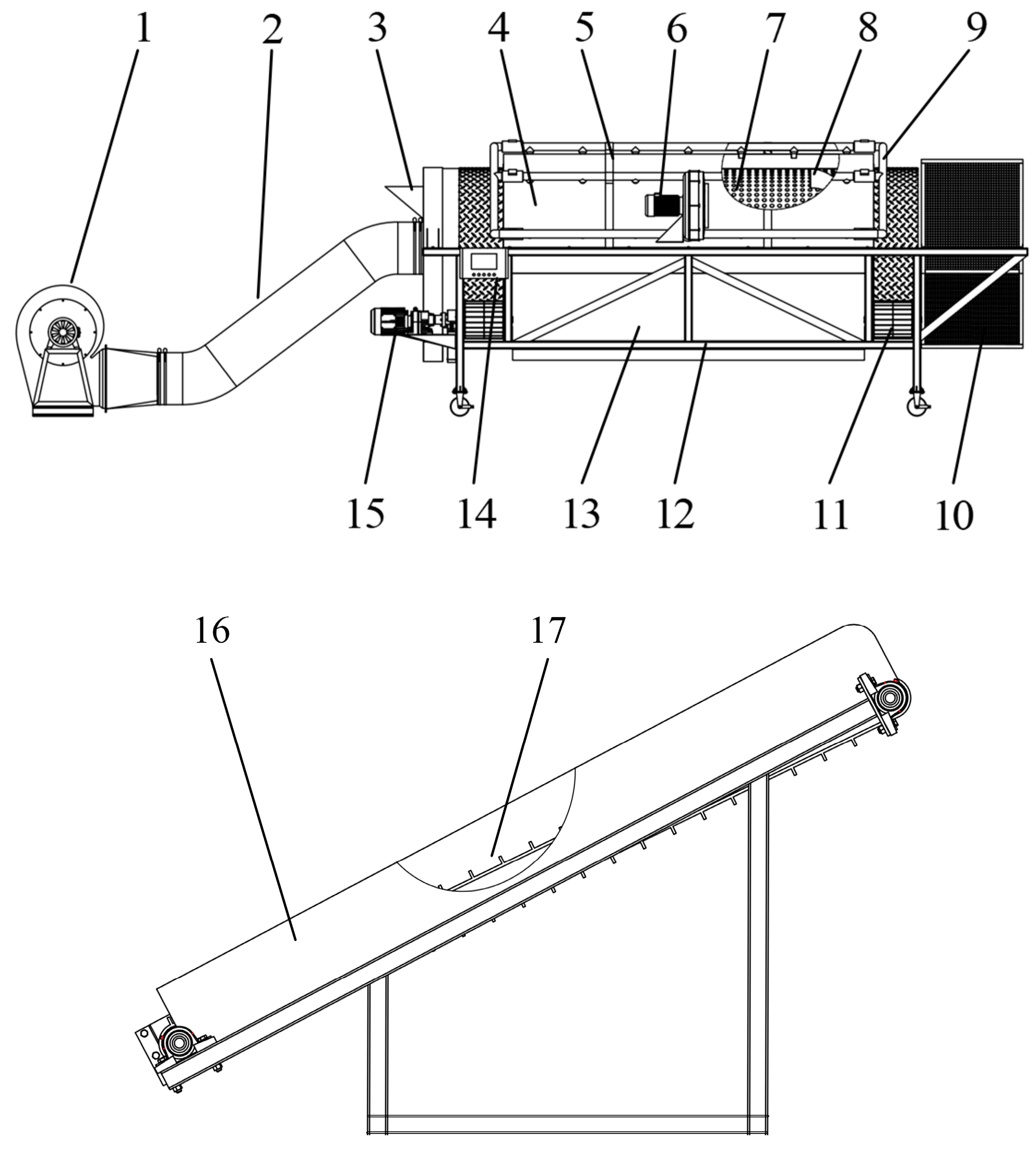

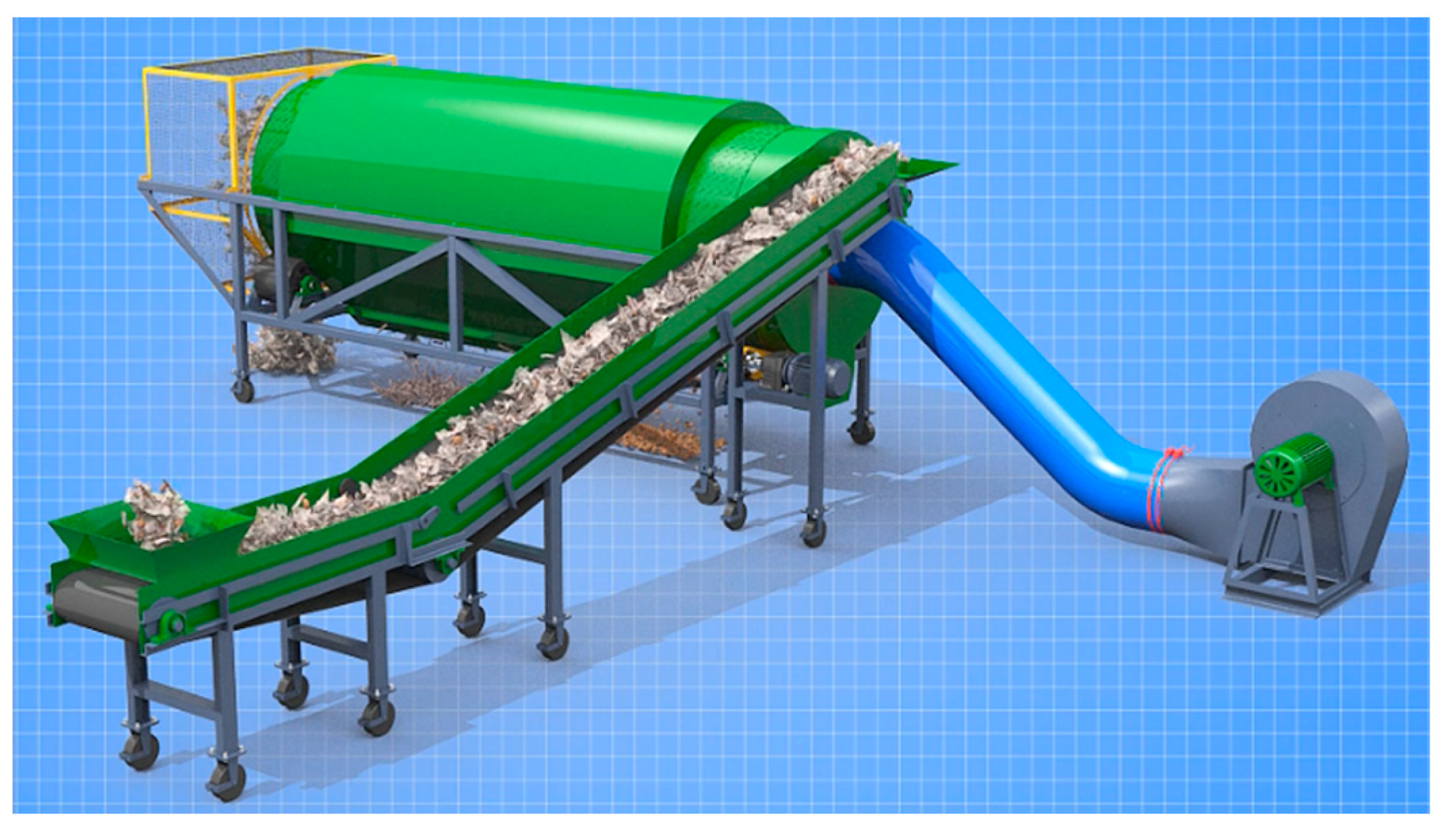

The whole structure of a tumbler sieve type film miscellaneous wind separator is presented in Figure 4. The tumbler sieve type film miscellaneous wind separator mainly comprised a fan, air duct, tumbler sieve, sealing cover, film collection box, and so on. The inlets for material feed and air were located at the same end of the drum sieve. The fan was connected to the air inlet via an air duct. A spacer conveyor belt with a transverse spacer was used to prevent the material from slipping. Both ends of the conveyor belt were connected to the material inlet installed on the side of the separator. A motor was installed at the lower end of the conveyor belt to control its speed [11].

2.1.2. Working principle

During continuous operation of the film miscellaneous wind separator, a high-speed airflow from the centrifugal fan entered the drum screen through the air duct. A certain amount of film was transported upward by the conveying device and fed into the wind separator via the inlet. The amount of residual film–impurity mixture fed was controlled by adjusting the speed of the conveyor belt. When the residual film–impurity mixture entered the device, it moved toward the back end of the device under the action of airflow and collided with the trommel screen. Under the joint action of airflow and trommel screen, the residual film–impurity mixture was gradually depolymerized and separated. The heavier straw and soil fell from the lower end of the drum and were separated from further processing in the device. The lighter residual film moved further under the action of airflow and entered the film collection box through the drum sieve and was cleaned and processed. The operating principle of the wind separator is presented in Figure 5.

2.2. CFD-DEM fluid-solid coupling simulation analysis

2.2.1. Principle of agglomeration and depolymerization of membrane hybrids

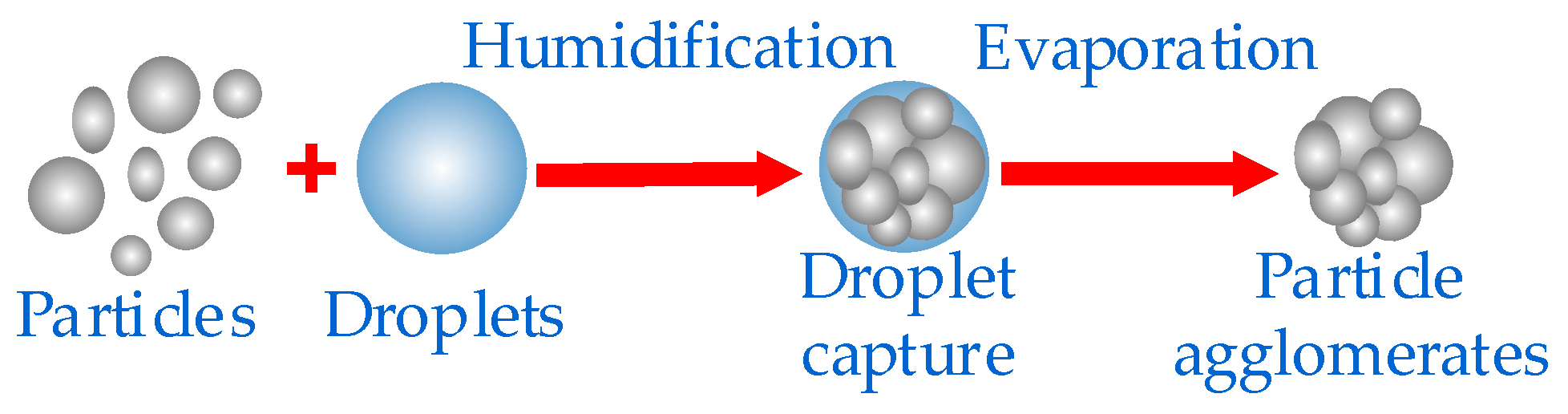

As shown in Figure 6, the residual film was not recovered earlier during the operation. It was entangled and mixed with straw in the soil. The soil particles and liquid droplets combined to form a strong wet clod and adhered to each other via the straw and the film. When the water in the soil was evaporated, the soil, straw, and film were agglomerated into a whole. The recovered residual film was mixed with a large amount of this film-soil-cotton stalk mixture agglomerate [12].

As the device was rotated, the residual film–impurity mixture collided with the wall of the drum screen, and the agglomerates were depolymerized, thus achieving the effect of separating the residual film and impurities. When the maximum collision force, F_cmax, was greater than the maximum viscous force, F_vn, the agglomerates were broken. The relationship between them was given using Eq. (1):

$$F_{c\mathrm{m}\mathrm{a}\mathrm{x}}>F_{vn}$$

(1)

Soil, straw, and residual film agglomerates collided with the wall of the trommel screen inside the device. The maximum collision force in the collision was expressed using Eq. (2):

$$\left\{\begin{array}{l}{F}_{c \max }=0.2516{\left[\left(\frac{\pi v^6{{\rho }_p}^3}{k^2}\right)\left(\frac{{d_1}^3{d_2}^3}{{d_1}^3+{d_2}^3}\right)\left(\frac{2d_1{d}_2}{d_1+d_2}\right)\right]}^{\frac{1}{5}}\\ k=\frac{E}{1-v^2}\end{array}\right.$$

(2)

where d₁ and d₂ are particle size (m); when d₂ was much larger than d₁, it was considered to be a collision between the agglomerate and wall; k is the elastic deformation coefficient of particle (Pa); ρ_p is the density of agglomerate (kg/m³); v is the relative collision velocity of agglomerate and wall of drum sieve (m/s); ν is Poisson's ratio; and E is Young's modulus of elasticity (Pa).

When the agglomerate collided with the wall, the comprising particles tended to move relative to each other and were subjected to both tangential and normal viscous forces. The distance between the agglomerate and the wall was rather small; thus, the tangential viscous force was much smaller than the normal viscous force. Therefore, the tangential viscous force was excluded when considering the force of the collision process [13]. The normal viscous force relationship was given using Eq. (3):

$$F_{vn}=6\pi \mu R^{*}{v}_n\frac{R^{*}}{h}$$

(3)

where μ is the dynamic viscosity (N·s/m²); v_n is the normal relative motion velocity of the agglomerate and the wall (m/s); h is the distance from the surface of the agglomerate to the surface of the trommel screen (m); and R* is the folding radius, where $\frac{1}{R^{*}}=\frac{1}{R_1}+\frac{1}{R_2}$ and R₁ and R₂ are the equivalent radii of the agglomerate and the wall of the trommel screen, respectively; R₂ can be increased to infinity.

Eqs. (2) and (3) were used to obtain the collision force between the agglomerates; the surface of the drum screen increased with increase in the relative collision velocity. Therefore, among the film-hybrid wind separators, enhancing the relative collision velocity between the residual film–impurity mixture and the trommel screen facilitated disaggregation.

2.2.2. Fluid-solid coupling simulation

Further, we investigated the maximum collision force inside the trommel screen, that is, we determined where the maximum relative collision velocity occurred. The operation of the membrane miscellaneous wind separator was simulated using a combination of EDEM and Fluent software.

Pre-processing of fluid-solid coupling simulation

SolidWorks 3D modeling software was used to model the structure of the membrane miscellaneous wind separator. Flow field simulation as well as the discrete element simulation model were also used to establish the model. The simplified flow field simulation model was imported into ICEM software for mesh drawing. The rotating trommel screen of the film miscible wind separator was located inside the stationary sealing hood; thus, the two fluid domains were plotted separately when the mesh was drawn. The screen holes on the trommel screen were named as interface surfaces. Data exchange between the two fluid domains was realized, and the delineated mesh model was imported into Fluent software. The standard k-ε model was selected for computations, and SIMPLEC algorithm was used for solving equations. The internal flow field of the film-hybrid wind separator was simulated, and the simulation results were exported to a .cgns format file.

The results of the discrete element model and the flow field simulation were imported into EDEM software. The imported flow field simulation data were identified using an API function. The operating parameters of each structure of the film miscellaneous wind separator were set separately to ensure that the coupled simulation results were consistent with the test results, and the bench test material was followed. A three-dimensional model of residual film, straw, and soil particles was established. Parameters for material contact and physical characteristics were obtained using the drainage method via tensile tests with a mass spectrometer, a mechanical testing machine, friction and wear tests, and literature review [14-19]. Intrinsic parameters of the materials are shown in Table 1.

The corresponding material intrinsic parameters were set in Creator parameter setting interface in the discrete element simulation software EDEM. A particle model of residual film, straw and soil is established as shown in Figure 7. The Bonding V2 contact model is added to simulate the flexible characteristics of the residual film. The residual film particle arrangement law and the deformation of the residual film particles after the force are shown in Figure 7(a) and (b). The model could represent the formation of flexible bonding bonds between two bonded spherical particles. The flexible characteristics of the residual film were restored to the maximum extent. Since the volume fraction of the residual film inside the device is small, the effect of the thickness of the residual film on the flow field and the motion of the residual film is ignored to reduce the computational efficiency. To reduce the calculation volume and improve the simulation efficiency, the effect of the thickness of the residual film on the flow field inside the separation device and the motion of the residual film is ignored. The residual film particle diameter is increased and the residual film particle density is decreased to keep the residual film mass constant.

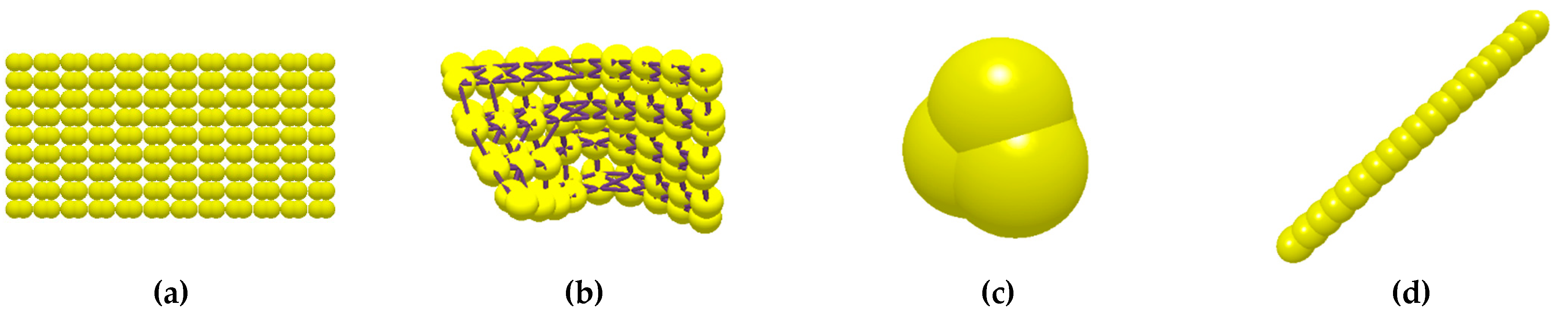

Particle model authenticity verification test

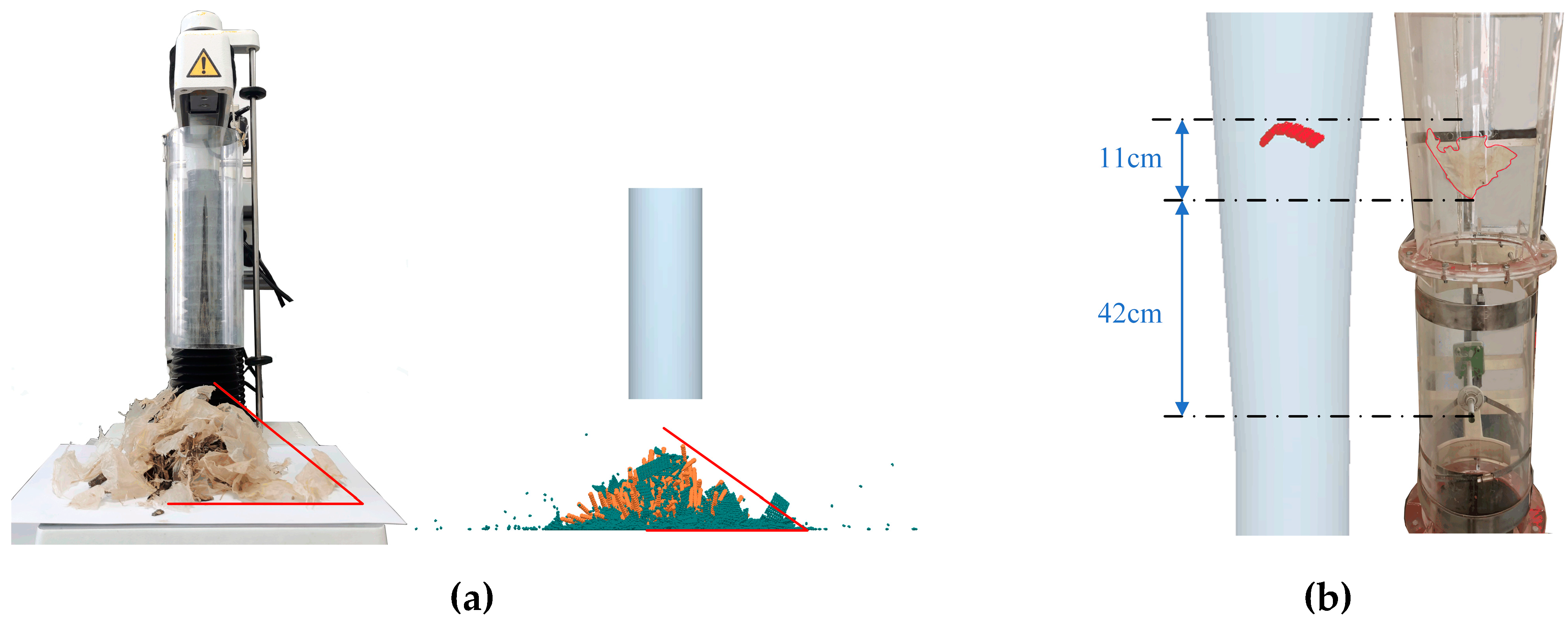

The stacking angle validation test was designed to verify the accuracy of the basic physical and contact parameters of the proposed particle model, as shown in Figure 8(a). For the stacking angle test, a transparent bottomless cylinder with an inner diameter of 70 mm, a thickness of 1.5 mm, and a height of 200 mm was used to fill the transparent cylinder with material in proportion to the composition of the residual film–impurity mixture, and the cylinder was slowly lifted by clamping it with a lifting device. After all the materials flowed out from the bottom of the cylinder and formed a stable pile, vertical photographs were taken to measure the pile angle and the test was repeated 10 times. To perform the stacking angle simulation test, EDEM software was used to model the bottomless cylinder according to its size specifications. After generating a certain amount of particles to fill the cylinder as a particle plant, a slow rise speed was set for the cylinder, and the simulated particles flowed out from the bottom of the cylinder to finally form a stable pile of particles, and the pile angle of the pile of particles of residual film–impurity mixture was measured, and the average value was taken to compare with the pile angle of the actual physical test. The results show that the stacking angle of the actual test is 39.1° and the stacking angle of the simulation test is 36.2°, with a relative error of 7.4%. The simulated stacking angle matches well with the actual test stacking angle, which indicates that the contact parameters of each component of the film-hybrid mixture are set reasonably and can be used for working condition simulation.

At the same time, suspension characteristics of the residual film particles using the developed contact model were investigated. The residual film particles were used as the simulation material. Suspension simulation tests were conducted to compare with the suspension tests on the test bench. As shown in Figure 8(b), the radii of the corresponding circular cross-sections from low to high were 100, 135, and 155 mm because the flow rates through the different cross-sections were the same. The flow relationship was given using Eq. (4):

$$v_f\pi r_f^{}{}^2=v_m\pi r_m^{}{}^2$$

(4)

where r_f is the material suspension position circular cross-section radius (mm); r_m is the thermal anemometer position circular cross-section radius (mm); v_f is the material suspension speed (m/s); and v_m is the thermal anemometer reading.

The relationship between different circular cross-section radius and the corresponding position suspension speed was deduced using Eq. (5):

$$v_f=\frac{r_m^{}{}^2{v}_m}{r_f^{}{}^2}$$

(5)

At same test conditions, the speed of the fan was controlled using the controller. The suspension velocity of the residual film in both the simulation tests and the test bench suspension tests was in the range 2.92–5.49 m/s. This indicates that the suspension characteristics of the residual film particles in the simulation were similar to those of the residual film material used in the test bench. Therefore, the residual film particles were in agreements with the simulation results.

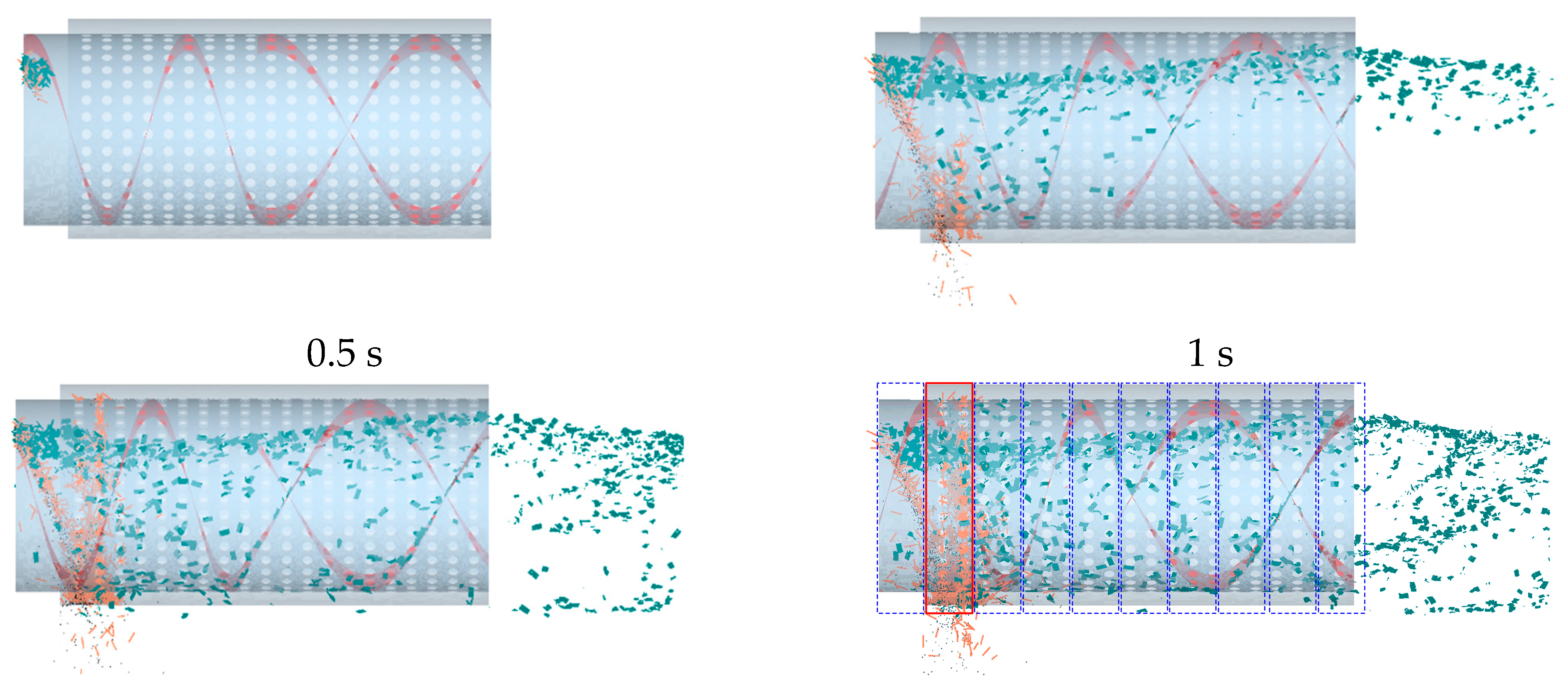

Analysis of simulation results

The mass ratio composition of the residual film–impurity mixture was 43% soil, 21%, straw and 36% residual film, and the feeding rate was set to 200 kg/h. Particle factory were added to the simulation software to produce particles in this ratio. The simulation process is presented in Figure 9(a). The starting point was toward the left side of the trommel screen. Monitoring areas (thickness = 300 mm) were designed adjacent to each other. The maximum collision force between the residual film–impurity mixture and the screen surface of the trommel screen was derived for each region at different times. The line graph shown in Figure 9(b) plots location vs. maximum force on the screen surface of the tumbler screen. The maximum collision force occurred in the area shown in the red solid box in Figure 9(a). Further, it was determined that the maximum collision force occurred in the lower end of the red solid box, which was where the material first collided with the drum screen surface when it was fed into the device. The magnitude of the collision force in Figure 9(b) shows that a very small force was generated by the collision between the residual film–impurity mixture and the right side of the trommel screen. When the residual film–impurity mixture was not successfully depolymerized in the red solid line box (Figure 9(a)), it was challenging to depolymerize with the backward movement of the device. This caused a sudden increase in the impurity content in the membrane collection box. Therefore, to ensure effective depolymerization of the residual film–impurity mixture, in-depth analysis of the material feeding to the stage of collision with the trommel screen is required.

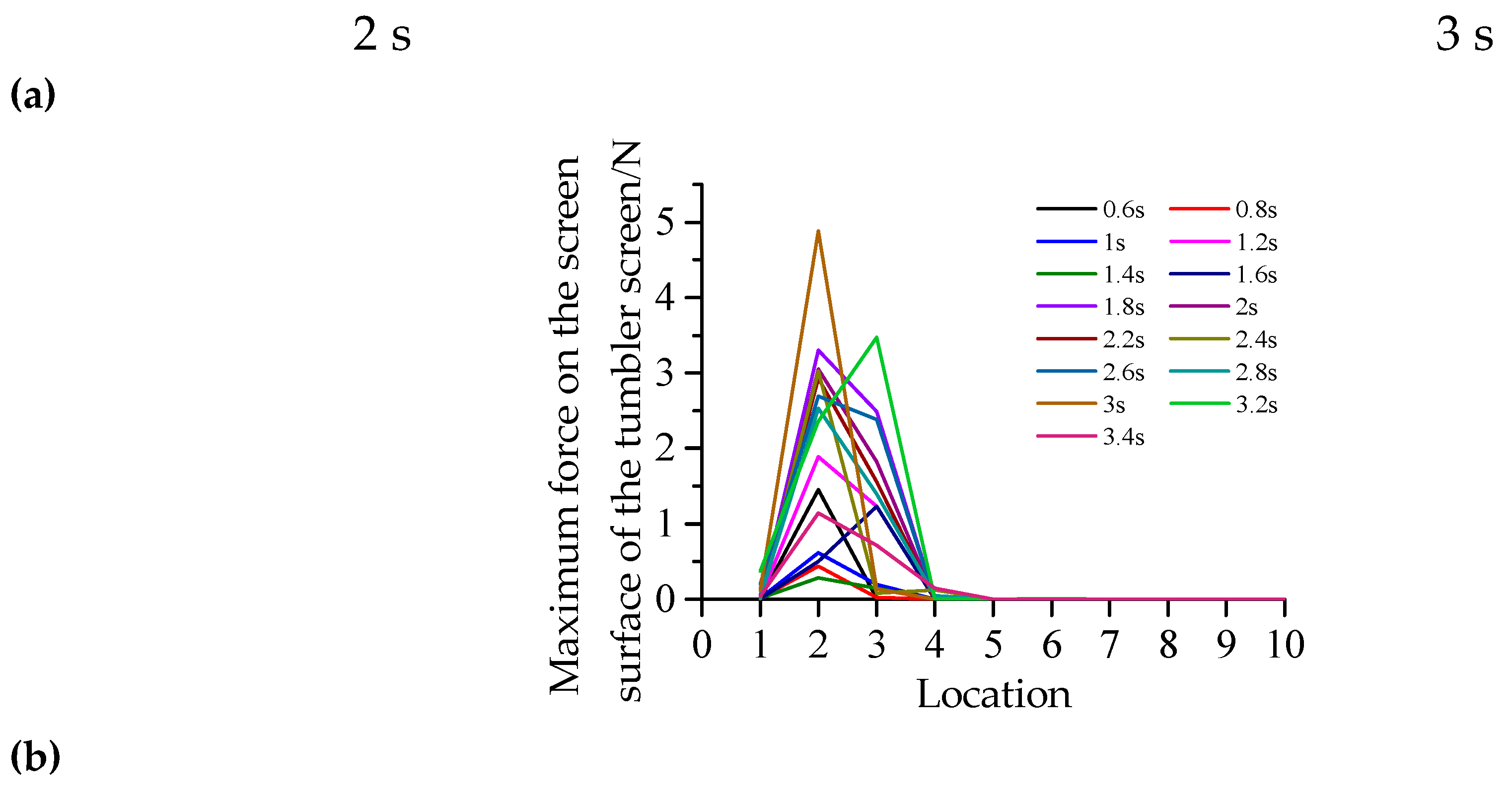

The flow-solid coupling simulation test can thus accurately represent the force of the trommel screen to some extent. Analysis of the forces at different locations of the trommel screen at different times determined the location of the maximum collision force. Therefore, to ensure the effective decoupling of the residual film–impurity mixture, an in-depth analysis of the material feeding to the stage of collision with the trommel screen is crucial.

2.3. Optimal structural form and feeding volume determination

2.3.1. Force analysis of residual film–impurity mixtures

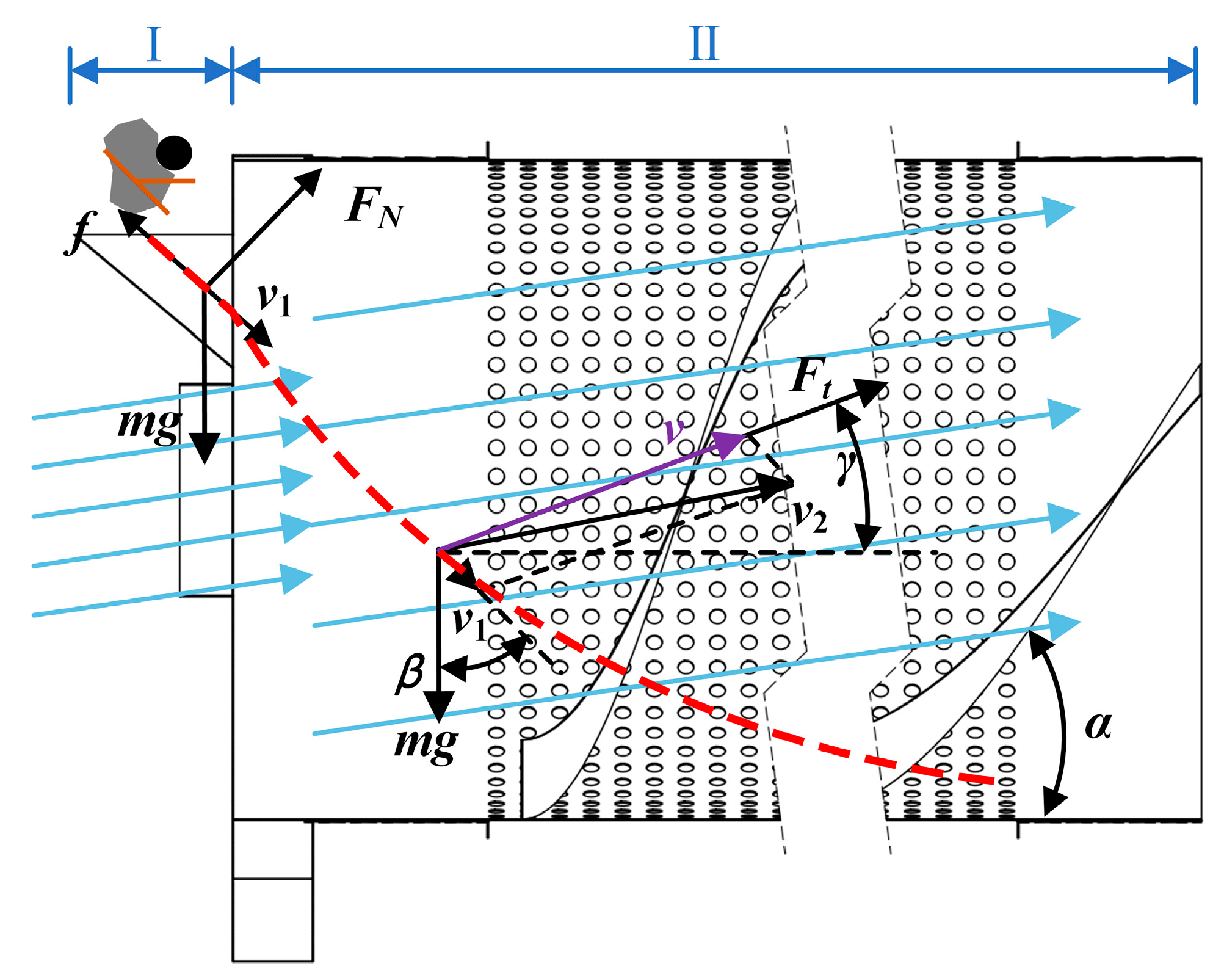

Force analysis (Figure 10) for the residual film–impurity mixture from the feeding device to the first collision stage with the trommel screen was used to study the movement of the residual film–impurity mixture inside the film-hybrid wind separator.

Figure 9 shows the residual film–impurity mixture in the wind separator inside the residual film–impurity mixture through the Ⅰ feeding stage and Ⅱ cleaning stage. The residual film–impurity mixture was subjected to gravity (mg), friction force (f), and support force (F_N) during stage Ⅰ. The direction of displacement of the residual film–impurity mixture was along the inlet slope and downward. There was an acute angle between the direction of gravity and the direction of motion, which resulted in positive work; the direction of friction was opposite to the direction of motion, which resulted in negative work. The direction of the support force was perpendicular to the direction of motion, resulting in no work. The law of conservation of energy is shown using Eq. (6).

$$mg \cos \frac{\pi }{4}\cdot l-f\cdot l=\frac{1}{2}m{v}_1^{}{}^2-\frac{1}{2}m{v}_1{}^{\prime 2}$$

(6)

Friction occurred due to collision between the residual film–impurity mixture and the inlet, which offset part of the work done by gravity on the residual film–impurity mixture. Compared to the case of no collision, there was velocity loss. Therefore, when the residual film–impurity mixture is fed into the residual film–impurity mixture wind separator, the collision between the material and the inlet should be minimized.

There was a flow field with a horizontal angle α=8° inside the tumbler screen. The velocity of the material entering inside the device was v₁, and the direction was the same as the inlet slope, that is, β=45°. The residual film–impurity mixture was subjected to vertical downward gravity (mg) and airflow resistance (F_t) relative to the direction of material velocity, γ, during stage II; the direction of air flow resistance is the same as the direction of movement of the material relative to the air flow, the airflow resistance, F_t, was calculated using Eq. (7):

$$F_t=\frac{1}{2}CA{\rho }_s{v}^2$$

(7)

where C is the air resistance coefficient; A is the material windward area (m²); and ρ_s is the air density (kg/m³).

As shown in Eq. (7), after the material entered the device, in addition to the airflow, which was necessary for clearing the airflow imposed by the air resistance, no other factors affected the speed of the material. Therefore, to ensure maximum speed of the residual film–impurity mixture and the drum sieve collision, the structure of the feed opening should be optimized; this can also minimize the speed loss during the feeding process.

2.3.2. Inlet structure design

To minimize the ratio of impurities in the residual film in the residual film–impurity mixture wind separator film, the quality of the collected film per unit of time should be maximized. After optimizing the film and debris wind separator and its drum screen speed, air inlet air speed and other operating parameters for a certain value, i.e., the drum speed of 26 rpm and the air inlet air speed of 8.5 m/s [20-21]. At this time, by controlling the feeding volume and by determining the best inlet form, the mixture of film and miscellaneous material was mixed with the drum screen. The relative collision velocity was maximized when the residual film–impurity mixture collided with the trommel screen. In turn, to ensure maximum debris disaggregation degree of the residual film–impurity mixture, the working performance of the residual film–impurity mixture wind separator was improved.

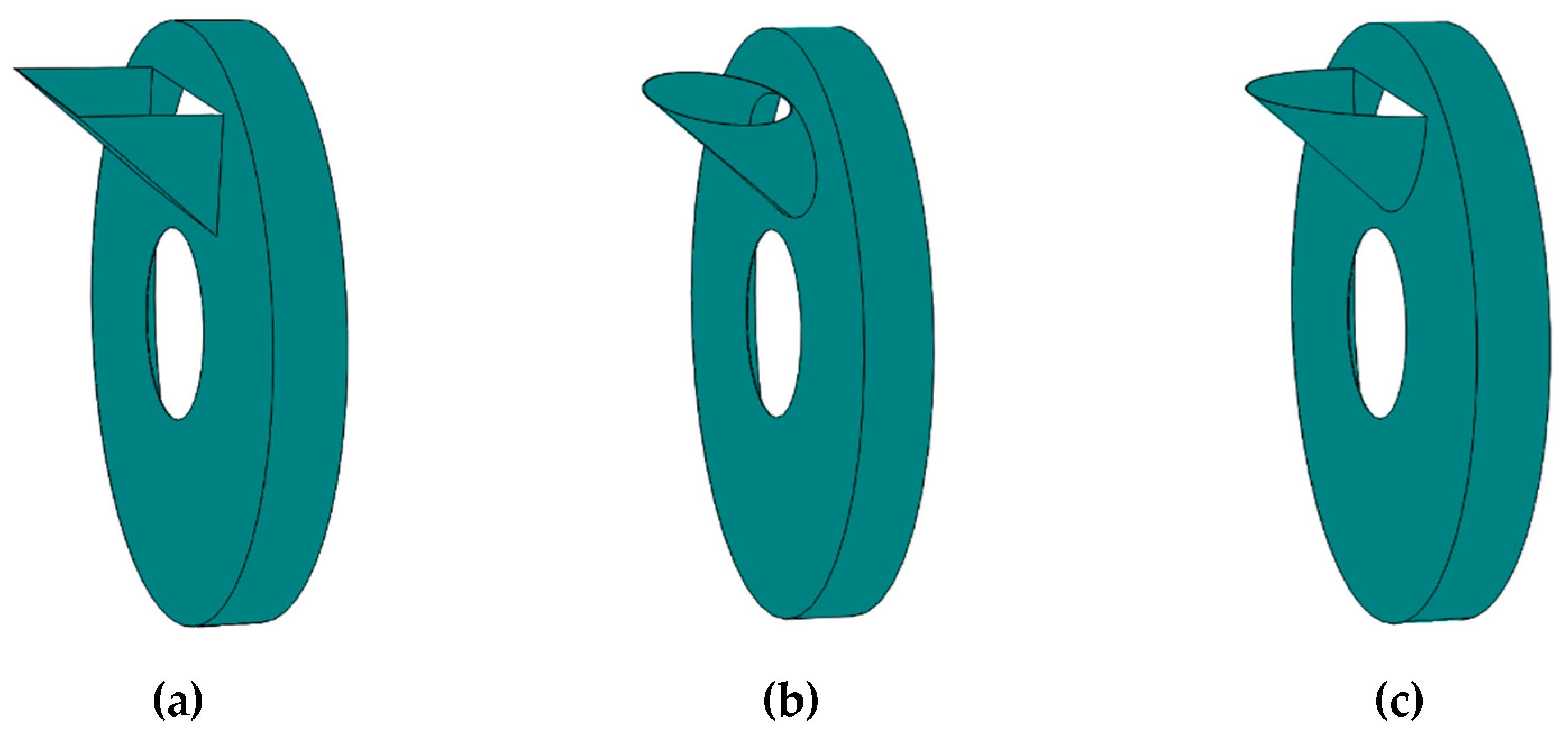

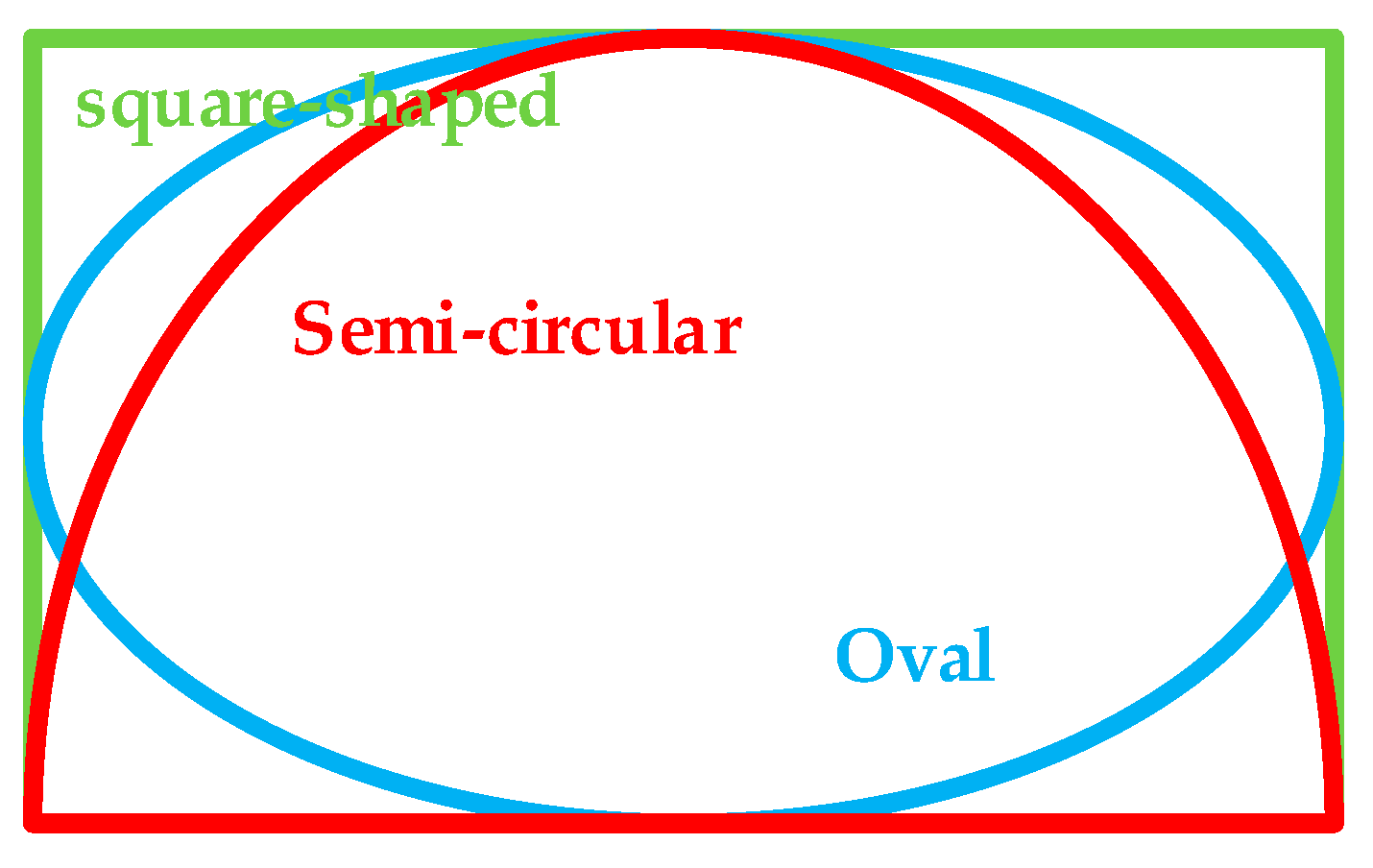

Three types of feed openings were designed, as shown in Figure 11, namely, square, oval, and semi-circular. The inlet areas of the three forms were 0.15, 0.1174, and 0.1178 m², respectively.

Figure 12 shows a 3D model of the inlet. The square inlet allowed more residual film–impurity mixture to be fed into the device, but it had more sides, and the residual film–impurity mixture collided with these during the feeding process, which led to relatively low velocity when it collided with the drum screen surface, affecting the residual film–impurity mixture depolymerization. Therefore, to investigate the best feed inlet structure form, the collision force of the residual film–impurity mixture on the trommel screen under different inlet structures was determined, and the fluid-solid coupling for the film-hybrid wind separator was simulated.

2.3.3. Optimal structural form and feeding volume determination

Various forms of inlet structures were simulated. The simulation feeding amount was set according to the proportion of each material mass in the real residual film–impurity mixture. The monitoring area was set up at the position of the red solid line box shown in Figure 9(a). The maximum values of the forces on the trommel screen at each moment were determined for each inlet structure. The average value of the statistical results was used as the basis to draw the bar graph shown in Figure 13. The difference between the maximum value and the average value was used as the reference for the error bar.

As shown in Figure 13, the overall force of the trommel screen increased and then decreased. At a small feeding volume, the volume of the residual film–impurity mixture agglomerates was small, and the number of materials was small, which resulted in a smaller collision force. At a larger feeding volume, the fed residual film–impurity mixture collided with the edge of the feed opening, which led to serious velocity loss, thereby resulting in a smaller collision force. In case of a square inlet, the larger inlet area ensured more material feeding and no speed loss during the feeding process. At a large feeding volume of 200 kg/h, the maximum force during the operation of the trommel screen was 3.632 N. In case of an oval inlet, the inlet area was the smallest. Because of this, the size of the agglomerates of the residual film–impurity mixture was limited by the decreased feed rate, and the larger agglomerates cannot be fed smoothly. The maximum force during the operation of the trommel screen was 3.047 N at a feed rate of 150 kg/h. In case of the semi-circular feed opening, the area of the feed opening was between those of the square and oval ones. Compared to the square feed opening, the structure had a rounded boundary, which resulted in challenges in material feeding. The structure had a rounded boundary, which avoided collision during the material feeding process. Compared with the oval inlet, the semi-circular structure had a larger area, allowing more material to be fed. Therefore, the generated force was between those of the above two structures. The maximum force during the operation of the trommel screen was 3.392 N at a feed rate of 200 kg/h.

The maximum collision force at all times during the operation of the integrated trommel screen was investigated for different inlet structures. For the square inlet and a feeding volume of 200 kg/h, the collision force between the residual film–impurity mixture agglomerate and the tumbler screen surface was the largest, that is, the agglomerates of the residual film–impurity mixture were most likely to be decluttered. To study the optimal feeding rate of the residual film–impurity mixture under the square feeding port condition, the parameters were further optimized in the range of 150–250 kg/h. The maximum values of the forces on the trommel screen at each moment under different feeding conditions were obtained. The average value was calculated, and a scatter plot was plotted as shown in Figure 14. A curve fit was performed [22-26].

According to the imported data, the fitting equation was set as a quadratic equation: , and the curve was fitted repeatedly. The best fit was achieved when the reduced Residual Sum of Squares (RSS) was constant. At this point, a=-3.58857E-4, b=0.1453, c=-12.46171, and R² was 0.99436. The fitted curve equation was given using Eq. (8):

$$y=-0.000358857x^2+0.1453x-12.46171$$

(8)

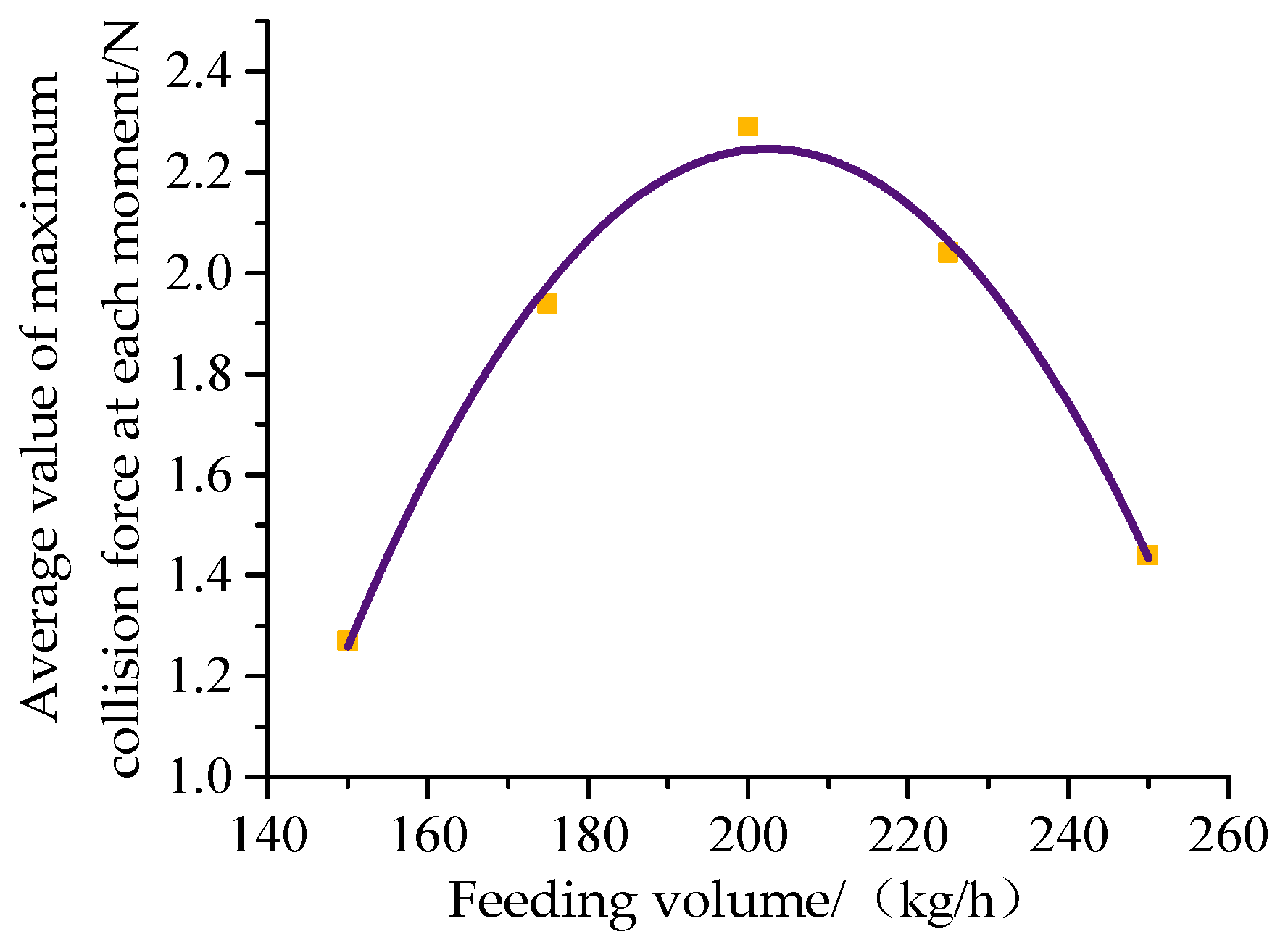

The quadratic equation was solved; when x=202.45, y had the maximum value of 2.25, and the parameters were rounded. At a feeding rate of 202 kg/h, the average value of the maximum collision force at each moment of the tumbler screen was 2.25 N. Therefore, to ensure the best depolymerization effect, a square inlet should be used with a feeding rate of 202 kg/h.

2.4. Test equipment

Herein, the working performance of the wind separator under the feed inlet structure and the feeding volume were verified. In the pilot plant of Shandong Agricultural Machinery Research Institute, the machine was tested under the conditions determined in section 2.3.2. Changes in the ratio of impurities in the residual film under this condition were compared. The actual machine test is presented in Figure 15.

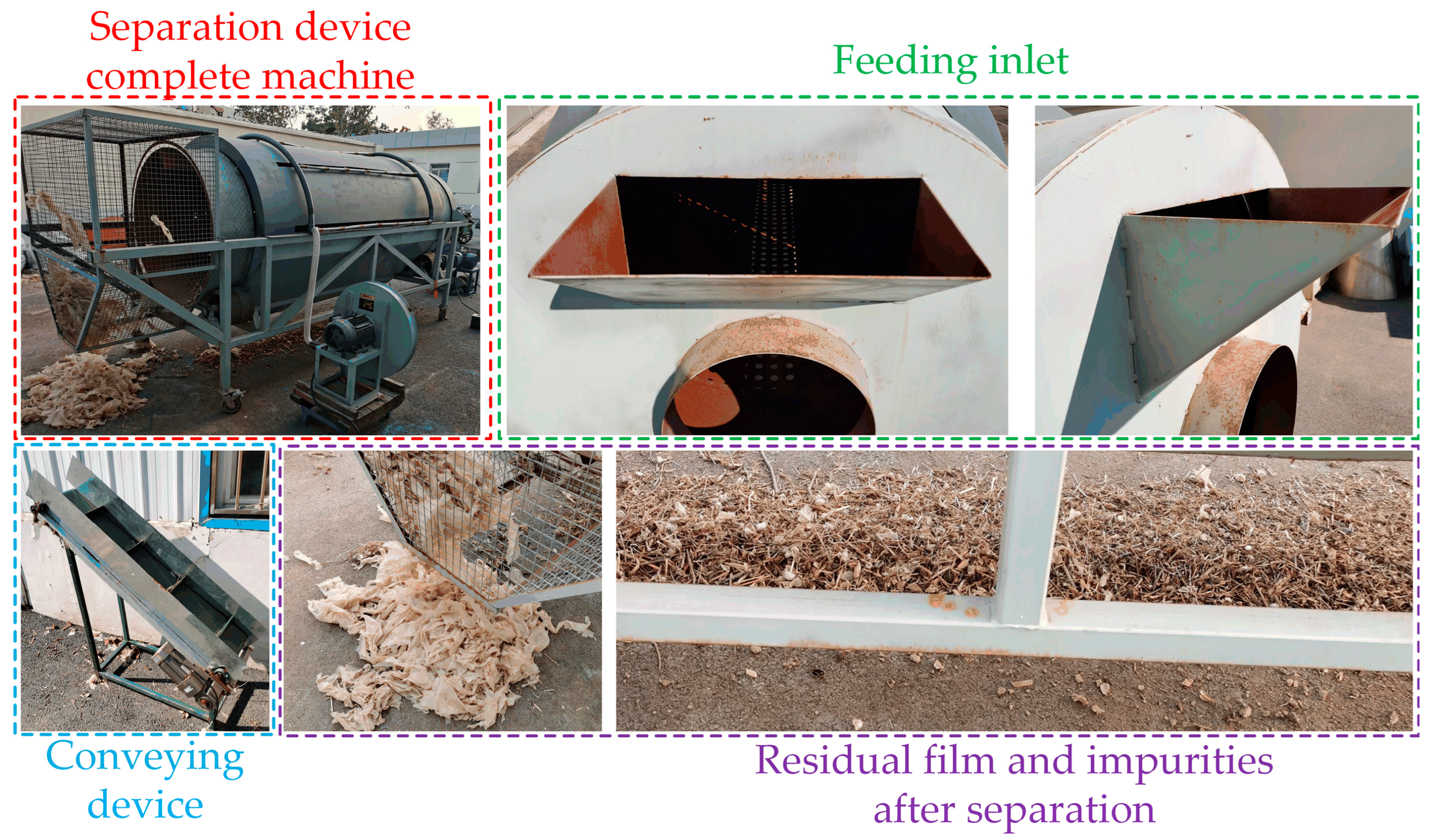

Figure 15 shows the wind separator, inlet, and the conveyor belt, as well as the material of residual film and straw after cleaning. The test apparatus and equipment included the trommel screen type film miscellaneous wind separator, screen hole clearing plugging device, handheld thermal anemometer, an electronic scale, and so on.

2.5. Test program and evaluation index

2.5.1.1. Test program

The operating parameters of the test object, a film miscellaneous wind separator, were set to the determined optimum values, that is, air inlet speed, airflow angle, and drum speed of 8.5 m/s, 8°, and 26 rpm, respectively. Under this condition, the device was started until the flow field inside the device stabilized. The space between the two compartments of the conveying unit was 300 mm. Each section could convey 300 g of residual film–impurity mixture. The diameter of the rotating shaft was 40 mm at both ends, and the motor speed was 885 rpm. The wind separator was continuously operated, and the airflow speed at the air inlet was determined using a handheld thermal anemometer (measuring range: 0-30 m/s, error: ±1%). We ensured that the speed at the air inlet was 8.5 m/s under the conditions determined in section 2.3.2.

2.5.2. Evaluation indicators

The ratio of impurities in the residual film was used as the evaluation index, and the film trash wind separator worked continuously. Every 5 min, the residual film and impurities in the film collection box were sampled and weighed for statistics. The measurements were recorded 50 times. The ratio of the residual film and the mass of impurities in the film cleaned by the wind separator was the ratio of impurities in the residual film. The relationship was determined using Eq. (9):

$$Y_1=\frac{m_2}{m_1}\times 100\%$$

(9)

where Y₁ is the ratio of impurities in the residual film (%); m₂ is the mass of residual film in the film collection box (kg); and m₁ is the mass of impurities in the film collection box (kg).

3. Results

According to the developed test program, the impurities removed from the film collection box were weighed using the electronic scale. According to the relationship equation of the evaluation index, the ratio of impurities in the residual film for each test was calculated. The test results were divided into 5 groups, and the average value of the results of each group was calculated. The coefficient of variation and variance of all tests was calculated and used to evaluate the degree of dispersion of the data. The test results are shown in Table 2, and the radar plot shown in Figure 14 was drawn according to the test results. It can present a more apt and visual dispersion degree of the test results.

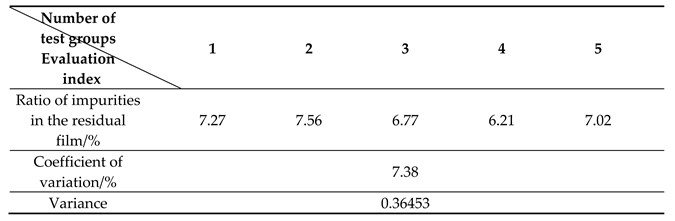

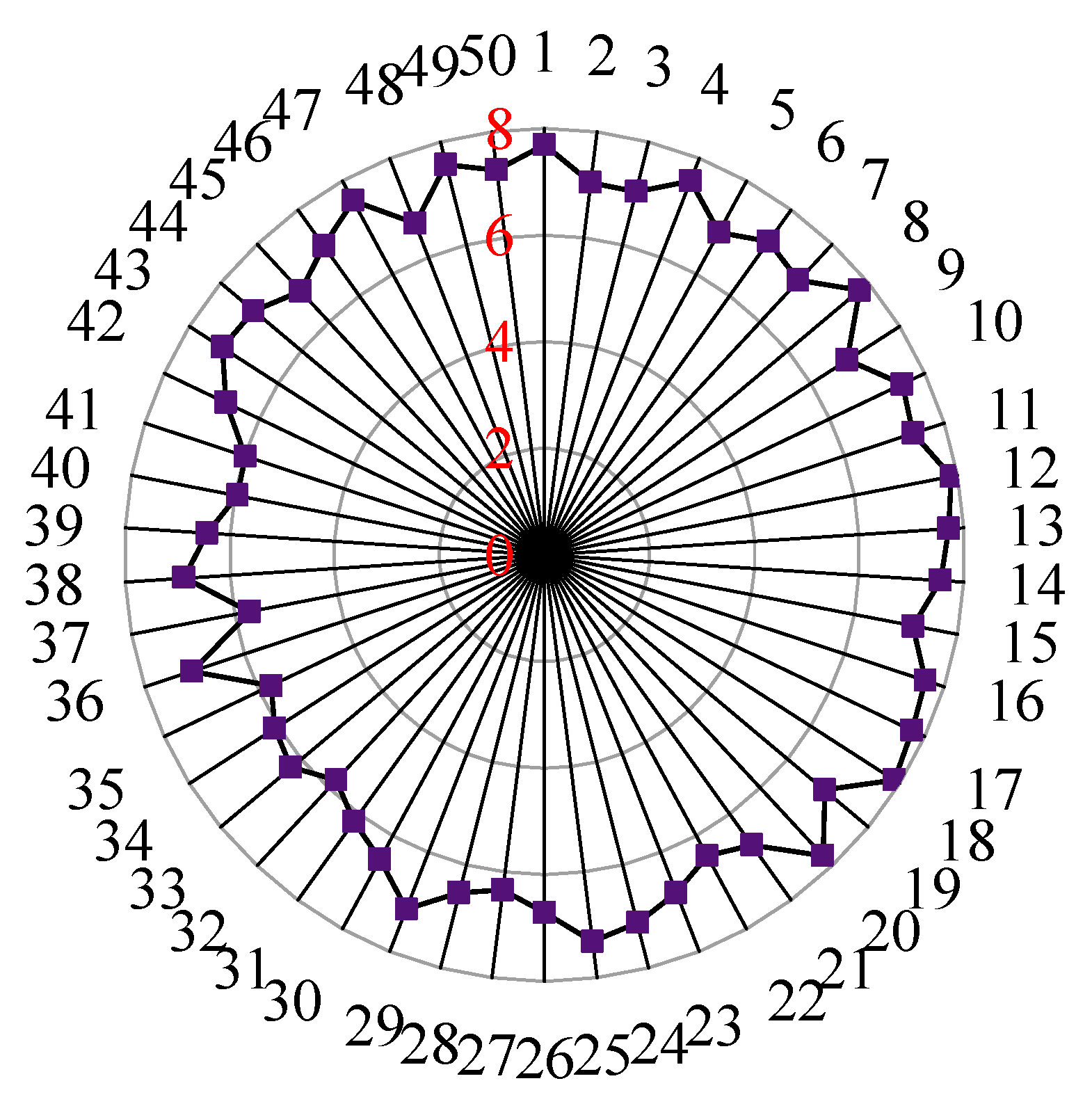

The test results show Table 2 and Figure 16 that when the membrane debris wind separator was continuously operated and the membrane debris mixture was continuously fed, the average value of the ratio of impurities in the residual film was 6.966%, which was 5.004% lower than the value of 11.97% before optimization. The calculated coefficient of variation was 7.38% with a variance of 0.36453 [27-28]. The statistical results were less discrete. Thus, this evaluation index remained almost constant during the continuous operation of the device. It shows that the device is in stable working condition and can maintain stable operation during long working hours. After cleaning, the residual film had to be cleaned again and subjected to other processes before the next use. Therefore, smaller soil particles adhering to the residual film can be ignored when calculating this index. Only the larger particles and the agglomerates with straw impurities adhering to them were weighed. Thus, using the optimized feeding volume and inlet structure, the film–impurity wind separator could be continuously operated, and a stable cleaning effect of the wind separator was achieved. The ratio of impurities in the residual film also remained nearly stable, and the collision force between the residual film–impurity mixture and the trommel screen inside the device was maintained at a large value. Thus, the disaggregation of the residual film–impurity mixture agglomerates was facilitated.

Overall, the inlet form and feeding quantity of the inlet of the wind separator considerably influence the cleaning performance of the whole device and the disaggregation of the residual film–impurity mixture agglomerates. The best performance was achieved using the square feed inlet. During the operation, it effectively ensured smooth feeding of the residual film–impurity mixture, and in case of larger feeding volumes, it increased the relative collision speed between the residual film–impurity mixture and the trommel screen, improving the depolymerization effect, decreasing the ratio of impurities in the residual film, and improving the screening performance and institutional reliability of the residual film–impurity mixture wind separator.

4. Discussion

In this study, feeding amount, another important factor affecting the residual film–impurity wind separator was determined by a thorough literature review for the design and development of similar devices. Most scholars mainly focus on structural design, but neglect the feeding amount. We determined that the collision force generated when the material enters the device for the first collision is the maximum collision force during the entire cleaning process. Niu et al. [29] investigated the influence of feeding amount on the working performance of similar devices. The optimal feeding rate was determined to be 250 kg/h, and the ratio of impurities in the residual film was 8.8%. Liu [30] determined that the center of the feed inlet was 340 mm from the center of the model by simulation, but they did not point out the ratio of impurities in the residual film in this state. Kang [26] and Peng [10] studied similar devices and obtained 8.4% and 10.54% impurities in the residual films. These studies considered the same working principle of cleaning devices, except for slight differences in the overall structure sizes. However, the ratio of impurities in the residual films was >6.966%, as obtained in this study. By comparing the trash rate in the film in the different studies, the optimized feeding volume and inlet structure improved the performance of the cleaning device to some extent. Therefore, the optimized feeding amount and inlet structure were investigated. The device was operated for a long duration to test the stability of its working performance. Some of the screen holes were clogged; however, it did not cause fluctuations in the evaluation index in a short period of time, we were concerned that more sieve holes would become clogged with continued use. This will affect the working effect of the device. Therefore, there is an urgent need to solve the problem of clogging of sieve holes in future studies.

5. Conclusions

(1) In this study, we addressed the problem that a large amount of residual film–impurity mixture is not efficiently depolymerized during the operation of a residual film–impurity mixture separator. Based on the principle of residual film–impurity mixture depolymerization and flow-solid coupling simulation method, the maximum collision force between the residual film–impurity mixture and the inside of the device was determined as the key factor affecting the mixture depolymerization. Analysis of the force at different positions of the device helped determine that the position where the maximum collision force occurred was the first collision with the device after the material was fed.

(2) Analysis of the whole feeding process revealed that when the residual film–impurity mixture separation device was in stable operation, the factors influencing the magnitude of collision force between the residual film–impurity mixture and the device interior originated from the feed inlet position. The optimal conditions were a square inlet port and a feeding rate of 202 kg/h. The collision force between the residual film–impurity mixture and the trommel screen inside the device was maintained at a large value, which helped disaggregate the residual film–impurity mixture agglomerates.

(3) The above-mentioned inlet structure and feeding rate were used as the standard and machine tests were conducted. The test results showed that the average value of the ratio of impurities in the residual film was 6.966%, which was 5.004% lower than the value of 11.97% before optimization. Based on all statistical data, the coefficient of variation was calculated to be 7.38% with a variance of 0.36453. The dispersion of the statistical results was small, and the ratio of impurities in the residual film remained unchanged during the continuous operation of the film–impurity wind separator.
