Increasing the Observability of Near Inertial Oscillations by a Future ODYSEA Satellite Mission

1. Introduction

The ocean, as a stratified rotating fluid, supports several classes of high-frequency waves from the Coriolis frequency (f) to the Brunt-Väisälä frequency (N). At mid-latitudes, where atmospheric storm tracks are located, these frequencies range from approximately ${10}^{-4}$s${}^{-1}$ for the Coriolis frequency to $3.{10}^{-3}$s${}^{-1}$ for the Brunt-Väisälä frequency. A dispersion relation for these waves associates frequencies with length scales. In the context of the shallow water framework, this relation is given by [1]:

$${\omega }^2=f^2(1+k^2{r}_d^2),$$

where $\omega$ denotes the wave frequency, k their horizontal wavenumber (i.e., the inverse of length scale), and $r_d$ a Rossby radius of deformation that characterizes the oceanic stratification. Atmospheric winds can drive these wave classes if wind energy exists within the $f-N$ frequency band. High-frequency winds are characterized by a wavenumber spectrum that features energetic scales of the order $\mathcal{O}$(500 – 1000 km), significantly larger than the oceanic internal Rossby radii of deformation (less than 50 km). This implies that for oceanic motions directly induced by such winds, $k^2{r}_d^2$ is much smaller than 1, which elucidates that the frequency of the resulting wind-forced waves is near the Coriolis frequency. These large-scale near-inertial oscillations (NIO) are trapped within the surface mixed-layer (50–100 m deep), and thus, the mixed-layer can be regarded as an oscillator with frequency f. This resonance mechanism was recognized long ago [2,3,4]. The impact of "inertial" wind on NIOs has been revisited recently [5,6]. Consequently, using real wind time series observed on a weather ship, it was discovered that the resulting NIO kinetic energy is reduced by a factor of 1.5, 3, and 7 when the wind is averaged over 6, 12, and 14 hours, respectively [5].

The wind energy input to NIOs is diagnosed from the scalar product of wind stresses and currents, which is also called wind work. This wind work is estimated to be about 5 TW in the global ocean [7], a magnitude larger than the work done by the steady large-scale winds on the general circulation (estimated to be 1 TW [8]). This energy input to NIO, which mostly occurs in regions of atmospheric storm tracks [6,7], is critical to maintain the deep ocean stratification and therefore to close the total kinetic energy budget. But how much of this wind-driven near-inertial energy penetrates into the deep ocean interior, and where, is still a puzzle, although some progress has been obtained in the past 20 years. Thus, a significant part of the large-scale NIOs forced by large-sale winds is quickly scattered into smaller spatial scales by the potential vorticity of mesoscale eddies (with a 100–500 km size) [9]. Potential vorticity includes two main components, the relative vorticity interpreted as the spin of the eddies, negative (positive) in anticyclonic (cyclonic) eddies, and the stratification, smaller (larger) in anticyclonic (cyclonic) eddies [9,10]. This explains that NIOs at smaller scales are principally trapped within anticyclonic eddies and quickly propagate downward there, whereas they are expelled from cyclonic eddies [9,10,11,12,13,14,15]. An estimation of the timescale of NIO energy propagation in the deeper layers leads to a value of 4 days [16]. consequently, an accurate estimation of the wind work that forces NIOs requires considering the mesoscale eddy impact.

These findings, predominantly derived from theoretical and numerical studies, need validation through observations of winds and currents to diagnose the wind work. Recent research [5,13,14,15,17] emphasizes that an accurate diagnosis of wind work necessitates global-scale observations with high spatial and temporal resolution (a few kilometers and hours), which also need to be collocated in space and time, as indicated in Torres et al. [17]. The current observational network, comprising satellite and in-situ observations, cannot meet these requirements in terms of spatial and temporal resolution, as well as collocation.

Several satellite mission concepts have been recently proposed to directly measure winds and ocean currents. Among these is the proposed Ocean Dynamics and Sea Exchanges with the Atmosphere (ODYSEA) mission. ODYSEA utilizes a pencil beam Doppler Scatterometer to measure ocean surface currents and wind stress across an approximately 1,800-km-wide swath, with a 10-15 km spatial resolution and a temporal resolution of about 12 hours in mid-latitudes [18,19,20,21,22]. These simultaneous, high-resolution sub-daily measurements of ocean currents and wind stress should enable a global estimation of the wind energy flux between the atmosphere and the ocean and offer a means to validate climate models. However, the 12-hour period is not short enough to fully resolve the inertial period at mid-latitudes (approximately 18 hours), which can alias the estimation of the wind work [23]. Therefore, critical questions arise: how well can we retrieve near-inertial oscillations based on ODYSEA measurements, and to what extent can we accurately calculate the wind work? These questions are vital for understanding the mission’s scientific returns and providing guidance in designing the mission’s sampling strategy.

In this paper, we tackle these questions using an Observation System Simulation Experiment (OSSE) based on hourly observations of near-surface ocean currents and near-surface winds collected at five surface moorings. These observations are sampled according to ODYSEA sampling scenarios to generate synthetic satellite measurements. The synthetic data are then used within an optimization framework based on a linearized slab model [24,25] to produce a reconstruction. The optimization framework and the methods used for observations and modeling are discussed in Section 2. The results are presented in Section 3. The discussions and conclusion are in Section 4 and Section 5, respectively.

2. Methodologies

In this study, we utilize hourly observations from five surface moorings situated between latitudes of ${15}^{\circ }$ and ${50}^{\circ }$. The data are subsampled according to two scenarios of satellite orbits, producing synthetic satellite observations at each mooring location. The two potential orbits create 1000 and 1800 km wide swaths, respectively. The time series of the undersampled surface currents and winds are integrated into a straightforward slab model to develop an optimization problem. A slab model with a set of optimized parameters is then used to replicate the NIO by filling the temporal gaps in the satellite measurements. For this initial demonstration of NIO retrieval, we confine our analysis to time series without fully exploiting the two-dimensional aspect of the wide-swath.

2.1. Observations

In-situ measurements of (near) surface currents are derived from various historical oceanography campaigns. We utilize hourly surface velocity data from five mooring stations equipped with meteorological packages that include hourly winds. Data from three moorings are supplied by the Upper Ocean Process Group at WHOI; namely, the Northwest Tropical Atlantic (NTAS) mooring, the Stratus mooring in the Southeast Pacific, and the WHOI Hawaii Ocean Time-series Site (WHOTS) situated 100km north of Oahu. Surface currents are nominally measured at a 10m depth and winds at a 3m height.

We also examine observations from two stations deployed and maintained by PMEL. One is the Kuroshio Extension Observatory (KEO) surface mooring, situated south of the Kuroshio Extension current (https://www.pmel.noaa.gov/ocs/KEO). The other is Ocean Station Papa, an important site for continued monitoring of ocean climate (Papa). For these two stations, the surface current is nominally measured at a 5m depth and winds at a 4m height. The coordinates of the mooring stations, the inertial periods of the regions, and the duration of collected data for the five stations are listed in Table 1 and illustrated in Figure 1.

Figure 2 presents the rotary spectra of the observed surface velocities at station PAPA during the period from June 8, 2007, to May 29, 2008. The blue lines in the top panel represent the spectra obtained from the original hourly measurements. These spectra exhibit typical characteristics of surface velocity, with a dominant spectral peak observed at the inertial frequency, indicating downward propagation (Figure 2, top panel, Counter-clockwise CW component for Northern Hemisphere). Furthermore, clear tidal peaks are observed at semi-diurnal frequencies.

To examine the aliasing effects resulting from different sampling methods, we present the spectra obtained from the ODYSEA sampling with two different swath sizes. The orange line corresponds to a 1800km swath, denoted as CW-1.8k, while the green line represents a 1000km swath, denoted as CW-1.0k. These spectra are generated by linearly interpolating the swath data onto an hourly temporal grid.

In the CW component, particularly for CW-1.0k, the aliasing of the inertial frequency is prominently shown. This indicates that the chosen sampling interval is insufficient to accurately capture the full spectrum of the surface velocities. Conversely, in the CCW component, the 1.8k swath exhibits aliasing of the M2 tide, resulting in a period of approximately 1.5 days. The observed rotary spectra provide insights into the surface velocity dynamics, showcasing the dominant inertial frequency and semi-diurnal tidal peaks. However, the aliasing effects from the different swath sizes, as demonstrated by the orange and green lines, highlight the limitations of the chosen sampling methods. These findings emphasize the need for careful consideration when selecting sampling intervals to avoid significant distortions in the spectral analysis of surface velocities and the need for a dynamical/statistical method to retrieve the high frequency motions. More discussions about the aliasing is provided in Section 2.3.

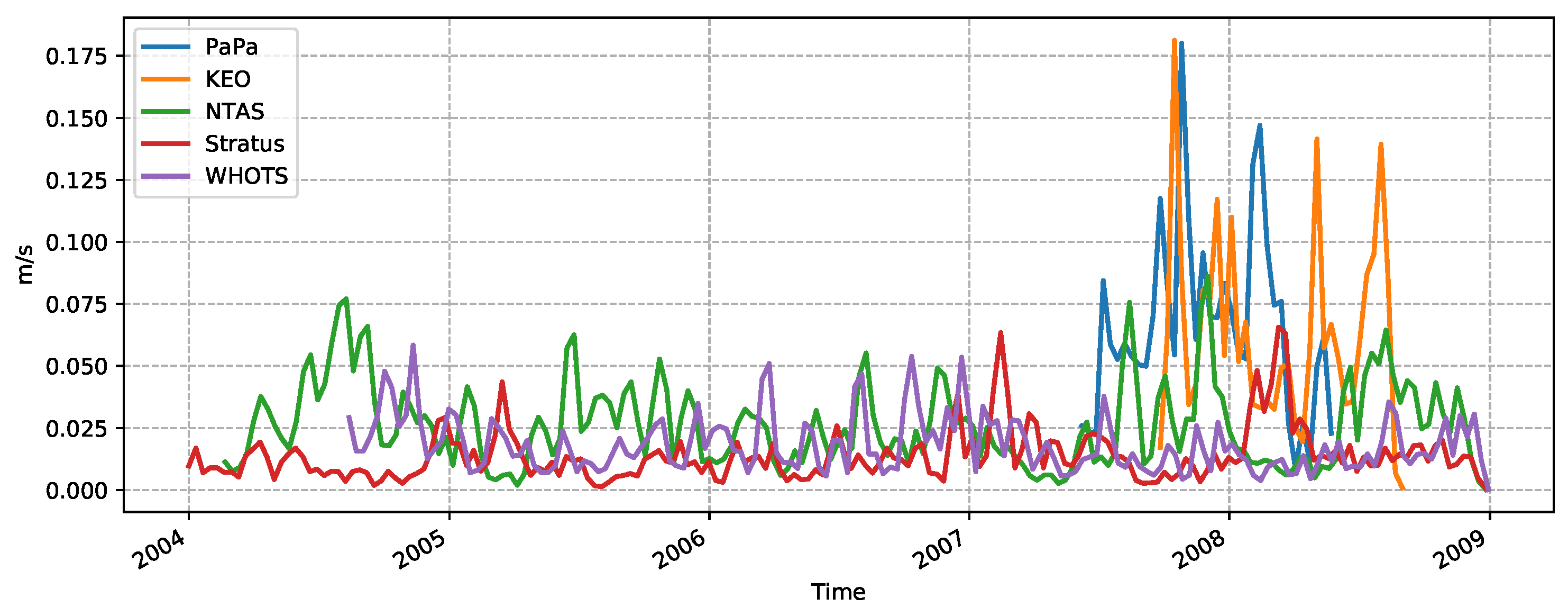

The time series of the NIO current velocity ($\sqrt{u^2+v^2}$) from the five stations is depicted in Figure 3. The mooring velocities are band-pass filtered around the local inertial frequency $f_0\pm 0.05f_0$ to extract the inertial velocity. At stations NTAS, Stratus, and WHOTS, NIOs have a magnitude of less than 5 cm/s, while this magnitude peaks at 18 cm/s at stations Papa and KEO. These magnitudes are consistent with those observed in the coupled simulation results.

Figure 4 presents the kinetic energy contained in the inertial frequency and low frequency (periods larger than 4 days) at the five moorings, as determined through the use of low-pass and high-pass filters. The figure reveals that low-frequency — potentially balanced — motions dominate NIOs in amplitude. NIOs typically measure below 10 cm/s, while low-frequency motions typically exceed 10 cm/s. Station Papa is an exception, exhibiting an equal partition between NIOs and low-frequency motions. As it is located in an eddy desert in the northeastern Pacific, the NIO signal is prominent, making NIO reconstruction from ODYSEA observations relatively straightforward, as demonstrated later in Section 3.

On the other hand, KEO, situated in an atmospheric storm track region, features strong NIOs (10 cm/s) but much stronger low-frequency motions (50 cm/s) due to energetic western boundary currents and mesoscale eddies within. The ratio of NIO energy/variance to the total high-frequency motion energy (period< 4 days) is indicated by the number next to the mooring names in Figure 4. NIO accounts for 80 percent of the high-frequency variability at station Papa. As a result of this clear dominance, NIOs can be easily reconstructed at this station, even when undersampled by the narrower 1000km swath (results shown in Section 3). At station KEO, however, 50 percent of high-frequency motions are not NIO, making it more challenging to reconstruct the NIO from the undersampled velocity. The NIO is less significant at stations NTAS, WHOTS, and Stratus. Consequently, we focus on further analyses at Papa and KEO, representing two distinct scenarios where NIO retrieval is either easy or more challenging, respectively.

2.2. The Coupled Ocean-Atmosphere Simulation (COAS)

The coupled ocean-atmosphere simulation used in this study is based on the Goddard Earth Observing System (GEOS) atmospheric and land model coupled with the ocean component of the Massachusetts Institute of Technology General Climate Model (MITgcm). The COAS configuration utilized in this research is thoroughly described in Strobach et al. [26], Torres et al. [23], and Torres et al. [22]. In brief, the atmospheric model has a nominal horizontal grid spacing of 1/16${}^{\circ }$ (approximately 6 km) with 72 vertical levels, and the ocean model features a nominal horizontal grid of 1/24${}^{\circ }$ (approximately 4 km) with 90 vertical levels. This nominal resolution is sufficient to resolve physical scales between 25 km and 30 km [23].

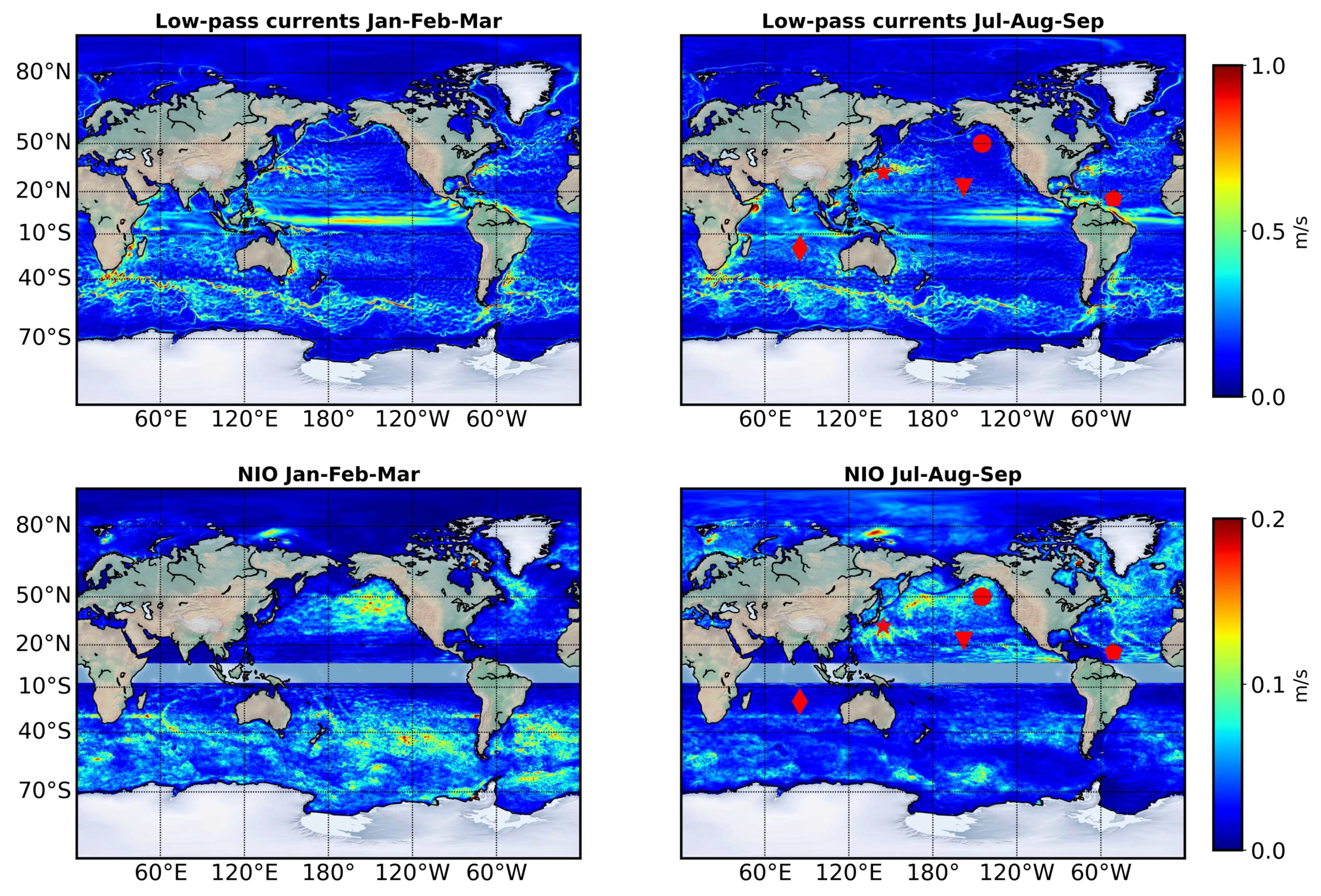

As shown in Figure 1, the low-pass surface currents (top panels), using a filter of 3 days, are considerably more energetic than band-pass NIO surface currents during both winter (January-February-March) and summer (July-August-September). The low-pass currents show values between 0.5-1.0 m/s in the western boundary currents, equatorial band, and in the Southern Ocean, while the amplitude for NIO is at most approximately 0.2 m/s. In fact, histograms (not shown) demonstrate that 95% of NIO speeds are less than 0.1 m/s, with a median value of 0.02 m/s. However, a recent study [22], which combined COAS and ODYSEA-simulator, reported an underestimation of the wind energy input in the Northern Hemisphere during summer. This underestimation can be attributed to the misrepresentation of NIO in ODYSEA observations, leading to a reduction of wind energy input at the NIO frequency band. It highlights the importance of a dynamical retrieval of NIO based on ODYSEA observations.

2.3. ODYSEA sampling and the slab mixed-layer model

The sampling frequency of ODYSEA depends on the width of the swath. Figure 5 illustrates the average sampling period, $\Delta t$, as a function of latitude for two distinct orbits. The purple (green) solid lines represent swath widths of 1,000 km (1,800 km). The red line indicates the inertial period, $T=2\pi /f\left(\varphi \right)$, as a function of latitude, $\varphi$. The aliased periods are calculated following $T=2\pi /f_a=2\pi /|2*f_N-f\left(\varphi \right)|$, where $f_a$, $f_N$ represent the aliased frequency and Nyquist frequency ($\pi /\Delta t$), respectively.

The issue of aliasing is significant at mid-latitudes for both orbits. Aliasing is less severe at high latitudes due to more frequent sampling provided by the wide swaths and at low latitudes due to longer inertial periods. Unfortunately, mid-latitudes, which are most affected by aliasing, also exhibit the most energetic NIOs due to energetic atmospheric storms.

The impact of aliasing is clearly demonstrated in the frequency spectra (Figure 2). The green and orange lines depict the rotary spectra of the simulated ODYSEA sampled surface velocities, sub-sampled from the hourly observations at station Papa ($50.1^{\circ }N$, T=15.64 hours). The wider-swath scenario (1,800-km) provides more frequency sampling at approximately 11.2-hour intervals (orange lines). However, it does not capture most of the downward NIO (upper panel). The aliasing at this location occurs at $f_a=0.65$ cpd (1.55 days), intriguingly from the clockwise (CW) to the counter-clockwise (CCW) component. For the orbit with 1,000 km swaths, severe aliasing occurs at $f_a=0.27$ cpd (3.7 days) for the CW component.

According to Pollard and Millard Jr [24], the inertial mixed layer currents can be represented by a damped slab model,

$$\begin{array}{ccc}\hfill \frac{du}{dt}-(f+\zeta /2)v& =& \frac{{\tau }_x}{H\rho }-ru,\hfill \end{array}$$

(1)

$$\begin{array}{ccc}\hfill \frac{dv}{dt}+(f+\zeta /2)u& =& \frac{{\tau }_y}{H\rho }-rv,\hfill \end{array}$$

(2)

with u and v the zonal and meridional velocities, ${\tau }_x$ and ${\tau }_y$ the zonal and meridional components of the wind stress, H the mixed layer depth, $\zeta$ the relative vorticity associated with mesoscale eddies, $\rho$ the density, and r a damping rate of NIOs. The frequency shift due to $\zeta$ is explained in Kunze [9]. For a forecast model used in this study, we simply it to a linear slab model, which is used to predict NIO given an initial velocity, mixed layer depth, wind stress vector, and damping rate. The linear model is written as

$$\begin{array}{ccc}\hfill \frac{\partial u}{\partial t}-fv& =& \frac{{\tau }_x}{H\rho }-ru,\hfill \end{array}$$

(3)

$$\begin{array}{ccc}\hfill \frac{\partial v}{\partial t}+fu& =& \frac{{\tau }_y}{H\rho }-rv,\hfill \end{array}$$

(4)

We denote the forecast model as

$$\overrightarrow{u^f}=\mathcal{F}({\overrightarrow{u}}_0,\overrightarrow{\tau },H,r).$$

The hypothesis is that given the infrequent and possibly aliased wind stress and surface currents from ODYSEA, we can utilize the predictive power of the slab model constrained by the ODYSEA observations to reconstruct the NIO. This is an under-determined problem that relies on optimizations for the best solution. We take the difference between the forecast slab model velocities and the ODYSEA observed velocities as the cost function of the optimization

$$J({\overrightarrow{u}}_0,H,r)=\parallel \overrightarrow{u^f}\left(t_w\right)-{\overrightarrow{u}}_w\parallel ,$$

where $t_w$ is the time of the ODYSEA observations and $\overrightarrow{u^f}\left(t_w\right)$ is the slab model solution at $t_w$. An optimal set of control parameters $({\overrightarrow{u}}_0,H,r)$ is found by minimizing J.

In practice, the assumption of constant H may be validated for a short period. We conduct the optimization for a temporal window length of 10 inertial periods at mid-latitudes. This window length includes about 20 data points for each velocity component. The wind-stress is assumed given by ODYSEA and linearly interpolated between observations in the slab model integration. This certainly degrades the accuracy of the slab model prediction as the high-frequency (hourly winds) cannot be accurately captured by ODYSEA alone, but the winds can be compensated in reality, to some extent, by atmospheric reanalysis such as ERA5 [27].

3. Slab-model retrieval of NIO from ODYSEA, results

3.1. Scenario one: strong NIO in a weak eddy regime

NIO is not only temporally intermittent, but also has a strong geographic variation, as evidenced in Figure 1. In the first scenario, NIO signal dominates high-frequency motions and the background mesoscale variability is weak. Station Papa is a representative of this scenario (Figure 4). As one might expect, reconstructing NIO from ODYSEA should be relatively straightforward in this case, due to the high signal-to-noise ratio, where ’signal’ refers to NIO and ’noise’ refers to high-frequency non-NIO motions.

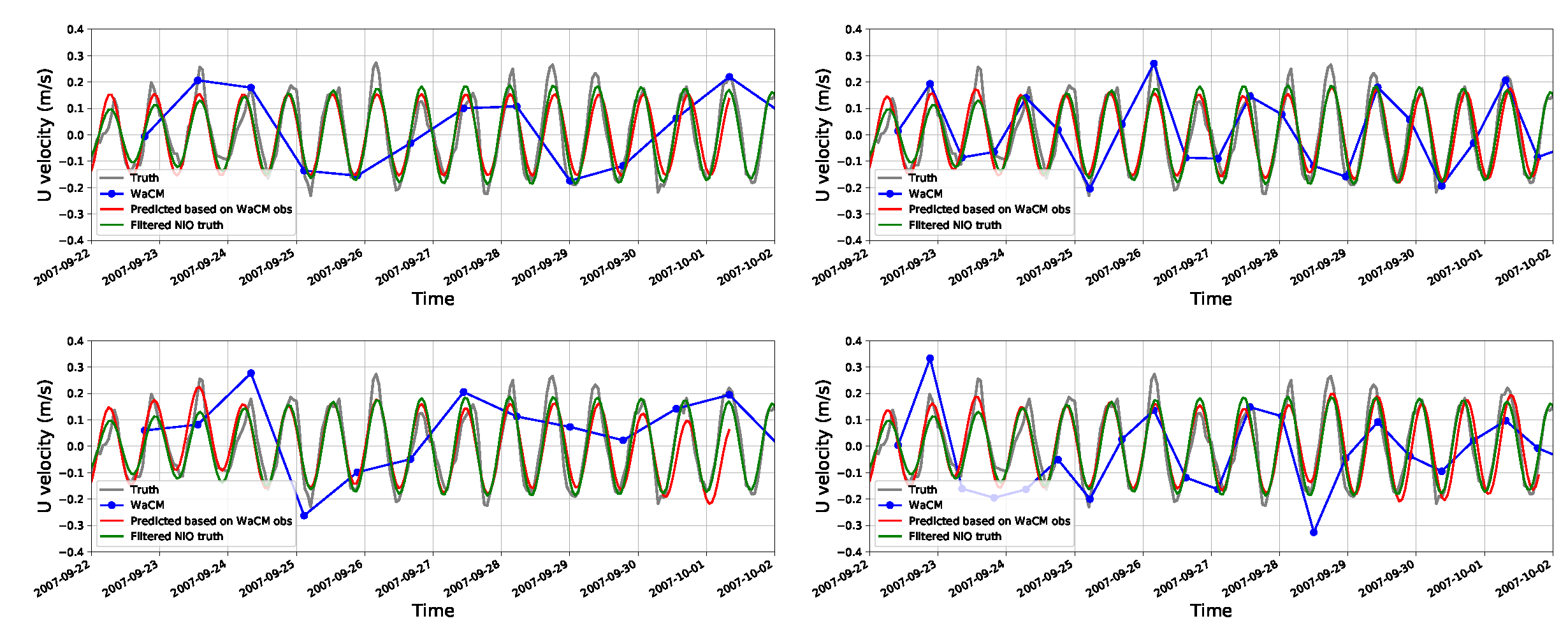

Figure 6 illustrates the result of the slab-model reconstruction for Papa over a 10-day window. Gray lines, which are the same across all four panels, represent the true signal after a low-frequency sub-monthly component has been removed. The blue dots are simulated ODYSEA observations with (lower panels) and without (upper panels) noise and errors. The true NIO (green lines) is derived by applying a Butterworth bandpass filter to the truth (gray lines). The red line in each panel represents the slab-model NIO prediction based on the ODYSEA observations in each scenario. The left panels show the case with a 1000 km swath, while the right panels display the results of an 1800 km swath. The aliasing effect is particularly clear in this case, as the signal itself is dominated by the periodic NIO. The blue lines exhibit aliased oscillations at lower frequencies. The 1000 km swath sampling (Figure 6 upper left) displays an oscillation at a near 4-day period, which is consistent with the calculations in Section 2.3, while the 1800-km swath sampling presents a regular oscillation at about 1.7 days. The linear interpolation (blue lines) does not capture the local NIO but instead produces aliased oscillations, as expected.

Conversely, the slab model uses the sparsely sampled velocities as a constraint to enforce oscillations at the inertial frequency. The results in this case demonstrate a high skill in retrieving the missing information. The red lines represent the slab-model retrieval and compare well with the true NIO (green lines), even for cases with 10 $cm/s$ ODYSEA observational errors (lower panels). The RMS difference between the filtered NIO and the slab-model reconstructed NIO is below 2 cm/s. The high performance of the slab model at Station Papa is consistent throughout the entire year (Figure 7, upper panel). The slab-model reconstruction (orange line) matches well with the true NIO (blue line) (bandpass-filtered ocean currents).

3.1.1. Wind work at inertial frequency by ODYSEA

The intermittent winds drive most of the mixed layer NIOs and contribute to the subsequent energy dissipation at the base of the mixed layer as well as the deep ocean. Using the damped slab model (Equation (1)), the mixed layer kinetic energy equation can be written as

$$\frac{\mathrm{d}}{\mathrm{d}t}{\mathrm{KE}}_I={\mathsf{\Pi }}_W+{\mathsf{\Pi }}_H+{\mathsf{\Pi }}_R,$$

(5)

where ${\mathrm{KE}}_I=0.5\rho H{\left|\mathbf{u}\right|}^2$ is the mixed layer inertial kinetic energy, ${\mathsf{\Pi }}_W$ the wind work, ${\mathsf{\Pi }}_H=0.5\rho {\left|\mathbf{u}\right|}^2\frac{\mathrm{d}H}{\mathrm{d}t}$ the energy flux of changing the mixed layer depth H, and ${\mathsf{\Pi }}_R$ the parameterized dissipation removing energy from the mixed layer.

With observed winds and ocean surface currents, we may be able to retrieve the high-frequency windwork at inertial frequency. The slab model reconstructed high-frequency ocean motions. The diagnosed windwork is shown in the bottom panel in Figure 7. In the slab model results (orange line), the ocean currents are reconstructed using the slab model and the atmospheric winds are the linear interpolation of ODYSEA observations. The truth (blue line) represents the windwork of the true observed (bandpass-filtered) ocean currents and the hourly winds. The reconstructed windwork accounts for more than 90 percent of the truth.

Existing observations and atmospheric reanalysis do not contain sufficient high-frequency information for a global budget estimate [17]. ODYSEA can potentially solve the problem if the NIO can be accurately reconstructed. The results for Papa clearly demonstrated the first scenario, where NIO is strong and eddies are weak. In this scenario, NIO reconstruction can be done accurately even for a narrower swath (1000 km) with well-below 10 cm/s observational error. In the next section, we will use the data from KEO to test the scenario two, where both balanced motions are strong and NIO can become ambiguous due to high-frequency balanced motions.

3.2. Scenario two: strong NIO in a strong mesoscale eddy regime

In the KEO region, both NIOs and mesoscale eddies exhibit high variability, with the mesoscale kinetic energy about 25 times larger than the NIO kinetic energy (refer to Figure 4). The low-frequency component can be retrieved by low-pass filtering the ODYSEA observations, but the high-frequency eddies impose challenges in the slab model NIO reconstruction.

Figure 8 demonstrates an instance of a 10-day window slab model reconstruction in this region. For comparison, we have also included results based on harmonic fitting (green line) and the total high-frequency (less than 4 days) velocity (dashed lines). The left panels display results based on the 1000 km swath. The slab model and harmonic analysis do not provide an accurate NIO reconstruction, even without ODYSEA measurement error (top left panel). This is largely due to the large temporal gaps, which are exacerbated by high-frequency non-NIO signals. With a 10 cm/s instrument noise (bottom left panel), the reconstructions (blue and green lines) become less relevant to the real NIO (black line). However, the reconstruction’s accuracy is significantly improved with a wider swath (1800 km), which effectively increases the sampling frequency (Figure 2). The slab model and harmonic analysis can retrieve NIO with the correct amplitude and phase (top right panel, Figure 8), even with ’contamination’ from high-frequency non-NIO signals. Even with a 10 cm/s noise, the slab model can still reconstruct the NIO with the correct phase and slightly degraded amplitude (bottom right panel). The error RMS is below 5 cm/s. However, the harmonic analysis in this case exhibits a much larger difference in amplitude, although it still retains the correct phase (green line). These results strongly underscore the relevance of using a 1,800 km wide swath instead of a 1,000 km swath.

4. Discussions

To summarize, we have established a viable approach for utilizing a linearized slab mixed-layer model to infer near-inertial oscillations from an envisioned satellite mission ODYSEA tasked with simultaneous observations of wind and currents [17,20]. While the preliminary results are promising, there are several avenues for further refinement.

Expanding the observation swath confers several benefits. Not only does it enhance the temporal sampling frequency, but it also delivers an instantaneous two-dimensional snapshot of surface velocity fields. The exploitation of a wider swath, for instance, through spatial filtering prior to fitting the slab model, could notably augment the accuracy of NIO reconstructions, especially in complex regions such as KEO, where submesoscale eddies make substantial contributions to high-frequency motions. COAS analysis indicates that NIOs predominantly exhibit larger spatial scales than those of mesoscale and submesoscale structures (figure not shown). We anticipate expanding this study with a comprehensive analysis based on COAS outputs.

Currently, our slab model omits consideration of background vorticity. As such, one potential modification would be the incorporation of background velocity shear, which could be directly derived from ODYSEA observations and integrated into the optimization process. Additionally, while the current slab model maintains a static mixed layer depth, a time-varying mixed layer depth could be incorporated, leading to a more realistic reconstruction of mixed layer dynamics and potentially improving the optimization results. The mixed-layer depth is also known to be impacted by mesoscale eddies can potentially be represented by parameterization, such as the one proposed in [28].

The wind data used in our optimizations are directly sourced from ODYSEA’s simultaneous sampling and linearly interpolated between observations (about 12 hourly). A more precise retrieval of NIOs might be achieved if we incorporated higher-frequency wind data, such as those produced by ERA5. Alternatively, for a better scenario, missing high-frequency winds between two consecutive ODYSEA observations could be treated as a control parameter and estimated within the same optimization framework.

With these improvements, we will be effectively conducting a data assimilation procedure based on the slab model (Equation (1)), enabling us to estimate NIO velocity, mixed layer depth, high-frequency winds, and consequently the mixed layer kinetic energy budget. These potential improvements form the basis of our future work.

5. Conclusion

Results from this study demonstrate the feasibility of retrieving wind-forced NIOs from ODYSEA observations, and therefore to diagnose the wind energy input to NIO. This can be done using a calibrated slab mixed-layer model. We considered two distinct scenarios. The first one concerns highly energetic NIOs and weakly energetic mesoscale eddies. Retrieving NIO in this scenario is relatively easy. The second scenario concerns energetic NIOs and energetic mesoscale eddies. In this scenario, diagnosis of NIOs is less accurate but still can be kept under 10 cm/s error. Our results show that NIOs can be recovered with such accuracy using the ODYSEA spatial and temporal resolution, only if observations are made in a wide swath of 1,800 km. A narrower wide swath (1,000 km) leads to strong aliasing.

However, potential improvements can be made by fully utilizing the wide-swath ODYSEA observations beyond the increased temporal resolution. The improvements include considering spatial filtering of wide-swath surface currents before optimization, the vorticity from the background circulation and mesoscale eddies, varying mixed layer depth, and including high-frequency winds in the optimization process. These improvements will be studied using the high-resolution coupled simulation in the future.
