Structural Optimization Design of Microfluidics Chips Based on Fast Sequence Pair Algorithm

1. Introduction

Microfluidic technology is a scientific and technological system that integrates fundamental operational units, such as sample preparation, reaction, separation, and detection, into a chip, automating the analysis process [1,2,3]. The microfluidic chip serves as the primary platform for microfluidic technology, utilizing microfluidic channels and reaction chambers to process and manipulate small liquid volumes. Compared to traditional technology platforms, microfluidic chips enable faster completion of tasks that originally took hours, such as separation, isolation, and chemical and biological reactions, resulting in significantly improved detection efficiency [4,5,6].

The structure of a microfluidic chip primarily consists of a fluid layer and a control layer [7,8]. The fluid layer facilitates the reaction process of the experimental reagent. In contrast, the control layer connects to external pressure sources to regulate the flow and stoppage of the reagent within the fluid layer. The connection between the fluid layer and the control layer is established through microvalves, which serve as connectors and can also form devices within the microfluidic chip [9,10]. Figure 1 illustrates the chip's reaction device and the hybrid device featuring a microvalve. Microvalves are placed at intersections of microchannels based on experimental requirements. However, increasing microvalves results in greater design complexity for microfluidic chips [11,12,13].

Additionally, when the microchannel length is too long, the accuracy of biochemical experiments may be affected due to the excessive output of an external mechanical pump [14,15,16]. Moreover, an extensive chip area leads to material wastage [17,18,19]. Hence, the number of microchannel intersections, microchannel length, and chip area are critical indicators for evaluating the quality of chip structural design. Based on a Monte Carlo iterative solution strategy, the simulated annealing algorithm is a stochastic optimization algorithm commonly employed for combinatorial optimization problems [20,21]. Drawing inspiration from the annealing process of solid materials in physics, this algorithm provides an effective approximate solution for issues with non-deterministic polynomial (NP) complexity [22,23,24].

This paper focuses on the objective of structural optimization for microfluidic chips. To achieve this, the Fast Sequence Pair (FAST-SP) algorithm is utilized to generate the initial solution for the simulated annealing algorithm. Additionally, the cooling speed function of the simulated annealing algorithm is enhanced, thereby improving its convergence speed. Subsequently, the layout of devices and the routing of microchannels are integrated through layout adjustment using a chip layout quality evaluation function, which reduces the length of microchannels and the number of intersections. Finally, the comparison of data from six experiments demonstrates that the optimization algorithm proposed in this paper effectively enhances the design quality of microfluidic chips.

2. Structure optimization of a microfluidic chip.

2.1. Structural modeling of microfluidic chips

(1) Definition of a structural optimization problem

Problem input: experimental process, device summary, device connection relationship, and design constraints

Problem output: design results, including device layout and microchannel routing results.

Optimization objects: chip area, microchannel length, and number of microchannel intersections

Design goal: minimize the weighted sum of chip area, the length of microchannels, and the number of microchannel intersections.

(2) Structural design modeling

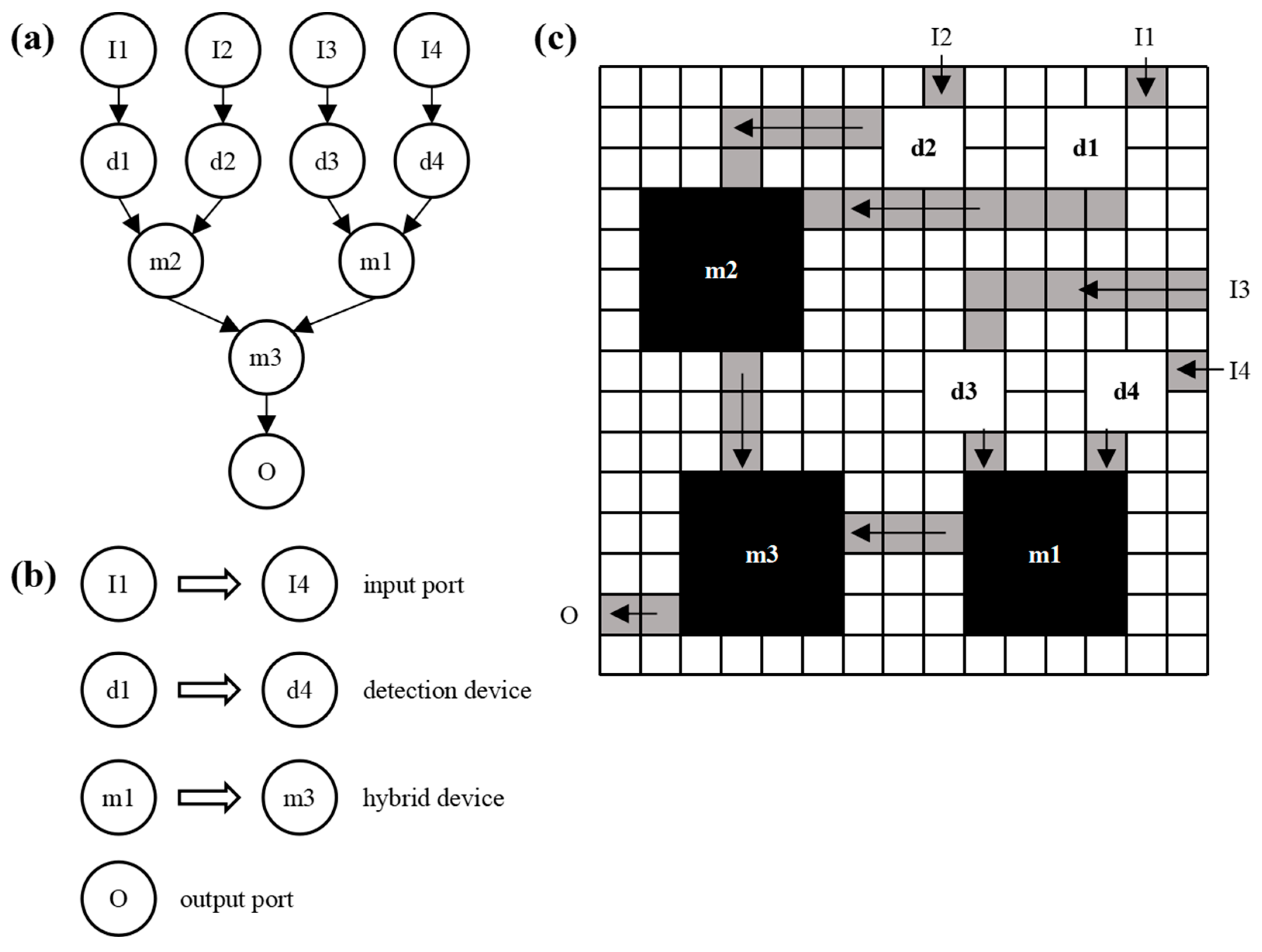

The structural design of microfluidic chips mainly includes device layout, channel routing, and device layout adjustment [25,26,27]. Figure 2 is the structural design modeling diagram of the microfluidic chip, and Figure 2a is the experimental sequence diagram, showing the observed reaction's specific flow and the device's connection relationship. Each node represents a particular operation, such as detection, mixing, etc. Figure 2b summarizes the experimental apparatus. Figure 2c is a schematic diagram of the device layout and channel routing of the microfluidic chip, where the grey channel is the microchannel of the chip.

2.2. Algorithm design

The FAST-SP algorithm represents the device layout's initial setting scheme in this paper. The exact position of each device on the microfluidic chip is calculated through the improved simulated annealing algorithm. The chip layout design scheme is output according to the change processes of heating, isothermal cooling, and search strategies. As shown in Figure 3, the algorithm design process is as follows:

Upon completion of the layout, wiring the microchannels directly would result in experimental redundancy. To address this issue, the devices intended for connection are sequentially linked end to end, utilizing line segments as microchannel lengths in accordance with the experimental sequence diagram. The number of microchannel intersections can be determined by counting the intersection points between these line segments. Once the routing phase is finalized, the optimized layout adjustment algorithm can be employed to rectify the device layout and microchannel routing. The optimized layout adjustment algorithm preserves the initial sequence generated by FAST-SP but adjusts the component spacing to allow for more routing possibilities. The objective is to eliminate unnecessary microchannel intersections, minimize the number of microvalves, and reduce the overall length of microchannels. Compared with the traditional sequence pair algorithm, the FAST-SP algorithm reduces the complexity of decoding time. After the longest common subsequence (LCS) algorithm is integrated, it speeds up the time to evaluate the layout of sequence pairs, making it more practical. Given a sequence pair, the structure's starting point, the device's width, and height, and the layout direction can be obtained, and then a configuration can be generated. The starting point refers to the position where the first device is placed. When calculating the relative position between devices, the device's size is required, and the layout direction is conducive to minimizing the area of the chip. This paper adopts the layout scheme from bottom left to top right.

It is relevant to generate a layout from sequence pairs and find the longest weighted common subsequence in two sequence pairs. Determining the x coordinate of each device is equivalent to calculating LCS (S_X, S_Y), choosing the y coordinate of each device is equivalent to calculating LCS (S_X^R, S_Y^R), and S_X^R is the inverse sequence of S_X (Table 1 and Table 2). Device constraint relationship: each sequence unit in the sequence pair (S_X, S_Y) represents each device. Given two devices a and b, in the sequences S_X and S_Y, if a is before b, then a is on the left of b; In sequence S_X, if a is before b; in sequence S_Y, if a is after b, then a is above b.

As shown in Figure 4, given a set of sequence pairs, the grid represents their corresponding constraint relationships. Draw a grid graph of n✕n, mark the grid lines from top to bottom with a positive sequence, and mark the grid lines from left to right with an inverse arrangement. Rotate -45° to obtain the oblique grid of sequence pairs<a c d b e> and<c d a c b>. Given this group of sequence pairs, the layout vertical constraint graph (VCG) and layout horizontal constraint graph (HCG) can be obtained according to the start and endpoints.

Lines 1–2 are used to initialize the width of n devices. Three lines search for the longest weighted common subsequence of S_X and S_Y and calculate the x coordinate of each device. Lines 4–5 initialize the height of n devices. 6 rows to get the reverse-order column S_X^R of S_X. Line 7 calculates the y-coordinate of each device according to the longest weighted common subsequence of S_X^R and S_Y.

1-2 lines represent vector blocks_order, which records the index of each device in S₂. Line 3 initializes the vector length to 0, saving the maximum length of each device. Lines 4-5 indicate that the variable block is equivalent to the current device in S₁. Six lines indicate that the index is the index of the current device in S₂. The block's position in line 7 is defined as the position not occupied by other devices at first. Lines 9–12 update the lengths. The last quantity of 13 lines stores the determined total length.

(1) Calculate the weighted LCS width of two sequences, S₁ and S₂, and use the vector block order to record the index of each device in S₂.

(2) Initialize vector lengths to 0 to store each device's maximum quantity (length or width).

(3) The variable block is defined as the current device in S₁, and the index is the index of the current device in S₂. All the items on the left of the block are arranged into intervals with the length of the block, and the block is then placed.

(4) The total length of the updated layout is length, and length [n] indicates the full length after n devices are determined.

(5) It is updated if the length [j] exceeds the current length.

Extract the LCS algorithm when S₁=S_X, S₂=S_Y, and weights=width, which can define the x coordinate of the layout. Extract the LCS algorithm when S₁=S_X^R, S₂=S_Y, and weights=heights, which can define the y coordinate of the layout.

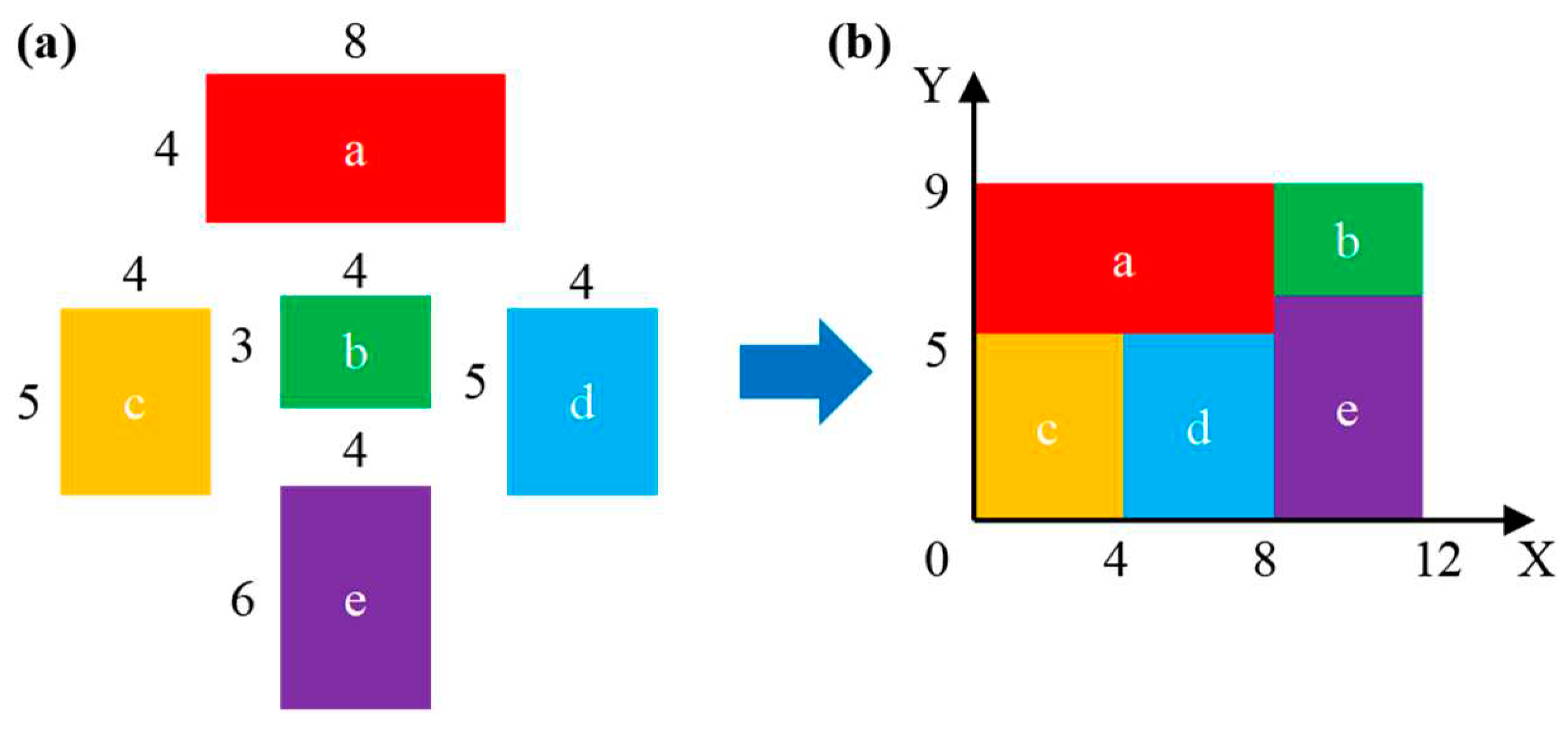

Example: from a sequence pair to a layout

Input: ① The sequence pair S_X:<a c d b e>, S_Y:<c d a e b>; ②Layout direction: from bottom left; ③Layout starting point (0, 0); ④The dimensions of devices are shown in Table 3.

Solution process:

widths[a b c d e]=[8 4 4 4 4], heights[a b c d e]=[4 3 5 5 6]

Solve the x coordinate:

S₁=S_X=<a c d b e>, S₂=S_Y=<c d a e b>

weights[a b c d e]=widths[a b c d e]=[8 4 4 4 4]

block_order[a b c d e]=[3 5 1 2 4]

lengths=[0 0 0 0 0]

i=1:block=a

Index=block_order[a]=3

positions [a]=lengths [index]=lengths [3]=0 //Calculate the current device position

t_span=positions [a]+weights [a]=0+8=8 //Determine the current device length

Update the length vector from index=3 to n=5, length=[0 0 8 8 8]. At the beginning of iterations 2-5, repeat the above operation. The x coordinate: positions [a b c d e]=[0 8 0 4 8], and the width of the layout W=lengths [5]=12.

Solve y coordinate:

S₁=S_X^R=<e b d c a>, S₂=S_Y=<c d a e b>

weights[a b c d e]=heights[a b c d e]=[4 3 5 5 6]

block_order[a b c d e]=[3 5 1 2 4]

lengths=[0 0 0 0 0]. 1-5 Iteration for 5 times in the way of finding the x coordinate, the height of the layout H=lengths [5]=9

Output: the layout area is: W=12✕9. The coordinates of the lower left corner of each device are a (0, 5), b (8, 6), c (0, 0), d (4, 0), and e (8, 0). The results are shown in Figure 5.

2.3. Layout calculation optimization

The traditional simulated annealing algorithm has the problem that the parameters greatly impact the experimental results, and the convergence quality is not high when dealing with layout problems [28,29,30]. For this reason, this paper improves the simulated annealing algorithm, and the main improvement strategies are divided into two types: ① change the factors of the algorithm itself; ②change the search strategy, speed up the search, and improve the search quality.

(1) Change of algorithm cooling function

The control methods of simulated annealing in temperature cooling are divided into rapid cooling mode (RSA) and general cooling mode (CSA).

RSA:T=T₀/log(1+N); CSA: T=qT₀+k, where q is the cooling rate and k is a constant.

Because of the shortcoming that the initial cooling rate of traditional simulated annealing is too fast to obtain the optimal global solution, this paper proposes an improved simulated annealing algorithm as shown in Formula 1:

$$T=T_0\times e^{\left(-N^3/T_0^2\right)}$$

(1)

T₀ is the temperature at the initial time, N is the number of iterations required by the algorithm in the external cycle, and T is the current temperature.

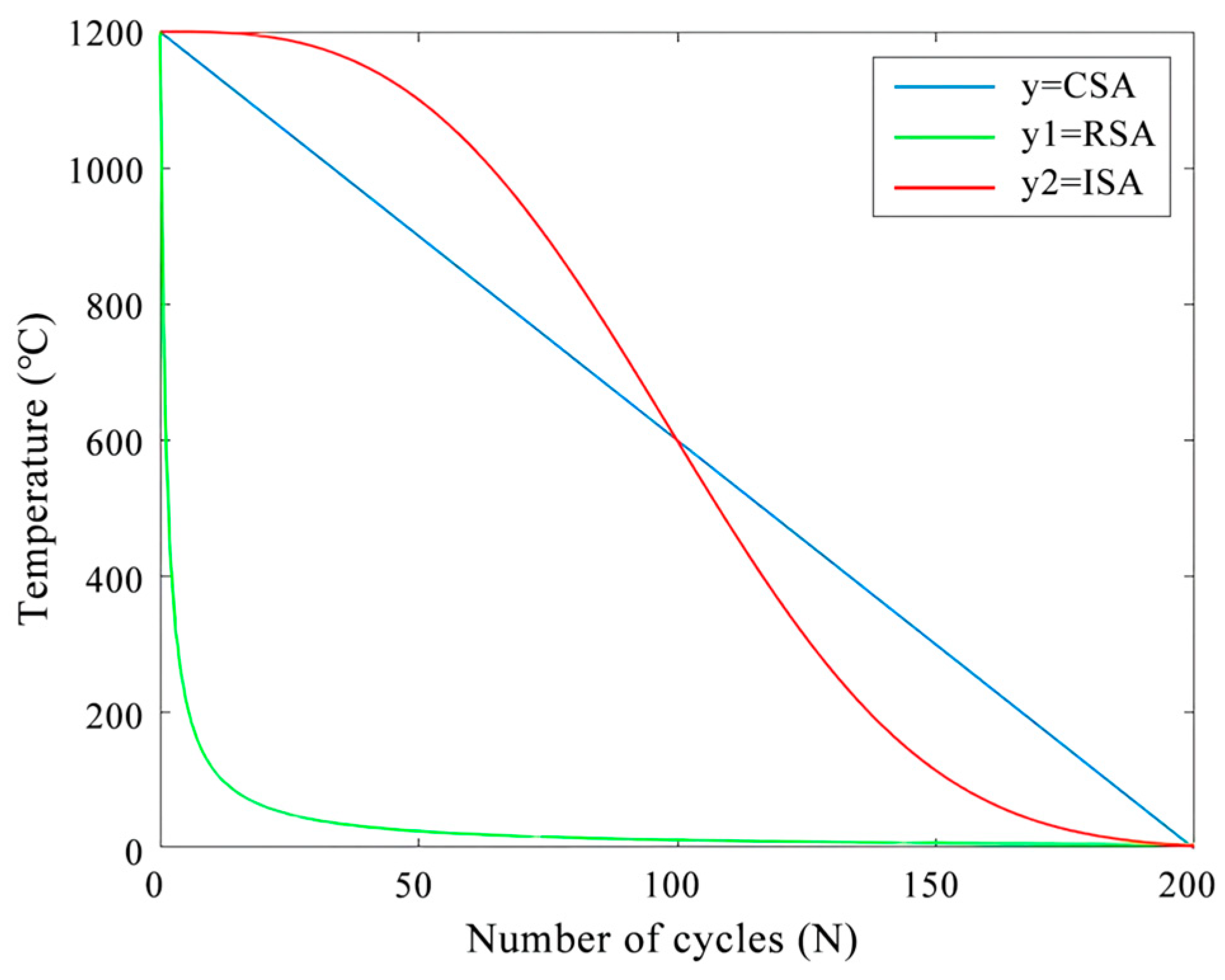

As shown in Figure 6, during the iteration process, the improved simulated annealing algorithm (ISA) proposed in this paper decreases slowly at the high-temperature stage, realizing the global search of the algorithm, which is conducive to the generation of the optimal solution.

The slow cooling speed is easy to blame for the slow global convergence speed. Combining the FAST-SP algorithm and the simulated annealing algorithm can speed up the convergence. Therefore, the FAST-SP algorithm is improved as follows:

1) Use reverse transformation to select two device units and reverse all units between the two units.

2) Select three device units and switch the unit between the two device units to the back of the third unit.

(2) Change of algorithmic search strategy

1) Expand the recording function. During the implementation of the algorithm, the particularity of its selection probability may cause the problem that even if the optimal solution is generated, it may be abandoned. The extended recording function can save the optimal solution in this cycle for comparison with the results generated later.

Add a memory matrix (I) and a function (F) in the simulated annealing algorithm. Initially, there is an element i₀ in I, and F = f (i₀). When generating a new solution, each time a new solution (j) is obtained, compare F with f (j). If f (j) < F, let F=f (j), and store j in I. After the algorithm is completed, the optimal solution is compared with the solution recorded in I to select the optimal solution as the final solution of the algorithm.

2) For the solution of the initial solution, the simulated annealing algorithm with the recording function is used first. After the trial run of the entire algorithm is completed, the final result obtained is searched locally until the local algorithm search is conducted. Then the final solution, namely the optimal solution, is output.

2.4. Routing algorithm optimization

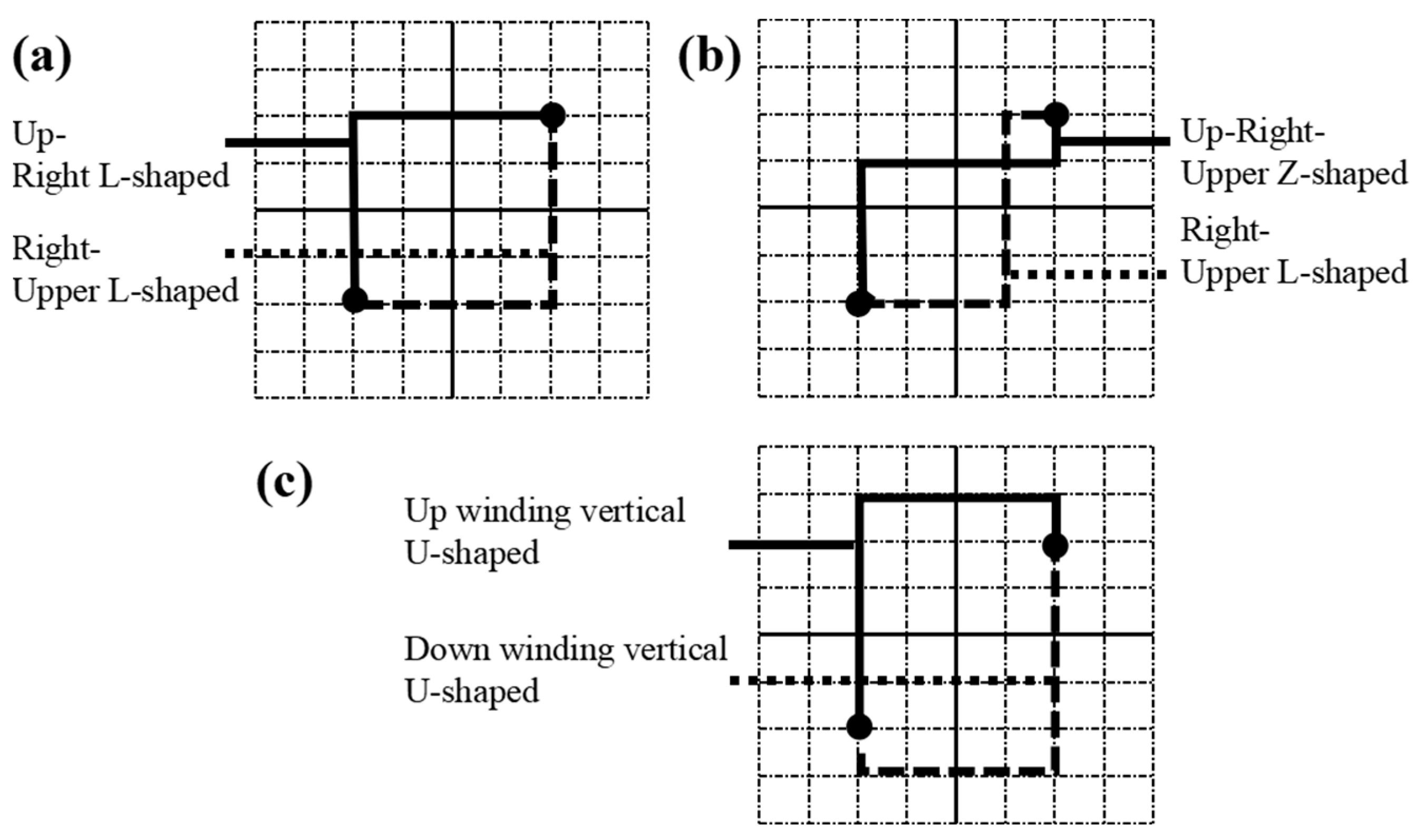

The wiring of microfluidic chips can be divided into two stages. In the first stage, the A* algorithm is mainly used for routing because there is no microchannel intersection [31,32,33]. If the wiring is successful, the result will be output. If the wiring fails, the second stage will be carried out. In the second stage, the microchannels are allowed to generate intersections during routing. Then the routing is carried out through the improved A* algorithm, adding additional generation value to the grid. Whether it is the first or second stage, the existing algorithms use routing based on the experimental response order [34,35,36]. Although the extra generation value of the routing grid can be iterated to get the routing scheme, the routing quality is not high.

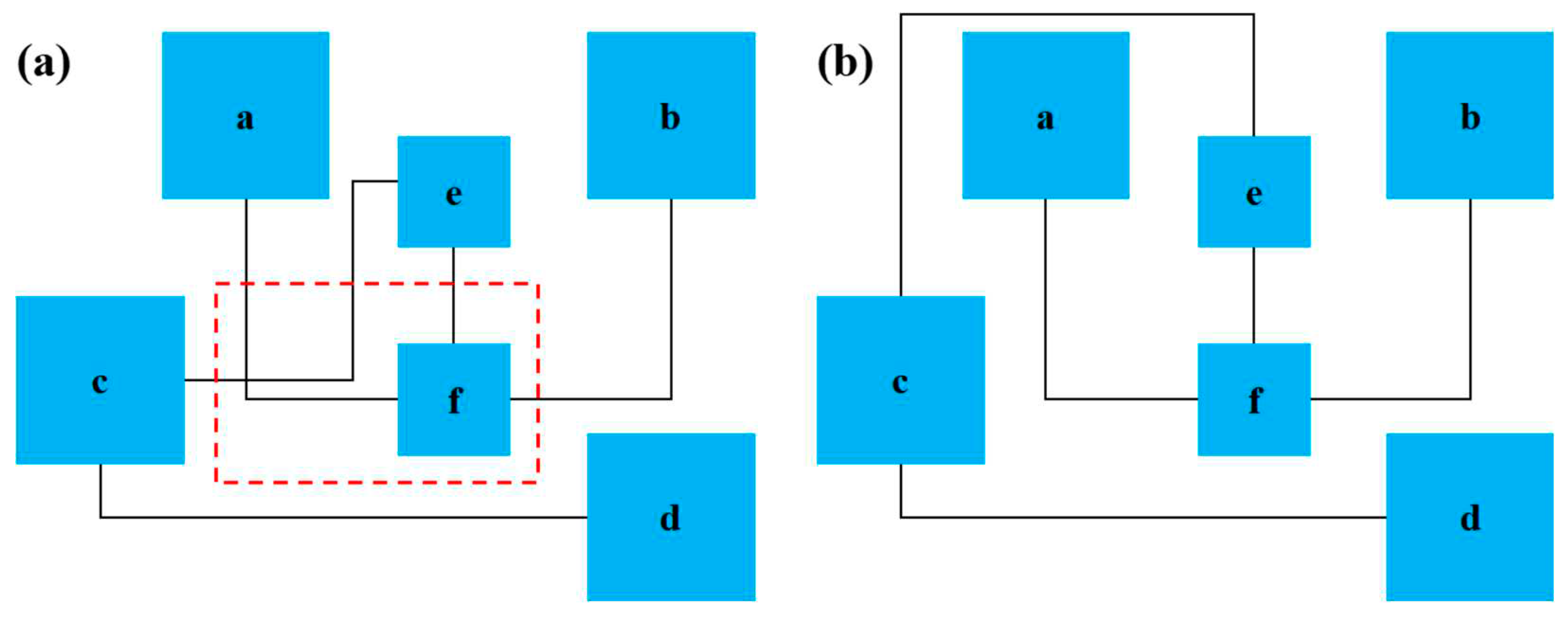

As shown in Figure 7a, the blue box is a device, and the black line is a microchannel. When six devices are wired, a microchannel intersection will be generated, and the experimental reaction sequence is af, bf, and dcef. As shown in Figure 7b, the intersection disappears when the microchannel of connector f is wired first. It can be seen that key devices are essential to the results of microchannel wiring, and the probability that key devices can be wired in this area is higher than in other areas.

For this reason, in the wiring stage of a microfluidic chip, this paper gives priority to the wiring of devices with multiple microchannels, defines the high wiring area (in the red dotted box) to distinguish it from other regions, and then wires the chip microchannels based on the improved wiring algorithm. In addition, the main purpose of wiring is to shorten the length of the microchannel and speed up the biochemical reaction time in the microchannel. To this end, three types of wiring modes, as shown in Figure 8, can also be selected to reduce the number of cross-points in microchannels.

2.5. Adjustment algorithm optimization

The previous device layout and microchannel routing results must be adjusted in the layout adjustment phase. Fine-tune the devices while keeping the relative position of the devices unchanged in the congested area; that is, keep the sequence pair order intact. The congestion area contains most devices, microchannels, and microchannel intersections. After adjustment, the next iteration will be carried out if the layout and wiring results are better than the previous work. They will be discarded if they are not as good as the earlier work [37,38,39]. However, this method only adjusts the congestion area, and the adjustment spacing is too small, which affects the overall layout quality to a certain extent and may result in the failure of layout adjustment.

For this reason, when adjusting the device layout and microchannel routing, this paper adjusts the devices in all areas where there are microchannel intersections and multiple channels, moving two units of length to the left, down, or right while maintaining the same relative position and moving one unit of measurement for devices in areas where there is no microchannel intersection. The purpose is to provide space for machine and microchannel adjustment in other congested areas and ensure the algorithm can optimize the layout results without defects. If the result after adjustment is better than the previous scheme, the optimal solution will be output.

2.6. Improved algorithm flow

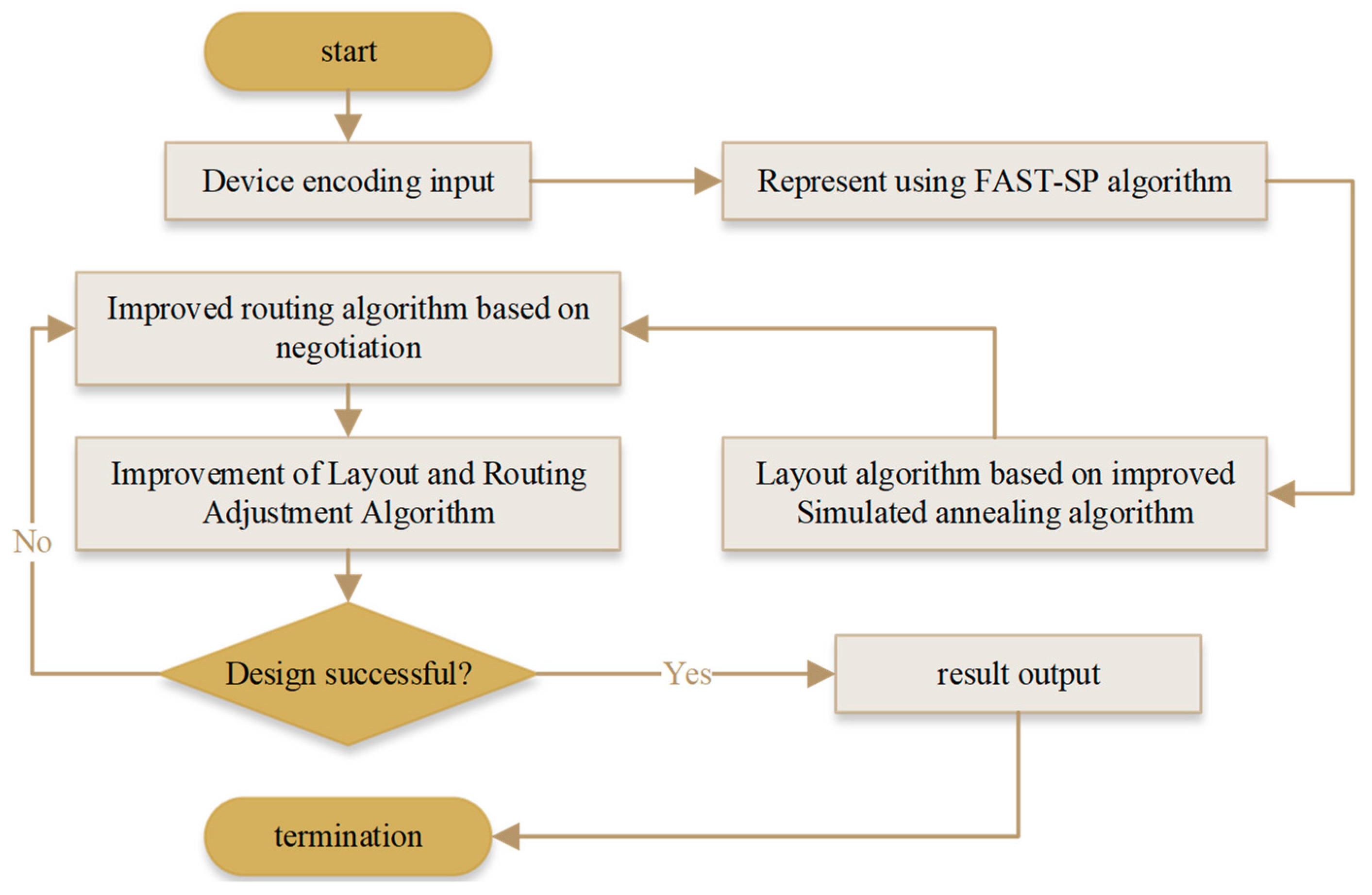

On the premise of device set and device connection relationships and with the device layout scheme obtained by the FAST-SP algorithm as the input, the following conditions are defined:

1: The distance between device mi and device mj on its right or above is defined as rx and axe.

2: The width and height of all device set spacing are defined as WX and WY. The constraint condition of elements between WX and WY is [e_min, e_max]. WX and WY form the initial solution S.

3: In the simulated annealing algorithm, the initial temperature is defined as T, the number of external cycles is N, the end temperature is T_end, the current temperature is T₀, the chain length is L, and the quality function for evaluating the chip layout is E (S).

The algorithm flow is:

(1) Initialise WX and HY: e_min < rx, rx < e_max.

(2) Set the state variables S = (S_X, S_Y, WX, HY) and the initial temperature T. When the initial test temperature exceeds the minimum temperature, the iteration starts.

(3) Adjust the state variable S -> S₁, randomly generate the variables rx¹ and ax¹, and compare them with e_min and e_max. When rx¹ < e_min, let e_min = rx¹; When rx¹ > e_max, let e_min = rx¹. The ax¹ is obtained in the same way.

(4) Utilise Metropolis guidelines [40,41,42]:

$$df=E\left(S^{\text{'}}\right)-E\left(S\right)$$

(2)

$$P=\left\{\begin{array}{c}\begin{array}{cc}1,& df<0\end{array}\\ \begin{array}{cc}\exp \left(-df/T\right),& df\ge 0\end{array}\end{array}\right.$$

(3)

$$P^{\text{'}}=\left\{\begin{array}{c}\begin{array}{cc}1,& df<0\end{array}\\ \begin{array}{cc}\exp \left(-df/\left(T_0\times e^{\left(-N^3/T_0^2\right)}\right)\right),& df\ge 0\end{array}\end{array}\right.$$

(4)

If df<0, the newly generated layout result will be accepted; otherwise, the new layout result will be obtained with probability exp (- df/T).

(5) Cool down. Use the new cooling rate function to cool down. Stop iterating and output the current result if T₀ exceeds the end temperature.

Formula 4 is obtained by combining formulas 2 and 3. The improved simulated annealing algorithm proposed in this paper converges quickly and can get a better solution when facing more devices.

For example, the parameters e_min = 3, e_max = 5, T = 10000, T_end = 10^-4, L = 200, and the cooling rate is 0.95.

Evaluate chip layout quality functions:

$$E\left(S\right)=\alpha A+\beta B+\gamma C+\theta C^2$$

(5)

where A is the chip layout area, B is the number of microchannel intersections, C is the length of the microchannel segment, and C² is the square of the total segment. The main purpose is to minimize and enhance the length of the microchannel. Set the weight values of α to 1, β to 300, γ to 20, and θ to 0.001.

After the layout is completed, the A* algorithm can be used to find the shortest path after the layout. The input of the algorithm includes the following:

① non-negative edge weight graph G (WX, HY)

② A starting source node s

③ One target end node t

Then two sets, M and N, are introduced, where M contains the point of the shortest path that has been found and the length of the shortest route, and N is the point of the shortest path that has not been found and the distance from the point to the source node.

Initialize the two sets M and N, find the shortest path point from the N set, add it to the M set, then update the devices in the N set, iterate circularly until the end of the traversal, and find the best routing result of the microfluidic chip.

3. Experimental results and analysis

The comprehensive optimization algorithm proposed in this paper is compared with the manual layout and existing algorithms to verify its effectiveness. Among them, the existing algorithm uses the basic simulated annealing algorithm. The programming language used in this paper is C++.

As shown in Table 4, six groups of test cases were selected, with 16 PCR devices, 30, 45, and 60 InVitro-1~InVitro-3 devices, and 30 and 66 devices in ProteinSplit-1 and ProteinSplit-2, respectively. The experimental results show that the integrated optimization algorithm in this paper reduces the chip area by 17.6%, the microchannel length by 20.9%, and the number of microchannel intersections by 24.0% on average, compared with existing algorithms. From the improvement percentage, it can be concluded that when the number of devices is 45, the comprehensive optimization algorithm in this paper is optimal.

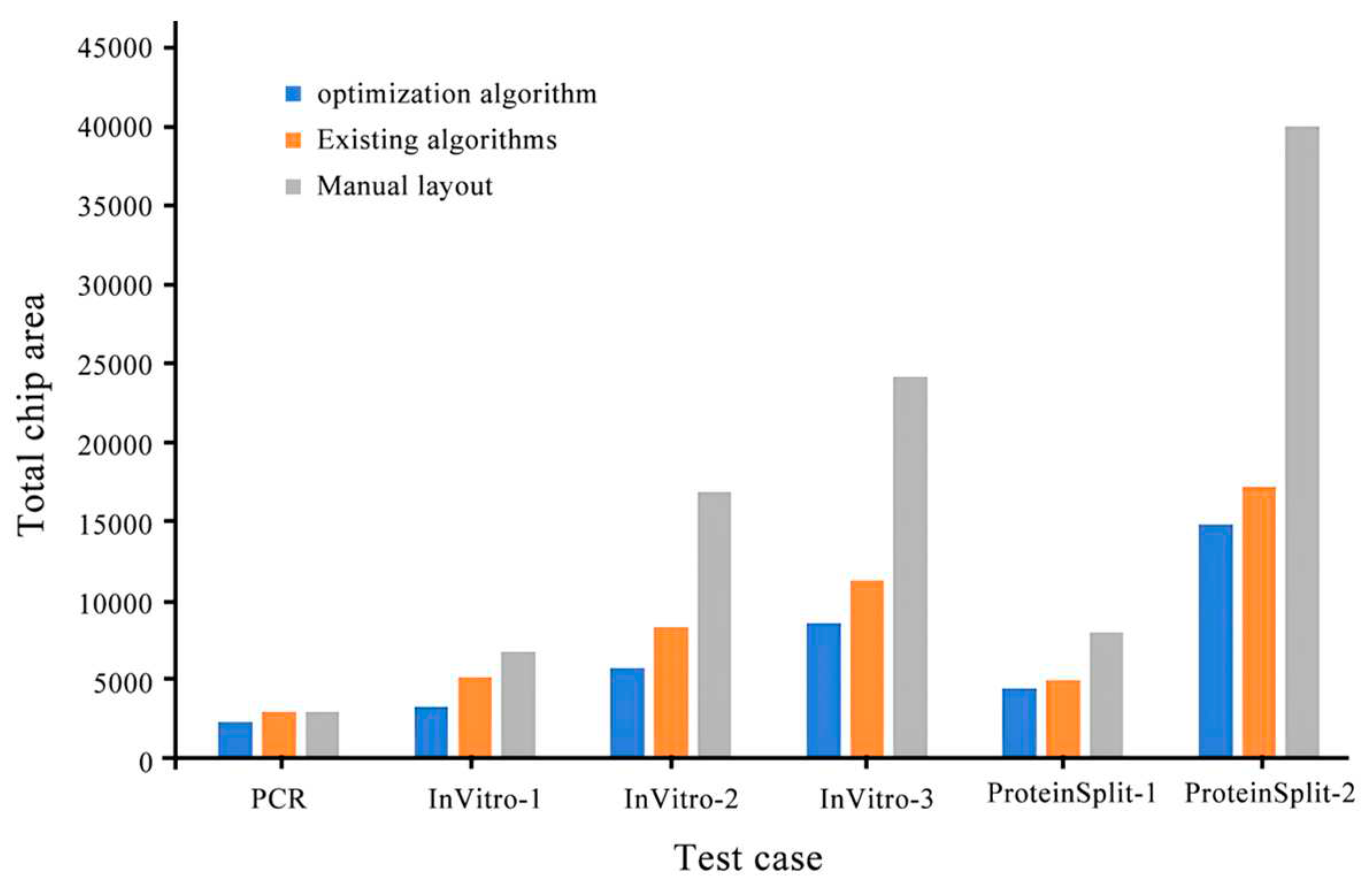

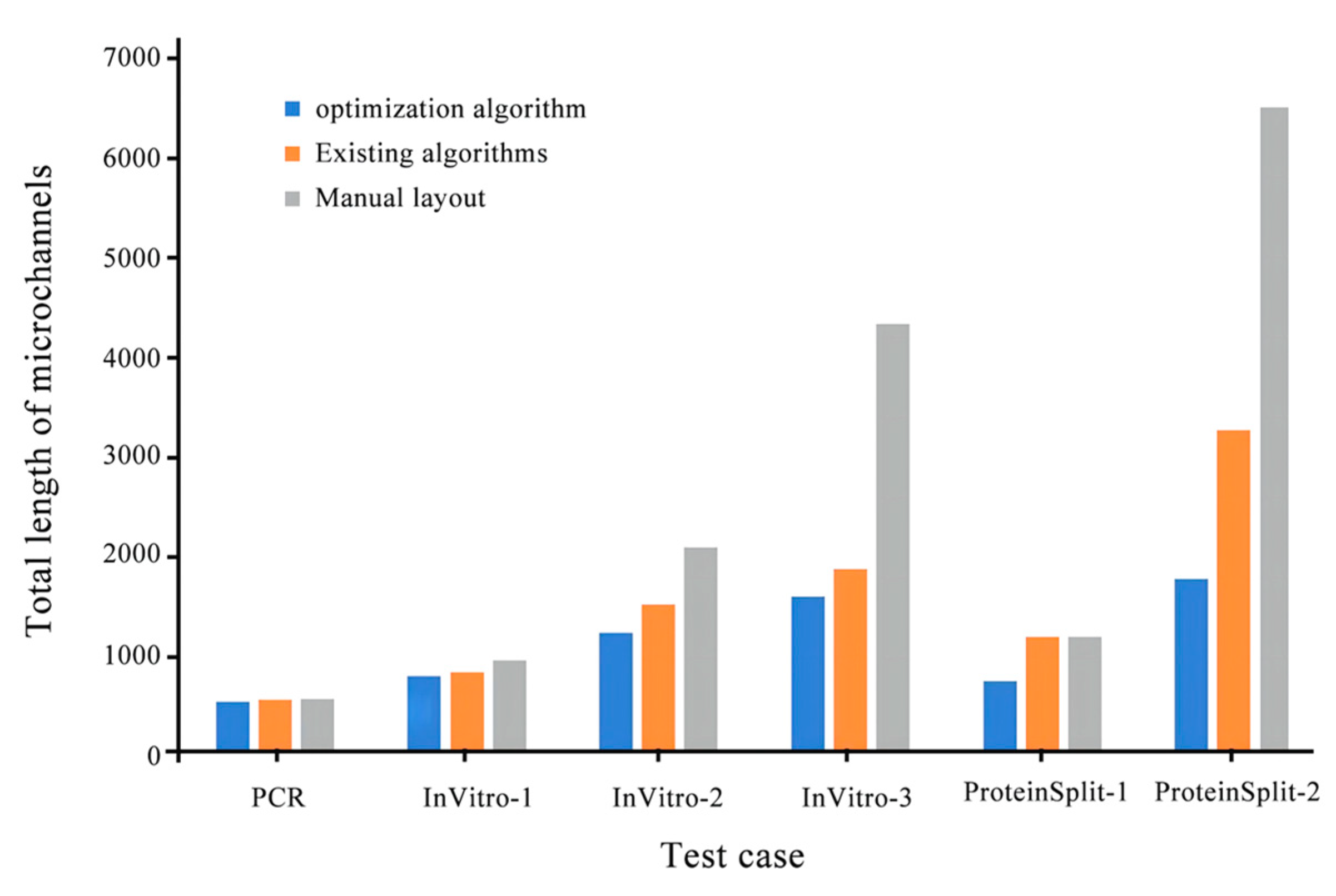

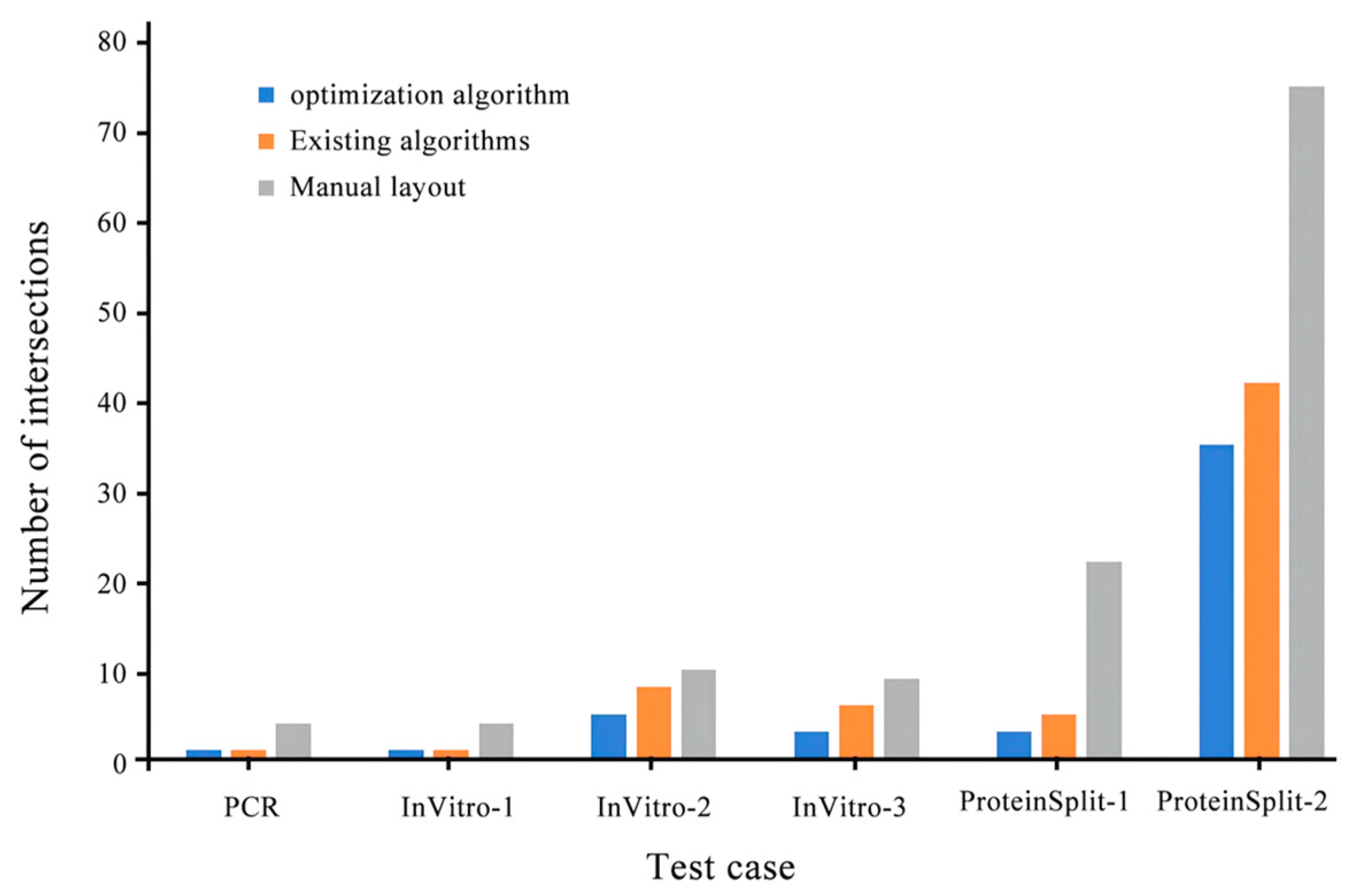

Figure 9, Figure 10 and Figure 11 compares the integrated optimization algorithm, the existing algorithm, and manual layout in the total chip area, the number of microchannel intersections, and the total length of microchannels. The figure shows the effectiveness of the integrated optimization algorithm in the structural design of microfluidic chips and the necessity of the mechanical structural optimization design of microfluidic chips.

The experimental results show that the optimization algorithm proposed in this paper can meet the automatic design requirements of microfluidic chips. The advantages of the optimization algorithm in the structural design of microfluidic chips are verified through the reduction of chip area, the shortening of microfluidic channels, and the reduction of the number of intersections.

4. Conclusions

This FAST-SP algorithm addresses the challenges in chip layout design. By leveraging the FAST-SP algorithm, the proposed method accelerates the convergence rate of the simulated annealing algorithm, enhances its cooling rate and search strategy, mitigates the impact of parameters on the outcomes, and improves convergence quality. This approach targets the limitations of existing layout design methods for microfluidic chips, which often lack global optimization capabilities. Additionally, it enhances the routing method to minimize the number of intersections between microchannels. The key contribution is strengthening the interaction between microchannel routing and device layout. Sixx test cases were reconducted to evaluate the proposed algorithm's effectiveness, with chip area, microchannel length, and the number of intersections serving as optimization objectives. The results clearly state the superiority of the optimization algorithm presented in this paper compared to existing design methods in these three areas. Notably, the experimental data reveal that when the number of devices reaches 45, the algorithm achieves the optimal improvement percentage, highlighting its capability to obtain optimal solutions and exhibit robustness. Through enhancements, the optimization algorithm achieves an average reduction of 17.6% in the total chip area, 20.9% in the overall microchannel length, and 24.0% in the number of microchannel intersections. These quantitative results unequivocally validate the effectiveness of the proposed optimization algorithm in optimizing the structure of microfluidic chips and enhancing their design quality paper, introducing an improved simulated annealing algorithm that builds upon the FAST-SP.
