Experimental Analysis on a Spray Hydrocooler with Cold Energy Storage for Litchi

1. Introduction

Litchi (Litchi chinensis), a perishable fruit, is loved by people worldwide. and China contributes to 60% of the world’s production[1]. Litchi mainly matures in summer and have a high temperature of flesh and skin, which contain large amounts of field heat after harvest[2]. In the postharvest environment water lost from litchi due to transpiration is not well-replenished causing rapid deterioration[3]. Loss of litchis occur due to a lack of proper and timely postharvest treatment [4]. Applying a cold treatment during postharvest can effectively lessen respiration, inhibit microbial growth and reduce enzyme activity in fruits and vegetables[5,6].

Precooling is the first step to rapidly cool down the harvested products to the required temperature by using a low-temperature medium to remove heat. As such, precooling is required immediately after harvest to eliminate field heat, to significantly extend the shelf life and improve commodity quality[7]. There are four methods commonly used for precooling of various fruits and vegetables[8,9]. Forced-air cooling requires several hours and can easily lead to the formation of hot spots and water loss[10]. Ice cooling can cause uneven cooling, insufficient cooling, frostbite, soft rots on products and increase transportation costs[11,12]. Vacuum cooling leads to water loss and is not suitable for products with a low surface to volume rate[13,14]. Hydrocooling could reduce water loss, avoid skin softening of crops and is about 2–15 times faster than forced-air cooling under similar conditions[15,16]. Litchi, apple, cherry, sweet corn, radishes, Barhee dates, and carrots are precooled successfully using hydrocooling[8,17,18,19].

At present, postharvest litchi precooling treatment is inadequate[20]. After being picked, most litchis are transported and sold with ice bags. However, litchi lose their commercial value by browning and decaying quickly[21]. Few litchis are transported to litchi processing enterprises and immersed in ice water or cold water for precooling. Precooling facilities are generally far away from litchi production[20]. Due to the costs of transportation and processing, litchi precooling costs are high. In addition, ice water immersion precooling is prone to overcooling or undercooling[22]. In China, the existing precooling equipment in litchi producing regions is limited to laboratory research. There is no precooling equipment that can precool litchis timely and quickly and meet the precooling demand of litchi producer.

TES systems can store either heat or cold energy[23]. Energy can be charged, stored and discharged on a daily, weekly, seasonal or annual basis[24]. It can shift energy usage from the peak to the off-peak periods, and shift the energy to areas faced with a shortage. In this study, a spray hydrocooling device using TES technology was newly designed and fabricated. TES performance and the precooler’s spray cooling performance were investigated under different test conditions. The spray hydrocooling device was charged at night and suitable for litchi producing areas without power supply. It is small in size and light in weight, and can be easily transferred to litchi producing regions.

2. Mathematical model of the hydrocooler

The usual precooler is precooling during refrigeration with the refrigeration capacity determining the precooling rate of fruits and vegetables. The precooler in this study provides energy source from TES. The refrigerator runs when cooling is idle, and the thermal energy is stored in the TES tank. During precooling, the energy in the TES tank is released to cool fruits and vegetables. The hydrocooler is mainly composed of the TES system and spray hydrocooling system (Figure 1). The evaporation coil is located in the TES box, which is filled with water. During charging, the thermal energy is stored as cold water and ice. During precooling, the cold water of TES tank is pumped to the precooling box, and sprayed on the surface of fruits and vegetables through the spray device of the precooling box. The temperature of fruits and vegetables is reduced due to the heat exchange between cold water and fruits, vegetables. The used water flows back to the TES tank and exchanges heat with the ice in the TES tank. The precooling capacity of fruits and vegetables is determined by the thermal energy stored in the TES tank, the thermal insulation characteristics of the device and the thermodynamic properties of fruits and vegetables. Therefore, it is necessary to establish the mathematical model for the precooler to calculate the key design parameters such as TES capacity in order to the precooling demand and hence design and manufacture a suitable device.

Nomenclature		Subscripts
A c C d E EER Ekg Etal h l m n N0 P P0 q q0 ql qm qV Q Qmax Qchr r R t T TES u vin VR Vth w0 ΔT	area, m2 specific heat, J kg-1 K-1 latent heat, J kg-1 diameter, m energy consumption, J energy efficiency ratio average energy consumption of precooling 1 kg of litchi, kJ kg-1 power consumption of charging and precooling, J heat transfer coefficient, W m-2 K-1 length, m weight, kg number of precooling batches of litchi theoretical energy consumption, W heat load, W refrigerating capacity of refrigeration system, W heat load per unit area, W m-2 refrigeration capacity per unit mass, kJ kg-1 density of heat flow rate, W m-2 mass flow, kg s-1 refrigeration capacity per unit volume, kJ m-3 quantity of heat, J the maximum TES capacity of TES tank, J TES capacity of charging, J radius, m heat conduction resistance, m2 K W-1 time, s or h temperature, °C thermal energy storage, J precooling rate, kg h-1 inspiratory specific volume, m3 kg-1 volume flow rate, m3 s-1 theoretical gas transfer volume, m3 unit theoretical work, kJ kg-1 temperature difference, °C	amb chr coi com con ctp cwp eff eli eva itw itl iw ilt ils ilc isc iic lit load lod oic osc osi otp siw spr spb src spa sta tal thb tst ttl ttw wat wpp wpw	ambient charging evaporation coil comprehensive condenser the end of charging to the end of precooling circulating water pipe effective TES energy lost through insulation evaporator initial temperature of water initial temperature of litchi ice and water insulation layer of TES tank insulation layer of spray precooling box insulation layer of circulating water pipe inner surface of coil inner surface of insulation layer of circulating water pipe litchi load of litchi precooling cooling loss rate caused by opening the door outer surface of insulation layer of circulating water pipe outer surface of coil outer surface of ice operation of water pump contact surface between insulation layer and water spray precooling spray precooling box contact surface between refrigerant and coil contact surface between spray precooling box and air contact surface between TES tank and air total thermal bridge TES tank termination temperature of litchi precooling termination precooling temperature of water water water pump power water pump works on water
Greek symbols
α β λ δ ρ	power coefficient of water pump volumetric efficiency of compressor thermal conductivity, W m-1 K-1 thickness, m density, kg m-3

2.1. Mathematical model of TES system

During the charging process, the thermal energy is stored in cold water and ice as sensible and latent heat. Cold water storage only contains sensible heat, while ice storage contains both latent heat of ice and sensible heat of cold water. Therefore, latent heat has significant advantages over sensible heat and is the preferred method for energy storage.

In the case of litchi, a precooling system that handles 1000 kg can meet the demand of most small and medium-sized orchards. The suitable storage temperature of litchi is about 5 °C, and it is appropriate to reach 8 °C after precooling. The pulp temperature of litchi is about 29 °C when picked. According to the principle of conservation of energy, the energy absorbed by litchi fruits precooling is calculated as[25]:

$$Q_{lit}=m_{lit}{c}_{lit}\left(T_{ttl}-T_{itl}\right)$$

(1)

The TES tank also contains the TES capacity that cannot be used in the precooling process, being the water temperature drops from the initial charging temperature to the termination precooling temperature. There is a significant thermal energy leakage during the refrigeration and storage phases. During precooling, the loss of cooling capacity caused by the water pump working on the water, opening the precooling box and changing the precooling litchi, the connection between the inlet and outlet of the box, and the heat bridge at the edge of the box need to be taken into account in the TES capacity. Therefore, the TES capacity of charging should be improved as follows[26]:

$$Q_{chr}=Q_{lit}+m_{wat}{c}_{wat}\left(T_{itw}-T_{ttw}\right)+P_{eli}{t}_{ctp}+P_{wpw}{t}_{otp}+P_{lod}{t}_{otp}+P_{thb}{t}_{ctp}$$

(2)

$$\frac{d{P}_{eli}}{dt}=(A_{tst}{h}_{tst}+A_{spb}{h}_{spb}+A_{cwp}{h}_{cwp})\frac{d\left(T_{amb}-T_{wat}\right)}{dt}$$

(3)

$$\frac{1}{h_{tst}}=\frac{1}{h_{siw}}+\frac{{\delta }_{ilt}}{{\lambda }_{ilt}}+\frac{1}{h_{sta}}$$

(4)

$$\frac{1}{h_{spb}}=\frac{1}{h_{siw}}+\frac{{\delta }_{ils}}{{\lambda }_{ils}}+\frac{1}{h_{spa}}$$

(5)

$$\frac{1}{h_{cwp}}=\frac{\ln \left(\frac{r_{oic}}{r_{iic}}\right)}{2\pi {\lambda }_{ilc}}+\frac{1}{h_{spa}}$$

(6)

$$P_{wpw}=\alpha P_{wpp}$$

(7)

The temperature of ice water mixture is 0 °C after charging, the total TES capacity comprises the sensible heat of water and latent heat of water freezing. Direct evaporation is used for TES and external-melt is used to release thermal energy. Ice is formed directly around the evaporation coil as a regular cylinder. The amount of ice store in TES tank at the end of charging can be estimated using the following equation[27]:

$$m_{ice}{C}_{ice}=Q_{chr}-m_{wat}{c}_{wat}{T}_{itw}$$

(8)

$$m_{ice}{\rho }_{ice}=\pi l_{coi}\left(r_{ice}^2-r_{coi}^2\right)$$

(9)

2.2. Thermal resistance of ice-on-coil

Ice-on-coil is a simple and effective TES method with good discharge characteristics. Direct evaporative TES refrigeration system has simple structure and good applicability to small equipment. The structure diagram of evaporation coil icing of the cold storage tank is shown in Figure 2. The coil is horizontal, and the icing state in the TES tank is represented by the evaporation coil per unit length.

During the charging process, the refrigerant absorbs heat by evaporation and cools the water outside the coil. Both the thermal resistance between coil and water changes and the heat flow of coil section will change with the increase of ice thickness. According to the fundamental law of heat transfer, the heat flux of the evaporating coil can be expressed using the following equation[28]:

$$q_l=\left(T_{osi}-T_{eva}\right)h_{com}=\frac{T_{osi}-T_{eva}}{R_{com}}=\frac{T_{osi}-T_{eva}}{R_{src}+R_{coi}+R_{ice}+R_{osi}}$$

(10)

The refrigeration system uses R22 refrigerant[29]. The boiling thermal resistance of refrigerant in the coil per unit length can be expressed as[30]:

$$R_{src}=\frac{1}{2\pi r_{isc}{h}_{isc}}$$

(11)

The heat conduction resistance of the evaporated coil per unit length can be expressed as[30],

$$R_{coi}=\frac{1}{2\pi {\lambda }_{coi}}\ln \left(\frac{r_{coi}}{r_{isc}}\right)$$

(12)

The heat conduction resistance of ice layer per unit length can be expressed as[30],

$$R_{ice}=\frac{1}{2\pi {\lambda }_{ice}}\ln \left(\frac{r_{osi}}{r_{coi}}\right)$$

(13)

The thermal resistance of heat convection between ice and water per unit length can be expressed as[30],

$$R_{osi}=\frac{1}{2\pi r_{osi}{h}_{osi}}$$

(14)

One-dimensional steady-state heat conduction analysis is used to solve the heat transfer process in the cylinder at any time instant. From equation 11-12, it can be seen that increasing the coil radius can reduce the refrigerant evaporation thermal resistance and coil thermal resistance under constant coil thickness. It can be observed from equations 13-14 that R_ice increases and R_siw decreases with increase ice thickness when the coil radius remains unchanged.

2.3. Mathematical model of refrigeration system

Choosing the matching refrigeration system is important for meeting the TES demand and improving the efficiency of refrigeration. The working characteristics of a refrigeration compressor mainly involve the compressor’s refrigerating capacity and the power consumed. The theoretical gas transmission of the compressor is fixed based on the compressor and the refrigeration cycle. The refrigerating capacity and energy consumption are related to the unit refrigerating capacity, unit theoretical work, and compressor’s inspiratory capacity of the refrigeration cycle.

According to the thermodynamics of the refrigeration cycle[31], the refrigerating capacity and energy consumption of the refrigeration system are theoretically related as follows,

$$Q_{chr}=P_{0}dt-P_{eli}dt-P_{thb}dt$$

(15)

$$P_0=V_R{q}_V=\beta V_{th}\frac{q_0}{v_{in}}$$

(16)

$$N_0=q_m{w}_0=w_0\frac{V_R}{v_{in}}=\beta V_{th}\cdot \frac{w_0}{v_{in}}$$

(17)

The condenser adopts air-cooled forced convection, making it lightweight, small, environmentally friendly, simple, and convenient. According to the fundamental equation of heat transfer[31], the heat transfer area of a condenser is obtained as,

$$A_{con}=\frac{P_{con}}{h_{con}\Delta T_{con}}=\frac{P_0}{q_{con}}$$

(18)

Direct evaporative coils are used for ice making in the hydrocooler. The convective heat exchange occurs between the coil and water before freezing, while the exchange is between the coil and ice after freezing. The outer surface area of the coil is taken as the heat transfer area. According to the fundamental equation of heat transfer[31], the heat transfer area of the evaporator is given by,

$$A_{eva}=\frac{P_{eva}}{h_{eva}\Delta T_{eva}}=\frac{P_0}{q_{eva}}$$

(19)

$$l_{coi}=\frac{A_{eva}}{2\pi r_{coi}}$$

(20)

The values of equations’ parameters are summarised in Table 1. The structural parameters and precooling conditions of the device were assumed, the thermophysical parameters and refrigeration parameters were determined by references, and the environmental and litchi parameters were determined by measurement.

2.4. Solution of mathematical model

The weight of litchi precooling for the hydrocooler is dependent on the current situation of the orchard. According to equation 1 and physical parameters of litchi, 1000 kg litchi precooling required thermal energy capacity $Q_{lit}$ of 8.1×10⁷ J. Solving equations 2-7, the TES capacity $Q_{chr}$ of the TES tank was 2.4 × 10⁸ J, and the ice volume reached 256 kg.

The relationship between ice thickness and heat transfer coefficient can be obtained according to equations 10-14, as shown in Figure 3. The thermal resistance increases while the heat transfer coefficient decreases with the increase of ice thickness. The total heat transfer coefficient is 17.875 W m^-2 K^-1, and the total thermal resistance is 0.056 m² K W^-1 when ice is not formed. The heat transfer coefficient decreases rapidly with ice thickness when the ice thickness is less than 40 mm. The heat transfer coefficient decreases significantly with ice thickness when the thickness is greater than 40 mm. The total thermal resistance is 0.143 m² K W^-1, and the heat transfer coefficient is 6.995 W m^-2 K^-1, which is 60.9% lower than that without ice when the ice thickness is 40 mm. Once the ice thickness exceeds 120 mm, the heat transfer coefficient reduces slowly.

Given the thermal resistance analysis of the ice-on-coil, the best ice thickness was considered to be 40 mm. According to equation 9, the evaporation coil length was 39.5 m. If using a single coil with 39.5 m, excessive coil length would increase the superheat, reduce the return air pressure and cause the suction gas of the compressor to overheat and produce low refrigerant efficiency of refrigeration system. According to equation 15, the refrigerating capacity of the compression should reach 5900 W in order to meet the TES demand in 12 h. Therefore, the cooling was divided into two refrigeration units, the refrigerating capacity of each refrigeration system should reach 2950 W. From equation 18, the condensation heat transfer area of the condenser is calculated to be greater than 11.3 m² for a single refrigeration unit. Solving for equation 19 determines that the evaporation heat transfer area of the evaporator should be greater than 0.84 m² for a single refrigeration unit. The length of the evaporation coil was 19.75 m of a single refrigeration unit, so the outer surface area of the evaporation coil of a single refrigeration unit was 1 m², which met the requirements of evaporation heat transfer area. The solutions of equations and determination of ice thickness are summarised in Table 2.

3. Design and fabrication of hydrocooler

3.1. Overall structure

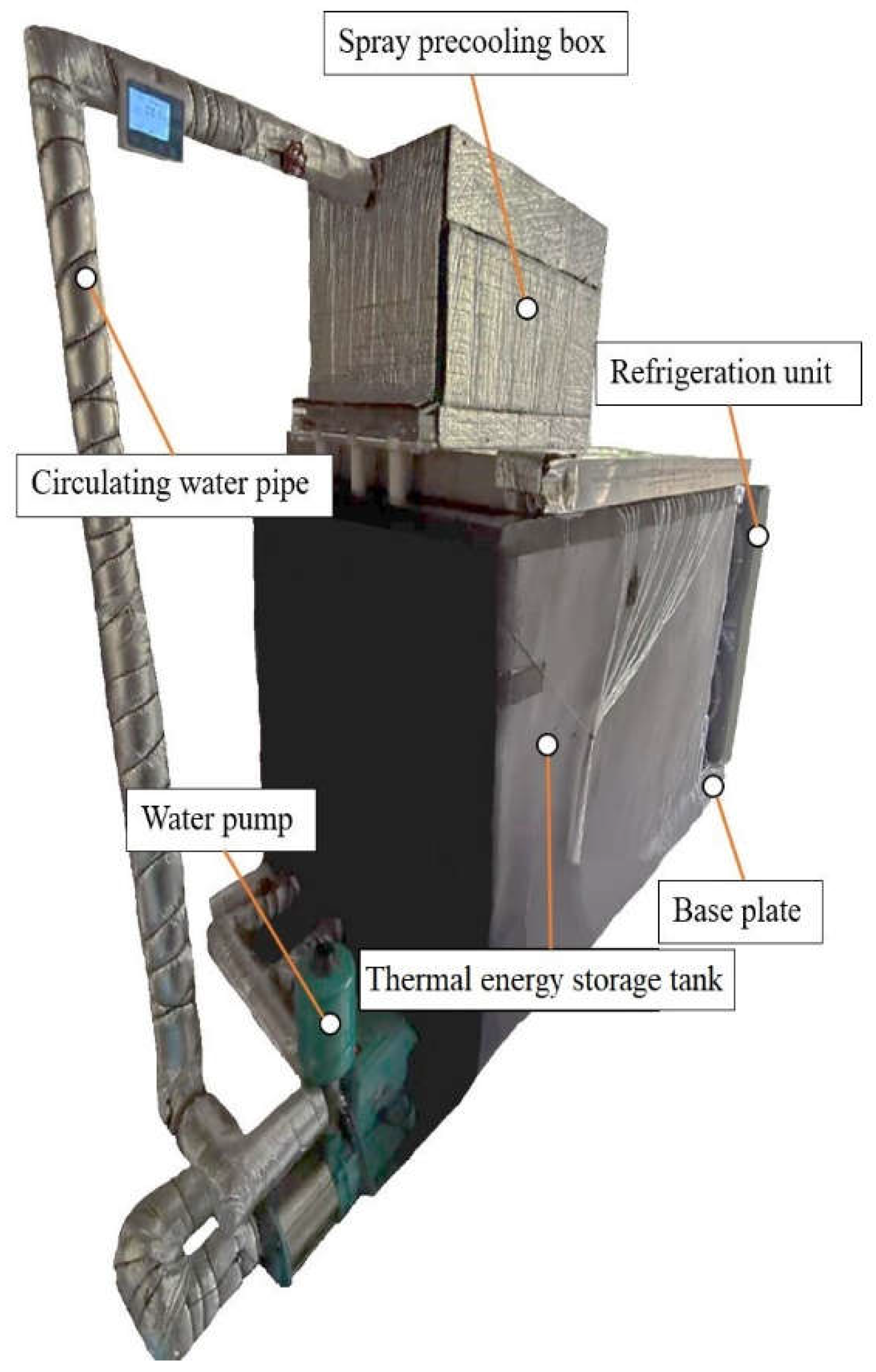

The hydrocooler combines the functions of refrigeration, storage, and precooling to make the device portable. The TES system and spray hydrocooling system were designed to realise the required thermal energy transfer. The hydrocooler based on the TES technology was designed by analysing the TES capacity, heat transfer characteristics, and refrigeration system configuration. The hydrocooler was composed mainly of the refrigeration unit, thermal storage tank, spray precooling box, circulating water pipe, water pump, and the base plate shown in Figure 4.

The refrigeration capacity of one QXL-30E compressor was 3180 W when the evaporation temperature was –10 °C. Hence, the refrigeration capacity of two systems was 6360 W that met the calculation requirements in Section 2. Two air-cooled condensers from SIMCO (SIMCO, small 3-HP, China) with 18 m² heat transfer area each were used. According to Section 2, the heat transfer area, A_eva, of the evaporator exceed 1 m², and the coil length, L, was not less than 39.6 m. Here the length of evaporation coil was 43.4 m of two refrigeration units. The circulating water pipe with a diameter of 32 mm and Weller sd-750 variable frequency water pump were selected, and the maximum flow reached 200 L min^-1. The spray precooling method was adopted to realize the rapid precooling of the fruit. The sprinkler was selected as the spray structure, which had high uniformity and pressure regulation characteristics. The size of a single sprinkler was 0.25×0.25×0.006 m³. The diameter of nozzle was 1.5mm, which was made of silica gel. The spray structure was made up of 6 sprinklers. The size of spray precooling tank was 0.75×0.52×0.45 m³, two precooling baskets could be placed at the same time. The size of the cold storage tank was 1.7×0.85×1 m³, and the maximum water storage was 1.2 m³. The parameters of the spray hydrocooler are shown in Table 3.

3.2. Structure of TES system

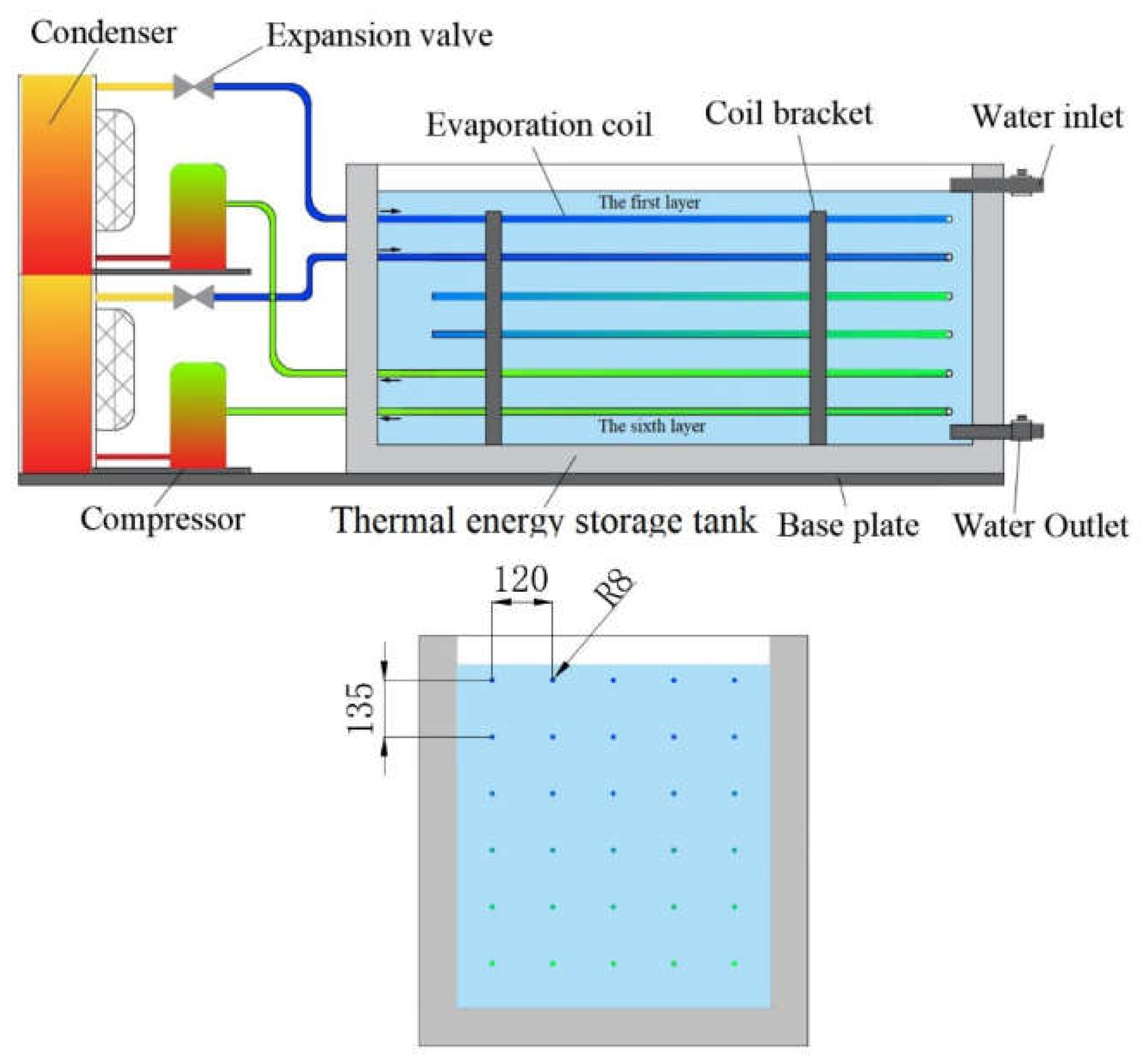

The structure of TES tank and refrigeration system are shown in Figure 5. The evaporation coil layout is shown in Figure 5b. The coils’ centre was kept 120 mm apart horizontally and 135 mm apart vertically to avoid overlapping of ice. The coils in the first, third, and fifth layers were connected to the first compressor, while the coils of the second, fourth, and sixth layers were connected to the second compressor. During the charging process, the refrigerant flows into the first and second layers’ coils and flows out through the coils in the fifth and sixth layers respectively.

3.3. Structure of spray hydrocooling system

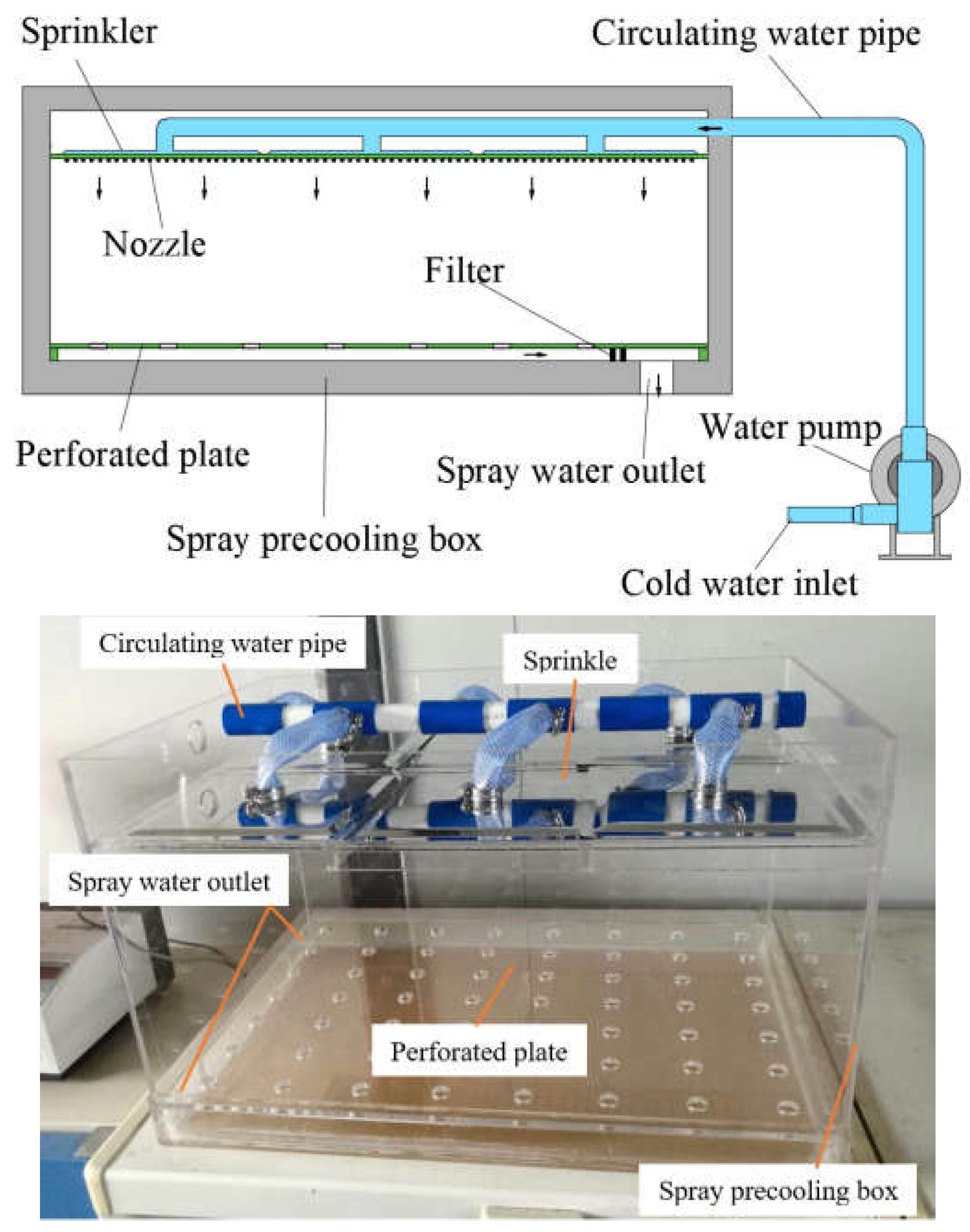

The precooling device was designed with a precooling capacity of 1000 kg litchi per day and a precooling time of 8 h. If 6 batches were precooled per hour, the precooling capacity of each batch was 21 kg. The size of packing basket selected was 0.35×0.48×0.16 m³, and each basket could hold 11.5 kg of litchi. Figure 6 shows the schematic diagram and photograph of the spray precooling box. Sprinkler were mounted at the top and a perforated plate used at the bottom of spray hydrocooling box. The outside of the box is covered with 1cm thick insulation cotton. Six square stainless-steel sprinklers had nozzles made of silica gel. The nozzles are 1.5 mm diameter under zero-pressure conditions and enlarge with water pressure. The spray flow rate is controlled by the variable frequency water pump. Litchi packed in perforated baskets are kept in the spray precooling box for precooling. The cold water sprayed over the litchi initiates rapid heat exchange. The water then flows through the perforated bottom plate and enters the TES tank.

4. Charging test and litchi spray precooling tests

4.1. Experimental setup

The experimental setup was shown in Figure 4, the TES tank was covered with 50 mm thick insulation cotton, the spray hydrocooling box was covered with 10 mm thick insulation cotton and the circulating water pipe was covered with 20mm thick insulation cotton to prevent energy leakage. The experiment was carried out using a VX810 paperless recorder (Hangzhou Pangu Automation System Co., Ltd.) for data recording at 1 s frequency. PT100 temperature sensor (±0.1 °C) for temperature monitoring, and KAA-T4 AC transmitter (0–30 A, ±0.2%, Zhuhai Xinghui Electronic Technology Co., Ltd.) for measuring water pump and compressor power consumption. As shown in Figure 7, 27 PT100 temperature sensors were arranged in a 3×3×3 array. One (1) charging test and eleven (11) litchi spray precooling tests were conducted (Table 4).

4.2. Charging test

During the charging test, the TES tank contained 1200kg water with an initial temperature of 31 °C. The TES tank was charged for 12 h. As shown in Figure 7, three ice thickness measuring points, a, b, and c in the first, third, and fifth layers of coil respectively, were used to manually estimate ice mass manually through observing the scale. The ice thickness was manually measured every 30 minutes through the method of observing the scale. The scales were fixed on the coil horizontally with the circle center of the coil. When water outside of the coil was frozen, the contact position between the outer surface of the ice layer and the scale was considered the ice thickness ($d_{ice}$). The aim was to analyse the TES capacity and economy of hydrocooler with increase charging time.

4.3. Litchi spray precooling tests

Conditions of spray hydrocooling tests are shown in Table 4, there are 3 test conditions were listed, which were charging time, litchi load and spray flow rate. This design is a hub and spoke type experimental design where the test 2 (4h, 23 kg, 30 L min^-1) was in the central location and then explored the ranges of the three parameters in both directions. The spray precooling test was to study different test conditions and identify the best operating parameters of the spray hydrocooling box. There are 5 litchis were selected from the middle layer of litchi basket for monitoring pump temperatures, and PT100 temperature sensors were inserted in litchis pulp respectively. The litchi was taken out when the pulp temperature dropped to 8 °C, and replace with the litchi to be precooled. This was repeated until the water temperature of the TES tank reached 7 °C, ending precooling test.

4.4. Evaluation of spray hydrocooler performance

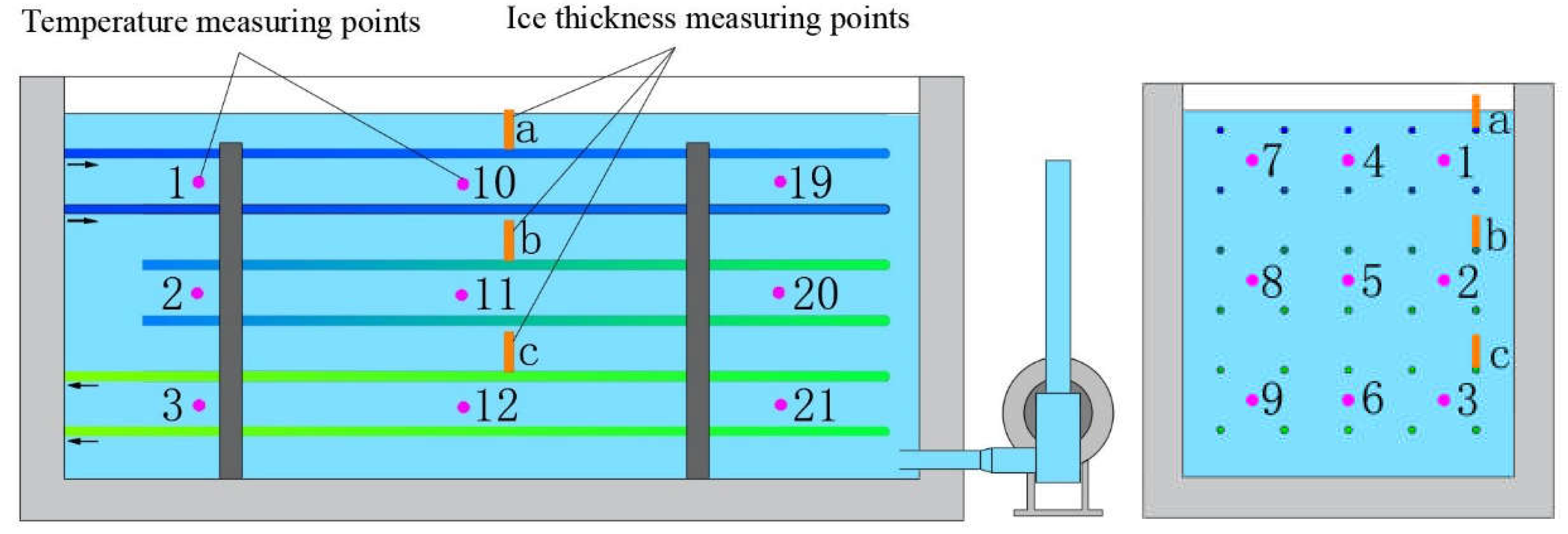

The water temperature (T_wat) was measured at three different layers (upper, middle and the lower) in the TES tank with 9 temperature sensors in each layer. In the charging process, the water temperature of each layer was considered the average value. During litchi precooling, the water temperature was represented by the mean value of these 27 temperature sensors.

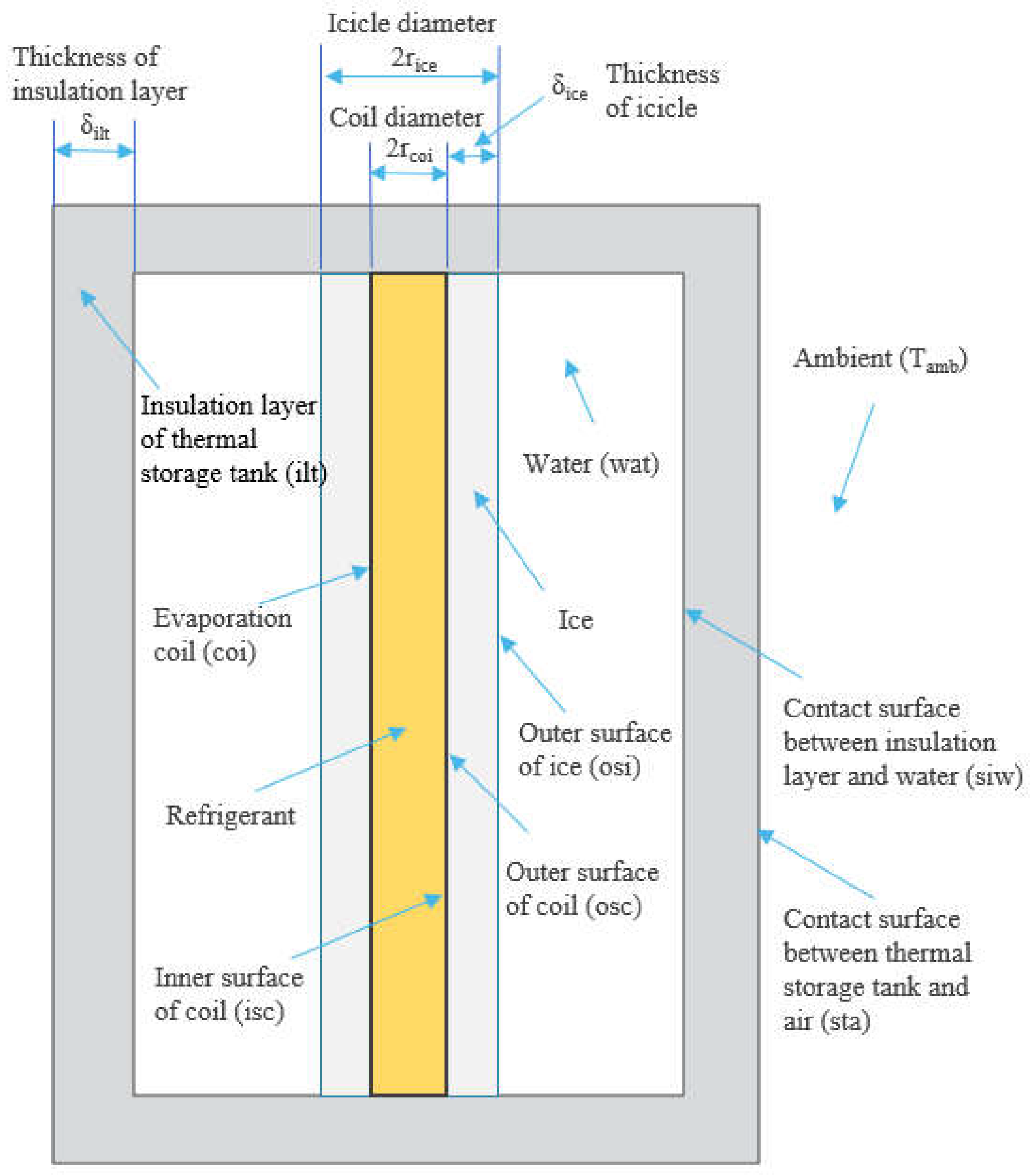

Ice thickness, δ_ice, as shown in Figure 2, it was the average value of the ice thickness.

The TES capacity (Q_chr) indicated the sensible heat released by the water cooling and latent heat released by the water freezing. It could be expressed as:

$$Q_{chr}=m_{wat}{c}_{wat}\left(t_{itw}-t_{wat}\right)+m_{ice}\left(c_{wat}{t}_{wat}+C_{ice}\right)$$

(21)

The effect TES capacity (Q_eff) refers to the thermal energy storage that can be used by litchi precooling. It was the part that uses the TES capacity to subtract the part that cannot be used, that was the part where the water temperature of the TES tank decreases from the initial temperature to the end of precooling temperature. It can be expressed as [44]:

$$Q_{eff}=Q_{chr-}{m}_{wat}{c}_{wat}\left(t_{itw}-t_{ttw}\right)=m_{wat}{c}_{wat}\left(t_{ttw}-t_{wat}\right)+m_{ice}\left(c_{wat}{t}_{wat}+C_{ice}\right)$$

(22)

$$m_{ice}={\rho }_{ice}\pi l_{coi}\left[{\left(\frac{\sum \left({\delta }_{ice}+r_{coi}\right)}{3}\right)}^2-{r_{coi}}^2\right]$$

(23)

The total power consumption (E_tal) including water pump power consumption in the spray precooling test and compressor power consumption in charging process can be expressed as:

$$E_{tal}=E_{spr}+E_{chr}$$

(24)

EER, the energy efficiency ratio is the ratio of TES capacity to power consumption. In order to obtain the real-time energy efficiency change and average energy efficiency change of the charging process, a 30 min energy efficiency ratio and average energy efficiency ratio are used. The 30 min energy efficiency ratio is the ratio of TES capacity and the energy consumption in 30 minutes, the average energy efficiency ratio is the ratio of TES capacity and the energy consumption since the beginning of charging. All expressed as[34]:

$$EER=\frac{Q_{chr}}{E_{chr}}$$

(25)

Precooling capacity (m_spr) refers to the precooling capacity refer to the total amount of litchi precooled until finishing precooling in one test.

Precooling time (t_spr), the precooling time refers to the time from the beginning of precooling to the finish precooling in one test when the water reaches 7 °C.

Precooling rate (u_spr), ratio of precooling capacity to precooling time in one test.

Average power consumption (E_kg), is the power consumption per kilogram litchi precooled. It is the most intuitive method to evaluate the cost of litchi precooling and an important index to evaluate the economy of precooling equipment. The average power consumption is given by:

$$E_{kg}=\frac{E_{tal}}{m_{spr}}$$

(26)

5. Results and discussions

5.1. Experiment Ⅰ: Charging of TES tank

5.1.1. Variation of water temperature and ice thickness

The variation of water temperature and ice thickness are shown in Figure 8. The water temperature decreased rapidly with charging time during the first 6 h, but the decrease became more gradual when the water temperature was lower than 5 °C. Before 6 h, the upper layer’s water temperature was higher than the lower and middle layers. From 0-6 h, the lower layer’s temperature was higher than the upper and middle layers. After 9 h, the water temperature remained almost unchanged and was in the range of 1.4 °C and 2 °C. The water density increases with the decrease of temperature when the water temperature is higher than 4 °C. The water density drops as the temperature decreases when the water temperature is lower than 4 °C. Hence, the sinking of colder water leads to the upper layer’s water temperature higher than the lower and middle layers when water is higher than 4 °C. On the contrary, the floating of colder water leads to the lower layer’s water temperature was higher than the upper and middle layers when the water temperature is lower than 4 °C[35].

It can be seen from Figure 8, the water around coils begins to freeze at 3.5 h. Initially, the ice thickness of the lower layer was more than the upper and middle layers. After 7 h of charging, the lower layer’s ice thickness was less than the upper and middle layers. The temperature of the lower layer was more than the upper and middle layers after 6 h, which resulted in reduced ice thickness in the lower layer after 7 h of charging. The ice thickness of upper, middle, and lower layers after 12 h of charging was 42 mm, 42 mm, and 39 mm, respectively, the average ice thickness was 41 mm which is close to the designed thickness of 40 mm. The mass of ice from the two refrigeration units was 143.3 kg and 141.3 kg, respectively, after 12 h of charging. The total ice storage capacity was 284.6 kg, which meets the design requirements of m_ice less than 272.5 kg.

5.1.2. Variation of TES capacity and EER

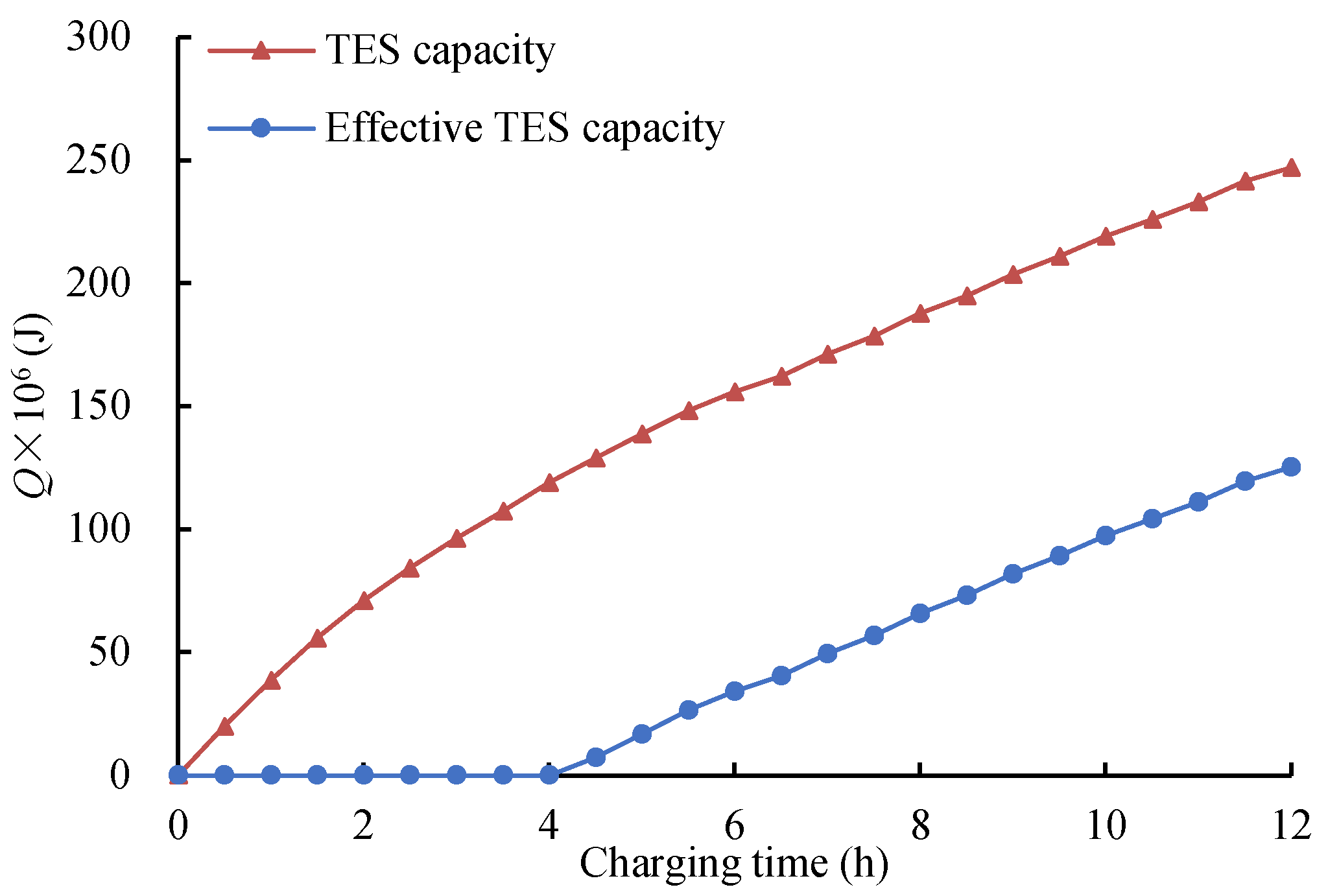

Figure 9 shows the changes of TES capacity and effective TES capacity with charging time. It can be seen from the figure that the TES capacity continued to increase, and the effective TES capacity was 0 in the first 4 h. After 4 h of charging, the effective TES capacity began to linear increase. After 12 h charging, the effective TES capacity reached 1.25×10⁸ J. The TES capacity was 2.47×10⁸ J, which was twice the effective TES capacity. It can be seen from Section 2.4 that the design TES capacity of the device was 2.4×10⁸ J, and the test value met the design requirements. The remaining 1/2 TES capacity that cannot be utilized was used to reduce the water temperature from initial state to 7 °C. If the remaining 1/2 TES capacity for reducing the water temperature of the TES tank can be reused, the power consumed by charging will be greatly reduced.

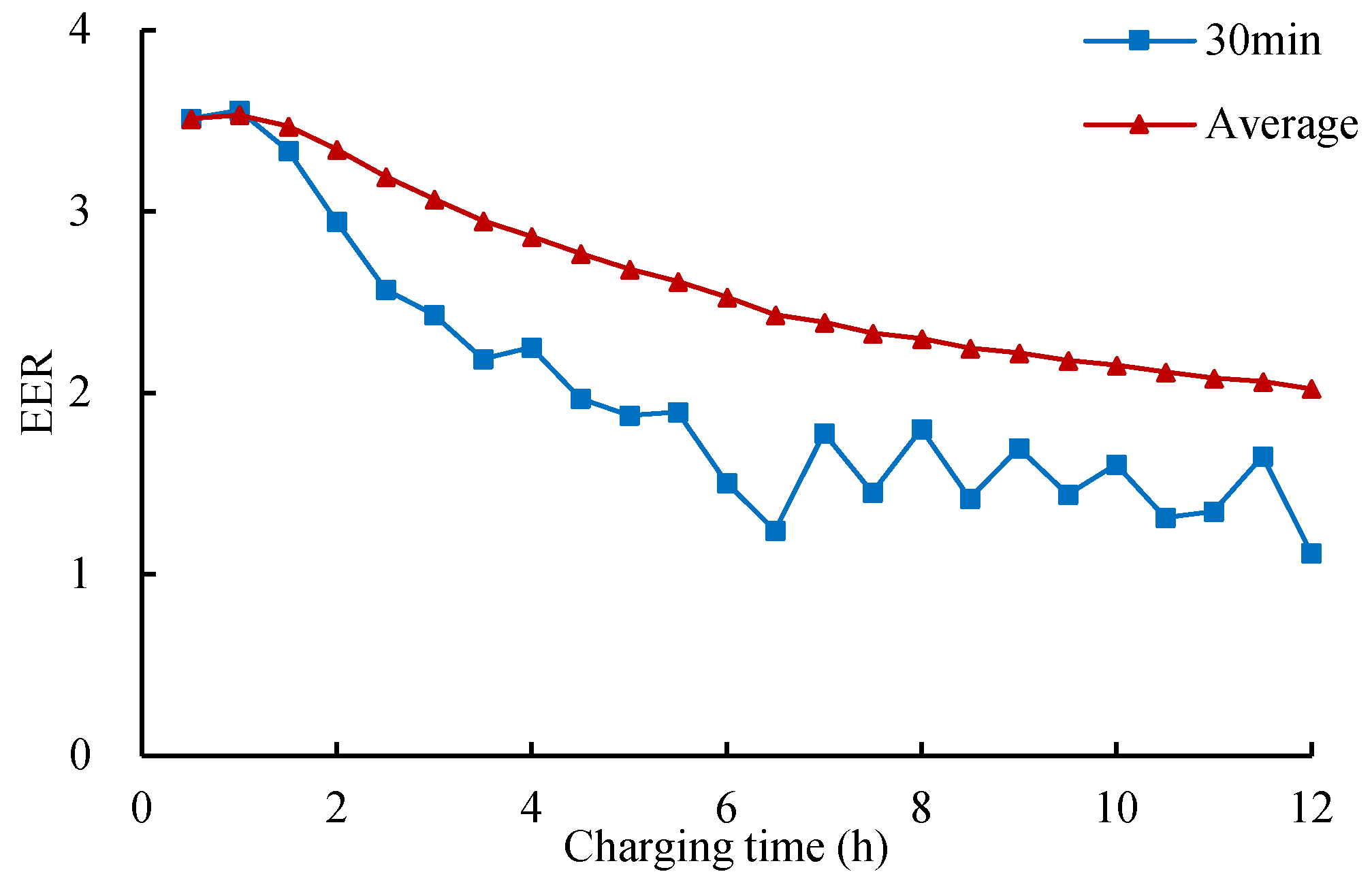

As shown in Figure 10, the 30 min EER in charging was stable and the maximum was 3.56 in one hour. It decreased rapidly after 1.5 h, and reached 1.24 at 6.5 h. Then followed by fluctuation, it reached the minimum value of 1.12 at 12 h. It showed that the efficiency of charging was high at the beginning, then decreased rapidly, and remained stable after 6 h. The fluctuation of EER during the charging process was due to the measurement error of TES capacity. But the fluctuation can’t influence the overall trend of EER in charging. However, the average EER was 3.5 at the beginning of the charging process, and gradually decreased after 1 hour, reached the lowest value of 2.0 at 12 h. From Figure 10 we can know, the longer the charging time is, the lower the EER of TES is.

5.2. Experiment Ⅱ: litchi spray hydrocooling performance

5.2.1. The temperature of litchi and water

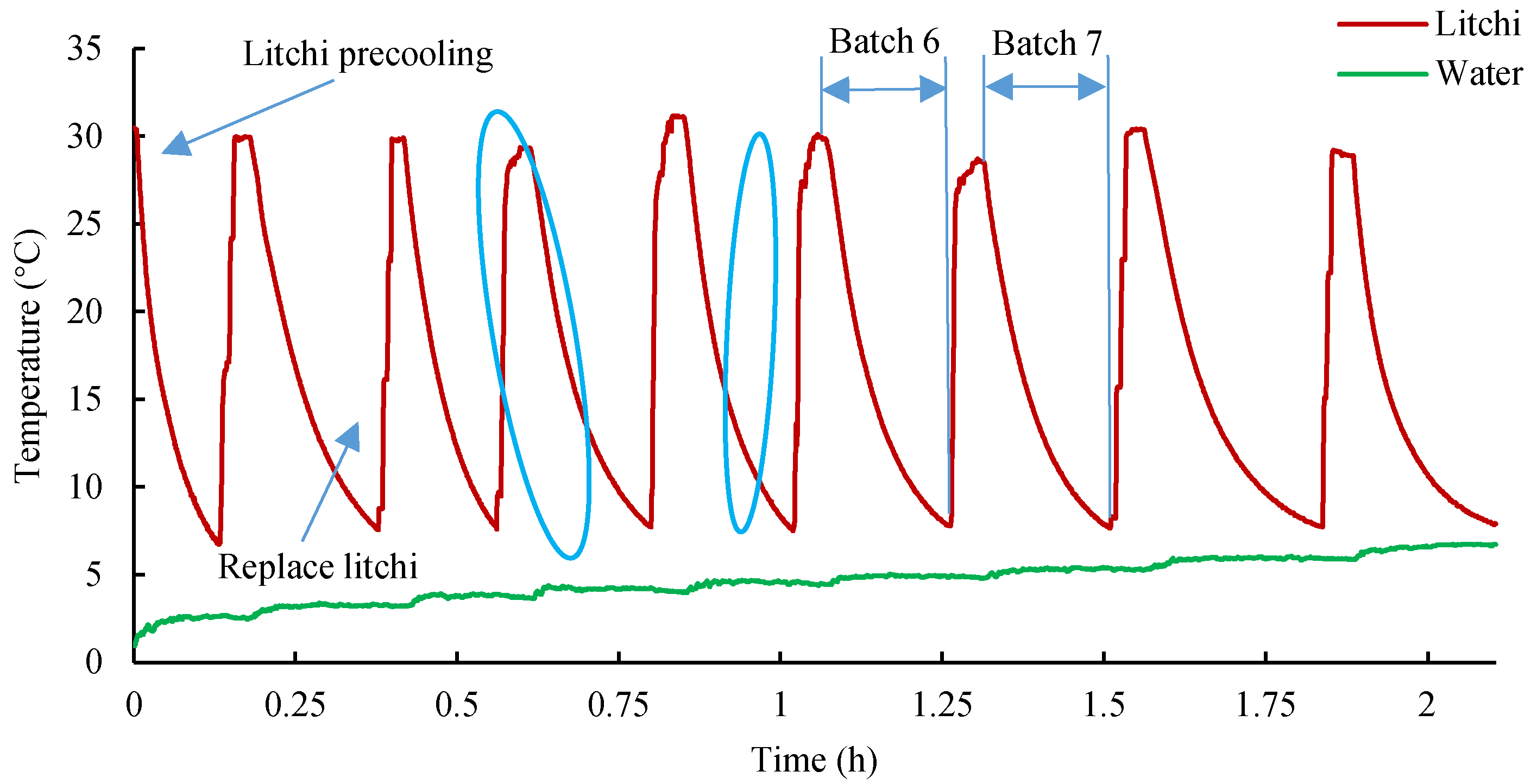

Figure 11 shows the variation curve of water temperature and litchi temperature during litchi precooling in test 2. It can be seen from the figure that the initial temperature of litchi was about 30 °C, and the end temperature of litchi precooling was 8 °C. There were 9 batches and a total of 207 kg of litchi that were precooled. The precooling water temperatures of 9 batches of litchi were 2.22 °C, 3.14 °C, 3.71 °C, 4.16 °C, 4.5 °C, 4.86 °C, 5.23 °C, 5.84 °C, 6.53 °C, and the precooling times were 6.53 min, 11.27 min, 8.3 min, 10.83 min, 9.53 min, 10.97 min, 10.97 min, 15.4 min and 12.63 min respectively. The average precooling time of a single batch was 11 min, which was 10% higher than the design value. During the precooling process, all the ice had melted when the water temperature reached 7 °C, and the water temperature of the TES tank rised steadily.

5.2.2. Precooling capacity and precooling rate

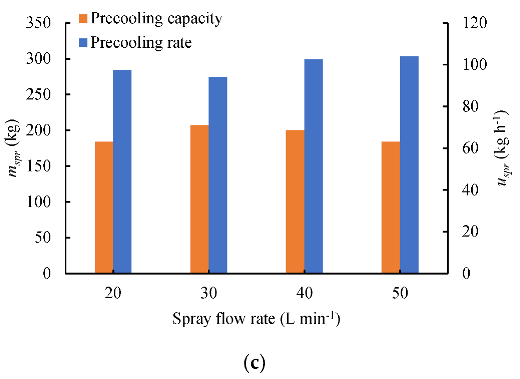

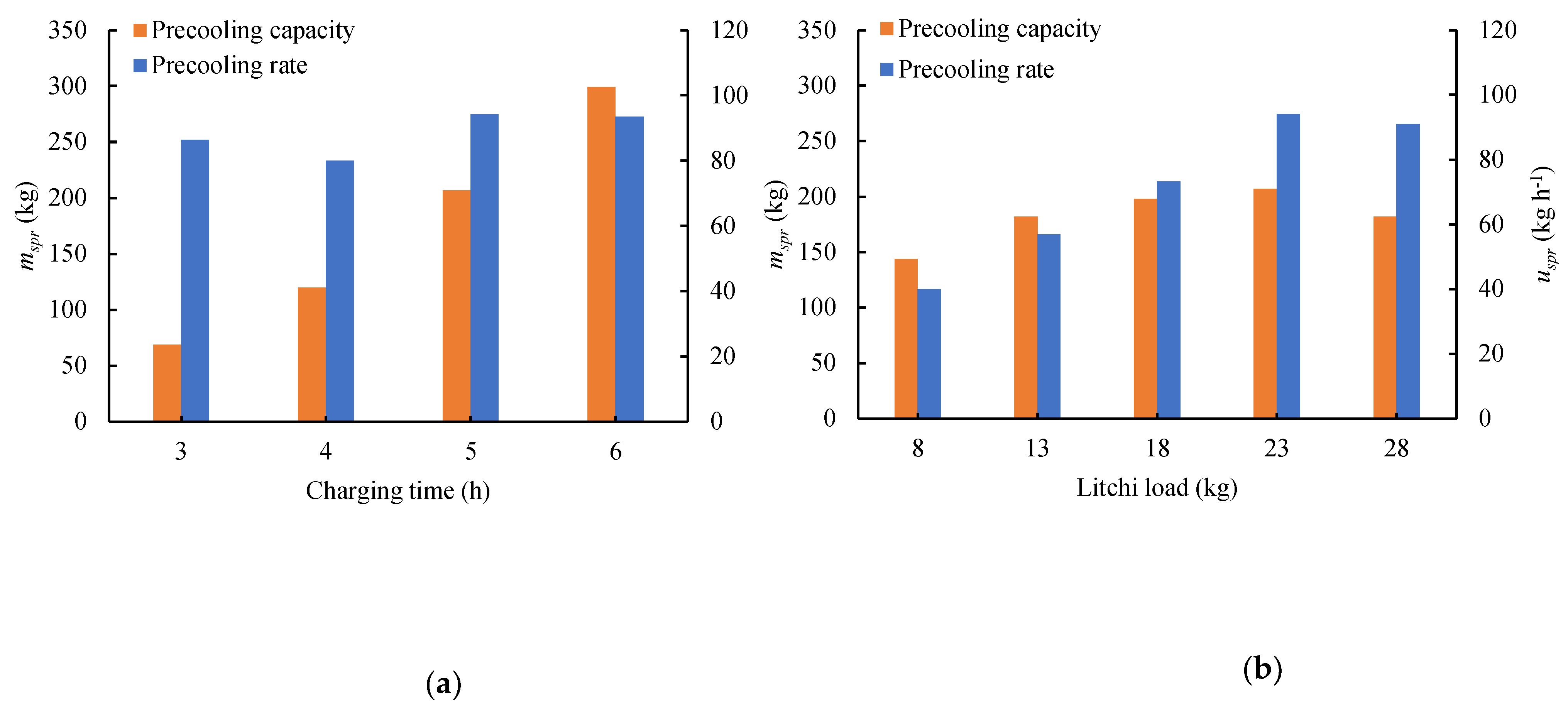

Figure 12 shows the litchi spray precooling capacity and precooling rate for litchi at different experimental conditions. Figure 12a shows that the precooling capacity increased simultaneously with charging time while the precooling rate did not change significantly. It was obvious that the precooling rate of 5 and 6 charging tests were faster than that of 3 and 4 h charging tests. The weight of litchi precooled reached 299 kg after 6 h charging with one-third water of TES tank. When the TES tank was full of water, the precooling capacity of litchi would exceed 900 kg. Because the TES capacity increases, the relative thermal energy loss will decrease. Figure 12b shows that the precooling capacity initially increased and then decreased with increase of litchi load. The precooling rate significantly rise until the litchi load was more than 23 kg. The maximum precooling capacity was 207 kg and the maximum precooling rate was 94.1 kg h^-1 when the litchi load was 23 kg. Figure 12c shows that the precooling capacity at 30 L min^-1 was higher than other spray flow rate. When the spray flow rate was 50 L min^-1, it had a minimum precooling capacity. The precooling rate at 50 L min^-1 was higher than other spray flow rate, when the spray flow rate was 30 L min^-1, it had a minimum precooling rate. The precooling capacity and precooling rate for different spray flow rates had a small difference. Overall, the precooling capacity obviously increased with increase of charging time, and precooling rate went up with the increase in the litchi load when the litchi load was less than 23 kg.

5.2.3. Total power consumption and average power consumption

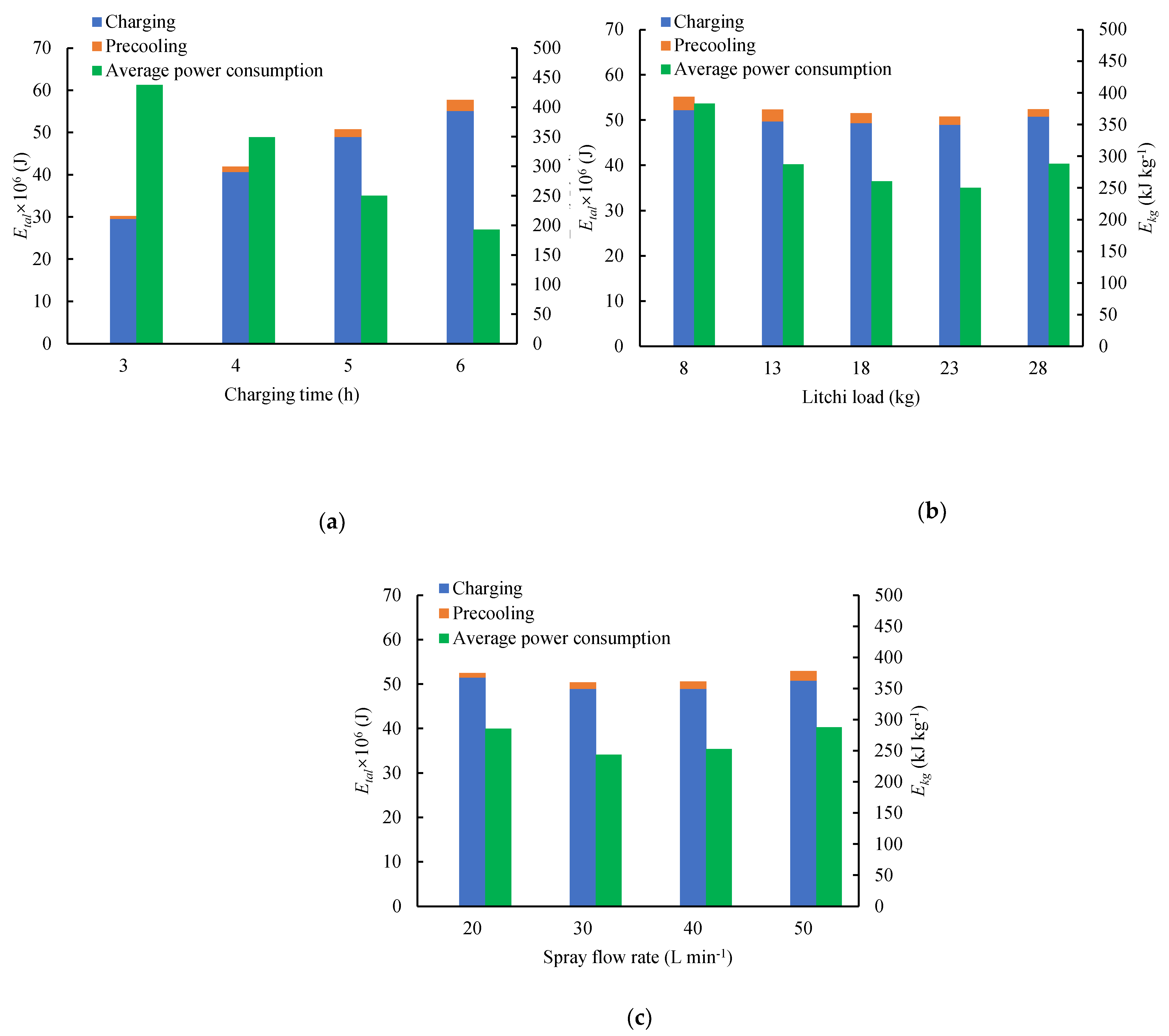

Figure 13 shows the total power consumption and average power consumption of litchi spray precooling at different experimental conditions. Figure 13a shows that charging and precooling power consumption increases with charging time, and charging power consumption was significantly higher than that of precooling. In contrast, the average power consumption of litchi decreased significantly with increases in charging time. The average power consumption of litchi precooling was 437 kJ kg^-1, 349 kJ kg^-1, 250 kJ kg^-1, and 193 kJ kg^-1 for charging times of 3 h, 4 h, 5 h, and 6 h, respectively. The average cost can be reduced by increasing the TES capacity within the limits of the hydrocooler capacity. Figure 13b,c shows a little power consumption difference during 4 h charging in different tests. There was probably an environmental effect at natural condition. The maximum energy consumption difference in the charging process was 2.52×10⁶ J.

From Figure 13b can be seen that the precooling energy consumption significant increase with low litchi load and average energy consumption also significant increase with low litchi load. When the litchi load reaches 8 kg, the maximum average energy consumption is 383 kJ kg^-1. The minimum average power consumption is 250 kJ kg^-1 when the litchi load was 23kg. As seen in Figure 14c, the minimum average power consumption of litchi was at spray flow rate of 30 L min^-1, and 40 L min^-1 spray flow rate was a little higher. The average power consumption of 30 L min^-1 and 40 L min^-1 spray flow rate were 243 kJ kg^-1 and 253 kJ kg^-1, respectively. The optimal spray flow rate is 30 L min^-1 in litchi spray precooling, followed by 40 L min^-1.

6. Conclusions

In this study, a novel spray hydrocooler based on TES was developed, manufactured, and tested.

(1) The capacity of TES, the thermal resistance of ice-on-coil, and the refrigeration system were analysed theoretically. The structure and components of the spray hydrocooler were designed and tested.

(2) Charging test and litchi spray precooling experiments were carried out at different charging times, spray flow rate, and litchi load. The results showed that the spray hydrocooler can achieve the rapid and effective precooling of litchi in the producing regions.

(3) In the charging process, the ice thickness was 41 mm, the ice storage capacity was 284.6 kg, and the TES capacity was 2.47×10⁸ J after 12 h charging, which meets the design requirements. Charging time was the most important factor influencing the precooling capacity and average power consumption. Increasing charging time was an effective way to increase the precooling capacity and reduce the average power consumption.

(4) In litchi precooling process, when the litchi load is 23 kg and spray flow rate is 30 L min^-1, the spray hydrocooler has the largest precooling capacity and the smallest average power consumption of litchi spray precooling.

The precooler provides a feasible scheme for precooling litchi in small orchards. Simultaneously, the use of valley value electricity price for TES can significantly reduce the operating cost. In the future, improving the energy efficiency of ice-on-coil, the utilisation rate of a thermal storage tank, and the cooling uniformity of litchi can improve the performance of the spray hydrocooler.
