Direct Femtosecond Laser Processing for Generating High Spatial Frequency LIPSS (HSFL) on Borosilicate Glasses with Large Area Coverage

1. Introduction

For the past few decades, generation of Laser Induced Periodic Surface Structures (LIPSS) on various materials is studied extensively due to its vast applications in optoelectronics, photonics, plasmonics, biomaterials and thermal radiation sources [1,2,3,4,5]. LIPSS can be generated on any kind of solid material by irradiating the material surface with any linearly polarized laser light having a fluence near the ablation threshold [6]. Ultrashort pulsed lasers are efficient in generating LIPSS on nearly all kind of solid materials [2,7]. It can create LIPSS on metals, semiconductors and even dielectrics [8,9,10]. Based on the spatial periodicity of the induced structures, LIPSS can be categorized into two main divisions: those with Low Spatial Frequency and those with High Spatial Frequency. Low spatial frequency LIPSS (LSFL) are having a periodicity close to the laser wavelength λ (Λ_LSFL > λ/2) and high spatial frequency LIPSS are having a periodicity less than half of laser wavelength λ (Λ_HSFL < λ/2)[11]. It is generally agreed that the formation of LSFL is caused by the interference of the incident laser beam with a surface electromagnetic wave (SEW) [10,12] and/or surface plasmon polaritons (SPPs) [7,13,14].

The formation of High Spatial Frequency LIPSS (HSFL) has been debated, with various theories suggesting self-organization [12], nanoplasmonic excitations [15,16], interference and second-harmonic generation [17,18,19], etc. Linearly polarized femtosecond laser writing with high pulse energies and long pulse duration results in formation of self-organized periodic nanostructures. Reported structures in fused silica are of orientation perpendicular to electric field vector. The existence of a steady average period irrespective of target motion suggests a self-replication mechanism behind formation of nanogratings [20]. According to nanoplasmonics, as pulse fluence reaches the ablation threshold, a pair of peripheral nanoplasma zones are created leading to local intensity enhancement, as in the case of the central nanoplasma zone. This evolution of the onset of side-maxima and the corresponding “self-seeding” from the incubation effect led to the formation of the periodic structure [15]. The interference effect is also a significant mechanism that predicts HSFL formation. Multi-photon absorption produces electrically unstable surfaces that result in intense emission of electrons and positive ions, hence forms surface plasma and plasmons [21]. Surface plasmons are excited and interfere with absorbed laser field. Then, intensity is strongly reprofiled and shows periodic patterns that locally enhances the field and ablation which leads to the formation of periodic structures [22]. As the ripples grow, the grating assisted surface plasmon-laser coupling plays an important role in further process [23]. Besides these, compound materials are anticipated undergoing modifications during multi-pulse irradiation. Thus, near surface region of these materials might facilitate harmonic generation and explain an orientation insensitivity. There is an approximate correspondence that some of HSFL periods are laser second harmonic wavelengths [24].

The spatial periodicity of the LIPSS under the irradiation with femtosecond laser pulses has been found to depend upon various experimental parameters such as incident laser wavelength [25,26], laser fluence [27], polarization [28], number of pulses [13], the ambient environment [29,30] and also the properties of the material [31]. Taher et al. reported the variation in the spatial periodicity of LSFL from λ/1.7 to λ/4.7 and HSFL from λ/8 to λ/30 upon increasing the wavelength from 400 nm to 2200 nm [25]. Shi et al. reported that the laser fluence plays a vital role in the formation of LIPSS and they show that lower fluence corresponds to the generation of HSFL while higher fluence corresponds to the generation of LSFL [27]. Bonse et al. showed that at a fixed peak fluence, the mean spatial periodicity of LIPSS generated on a single crystalline silicon is decreased monotonously between 770 nm and 560 nm as on varying the number of shots from 1 to 1000 [13]. Gregorčič et al. reported that the rotation in the polarization of the irradiated picosecond laser pulse resulted in corresponding rotation in the ripples produced on a steel substrate [28]. Gräf et al. reported that the threshold fluence for the formation of low-spatial frequency LIPSS (LSFL) on fused silica is reduced and the periodicity of LSFL is increased up on increasing the substrate temperature [29]. Nürnberger et al. reported that the orientation of LIPSS generated is influenced by the grain structure as well as the crystal orientation of each individual grain of the substrate [31].

The superior mechanical, physical, and chemical characteristics of materials such as borosilicate glass, soda-lime glass, and fused silica make them an ideal choice for applications in optics, microfluidics, photovoltaics, and biomaterials [32]. Femtosecond laser assisted processing has become a powerful and efficient way for nano/microfabrication of glass surfaces [33]. There are many works that have reported the formation of LIPSS on glass [10,34]. But most of them are limited to single spot or a line segment. The lack of investigations is due to difficulties with LIPSS generation on glasses, which are mostly brought on by their amorphous chemical structure and comparatively high band gap energy when compared to metals and semiconductors. This high band gap energy causes ultrashort laser pulses to undergo a non-linear, multi-photon absorption. These properties make glasses more vulnerable to changes in laser irradiation, defects, and incubation. Also, only few works are reported on generating LIPSS on borosilicate glass when compared to that of other types of glass. The LSFL are typically formed for higher laser fluences or number of pulses on silica-based glasses [10,34,35,36]. The HSFL was observed only in few glasses[10,37]. Höhm et al. has reported the generation of high-spatial-frequency LIPSS with spatial periods between 170 nm and 450 nm and orientation perpendicular to the polarization on silica using femtosecond laser with central wavelength 800 nm and pulse duration 150 fs [10]. This work mainly aims to explore the potential for creating high spatial frequency LIPSS (HSFL) over a large surface area of borosilicate glass. Additionally, we studied the optical and wetting characteristics of the induced structures.

2. Materials and Methods

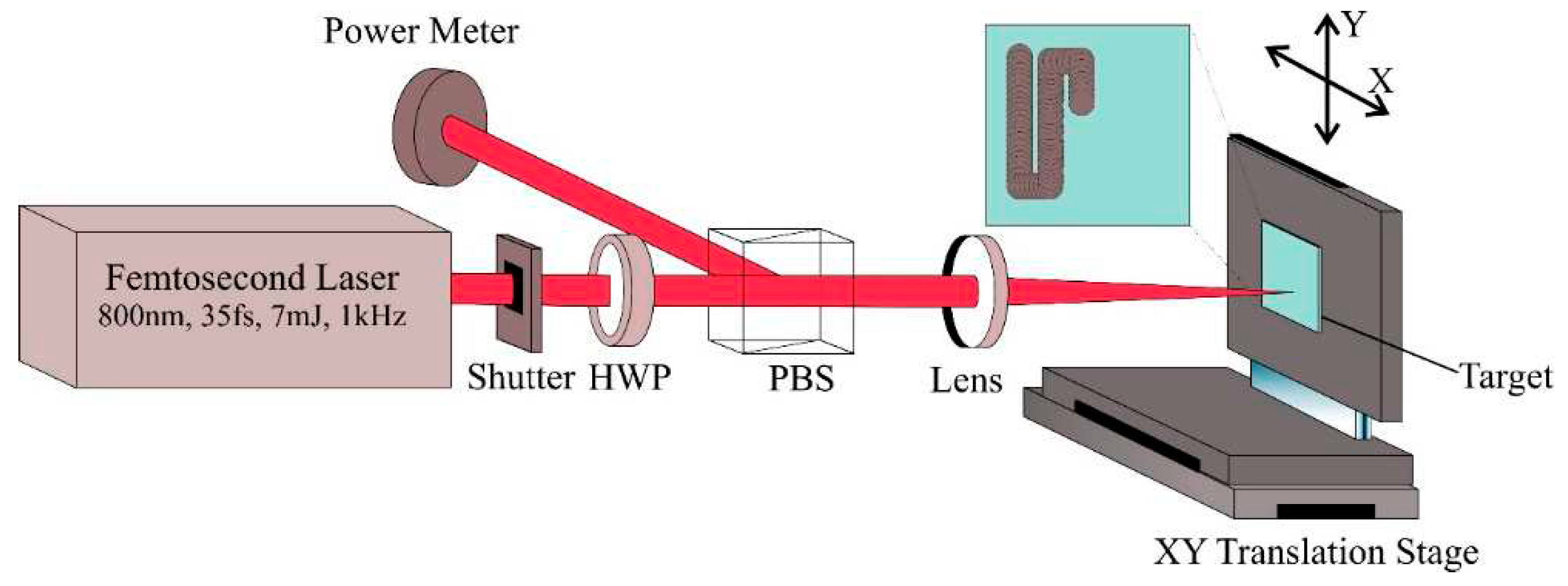

Surface texturing of Borosilicate glass was done by irradiating with a Ti-Sapphire femtosecond laser system (Coherent Astrella) which emits a linearly polarized laser pulse of energy 7 mJ and a pulse duration of 35 fs. The laser has a central wavelength of 800 nm and a repetition rate of 1 kHz. An electromechanical shutter is used to control the laser dose on the target. A combination of half-wave plate and polarizing beam splitter was used in the optical path for precise control of laser energy and to choose a particular polarization. The beam was focused using a lens of 300 mm focal length onto the surface of the sample at normal incidence. Optically flat Borosilicate glass of thickness 130 μm is used as the substrate which has been mounted on a motorized XY translation stage for line-by-line scanning. All the texturing processes were carried out in atmospheric conditions and the complete schematic is shown in Figure 1.

The ablation threshold for different number of shots was determined using the D square method or Liu’s method [38] and the incubation parameter was determined using the accumulation model by Jee et.al [39]. For this the surface of the substrate is irradiated with different number of shots ranging from 10 to 100 with different pulse energies ranging from 20 μJ to 100 μJ. The generation of LIPSS upon the variation in pulse number and pulse energy was studied by analyzing the topography of the crater formed on the substrate. Also, the generation of LIPSS over a single line was investigated for scanning orientation parallel and perpendicular to the laser beam polarization by varying the scanning speed. The large-area structuring was done by line-by-line scanning over an area of 10 x10 mm² with a peak laser fluence of 2.71 J/cm² at a scanning speed of 2000 μm/s along a scanning orientation parallel to the polarization axis.

The topographical analysis of the processed substrate surface was done using a Field Emission Scanning Electron Microscope (Carl Zeiss Sigma VP) and Atomic Force Microscope (Keysight 5500AM). Also, the reflectance and transmittance of the processed substrate surface was done using a UV-Visible-near IR spectrophotometer (Jasco V770). The wetting properties of the processed substrate surface was analyzed using a contact angle goniometer (Rame-hart 290-U1).

3. Results and Discussion

3.1. Ablation Threshold Estimation

The ablation threshold of borosilicate glass was estimated using D squared method introduced by Liu [38]. According to this method, the diameter of the ablation crater is related to the applied laser fluence through the equation,

$$D^2=2{\omega }_o^{2}ln\left(\frac{F}{F_{th}}\right)$$

(1)

where D is the crater diameter, ω_o is the beam radius at 1/e² the peak value, E is the laser pulse energy, F is the peak fluence of the incident laser pulse and F_th is threshold fluence. For a gaussian laser profile, threshold peak fluence (F_th) can be related to the threhold pulse energy(E_th) by,

$$F_{th}=\frac{2E_{th}}{\pi {\omega }_o^2}$$

(2)

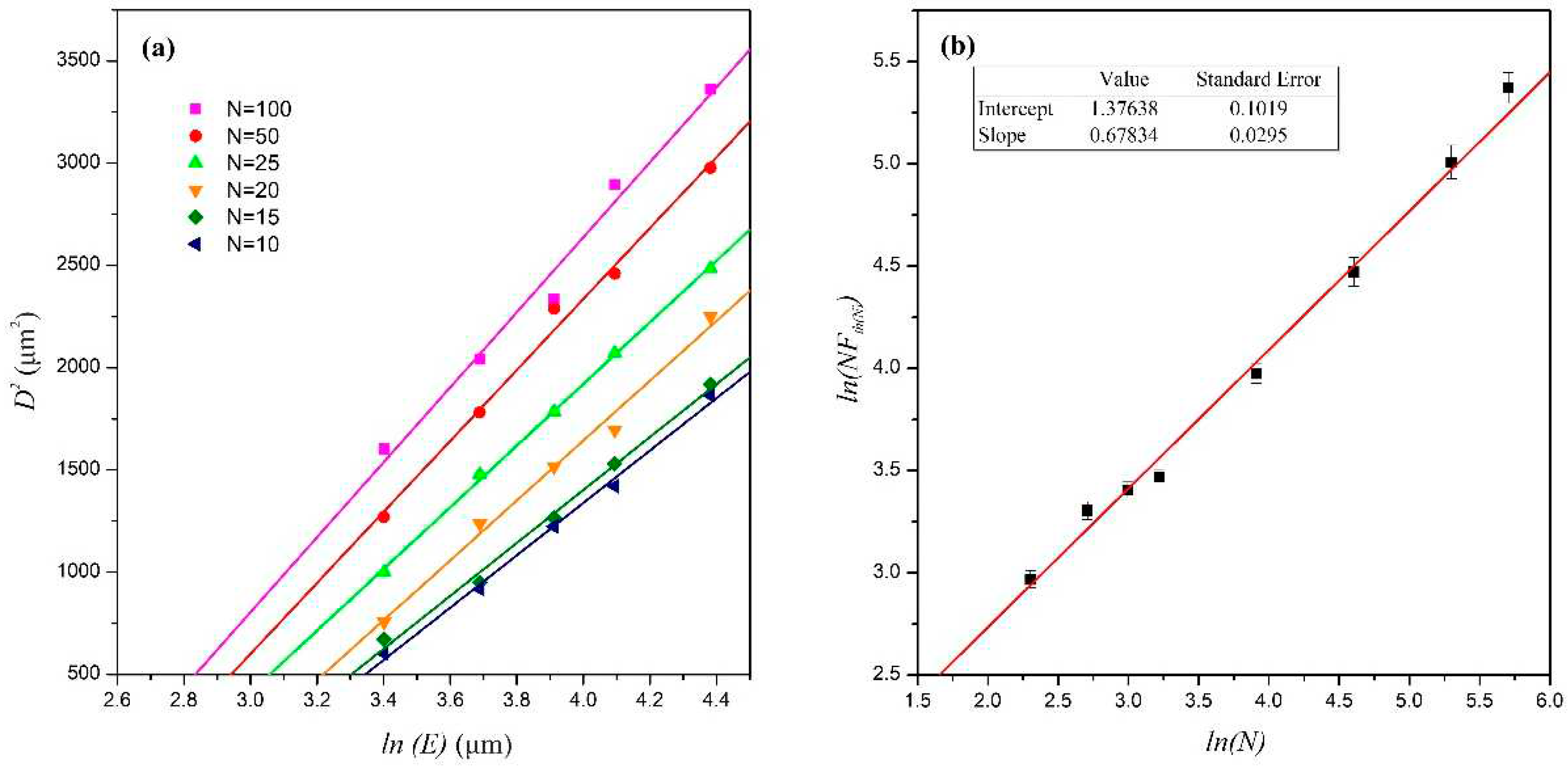

Diameter of the crater was estimated accurately from the FESEM images. The beam waist was estimated by plotting the square of the crater diameters (D²) versus the logarithm of the laser pulse energy (E) for different numbers of irradiated laser pulses as shown in Figure 2a and the value was found to be 27.12±1.95 μm. The peak fluence versus crater diameter plot for different numbers of overlapping pulses is shown in Figure 2a. The threshold fluence (F_th) for different number of shots was estimated by extrapolating the least square fit.

From Figure 2a it is found that the ablation threshold decreased from 1.94 J/cm² to 0.87 J/cm² when the number of laser pulses increased from 10 to 100 shots, which is caused by the material-dependent "incubation effect” [40,41,42]. The incubation effect is attributed to be due to the generation of surface defects by the interaction of multiple laser pulses with fluences lower than the single-shot ablation threshold. These defects can cause ablation at lower threshold levels, as they alter the mechanical and/or chemical properties of the material[43,44]. In the case of femtosecond laser ablation, the most likely hypothesis on the origin of incubation is an increment in surface roughness after multi-shot irradiation, due to ripple formation or accumulation of surface defects. The initial laser pulses cause imperfections in the material, allowing subsequent pulses to be absorbed better and thus improving the ablation and material removal process [45].

The observed accumulation behavior has been explained in terms of an incubation model by Jee et al. [39]. The ablation threshold fluence F_th(N) for N laser shots is related to the single-shot ablation threshold fluence through the power law:

$$F_{th\left(N\right)}=F_{th\left(1\right)}{N}^{S-1}$$

(3)

The incubation coefficient S serves to quantify the degree of accumulation which is present in a material. When S equals 1, the effect of accumulation is null. It can be understood from Eq. (3) that the logarithm of the product N F_th(N) is proportional to ln N with the proportionality constant S. From Figure 2b the slope of the plot, which is the incubation parameter, was found to be S = 0.68±0.03 and using the Eq. (3) the ablation threshold for single shot was found to be F_th(1) = 3.87±0.26 J/cm². Gräf et al. reported an ablation threshold of 4.1 J/cm² for borosilicate glass upon irradiating with 5 shots of femtosecond laser pulse having pulse duration 300 fs, a central wavelength 1025 nm [36].

3.2. Single Spot Analysis

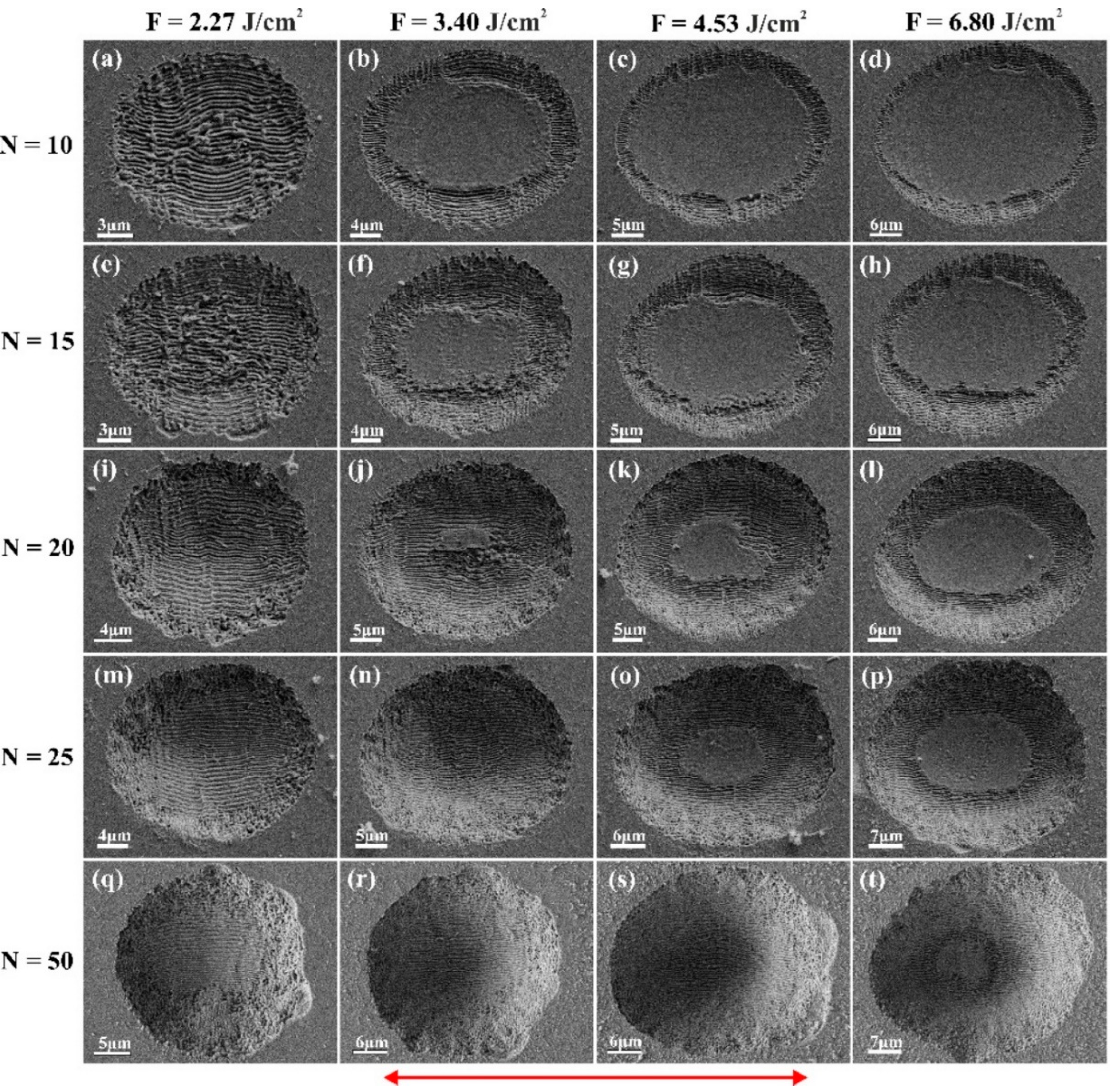

The evolution of LIPSS on borosilicate glass at a single spot is analyzed by varying the number of shots and the fluence of the incident laser light. The FESEM image of the crater formed on borosilicate glass irradiated with different number of linearly polarized femtosecond laser pulses at different peak fluences is shown in Figure 3. The laser peak fluence is varied from 2.27 J/cm² to 6.80 J/cm² and the number of pulses varied from 10 to 50. It is observed that Laser Induced Periodic Surface Structures (LIPSS) having an orientation parallel to the electric field vector is formed on the borosilicate glass surface when it is irradiated with femtosecond laser pulses in the investigated parametric range. When the number of irradiated laser pulses is increased by keeping the laser peak fluence at a fixed value, say F = 2.27 J/cm² (Figure 3a,e,i,m,q), the peripheral region of the crater was found to be losing its periodic nature leading to the formation of random nano/microstructures over the outer region of crater. Also, on increasing the irradiated laser peak fluence for a fixed number of shots, say 10 shots (Figure 3a‒d), melt formation was observed at the central region of the crater where the intensity is maximum for a gaussian beam profile and LIPSS formation is limited to the peripheral region of the crater. Gräf et al. and Ben-Yakar et al. reported the melt formation at the center of the crater of borosilicate glass at higher laser peak fluences [36,46].

When a substrate is irradiated with ultrashort laser pulse, a major portion of the absorbed energy by the substrate will be utilized by the plasma to expand into its surrounding gas [47]. A small portion of it remains in the substrate as thermal energy. This thermal energy deposited in the bulk of the glass forms a transient shallow area of molten glass beneath the expanding plasma [48]. During the lifespan of the melt, the forces (thermocapillary forces and the forces by the plasma pressure) acting on the molten material drive the liquid to the crater's edges, and when the melt resolidifies, they produce a raised rim around the ablated crater [46]. According to Gräf et al. these melt formations are unaffected by inter-pulse effect of heat accumulation due to the sequential irradiation of laser pulses [36]. But in our studies, we found that the size of these melt formations is reduced and even gets totally removed as on increasing the number of shots (Figure 3n,r,s).

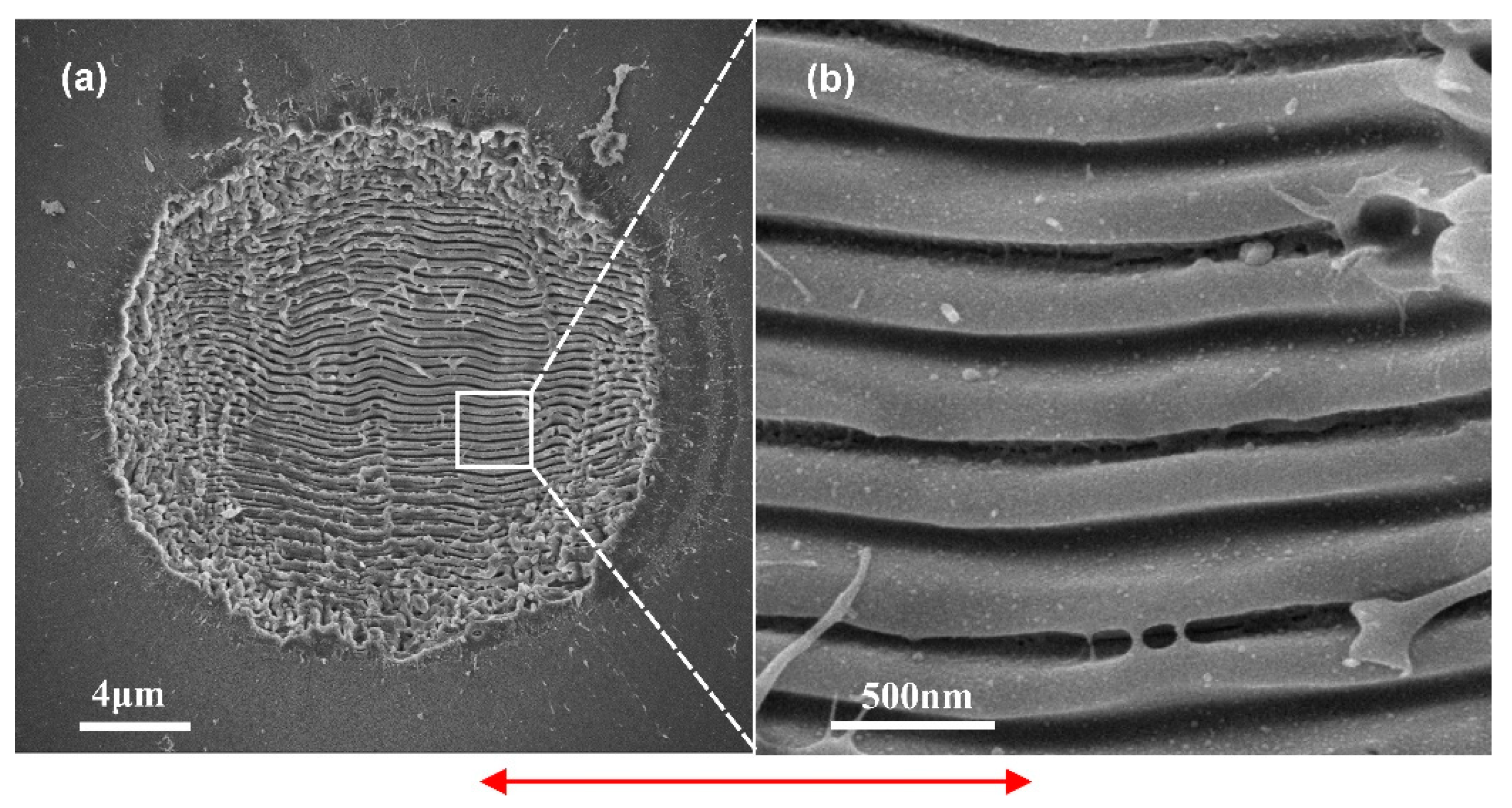

Upon observing the topography of a crater formed by irradiating the substrate with 20 laser shots having a fluence of 2.27 J/cm² (Figure 4), it was found that the LIPSS formed on the surface are having a periodicity 320±60 nm. These kind of LIPSS having periodicity less than half of the wavelength of the laser are categorized to be high spatial frequency LIPSS(HSFL) [11].

3.3. Large Area HSFL

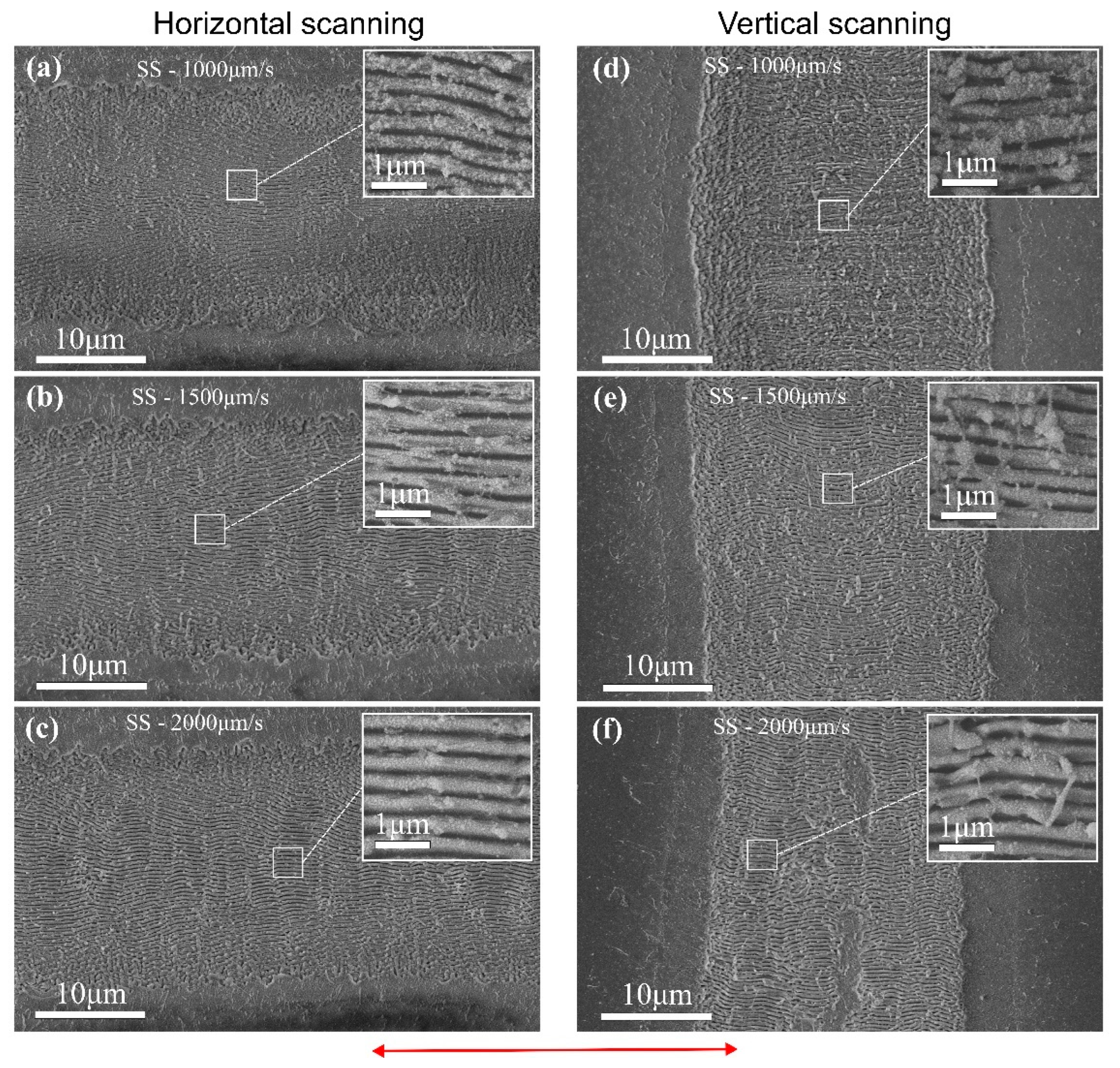

Based on the single-spot trials, further investigations were aimed to realize large areas homogenously structured with high spatial frequency LIPSS (HSFL). For the generation of a large area with HSFL, the LIPSS formation behavior in a single scan line along parallel and perpendicular to the axis of the electric field vector is studied. For this the surface of the substrate is irradiated in a scanning manner with a laser peak fluence of 2.71 J/cm² at different scanning speeds, say 1000 μm/s, 1500 μm/s and 2000 μm/s, along the horizontal and vertical scanning directions.

The HSFL generated at different scanning speeds are found to be having almost same periodicity. At lower scan speed of 1000 μm/s (Figure 5a,d) the redeposition of nanoparticles is high when compared to that of higher scan speeds. When comparing the structures according to the scanning orientation, scanning along the vertical axis (⊥ to the direction of the electric filed vector) is found to be having more redeposition than scanning along horizontal direction (∥ to the direction of the electric filed vector). Also, at a higher scanning speed of 2000 μm/s along vertical direction (Figure 5f) the melt formations are observed. So, it is clear that the orientation of the scan axis with the laser beam polarization significantly affects the uniformity of large-area processing, with redeposition and melt formation being higher when the scan axis is perpendicular to the laser beam polarization.

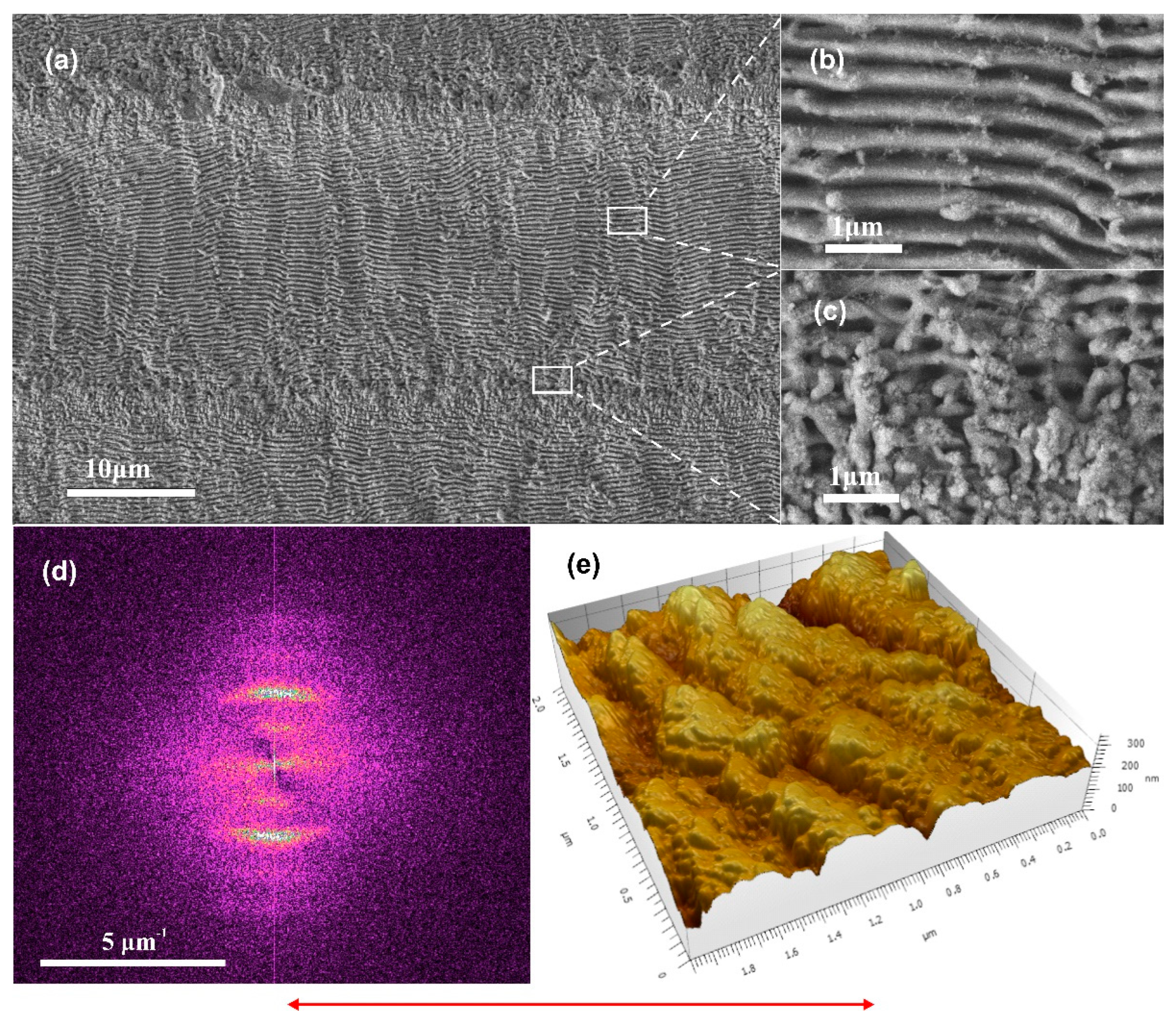

The large area HSFL on borosilicate glass is generated by line-by-line scanning of the glass surface at a scan speed of 2000 μm/s along the horizontal direction with a laser peak fluence of 2.71 J/cm². Since the single line analysis revealed that the width of the ablated area was found to be ~22 μm the spacing between the lines was fixed to be ∆x = 22 μm. The FESEM image of the HSFL generated on borosilicate glass and the magnified image of the central area of the scan line and the overlapping area of the two-scan line is also shown in Figure 5a‒c. The interface of the two lines is observed to be losing its periodicity and this is due to the incubation effect. The 2D Fourier transform (FFT) (Figure 5d) of the large area shows that the periodicity of the HSFL is ~380 nm. Also, the AFM measurements (Figure 5e) reveals that the depth of the grooves are ~130 nm.

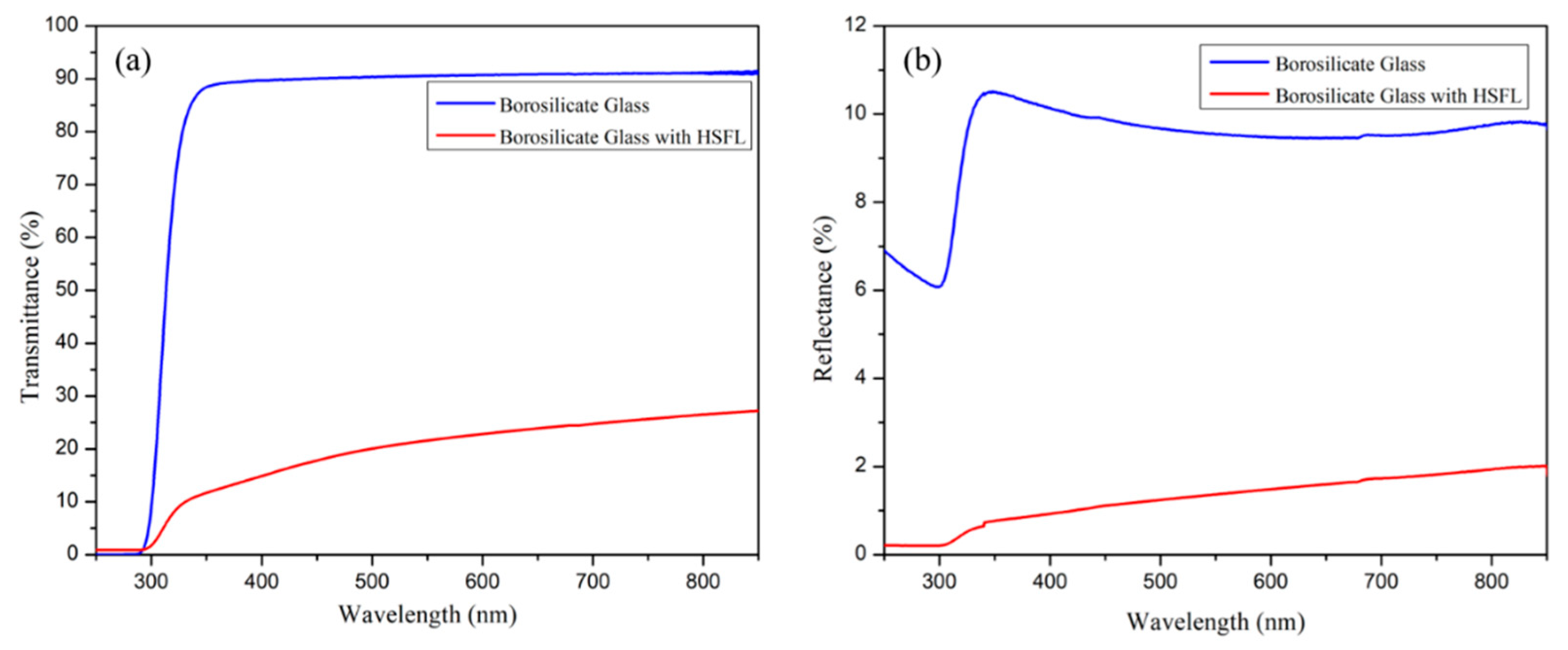

The transmittance and total reflectance of the surface structured borosilicate glass were measured and compared with the unstructured borosilicate glass. As shown in Figure 7a,b the transmittance and the reflectance of the glass surface were significantly reduced after HSFL formation. This may be due to the scattering or absorption by the micro/nanostructures, and degradation of material property by laser irradiation [34]. The low reflectivity of the material surface can be attributed to the anti-reflective properties of the periodic structures, which have been discussed in multiple investigations [49,50]. The reduction in the transmission can be attributed to be due to the crystal formation at the surface of the glass, which alters the absorption characteristics of the incident radiation [51].

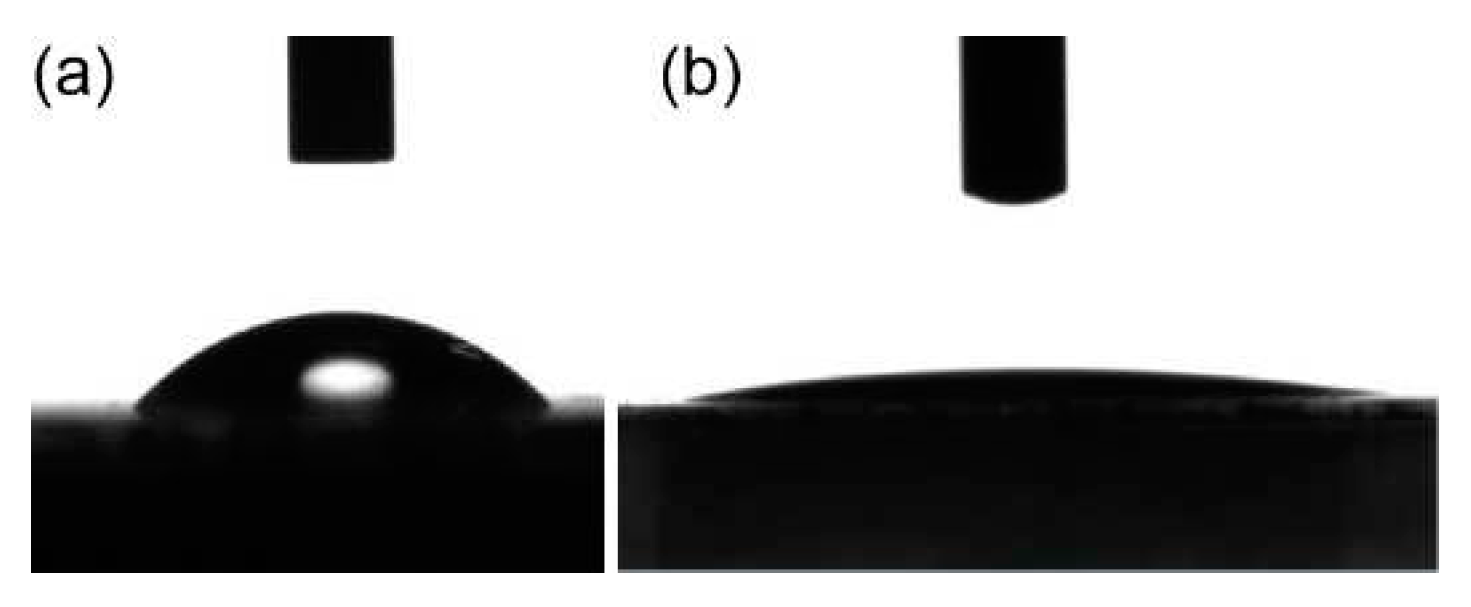

The wettability of the structured borosilicate glass is compared with the unstructured borosilicate glass by taking the contact angle measurement(Figure 8a,b). The initial, non-irradiated borosilicate glass surface is characterized by a contact angle of θ ≈ 42⁰, which corresponds to the hydrophilic behavior of the glass surface. After the formation of HSFL, the contact angle was decreased to θ ≈ 8⁰, which corresponds to a superhydrophilic behavior of the surface. This super hydrophilic behavior of borosilicate glass with HSFL can be explained using Wenzel’s model, it takes into account how the roughness factor r affects the contact angle of an initially flat surface according to the equation cos θ_w = r cos θ [52], where the roughness factor r is the ratio of actual surface area to the geometrical surface area. So according to this relation the theoretical roughness factor can be estimated as r = 1.33. But from the AFM measurements the roughness factor can be estimated as r = 1.35. This deviation in the roughness factor is due to the fact that the Wenzel model only considers the topographical aspects whereas Kietzig et al. reported that the surface chemistry also has significant effect on wetting properties [53].

5. Conclusions

We investigated the generation of high spatial frequency laser-induced periodic surface structures (HSFL) on borosilicate glass using femtosecond laser pulses. The effects of laser fluence (F), number of laser shots (N), and scan direction with respect to laser polarization on large-area surface structuring were thoroughly investigated. We measured the single pulse ablation threshold (F_th=3.87±0.26 J/cm²) and incubation factor (S=0.68±0.03) of Borosilicate glasses for precise control for large area surface structuring. Single-spot experiments show that uniform LIPSS formation is limited by melt and crater formation inside the irradiated area for higher fluence and a larger number of irradiated laser pulses. The optimized conditions were used to create large areas of high-spatial-frequency laser-induced periodic surface structures (HSFLs) with a periodicity of approximately 380 nanometers. The induced structures were oriented parallel to the electric field vector. Scanning in the same direction as the laser polarization results in more uniform surface structuring. The significant change in the reflection and transmittance of processed borosilicate glass, as well as the change in wettability from hydrophilic to superhydrophilic, demonstrates the potential of large area-HSFL structures in optics, microfluidics, photovoltaics, and biomaterials.
