Ferroptosis-Mediated Cell Death Induced by NCX4040, The Non-Steroidal Nitric Oxide Donor, in Human Colorectal Cancer Cells: Implications in Therapy

1. Introduction

Cancer is one of the leading causes of death worldwide. While breast and lung cancers are most prevalent, colorectal cancer (CRC) represents third in morbidity and second in mortality of the total reported cancer deaths [1,2]. The incidence of CRC appears to be on the rise [3]. Current treatments for CRC include surgery, chemotherapy, radiotherapy, immunotherapy, and targeted therapy. Studies have shown that early diagnosis of CRC significantly improves the survival rate of patients. Unfortunately, CRC usually are detected at the advanced stages, leaving chemotherapy the primary choice with a poor survival [4]. This failure appears to result from the development of chemotherapy resistance with undesirable drug side effects. Therefore, development of newer drugs, selectively effective against CRC is urgently needed.

The non-steroidal nitric oxide donor, NCX4040 originally synthesized as an anti-carcinogenic compound, is highly cytotoxic to various tumors including human CRC and ovarian cells [5,6]. Because NCX4040 showed no significant toxicity in vivo [5], development of analogs of NCX4040 is highly desirable. Therefore, understanding of precise molecular mechanisms of cytotoxicity of NCX4040 is essential for the future development of more selective and effective NCX4040 analogs. Studies suggest that NCX4040 induces its cytotoxicity by releasing ^●NO following hydrolysis by tumor esterases, depleting cellular glutathione and causing oxidative stress [7,8,9]. Our recent studies have also shown a significant depletion of GSH and formation of ROS by NCX4040 in human ovarian tumor cells [6]. Furthermore, our studies indicated that NCX4040 treatment resulted in induction of both CHAC1 and NOX4 genes in ovarian tumor cells [6]. Recently, CHAC1 and NOX4 along with GPx4 have been suggested to be hallmarks of ferroptosis in tumor cells [10].

Ferroptosis is a non-apoptotic iron-dependent form of cell death, resulting from the formation of ROS/RNS in cells followed by induction of cellular lipid peroxidation and membrane damage [11,12]. Ferroptosis, therefore, results from oxidative damage caused by the formation of ROS/RNS and the presence of ferrous iron and H₂O₂ (the Fenton reaction), or lipid peroxidation mediated by iron-containing lipoxygenases [13,14,15]. While free ferrous iron is not accumulated in cells, it can be generated by proteins involved in cellular iron metabolism, such as transferrin receptor 1, ferritin, and ferroportin. The antioxidant defenses involving glutathione peroxidase 4 (GPX4) which utilizes glutathione as the cofactor reduces hydroperoxide lipids, inhibiting ferroptosis-mediated cell death [16,17].

NCX4040 has been shown to induce apoptosis in a variety of tumor cells, resulting from the formation of both ROS and RNS [6,7,18]. However, so far, ferroptosis has not been investigated in the mechanism of NCX4040-dependent tumor cell death. As ferroptosis emerges as a promising approach for cancer therapy [19,20], and CRC tumor cells undergo facile ferroptosis [21], we have the examined role of ferroptosis in the mechanism of NCX4040 in cell death in human HT-29 and HCT116 CRC cells. Studies presented here show that NCX4040 indeed induces ferroptosis in both HT-29 and HCT116 tumor cells. Furthermore, combinations of NCX4040 with ER or RSL3 may provide a better treatment modality for the treatment of CRC in the clinic.

2. Methods and Materials

Material: NCX4040 was purchased from Sigma Chemicals (St. Lois, MO) and was dissolved in DMSO. Erastin (2-[1-[4-[2-(4-Chlorophenoxy)acetyl]-1-piperazinyl]ethyl]-3-(2-ethoxyphenyl)-4(3H)-quinazolinone), RSL3 and Ferrostatin-1 were purchased from Cayman Chemicals (Ann Arbor, MI) and were dissolved in DMSO. Stock solutions were stored at -80⁰ C. Fresh drug solutions, prepared from the stock solutions, were used in all experiments. Antibodies to GPX4, CHAC1, NOX4 and β-actin were purchased from Abcam (Waltham, MA).

2.1. Cell culture

Authenticated human colon tumor cells, HT-29 and HCT116 cells were obtained from ATCC (Manassas, VA) and were grown in Phenol Red-free RPMI 1640 media supplemented with 10% fetal bovine serum and antibiotics. Tumor cells were routinely used for 20-25 passages, after which the cells were discarded, and a new cell culture was started from the frozen stock.

2.2. Cytotoxicity studies

The cytotoxicity studies were carried out with both a cell growth inhibition assay and Trypan Exclusion methods. Briefly, 50,000-60,000 cells/well were seeded onto a 6-well plate (in duplicate) and allowed to attach for 18h. Various concentrations of drugs (NCX4040 or combinations of NCX4040, and minimally cytotoxic concentrations of ER, ferrostatin-1, (FeS), or RSL3 were added to cells (HT-29 or HCT116) in fresh complete media (2 ML) and were incubated for either 24, 48 or 72h. When used, ER, FeS or RSL3 were preincubated with cells for 1-2 h before the addition of NCX4040. DMSO (0.01-0.1%) was included as the vehicle control when used. Following trypsinization, surviving cells were collected and counted in a cell counter (Beckman, Brea, CA). For the trypan blue exclusion assay 15 $\mu$L of cell mixtures were combined with 15 µL of trypan blue and counted in T20 automatic cell counter (Bio-Rad, Hercules, CA).

2.3. Flow Cytometric Analysis of mitochondrial ROS

Analysis of mitochondrial ROS was determined by loading the cells with MitoSox Red (5 uM final concentration; Life Technologies, Carlsbad, CA) for 30 minutes at 37^oC, 7% CO₂ atmosphere before the addition of the drug. Cells were examined at 2h intervals with the addition of Sytox Blue as a vital dye by flow cytometry. A LSRFortessa flow cytometer (Benton Dickinson, San Jose, CA), equipped with FACSDiVa software, was used to analyze all samples. MitoSox and Sytox Blue were excited using a 561 nm and 405 nm laser and detected using a 610/20 nm and 450/50 nm filter, respectively. For each sample, 10, 000 cells were analyzed using FACSDiVa software.

2.4. Flow Cytometric Analysis for intracellular glutathione

Intracellular glutathione was determined as previously described [6]. Briefly, monochlorobimane dye (mBCl,10 µM final concentration; Life Technologies, Carlsbad, CA) was added to each sample for 15 minutes at 37^oC, 5% CO₂ atmosphere prior to examination. Propidium iodide (PI) was added (final concentration of 5 ug/ml) to samples before flow cytometric analysis using a LSRFortessa flow cytometer (Benton Dickinson, San Jose, CA) equipped with FACSDiVa software. mBCl and PI were excited using a 405 nm and 561 nm laser and detected using a 530/30 nm and 582/15 nm filter, respectively. For each sample, 10,000 cells were analyzed using FACSDiVa software.

2.5. Lipid Peroxidation Assay

Assay for the peroxidation of cellular lipids was carried out by measuring the formation of malondialdehyde (MDA) using 2-thiobarbituric acid as previously published [22,23]. Briefly, about 2-3 x 10⁶ cells (HT-29 or HCT-116) were incubated with various concentrations of NCX4040 for 2-4h at 37^oC. Following incubations, the reactions were stopped by adding 2% trichloroacetic acid and the mixtures were centrifuged (5 min at 1000g). Aliquots (1.0 ml) of the supernatant fractions were then reacted with 2.0 ml of 1% 2-thiobarbituric acid and the chromophore was developed at 90^oC for 10 min. After the samples were cooled, the absorbance at 532 nm was determined.

2.6. Real Time RT-PCR

The expression levels of selected transcripts were examined by real-time polymerase chain reaction (RT-PCR) using absolute SYBR green ROX Mix (ThermoFisher Scientific, Rochester, NY) as previously described [6]. Total RNA was isolated using Trizol following treatment with NCX4040 (5µM) for 4 and 24h and purified. Data were analyzed using ΔΔCt method of relative quantification in which cycle times were normalized to β-actin (or GADPH) from the same sample. Primers for the selected genes were designed using Primer Express 1.0 software and in some cases were synthesized (Integrated DNA technologies, CA) from published literature or were purchased from Origene (Gaithersburg, MD). All real-time fluorescence detection was carried out on an iCycler (Bio-Rad, Hercules, CA). Experiments were carried out three different times and results are expressed as the mean ± SEM. Analyses were performed using unpaired Student’s t-test and considered significant when p ≤0.05.

2.7. Western Blot Assay

The Western Blot analyses for various proteins were carried out following treatment with NCX4040 (5µM) for 4 and 24h using standard methods. Samples (5–20 μg of total protein) were electrophoresed under reducing conditions on 4–8% Tris-acetate gels (Novex, Life Technologies, Carlsbad, CA) for 50 minutes at 200 volts. After electrophoresis, proteins were transferred onto nitrocellulose membranes and probed with anti-NOX4, CHAC1, GPx4 and anti-β-actin antibodies. An Odssey infrared imaging system (Li-Cor Biosciences, Lincoln, NE) was used to acquire images.

2.8. Metabolomics Studies

Cell culture extracts were analyzed using untargeted metabolomics, specifically ultra-high performance liquid chromatography (UHPLC) – high resolution tandem mass spectrometry (HRMS/MS). MS data were acquired from samples (n=1 injections) for comparison and statistical analysis. MS/MS data, used in the annotation of untargeted metabolomics features, were acquired from a pooled quality control sample analyzed multiple times via the AcquireX deep scan approach. Compound Discoverer 3.3.0.550 was used to process raw files to provide a tabulated output of features (i.e. unique descriptors of m/z and retention time) and corresponding annotations (MS/MS database matching). Outputs were formatted and further processed using in-house R scripts (via Jupyter Notebooks) to clean data prior to statistical analysis. Additional details are available in the Supplementary Information. The data supporting the annotated chemicals displayed in the figures were manually reviewed for MS, MS/MS, and retention time matching (when available), see SI Table 1.

2.9. Statistical Analysis

The results are expressed as mean ± SEM of minimum of 3 independent experiments (n = 3). One-way analysis of variance (ANOVA) was used for statistical analysis using Graph Pad Prism (GraphPad Software, Inc, La Jolla, CA). For multiple comparisons, the Tukey Multiple comparison’s test was utilized and were considered statistically significant when p < 0.05.

3. Results

3.1. Cytotoxicity studies with NCX4040

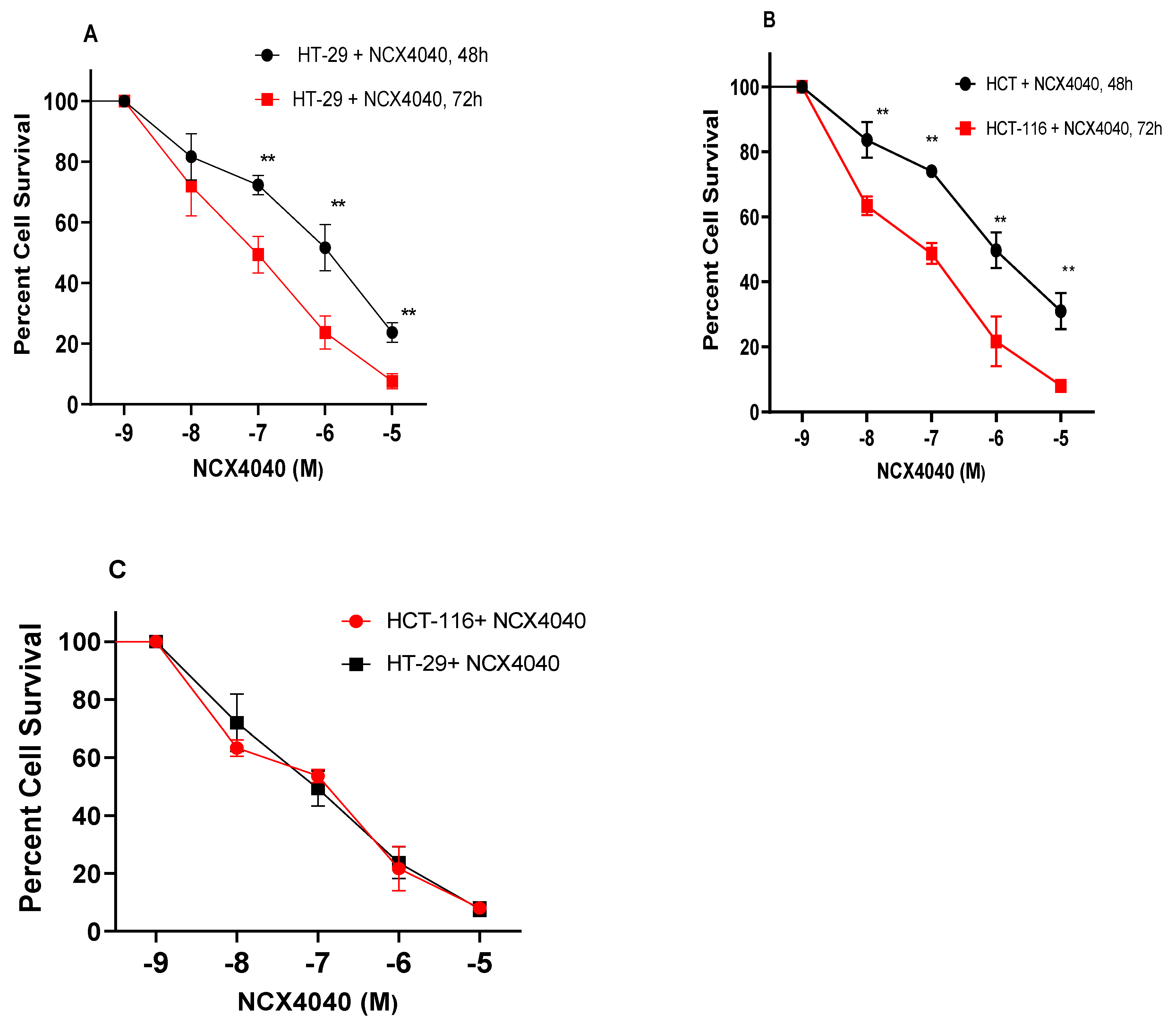

Our previous studies have shown that NCX4040 is cytotoxic to human ovarian tumor cells [6]. In this study, we found NCX4040 to be significantly cytotoxic to both human colon HT-29 and HCT116 cells (Figure 1A,B) and there were no significant differences in cytotoxicity as IC₅₀ were very similar. (Figure 1C).

3.2. Measurements of mitochondrial ROS

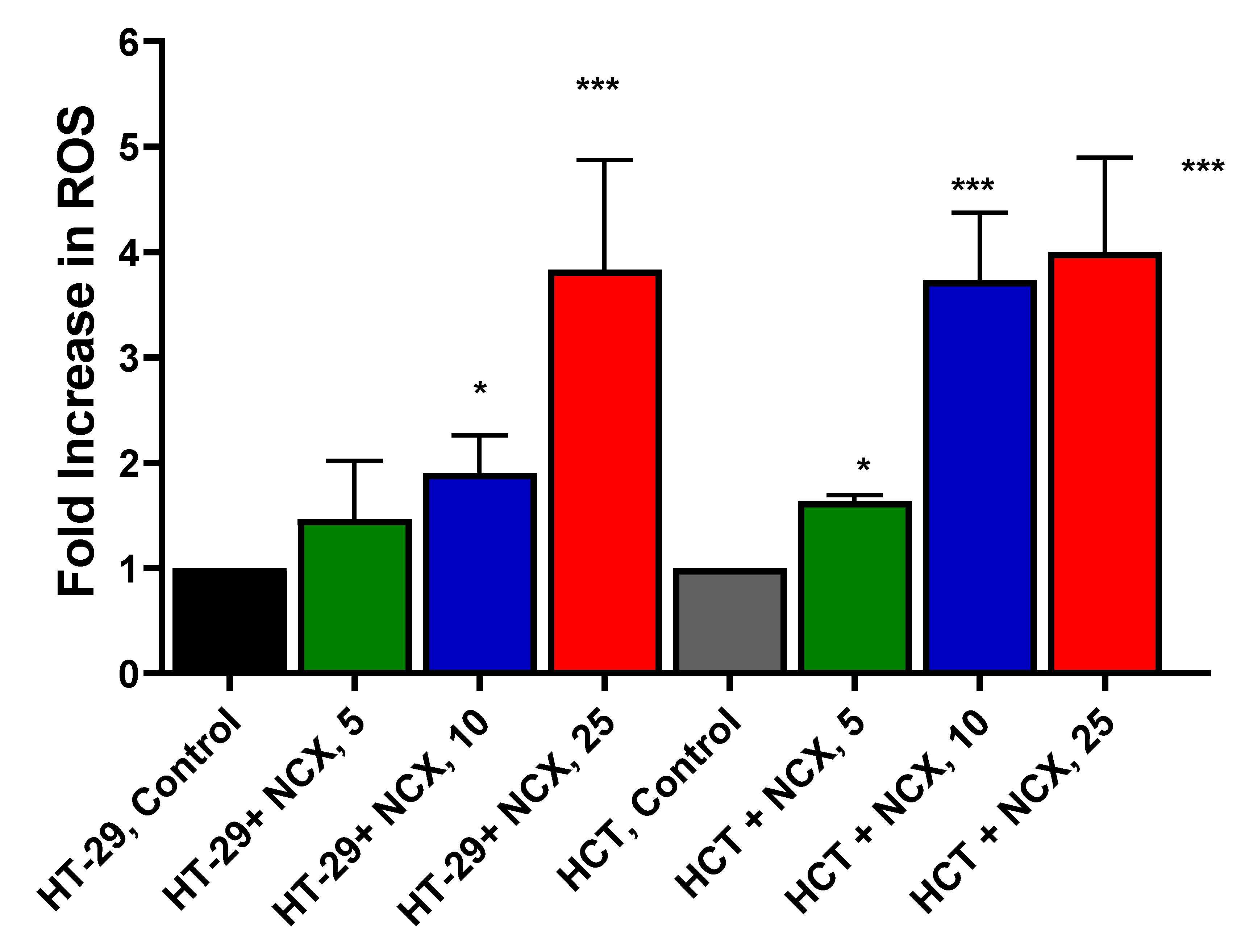

Since NCX4040 generates ROS in various tumor cells which lead to tumor cell death, we investigated whether NCX4040 also forms ROS in these colon cancer cells. We used Mitosox for the detection of mitochondrial ROS as previously described [6]. While use of Mitosox has remained controversial [24], we [6] as well as others [7,25] have utilized Mitosox successfully to detect ROS in cells. Our results (Figure 2) clearly show that NCX4040 generates ROS in a dose-dependent manner in both cells. At lower concentrations of NCX4040 (e.g., 10 µM), more ROS were detected in HCT116 cells than in HT-29 cells.

3.3. Lipid Peroxidation in HT-29 and HCT116 Cells

Examination for peroxidation of HT-29 and HCT cellular lipids indicated that MDA formation increased in both cells over controls in the presence of NCX4040 in time- and dose-dependent manners. While increases in MDA formation were small, however, these increases were statistically significant (Figure 3).

3.4. RT-PCR Studies

3.4.1. NCX4040 induces Oxidative Stress Genes in HT-29 and HCT116 Cells

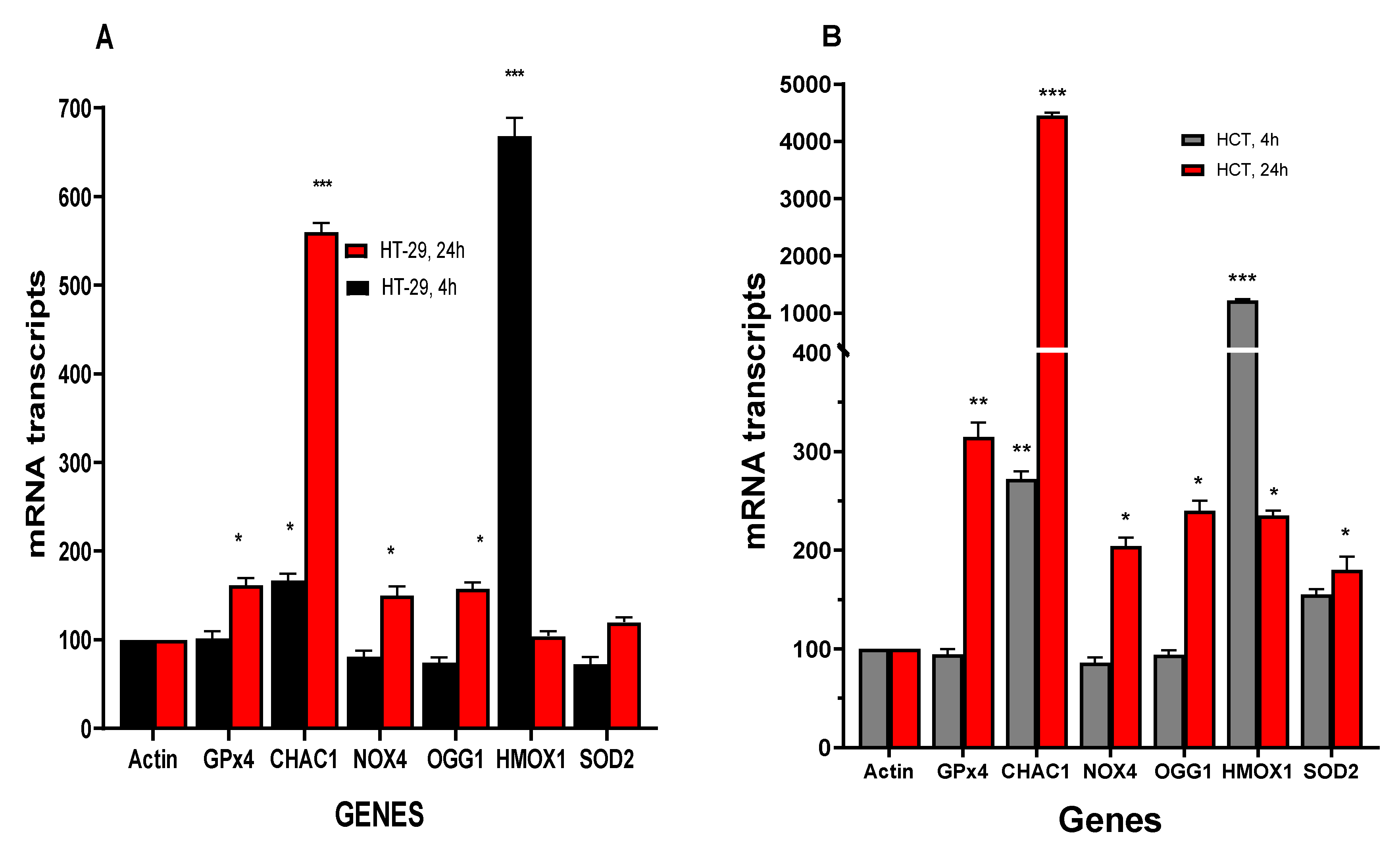

Our previous studies have shown that NCX4040 treatment results in modulations of various genes related to oxidative stress, inflammation and DNA-response in human ovarian tumor cells [6,26]. Therefore, we evaluated oxidative stress related genes in HT-29 and HCT-116 cells following NCX4040 treatment. Studies show that oxidative stress genes are significantly modulated by NCX4040 (Figure 4A,B). NCX4040 treatment resulted in a rapid (4h) induction of HMOX1/OX1 gene (6-fold) in HT-29 cells and more than 12-fold in HCT116 cells. HMOX1/OX1 gene remained elevated at 24h in HCT116 cells (3-fold), however, it decreased to the control values in HT-29 cells. HMOX1/OX1 gene is considered to be an important biomarker of oxidative stress and is induced by number of free radical producing drugs and chemicals [27,28]. Ferroptosis markers, GPX4, NOX4 and CHAC1 were also significantly induced by NCX4040 in both cell lines at 24h. However, CHAC1, which causes cleavage of glutathione, resulting in depletion of GSH [29], was rapidly induced (2-3-fold) in both HT-29 and HCT116 cells at 4h and remained elevated in both cells at 24h; 5-6 folds in HT-29 and 35-40-folds in HCT116 cells, respectively. SOD₂, which catalyzes the decomposition of superoxide radical anion (O₂^●-) formed from NOX4, was induced by NCX4040 only in HCT116 cells. Furthermore, OGG1, which is responsible for repair of oxidative damage in DNA caused by ROS, was elevated in both HT-29 and HCT116 cells at 24h (Figure 4).

3.4.2. NCX4040 Induces Inflammatory Response Genes in HT-29 and HCT116 Cells

NCX4040 treatment of HT-29 and HCT116 colon cells also induced various inflammatory response genes (Figure 5A,B) as we found previously in ovarian tumor cells [6]. NCX4040 significantly induced VEGF in HCT116 cells at both 4 and 24 h while it was only induced at HT-29 cells at 24h. COX2 was significantly induced in HCT116 cells while NCX4040 had only a small effect in HT29 cells. It is also interesting that NCX4040 significantly decreased expression of NF-kB in HT-29 at 4h while it had no effects in HCT116 cells (Figure 5A).

3.5. Ferrostatin-1 Inhibits NCX4040 Cytotoxicity in HT-29 and HCT cells

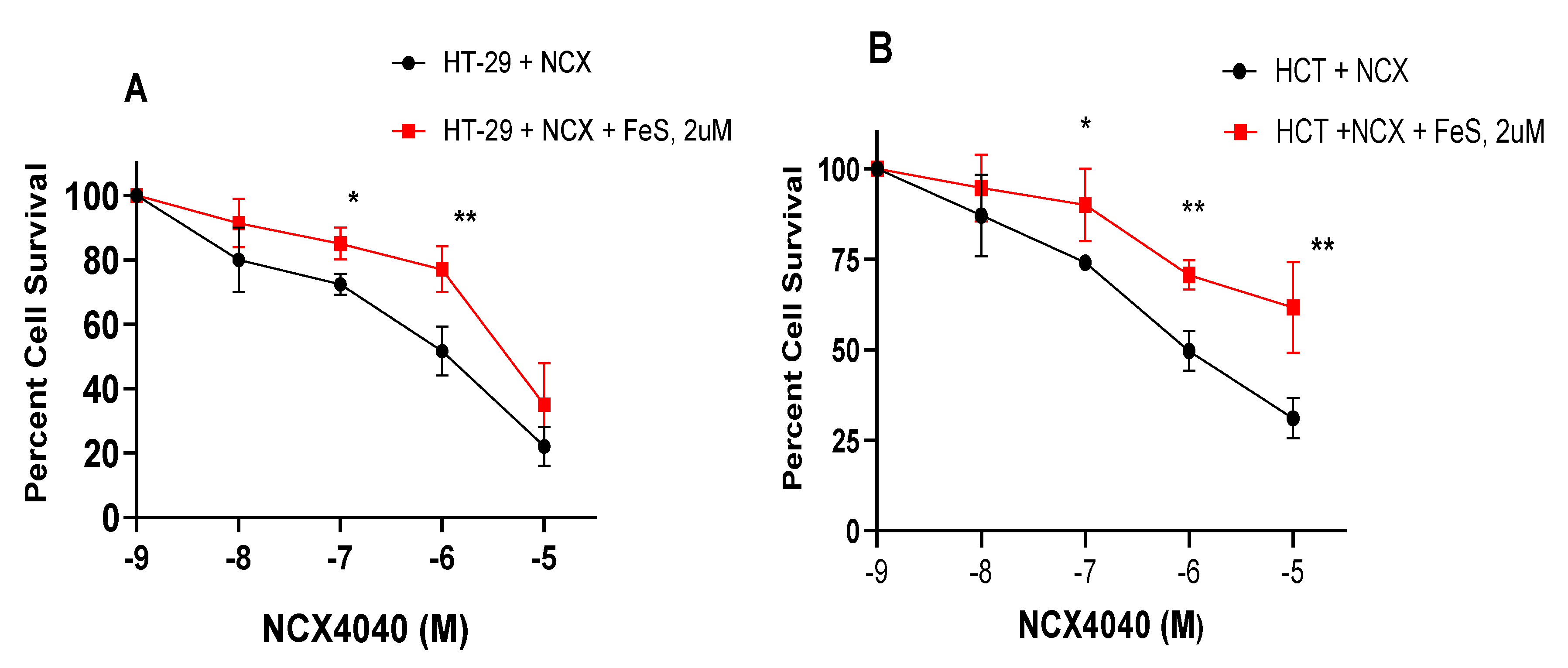

Our RT-PCR results indicated significant modulation of GPX4, NOX4 and CHAC1 genes by NCX4040 in HT-29 and HCT116 cells. Since these genes are indicators of ferroptosis, we examined effects of Ferrostatin-1 (FES) on the cytotoxicity of NCX4040 in both HT-29 and HCT-116 cells. FES is a known inhibitor of ferroptosis in tumor cells [30,31,32]. Results shown in Figure 6A,B indicated FES (2 µM, minimally cytotoxic dose) significantly inhibited cytotoxicity of NCX4040 in both HT-29 and HCT cells, suggesting that NCX4040 induces ferroptosis in these CRC tumor cells. Furthermore, FES was more effective in inhibiting NCX4040-induced cytotoxicity in HCT116 cells than in HT-29 cells (Figure 7B; compare 10^-5 M induced cell killing).

3.6. Erastin Enhances NCX4040 Cytotoxicity in HT-29 and HCT116 Cells

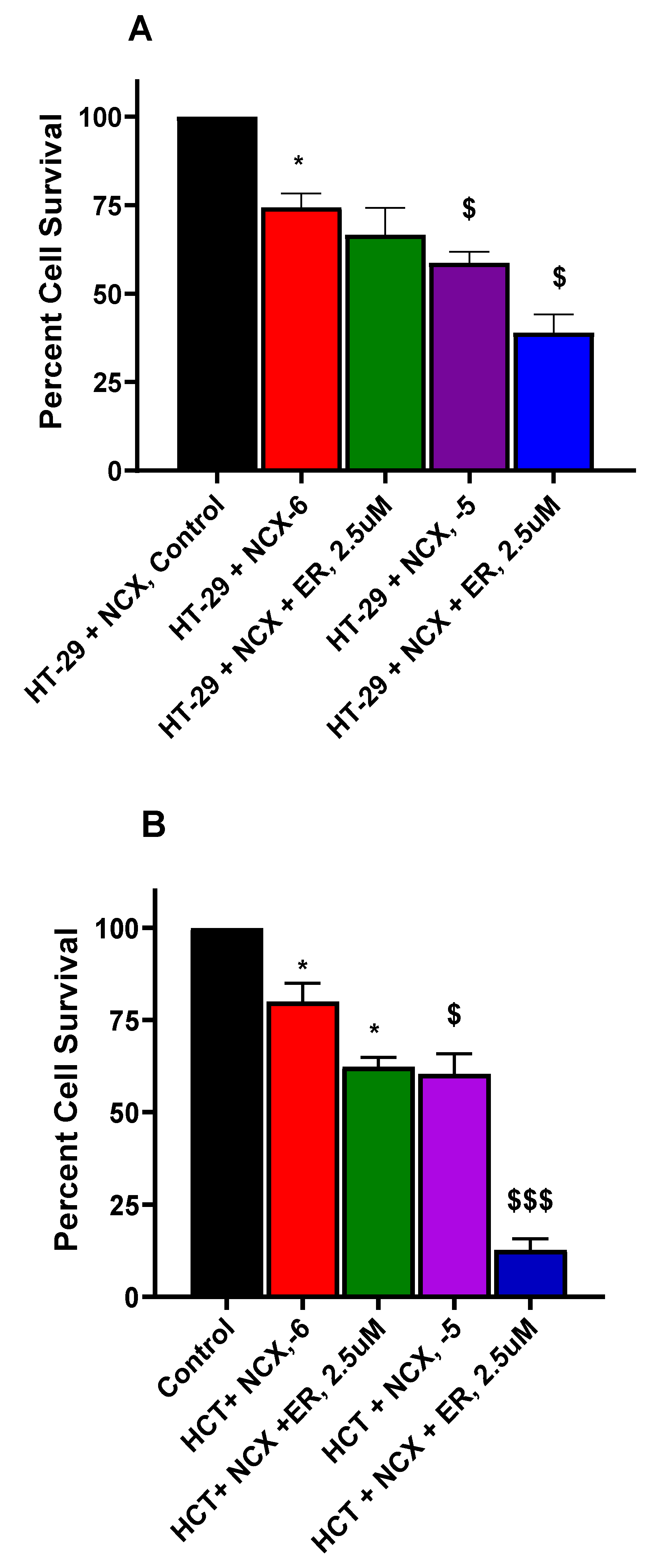

Erastin (ER) is a well-known inducer of ferroptosis in tumor cells and has been utilized extensively to decipher mechanism of ferroptosis [33,34,35]. We used various concentrations of ER to examine its effects on NCX4040 cytotoxicity in CRC cells. Our results, shown in Figure 7A,B, clearly indicated that ER was effective in enhancing NCX4040-mediating CRC cell death. Again, HCT116 cells were more sensitive to ER-dependent enhancement of NCX4040 cytotoxicity (Figure 7B).

3.7. RSL3 Enhances NCX4040 Cytotoxicity in HT-29 and HCT116 Cells

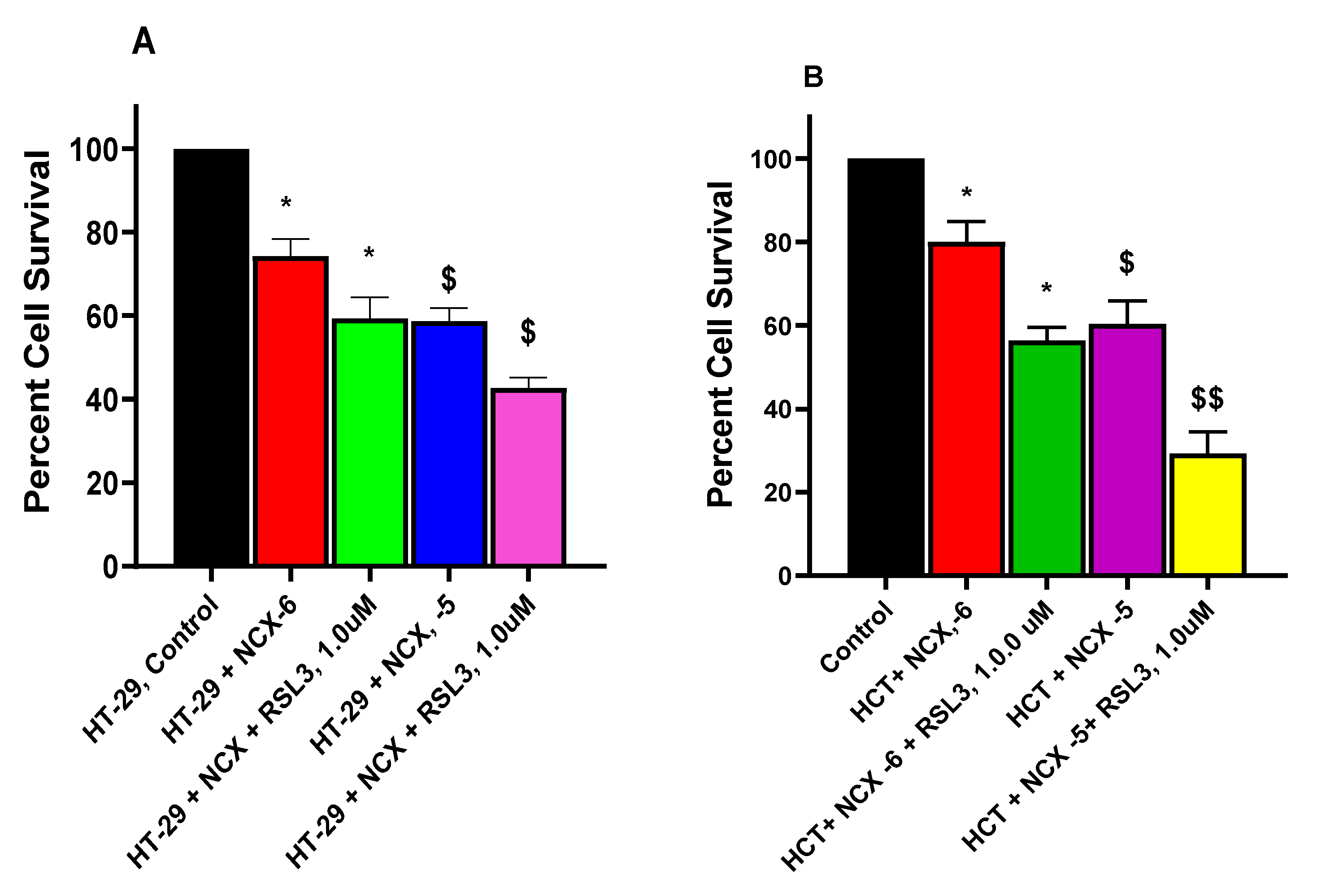

RSL3 (RAS-selective lethal 3) is a ferroptosis triggering agent that has been utilized extensively to induce ferroptosis in various tumor cells [17,36,37]. Therefore, effects of RSL3 on NCX4040 cytotoxicity was investigated and we found that it significantly enhanced NCX4040 cytotoxicity in both cells (Figure 8A,B). Again, HCT116 cells were more sensitive to RSL3-induced NCX4040-mediated cytotoxicity.

3.8. Metabolomic Studies in HT-29 and HCT116 cells

In order to further understand the mechanisms of NCX4040-induced ferroptosis in CRC cells we used untargeted metabolomics and examined effects of NCX4040 on cellular glutathione levels, lipid metabolism, and differential energy metabolism in HT-29 and HCT116 cells.

3.8.1. NCX4040 Increases Glutathione in HT-29 and HCT116 Cells

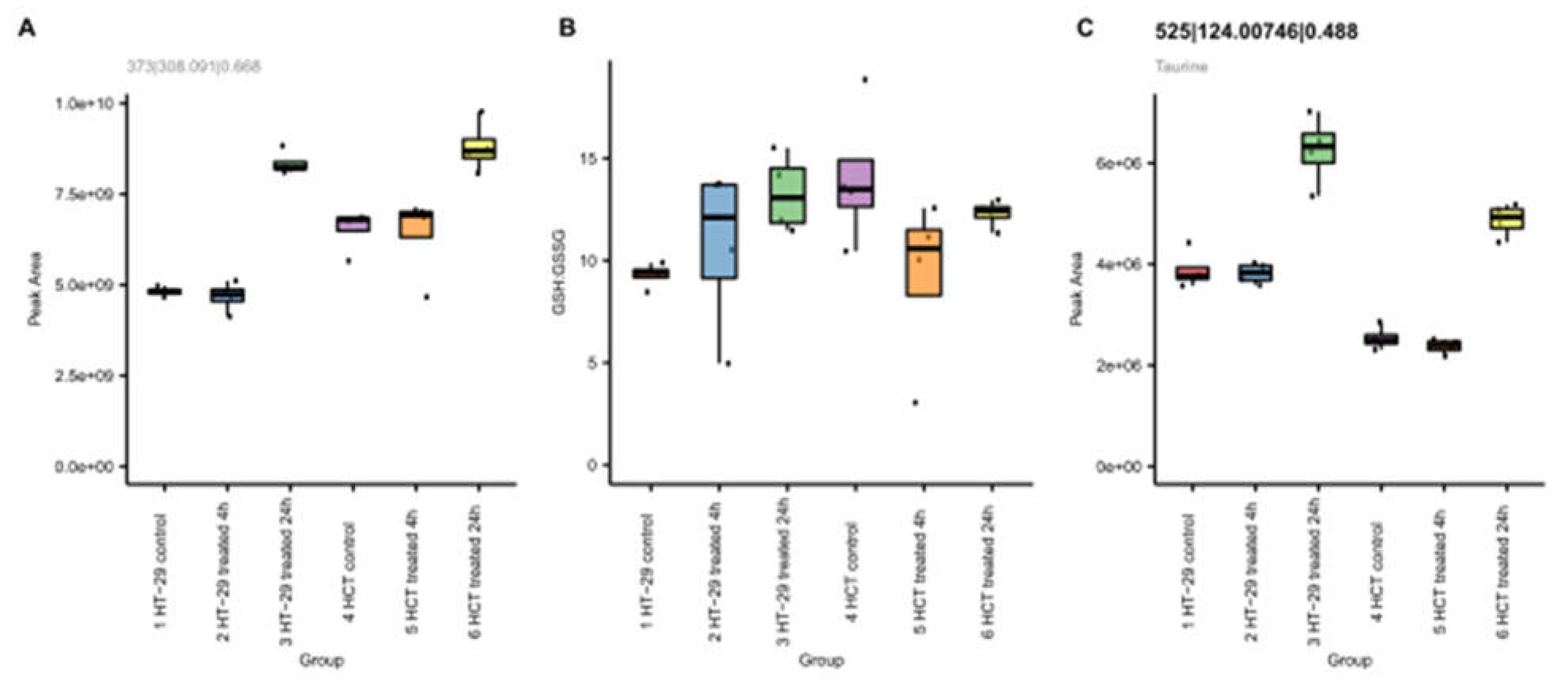

Our metabolomic studies show significant increases in glutathione (GSH) following NCX4040 treatment of CRC cells (Figure 9). GSH levels were elevated at 24h in both cells (Figure 10). The ratio of GSH to glutathione disulfide (GSSG), the oxidized form, remained similar indicative of the cellular ability to maintain redox potential. Further, taurine, a reported antioxidant and anti-inflammatory mediator was increased after 24h (Figure 9C), indicating NCX4040-induced oxidative stress in CRC cells.

3.9.2. NCX4040 Enhances Lipid Metabolism in HT-29 and HCT116 Cells

Lipid metabolism is a complex biochemical process that is involved in the regulation of cell survival and death, including ferroptosis [38]. Metabolomic studies indicated that NCX4040 treatment significantly increased lipid metabolism in these CRC cells (Figure 11). Acylcarnitines were observed to be statistically different between control and 24h samples in both cells. The acyl chain composition is reflective of energy metabolism patterns, including fatty acid oxidation which may result in formation of lipid radicals during beta oxidation, leading to increased cells death via ferroptosis.

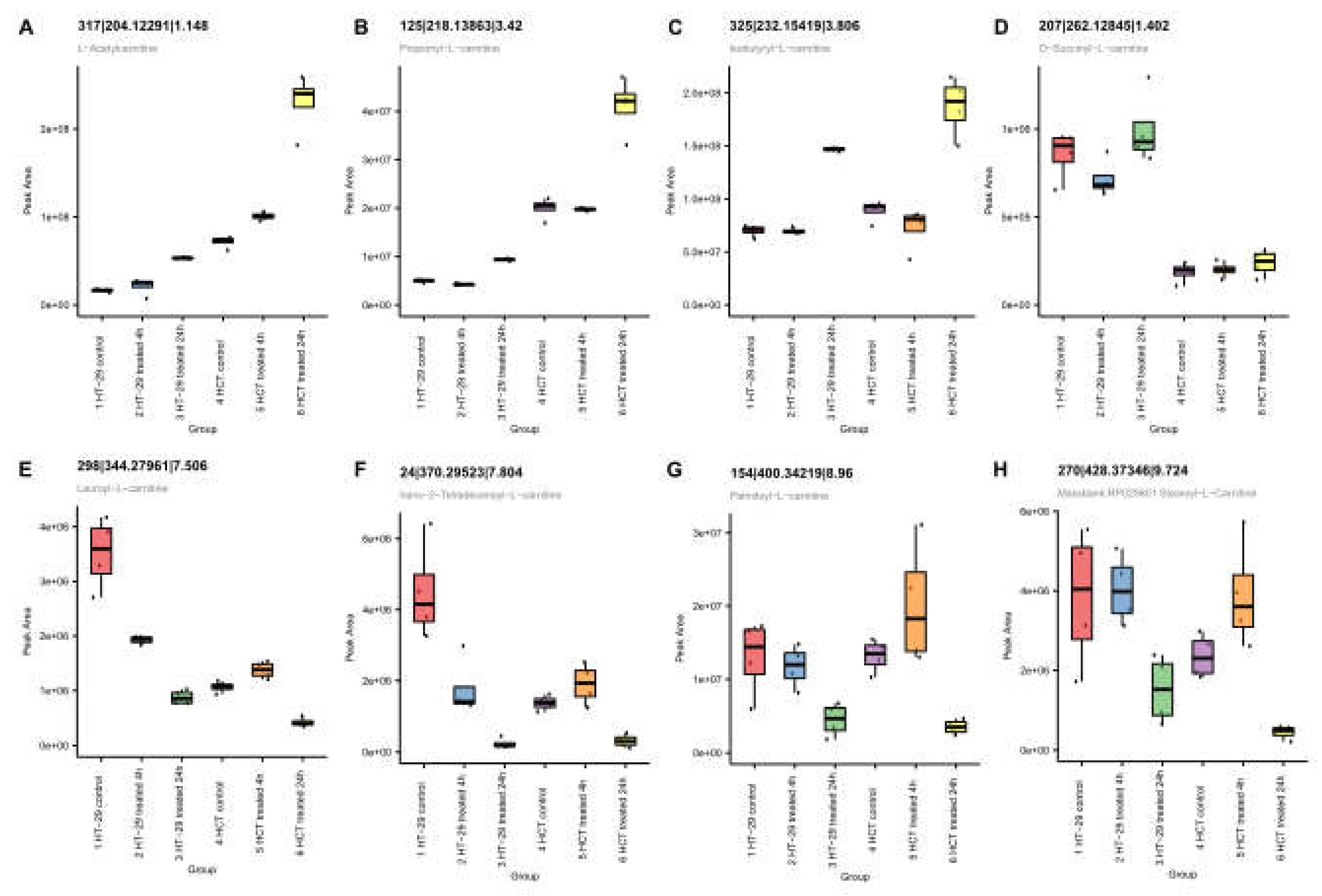

The short-chain acylcarnitines (Figure 10A–C) increased after 24h in HT-29 and HCT116 cells. Increased levels suggest that energy production from glucose, amino acids, or fatty acid degradation is increased after treatment. The dicarboxylic acid conjugate, succinyl-carnitine (Figure 10D), reflects the selective patterns observed in carnitines. In contrast, the long-chain acylcarnitines (Figure 10E–H) decreased in 24h samples. The observed decrease may reflect alteration in fatty acid metabolism as the mitochondria are the primary location of synthesis and metabolism of long-chain acylcarnitines.

Metabolomics also indicated differences in arachidonic acid (AA) metabolism in these cells (Figure 11). AA are involved in prostaglandin synthesis as well as is an important ingredient for ferroptosis [39].

3.9.3. NCX4040 Enhances Energy Metabolism in HT-29 and HCT116 Cells

Metabolomic studies also show significant increases in ATP and cellular respiration co-factors, NAD+ and FAD+ (Figure 13) in both cells at 24 h. This observation suggest increases in energy production related to cell survival. The observed increase in energy production may reflect increased DNA/RNA repair of oxidative damage induced by NCX404 as supported by the observed increase in GTP, a building block of RNA and DNA (Figure 12).

4. Discussion

Ferroptosis is induced via iron-dependent lipid peroxidation following cellular formation of ROS [11,12]. While the mechanism of ferroptosis is under active investigation, it is different than those of other cell death processes, such as necrosis, autophagy, and apoptosis. The cellular death resulting from ferroptosis has been shown to arise from the inhibition of glutathione peroxidase 4 (GPX4) and accumulation of intracellular lipid hydroperoxides (LOOH), resulting in damage to cellular membranes (lipid peroxidation) in the presence of iron [11,12,16]. The damaging species is the reactive ^●OH, formed from the reaction of H₂O₂ with Fe²⁺ (the Fenton reaction). Several small molecules, e.g., ER and RSL3, have been reported to induce ferroptosis in tumor cells [33,34,36,37]. Several pathways are now been reported for ER-induced ferroptosis, including inhibition of the system X_C^– (glutamate/cystine antiporter) [35], inhibition of the mitochondria bound voltage-dependent anion channel (VDAC) [33], and modulation of the tumor suppressor p53 gene [40,41]. System X_C^– is a transmembrane cystine–glutamate antiporter that specifically imports extracellular L-cystine into cells in exchange for glutamate. Cystine, disulfide form of cysteine, is imported into the cell by system X_C^– and is reduced to cysteine, which is the key intermediate for the synthesis of glutathione (GSH), an important cellular antioxidant. Thus, the inhibition of the system X_C^– by ER results in the depletion of the cellular GSH, leading to oxidative stress and ferroptosis-mediated cell death [12,42]. RSL3 is a potent ferroptosis-triggering agent which inhibits GPX4, thereby promoting ferroptosis, including in CRC cells [36]. RSL3 can kill RAS mutant cancer cells and activate iron-dependent, nonapoptotic cell death of RAS mutant cancer cells [43]. Increase in GPX4 in tumor cells has been shown to mediate suppression of ferroptosis [16,44].

However, ferroptosis has not been investigated in the treatment of CRC in the clinic. Therefore, exploitation of ferroptosis for killing of CRC cancer cells in response to NCX4040 needs elucidation for therapy. Herein, we have investigated the role of ferroptosis in the mechanism of NCX4040-dependent cell death in HT-29 and HCT116, a Ras mutated (codon 13) colon tumor cells. We utilized various inducers and inhibitors of ferroptosis to decipher the mechanisms of cell death. Our study showed that NCX4040 was equally cytotoxic to both CRC cells. Previous studies have shown that NCX4040 induces significant depletion of cellular GSH and generates ROS formation in tumor cells [6,7]. In this study, we found NCX4040 also generated ROS in HT-29 and HCT116 cells in both time- and dose-dependent manner. Less ROS was formed and detected at 2h than at 4h drug of treatment (not shown). Our studies also show that NCX4040 significantly increased lipid peroxidation in both HT-29 and HCT116 cells in a time- and dose-dependent manner. These observations suggest that NCX4040-generated ROS must have reacted with cellular lipids to form lipid peroxides in these tumor cells.

It should be noted that both the formation of ROS and increases in lipid peroxidation were independent of cellular GSH as we found no significant depletion of GSH in HT-29 and HCT116 cells by our mCBI flow cytometric detection method. In contrast, metabolomic studies indicated that treatment of CRC cells with NCX4040 results in increases in GSH following 24h drug treatment (Figure 11). We found that treatment with ER also failed to deplete GSH in these cells (data not shown, manuscript in preparation). These observations suggest that neither NCX4040 nor ER inhibits Xc-anti-transporter in HT-29 and HCT116 cells, indicating that other biochemical and metabolic changes besides cellular depletion of GSH are responsible for the induction of ferroptosis by NCX4040 in CRC cells.

Examination of effects of ER on the cytotoxicity of NCX4040 in HT-29 and HCT116 cells showed that ER is highly effective in enhancing NCX4040-dependent cell death in both CRC cells. More interestingly, we found that HCT116 cells are more sensitive to combinations of NCX4040 and ER (Figure 7). Similarly, RSL3 also significantly enhanced NCX4040-mediated cell death in both HT-29 and HCT116 cells. Again, HCT116 tumor cells are more sensitive to RSL3-NCX4040 combinations than HT-29 cells (Figure 8). In contrast, FES, a strong inhibitor of ferroptosis, significantly inhibited NCX4040-induced cells death in both HT-29 and HCT116 tumor cells (Figure 6). Again, we found that FES was more effective in inhibiting NCX4040-dependent cell killing in HCT116 cells. These observations, e.g., inhibition of NCX4040-dependent killing by FES and enhanced or synergistic killing of HT-29 and HCT116 cells by ER-NCX4040 and RSL3-NCX4040 combinations clearly suggest that NCX4040 induces ferroptosis in HT-29 and HCT116 cells. Furthermore, HCT-116 cells are more sensitive to ferroptosis-dependent cell death than HT-29 cells. While the reasons for this is not clear, this may be due to the fact HCT116 cells contain a KRAS-mutation and KRAS-mutant cells are more sensitive to both ER- and RSL3-induced ferroptosis [45]. Furthermore, HCT116 cells contain WTp53 while HT-29 cells contain mutantp53. Ferroptosis has been suggested to require WTp53 activity [41]. In addition, recent reports suggest the degree of FAM193A expression is a widespread enabler of p53 activity in cell death [46] which may relate to differential ferroptosis sensitivity of HT-29 and HCT116.

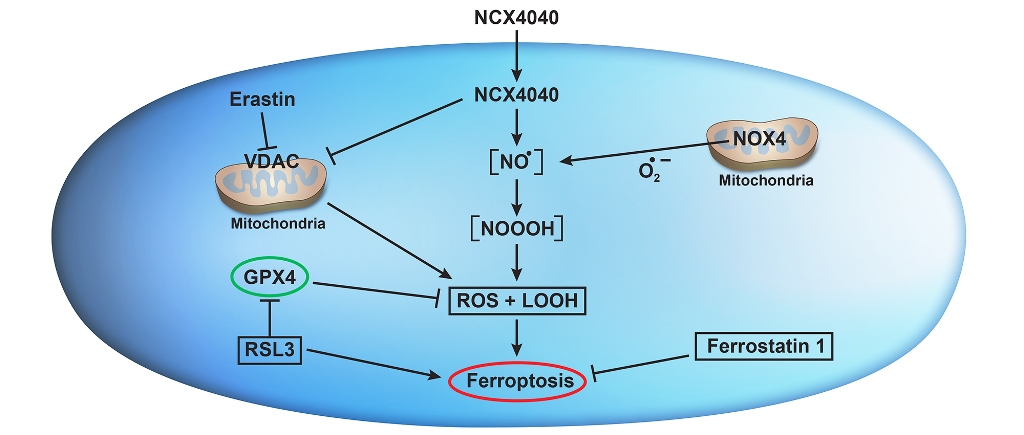

While mechanisms of NCX4040-induced ferroptosis is not completely clear, however, some reasonable conclusions can be made from our studies. First, NCX4040-induced ferroptosis-mediated tumor cell death is ROS-dependent as there was significant increase in ROS formation in both HT-29 and HCT116 cells. Formation of ROS in these cells are also confirmed by our RT-PCR studies showing significant increases in HMOX1/OX1, a hallmark of oxidative stress in cells. Furthermore, both SOD₂ and NOX4 were induced indicating superoxide anion radical (O₂^-●) are formed in these cells. Our studies also show that lipid peroxides are generated in these cells as lipid peroxidation was enhanced in the presence of NCX4040. Lipid peroxidation has been suggested to trigger ferroptosis. Lipid peroxides/lipid hydroperoxides (L-OOH) are known to cause damage to the cellular plasma membrane due to the accelerated oxidation of the membrane lipids. Furthermore, increases in the concentrations of lipid peroxides can induce damage to nucleic acids and proteins from toxic aldehydes formed from the oxidation of lipids, generating additional toxicity and inducing cell death by ferroptosis [15].

Our studies showed that combined treatment of NCX4040 and RSL3 increased the death of both HT-29 and HCT116 CRC cells, due to the accumulation of cytotoxic lipid peroxidation products. RSL3, an inhibitor of GPX4 [16,17,36], enhanced cell death further confirms that lipid peroxides are responsible for cell death in HT-29 and HCT116 cells. Our study also shows that GPX4 transcripts were significantly enhanced in both HT-29 and HCT116 cells. GPX4 utilizes GSH as a cofactor to eliminate hydroperoxides and our metabolomic studies showed that cellular GSH was increased by NCX4040 in these cells.

It should be noted that CHAC1 gene (and proteins) was significantly enhanced in both cells, albeit significantly more in HCT116 cells. CHAC1, in addition to NOX4 and GPX4, is considered to be a hallmark of ferroptosis and has been reported to be involved in tumor cell death via induction of ferroptosis [12,47,48,49]. While CHAC1 is known to hydrolyze glutathione, leading to depletion of GSH in tumor cells, our study did not show depletion of GSH in either cell lines. However, CHAC1 is also known to induce ER stress via ATF4-CHOP-CHAC1 pathway, leading to ferroptosis [10,48].

Proteins levels of ferroptosis-associated CHAC1, GPX4 and NOX4 genes were evaluated using the Western blot methods (data not shown). CHAC1 protein was induced following NCX4040 in both cell lines, significantly more in HCT116 cells. Similarly, GPX4 proteins levels were also induced by NCX4040; however, protein levels of NOX4 remained unchanged in both HT-29 and HCT116 cells. While proteins expressions did show increases following treatment with NCX4040, there were no accord between transcript expressions with protein expressions. This may be due to differences in stability/half-life of transcripts compared to proteins. It is possible then that the half-lives of proteins are shorter due to rapid they degradation or turnover. Furthermore, it is also possible that these proteins are S-nitrosylated by ^●NO/^●NO-derived species formed from NCX4040 in cells, resulting in post-translation modifications, including decreased stability of the proteins as reported by us as well as others [50,51,52].

Our studies also show that various inflammatory response genes, e.g., COX2, VEGF and NF-kB were also modulated by NCX4040 in these CRC cells. These observations are consistent with our findings with NCX4040 in human ovarian cells [6]. While the exact roles of these genes in NCX4040-induced ferroptosis is not known at this time, several studies indicate that COX2 and VEGF genes are involved in the process of ferroptosis [53,54,55,56]. COX2 has been found to be increased during ferroptosis and has been suggested to be a biomarker as inhibitors of COX2 enzyme failed to modulate ferroptosis [57].

Finally, the inhibition of the mitochondria bound voltage-dependent anion channel (VDAC) has been suggested to play an important role in the mechanism of ferroptosis. Impairment of mitochondrial functions can increase sensitivity of anticancer drug of cancer cells. VDAC is an ion channel located in the outer mitochondrial membrane where it mediates and controls molecular and ion exchange between the mitochondria and the cytoplasm. The permeability of VDAC can be altered by drugs, causing mitochondrial metabolic disfunction, ROS production, and oxidative stress-mediated death. Yagoda et al [33] reported that ER can change the permeability of the mitochondrial outer membrane and that VDAC is the target of ER. ER was shown to reverse tubulin’s inhibition of VDAC in vitro and in vivo, allowing VDAC to open [33]. Opening of VDAC leads to various biological effects, including an increase of mitochondrial metabolism (the increase of Δψ), a decrease in glycolysis (anti-Warburg effect) and an increase in ROS production and oxidative stress [58]. The anti-Warburg action can lead to damage to cancer cells and decrease in cell proliferation. In addition, ER can hyperpolarize mitochondria in cancer cells, which is followed by rapid depolarization, resulting in mitochondrial dysfunction. ^●NO, delivered via NO-donors, has been reported to directly inhibit VDAC functions [59]. While effects of NCX4040 on VDAC were not examined here, it is very likely that ^●NO formed from NCX4040 inhibits/interferes with VDAC functions of CRC cells, generating ROS (as observed here) without effecting cellular GSH status. Increased/synergistic CRC cell death by the combinations of NCX4040 and ER may result from this combined effect of both agents on VDAC.

5. Conclusions

Studies presented here show that NCX4040 induces formation of ROS in HT-29 and HCT116 colon cancer cells without significantly effecting cellular GSH. NCX4040 treatment of these tumor cells resulted in increases in lipid peroxidation. Combinations of ferroptosis inducers, erastin and ESL3, significantly enhanced NCX4040 cytotoxicity while ferrostatin-1, an inhibitor of ferroptosis, significantly inhibited NCX4040 cytotoxicity in CRC cells. Our studies also showed that treatment of HT-29 and HCT116 cells resulted in significant modulations of CHAC1, GPX4, NOX4 and COX2 genes, biomarkers of ferroptosis. These events, taken together, strongly suggest that NCX4040 induces ferroptosis in CRC cells. Combinations of erastin or RSL3 with NCX4040 may provide better treatment modality for CRC in the clinic.
