Optical Properties of RF-Magnetron-Sputtered Polycrystalline Cu₃N Thin Films Determined by UV/visible/NIR Spectroscopic Ellipsometry: Eco-Friendly Light Absorber

1. Introduction

Transition-metal nitride thin-film materials, such as copper nitride (${\mathrm{Cu}}_3\mathrm{N}$), exhibit very attractive and remarkable physical properties, such as optical, electrical and energy-storage properties, which have enable to this particular material to be employed in many technological-application fields [1,2]. Consequently, copper nitride has drawn great deal of attention as a new eco-friendly solar-absorber material, for flexible and lightweight thin-film photovoltaic cells [3,4]. This metastable semiconductor material is non-toxic, made up of earth-abundant elements, and its band-gap energy can be relatively easily tunable, depending upon both the manufacturing conditions, and the deposition techniques. Among the fields of applications, it can be indicated the following: integrated circuits, photo-detectors, optoelectronics, and energy-conversion applications [5,6,7]. Emphasizing again the mentioned specific use of ${\mathrm{Cu}}_3\mathrm{N}$ as a novel solar absorber thin-layer material for photovoltaic-cell technology [8]: Its development has caused a notable interest with the goal of being introduced into novel designs, within a future generation of cost-effective solar cells. This recently-gained attention as a light absorber in solar-cell, is mainly based upon its mentioned clear non-toxicity and significant earth abundance, which produces such an environmentally friendly material. Furthermore, the theoretically-predicted band-gap value for ${\mathrm{Cu}}_3\mathrm{N}$ is approximately $0.9\mathrm{eV}$[9,10], but its experimentally-obtained values of the indirect and direct band gaps are found to be within the energy ranges from $1.17\mathrm{eV}$ up to $1.69\mathrm{eV}$, and from $1.72\mathrm{eV}$ up to $2.38\mathrm{eV}$, respectively [10,11]. These obtained values imply that the ${\mathrm{Cu}}_3\mathrm{N}$ semiconductor can be considered a promising candidate as a next-generation light absorber, that is, a realistic candidate in order to fully substitute the more conventional silicon in PV industry.

Such a large reported differences found in the band gap can be explained as a possible difference in the stoichiometry of the Cu-N binary system, and also due to the existence of oxygen impurities into the crystal lattice. This material, on the other hand, possesses interestingly an extremely high absorption coefficient larger than ${10}^5{\mathrm{cm}}^{-1}$ above approximately $2.0\mathrm{eV}$ [12], as will be accurately found in this work, which underlines once more the above-mentioned potential role as an solar-light absorber for photovoltaic-cell technologies.

In the present investigation, the complex index of refraction of the ${\mathrm{Cu}}_3\mathrm{N}$ thin films is determined via variable-angle spectroscopic ellipsometry (VASE) measurements [13], which were conducted at three different angles of incidence, ${50}^{\circ }$, ${60}^{\circ }$, and ${70}^{\circ }$, respectively, to obtain the two ellipsometric parameters psi, $\psi$, and delta, $\Delta$, respectively. In order to achieve an excellent fit with the measured values of $\psi$ and $\Delta$, it is of paramount importance to construct a valid optical model. In our particular case, a one-dimensional graded-index model throughout the whole layer, from the bottom to the top, combined with a mixture of one Tauc-Lorentz (TL) oscillator [14,15,16,17,18], and up to four Gaussian (Gau) oscillators, are successfully adopted to account for the bulk copper-nitride layer, whereas a Bruggeman-effective-medium approximation (BEMA) model [19], with $50\%$-air-void, is selected in order to describe the existing surface-roughness layer. As a result, the optical constants of the ${\mathrm{Cu}}_3\mathrm{N}$ thin films are accurately determined in the measured wavelength range of 300 to $2200\mathrm{nm}$. Our constructed optical model for extracting the optical constants of ${\mathrm{Cu}}_3\mathrm{N}$ thin layers is similar to the optical model suggested by Yan et al. [20,21,22], for the particular case of cesium-lead-bromide (${\mathrm{CsPbBr}}_3$) thin films, where they also adopted a similar combination of several TL and Gau oscillators, and the front-rough-superficial layer was included in the model, as well.

Finally, it must be pointed out that there is generally very inconsistent and ambiguous information about the optical properties of copper-nitride thin films, which is most likely to be caused by the existing differences in the particular synthesis technology employed in each case. Hence, it is particularly relevant and clarifying the present spectro-ellipsometric study of the refractive index, n, extinction coefficient, k, and absorption coefficient, $\alpha$, in the UV/visible/NIR spectral range, carried out in this work.

2. Experimental procedure: materials and methods

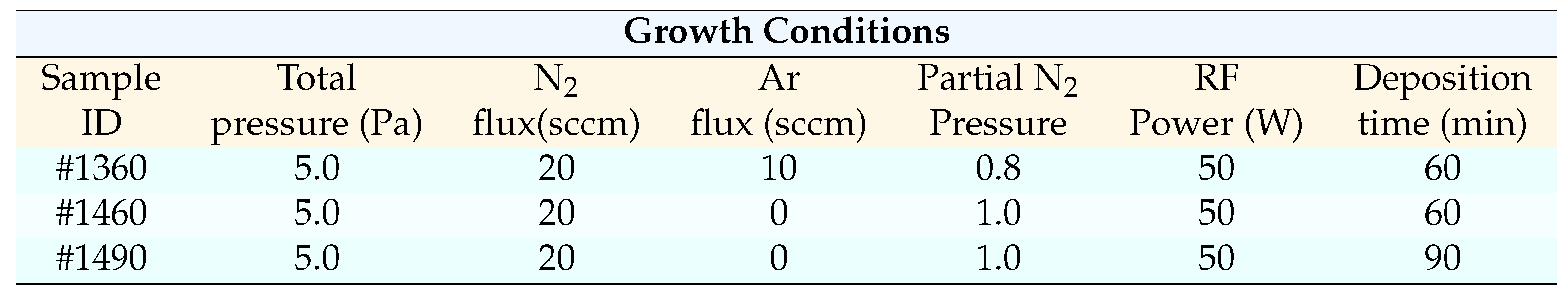

The growth of the ${\mathrm{Cu}}_3\mathrm{N}$ thin films was performed by employing a commercial MVSystem LLC (Golden, CO, USA), single-chamber sputtering system, where the gun was radio-frequency (RF) operated, and it was vertically movable. The transparent substrates employed were Corning glass 1737F (Corning Inc, USA). The 3-in diameter and 6-mm-thick target was manufactured by Lesker Company (St. Leonards-on-Sea, UK), and it had a $99.99\%$ purity. The glass substrate, on the other hand, was cleaned by an ultrasonic bath with ethanol and deionized water during 10 min, and it was lastly immersed in isopropyl alcohol; next, all the used glass substrates were carefully dried by blowing nitrogen on them. The RF-sputtering-process chamber was pumped down to a base pressure of ${10}^{-5}\mathrm{Pa}$, and the deposition process was performed in an environment with the total working gas pressure set to $5.0$ Pa, and it was controlled by using a butterfly-type valve. The target-to-substrate distance was always set to a conveniently selected nearly $10\mathrm{cm}$. The RF power was set to $50\mathrm{W}$, and the corresponding grown time was 60 and 90 min. All the thin-film depositions were carried out at room temperature. The complete set of growth conditions of our specimens are listed in Table 1.

The atomic structure, morphology, and chemical composition of the Cu${}_3$N thin films were analyzed by X-ray diffraction (XRD), atomic force microscopy (AFM), and energy-dispersive X-ray spectroscopy (EDX), respectively. The polycrystalline structure of the Cu${}_3$N samples were studied by the corresponding XRD diffraction patterns, measured with a PANalytical power diffractometer, model X’Pert MPD/MRD, by using ${\mathrm{CuK}}_{\alpha }$ radiation ($\lambda =1.54$Å). The scanned $2\theta$-range was 10-${60}^{\circ }$, at a step size of $0.1^{\circ }$. The topography of the Cu${}_3$N film surface was measured by using a standard AFM microscope (Dimension Icon, Bruker, USA), in peakForce tapping mode, and with Bruker SeanAsyst-Air probes (radius $5\mathrm{nm}$). The surface roughness of the thin-film samples was estimated by its root-mean-square value. Finally, the optical transmission spectra were measured at normal incidence, by using a UV/visible/NIR, double-beam, Perkin-Elmer Lambda-1050 spectrophotometer, and also with a single-beam VASE spectroscopic ellipsometer.

Cu${}_3$N thin-layer thickness, profile texture, and surface topography of the ${\mathrm{Cu}}_3\mathrm{N}$ material were characterized via scanning electron microscopy (SEM). As a first step, the samples were mechanically cleaved in order to obtain SEM micrographs from cross-section profiles along the growth direction, which allowed determining the average thickness of each Cu${}_3$N layer. Afterwards, gold thin layers were deposited on all samples surfaces to avoid charging effects, due to the interaction between the electron beam and the non-conductive sample. This was achieved by using a magnetron deposition process, via plasma, in a 208HR-Cressington Sputter Coater (Cressington Scientific Instruments, UK).

The spectro-ellipsometric spectra $\psi$ and $\Delta$, respectively, were measured over the spectral range of 300-$2200\mathrm{nm}$ with steps of $10\mathrm{nm}$, at room temperature, by making use of a Woollam V-VASE spectroscopic ellipsometer. It is essentially a rotating analyzing ellipsometer, with a Berek computer-controlled, adjustable ${\mathrm{MgF}}_2$-waveplate retarder (the so-called automatic retarder), which is used to very-accurately introduce a beam path delay, over a wide spectral range. This variable retarder allows to adjust the input polarization in order to provide a reflected beam, which is always close to circular polarization, and thus the system will measure $\Delta$ accurately over the entire angular range of 0-${360}^{\circ }$. Moreover, the autoretarder-ellipsometer configuration permits the measurement of the ‘%-depolarization’, which can be correlated with thickness nonuniformities of the studied samples, enabling a better fitting of the two ellipsometric angles $\psi$ and $\Delta$, respectively, in these particular cases. The data analysis was systematically performed with the WVASE32 software, from J.A. Woollam [23].

3. Preliminary structural and morphological characterizations

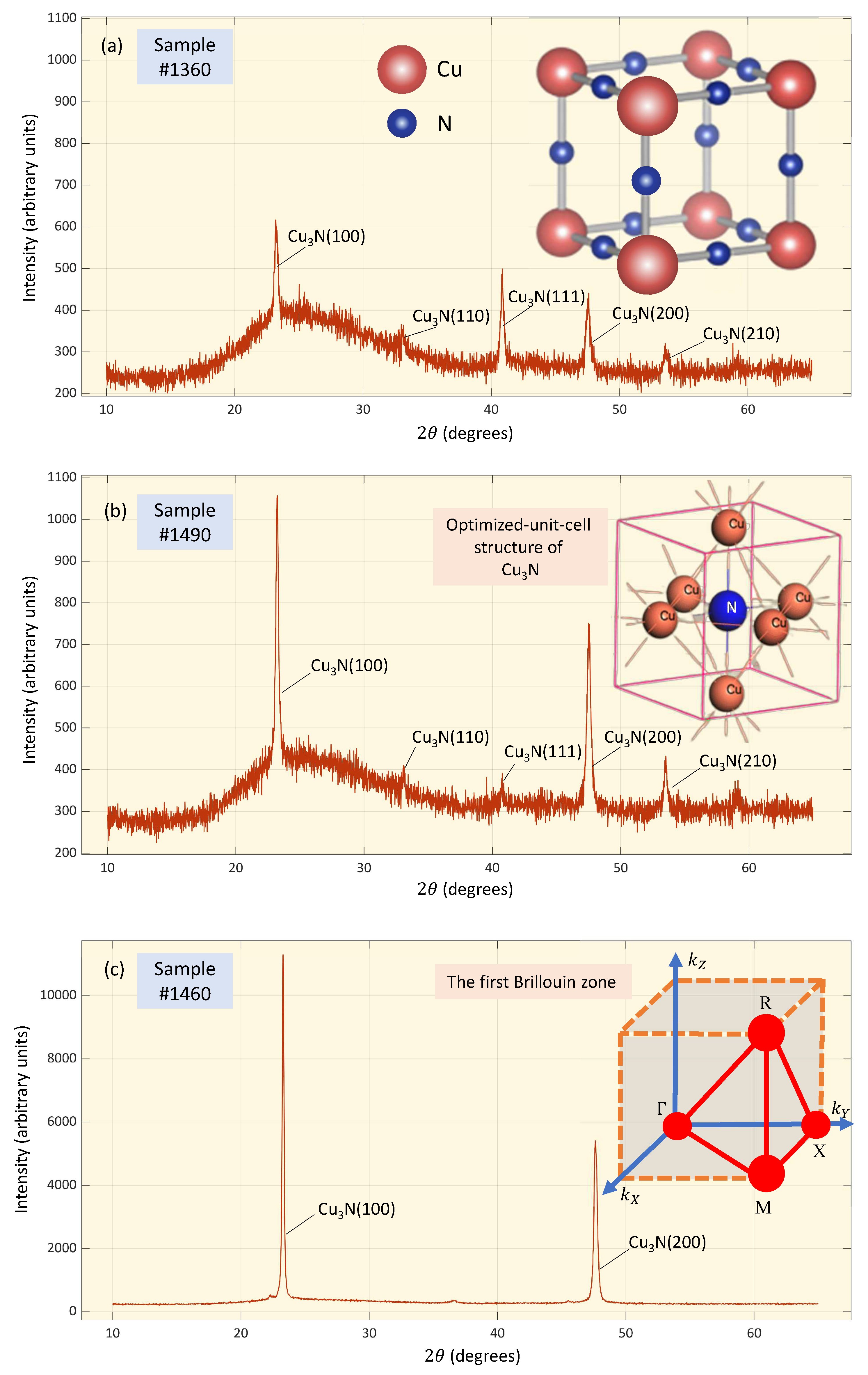

XRD patterns of three as-deposited ${\mathrm{Cu}}_3\mathrm{N}$ thin films are shown in Figure 1. The main diffraction peaks identified as the $\left(100\right)$, $\left(111\right)$, and $\left(200\right)$ crystallographic planes, represent a polycrystalline${\mathrm{Cu}}_3\mathrm{N}$ film (card number 00-047-1088), in cubic, anti-${\mathrm{ReO}}_3$ structure (space group P$m\overline{3}m$, number 221, first reported by Juza and Hahn [24]). No evidence whatsoever for Cu-phase and CuO formation was found in the present XRD diagrams.

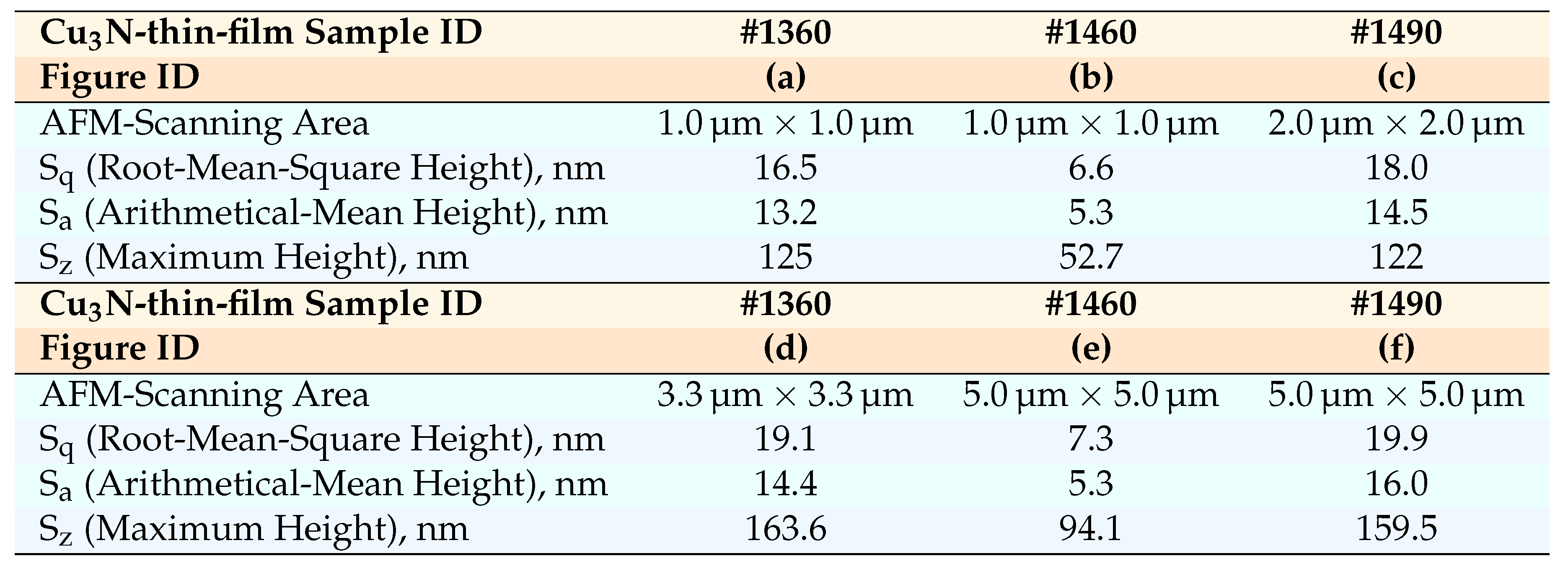

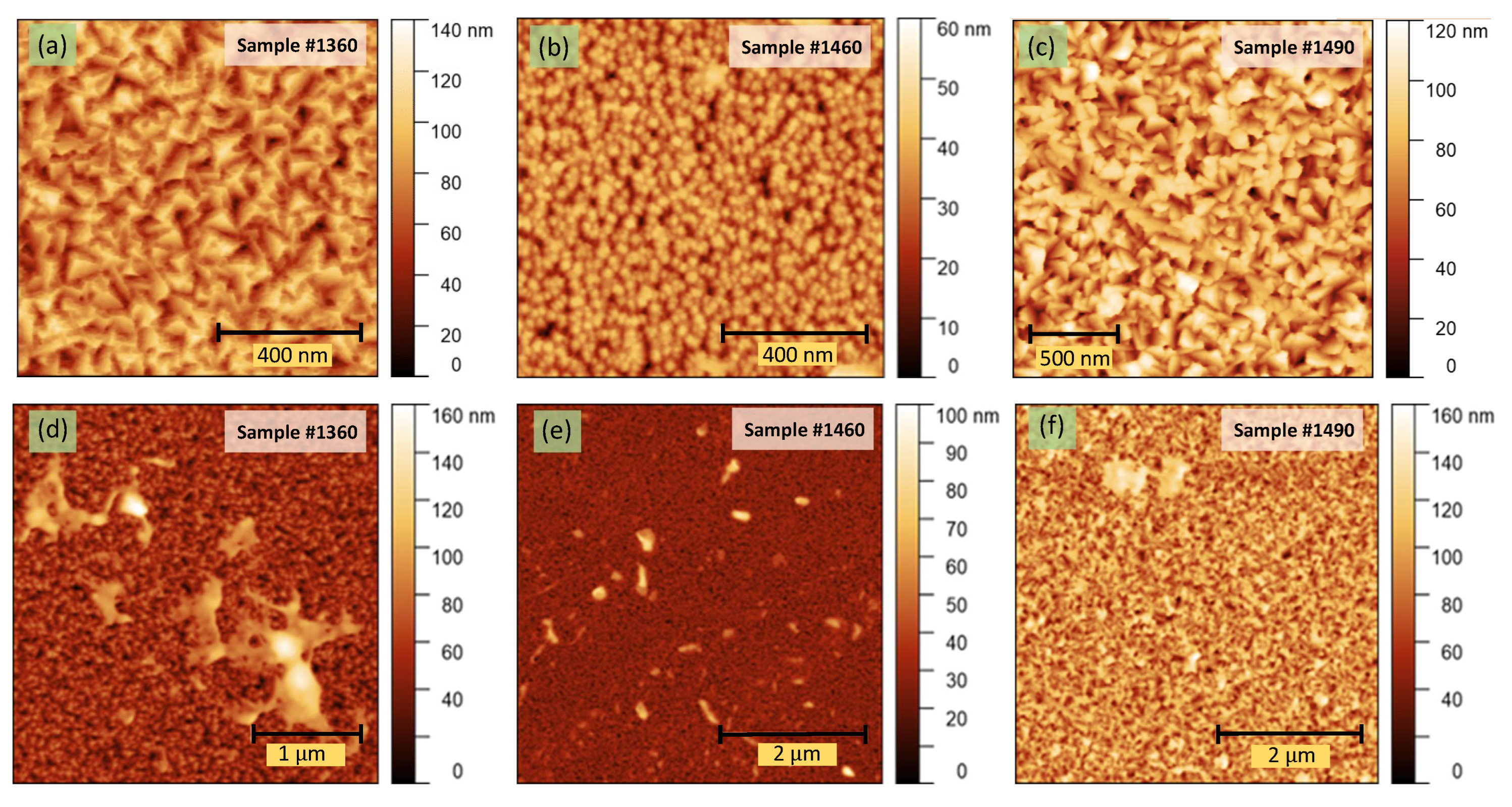

As it was previously said, the surface morphology of the ${\mathrm{Cu}}_3\mathrm{N}$ thin-film samples was carefully analyzed by AFM microscopy. Figure 2 displays the $1.0\mu \mathrm{m}\times 1.0\mu \mathrm{m}$ and $2.0\mu \mathrm{m}\times 2.0\mu \mathrm{m}$ bi-dimensional AFM micrographs of the three ${\mathrm{Cu}}_3\mathrm{N}$ layers, sputtered all of them at a total gas pressure of $5.0\mathrm{Pa}$. Table 2 indicates the values of the three considered surface-roughness parameters, S_q, S_a, and S_z, respectively, determined with the help of the software connected with this device, and by using 2D-AFM images displayed in Figure 2. It should be stressed that all these calculations led to an estimated uncertainty of less than around $10\%$. According to the three measured surface roughness parameters, S_q, S_a, and S_z, respectively, the as-deposited ${\mathrm{Cu}}_3\mathrm{N}$ thin-layer samples under study do certainly exhibit a relatively large surface roughness.

It is reasonable therefore that the corresponding obtained values by the ellipsometric models for the BEMA surface-roughness layer, $d_{\mathrm{rough}}$ (see Table 3), be larger than those determined by the $1.0\mu \mathrm{m}\times 1.0\mu \mathrm{m}$ and $2.0\mu \mathrm{m}\times 2.0\mu \mathrm{m}$ AFM images. That is, taking into account the fact that the size of the light-spot of the spectroscopic ellipsometer is very much bigger than that of the previous AFM images, it is indeed likely to occur that $d_{\mathrm{rough}}$ is larger than the three parameters ${\mathrm{S}}_{\mathrm{q}}$, ${\mathrm{S}}_{\mathrm{a}}$, and ${\mathrm{S}}_{\mathrm{z}}$, respectively.

Figure 3, on the other hand, shows cross-sectional-view SEM images of the as-grown ${\mathrm{Cu}}_3\mathrm{N}$ thin layers, deposited in a ${\mathrm{N}}_2+\mathrm{Ar}$ environment (Figure 3a), in the particular case of the sample $\#1390$, and without Ar in the case of sample $\#1490$. The SEM-measured values of the film thickness clearly confirm the excellent accuracy of the layer thickness calculated by UV/visible/NIR spectroscopic ellipsometry, as will be shown in detail below. The SEM images also corroborated that film surface were not extremely rough and nonuniform, and are mainly made up of typical columnar grains, typical of the present sputtering deposition technique [27]. Importantly, all the results found by the SEM microscopy are certainly consistent with those obtained from the previous AFM-microscopy analysis.

Also, in order to register SEM images revealing the Cu${}_3$N layer texture, micrometric trenches were made transversely to the surface. This was carried out using ${\mathrm{Ga}}^{+}$-ion beam, via a focused ions beam (FIB) module. SEM images were recorded by using secondary electron detectors, 5-kV accelerating voltages, and working distances ranging from 6 to $7\mathrm{mm}$ . Furthermore, the chemical composition of the ${\mathrm{Cu}}_3\mathrm{N}$ layers were found by using an electron dispersive X-ray spectroscopy module, attached to the electron microscope. EDX spectra were obtained by using electron probes accelerated at 30-kV voltages.

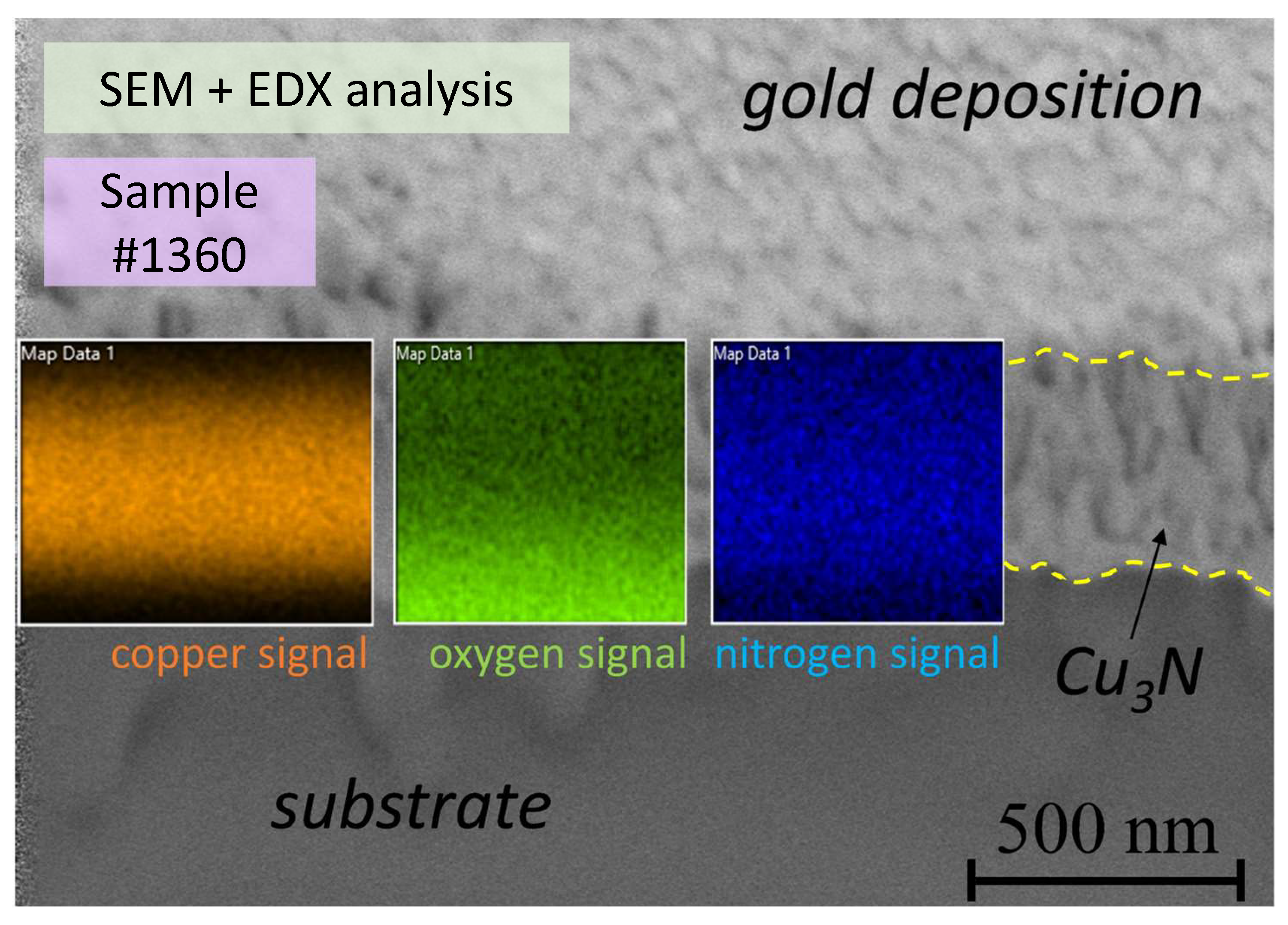

We performed the conventional FIB sample-preparation procedures, before undertaking the EDX analysis. In our EDX study of the present ${\mathrm{Cu}}_3\mathrm{N}$ thin-film specimens (see the measured EDX maps displayed in Figure 4), oxygen and nitrogen, as light elements, were not detected with high sensitivity, but it can be observed that the oxygen signal is, indeed, more intense near the glass-substrate region (the glass having both silica and alumina). The nitrogen signal, on the other hand, notably decreases near the ${\mathrm{Cu}}_3\mathrm{N}$-glass interface, and increases, on the contrary, in the bulk${\mathrm{Cu}}_3\mathrm{N}$ layer. However, it must be pointed out that an increase of oxygen content and a decrease of nitrogen content near the surface of the film is not seen. Significantly, from the present EDX maps (Figure 4), it is not reasonable to speculate with the existence of a very-thin-copper-oxide layer, at the surface of the ${\mathrm{Cu}}_3\mathrm{N}$ thin film.

4. WVASE^®-model ellipsometric fitting

In order to determine the optical constants, n and k, of the ${\mathrm{Cu}}_3\mathrm{N}$ thin films, a commercial software package (WVASE32 version 3.774, J.A.Woollam), is used to construct a suitable model in order to fit the ellipsometric data $\psi$ and $\Delta$, respectively. It is certainly well-known that an ideal thin film must be homogeneous and have a perfect flat surface, and that very infrequently happens in reality. The most-usually found cases are obviously non-ideal thin films, with a surface roughness at top, thickness non-uniformity, and a optical-constant variation from the top, down to the bottom, through the whole thin-film thickness [23].

The two ellipsometric parameters $\psi$ and $\Delta$, respectively, are related to the ratio of the Fresnel reflection coefficients, $R_{\mathrm{p}}$ and $R_{\mathrm{s}}$, for p- and s-polarized light, respectively, as expressed in Eq.(1):

$$\rho \equiv \frac{R_{\mathrm{p}}}{R_{\mathrm{s}}}=tan\left(\psi \right)e^{i\Delta }.$$

(1)

The ratio, $\rho$, of the two values is measured by the VASE technique, and, as consequence, the obtained values are very accurate and reproducible [23]. For the present thin-film sample under study (a ${\mathrm{Cu}}_3\mathrm{N}$ thin film onto a thick-transparent-glass substrate), the Sellmeier dispersion function is employed in order to describe the optical properties of the transparent glass substrate. In the optical model for the ${\mathrm{Cu}}_3\mathrm{N}$ thin film, such a film is divided into two equivalent parts.

One of them is a bulk planar ${\mathrm{Cu}}_3\mathrm{N}$ layer, and its corresponding bulk thickness is denoted by $d_{\mathrm{bulk}}$. The other one is a surface-roughness layer consisting of a mixture of air void and ${\mathrm{Cu}}_3\mathrm{N}$ material; the thickness of the vertical surface roughness is denoted by $d_{\mathrm{rough}}$. To clearly illustrate the proposed model, a schematic sketch of this model is shown in Figure 5. For the surface-roughness layer, a Bruggeman-effective-medium approximation is commonly appropriate, whereby the medium consists of the mixture of $x\%$ of air void and $(x-1)\%$${\mathrm{Cu}}_3\mathrm{N}$ material, and where it is verified that $0<x<100$. For the ${\mathrm{Cu}}_3\mathrm{N}$ layer (with thickness $d_{\mathrm{bulk}}$), the Tauc-Lorentz (TL) and Gaussian (Gau) oscillators were successfully adopted to accurately described the complex dielectric function of the ${\mathrm{Cu}}_3\mathrm{N}$ material [22,28]. The ‘TL’ and ‘Gau’ oscillator functions are given by Eqs. (2)-(5), respectively [23]:

$${ϵ}_{n\_\mathrm{T}-\mathrm{L}}={ϵ}_{n1}+i{ϵ}_{n2},$$

(2)

where

$${ϵ}_{n2}=\left\{\begin{array}{ccc}\frac{A_n{E}_{on}{C}_n{(E-E_{gn})}^2}{{(E^2-E_{on}^2)}^2+C_n^2{E}^2}·\frac{1}{E},\hfill & \mathrm{if}& E>E_{gn}\\ \\ 0,\hfill & \mathrm{if}& E\le E_{gn}\end{array}\right.$$

(3)

and

$${ϵ}_{n1}=\frac{2}{\pi }\mathcal{P}{\int }_{E_{gn}}^{\infty }\frac{\xi {ϵ}_{n2}\left(\xi \right)}{{\xi }^2-E^2}d\xi .$$

(4)

In Eqs. (2) and (3), the subscript ‘T-L’ encompasses the fact that this particular dispersion model is based upon the Tauc joint density of states, and the Lorentz oscillator. The four fitting parameters are: $A_n$, $E_{on}$, $C_n$ and $E_{gn}$, respectively, and where these parameters are all of them expressed in eV. Here, $\mathcal{P}$ stands for the Cauchy principal value of the two previous integrals.

The ‘Gau’ oscillator function, on the other hand, is given by the following expression:

$${ϵ}_{n\_\mathrm{Gau}}={ϵ}_{n1}+i{ϵ}_{n2},$$

(5)

where

$${ϵ}_{n2}=A_n{e}^{{((E-E_n)/\sigma )}^2}-A_n{e}^{-{((E+E_n)/\sigma )}^2},$$

(6)

and

$$\sigma =\frac{B{r}_n}{2\sqrt{ln\left(2\right)}},$$

(7)

and, finally,

$${ϵ}_{n1}=\frac{2}{\pi }\mathcal{P}{\int }_0^{\infty }\frac{\xi {ϵ}_{n2}\left(\xi \right)}{{\xi }^2-E^2}d\xi .$$

(8)

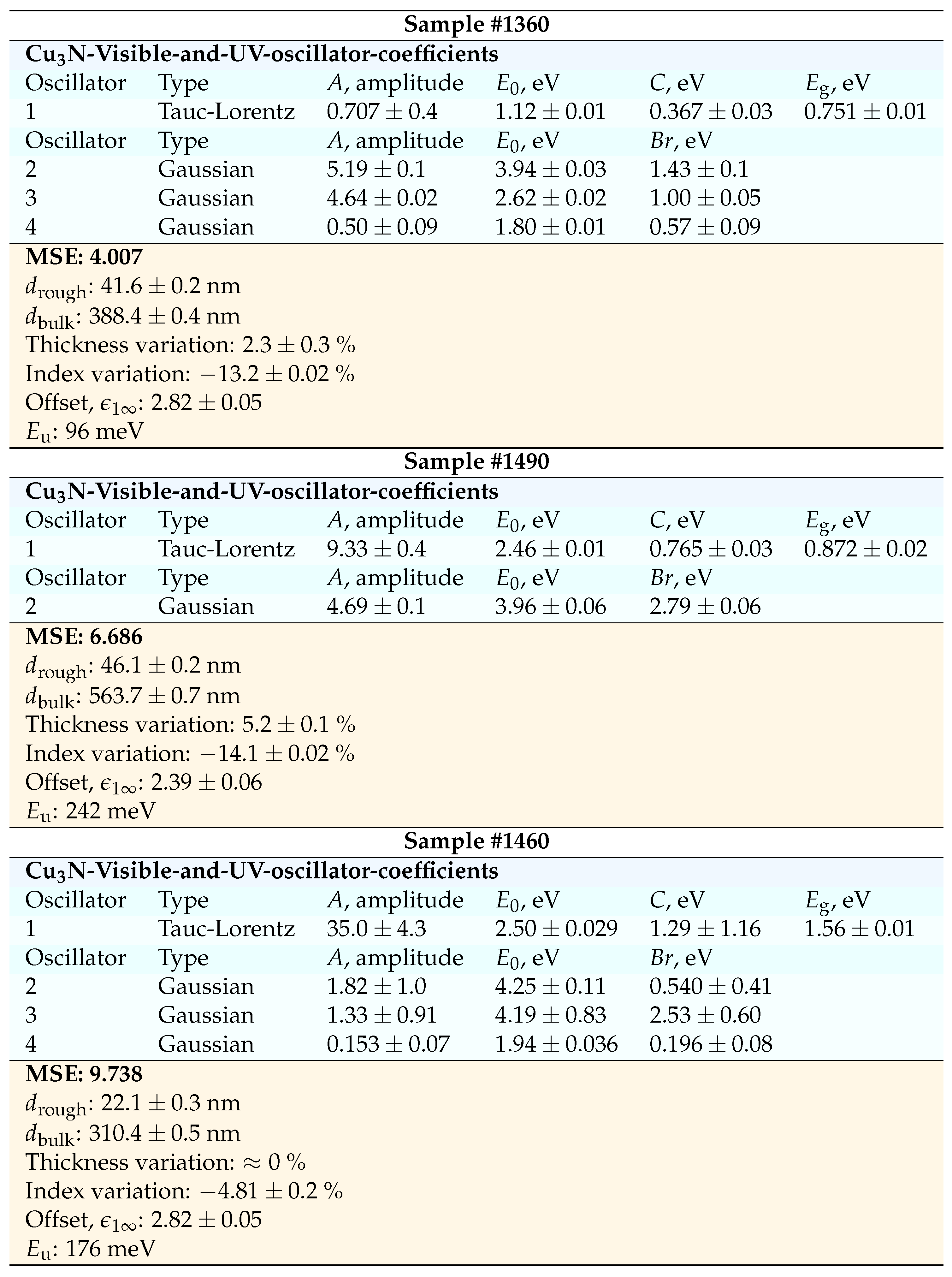

The three fitting parameters that are employed for the WVASE^® fitting in this particular case are $A_n$, where the corresponding unit is dimensionless, $E_n$, where the unit is eV, and $B{r}_n$, where the unit is also eV.

Another ellipsometric model which will be employed in this analysis is the aforementioned BEMA model. This model makes the self-consistent choice of the host-material complex dielectric function equals to the final effective complex dielectric function of the multi-constituent material. The BEMA model requires the numerical solution of the following equation, for two constituents A and B, respectively:

$$f_{\mathrm{A}}\frac{{\widetilde{ϵ}}_{\mathrm{A}}-\widetilde{ϵ}}{{\widetilde{ϵ}}_{\mathrm{A}}+2\widetilde{ϵ}}+f_{\mathrm{B}}\frac{{\widetilde{ϵ}}_{\mathrm{B}}-\widetilde{ϵ}}{{\widetilde{ϵ}}_{\mathrm{B}}+2\widetilde{ϵ}}=0.$$

(9)

For the glass substrate the expression for the dielectric function is as follows:

$${ϵ}_{n\_\mathrm{pole}}=\frac{{\mathrm{A}}_n}{E_n^2-E^2}.$$

(10)

It is the so-called Pole or Sellmeir term, which corresponds to a Lorentz oscillator with zero broadening. Some gaussian oscillators will also be added in order to complete the accurate description of the Corning^® transparent glass substrate used.

It is worth pointing out that several studies have reported that the variation of the two optical constants, n and k, respectively, of a thin film along the normal direction to the film, is most frequently owing to the drifting of the deposition-process parameters [27]. This fact suggest that the optical model with an one-dimensional graded index, along the normal direction to the thin layer, can reasonably be adopted in the present case. Graded layers work by introducing a series of homogeneous layers, whose optical constants slightly-and-gradually change in each of the successive layers.

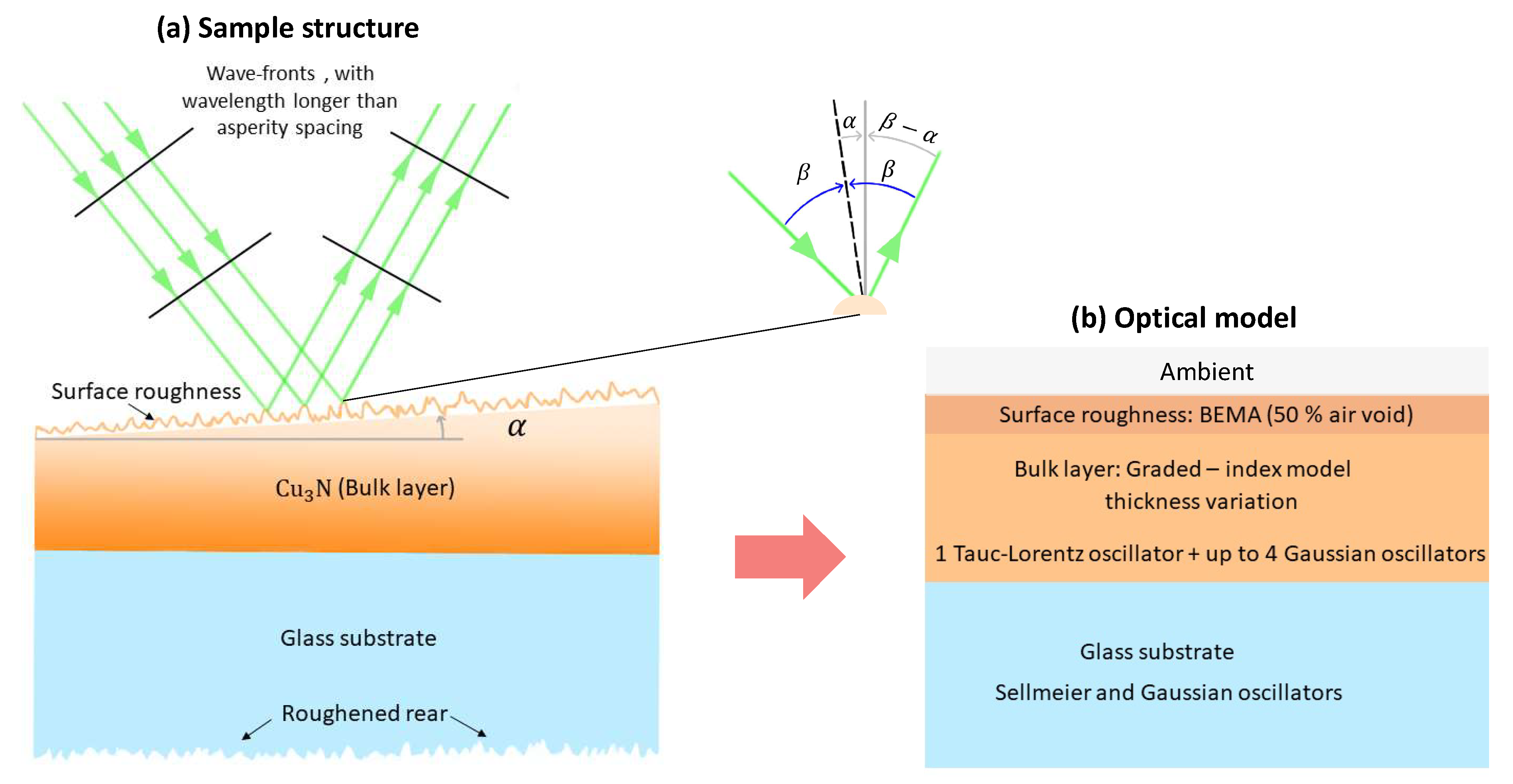

Figure 5a displays a very detailed and realistic schematic of a ${\mathrm{Cu}}_3\mathrm{N}$ thin film onto a bare transparent glass substrate. Figure 5b, on the other hand, is the suggested model to accurately fit the measured $\psi$ and $\Delta$ parameters, where a BEMA model with 50-%-of-air-void is employed in order to give an account for the effect of the existing ${\mathrm{Cu}}_3\mathrm{N}$ rough surface; a one-dimensional graded-index model throughout the whole film, from the bottom to the top, combined with one T-L oscillator and up to four Gau oscillators are employed in order to fully describe the three ${\mathrm{Cu}}_3\mathrm{N}$-bulk-flat layers under study. Furthermore, two zero-width oscillators, and two additional Gau oscillators are adopted in order to accurately describe the Corning^®-glass transparent substrate employed in our RF-magnetron-sputtering depositions.

Next, we must first define some convenient statistical quantity, which is called a maximum likelihood estimator. We will elaborate now a little bit more about that aspect by stating that the principle of maximum likelihood assumes that the population sample is a fair representation of the whole population, and selects a correct estimator that maximizes the probability density function (in continuous cases), or the probability mass function (in discrete cases). This particular choice represents the level of accuracy in correctly matching the data obtained from the constructed optical model, to our experimentally-measured data [29]. It has to be mentioned that the parameters of the particular oscillators were all appropriately varied in the process. This maximum-likelihood estimator must be necessarily positive, and go down to zero (or, at least, go down to an absolute minimum), when the model-generated data exactly matches the experimentally-measured data. The present Woollam WVASE32 software employs the following mean-square error (MSE) estimator:

$$\mathrm{MSE}=\sqrt{\frac{1}{2N-M}{\sum }_{i=1}^N\left[{\left(\frac{{\psi }_i^{\mathrm{mod}}-{\psi }_i^{\exp }}{{\sigma }_{\psi ,i}^{\exp }}\right)}^2+{\left(\frac{{\Delta }_i^{\mathrm{mod}}-{\Delta }_i^{\exp }}{{\sigma }_{\Delta ,i}^{\exp }}\right)}^2\right]}=\sqrt{\frac{1}{2N-M}{\chi }^2},$$

(11)

where N is the number of ($\psi ,\Delta$) ellipsometric-angle pairs, M is the total number of free fitting parameters in the adopted optical model, and the introduced values of $\sigma$ are the corresponding standard deviations associated to all the collected, measured data points. Another very common estimator, the so-called chi-square, ${\chi }^2$, is introduced in Eq.11, for the sake of illustration.

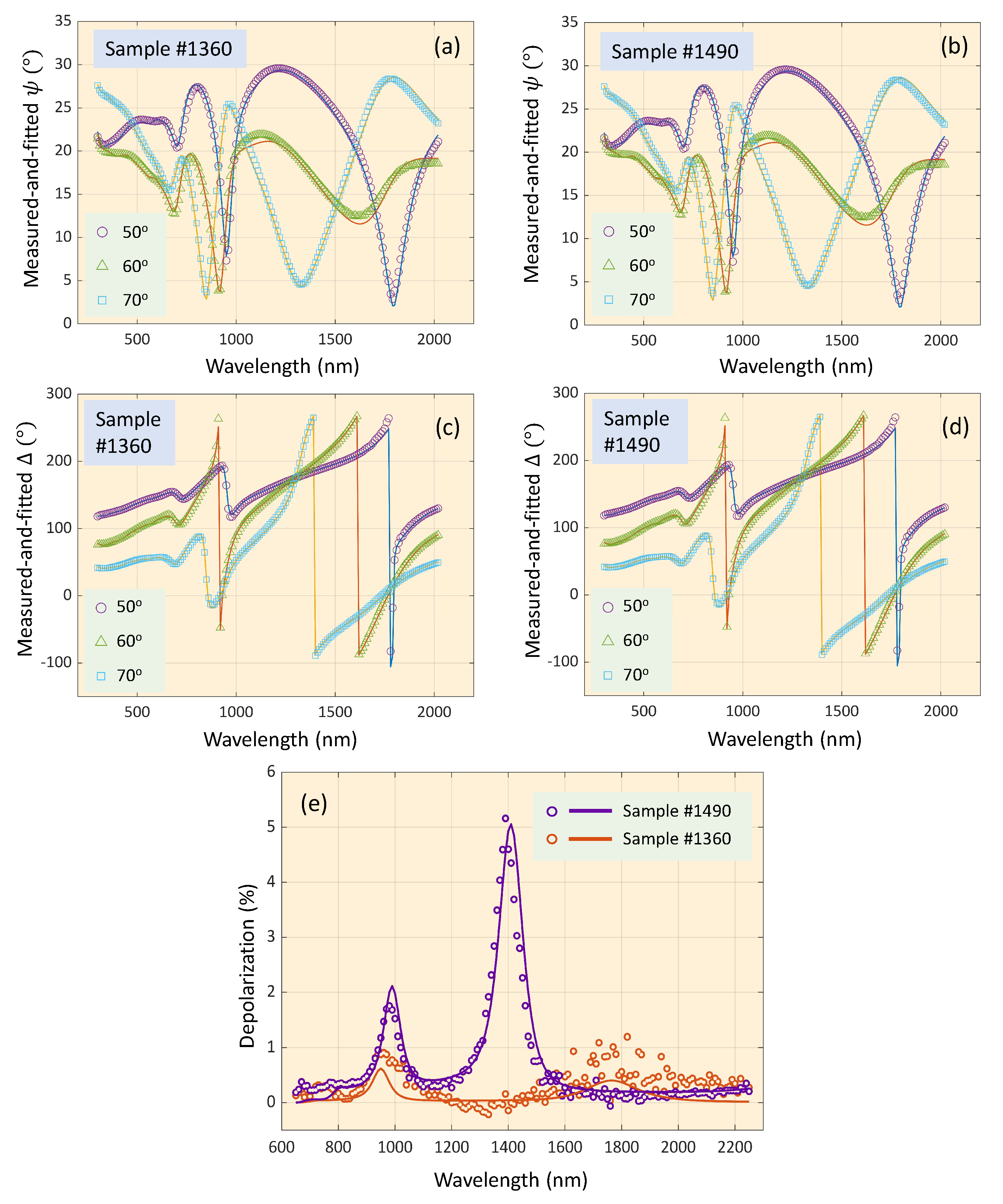

The measured and simulated values of $\psi$ and $\Delta$, at the three selected angles of incidence of ${50}^{\circ }$, ${60}^{\circ }$, and ${70}^{\circ }$, respectively, in the UV/Visible/NIR wavelength range from 300 up to $2200\mathrm{nm}$, are depicted in Figure 6a-d. It can clearly be noticed that excellent fitting results are obtained for both ellipsometric parameters, $\psi$ and $\Delta$, respectively. By the optimization process carried out, it is found that the best fitting results are achieved with: (i) a graded-index variation from bottom to top of aproximately $5.0$ to $14.0\%$, and (ii) thicknesses of the ${\mathrm{Cu}}_3\mathrm{N}$ bulk layer and surface-roughness layer, $d_{\mathrm{bulk}}$ and $d_{\mathrm{rough}}$, of around 310 to $570\mathrm{nm}$ and close to 20 to $50\mathrm{nm}$, respectively, all of them in close agreement with those estimated values from the independent SEM and AFM measurements (see Figure 2 and Figure 3). Lastly, the calculated parameters belonging to the best fit for each Cu${}_3$N sample, and those experimentally-measured values, are all of them listed in Table 3. It has also been found that, if either the adopted graded-index model was not included, or all the oscillators are fully-chosen T-L oscillator, the associated fitting results are notably worsened, causing an incorrect derivation of the optical constants. Contrarily, if all the oscillators are adopted Gau oscillators, the resulting optical constants are just slightly affected.

It is next shown that a measurable depolarization effect has clearly been observed in all the specimens. To begin with, it must be said that depolarization does occur if the reflected beam contains multiple polarization states. In the case of isotropic samples —as we assume in our case of the copper-nitride thin films— depolarization, D, can be calculated from the values of the two ellipsometric angles, $\psi$ and $\Delta$, respectively, as follows:

$$D=1-[{(cos2\psi )}^2+{(sin2\psi cos\Delta )}^2+{(sin2\psi sin\Delta )}^2].$$

(12)

Depolarization spectra of the ${\mathrm{Cu}}_3\mathrm{N}$ samples were measured by also employing the Woollam VASE ellipsometer, in the spectral range of 300-$2200\mathrm{nm}$; some of these spectra are shown in Figure 6e. Evaluation of the depolarization spectra was also performed with the WVASE32 software.

5. Results and discussion

5.1. Complex index of refraction and dielectric function

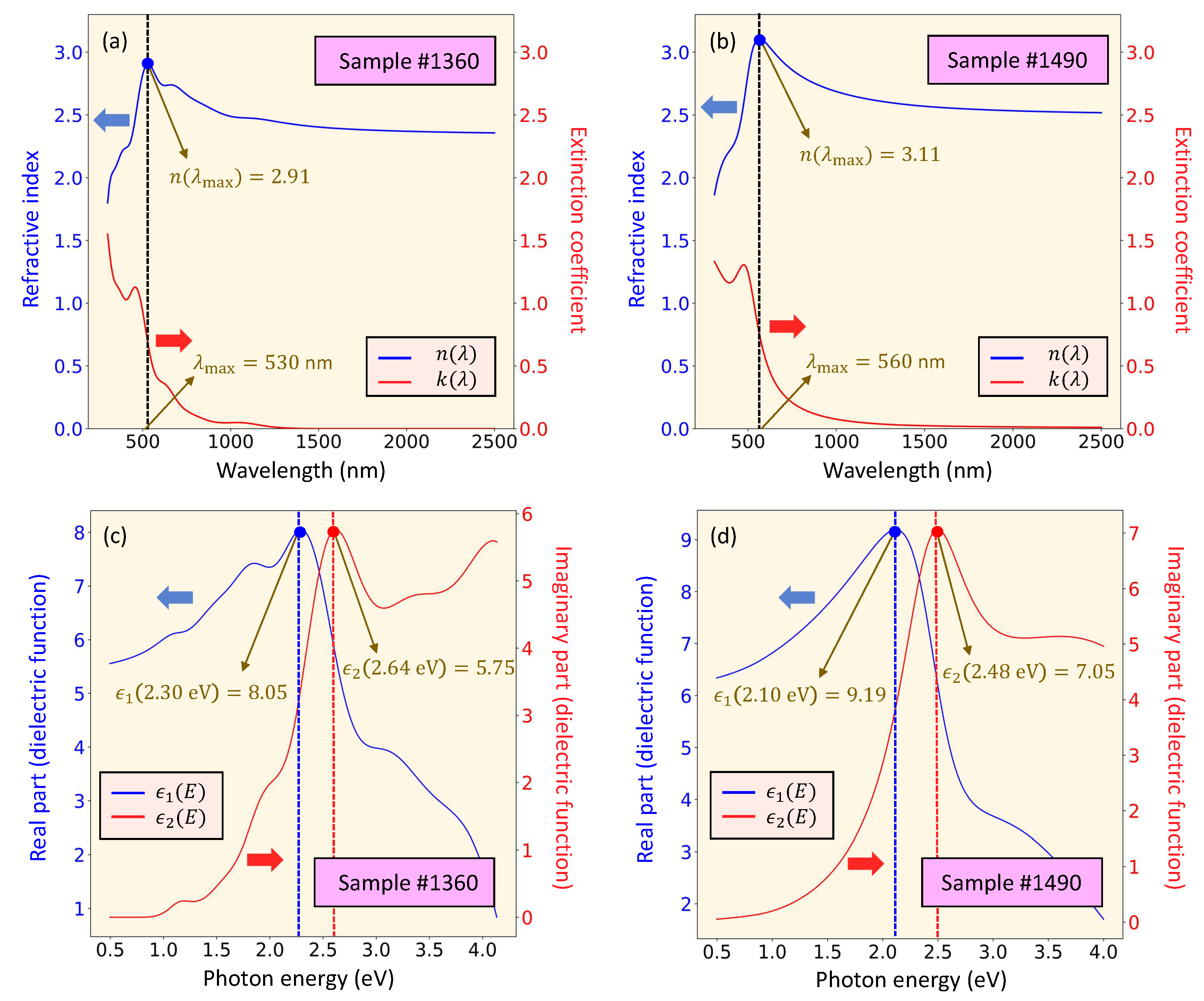

By using the previous best-fitting results, we can find the corresponding dispersive n-and-k values. They are displayed in Figure 7, and it has to be emphasized that we extend our values of the complex refractive index, $\tilde{n}=n-ik$, up to the NIR wavelength of $2500\mathrm{nm}$; it represents an excellent opportunity in order to perform the useful design and simulations on high-efficiency solar cells. To additionally confirm the correctness of ellipsometrically-calculated optical constants, the independent comparison of the measured-and-predicted values of the normal-incidence transmission, in the wavelength range under study, is shown in Figure 7. We have not used in our study the multi-sample approach; instead, we have calculated the normal-incidence transmission based exclusively on the results found from the ellipsometric analysis. For this purpose, we have carefully tried to carry out all the measurements on the very same spot of each thin-film sample. The difference observed between the predicted and the experimental values of transmittance are mainly due to the unavoidable differences in the positions on the sample, and also to the experimental uncertainty of the transmission-intensity measurements performed by the Woollam single-beam VASE ellipsometer. However, it can be observed that an excellent agreement between the experimentally-measured and calculated transmission spectra is reached in our samples; thus, it gives an extra confidence upon n and k exclusively determined from the VASE measurements, in the spectral range from 300 up $2200\mathrm{nm}$. Moreover, it is worth pointing out that the color of our semi-transparent ${\mathrm{Cu}}_3\mathrm{N}$ thin films is reddish dark-brown, or mahogany red (see the respective insets in Figure 8 showing the visual appearance of the three samples). The differences in color of the investigated ${\mathrm{Cu}}_3\mathrm{N}$ samples are obviously a direct consequence of their measured transmission spectra, as shown in Figure 8.

Let’s now discuss the optical dispersion, or chromatic dispersion, which is an important parameter in order to more deeply understand the optical properties of quasi-transparent (weakly-absorbing) Cu₃N films. Optical dispersion is the required parameter in order quantify the change of the material’s refractive index with respect to the incident-light wavelength, $\mathrm{d}n/\mathrm{d}\lambda$. Usually, in non-absorbing materials the real refractive index increases with incident-light frequency, that is, $\mathrm{d}n/\mathrm{d}\lambda <0$, in the normal dispersion regimen. In the opposite case, where $\mathrm{d}n/\mathrm{d}\lambda >0$, we are in the anomalous-dispersion regimen, that is, increasing the light frequency results in a decrease in the real index of refraction. In our RF-sputtered ${\mathrm{Cu}}_3\mathrm{N}$ samples, the values of vacuum-light wavelength where the transition takes place (the so-called refractive-index-threshold wavelength), i.e., where $\mathrm{d}n/\mathrm{d}\lambda =0$, are $530\mathrm{nm}$ and $560\mathrm{nm}$, for the two representative samples, #1360 and #1490, respectively (see Figure 7a and Figure 7b).

The real and imaginary parts of the complex dielectric function, ${ϵ}_1$ and ${ϵ}_2$, respectively, on the other hand, are obtained as a function of the refractive index, n, and extinction coefficient, k, from the fundamental expressions (based upon the basic relationship, $\widetilde{ϵ}={\tilde{n}}^2$):

$$\begin{array}{c}{ϵ}_1=n^2-k^2,\hfill \\ \\ {ϵ}_2=2nk.\hfill \end{array}$$

(13)

Concerning the obtained shape of the real and imaginary parts of the complex dielectric function upon photon energy (see Figure 7c and Figure 7d), typical for a semiconductor or insulator material, it agrees certainly well with previously reported data [4]. However, in our particular ${\mathrm{Cu}}_3\mathrm{N}$ specimens, the magnitude of the peaks of ${ϵ}_1$ and ${ϵ}_2$, about $8.0$ and $6.0$, respectively, is a multiplying factor of around $1.5$ and $2.0$, respectively, smaller than those other values reported in [4] (all of them, one order of magnitude thinner than our Cu₃N films, and with an optical gap of $1.65\mathrm{eV}$). These results could be an effect strongly correlated with the values of the film thickness, which is very much thicker in our presently-prepared Cu₃N layers.

5.2. Additional calculation of the indirect-and-direct Tauc gap and Urbach energy

At this point of the paper, it must be stressed that each semiconductor material has both direct and indirect gaps; whichever is lower shall determine the specific nature of its energy-band gap. It has to be borne in mind that the band gap is a property basically associated to the lattice constant of the material; in fact, its band gap can readily be changed by varying the value of its lattice constant. This particular value can be changed by various ways, e.g., by applying pressure, by heating or cooling, or by mixing with another semiconductor material. Both, the direct and indirect band gaps, will be modified with the change of the lattice constant, but at different rates.

Regarding the calculation of the energy-band gap of the investigated Cu₃N thin-layer material, it should be recalled that while investigating the electronic properties of a-Ge, Tauc et al. [30] proposed a nowadays, well-established method for determining the band gap by using optical data, plotted conveniently versus photon energy. The optical-absorption strength depends upon the difference between the photon energy and the band gap, and it is expressed by the following relation:

$${(\alpha \hslash \omega )}^{1/m}=A(\hslash \omega -E_{\mathrm{g}}),$$

(14)

where ℏ is the Dirac’s constant, $\alpha (=4\pi k/\lambda )$ is the absorption coefficient, $E_{\mathrm{g}}$ is the band gap, and A is a proportionality constant (energy-independent), also called the band-tailing parameter; A it is actually a function of the refractive index of the material and its carrier effective mass. The value of the exponent denotes the actual nature of the corresponding electronic transition, whether allowed or forbidden, and whether direct or indirect:

(i) direct and allowed transitions, $m=1/2$,

(ii) direct and forbidden transitions, $m=3/2$,

(iii) indirect and allowed transitions, $m=2$,

(iv) indirect and forbidden transitions, $m=3$.

Usually, the allowed transitions clearly dominates the basic optical-absorption processes, giving either $m=1/2$ or $m=2$, for direct and indirect electronic transitions, respectively. Hence, the main procedure for a ‘Tauc analysis’ is to accurately determine optical-absorption-coefficient data that spans a photon-energy range from below the band-gap transition to above it. Thus, plotting ${(\alpha \hslash \omega )}^{1/m}$ against $\hslash \omega$ is a way of testing either $m=1/2$ or $m=2$, in order to compare which provides the better fit, and thus identifies the correct electronic-transition type. We will next experimentally find that the smaller value of the indirect band gap is, as expected, accompanied with the larger spectral range of agreement in the fit, in its corresponding ‘Tauc-extrapolation plot’. It has to be emphasized that the calculated value of the indirect band gap for our ${\mathrm{Cu}}_3\mathrm{N}$ layers, is well within the optimal band-gap range for solar-cell applications, which is approximately $1.4$-$1.5\mathrm{eV}$.

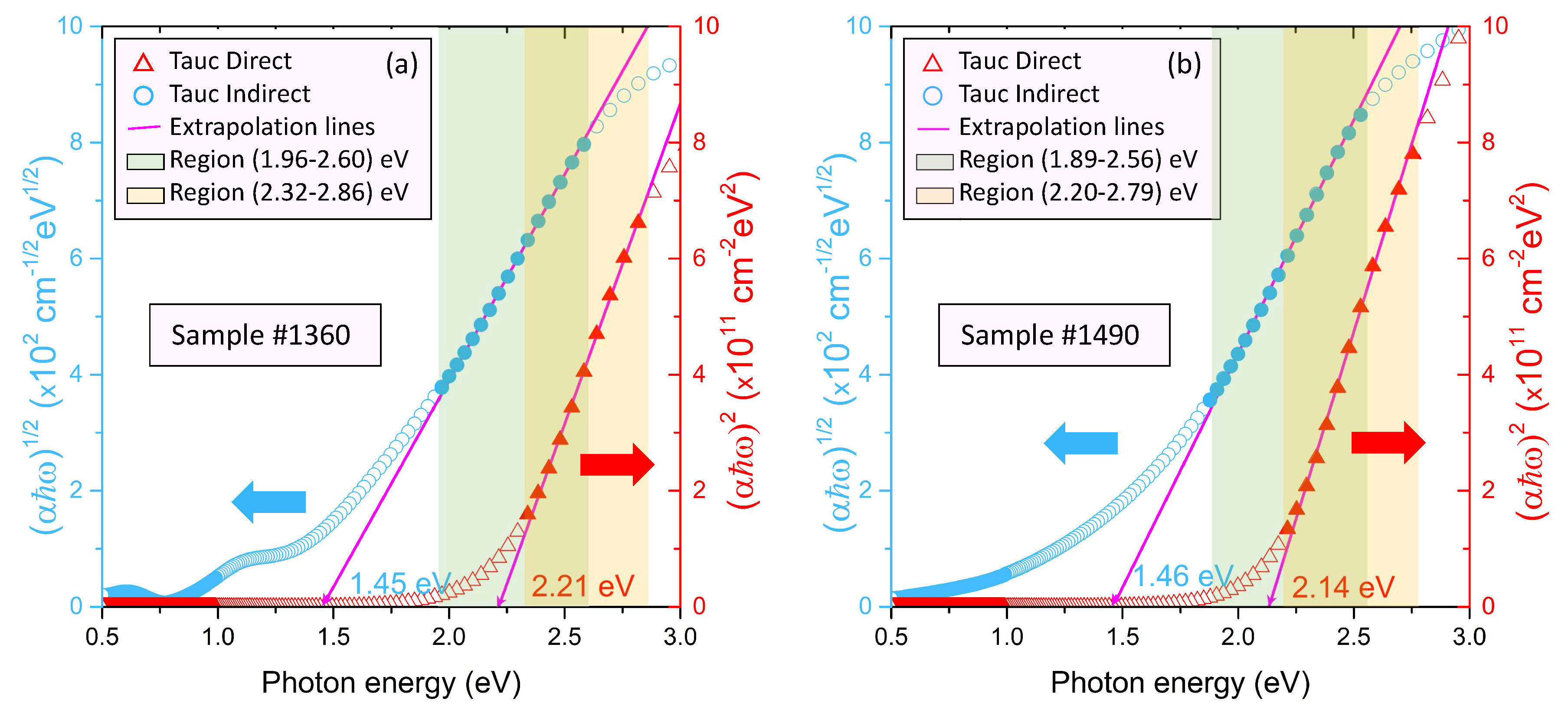

The indirect band gap was calculated by plotting ${(\alpha \hslash \omega )}^{1/2}$ versus $\hslash \omega$ curve, and by extrapolating the full line to the abscissa of $\hslash \omega$ (see Figure 9). Similarly, the direct band gap was calculated by extrapolating the full line to the abscissa of $\hslash \omega$, in the ${(\alpha \hslash \omega )}^2$ versus $\hslash \omega$ curve (see again Figure 9). The direct and indirect band-gap values for the two representative ${\mathrm{Cu}}_3\mathrm{N}$ specimens #1360 and #1490 are found to be $1.45$ and $1.46\mathrm{eV}$, respectively, and $2.21$ and $2.14\mathrm{eV}$, respectively. It must now be mentioned that there is generally highly inconsistent-and-discrepant information about the optical properties of ${\mathrm{Cu}}_3\mathrm{N}$ films; those optical properties of ${\mathrm{Cu}}_3\mathrm{N}$ have been the subject of strong controversy with regard to the bulk band-gap values, as well as the precise nature of its electronic transitions. The band-gap values are found to widely vary between $0.23\mathrm{eV}$ and $2.38\mathrm{eV}$, and the concrete nature of the band-gap transition has paradoxically been reported to be both direct as well as indirect.

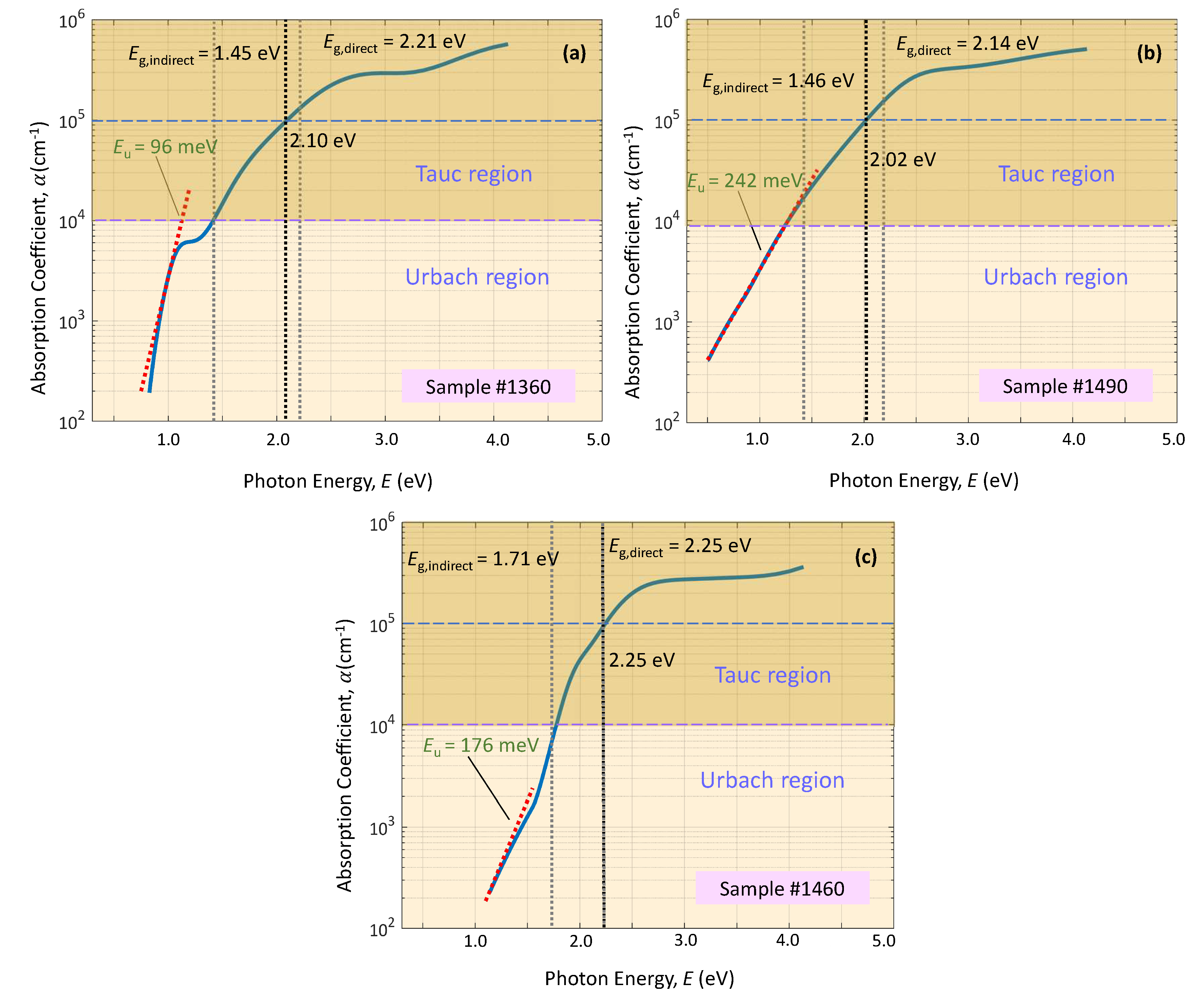

Going even more deeply into the optical properties of the ${\mathrm{Cu}}_3\mathrm{N}$ thin films, it is well known that the structural disorder in a material gives rise to a tailing of the density of states in the forbidden energy gap, known as Urbach tail, and the width of the tail is the Urbach energy, $E_{\mathrm{u}}$. In such a way that higher value of $E_{\mathrm{u}}$ means lower degree of structural order. The absorption coefficient, $\alpha$, is linked to the structural-order parameter, $E_{\mathrm{u}}$, by the following expression [31,32,33,34,35]:

$$\alpha ={\alpha }_0\exp \left(\frac{\hslash \omega }{E_{\mathrm{u}}}\right),$$

(15)

where ${\alpha }_0$ is a constant, and the structural parameter, $E_{\mathrm{u}}$, is, therefore, obtained from the linear fitting of the semilogarithmic graph of $\alpha$ versus $\hslash \omega$ (see Figure 10, where the optical-absorptionedge is shown). Specifically, the inverse of the slope gives the value of the parameter $E_{\mathrm{u}}$: The value is found to be $96\mathrm{meV}$ in the particular case of the specimen $\#1360$, $242\mathrm{meV}$ in the case of the specimen $\#1490$, and $170\mathrm{meV}$ for the specimen #1460 (see Table 3, and also Figure 10). From these values of $E_{\mathrm{u}}$, it is inferred that in the first of the three Cu${}_3$N samples, with a different gaseous environment of ${\mathrm{N}}_2+\mathrm{Ar}$, the degree of structural disorder is notably smaller than in the other two samples, with a gaseous environment of just N${}_2$.

Moreover, these previous values of $E_{\mathrm{u}}$ are indeed comparable to those reported by other authors in the case of ${\mathrm{Cu}}_3\mathrm{N}$ thin films, interpreting this Urbach energy as the bandwidth of the electronic states located within the band-gap width. That is, the Urbach tail is associated to the density of localized electronic states. In other words, the calculated value of $E_{\mathrm{u}}$ is an excellent indicator of the level of structural defects existing in the atomic structure of the semiconductor material under study.

Concerning the electronic properties of our material under investigation, it ought to be indicated that the calculated energy-band structure of ${\mathrm{Cu}}_3\mathrm{N}$ shows that it is undoubtedly a semiconductor, at ambient pressure [25]. Cu orbitals mainly form the conduction bands especially at the R and M points of the first Brillouin zone (see all the details shown in the inset of Figure 1c), and the valence band consist of $2p$ orbital of N atoms for the same symmetric points. From partial density of states, strong hybridization has been seen between the N and Cu states, mostly related to both N$2p$ and Cu$3d$ orbitals, respectively. The maximum valence band is at the R point of the first Brillouin zone, and the minimum conduction band is at the M point. It was finally concluded that taking into account all possible direct and indirect electronic transitions, the first possible transition is that between the highest occupied state at the R point, and the lowest occupied state at the M point. This unambiguously shows that ${\mathrm{Cu}}_3\mathrm{N}$ is an indirect-band-gap semiconductor material, as it has clearly been corroborated in our work.

6. Conclusions

(i) In the present investigation, polycrystalline Cu${}_3$N thin films were deposited by making use of RF-magnetron sputtering, at room-temperature, a total pressure of $5.0\mathrm{Pa}$, and by using two different gaseous environments of ${\mathrm{N}}_2$ and ${\mathrm{N}}_2+\mathrm{Ar}$, respectively. The XRD patterns showed that the ${\mathrm{Cu}}_3\mathrm{N}$ thin films exhibited an anti-${\mathrm{ReO}}_3$ structure. In order to enrich the depth of the analysis of the semiconductor material, AFM, SEM (by using FIB sample preparation), and EDX measurements, were systematically performed in all the RF-sputtered thin layers.

(ii) The complex refractive index of the RF-sputtered ${\mathrm{Cu}}_3\mathrm{N}$ thin films was accurately determined via VASE measurements, at three angles of incidence, ${50}^{\circ }$, ${60}^{\circ }$, and ${70}^{\circ }$, respectively. The constructed ellipsometric model consisted of a one-dimensional graded-index plus a BEMA model with $50\%$-air-void, in order to describe both, the bulk ${\mathrm{Cu}}_3\mathrm{N}$ layer and the rough surface. The experimentally-measured, normal-incidence transmission spectrum, and the predicted transmission spectrum based upon the obtained ellipsometric results, show a reasonably good agreement in all the cases. The calculated optical constants allow to be able to design and simulate a potential photovoltaic electronic device. The absorption strength, on the other hand, reaches a magnitude of $1.0\times {10}^5{\mathrm{cm}}^{-1}$ from approximately $2.0\mathrm{eV}$, suggesting a very promising potential for solar-cell applications. The lower Urbach energy value, for the case of the sample #1360 with a gaseous environment of ${\mathrm{N}}_2+\mathrm{Ar}$, is associated with the presence of much lower level of defects in its atomic structure, in comparison with the samples of a gaseous environment of just N${}_2$.

(iii) Last but not the least, the investigated ${\mathrm{Cu}}_3\mathrm{N}$ material with the corresponding values of $E_{\mathrm{g}}$ can unambiguously be considered satisfactory for use as a solar-light absorber material. The specific aspect of the solar-cell technology that could certainly benefit the most from the use of the Cu${}_3$N thin-film material would be that related to the photovoltaic electronic devices, as they provide a flexible texture, and are relatively inexpensive in order to be manufactured.
