Coarse Alignment of Gyro-Free Inertial Navigation System

1. Introduction

The inertial navigation system (INS) continuously provides attitude, velocity and position of a vehicle from specific force and angular velocity measured by an inertial measurement unit (IMU) [1,2,3]. Since the INS has high output rate and wide bandwidth, it has been widely used as a navigation system of vehicles with high dynamics such as rocket, guided missile and aircraft [4].

Initial attitude, initial velocity, and initial position must be known before the navigation is carried out since the INS calculates a navigation solution by integrating IMU measurements. The initial velocity and initial position should be provided externally. On the other hand, initial attitude can be determined in stationary state by itself from the gravity and the earth rate measured by the IMU [2]. This initial attitude determination without external aiding is called self-alignment [5]. In the gimbaled INS (GINS), the self-alignment is a procedure which aligns physically the platform with the navigation frame using gimbals. The self- alignment in the strap-down INS (SDINS) is a procedure to determine the initial attitude represented by the direction cosine matrix (DCM) between the body frame and the navigation frame or Euler angles, roll, pitch and heading.

The GF-INS is an inertial navigation system which uses only accelerometers. Shuler first proposed in 1960s the idea which measures angular motion of a vehicle using the lever-arm effect of accelerometer [6]. However, subsequent researches were not followed since quality of the accelerometer was not good enough to completely replace the gyroscope. With the development of micro-electro-mechanical system (MEMS) technology, nanotechnology and cold atomic technology from late 1990s, researchers have paid much attention to the GF-INS [7,8].

Before performing navigation, attitude should be initialized in the GF-INS as in the conventional INS. Even though self-alignment algorithm for the conventional INS is available, it cannot be used as it is since the measuring method of angular motion for a vehicle in the GF-INS is fundamentally different from that of the conventional INS.

Vaknin and Klein derived a partial coarse alignment procedure for the roll and pitch only and developed closed form expressions for the angular error of the GF-INS coarse alignment [9]. They compared the partial coarse alignment performances between different GF configurations. Vaknin and Klein claimed that a useful initial heading cannot be obtained regardless of the accelerometer grade since GF-INS is not able to directly measure the earth rate [9].

In this paper, a coarse alignment of the GF-INS is presented, and the feasibility of the initial heading is evaluated. The initial heading expression in accelerometer outputs of the GF-IMU is derived from the initial heading expression in the coarse alignment of the conventional INS. The configurations of the GF-IMU, in which the initial heading expression can be obtained, are investigated among the configurations of the GF-IMU in literatures [9,10,11,12,13,14,15]. A relation between accelerometer error and initial heading error is derived. In addition to these, initial heading expression is derived when one or two gyroscopes are added in the axes of the body frame to the GF-IMU. Relation between accelerometer of GF-IMU and gyroscope errors and initial heading error are also derived.

Organization of this paper is as follows. In section2, coarse alignment equations for the conventional INS is introduced. In section 3, the coarse alignment of the GF-INS is described. In section 4, the coarse alignment of the GF-INS is described when gyroscopes are added to the GF-IMU. Finally concluding remarks and further studies are presented in section 5.

2. Coarse Alignment of INS

2.1. Leveling

Only gravity is measured by the accelerometer when the vehicle is stationary. The measured gravity is represented in Equation (1) between the body frame and the navigation frame [16,17,18].

$$\begin{array}{l}{\mathbf{f}}^b={\mathbf{C}}_n^b{\mathrm{f}}^n={\mathbf{C}}_3{\mathbf{C}}_2{\mathbf{C}}_1{\mathbf{f}}^n\\ =\left[\begin{array}{ccc}1& 0& 0\\ 0& \cos \varphi & \sin \varphi \\ 0& -\sin \varphi & \cos \varphi \end{array}\right]\left[\begin{array}{ccc}\cos \theta & 0& -\sin \theta \\ 0& 1& 0\\ \sin \theta & 0& \cos \theta \end{array}\right]\left[\begin{array}{ccc}\cos \psi & \sin \psi & 0\\ -\sin \psi & \cos \psi & 0\\ 0& 0& 1\end{array}\right]\left[\begin{array}{c}0\\ 0\\ -g\end{array}\right]\\ =\left[\begin{array}{ccc}\cos \theta \cos \psi & \cos \theta \sin \psi & -\sin \theta \\ \sin \varphi \sin \theta \cos \psi -\cos \varphi \sin \psi & \sin \varphi \sin \theta \sin \psi +\cos \varphi \cos \psi & \sin \varphi \cos \theta \\ \cos \varphi \sin \theta \cos \psi +\sin \varphi \sin \psi & \cos \varphi \sin \theta \sin \psi -\sin \varphi \cos \psi & \cos \varphi \cos \theta \end{array}\right]\left[\begin{array}{c}0\\ 0\\ -g\end{array}\right]\\ =\left[\begin{array}{c}g\sin \theta \\ -g\sin \varphi \cos \theta \\ -g\cos \varphi \cos \theta \end{array}\right]=\left[\begin{array}{c}{\left({\mathbf{f}}^b\right)}_x\\ {\left({\mathbf{f}}^b\right)}_y\\ {\left({\mathbf{f}}^b\right)}_z\end{array}\right]\end{array}$$

(1)

where $\varphi$, $\theta$ and $\psi$ are roll, pitch and heading, respectively. $g$ denotes gravity. ${\mathbf{f}}^b$ and ${\mathbf{f}}^n$ are the specific force represented in the body frame and the navigation frame, respectively. ${\mathbf{C}}_n^b$ denotes the DCM between the navigation frame and the body frame. ${\mathbf{C}}_1$, ${\mathbf{C}}_2$ and ${\mathbf{C}}_3$ denote DCMs between two frames when the frame is rotated $\psi$, $\theta$, and $\varphi$ around yaw, pitch, and roll axes, respectively.

Roll can be obtained as Equation (2) from Equation (1) [16,17,18].

$$\varphi ={\tan }^{-1}\left(\frac{{\left({\mathbf{f}}^b\right)}_y}{{\left({\mathbf{f}}^b\right)}_z}\right)$$

(2)

where ${\left({\mathbf{f}}^b\right)}_y$and ${\left({\mathbf{f}}^b\right)}_z$ are the $y$ axis and the $z$ axis component the specific force, respectively. Pitch $\theta$ is obtained from Equation (3) [16,17,18].

$$\theta ={\tan }^{-1}\left(\frac{{\left({\mathbf{f}}^b\right)}_x}{\sqrt{{\left({\mathbf{f}}^b\right)}_y^2+{\left({\mathbf{f}}^b\right)}_z^2}}\right)$$

(3)

where ${\left({\mathbf{f}}^b\right)}_x$ is the $x$ axis component of the specific force.

2.2. Gyrocompassing

Only the earth rate is measured by the gyroscope when the vehicle is stationary. The earth rate is represented as Equation (4) in the body frame and in the navigation frame [16,17,18].

$${\mathsf{\omega }}_{ie}^b={\mathbf{C}}_n^b{\mathsf{\omega }}_{ie}^n={\mathbf{C}}_3{\mathbf{C}}_2{\mathbf{C}}_1\left[\begin{array}{c}\mathsf{\Omega }\cos L\\ 0\\ -\mathsf{\Omega }\sin L\end{array}\right]$$

(4)

where $\mathsf{\Omega }$ and $L$ are the magnitude of the earth rate and the latitude, respectively. ${\mathsf{\omega }}_{ie}^b$ and ${\mathsf{\omega }}_{ie}^n$ are the earth rate represented in the body frame and navigation frame, respectively. From Equation (4), the earth rate ${\mathsf{\omega }}_{ie}^r$ represented in the frame, which is rotated from the navigation frame by the heading $\psi$, is given in Equation (5) [16,17,18].

$$\begin{array}{l}{\mathsf{\omega }}_{ie}^r={\mathbf{C}}_1{\mathsf{\omega }}_{ie}^n=\left[\begin{array}{c}\mathsf{\Omega }\cos L\cos \psi \\ -\mathsf{\Omega }\cos L\sin \psi \\ -\mathsf{\Omega }\sin L\end{array}\right]\\ ={\left({\mathbf{C}}_3{\mathbf{C}}_2\right)}^{-1}{\mathsf{\omega }}_{ie}^b=\left[\begin{array}{c}{\left({\mathsf{\omega }}_{ie}^b\right)}_x\cos \theta +{\left({\mathsf{\omega }}_{ie}^b\right)}_y\sin \varphi \sin \theta +{\left({\mathsf{\omega }}_{ie}^b\right)}_z\cos \varphi \sin \theta \\ {\left({\mathsf{\omega }}_{ie}^b\right)}_y\cos \varphi -{\left({\mathsf{\omega }}_{ie}^b\right)}_z\sin \varphi \\ -{\left({\mathsf{\omega }}_{ie}^b\right)}_x\sin \theta +{\left({\mathsf{\omega }}_{ie}^b\right)}_y\sin \varphi \cos \theta +{\left({\mathsf{\omega }}_{ie}^b\right)}_z\cos \varphi \cos \theta \end{array}\right]=\left[\begin{array}{c}{\left({\mathsf{\omega }}_{ie}^r\right)}_x\\ {\left({\mathsf{\omega }}_{ie}^r\right)}_y\\ {\left({\mathsf{\omega }}_{ie}^r\right)}_z\end{array}\right]\end{array}$$

(5)

From Equation (5), the heading is obtained from Equation (6) [16,17,18].

$$\psi ={\tan }^{-1}\left(-\frac{{\left({\mathsf{\omega }}_{ie}^r\right)}_y}{{\left({\mathsf{\omega }}_{ie}^r\right)}_x}\right)={\tan }^{-1}\left(-\frac{{\left({\mathsf{\omega }}_{ie}^b\right)}_y\cos \varphi -{\left({\mathsf{\omega }}_{ie}^b\right)}_z\sin \varphi }{{\left({\mathsf{\omega }}_{ie}^b\right)}_x\cos \theta +{\left({\mathsf{\omega }}_{ie}^b\right)}_y\sin \varphi \sin \theta +{\left({\mathsf{\omega }}_{ie}^b\right)}_z\cos \varphi \sin \theta }\right)$$

(6)

3. Coarse Alignment of GF-INS

3.1. Roll and pitch

The $k$-th accelerometer output of the GF-IMU with $N$ accelerometers is given in Equation (7) [10].

$$y_k={\left[{\mathbf{d}}_k^b\right]}^T{\mathbf{f}}_k^b={\left[{\mathbf{d}}_k^b\right]}^T\left[{\mathbf{a}}^b+{\mathsf{\omega }}_{ib}^b\times \left({\mathsf{\omega }}_{ib}^b\times {\mathbf{r}}_k^b\right)+{\dot{\mathsf{\omega }}}_{ib}^b\times {\mathbf{r}}_k^b-{\mathbf{g}}^b\right]$$

(7)

where ${\mathbf{d}}_k^b$ denotes the sensing direction of the $k$-th accelerometer. ${\mathbf{f}}_k^b$ is the specific force of the $k$-th accelerometer represented in the body frame. ${\mathbf{a}}^b$ is the acceleration at the center of the gravity of the vehicle represented in the body frame. ${\mathsf{\omega }}_{ib}^b$ is the angular velocity of the body frame with respect to the inertial frame represented in the body frame. ${\dot{\mathsf{\omega }}}_{ib}^b$ is the angular acceleration of the body frame with respect to the inertial frame represented in the body frame. ${\mathbf{r}}_k^b$ is the position of the $k$-th accelerometer represented in the body frame. ${\mathbf{g}}^b$ is the gravity vector represented in the body frame. If the vehicle is stationary on earth, then ${\mathbf{a}}^b=0$, ${\dot{\mathsf{\omega }}}_{ib}^b=0$ and ${\mathsf{\omega }}_{ib}^b={\mathsf{\omega }}_{ie}^b+{\mathsf{\omega }}_{eb}^b={\mathsf{\omega }}_{ie}^b$. Therefore, the $k$-th accelerometer output can be represented in Equation (8).

$$y_k={\left[{\mathbf{d}}_k^b\right]}^T{\mathbf{f}}_k^b={\left[{\mathbf{d}}_k^b\right]}^T\left[{\mathsf{\omega }}_{ie}^b\times \left({\mathsf{\omega }}_{ie}^b\times {\mathbf{r}}_k^b\right)-{\mathbf{g}}^b\right]$$

(8)

In Equation (8), since the magnitude of the vector ${\mathsf{\omega }}_{ie}^b$, $‖{\mathsf{\omega }}_{ie}^b‖$ is $7.292115\times 10^{-5}\mathrm{rad}/$s, the magnitude of the centripetal acceleration is much less than the gravity as Equation (9) [9].

$$‖{\mathsf{\omega }}_{ie}^b\times ({\mathsf{\omega }}_{ie}^b\times {\mathbf{r}}_k^b)‖\ll ‖{\mathbf{g}}^b‖$$

(9)

As a result of this, Equation (9) can be represented in Equation (10) [9].

$$y_k\approx \left[{\mathbf{d}}_k^b{]}^T{\mathbf{f}}_k^b=\right[{\mathbf{d}}_k^b{]}^T\left(-{\mathbf{g}}^b\right)$$

(10)

The estimated specific force ${\widehat{\mathbf{f}}}^b$ from $N$ accelerometers outputs can be obtained from Equation (11).

$${\widehat{\mathbf{f}}}^b={\left[\begin{array}{ccc}{\left({\widehat{\mathbf{f}}}^b\right)}_x& {\left({\widehat{\mathbf{f}}}^b\right)}_y& {\left({\widehat{\mathbf{f}}}^b\right)}_z\end{array}\right]}^T=-{\widehat{\mathbf{g}}}^b={\left({\mathbf{D}}^T\mathbf{D}\right)}^{-1}{\mathbf{D}}^T\tilde{\mathbf{Y}}$$

(11)

where $\mathbf{D}$ is the sensing direction matrix of the accelerometers in (12).

$$\mathbf{D}={\left[\begin{array}{cccc}{\left({\mathbf{d}}_1^b\right)}^T& {\left({\mathbf{d}}_2^b\right)}^T& \cdot \cdot \cdot & {\left({\mathbf{d}}_N^b\right)}^T\end{array}\right]}^T$$

(12)

$\tilde{\mathbf{Y}}$ is the accelerometer measurement vector in (13).

$$\tilde{\mathbf{Y}}={\left[\begin{array}{cccc}{\tilde{y}}_1& {\tilde{y}}_2& \cdots & {\tilde{y}}_N\end{array}\right]}^T$$

(13)

Inserting the specific force in Equation (11) into Equation (2) and (3), roll and pitch can be obtained.

3.2. Heading

In order to obtain heading, let's change Equation (8) to Equation (14).

$$\begin{array}{ll}{y}_k+[{\mathbf{d}}_k^b{]}^T{\mathbf{g}}^b& =[{\mathbf{d}}_k^b{]}^T{\mathbf{f}}_k^b+[{\mathbf{d}}_k^b{]}^T{\mathbf{g}}^b\\ & =\left[{\mathbf{d}}_k^b{]}^T\right[{\mathsf{\omega }}_{ie}^b\times ({\mathsf{\omega }}_{ie}^b\times {\mathbf{r}}_k^b)]\\ & =[{\mathbf{d}}_k^b{]}^T{\mathsf{\Omega }}_{ie}^b{\mathsf{\Omega }}_{ie}^b{\mathbf{r}}_k^b\\ & ={\left[\begin{array}{c}{\left({\mathbf{d}}_k^b\right)}_x\\ {\left({\mathbf{d}}_k^b\right)}_y\\ {\left({\mathbf{d}}_k^b\right)}_z\end{array}\right]}^T\left[\begin{array}{ccc}0& -{\left({\mathsf{\omega }}_{ie}^b\right)}_z& {\left({\mathsf{\omega }}_{ie}^b\right)}_y\\ {\left({\mathsf{\omega }}_{ie}^b\right)}_z& 0& -{\left({\mathsf{\omega }}_{ie}^b\right)}_x\\ -{\left({\mathsf{\omega }}_{ie}^b\right)}_y& {\left({\mathsf{\omega }}_{ie}^b\right)}_x& 0\end{array}\right]\left[\begin{array}{ccc}0& -{\left({\mathsf{\omega }}_{ie}^b\right)}_z& {\left({\mathsf{\omega }}_{ie}^b\right)}_y\\ {\left({\mathsf{\omega }}_{ie}^b\right)}_z& 0& -{\left({\mathsf{\omega }}_{ie}^b\right)}_x\\ -{\left({\mathsf{\omega }}_{ie}^b\right)}_y& {\left({\mathsf{\omega }}_{ie}^b\right)}_x& 0\end{array}\right]\left[\begin{array}{c}({\mathbf{r}}_k^b{)}_x\\ ({\mathbf{r}}_k^b{)}_y\\ ({\mathbf{r}}_k^b{)}_z\end{array}\right]\\ & ={\left[\begin{array}{c}{\left({\mathbf{d}}_k^b\right)}_x\\ {\left({\mathbf{d}}_k^b\right)}_y\\ {\left({\mathbf{d}}_k^b\right)}_z\end{array}\right]}^T\left[\begin{array}{ccc}-{\left({\mathsf{\omega }}_{ie}^b\right)}_y^2-{\left({\mathsf{\omega }}_{ie}^b\right)}_z^2& {\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^b\right)}_y& {\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^b\right)}_z\\ {\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^b\right)}_y& -{\left({\mathsf{\omega }}_{ie}^b\right)}_x^2-{\left({\mathsf{\omega }}_{ie}^b\right)}_z^2& {\left({\mathsf{\omega }}_{ie}^b\right)}_y{\left({\mathsf{\omega }}_{ie}^b\right)}_z\\ {\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^b\right)}_z& {\left({\mathsf{\omega }}_{ie}^b\right)}_y{\left({\mathsf{\omega }}_{ie}^b\right)}_z& -{\left({\mathsf{\omega }}_{ie}^b\right)}_x^2-{\left({\mathsf{\omega }}_{ie}^b\right)}_y^2\end{array}\right]\left[\begin{array}{c}({\mathbf{r}}_k^b{)}_x\\ ({\mathbf{r}}_k^b{)}_y\\ ({\mathbf{r}}_k^b{)}_z\end{array}\right]\end{array}$$

(14)

where ${\left({\mathsf{\omega }}_{ie}^b\right)}_x$, ${\left({\mathsf{\omega }}_{ie}^b\right)}_y$, and ${\left({\mathsf{\omega }}_{ie}^b\right)}_z$ are $x$, $y$, and $z$ axis component of ${\mathsf{\omega }}_{ie}^b$, respectively. ${\mathsf{\Omega }}_{ie}^b$ is the skew symmetric matrix of the vector ${\mathsf{\omega }}_{ie}^b$. ${\left({\mathbf{d}}_k^b\right)}_x$, ${\left({\mathbf{d}}_k^b\right)}_y$ and ${\left({\mathbf{d}}_k^b\right)}_z$ are $x$, $y$ and $z$ axis component of the sensing direction of the $k$-th accelerometer, respectively.

Rearranging Equation (14), Equation (15) can be obtained.

$$\begin{array}{ll}{y}_k+{\left[{\mathbf{d}}_k^b\right]}^T{\mathbf{g}}^b& ={\left[\begin{array}{c}({\mathbf{r}}_k^b{)}_y{\left({\mathbf{d}}_k^b\right)}_x+({\mathbf{r}}_k^b{)}_x{\left({\mathbf{d}}_k^b\right)}_y\\ ({\mathbf{r}}_k^b{)}_z{\left({\mathbf{d}}_k^b\right)}_x+({\mathbf{r}}_k^b{)}_x{\left({\mathbf{d}}_k^b\right)}_z\\ ({\mathbf{r}}_k^b{)}_z{\left({\mathbf{d}}_k^b\right)}_y+({\mathbf{r}}_k^b{)}_y{\left({\mathbf{d}}_k^b\right)}_z\\ -({\mathbf{r}}_k^b{)}_y{\left({\mathbf{d}}_k^b\right)}_y-({\mathbf{r}}_k^b{)}_z{\left({\mathbf{d}}_k^b\right)}_z\\ -({\mathbf{r}}_k^b{)}_x{\left({\mathbf{d}}_k^b\right)}_x-({\mathbf{r}}_k^b{)}_z{\left({\mathbf{d}}_k^b\right)}_z\\ -({\mathbf{r}}_k^b{)}_x{\left({\mathbf{d}}_k^b\right)}_x-({\mathbf{r}}_k^b{)}_y{\left({\mathbf{d}}_k^b\right)}_y\end{array}\right]}^T\left[\begin{array}{c}{\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^b\right)}_y\\ {\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^b\right)}_z\\ {\left({\mathsf{\omega }}_{ie}^b\right)}_y{\left({\mathsf{\omega }}_{ie}^b\right)}_z\\ {\left({\mathsf{\omega }}_{ie}^b\right)}_x^2\\ {\left({\mathsf{\omega }}_{ie}^b\right)}_y^2\\ {\left({\mathsf{\omega }}_{ie}^b\right)}_z^2\end{array}\right]\\ & =\left[\begin{array}{cccccc}{\left(h_k\right)}_1& {\left(h_k\right)}_2& {\left(h_k\right)}_3& {\left(h_k\right)}_4& {\left(h_k\right)}_5& {\left(h_k\right)}_6\end{array}\right]\mathbf{x}\end{array}$$

(15)

where $\mathbf{x}$ is given in Equation (16).

$$\begin{array}{ll}\mathbf{x}& ={\left[\begin{array}{cccccc}{x}_1& x_2& x_3& x_4& x_5& x_6\end{array}\right]}^T\\ & ={\left[\begin{array}{cccccc}{\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^b\right)}_y& {\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^b\right)}_z& {\left({\mathsf{\omega }}_{ie}^b\right)}_y{\left({\mathsf{\omega }}_{ie}^b\right)}_z& {\left({\mathsf{\omega }}_{ie}^b\right)}_x^2& {\left({\mathsf{\omega }}_{ie}^b\right)}_y^2& {\left({\mathsf{\omega }}_{ie}^b\right)}_z^2\end{array}\right]}^T\end{array}$$

(16)

If all the $N$ accelerometer outputs of the GF-MU are put together, Equation (17) can be obtained from Equation (15).

$$\begin{array}{ll}\mathbf{A}& =\mathbf{H}\mathbf{x}={\left[\begin{array}{cccc}{a}_1& a_2& \cdots & a_N\end{array}\right]}^T\\ & =\left[\begin{array}{c}{y}_1+{\left[{\mathbf{d}}_1^b\right]}^T{\mathbf{g}}^b\\ ⋮\\ y_N+{\left[{\mathbf{d}}_N^b\right]}^T{\mathbf{g}}^b\end{array}\right]=\left[\begin{array}{cccccc}{\left(h_1\right)}_1& {\left(h_1\right)}_2& {\left(h_1\right)}_3& {\left(h_1\right)}_4& {\left(h_1\right)}_5& {\left(h_1\right)}_6\\ ⋮& ⋮& ⋮& ⋮& ⋮& ⋮\\ {\left(h_N\right)}_1& {\left(h_N\right)}_2& {\left(h_N\right)}_3& {\left(h_N\right)}_4& {\left(h_N\right)}_5& {\left(h_N\right)}_6\end{array}\right]\mathbf{x}\end{array}$$

(17)

From Equation (17), $\mathbf{x}$ can be obtained as Equation (18).

$$\mathbf{x}={\left({\mathbf{H}}^T\mathbf{H}\right)}^{-1}{\mathbf{H}}^T\mathbf{A}$$

(18)

The heading can be obtained as Equation (19) from Equation (6) and $\mathbf{x}$ of Equation (18).

$$\begin{array}{ll}\psi & ={\tan }^{-1}\left(-\frac{{\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^r\right)}_y}{{\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^r\right)}_x}\right)\\ & ={\tan }^{-1}\left(-\frac{{\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^b\right)}_y\cos \varphi -{\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^b\right)}_z\sin \varphi }{{\left({\mathsf{\omega }}_{ie}^b\right)}_x^2\cos \theta +{\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^b\right)}_y\sin \varphi \sin \theta +{\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^b\right)}_z\cos \varphi \sin \theta }\right)\\ & ={\tan }^{-1}\left(-\frac{x_1\cos \varphi -x_2\sin \varphi }{x_4\cos \theta +x_1\sin \varphi \sin \theta +x_2\cos \varphi \sin \theta }\right)\end{array}$$

(19)

3.3. Accelerometer configuration and possiblity of initial heading calculation

In this section, it is investigated using Equation (19) in section 3.2 whether the initial heading can be calculated for the accelerometer arrangements of GF-IMUs which have been presented in literatures [9,10,11,12,13,14,15].

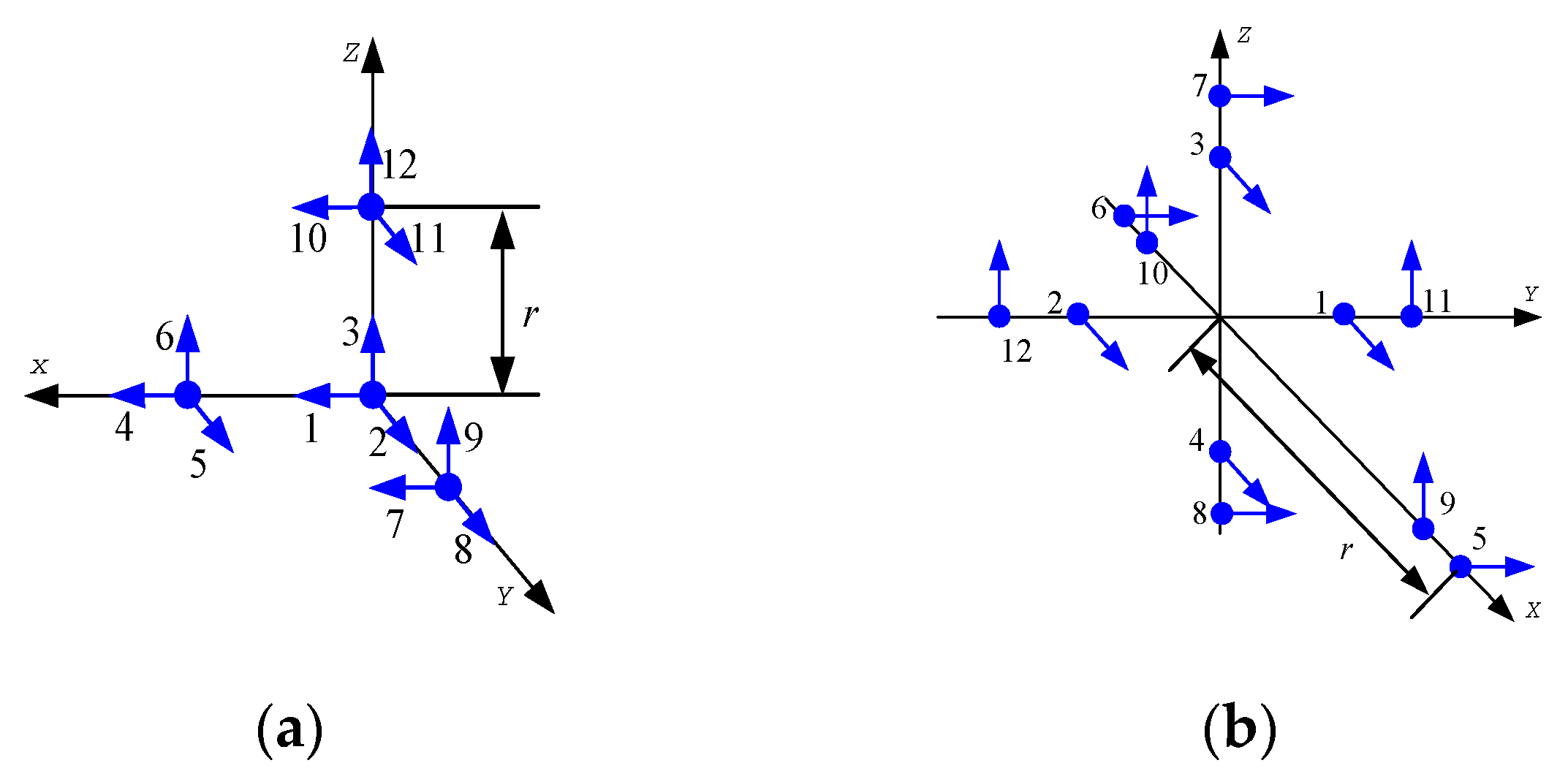

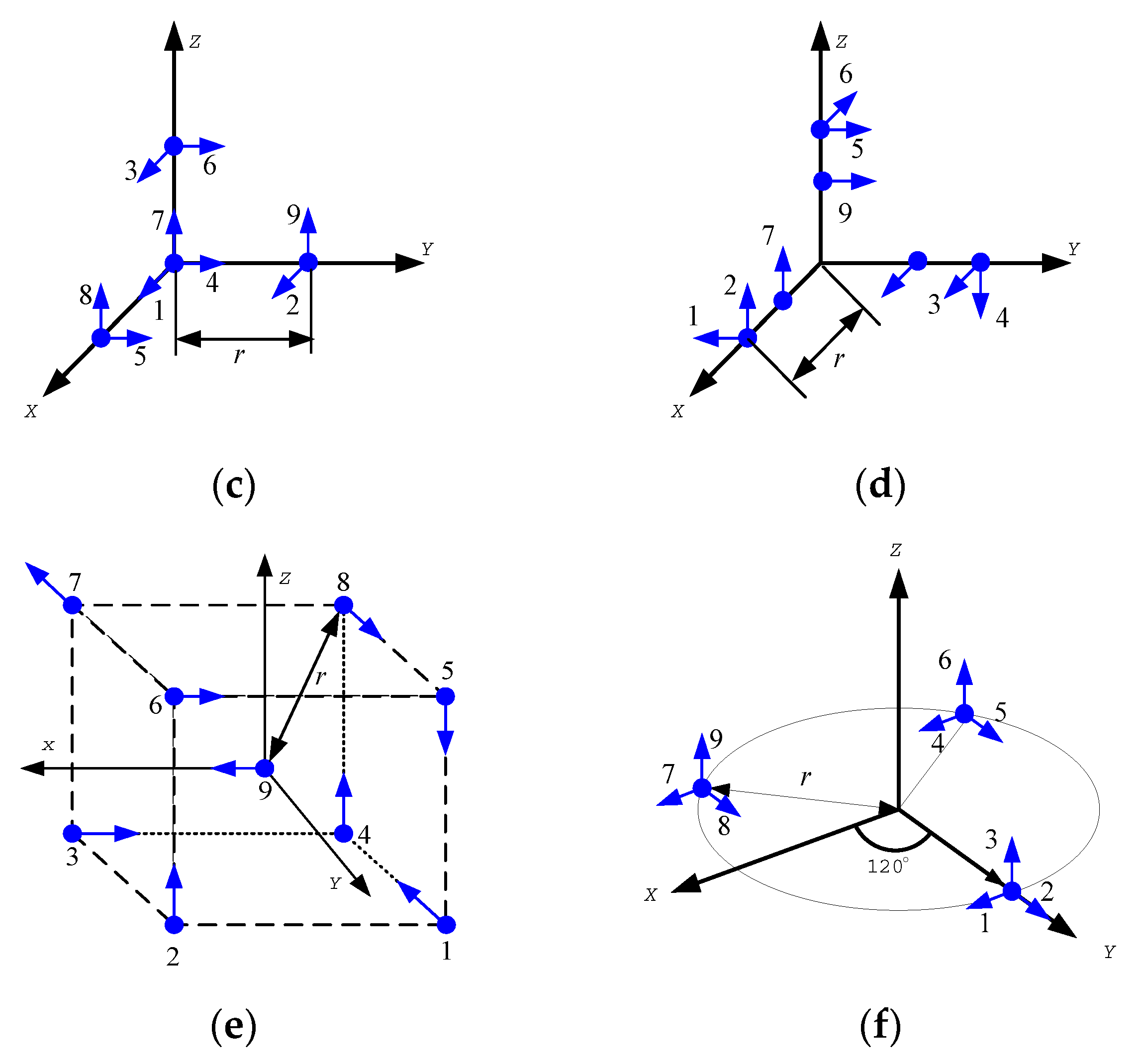

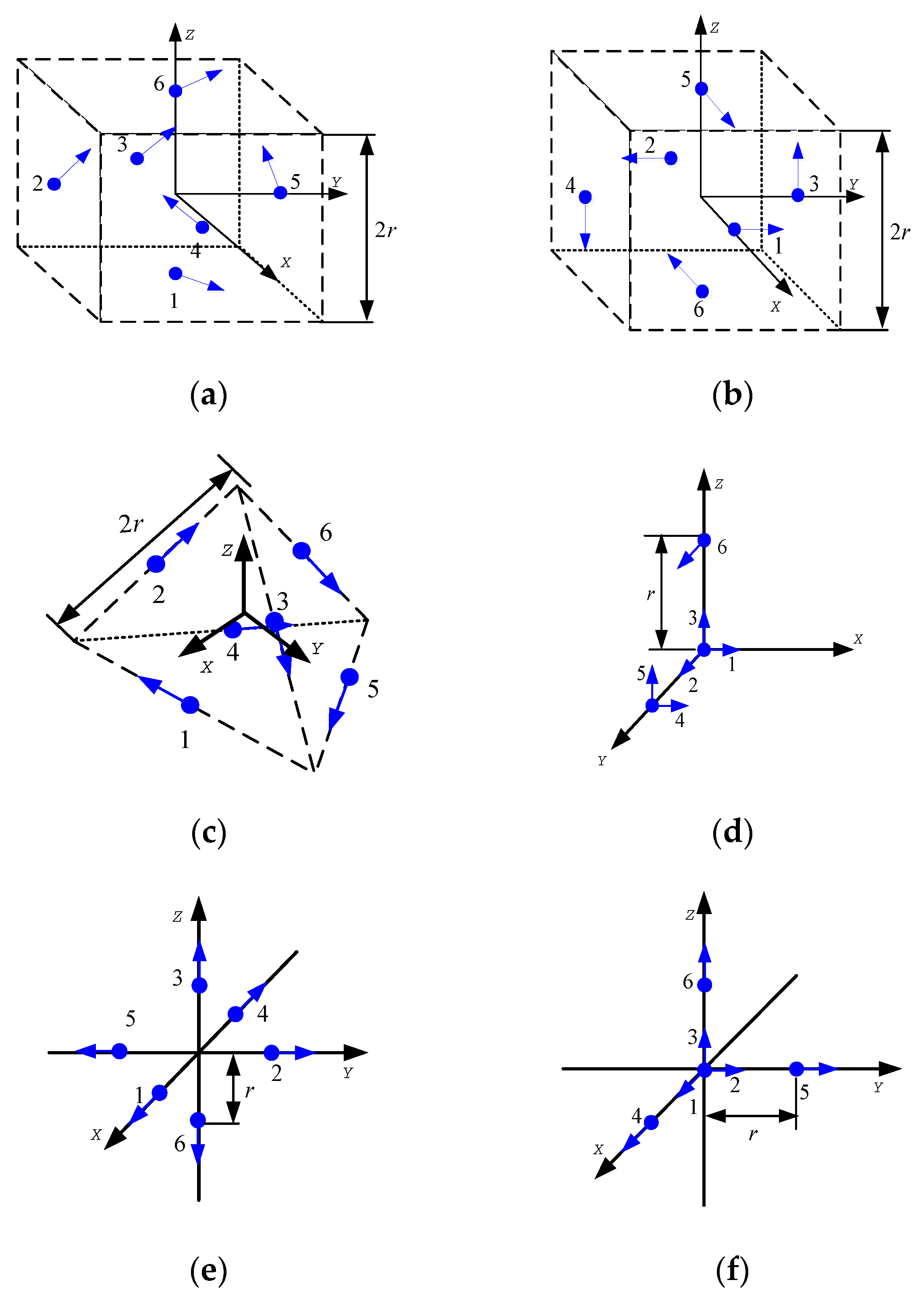

Figure 1, Figure 2, Figure 3 and Figure 4 shows 6 arrangements with 6 accelerometers, one arrangement with 7 accelerometers, 6 arrangements with 9 accelerometers and 2 arrangements with 12 accelerometers of GF-IMUs, respectively. In Figure 1, Figure 2, Figure 3 and Figure 4, black arrows indicate $x$, $y$, and $z$ axes of the body frame, respectively. Blue dots indicate positions of accelerometers and blue arrows sensing directions of accelerometers.

If $\mathbf{x}$ can be obtained from Equation (18), the initial heading can be obtained from Equation (19). In order to obtain $\mathbf{x}$, rank of the matrix ${\mathbf{H}}^T\mathbf{H}$ should be 6. Ranks of the matrix ${\mathbf{H}}^T\mathbf{H}$ for the arrangements in Figure 1, Figure 2, Figure 3 and Figure 4 are listed in Table 1.

It can be seen from Table 1 that the initial heading can be obtained from Equation (19) when the accelerometer arrangements are given in Figure 3e and a. $x_1$, $x_2$, and $x_4$ for the initial heading calculation for the accelerometer arrangement in Figure 3e are given in Equation (20), (21), and (22), respectively.

$$x_1=\frac{\sqrt{3}}{22r}\left(-3a_1-4a_3-3a_4+3a_5+4a_6-8a_7+3a_8\right)$$

(20)

$$x_2=\frac{\sqrt{3}}{22r}\left(-4a_1+2a_3+7a_4+4a_5-2a_6+4a_7-7a_8\right)$$

(21)

$$x_4=\frac{\sqrt{3}}{22r}\left(-5a_1-3a_3+6a_4-6a_5+3a_6+5a_7+5a_8\right)$$

(22)

where $a_k(k=1,\cdots ,8)$ is given in Equation (23). $r$ denotes distance from the center of gravity (accelerometer 9) to the accelerometer 1 to 8.

$$a_k=y_k-{\left[{\mathbf{d}}_k^b\right]}^T{\mathbf{g}}^b$$

(23)

$x_1$, $x_2$ and $x_4$ for the initial heading calculation for the accelerometer arrangement in Figure 4a are given in Equation (24), (25), and (26), respectively.

$$x_1=\frac{1}{2r}\left(a_5+a_7\right)$$

(24)

$$x_2=\frac{1}{2r}\left(a_6+a_{10}\right)$$

(25)

$$x_4=\frac{1}{2r}\left(a_4-a_8-a_{12}\right)$$

(26)

where $a_k(k=4,5,6,7,8,10,12)$ is given in Equation (23). $r$ denotes distance from the center of gravity (accelerometer 1 to 3) to the accelerometer 4 to 12.

3.4. Initial heading error

Let us check the initial heading error when the initial heading is obtained using the method in section 3.3. Accelerometer output ${\tilde{y}}_k$ can be represented in Equation (27).

$${\tilde{y}}_k=y_k+\delta y_k$$

(27)

where $\delta y_k$ denotes error of the $k$-th accelerometer output. If Equation (17) is used, $\widehat{\mathbf{A}}$ can be represented in Equation (28) from accelerometer output ${\tilde{y}}_k$ in Equation (27) and ${\widehat{\mathbf{g}}}^b$ in Equation (11).

$$\widehat{\mathbf{A}}=\left[\begin{array}{c}{\tilde{y}}_1+{\left[{\mathbf{d}}_1^b\right]}^T{\widehat{\mathbf{g}}}^b\\ ⋮\\ {\tilde{y}}_N+{\left[{\mathbf{d}}_N^b\right]}^T{\widehat{\mathbf{g}}}^b\end{array}\right]=\mathbf{H}\widehat{\mathbf{x}}$$

(28)

where $\widehat{\mathbf{x}}$ is the estimate of $\mathbf{x}$ from accelerometer outputs. Error $\delta \mathbf{x}$ of $\widehat{\mathbf{x}}$ can be represented in Equation (29) from Equation (18) and Equation (28).

(29)

where $\delta \mathbf{A}$ and $\delta {\mathbf{g}}^b$ denote errors of $\widehat{\mathbf{A}}$ and ${\widehat{\mathbf{g}}}^b$, respectively. Covariance of $\delta \mathbf{x}$, ${\mathsf{\Sigma }}_{\delta \mathbf{x}}$ can be obtained in Equation (30) from Equation (29).

$${\mathsf{\Sigma }}_{\delta \mathbf{x}}={\left({\mathbf{H}}^T{\mathsf{\Sigma }}_{\delta \mathbf{A}}^{-1}\mathbf{H}\right)}^{-1}$$

(30)

where covariance of $\delta \mathbf{A},{\mathsf{\Sigma }}_{\delta \mathbf{A}}$ is given in Equation (31) since $\mathit{cov}\left[\delta a_i,\delta a_j\right]=0$ if $i\ne j$.

$${\mathsf{\Sigma }}_{\delta \mathbf{A}}=\left[\begin{array}{ccc}{\sigma }_{\delta a_1}^2& 0& 0\\ 0& \ddots & 0\\ 0& 0& {\sigma }_{\delta a_N}^2\end{array}\right]$$

(31)

where ${\sigma }_{\delta a_k}^2$ denotes variance of $\delta a_k$. Let us calculate variances of $\delta x_1$, $\delta x_2$, and $\delta x_4$ given in Equation (20) ~ (26). If accelerometers with the same specification are used, Equation (30) can be represented in Equation (32) since the condition ${\sigma }_{\delta a_1}^2=\cdots ={\sigma }_{\delta a_N}^2={\sigma }_{\delta a}^2$ is valid.

$${\mathsf{\Sigma }}_{\delta \mathbf{x}}={\sigma }_{\delta a}^2{\left({\mathbf{H}}^T\mathbf{H}\right)}^{-1}$$

(32)

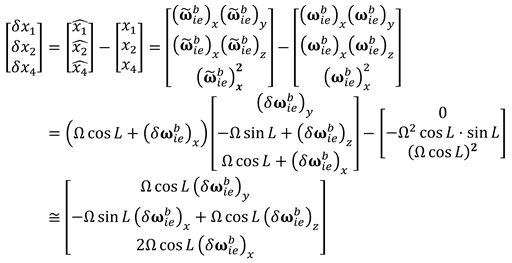

Variances of $\delta x_1$, $\delta x_2$, and $\delta x_4$ are listed in Table 2 for Figure 3e and Figure 4a from Equation (32).

Consider the initial heading error of the generic INS alignment to check the initial heading error of the GF-INS alignment. The gyroscope output in the navigation frame can be expressed in Equation (33) when the vehicle is stationary.

$${\tilde{\mathsf{\omega }}}_{ie}^n={\mathbf{C}}_b^n\left({\mathsf{\omega }}_{ie}^b+\delta {\mathsf{\omega }}_{ie}^b\right)={\mathbf{C}}_b^n{\mathsf{\omega }}_{ie}^b+{\mathbf{C}}_b^n\delta {\mathsf{\omega }}_{ie}^b$$

(33)

where ${\tilde{\mathsf{\omega }}}_{ie}^n$ denotes the gyroscope output in the navigation frame and $\delta {\mathsf{\omega }}_{ie}^b$ the gyroscope output error in the body frame.

If roll, pitch, and heading are sufficiently small, ${\mathbf{C}}_b^n$ can be expressed in Equation (34).

$${\mathbf{C}}_b^n\cong \left[\begin{array}{ccc}1& -\delta \psi & \delta \theta \\ \delta \psi & 1& -\delta \varphi \\ -\delta \theta & \delta \varphi & 1\end{array}\right]$$

(34)

where $\delta \varphi$, $\delta \theta$, and $\delta \psi$ denote sufficiently small roll, pitch, and heading, respectively. In order to make the description simple, it is assumed that the body frame and the navigation frame are the same, i.e. ${\mathsf{\omega }}_{ie}^b={\mathsf{\omega }}_{ie}^n$. Then, Equation (33) can be written in Equation (35).

$$\begin{gathered} {\tilde{\mathsf{\omega }}}_{ie}^n={\left[\begin{array}{ccc}{\left({\tilde{\mathsf{\omega }}}_{ie}^n\right)}_N& {\left({\tilde{\mathsf{\omega }}}_{ie}^n\right)}_E& {\left({\tilde{\mathsf{\omega }}}_{ie}^n\right)}_D\end{array}\right]}^T \\ \cong \left[\begin{array}{c}\mathsf{\Omega }\cos L-\delta \theta \cdot \mathsf{\Omega }\sin L+{\left(\delta {\mathsf{\omega }}_{ie}^b\right)}_x\\ \delta \psi \cdot \mathsf{\Omega }\cos L+\delta \varphi \cdot \mathsf{\Omega }\sin L+{\left(\delta {\mathsf{\omega }}_{ie}^b\right)}_y\\ -\delta \theta \cdot \mathsf{\Omega }\cos L-\mathsf{\Omega }\sin L+{\left(\delta {\mathsf{\omega }}_{ie}^b\right)}_z\end{array}\right] \end{gathered}$$

(35)

In order to obtain heading in the initial alignment, the east component of the gyroscope output (${\left({\tilde{\mathsf{\omega }}}_{ie}^n\right)}_E$) should be zero as Equation (36).

$${\left({\tilde{\mathsf{\omega }}}_{ie}^n\right)}_E=\delta \psi \cdot \mathsf{\Omega }\cos L+\delta \varphi \cdot \mathsf{\Omega }\sin L+{\left(\delta {\mathsf{\omega }}_{ie}^b\right)}_y=0$$

(36)

$\delta \psi$ can be written in Equation (37) when $\delta \varphi =0$ in Equation (36)

$$\delta \psi =-\frac{{\left(\delta {\mathsf{\omega }}_{ie}^b\right)}_y}{\mathsf{\Omega }\cos L}$$

(37)

It can be seen from Equation (37) that the initial heading error in the generic INS is proportional to the gyroscope error of the east direction (the pitch axis direction) and inversely proportional to $\mathsf{\Omega }\cos L$ when the body frame is the same as the navigation frame. Therefore, the heading error is minimum when the vehicle is located at the equator and the heading error increases as the vehicle becomes nearer the pole ($L=\pm 90$ deg).

Now, let us consider the initial heading error of the GF-INS. ${\left[\begin{array}{ccc}\delta x_1& \delta x_2& \delta x_4\end{array}\right]}^{\mathit{T}}$ of Equation (29) is given in Equation (38) when the body frame is the same as the navigation frame.

(38)

Therefore, Equation (37) can be represented as Equation (39) using Equation (38).

$$\delta \psi =-\frac{{\left(\delta {\mathsf{\omega }}_{ie}^b\right)}_y}{\mathsf{\Omega }\cos L}=-\frac{{\mathsf{\Omega }\cos L\left(\delta {\mathsf{\omega }}_{ie}^b\right)}_y}{{\left(\mathsf{\Omega }\cos L\right)}^2}=-\frac{\delta x_1}{{\left(\mathsf{\Omega }\cos L\right)}^2}$$

(39)

It can be seen from Equation (39) that the heading error is proportional to $\delta x_1$ which is error of ${\left({\mathsf{\omega }}_{ie}^b\right)}_x{\left({\mathsf{\omega }}_{ie}^b\right)}_y$obtained from Equation (29) and it is impossible to get the heading at the pole as Equation (37) when the initial alignment is performed using Equation (19).

Since $\delta x_1$ depends on the grade and arrangement of accelerometers whether the initial heading of the GF-INS can be obtained is checked for the arrangements in Figure 3e and Figure 4a and accelerometers in Table 3 [19,20].

Let us obtain heading error for the accelerometers in Table 3 when $L=0$ deg and $r=1$ m. In order to check the effect of accelerometer error to the heading error, $\delta \mathbf{x}$ can be expressed in accelerometer error $\delta \mathbf{y}$ as Equation (40) when ${\widehat{\mathbf{g}}}^b={\mathbf{g}}^b$ in Equation (29)

$$\delta \mathbf{x}={\left({\mathbf{H}}^T\mathbf{H}\right)}^{-1}{\mathbf{H}}^T{\left[\begin{array}{ccc}\delta y_1& \cdots & \delta y_N\end{array}\right]}^T={\left({\mathbf{H}}^T\mathbf{H}\right)}^{-1}{\mathbf{H}}^T\delta \mathbf{y}$$

(40)

Since ${\sigma }_{\delta a}^2={\sigma }_{\delta y}^2{=\sigma }_{{\delta y}_i}^2(i=1,\cdots ,N$), 1$\sigma$ of $\delta x_1$ can be obtained when specifications of the accelerometers in Table 3 are inserted into Table 2. By inserting these values into Equation (39), 1$\sigma$ values of the initial heading errors to the accelerometer errors are in Table 4.

It can be seen from Table 4 that the initial alignment of GF-INS cannot be performed even when absolute quantum gravimeter which is the most precise accelerometer in the present technology level as well as navigation grade accelerometer are used since the heading error is very large. For the 1$\sigma$ of the heading error in the arrangement of Figure 4a to be less than 5 deg, the precision of the accelerometer should be less than ${\sigma }_{\delta y}=6.696\times 10^{-11}$ G. This value is 15 times more precise than the absolute quantum gravimeter in Table 3. It can be seen from these results that it is difficult to have a required performance in the heading coarse alignment of the GF-INS and these results are similar to the mentioning by Vaknin and Klein that the initial heading cannot be obtained [7,9].

In order to resolve this problem, it can be considered to add one gyroscope or two gyroscopes to the GF-MU as described in the next section.

4. Coarse Alignment of GF-INS with Gyro

According to the results in section 3, it can be considered to perform the coarse alignment after one or two gyroscopes are attached to the roll, pitch or yaw axes of the vehicle to the arrangement of the accelerometers since obtaining the initial heading is not feasible using only the arrangement of accelerometers.

The gyroscope output ${\tilde{g}}_n$ can be expressed in Equation (41) in the body frame.

$${\tilde{g}}_n=g_n+\delta g_n$$

(41)

where $\delta g_n,(n=x,yorz)$ denotes $n$ axis gyroscope output error in the body frame.

Relationship between gyroscope output and $\mathbf{x}$ in Equation (18) is given in Equation (42).

$$\tilde{\mathbf{B}}={\left[\begin{array}{cccccc}{b}_1& b_2& b_3& b_4& b_5& b_6\end{array}\right]}^T={\left[\begin{array}{cccccc}{\tilde{g}}_x{\tilde{g}}_y& {\tilde{g}}_x{\tilde{g}}_z& {\tilde{g}}_y{\tilde{g}}_z& {\tilde{g}}_x^2& {\tilde{g}}_y^2& {\tilde{g}}_z^2\end{array}\right]}^T={\mathbf{I}}_{6\times 6}\mathbf{x}$$

(42)

where ${\mathbf{I}}_{6\times 6}$ denotes $6\times 6$ unit matrix. Inserting Equation (41) into Equation (42), error of $\tilde{\mathbf{B}}$ is given in Equation (43).

$$\delta \mathbf{B}=\tilde{\mathbf{B}}-\mathbf{B}=\left[\begin{array}{c}\delta b_1\\ \delta b_2\\ \delta b_3\\ \delta b_4\\ \delta b_5\\ \delta b_6\end{array}\right]=\left[\begin{array}{c}{\tilde{g}}_x{\tilde{g}}_y\\ {\tilde{g}}_x{\tilde{g}}_z\\ {\tilde{g}}_y{\tilde{g}}_z\\ {\tilde{g}}_x^2\\ {\tilde{g}}_y^2\\ {\tilde{g}}_z^2\end{array}\right]-\left[\begin{array}{c}{g}_x{g}_y\\ g_x{g}_z\\ g_y{g}_z\\ g_x^2\\ g_y^2\\ g_z^2\end{array}\right]=\left[\begin{array}{c}{g}_x\delta g_y+g_y\delta g_x+\delta g_x\delta g_y\\ g_x\delta g_z+g_z\delta g_x+\delta g_x\delta g_z\\ g_y\delta g_z+g_z\delta g_y+\delta g_y\delta g_z\\ 2g_x\delta g_x+\delta g_x^2\\ 2g_y\delta g_y+\delta g_y^2\\ 2g_z\delta g_z+\delta g_z^2\end{array}\right]$$

(43)

It can be observed from Equation (43) that the error of $\tilde{\mathbf{B}}$ is proportional to the gyroscope outputs $g_x$, $g_y$, and $g_z$.

For simple description, consider the case that $L=0$ deg and the body frame is the same as the navigation frame. In this case, Equation (43) can be represented in Equation (44) since ${\left[\begin{array}{ccc}{g}_x& g_y& g_z\end{array}\right]}^T={\left[\begin{array}{ccc}\mathsf{\Omega }& 0& 0\end{array}\right]}^T$.

$$\delta \mathbf{B}=\tilde{\mathbf{B}}-\mathbf{B}=\left[\begin{array}{c}\delta b_1\\ \delta b_2\\ \delta b_3\\ \delta b_4\\ \delta b_5\\ \delta b_6\end{array}\right]=\left[\begin{array}{c}\mathsf{\Omega }\delta g_y+\delta g_x\delta g_y\\ \mathsf{\Omega }\delta g_z+\delta g_x\delta g_z\\ \delta g_y\delta g_z\\ 2\mathsf{\Omega }\delta g_x+\delta g_x^2\\ \delta g_y^2\\ \delta g_z^2\end{array}\right]\cong \left[\begin{array}{c}\mathsf{\Omega }\delta g_y\\ \mathsf{\Omega }\delta g_z\\ 0\\ 2\mathsf{\Omega }\delta g_x\\ 0\\ 0\end{array}\right]$$

(44)

$\mathbf{x}$ can be estimated in Equation (45) using $\widehat{\mathbf{A}}$ calculated from accelerometer outputs and gyroscope outputs $\tilde{\mathbf{B}}$.

$$\widehat{\mathbf{x}}={\left({\mathbf{H}}^T\mathbf{W}\mathbf{H}\right)}^{-1}{\mathbf{H}}^T\mathbf{W}\left[\begin{array}{c}\widehat{\mathbf{A}}\\ \tilde{\mathbf{B}}\end{array}\right]$$

(45)

where $\mathbf{W}$ denotes weight matrix given in Equation (46).

$$\mathbf{W}={\left({\mathsf{\Sigma }}_{\delta \mathbf{C}}\right)}^{-1}={\mathit{diag}\left(\underset{N}{\underbrace{{\sigma }_{\delta a}^2,\cdots ,{\sigma }_{\delta a}^2}},{\sigma }_{\delta b_1}^2,\cdots ,{\sigma }_{\delta b_6}^2\right)}^{-1}$$

(46)

where ${\mathsf{\Sigma }}_{\delta \mathbf{C}}$ is covariance of $\delta \mathbf{C}$ and ${\sigma }_{\delta b_k}^2$ is variance of $\delta b_k$. Measurement matrix $\mathbf{H}$ is given in Equation (47).

$$\mathbf{H}=\left[\begin{array}{c}{\mathbf{H}}_{\mathit{A}}\\ {\mathbf{H}}_{\mathit{G}}\end{array}\right]=\left[\begin{array}{c}\begin{array}{ccc}{\left(h_1\right)}_1& \cdots & {\left(h_1\right)}_6\\ ⋮& \ddots & ⋮\\ {\left(h_N\right)}_1& \cdots & {\left(h_N\right)}_6\end{array}\\ {\mathbf{I}}_{6\times 6}\end{array}\right]$$

(47)

where ${\mathbf{H}}_A$ and ${\mathbf{H}}_G$ are measurement matrices of accelerometer output and gyroscope output, respectively.

The number of arrangements of gyroscopes, in which the gyroscopes are located at one or two axes among roll, pitch, and yaw axes, is 6 in the body frame. One gyroscope can be located at the roll, pitch or yaw axis and two gyroscopes can be located at the roll and pitch axes, roll and yaw axes or pitch and yaw axes. $\tilde{\mathbf{B}}$, $\mathbf{W}$ and ${\mathbf{H}}_G$ in Equation (45) for the gyroscope arrangements are listed in Table 5. Error covariance of the estimated $\mathbf{x}$ in Equation (45) is given in Equation (48).

$${\mathsf{\Sigma }}_{\delta \mathbf{x}}={\left({\mathbf{H}}^T\mathbf{W}\mathbf{H}\right)}^{-1}$$

(48)

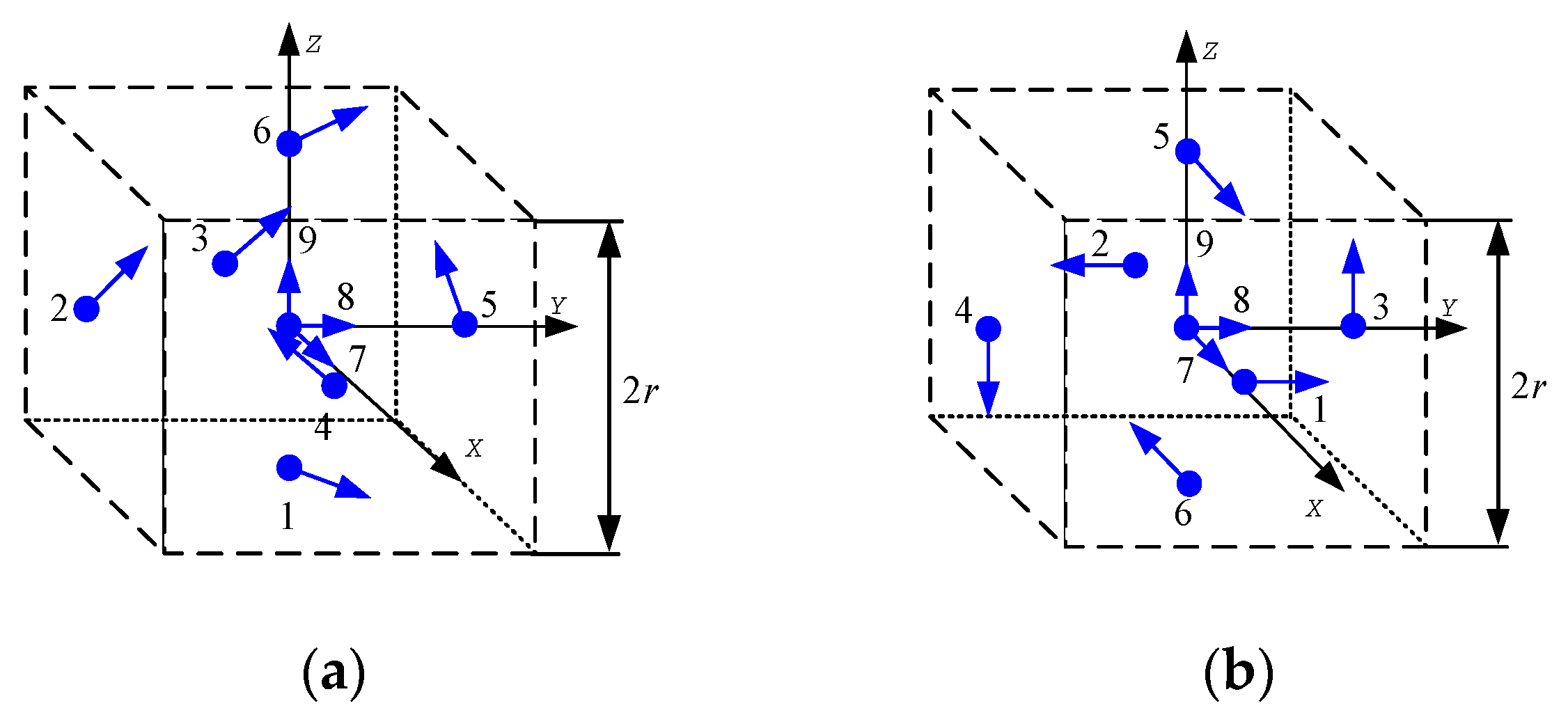

For the accelerometer arrangement in Figure 5a, heading error can be checked when the initial heading is obtained using accelerometer outputs and added gyroscope outputs. Variances of $\delta x_1$, $\delta x_2$, and $\delta x_4$ from Equation (48) are listed in Table 6.

It can be seen from Table 6 that variance of $\delta x_1$ is the same as the case that only accelerometers are used except that the case when the added gyroscopes are located at the roll and pitch axes. Since the heading error is determined by $\delta x_1$ as shown in Equation (39), the additional gyroscopes should be located at the roll and pitch axes in order to have more accurate initial heading of the GF-INS.

Let us obtain variance of $\delta x_1$ to the grade of the gyroscope in order to have heading error. First, the variance of $\delta b_1$ in Equation (44) is given in Equation (49).

$${\sigma }_{\delta b_1}^2=\mathrm{var}\left[\delta b_1\right]=\mathrm{var}\left[\Omega \delta g_y\right]={\Omega }^2\mathrm{var}\left[\delta g_y\right]={\mathsf{\Omega }}^2{\sigma }_{\delta g_y}^2$$

(49)

When the gyroscopes with the same error specifications are located at the roll and pitch axes, variance of $\delta x_1$ is in Equation (50) since ${\sigma }_{\delta g_x}^2={\sigma }_{\delta g_y}^2={\sigma }_{\delta g}^2$.

$${\sigma }_{\delta x_1}^2=\frac{{\sigma }_{\delta a}^2{\sigma }_{\delta b_1}^2}{{\sigma }_{\delta a}^2+2r^2{\sigma }_{\delta b_1}^2}=\frac{{\mathsf{\Omega }}^2{\sigma }_{\delta a}^2{\sigma }_{\delta g}^2}{{\sigma }_{\delta a}^2+2r^2{\mathsf{\Omega }}^2{\sigma }_{\delta g}^2}$$

(50)

Since the variance of $\delta x_1$ becomes different to the gyroscope performance (${\sigma }_{\delta g}^2$) in Equation (50), the yaw errors can be investigated for the gyroscopes in Table 7 [21,22].

1$\sigma$ values of the heading error in Equation (39) is listed in Table 8 for the accelerometer specifications in Table 3 and gyroscope specifications in Table 7 when $L=0$deg and $r=1$m as in section 3.4.

It can be seen from result in Table 8 that the heading error is determined by the grade of the gyroscope. This is the same result as that of the generic INS gyro-compassing [1,4]. Therefore, the initial heading can be determined after the leveling is completed when gyroscopes are additionally located at the roll and pitch axes.

5. Concluding Remarks

In this paper, feasibility of obtaining initial attitude of the GF-INS has been investigated by deriving equations to obtain initial attitude from accelerometer outputs and calculating error of the initial attitude. Initial roll and pitch have been obtained as the generic INS after neglecting the very small centripetal acceleration. Initial heading has been expressed in terms of accelerometer outputs and its error has been derived. It has been checked that it is possible to calculate initial heading in the two configurations among 15 configurations proposed in other researches. However, it has been seen that it is not feasible to get initial heading when accelerometer error is considered.

When gyroscopes are additionally located into one or two axes, the initial heading have been expressed in accelerometer and gyroscope outputs and the feasibility of obtaining initial heading has been examined by investigating the heading error. As a result of this, it can be seen that the initial heading is obtained when gyroscopes are additionally located at the roll and pitch axes as the generic INS.
