Design, Synthesis and Anticancer Activity of Novel 3,6-Diunsaturated 2,5-Diketopiperazines

1. Introduction

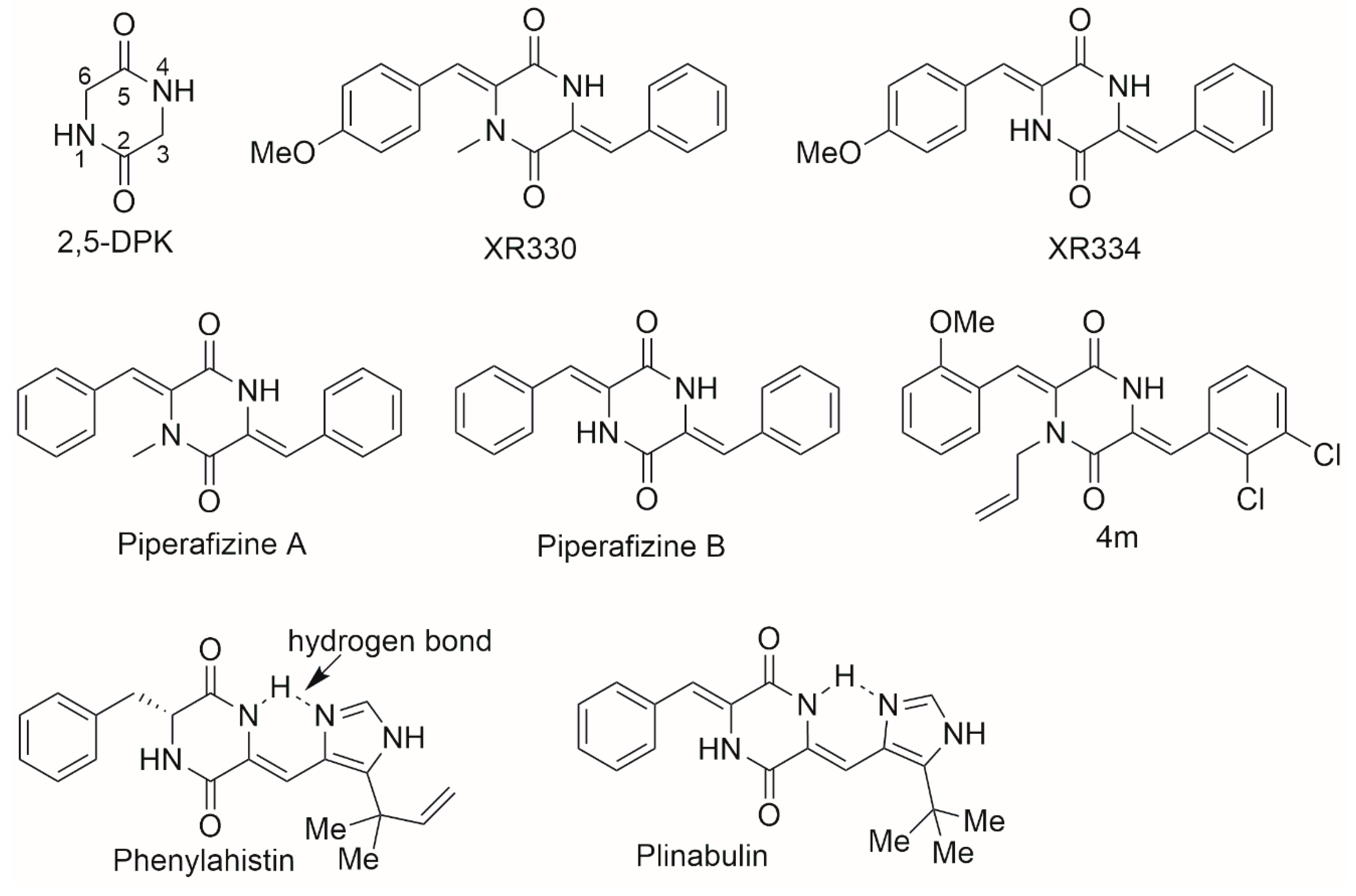

2,5-diketopiperazine (2,5-DPK) is the smallest cyclic peptide and a useful scaffold frequently found in numerus structurally diverse natural product [1-3]. 2,5-Diketopiperazine derivatives (2,5-DPKs) have higher stability than their linear counterparts against enzymolysis [4], and are often conformational rigidity and able to interact with various biological targets [5] thus giving rise to a broad range of biological activities [3, 6], such as antivirus [7], anticancer [8-12], antifouling [13, 14], antioxidation [15], anti PAI-1 [16, 17], and so on. As a result, 2,5-DPK has been becoming an attractive and privileged scaffold for the discovery of highly active pharmaceutical agents. One class of 2,5-DPKs which have unsaturated C-C double bonds at the 3- and/or 6-positions of the 2,5-DPK ring, such as the marine natural products XR334 [16], piperafizine B [18], phenylahistin [19] and its synthetic derivative plinabulin [20], possessing two pairs of hydrogen bond donor and acceptor (Figure 1), show markedly different anticancer properties. The 2,5-DPKs furnished with phenyl rings at the 3- and 6-positions, like piperafizine B and XR334, will assemble in line and/or net frameworks due to the formation of the intermolecular hydrogen bond as well as the π-π stacking interactions [3, 11] (Figure 2). These compounds have very poor liposolubilities and weak anticancer activities and their further biological investigations are then prevented [17]. However, those 2,5-DPKs, such as phenylahistin and plinabulin, with an imidazole (or 2-pyridyl) group as a side component will have intramolecular hydrogen bond formed preferentially between the amide hydrogen of the 2,5-DPK ring and the nitrogen atom of the side imidazole moiety [21] (Figure 1), and the tendency for the formation of the intermolecular hydrogen bonds is largely weakened. Their liposolubilities and anticancer activities are greatly increased [12]. The lipophilicities of this kind of compounds can also be improved by the introduction of protective groups, similar to the semi-N-methylation of piperafizine B to A or X334 to X330, on the amide nitrogen atom of 2,5-DPK ring. Previous studies demonstrated that these semi-N-protected 2,5-DPKs had improved liposolubilities and could cross the cell membrane easily along with enhanced stable capacities away from the degradation caused by enzymes [4]. Furthermore, the enhanced lipophilicity of 2,5-DPKs was beneficial to their anticancer activity [22].

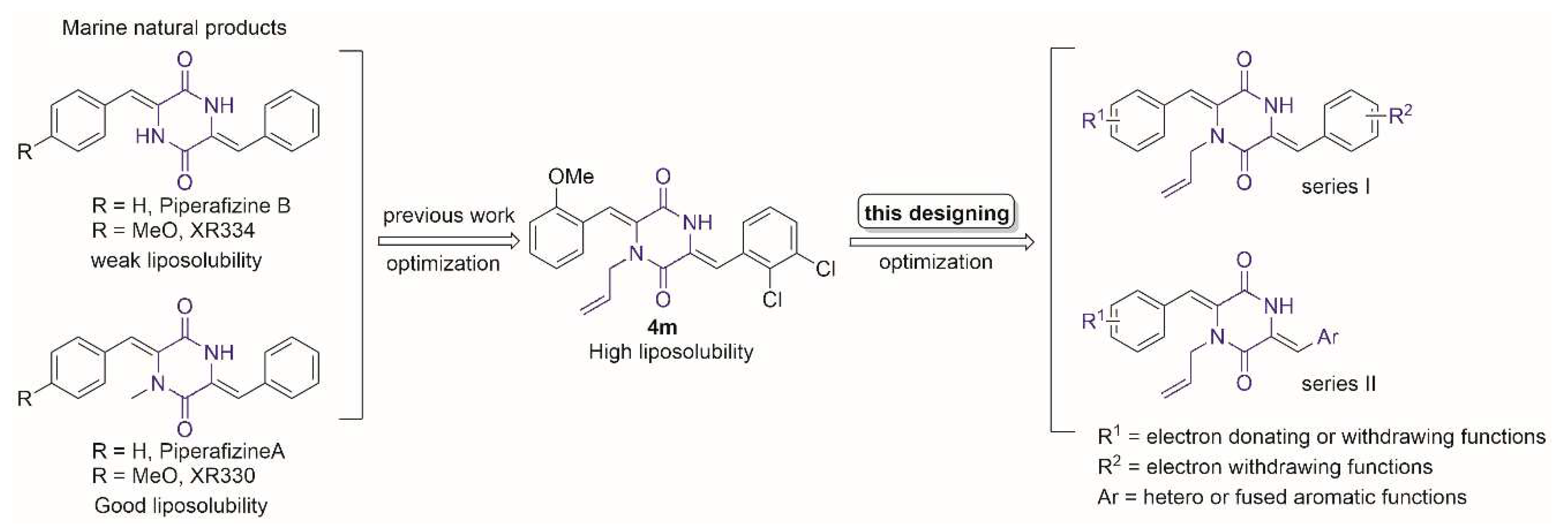

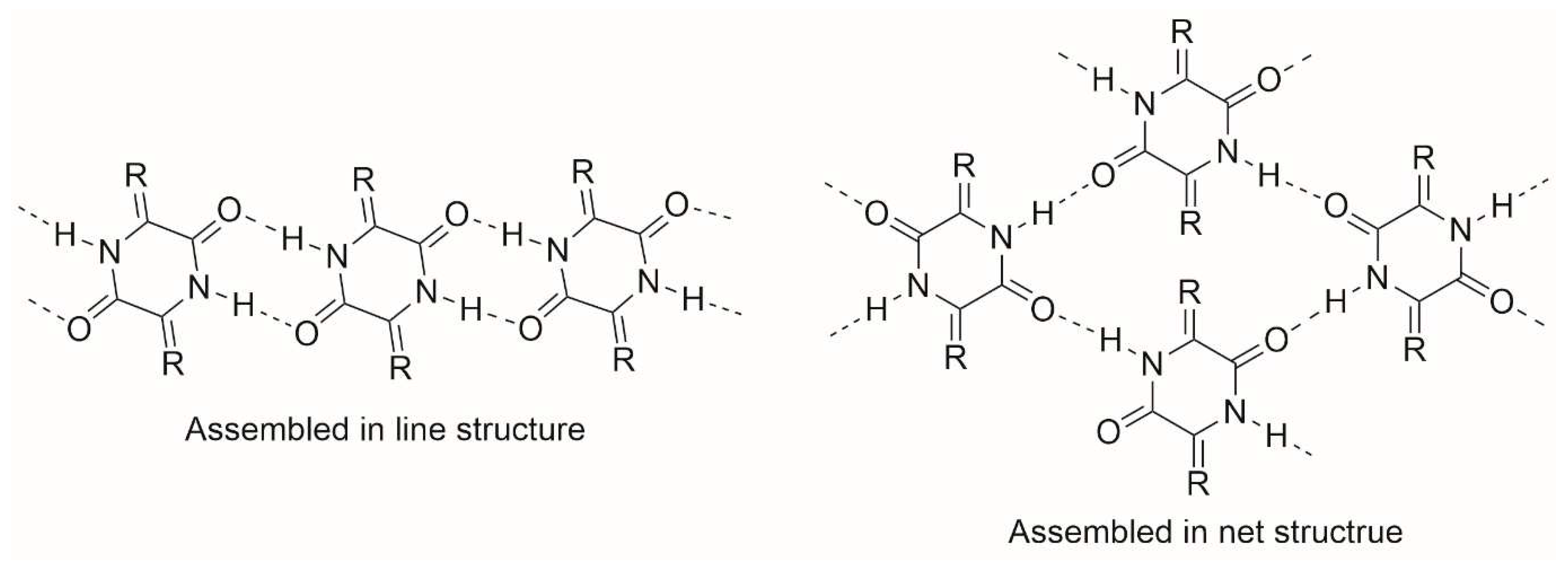

In our previous study, one compound 4m showed good anticancer activities against several cell lines including A549 and Hela [11]. An allyl group was introduced to the 1-nitrogen atom of the 2,5-DPK ring to interrupt the formation of the intermolecular hydrogen bonds. Compared to the methyl group, this function with a little longer side chain could also disturb the π-π stacking interactions between the layers of the frameworks, which then contributing to the good lipophilicities of derivatives. On the other hand, the biological results showed that the 2-methoxy group on the phenyl ring at the 6-position of the 2,5-DPK ring played critical role in improving the anticancer activity, whereas the impacts of its two chlorine atoms and some other strong electron withdrawing groups (e.g., NO₂, CF₃, CN) on the anticancer activities of derivatives are not clearly investigated, as electron properties often exhibit significant (positive or negative) impact on derivative’s bioactivity [23, 24]. Similarly, the size or skeleton of the substituent will also have different influences on the anticancer activities of derivatives [5, 25]. Therefore, based on the marine natural products piperafizine B and AR334, in this context, a small library of novel 2,5-DPKs were designed as following (Scheme 1): 1) similar to compound 4m, the allyl group on the 1-nitrogen atom was retained, 2) the electron withdrawing groups such as NO₂, CN, CF₃, Br, Cl, F on the phenyl group (series I), and the electron donating group MeO on benzene or naphthlene were introduced, 3) a few electron-rich (e.g., furan and thiophen), electron-deficient (e.g., pyridyl) heteroaromatic scaffolds or fused naphthyl, quinolyl functions (series II) were employed. Thus fourteen novel 2,5-DPKs (1-2, 4-6, 8-16), along with two known ones (3 and 7), were designed and synthesized, and their anticancer activities against two cell lines A549 and Hela were evaluated aiming to the discovery of highly active anticancer agents.

2. Results and Discussion

2.1. Synthesis of compound

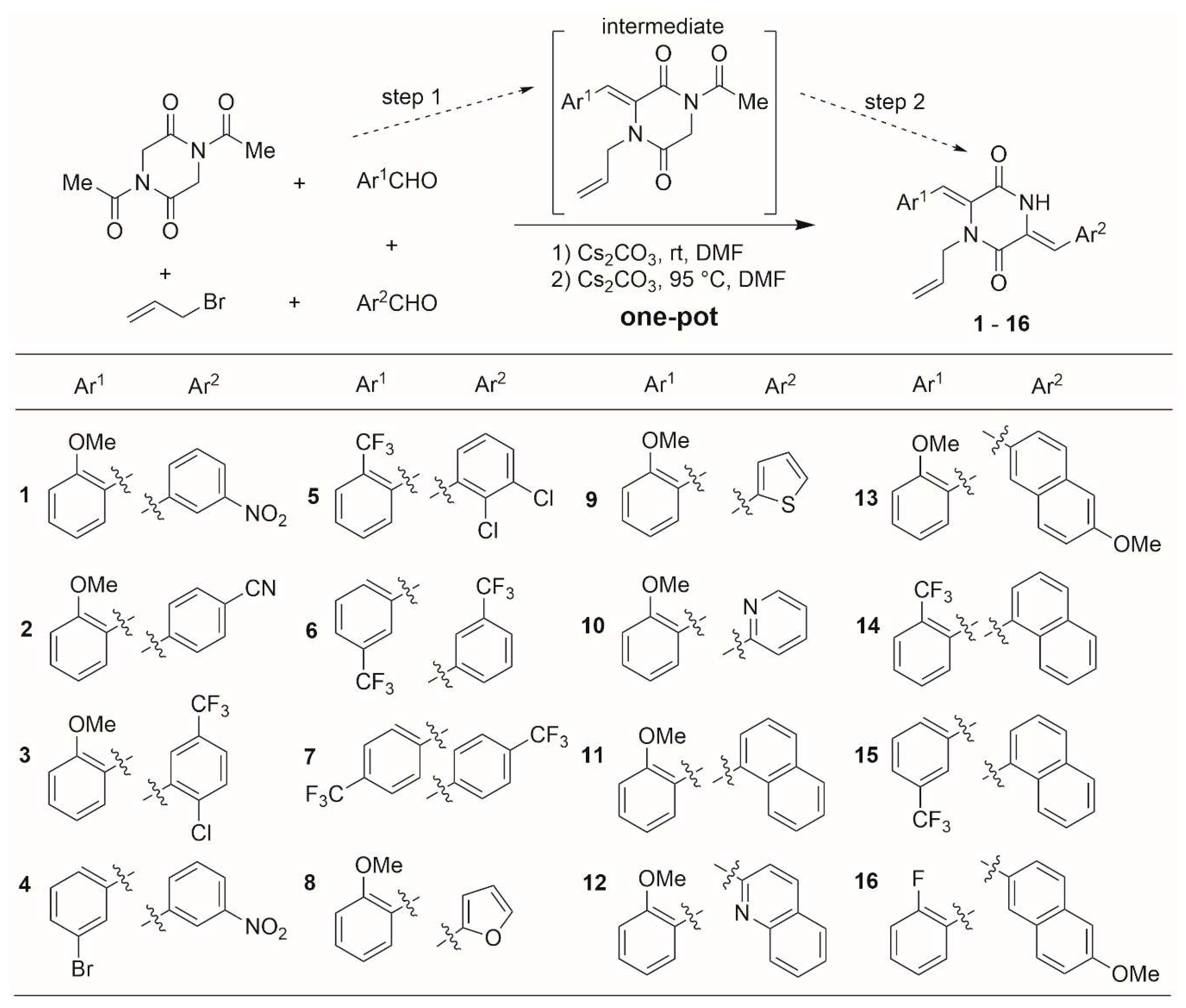

By following our previous reported procedure [26], the compounds were synthesized using a one-pot operation (Scheme 2). For the synthesis of compounds 1-5, 8-16, after the completion of the reaction of 2,5-diketopiperazine with aldehyde and allyl bromide under base condition at room temperature, the second aldehyde was added directly and the reaction was subsequently heated until the disappearance of the intermediate. The syntheses of compounds 6 and 7 were similar to the above procedure whereas the aldehydes were added just for once in the first step. The solubility test demonstrated that all the compounds could be soluble in common organic solvents such as dimethyl sulfone (DMSO), N,N-dimethylformamide (DMF), ethyl acetate (EtOAc), dichloromethane (DCM), chloroform and acetone with the solubilities > 1.0 mg•mL^-1 at room temperature.

2.2. Biological evaluation of derivatives

2.2.1. Inhibiting proliferation of cancer cells

First of all, we screened the antiproliferative effects of all compounds against cancer cell lines A549 and Hela at a preliminary concentration of 10 μM. Those with the inhibition > 50% were selected for the further detailed evaluations and their IC₅₀ values were subsequently calculated and obtained (Table 1). It was found that compounds 8-11 showed moderate to good inhibitory capacities against cell line A549 (IC₅₀ = 1.2 - 7.3 μM), while compounds 6, 8-12, 15 showed moderate to good activities against cell line Hela (IC₅₀ = 0.7 - 8.9 μM). It seemed that the active compounds had a little stronger anticancer activity against Hela than A549. In comparison to compound 4m, the antiproliferative activities of the active compounds were not obviously improved except compound 11, which had a little stronger activity (IC₅₀ = 1.2 μM) than compound 4m (IC₅₀ = 1.6 μM) against cell line A549, and around 3-fold activity (IC₅₀ = 0.7 μM) stronger than compound 4m (IC₅₀ = 2.4 μM) against cell line Hela. The results showed that the compounds with electron withdrawing groups, such as 3-NO₂ (1), 4-CN (2) or 2-Cl-5-CF₃ (3), on the phenyl group at the 3-position of 2,5-DPK ring had weak activities (IC₅₀ > 10.0 μM). Similar to our previous study, replacing 2-MeO with 3-Br (4), 2-CF₃ (5), 3-CF₃ (6) or 4-CF₃ (7) on the phenyl group at the 6-position of 2,5-DPK ring, only compound 6 had moderate inhibitory activity against Hela cells (IC₅₀ = 8.9 μM). Of note is that these compounds also contain electron withdrawing groups including 3-NO₂ (4), 2,3-Cl (5), 3-CF₃ (6) or 4-CF₃ (7) on the phenyl group at the 3-position of 2,5-DPK ring. These results imply that electron withdrawing groups might be not suitable functions. Delightedly, using electron-rich heteroaromatic cycles such as furan (8) and thiophene (9) or electron-deficient pyridine (10) as the substituents on the 3-position of 2,5-DPK ring, compounds had moderate to good activities against both cell lines A549 (IC₅₀ = 3.7 - 7.3 μM) and Hela (IC₅₀ = 4.7 - 5.9 μM). Changing the substituent of 2-naphthalene (11) into 2-quinoline (12) or 6-methoxy-3-naphthalene (13), compound 12 displayed only moderate activity against Hela cells (IC₅₀ = 6.2 μM), while compound 13 showed no obvious activities to both of the cancer cells. Surprisingly, compound 14, by taking place of the 2-MeO with 2-CF₃ on the phenyl group at 6-position of 2,5-DPK ring, could also suppress the growth of cell line Hela with good activity (IC₅₀ = 3.9 μM). However, moving of the 2-CF₃ from 2-position to 3-position (15) or replacing 2-MeO with 2-F (16), the activities of the compounds were all loss. Collectively, in terms of the above results, although compound 14 with a 2-CF₃ moiety shows good activity, other examples (compounds 1-7) indicate that the electron withdrawing functions on phenyl groups at both sites (3- and 6-positions) of the 2,5-DPK ring might be not favorable. Besides the vital role of 2-MeO group, the substitutive motifs with suitable size or skeleton at the 6-position of the 2,5-DPK ring, might be another critical factor for the 2,5-DPKs with high anticancer activities. It should yet mention that multiple factors, like the skeleton, size, type and/or position of the substituent, might give combined impacts on the anticancer properties of these derivatives.

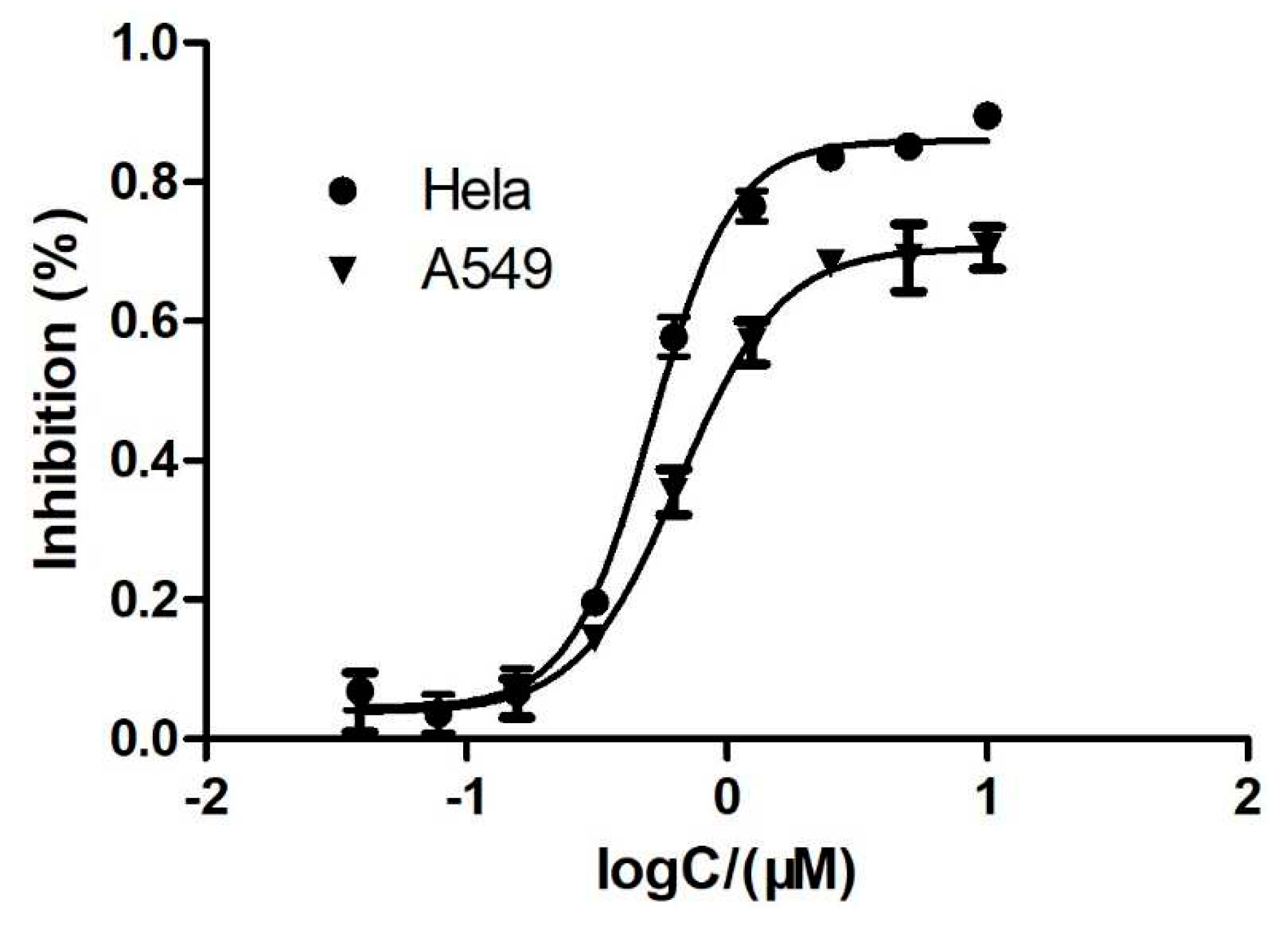

The results also showed that compound 11 could inhibit the growth of both cell lines in dose-dependent manners after treatment for 48 h, and this compound had a little stronger inhibitory activity against Hela than A549 (Figure 3).

2.2.2. Apoptosis in cancer cell lines induced by compound 11

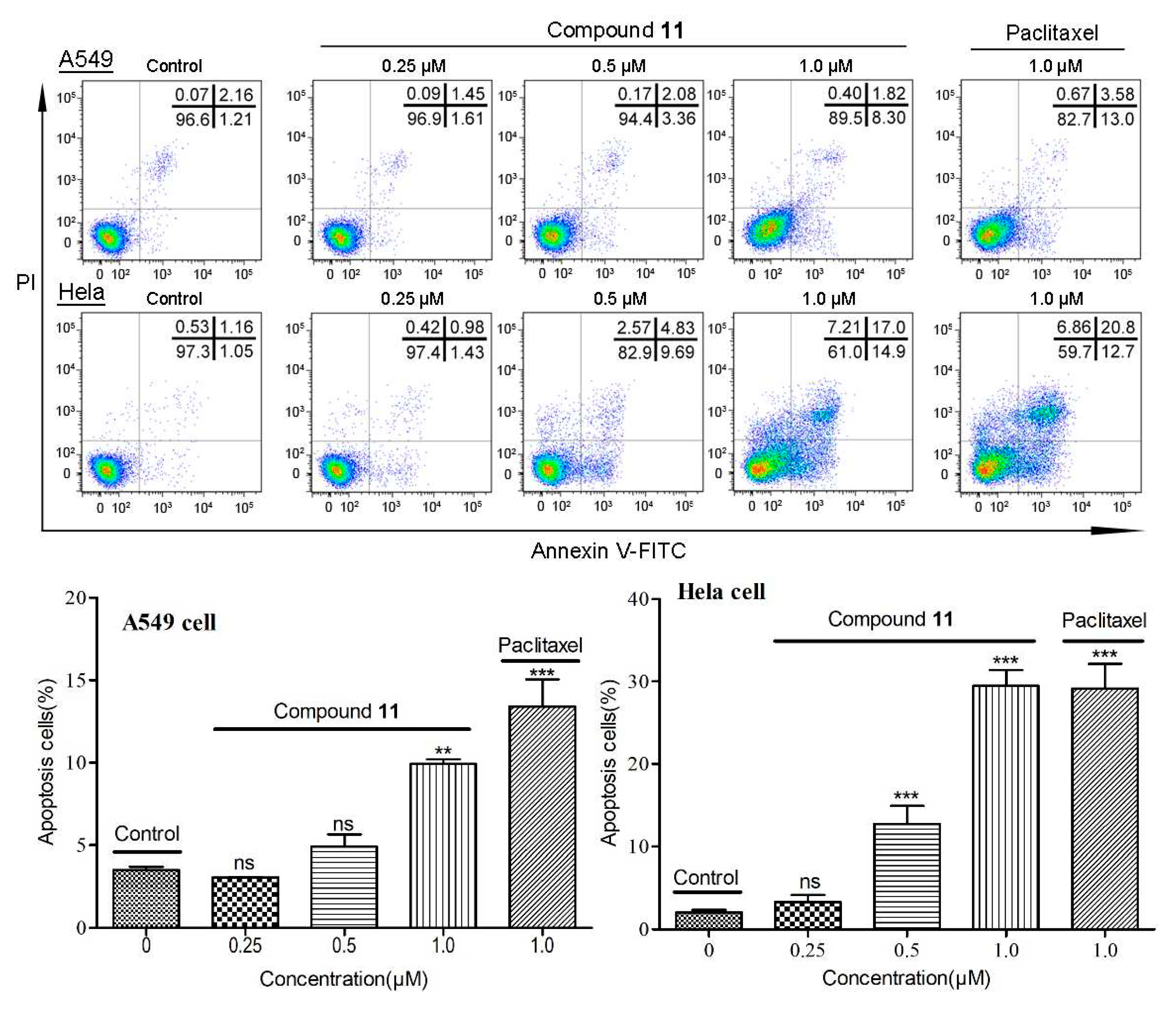

The apoptosis in both cell lines induced by compound 11 was investigated by using flow cytometry with Annexin V-FITC and PI dual staining. As shown in Figure 4, Compound 11 could obviously induce apoptosis in both cells at 1 μM after the 48 h treatment [27]. The dose-dependent effects of compound 11 inducing apoptosis in both cells were observed, especially for Hela cells, indicating that Hela cells were more sensitive to this compound, which is consistent with the MTT results that compound 11 had stronger inhibitory ability against Hela than A549.

2.2.3. Cell cycle arrest induced by compound 11

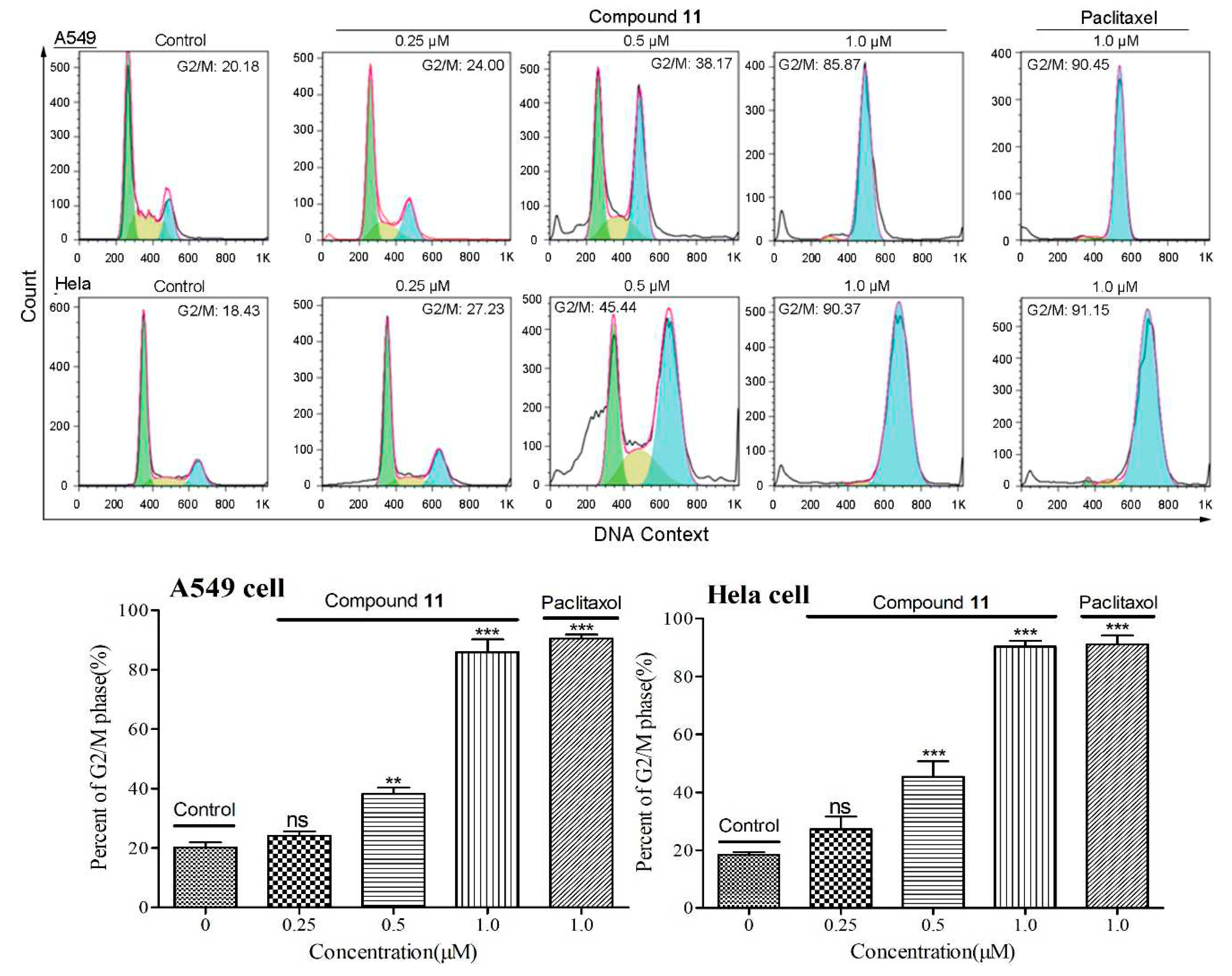

The cell cycle arrest experiments were also preformed to investigate which phase of the cell cycle progression was blocked by the compound 11. As shown in Figure 5, the results showed that both cancer cells could be blocked at G2/M phase with the percentages of 85.87 (A549) and 90.37% (Hela), respectively, at 1.0 μM after the treatment of 11 for 24 h. The results were similar to the cells blocked by paclitaxel, indicating our derivative may have the same biological target as paclitaxel, while not maintain the stability of the microtubule, but more probably similar to plinabulin, inhibit tubulin polymerization and perturb the stability of microtubule, thus resulting in the apoptosis of cancer cells.

3. Materials and Methods

3.1. Chemicals

Solvents and chemicals are commercially available in analytical grade and used without further purification. Analytical thin layer chromatography (TLC) analyses were performed on HSGF254 plates which were visualized using UV light (254 nm) or I₂ staining. Flash column chromatography was performed using silica gel (200–300 mesh). Melting points (m.p.) were determined by using a SGW-X4 melting point instrument without correction. Mass spectrometry data were collected with a Bruker amaZon SL instrument for low-resolution or a Bruker maXis/QTOF instrument for high-resolution both using ESI ionization. The NMR spectra were recorded on Bruker AC 500 or 700 NMR spectrometer with TMS as an internal standard. The residual solvent peaks were used for the chemical shifts as an internal reference (ppm): ¹H (CDCl₃: δ 7.26); ¹³C (CDCl₃: δ 77.0).

3.1.1. Synthesis of compounds

General procedure for the synthesis of products 1-16

Into a 4 mL vial, 1,4-diacetyl-2,5-diketopiperazine (50 mg, 0.25 mmol, 1.0 equiv.) and the first aldehydes (0.25 mmol, 1.0 equiv.) dissolved in 2 mL dry DMF were added, followed with allyl bromide (54 μL, 0.63 mmol, 2.5 equiv.) and Cs₂CO₃ (205 mg, 0.63 mmol, 2.5 equiv.). The reaction was stirred at room temperature until the completion of the 1st Aldol condensation and the alkylation of allyl bromide, and then the second aldehydes (0.5 mmol, 2.0 equiv.) was added and the mixture was heated at 95 °C for about 4 h. The reaction mixture was added into water (15 mL) and extracted with EtOAc (5 mL × 3). The organic layer was dried over Na₂SO₄, filtered, and removed. The residues were purified by flash column chromatography on silica to afford the target products 1-5 and 8-16. The procedure for the synthesis of compounds 6 and 7 is similar to the above synthetic method, however, the aldehydes (3.0 equiv.) were added just for once only in the first step. Compound 3 [28] and 7 [26] are known and their analytic data are identical to the reported ones.

1-allyl-6-(2-methoxybenzylidene)-3-(3-nitrobenzylidene)piperazine-2,5-dione (1)

Following the general procedure, the product 1 was obtained in 51% yield as a slightly yellow solid. mp = 138 – 141 ˚C. ¹H NMR (500 MHz, CDCl₃) δ 9.99 (s, 1H), 8.46 (s, 1H), 8.01 (d, J = 8.2 Hz, 1H), 7.77 (d, J = 7.7 Hz, 1H), 7.55 (t, J = 8.0 Hz, 1H), 7.36 (t, J = 8.4 Hz, 1H), 7.18 (d, J = 7.0 Hz, 1H), 7.06 (s, 1H), 6.98 (t, J = 7.4 Hz, 1H), 6.92 (d, J = 8.5 Hz, 1H), 6.90 (s, 1H), 5.54 – 5.46 (m, 1H), 4.98 (d, J = 11.1 Hz, 1H), 4.72 (d, J = 17.1 Hz, 1H), 4.19 (d, J = 5.9 Hz, 2H), 3.84 (s, 3H). ¹³C NMR (125 MHz, CDCl₃) δ 161.4, 158.8, 157.2, 148.4, 135.0, 134.8, 131.2, 130.7, 130.3, 129.8, 128.1, 127.8, 123.7, 122.7, 122.3, 120.2, 118.8, 118.1, 114.9, 110.6, 55.4, 47.3 ppm. HRMS (ESI): m/z calcd for C₂₂H₂₀N₃O₅ [M+H]⁺ 406.1397, found 406.1390; for C₂₁H₁₉N₃O₅Na [M+Na]⁺ 428.1217, found 428.1211.

4-((Z)-(4-allyl-5-((Z)-2-methoxybenzylidene)-3,6-dioxopiperazin-2-ylidene)methyl)benzonitrile (2)

Following the general procedure, the product 2 was obtained in 46% yield as a slightly yellow solid. mp = 175 – 178 ˚C. ¹H NMR (500 MHz, CDCl₃) δ 8.34 (s, 1H), 7.73 (d, J = 8.3 Hz, 2H), 7.56 (d, J = 8.2 Hz, 2H), 7.44 – 7.34 (m, 1H), 7.33 (s, 1H), 7.21 (d, J = 6.8 Hz, 1H), 7.01 (d, J = 7.9 Hz, 1H), 6.99 (t, J = 7.4 Hz, 1H), 6.94 (d, J = 8.3 Hz, 1H), 5.54 (ddt, J = 16.3, 10.2, 6.0 Hz, 1H), 5.02 (dd, J = 10.2, 1.1 Hz, 1H), 4.77 (dd, J = 17.1, 1.2 Hz, 1H), 4.25 (d, J = 6.0 Hz, 2H), 3.87 (s, 3H). ¹³C NMR (126 MHz, CDCl₃) δ 160.3, 158.6, 157.4, 137.8, 132.9, 131.2, 130.9, 130.4, 129.3, 128.1, 127.8, 122.5, 120.3, 119.5, 118.4, 118.3, 114.6, 112.0, 110.7, 55.5, 47.5 ppm. HRMS (ESI): m/z calcd for C₂₃H₂₀N₃O₃ [M+H]⁺ 386.1499, found 386.1498.

(3Z,6Z)-1-allyl-6-(3-bromobenzylidene)-3-(3-nitrobenzylidene)piperazine-2,5-dione (4)

Following the general procedure, the product 4 was obtained in 63% yield as a slightly yellow solid. mp = 182 – 185 ˚C. ¹H NMR (500 MHz, CDCl₃) δ 9.61 (s, 1H), 8.48 (s, 1H), 8.09 (d, J = 8.1 Hz, 1H), 7.75 (d, J = 7.7 Hz, 1H), 7.61 (t, J = 8.0 Hz, 1H), 7.51 (d, J = 8.0 Hz, 1H), 7.41 (s, 1H), 7.30 (t, J = 7.8 Hz, 1H), 7.21 (d, J = 7.7 Hz, 1H), 7.10 (s, 1H), 6.81 (s, 1H), 5.56 – 5.48 (m, 1H), 5.05 (d, J = 10.2 Hz, 1H), 4.78 (d, J = 17.1 Hz, 1H), 4.23 (d, J = 5.8 Hz, 2H). ¹³C NMR (125 MHz, CDCl₃) δ 160.7, 158.9, 148.6, 135.7, 135.1, 134.7, 132.0, 131.0, 130.1, 130.0, 128.8, 127.80, 127.78, 123.5, 123.0, 122.6, 120.5, 118.5, 115.6, 48.1 ppm. HRMS (ESI): m/z calcd for C₂₁H₁₇BrN₃O₄ [M+H]⁺ 454.0397, found 454.0400;

1-allyl-3-((Z)-2,3-dichlorobenzylidene)-6-((Z)-2-(trifluoromethyl)benzylidene)piperazine-2,5-dione (5)

Following the general procedure, the product 5 was obtained in 21% yield as a orange solid. mp = 109 – 111 ˚C. ¹H NMR (700 MHz, CDCl₃) δ 8.94 (s, 1H), 7.74 (d, J = 7.9 Hz, 1H), 7.57 (t, J = 7.6 Hz, 1H), 7.48 (t, J = 7.7 Hz, 1H), 7.42 – 7.37 (m, 2H), 7.35 (d, J = 7.6 Hz, 1H), 7.26 (t, J = 7.9 Hz, 1H), 7.24 (s, 1H), 7.13 (s, 1H), 5.56 – 5.46 (m, 1H), 5.00 (dd, J = 10.3, 1.1 Hz, 1H), 4.76 (dd, J = 17.1, 1.1 Hz, 1H), 4.09 (d, J = 7.0 Hz, 2H).¹³C NMR (176 MHz, CDCl₃) δ 159.2, 158.4, 134.1, 133.3, 132.6, 132.5, 131.6, 130.9, 130.4 (d, J_C-F = 2.9 Hz), 129.8, 128.8, 128.6 (q, J_C-F = 30.3 Hz), 127.8, 127.6, 127.3, 126.3 (d, J_C-F = 4.6 Hz), 123.7 (q, J_C-F = 273.9 Hz), 117.9, 117.7, 114.8, 48.07 ppm. HRMS (ESI): m/z calcd for C₂₂H₁₆Cl₂F₃N₂O₂ [M+H]⁺ 467.0538, found 467.0535.

1-allyl-3,6-bis((Z)-3-(trifluoromethyl)benzylidene)piperazine-2,5-dione (6)

Following the general procedure, the product 6 was obtained in 39% yield as a white solid. mp = 154 – 155 ˚C. ¹H NMR (500 MHz, CDCl₃) δ 8.97 (s, 1H), 7.71 (s, 1H), 7.63 (s, 2H), 7.60 – 7.51 (m, 4H), 7.47 (d, J = 7.2 Hz, 1H), 7.10 (d, J = 7.0 Hz, 2H), 5.55 – 5.44 (m, 1H), 5.03 (d, J = 10.2 Hz, 1H), 4.72 (d, J = 17.0 Hz, 1H), 4.23 (s, 2H). ¹³C NMR (126 MHz, CDCl₃) δ 160.0, 159.0, 134.7, 133.7, 132.3, 131.9, 131.7 (q, J_C-F = 37.2 Hz), 131.1 (q, J_C-F = 32.6 Hz), 131.0, 129.8, 129.3, 129.0, 126.9, 126.0 (d, J_C-F = 3.6 Hz), 125.6 (d, J = 3.7 Hz), 125.4 (d, J = 3.5 Hz), 125.3 (d, J = 3.5 Hz), 123.7 (q, J_C-F = 272.7 Hz), 123.7 (q, J_C-F = 272.6 Hz). 120.3, 118.4, 116.8, 48.0 ppm. HRMS (ESI): m/z calcd for C₂₃H₁₇F₆N₂O₂ [M+H]⁺ 467.1189, found 467.1199.

1-allyl-3-(furan-2-ylmethylene)-6-(2-methoxybenzylidene)piperazine-2,5-dione (8)

Following the general procedure, the product 8 was obtained in 65% yield as a slightly yellow oil. ¹H NMR (500 MHz, CDCl₃) δ 9.14 (s, 1H), 7.57 (s, 1H), 7.34 (s, 1H), 7.32 (d, J = 8.4 Hz, 1H), 7.18 (d, J = 7.3 Hz, 1H), 6.95 (t, J = 7.4 Hz, 1H), 6.90 (d, J = 8.3 Hz, 1H), 6.78 (s, 1H), 6.57 (d, J = 3.4 Hz, 1H), 6.51 (dd, J = 3.4, 1.8 Hz, 1H), 5.56 – 5.49 (m, 1H), 4.98 (d, J = 11.2 Hz, 1H), 4.74 (d, J = 17.1 Hz, 1H), 4.23 (d, J = 5.9 Hz, 2H), 3.83 (s, 3H). ¹³C NMR (125 MHz, CDCl₃) δ 159.5, 158.9, 157.3, 150.8, 143.9, 131.4, 130.4, 130.3, 128.3, 123.7, 123.0, 120.1, 118.1, 117.9, 114.2, 112.3, 110.5, 103.4, 55.4, 47.4 ppm.. HRMS (ESI): m/z calcd for C₂₀H₁₉N₂O₄ [M+H]⁺ 351.1339, found 351.1346.

1-allyl-6-(2-methoxybenzylidene)-3-(thiophen-2-ylmethylene)piperazine-2,5-dione (9)

Following the general procedure, the product 9 was obtained in 46% yield as a slightly yellow oil. ¹H NMR (500 MHz, CDCl₃) δ 8.06 (s, 1H), 7.45 (d, J = 5.1 Hz, 1H), 7.35 – 7.32 (m, 2H), 7.28 (d, J = 3.6 Hz, 1H), 7.20 (d, J = 5.0 Hz, 2H), 7.13 (dd, J = 5.1, 3.7 Hz, 1H), 6.96 (t, J = 7.5 Hz, 1H), 6.91 (d, J = 8.2 Hz, 1H), 5.59 – 5.48 (m, 1H), 4.99 (d, J = 11.3 Hz, 1H), 4.75 (d, J = 17.1 Hz, 1H), 4.22 (d, J = 6.0 Hz, 2H), 3.84 (s, 3H). ¹³C NMR (125 MHz, CDCl₃) δ 159.9, 159.1, 157.3, 135.8, 131.4, 130.5, 130.3, 129.7, 128.3, 128.1, 127.6, 124.1, 122.7, 120.2, 118.4, 118.0, 110.6, 110.4, 55.4, 47.3 ppm. HRMS (ESI): m/z calcd for C₂₀H₁₉N₂O₃S [M+H]⁺ 367.1111, found 367.1114.

(3Z,6Z)-1-allyl-6-(2-methoxybenzylidene)-3-(pyridin-2-ylmethylene)piperazine-2,5-dione (10)

Following the general procedure, the product 10 was obtained in 38% yield as a slightly yellow oil. ¹H NMR (500 MHz, CDCl₃) δ 12.66 (s, 1H), 8.63 (s, 1H), 7.71 (t, J = 7.7 Hz, 1H), 7.38 (s, 1H), 7.33 (t, J = 7.9 Hz, 2H), 7.19 (d, J = 7.3 Hz, 2H), 6.96 (t, J = 7.4 Hz, 1H), 6.90 (d, J = 8.3 Hz, 1H), 6.79 (s, 1H), 5.58 – 5.50 (m, 1H), 4.99 (d, J = 10.2 Hz, 1H), 4.75 (d, J = 17.1 Hz, 1H), 4.26 (d, J = 5.6 Hz, 2H), 3.84 (s, 3H). ¹³C NMR (125 MHz, CDCl₃) δ 159.5, 158.8, 157.2, 154.9, 148.4, 136.9, 131.4, 130.9, 130.35, 130.32, 128.6, 125.9, 123.2, 122.0, 120.1, 118.2, 117.9, 110.6, 109.8, 55.4, 47.4 ppm. HRMS (ESI): m/z calcd for C₂₁H₂₀N₃O₃ [M+H]⁺ 362.1499, found 362.1507.

1-allyl-6-(2-methoxybenzylidene)-3-(naphthalen-1-ylmethylene)piperazine-2,5-dione (11)

Following the general procedure, the product 11 was obtained in 58% yield as a slightly yellow solid. mp = 80 – 82 ˚C. ¹H NMR (500 MHz, CDCl₃) δ 8.02 – 7.98 (m, 2H), 7.90 – 7.86 (m, 2H), 7.56 – 7.50 (m, 5H), 7.36 (t, J = 8.4 Hz, 1H), 7.32 (s, 1H), 7.25 (d, J = 8.3 Hz, 1H), 7.00 (t, J = 7.3 Hz, 1H), 6.93 (d, J = 8.3 Hz, 1H), 5.63 – 5.55 (m, 1H), 5.03 (d, J = 11.2 Hz, 1H), 4.80 (d, J = 15.9 Hz, 1H), 4.31 (d, J = 6.0 Hz, 2H), 3.87 (s, 3H). ¹³C NMR (125 MHz, CDCl₃) δ 159.8, 158.9, 157.3, 133.8, 131.5, 131.4, 130.5, 130.4, 129.8, 129.3, 128.7, 128.2, 127.6, 126.9, 126.6, 126.0, 125.5, 124.5, 122.9, 120.2, 118.5, 118.1, 115.3, 110.6, 55.4, 47.4 ppm. HRMS (ESI): m/z calcd for C₂₆H₂₃N₂O₃ [M+H]⁺ 411.1703, found 411.1696.

1-allyl-6-(2-methoxybenzylidene)-3-(quinolin-2-ylmethylene)piperazine-2,5-dione (12)

Following the general procedure, the product 12 was obtained in 56% yield as a slightly yellow solid. mp = 170 – 173 ˚C. ¹H NMR (500 MHz, CDCl₃) δ 13.23 (s, 1H), 8.18 – 8.14 (m, 2H), 7.78 (d, J = 8.1 Hz, 1H), 7.74 (t, J = 7.1 Hz, 1H), 7.54 (t, J = 7.5 Hz, 1H), 7.43 (t, J = 5.1 Hz, 2H), 7.34 (t, J = 7.8 Hz, 1H), 7.22 (d, J = 7.3 Hz, 1H), 6.97 (t, J = 7.4 Hz, 1H), 6.92 (d, J = 10.4 Hz, 2H), 5.61 – 5.53 (m, 1H), 5.01 (d, J = 11.2 Hz, 1H), 4.79 (d, J = 18.2 Hz, 1H), 4.30 (d, J = 5.9 Hz, 2H), 3.86 (s, 3H). ¹³C NMR (125 MHz, CDCl₃) δ 159.6, 158.6, 157.3, 155.1, 146.8, 136.8, 132.2, 131.4, 130.39, 130.37, 130.2, 128.8, 128.6, 127.5, 127.0, 126.7, 123.8, 123.2, 120.2, 118.4, 117.9, 110.6, 109.3, 55.4, 47.5 ppm. HRMS (ESI): m/z calcd for C₂₅H₂₂N₃O₃ [M+H]⁺ 412.1656, found 412.1660.

(Z)-1-allyl-6-((Z)-2-methoxybenzylidene)-3-((6-methoxynaphthalen-2-yl)methylene)piperazine-2,5-dione (13)

Following the general procedure, the product 13 was obtained in 45% yield as a slightly yellow solid. mp = 156 – 158 ˚C. ¹H NMR (500 MHz, CDCl₃) δ 8.24 (s, 1H), 7.86 (s, 1H), 7.77 (dd, J = 15.0, 8.7 Hz, 2H), 7.48 (dd, J = 8.5, 1.5 Hz, 1H), 7.40 – 7.33 (m, 1H), 7.32 (s, 1H), 7.23 (d, J = 7.0 Hz, 1H), 7.21 – 7.16 (m, 2H), 7.12 (d, J = 2.3 Hz, 1H), 6.98 (t, J = 7.4 Hz, 1H), 6.92 (d, J = 8.3 Hz, 1H), 5.57 (ddt, J = 16.3, 10.3, 6.0 Hz, 1H), 5.01 (dd, J = 10.2, 1.1 Hz, 1H), 4.78 (dd, J = 17.1, 1.2 Hz, 1H), 4.26 (d, J = 6.0 Hz, 2H), 3.93 (s, 3H), 3.86 (s, 3H). ¹³C NMR (126 MHz, CDCl₃) δ 160.2, 159.4, 158.6, 157.4, 134.4, 131.5, 130.5, 130.4, 129.7, 128.8, 128.5, 128.2, 127.9, 127.9, 126.5, 125.6, 122.9, 120.2, 119.8, 118.3, 118.0, 117.7, 110.6, 105.8, 55.5, 55.4, 47.4 ppm. HRMS (ESI): m/z calcd for C₂₇H₂₅N₂O₄ [M+H]⁺ 441.1809, found 441.1815.

(Z)-1-allyl-3-(naphthalen-1-ylmethylene)-6-((Z)-2-(trifluoromethyl)benzylidene)piperazine-2,5-dione (14)

Following the general procedure, the product 14 was obtained in 30% yield as a slightly yellow solid. mp = 98 – 101 ˚C. ¹H NMR (700 MHz, CDCl₃) δ 8.52 (s, 1H), 8.04 – 7.94 (m, 1H), 7.83 (t, J = 7.0 Hz, 2H), 7.74 (d, J = 7.9 Hz, 1H), 7.59 (s, 1H), 7.58 – 7.55 (m, 2H), 7.55 – 7.50 (m, 3H), 7.48 (t, J = 7.7 Hz, 1H), 7.38 (d, J = 7.6 Hz, 1H), 7.33 (s, 1H), 5.57 (ddd, J = 22.7, 10.6, 5.6 Hz, 1H), 5.04 (dd, J = 10.3, 0.9 Hz, 1H), 4.81 (dd, J = 17.1, 1.0 Hz, 1H), 4.15 (s, 2H).¹³C NMR (176 MHz, CDCl₃) δ 158.9, 158.8, 133.8, 133.0, 131.6, 131.5, 131.1, 130.6, 130.12, 129.6, 129.4, 128.7 (q, J_C-F = 30.6 Hz), 128.7, 127.0, 126.9, 126.6, 126.4 (d, J_C-F= 3.1 Hz), 125.5, 124.5, 123.8 (q, J_C-F = 273.4 Hz), 121.5, 117.8, 117.3, 116.4, 48.1 ppm. HRMS (ESI): m/z calcd for C₂₆H₂₀F₃N₂O₂ [M+H]⁺ 449.1471, found 449.1480.

(Z)-1-allyl-3-(naphthalen-1-ylmethylene)-6-((Z)-3-(trifluoromethyl)benzylidene)piperazine-2,5-dione (15)

Following the general procedure, the product 15 was obtained in 37% yield as a slightly yellow solid. mp = 111 – 113 ˚C. ¹H NMR (700 MHz, CDCl₃) δ 8.32 (d, J = 19.6 Hz, 1H), 8.02 – 7.97 (m, 1H), 7.87 (dd, J = 11.7, 5.6 Hz, 2H), 7.62 (t, J = 7.6 Hz, 1H), 7.60 (d, J = 9.1 Hz, 1H), 7.56 (dd, J = 6.6, 1.3 Hz, 2H), 7.55 (dd, J = 5.3, 2.3 Hz, 2H), 7.54 (s, 1H), 7.52 (t, J = 6.3 Hz, 1H), 7.50 (t, J = 6.0 Hz, 1H), 7.15 (s, 1H), 5.54 (ddt, J = 16.1, 10.3, 5.8 Hz, 1H), 5.05 (dd, J = 10.2, 1.1 Hz, 1H), 4.75 (dd, J = 17.1, 1.1 Hz, 1H), 4.28 (d, J = 5.8 Hz, 2H).¹³C NMR (176 MHz, CDCl₃) δ 159.2, 159.0, 135.0, 133.8, 132.3, 131.5, 131.1, 130.9 (q, J_C-F = 32.8 Hz), 129.6, 129.4, 129.3, 128.9, 128.6, 127.1, 126.9, 126.6, 126.2, 126.0 (d, J_C-F = 2.4 Hz), 125.4, 125.2 (d, J_C-F = 2.4 Hz), 124.5, 123.5 (q, J_C-F = 272.6 Hz), 119.6, 118.2, 116.6, 48.0 ppm. HRMS (ESI): m/z calcd for C₂₆H₂₀F₃N₂O₂ [M+H]⁺ 449.1471, found 449.1475.

(Z)-1-allyl-6-((Z)-2-fluorobenzylidene)-3-((6-methoxynaphthalen-2-yl)methylene)piperazine-2,5-dione (16)

Following the general procedure, the product 16 was obtained in 67% yield as a bright yellow solid. mp = 152 – 155 ˚C. ¹H NMR (500 MHz, CDCl₃) δ 8.71 (s, 1H), 7.87 (s, 1H), 7.77 (d, J = 8.5 Hz, 1H), 7.74 (d, J = 9.0 Hz, 1H), 7.48 (dd, J = 8.5, 1.5 Hz, 1H), 7.36 (td, J = 7.3, 1.5 Hz, 1H), 7.26 – 7.22 (m, 1H), 7.21 (s, 1H), 7.19 – 7.16 (m, 1H), 7.16 – 7.13 (m, 1H), 7.11 (t, J = 9.2 Hz, 1H), 7.07 (d, J = 9.3 Hz, 2H), 5.53 (ddt, J = 16.2, 10.3, 5.9 Hz, 1H), 5.01 (dd, J = 10.2, 1.0 Hz, 1H), 4.74 (dd, J = 17.1, 1.1 Hz, 1H), 4.28 (d, J = 5.9 Hz, 2H), 3.88 (s, 3H). ¹³C NMR (126 MHz, CDCl₃) δ 156.0 (d, J_C-F = 251.1 Hz), 159.7, 159.3, 158.6, 134.4, 131.2, 130.7, 130.7, 126.0, 129.7, 128.7, 128.0, 128.0, 127.8, 126.5, 125.2, 123.9 (d, J_C-F = 3.3 Hz), 122.2 (d, J_C-F = 14.7 Hz), 119.7, 118.6, 118.2, 115.7 (d, J_C-F = 21.3 Hz), 114.4, 105.7, 55.3, 47.2. HRMS (ESI): m/z calcd for C₂₆H₂₂FN₂O₃ [M+H]⁺ 429.1609 found 429.1601.

3.1.2. liposolubility tests

In a 1.5 mL vial each containing 1.0 mg of the synthetic compound, the solvent (DMAO, DMF, AcOEt, DCM, chloroform or acetone) was then added dropwise and the mixture was stirred simultaneously at the room temperature until the complete dissolubility of the compound. The liposolubilites for all compounds were estimated and calculated on the basis of the volume (less than 1.0 mL each) of the above solvents used.

3.2. Biological evaluations

3.2.1. Cytotoxicity bioassay

Cell viability was analyzed by 3-(4,5)-dimethylthiahiazo (-z-y1)-3,5-di-phenytetrazoliu mromide (MTT) assay as previously described [29]. In brief, cells were seeded in a 96-well plate at a density of 3 × 10³ per well treated with compounds (0.039, 0.078, 0.156, 0.312, 0.625, 1.25, 2.5, 5, 10 μM) in an incubator (5% CO₂, 37℃) for 48 h. The OD₅₇₀ values were measured using an ELISA Reader. The experiment was independently repeated for three times.

3.2.2. Apoptosis and cell cycle assay

A549 and Hela cells were seeded and incubated in the six-well plate at a density of 2.0 × 10⁵ cells per well treated with DMSO (0.1 %, v/v), paclitaxel (1.0 μM) or compound 11 (0.25, 0.5, 1.0 μM), respectively, for 48 h. The cells were then collected and stained with both annexin V-FITC and PI solutions, by following the manufacturer’s protocol (BMS500FI-300, Thermo Fisher Scientific,Waltham, MA, USA). Apoptotic rates and cell cycle distribution of both cells were examined and analyzed by a flow cytometer (BD Fac SCanto II, USA). Three parallel experiments were performed for each concentration.

4. Conclusion

Sixteen 2,5-DPKs with different functions substituted at the 3,6-positions of the 2,5-DPK ring were designed, synthesized and investigated as anticancer agents against cell lines A549 and Hela. 2-MeO on the phenyl group at the 6-position and the suitable size or skeleton substituents at the 3-postion on 2,5-DPK ring might give combined impacts on the anticancer activities of derivatives. The one-pot method for the synthesis of these derivatives is simple and operationally convenient, which is also a guarantee of providing enough amounts of the active derivatives for the further druggability assessments. The biological evaluation disclosed that the activities of most derivatives were not obviously improved except compound 11, which is a promising skeleton for the further development to explore high anticancer agents, and therefore our ongoing studies are now mainly focusing on this compound.
