Effect of Cation Chloride Concentration on the Dissolution Rates of Basaltic Glass and Labradorite at pH 3.6 and 25°C and Applica-Tion to Subsurface Carbon Storage

1. Introduction

This study is focused on quantifying the effect of the ionic strength and the concentration of some common aqueous chloride salts on the dissolution rates of basaltic glass and Ca-rich plagioclase. The dissolution rates of these solids have received significant recent attention due to their potential use as the feedstock for carbon mineral storage in the subsurface (McGrail et al., 2014, 2006; Matter et al., 2007; 2011, 2016; Alfredsson et al., 2008; Goldberg et al., 2008; Oelkers et al., 2008; Goldberg and Salagle, 2009; Matter and Kelemen, 2009; Schaef et al., 2009; Shikazono et al., 2009; Gislason et al., 2010; Kampman et al. 2009; Schaef and McGrail, 2009; Gysi and Stefansson, 2011; Pham et al., 2011; Wolff-Boenisch et al., 2011; Munz et al., 2012; Hellevang et al., 2013; Gislason and Oelkers, 2014; Wolff-Boenisch and Galeczka, 2018; Tutolo et al., 2021; Snæbjörnsdóttir et al., 2018, 2020; Kelemen et al., 2019; 2020; Galeczka et al., 2022; Oelkers et al., 2023). Notably, there have been a large number of studies reporting the measured dissolution rates of basaltic glass (e.g. Crovisier et al., 1985, 1987; Gislason and, Eugster,1987; Guy, 1989; Oelkers and Gislason, 2001; Wolff-Boenisch et al., 2004a, b, 2006; 2011; Stockmann et al., 2011; Parruzot et al., 2015) as well as of the Ca-rich feldspar labradorite (Sjoberg, 1985; Casey et al., 1988, 1989; Cygan et al., 1989; Nesbitt et al., 1991, Welch and Ullman, 1996; Taylor et al., 2000; Caroll and Knauss; 2005; Gudbrandsson et al., 2014; Wild et al., 2016; Gadikota et al., 2020; de Obeso et al., 2023). These past studies have explored in detail the effects of temperature, presence of aqueous organic species, pH, distance from equilibrium and crystallographic orientation on measured dissolution rates. The present study builds on these past efforts by measuring the dissolution rates of basaltic glass and labradorite as a function of reactive aqueous concentrations of NaCl, KCl, CaCl₂, and MgCl₂.

The motivation for this study is to better quantify the effect of major cations on the dissolution kinetics of basaltic glass and Ca-rich plagioclase in an attempt to better constrain the potential applicability of saline fluids in carbon mineralization efforts. Notably, carbon dioxide storage in the subsurface is increasingly targeted for injection into saline reservoirs, in an attempt to preserve freshwater resources (e.g. Celia et al., 2015; Kumar et al., 2020; Ringrose et al, 2021). Some of these efforts will be aimed at injecting CO₂ into reactive basaltic or ultramafic rocks containing saline fluids or seawater to enhance the long-term security of the carbon storage (e.g., Luo et al. 2012; Marieni et al., 2021; Voigt et al., 2021). Towards the improved quantification of such efforts, the dissolution rates of basaltic glass and labradorite have been determined at steady-state, far-from-equilibrium conditions in flow through reactors at pH of 3.6 and 25°C in the presence of aqueous metal chloride solutions having ionic strengths up to 0.7 mol kgw^-1. The purpose of this study is to report the results of these measurements and to use them to assess the effect of water salinity on subsurface mineral carbonation.

2. Theoretical Background

The standard state adopted in this study is that of unit activity of pure minerals and H₂O at any temperature and pressure. For aqueous species other than H₂O, the standard state is unit activity of the species in a hypothetical one molal solution referenced to infinite dilution at any temperature and pressure. All thermodynamic calculations reported in this study were performed using the geochemical modelling code PHREEQC3 (Parkhurst and Appelo, 2013), together with its carbfix.dat database (Voigt et al., 2018).

This study is focused on the characterization of dissolution rates of basaltic glass and labradorite. The dissolution of these solids is controlled by the detachment of metals from the surface of these solids (Brantley et al., 2008). Within the context of Transition State Theory, surface reaction-controlled dissolution rates, r, can be considered to be the difference between the forward rate (r₊) and the reverse rate (r_-) such that

$$r=r_{+}-r_{-}=r_{+}\left(1-\frac{r_{-}}{r_{+}}\right)$$

(1)

Taking account of the law of detailed balancing, it can be shown that Eqn. (1) is equivalent to (Aagaard and Helgeson, 1977, 1982; Lasaga, 1981; Schott and Oelkers, 1995; Oelkers, 2001)

$$r=r_{+}(1-\exp (-A/\sigma RT\left)\right)$$

(2)

where A refers to the chemical affinity of the reaction, σ stands for Temkin's average stoichiometric number equal to the ratio of the rate of destruction of the activated or precursor complex relative to the overall rate, R designates the gas constant and T denoted the temperature. Experimental evidence suggests that the value of σ in Eqn. (2) is 3 for basaltic glass and plagioclase (Oelkers et al., 1994; Oelkers, 2001). The form of Eq. (1) is such that overall rates (r) equal forward rates (r₊) when A >> σRT. All dissolution rates in the present study were measured at far-from-equilibrium conditions, such that A >> σRT. At these conditions $r_{-}<<r_{+}$ and thus r ≈ r₊.

According to Transition State Theory applied to surface-controlled dissolution reactions, the forward rate, r₊, is proportional to the concentration of a rate controlling surface complex such that (Eyring, 1935; Schott et al., 2009):

$$r_{+}=k_{+}\left[a\_?C\right]$$

(3)

where k₊ refers to a rate constant and [

. $a\_?C$enotes the concentration of the rate controlling surface complex. Previous work on the basaltic glass and plagioclases having less than ~75% Ca in their cation site (<An₇₅) suggests that their far-from-equilibrium dissolution rates are proportional to the concentration of a Si-rich surface complex formed by the Al-proton exchange reactions leading to the following rate equation (Oelkers et al., 1994; Oelkers and Schott, 1995; Oelkers, 2001; Oelkers and Gislason, 2001; Gislason and Oelkers, 2003; Carroll and Knauss, 2005, Schott et al., 2009). This observation leads to an equation describing basaltic glass and labradorite dissolution rates of the form:

$$r_{+}=k_{+}^{\text{'}}s{\left(\frac{a_{{\mathrm{H}}^{+}}^3}{a_{{\mathrm{A}\mathrm{l}}^{3+}}}\right)}^n$$

(4)

where $k_{+}^{\text{'}}$ represents a rate constant, s refers to the specific surface area of the mineral, and n denotes an exponential factor equal to ~0.33. Although monovalent and divalent cations, including Na, K, Mg, and Ca, also need to be removed from the structure of basaltic glass and labradorite to create their dissolution rate controlling Si-rich surface complex, the degree to which these cations influence the dissolution rate of these solids has yet to be quantified. The role of these cations in the dissolution rate of these solids will be explored in detail in the present study.

Rates measured in the present study are normalized to the geometric surface areas of the basaltic glass and labradorite samples. These surface areas were calculated using (Tester et al., 1994):

$$A_{geo}=\frac{6}{\rho *d_{eff}}$$

(5)

where $\rho$ refers to the rock density of the rock and d_eff to the effective particle diameter. This latter term, d_eff , was calculated using:

$$d_{eff}=\frac{d_{max}-d_{min}}{\mathrm{l}\mathrm{n}\left(\frac{d_{max}}{d_{min}}\right)}$$

(6)

where d_max and d_min correspond to the minimum and maximum grain size of the prepared powders, respectively.

3. Materials and Methods

Solids

The basaltic glass used in this study was originally collected from Stapafell Mountain in SW Iceland. This basaltic glass has been previously used in a large number of different experimental studies (e.g. Oelkers and Gislason, 2001; Gislason and Oelkers, 2003; Flaathen et al., 2010; Stockmann et al., 2011, 2012; Wolff-Boenisch et al., 2011; Prikryl et al., 2017; Saetre et al., 2018; Wolff-Boenisch and Galeczka, 2018; Clark et al., 2019; Ralston et al., 2023). The chemical composition of this glass, determined by X-ray fluorescence spectrometry, is shown in Table 1. Back scattering images obtained using scanning electron microscope confirm that while some minor microcrystalline phases are present in this glass, they are confined within the glass shards (Wolff-Boenisch, 2004).

The labradorite used in this study was collected from an anorthosite intrusion located on the Hrappsey Islands in Breidafjördur, Western Iceland (Kirstmannsdottir, 1971). Its chemical composition, provided in Table 1, was determined using standard wavelength dispersive techniques using the JEOL Superprobe JSL 8200 electron microprobe located at the GET/CNRS in Toulouse, France. These analyses were performed using an acceleration voltage of 15 kV, a beam current of 15 nA, and a beam diameter of 2 µm.

The solid materials were first dried at room temperature for several days before being crushed in plastic bags using a plastic hammer. The solids were then further ground with an agate mortar and dry sieved to obtain the 45–125 µm size fraction. This size fraction was gravitationally settled to remove fine particles, and subsequently cleaned ultrasonically five times in acetone. The resulting powder was oven-dried overnight at 60 ^oC. The geometric surface areas of these powders were calculated using Eqns. (5) and (6) and equal to 284 cm²/g for both solids.

Reactive Fluids

Reactive inlet fluids were created by dissolving Merck/Sigma-Aldrich analytical grade NaCl, KCl, CaCl₂·2H₂O, or MgCl₂·6H₂O in deionized Millipore™ water with ionic strengths ranging from 0.01 to 2.1 mol kg⁻¹. The concentration of these chloride bearing inlet solutions was selected to cover a broad range of ionic strengths. Reagent grade HCl was added to each fluid to adjust the pH to 3.6. This reactive fluid pH was selected so that it would have a similar pH to likely CO₂-charged injection waters and to avoid the precipitation of most secondary phases. The pH of pure water in equilibrium with 25 bars of CO₂ pressure at 25°C is 3.2 (Gislason et al., 2010).

Figure 1. Design of the mixed-flow reactor system used to perform the experiments reported in the present study.

Figure 1. Design of the mixed-flow reactor system used to perform the experiments reported in the present study.

Experimental Design

Basaltic glass and labradorite dissolution rates were performed in mixed-flow reactors. This reactor system is similar to those used in past dissolution rate studies (c.f. Stockmann et al., 2011, Gudbrandsson et al., 2014). This system consisted of 300 mL acid washed high density polyethylene reactors maintained at constant temperature in a thermostat-controlled water bath. Temperature was kept constant during the experiment at 25°C. All the reactor components were made of polyethylene to avoid corrosion. At the beginning of the experiment all reactors, connectors, and tubing were cleaned with a 0.1M HCl solution for 24h and rinsed with Millipore™ water prior to each experiment. All outlet fluid sample bottles went through the same cleaning procedure prior to sampling to prevent contamination. These reactors were stirred using floating stir bars located on the bottom of the reactors. The stirring bars were rotated by a magnetic stirrer located underneath the water bath. Basaltic glass and labradorite dissolution experiments were initiated by placing 4g of cleaned powder and the selected initial reactive fluid into the reactor. The reactors were then sealed and a Masterflex™ cartridge pump delivered the inlet fluid into the polyethylene mixed-flow reactors at a rate of 0.85–1.0 g/min. The reactive inlet fluids were stored in 12L compressible plastic bags during the experiments. Inlet solutions of selected concentrations of NaCl, KCl, CaCl₂ and MgCl₂ were sequentially pumped into the reactor. The reactor fluid passed through a 10µm filter when exiting the reactor and was further filtered through a 0.2 µm cellulose acetate filter prior to chemical analysis. The outlet fluid pH was measured at 25° C using a Eutech Instruments© pH meter coupled to a Eutech Instruments© electrode with a 3 M KCl outer filling solution. The electrode was calibrated with NBS standards at pH 4.01, and 7, with an average error less than 0.03 pH units. Fluid samples were collected and acidified with 0.5% concentrated supra-pure HNO₃ prior to their analysis. The Si concentrations of all inlet and outlet fluids were measured by inductively coupled argon plasma using a Spectro Vision optical emission spectrometer (ICP-OES). Analytical uncertainties on ICP-OES analyses are estimated to be 3–5% based on repeated analyses.

As was the case for a number of past mineral dissolution rate studies (e.g Flaathen et al., 2010; Saldi et al., 2010; Oelkers et al., 2011), experiments in this study were run in several distinct series on individual solid powders. At the start of each experimental series, the initial reactive fluid was injected into the rector at a constant flow rate. The reactors were then operated for at least 48 h before the first outlet fluid sample was collected. Subsequent fluid sampling was timed to allow at least 3 residence times to pass between each sampling. The residence time is defined as the reactor volume divided by the fluid flow rate and ranged from 5-6 h. Steady-state was assumed when four consecutive rate determinations from Si outlet concentrations were constant with analytical uncertainty. Steady state was usually attained after 7-8 days. After reaching steady-state with the initial NaCl-bearing fluid, the inlet fluid was replaced with KCl of the same cation concentration and the procedure repeated. On attainment of this second steady-state, the inlet fluid was then replaced with a CaCl₂ bearing inlet fluid of similar ionic concentration resulting in a third steady-state over time. Finally, the CaCl₂ inlet fluid was replaced with a MgCl₂ bearing inlet solution of similar ionic concentration until a fourth and last steady-state was attained. In total, each solid was dissolved in the presence of four different cation-chloride salts in the order of NaCl, KCl, CaCl₂, MgCl₂. Running several distinct salts in each series facilitated identification of the effects of each on measured rates.

Basaltic glass and labradorite dissolution rates reported in this present study are based on Si release. Silicon release rates are commonly used as a measure of the dissolution rate of silicate minerals as this metal is critical for maintaining their structure (cf. Oelkers, 2001; Brantley, 2003; Brantley et al., 2008; Hermanska et al., 2022). These rates (r_Si,_i) were calculated from steady state Si concentrations in the outlet fluids of the reactors using:

r_Si,i = (F C_Si)/(ν_i A_i, m_i)

(7)

where F represents the fluid flow rate, C_Si stands for the concentration of Si in the outlet fluid at steady state, ν_i signifies the stoichiometric number of Si in one mole of the solid (1 for basaltic glass and 3.26 for labradorite), A_i denotes the specific geometric surface area of ith solid, and m_i represents the initial mass of the ith solid in the reactor.

4. Results

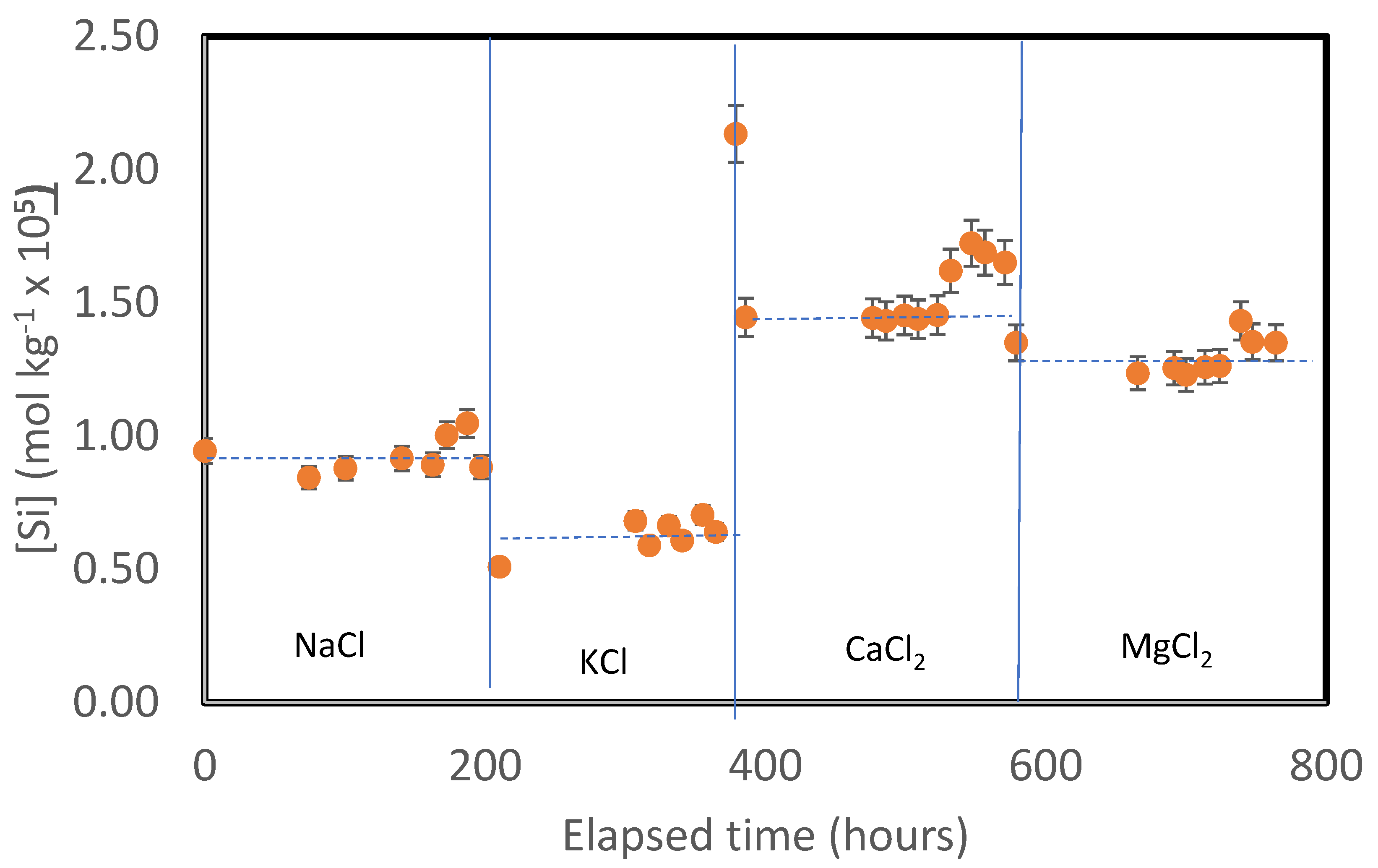

A representative variation of the measured outlet fluid Si concentration as a function of time is shown in Figure 2. The measured Si concentrations of all samples collected during this study is provided in Table S1 of the electronic supplement. The Si release rates rapidly attain a near constant value in all experiments during each reactive series although some scatter is evident. The steady-state Si concentrations for each experiment are reported in Table 2. Integration of the temporal Si release was used to estimate the total mass of solid dissolved during each experimental series. In each case no more than 1% of the total mass of the solid was dissolved during any experimental series.

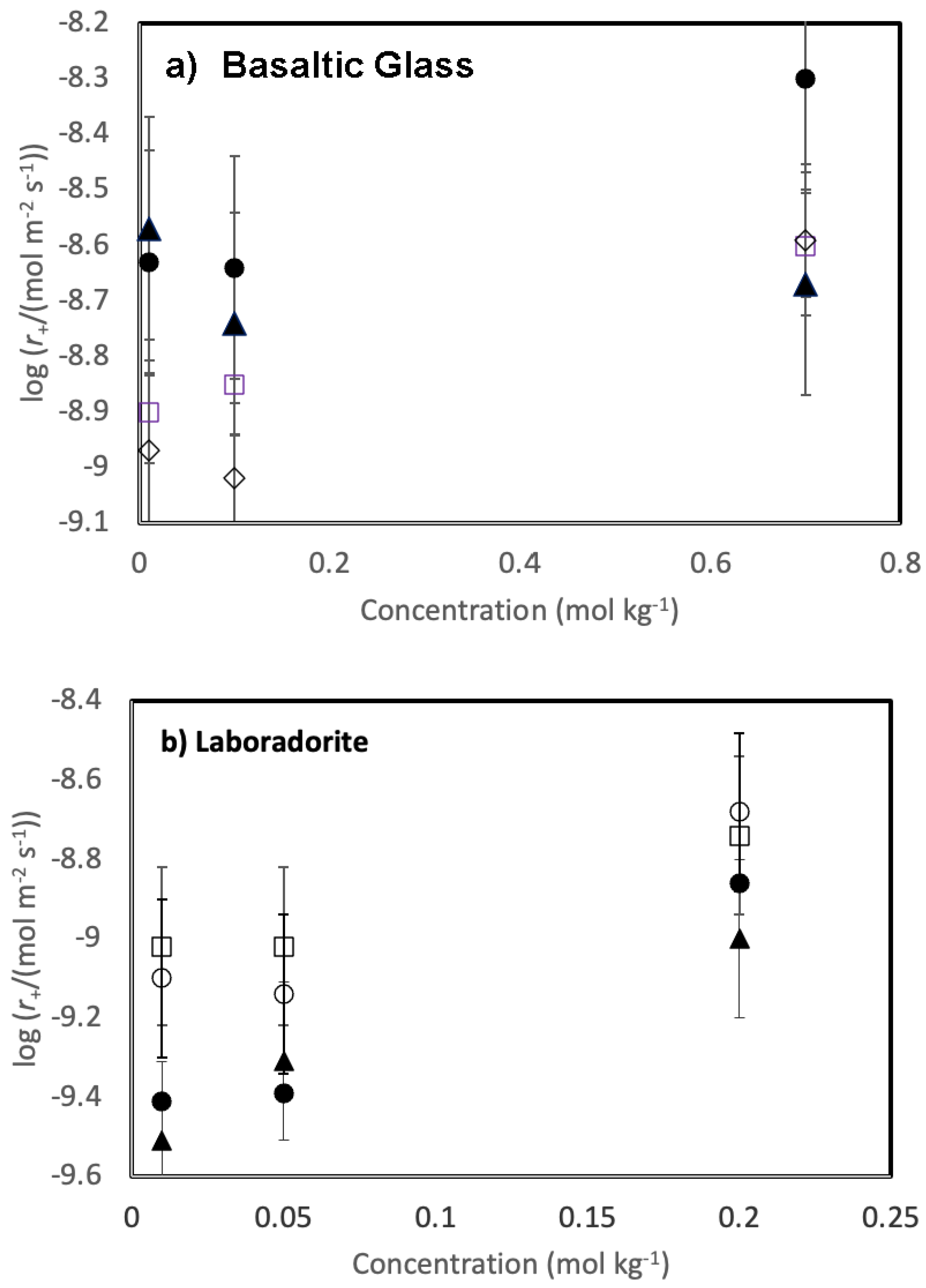

Measured Si concentrations were used to determine the steady-state dissolution rate of the solids. These rates are reported in Table 2 and illustrated as a function of the concentration of each added chloride salt in Figure 3. Rates are relatively unaffected by the addition of the selected chloride salts to the reactive fluids. Geometrically measured dissolution rates vary from 10^-9.0 to 10^-8.3 mol m^-2 s^-1 for basaltic glass and from 10^-9.5 to 10^-8.5 mol m^-2 s^-1 for labradorite. Nevertheless, some trends are apparent. The addition of divalent metal chlorides tend to increase the steady-state dissolution rate of basaltic glass compared to that of the monovalent chloride salts. Steady state basaltic glass dissolution rates measured in the presence of 0.01 mol kg^-1 NaCl and 0.01 mol kg^-1 KCl are approximately 0.3 orders of magnitude slower than rates measured in either 0.01 mol kg^-1 CaCl₂ or MgCl_2. These differences appear to decrease somewhat with increasing salt concentrations. In contrast, the addition of divalent metal chlorides tends to decrease the steady-state dissolution rate of labradorite compared to that of the monovalent chloride salts. Steady state labradorite dissolution rates measured in the presence of 0.01 mol kg^-1 NaCl and 0.01 mol kg^-1 KCl are approximately 0.3 orders of magnitude slower than rates measured in either 0.01 mol kg^-1 CaCl₂ or MgCl₂. Similar to the dissolution behaviour of basaltic glass, the differences in these rates appear to decrease with increasing salt concentration.

The variation of measured steady-state rates with the ionic strength of the reactive fluid is depicted in Figure 4. The steady-state dissolution rates of both basaltic glass and labradorite increase slightly in response to the ionic strength of the reactive fluid, as indicated by the trend line in this figure. Nevertheless, a systematic scatter is evident in the variation of labradorite rates with increasing ionic strength reflecting an apparent small inhibitory effect of the presence of divalent metal cations on the rates.

5. Discussion

5.1. Comparison of Basaltic Glass and Labradorite Si Release Rates

The results of this study allow the direct comparison of the dissolution rates of basaltic glass and an intermediate feldspar. These solids are both commonly present in basaltic rocks and have similar atomic Ca/Si ratios. The atomic Ca/Si ratio of Stapafell basaltic glass and of Hrappsey Islands feldspar are 0.263 and 0.286, respectively. The availability of Ca is essential for the mineralization of CO₂ as solid calcium carbonate during carbon storage efforts. The measured Si release rates of these two solids are compared directly in Figure 5. As can be seen in this figure, the Si release rate of these solids are identical within uncertainty. This concurrence suggests that glassy and crystalline basalts might be equally effective at capturing and storing CO₂ through calcium carbonate precipitation.

5.2. Comparison to Previously Measured Rates

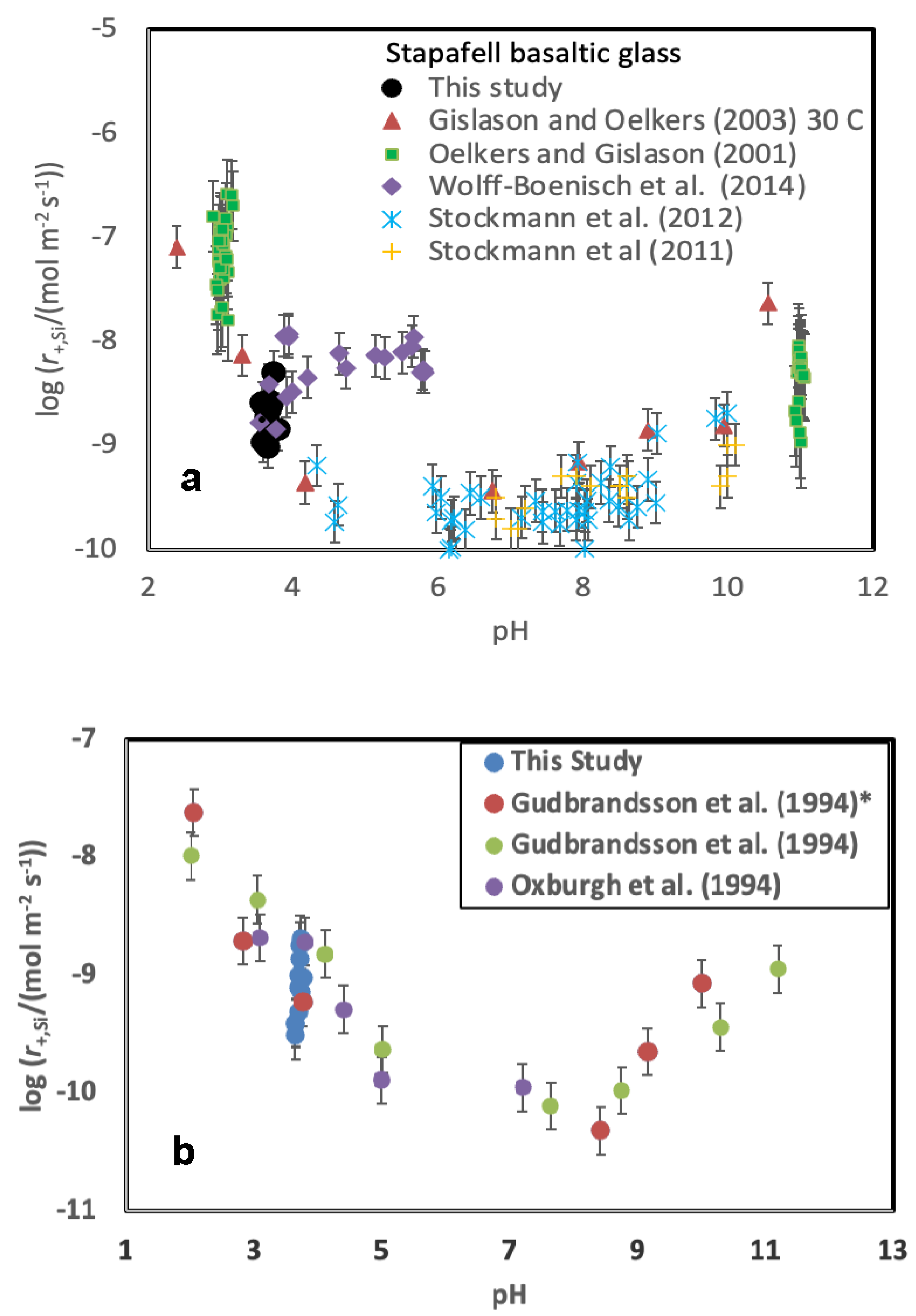

A comparison of measured steady-state Stapafell basaltic glass dissolution rates with those of past studies is presented in Figure 6A. This comparison is confounded by the variety of conditions and fluid compositions considered in the various experiments. Oelkers and Gislason (2001) measured the dissolution rates at pH 3 and pH 11 in the presence of added aqueous Al, Si and organic acids and found the rates depended on the aqueous Al activity of the reactive fluids. Gislason and Oelkers (2003) reported the dissolution rates of Stapafell basaltic glass as a function of pH and temperature. Stockmann et al. (2011) measured the dissolution rates of this glass in the presence of carbonate precipitates on its surface. They found little effect of precipitated carbonate minerals on the dissolution rates of the basaltic glass surfaces. Stockmann et al. (2012) measured dissolution rates in the presence of dead and alive bacteria and concluded that the nutrients and the presence of bacteria slowed substantially dissolution. Wolff-Boenisch et al. (2004, 2011) reported the dissolution rates of this basaltic glass in the presence of inorganic cations, aqueous fluoride, and organic acids. They found that fluoride and aqueous organic acids substantially accelerated basaltic glass dissolution.

The rates summarised in Figure 6A suggest that the presence of increased concentrations of NaCl, KCl, CaCl₂, and MgCl₂ do not strongly influence the rates of basaltic glass dissolution. This behaviour contrasts to that of aqueous Al, F, and organic acid anions. The effect of these aqueous species on basaltic glass dissolution rates were attributed to a dissolution mechanism that required the removal of aqueous Al to form the rate limiting Si-rich activated complex on the basaltic glass surface (e.g. Oelkers, 2001; Oelkers and Gislason, 2001; Schott et al., 2009).

Gudbrandsson et al. (2014) reported dissolution rates of the identical plagioclase considered in this study. These past dissolution rates were measured in a mixed flow reactor system in the presence of an aqueous solution having a 0.01 mol kg^-1 ionic strength using NH₄Cl as a background electrolyte at 22 ^oC. These previously reported rates are compared with those measured in the present study as a function of pH in Figure 6B. It can be seen that the rates measured in the present study are consistent with those of past efforts. The rates of Gudbrandsson et al., 2014), which were normalized to BET surface area, were recalculated to geometrically normalized dissolution rates using Eqn. 5 and 6 and the grain sizes reported in the original publication. The previously reported rate measured at pH=3.76 is directly comparable to that of the present study, and equal to 10^-9.23 mol m^-2 s^-1. The rates measured at this pH and in the presence of 0.01 mol kg^-1 NaCl and 0.01 mol kg^-1 KCl in the present study are 10^-9.02 and 10^-9.09 mol m^-2 s^-1 respectively. Although these rates are similar, they suggest that the presence of Na and K in the reactive solution may have a slight accelerating effect on the rate of bytownite dissolution at this pH.

5.3. Implications for the Dissolution Mechanism of Basaltic Glass and Feldspars

Past studies have reported that the far-from-equilibrium dissolution rates of basaltic glass and the feldspars having an anorthite content less than 75% slow significantly and systematically as a function of increasing aqueous aluminium activity. This observation was attributed to the dissolution mechanism of these solids. In both cases, the dissolution rate variation with aqueous Al activity was attributed to the control of these rates by a Si-rich activated complex formed from the removal of Al from the aluminosilicate structure.

The results of the present study suggest that the presence of CaCl₂ and MgCl₂ decreases labradorite dissolution rates by as much as 0.3 log units compared to corresponding rates in the presence of aqueous NaCl and KCl solutions. This observation, which contrasts to the results of Oelkers and Schott (1995), suggest that these divalent metals may limit the formation of the Si-rich activated complex at the surface of this initially Ca-rich feldspar. A potential pathway for this effect is that the presence of these divalent metals in solution could disfavour the removal of divalent metals from the near surface of the dissolving felspar. This possibility could be further tested through a detailed study of the surface chemistry of Ca-rich feldspars after their interacton with compositionally distinct divalent metal bearing fluids.

In contrast to the inhibitory effect of solute CaCl₂ and MgCl₂ on labradorite dissolution, these salts are observed to increase basaltic glass dissolution rates. It seems likely that this observation is due to the role of these salts in increasing the ionic strength of the aqueous solutions. This interpretation is supported by the distribution of rates illustrated in Figure 4, where glass rates appear to plot as a linear function of ionic strength, in contrast to behaviour of the feldspar dissolution rates, appear to plot as a linear function of ionic strength. An increase in silica glass dissolution rates was reported by Icenhower and Dove (2000); the increase of silicate dissolution rates with increasing ionic strength was attributed to the increased charging of the mineral surface (Brady and Walther, 1990).

5.4. Consequences for Carbon Mineral Storage in Saline Aquifers

This study considered the dissolution rates of basaltic glass and labradorite. The dissolution of these minerals will favour the mineralisation of CO₂ through the combination of adding Ca to the aqueous phase and increasing the pH of mildly acidic waters. The results presented in this study indicate that the dissolution rates of neither basaltic glass nor labradorite are inhibited by the presence of elevated concentrations of NaCl, KCl, CaCl₂ or MgCl₂ in the aqueous phase at pH~3.5. In fact, rates appear to increase to some extent as the ionic strength of the aqueous phase increases. The pH of the reactive fluids considered in this study is similar to that of water in equilibrium with 10 to 50 bars of CO₂. It therefore seems likely that both basaltic glass and labradorite dissolution will be at least equally able to promote the mineral storage of CO₂ in saline as in fresh water aquifers.

6. Conclusions

The rates generated in the present study indicate that the dissolution of basaltic glass and plagioclase are equally efficient at releasing Ca to the aqueous solution and adding alkalinity to the aqueous phase at pH 3.6. This pH is close to that expected in waters charged with CO₂ at pressures of 10 to 30 bars. Notably, the dissolution rates of these minerals are found to increase mildly with increasing fluid ionic strength to as much as 2.1 mol kg H₂O^-1. Taken together these results support the likely success of mineral carbonation of basaltic rocks located in saline aquifers.
