Improving the Bio-Oil Quality of Residual Biomass Pyrolysis by Chemical Activation: Effect of Alkalis and Acid Pre-treatment

1. Introduction

The population growth and increasing waste generation in low, medium and high income lands poses a huge challenge concerning the waste management and its final destination [1,2]. Lignin-cellulosic based biomass is class of waste to be considered, due to its volume generated, particularly those associated to agricultural activities [3].

Açaí (Euterpe oleracea, Mart.), a palm of native occurrence in the floodplains of the Amazon [4,5,6], has great economic importance not only for the agroindustry, but also for rural communities whose economic income is based on extractive activities in the state of Pará-Brazil [7]. The pulp of Açaí (Euterpe oleracea, Mart.) fruits in nature is processed with warm H₂O to produce a thick, purple juice [3,6], generating a residue [1,2], the seeds.

The seeds of Açaí (Euterpe oleracea, Mart.), a rich lignin-cellulosic biomass, have great potential for energy and fuels [8,9,10,11,12]. In the 2017 crop year, around 1200-1274 million tons of Açaí fruits were produced in Brazil, and the state of Pará the main producer in Brazil (94%), generating a large amount of solid waste [7,13].

Pyrolysis is a thermo-chemical process with great potential to convert biomass into energy & fuels [8,11]. The reaction products include a gas, a liquid (bio-oil) and a solid (bio-char) [8,11]. The yield and properties of reaction products is a function of biomass characteristics, type of pyrolysis process, type of reactors, operating mode, and process parameters, particularly, the temperature, type of catalyst, and catalyst-to-biomass ratio [14,15,16].

In the last years, studies on the pyrolysis of residual Açaí seeds [8,11,17,18,19,20,21,22,23,24,25,26,27,28,29], most of them aiming to produce a carbonaceous solid with activated carbon characteristics, were reported in the literature [8,17,18,19,20,21,22,23,24,25,26,27,28,29].

Despite studies on the pyrolysis of residual Açaí seeds in nature [17,18,19], and activated residual Açaí seeds [8,20,21,22,23,24,25,26,27,28,29], until the moment, no systematic study has investigated the effect of acid and alkalis activation of residual Açaí seeds on the yield, chemical composition and acidity of bio-oil and aqueous phase.

This work aims to investigate the effect of temperature and acid (HCl) and alkalis (KOH) chemical activation of residual Açaí seeds on the yield, hydrocarbon content and acidity of bio-oil, as well as on the chemical composition and acidity of aqueous phase by pyrolysis of residual Açaí seeds at 350, 400, and 450 °C and 1.0 atmosphere, activated with aqueous solutions of 2.0 M KOH and HCl, in laboratory scale.

2. Materials and Methods

2.1. Methodology

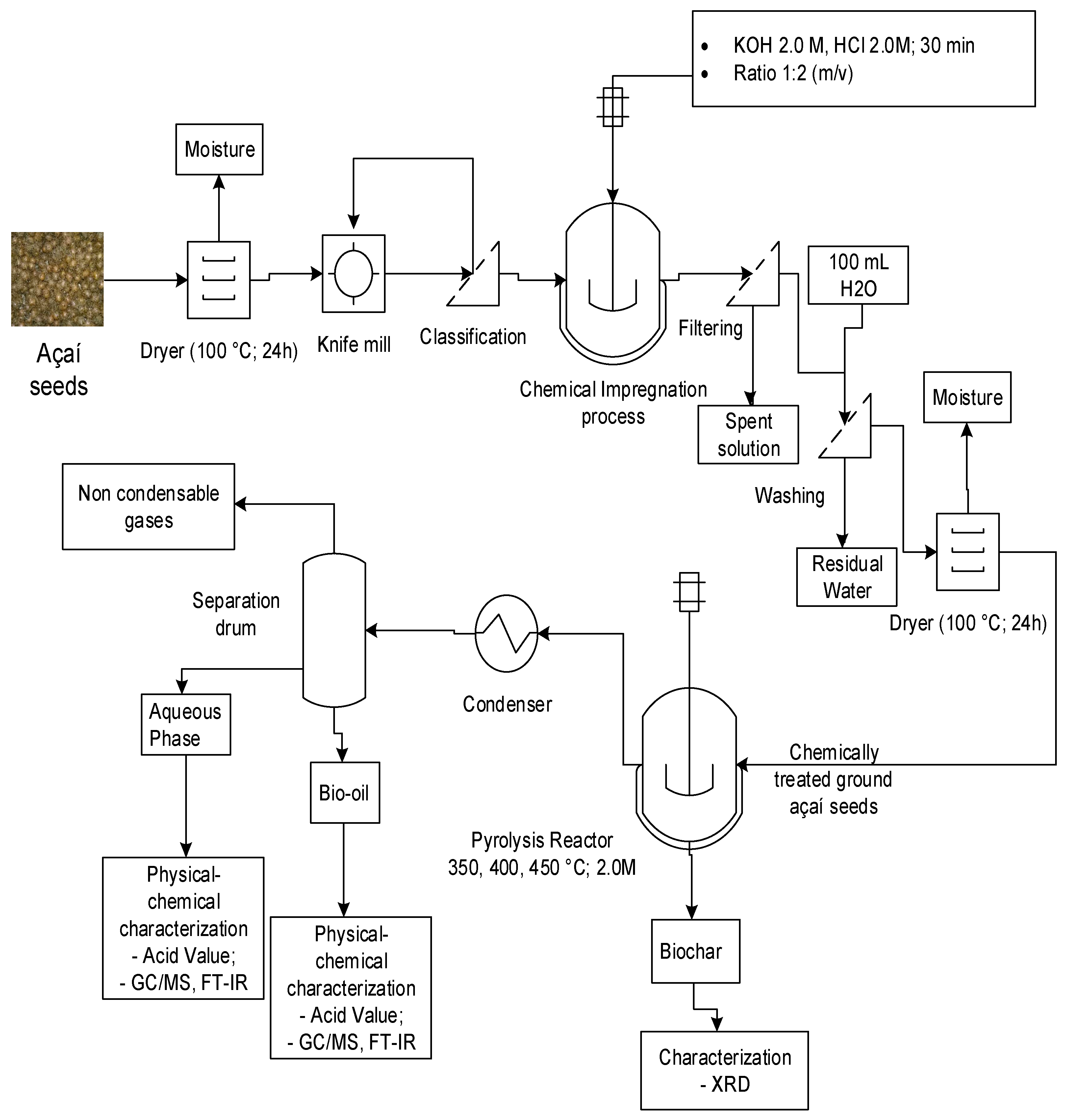

The process flow sheet shown in Figure 1 summarizes the applied methodology, described in a logical sequence of ideas, chemical methods, and procedures to produce bio-oil by pyrolysis of Açaí seeds at 350, 400, and 450 °C, 1.0 atm, activated with 2.0 M KOH and HCl, using a fixed bed reactor, in laboratory scale. Initially, the Açaí seeds, discharged/disposed on the sidewalks and streets, after the processing of Açaí fruits in nature, are collected. Afterwards, it is subjected to pre-treatment drying, milling, and sieving. The powder biomass is chemically activated with KOH and HCl, followed by H₂O washing and drying. The experiments were carried out using a process schema consisting of a pyrolysis reactor coupled to condenser without catalyst. The effect of acid and alkalis activation analyzed. The physical-chemistry properties and chemical composition of bio-oil and aqueous phase determined.

2.2. Materials

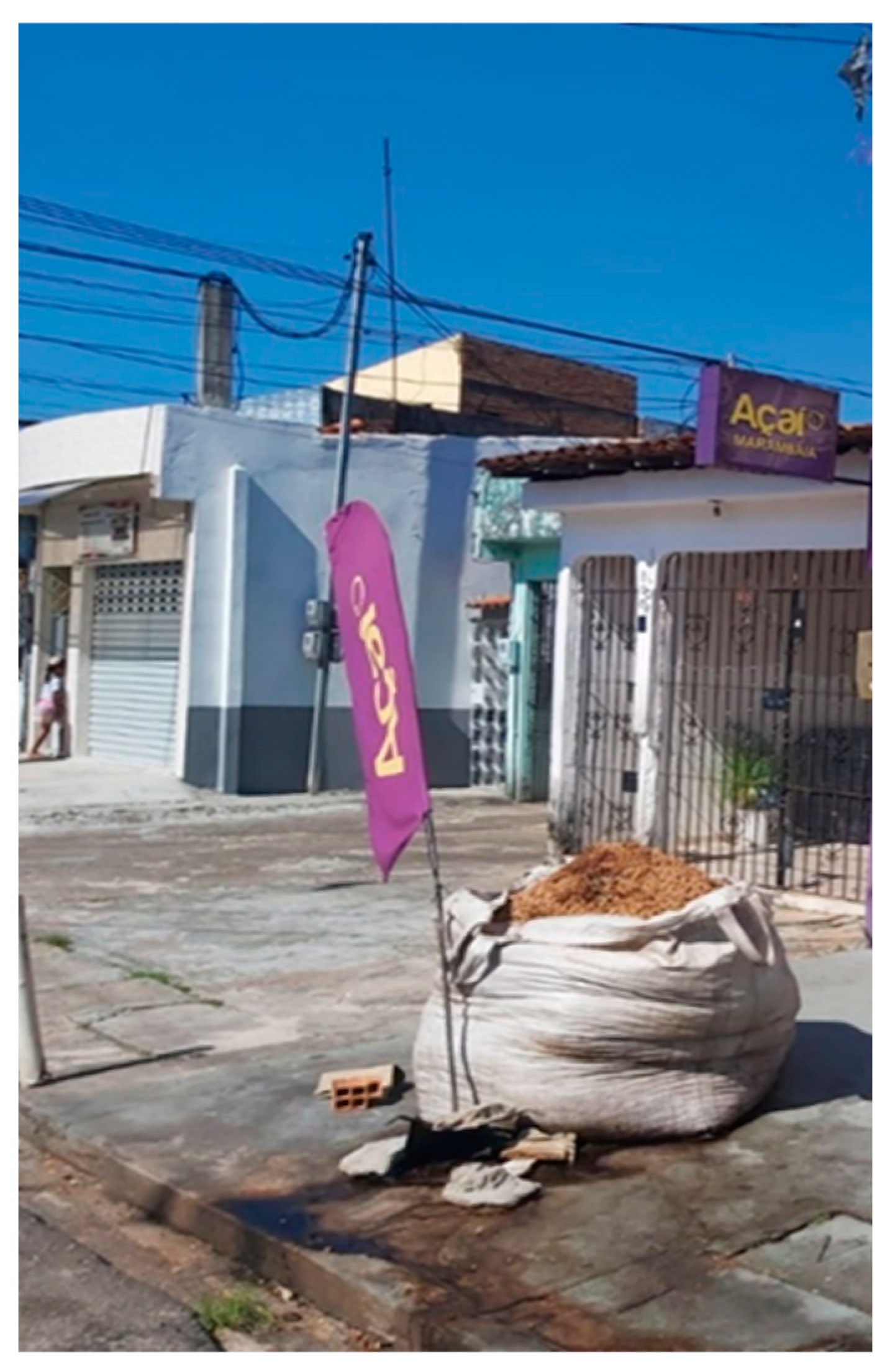

The seeds of Açaí (Euterpe oleracea Mart.), discharged/disposed on the sidewalks and streets by a small store of Açaí commercialization, located in the District of Jurunas, Belém-Pará-Brazil, were collected and conditionate in plastic bags. Figure 2 shows seeds of Açaí (Euterpe oleracea, Mart.) discharged on the sidewalks and streets by a small store of Açaí commercialization, located in the District of Jurunas, Belém-Pará-Brazil.

2.3. Pre-treatnent of Açaí seeds (Euterpe oleracea, Mart.)

The Seeds of Açaí (Euterpe oleracea, Mart.) were submitted to physical pre-treatment drying, grinding, and sieving. Afterwards, the dried, grinded and sieved seeds were activated chemically using solutions of 2.0 M KOH and 2.0 M HCl, and the procedures described in detail in sections 2.3.1 and 2.3.2.

2.3.1. Physical pre-treatment of Açaí seeds (Euterpe oleracea, Mart.)

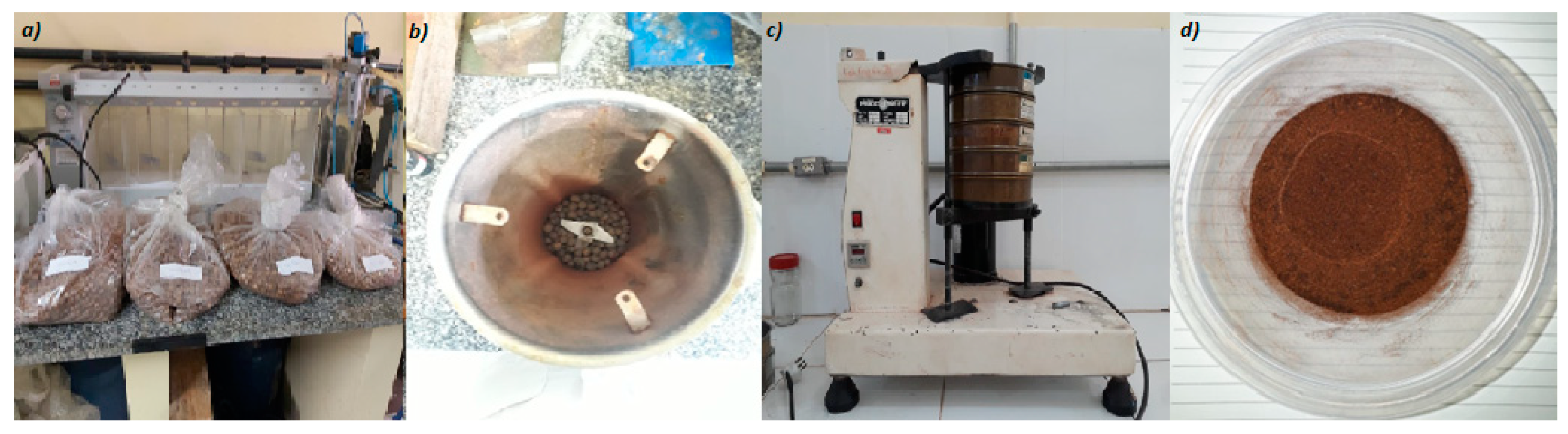

The seeds of Açaí (Euterpe oleracea, Mart.) were dried at 105°C for 24 hours using an analogic controlled oven (DeLeo, Porto Alegre-Brazil, Model: DL-SE). Afterward, the dried seeds were grinded using a laboratory knife cutting mill (TRAPP, Brazil, Model: TRF 600). Then, the dried and grinded Açaí seeds were sieved using a set of sieves of 28, 35, 48, 60 Mesh in order to remove the excess fiber material, as well as to decrease the specific particle diameter. A charge of Açaí (Euterpe oleracea, Mart.) seeds in nature weighting approximately 5.0 kg was collected for the pyrolysis experiments. The drying, grinding and sieving of Açaí seeds in shown in Figure 3.

2.3.2. Chemical activation of Açaí seeds (Euterpe oleracea, Mart.)

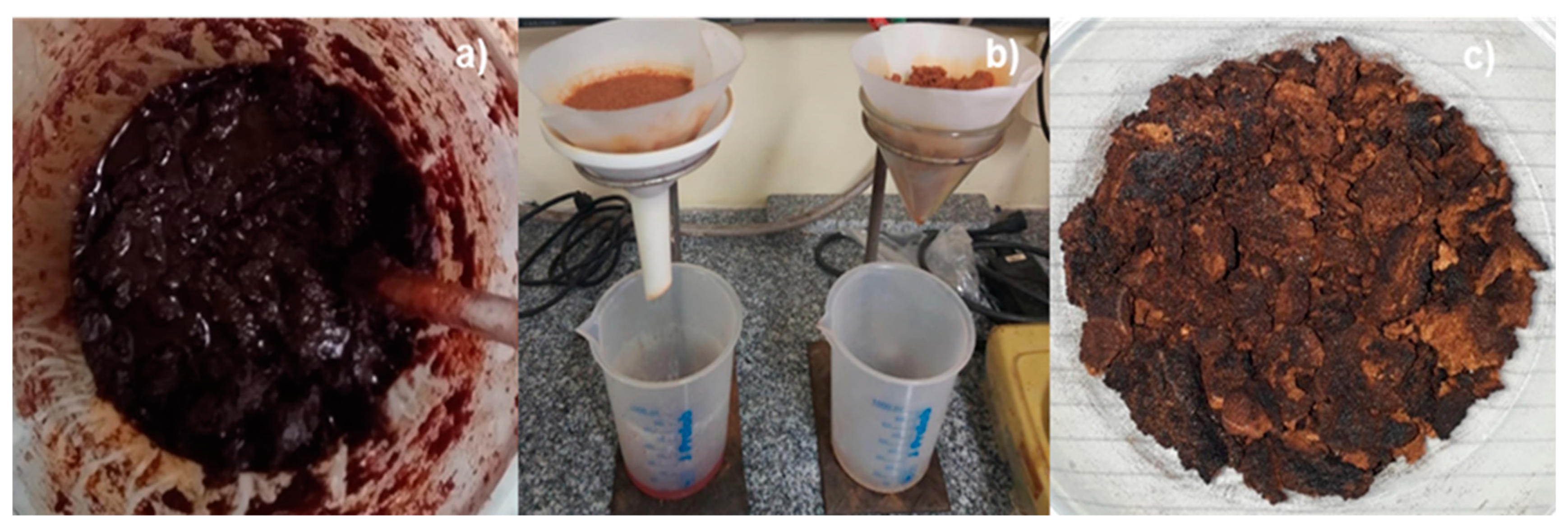

After the physical pre-treatment described in section 2.3.1, the dried, grinded and sieved Açaí seeds were activated chemically with 2.0 M KOH or 2.0 M HCl solutions and the procedures described as follows: Approximately 120 g of dried, ground, and sieved Açaí seeds was mixed manually with 240 mL of a 2.0 M HCl solution or 240 mL of a 2.0 M KOH (1:2 mass/volume ratio) for 30 minutes, using a Becker of 500 mL. The addition of 2.0 M HCl or 2.0 M KOH solutions into the fine powder of Açaí seeds produced a moisture sludge. Afterwards, the moist sludge was placed into a paper filter and washed with 100 mL distilled water for 24 hours, as described elsewhere [9]. Then, the retained moist sludge is submitted to drying at 100 °C ± 5 °C for 24 hours, using an analogic controlled oven (DeLeo, Porto Alegre-Brazil, Model: DL-SE). Figure 4 shows the chemical activation of Açaí seeds fine powders with a 2.0 M KOH solution.

2.4. Centesimal and immediate characterization of Açaí seeds

The Açaí seeds (Euterpe oleracea, Mart.) were previously characterized for moisture, ash, volatiles, and fixed carbon [9,11], as well as for lipids, proteins, fibers, cellulose, hemicellulose, and insoluble lignin [30].

2.5. Experimental apparatus and procedures

2.5.1. Experimental apparatus

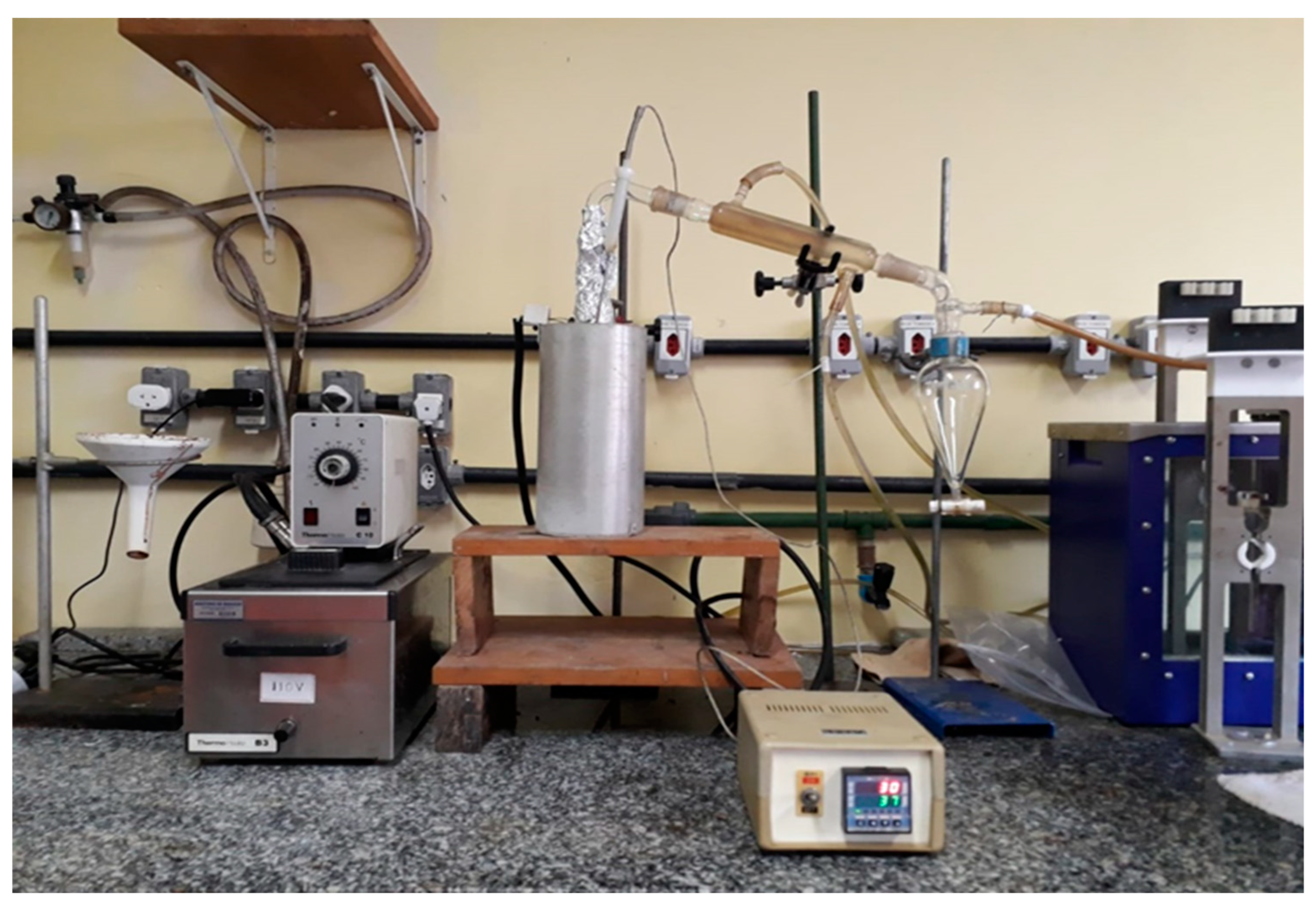

Figure 5 illustrates the laboratory scale borosilicate glass reactor. The experimental unit consists of a cylindrical borosilicate glass reactor of 3.3 cm internal diameter and 22.8 height (V_Reactor = 195 mL), a Liebig glass condenser, a ceramic heating system of 800 W, a glass separating funnel with a gas outlet at the top, and a digital temperature control, as described in detail elsewhere [8,11,31,32,33]. The glass borosilicate reactor is inserted inside a cylindrical oven with a ceramic resistance of 800 W. The digital temperature controller (THERMA, São Paulo-Brazil, Model: TH90DP202-000), makes it possible to control the temperature and the heating rate. The temperature inside the reactor was measured with a K-type thermocouple (Ecil, São Paulo-Brazil, Model: QK. 2). A Liebig condenser, using cooling H₂O supplied by a digital thermostatic recirculation bath, is connected to the exit of glass reactor using a Y shaped connection. The liquid phase products were collected inside a 50 mL borosilicate glass flask. The non-condensable gases (e.g., CH₄, C₂H₆, C₃H₈, O₂, CO₂, etc.) flow through an opening in the 90◦ curve, coupled between the Liebig condenser and the glass separating funnel, to the flare system.

2.5.2. Experimental procedures

By the pyrolysis of chemically activated Açaí seeds, approximately 40.0 g weighed using a semi-analytical balance (Marte Científica e Instrumentação Industrial Ltda, São-Paulo-Brazil, Model: AD330). Then, the chemically activated Açaí seeds placed inside the glass reactor. After connecting the glass reactor to the Liebig condenser, using a Y shaped connection, and the condenser to the separating funnel, the cooling system is turned on and the water temperature was set at 10 °C. Then, the desired heating rate (10 °C/min), and temperature (350, 400, or 450 °C) were set-up. The reactor temperature was recorded every 10-15 minutes. The mass of liquid phase (bio-oil + aqueous phase) and biochar (coke) were collected and weighed, and the mass of gas computed by difference. The bio-oil was separated from aqueous phase by decantation inside the separation funnel. Afterwards, the bio-oil physicochemical characterized for acid value.

2.6. Physical-chemistry analysis and chemical composition of bio-oils and aqueous phase

2.6.1. Physical-chemistry analysis of bio-oils and aqueous phase

The bio-oils and aqueous phases were physicochemical analyzed for acid value according to official methods (AOCS Cd 3d-63), as described elsewhere [31,32,33,34].

2.6.2. Chemical composition of bio-oils and aqueous phase

2.6.2.1. GC-MS analysis

The chemical composition of bio-oils and aqueous phases obtained by pyrolysis at 350, 400, and 450 °C and 1.0 atmosphere, and 450 °C and 1.0 atmosphere, with 2.0 M KOH and HCl, in laboratory scale, determined by CG-MS and the equipment and procedures described in detail in the literature by Castro et. al. [8,11,15,16,35,36,37,38]. The peak intensity, retention times, and compounds identification were analyzed according to the NIST mass spectra library. The concentrations were expressed in area, as no internal standard was injected to compare the peak areas.

2.6.2.2. FT-IR analysis

The identification of chemical groups (carbonyl, carboxyl, hydroxyl, phenyl, etc.) preset in bio-oils aqueous phase obtained by pyrolysis at 350, 400, and 450 °C and 1.0 atmosphere, and 450 °C and 1.0 atmosphere, with 2.0 M KOH and HCl, in laboratory scale, performed by Fourier transform infrared spectroscopy (FT-IR) using a spectrometer (BRUKER, Ettlingen-Germany, Model: VERTEX 70v) at the Laboratory of vibrational spectroscopy and high pressure (LEVAP-PPGF/UFPA). The identification of characteristics chemical groups performed as described in the literature [11,31,32,33,34].

2.7. Characterization of hidrochar

2.7.1. XRD analysis

The crystalline and/or mineralogical characterization of bio-char obtained by pyrolysis of chemically activated Açaí seeds with 2.0 M KOH and 2.0 M HCl solutions, at 350, 400, and 450 °C and 1.0 atmosphere, in laboratory scale, performed by x-ray diffraction using a diffractometer (Rigaku, Japan, Model: MiniFlex600) at the Laboratory of Structural Characterization (FEMAT/UNIFESSPA) and the equipment specifications described as follows: generator (maximum power: 600 W; tube voltage: 40 kV; tube current: 15 mA; X-ray tube: Cu), optics (fixed divergence, scattering and receiving slit; filter; Kβ sheet; monochromator: graphite; soller slit: 5.0°), goniometer (model: vertical, radius: 150 mm, scanning range: -3 A , 145° (2θ); scanning speed: 0.01 to 100°/min (2θ); accuracy: ± 0.02°) and detector (high-speed silicone tape). The identification of crystalline and/or amorphous carbonaceous phases present in bio-char performed as described in the literature [9,15,16,39,40].

2.8. Mass balances by pyrolysis of Açaí seeds

Application of an overall mass balance inside the pyrolysis glass reactor, operating in batch mode, closed thermodynamic system, yields the following equations for the pyrolysis reactor.

$$\dot{m_{in,pyrolysis}}-\dot{m_{out,pyrolysis}}=0$$

(1)

$$\dot{m_{in,pyrolysius}}=0$$

(2)

$$-\dot{m_{out,pyrolysis}}=\dot{m_{vapors,pyrolysis}}$$

(3)

Where $\dot{m_{in,pyrolysis}}$ is the mass flow rate entering the glass reactor, $\dot{m_{out,pyrolysis}}$ is the mass flow rate leaving the glass reactor, $\dot{m_{vapors,pyrolysis}}$ is the mass flow rate of pyrolysis vapors/volatiles leaving the glass reactor. Assuming that all the vapors/volatiles leaving glass reactor splits into bio-oil, aqueous phase, and non-condensable gases, the following equations applies.

$$\dot{m_{vapors,pyrolysis}}=\frac{d{m}_{vapors}}{d\tau }$$

(4)

$$\frac{d{m}_{vapors}}{d\tau }=0$$

(5)

$$\dot{m_{vapors,pyrolysis}}=\dot{m_{gas}}+m_{aqueousphase}+m_{bio-oil}$$

(6)

Where $\dot{m_{gas}}$ is the mass flow rate of non-condensable gases leaving the glass reactor, computed by difference, and $\dot{m_{boi-oil}}$is the mass flow rate of bio-oil leaving the condenser, and $\dot{m_{aqueousphase}}$is the mass flow rate of aqueous phase leaving the condenser. The mass of solid remaining inside the glass reactor is $\dot{m_{solid}}$. By performing a steady state global mass balance within the glass reactor yields equation (7).

$$\dot{m_{Feed}}=\dot{m_{solid}}+m_{gas}+\dot{m_{bio-oil}}+\dot{m_{aqueousphase}}$$

(7)

The process performance evaluated by computing the yields of bio-oil, aqueous phase, and solid (coke) defined by equations (8), (9) and (10), respectively, and the yield of gas by difference, using equation (11).

$$Y_{bio-oil}\left[\%\right]=\frac{M_{Bio-oil}}{M_{Feed}}x100$$

(8)

$$Y_{Aqueousphase}\left[\%\right]=\frac{M_{Aqueousphase}}{M_{Feed}}x100$$

(9)

$$Y_{solids}\left[\%\right]=\frac{M_{Solids}}{M_{Feed}}x100$$

(10)

$$Y_{gas}\left[\%\right]=100-(Y_{bio-oil}+Y_{solids}+Y_{Aqueousphase})$$

(11)

4. Results

4.1. Characterization of bio-char

4.1.1. XRD analysis

4.1.1.1. Effect of KOH activation

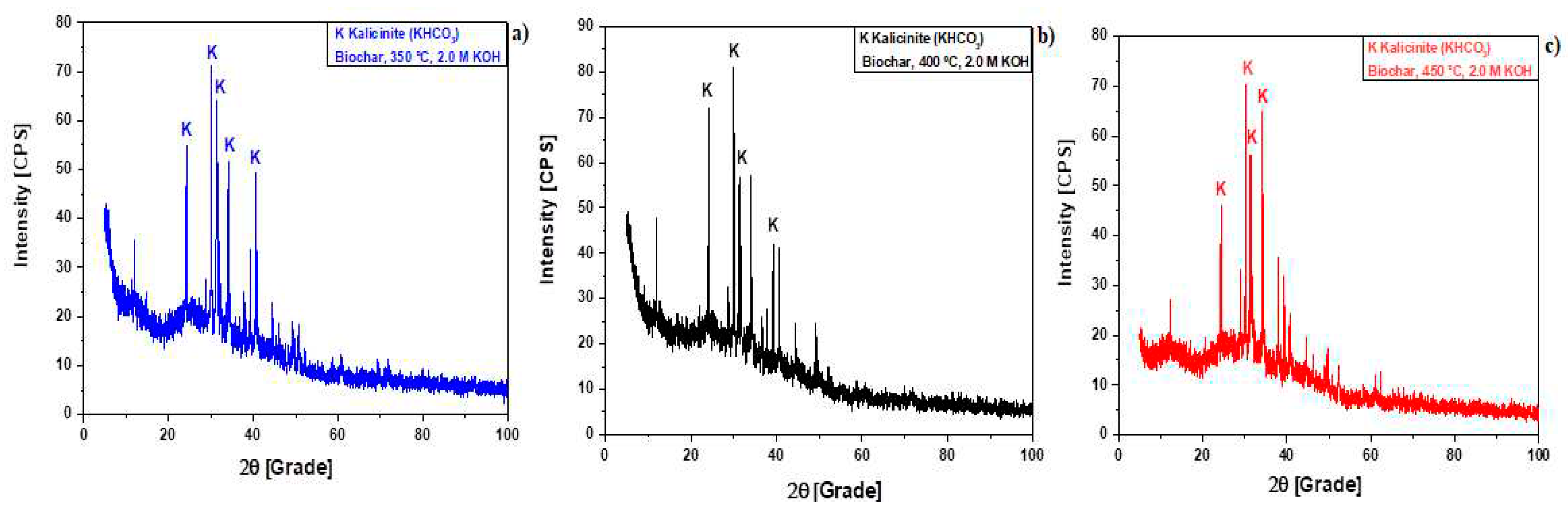

The XRD of bio-char produced by pyrolysis of Açaí seeds at 350, 400, and 450 °C, 1.0 atmosphere, activated with 2.0 M KOH, in laboratory scale, is shown in Figure 6 [350 °C (a); 400 °C (b); 450 °C (c)], and the analysis of peaks characteristics (Intensity, Position: 2θ, Percentage: %) of crystalline phases identified by XRD in bio-chars by pyrolysis of Açaí seeds (Euterpe Oleracea, Mart), activated with 2.0 M KOH solution, at 350, 400, and 450 °C, 1.0 atmosphere, illustrated in Table 1. The diffractogram of bio-chars illustrated in Figure 7 identified peaks of medium and high intensity associated to Kalicinite (KHCO₃), the dominant crystalline phase in bio-char. This is according to the results of Prakongkep et. al. [40], who investigated the chemical properties (pH, conductivity, and ash), elemental analysis (C, N), micro and macro nutrients (Si, Al, Ca, Mg, Na, K, P, S, Fe, Mn, As), as well as morphological (SEM) and crystalline (XRD) characterization of biochar produced by pyrolysis of durian shell at 350 °C, in laboratory scale. Prakongkep et. al. [40], reported that Kalicinite (KHCO₃) was the dominant crystalline phase in bio-char. Moreover, Han Lee et. al. [41], studied XRD patterns of chemically modified biochar by K agents and found similar behavior, showing striking similarity to the diffractograms of biochar illustrated in Figure 6. Díaz-Terán et. al. [42], studied the chemical activation of lignocellulosic material with KOH and XRD patterns revealed the presence of KHCO₃ (Kalicinite) and K₂CO₃ crystalline, demonstrating that peak intensity increases with temperature, as confirmed in Table 1.

4.1.1.2. Effect of HCl activation

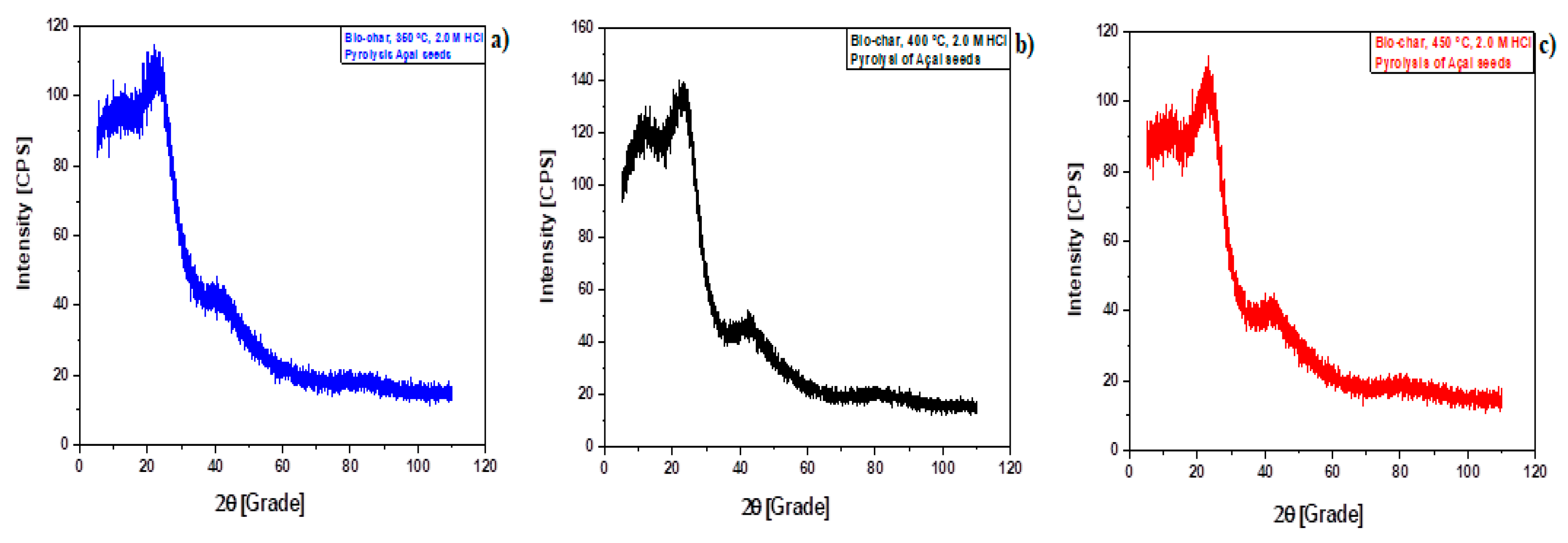

The XRD of bio-char produced by pyrolysis of Açaí seeds at 350, 400, and 450 °C, 1.0 atmosphere, activated with 2.0 M HCl, in laboratory scale, is shown in Figure 7 [350 °C (a); 400 °C (b); 450 °C (c)]. In fact, the pre-treatment of Açaí seeds in nature with HCl, a strong Arrhenius acid, leachates all the inorganic compounds present within the biomass, so that pyrolysis of de-mineralized Açaí seeds at 350, 400, and 450 °C, 1.0 atmosphere, produces a solid phase (bio-char) containing significant amount of highly disordered material, amorphous carbon, responsible for the back ground intensity of the diffractograms [39], as illustrated in Figure 7. This is according to the results presented by Manoj and Kunjomana [39], who study the X-ray diffraction of de-mineralized coal with HF, a strong Arrhenius acid, showing back ground intensity in the diffractograms due to significant amount of amorphous carbon.

4.2. Pyrolysis of activated açaí seeds (Euterpe Oleracea, Mart.)

4.2.1. Process conditions, mass balances, and yields of reaction products by pyrolysis of activated Açaí seeds (Euterpe Oleracea, Mart.) with KOH

Table 2 illustrates the process parameters, mass balances, yields of reaction products (liquids, solids, H₂O, and gas), and acidity of bio-oils by pyrolysis of activated Açaí seeds at 350, 400, and 450 °C, 1.0 atm, activated with 2.0 M KOH, using a borosilicate glass reactor, in laboratory scale.

The pyrolysis experiments of activated Açaí seeds at 350, 400, and 450 °C, 1.0 atm, activated with 2.0 M KOH, using a borosilicate glass reactor, in laboratory scale, show yields of bio-oil between 3.19 and 6.79% (wt.), aqueous phase yields between 20.34 and 25.57% (wt.), hydro-char yields between 33.40 and 43.37% (wt.), and yields of gas between 31.85 and 34.45% (wt.). The yields of bio-oil are similar to those reported by Serrão et. al. [43], who studied the pyrolysis of Açaí seeds in nature at 350, 400, and 450 °C, 1.0 atmosphere, in pilot scale, showing yields between 2.0 and 4.39% (wt.), as well as those reported by Castro et. al. [11], who studied the pyrolysis of Açaí seeds in nature at 450 °C, 1.0 atmosphere, in pilot, bench, and laboratory scale, showing bio-oil yields of 4.37, 6.60, and 13.09% (wt.), respectively. In addition, the experimental data for biochar yields illustrated in Table 2 is according to similar data reported for the pyrolysis of Açaí seeds reported in the literature [9,11,18,19,20,22], showing biochar yields between 27.0 and 49.0% (wt.) for the pyrolysis of Açaí seeds in nature [9,18,19,20], and biochar yields between 26.44 and 72.50% (wt.) for the pyrolysis of Açaí seeds chemically activated [11,22].

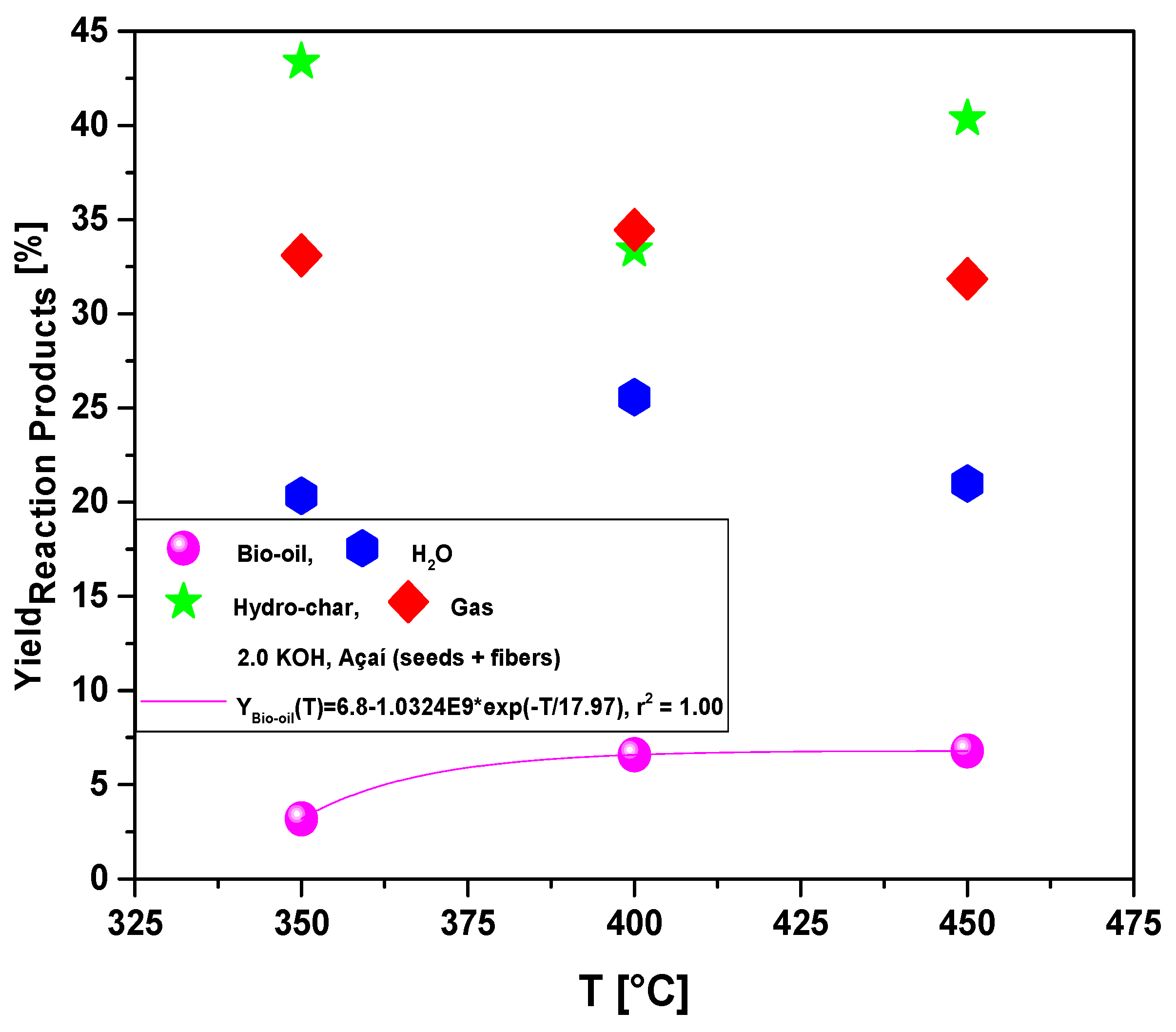

The yields of reaction products (liquids, solids, H₂O, and gas) by pyrolysis of activated Açaí seeds at 350, 400, and 450 °C, 1.0 atm, activated with 2.0 M KOH, using a borosilicate glass reactor, in laboratory scale, are shown in Figure 8. The yield of bio-oil shows a smooth increase with temperature, and was correlated with a first order exponential decay model, exhibiting root-mean-square error (r²) of 1.00. The results are according to those reported by Serrão et. al. [43], who investigated the pyrolysis of Açaí seeds in nature at 350, 400, and 450 °C, 1.0 atmosphere, in pilot scale, showing an increase of bio-oil yield with temperature. Moreover, the results are in agreement with similar studies for the yield of bio-oil by the pyrolysis of biomass reported in the literature [44,45,46,47,48,49,50,51,52,53,54,55], whereas the yield of bio-oil increases between 200 and 450 °C [44,45,46,47,48,49,50,51,52,53,54,55].

4.2.1.1. Effect of temperature on the composition of hydrocarbons and oxygenates in bio-oil

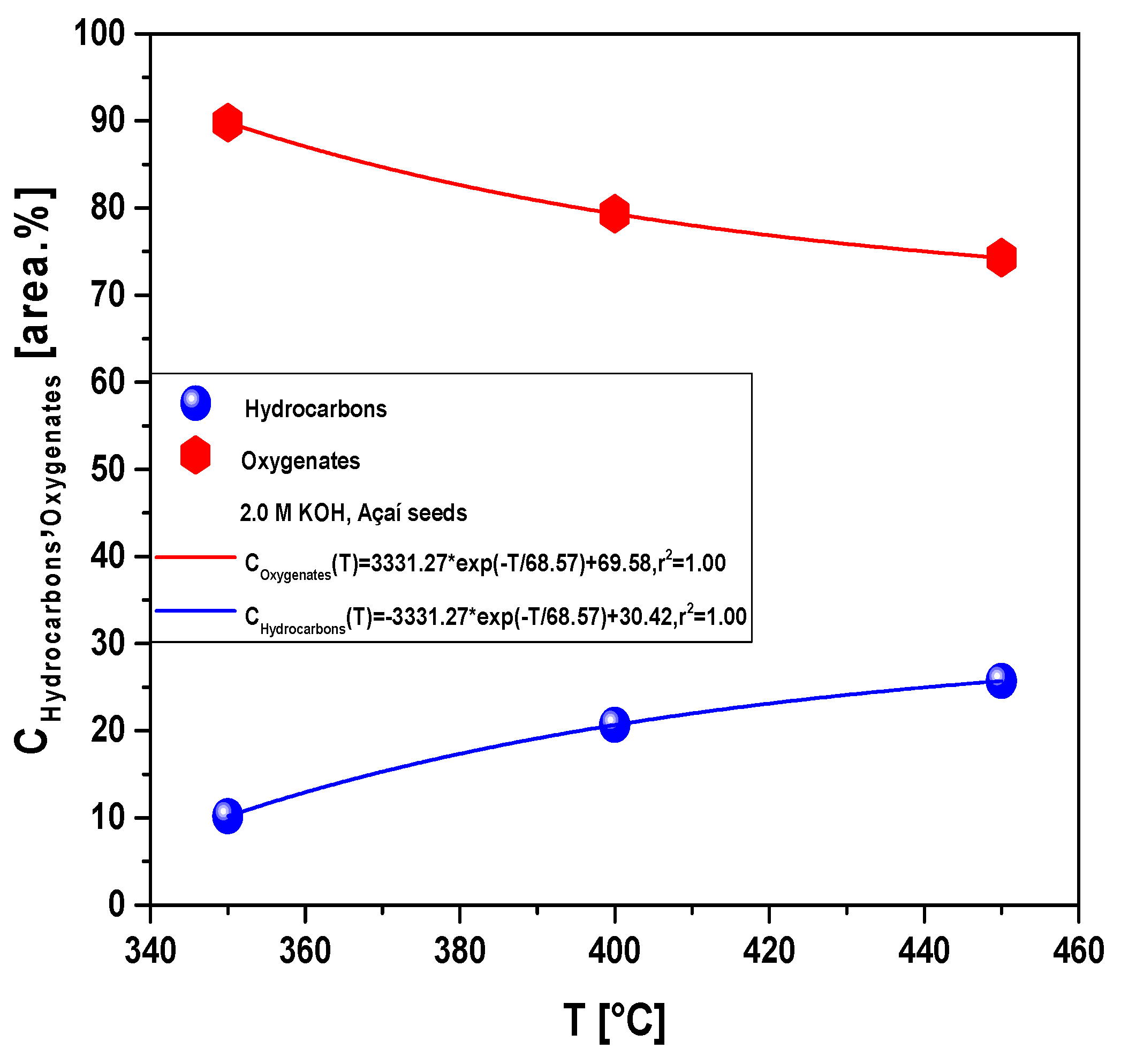

The effect of process temperature on the composition of hydrocarbons and oxygenates in bio-oil obtained by pyrolysis of Açaí seeds (Euterpe Oleracea, Mart), activated with 2.0 M KOH solution, at 350, 400, and 450 °C, 1.0 atmosphere, in laboratory scale, is show in Figure 9. The chemical functions (alkanes, alkenes, cycloalkanes, cycloalkenes, aromatics, esters, carboxylic acids, furans, phenols, aldehydes, alcohols, and ketones), sum of peak areas, CAS numbers, and retention times of all the molecules identified in bio-oil by GC-MS by pyrolysis of Açaí seeds (Euterpe Oleracea, Mart), activated with 2.0 M KOH solution, at 350, 400, and 450 °C, 1.0 atmosphere, in laboratory scale, are illustrated in Supplementary Tables S1-S3. By increasing the temperature, the concentration of hydrocarbons increases, while that of oxygenates decreases. The concentrations of hydrocarbons were correlated with a first order exponential growth model, exhibiting root-mean-square error (r²) of 1.00, showing that higher pyrolysis temperatures favor the formation of hydrocarbons. The results are according to those reported by de Sousa et. al. [56], who investigated the effect of process temperature on the concentration of hydrocarbons and oxygenates in bio-oil by the pyrolysis of Açaí seeds in nature at 350, 400, and 450 °C, 1.0 atmosphere, in pilot scale. According to de Sousa et. al. [56], the concentration of hydrocarbons increases, while that of oxygenates decreases with increasing temperature. According to de Sousa et. al. [56], the concentration of oxygenates decrease with increasing temperature, showing that higher pyrolysis temperatures do not favor the formation of oxygenates [56]. The concentration of oxygenates in bio-oil were correlated with a first order exponential decay model, exhibiting in all the cases root-mean-square error (r²) of 1.00.

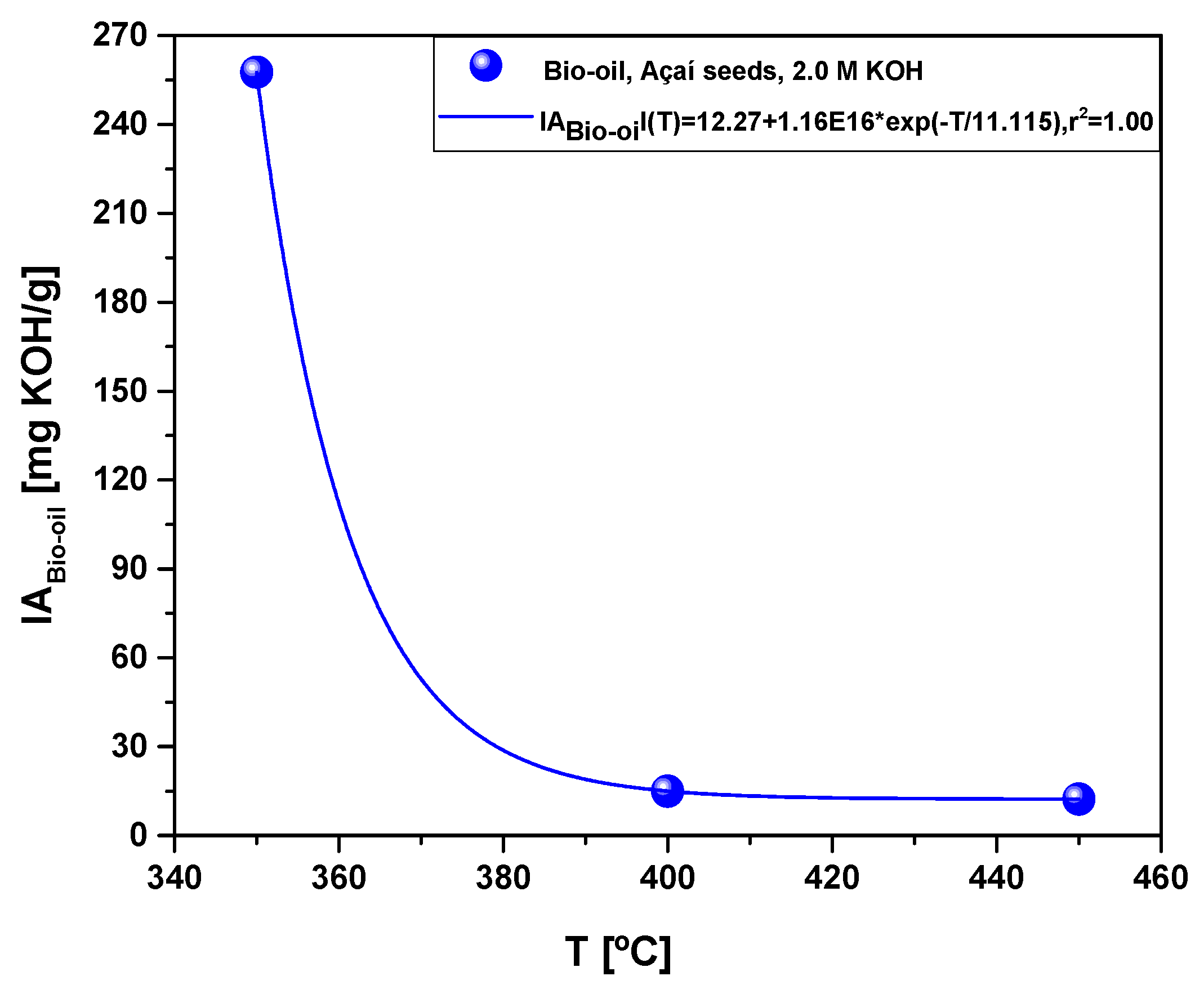

The acid value (acidity) of bio-oils obtained by pyrolysis of Açaí seeds (Euterpe Oleracea, Mart), activated with 2.0 M KOH solution, at 350, 400, and 450 °C, 1.0 atmosphere, in laboratory scale, is shown in Figure 10. The acidity of bio-oil decreases with increasing pyrolysis temperature, showing a sharp exponential decay behavior. The acidity of bio-oil varied between 257.6 and 12.3 (mgKOH/g) and correlated with a first order exponential decay model, exhibiting root-mean-square error (r²) of 1.00, corroborating with the results presented in Figure 9, that is, the higher the concentration of oxygenates in bio-oil, the higher the acidity of bio-oil.

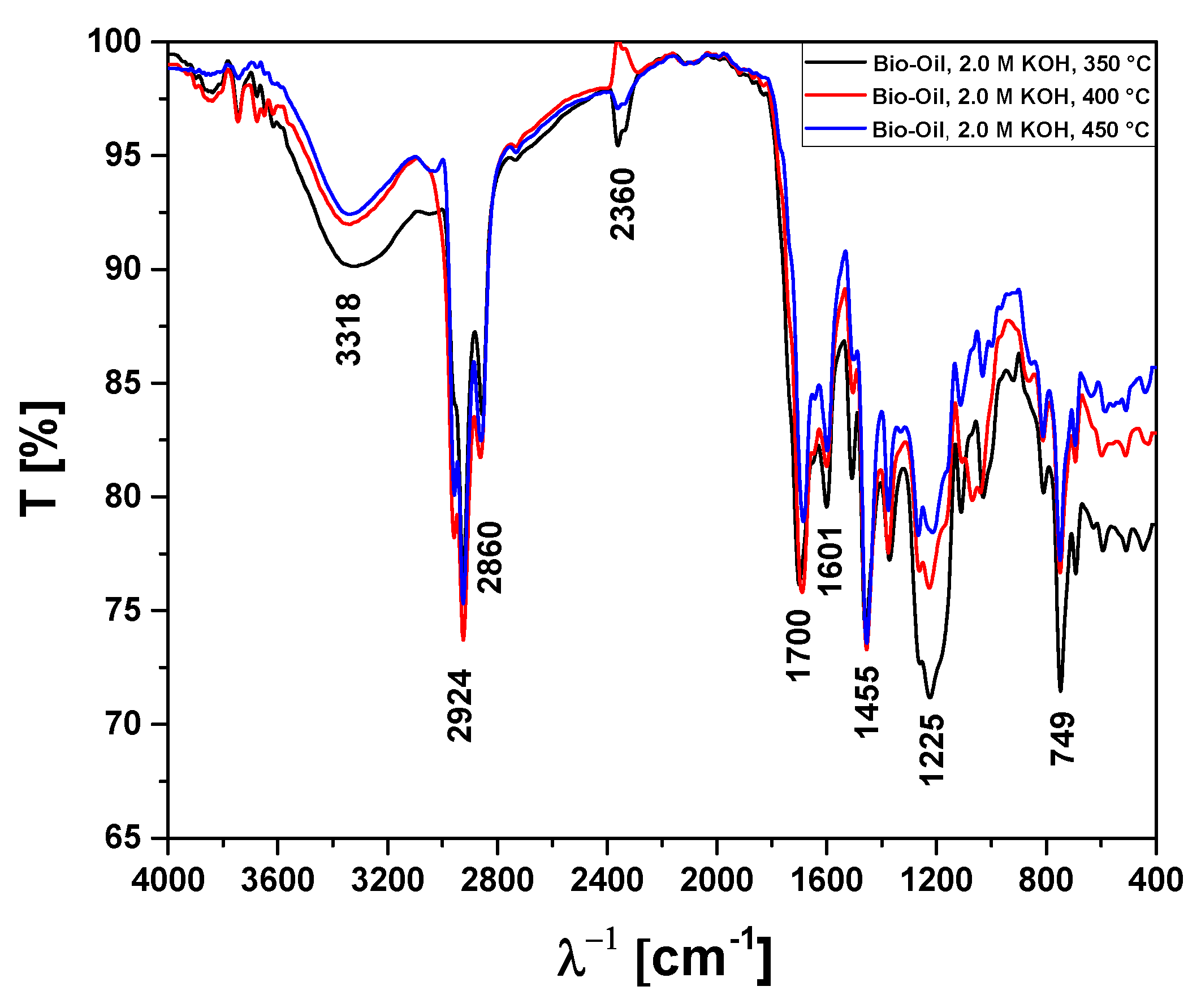

The chemical functions characteristics of hydrocarbons and oxygenates identified by FT-IR analysis of bio-oils obtained by pyrolysis of Açaí seeds (Euterpe Oleracea, Mart), activated with 2.0 M KOH solution, at 350, 400, and 450 °C, 1.0 atmosphere, in laboratory scale, illustrated in Figure 11. The FT-IR identified adsorption bands characteristic of chemical functions/chemical bonds as shown in Table 3, confirming the presence of aliphatic hydrocarbons, carboxylic acids, alcohols, as well as the presence of H₂O in bio-oils, being according to similar analysis described elsewhere [11,31,32,33,34,57,58].

4.2.1.2. Effect of temperature on the composition of hydrocarbons and oxygenates in the aqueous phase

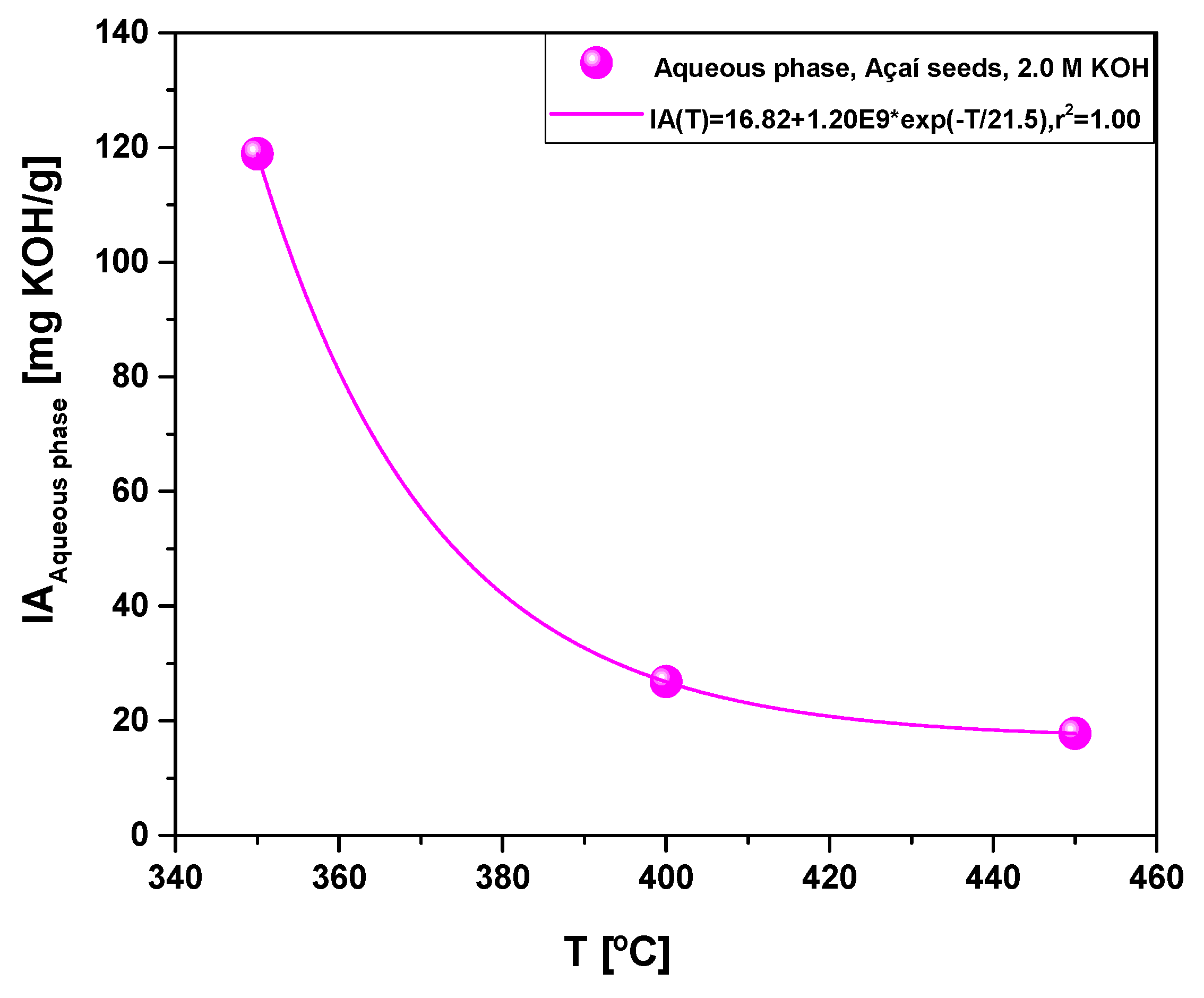

The chemical composition and acidity of aqueous phase, formed after pyrolysis of Açaí seeds (Euterpe Oleracea, Mart), activated with 2.0 M KOH solution, at 350, 400, and 450 °C, 1.0 atmosphere, in laboratory scale, was determined by GC-MS, as illustrated in Table 4.

The chemical functions, sum of peak areas, CAS numbers, and retention times of compounds identified in aqueous phase by GC-MS analysis after pyrolysis of Açaí seeds (Euterpe Oleracea, Mart), activated with 2.0 M KOH solution, at 350, 400, and 450 °C, 1.0 atmosphere, in laboratory scale, are illustrated in Supplementary Tables S4–S6. The major oxygenates compounds identified in the aqueous phase were alcohols, carboxylic acids, and ketones. The remaining oxygen compounds summed and named oxygenates (phenols, aldehydes, amines, etc.). The composition of aqueous phase is according to similar studies reported in the literature [59,60,61]. Zhang et al. [59], identified the presence of carboxylic acids, ketones, phenols, and furans in the aqueous phase produced by pyrolysis of sawdust. Torri and Fabbri [60], investigated the chemical composition of aqueous phase by pyrolysis of corn stalk, identifying the presence of carboxylic acids, aldehydes, phenols, furans, sugars and N-compounds. Zhou et al. [61], reported the presence of carboxylic acids, aldehydes, phenols, ketones, furans, and furfurals sugars and amines on the composition of aqueous phase by pyrolysis of corn Stover.

Based on the fact that alcohols are weak acids, it´s contribution to the acidity of aqueous phase is small or negligible. On the contrary, the α-hydrogen atoms of ketones are acidic in nature, thus contributing to the acidity of aqueous phase. Finally, low carbon chain length carboxylic acids present in the aqueous phase have a great contribution to the acidity. As the concentration of ketones in the aqueous phase decreases, it is to be expected that acidity of aqueous phase to diminish, as shown in Figure 12. The acidity of aqueous correlated with a first order exponential decay model, exhibiting root-mean-square error (r²) of 1.00.

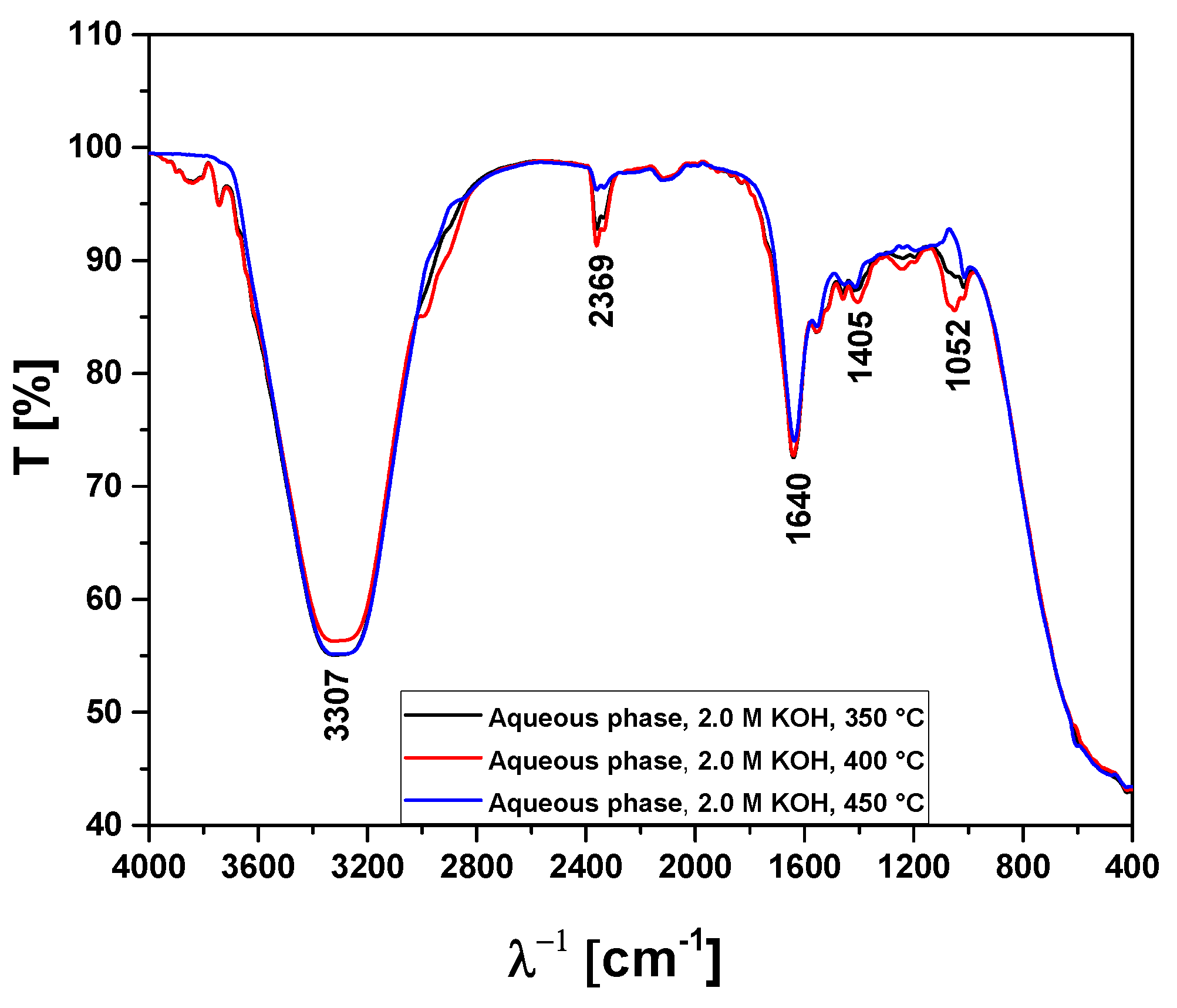

The FT-IR analysis of aqueous phase obtained by pyrolysis of Açaí seeds (Euterpe Oleracea, Mart), activated with 2.0 M KOH solution, at 350, 400, and 450 °C, 1.0 atmosphere, in laboratory scale, illustrated in Figure 13. The FT-IR identified adsorption bands characteristic of chemical functions/chemical bonds of oxygenates, as shown in Table 5, confirming the presence of H₂O, carboxylic acids, ketones, phenols, and alcohols, being according to similar analysis described elsewhere [57,58].

4.2.2. Process conditions, mass balances, and yields of reaction products by pyrolysis of activated Açaí seeds (Euterpe Oleracea, Mart.) with HCl

The process parameters, mass balances, yields of reaction products (liquids, solids, H₂O, and gas), and acidity of bio-oils by pyrolysis of activated Açaí seeds at 350, 400, and 450 °C, 1.0 atm, activated with 2.0 M HCl, using a borosilicate glass reactor, in laboratory scale, are shown in Table 6.

The yields of bio-oil varied between 3.37 and 2.13% (wt.), decreasing with increasing pyrolysis temperature, showing that activation of Açaí seeds with 2.0 M HCl do not favor the thermo-chemical transformation of biomass into bio-oil, compared to the chemical activation with 2.0 M KOH, illustrated in Table 2. This is according to Wang et al. [62], who investigated systematically the effect of acid (H₂SO₄) and basic (NaOH) pretreatment by pyrolysis of corn cob at 500 °C on the yield of reaction products [solid, liquid (bio-oil + aqueous phase), and gas] and chemical composition of liquid phase, showing that pretreatment of corn cob with NaOH for constant mass ratio (corn cob-to-acid/alkali) favors the liquid phase yields, compared to the pretreatment with H₂SO₄. In addition, Wang et al. [62], identified the presence of carboxylic acids (acetic acid), ketones (butanone), alcohol (methanol), furfural and aromatic hydrocarbon (benzene) in bio-oil by pyrolysis of alkali (NaOH) treated corn cob, while no aromatic hydrocarbon was identified in bio-oil by pyrolysis of acid (H₂SO₄) treated corn cob, being the major identified compounds, acetic acid, furfural, benzofuran, levoglucosan, and guaiacol [62]. The GC-MS analysis of bio-oil produced by pyrolysis of Açaí seeds at 350, 400, and 450 °C, 1.0 atmosphere, with 2.0 M HCl, in laboratory scale, has not identified the presence of hydrocarbons, only oxygenates (carboxylic acids, alcohols, ketones, phenols, furans), as shown in Table 7, proving that pre-treatment of biomass with HCl before pyrolysis did not favor the formation of hydrocarbons, being according to the results of Wang et al. [62]. The results for the chemical composition of bio-oils in Table 7 are according to Bru et. al. [63], who investigated the main organic compounds in bio-oils obtained by pyrolysis of oak wood, showing that pyrolysis of acid washed oak wood produced bio-oil without hydrocarbons, that is, an acid pre-treatment of oak wood did not favor the formation of hydrocarbons [63]. The chemical functions, sum of peak areas, CAS numbers, and retention times of compounds identified in bio-oil and aqueous phase by GC-MS analysis after pyrolysis of Açaí seeds (Euterpe Oleracea, Mart), activated with 2.0 M HCl solution, at 350, 400, and 450 °C, 1.0 atmosphere, in laboratory scale, are illustrated in Supplementary Tables S7–S12.

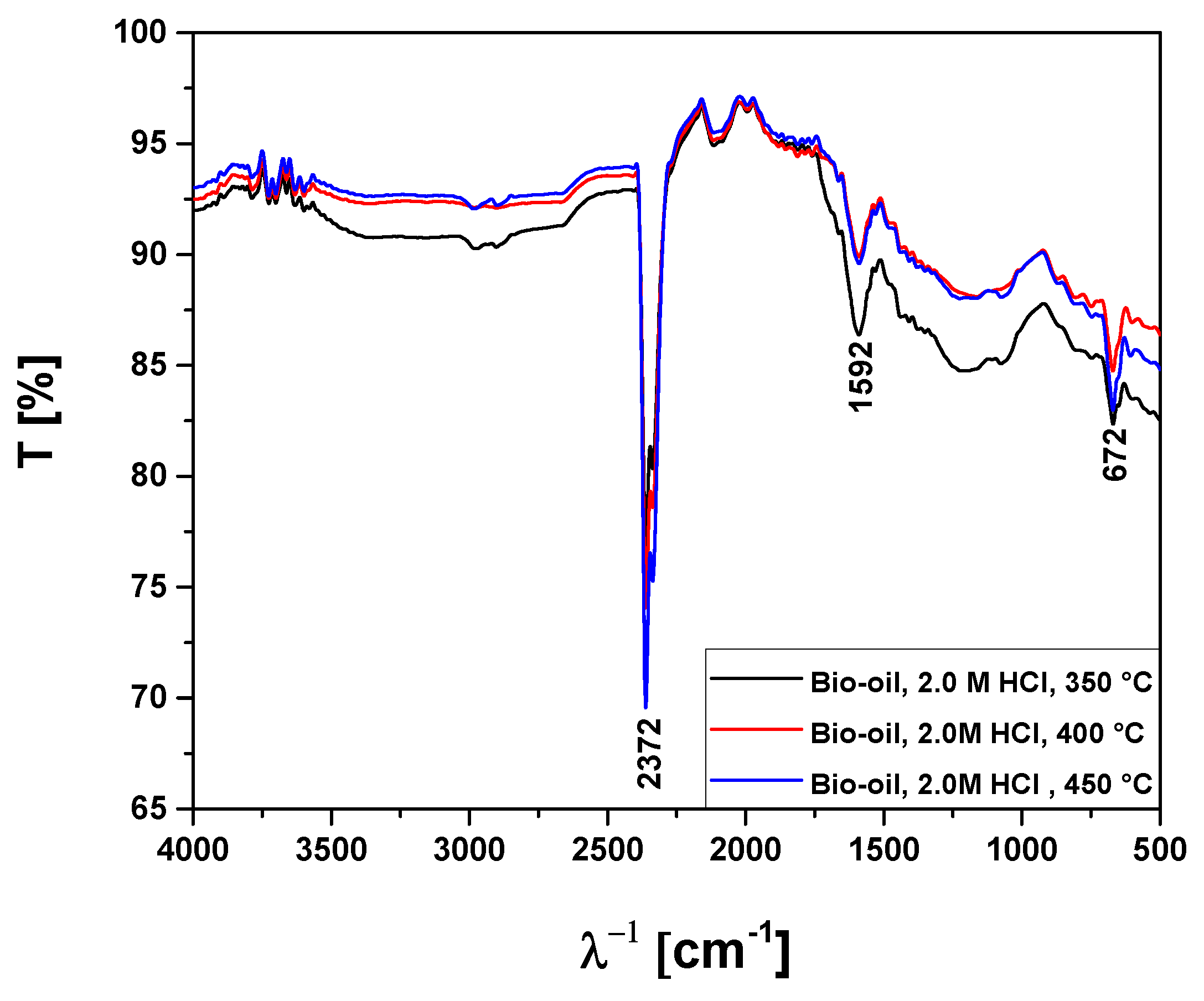

Figure 14 and shows the FT-IR analysis of bio-oils produced by GC-MS analysis after pyrolysis of Açaí seeds (Euterpe Oleracea, Mart), activated with 2.0 M HCl solution, at 350, 400, and 450 °C, 1.0 atmosphere, in laboratory scale. The FT-IR identified adsorption bands characteristic of chemical functions/chemical bonds of oxygenates, confirming the presence of alcohols, H₂O, carboxylic acids, ketones, and benzene ring probably associated to furans in Figure 14, being according to similar analysis described elsewhere [11,31,32,33,34,57,58]. The FT-IR analysis of aqueous phase obtained by GC-MS analysis after pyrolysis of Açaí seeds (Euterpe Oleracea, Mart), activated with 2.0 M HCl solution, at 350, 400, and 450 °C, 1.0 atmosphere, in laboratory scale, shown in Figure 15. The FT-IR identified adsorption bands characteristic of chemical functions/chemical bonds of oxygenates, confirming the presence of alcohols, H₂O, carboxylic acids, and phenols, being according to similar analysis described elsewhere [11,31,32,33,34,57,58].

5. Conclusions

XRD analysis of biochar produced by pyrolysis of Açaí seeds at 350, 400, and 450 °C, 1.0 atmosphere, with 2.0 M KOH, in laboratory scale, shows the presence of Kalicinite (KHCO₃), the dominant crystalline phase in biochar.

The yields of bio-oil by pyrolysis of activated Açaí seeds at 350, 400, and 450 °C, 1.0 atm, activated with 2.0 M KOH, in laboratory scale, show a smooth increase with temperature, being correlated with a first order exponential decay model. In addition, by increasing the temperature, the concentrations of acyclic saturated/unsaturated hydrocarbons and heterocyclic hydrocarbons in bio-oil increase, while that of oxygenates (cresols, phenols, and ketones) decreases with increasing temperature, showing that higher pyrolysis temperatures favors the formation of hydrocarbons and disfavor the formation of oxygenates [57], as proved by a sharp decrease on the acidity of bio-oil, from 257.6 to 12.3 (mgKOH/g), due to a drastic decrease on the concentration of oxygenates.

The composition of aqueous phase produced by pyrolysis of activated Açaí seeds at 350, 400, and 450 °C, 1.0 atm, activated with 2.0 M KOH, in laboratory scale, is according to similar studies reported in the literature [57,58,59], being identified the presence of carboxylic acids, ketones, alcohols, phenols, among other compounds. The acidity of aqueous phase decreases sharply with temperature, as the concentration of ketones in the aqueous phase decreases.

The yields of bio-oil by pyrolysis of activated Açaí seeds at 350, 400, and 450 °C, 1.0 atm, activated with 2.0 M HCl, in laboratory scale, decrease with increasing temperature, showing that activation of Açaí seeds with 2.0 M HCl do not favor the thermo-chemical transformation of biomass into bio-oil. In addition, it has not been identified the presence of hydrocarbons in bio-oil, only oxygenates, proving that acid (HCl) pre-treatment of Açaí seeds did not enhance the yield of bio-oil oil nor favors the formation of hydrocarbons in bio-oil.
