On Nonlinear Dynamic Characteristics of Peak-Current-Mode Controlled DC–DC Boost Converters with Fractional-Order Output Filtering Capacitor

2. Piecewise Smooth Fractional-Order Model of PCMC DC-DC Boost Converters

2.1. Circuit configuration

It is a fast and cost effective option to use power management chip to control dc-dc converters in application. In this work, we use a type-UC3842 power management chip, which is a fixed frequency current-mode controllers [21], its internal structure is as depicted in Figure 1.

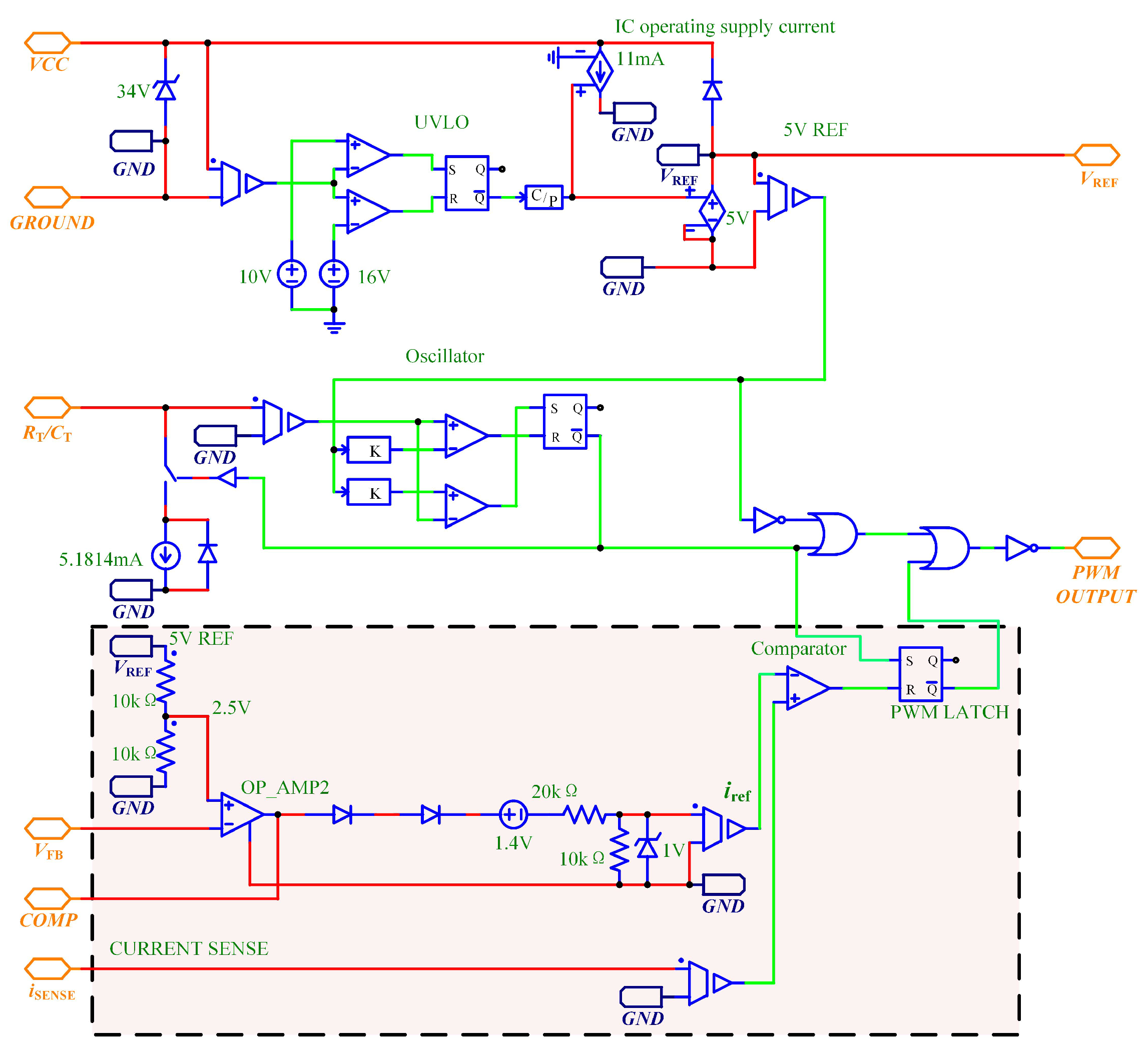

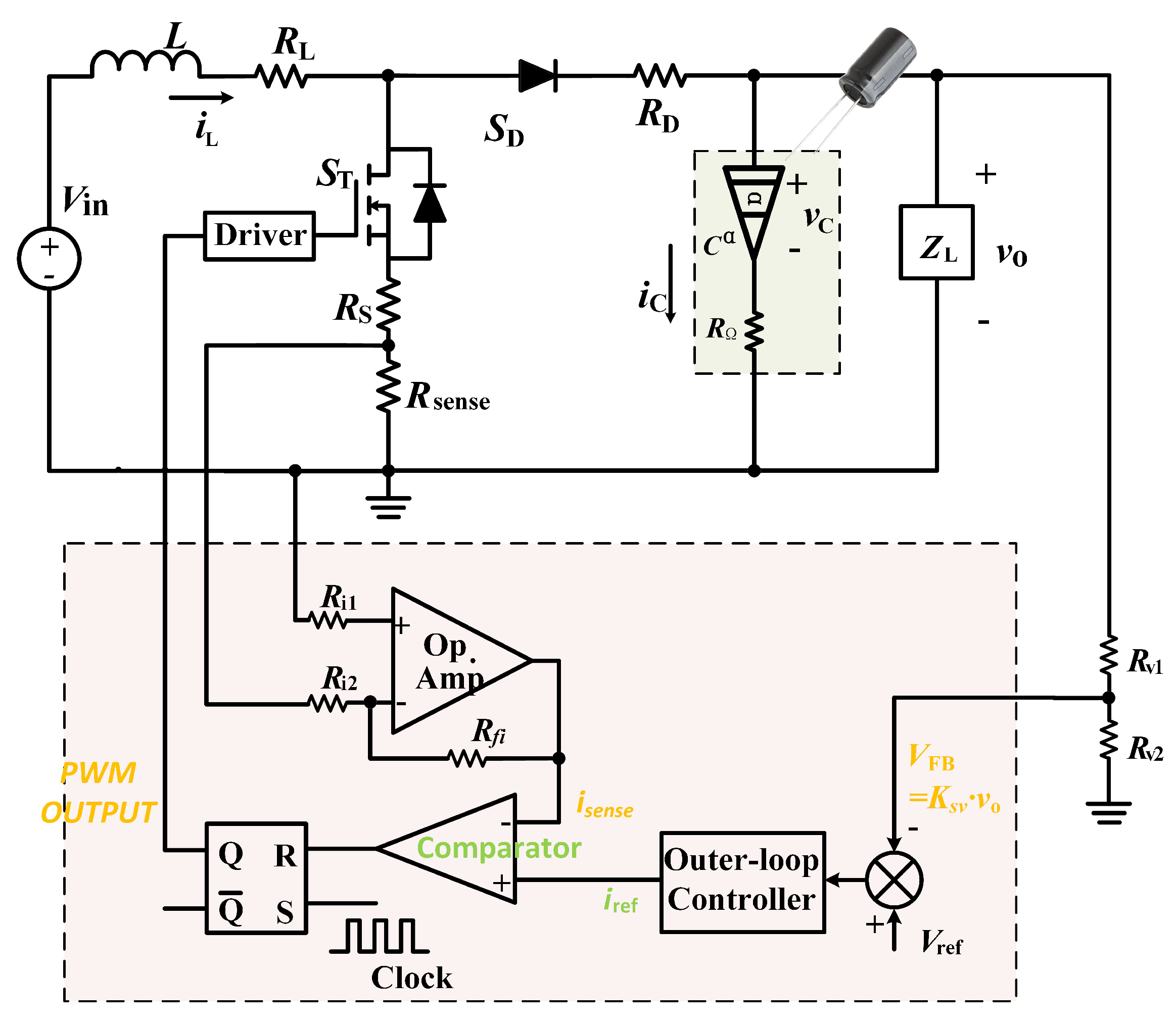

By adopting this chip to a dc-dc boost converter, one can achieve a PCMC design, the schematic diagram of which is depicted in Figure 2.

Note that the output filtering capacitor in Figure 2 is a non-solid electrolytic capacitor. According to a previous work [23], the capacitance and the equivalent series resistance of the capacitor have frequency-related fractional-order characteristics in a wide frequency band. Therefore, we use a fractional-order equivalent impedance model to represent it, where an ideal fractional-order capacitor $C^{\alpha }$ (or constant phase element, CPE) is in series with an estimated equivalent series resistance $R_{\Omega }$. The symbol C is the nominal capacitance of the capacitor and the symbol $\alpha$ is the estimated fractional order of the capacitor.

In addition, note that in both Figure 1 and Figure 2, the two boxes with red background correspond to the same function module. Specifically, there are the same output voltage current sensing unit, inductor current sensing unit, the inner curent loop controller, and the outer voltage loop controller. The inner current loop usually includes an inductor current sensing resistor $R_{sense}$, and a proportional sampling unit is used to sample the inductor current $i_L$. The $V_{FB}$ pin of the UC3842 chip is connected to a voltage divider composed by two resistors $R_{v1}$ and $R_{v2}$, which is used to sample the output voltage $v_o$. The outer-loop controller can be achieved by configuring the circuit between the $V_{FB}$ pin and the $COMP$ pin of the chip. For example, if one wants to used a typical PI controller in the outer loop, then one can configure the above two pins of the operational amplifier $O{P}_{AMP2}$ as follows.

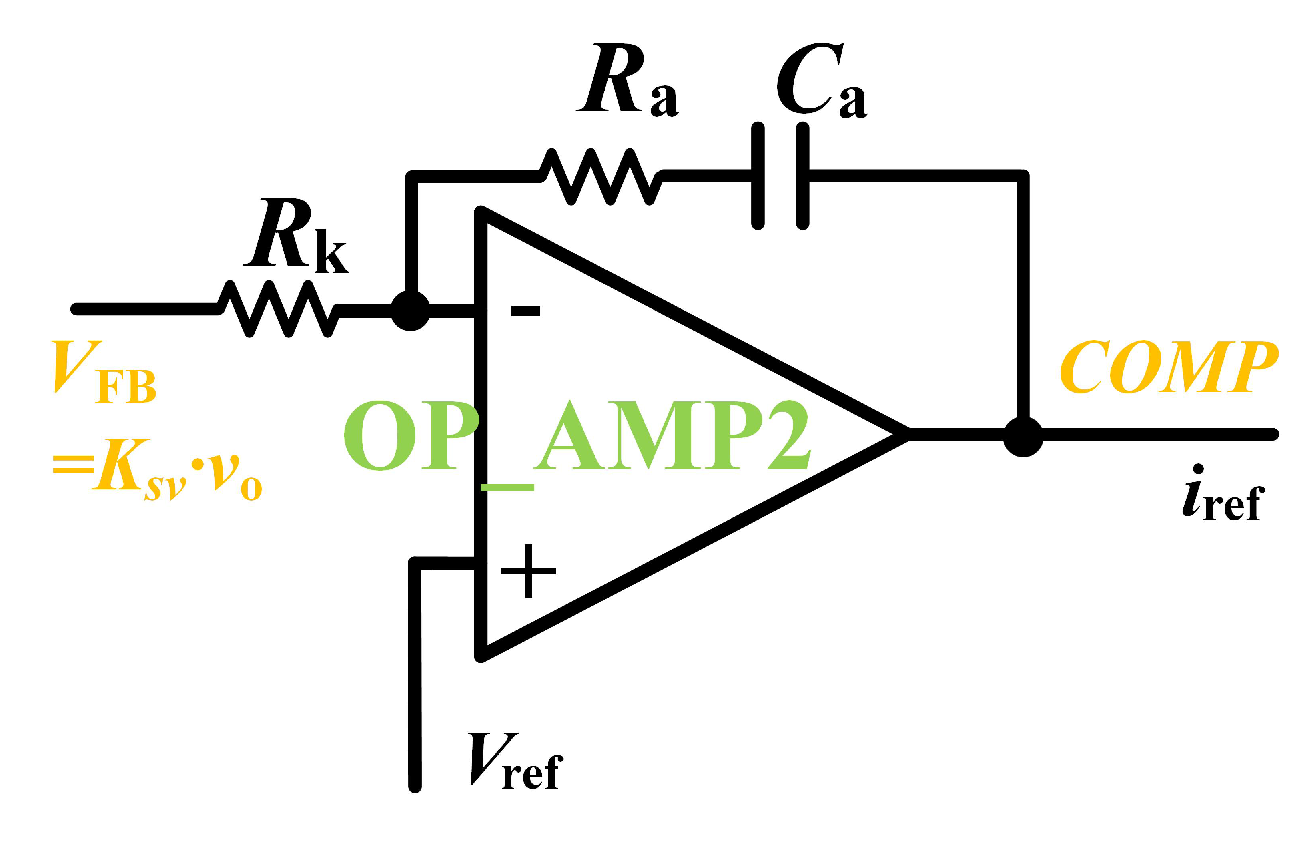

According to the above Figure 3, one can deduce the the output of the outer voltage loop, or the reference signal $i_{ref}$ of the inner current loop, as follows.

$$\begin{array}{cc}{i}_{ref}\left(t\right)\hfill & =V_{ref}-R_a{C}_a{\displaystyle \frac{d{v}_a\left(t\right)}{dt}}-v_a\left(t\right)\hfill \\ \hfill & =(1+{\displaystyle \frac{R_a}{R_k}})V_{ref}-{\displaystyle \frac{R_a}{R_k}}{K}_{sv}{v}_o\left(t\right)+{\displaystyle \frac{1}{R_k{C}_a}}\int [V_{ref}-K_{sv}{v}_o\left(t\right)]dt,\hfill \end{array}$$

(1)

If one uses a typical proportional controller for the outer voltage loop, then the the output of the outer voltage loop, or the reference signal $i_{ref}$ of the inner current loop, will be as follows.

$$\begin{array}{c}{i}_{ref}\left(t\right)=(1+{\displaystyle \frac{R_a}{R_k}})V_{ref}-{\displaystyle \frac{R_a}{R_k}}{K}_{sv}{v}_o\left(t\right).\hfill \end{array}$$

(2)

in which the symbol $K_{sv}$ is the sampling ratio for the output voltage $v_o$, the value of which is determined by $R_{v2}/(R_{v1}+R_{v2})$. In addition, one can obtain the values of the proportional and integral coefficients $K_{vp}$ and $K_{vi}$ are $R_a/R_k$ and $1/\left(R_k{C}_a\right)$, respectively.

Meanwhile, the sampling current $i_{sense}$ is:

$$i_{sense}\left(t\right)=K_{si}{i}_L\left(t\right),$$

(3)

in which the symbol $K_{si}$ is the sampling ratio for the inductor current $iL$, the value of which is determined by $R_{sense}$, $R_f$, $R_{i1}$, and $R_{i2}$.

According to the schematic and the working principle, the output of the outer voltage loop is employed as the reference signal $i_{ref}$ of the inner current loop. The comparison result of two signals $i_{sense}$ and $i_{ref}$ is sent to an R-S trigger, the output of which is fed to two driving circuits to control the turn-on and off state of two power MOSFETs $S_T$ and $S_D$.

2.2. Fractional-order piecewiese smooth model

Because of the turn-on and turn-off operations of power MOSFETs $S_T$ and $S_D$, the converter is a typical piecewise smooth dynamic system. If one uses a proportional controller for the outer loop, and takes the inductor current $i_L$ and the voltage $v_C$ of the CPE as state variables, the converter will have a state vector of $\mathbf{x}\left(\mathbf{t}\right)={[i_L\left(t\right),v_C\left(t\right)]}^{Tr}$, and the switching modes of the converter can be governed by:

• Switching mode 1: When the power MOSFETs $S_T$ is on and $S_D$ is off, the state of the converter can be governed by:

  $$\left\{\begin{array}{c}{\displaystyle \frac{d{i}_L\left(t\right)}{dt}}={\displaystyle \frac{V_{in}}{L}}-{\displaystyle \frac{R_{sense}+R_L+R_S}{L}}{i}_L\left(t\right)\hfill \\ {\displaystyle \frac{d^{\alpha }{v}_C\left(t\right)}{d{t}^{\alpha }}}=-{\displaystyle \frac{1}{(R_o+R_{\Omega })C}}{v}_C\left(t\right).\hfill \end{array}\right.$$

  (4)
• Switching mode 2: When the power MOSFETs $S_T$ is off, $S_D$ is on, and the inductor current is not 0, the state of the converter can be governed by:

  $$\left\{\begin{array}{c}{\displaystyle \frac{d{i}_L\left(t\right)}{dt}}={\displaystyle \frac{V_{in}}{L}}-{\displaystyle \frac{R_L+R_D}{L}}{i}_L\left(t\right)-{\displaystyle \frac{R_o{R}_{\Omega }}{(R_o+R_{\Omega })L}}{i}_L\left(t\right)-{\displaystyle \frac{R_o}{(R_o+R_{\Omega })L}}{v}_C\left(t\right)\hfill \\ {\displaystyle \frac{d^{\alpha }{v}_C\left(t\right)}{d{t}^{\alpha }}}={\displaystyle \frac{R_o}{(R_o+R_{\Omega })C}}{i}_L\left(t\right)-{\displaystyle \frac{1}{(R_o+R_{\Omega })C}}{v}_C\left(t\right).\hfill \end{array}\right.$$

  (5)
• Switching mode 3: When the power MOSFETs $S_T$ is off, $S_D$ is on, and the inductor current is 0, the state of the converter can be governed by:

  $$\left\{\begin{array}{c}{\displaystyle \frac{d{i}_L\left(t\right)}{dt}}=0\hfill \\ {\displaystyle \frac{d^{\alpha }{v}_C\left(t\right)}{d{t}^{\alpha }}}=-{\displaystyle \frac{1}{(R_o+R_{\Omega })C}}{v}_C\left(t\right).\hfill \end{array}\right.$$

  (6)

According to the internal structure of Figure 1 and the schematic of Figure 2, when the output of the outer voltage loop is less than $1V$, the switching condition of switching modes 1 and 2 is:

$$\begin{array}{cc}s\left(t\right)\hfill & =i_{ref}\left(t\right)-i_{sense}\left(t\right)\hfill \\ \hfill & ={\displaystyle \frac{1}{3}}\left[(1+{\displaystyle \frac{R_a}{R_k}})V_{ref}-{\displaystyle \frac{R_a}{R_k}}{K}_{sv}{v}_o\left(t\right)-1.4\right]-K_{si}{i}_L\left(t\right),\hfill \end{array}$$

(7)

in which the term $1.4$ corresponds to the forward voltage of two series diodes, which are in series with the output of the voltage controller. In addition, the coefficient $1/3$ comes from the voltage divider of two resistors $20k\Omega$ and $10k\Omega$, which are in series with the two diodes. These details can be found in Figure 1.

When the output of the outer voltage loop is not less than $1V$, the reference signal $i_{ref}\left(t\right)$ will be clamped at $1V$, and the switching condition of switching modes 1 and 2 will be:

$$s\left(t\right)=1-K_{si}{i}_L\left(t\right).$$

(8)

At the switching-mode transition time $t_s$, the condition of $i_{ref}\left(t_s\right)=i_{sense}\left(t_s\right)$ is satisfied, thus one can obtain the duty cycle $d\left(t\right)$. In steady state, if the converter works in the current continuous mode (CCM), that is, the current does not drop to 0 at the end of switching mode 2, the converter switches between switching modes 1 and 2 periodically.

3. Time-Domain Analysis

To reveal the time-domain performances and nonlinear dynamic characteristics of the PCMC DC-DC boost converter, the state equations 4 to equations 6 should be calculated, which are all fractional-order ordinary differential equations (FO-ODEs). Basically, these FO-ODEs can be generalized by the following following initial value problem (IVP)

$$\begin{array}{cc}\hfill & D_{*}^q\mathbf{x}=f\left(\mathbf{x}\right),\hfill \\ \hfill & \mathbf{x}\left(\mathbf{0}\right)={\mathbf{x}}_{\mathbf{0}},\hfill \end{array}$$

(9)

in which the term $q={[1,\alpha ]}^{Tr}$ is the non-commensurate order vector, the function $f:{\mathbb{R}}^n\to {\mathbb{R}}^n$, and the operator $D_{*}^q$ is the differential operator of order q.

3.1. Preliminaries: Principles of Some Related Techniques

To solve the above IVP, this section introduces the principle of fractional Adams-Bashforth-Moulton typed method (F-ABM), and applies the stroboscopic map technique to cope with piecewise smooth situations.

3.1.1. F-ABM calculation method

In case of $-1\le \alpha \le 1$, according to the definition of F-ABM method [23], the IVP of the fractional-order system of Equation 9 can be determined by:

$$\begin{array}{cc}x(n+1)=x\left(0\right)\hfill & +{\displaystyle \frac{h^{\alpha }}{\Gamma (2+\alpha )}}f\left[t_{n+1},x^P(n+1)\right]\hfill \\ \hfill & +{\displaystyle \frac{h^{\alpha }}{\Gamma (2+\alpha )}}\sum _{j=0}^n{A}_{j,n+1}f\left[t_j,x\left(j\right)\right],\hfill \end{array}$$

(10)

where the term n is any integer and $A_{j,n+1}$ is

$$A_{j,n+1}=\left\{\begin{array}{cc}\hfill & =n^{\alpha +1}-(n-\alpha ){(n+1)}^{\alpha },j=0\hfill \\ \hfill & ={(n-j+2)}^{\alpha +1}+{(n-j)}^{\alpha +1}\hfill \\ \hfill & -2{(n-j+1)}^{\alpha +1},1\le j\le n\hfill \\ \hfill & =1,j=n+1\hfill \end{array}\right.$$

(11)

The predictor $x^P(n+1)$ in Equation 9 is

$$x^P(n+1)=x_0+{\displaystyle \frac{1}{\Gamma \left(\alpha \right)}}\sum _{j=0}^n{B}_{j,n+1}f\left[t_j,x\left(j\right)\right],$$

(12)

in which the term $B_{j,n+1}$ is

$$B_{j,n+1}={\displaystyle \frac{h^{\alpha }}{\alpha }}\left[{(n+1-j)}^{\alpha }-{(n-j)}^{\alpha }\right].$$

(13)

Note that, the term h in equation 10 and equation 13 is a predetermined step size, the value of which is defined according to the switching period $T_s$ of the converter. In this work, we will set the step size to $1/100$ of the switching period $T_s$, which satisfies the Nyquist sampling theorem.

3.1.2. Stroboscopic map technique

As introduced in section 1.2, the state of the converter cycles between switching mode 1 and switching mode 2 in each switching period in CCM. Along with the on- and off operations of power MOSFETs $S_T$ and $S_D$, there are a set of discontinuous points. Accordingly, a technique called stroboscopic map should be employed in calculations. This technique has been widely adopted in the dynamic analysis of piecewise-smooth systems and switching power converters. The principle of stroboscopic map technique is depicted in Figure 4.

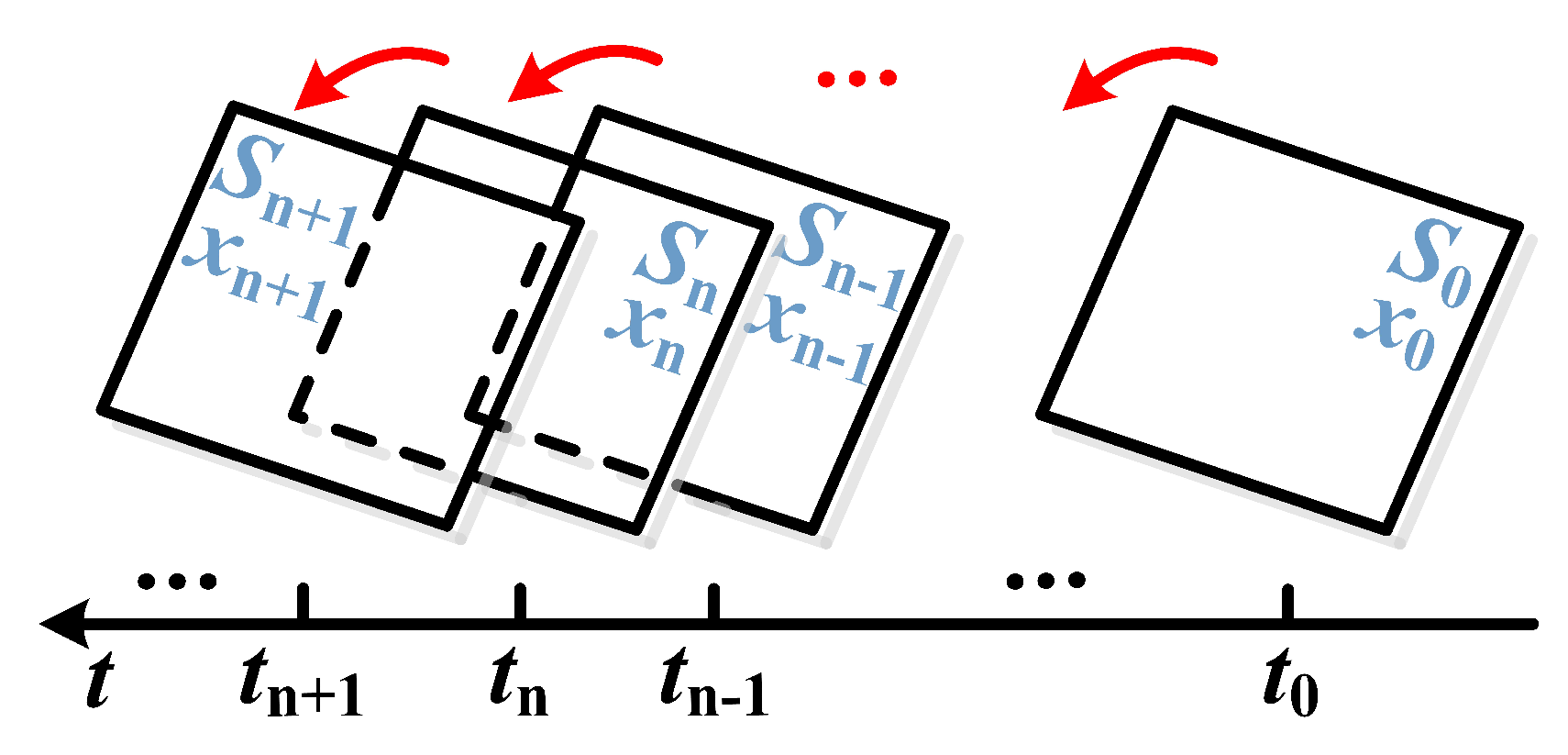

By this technique, the dynamic behavior of the converter at each switching mode $S_n$ will be collected in one switching cycle, that is, the solution ${\mathbf{x}}_{\mathbf{n}}$ of the previous switching mode at time $t_n$ will be employed as the initial value of the next switching mode, thus a cycle-by-cycle calculation can be carried out.

3.2. Bifurcation analysis

According to the discrete form of the obtained fractional-order piecewise smooth model, one can carry out the cycle-by-cycle numerical simulation for the converter in Figure 1. In simulation, the parameters are as Table 1.

Note that in the above table, the fractional order $\alpha$ and the ESR $R_{\Omega }$ of the output filtering capacitor are obtained by using a LCR meter and the parameter estimation method developed in [21]. According to Table 1, the sampling ratio $K_{si}$ of inductor current equals to $R_{sense}=0.1~0.68$, the sampling ratio $K_{sv}$ of the output voltage equals to $R_{v2}/(R_{v1}+R_{v2})=0.015~0.5$, and the proportional coefficient $K_{vp}$ of the outer voltage loop controller equals to $R_a/R_k=1~100$.

Then by using the F-ABM method to calculate equation 4 to equation 6, and by sewing up the solutions of these equations end to end by the stroboscopic map technique, one can obtain the bifurcation diagrams of state variables versus different parameters, such as $i_L$ versus power supply $V_{in}$, $i_L$ versus load resistance $R_o$, and $i_L$ versus output voltage divider resistance $R_{v1}$, as depicted in Figure 5.

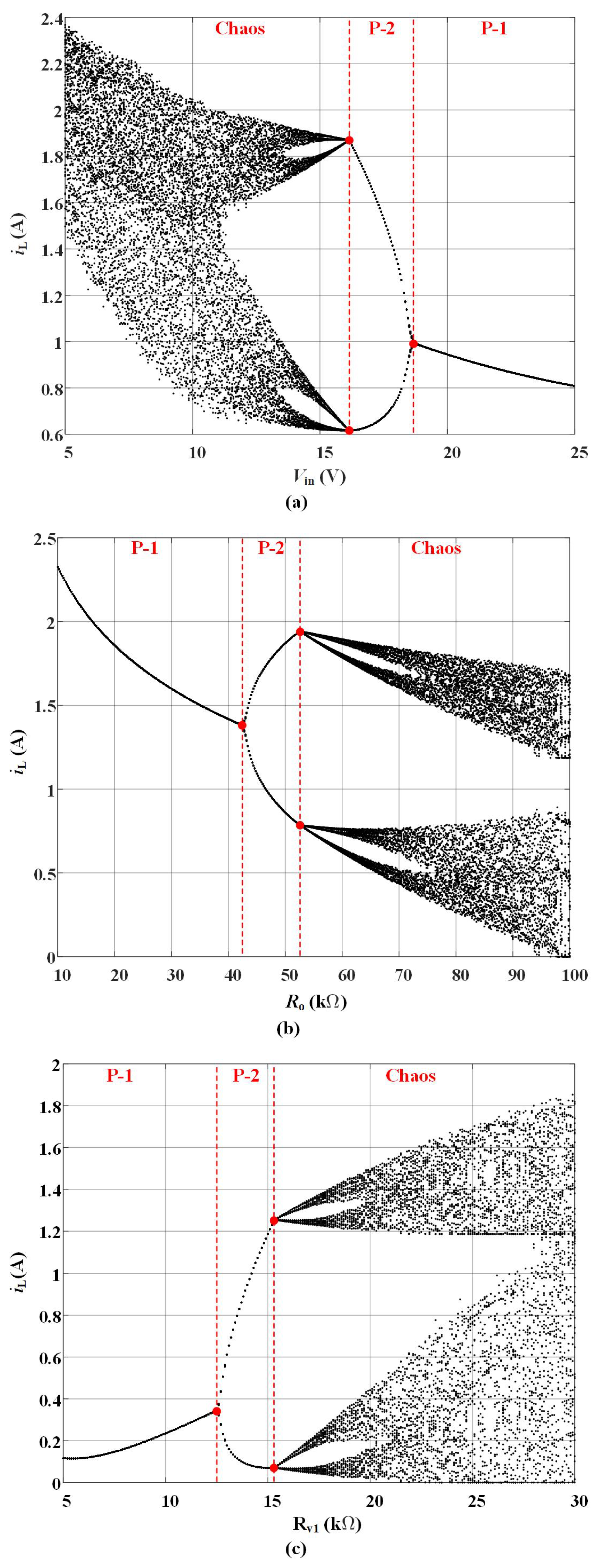

In Figure 5, one can find that, the PCMC dc-dc boost converter enters chaotic state through period-doubling bifurcation in three cases. Specifically, when one set the load resistance $R_o$ to be $60\Omega$, the compensation resistors of voltage loop controller $R_k=7k\Omega$, $R_a=10k\Omega$, the voltage divider resistor $R_{v2}=1k\Omega$, $R_{v1}=25k\Omega$, and other parameters to be as those listed in Table 1, the converter keeps in chaotic state when the power supply is lower than $16V$. Increasing the power supply above this value will lead to the converter enters period-2 (P-2) sub-harmonic oscillation state. After around $V_{in}=18.8V$, the converter will be in period-1 (P-1) stable state. As to the load variation situation, when one set the power supply $V_{in}$ to be $15V$ and other parameters as in the previous case, the converter will be in P-1 stable state when the load resistance $R_o$ is less than $42.6\Omega$. After around $R_o=53\Omega$, the converter enters chaos. In addition in the output-voltage sampling ratio variation situation, when one set the power supply $V_{in}$ to be $15V$, the load resistance $R_o$ to be $100\Omega$, and other parameters as in the previous case, the converter will be in P-1 stable state when the resistance $R_{v1}$ is less than $12.6k\Omega$, and the converter will fall into chaos when the resistance $R_{v1}$ is greater than $15.3k\Omega$.

4. Validation and Comparison

4.1. Circuit-level simulation

In order to validate the results of theoretical analysis, circuit-level simulation is conducted in PSIM software in this section, the schematic of the simulation paltform is as follows:

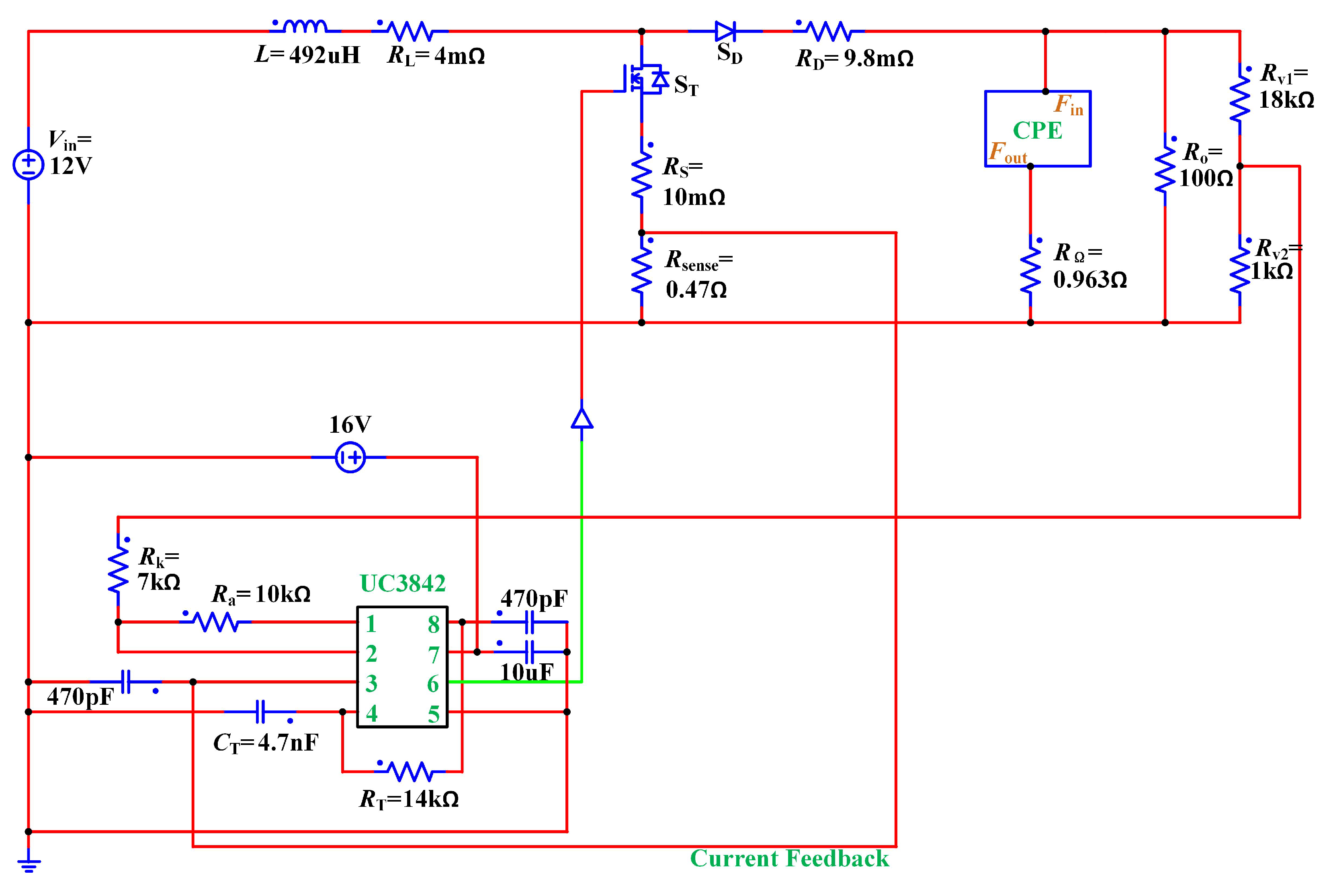

Figure 6. Circuit-level simulation in PSIM software.

Figure 6. Circuit-level simulation in PSIM software.

In the above schematic, the PCMC module UC3842 is actually Figure 1, the CPE module, or an ideal order-$0.9615$ CPE, is constructed based on the rational approximation method, which has been used in a previous work [25]. The details of the rational approximation circuit is as Figure 7, in which the rational approximation circuit of $10/{\left(second\right)}^{1-0.9615}$ CPE contains eight groups of R-C parallel unit. These groups are in series one by one, their vaules are obtained by a frequency-domain approximation method proposed in literature [26,27,28] and the circuit network synthesis method adopted in previous work [25,29], in which we set the approximate phase error is within $1dB$. The detailed values of the CPE is listed in Table 2.

By using the values of $R_i$ and $C_i$ listed in the above table, one can plot the Bode diagrams of the constructed CPE, as dipicted in Figure 8, in which the black solid lines represent the ideal order-$0.9615$ CPE and the blue dash curves belong to the devices obtained by rational approximation method and synthesis method.

Additionally, one can obtain the theoretical impedance $Z_i$ and the synthesis impedance $Z_s$ of the $10\mu F/{\left(second\right)}^{1-0.9615}$ capacitor as follows.

$$\left\{\begin{array}{c}{Z}_i\approx 0.0610-1.0072i\hfill \\ Z_s\approx 0.0583-1.0496i,\hfill \end{array}\right.$$

(14)

respectively. And one can find that the errors of the real part and the imaginary part of the two impedance are $4.39\%$ and $4.20\%$, respectively. These error can be reduced by using a lower approximate phase error, but it will lead to an increase in the numbers of $R_i{C}_i$ units in the chain structure, as those discussed in literature [25] and [29]. It can be seen from Figure 8 and Equation 14 that, both the frequency characteristic curves and two impedance values meet well with each other. It means that the constructed CPE can be used in simulation for validation.

Then one can use the constructed order-$0.9615$ CPE in PSIM software to obtain the time-domain results of the PCMC dc-dc boost converter. In the first place, we set the voltage dividing resistor $R_{v1}=10k\Omega$, the time-domain results of circuit-level simulation in PSIM software is as the following Figure 9.

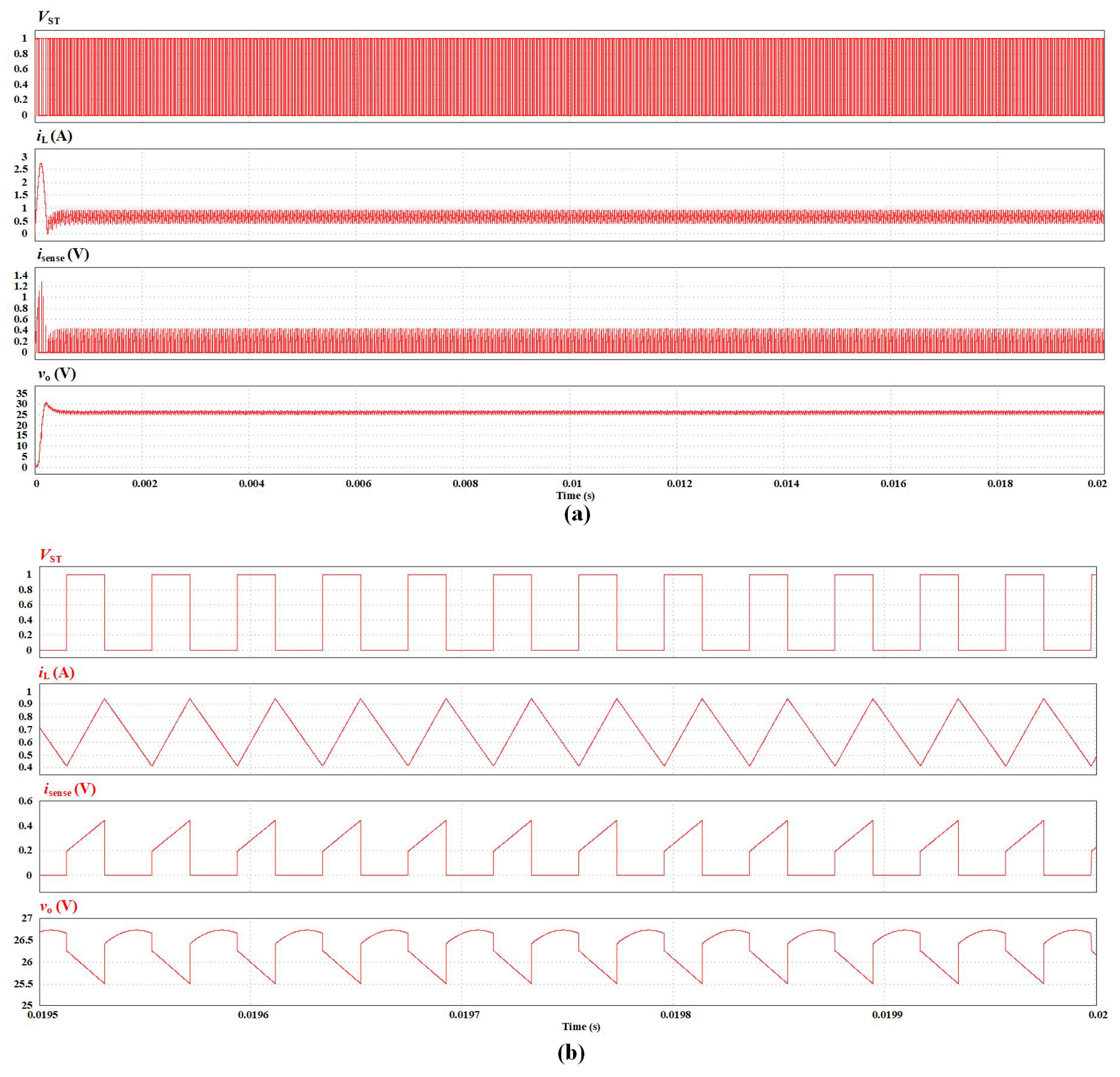

In the figure above, from top to bottom, sub-figures correspond to the G-S voltage of power switch $S_T$, the inductor current $i_L$, the sampling value of the inductor current $i_{sense}$ (which is actually the voltage of $R_{sense}$), and the output voltage $v_o$. One can find that, the PCMC dc-dc boost is in P-1 stable state under the configuration of parameters. The result is consistent with the results of bifurcation diagrams.

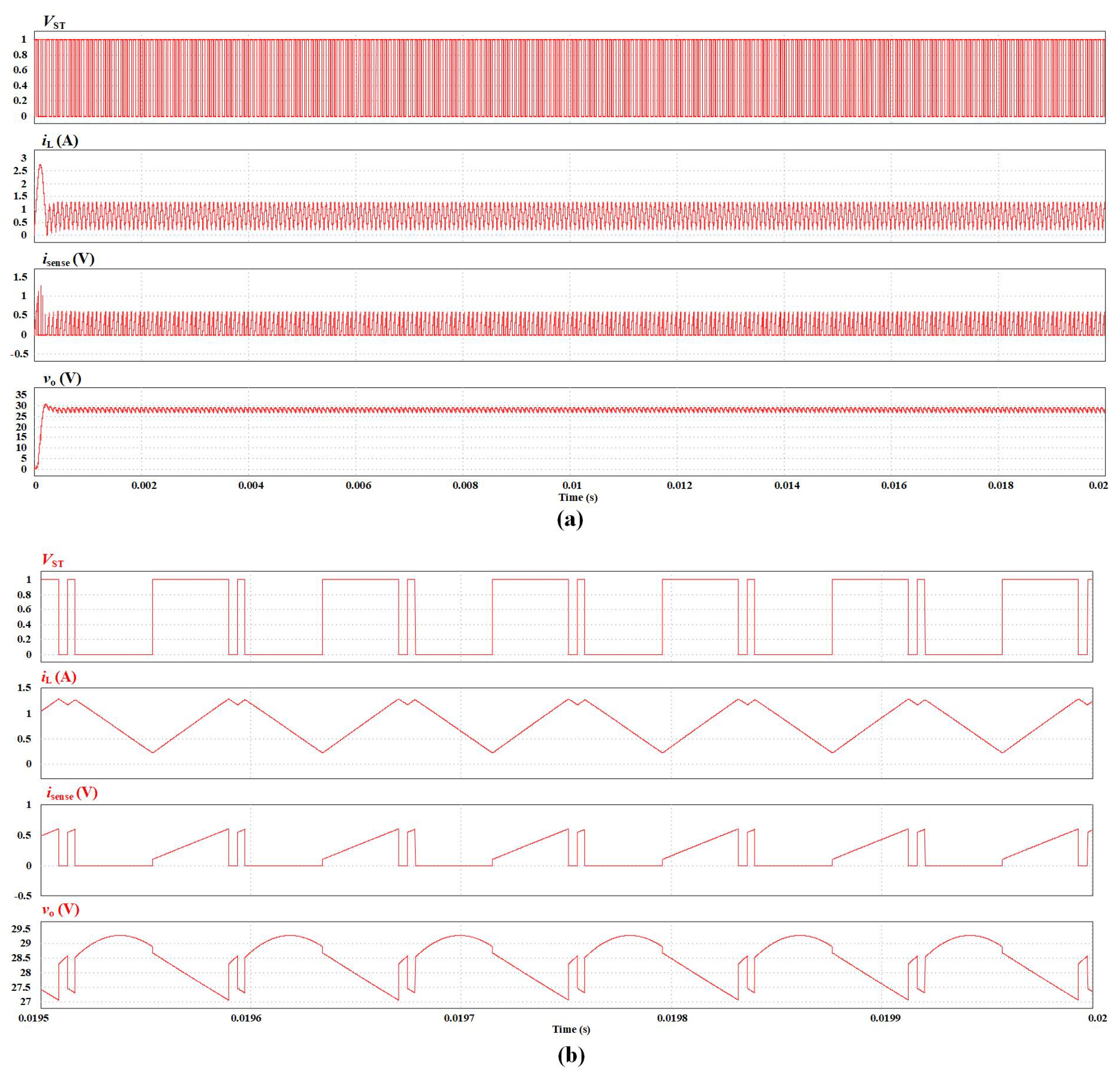

Then, we set the voltage dividing resistor $R_{v1}=12k\Omega$, the time-domain results of circuit-level simulation in PSIM software is as Figure 10.

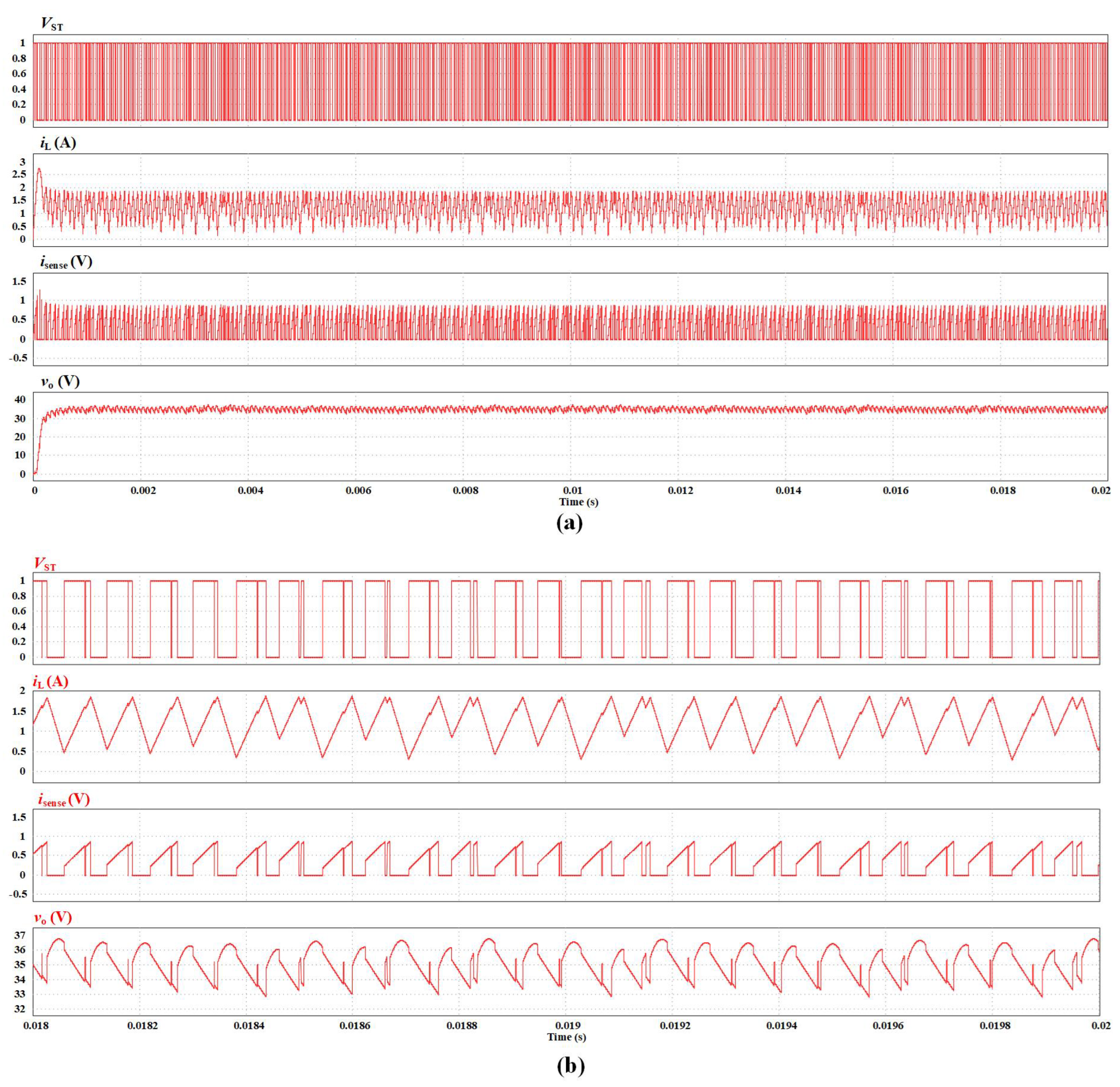

In Figure 10, from top to bottom, sub-figures correspond to the G-S voltage of power switch $S_T$, the inductor current $i_L$, the sampling value of the inductor current $i_{sense}$ (which is actually the voltage of $R_{sense}$), and the output voltage $v_o$. One can find that, the PCMC dc-dc boost is in P-2 sub-harmonic oscillation state under the configuration of parameters. The result is also consistent with the results of bifurcation diagrams.

At last, we set the voltage dividing resistor $R_{v1}=25k\Omega$, the time-domain results of circuit-level simulation in PSIM software is as Figure 11, in which sub-figures correspond to the G-S voltage of power switch $S_T$, the inductor current $i_L$, the sampling value of the inductor current $i_{sense}$ (which is actually the voltage of $R_{sense}$), and the output voltage $v_o$ from top to bottom. One can find that, the PCMC dc-dc boost is in chaotic state under the configuration of parameters. The result is also consistent with the results of bifurcation diagrams.

4.2. Experiments

In order to further validate the results of both theoretical analysis and circuit-level simulation, a simple prototype is established in this work, in which a $10\mu F$ aluminum electrolytic capacitor is adopted as the output filtering capacitor, a type-IRF640B power MOSFET and a type-1N5008 rectifier diode are exploited as $S_T$ and $S_D$ of the converter, and a UC3842 IC is employed to control the dc-dc boost converter. The experiment scene is as follows:

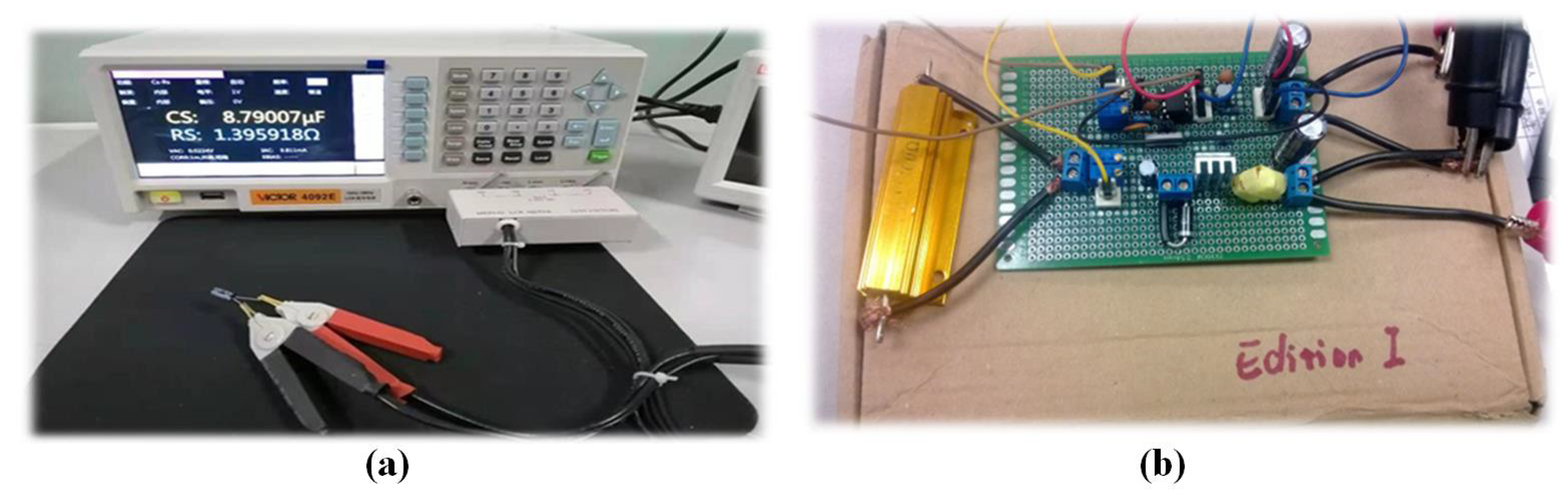

Figure 12. A glimpse of experiment scenes: (a) capacitance measurement scene, (b) experimental prototype.

Figure 12. A glimpse of experiment scenes: (a) capacitance measurement scene, (b) experimental prototype.

By rotating the bar of the type-3296 potentiometer on the circuit board to adjust the voltage dividing ratio, one can observe that the PCMC dc-dc boost converter experiences different nonlinear dynamic states.

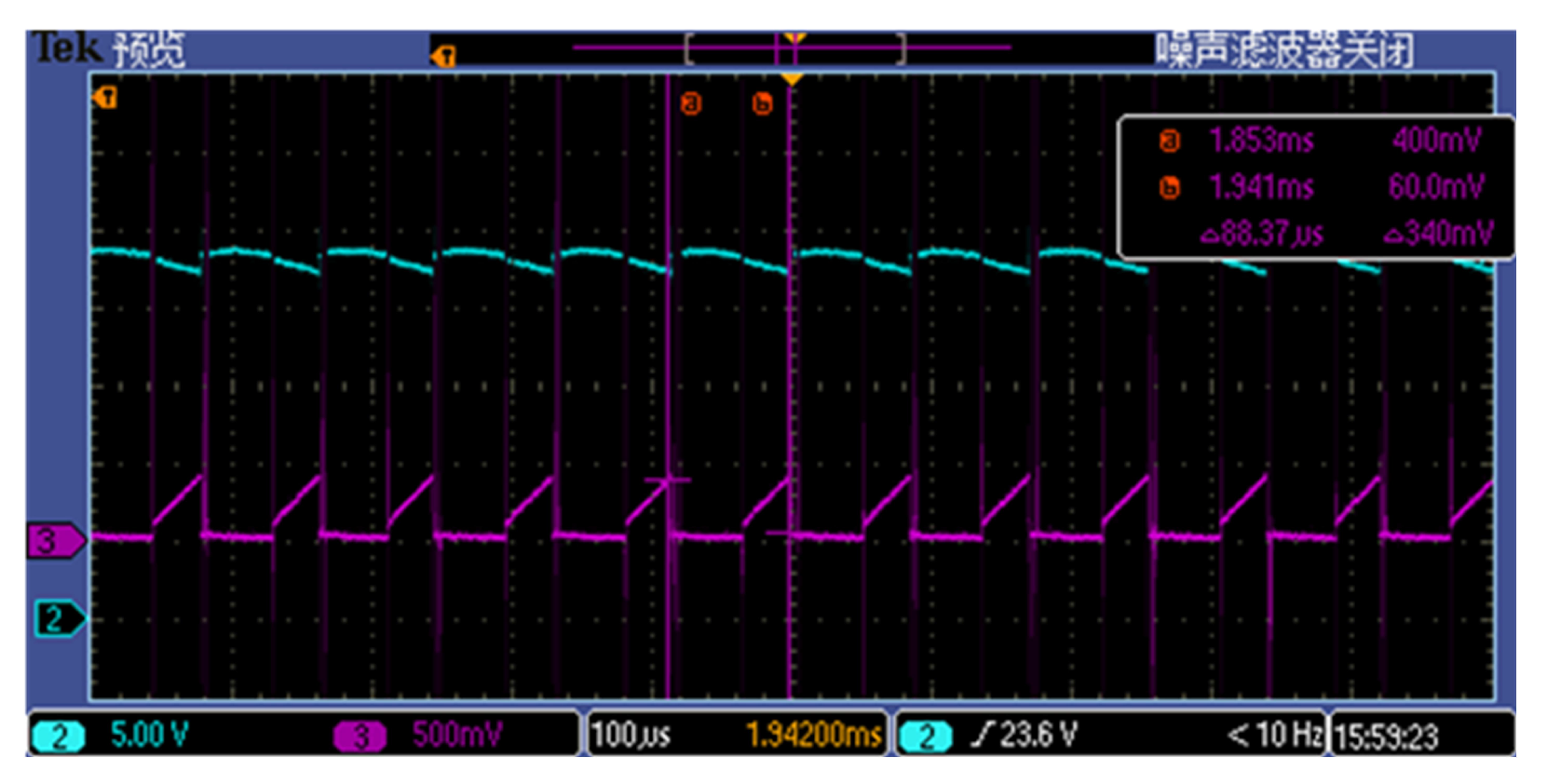

Figure 13. Experiment waveforms of P-1 stable state when the resistance of type-3296 potentiometer is around $1k\Omega$.

Figure 13. Experiment waveforms of P-1 stable state when the resistance of type-3296 potentiometer is around $1k\Omega$.

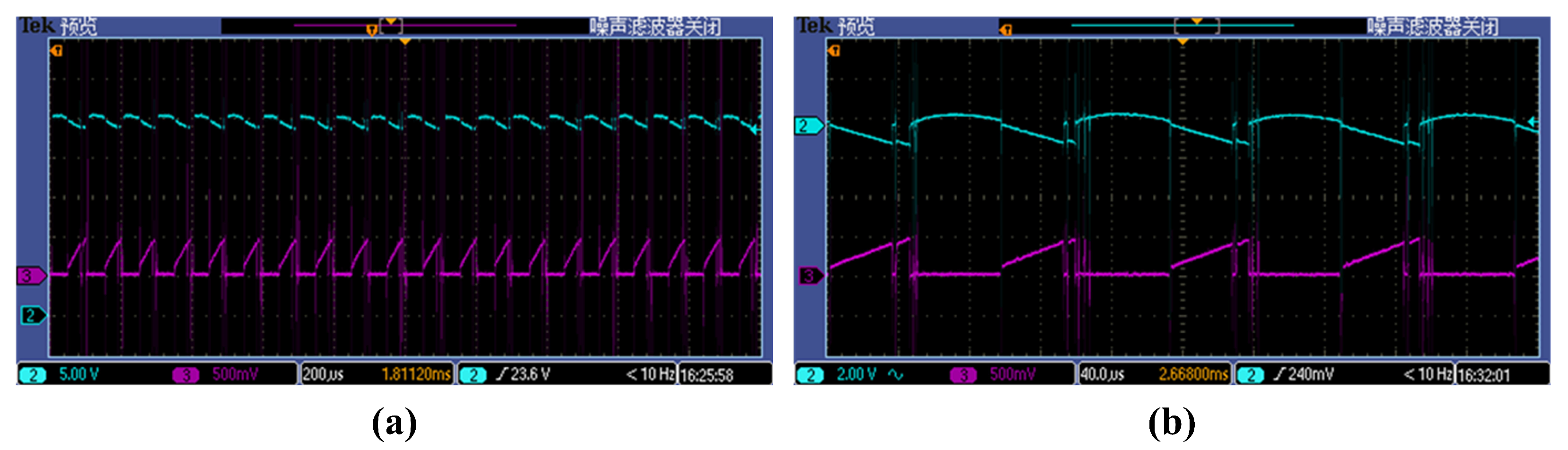

Figure 14. Experiment waveforms of P-2 sub-harmonic oscillation state when the resistance of type-3296 potentiometer is around $1k\Omega$: (a) time-domain waveforms, (b) enlarged peak-to-peak waveforms.

Figure 14. Experiment waveforms of P-2 sub-harmonic oscillation state when the resistance of type-3296 potentiometer is around $1k\Omega$: (a) time-domain waveforms, (b) enlarged peak-to-peak waveforms.

It can be found that experimental waveforms are very similar to the results of circuit-level simulation, and the variation trend is consistent with the results of bifurcation diagrams, which confirm the correctness of theoretical analysis.

5. Conclusions

The concept of fractional-order components and circuit systems has received widespread attention recently. This study appears to be the very few empirical studies on the nonlinear dynamic of real-world fractional-order circuit systems, in which the nonlinear dynamic characteristics of a real-world fractional-order system are objectively measured and evaluated, that is, a PCMC dc-dc boost converter using an aluminum electrolytic capacitor as the output filtering capacitor. Returning to the question posed at the beginning of this paper, it is now possible to state that, the fractional-order piecewise smooth model built in this work can be used for the large-signal stability analysis of the converter, by which one can draw bifurcation diagrams of the converter. The results of bifurcation diagrams emerged as reliable predictors of nonlinear dynamic analysis for the converter, when different parameters change, they can be used to predict the dynamics of the converter. Both circuit-level simulations and experiments have confirmed the correctness of the theoretical analysis. Notwithstanding the relatively limited example, this work offers a reference for the parameter selection and optimal design for power electronic converters which have fractional-order characteristics.

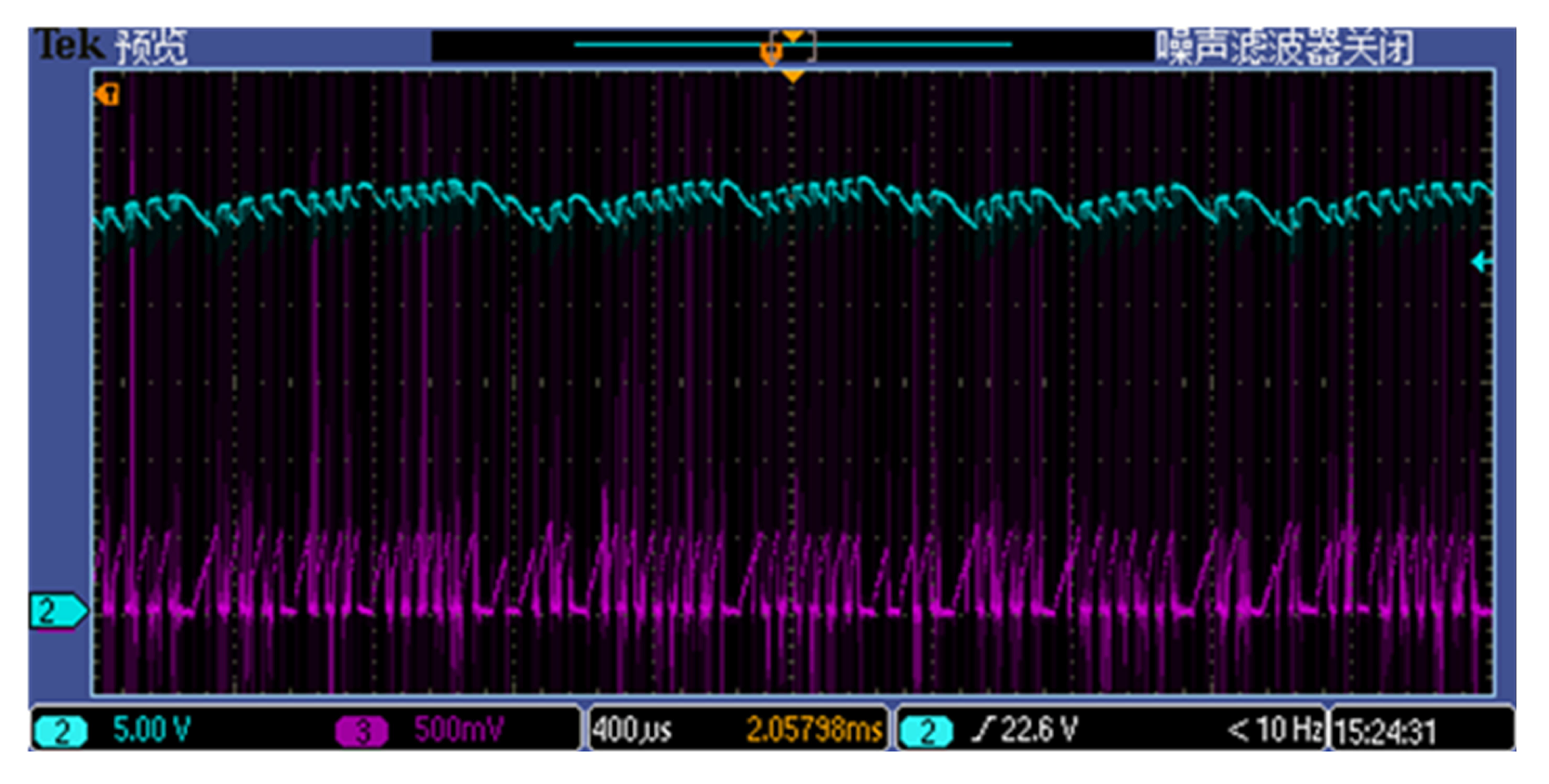

Figure 15. Experiment waveforms of chaotic state when the resistance of type-3296 potentiometer is around $1k\Omega$.

Figure 15. Experiment waveforms of chaotic state when the resistance of type-3296 potentiometer is around $1k\Omega$.
